Product type	Satellite receiver with motorized antenna
Brand	Selfsat
Model	Snipe Dish 85
Dimensions (folded)	110,6 x 86,0 x 18,4 cm
Weight	13,8 kg
Power supply	12 V DC, 50 W (while searching)
Satellite input frequency	10,7 to 12,75 GHz
LNB output frequency	950 to 2150 MHz
Polarization	Vertical and horizontal
Dish size	85 cm
Angle range (EL/AZ)	0° to 145° / 390°
Skew	Manual or automatic (option)
Search time per satellite	180 seconds (average)
Number of preset satellites	16 (12 usable)
DiSEqC supported	DiSEqC 1.1
Number of outputs	1 or 2 (Twin LNB option)
Operating temperature	-20 °C to +60 °C
Protection rating	Not specified in the manual, outdoor use
Main functions	Automatic alignment, STB power detection, energy-saving mode, firmware update via USB
Maintenance and cleaning	No regular maintenance; do not open the enclosures; avoid high-pressure washing
Safety	Automatic parking on contact; visual check before departure
Spare parts and repairability	Intervention reserved for qualified specialist; factory reset possible
General information	Installation on rigid vehicle roof (max 130 km/h); no modification allowed

Frequently Asked Questions - Snipe Dish 85 Selfsat

How to install the Snipe Dish 85 on my campervan?

Installation must be carried out by qualified personnel. Attach the mounting plate to the rigid roof using silicone and M4 screws. Follow the wiring diagram: connect the signal cable to the controller, then to the TV receiver. Ensure the antenna has a clear view to the south.

What to do if the antenna does not find the selected satellite?

Check that no obstacles (trees, buildings) block the signal. Try selecting another satellite then return to yours. If the problem persists, turn the unit off and on.

How to configure DiSEqC 1.1 on the receiver?

Ensure the antenna is in HOME position, then press the DiSEqC button for 2 seconds to activate/deactivate the function. In your TV receiver's menu, assign the satellites in the same order as the Snipe Dish preset list (LNB numbers 1 to 12).

What do the error LED indicators mean?

If the HOME, Lock and DiSEqC LEDs light up simultaneously, an error is present. Refer to the error table: for example, the flashing Turksat LED indicates low battery, Astra 2 a tuner error, etc.

How to perform a software update?

Download the 'GALAXY.BIN' file to a USB stick formatted in FAT32 (no folder). Turn off the unit, plug in the USB stick, then hold the SET button while pressing POWER. The LEDs flash during the update (about 10 seconds).

Can I use the antenna with a Twin LNB for two televisions?

Yes, the Snipe Dish 85 supports an optional twin output (Twin LNB). The second TV will display the same channels as the primary one; it cannot select a different satellite independently.

How to adjust the LNB skew?

For manual adjustment models, rotate the LNB 90° to switch from horizontal to vertical polarization. Adjust gradually while checking signal quality on the TV receiver. For automatic skew models, no adjustment is needed.

What to do if the antenna does not move?

Check cable connections (power, signal, controller). Ensure the battery is charged (12 V). Turn the unit off and on. If the problem persists, contact the dealer.

How to activate energy-saving mode?

Energy-saving mode is automatic: if no button on the controller is pressed for 15 minutes while the antenna is in HOME position, the unit switches off. To reactivate, press POWER.

Can I wash my vehicle at a car wash with the antenna?

No, it is not recommended to use a car wash or high-pressure cleaner with the antenna mounted. In case of storms or strong winds, retract the antenna to HOME position (HOME button).

USER MANUAL Snipe Dish 85 Selfsat

Line drawing of a satellite dish antenna with a small electronic device nearby (no text or symbols)

1. How to assemble 6

2. Connection diagram 12

3. Skew adjustment 13

6. Functional description

6-1. Get ready to use 15
6-2. Searching the satellite 16
6-3. DiSEqC 1.1 setting.... 16

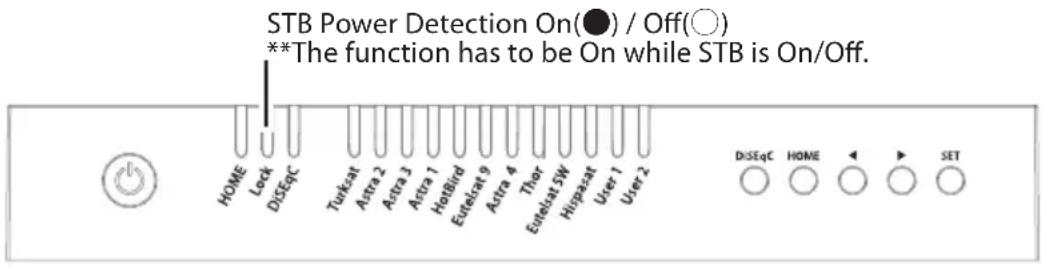

6-4. STB power detection On/Off 17
6-5. Power save mode 17

7. Extra functions

7-1. Error message 18
7-2. Factory reset 18
7-3. Software upgrade 18
7-4. Manual satellite update function 19

1. Trouble shooting 20

9. Specifications

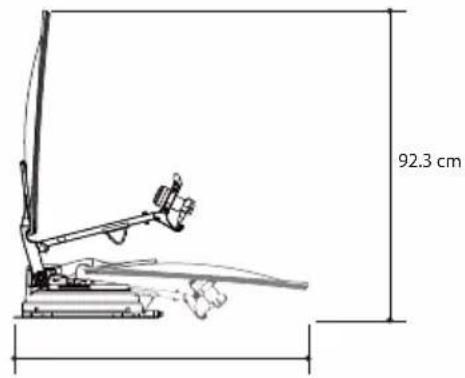

9-1. Dimension 21
9-2. Specifications 21

10. Caravan/Motorhome installation

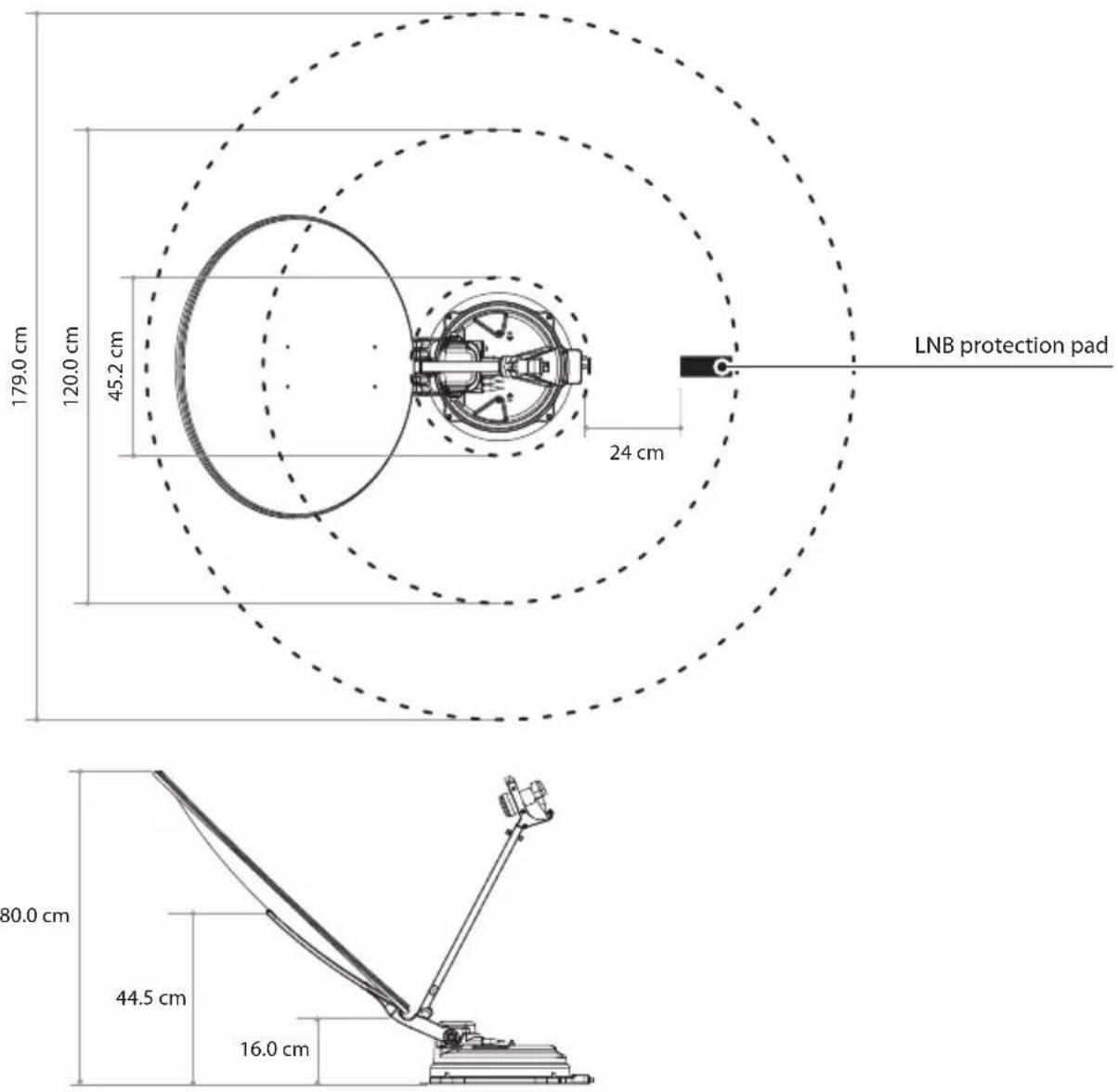

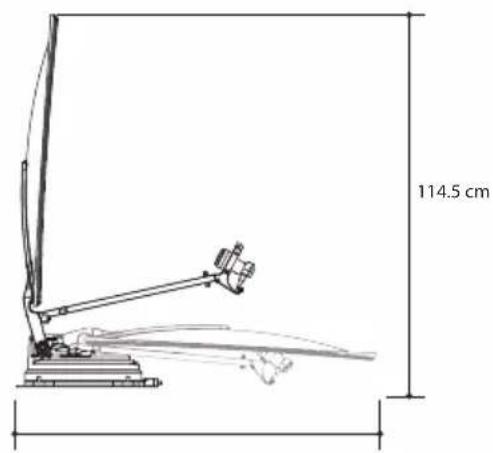

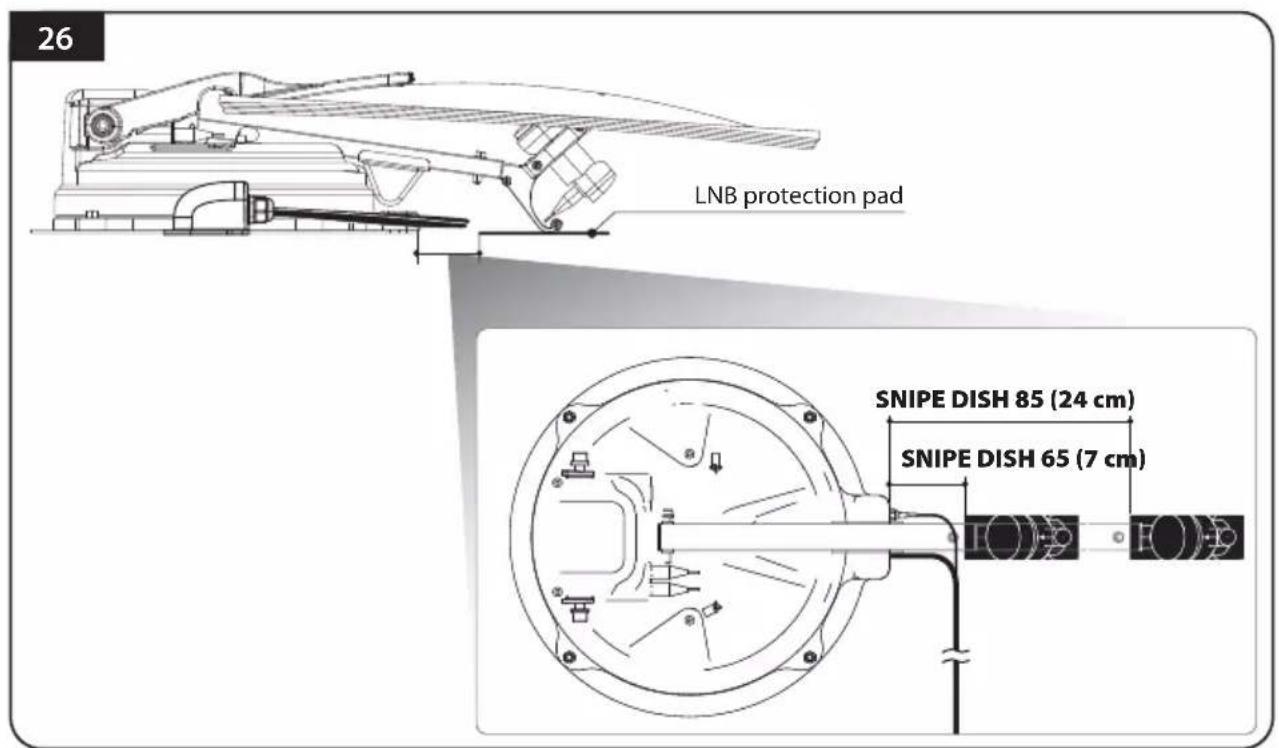

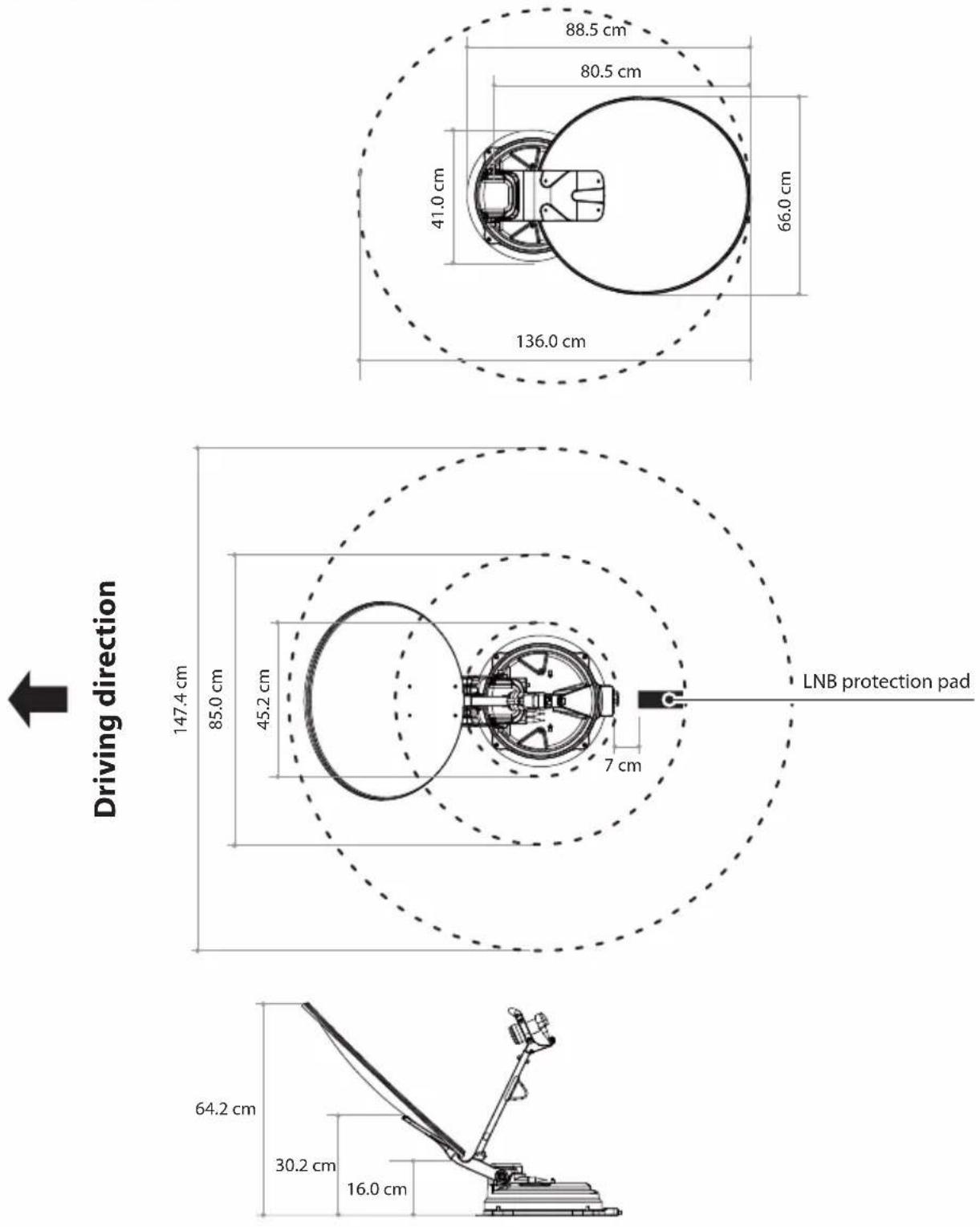

10-1. Required space for the SNIPE DISH 22

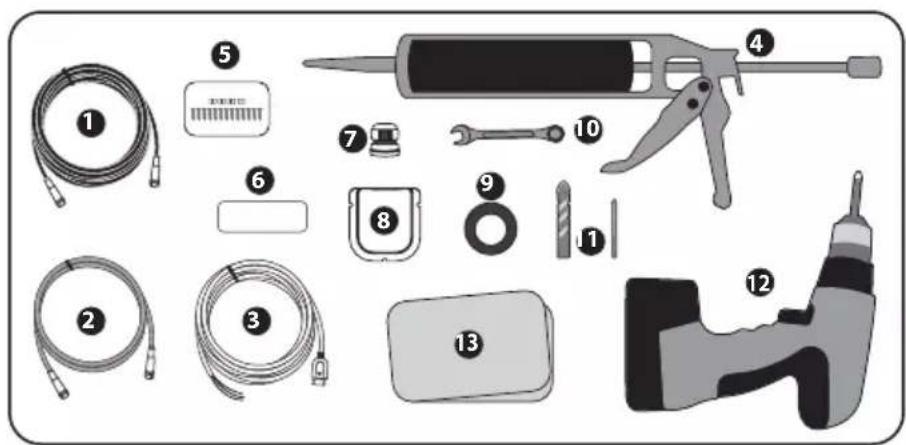

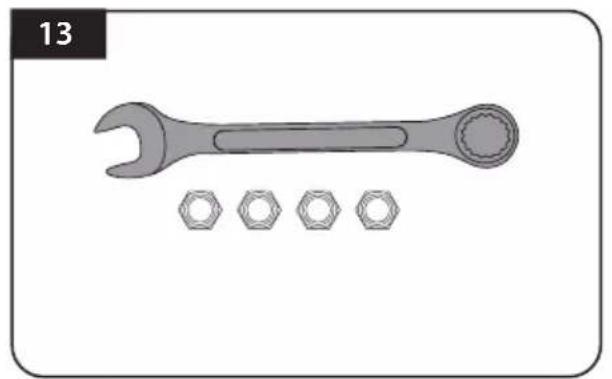

10-2. Equipment for installation 24
10-3. Instruction for installation 24

1. General Information

1-1. Introduction

These instructions describe the functions and operation of the SNIPE DISH satellite system.

Correct and safe operation of the system can only be ensured by following these instructions.

Your SNIPE DISH is an intelligent satellite TV reception antenna system which can align itself towards a preset satellite automatically as long as the system is located within the footprint of the selected satellite.

For general operation, please ensure that the system always has a clear view to the sky. If the satellite's signal beam is interrupted by obstacles such as mountains, buildings or trees, the unit will not function and no TV signal will be received.

1-2. Proper use and operation

This product has been designed for fixed installation on vehicles with maximum speeds of 130 km/h. It is designed to automatically aim an antenna at geostationary television satellites. The power to the system is supplied by a standard vehicle electrical system with a rated voltage of 12 Volts DC.

Use of the equipment for any other purpose to the one specified is not permitted.

Please also note the following instructions from the manufacturer :

• It is not permitted to change the overall device by removing or adding individual components. The use of any other parabolic reflectors or LNBs to those originally installed is not allowed.
• Installation must only be performed by sufficiently qualified personnel. All instructions in the supplied Installation instructions, which is separately provided, must be carefully followed.
• The product does not require any regular maintenance. Housings and enclosures must not be opened. Check and maintenance work should always be carried out by a qualified specialist.
• All of the relevant and approved guidelines of the automotive industry must be observed and complied with.
• The equipment must only be installed on hard vehicle roofs.
• Avoid cleaning your vehicle with the mounted satellite system in a single-bay or drive-through car wash or with a high-pressure cleaner.
• In case of storm or strong winds, bring the antenna down.

1-3. Safety notes

In order to ensure that your SNIPE DISH works properly you must ensure that it is following by the Operating Instructions in this manual and used as intended purpose.

When it is correctly installed, the antenna automatically assumes the rest position when the ignition is switched on and locks itself.

The driver of the vehicle must inspect the antenna unit before driving off to ensure that the antenna is properly stored in safe. Check with your naked eye to see if the antenna is fully folded.

As the user of this equipment, you are responsible for yourself ensuring compliance with the relevant laws and regulations.

The manufacturer does not take liability for direct or indirect consequential damage of the system, motor vehicles or other equipment by reason of unsuitable battery usage or erroneous installation or wrong wire connection.

2. Contents

2-1. Components bundle

Main unit

Truss head M6 × 15 (4), M6 Flat mold washer (4)

Cable clamp (1), Sems1 M4×10 (1) (x2 for Auto skew model) Sems2 M6×55 (1)

Illustration of a rectangular electronic device with a black top and internal circuit lines (no text or symbols visible)

Controller Controller bracket, Rear cable cover

Simple line drawing of a bench with two small objects on either side (no text or symbols)

Rear cable cover

Coiled cable or hose with two connectors, no text or symbols visible

STB cable (3m)

Coiled cable with connectors, no visible text or symbols

Signal cable (7m) (x2 for optional twin outputs)

Coiled cable or hose with a connector, shown in grayscale (no text or symbols visible)

Power input cable

Simple line drawing of a mechanical housing component (no text or symbols)

Cable holder

Simple line drawing of a mechanical connector or fitting (no text or symbols)

Cable gland Mounting plate

Simple oval shape with labeled points (0, 1, 2) inside, no text or symbols present

M4 × 20(13), M8 locking nut(4)

Simple 3D rectangular shape with rounded corners, no text or symbols present

LNB protection pad

Simple geometric shape: a rectangle inside a rounded rectangle (no text or symbols)

User manual

※ Actual components may differ from the above images.

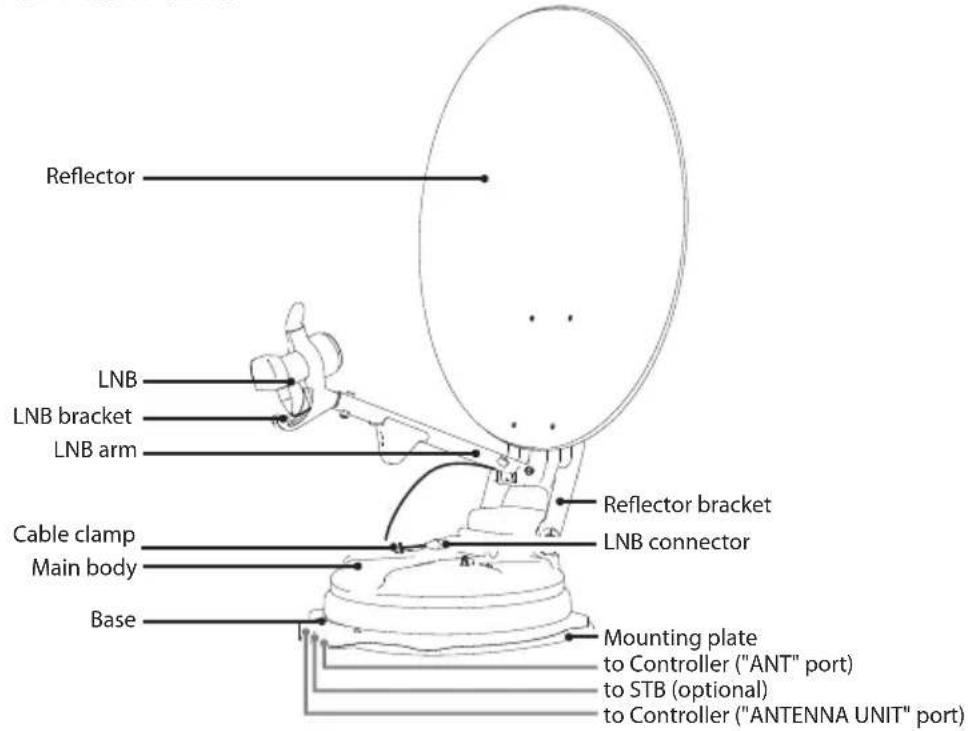

2-2. Name of parts

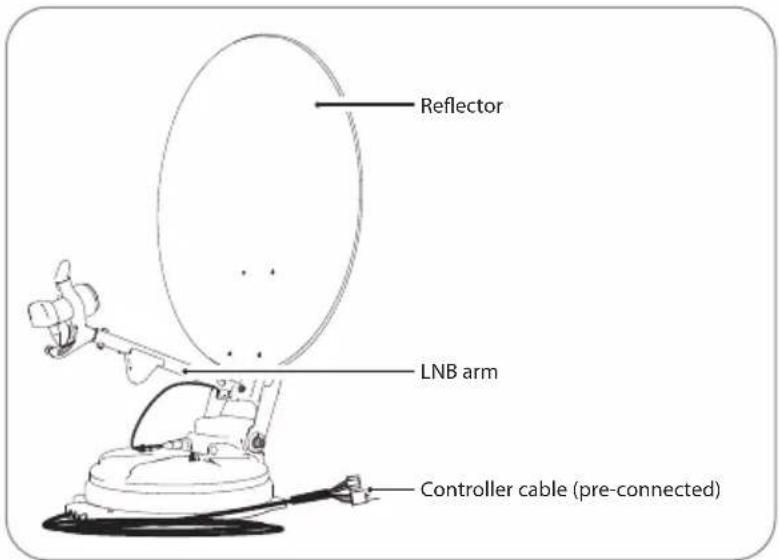

Parts of Main unit

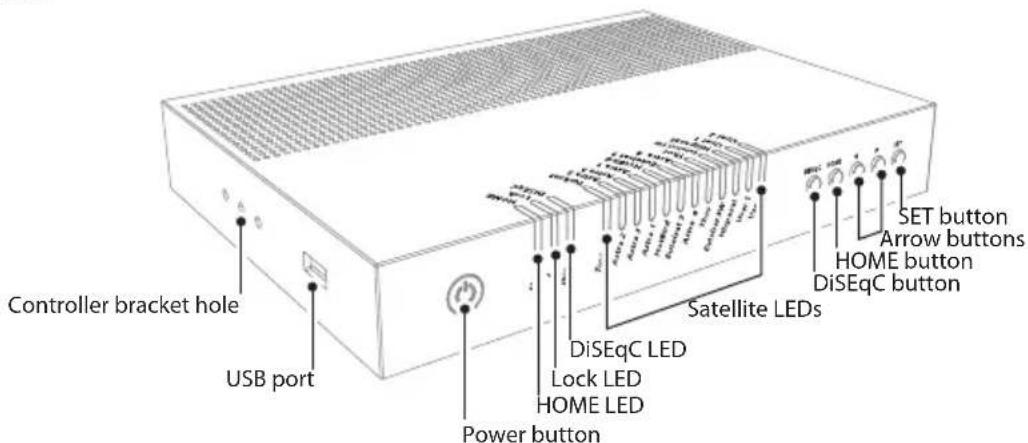

Parts of Controller
- Front

• Back

3. How to assemble

Step 1: Power on the unit and press SET at any satellite
Step 2: When reflector bracket is lifted up to vertical direction (about 90 degrees), turn the unit off

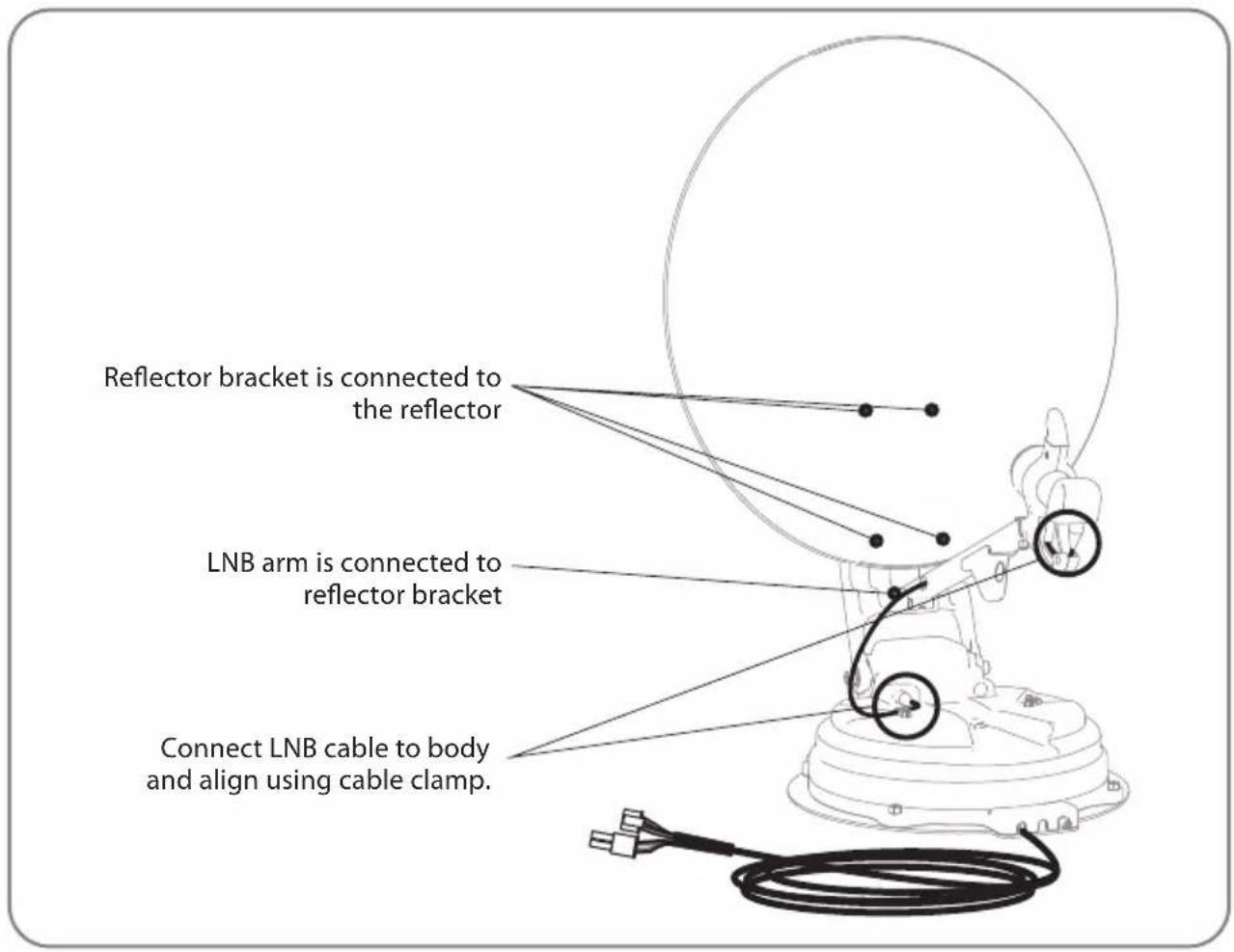

Step 3 : Combine reflector with reflector bracket

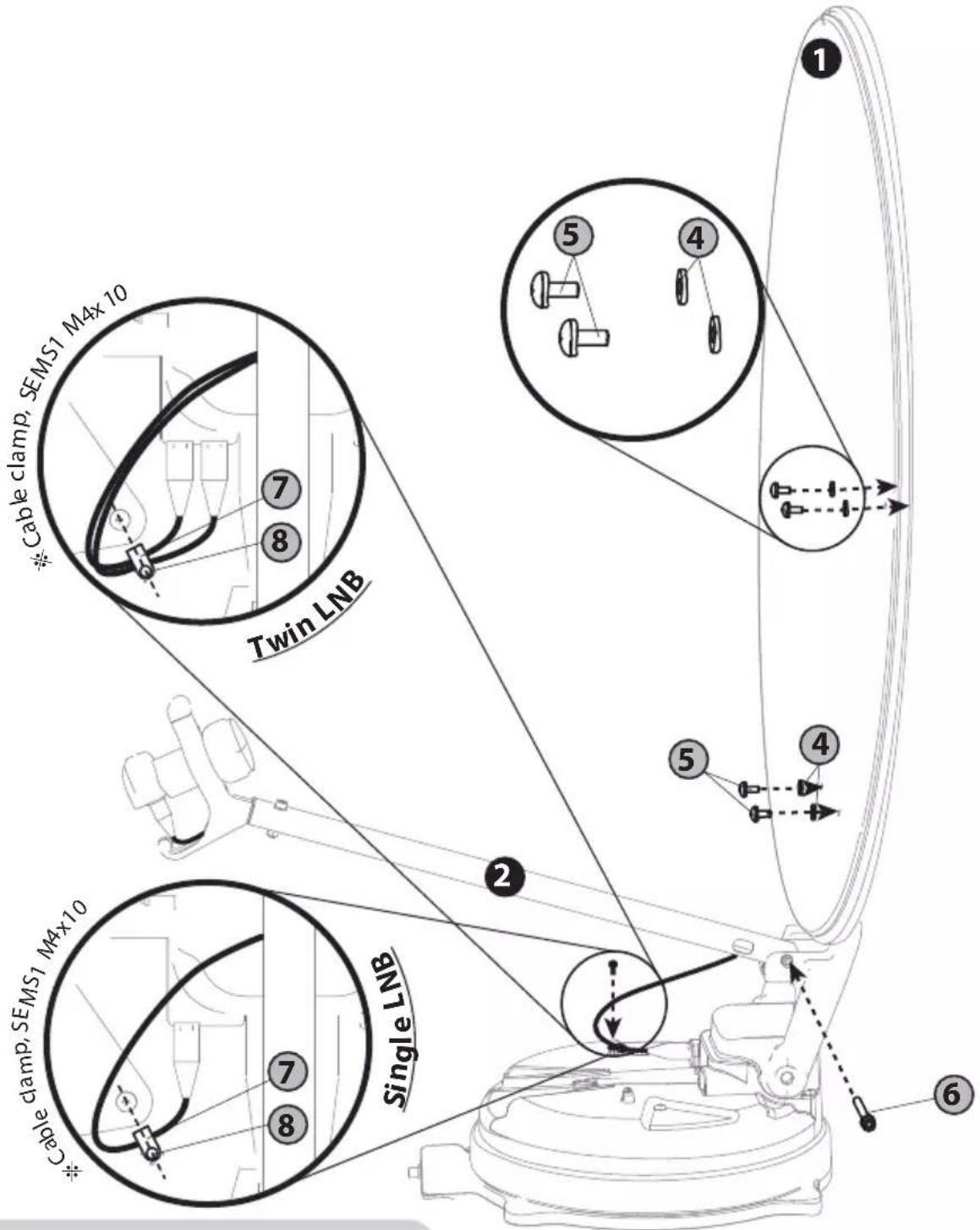

Step 4: Combine LNB arm with reflector bracket

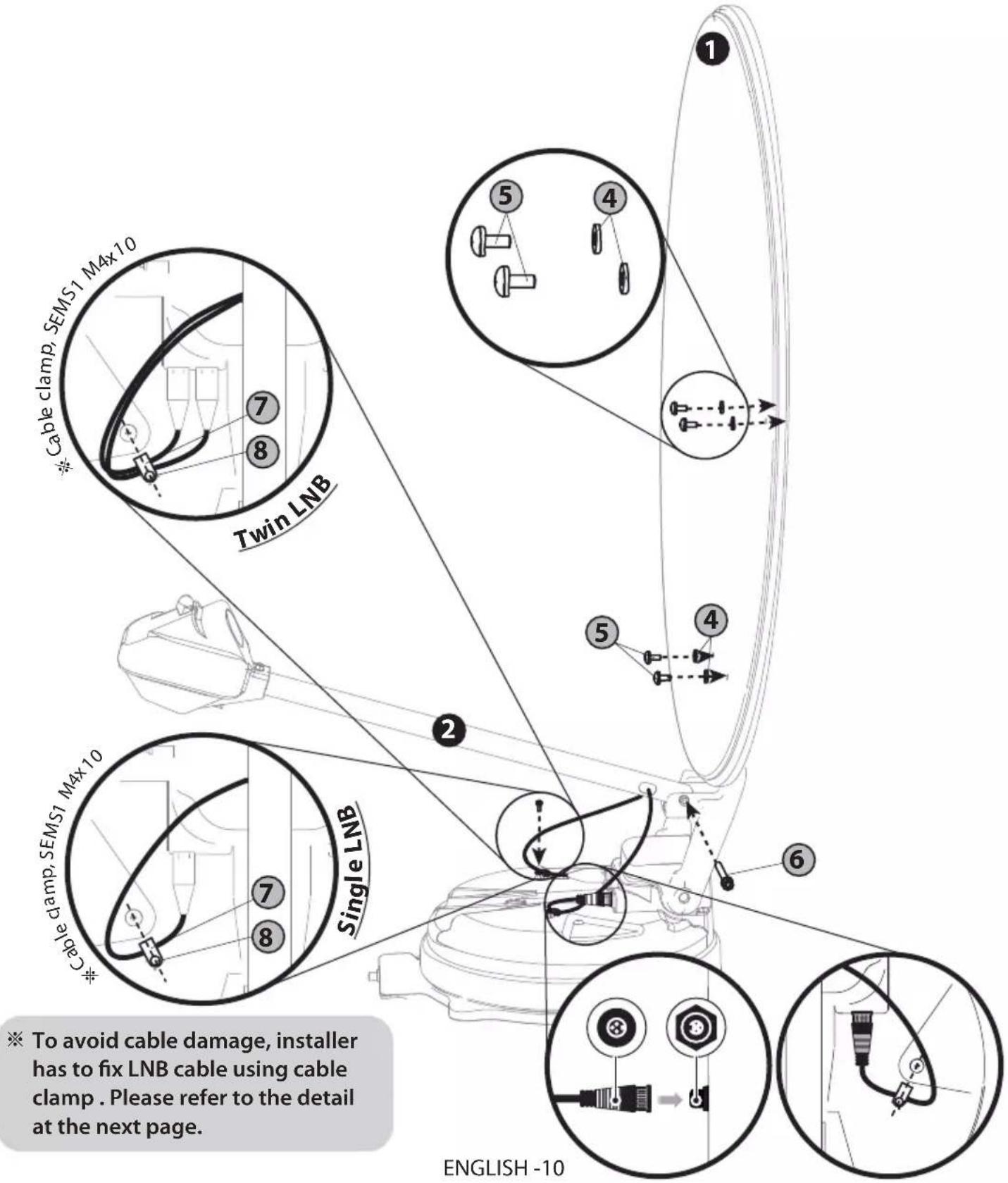

Step 5: Connect LNB cable to the connector on the body, and cover the LNB connector with waterproof cap for protection

Step 6: Align LNB cable on the body using cable clamp

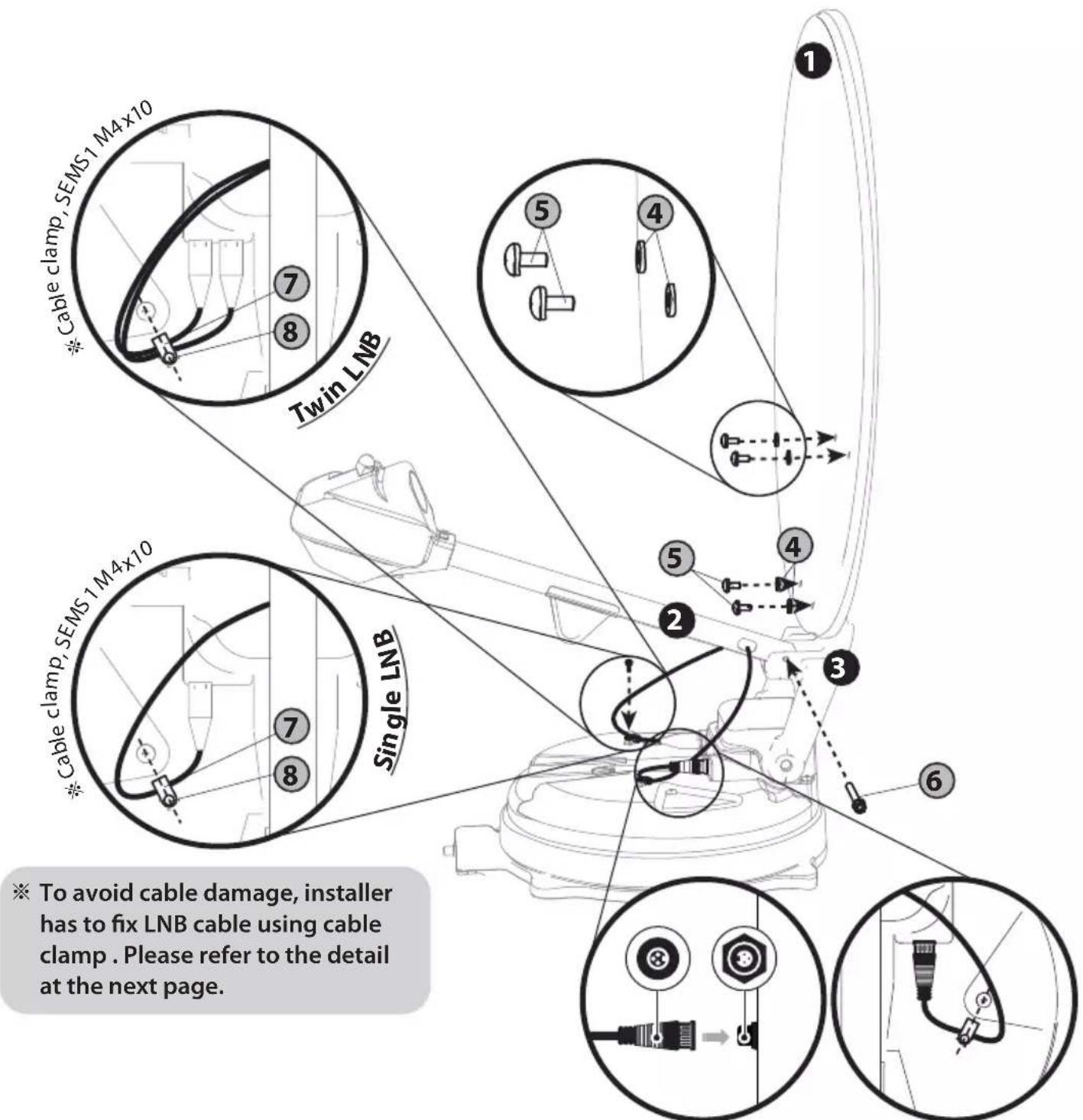

※ To avoid cable damage, installer has to fix LNB cable as enlarged image on following page 11.

Step 7 : Power on and check the installation is completed as HOME positioning

• 65cm dish antenna

No QuantityPart name
1	Reflector	1
2	LNB arm	1
3	Reflector bracket	1
4	M6 flat mold washer	4
5	Truss head M6x15	4
6	SEMS2 M6x55	1
7	Cable clamp	1
8	SEMS1 M4x10	1

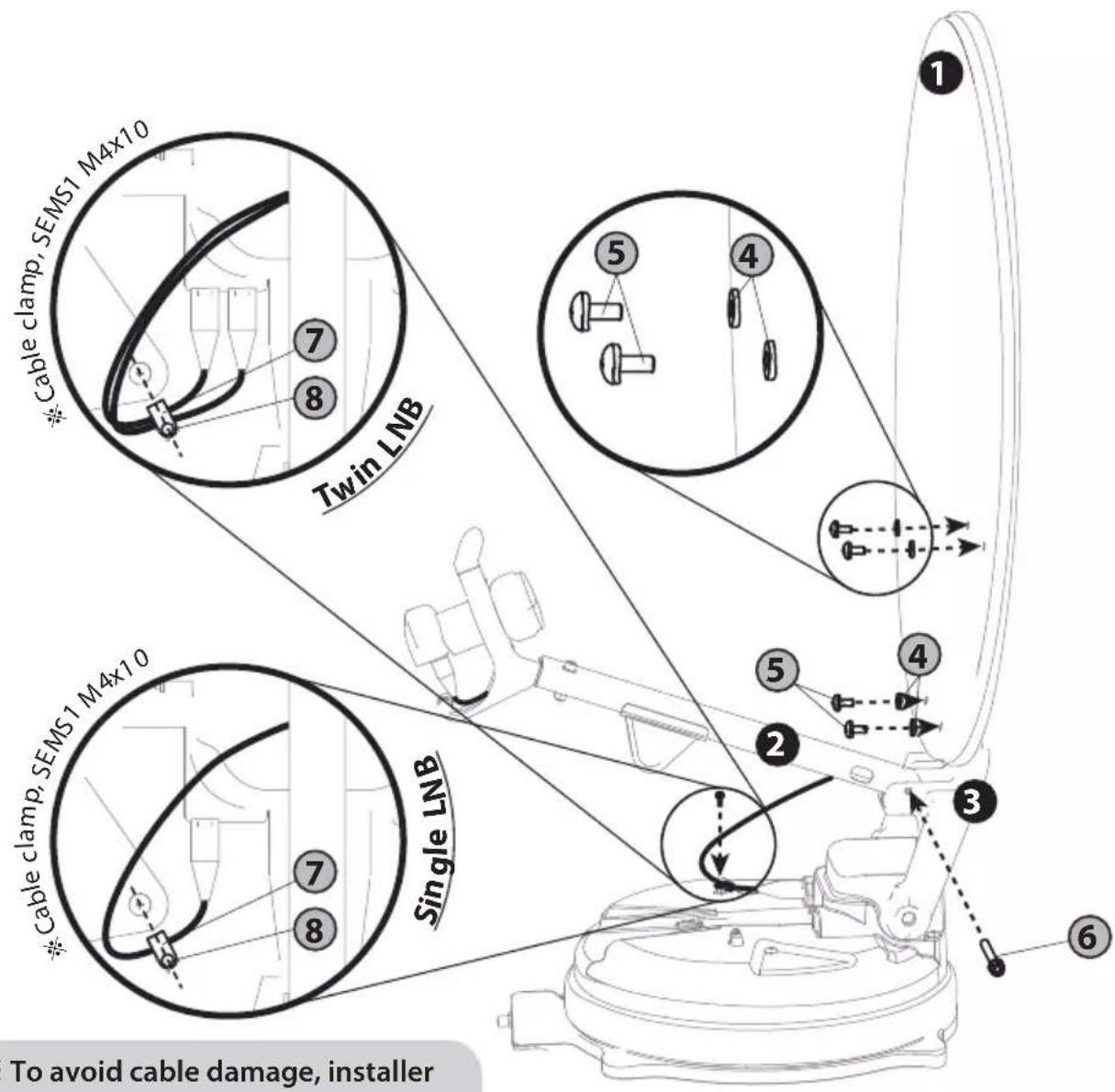

※ To avoid cable damage, installer has to fix LNB cable using cable clamp. Please refer to the detail at the next page.

• 85cm dish antenna

No QuantityPart name
1	Reflector	1
2	LNB arm	1
3	Reflector bracket	1
4	M6 flat mold washer	4
5	Truss head M6x15	4
6	SEMS2 M6x55	1
7	Cable clamp	1
8	SEMS1 M4x10	1

※ To avoid cable damage, installer has to fix LNB cable using cable clamp. Please refer to the detail at the next page.

• 65cm Auto skew dish antenna

No QuantityPart name
1	Reflector	1
2	LNB arm	1
3	Reflector bracket	1
4	M6 flat mold washer	4
5	Truss head M6x15	4
6	SEMS2 M6x55	1
7	Cable clamp	2
8	SEMS1 M4x10	2

ENGLISH -9

• 85cm Auto skew dish antenna

No QuantityPart name
1	Reflector	1
2	LNB arm	1
3	Reflector bracket	1
4	M6 flat mold washer	4
5	Truss head M6x15	4
6	SEMS2 M6x55	1
7	Cable clamp	2
8	SEMS1 M4x10	2

※ To avoid cable damage, installer has to fix LNB cable using cable clamp. Please refer to the detail at the next page.

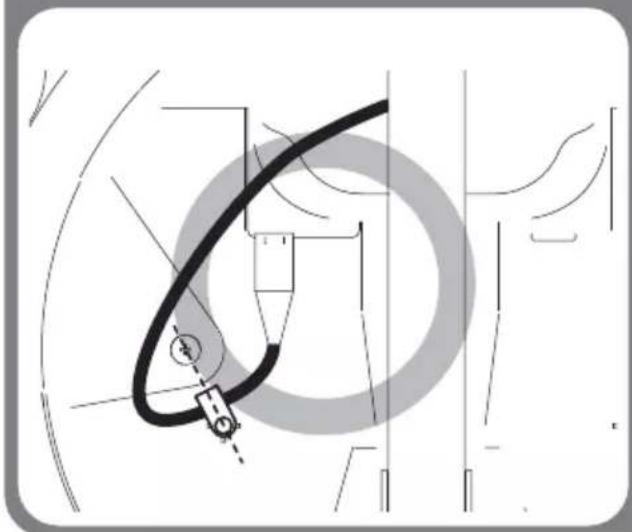

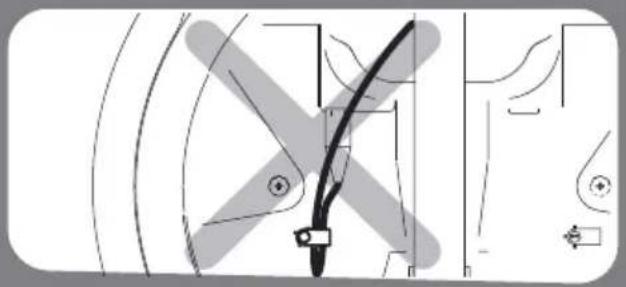

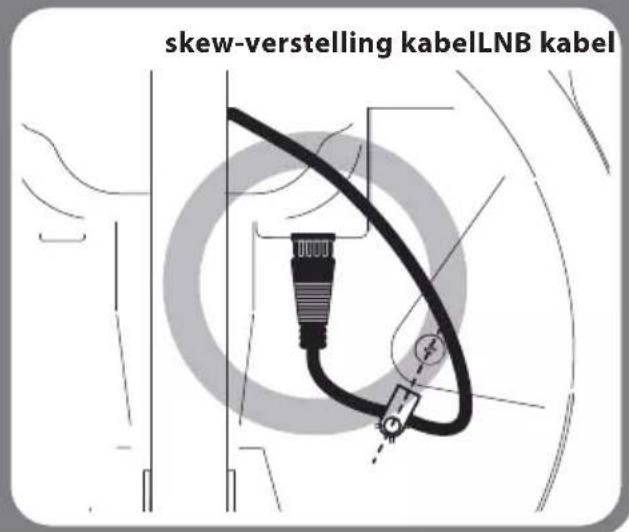

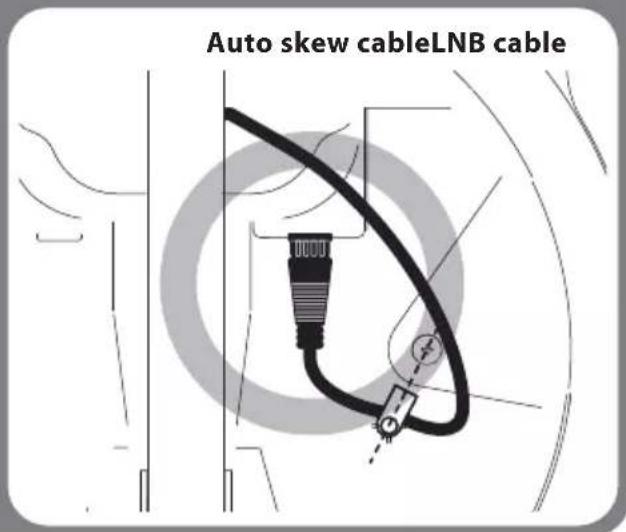

Good example

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols

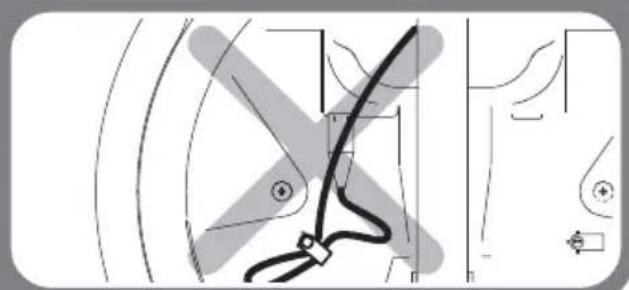

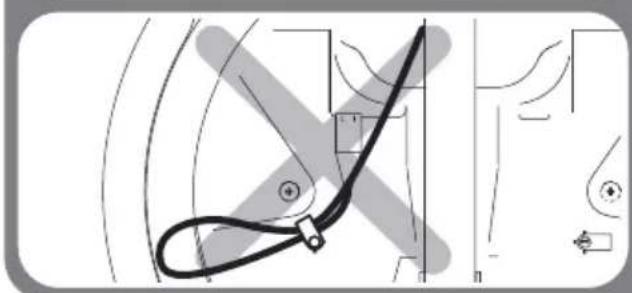

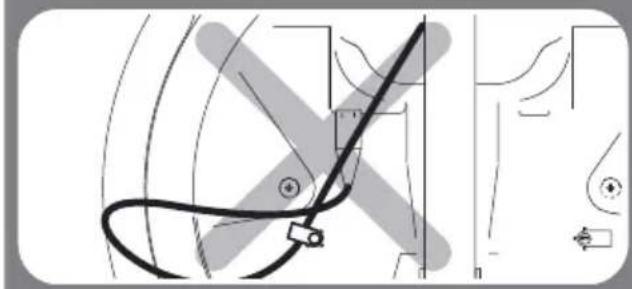

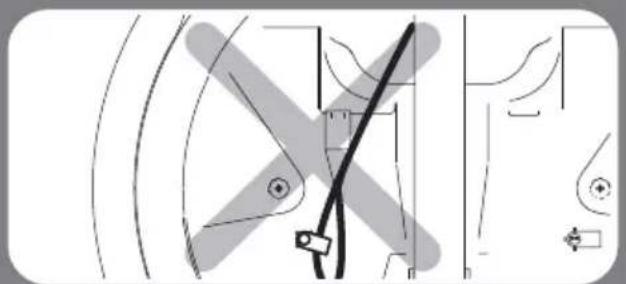

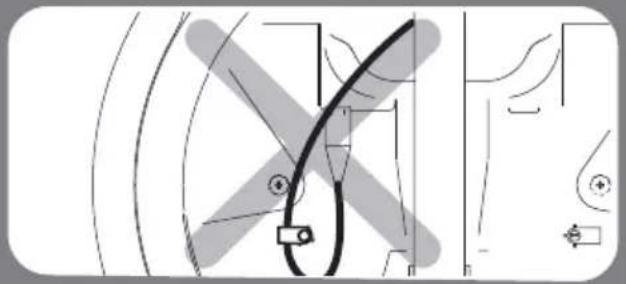

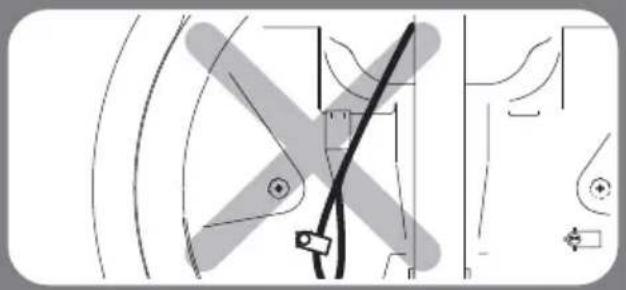

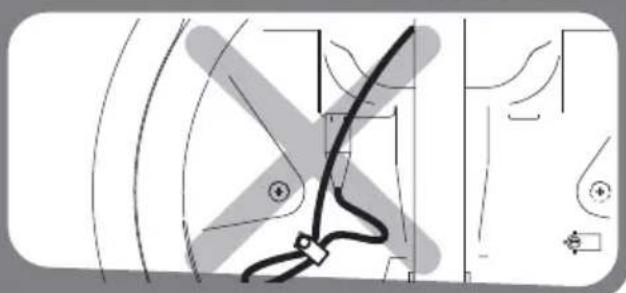

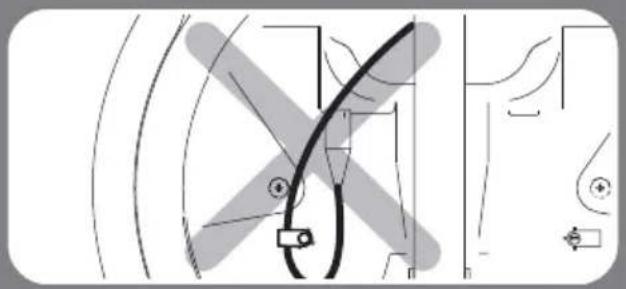

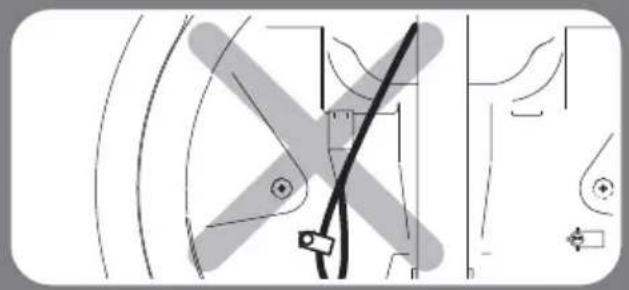

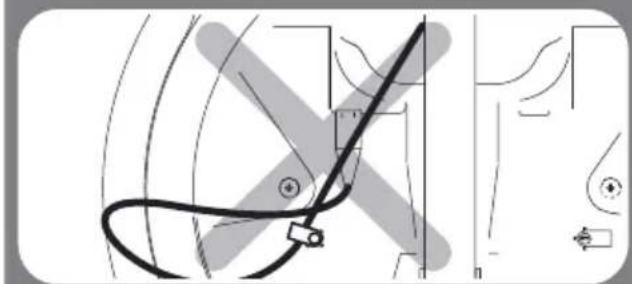

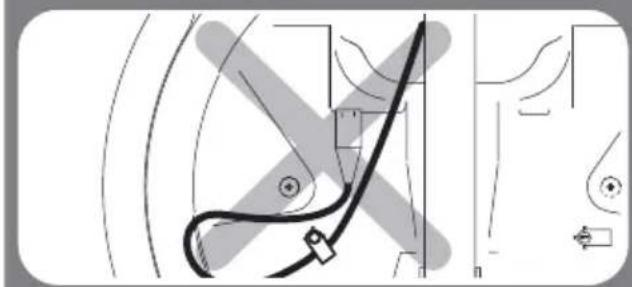

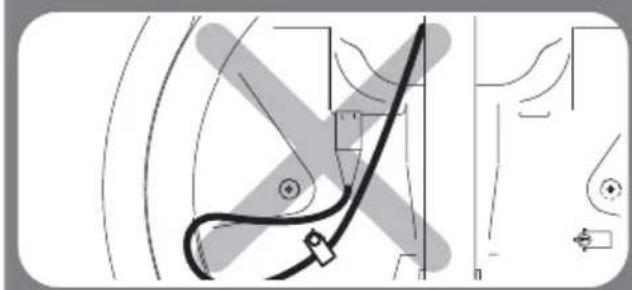

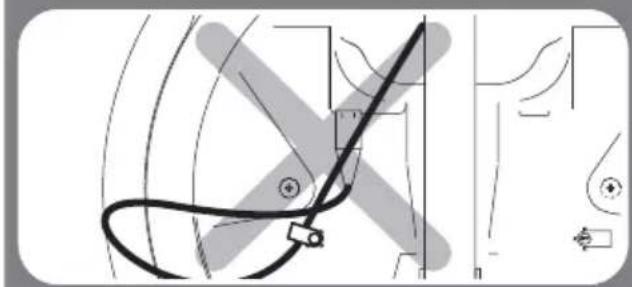

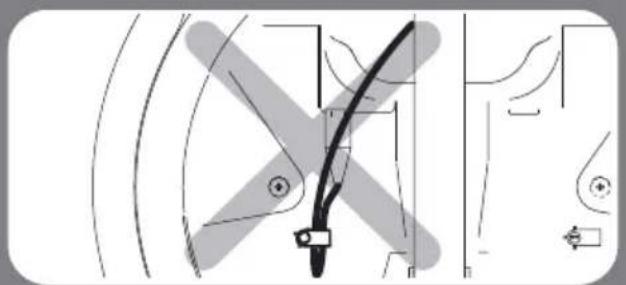

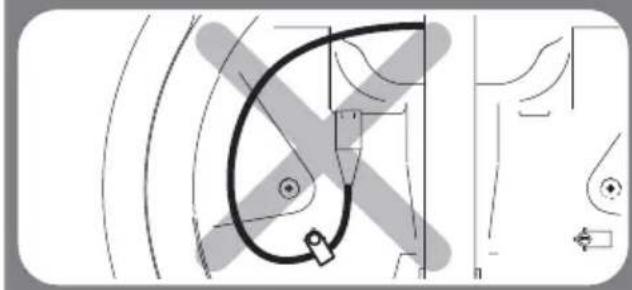

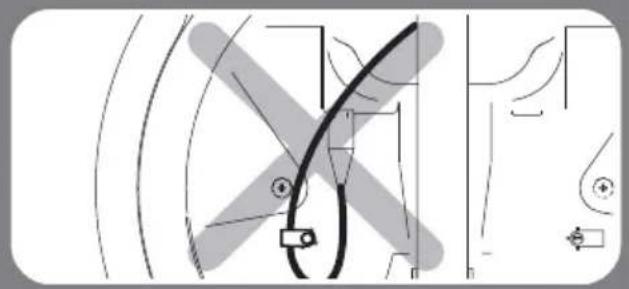

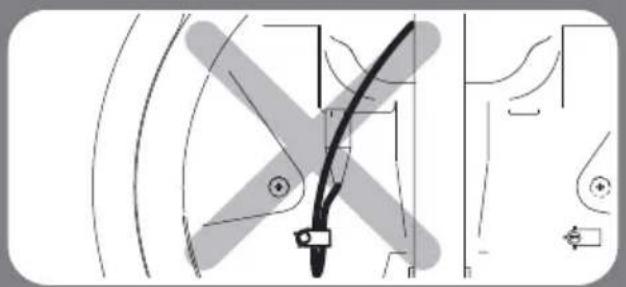

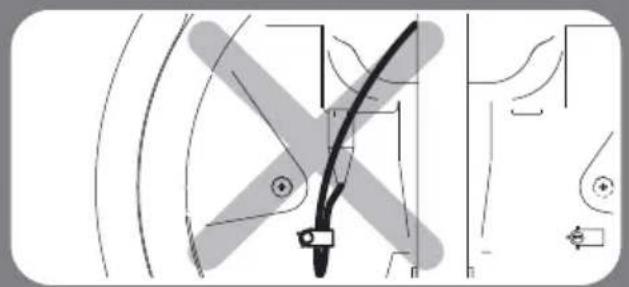

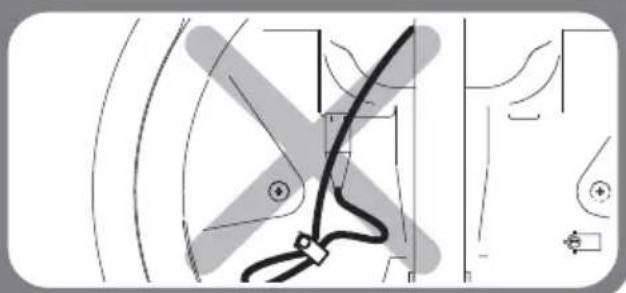

Bad example

※ Bad examples are the same for Single LNB and Twin LNB.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure mechanical diagram showing gear and shaft components without any text or symbols

Pure technical diagram showing curved lines and a central component, without any text, numbers, or symbols.

Pure electrical circuit lines without any symbols

Pure technical diagram showing a curved line intersecting a rectangular block, with no visible text, numbers, or symbols.

Pure technical diagram of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

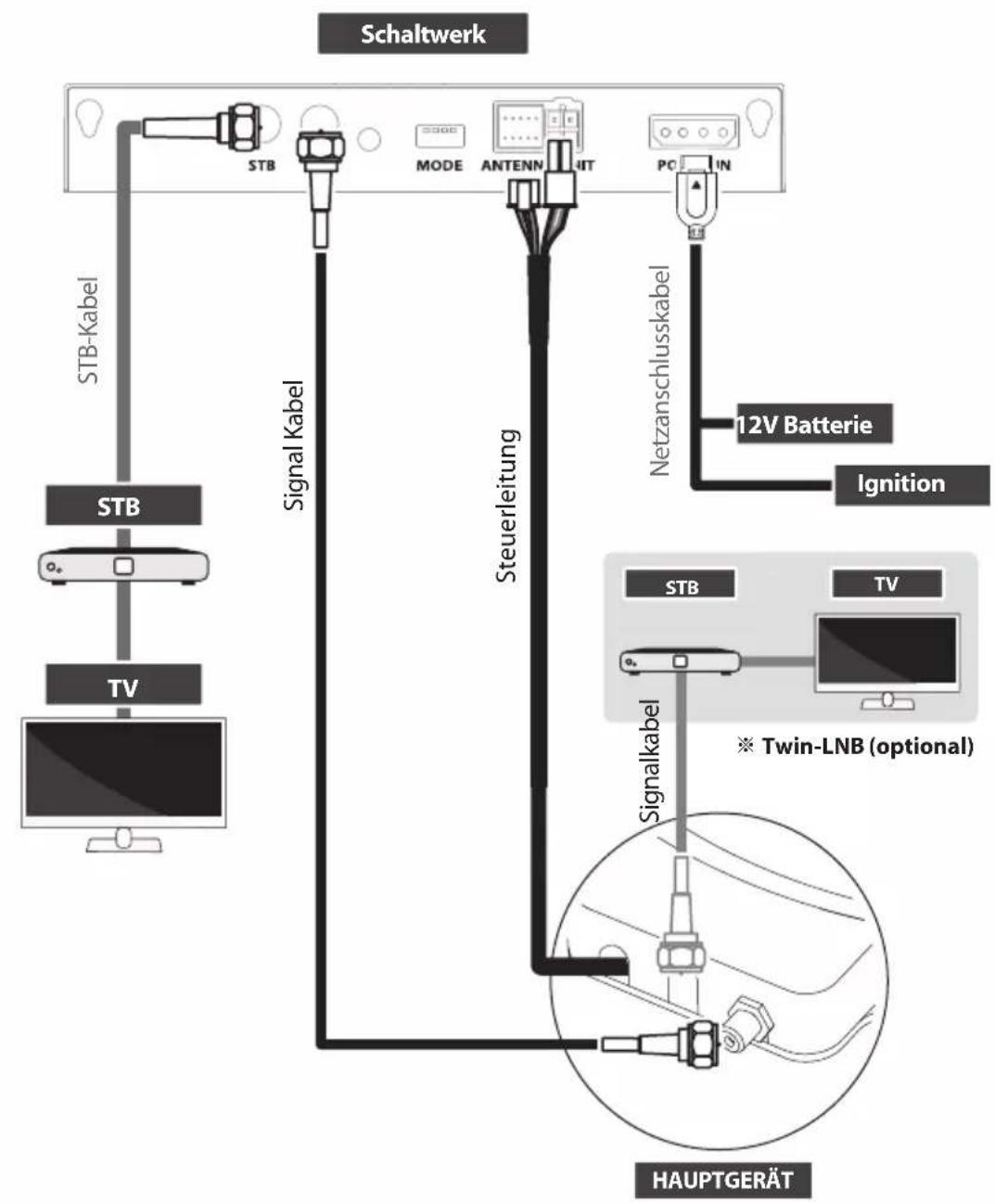

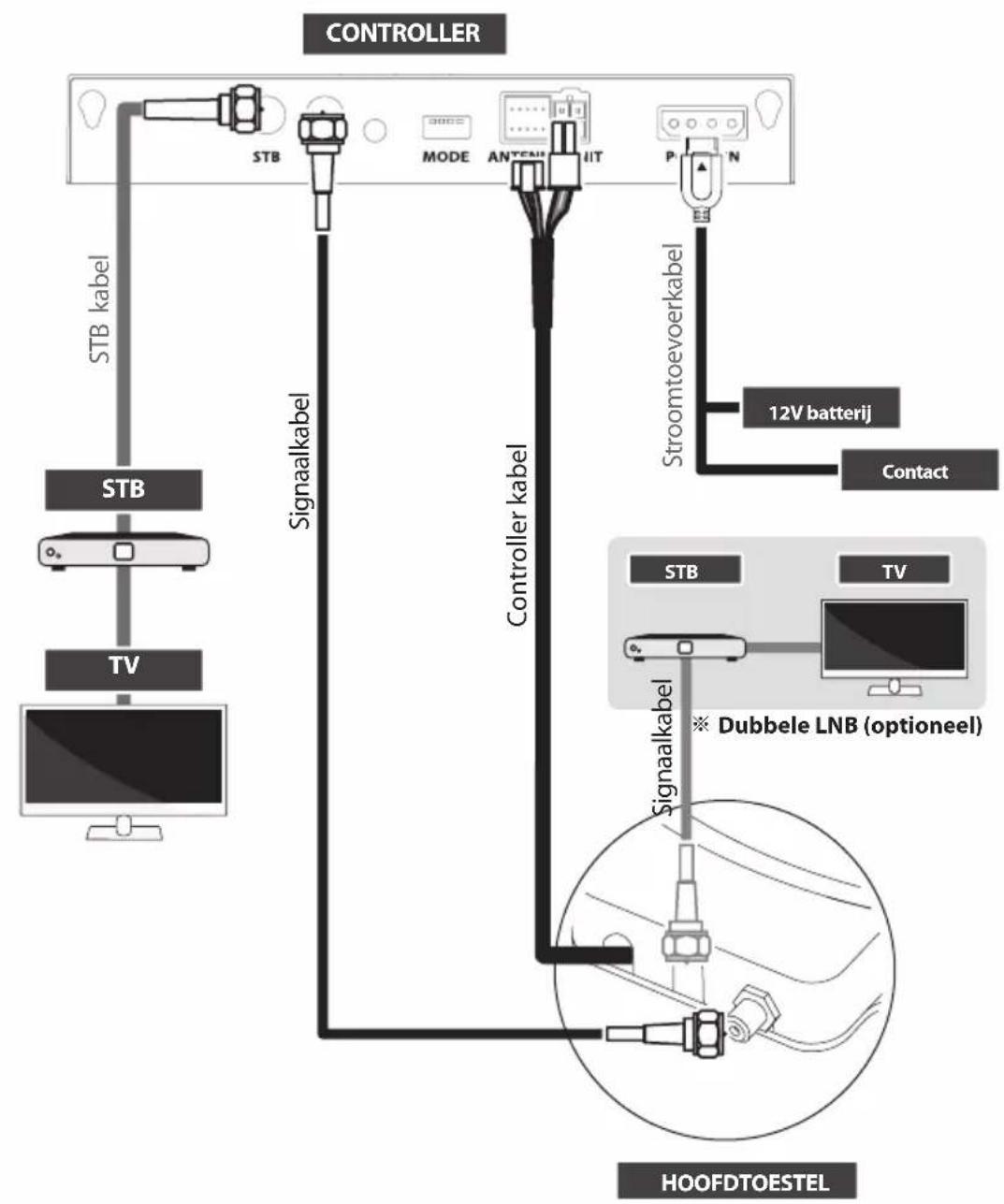

4. Connection diagram


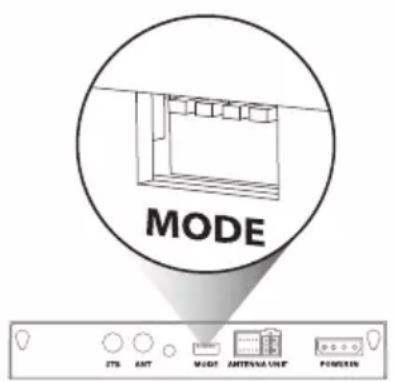

    J --> N["MODE"]
    K --> O["MODE"]
    L --> P["MODE"]
    M --> Q["MODE"]
    N --> R["MODE"]
    O --> S["MODE"]
    P --> T["MODE"]
    Q --> U["MODE"]
    R --> V["PC"]
    S --> W["PC"]
    T --> X["PC"]
    U --> Y["PC"]
    V --> Z["PC"]
    W --> AA["PC"]
    X --> AB["PC"]
    Y --> AC["PC"]
    Z --> AD["PC"]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#ccf,stroke:#333
    style D fill:#ccf,stroke:#333
    style E fill:#ccf,stroke:#333
    style F fill:#cfc,stroke:#333
    style G fill:#cfc,stroke:#333
    style H fill:#cfc,stroke:#333
    style I fill:#cfc,stroke:#333
    style J fill:#cfc,stroke:#333
    style K fill:#cfc,stroke:#333
    style L fill:#cfc,stroke:#333
    style M fill:#cfc,stroke:#333
    style N fill:#cfc,stroke:#333
    style O fill:#cfc,stroke:#333
    style P fill:#cfc,stroke:#333
    style Q fill:#cfc,stroke:#333
    style R fill:#cfc,stroke:#333
    style S fill:#cfc,stroke:#333
    style T fill:#cfc,stroke:#333
    style U fill:#cfc,stroke:#333
    style V fill:#cfc,stroke:#333
    style W fill:#cfc,stroke:#333
    style X fill:#cfc,stroke:#333
    style Y fill:#cfc,stroke:#333
    style Z fill:#cfc,stroke:#333

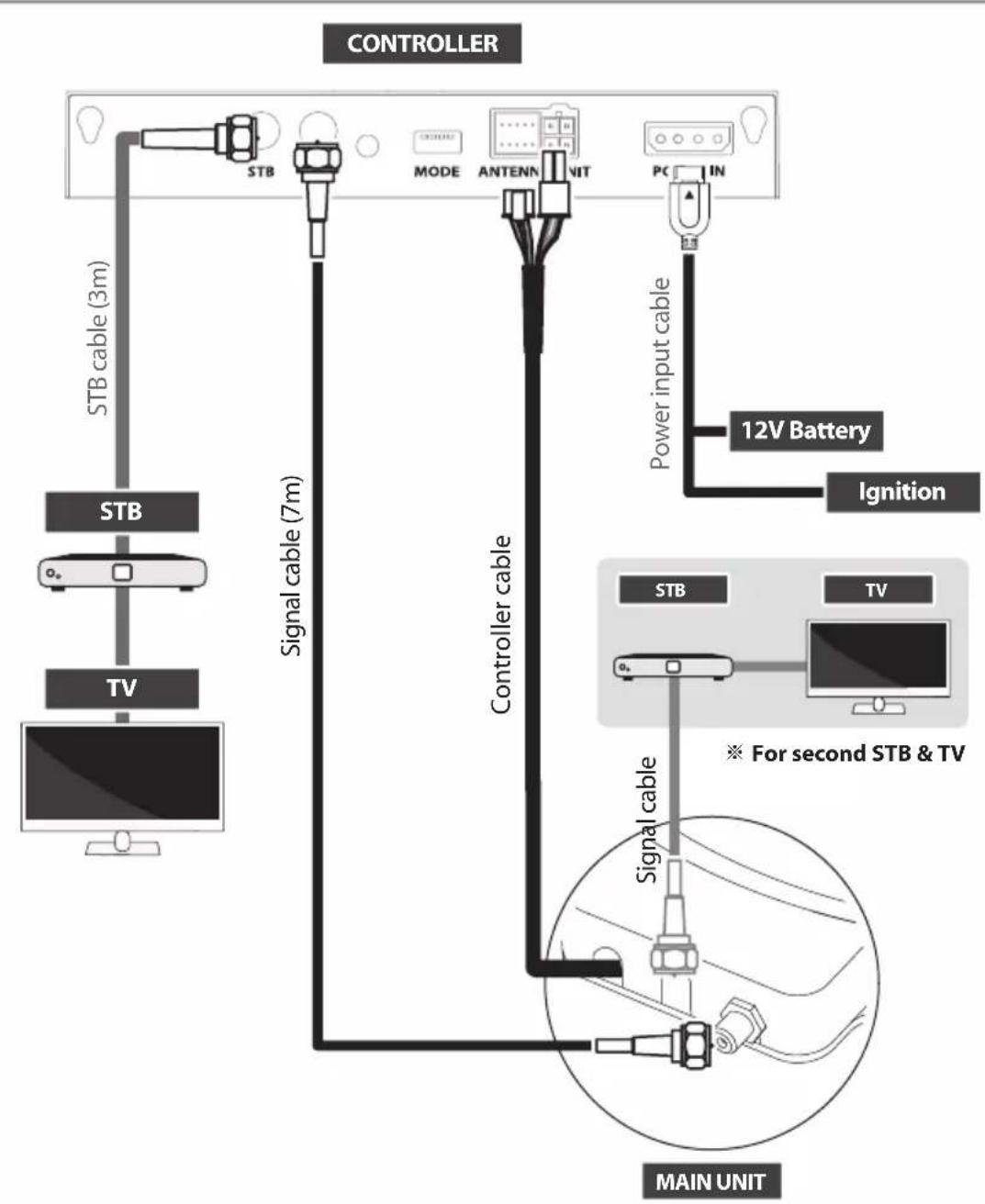

• Use controller cable to connect the antenna to the controller. Controller cable is pre-connected to the main body
• STB cable and signal cable have different lengths. Please check the lengths to use the correct cable for the job
• Please ensure the supplied cables are used and not modified in anyway

※ Additional STB can display the selected satellite channels at main STB and it cannot select or change the satellite. Main STB which is connected via controller is only supportive DiSEqC function.

5. Skew adjustment

※ For SNIPE DISH standard models only. No need for Auto skew models.

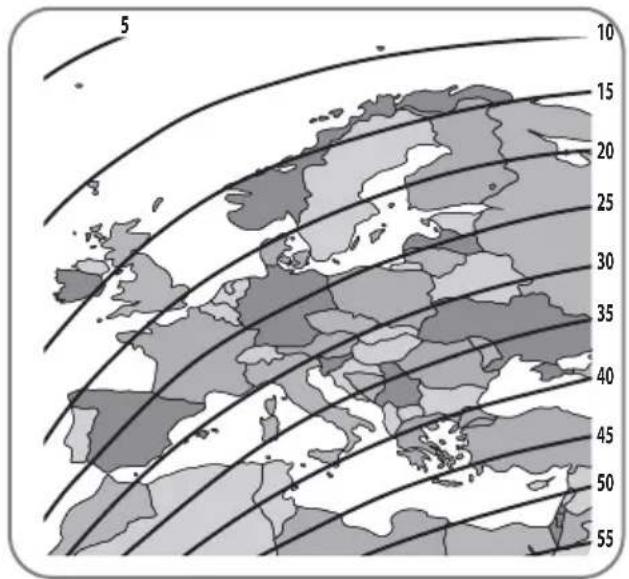

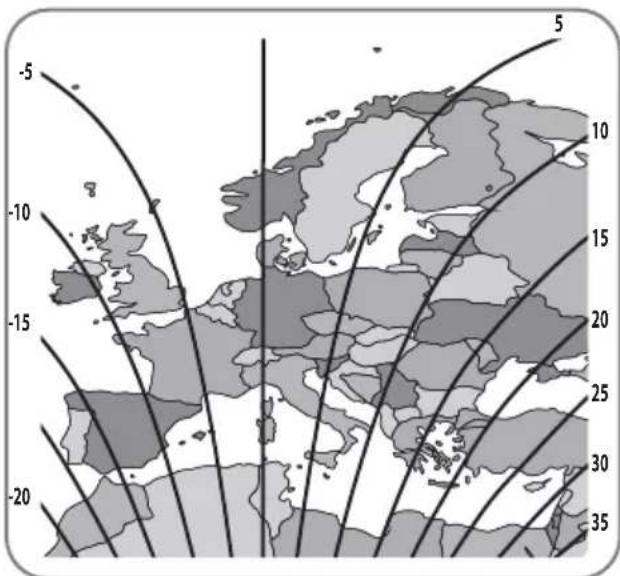

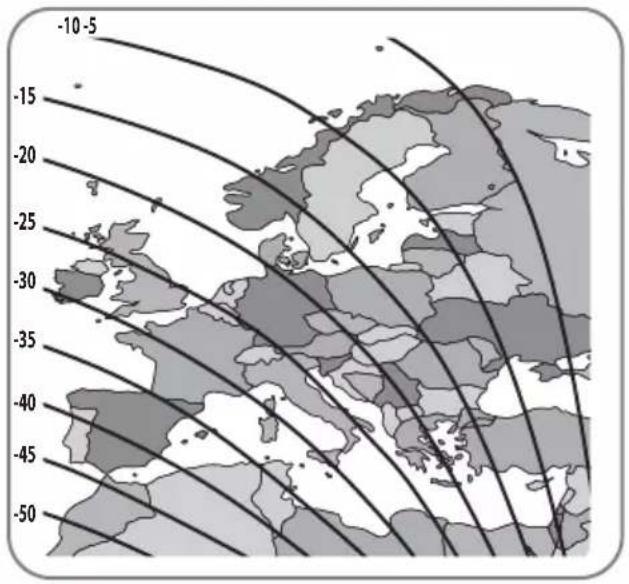

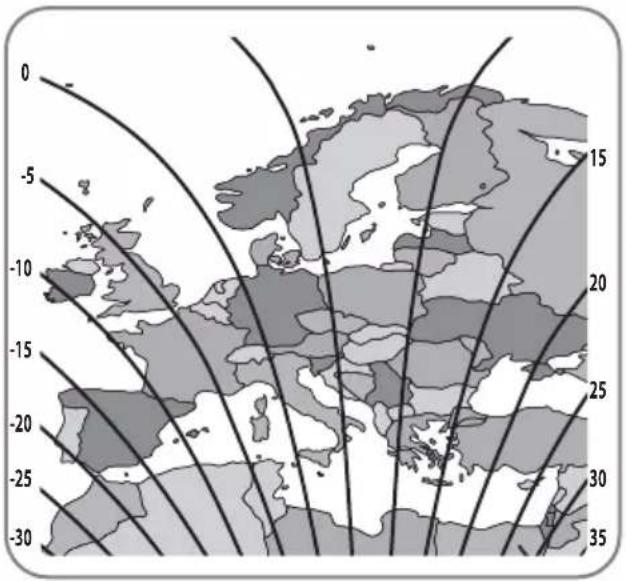

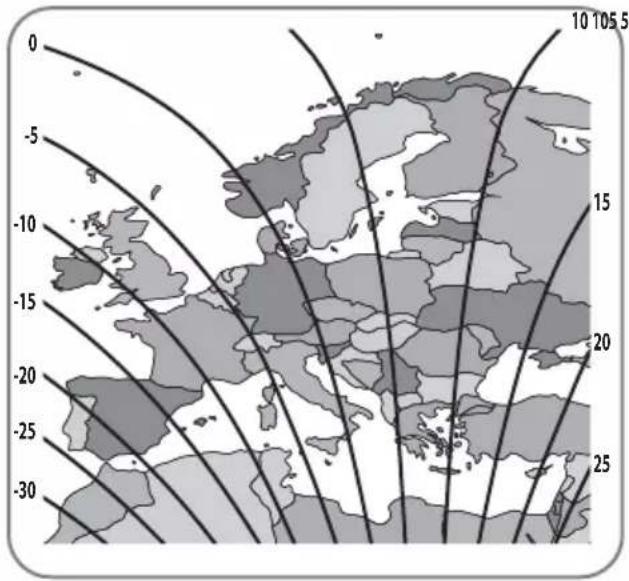

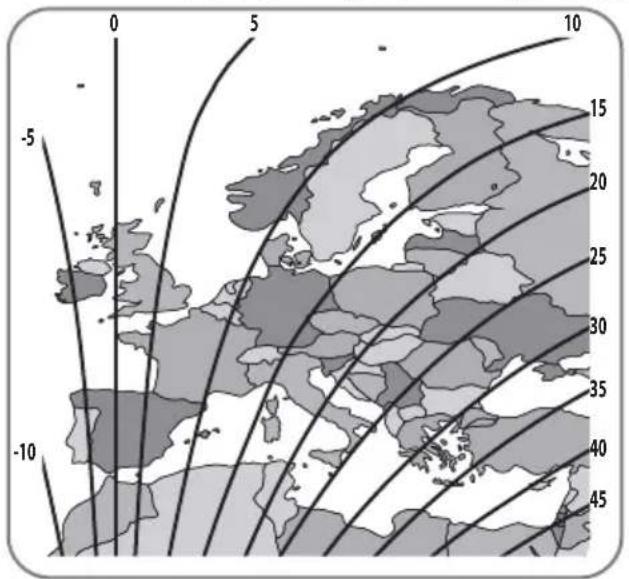

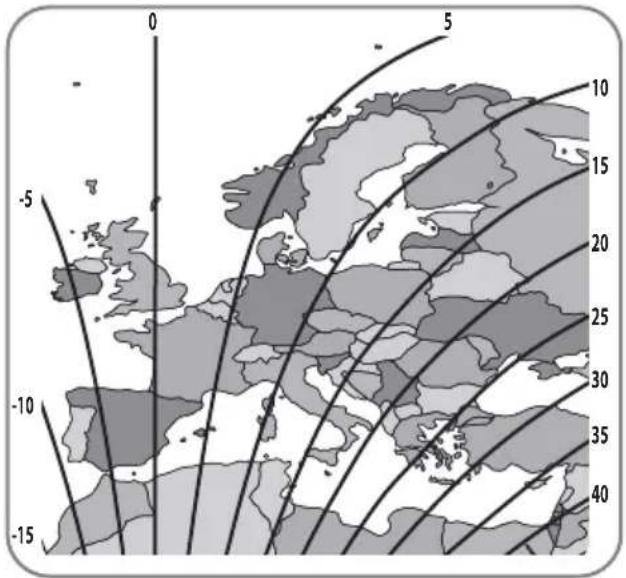

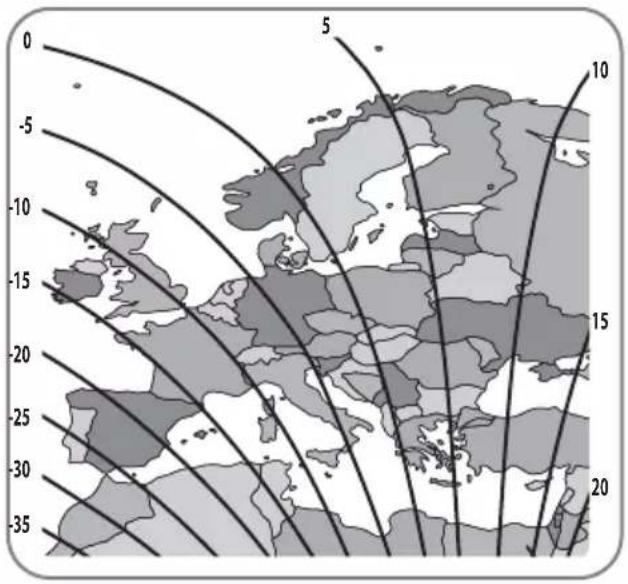

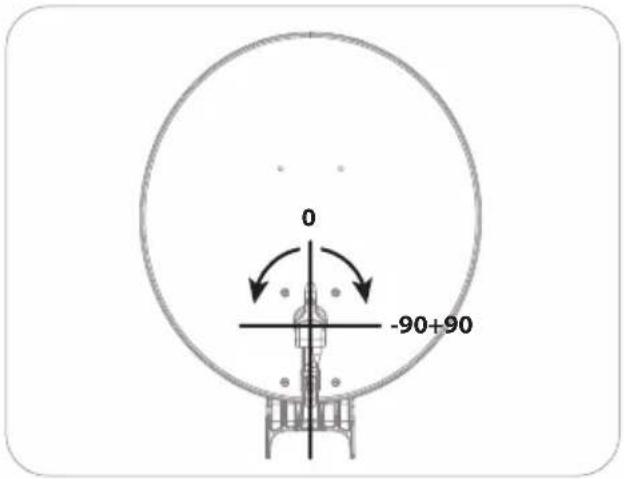

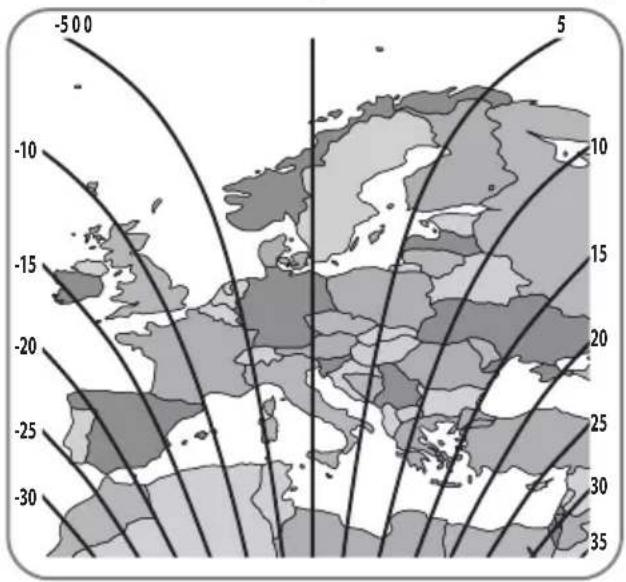

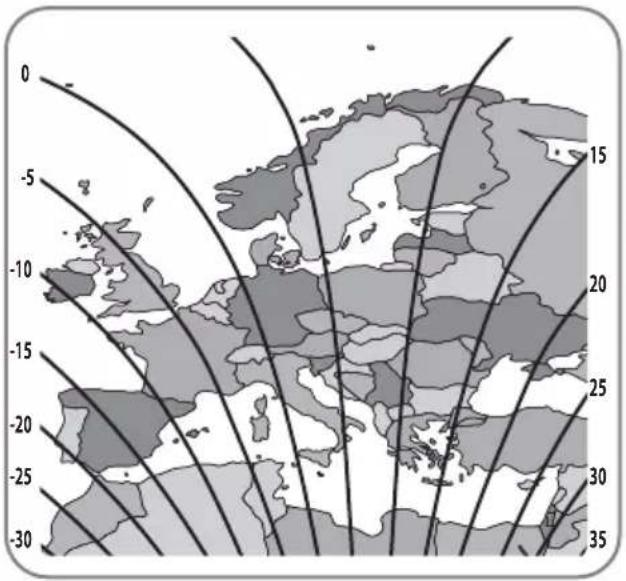

The LNB at the end of the satellite picks up either horizontal or vertical signal. To change horizontal to vertical signal, turn the LNB as 90^ (vice versa).

Skew adjustment is required according to target satellites and regions. For the best signal quality, adjust skew by referring to the below images.

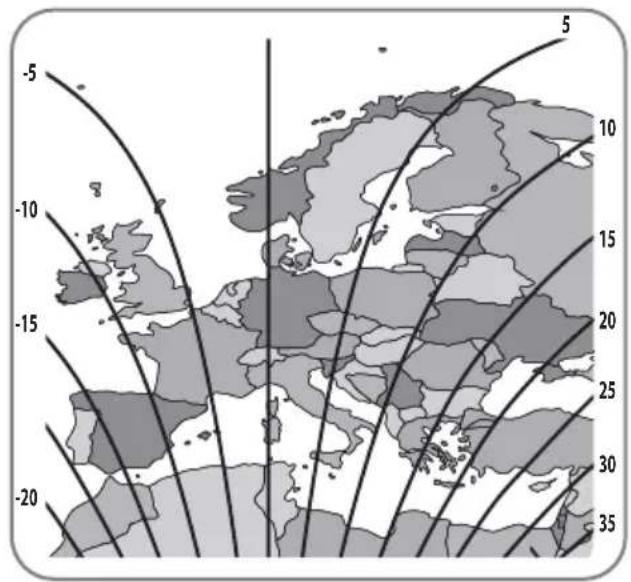

Accuracy is not important, so small tolerance will be acceptable. It will be easy to check the satellite's signal quality on STB with turning the LNB little by little.

Turksat @ 42.0°E Astra2 @ 28.2°E

Astra3 @ 23.5°E Astra1 @ 19.2°E

HotBird @ 13.0°E Eutelsat 9 @ 9.0°E

Astra4 @ 4.9°E Thor @ 0.8°W

Eutelsat 5W @ 5.0°W Hispasat @ 30.0°W

6. Functional description

6-1. Get ready to use

See below table to find the model and match the controller has correct pre-setting as needed.

You should leave as it is and do not change setting as own discretion unless mismatch with the model

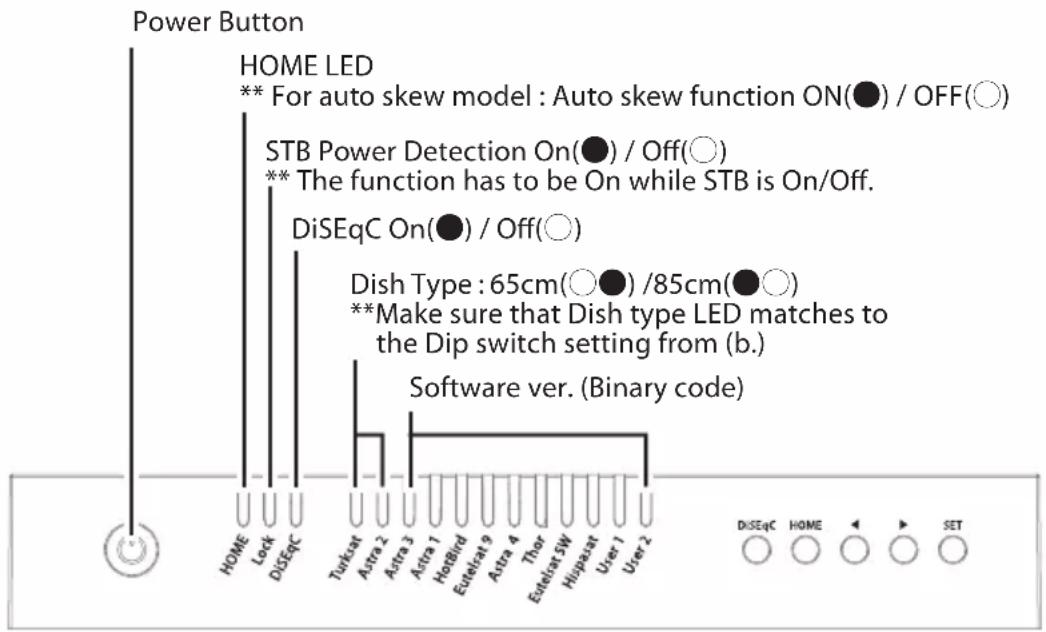

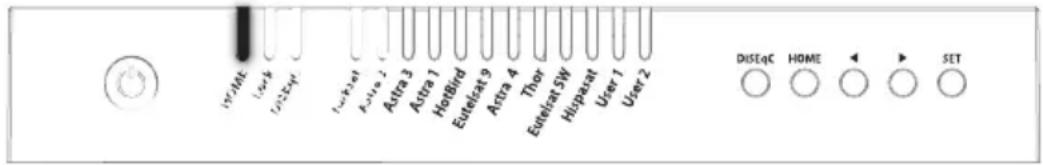

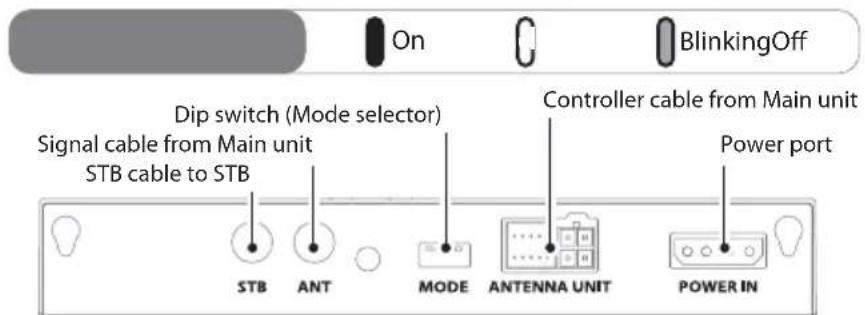

Controller Back

Antenna Model	65cm	85cm
Standard	#2 down	#1 down
Auto skew	#2,4 down	#1,4 down

※ Incorrect setting causes deterioration of reception performance.

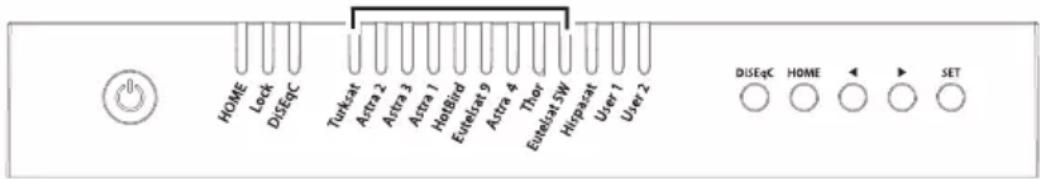

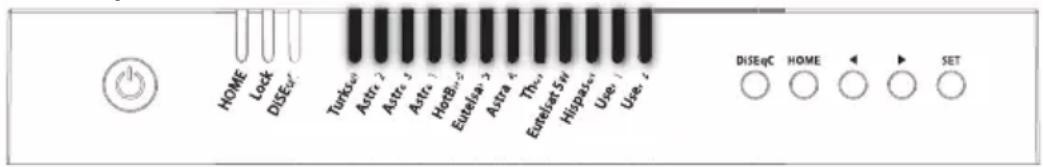

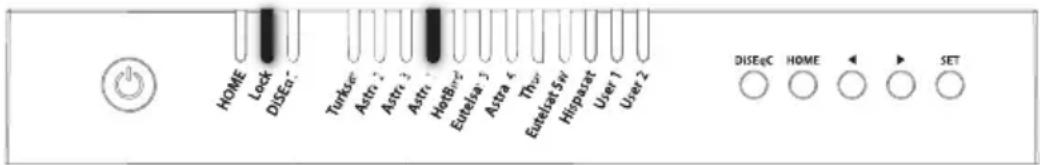

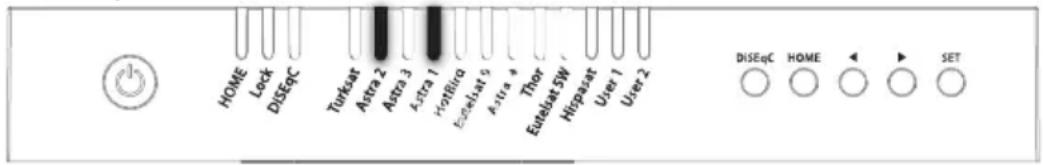

a. All satellite LEDs blink and then system is displayed like below image

b. When HOME LED becomes solid this means the antenna is ready to operate (If the antenna is not at HOME, HOME LED blinks while coming back HOME)

c. To power on the unit, press POWER button and check LEDs are lit. To power off the unit, press and hold POWER button till all LEDs are lit, the unit will be off when the button is released

6-2. Searching the satellite

a. Go to the target satellite using arrow buttons and press SET to search
b. Lock LED blinks during searching process and becomes solid when the target satellite is locked

For example :

c. If wrong satellite is selected, move to the correct satellite and press SET to confirm the new satellite
d. After use or before travelling, press HOME for HOME positioning

6-3. DiSEqC 1.1 setting

Refer SNIPE DISH's pre-set satellites for DiSEqC 1.1. when user setup at STB

a. The default setting for DiSEqC is ON, DiSEqC LED is on.

To switch the function ON/OFF, make sure that antenna is at HOME and press DiSEqC button for 2 seconds. (See also DiSEqC LED status changes between ON and OFF.)

b. For DiSEqC operating of the antenna, STB has to have matching satellite list as SNIPE DISH's pre-set list. User needs to assign satellites in same order (#1\~12 in the above table) at STB's DiSEqC setting to be ready for DiSEqC function use.

6-4. STB power detection On/Off

a. Ensure that the unit is turned off
b. Press and hold Right Arrow button and turn on the Power button
c. When HOME LED becomes solid this means the function change is finished (If the antenna is not at HOME, HOME LED blinks while coming back HOME)

When STB power detection (Lock LED) is ON,

• STB which is connected controller should be on for operating antenna
• If STB is turned off while antenna is operating, antenna goes back to HOME and do not operate
• If STB is turned off, the antenna does not operate despite the controller SET button is pressed

When STB power detection (Lock LED) is OFF,

- Antenna is operated with controller regardless of STB's power state

6-5. Power save mode

a. While antenna is at HOME, antenna turns off automatically if there is no input from controller for 15 minutes
b. Press POWER button to turn on for operating again

7. Extra functions

7-1. Error message

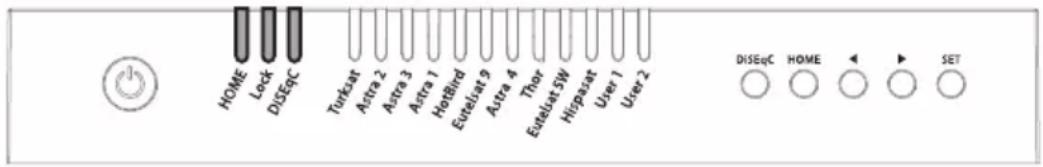

Error message LEDs (HOME / Lock / DiSEqC) will be illuminated at the same time if there is a problem with the main unit and detail is indicated as :

LED indicator

NO LED indicator Error detail
1	Turksat	Low power
2	Astra 2	Tuner error
3	Astra 3	AZ motor error
4	Astra 1	EL motor error
5	Hotbird	SK motor error
6	Eutelsat 9	AZ motor current error
7	Astra 4	EL motor current error
8	Thor	SK motor current error
9	Eutelsat 5W	EL range error

7-2. Factory reset

a. Ensure that the unit is turned off
b. Press and hold HOME button and turn on the Power button

For example :

c. Factory reset takes less than 10 seconds
d. When HOME LED becomes solid this means the function change is finished (If the antenna is not at HOME, HOME LED blinks while coming back HOME)

7-3. Software upgrade

a. Transfer "GALAXY.BIN" file to a USB stick. Do not place inside a folder
b. Ensure that the unit is turned off and plug the USB into USB port
c. Press and hold SET button and turn on the Power button
d. HOME / Lock / DiSEqC LEDs blink together while checking upgrade file

e. Software upgrade takes about 10 seconds
f. When the upgrade is completed, all Satellite LEDs flash once, then HOME / Lock / DiSEqC LED is off, controller is rebooted
g. When HOME LED becomes solid this means the antenna is ready to operate

h. If upgrade is failed, HOME / Lock / DiSEqC LEDs blink 5 times and back to the previous system

※ Use FAT32 format USB only.
※ CBI type USB is not supported.

7-4. Manual satellite update function

In case there is specific satellite with an error, update satellite information manually with the below instruction.

a. Press the next satellite of the satellite with an error to search

• For Turksat, Astra 2 is only the option
• For Hispasat, Eutelsat 5W is the only option
• For the rest satellites, each has two options on both side

For example :

b. Once the next selected satellite is found (locked), go to the satellite with an error and press SET button longer than 2 seconds

- Make sure that Lock LED blinks quicker than per second while update If the button is pressed less than 2 seconds, Lock LED blinks as normal operation

c. If update is succeeded, all satellite LEDs blink twice and automatically start to search the satellite
d. If update is failed, antenna goes back to HOME position

- Select the another option of next satellites and proceed update as the above procedure again

- If second trial is failed, check the manual for software upgrade

※ If upgrade or factory reset is applied, all stored data will be removed.

8. Trouble shooting

There are a number of common issues that can affect the signal reception quality or the operation of the unit. The following sections address these issues and potential solutions.

A. No function when power on the controller

i. Check again all the cable connections have been made correctly.

- Connection between the power and controller.

- Connection between the controller and antenna. Make sure that the left port of the antenna is connected to the controller.

ii. Check if the power input cable has been damaged.

iii. Check the battery polarities (+/-).

B. Fail to search the selected satellite

i. Satellite signals can be blocked or degraded by buildings, trees.

Make sure there are no obstructions in a southward direction.

ii. Select another satellite if this locks then select your desired satellite.

iii. Turn the unit off and then back on again and select desired satellite.

C. Mechanical problems

i. If the antenna does not move into desired position.

- Try to power OFF/ON again.

ii. If the antenna makes a noise while remaining static.

- Try to power OFF/ON again. If problem persists, please contact local dealer/shop for assistance.

D. Other issues

i. If the system has been improperly wired, it will not operate properly. Contact local dealer/shop for assistance of cable damage.

9. Specifications

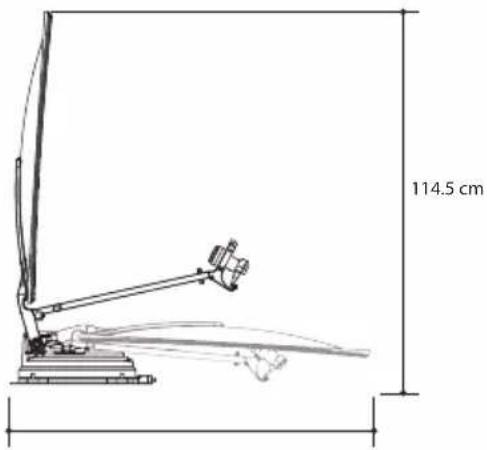

9-1. Dimension

SNIPE DISH 65

SNIPE DISH 85

9-2. Specifications

MODEL		SNIPE DISH 65	SNIPE DISH 85
Input Satellite Frequency		10.7 ~ 12.75 GHz	10.7 ~ 12.75 GHz
Polarization		Vertical & Horizontal	Vertical & Horizontal
Typical Dish Size		65 cm	85 cm
Size (W x L)		66.0 x 71.0 cm (Offset Dish)	86.0 x 91.0 cm (Offset Dish)
Dimensions (L x W x H)		88.5 x 66.0 x 18.4 cm (Folded)	110.6 x 86.0 x 18.4 cm (Folded)
Weight		12 kg	13.8 kg
Min EIRP		46 dBW	44 dBW
Angle Range (EL / AZ)		0^ 145^ / 390^	0^ 145^ / 390^
Angle Range (Skew)		Manual / Auto (Optional)	Manual / Auto (Optional)
Satellite Searching Time		180 seconds (Average)	180 seconds (Average)
	Output	1 / 2 output (Optional)	1 / 2 output (Optional)
LNB	Output Frequency	950 ~ 2,150 MHz	950 ~ 2,150 MHz
	L.O. Frequency	9.75 / 10.6 GHz	9.75 / 10.6 GHz
Operating Temperate		-20°C ~ +60°C	-20°C ~ +60°C
Input Voltage		DC 12V	DC 12V
Power Consumption		50 W (In searching)	50 W (in searching)

10. Caravan/Motorhome installation

10-1. Required space for the SNIPE DISH

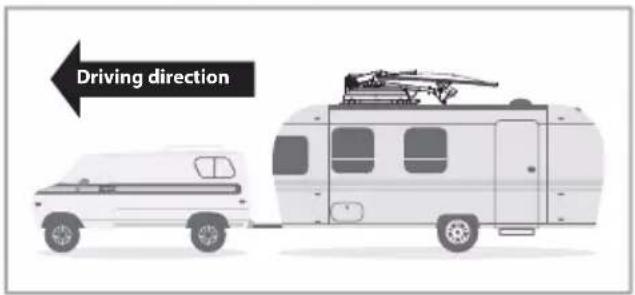

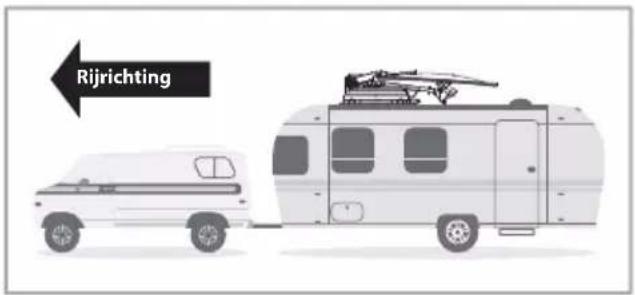

Take care, that there is enough space for the fold SNIPE DISH, just as for the operation range(cruising radius).

SNIPE DISH 65

SNIPE DISH 85

Driving direction

ENGLISH - 23

10-2. Equipment for installation

1 Signal cable
2 STB cable
3 Power input cable
4 Silicone
5 M4×20(13), M8 locking nut(4)
6 LNB protection pad
7 Cable gland
8 Cable holder
9 Masking tape
10 Spanner
11 2mm drill bit, 25mm drill bit
12 Power drill
13 Cleaner

10-3. Instruction for installation

Illustration of a hand pressing down on a button with sparkles, no text or symbols present

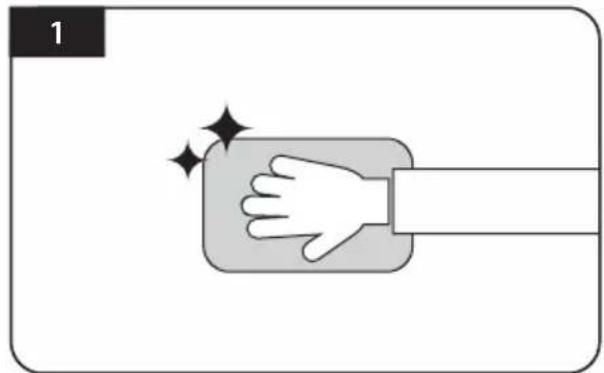

Clean the surface with cleaner

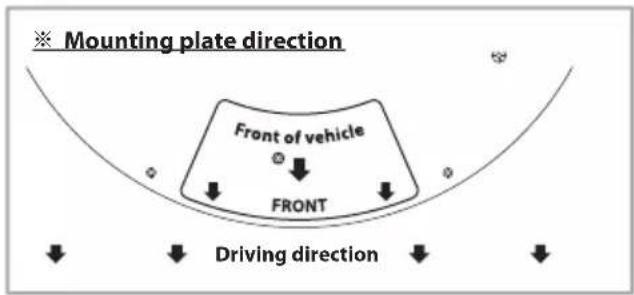

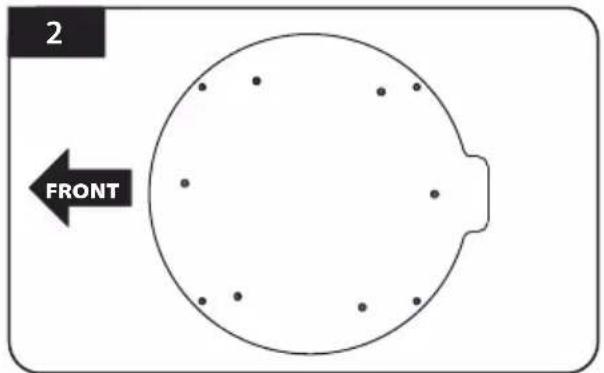

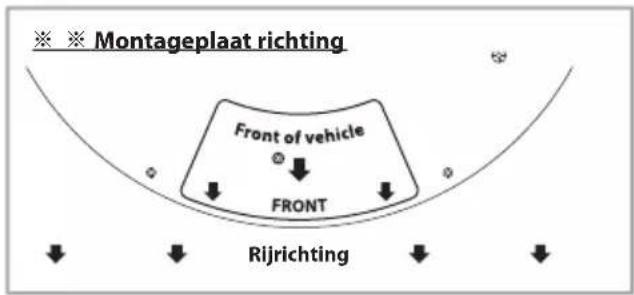

Locate mounting plate in the centre of the vehicle roof

Simple circular diagram with dots inside, no text or symbols present

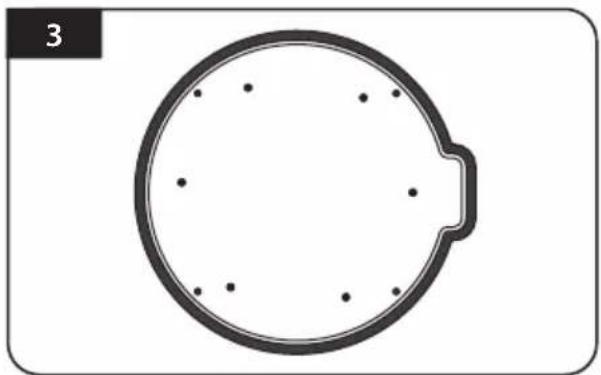

Attach masking tape outside of the mounting plate by 5mm away from the plate edges

Simple line drawing of a circular object with internal vertical lines, no text or symbols present.

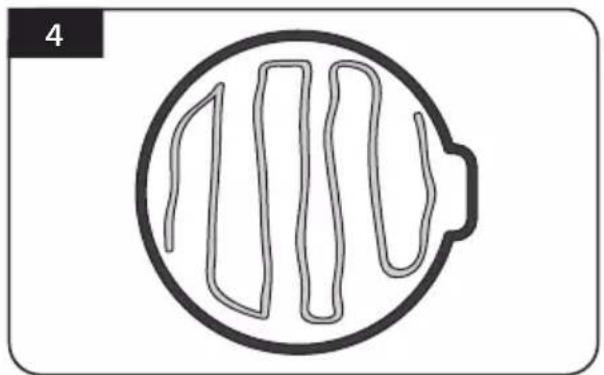

Put aside the mounting plate to apply silicone within the attached tape line but leave 2cm inward gap from the line

Diagram showing a magnifying tool interacting with a circular object, no text or symbols present

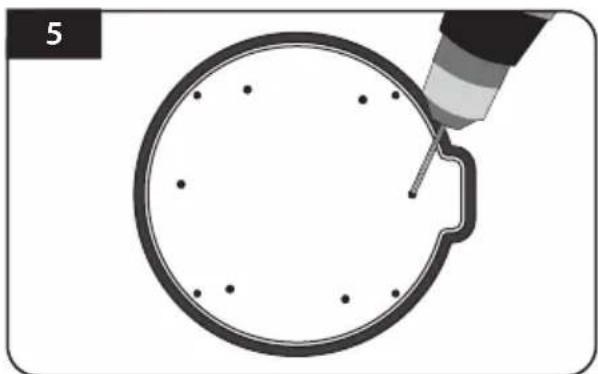

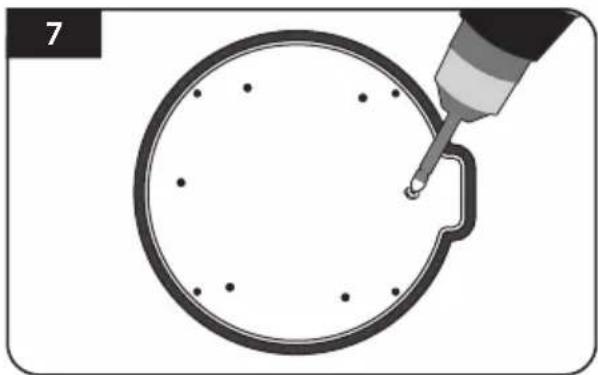

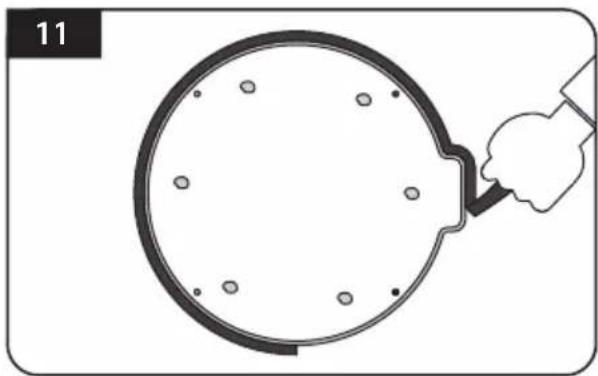

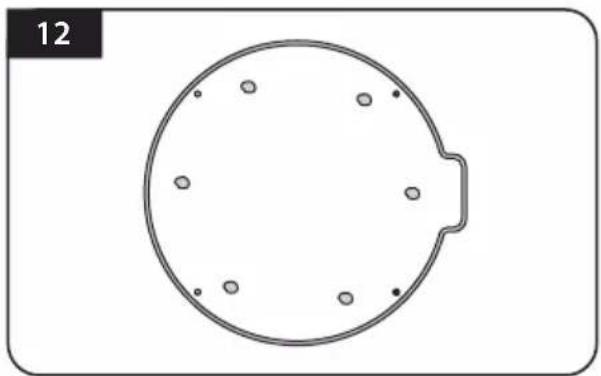

Place the mounting plate on the silicone and make 6 holes (2mm) with a power drill

Illustration of a pipette inspecting a circular object with dots, no text or symbols present

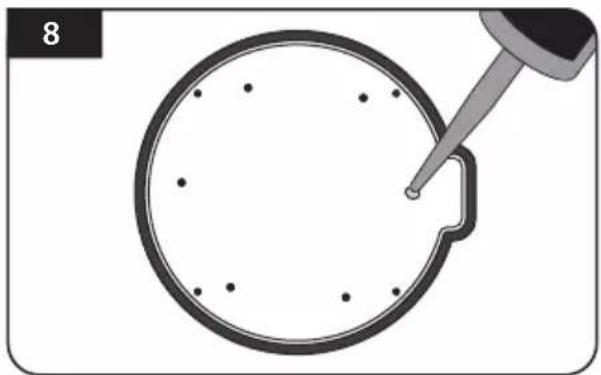

Apply silicone on the holes

Illustration of a tool tiping a circular object with dots, no text or symbols present

Screw bolts Re-apply silicone to cover screwed bolts

Illustration of a pipette inspecting a circular object with dots, no text or symbols present

Illustration of a hand pinning a circular object with holes, labeled '10' (no text or symbols on the object itself)

Clean away the excess silicone

Simple line drawing of a magnifying glass with holes and a handle, no text or symbols present

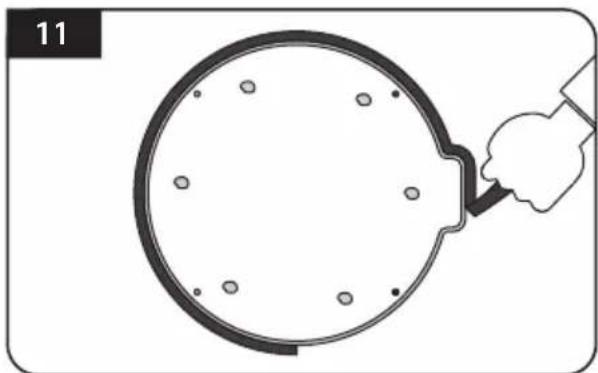

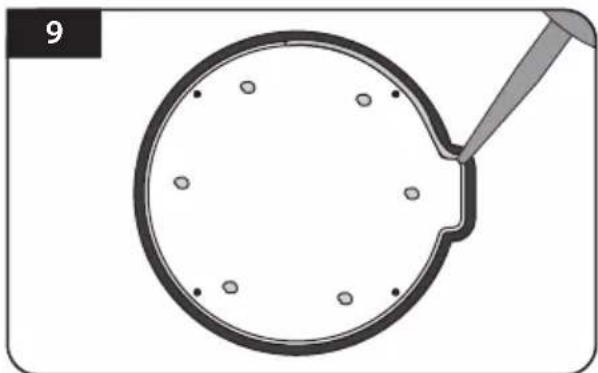

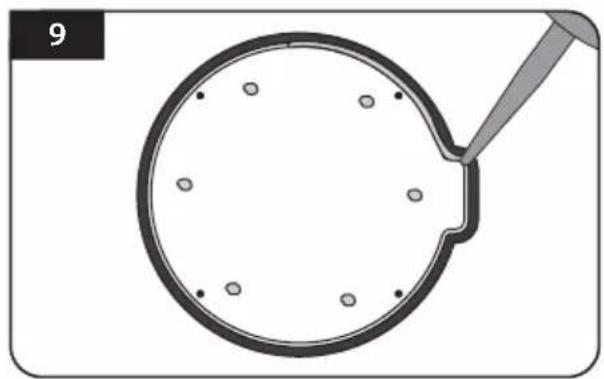

Apply silicone around mounting plate edge

Simple circular diagram with six evenly spaced dots and a small protrusion, no text or symbols present.

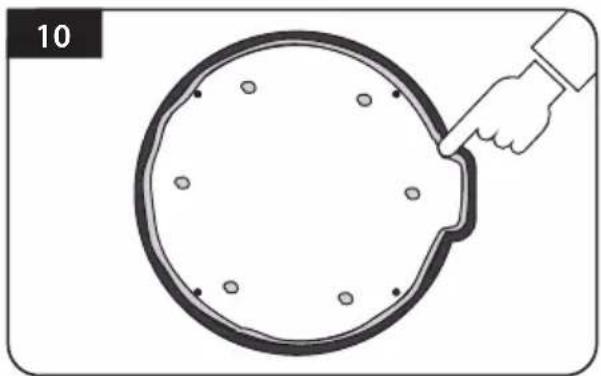

Prepare to place the antenna on to the four upright bolts

Diagram of a hand holding a circular object with holes, no text or symbols present

Remove masking tape and allow to dry

Illustration of a wrench with four hexagonal nuts below it (no text or symbols)

Parts required, spanner, four(4) nuts

Pure technical diagram showing a central hexagonal nut surrounded by curved lines, no text or symbols present

Place the antenna on the aluminium plate and place the washers over each bolt

Illustration of a wrench gripping a bolt, surrounded by wavy lines (no text or symbols)

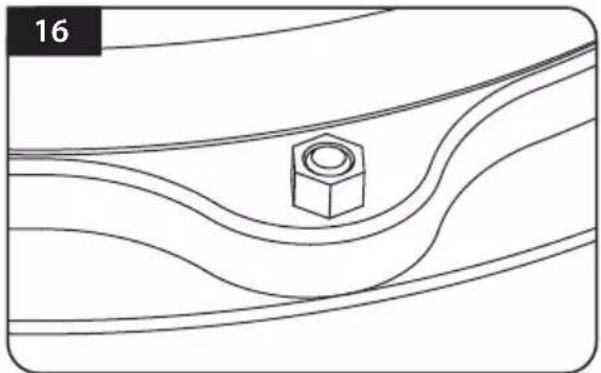

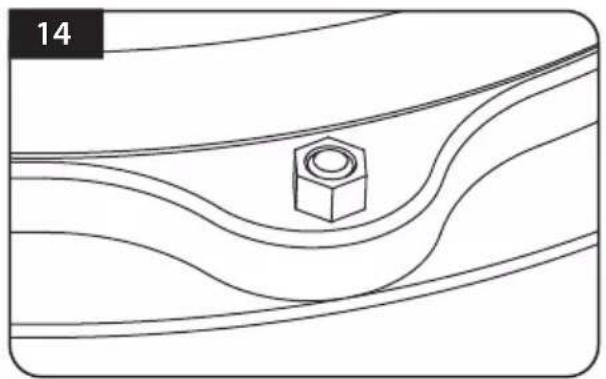

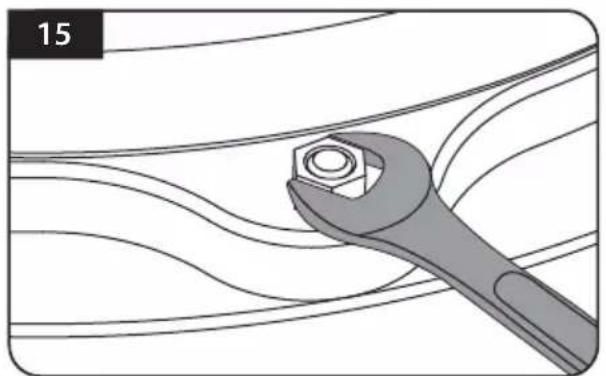

Fit the supplied nuts to each of the four bolts and tighten firmly with spanner

Pure technical diagram showing a hex nut inside a wavy channel, without any text, numbers, or symbols.

Make sure you check and four (4) nuts are tightened

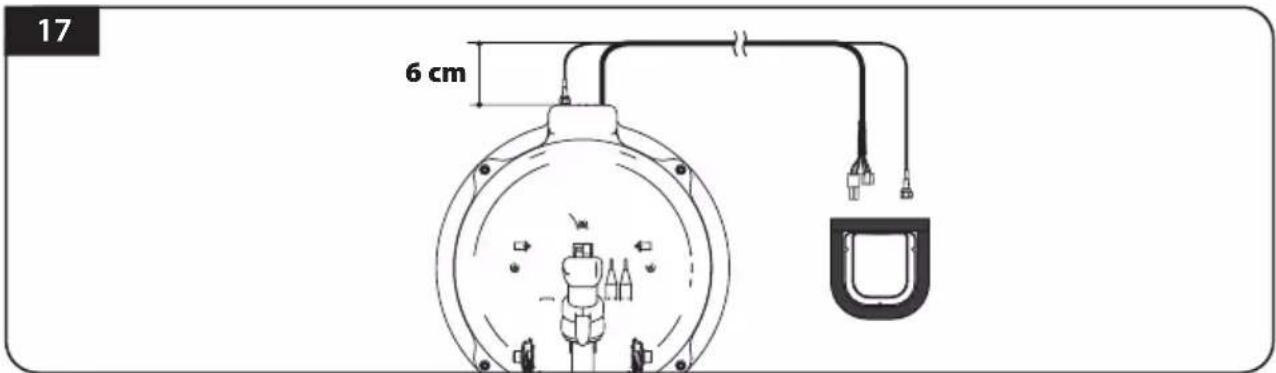

Connect signal cable to antenna port and place cable holder bottom next to the center of the antenna base and then apply masking tape 5mm from the outside of the cable holder bottom

※ To prevent the damage of cable, cable shaping is necessary. By referring the above image, arrange the cable from the antenna base port straight in 6 cm, and then bend it to cable holder bottom.

Diagram of a mechanical component with a U-shaped groove and a threaded rod inserted into it (no text or symbols)

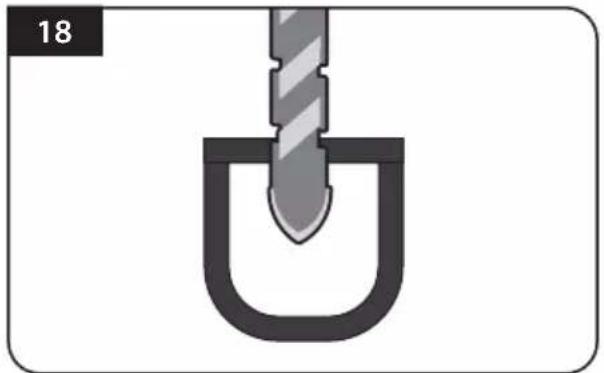

Drill a 25mm hole in the centre of the tape marking

Diagram of a mechanical or electrical component with wires and connectors, no visible text or symbols

Make sure that hole size is minimum so that the cable can pass through

Technical line drawing of a mechanical device with labeled components (no text or symbols)

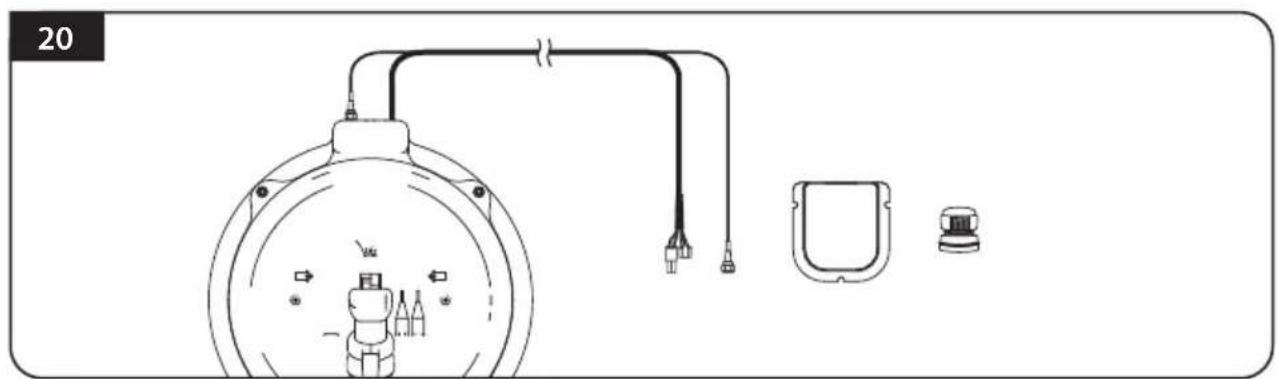

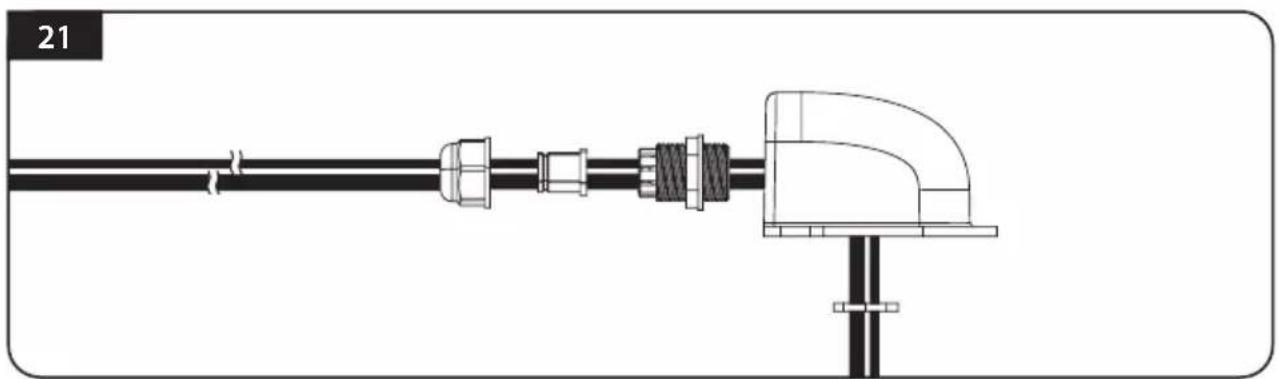

Get controller cable and signal cables, cable holder and gland for installation

Technical line drawing of a mechanical assembly with pipes and a vertical support (no text or symbols)

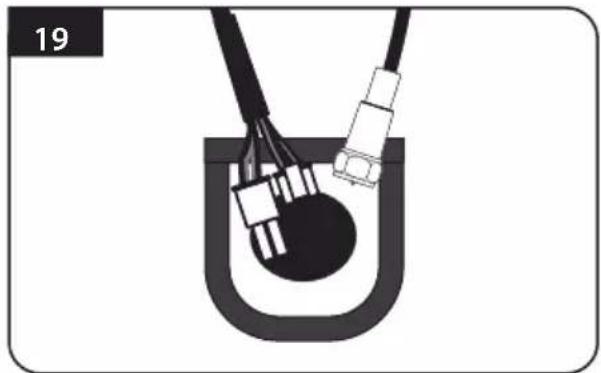

Put the cable inside the cable holder as above picture

Illustration of a hand using a tool to lift a U-shaped pipe or container (no text or symbols visible)

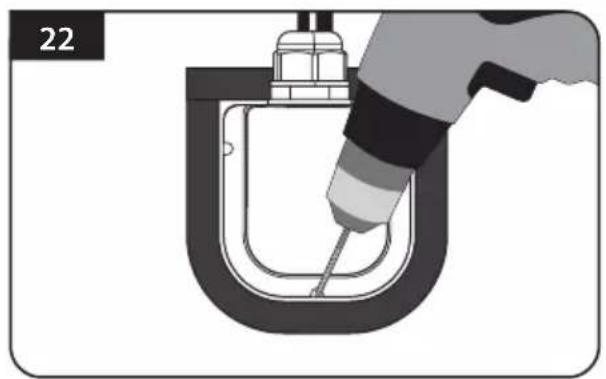

Place the assemble cable holder inside the tape markings. Drill three(3) 2mm holes

Diagram of a U-shaped mechanical component with a pipette inserted, no text or symbols present

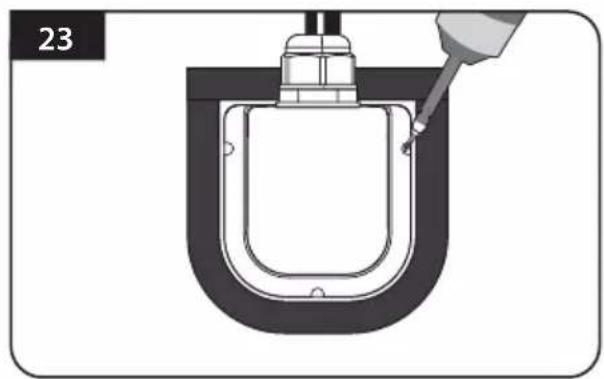

Fix cable holder on the vehicle roof with three(3) of M4 x 20 screws at drill holes made

Cross-sectional diagram of a mechanical component with a tool inserted, showing internal structure and no text or symbols.

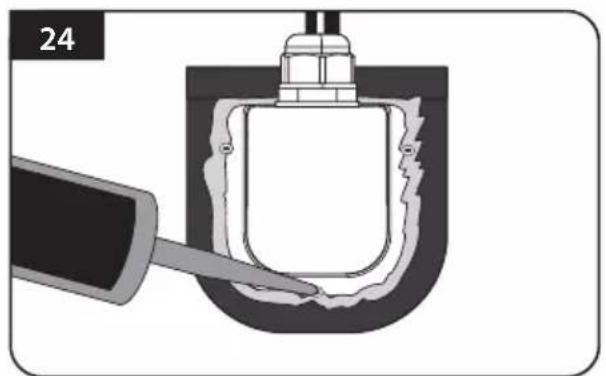

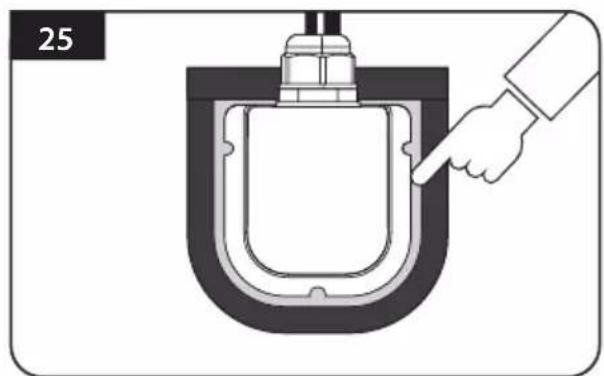

Apply silicone around cable holder and on the top of the screws for waterproof

Diagram of a hand pointing to a U-shaped mechanical component (no text or symbols)

Connect cables to fassigned and remove masking tape then tidy silicone before dry

Attach LNB protection pad on the point which is apart 7 cm (24 cm in SNIPE DISH 85) from antenna base. Check that LNB protection pad is correctly placed where LNB bracket touches on the vehicle roof

※ To prevent entanglement of cables, make sure antenna LNB cable does not be touched by the LNB protection pad.

Coiled electrical cable with terminal connector, no visible text or symbols

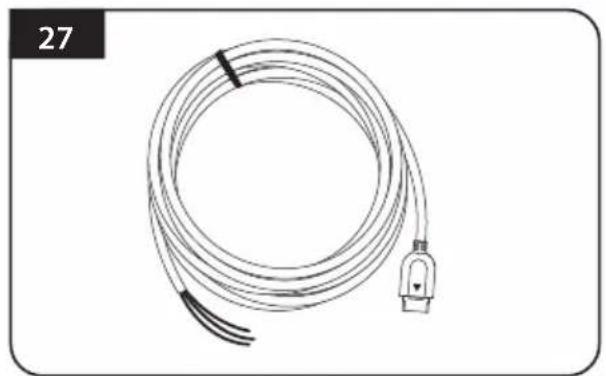

Get power input cable for battery connection

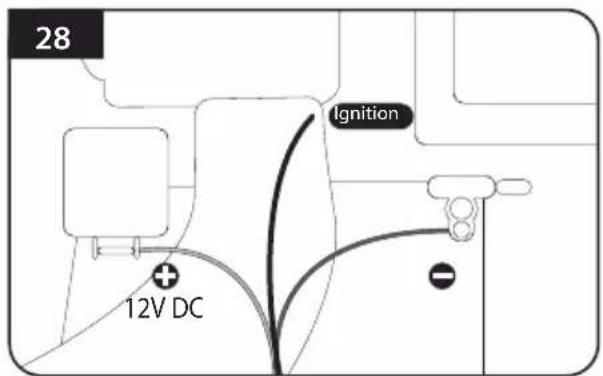

Match the power cables polarities to the battery polarities, red to red / back to black and yellow ignition cable to ignition port of the vehicle

Illustration of a white electronic device with ventilation grilles and ports (no text or symbols)

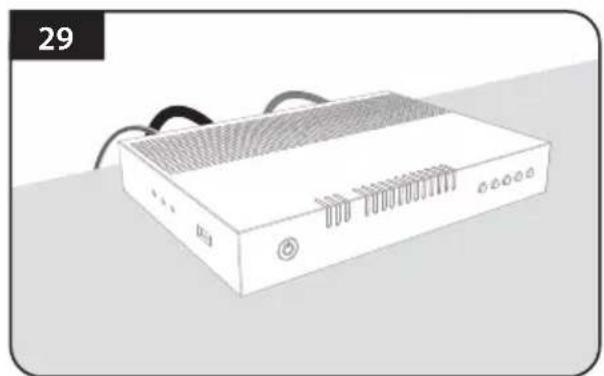

Plug the cables to the controller (Power, signal, STB and controller cables)

Pure diagram of a rectangular device with grid pattern and two side connectors, no text or symbols present

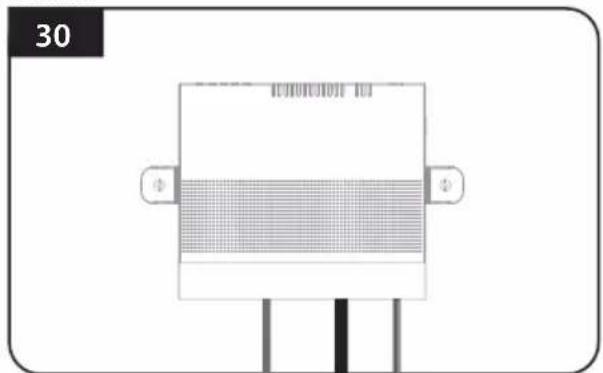

Place the controller at where user wants with four(4) of M4 x 20 screws

Inhaltsverzeichnis

Illustration of a network switch device (no text or symbols visible)

Simple line drawing of a bench with two hanging objects (no text or symbols)

Coiled cable or hose with two connectors, no text or symbols visible

STB-Kabel (3m)

Coiled cable with two connectors, no text or symbols visible

Coiled cable with connectors, no visible text or symbols

Netzanschlusskabel

Simple line drawing of a mechanical housing or bracket (no text or symbols)

Kabelhalter

Simple line drawing of a mechanical connector or fitting (no text or symbols)

Simple line drawing of an oval shape with labeled points (a, b, c) and no text or symbols

Simple diagram of screwdrivers arranged in rows (no text or symbols)

Simple 3D rectangular shape with rounded corners, no text or symbols present

LNB-Schützer

Simple geometric shape: a white rectangle inside a rounded rectangle (no text or symbols)

Bedienungsanleitung

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Schlechtes Beispiel

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical diagram of mechanical components without any text, numbers, or symbols

Pure technical diagram showing curved lines and a central connector without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

Pure technical diagram showing a curved line with directional arrows and geometric shapes, no text or symbols present.

Pure technical diagram of a mechanical component without any text, numbers, or symbols

Pure technical diagram showing a curved mechanical component with no text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

4. Schaltplan

Astra3 @ 23.5°E Astra1 @ 19.2°E

HotBird @ 13.0°E Eutelsat 9 @ 9.0°E

Astra4 @ 4.9°E Thor @ 0.8°W

Eutelsat 5W @ 5.0°W Hispasat @ 30.0°W

SNIPE DISH 85

Illustration of a hand pressing down on a button with sparkles, no text or symbols present

Simple circular diagram with dot pattern inside, no text or symbols present

Simple line drawing of a circular object with internal vertical lines, no text or symbols present.

Illustration of a magnifying glass with a needle inserted, showing the lens and surrounding dots (no text or symbols)

Illustration of a dropper tiping a circular object with dots, no text or symbols present

Illustration of a mechanical measuring tool interacting with a circular component (no text or symbols)

Illustration of a dropper inspecting a circular object with dots, no text or symbols present

Simple line drawing of a magnifying glass with a handle and circular holes, no text or symbols present.

Illustration of a hand pinning a circular object with holes, labeled '10' (no text or symbols on the object itself)

Diagram of a hand holding a circular object with holes, no text or symbols present

Simple circular diagram with six evenly spaced dots and a small protrusion, no text or symbols present.

Illustration of a wrench with four hexagonal nuts below it (no text or symbols)

Pure technical diagram showing a central hexagonal nut with concentric curved lines, no text or symbols present.

Illustration of a wrench gripping a bolt, set against a wavy background (no text or symbols)

Pure technical diagram showing a nut-shaped component embedded in layered curved lines, no text or symbols present.

Diagram of a mechanical component with a U-shaped groove and a threaded rod inserted into it (no text or symbols)

Diagram of a U-shaped device with connectors and wires, no visible text or symbols

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to lift a U-shaped pipe or container (no text or symbols visible)

Diagram of a U-shaped mechanical component with a tool inserted, no visible text or symbols

Cross-sectional diagram of a mechanical component with a tool inserted, showing internal structure and no text or symbols

Diagram of a hand pointing at a U-shaped mechanical component (no text or symbols)

Coiled electrical cable with terminal connector, no visible text or symbols

Illustration of a white electronic device with ventilation grilles and ports (no text or symbols)

Pure electrical circuit lines without any symbols

Illustration of a rectangular electronic device with ports and connectors (no visible text or symbols)

Contrôleur

Simple line drawing of a bench with two small objects on either side (no text or symbols)

Coiled cable or hose with two connectors, no text or symbols visible

Câble STB (3m)

Coiled black cable with two connectors, no text or symbols visible

Coiled cable or hose with a connector, shown in grayscale (no text or symbols visible)

Simple line drawing of a mechanical housing or bracket (no text or symbols)

Porte-câble

Simple line drawing of a mechanical connector or fitting (no text or symbols)

Simple oval shape with labeled points (n, o) inside, no text or symbols present

Plaque de montage

Simple diagram of screwdrivers arranged in rows (no text or symbols)

Simple 3D rectangular shape with no text or symbols

Simple geometric shape: a rectangle inside a rounded rectangle (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Diagram of a medical or laboratory setup with a black cable and connector, no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical diagram of mechanical components without any text, numbers, or symbols

Pure technical diagram showing curved lines and geometric shapes without any text, numbers, or symbols

Pure technical diagram showing curved lines and geometric shapes without any text, numbers, or symbols

Pure technical diagram showing a curved pipe or tube with no text, numbers, or symbols

Pure technical diagram showing mechanical components without any text, numbers, or symbols

Pure technical diagram showing a curved mechanical component with no text or symbols

Pure technical diagram showing mechanical components without any text, numbers, or symbols

Astra3 @ 23.5°E Astra1 @ 19.2°E

HotBird @ 13.0°E Eutelsat 9 @ 9.0°E

Astra4 @ 4.9°E Thor @ 0.8°W

Eutelsat 5W @ 5.0°W Hispasat @ 30.0°W

SNIPE DISH 85

Illustration of a hand pressing down on a button with sparkles, no text or symbols present

Simple circular diagram with dots inside, no text or symbols present

Simple line drawing of a circular object with internal vertical lines, no text or symbols present.

Diagram showing a magnifying tool interacting with a circular object, no text or symbols present

Illustration of a dropper tiping a circular object with dots, no text or symbols present

Illustration of a mechanical tool interacting with a circular component (no text or symbols)

Illustration of a dropper measuring a circular object with dots, no text or symbols present

boulons vissés

Simple line drawing of a magnifying glass with holes and a handle, no text or symbols present

Illustration of a hand pointing at a circular object with holes, labeled '10' (no text or symbols on the object itself)

Diagram of a hand holding a circular object with holes, labeled '11' (no text or symbols on the object itself)

Simple line drawing of a circular object with six small dots and a handle, no text or symbols present.

Illustration of a wrench with three bolts below it (no text or symbols)

Diagram of a bolt head with concentric flow lines and curved boundaries, no text or symbols present

Illustration of a wrench gripping a bolt, set against a wavy background (no text or symbols)

Pure technical diagram showing a hex nut inside a wavy channel, without any text, numbers, or symbols.

Diagram of a mechanical component with a U-shaped groove and a threaded rod inserted into a container (no text or symbols)

Diagram of a U-shaped device with wires and connectors, no visible text or symbols

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Technical line drawing of a mechanical assembly with pipes and a vertical support (no text or symbols)

Illustration of a hand using a tool to lift a U-shaped pipe or container (no text or symbols visible)

Diagram of a U-shaped mechanical component with a tool inserted, no visible text or symbols

Cross-sectional diagram of a mechanical component with a tool inserted, showing internal structure and no text or symbols.

Diagram of a hand inserting a component into a U-shaped container (no text or symbols)

Coiled electrical cable with terminal connector, no visible text or symbols

Illustration of a white electronic device with ventilation grilles and ports (no text or symbols)

Pure diagram of a rectangular device with grid pattern and three vertical supports (no text or symbols)

Illustration of a rectangular electronic device with a black top and internal circuit lines (no text or symbols visible)

Controller Controller beugel, Kabelafdekking achterzijde

Simple line drawing of a wooden beam supported by two small objects (no text or symbols)

Coiled cable or hose with two connectors, no text or symbols visible

STB Kabel (3m)

Coiled black cable with two connectors, no text or symbols visible

Coiled cable with connectors, no text or symbols visible

Stroomtoevoerkabel

Simple line drawing of a mechanical component with a circular hole and rounded base (no text or symbols)

Kabel houder

Simple line drawing of a mechanical component with no text or symbols

Borgmoer M8 (4)

Simple 3D rectangular shape with no text or symbols

LNB beschermingsstrook

Simple geometric shape: a rectangle inside a rounded rectangle (no text or symbols)

Pure technical diagram showing mechanical components without any text, numbers, or symbols

Slecht voorbeeld

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical line drawing of mechanical components without any text, numbers, or symbols

Pure technical diagram showing curved lines and a central black line with directional arrows, without any text or symbols.

Pure technical diagram showing curved lines and a central black line with circular markers, without any text, numbers, or symbols.

Pure technical diagram showing a curved pipe or wire with no text, numbers, or symbols

Pure technical diagram of a mechanical component without any text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

4. Aansluiten

Astra3 @ 23.5°E Astra1 @ 19.2°E

HotBird @ 13.0°E Eutelsat 9 @ 9.0°E

Astra4 @ 4.9°E Thor @ 0.8°W

Eutelsat 5W @ 5.0°W Hispasat @ 30.0°W

SNIPE DISH 85

9-2. Specifications

1 Signaalkabel
2 STB-kabel
3 Stroomtoevoerkabel
4 Silicone
5 M4×20(13), Borgmoer M8(4)
6 LNB beschermingsstrook
7 Kabelpakking
8 Kabelhouder
9 Afplakband
10 Moersleutel
11 Boor 2mm, Boor 25mm
12 Boormachine
13 Reinigingsmiddel

Illustration of a hand pressing down on a button with sparkles, no text or symbols present

Simple circular diagram with dots inside, no text or symbols present

Simple line drawing of a circular object with internal vertical lines, no text or symbols present.

Diagram showing a magnifying tool interacting with a circular object, no text or symbols present

Illustration of a pipette inspecting a circular object with dots, no text or symbols present

Illustration of a tool tiping a circular object with dots, no text or symbols present

Illustration of a dropper inspecting a circular object with dots, no text or symbols present

Simple line drawing of a magnifying glass with holes and a handle, no text or symbols present

Illustration of a hand pointing at a circular object with holes, labeled '10' (no text or symbols on the object itself)

Reinig de overtollige silicone

Diagram of a hand holding a circular object with holes, no text or symbols present

Simple circular diagram with six evenly spaced dots and a small protrusion, no text or symbols present.

Illustration of a wrench with four hexagonal nuts below it (no text or symbols)

Pure technical diagram showing a central hexagonal nut surrounded by curved lines, no text or symbols present

Illustration of a wrench gripping a bolt, surrounded by wavy lines (no text or symbols)

Pure technical diagram showing a central hexagonal nut surrounded by curved lines, no text or symbols present

Simple diagram of a tool inserted into a U-shaped component, no text or symbols present

Diagram of a U-shaped device with connectors and wires, no visible text or symbols

Technical line drawing of a mechanical device with labeled components (no text or symbols)

Technical line drawing of a mechanical assembly with pipes and a vertical support (no text or symbols)

Illustration of a hand using a tool to lift a U-shaped pipe or container (no text or symbols visible)

Diagram of a U-shaped mechanical component with a tool inserted, no visible text or symbols

Diagram of a mechanical component with a tool inserted into a U-shaped housing (no text or symbols)

Diagram of a hand pointing to a U-shaped mechanical component (no text or symbols)

Coiled electrical cable with terminal connector, no visible text or symbols

Illustration of a white electronic device with ventilation slots and ports, no visible text or symbols
