FLAT PRO 7 G2 - Lamp Cameo - Free user manual and instructions

Product Type	Outdoor LED Projector
Brand	Cameo
Model	FLAT PRO 7 G2
Number of LEDs	7
LED Type	10 W RGBWA 5-in-1
Color Spectrum	RGBWA (red, green, blue, white, amber)
Beam Angle	33.5° (18.5° at half intensity)
Luminous Flux	2400 lm
Protection Index	IP65
DMX Modes	1/3/5/10/13 channels (without offset) and 2/4/6/11/14 channels (with offset)
Control	DMX512, RDM
Stand-alone Functions	Auto, Static, CCT, Color Preset, User Color, Loop
Supply Voltage	100-240 V AC, 50-60 Hz
Power Consumption	60 W
Power Connectors	Neutrik TrueOne (IN/OUT)
Fuse	F2A / 250 V (5 x 20 mm)
Dimensions (W x H x D)	241 x 253 x 142 mm (with bracket)
Weight	4.1 kg (with bracket)
Operating Temperature	-15°C to +45°C
Minimum Distance to Illuminated Surface	0.5 m
Minimum Distance to Flammable Materials	0.5 m
Electrical Protection Class	Class I
Housing Material	Metal
Cooling	Convection (silent)
Display	OLED Screen
Maintenance	Clean surfaces with a damp cloth; regular cleaning of air vents and lenses
Delivery Contents	Projector, power cable, user manual
Optional Accessories	Omega bracket (CLOMEGABRACKET1), SPIN16 pivot (CLZSPIN16)

Frequently Asked Questions - FLAT PRO 7 G2 Cameo

How to set the DMX start address on the Cameo FLAT PRO 7 G2?

Press MENU, select DMX Address with UP/DOWN, confirm with ENTER, then set the desired address (001-512) with UP/DOWN and confirm with ENTER.

What DMX modes are available on this projector?

Modes without offset channel are: 1CH, 3CH1, 3CH2, 5CH1, 5CH2, 10CH, 13CH. Modes with offset channel (indicated by a 'D') are: 2CH, 4CH1, 4CH2, 6CH1, 6CH2, 11CH, 14CH.

How to create a chaser effect with multiple projectors?

Use the DMX Delay function: set a group (0-47) and a delay time (0.0-2.0 s) on each projector. In DMX mode with offset channel, the time is controlled by the DMX controller on the dedicated channel.

How to use Stand Alone mode?

Press MENU, select Stand Alone, then choose from: Auto (color programs), Static (manual RGBWA adjustment), CCT (color temperature), Color Preset (15 preset colors), User Color (4 custom presets), or Loop (programmable sequences).

What to do if the screen shows 'Locked'?

The keyboard is locked. Press and hold the UP and DOWN buttons simultaneously for about 5 seconds to unlock.

What is the minimum distance to observe from illuminated surfaces?

The minimum distance is 0.5 m between the projector and the illuminated surface, as well as from normally flammable materials.

How to clean the projector?

Disconnect the power. Clean the surfaces with a damp cloth (no abrasive products). Regularly clean the air vents and lenses with a soft cloth. Avoid any moisture ingress into the device.

Can I replace the light source myself?

No, the light source (LED) is fixed and should not be replaced by the user. In case of failure, contact your dealer or an authorized service.

What type of DMX cable to use?

Use a DMX cable with 3 or 5-pin XLR connectors. The shield should not be connected to the ground of the connector. The last device in the chain must have a 120 ohm termination resistor.

How to reset to factory settings?

Go to Settings > Reset > select Factory and confirm with ENTER. To cancel, press MENU. You can also save and restore up to 3 custom presets.

USER MANUAL FLAT PRO 7 G2 Cameo

Three black circular laser headsets with green and orange LED lights, displayed against a white background (no text or symbols visible)

FIRMWARE VERSION 1.03 AND LATER

INFORMATION ON THIS USER MANUAL 5

INTENDED USE 5

DEFINITIONS AND SYMBOL DECLARATIONS 5

SAFETY INSTRUCTIONS 6

NOTES ON PORTABLE OUTDOOR DEVICES 9

DELIVERY SCOPE 9

INTRODUCTION 9

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 10

OPERATION 12

SET-UP AND INSTALLATION 24

CARE, MAINTENANCE AND REPAIR 25

OPTIONAL ACCESSORIES 26

DMX TECHNOLOGY 26

TECHNICAL DATA 28

EXPLANATION OF IP PROTECTION CLASS 29

MINIMUM DISTANCE TO ILLUMINATED SURFACE 30

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 30

DISPOSAL 31

MANUFACTURER'S DECLARATIONS 31

DEUTSCH

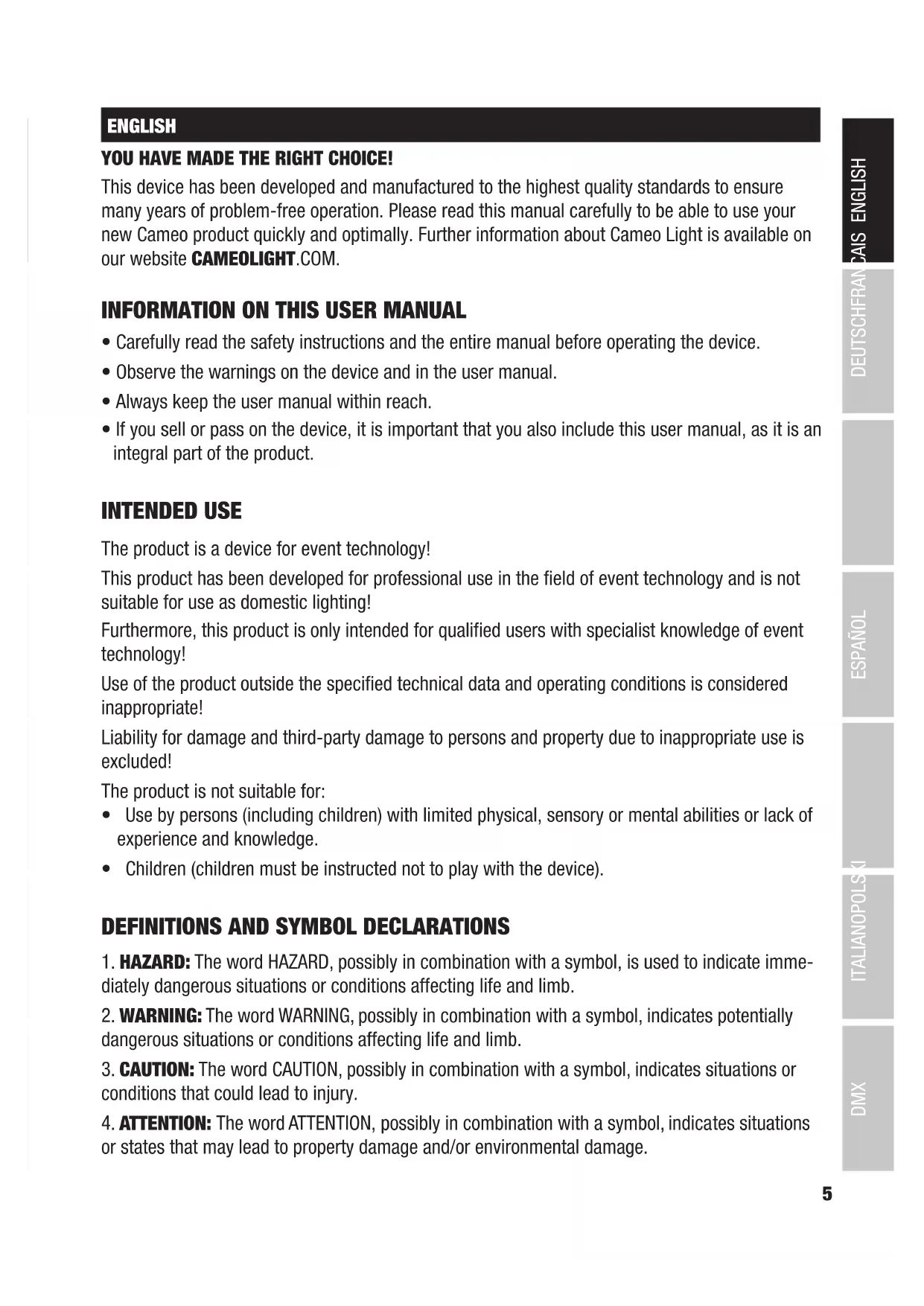

This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is available on our website CAMEOLIGHT.COM.

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  • Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

The product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered inappropriate!

Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

• Use by persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
  • Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL DECLARATIONS

1. HAZARD: The word HAZARD, possibly in combination with a symbol, is used to indicate immediately dangerous situations or conditions affecting life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially dangerous situations or conditions affecting life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that could lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or states that may lead to property damage and/or environmental damage.

This symbol identifies hazards that can cause electric shock.

This symbol identifies hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards caused by intense light sources.

This symbol indicates a device in which there are no user-replaceable parts.

This symbol indicates additional information on the operation of the product.

SAFETY INSTRUCTIONS

HAZARD:

1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it has been damaged in any other way, switch it off immediately and unplug it from the power source. The device may be repaired only by authorised repair technicians.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's power cable is damaged, the device may not be used.
4. Permanently connected mains cables may only be replaced by a qualified person.

CAUTION:

1. Do not switch on the device if it has been exposed to extreme temperature fluctuations (for example, following transport). Moisture and condensation can damage the device. Switch on the device only when it has reached room temperature.
2. Ensure that the voltage and frequency of the mains supply match the values specified on the device. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable power cables.
3. To disconnect the device from the mains on all poles, it is not sufficient to press the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (e.g. lightning strikes).
6. Observe the specified maximum output current on devices with a Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Only replace pluggable mains cables with equivalent cables that correspond to the cable originally supplied. The cross-section must not fall below the cross-section of the original cable.

HAZARD:

1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory or mental capabilities.
2. Risk of falling! Make sure that the device is securely installed and will not fall down. Only use suitable stands or mountings (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device in the prescribed manner only.
2. Operate the device using only accessories of the type recommended and supplied by the manufacturer.
3. Observe safety regulations applicable in your country during installation.
4. After connecting the device, ensure that all cables are routed so as to avoid damage or accidents, such as from tripping.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface that can be read on the device!

CAUTION:

1. Moving components such as mounting brackets or other movable components may become jammed.
2. In the case of devices with motor-driven components, there is a risk of injury due to the movement of the device. Sudden device movement can cause shock-reactions.
3. The housing surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the lamp to cool sufficiently before removal, maintenance work and charging etc.

CAUTION:

1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources, such as burning candles, near the device.
3. Ventilation openings may not be covered and fans may not be blocked.
4. For transport, use the original packaging or packaging provided by the manufacturer.
5. Avoid any impacts to or shaking of the device.
6. Observe the IP rating and the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be continuously further developed. In the event of deviating information on operating conditions, performance or other device properties between the user manual and the device labelling, the information on the device always takes priority.
8. The device is not suitable for tropical climate zones or for operation over 2,000 m above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine conditions.

CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. Never look directly into the beam of light, not even for a short period of time.

2. Never look into the beam of light using optical devices such as a magnifying glass.

1. Stroboscopic effects may cause epileptic seizures in susceptible people!

1. A permanently installed lamp is built into this lighting unit. This may not be replaced by the user. In the event of an error, please contact your sales partner.

NOTES ON PORTABLE OUTDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent structural installation – particularly outdoors – can impair the function, surfaces and seals and accelerate material fatigue.
3. Damage to the surface coating can impair the device's corrosion protection. Damaged surface coating (e.g. scratches) must be promptly repaired by suitable measures.

DELIVERY SCOPE

Remove the product from the packaging and remove all packing material.

Please check the completeness and integrity of the delivery and please notify your distributor immediately after purchase if the delivery is not complete or damaged.

With the package you have purchased you have received:

• Headlamp
• power cord
• Instruction manual

INTRODUCTION

7 X 10 W RGBWA LED OUTDOOR SPOTLIGHT

CLPFLATPRO7G2

12 X 10 W RGBWA LED OUTDOOR SPOTLIGHT

CLPFLATPRO12G2

18 X 10 W RGBWA LED OUTDOOR SPOTLIGHT

CLPFLATPRO18G2

CONTROL FUNCTIONS

▶ DMX modes without DMX delay channel: 1-channel, 3-channel 1, 3-channel 2, 5-channel 1, 5-channel 2, 10-channel and 13-channel DMX control
▶ DMX modes with DMX delay channel: 2-channel, 4-channel 1, 4-channel 2, 6-channel 1, 6-channel 2, 11-channel and 14-channel DMX functions

▶ Master / slave operation
▶ Standalone functions
RDM

FEATURES

10 W 5-in-1 RGBWA LEDs. Protection class IP65. 3-pin IP65 DMX connections. True 1 compatible power connections IN and OUT. OLED display. Flicker-free operation through adjustable PWM frequency. Silent due to convection cooling. Operating voltage 100–240 V AC. The spotlights feature the RDM standard (remote device management). This remote device management allows the user to view the status and configuration of RDM end devices via an RDM-capable controller.

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

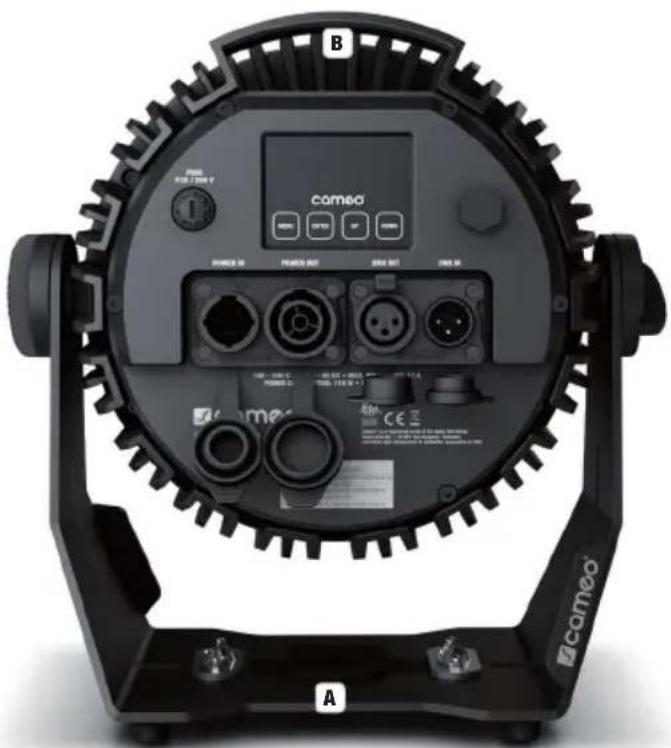

CAMOO® FLAT PRO® 12 G2 10 7 5 6 8 POWER IN POWER OUT MAX. POWER OUT: 31 A POWER CONSUMPTION: 114 W - WTR/INT. C. B kg 11 10 9 11 11 ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEX ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEx ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEEx ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex ©CEex

The models CLPFLATPRO7G2, CLPFLATPRO12G2 and CLPFLATPRO18G2 have identical connections, Operating and display elements, the position of the connections varies slightly.

1 POWER IN

TRUE 1-compatible power input socket. Operating voltage 100–240 V AC/50–60 Hz. A suitable mains cable with IP65 plug is included. When not in use, always close with the appropriate rubber sealing cap.

2 POWER OUT

TRUE 1-compatible mains output socket for supplying power to additional Cameo spotlights (for maximum output current, see label on back of housing). When not in use, always close with the appropriate rubber sealing cap.

3 DMX IN

Male IP65 3-pin XLR socket for connection to a DMX control device (e.g. DMX console) When not in use, always close with the appropriate rubber sealing cap.

4 DMX OUT

Female IP65 3-pin XLR socket for sending the DMX control signal. When not in use, always close with the appropriate rubber sealing cap.

5 FUSE

IP65 fuse holder for 5 x 20 mm micro fuses. IMPORTANT: Replace the fuse only with a fuse of the same type and of the same value (see stamp on back of device). In the event of repeated fuse failure, please contact an authorised service centre.

6 PRESSURE EQUALISATION ELEMENT

The pressure equalisation element serves to prevent condensation inside the housing. In order to ensure its proper function, the element must be protected from contamination.

7 OLED DISPLAY

The OLED display shows the currently activated mode (main display), the menu items in the selection menu and the numerical value or operating mode in certain menu items. If there is no input for approx. 30 seconds, the display automatically returns to the main display. Note regarding the main display in operating modes with external control: As soon as the control signal is interrupted, the characters in the display begin to flash. When there is a control signal again, the flashing stops. Briefly pressing UP on the control panel when in the main display rotates the display by 180^ .

8 ILLUMINATED CONTROL PANELS

Illumination of the control panels is activated as soon as one of the capacitive control panels is touched; only then is operation via control panels possible. If no input is made within approx. 30 seconds, the control panel illumination goes off.

MENU – Press MENU to access the selection menu. Press repeatedly to return to the main display. Pressing MENU without confirming a value or status change with ENTER restores the previously confirmed value or status.

ENTER – Press ENTER to access the menu levels to make value changes and use the ENTER control field to access the submenus. Confirm value or status changes by pressing ENTER.

UP and DOWN – Select individual menu items in the selection menu (DMX address, operating mode etc.) and in the submenus.

Allow changes to the value in a menu item, such as the DMX address, as required.

9 STAND AND MOUNTING BRACKET

Four rubber feet on the underside of the stand and/or mounting bracket ensure that it can be securely placed on suitable surfaces while at the same time protecting the surface from scratches. When installing the traverse mounting, use an optional traverse clamp (Omega bracket and the 16 mm spigot SPIN16® with folding mechanism are available as options).

10 CARRY HANDLE/SECURING POINT

The practical carry handle also serves to secure the spotlight in the event of traverse mounting.

11 GRIP SCREWS

The two grip screws are used for adjusting and fixing the stand and/or mounting bracket.

PLEASE NOTE: To protect the input and output sockets from splash water in accordance with IP65 protection class, they must be correctly closed using the appropriate IP65 plugs or the rubber sealing caps must be used to close them.

OPERATION

PLEASE NOTE

As soon as the spotlight is correctly connected to the power supply, the following will be displayed in succession: "Welcome to Cameo", the model name and the software version. After this process, the spotlight is ready for operation and the previously activated operating mode is launched.
▶ To return directly from the submenus to the main display, press and hold the MENU control for around 3 seconds. The main display is activated automatically if no input is made within approximately 30 seconds. To navigate one level up in the submenus, briefly press MENU.
▶ To directly access the previously edited menu item, briefly press MENU and ENTER at the same time.
▶ Briefly pressing UP when in the main display rotates the display by 180^ .
▶ To quickly change a value, such as the DMX start address, press and hold UP or DOWN.
▶ Before changing device settings, ensure that the control panel is dry and dust free, in order not to impair its functionality.

MAIN DISPLAY DMX OPERATING MODE

The display shows the DMX address and current DMX start address (in the example 001). If the DMX delay is activated, the delay group and delay time are also displayed.

MAIN DISPLAY STANDALONE MODE

The display shows the currently activated standalone mode (Mode Auto, Mode Static, Mode CCT, Mode Color Preset, Mode User Color, Mode Loop).

MAIN DISPLAY SLAVE MODE

The display shows Mode Slave. If the slave unit is assigned to a slave group, the slave group and the delay time set in the master unit under the standalone operating modes Auto and Loop are also displayed.

CONFIGURE DMX START ADDRESS

Press MENU to access the main menu. Now use UP and DOWN to select the menu item DMX Mode and confirm with ENTER. Again use UP and DOWN to select the desired DMX mode and confirm with ENTER (DMX modes with DMX delay channel are identified with ,D'). Tables with the channel assignment of the different DMX modes can be found in these instructions under DMX CONTROL.

---- Menu ---- ► DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info

CONFIGURE DMX MODE

Press MENU to access the main menu. Now use UP and DOWN to select the menu item DMX Mode and confirm with ENTER. Again use UP and DOWN to select the desired DMX mode and confirm with ENTER. Tables with the channel assignment of the different DMX modes can be found in these instructions under DMX CONTROL.

---- Menu ---- DMX Address ►DMX Mode DMX Delay Stand Alone Slave Settings System Info

---DMX Mode --- ► 1CH D2CH 3CH1 D4CH1 3CH2 D4CH2 5CH1 D6CH1 5CH2 D6CH2 10CH D11CH 13CH D14CH

DMX DELAY

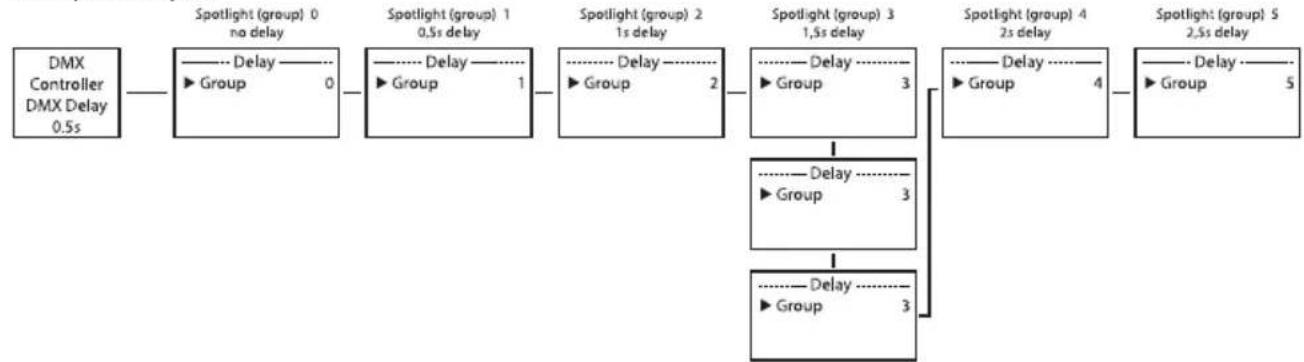

The DMX Delay function is a simple way to create a running light effect with a large number of spotlights that are all the same model and that are all running the same software version. This is otherwise only achievable with a suitable DMX controller and time-consuming programming. All the spotlights used in this are set to the same DMX operating mode and controlled via the same DMX start address.

Manually setting the DMX delay for DMX modes without DMX delay channel:

Starting from the main display, press MENU to enter the main menu. Use the buttons ▲ and ▼ to select the menu item DMX Delay and confirm with ENTER. Again use ▲ and ▼ to select the desired submenu item, confirm with ENTER and set the value or status accordingly. Confirm all entries with ENTER. Assign the spotlights to one of up to 47 groups as desired (maximum group number depends on the activated DMX operating mode). Multiple spotlights may be assigned to a group. The group number is also the factor by which the set delay time is multiplied. The delay time (delay time of the DMX signal) can be set manually at each spotlight separately with different values (0.0 s to 2.0 s in 0.1 s increments).

---- Menu ---- DMX Address DMX Mode ►DMX Delay Stand Alone Slave Settings System Info ---- Delay ---- ►Group 0 Delay 0.0s

Setup example:

Setting the DMX delay for DMX modes with DMX delay channel:

Starting from the main display, press MENU to enter the main menu. Use the buttons ▲ and ▲ to select the menu item DMX Delay and confirm by pressing ENTER twice. Assign the spotlights to one of up to 47 groups as desired (maximum group number depends on the activated DMX operating mode). Multiple spotlights may be assigned to a group. The group number is also the factor by which the set delay time is multiplied. Confirm each entry by pressing ENTER.

---- Menu ---- DMX Address DMX Mode ►DMX Delay Stand Alone Slave Settings System Info

The delay time (delay time of the DMX signal) is set by means of a DMX controller in the separate DMX delay channel of the corresponding DMX mode (0.0 s to 2.0 s in 0.1 s increments).

Setup example:

    B --> H["► Group 0"]
    C --> I["► Group 1"]
    D --> J["► Group 2"]
    E --> K["► Group 3"]
    F --> L["► Group 4"]
    G --> M["► Group 5"]

    H --> N["Delay ----"]
    I --> O["Delay ----"]
    J --> P["Delay ----"]
    K --> Q["Delay ----"]
    L --> R["Delay ----"]
    M --> S["Delay ----"]
    N --> T["► Group 3"]
    O --> U["► Group 3"]
    P --> V["► Group 3"]
    Q --> W["► Group 3"]

AUTO STANDALONE MODE

The 6 available auto-programmes each comprise non-editable color-change sequences; Random scenes, brightness, speed and delay can be set separately for each programme in some cases.

Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to select the Stand Alone menu item and confirm with ENTER. Use UP and DOWN again to select the Auto standalone mode and confirm with ENTER. Now use UP and DOWN to select the desired programme and confirm with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info

Mode ▶ Auto Static CCT Color Preset User Color Loop

Auto ► 7 Color Jump 7 Color Fade 15 Color Jump 15 Color Fade Random Jump Random Fade

This will take you to the submenu for setting the submenu items (see table, select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER). The settings for each programme are made separately and are retained even after restarting the device.

AUTO STANDALONE MODE
Dimmer Sets brightness 0–100
Speed Sets running speed 0–100
Delay Delay time for slave groups 0.0 s to 2.0 s

STATIC STANDALONE MODE

The Static standalone mode allows the Dimmer, Strobe, R, G, B, W and A values to be set directly on the device with values in a similar way to with a DMX controller. In this way, an individual scene can be created without an additional DMX controller.

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the Standalone menu item and confirm with ENTER. Again use UP and DOWN to select the

Static standalone mode and confirm with ENTER. Using UP and DOWN, now select the menu item that you wish to edit and confirm with ENTER. You can use UP and DOWN to configure the desired value between 000 and 255. The strobe effect values correspond to those in channel 2 of the DMX table 3 CH Mode 1. Confirm all entries with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info

---- Mode ---- Auto ► Static CCT Color Preset User Color Loop

---- Static Mode ---- ► Dimmer 000 - 255 Strobe 000 - 255 Red 000 - 255 Green 000 - 255 Blue 000 - 255 White 000 - 255 Amber 000 - 255

CCT STANDALONE MODE (CORRELATED COLOR TEMPERATURE)

The CCT standalone mode allows the color temperature to be adjusted from 1800 K to 7500 K in 100 K steps, and the tint and brightness (dimmer) can also be adjusted.

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the Standalone menu item and confirm with ENTER. Using UP and DOWN, select the standalone mode CCT and confirm with ENTER. Now select the menu item you wish to edit using UP and DOWN, confirm with ENTER and adjust the desired value using UP and DOWN. Confirm all entries with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info

---- Mode ---- Auto Static ► CCT Color Preset User Color Loop

COLOR PRESET STANDALONE MODE

15 different color presets are available. The brightness can be separately set for each preset. Starting from main display 1, press MENU to enter the main menu. Using UP and DOWN, select the menu item Standalone and confirm with ENTER. Using UP and DOWN, select the standalone mode Color Preset and confirm with ENTER. Now use UP and DOWN to select the desired color as a preset and confirm with ENTER (Color Off = blackout). You can set the desired brightness from 000 to 100 using UP and DOWN, confirm all entries with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info

Color Preset ► Color Off Red 0 - 100 Amber 0 - 100 Yellow W 0 - 100 Yellow 0 - 100 Green 0 - 100 Turquoise 0 - 100 Cyan 0 - 100

Blue 0 - 100 Lavender 0 - 100 Mauve 0 - 100 Magenta 0 - 100 Pink 0 - 100 Warm White 0 - 100 White 0 - 100 Cold White 0 - 100

USER COLOR STANDALONE MODE

The User Color standalone mode allows you to store four individual color presets for overall brightness, strobe and a color blend of R, G, B, W and A directly in the device.

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Standalone and confirm with ENTER. Again use UP and DOWN to select the standalone mode User Color and confirm with ENTER. Using UP and DOWN, now select the desired preset (Color 1 - Color 4) and confirm with ENTER. Using UP and DOWN, now select the menu item that you wish to edit and confirm with ENTER. You can use UP and DOWN to configure the desired value between 000 and 255. The strobe effect values correspond to those in channel 2 of the DMX table 4 CH Mode 1. Confirm all entries with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info

Mode Auto Static CCT Color Preset ► User Color Loop

Color x ► Dimmer 0 - 255 Strobe 0 - 255 Red 0 - 255 Green 0 - 255 Blue 0 - 255 White 0 - 255 Amber 0 - 255

LOOP STANDALONE MODE

The Loop standalone mode allows you to individually configure, store and access up to four different color changing programmes. Brightness, step time, fade time and delay (signal delay) are also separately configurable.

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Standalone and confirm with ENTER. Using the UP and DOWN buttons, select the standalone mode Loop and confirm with ENTER. Using UP and DOWN, now select the desired loop (Loop 1 to 4) and confirm with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info ---- Mode ---- Auto Static CCT Color Preset User Color ► Loop ---- Loop ---- ► Loop 1 | Loop 4 ---- Loop x ---- ► Dimmer 0 - 100 Steptime 0.1s-10.0s Fadetime 0%-100% Delay 0.0s - 2.0s 1.Step Red 2.Step Green 3.Step Blackout 4.Step --

This will take you to the submenu for setting the submenu items (see table, select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER). The settings for each loop are made separately and are retained even after restarting the device.

STANDALONE MODE LOOP (Loop 1 – Loop 4)
Dimmer Sets brightness 0–100
Step time	Sets step time 0.1 s to 10.0 s
Fade time	Sets fade time in percent 0% to 100%
Delay Delay time for slave groups 0.0 s to 2.0 s
Step 1 15 colors from Color Preset Red – C White
Step 2 „ „
Step 3 15 colors from Color Preset Red – C White
--- Skip step
Step 4 „ „

SLAVE MODE

Standard slave mode: Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to select the menu item Slave, confirm with ENTER, select Slave Group 0 and again confirm with ENTER. Connect the slave and the master units (same model, same software version) using a DMX cable, and enable one of the standalone modes on the master unit (Auto, Static, Color Preset, User Color, Loop). The slave unit will now follow the master unit.

---- Menu ---- DMX Address DMX Mode DMX Delay Stand Alone ► Slave Settings System Info

Main display

Advanced slave mode: If you wish to control the slave units in master/slave mode using one of the Auto or Loop standalone modes, the control signal can be reproduced with a time delay of up to 24 steps. The delay is set in the sub-menu item Delay in the relevant standalone mode, the delay factor is set in the slave menu of the corresponding spotlight. This is a simple way to create a running light effect with a large number of spotlights that are all the same model and have the same software version. This is otherwise only possible using a suitable DMX controller and time-consuming programming.

---- Menu ---- DMX Address DMX Mode DMX Delay Stand Alone ► Slave Settings System Info

Main display with group number and delay time in master unit

Assign the spotlights to one of up to 24 groups according to preference, whereby several spotlights can be assigned to one group. The group number is also the factor by which the delay time set in the master unit is multiplied (see setup example).

SYSTEM SETTINGS (SETTINGS)

Starting from the main display, press MENU to enter the main menu. Use UP and DOWN to select the menu item Settings and confirm with ENTER.

This will take you to the submenu for setting the submenu items (see table, select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER).

Settings
Display Reverse =	Rotate display Off No display rotation
				On Display is rotated by 180° (e.g. for overhead installation)
Display backlight =	Display lighting Off Deactivates after approxi-			mately 30 seconds of inactivity
				On On permanently
Signal Fail = Operating status with DMX signal fault			Hold Last command and is retained
			Blackout Activates blackout
			Fade slow fade out to blackout
			User Color 1 User Color 1 is activated
PWM Frequency =	LED PWM frequency 650Hz, 1530Hz, 2000Hz, 3600Hz, 12kHz, 25kHz			Select LED PWM frequency
Dimmer response	Dimmer response LED	Lamp responds abruptly to changes in DMX value
		Halogen	Spotlight behaves like a halogen spotlight with soft brightness changes
Dimmer curve = Dimmer curve Linear Light intensity increases				linearly with DMX value
				Exponential Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
				Logarithmic Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
				S-curve Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
Redshift = accurately mimics the color drift of dimming a halogen spotlight. When dimming the spotlight, the color temperature changes automatically to increasingly warm white tones and amber (and vice versa).				Off Color drift is disabled
				On Color drift is enabled
Color calibration = Color calibration Calibrated				Factory calibration of R, G, B and A (across all modes)
				RAW R, G, B, W and A with maximum value 255
				User Individual color calibration. Cross-mode brightness setting of R, G, B, W and A values from 0 - 255
Reset = Reset settings	Factory Reset to factory settings:			Perform reset with ENTER, cancel with MENU
			Preset A Reset to	Preset A: Perform reset with ENTER, cancel with MENU
			Preset B Reset to	Preset B: Perform reset with ENTER, cancel with MENU
			Preset C Reset to	Preset C: Perform reset with ENTER, cancel with MENU
Edit Preset = Store all system settings in 3 individual presets			Preset A Store with ENTER
			Preset B Store with ENTER
			Preset C Store with ENTER
Autolock = Automatic locking of the controls			Off Automatic locking of the controls is disabled
			On Automatic locking of the controls after approximately 30 seconds of inactivity. Display shown upon attempted use “LOCKED”. Unlock: Press and hold UP and DOWN simultaneously for approx. 5 seconds

Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to select the menu item System Info and confirm with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay Stand Alone Slave Settings ►System Info

This will take you to the submenu for accessing the system information (see table, selection with UP and DOWN, confirm with ENTER, change status with UP and DOWN, confirm with ENTER).

System Info
Firmware = Displays device firmware Main CPU			V1.xx
Temperature = Displays temperature of LED unit			LED xxx°C / xxx°F
			Celsius/Fahrenheit Celsius (= display in degrees Celsius)
Operation Time	= Displays operating time OpTime		xxxx:xxh Displays total operating time in hours and minutes

MANUAL LOCKING FUNCTION

In addition to the ability to automatically protect the lamp from accidental and unauthorised operation (see "Settings" – "Auto-lock"), the controls can also be locked manually. For this purpose, press and hold UP and DOWN simultaneously for approximately 5 seconds. "Locked!" is now displayed and it is no longer possible to change the spotlight's settings via the controls. To unlock, press and hold UP and DOWN simultaneously for approximately 5 seconds. The display will show the previously displayed information.

SET-UP AND INSTALLATION

Four rubber feet on the underside of the stand and/or mounting bracket ensure that it can be securely placed on suitable surfaces while at the same time protecting the surface from scratches. When installing the traverse mounting, use an optional traverse clamp to be fastened at the mounting point A (Omega bracket and the 16 mm spigot SPIN16® with folding mechanism are available as options). Ensure firm connections and secure the spotlight with a suitable safety rope at the securing point provided B (carry handle).

Important safety notice: Overhead mounting requires extensive experience, including the calculation of the limit values for load, the installation materials and regular safety inspection of all installation materials and spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death.

B COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO COMO

CARE, MAINTENANCE AND REPAIR

To ensure the device functions properly over the long term, it must be maintained and serviced regularly – at least every 3,000 operating hours or, at the latest, after one year.

CARE (carried out by user)

WARNING! Before carrying out any work, the power supply – and, if possible, all device connections – must be disconnected.

PLEASE NOTE! Improper care can lead to impairment of the device or even its destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate into the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (e.g. fans must be blocked in this case, as they could otherwise over-rev.).
3. Lines and plug contacts must be cleaned regularly and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used, otherwise the surface finish may be damaged.
5. Devices must generally be stored dry and protected from dust and dirt.
6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting apertures must be cleaned regularly.

MAINTENANCE AND REPAIR (BY QUALIFIED PERSONNEL ONLY)

HAZARD! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, for example, due to charged capacitors.

PLEASE NOTE! There are no user-serviceable assemblies in the device.

PLEASE NOTE! Maintenance and repair work may only be carried out by sufficiently qualified specialist personnel. If in doubt, consult a specialist workshop.

PLEASE NOTE! Improperly performed maintenance work may affect the warranty claim.

PLEASE NOTE! For conversion or retrofit sets provided by the manufacturer, it is essential to observe the enclosed installation instructions.

OPTIONAL ACCESSORIES

Omega mounting bracket CLOMEGABRACKET1

Black metal bracket component with two side slots and a circular hole (no text or symbols)

16 mm TV spigot with folding mechanism CLZSPIN16

DMX TECHNOLOGY

DMX-512

DMX (Digital Multiplex) is the designation for a universal transmission protocol for

communications between corresponding devices and controllers.

A DMX controller sends DMX data to the connected DMX device(s).

The DMX data is always transmitted as a serial data stream that is

Coiled black cable with two connectors (no text or symbols visible)

forwarded from one connected device to the next via the "DMX IN" and "DMX OUT" connectors (XLR plug-type connectors) that are found on every DMX-capable device, provided the maximum number of devices does not exceed 32 units. The last device in the chain needs to be equipped with a terminator (terminating resistor).

DMX CONNECTION

DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be

connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX compatible. For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible.

The order in which the devices are integrated in the DMX network has no influence on the addresses. Thus the device with the DMX address 1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the DMX network.

SERIAL CONNECTION OF MULTIPLE LIGHTS

1. Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device (e.g. DMX-Controller).
2. Connect the female 3-pin XLR connector of the DMX cable connected to the first projector to the DMX input (male 3-pin socket) of the next DMX device. In the same way, connect the DMX output of this device to the DMX input of the next device and repeat until all devices have been connected. Please note that as a rule, DMX devices are connected in series and connections cannot be shared without active splitters. The maximum number of DMX devices in a DMX chain should not exceed 32 units.

The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables.

DMX CABLES

When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding is connected to the ground, this can lead to short-circuiting and system malfunctions.

PIN ASSIGNMENT

DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors (pin 4 and 5 are not used):

DMX TERMINATORS (TERMINATING RESISTORS)

To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt).

3-pin XLR connector with a terminating resistor: K3DMXT3
5-pin XLR connector with a terminating resistor: K3DMXT5

PIN ASSIGNMENT

3-pin XLR connector: 5-pin XLR connector:

DMX ADAPTER

The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable adapters.

PIN ASSIGNMENT

DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020

Pins 4 and 5 are not used.

PIN ASSIGNMENT

DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020

Pins 4 and 5 are not used.

Additional features: Power cord included; SPIN16 and Omega bracket available as optional accessories
TECHNICAL DATA

Product number: CLPFLATPRO7G2 CLPFLATPRO12G2 CLPFLATPRO18G2
Product type: LED spotlight
Type: Outdoor spotlight
Colour spectrum: RGBWA
Number of LEDs: 7 12 18
LED type: 10 W
LED PWM frequency: 650 Hz, 1530 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz (adjustable)
Beam angle (half-peak divergence):	33.5° (18.5°)
DMX input: 3-pin male
DMX output:	3-pin female
DMX modes:	Without DMX delay channel: 1-channel, 3-channel 1, 3-channel 2, 5-channel 1, 5-channel 2, 10-channel, 13-channelWith DMX delay channel: 2-channel, 4-channel 1, 4-channel 2, 6-channel 1, 6-channel 2, 11-channel, 14-channel
DMX functions:	Dimmer, fine dimmer, strobe, RGBWA, colour temperature, colour presets, chaser selection, colour mode fading, system setting, DMX delay
Control:	DMX512, RDM
Standalone functions:	Auto programs, static, CCT mode, colour presets, user colours, loop function
Operating elements:	Mode, Enter, Up, Down
Display elements:	OLED display
Operating voltage:	100–240 V AC/50–60 Hz
Power consumption:	60 W	110 W	170 W
Luminous flux:	2400 lm	4300 lm	6600 lm
Calibration modes:	Calibrated, RAW, User
Power supply connections: Neutrik True One compatible (IN/OUT)
Electrical protection class: 1
Max. output current: 12 A 11 A 10 A
Fuse: F2A / 250 V	(5 x 20 mm)	F3A / 250 V(5 x 20 mm)	F4A / 250 V(5 x 20 mm)
Ambient temperature (in operation):		-15° - 45°
Protection class: IP65
Minimum distance to illuminated surface:		0.5 m
Minimum distance to normally flammable materials:		0.5 m
Housing colour: Black
Housing material: Metal
Housing cooling: Convection cooling
Dimensions (W x H x D, including mounting bracket):	241 x 253 x 142 mm	292 x 300 x 156 mm	339 x 353 x 170 mm
Weight (incl. mounting bracket):	4.1 kg 5.9 kg 8.3 kg

EXPLANATION OF IP PROTECTION CLASS

1. An IP rating only reflects protection from solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature, etc.
2. The first identification digit indicates protection from dust, solid objects and contact:

IP2X	Protected against solid foreign bodies ≥ 12.5 mm in diameter
IP3X	Protected against solid foreign bodies ≥ 2.5 mm in diameter
IP4X	Protected against solid foreign bodies ≥ 1.0 mm in diameter
IP5X	Protected against dust in harmful quantities and completely protected against contact
IP6X	Are dust-tight and completely protected against contact

1. The second identification digit indicates protection from water:

IPX0 no	protection
IPX1	Protection against dripping water
IPX2	Protection against dripping water when the device is tilted up to 15°
IPX3	Protection against falling spray water up to 60° from the vertical
IPX4	Protection against splashing water on all sides
IPX5	Protection against water jets (nozzle) from any angle
IPX6	Protection against strong water jets
IPX7	Protection against temporary immersion

1. In addition, some device-specific measures such as covers and sealing caps are necessary in order to achieve the specified protection class (e.g. protective caps on unused connections).

The IP rating of the product can be found in the technical data and is printed on the device.

MINIMUM DISTANCE TO ILLUMINATED SURFACE

0.5 m This symbol with distance specification in metres (m) indicates the minimum distance between the light head and the illuminated surface. In this example the distance is 0.5 m.

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

·s D_0.5 m This symbol with distance specification in metres (m) indicates the minimum distance between the light head and normally flammable materials. In this example the distance is 0.5 m.

DISPOSAL

PACKAGING:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally-friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY

Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach / E-mail [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

Contact your sales partner for service.

CE CONFORMITY

Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

EC DECLARATION OF CONFORMITY

Declarations of conformity for products subject to the LVD, EMC, RoHS Directive can be requested from [e-mail].

Declarations of conformity for products subject to RED can be downloaded from www.adamhall.com/compliance/.

SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER MODIFICATIONS!

DEUTSCH

Mode ▶ Auto Static CCT Color Preset User Color Loop

Auto ► 7 Color Jump 7 Color Fade 15 Color Jump 15 Color Fade Random Jump Random Fade

---- Program x ---- ► Dimmer 0 - 100 Speed 0 - 100 Delay 0.0s - 2.0s

Sicherungspunkt B (Tragegriff).

Black metal bracket component with two side slots and a circular hole (no text or symbols)

Coiled black cable with two connectors and a connector pin (no text or symbols visible)

DMX-VERBINDUNG:

DMX-Adapter 5-Pol XLR male auf 3-Pol XLR female: K3DGF0020

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

Front view of a COMEO VR light bulb device with labeled ports and control buttons (no readable text beyond branding)

ENTRETIEN, MAINTENANCE ET RÉPARATION

Black plastic mechanical bracket with two side slots and a central hole (no text or symbols visible)

Coiled black cable with two connectors and a terminal connector (no text or symbols visible)

PROTOCOLE DMX

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

Directive CEM (2014/30/UE)

RoHS (2011/65/UE)

RED (2014/53/UE)

DÉCLARATION DE CONFORMITÉ UE

PVDAC FIA / 20 V 7 6 5 8 POWER IN POWER OUT DOUT OUT DOUT IN 1 T49 - 340 V AC / 90 - 90 XZ + MAX. POWER OUT) 11 A POWER CONSUMPTION: 110 M - W/MAX: 1.0 kg cameo® FLAT PRO® 12 G2 CE Power" To be installed based on the Power Line, Maximum FCL = 100% Minimum Power Input NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NEW COLDING LINE NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP NOT FOR NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUT RAMP Not for NUN TIN RAMP Not for NUN TIN RAMP Not for NUN TIN RAMP Not for NUN TIN RAMP Not for NUN TIN RAMP Not for NUN TIN RAMP Not for NUN TIN RAMP Not for NUN TIN RAMP Not for NUN TIN RAMP Not for NUN TIN RAMP Not for NUN TIN RAMP Not for NUN TIN BWP Not for NUN TIN BWP Not for NUN TIN BWP Not for NUN TIN BWP Not for NUN TIN BWP Not for NUN TIN BWP Not for NUN TIN BWP Not for NUN TIN BWP Not for NUN TIN BWP Not for NUN TIN BWP Not for NUN TIN BWP Not for NUN TIN BWP

Mode ▶ Auto Static CCT Color Preset User Color Loop

Auto ► 7 Color Jump 7 Color Fade 15 Color Jump 15 Color Fade Random Jump Random Fade

Black metal bracket component with two side slots and a circular hole (no text or symbols)

Coiled black cable with two connectors and a 3-pin connector (no text or symbols visible)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

CAMOO® FLAT PRO® 12 G2 10 7 5 6 8 POWER IN POWER OUT MAX. POWER OUT: 11 A POWER CONSUMPTION: 110 M - W/MAX: 5.5 kg 11 9 11 10 CE REDADED FULLER CONTROLLED CLOSING MINI-OPEN MAX. POWER OUT: 11 A MINI-OPEN MAX. POWER OUT: 11 B MINI-OPEN MAX. POWER OUT: 11 C MINI-OPEN MAX. POWER OUT: 11 D MINI-OPEN MAX. POWER OUT: 11 E MINI-OPEN MAX. POWER OUT: 11 F MINI-OPEN MAX. POWER OUT: 11 G MINI-OPEN MAX. POWER OUT: 11 H MINI-OPEN MAX. POWER OUT: 11 I MINI-OPEN MAX. POWER OUT: 11 J MINI-OPEN MAX. POWER OUT: 11 K MINI-OPEN MAX. POWER OUT: 11 L MINI-OPEN MAX. POWER OUT: 11 M MINI-OPEN MAX. POWER OUT: 11 N MINI-OPEN MAX. POWER OUT: 11 O MINI-OPEN MAX. POWER OUT: 11 P MINI-OPEN MAX. POWER OUT: 11 Q MINI-OPEN MAX. POWER OUT: 11 R MINI-OPEN MAX. POWER OUT: 11 S MINI-OPEN MAX. POWER OUT: 11 T MINI-OPEN MAX. POWER OUT: 11 U MINI-OPEN MAX. POWER OUT: 11 V MINI-OPEN MAX. POWER OUT: 11 W MINI-OPEN MAX. POWER OUT: 11 X MINI-OPEN MAX. POWER OUT: 11 Y MINI-OPEN MAX. POWER OUT: 11 Z MINI-OPEN MAX. POWER OUT: 11 AA MINI-OPEN MAX. POWER OUT: 11 AB MINI-OPEN MAX. POWER OUT: 11 AC MINI-OPEN MAX. POWER OUT: 11 AD MINI-OPEN MAX. POWER OUT: 11 AE MINI-OPEN MAX. POWER OUT: 11 AF MINI-OPEN MAX. POWER OUT: 11 AG MINI-OPEN MAX. POWER OUT: 11 AH MINI-OPEN MAX. POWER OUT: 12 AI MINI-OPEN MAX. POWER OUT: 12 AJ MINI-OPEN MAX. POWER OUT: 12 AK MINI-OPEN MAX. POWER OUT: 12 AL MINI-OPEN MAX. POWER OUT: 12 AM MINI-OPEN MAX. POWER OUT: 12 AN MINI-OPEN MAX. POWER OUT: 12 AO MINI-OPEN MAX. POWER OUT: 12 AP MINI-OPEN MAX. POWER OUT: 12 AQ MINI-OPEN MAX. POWER OUT: 12 AR MINI-OPEN MAX. POWER OUT: 12 AS MINI-OPEN MAX. POWER OUT: 12 AT MINI-OPEN MAX. POWER OUT: 12 AU MINI-OPEN MAX. POWER OUT: 12 AV MINI-OPEN MAX. POWER OUT: 12 AW MINI-OPEN MAX. POWER OUT: 12 AX MINI-OPEN MAX. POWER OUT: 12 AY MINI-OPEN MAX. POWER OUT: 12 AZ MINI-OPEN MAX. POWER OUT: 12 BA MINI-OPEN MAX. POWER OUT: 12 BC MINI-OPEN MAX. POWER OUT: 12 CA MINI-OPEN MAX. POWER OUT: 12 CB MINI-OPEN MAX. POWER OUT: 12 CC MINI-OPEN MAX. POWER OUT: 12 DD MINI-OPEN MAX. POWER OUT: 12 EE MINI-OPEN MAX. POWER OUT: 12 EEY MINI-OPEN MAX. POWER OUT: 12 EEZ MINI-OPEN MAX. POWER OUT: 12 EEYX MINI-OPEN MAX. POWER OUT: 12 EEYZX MINI-OPEN MAX. POWER OUT: 12 EEYZA MINI-OPEN MAX. POWER OUT: 12 EEYZB MINI-OPEN MAX. POWER OUT: 12 EEYZC MINI-OPEN MAX. POWER OUT: 12 EEYZD MINI-OPEN MAX. POWER OUT: 12 EEYZE

9 UCHWYT DO STATYWU I MONTAŻOWY

Mode ▶ Auto Static CCT Color Preset User Color Loop

Auto ► 7 Color Jump 7 Color Fade 15 Color Jump 15 Color Fade Random Jump Random Fade

---- Program x ---- ► Dimmer 0 - 100 Speed 0 - 100 Delay 0.0s - 2.0s

Coiled black cable with two connectors and a 3-pin connector (no text or symbols visible)

ZŁĄCZE DMX:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

10 7 5 6 8 POWER IN POWER OUT SWE OUT SWE 0 119 - 340 V AC / 50 - 50 V2 - MAX. POWER OUT: 11 A POWER CONVEMENT: 114 W - 100W (L·A kg) camoo® FLAT PRO® 12 G2 CE POTATO: Littered power source in the next two rows. MASCULAR: LED/LED power source, current FIRESSIONAL DEVICES & COORDING 9

Mode ▶ Auto Static CCT Color Preset User Color Loop

Auto ► 7 Color Jump 7 Color Fade 15 Color Jump 15 Color Fade Random Jump Random Fade

---- Program x ---- ► Dimmer 0 - 100 Speed 0 - 100 Delay 0.0s - 2.0s

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf.

D2CH Mode (with DMX-Delay Channel, preselect color in stand-alone mode Static, CCT, Color Preset or User Color)
Ch. Function Values Sub-Group
1 Dimmer 000 - 255 0% to 100%		Dimmer
2 DMX Delay	000 - 005 No Delay			DMX Delay
	006 - 255 0,1s -> 2,0s

D4CH1 Mode (with DMX-Delay Channel)
Ch. Function Values Sub-Group
1 Dimmer 000 - 255 0% to 100% Dimmer
2 Strobe functions	000 - 005 Strobe open				Multifunctional Strobe
	006 - 010 Strobe closed
	011 - 022 Ramp up/down, slow -> fast
	023 - 033			Ramp up/down random, slow->fast
	034 - 045 Ramp up, slow -> fast
	046 - 056			Ramp up random, slow -> fast
	057 - 068 Ramp down, slow -> fast
	069 - 079			Ramp down random, slow -> fast
	080 - 102			Random Strobe effect, slow -> fast
	103 - 127			Strobe Break effect, 5s.....1s (short burst with break)
	128 - 250			Strobe slow -> fast <1Hz - 20Hz
	251 - 255 Strobe open

3	Color Presets & Color Jumping & Color Fading	000 - 005 Color off				Color Preset
		006 - 013 Red
		014 - 021 Amber
		022 - 029 Yellow warm
		030 - 037 Yellow
		038 - 045 Green
		046 - 053 Turquoise
		054 - 061 Cyan
		062 - 069 Blue
		070 - 077 Lavender
		078 - 085 Mauve
		086 - 093 Magenta
		094 - 101 Pink
		102 - 109 Warm White
		110 - 117 White
		118 - 125 Cold White
		126 - 127 Color Jumping Stop
		128 - 164			Color Jumping Speed slow -> fast / Color 1 -> 12
		165 - 201			Color Fading Speed slow -> fast / Color 1 -> 12
		202 - 207 User			Color_1
		208 - 213 User			Color_2
		214 - 219 User			Color_3
		220 - 225 User			Color_4
		226 - 255 no function
4 DMX Delay		000 - 005 No Delay				DMX Delay
		006 - 255 0,1s -> 2,0s

D4CH2 Mode (with DMX-Delay Channel)
Ch. Function Values Sub-Group
1 Dimmer 000 - 255 0% to 100% Dimmer
2	Color Temperature	000 + 005 off			CCT
		006 + 008 Bulb White (2700K)
		009 + 011 Halogen White (3200K)
		012 + 014 Neutral White (4000K)
		015 + 017 Studio White (5600K)
		018 + 020 Daylight White (6500K)
		021 + 255 1800K - 7500K

3	Tint(affects Color Temperature)	000	000	Off		Tint
		001	127	Magenta -> Neutral
		128	128	neutral
		129	255	Neutral -> Green
4 DMX Delay		000	005	No Delay		DMX Delay
		006	255	0,1s	-> 2,0s

6CH1 Mode (with DMX-Delay Channel)
Ch. Function Values Sub-Group
1 Red 000 - 255 0% to	100%	Red
2 Green 000 - 255 0% to	100%	Green
3 Blue 000 - 255 0% to	100%		Blue
4 White	000 - 25	5 0%	to 100%	White
5 Amber	000 - 25	5 0%	to 100%	Amber
6 DMX Delay	000 - 00	5 No Delay		DMX Delay
	006 - 25	5 0,1s	-> 2,0s

6CH2 Mode (with DMX-Delay Channel)
Ch. Function Values Sub-Group
1 Dimmer 000 - 255 0% to 100%					Dimmer
2	Strobe	000 - 005 Strobe open				Strobe
		006 - 255			Strobe slow -> fast <1Hz - 20Hz
3	Chase	000 - 005			No Chase, Color Preset 1 is on	Chase
		006 - 026 Jump 10,0s -> 4,0s
		027 - 127 Jump 4,0s -> 0,1s
		128 - 148 Fade 10,0s -> 4,0s
		149 - 255 Fade 4,0s -> 0,1s
3	Color Presets 1 & Color Jumping & Color Fading	000 + 005 Color off				Color Preset
		006 + 013 Red
		014 + 021 Amber
		022 + 029 Yellow warm
		030 + 037 Yellow
		038 + 045 Green
		046 + 053 Turquoise
		054 + 061 Cyan
		062 + 069 Blue
		070 + 077 Lavender
		078 + 085 Mauve
		086 + 093 Magenta
		094 + 101 Pink
		102 + 109 Warm White
		110 + 117 White
		118 + 125 Cold White
		126 + 201 no function
		202 + 207 User Color_1
		208 + 213 User Color_2
		214 + 219 User Color_3
		220 + 225 User Color_4
		226 + 255 no function
5 Color Presets 2 000 -		255 same like Color Presets 1 Color Preset
6 DMX Delay		000 + 005 No Delay				DMX Delay
		006 + 255 0,1s -> 2,0s

11CH Mode (with DMX-Delay Channel)
Ch. Function Values Sub-Group
1 Red 000 - 255 0% to		100%			Red
2 Red fine 000 - 255 0% to			100%
3	Green	000 - 25	5 0%	to 100%	Green
4	Green fine	000 - 25	5 0%	to 100%
5	Blue	000 - 25	5 0%	to 100%	Blue
6	Blue fine	000 - 25	5 0%	to 100%
7	White	000 - 25	5 0%	to 100%	White
8	White fine	000 - 25	5 0%	to 100%
9	Amber	000 - 25	5 0%	to 100%	Amber
10	Amber fine	000 - 25	5 0%	to 100%
11	DMX Delay	000 + 005 No Delay			DMX Delay
		006 + 25	5 0,1s	-> 2,0s
14CH Mode (with DMX-Delay Channel)
Ch. Function Values Sub-Group
1 Dimmer 000 - 255 0% to 100%					Dimmer
2 Dimmer fine 000 - 255 0% to 100%
3 Strobe functions	000 - 005 Strobe open				Multifunctional Strobe
	006 - 010 Strobe closed
	011 - 022 Ramp up/down, slow -> fast
	023 - 033			Ramp up/down random, slow->fast
	034 - 045 Ramp up, slow -> fast
	046 - 056			Ramp up random, slow -> fast
	057 - 068 Ramp down, slow -> fast
	069 - 079			Ramp down random, slow -> fast
	080 - 102			Random Strobe effect, slow -> fast
	103 - 127			Strobe Break effect, 5s......1s (short burst with break)
	128 - 250			Strobe slow -> fast <1Hz - 20Hz
	251 - 255 Strobe open
4 Red 000 - 255 0% to 100%
5 Green	000 - 255 0% to 100%				Green
6 Blue	000 - 255 0% to 100%				Blue
7 White	000 - 255 0% to 100%				White
8 Amber	000 - 255 0% to 100%				Amber
9 Color Temperature (override RGBWA)	000 - 005 off				CCT
	006 - 008 Bulb White (2700K)
	009 - 011 Halogen White (3200K)
	012 - 014 Neutral White (4000K)
	015 - 017 Studio White (5600K)
	018 - 020 Daylight White (6500K)
	021 - 255 1800K - 7500K
10 Tint (affects Color Temperature)	000 - 000 Off				Tint
	001 - 127 Magenta -> Neutral
	128 - 128 neutral
	129 - 255 Neutral -> Green

11	Color Presets (override RGBWA + CCT) & Color Jumping & Color Fading	000 + 005 Color off				Color Preset
		006 + 013 Red
		014 + 021 Amber
		022 + 029 Yellow warm
		030 + 037 Yellow
		038 + 045 Green
		046 + 053 Turquoise
		054 + 061 Cyan
		062 + 069 Blue
		070 + 077 Lavender
		078 + 085 Mauve
		086 + 093 Magenta
		094 + 101 Pink
		102 + 109 Warm White
		110 + 117 White
		118 + 125 Cold White
		126 + 127 Color Jumping Stop
		128 + 164		Color Jumping Speed slow -> fast / Color 1 -> 12
		165 + 201		Color Fading Speed slow -> fast / Color 1 -> 12
		202 + 207 User		Color_1
		208 + 213 User		Color_2
		214 + 219 User		Color_3
		220 + 225 User		Color_4
		226 + 255 no function
12	Color Preset Crossfade	000 + 005 no function
		006 + 105 0,1s - 10s (0,1s Steps)
		106 + 214 11s - 119s (1s Steps)
		215 + 244 2m - 4m50s (10s Steps)
		245 + 255 5m - 15m (1m Steps)

13	Device Settings(please read remark 1*)	000	073	No function
		074	075		Dimmer Response LED (hold 1,5 s)
		076	077		Dimmer Response Halogen(hold 1,5 s)
		078	081	No function
		082	083	DTW (Redshift) on (hold 1,5 s)
		084	085	DTW (Redshift) off (hold 1,5 s)
		086	119	No function
		120	121	PWM 1 (650 Hz) (hold 3s)
		122	123	PWM 2 (1530 Hz) (hold 3s)
		124	125	PWM 3 (2000 Hz) (hold 3s)
		126	127	PWM 4 (3600 Hz) (hold 3s)
		128	129	PWM 5 (12 kHz) (hold 3s)
		130	131	PWM 6 (25 kHz) (hold 3s)
		132	133	RAW (hold 3s)
		134	135	Calibrated (hold 3s)
		136	137	User Calibrated (hold 3s)
		138	139	No function
		140	141	Display on (hold 3s)
		142	143	Display off (hold 3s)
		144	163	No function
		164	165		Dimmer Curve Linear (hold 3s)
		166	167		Dimmer Curve Exponential(hold 3s)
		168	169		Dimmer Curve Logarithmic(hold 3s)
		170	171		Dimmer Curve S-Curve (hold 3s)
		172	255	No function
14 DMX Delay		000	005	No Delay	DMX Delay
		006	255	0,1s -> 2,0s

EN: (1*) After the adjustments have been made, set the value to 000 to avoid disturbance by endless function call.
DE: (1*) Nachdem die Einstellungen vorgenommen wurden, stellen Sie den Wert auf 000 ein, um Störungen durch endlosen Funktionsaufruf zu vermeiden.
FR: (1*) Une fois les ajustements effectués, réglez la valeur sur 000 pour éviter les perturbations par appel de fonction sans fin.
ES: (1*) Después de realizar los ajustes, establezca el valor en 000 para evitar perturbaciones mediante una llamada de función sin fin.
PL: (1*) Po dokonaniu ustawień ustaw wartość na 000, aby uniknąć zakłóceń przez niekończące się wywołanie funkcji.
IT: (1*) Dopo aver effettuato le regolazioni, impostare il valore su 000 per evitare disturbi causati da una chiamata a funzione infinita.
