USER MANUAL AZOR SP2 Cameo

Black triangular optical mount with purple lens and control panel (no visible text or symbols)

AZOR® SP2

COMPACT SPOT PROFILE MOVING HEAD

CLAZORSP2

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

EXPLANATION OF TERMS AND SYMBOLS 6

SAFETY INSTRUCTIONS 7

NOTES FOR PORTABLE INDOOR DEVICES 11

PACKAGING CONTENT 11

INTRODUCTION 11

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS 12

OPERATION 14

SET-UP AND INSTALLATION 23

CARE, MAINTENANCE, AND REPAIR 24

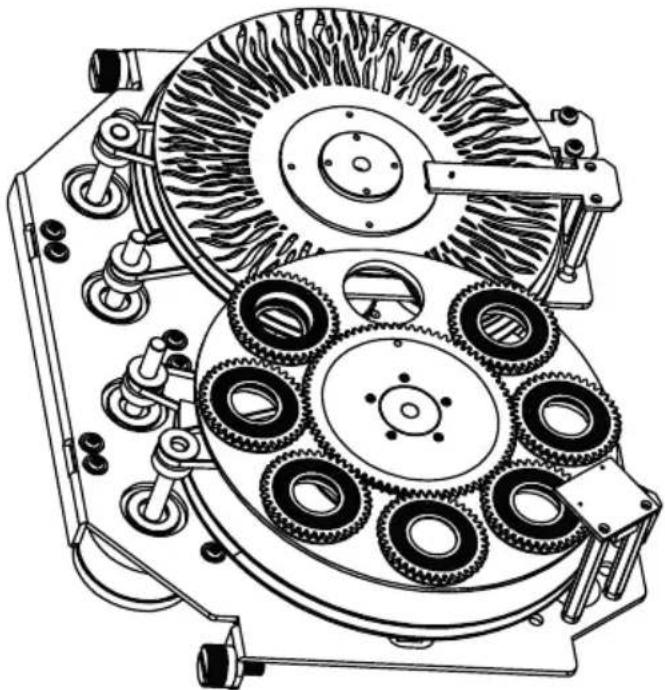

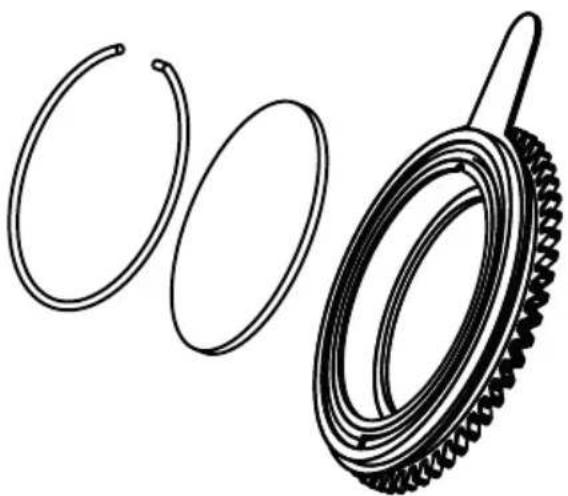

REPLACING GOBOS 25

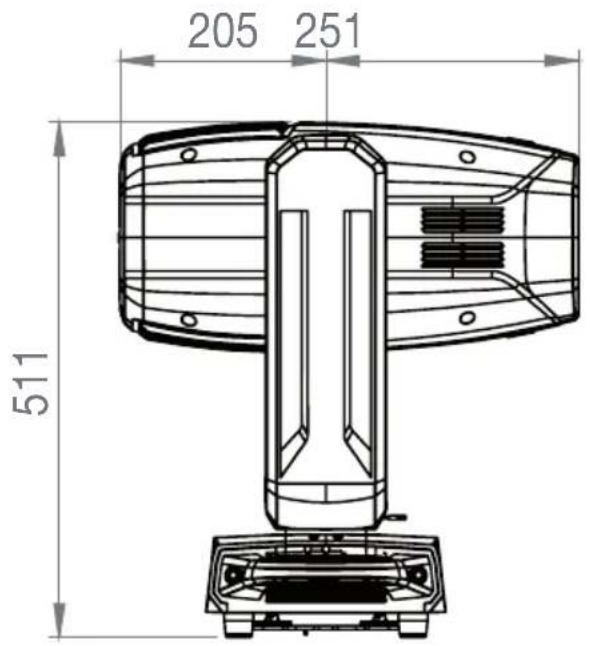

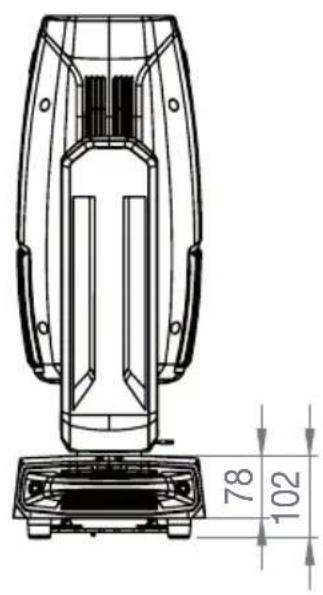

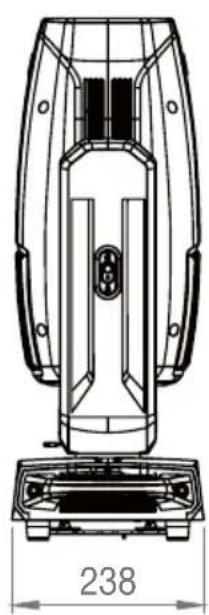

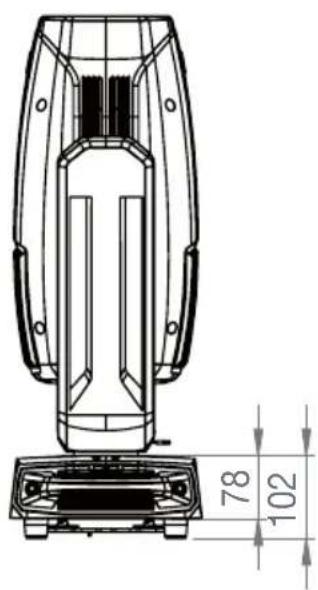

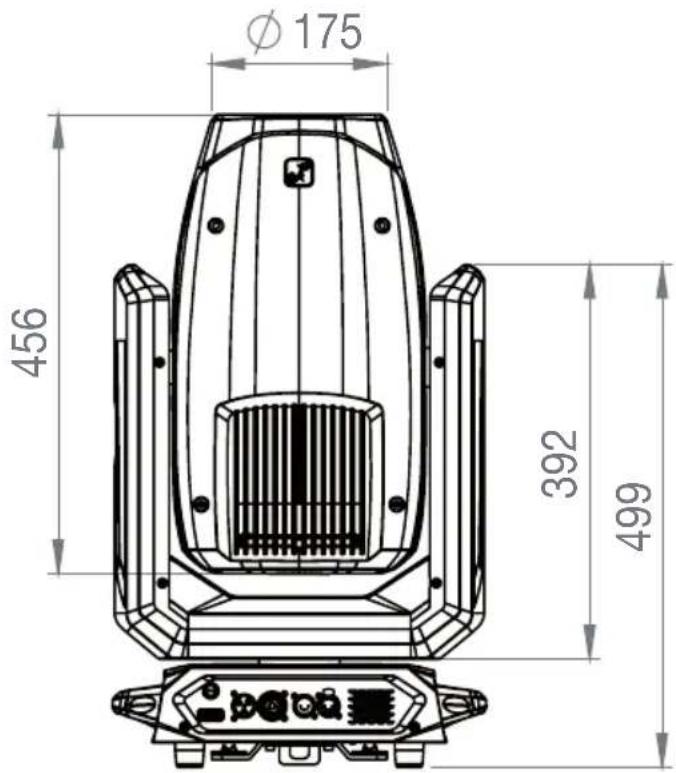

DIMENSIONS 27

TECHNICAL DATA 28

MINIMUM DISTANCE TO ILLUMINATED SURFACE 29

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 29

DISPOSAL 30

MANUFACTURER'S DECLARATIONS 30

DEUTSCH

REPLACEMENT DES GOBOS 80

DIMENSIONS 82

CARACTÉRISTIQUES TECHNIQUES 83

DISTANCE MINIMALE PAR RAPPORT À LA SURFACE ÉCLAIRÉE 85

DISTANCE MINIMALE PAR RAPPORT AUX MATÉRIAUX INFLAMMABLES ORDINAIRES 85

MISE AU REBUT 85

DÉCLARATIONS DU FABRICANT 86

ESPAÑOL

You have made the right choice!

This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to quickly put your new Cameo Light product to optimum use. Further information about Cameo Light is available on our website: CAMEOLIGHT.COM

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  • Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

This product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting!

Temporary operation! Event equipment is generally designed for temporary use only and not for continuous operation and fixed installation!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered improper use!

Liability is exempted when damage and third-party damage to persons and property is caused by inappropriate use!

The product is not suitable for:

• Children (children must be instructed not to play with the device).
• Persons with limited physical, sensory, or mental abilities or with a lack of experience and knowledge.

EXPLANATION OF TERMS AND SYMBOLS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately hazardous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially hazardous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that may lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol indicates hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards caused by intense light sources.

This symbol indicates hazards due to suspended loads.

This symbol indicates a device in which there are no user-serviceable parts. Only authorised personnel may carry out maintenance or service work.

This symbol indicates additional information on the operation of the product.

This symbol indicates a device that may only be used in dry rooms.

SAFETY INSTRUCTIONS

DANGER:

1. Do not open the device, and do not make any modifications to it.
2. If your device no longer functions properly, if liquids or objects get inside it, or if it has been damaged in any other way, switch it off immediately and disconnect it from the power supply. The device may be repaired only by authorised qualified personnel.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's mains cable is damaged, the device may not be operated.
4. Permanently attached mains cables may only be replaced by a qualified person.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation may damage the device. Switch on the device only when it has reached ambient temperature.
2. Make sure that the voltage and frequency of the mains correspond to the values specified on the device. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable mains cables.
3. To disconnect the device from the mains at all poles, it is not sufficient to press the on/off switch on the device.
4. Make sure that the fuse used corresponds to the type specified on the device.
5. Make sure that appropriate measures have been taken against power surges (for example, lightning strike).
6. Observe the specified maximum output current on devices with Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace plug-in mains cables only with original cables.

DANGER:

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory, or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device only in the prescribed manner.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, check all cable routes to avoid damage or accidents, for example, due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface specified on the device!

CAUTION:

1. Moving components such as mounting brackets or other movable components may become jammed.
2. Devices with motor-driven components may result in injury from the movement of the device. Sudden movement of the device can cause electric shock.

1. The exterior surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work, charging, or similar.

ATTENTION:

1. Do not install or operate the device near any radiators, heat registers, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as burning candles near the device.
3. Ventilation openings must not be covered, and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP protection class, as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be constantly further developed. In the event of deviating information on operating conditions, performance, or other device properties between the user manual and the device labelling, the information on the device always takes priority.
8. The device is not suitable for tropical climates and for operation at heights of 2,000 m above sea level or higher.
9. Unless explicitly stated, the device is not suitable for operation in marine conditions.

CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. This device is a risk group 1 device. Do not stare at the light source! Do not look directly into the lamp with optical instruments such as magnifying glasses or binoculars!
2. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
3. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The lamps contained in this light source may only be replaced by the manufacturer, its service partner, or a similarly qualified person.

(for example, W-DMX® or audio radio systems):

The quality and performance of wireless signal transmissions generally depends on the ambient conditions.

For example, the following factors can impact range and signal stability:

Shielding (for example, masonry, metal structures, water)

High volumes of radio traffic (for example, powerful wireless LAN networks)

Interference

Electromagnetic radiation (for example, LED video screens, dimmers)

All range specifications refer to free-field line-of-sight applications without interference!

The operation of radio transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (for example, radio frequency and transmission power).

WARNING: Devices with wireless signal transmission are not suitable for use in sensitive areas in which radio operation can lead to potentially detrimental interactions. These include:

• Hospitals, health centres, or other healthcare facilities that provide patient treatment with qualified personnel and equipment.
  • Class I, II, and III hazardous areas
• Restricted areas
• Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

SIGNAL TRANSMISSION VIA W-DMX®

WARNING: In general, wireless DMX transmission must not be used for applications involving safety-related factors that might result in personal injury or property damage in the event of a failure.

This applies in particular to moving scene or truss structures, DMX-controlled motors/lifts, or lifting devices for operating DMX-operated platform lifts, hydraulic systems, or comparable moving components.

Furthermore, wireless DMX transmission must not be used to control flame or pyrotechnic devices, explosion-driven effects, or gas or liquid effects. These include CO_2 cannons, confetti shooters, water effects, or similar.

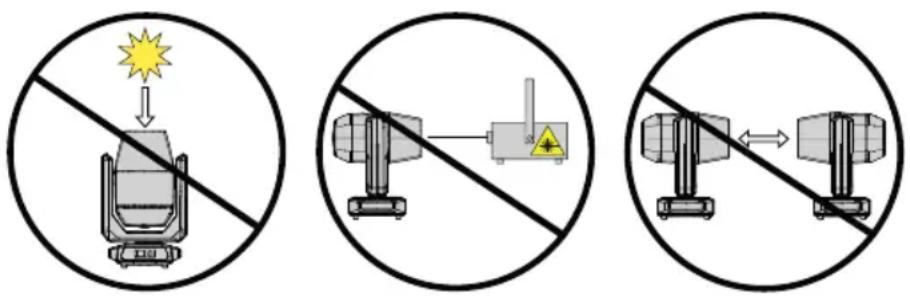

ATTENTION! POTENTIAL DAMAGE FROM EXTERNAL LIGHT SOURCES!

Solar radiation, laser radiation, and bundled light beams from other lights can damage the housing and internal components, such as filters, gobo and colour wheels, motors, cables, belts, as well as light sources!

Do not expose the device and especially the lens opening to direct sunlight, laser radiation, and bundled light beams from other lights during unpacking, installation, prolonged disuse, and operation! Always point the lens opening towards the floor when the device is not in use! Damage caused by external light sources is excluded from the manufacturer's warranty!

NOTES FOR PORTABLE INDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent installation can impair the functionality of the device and cause premature ageing.

PACKAGING CONTENT

Remove the product from the packaging, and remove all packaging material.

Please check the completeness and integrity of the delivery, and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging content for the product includes:

▶ 1 × AZBR Compact Spot Profile Moving Head
▶ 1 × mains cable

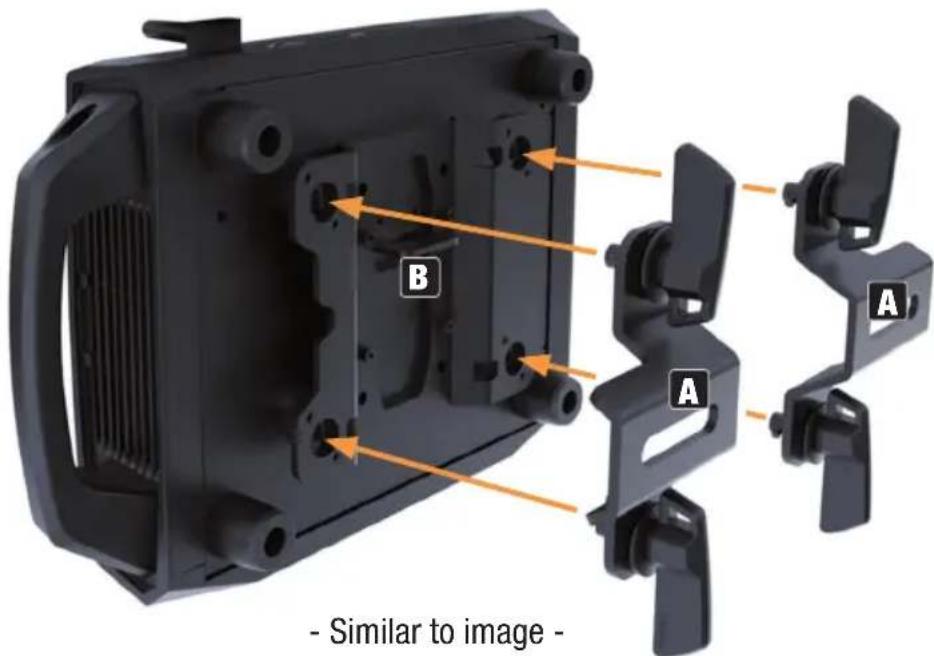

▶ 2 × Omega mounting bracket
▶ Safety and compliance information (user manual as a download via QR code)

INTRODUCTION

COMPACT SPOT PROFILE MOVING HEAD

CLAZORSP2

CONTROL FUNCTIONS:

32-channel Basic, 37-channel Standard, 43-channel Extended DMX control DMX512

W-DMX® via optional Cameo iDMX stick

RDM

Master / slave operation

Stand-alone functions

FEATURES:

300 W cool white LED. CMY colour mix. Colour wheel with eight colours plus open. Gobo wheel with eight rotatable gobos plus open. Zoom, focus, iris, prism and frost function. Animation wheel. Aperture slider. DMX512. Connection for optional iDMX stick for wireless control via W-DMX®. 5-pin DMX connections. 2 Omega mounting brackets included.

The light supports the remote device management (RDM) standard. Remote device management allows the user to monitor the status and configuration of RDM devices using an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE).

The Cameo UNICON also allows access to the entire light menu.

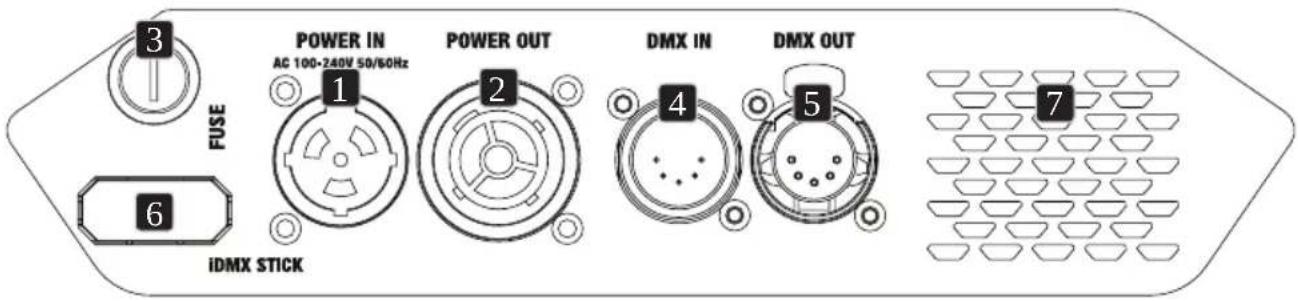

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS

3 POWER IN AC 100-240V 50/60Hz 1 POWER OUT 2 DMX IN DMX OUT 4 5 7 FUSE IDMX STICK

1 POWER IN

Power Twist mains input socket. Operating voltage 100–240 V AC/50–60 Hz. Use the included power cable.

2 POWER OUT

Power Twist mains output socket. Enables power supply to other CAMEO lights. Ensure that the total power consumption of all connected devices does not exceed the value specified on the device in amperes (A).

3 FUSE

Fuse holder for 5 × 20 mm fuses. IMPORTANT NOTE: Only replace the fuse with a fuse of the same type and value. In the event of repeated fuse failure, please contact an authorised service centre.

4 DMX IN

Male 5-pin XLR socket for connecting a DMX controller (e.g. DMX console).

5 DMX OUT

Female 5-pin XLR socket for forwarding the DMX control signal.

6 iDMX STICK

Connection for the optional iDMX stick for wireless DMX operation (insert the iDMX stick with the antenna facing upwards). Note the wireless settings in the Settings menu.

7 AIR VENTS

To prevent damage to the device, do not cover the ventilation openings on the back and ensure that air can circulate freely.

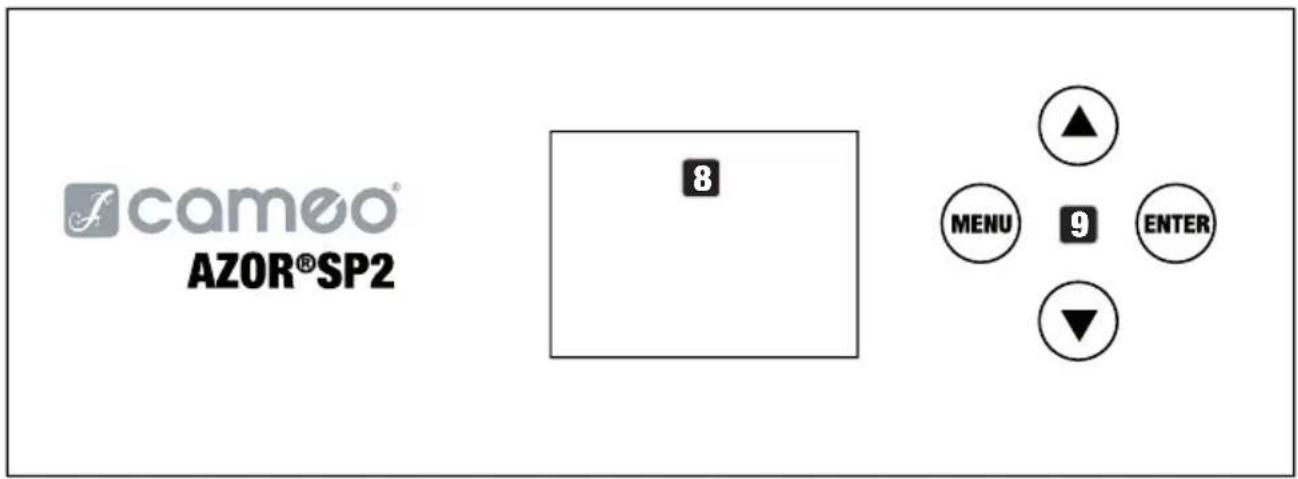

fcamoo® AZOR®SP2 8 MENU 9 ENTER

8 OLED DISPLAY

The OLED display shows the currently active operating mode (main screen), the menu items and the numerical value or operational status of certain menu items. If no input is made within approximately one minute, the display automatically returns to the main screen. Note on the main screen in operating modes with external control: In the event that the control signal is interrupted, the characters in the display begin flashing; once the control signal is present again, the flashing stops.

9 CONTROL BUTTONS

MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main screen. Pressing MENU without confirming a value or status change by pressing ENTER restores the previously confirmed value or status.

ENTER – press ENTER to access the menu levels, where you can make value changes and access the sub-menus with the ENTER button. ENTER is also used to confirm value or status changes.

▲ and ▼ – Select menu items in the main menu (DMX address, DMX mode, etc.) and in the sub-menus. Allows you to change the value of a menu option, such as the DMX address (long press = quick value change).

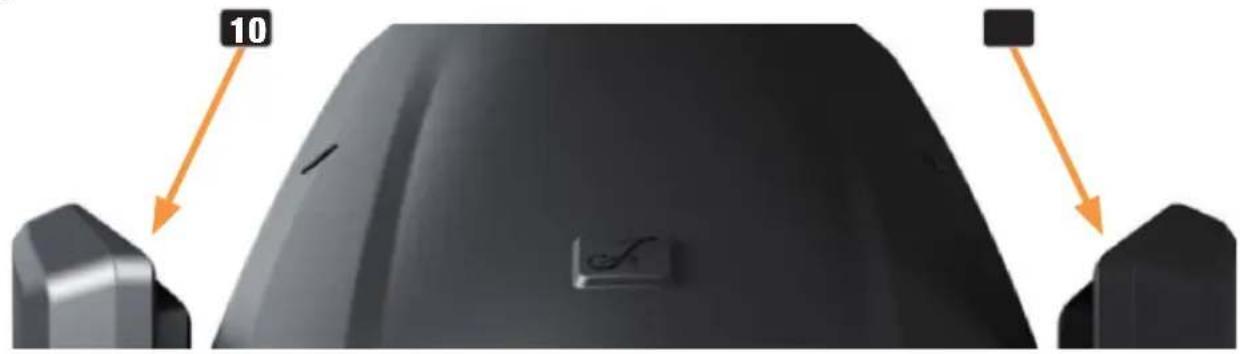

10 RECESSED GRIPS

In addition to the two transport handles on the base of the device, there are recessed grips at the top of the inner sides of the two device arms.

Close-up of a car's front bumper with orange arrows pointing to the side (no text or symbols visible)

LOCK UNLOCK11

LOCK 12 UNLOCK

• Illustrations similar -

11 PAN LOCK

Mechanical locking device used to prevent the rotation of the head in the horizontal direction during transport. Disconnect the unit from the mains, move the head parallel to the base (8 possible positions), and push the locking lever in the direction of the pan rotation axis (LOCK) to lock it in position. Unlock the locking device before device start-up (UNLOCK).

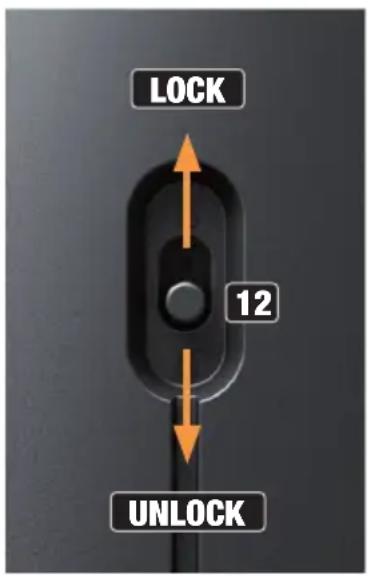

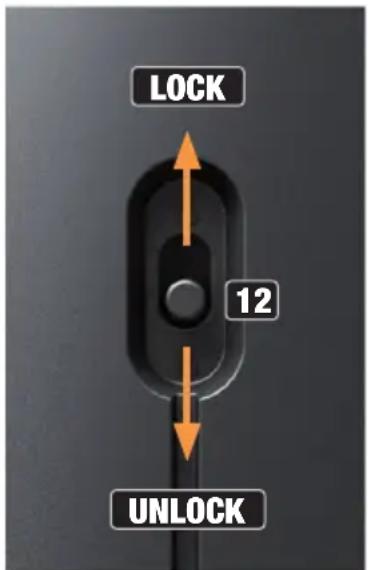

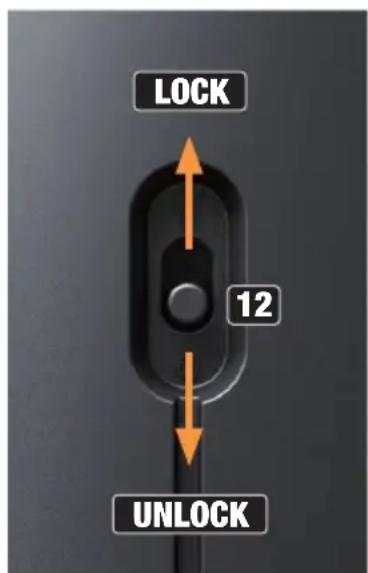

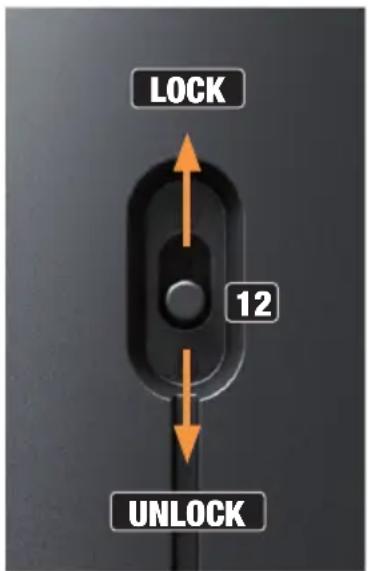

12 TILT LOCK

Mechanical locking device used to prevent rotation of the head in the vertical direction during transport (7 possible positions). Disconnect the unit from the mains and slide the locking lever towards the tilt rotation axis, moving the head of the unit vertically until one of the seven locking positions is found and the locking lever engages (LOCK). Unlock the locking device before device start-up (UNLOCK).

OPERATION

NOTES

Upon switching on the light, the message "Update Wait" is displayed momentarily, followed by "Welcome to Cameo", the model name and the software version. Thereafter, the motors are reset (Motor Reset Please Wait). After this process, the fixture is ready for operation and the previously activated operating mode is launched.

MAIN SCREEN IN DMX OPERATING MODE

In DMX mode, the main screen shows the currently set DMX start address (see illustration). Flashing characters indicate that no DMX signal is present.

DMX Address 001

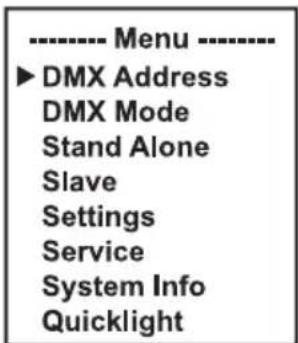

SETTING THE DMX START ADDRESS (DMX Address)

Starting from the main screen, press MENU to enter the main menu. Now use ▲ or ▼ to select the menu item DMX Address and confirm with ENTER. Use the ▲ or ▼ buttons to configure the desired DMX start address and press ENTER to confirm (the highest possible value depends on the selected DMX mode).

---- Menu ---- ►DMX Address DMX Mode Stand Alone Slave Settings Service System Info Quicklight

--- DMX Address --- ► DN DN St Slave 001

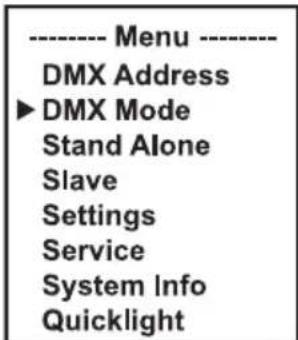

SETTING THE DMX OPERATING MODE (DMX Mode)

Starting from the main screen, press MENU to enter the main menu. Now use ▲ or ▼ to select the menu item DMX Mode and confirm with ENTER. Select the desired DMX operating mode using ▲ or ▼ and confirm with ENTER. Tables showing the channel assignment of the different DMX modes can be found in the DMX CONTROL section of this user manual.

---- Menu ---- DMX Address ►DMX Mode Stand Alone Slave Settings Service System Info Quicklight

---- DMX Mode ---- ► 32CH Basic 37CH Standard 43CH Extended

STAND-ALONE MENU

In the stand-alone operating modes (Play Scene and Play Loop), the control signal of the corresponding mode can be output to slave units via XLR. If you do not want to output the control signal, deactivate the output.

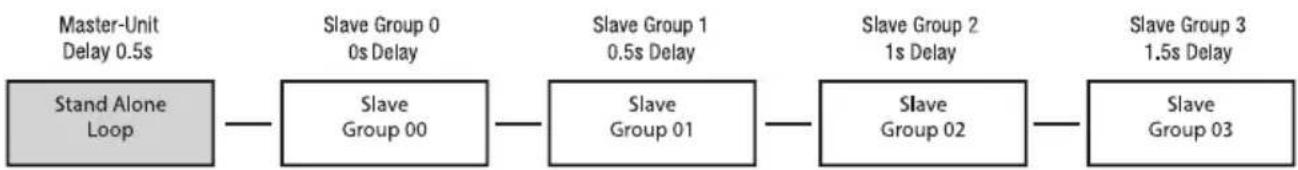

A delay can be set for slave units for the time-delayed output of the control signal of the stand-alone operating modes.

Activate one of the eight available scenes (Scene 1 - 8) or one of the eight available loops (Loop 1 - 8). The settings are made individually for each scene and each loop and are retained even after the device is restarted.

Starting from the main screen, press MENU to enter the main menu. Use the ▲ or ▼ buttons to select the Stand Alone menu item and confirm with ENTER. Now select the desired sub-menu item, confirm and then make the settings as required (see table).

---- Menu ---- DMX Address DMX Mode ► Stand Alone Slave Settings Service System Info Quicklight

---- Stand Alone ---- ►Master/Alone Play Scene/Loop Edit Scene Edit Loop

Master/ Alone	Master	Delay	Forward control signal via DMX OUT and set delay for slave units: Off, 0.1 s–2.0 s
	Alone		Do not forward control signal
Play Scene/ Loop	Scene	Scene 1 - 8	Select and activate the desired scene
	Loop	Loop 1-Se	lection and activation of the desired loop
Edit Scene	Scene 1 - 8	Pan	Set each scene individually. Scenes are activated by selecting them. Refer to DMX mode 43 CH Extended for all functions and the corresponding values.
		Tilt
		Dimmer
		...
Edit Loop	Loop 1 - 8	Step 1	Scene 1-Scene 8 / Blackout S	scene selection / Blackout
			t-step 0 s–20 min Setting of the step time
			t-Fade 0 s–20 min Setting of the fade time
		Step 2	t-Fade 0 s–20 min Setting of the fade time
		Step 3	Scene 1-Scene 8 / Blackout / Skip Step	Select scene 1–8 / Blackout / Skip step
			t-step 0 s –20 min Setting of the step time
			t-Fade 0 s–20 min Setting of the fade time
		Step 4	t-Fade 0 s–20 min Setting of the fade time
		Step 5	t-Fade 0 s–20 min Setting of the fade time
		Step 6	t-Fade 0 s–20 min Setting of the fade time
		Step 7	t-Fade 0 s–20 min Setting of the fade time
		Step 8	t-Fade 0 s–20 min Setting of the fade time

SLAVE MODE

Standard slave mode: Starting from the main screen, press MENU to enter the main menu. Use the ▲ or ▼ buttons to select the Slave menu item, confirm with ENTER, then select slave group

0 and confirm again. Connect the slave and master units (same model, same software version) using a DMX cable and activate the control signal output (Stand Alone -> Master/Alone -> Master) and one of the stand-alone operating modes (Play Scene/Loop) in the master unit. The slave unit will now follow the master unit.

Advanced slave mode: If you wish to control the slave units in master/slave mode using one of the Play Scene or Play Loop stand-alone modes, the control signal can be played back with a time delay of up to 24 steps. The delay is set in the Stand Alone menu Master/Alone in the master unit; the delay factor is set in the slave menu of the corresponding fixture (Group). This is a simple way to create a running light effect with a large number of identical lights that are running the same software version, which would otherwise require a suitable DMX controller and extensive programming. Connect the slave and master units (same model, same software version) using a DMX cable and activate the control signal output (Stand Alone -> Master/Alone -> Master) and one of the stand-alone operating modes (Play Scene/Loop) in the master unit.

---- Menu ---- DMX Address DMX Mode Stand Alone ► Slave Settings Service System Info Quicklight

Slave

Group 0-24

Set slave group for signal delay

Assign the lights to one of up to 24 groups (plus Group 0) according to preference, whereby several lights can be assigned to one group. The group number is also the factor by which the delay time set in the master unit is multiplied.

Set-up example:

SYSTEM SETTINGS (Settings)

Starting from the main screen, press MENU to enter the main menu. Use the ▲ or ▼ buttons to select the menu item Settings and confirm with ENTER.

---- Menu ---- DMX Address DMX Mode Stand Alone Slave ► Settings Service System Info Quicklight

Settings ► Wireless Display | Store Default

This takes you to the sub-menu (see table). Select sub-menu items with ▲ or ▼, confirm with ENTER, change value or status with ▲ or ▼, confirm with ENTER).

Settings (Bold print = factory setting)
Wireless	Wireless settings (iDMX stick optional)	iDMX State	Off Wireless control deactivated
			On Wireless control activated
		Signal Routing	Send to XLR	Signal -> DMX OUT
			Backup by XLR	Backup via DMX IN in case of W-DMX signal interruption
			Receive only	Wireless DMX reception only
Display	Display settings	Reverse	On	180° display rotation (for example, for overhead installation)
			Off No display rotation
		Off Timer	Always On	Permanently on
			Off after 20 seconds	Deactivation after approximately 20 seconds of inactivity
		Autolock	On after 60 seconds	Controls locked after approximately 60 seconds without input (LOCKED). To unlock, press MENU for approx. 3 seconds.
			Off Autolock function deactivated
Dimmer	Dimmer settingsDimmer Curve = Dimmer curvePWM Frequency = LED PWM frequencyDimmer Response = Dimming behaviour	Curve (dimmer curve)	Linear	Light intensity increases linearly with DMX value
			Exponential	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
			Logarithmic	Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
			S-curve	Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values

Dimmer settings

Dimmer Curve =

Dimmer curve

PWM Frequency

= LED PWM

frequency

Dimmer (dimmer response)
Response = Dimming behaviour

Head movements Position settings Feedback

Adjusting the gobo wheels, colour wheel, and aperture slider

650 Hz,

1530 Hz,

3600 Hz, Selection of the LED PWM fre-

12k Hz, quency

18.9 kHz,

25 kHz

LED The light responds immediately to changes in the DMX value Halogen The light behaves in a similar way to a halogen light with gradual changes of brightness

Off Pan direction not reversed

On Reverses pan direction

Off Tilt direction not reversed

On Tilt direction reversed

540° Pan angle 540°

630° Pan angle 630°

On Automatic position correction is enabled Off Automatic position correction deactivated On Blackout during head movement Off No blackout during head movement On Slowed motor movements for quieter operation

Off Function deactivated

Position	Clockwise	Gobo wheel always rotates clockwise
	Shortest way	Gobo wheel ro-tates the shortest distance
		Gobo wheel jumps directly back to the de-sired gobo when the relevant value is reached
Move-ment	Snap
	Scroll	Continuous rota-tion of the gobo wheels

Wheels	Adjusting the gobo wheels, colour wheel, and aperture slider	Gobo Wheel	Colour correction	On	Colour shift compensation is activated during gobo use
				Off	Function deactivated
		Colour Wheel	Position	Clockwise	Gobo wheel always rotates clockwise
				Shortest way	Gobo wheel ro-tates the shortest distance
			Move-ment	Snap	Colour wheel jumps directly back to the desired colour filter when the relevant value is reached
				Scroll	Continuous rota-tion of the colour wheel
		Move in Black	Off	No blackout in the event of value changes in the colour and gobo wheels
			On	Blackout in the event of value changes in the colour and gobo wheels
		Framing Control	Left & Right	Standard function: The xA channel of the blade controls the left side of the blade x and the xB channel controls the right side
			Position & Angle	Alternative control of the aperture sliders: The xA channel of the blade controls the insertion of the blade x and the xB channel controls the angle of the blade
Fan	Fan setting	Auto	Automatic fan control
		Off	Deactivated fan with greatly reduced bright-ness
		Constant Low	Constant low fan speed with reduced bright-ness, if necessary
Fan	Fan setting	Constant Mid	Constant average fan speed with reduced brightness, if necessary
		Constant High	Constant high fan speed
Signal Fail	Operational status with DMX signal fault	Hold	Last command is retained
		Last Stand Alone	The last selected stand-alone operating mode is activated
		Fade to Black (10s)	10-second fade to blackout
		Blackout	Activates blackout
		Full	Full on
Store Default	Save settings in three custom presets	User A	Save all current settings as user preset A
		User B	Save all current settings as user preset B
		User C	Save all current settings as user preset C

SERVICE MENU (Service)

Starting from the main screen, press MENU to enter the main menu. Use the ▲ or ▼ buttons to select Service and confirm with ENTER.

---- Menu ---- DMX Address DMX Mode Stand Alone Slave Settings ►Service System Info Quicklight

---- Service ---- ► Load Default Reset | Password

Information on the sub-menu items in the Service menu and the corresponding options can be found in the table below (select with ▲ or ▼, confirm with ENTER, change value or status with ▲ or ▼, confirm with ENTER).

Service
Load Default	Factory	Reset to factory setting
	User A	Reset to User A values(Save user values: Settings -> Store Default)
	User B	Reset to User B values(Save user values: Settings -> Store Default)
	User C	Reset to User C values(Save user values: Settings -> Store Default)
Reset	Pan/Tilt	Reset pan/tilt motors
	Head	Reset motors in the device head
	All	Reset all motors
Test	Test Sequence	Pre-programmed sequence to test all components
	Stress Test	Pre-programmed sequence to test all components under maximum load

Activate all motors individually with values of 000 to 255

Do not reset service operation time

Reset service operating time

For service purposes only

SYSTEM INFORMATION (System Info)

Starting from the main screen, press MENU to enter the main menu. Use the ▲ or ▼ buttons to select the menu item System Info and confirm with ENTER.

This takes you to the sub-menu (see table for sub-menu items). Select sub-menu items with ▲ or ▼, confirm with ENTER, change value or status with ▲ or ▼, confirm with ENTER).

System info

Display of the firmware version of the corresponding component

Display the temperature of the corresponding component

Set the temperature unit

Display the speed of the corresponding fans

Total operating time

Time in use

Lamp operating time

Operating time since the last reset of

the service operating time

RDM unique identifier

Error display in case of malfunction

QUICKLIGHT

Set up a scene quickly and easily using the basic Moving Head functions without an external controller. Starting from the main screen, press MENU to access the main menu. Use ▲ or ▼ to

select Quicklight and confirm with ENTER. Now select the desired sub-menu item, confirm, set the value as required, and confirm again.

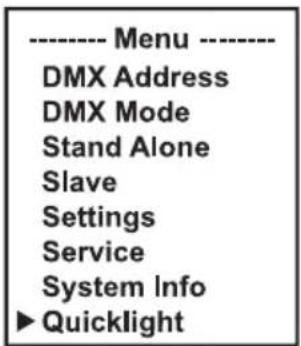

---- Menu ---- DMX Address DMX Mode Stand Alone Slave Settings Service System Info ►Quicklight

---- Quicklight ---- ►Pan Tilt Dimmer Zoom Focus

If the Quicklight operating mode is activated, the display does not automatically change to the main display; when leaving the Quicklight menu, Quicklight operating mode is automatically terminated. The settings in the Quicklight menu are retained until the next restart of the fixture; as a result, Quicklight can be accessed repeatedly with the same settings as long as the fixture remains switched on. After a restart, the values are reset to the factory settings.

SET-UP AND INSTALLATION

DANGER: Overhead mounting requires extensive experience, including calculating the load limit values of the mounting hardware and regular safety inspection of all installation materials and lights. If you do not have these qualifications, do not attempt to perform installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly installed and secured may come loose and fall down. This can cause serious injury or death.

Thanks to its integrated rubber feet, the light can be positioned in a suitable location on a level surface. It can be truss-mounted using two omega brackets, which are attached to the base of the device (A). Two omega brackets are included in the packaging content. Suitable truss clamps are available as an option. Ensure firm connections, and secure the light to the securing lug (B) with a suitable safety cable.

B A A - Similar to image -

CARE, MAINTENANCE, AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The care and maintenance required depends on the intensity of use and the environment in which it is used.

We recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable service measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

CARE (can be performed by the user)

WARNING! Before carrying out any care or maintenance, the power supply – and, if possible, all device connections – must be disconnected.

PLEASE NOTE! Improper care can lead to impairment of the device or even destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (for example, fans must be blocked in this case).
3. Cables and connectors must be cleaned regularly, and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used; otherwise, the surface finish may be damaged.
5. Devices must be stored in a dry environment and protected from dust and dirt.

MAINTENANCE AND REPAIR (qualified personnel only)

DANGER! There are live components in the device. Even after disconnecting from the mains, there may still be residual voltage in the device, for example, due to charged capacitors.

PLEASE NOTE! Only authorised personnel may carry out maintenance or service work.

PLEASE NOTE! Maintenance and repair work may only be carried out by qualified specialist personnel authorised by the manufacturer. If in doubt, consult the manufacturer.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

REPLACING GOBOS

ATTENTION!

Gobos may only be replaced by qualified personnel. If you are not qualified to do this, do not try to replace gobos yourself. Refer instead to professional companies. When carrying out any work, make sure that no foreign bodies enter the housing! When replacing the gobos, make sure that the gobos are inserted correctly into the corresponding gobo holder. Otherwise, heat damage to the gobos and gobo holders may occur!

1. Disconnect all poles of the device from the power supply (pull out the mains plug). Now lock the light head (pan and tilt lock).

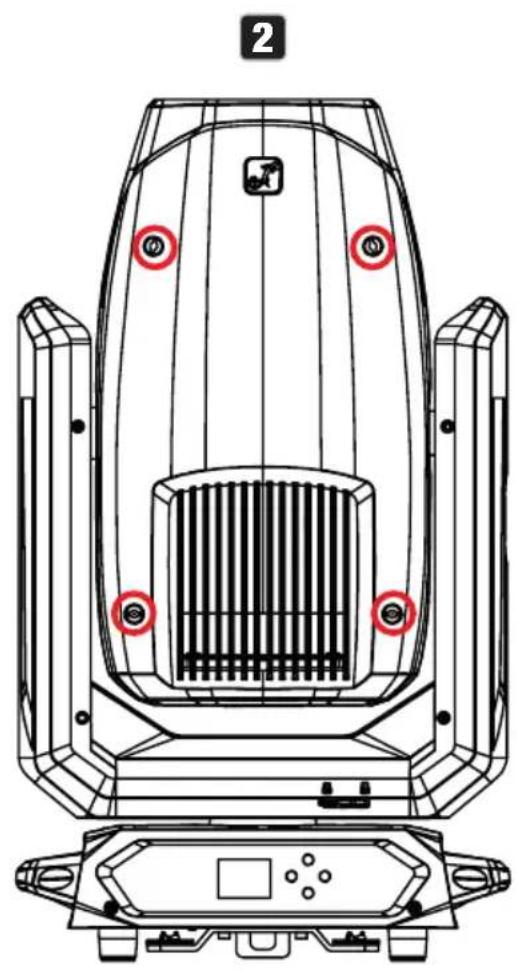

2. Release the four locks on the cover of the device head on the side opposite the Pan Lock (see markings in the illustration, bayonet lock with cross-slotted head, 1/4 turn to the left). Loosen the cover from the light head, loosen the cover's safety cable, and place it to one side.

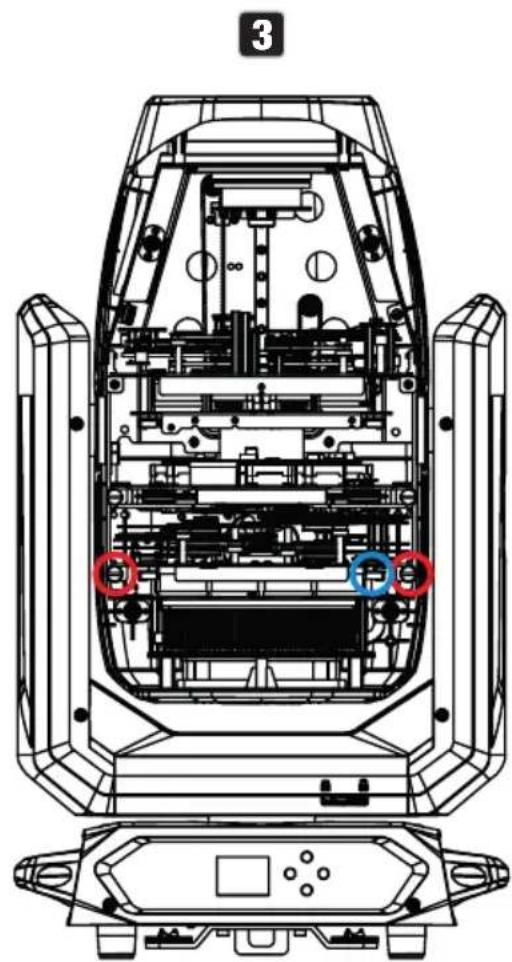

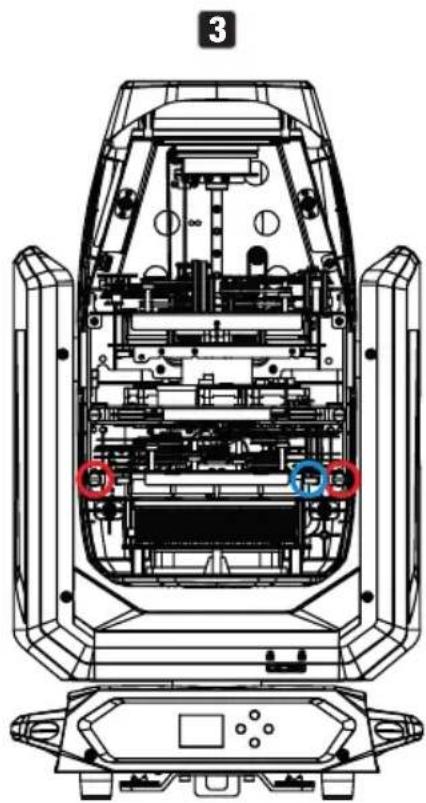

3. Carefully disconnect the four-pin plug connection for the power and signal supply of the gobo module (blue marking in the illustration). Then loosen both screws that hold the module in the guide, and pull the module out of the light head (lower module, see red markings in the drawing).

2

3

Technical line drawing of a mechanical gear assembly with multiple teeth and mounting brackets (no text or symbols)

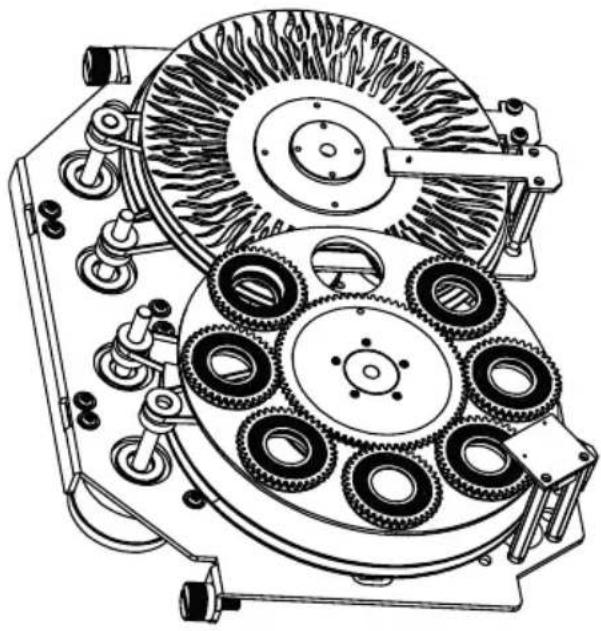

1. Place the module on a clean, level surface with the gobo wheels facing upwards. To avoid contaminating the gobos and other components, please wear clean, lint-free gloves.
2. Lift the gobo holder slightly up on the gear and then pull it out of the gobo wheel.
3. The gobo can now be removed from the holder and replaced with another one.

Technical line drawing of a mechanical gear assembly with two looped components (no text or symbols)

1. Then place the gobo holder back into the respective gobo wheel, ensuring that the gobo holder is correctly positioned in the corresponding recess. For rotating gobos, you can check that the gobo is positioned correctly by turning the gobo wheel. The gobo must rotate without catching.
2. Re-install the module in the light head, secure it with the two previously loosened screws, and reconnect the plug for the power and signal supply to the corresponding port.
3. Re-attach the cover's safety cable to the corresponding position in the device head, place the cover on the device head, and secure it with the four locks (bayonet lock, 1/4 turn to the right).

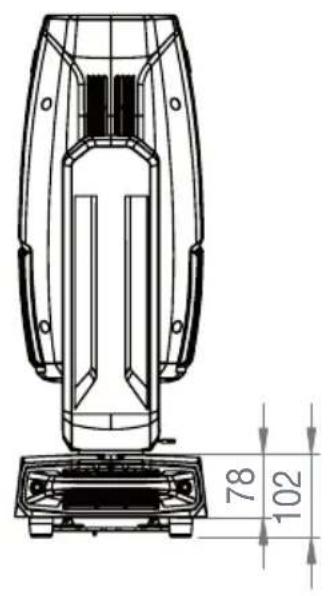

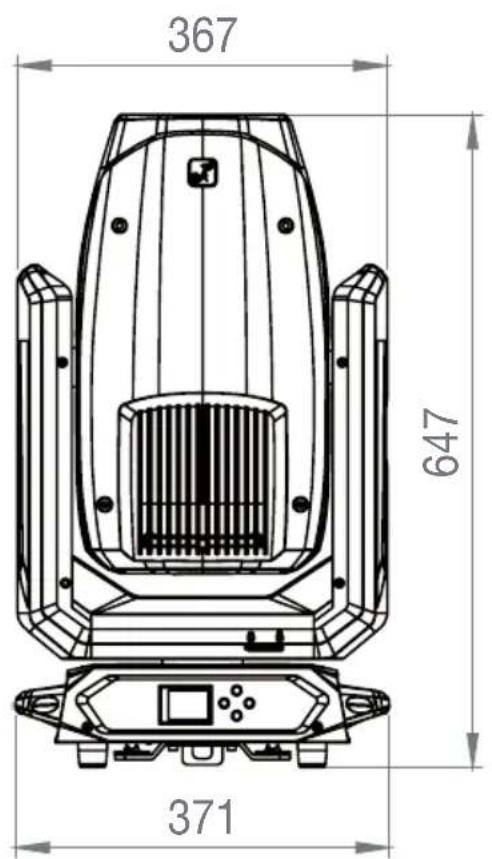

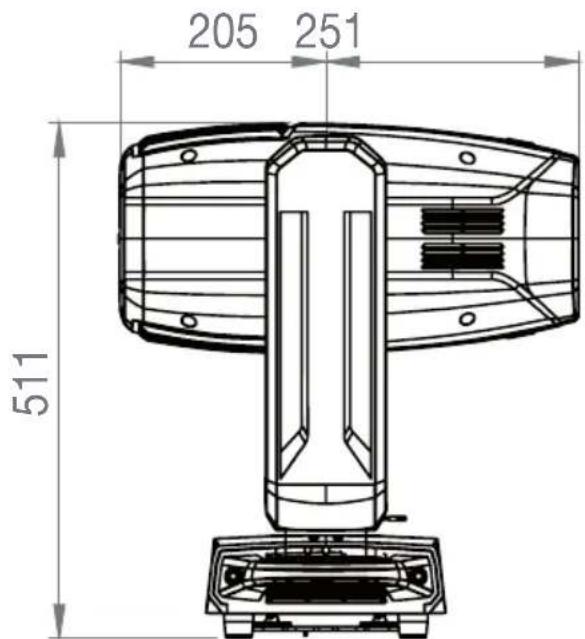

DIMENSIONS (mm)

367 647 371

Ø 175 456 392 499

Technical line drawing of a mechanical device with no visible text or symbols

78 102

205 251 511

TECHNICAL DATA

Item number	CLAZORSP2
Product category	LED Moving Head
Type	Profile Spot
Light source	300 W LED
Luminous flux	13000 lm
Illuminance	24000 lx @ 10 m
Lense / optic	Glass
LED PWM	650 Hz; 1530 Hz; 3600 Hz; 12 kHz; 18.9 kHz; 25 kHz
Dimmer resolution	16 bit
Dimmer curves	Linear, Exponential, Logarithm, S-Curve
Halogen simulation	Yes
Strobe	Cameo Strobe Settings
LED colours / colour temperature	6800 K
CRI	>69 / with CRI Filter >88
Zoom range	3° - 50°
Focus operation	Yes
Colour mixing	CMY
Colour wheel	8 Colours + open
Colour control	CMY
CCT	Linear CTO 6600K - 2600K, 3200K @ Colour wheel
Gobos	7 rotate + open
Prism	1x 5-facet / 1x 8-facet
Iris	Yes
Frost	Heavy & light
Animation wheel	Yes
Framing system	4 layers, +/-60° rotable
Pan / tilt range	540° / 630° pan / 270° tilt
Control protocols	DMX512, RDM, iDMX Stick kompatibel
Data connections	5-Pol XLR male / female
DMX modes	32-CH Basic, 37-CH Standard, 43-CH Extended
DMX functions	Pan/Tilt, Pan/Tilt fein, Dimmer, Dimmer fein, Stroboskop, Cyan, Cyan fein, Magenta, Magenta fein, Gelb, Gelb fein, CTO, CTO fein, Farbrad, Goborad 1, Goborad 1 Rotation, Goborad 1, Rotation fein, Zoom, Zoom fein, Focus, Focus fein, Autofocus, Autofocus Ausrichtung, Iris, Prismenauswahl, Prisma 1, Prisma 2, Frost Light, Frost Heavy, Blade 1 A&B, Blade 2 A&B, Blade 3 A&B, Blade 4 A&B, Framing Rotation, Framing Rotation fein, Geräteeinstellungen
RDM functions	Cameo Standard
Stand Alone	User scene 1-8, Master/Slave mode
System settings	Wireless, Display, Simmer, Movement, Wheels,Fan, Signal Fail, Store Default
User interface	Mode, Enter, Up, Down
Display / indicators	OLED Display
IP-Rating	IP20
Ambient temperature rating	0°C - 40°C
Humidity rating	< 90%, non condensing
Cooling system	Temperature controlled cooling fans
Operation voltage	100 - 240 V AC / 50 - 60 Hz
Max. current	2.5 A / 230 V
Inrush current	59 A @ 1 ms (240V)
Max. power consumption	550 W
Fuse	T 6.3 A 250 V (5 x 20 mm)
Protection Class	1
Power connection	Seetronic in/out
Max. power out	8 A
Power link	4 Units @ 230 V / 2 Units @ 110 V
Risk Group	RG1
Minimum distance to illuminated surface	3 m
Minimum distance to normally flammable materials	0.5 m
Housing	PA 66 + 15% GF
Dimensions (W/H/D)	371 x 647 x 238 mm
Weight	24 kg
RDM UID	08A40058XXXX

MINIMUM DISTANCE TO ILLUMINATED SURFACE

This symbol with the distance stated in metres (m) indicates the minimum distance of the light fixture to the illuminated surface. The value valid for this device can be found in the technical data in this manual and is printed on the device!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with the distance stated in metres (m) indicates the minimum distance of the device to normally flammable materials. The value valid for this device can be found in the technical data in this manual!

DISPOSAL

PACKAGING:

1. Packaging can be recycled using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Waste equipment does not belong in household waste. Waste equipment must be disposed of via an authorised waste disposal company or a municipal waste disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty and limitation of liability

Adam Hall GmbH | Adam-Hall-Str.1 | 61267 Neu-Anspach | Germany

Email: [e-mail] / +49 (0)6081 / 9419-0

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

For service requests, please contact your distribution partner.

CE conformity

Adam Hall GmbH hereby confirms that this product meets the following guidelines (if applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS Directive

Radio Equipment Directive

EC Declaration of Conformity

Declarations of conformity for the products subject to the Low-Voltage Directive, the EMC Directive, and the RoHS Directive can be requested at: [e-mail].

Declarations of conformity for products subject to RED can be downloaded from www.adamhall.com/compliance/

Subject to misprints and errors, as well as technical or other modifications!

DEUTSCH

Three circular diagrams showing a vehicle with a sun symbol, connected to a warning sign and connected to a device, all crossed out by a diagonal line.

HINWEISE FÜR ORTSVERÄNDERLICHE INDOOR-GERÄTE

▶ 1 x AZOP2 Compact Spot Profile Moving Head
1 x Netzkabel
▶ 2 x Omega-Montagebügel

Close-up of a black car hood with orange arrows pointing to the top and side panels (no text or symbols visible)

PAN LOCK

Technical line drawing of a mechanical gear assembly with multiple teeth and meshed gears (no text or symbols)

Technical line drawing of a mechanical gear assembly with two looped components (no text or symbols)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Three circular diagrams showing a vehicle under no explosion, indicating collision or collision risk, with Chinese text labels.

NOTES POUR LES APPAREILS PORTABLES D'INTÉRIEUR

Close-up of a black car hood with orange arrows pointing to the side of the lid (no text or symbols visible)

LOCK UNLOCK11

11 VERROUILLAGE DU PANORAMIQUE

REPLACEMENT DES GOBOS

ATTENTION!

Technical line drawing of a mechanical gear assembly with multiple teeth and mounting brackets (no text or symbols)

Technical line drawing of a mechanical gear assembly with two looped components (no text or symbols)

Technical line drawing of a mechanical device with dimension标注 (no text or symbols)

78 102

205 251 511

CARACTÉRISTIQUES TECHNIQUES

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Directive CEM (2014/30/UE)

Directive RoHS

Close-up of a black mechanical component with two orange arrows pointing to features, no visible text or symbols.

LOCK UNLOCK11

LOCK 12 UNLOCK

Imagen aproximada

11 BLOQUEO HORIZONTAL

Technical line drawing of a mechanical gear assembly with multiple teeth and mounting brackets (no text or symbols)

Technical line drawing of a mechanical gear assembly with two circular components (no text or symbols)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

TRANSMISJA SYGNAŁU PRZEZ W-DMX®

Three circular diagrams showing a vehicle with a sun symbol, connected to a warning sign and connected to a device, all crossed out by a diagonal line.

32-channel Basic, 37-channel Standard, 43-channel Extended sterowanie DMX DMX512

Close-up of a black car hood with orange arrows pointing to the side (no text or symbols visible)

LOCK UNLOCK11

LOCK 12 UNLOCK

KONFIGURACJA I INSTALACJA

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

3

Technical line drawing of a mechanical gear assembly with multiple gears and linkages (no text or symbols)

Technical line drawing of a mechanical gear assembly with two looped components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

78 102

205 251 511

DANE TECHNICZNE

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Three circular diagrams showing a vehicle under sunlight, connected to a warning sign and connected to a device with bidirectional arrow.

AVVERTENZE PER DISPOSITIVI PORTATILI PER INTERNI

Close-up of a black mechanical component with two orange arrows pointing to features, no visible text or symbols.

LOCK UNLOCK11

LOCK 12 UNLOCK

Technical line drawing of a mechanical gear assembly with multiple teeth and mounting brackets (no text or symbols)

Technical line drawing of a mechanical gear assembly with two looped components (no text or symbols)

Technical line drawing of a mechanical device with dimension label 238 (no text or symbols on the diagram itself)

78 102

205 251 511

DATI TECNICI
