AZOR® SP2 IP

COMPACT IP65 SPOT PROFILE MOVING HEAD

CLAZORSP2IP

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

EXPLANATIONS OF TERMS AND SYMBOLS 6

SAFETY INSTRUCTIONS 7

NOTES ON PORTABLE OUTDOOR DEVICES 11

PACKAGING CONTENT 11

INTRODUCTION 11

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 12

OPERATION 15

SET-UP AND INSTALLATION 25

CARE, MAINTENANCE, AND REPAIR 25

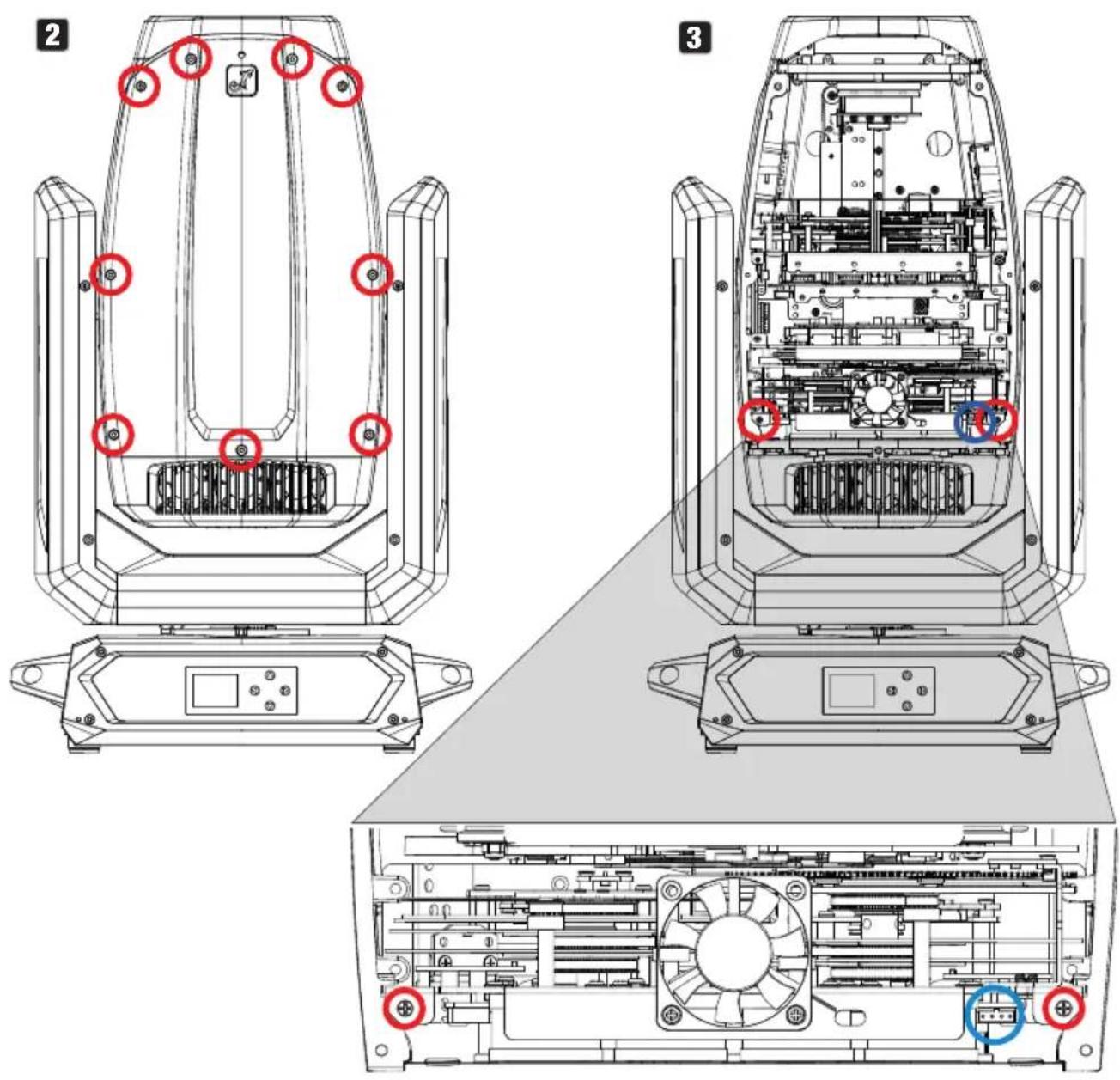

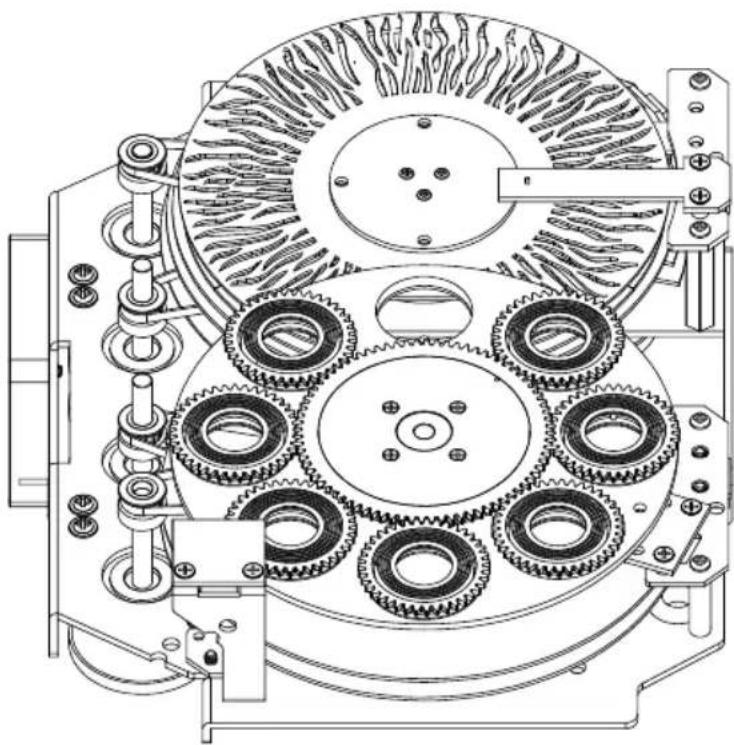

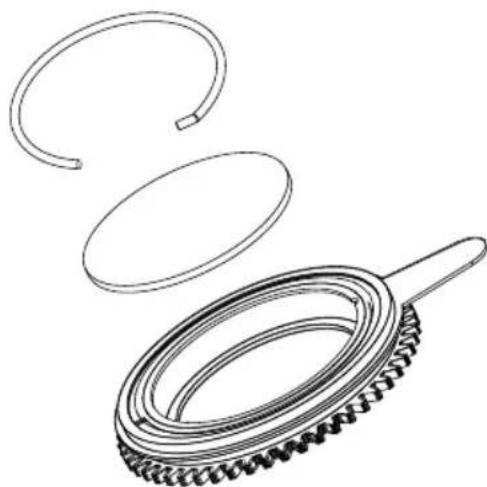

REPLACING GOBOS 26

TECHNICAL DATA 29

EXPLANATORY NOTES ON THE IP PROTECTION CLASS 30

MINIMUM DISTANCE TO ILLUMINATED SURFACE 31

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 31

DISPOSAL 31

MANUFACTURER'S DECLARATIONS 32

DEUTSCH

REPLACEMENT DES GOBOS 85

CARACTÉRISTIQUES TECHNIQUES 88

NOTES EXPLICATIVES SUR LA CLASSE DE PROTECTION IP 90

DISTANCE MINIMALE PAR RAPPORT À LA SURFACE ÉCLAIRÉE 90

DISTANCE MINIMALE PAR RAPPORT AUX MATÉRIAUX INFLAMMABLES ORDINAIRES 90

MISE AU REBUT 91

DÉCLARATIONS DU FABRICANT 91

ESPAÑOL

You have made the right choice!

This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to quickly put your new Cameo Light product to optimum use. Further information about Cameo Light is available on our website: CAMEOLIGHT.COM

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  • Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

This product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting!

Temporary operation! Event equipment is generally designed for temporary use only and not for continuous operation and fixed installation!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered improper use!

Liability is exempted when damage and third-party damage to persons and property is caused by inappropriate use!

The product is not suitable for:

• Persons (including children) with limited physical, sensory, or mental abilities or lack of experience and knowledge.
• Children (children must be instructed not to play with the device).

EXPLANATIONS OF TERMS AND SYMBOLS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately hazardous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially hazardous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that may lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol indicates hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards caused by intense light sources.

This symbol indicates hazards due to suspended loads.

This symbol indicates a device in which there are no user-serviceable parts.

This symbol indicates additional information on the operation of the product.

SAFETY INSTRUCTIONS

DANGER:

1. Do not open the device, and do not make any modifications to it.
2. If your device no longer functions properly, if liquids or objects get inside it, or if it has been damaged in any other way, switch it off immediately and disconnect it from the power supply. The device may be repaired only by authorised qualified personnel.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's mains cable is damaged, the device may not be operated.
4. Permanently attached mains cables may only be replaced by a qualified person.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation may damage the device. Switch on the device only when it has reached ambient temperature.
2. Make sure that the voltage and frequency of the mains correspond to the values indicated on the device. If the device has a voltage selector switch, do not turn the device on until it has been set correctly. Use only suitable mains cables.
3. To disconnect the device from the mains at all poles, it is not sufficient to press the on/off switch on the unit.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Make sure that appropriate measures have been taken against overvoltage (for example, lightning strike).
6. Observe the specified maximum output current on devices with a Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace plug-in mains cables only with original cables.
8. Connect the device only to compliant, tested, and undamaged power outlets.

DANGER:

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory, or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device only in the prescribed manner.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, check all cable routes to avoid damage or accidents, for example, due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.

CAUTION:

1. Moving components such as mounting brackets or other movable components may become jammed.
2. Devices with motor-driven components may result in injury from the movement of the device. Sudden movement of the device can cause shock reactions.
3. The exterior surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work, charging, or similar.

ATTENTION:

1. Do not install or operate the device in the vicinity of radiators, heat accumulators, furnaces, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as burning candles near the device.
3. Ventilation openings must not be covered, and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP protection class, as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be continuously further developed. In the event of deviating information on operating conditions, performance, or other device properties between the user manual and the device labelling, the information provided on the device always has priority.
8. The device is not suitable for tropical climates and for operation at heights of 2,000 m above sea level or higher.
9. Unless explicitly stated, the device is not suitable for operation in marine conditions.

PLEASE NOTE:

For conversion or retrofit sets or accessories provided by the manufacturer, it is essential to observe the included instructions.

CAUTION! IMPORTANT INFORMATION ON LIGHTING PRODUCTS!

1. This device is a risk group 2 device. Do not stare at the light source! Do not stare at the light beam! Do not look directly into the lamp with optical instruments such as magnifying glasses or binoculars!
2. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
3. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The lamps contained in this light source may only be replaced by the manufacturer, its service partner, or a similarly qualified person.

Radio signal transmission (for example, W-DMX or audio radio systems):

The quality and performance of wireless signal transmissions generally depends on the ambient conditions.

For example, the following factors can impact range and signal stability:

Shielding (for example, masonry, metal structures, water)

High volumes of radio traffic (for example, powerful wireless LAN networks)

Interference

Electromagnetic radiation (for example, LED video screens, dimmers)

All range specifications refer to free-field line-of-sight applications without interference!

The operation of radio transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (for example, radio frequency and transmission power).

WARNING: Devices with wireless signal transmission are not suitable for use in sensitive areas in which radio operation can lead to potential detrimental effects. These include:

• Hospitals, health centres, or other healthcare facilities that provide patient treatments with skilled personnel and equipment.
  • Class I, II, and III hazardous areas
• Restricted areas
• Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

TRANSMISSION VIA W-DMX

WARNING: In general, wireless DMX transmission must not be used for applications involving safety-related factors that might result in personal injury or property damage in the event of a failure.

This applies in particular to moving scene or traverse structures, DMX-controlled motors/lifts or lifting devices for operating DMX-operated platform lifts, hydraulic systems, or comparable moving components.

Furthermore, wireless DMX transmission must not be used to control flame or pyrotechnic devices, explosion-driven effects, or gas or liquid effects. These include CO_2 cannons, confetti shooters, water effects or similar.

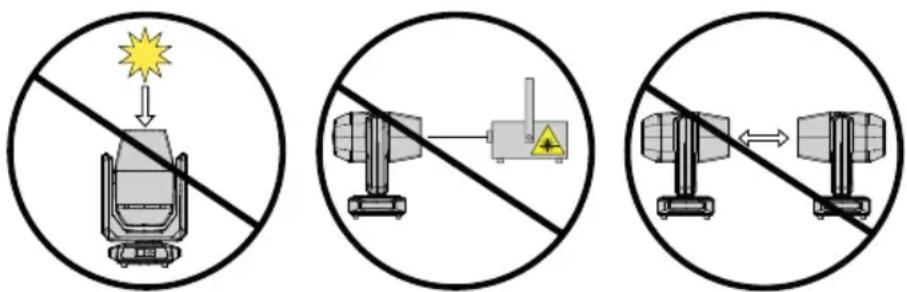

ATTENTION! POTENTIAL DAMAGE FROM EXTERNAL LIGHT SOURCES!

Solar radiation, laser radiation, and bundled light beams from other lights can damage the housing and internal components, such as filters, gobo and colour wheels, motors, cables, belts, as well as light sources!

Do not expose the device and especially the lens opening to direct sunlight, laser radiation, and bundled light beams from other lights during unpacking, installation, prolonged disuse, and operation! Always point the lens opening towards the floor when the device is not in use!

Damage caused by external light sources is excluded from the manufacturer's warranty!

NOTES ON PORTABLE OUTDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent structural installation – particularly outdoors – can impair the function, surfaces, and seals and cause premature material fatigue.
3. Damage to the surface coating can impair the device's corrosion protection. Damaged surface coating (for example, scratches) must be promptly repaired using suitable measures.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material.

Please check the completeness and integrity of the delivery, and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging content for the product includes:

▶ 1 × AZOP Compact IP65 Spot Profile Moving Head
▶ 2 × Omega mounting bracket
▶ 1 × Mains cable
▶ Safety and compliance information (user manual as a download via QR code)

INTRODUCTION

COMPACT IP65 SPOT PROFILE MOVING HEAD

CLAZORSP2IP

CONTROL FUNCTIONS:

32-channel Basic, 37-channel Standard, 43-channel Extended DMX control

DMX512

Integrated wireless DMX receiver

Master/slave operation

Stand-alone functions

FEATURES:

IP65 protection class. 300 W cold white LED. CMY colour mix. Colour wheel with eight colours plus open. Gobo wheel with seven rotatable gobos plus open. Zoom, focus, iris, prism and frost function. Animation wheel. Aperture slider. DMX512. 5-pin DMX connections. 2× Omega mounting bracket included.

The light supports the remote device management (RDM) standard. Remote device management allows the user to monitor the status and configuration of RDM devices using an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE). The Cameo UNICON also allows access to the entire light menu.

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

POWER IN AC 100-240V 50/60Hz MAX. LOAD OF OUTLET: 1A POWER OUT 1 Lock Lock FUSE T8A/250V IP65 WEIGHT: 24.9kg POWER CONSUMPTION: 560W DMX OUT PUSH DMX IN SEETRONIC RG2

1 POWER IN

IP65 power input socket with rubber sealing cap. Operating voltage 100–240 V AC / 50–60 Hz. Connect using the included mains cable. Always close with the rubber sealing cap when not in use.

2 POWER OUT

IP65 power output socket with rubber sealing cap. Enables power supply to other CAMEO lights. Always close with the rubber sealing cap when not in use. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A).

3 FUSE

IP65 fuse holder for 5×20 mm fuses. IMPORTANT NOTE: Only replace the fuse with a fuse of the same type and value. In the event of repeated fuse failure, please contact an authorised service centre. Carefully reseal the fuse holder to further ensure IP65 tightness.

4 DMX IN

Male IP65 5-pin XLR socket for connecting a DMX controller (e.g., DMX console). Always close with the rubber sealing cap when not in use.

5 DMX OUT

Female 5-pin XLR socket for relaying the DMX control signal. Always close with the rubber sealing cap when not in use.

6 PRESSURE EQUALISATION ELEMENT

Pressure equalisation element to prevent condensation inside the housing. In order to ensure its proper functioning, the element must be protected from dirt.

ANTENNA

The antenna for wireless DMX control is located inside the base of the device.

ATTENTION: In order to provide protection from water sprays in accordance with the IP65 protection class, the special DMX input and output sockets must be used with special IP65-rated XLR connectors, or they must be closed using the rubber sealing caps. When connected correctly, or when sealed correctly with the rubber sealing caps, the POWER IN and POWER OUT sockets are protected from spraying water, as in accordance with IP65.

cameo® AZOR SP2 IP 7 MENU 8 ENTER

7 OLED DISPLAY

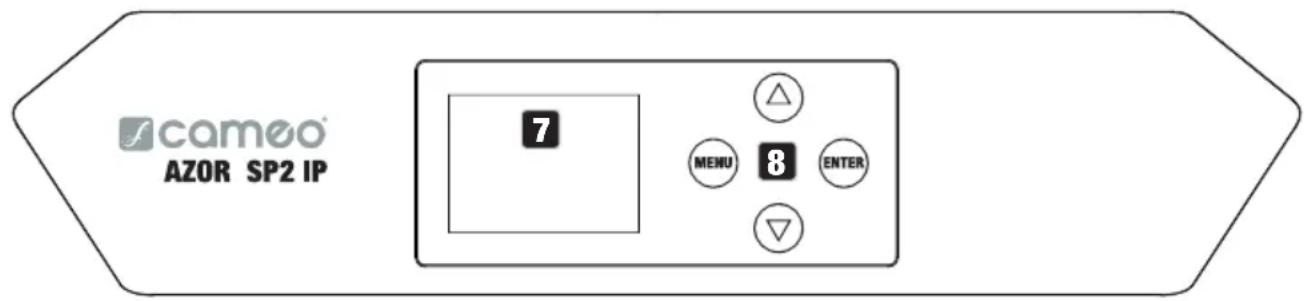

The OLED display shows the currently active operating mode (main screen), the menu items, and the numerical value or operational status of certain menu items. If no input is made within approximately one minute, the display automatically returns to the main screen. Note on the main screen in operating modes with external control: in the event that the control signal is interrupted, the characters in the display begin flashing; once the control signal is present again, the flashing stops.

8 TOUCH-SENSITIVE CONTROLS

MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main screen. Pressing MENU without confirming a value or status change by pressing ENTER restores the previously confirmed value or status.

ENTER – press ENTER to access the menu levels, where you can make value changes and access the sub-menus with the ENTER button. ENTER is also used to confirm value or status changes.

▲ and ▼ – select menu items in the main menu (DMX address, DMX mode, etc.) and in the sub-menus. Allows you to change the value of a menu option, such as the DMX address (long press = quick value change).

Close-up of a black dome-shaped object with two side protrusions and an orange arrow pointing to the top edge (no text or symbols visible)

9 RECESSED GRIPS

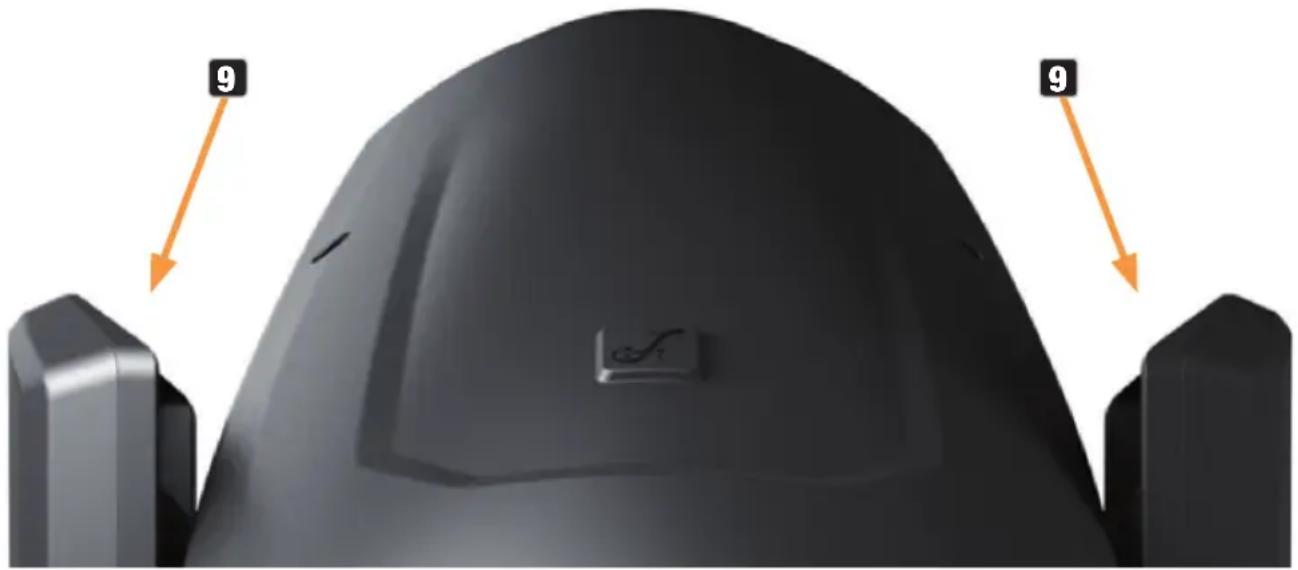

In addition to the two transport handles on the base of the device, there are convenient recessed grips at the top of the inner sides of the two device arms.

10 UNLOCKLOCK

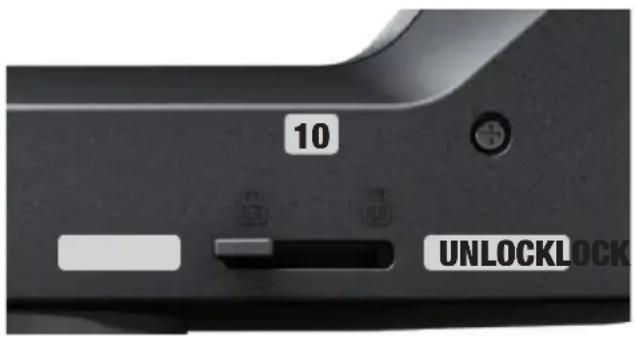

10 PAN LOCK

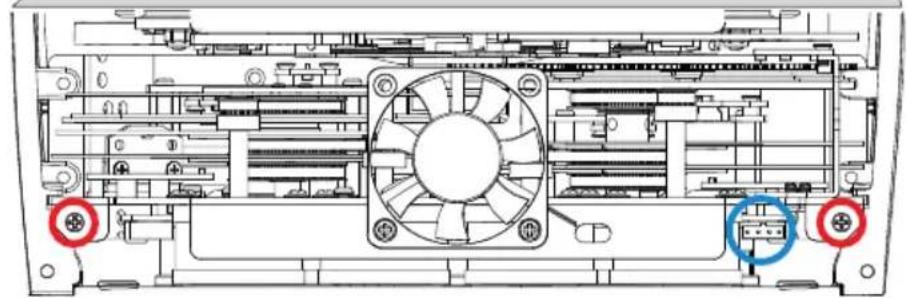

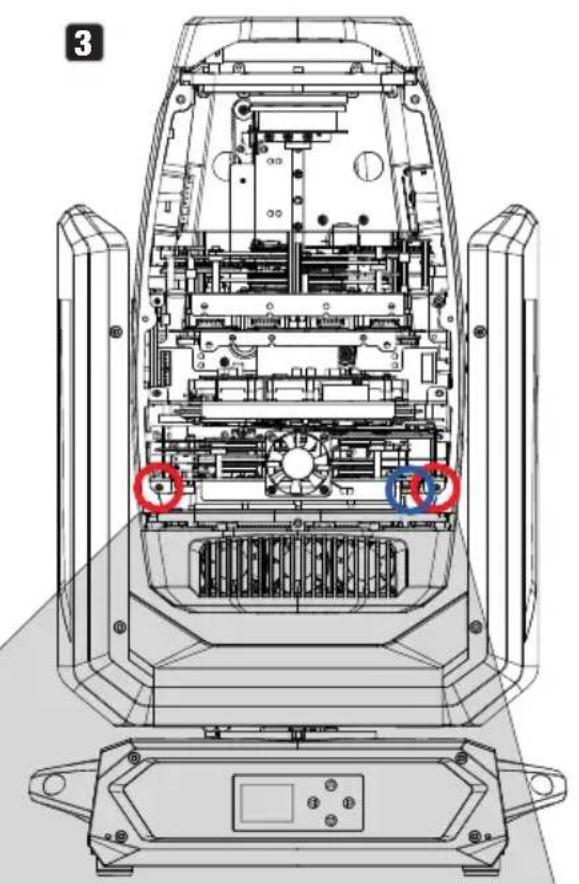

Mechanical locking device used to prevent the rotation of the head in the horizontal direction during transport. Disconnect the unit from the mains, move the head parallel to the base (8 possible positions), and push the locking lever in the direction of the pan rotation axis (LOCK) to lock it in position. Unlock the locking device before device start-up (UNLOCK).

LOCK 11 UNLOCK

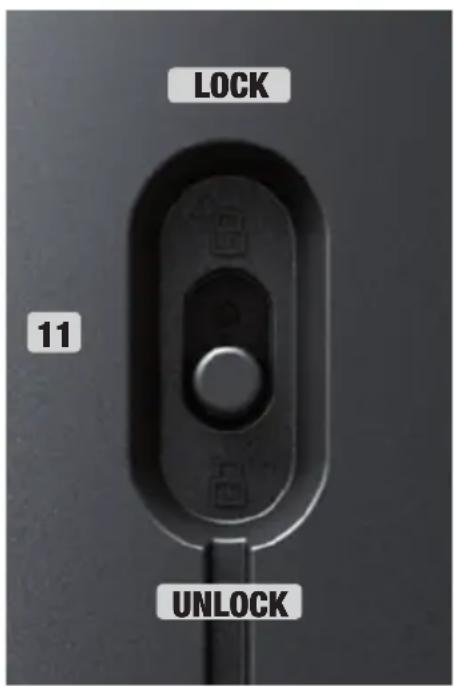

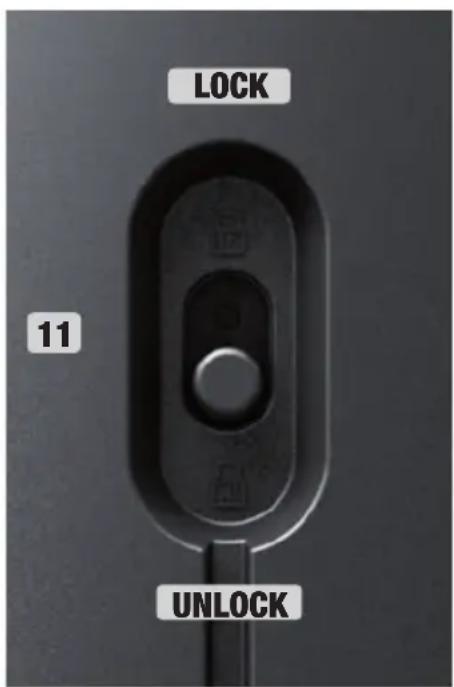

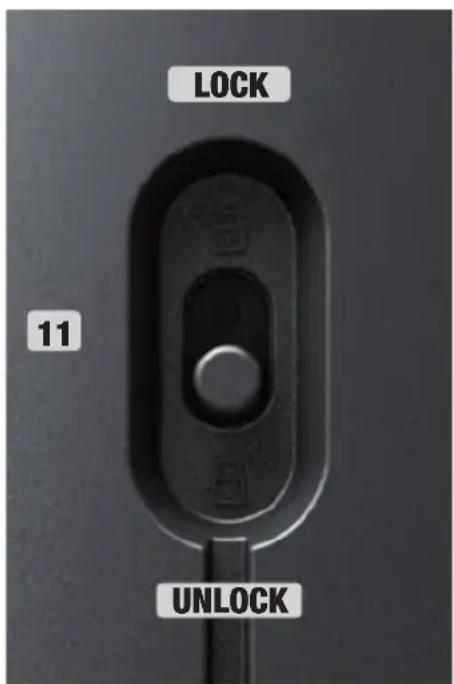

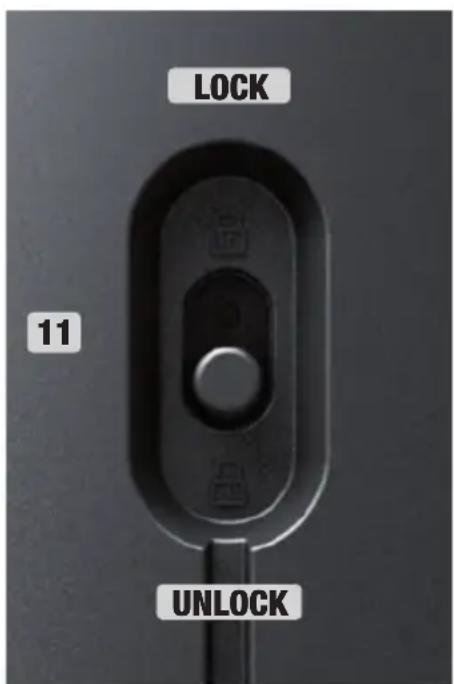

11 TILT LOCK

Mechanical locking device used to prevent rotation of the head in the vertical direction during transport (seven possible positions). Disconnect the unit from the mains and slide the locking lever towards the tilt rotation axis, moving the head of the unit vertically until one of the seven locking positions is found and the locking lever engages (LOCK). Unlock the locking device before device start-up (UNLOCK).

- Similar image -

WIRELESS DMX

To pair a wireless DMX receiver with a wireless DMX-compatible transmitter, the “Unlink” or “Receive Reset” command must be executed in the menu item “Wireless”. The receiver is now ready to pair and waiting for a pairing request from a transmitter. Start the pairing by selecting “Link” in the menu of the transmitter and confirming; the pairing now takes place automatically. Simultaneous or consecutive pairing of several receivers to a transmitter (for example, for master/slave operation) can also be done in the same manner. A wireless DMX connection is always maintained until it is disconnected with the reset command in the receiver or the unlink command in the transmitter, regardless of whether a device has been disconnected from the power supply in the meantime.

OPERATION

NOTES

Upon switching on the light, the message "Update Wait" is displayed momentarily, followed by "Welcome to Cameo", the model name and the software version. Thereafter, the motors are reset (Motor Reset Please Wait). After this process, the fixture is ready for operation and the previously activated operating mode is launched.

MAIN SCREEN IN DMX OPERATING MODE

In DMX mode, the main screen shows the currently set DMX start address (see illustration). Flashing characters indicate that no DMX signal is present.

DMX Address 001

SET DMX START ADDRESS (DMX address)

Starting from the main display, press MENU to access the main menu. Now use ▲ or ▼ to select the menu item DMX Address and confirm with ENTER. Use ▲ or ▼ to configure the desired DMX start address and press ENTER to confirm (the highest possible value depends on the selected DMX operating mode).

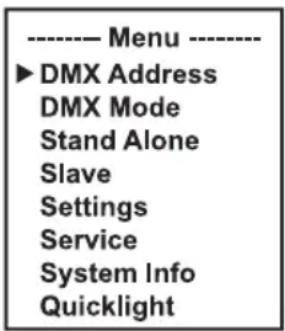

---- Menu ---- ►DMX Address DMX Mode Stand Alone Slave Settings Service System Info Quicklight

--- DMX Address --- ► DN DN St Slave 001

SETTING THE DMX OPERATING MODE (DMX Mode)

Starting from the main display, press MENU to access the main menu. Now use ▲ or ▼ to select the menu item DMX Mode and confirm with ENTER. Select the desired DMX operating mode using ▲ or ▼ and confirm with ENTER. Tables showing the channel assignment of the different DMX modes can be found in the DMX CONTROL section of this user manual.

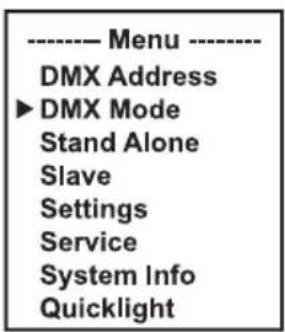

---- Menu ---- DMX Address ►DMX Mode Stand Alone Slave Settings Service System Info Quicklight

---- DMX Mode ---- ► 32CH Basic 37CH Standard 43CH Extended

STAND-ALONE MENU

In the stand-alone operating modes (Play Scene and Play Loop), the control signal of the corresponding mode can be output to slave units via XLR. If you do not want to output the control signal, deactivate the output.

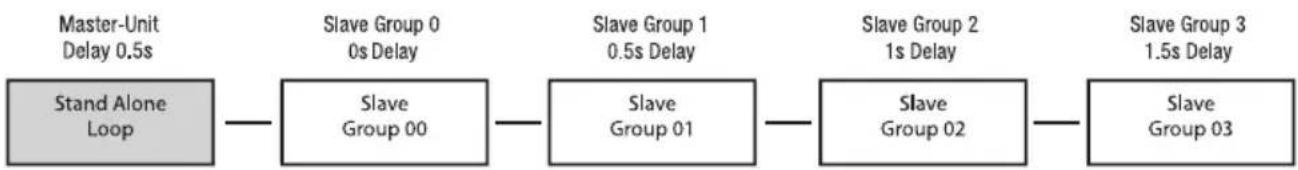

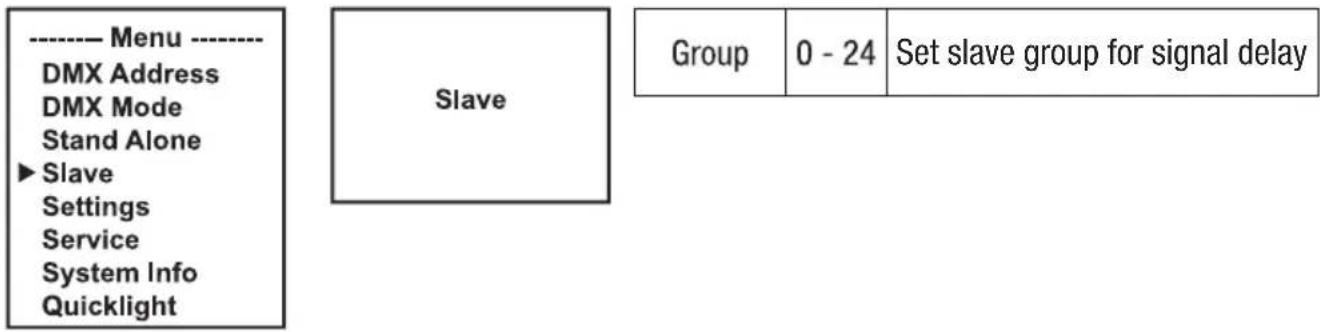

A delay can be set for slave units for the time-delayed output of the control signal of the stand-alone operating modes.

Activate one of the eight available scenes (Scene 1 - 8) or one of the eight available loops (Loop 1 - 8). The settings are made individually for each scene and each loop and are retained even after the device is restarted.

Starting from the main display, press MENU to access the main menu. Use ▲ or ▼ to select the menu item Stand Alone and confirm with ENTER. Now select the desired sub-menu item, confirm and then make the settings as required (see table).

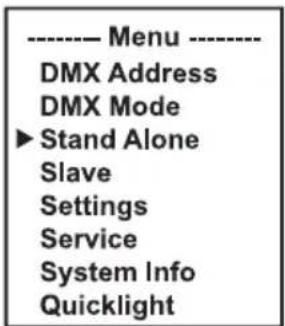

---- Menu ---- DMX Address DMX Mode ► Stand Alone Slave Settings Service System Info Quicklight

---- Stand Alone ---- ►Master/Alone Play Scene/Loop Edit Scene Edit Loop

Master/Alone	Master	Delay	Relay control signal via DMX OUT and set delay for slave units:Off, 0.1s–2.0s
	Alone	Do not forward control signal
Play Scene/Loop	Scene	Scene 1 - 8	Select and activate the desired scene
Play Scene/ Loop	Loop	Loop 1 - 8	Selection and activation of the desired loop
Edit Scene	Scene 1 - 8	Pan	Set each scene individually. Scenes are activated by selecting them.Refer to DMX mode 43 CH Extended for all functions and the corresponding values.
		Tilt
		Dimmer
		...
Edit Loop	Loop 1 - 8	Step 1	Scene 1 - Scene 8 / Blackout	Scene selection / Blackout
			t-Step 0s - 20min	Sets the step time
			t-Fade 0s - 20min	Sets the fade time
		Step 2	''	''
		Step 3	Scene 1 - Scene 8 / Blackout / Skip Step	Select scene 1–8 / Blackout / Skip step
			t-Step 0s - 20min	Sets the step time
			t-Fade 0s - 20min	Sets the fade time
		Step 4	''	''
		Step 5	''	''
		Step 6	''	''
		Step 7	''	''
		Step 8	''	''

SLAVE MODE

STANDARD SLAVE MODE: Starting from the main screen, press MENU to enter the main menu. Now use ▲ or ▼ to select the menu item Slave, confirm with ENTER, then select "Slave Group 0", and confirm again. Connect the slave and master units (same model, same software version) using a DMX cable and activate the control signal output (Stand Alone -> Master/Alone -> Master) and one of the stand-alone operating modes (Play Scene/Loop) in the master unit. The slave unit will now follow the master unit.

ADVANCED SLAVE MODE: If you wish to control the slave units in master/slave mode using one of the Play Scene or Play Loop stand-alone modes, the control signal can be played back with a time delay of up to 24 steps. The delay is set in the Stand Alone menu Master/Alone in the master unit; the delay factor is set in the slave menu of the corresponding fixture (Group). This is a simple way to create a running light effect with a large number of identical spotlights that are running the same software version, which would otherwise require a suitable DMX controller and extensive programming. Connect the slave and master units (same model, same software version) using a DMX cable and activate the control signal output (Stand Alone -> Master/Alone -> Master) and one of the stand-alone operating modes (Play Scene/Loop) in the master unit.

Assign the lights to one of up to 24 groups (plus Group 0) according to preference, whereby several lights can be assigned to one group. The group number is also the factor by which the delay time set in the master unit is multiplied.

Set-up example:

SYSTEM SETTINGS (Settings)

Starting from the main display, press MENU to access the main menu. Now use ▲ or ▼ to select the menu item Settings and confirm with ENTER.

---- Menu ---- DMX Address DMX Mode Stand Alone Slave ► Settings Service System Info Quicklight ---- Settings ---- ► Wireless Display | Store Default

This takes you to the sub-menu to set sub-menu items (see table, select with ▲ or ▼, confirm with ENTER, change value or status with ▲ or ▼, and confirm with ENTER).

Settings (Bold print = factory setting)
Wireless	Wireless settings	State	On	Wireless control activated
			Off	Wireless control deactivated
		Linking	Receive Reset	Reset the DMX receiver and prepare it for pairing
Wireless	Wireless settings	Linking Key	Linking Key	Setting of the connection key
			CRMX Mode	CRMX	Receiver standard = CRMX
				CRMX2	Receiver standard = CRMX2
			CRMX Universe	A - H	Selection of CRMX universe A to H
		Universe Metadata	RGB Colour Code	Red, Orange, Yellow, Green, Cyan, Blue, Purple, White	RGB code for colour display of the universe
			Universe A Name	16-character string with a customisable name that identifies the universe
		Signal Routing	Send to XLR	Relaying of the control signal to XLR (DMX OUT)
			Backup by XLR	Control via XLR (DMX IN) with wireless signal interruption
			Receive only	No connection between wireless DMX signal and XLR connectors
Display	Display settings	Reverse	On	Display is rotated by 180° (for example, for overhead installation)
			Off	No display rotation
			Auto	Automatic position detection (upright/overhead mounting)
		Off Timer	Always On	Permanently on
			Off after 20s	Deactivation after approximately 20 seconds of inactivity
		Autolock	On after 60s	Controls locked after approximately 60 seconds without input (LOCKED). To unlock, press MENU for approx. 3 seconds.
			Off	Autolock function deactivated
Dimmer	Dimmer settings	Dimmer Curve = dimmer curve	Linear	Light intensity increases linearly with DMX value
Dimmer	Dimmer settings	Dimmer Curve dimmer curve	Exponential	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
			Logarithmic	Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
			S-Curve	Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
		PWM Frequency = LED PWM frequency	650Hz, 1530Hz, 3600Hz, 12kHz, 18.9kHz, 25kHz	Selection of the LED PWM frequency
		Dimmer Response dimm response	LED	The light responds immediately to changes in the DMX value
			Halogen	The light behaves in a similar way to a halogen light with gradual changes of brightness
Movement	Head movements settings	Pan Reverse	Off	Pan direction not reversed
			On	Pan direction reversed
		Tilt Reverse	Off	Tilt direction not reversed
			On	Tilt direction reversed
		Pan Angle	540°	Pan angle 540°
			630°	Pan angle 630°
		Position Feedback	On	Automatic position correction activated
			Off	Automatic position correction disabled
		Move in Black	On	Blackout during head movement
			Off	No blackout during head movement
		Silent Movement	On	Slowed motor movements for quieter operation
			Off	Function deactivated
Wheels	Adjusting the gobo wheels, colour wheel and aperture slider	Gobo Wheel	Position	Clock-wise	Gobo wheel always rotates clockwise
				Shortest way	Gobo wheel rotates the shortest distance

Fan

Sun Protection

Wheels

Fan setting

Protective function for the internal components

Adjusting the gobo wheels, colour wheel and aperture slider

Gobo Wheel

Colour Correction

Colour Correction

Colour Correction

Colour Correction

Colour Correction

Colour Correction

Colour Correction

Signal Fail	Operational status with DMX signal fault	Hold	Last command is retained
		Last Stand The Alone	last selected stand-alone operating mode is activated
		Fade to Black 10- second fade to blackout (10s)
		Blackout	Activates blackout
		Full	Full on
		Sun Protection	Activates blackout, and the device head is directed downwards
Store Default	Save settings in three custom presets	User A	Save all current settings as user preset A
		User B	Save all current settings as user preset B
		User C	Save all current settings as user preset C

SERVICE MENU (Service)

Starting from the main display, press MENU to access the main menu. Use ▲ or ▼ to select Service and confirm with ENTER.

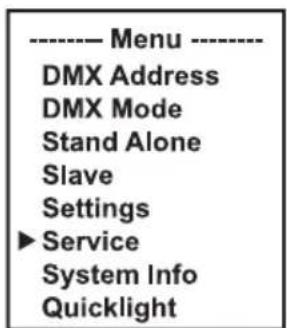

---- Menu ---- DMX Address DMX Mode Stand Alone Slave Settings ►Service System Info Quicklight

---- Service ---- ► Load Default Reset | Password

Information on the submenu items in the Service menu and the corresponding options can be found in the table below (select with ▲ or ▼, confirm with ENTER, change value or status with ▲ or ▼, confirm with ENTER).

Load Default	Factory	Reset to factory setting
	User A	Reset to User A values(Save user values: Settings -> Store Default)
	User B	Reset to User B values(Save user values: Settings -> Store Default)
	User C	Reset to User C values(Save user values: Settings -> Store Default)
Reset	Pan/Tilt		Reset pan/tilt motors
	Head		Reset motors in the device head
	All		Reset all motors
Test	Test Sequence		Pre-programmed sequence to test all components
	Stress Test		Pre-programmed sequence to test all components under maximum load
	Motor Test		Activate all motors individually with values of 000 to 255
Reset Service Timer	No		Do not reset service operation time
	Yes	Reset Now	Reset service operating time
Password	For service purposes only

SYSTEM INFORMATION (System Info)

Starting from the main display, press MENU to access the main menu. Now use ▲ or ▼ to select the menu item System Info and confirm with ENTER.

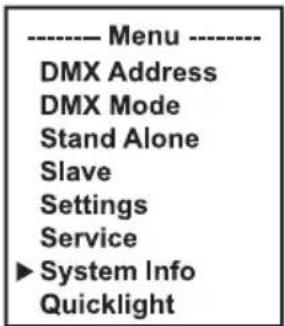

---- Menu ---- DMX Address DMX Mode Stand Alone Slave Settings Service ►System Info Quicklight

---- System Info ---- ► Firmware Wireless | Error Info

This takes you to the sub-menu to set sub-menu items (see table, select with ▲ or ▼, confirm with ENTER, change value or status with ▲ or ▼, and confirm with ENTER).

Firmware	DISP	Vx.x.x	Display of the firmware version of the corresponding component
	SCAN	Vx.x.x
	CMY	Vx.x.x
	...	Vx.x.x
Wireless	Module	xxx	Wireless module model
	Device Name	AZORSP2IP	Device name
	Version	Hardware	Hardware version number
		Software	Software version number
	Link Quality	%	Connection quality in per cent
	Status	Operational	Status information
		DMX Data
		RDM Identify
		RF Link
		Link State
Temperature	LED	xxx °C/°F	Display of the temperature of the corresponding component
	Base	xxx °C/°F
	...
	Temperature Unit	°C	Set the temperature unit
		°F
Humidity	Base	x%	Display of relative humidity in per cent
	Head	x%
Fan Speed	xxxx RPM	Display the speed of the corresponding fans
Runtime	Total	xxxx h : xx m	Total operating time
	Operation	xxxx h : xx m	Time in use
	LED	xxxx h : xx m	Lamp operating time
	Service	xxxx h : xx m	Operating time since the last reset of the service operating time
RDM-UID	RDM unique identifier
Error-Info	Error display in case of malfunction

QUICKLIGHT

Set up a scene quickly and easily using the basic moving head functions without an external controller. Starting from the main display, press MENU to access the main menu. Use ▲ or ▼ to select Quicklight and confirm with ENTER. Now select the desired sub-menu item, confirm, set the value as required, and confirm again.

---- Menu ---- DMX Address DMX Mode Stand Alone Slave Settings Service System Info ► Quicklight

---- Quicklight ---- ►Pan Tilt Dimmer Zoom Focus

If the Quicklight operating mode is activated, the display does not automatically change to the main display; when leaving the Quicklight menu, Quicklight operating mode is automatically terminated. The settings in the Quicklight menu are retained until the next restart of the fixture; as a result, Quicklight can be accessed repeatedly with the same settings as long as the fixture remains switched on. After a restart, the values are reset to the factory settings.

SET-UP AND INSTALLATION

DANGER: Overhead mounting requires extensive experience, including calculating the load limit values of the mounting hardware, and regular safety inspection of all installation materials and lights. If you do not have these qualifications, do not attempt to perform installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly installed and secured and may come loose and fall down. This can cause serious injury or death.

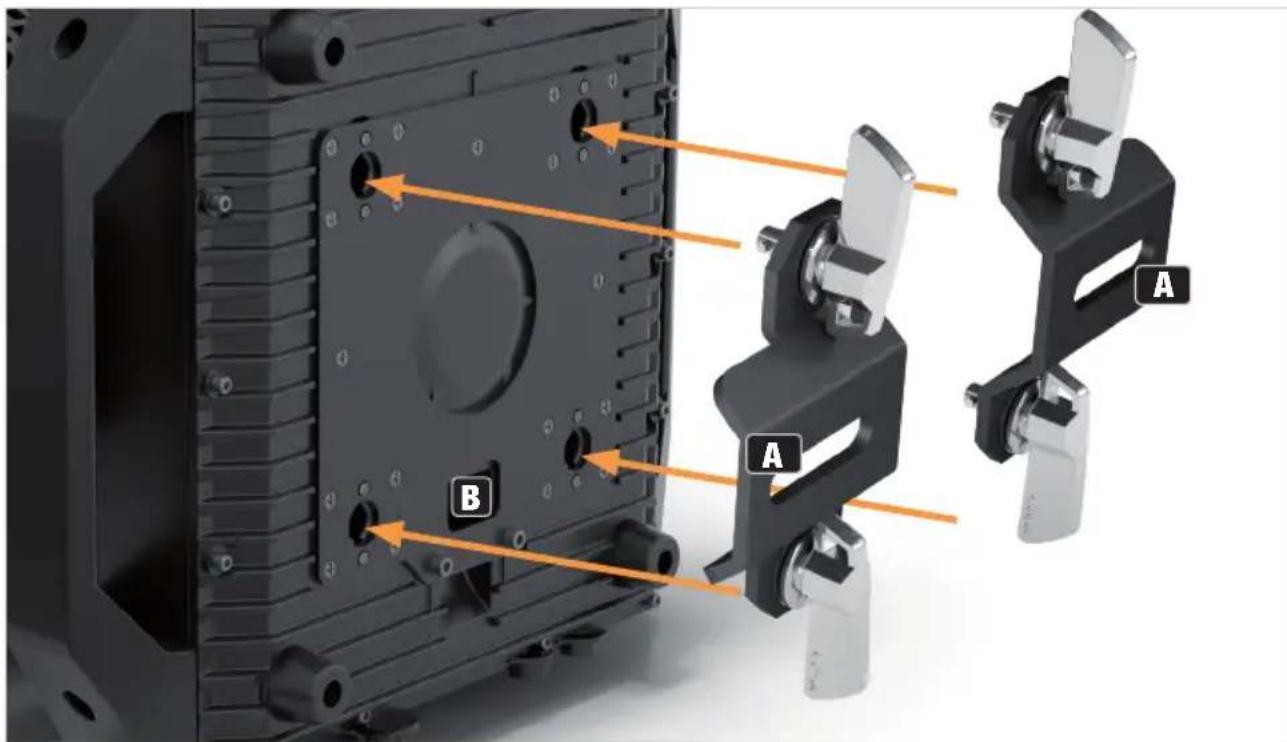

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and alignment arrows.

• Similar image -

CARE, MAINTENANCE, AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The care and maintenance required depends on the intensity of use and the environment in which it is used.

We recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable service measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

CARE (carried out by user)

WARNING! Before carrying out any care or maintenance, the power supply – and, if possible, all device connections – must be disconnected.

PLEASE NOTE! Improper care can lead to impairment of the device or even its destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (for example, fans must be blocked in this case, as they could otherwise over-rev).
3. Cables and connectors must be cleaned regularly, and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used; otherwise, the surface finish may be damaged.
5. Devices must be stored in a dry environment and protected from dust and dirt.
6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting apertures must be cleaned regularly.

MAINTENANCE AND REPAIR (by qualified personnel only)

DANGER! There are live components in the device. Even after disconnecting from the mains, there may still be residual voltage in the device, for example, due to charged capacitors.

PLEASE NOTE! Maintenance and repair work may only be carried out by sufficiently qualified personnel. If in doubt, consult a specialist workshop.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

PLEASE NOTE! For conversion or retrofit sets provided by the manufacturer, it is essential to observe the enclosed installation instructions.

REPLACING GOBOS

ATTENTION: Gobos may only be replaced by qualified personnel. If you are not qualified to do this, do not try to replace gobos yourself. Refer instead to professional companies.

When carrying out any work, make sure that no foreign bodies enter the housing!

When replacing the gobos, make sure that the gobos are inserted correctly into the corresponding gobo holder. Otherwise, heat damage to the gobos and gobo holders may occur!

In order to maintain the seal of the AZOR SP2 IP moving head according to protection class IP65, a new seal must be inserted at the corresponding location after replacing a gobo. Carefully follow each step in the instructions below. After mounting the cover, perform a leak test.

1. Disconnect all poles of the device from the power supply (pull out the mains plug). Now lock the light head (pan and tilt lock).
2. Loosen the nine Allen screws on the device head cover, located on the side opposite the Pan-Lock (see red markings), remove the cover from the light head, release the cover's safety cable, and place it to one side.
3. Carefully disconnect the four-pin plug connection for the power and signal supply of the gobo module (lower module, see blue marking in the illustration). Then loosen both screws that hold the module in the guide, and pull the module out of the light head (see red markings in the illustration).

Technical diagram of a device showing exploded and assembled views with red circles highlighting specific components.

Technical line drawing of a mechanical gear assembly with multiple meshed gears and mounting brackets (no text or labels)

1. Place the module on a clean, level surface with the gobo wheel facing upwards. To avoid contaminating the gobos and other components, please wear clean, lint-free gloves.
2. Lift the gobo holder slightly up on the gear and then pull it out of the gobo wheel.
3. The gobo can now be removed from the holder and replaced with another one.

Technical line drawing of a mechanical component with coiled spring and flange (no text or symbols)

1. Then place the gobo holder back into the respective gobo wheel, ensuring that the gobo holder is correctly positioned in the corresponding recess. For rotating gobos, you can check that the gobo is positioned correctly by turning the gobo wheel. The gobo must rotate without catching.
2. Re-install the module in the light head, secure it with the two previously loosened screws, and reconnect the plug for the power and signal supply to the corresponding port.

3. Remove the old seal from the groove in the head cover.

4. Thoroughly clean the groove and the contact surface of the built-in shaft surround. Make sure that the contact surfaces of the seal are free from foreign objects and dirt.

5. Remove the new seal from the packaging, and remove any residues of the mould release agent.
6. Now place the seal positively into the groove. Ensure that the seal is not twisted.
7. Re-attach the cover's safety cable to the corresponding position in the device head and place the cover flat on the built-in shaft surround.
8. First tighten the middle and then the outer screws of the cover crosswise with gentle force.
9. Then tighten the middle screws and then the outer screws crosswise to 6 (± 0.5) kgf-cm.
   After mounting the cover, perform a leak test.

TECHNICAL DATA

Item number	CLAZORSP2IP
Product category	LED Moving Head
Type	Profile Spot
Light source	300 W LED
LED colour temperature	6900 K
Luminous Flux	11100 lm
CRI	>70
Lense / optic	Glass
Beam angle	3.2° - 50.9°
LED PWM	650 Hz; 1530 Hz; 3600 Hz; 12 kHz; 18,9 kHz; 25 kHz
Dimmer resolution	16 bit
Dimmer curves	Linear, exponential, logarithmic, S-Curve
Halogen simulation	Yes
Strobe	Cameo strobe settings
Focus operation	Normal
Colour mixing	CMY
Colour wheel	8 Colours + open
Colour control	CMY
CCT	Linear CCT 6900 K - 3200 K
Gobos	7 rotatable + open
Prism	1 x 5-facet / 1 x 8-facet
Iris	Yes
Frost	1 x light, 1 x heavy
Animation wheel	Yes
Framing system	4 layers, +/- 60° rotable
Pan / Tilt range	Pan 540° or 630° / Tilt 270°
Control protocols	DMX; RDM; W-DMX / CRMX; Stand-Alone; Master-Slave
Data connections	5-pin XLR male / female
DMX modes	32-CH Basic, 37-CH Standard, 43-CH Extended
DMX functions	Pan/Tilt, Pan/Tilt fine, Dimmer, Dimmer fine, Stroboskop, Cyan, Cyan fine, Magenta, Magenta fine, Gelb, Gelb fine, CTO, CTO fine, Colour wheel, Gobo wheel, Gobo wheel rotation, Gobo wheel rotation fine, Zoom, Zoom fine, Focus, Focus fine, Auto focus, Auto focus adjust, Iris, Prism 1, Prism 2, Frost Light, Frost Heavy, Blade 1 A&B, Blade 2 A&B, Blade 3 A&B, Blade 4 A&B, Framing Rotation, Framing Rotation fine, System Settings
RDM functions	Cameo Standard
Stand Alone	Play Loop; Play Scene; Edit Loop; Edit Scene; Slave
User interface	Menu, Enter, Up, Down
Display / indicators	OLED Display
IP rating	IP65
Ambient temperature rating	-15°C - +45°C
Cooling system	Temperature controlled PWM fans
Power connection	True1 compatible in/out
Protection Class	1
Operation voltage	100 - 240 V AC / 50 - 60 Hz
Inrush current	69 A @ 0.82 ms (240 V)
Max. power consumption	560 W
Standby power	90 W
Fuse	T8 A 250 V (5 x 20 mm)
Max. power out	9 A
Risk Group	RG2
Min. distance to illuminated surface	3 m
Min. distance to normal flammable materials	0.5 m
Housing	Aluminum die-cast, ABS
Dimensions (w x h x d)	412 x 654 x 257 mm
Weight	24.9 kg
RDM UID	08A4005EXXXX

EXPLANATORY NOTES ON THE IP PROTECTION CLASS

1. An IP protection class only reflects protection against solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature.
2. The first identification digit indicates protection against dust, solid objects, and contact:

IP2X	Protected against solid foreign objects ≥ 12.5 mm in diameter
IP3X	Protected against solid foreign objects ≥ 2.5 mm in diameter
IP4X	Protected against solid foreign objects ≥ 1.0 mm in diameter
IP5X	Protected against dust in harmful quantities and completely protected against contact
IP6X	Dust-tight and completely protected against contact

3. The second digit indicates protection from water:

IPX0	No protection
IPX1	Protection against dripping water
IPX2	Protection against dripping water when the device is tilted by up to 15°
IPX3	Protection against falling spray water up to 60° from the vertical
IPX4	Protection against splashing water on all sides
IPX5	Protection against water jets (nozzle) from any angle
IPX6	Protection against strong water jets
IPX7	Protection against temporary submersion

4. In addition, some device-specific measures such as covers and sealing caps are necessary in order to achieve the specified protection class (for example, protective caps on unused connections).

The IP rating of the product can be found in the technical specifications and is printed on the device.

MINIMUM DISTANCE TO ILLUMINATED SURFACE

This symbol with the distance stated in metres (m) indicates the minimum distance of the light fixture to the illuminated surface. The value valid for this device can be found in the technical data in this manual and is printed on the device!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with the distance stated in metres (m) indicates the minimum distance of the device to normally flammable materials. The value valid for this device can be found in the technical data in this manual!

DISPOSAL

Packaging:

1. Packaging can be recycled using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

Device:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Waste equipment does not belong in household waste. Waste equipment must be disposed of via an authorised waste disposal company or a municipal waste disposal facility. Please observe the applicable regulations in your country!

1. Observe all disposal laws applicable in your country.
2. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty & limitation of liability

Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach, Germany

Email: [e-mail] / +49 (0)6081 / 9419-0

Our current warranty conditions and limitation of liability are available at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

For service requests, please contact your distribution partner.

CE conformity

Adam Hall GmbH hereby confirms that this product meets the following guidelines (where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

EC Declaration of Conformity

Declarations of conformity for products subject to the LVD, EMC, and RoHS Directives can be requested from [e-mail]

Declarations of conformity for products subject to RED can be downloaded from www.adamhall.com/compliance/

SUBJECT TO MISPRINTS AND ERRORS, AS WELL AS TECHNICAL OR OTHER MODIFICATIONS!

DEUTSCH

COMPACT IP65 SPOT PROFILE MOVING HEAD

CLAZORSP2IP

Close-up of a black car hood with two orange arrows pointing to the side (no text or symbols visible)

9 GRIFFMULDEN

10 UNLOCKLOCK

LOCK 11 UNLOCK

10 PAN LOCK

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and alignment arrows.

• Abbildung ähnlich -

Technical line drawing of a mechanical gear assembly with multiple teeth and housing (no text or symbols)

Technical line drawing of a mechanical gear assembly with two circular components (no text or symbols)

DMX-Modi 32-CH Basic, 37-CH Standard, 43-CH Extended

DMX-Funktionen Pan/Tilt, Pan/Tilt fine, Dimmer, Dimmer fine, Stroboskop,

Cyan, Cyan fine, Magenta, Magenta fine, Yellow, Yellow fine, CTO, CTO fine, Colour wheel, Gobo wheel, Gobo wheel rotation, Gobo wheel rotation fine, Zoom, Zoom fine, Focus, Focus fine, Auto focus, Auto focus adjust, Iris, Prism 1, Prism 2, Frost Light, Frost Heavy, Blade 1 A&B, Blade 2 A&B, Blade 3 A&B, Blade 4 A&B, Framing Rotation, Framing Rotation fine, System Settings

RDM-Funktionen Cameo Standard

Stand-Alone Play Loop, Play Scene, Edit Loop, Edit Scene, Slave

Three circular diagrams showing a vehicle under no explosion, indicating collision or collision risk, and a mechanical device with warning symbol.

REMARQUES À PROPOS DES APPAREILS PORTABLES POUR EXTÉRIEUR

Close-up of a black dome-shaped object with two side protrusions and an orange arrow pointing to the top edge (no text or symbols visible)

9 POIGNÉES ENCASTRÉES

10 UNLOCKLOCK

LOCK 11 UNLOCK

10 PAN LOCK

SET DMX START ADDRESS (Adresse DMX)

Technical diagram of a mechanical assembly with labeled components A and B, showing structural parts and alignment arrows.

REPLACEMENT DES GOBOS

Technical line drawing of a mechanical gear assembly with multiple meshed gears and mounting brackets (no text or labels)

Technical line drawing of a mechanical gear assembly with two circular components (no text or symbols)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Directive CEM (2014/30/UE)

RoHS (2011/65/EU)

RED (2014/53/EU)

Three circular diagrams showing a vehicle under different conditions: no prohibition, with warning symbol, and connection to a device.

10 UNLOCKLOCK

LOCK 11 UNLOCK

10 BLOQUEO DEL GIRO HORIZONTAL

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and alignment arrows.

(Imagen aproximada)

Technical line drawing of a mechanical gear assembly with multiple meshed gears and mounting brackets (no text or labels)

Technical line drawing of a mechanical component with coiled spring and flange (no text or symbols)

Cyan, Cyan fine, Magenta, Magenta fine, Gelb, Gelb fine, CTO, CTO fine, Colour wheel, Gobo wheel, Gobo wheel rotation, Gobo wheel rotation fine, Zoom, Zoom fine, Focus, Focus fine, Auto focus, Auto focus adjust, Iris, Prism 1, Prism 2, Frost Light, Frost Heavy, Blade 1 A&B, Blade 2 A&B, Blade 3 A&B, Blade 4 A&B, Framing Rotation, Framing Rotation fine, System Settings

Three circular diagrams showing a vehicle under no explosion, indicating collision or collision risk, and a mechanical device with warning symbol.

32-channel Basic, 37-channel Standard, 43-channel Extended sterowanie DMX DMX512

Close-up of a black dome-shaped object with two orange arrows pointing to the edges (no text or symbols visible)

10 UNLOCKLOCK

LOCK 11 UNLOCK

10 PAN LOCK

KONFIGURACJA I INSTALACJA

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and alignment arrows.

Technical line drawing of a mechanical gear assembly with multiple meshed gears and mounting brackets (no text or symbols)

Technical line drawing of a mechanical gear assembly with two circular components (no text or symbols)

Tryby DMX 32-CH Basic, 37-CH Standard, 43-CH Extended

Funkcje DMX Pan/Tilt, Pan/Tilt fine, Dimmer, Dimmer fine, Stroboskop,

Cyan, Cyan fine, Magenta, Magenta fine, Gelb, Gelb fine, CTO, CTO fine, Colour wheel, Gobo wheel, Gobo wheel rotation, Gobo wheel rotation fine, Zoom, Zoom fine, Focus, Focus fine, Auto focusAuto focus adjust, Iris, Prism 1, Prism 2, Frost Light, Frost Heavy, Blade 1 A&B, Blade 2 A&B, Blade 3 A&B, Blade 4 A&B, Framing Rotation, Framing Rotation fine, Ustawienia systemowe

Tryb Stand Alone Play Loop; Play Scene; Edit Loop; Edit Scene; Slave

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Three circular diagrams showing a vehicle under different conditions: no prohibition, with warning symbol, and connection to a device.

NOTE SUI DISPOSITIVI PORTATILI PER ESTERNI

Close-up of a black dome-shaped object with orange arrows pointing to features, no visible text or symbols.

9 IMPUGNATURE A INCASSO

10 UNLOCKLOCK

LOCK 11 UNLOCK

10 PAN LOCK

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and alignment arrows.

Warning symbol with a yellow triangle, black 'i' icon, and a lightning bolt, all labeled in English.

Technical line drawing of a mechanical component with red circular annotations highlighting specific parts (no text or symbols present)

Technical line drawing of a mechanical device interior with internal components and highlighted areas (no text or symbols)

Technical diagram of an internal electronic device with visible fan and ports (no text or labels)

Technical line drawing of a mechanical gear assembly with multiple meshed gears and mounting brackets (no text or symbols)

Technical line drawing of a mechanical gear assembly with two circular components (no text or symbols)

Funzioni DMX

Pan/Tilt, Pan/Tilt fine, Dimmer, Dimmer fine, Stroboskop, Cyan, Cyan fine, Magenta, Magenta fine, Gelb, Gelb fine, CTO, CTO fine, Colour wheel, Gobo wheel, Gobo wheel rotation, Gobo wheel rotation fine, Zoom, Zoom fine, Focus, Focus fine, Auto focus, Auto focus adjust, Iris, Prism 1, Prism 2, Frost Light, Frost Heavy, Blade 1 A&B, Blade 2 A&B, Blade 3 A&B, Blade 4 A&B, Framing Rotation, Framing Rotation fine, System Settings

Stand Alone Play Loop, Play Scene, Edit Loop, Edit Scene, Slave
