USER MANUAL OTOS W6 Cameo

Black COMEO 3700 MHz light fixture with colorful spherical display (no text or symbols visible)

OTOS® W6

OUTDOOR LED WASH MOVING HEAD

CLOTOSW6

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

EXPLANATIONS OF TERMS AND SYMBOLS 6

SAFETY INSTRUCTIONS 7

NOTES ON PORTABLE OUTDOOR DEVICES 11

PACKAGING CONTENT 11

INTRODUCTION 11

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS 12

OPERATION 15

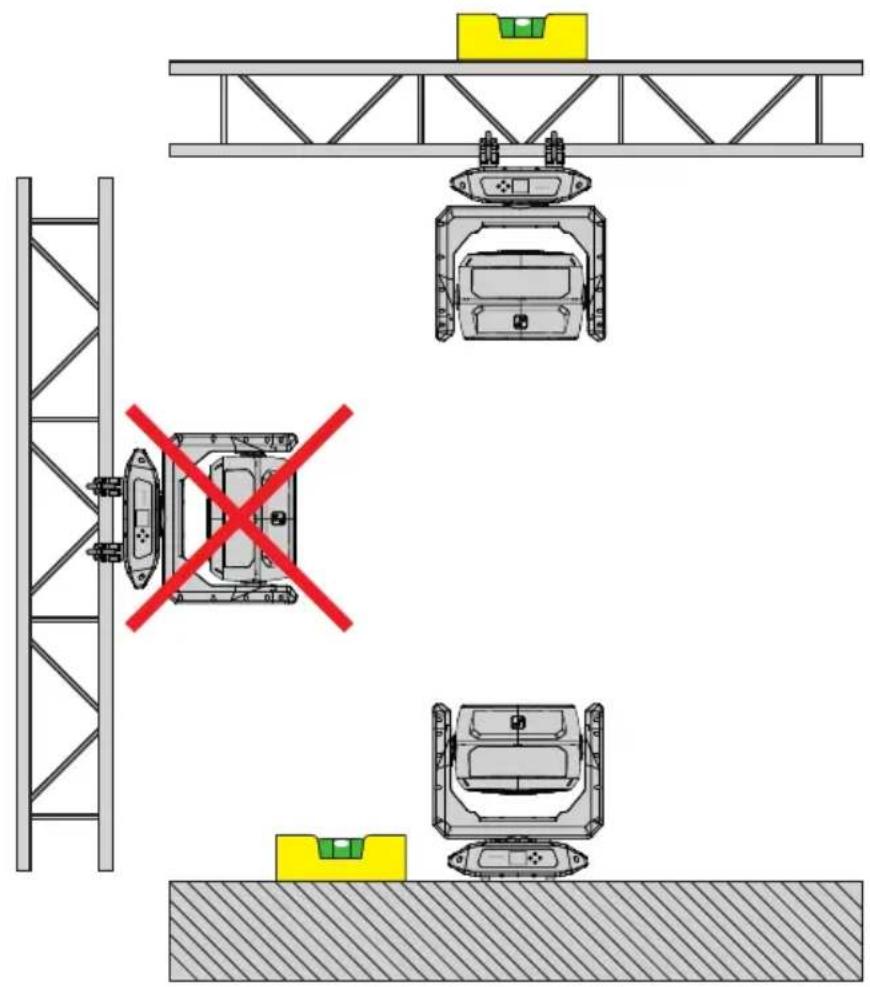

SET-UP AND INSTALLATION 26

CARE, MAINTENANCE, AND REPAIR 27

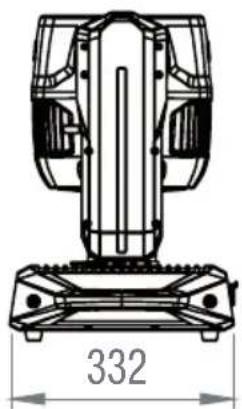

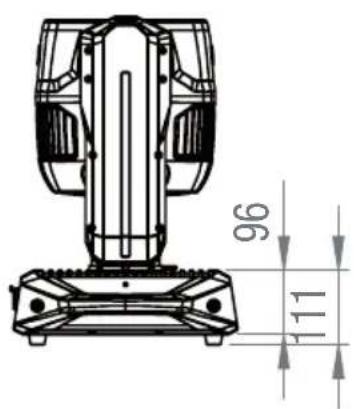

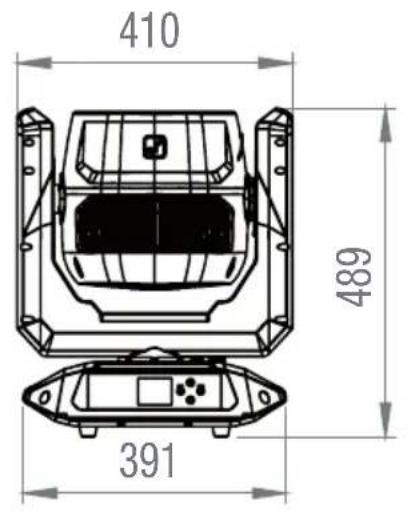

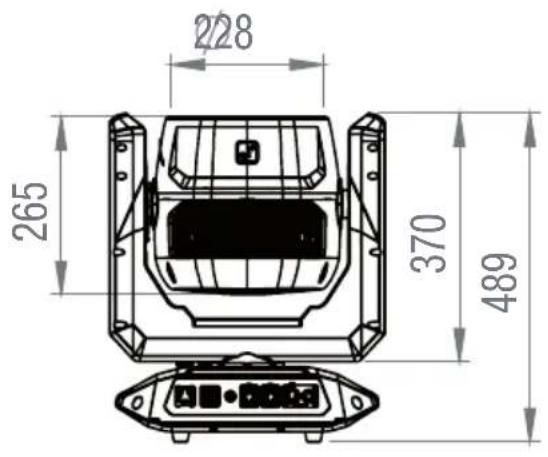

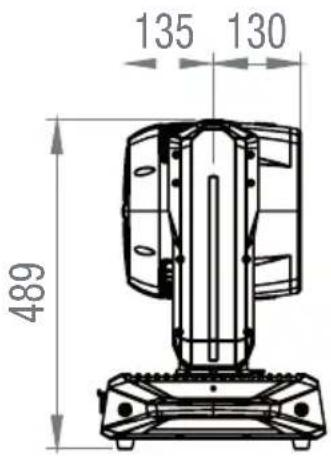

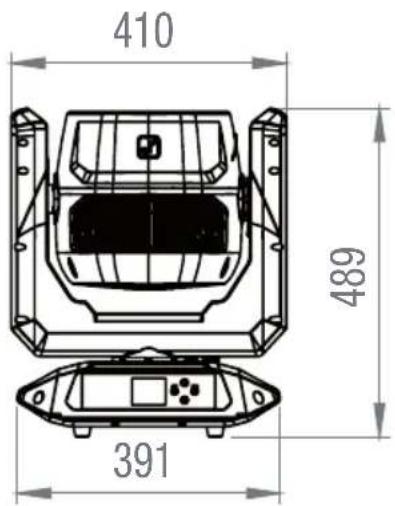

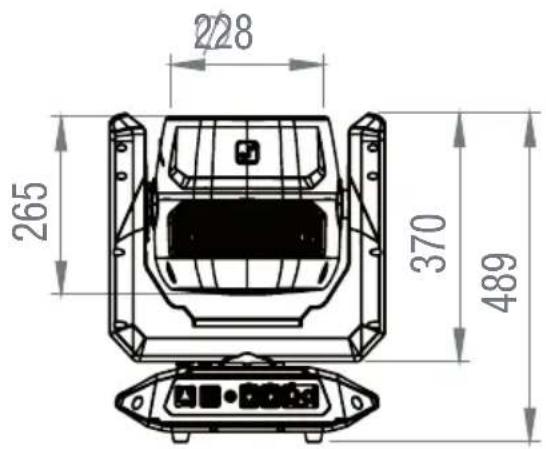

DIMENSIONS 28

TECHNICAL DATA 29

EXPLANATION OF IP PROTECTION CLASS 31

MINIMUM DISTANCE TO ILLUMINATED SURFACE 31

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 31

DISPOSAL 32

MANUFACTURER'S DECLARATIONS 32

DEUTSCH

This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to quickly put your new Cameo Light product to optimum use. Further information about Cameo Light is available on our website CAMEOLIGHT.COM

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  • Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

This product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting!

Temporary operation! Event equipment is generally designed for temporary use only and not for continuous operation and fixed installation!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered improper use!

Liability is exempted when damage and third-party damage to persons and property is caused by inappropriate use!

The product is not suitable for:

• Persons (including children) with limited physical, sensory, or mental abilities or lack of experience and knowledge.
• Children (children must be instructed not to play with the device).

EXPLANATIONS OF TERMS AND SYMBOLS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately hazardous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially hazardous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that may lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol indicates hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates that you must avoid looking or staring at the light source.

This symbol indicates a device in which there are no user-serviceable parts.

This symbol indicates additional information on the operation of the product.

SAFETY INSTRUCTIONS

DANGER:

1. Do not open the device, and do not make any modifications to it.
2. If your device no longer functions properly, if liquids or objects get inside it, or if it has been damaged in any other way, switch it off immediately and disconnect it from the power supply. The device may be repaired only by authorised qualified personnel.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the device's mains cable is damaged, the device may not be operated.
4. Permanently attached mains cables may only be replaced by a qualified person.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation may damage the device. Switch on the device only when it has reached ambient temperature.

1. Make sure that the voltage and frequency of the mains correspond to the values specified on the device. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable mains cables.
2. To disconnect the device from the mains at all poles, it is not sufficient to press the on/off switch on the device.
3. Make sure that the fuse used corresponds to the type specified on the device.
4. Make sure that appropriate measures have been taken against power surges (for example, lightning strike).
5. Observe the specified maximum output current on devices with Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
6. Replace plug-in mains cables only with original cables.

DANGER:

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory, or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

WARNING:

1. Use the device only in the prescribed manner.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, check all cable routes to avoid damage or accidents, for example, due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface specified on the device!

CAUTION:

1. Moving components such as mounting brackets or other movable components may become jammed.
2. Devices with motor-driven components may result in injury from the movement of the device. Sudden movement of the device can cause shock reactions.
3. The exterior surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work, charging, or similar.

ATTENTION:

1. Do not install or operate the device near any radiators, heat registers, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as burning candles near the device.
3. Ventilation openings must not be covered, and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP protection class, as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be constantly further developed. In the event of deviating information on operating conditions, performance, or other device properties between the user manual and the device labelling, the information on the device always takes priority.
8. The device is not suitable for tropical climates and for operation at heights of 2,000 m above sea level or higher.
9. Unless explicitly stated, the device is not suitable for operation in marine conditions.

CAUTION! IMPORTANT NOTES ON LIGHTING PRODUCTS!

1. This device is a risk group 1 device. Do not stare at the light source! Do not look directly into the lamp with optical instruments such as magnifying glasses or binoculars!
2. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
3. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The lamps contained in this light source may only be replaced by the manufacturer, its service partner, or a similarly qualified person.

The quality and performance of wireless signal transmissions generally depends on the ambient conditions.

For example, the following factors can impact range and signal stability:

Shielding (for example, masonry, metal structures, water)

High volumes of radio traffic (for example, powerful wireless LAN networks)

Interference

Electromagnetic radiation (for example, LED video screens, dimmers)

All range specifications refer to free-field line-of-sight applications without interference!

The operation of radio transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (for example, radio frequency and transmission power).

WARNING: Devices with wireless signal transmission are not suitable for use in sensitive areas in which radio operation can lead to potentially detrimental interactions. These include:

• Hospitals, health centres, or other healthcare facilities that provide patient treatment with qualified personnel and equipment.
  • Class I, II, and III hazardous areas
• Restricted areas
• Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

TRANSMISSION VIA W-DMX

WARNING: In general, wireless DMX transmission must not be used for applications involving safety-related factors that might result in personal injury or property damage in the event of a failure.

This applies in particular to moving scene or truss structures, DMX-controlled motors/lifts, or lifting devices for operating DMX-operated platform lifts, hydraulic systems, or comparable moving components.

Furthermore, wireless DMX transmission must not be used to control flame or pyrotechnic devices, explosion-driven effects, or gas or liquid effects. These include CO_2 cannons, confetti shooters, water effects, or similar.

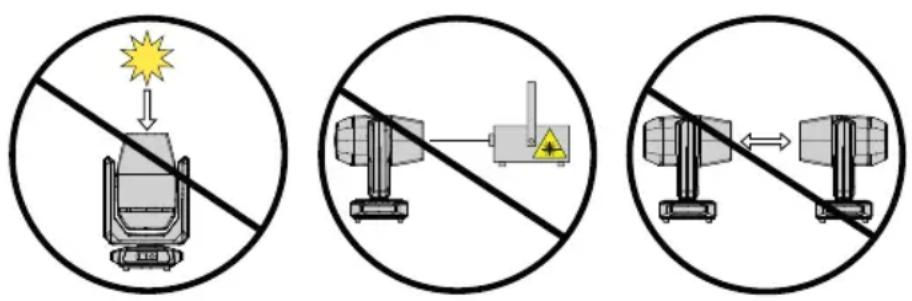

ATTENTION! POTENTIAL DAMAGE FROM EXTERNAL LIGHT SOURCES!

Solar radiation, laser radiation, and bundled light beams from other lights can damage the housing and internal components, such as filters, gobo and colour wheels, motors, cables, belts, as well as light sources!

Do not expose the device and especially the lens opening to direct sunlight, laser radiation, and bundled light beams from other lights during unpacking, installation, prolonged disuse, and operation! Always point the lens opening towards the floor when the device is not in use!

Damage caused by external light sources is excluded from the manufacturer's warranty!

NOTES ON PORTABLE OUTDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent structural installation – particularly outdoors – can impair the function, surfaces, and seals and cause premature material fatigue.
3. Damage to the surface coating can impair the device's corrosion protection. Damaged surface coating (for example, scratches) must be promptly repaired using suitable measures.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material.

Please check the completeness and integrity of the delivery, and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging content for the product includes:

▶ 1 × OTOS W6 Wash Moving Head
▶ 1 × Mains cable
▶ 2 × Omega bracket

▶ Safety and compliance information (user manual as a download via QR code)

INTRODUCTION

PROFESSIONAL OUTDOOR LED WASH MOVING HEAD

CLOTOSW6

CONTROL FUNCTIONS:

12-channel dual, 22-channel dual, 25-channel dual, 23-channel RGBL effect, 22-channel HSI, 23-channel RGBL wash, 27-channel RGBL, 39-channel HSI, 49-channel RGBL pattern, 49-channel RGBL rings, 100-channel RGBL, 290-channel RGBL full

Master/slave operation

Stand-alone operation

Art-Net

sACN

W-DMX ^TM

FEATURES:

Protection class IP65. 16× 50 W RGBL LEDs plus LED ring (68× 0.5 W RGB LEDs). DMX512. Wireless DMX. Art-Net and sACN. 5-pin DMX connections. 2-segment zoom function. 2× omega mounting bracket included. Operating voltage: 100–240 V AC.

The lights feature the remote device management (RDM) standard. Remote device management allows the user to monitor the status and configuration of RDM devices using an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE).

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS

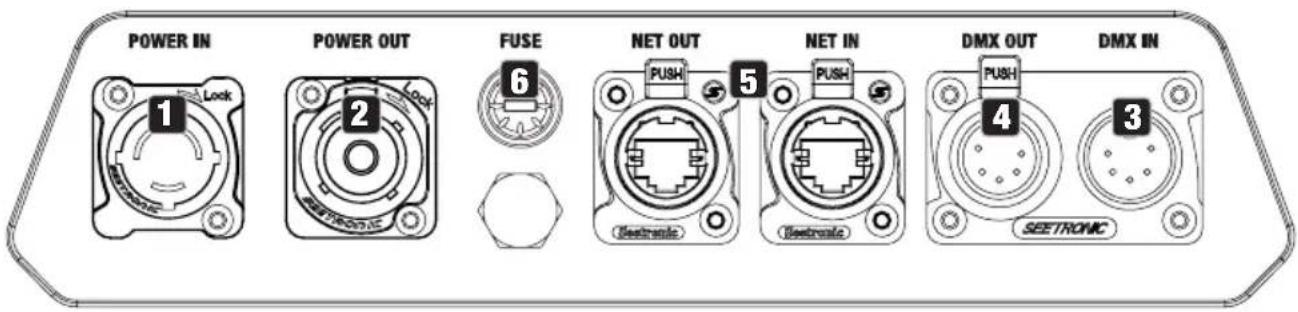

POWER IN 1 Power OUT 2 FUSE 6 NET OUT 5 NET IN 4 DMX OUT 3 SEETRONIC

1 POWER IN

IP65 mains input socket with rubber sealing cap. Operating voltage 100–240 V AC / 50–60 Hz. Connection via supplied mains cable (when not in use, always close with the rubber sealing cap).

2 POWER OUT

IP65 mains output socket with rubber sealing cap. Enables power supply to other CAMEO lights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A) (when not in use, always close with the rubber sealing cap).

3 DMX IN

Male IP65 5-pin XLR socket for connecting a DMX control device (e.g. DMX console, when not in use always close with the rubber sealing cap).

4 DMX OUT

Female IP65 5-pin XLR socket for relaying the DMX control signal (when not in use, always close with the rubber sealing cap).

5 NET IN / OUT

RJ45 network connectors for connecting to an Art-Net or sACN network in order to relay the control signal (when not in use, always close with the rubber sealing cap). Use cables with IP65 rating and CAT 5e or better cables to set up the network.

6 FUSE

IP65 fuse holder for 5×20 mm fuses. IMPORTANT NOTE: Only replace the fuse with a fuse of the same type and value. Carefully reseal the fuse holder to further ensure IP65 tightness. In the event of repeated fuse failure, please contact an authorised service centre.

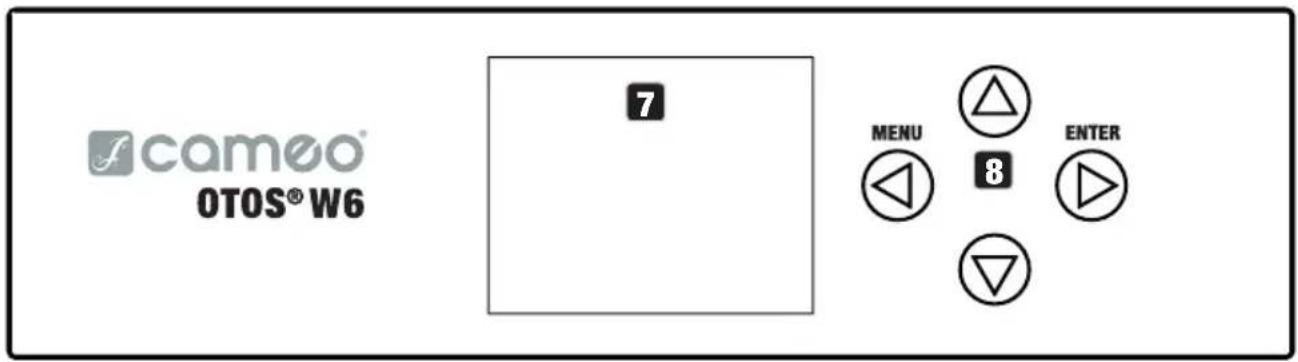

cameo® OTOS® W6 7 MENU 8 ENTER

7 LC DISPLAY

The illuminated display shows the currently activated mode (main display), the menu items in the main menu and sub-menus, and the numerical value or status in certain menu items. If there is no control signal to the device, the characters in the centre of the display start flashing; the flashing stops as soon as a control signal is available (W-DMX, DMX, and slave operation).

8 TOUCH-SENSITIVE CONTROLS

MENU – Press MENU to access the main menu. Press again or repeatedly to return to the main display.

▲ and ▼ – Use ▲ and ▼ to select the menu items in the main menu (for example, DMX address, operating mode) and in the sub-menus. Change the value or status of a menu item, such as DMX address.

ENTER – Press ENTER to access the menu layer to make value or status changes, and to access one of the sub-menus. Confirm value or status changes by pressing ENTER.

PLEASE NOTE:

• Before navigating the device menu, make sure that the control panel is dry and clean so that its functionality is not impaired.
• Moisture on the control panel can lead to incorrect operation of the light, for example, in outdoor conditions. Therefore, after configuring the light, activate the lock function to prevent incorrect operation by water (Settings -> Display -> Autolock). Deactivate the lock function: Press UP and DOWN simultaneously for approximately 5 seconds.

PRESSURE EQUALISATION ELEMENTS

The pressure equalisation elements to prevent condensation forming inside the housing are located in the back of the device and the base of the device. In order to ensure proper functioning, the elements must be protected from dirt.

WIRELESS DMX ANTENNA

The antenna for wireless DMX control is located inside the base of the device.

ATTENTION: In order to protect the DMX and network sockets from splashing water in accordance with the IP65 protection class, special input and output sockets must be used with special IP65-rated connectors, or they must be sealed using the rubber caps. When connected correctly, or when sealed correctly with the rubber sealing caps, the POWER IN and POWER OUT mains sockets are protected from splashing water, as in accordance with IP65.

The battery-powered display can be activated, even if the device is not connected to the mains. To do this, press and hold MENU for approximately 10 seconds. You can now access device information and change and save system settings without mains connection. The external control of the light is not activated in this case. For this reason, the display shows that there is no control signal even if the device has a control signal.

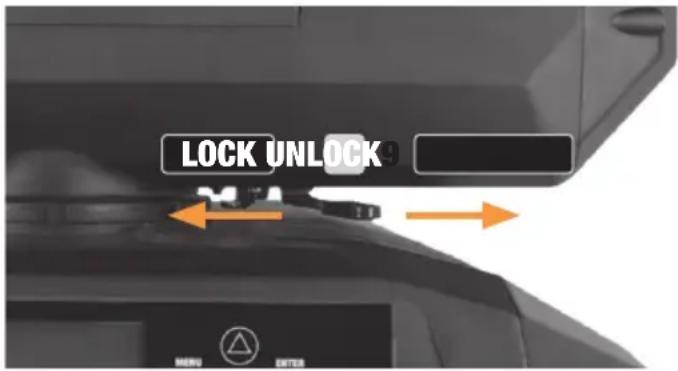

LOCK UNLOCK9 取消 退出

LOCK 10 UNLOCK

9 PAN LOCK

Mechanical locking device used to prevent rotation of the head in the horizontal direction during transport (eight possible positions). Disconnect the unit from the mains and slide the locking lever towards the pan rotation axis, moving the head of the unit horizontally until one of the eight locking positions is found and the locking lever engages (LOCK). Unlock the locking device before device start-up (UNLOCK).

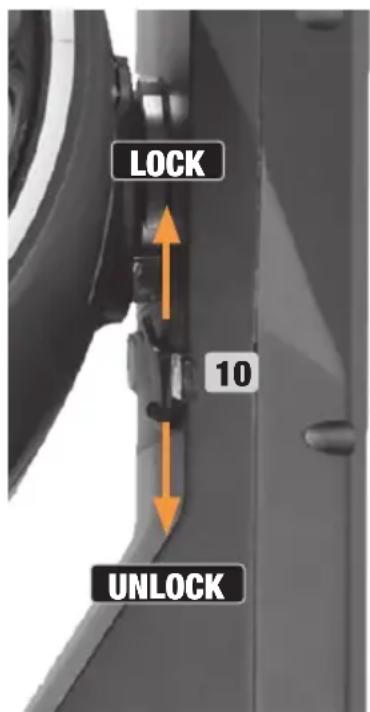

10 TILT LOCK

Mechanical locking device used to prevent rotation of the head in the vertical direction during transport (seven possible positions). Disconnect the unit from the mains and slide the locking lever towards the tilt rotation axis, moving the head of the device vertically until one of the seven locking positions is found and the locking lever engages (LOCK). Unlock the locking device before device start-up (UNLOCK).

Close-up of a car wheel rim with orange arrows pointing to the side (no text or symbols visible)

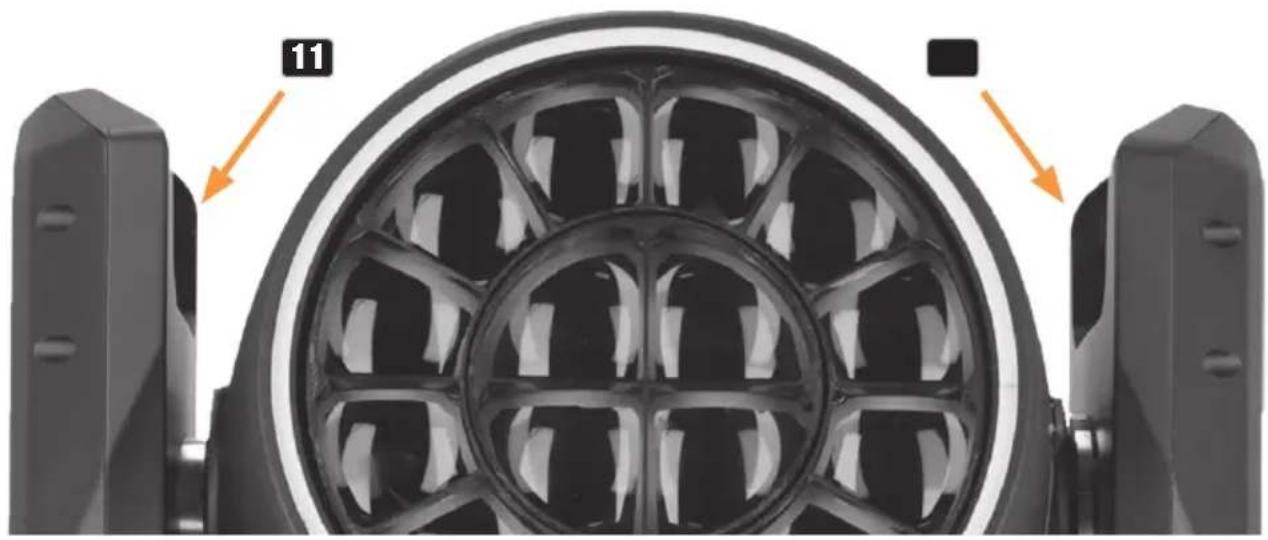

11 RECESSED GRIPS

In addition to the two transport handles on the base of the device, there are convenient recessed grips at the top of the inner sides of the two device arms.

OPERATION

NOTES

• When the light is correctly connected to the mains, “Software update ... please wait”, the software version, “Welcome to Cameo”, and “... RESET” are shown on the display during start-up and motor reset. After this process, the light is ready for operation, and the previously activated operating mode is launched.
• The main display is activated automatically if no input is made within approximately 30 seconds.

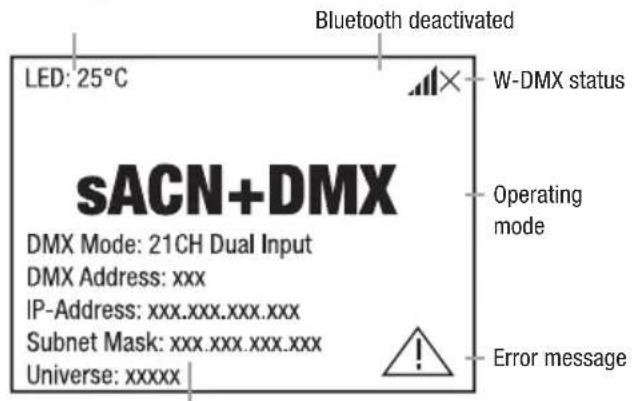

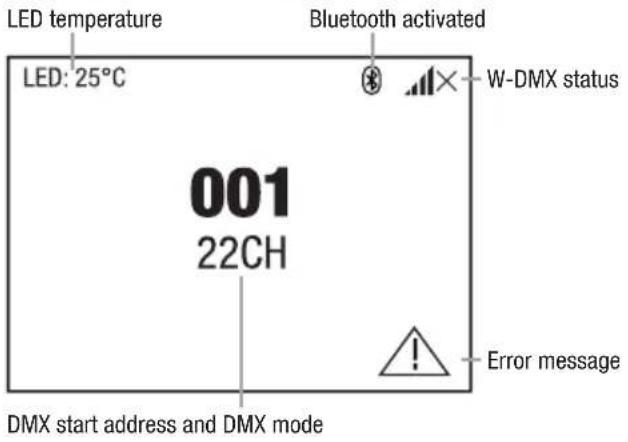

MAIN DISPLAY

In the different operating modes, the main display shows different information which is relevant to the operating mode.

DMX and W-DMX operating modes Art-Net and sACN operating modes

LED temperature LED: 25°C Bluetooth activated W-DMX status 001 22CH Error message DMX start address and DMX mode

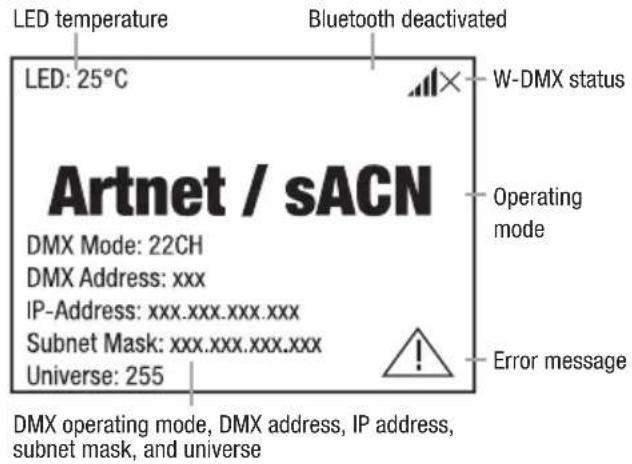

LED temperature Bluetooth deactivated LED: 25°C W-DMX status Artnet / sACN DMX Mode: 22CH DMX Address: xxx IP-Address: xxx.xxx.xxx.xxx Subnet Mask: xxx.xxx.xxx.xxx Universe: 255 Operating mode Error message DMX operating mode, DMX address, IP address, subnet mask, and universe

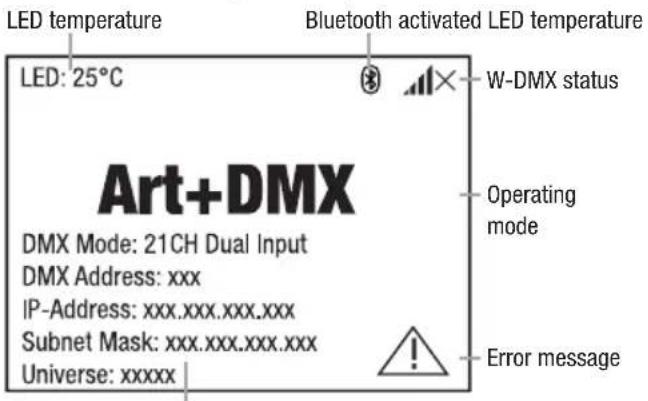

Art-Net + DMX operating mode sACN + DMX operating mode

LED temperature LED: 25°C Bluetooth activated LED temperature W-DMX status Art+DMX DMX Mode: 21CH Dual Input DMX Address: xxx IP-Address: xxx.xxx.xxx.xxx Subnet Mask: xxx.xxx.xxx.xxx Universe: xxxxx Operating mode Error message

DMX operating mode, DMX address, IP address, subnet mask, and universe

LED: 25°C sACN+DMX DMX Mode: 21CH Dual Input DMX Address: xxx IP-Address: xxx.xxx.xxx.xxx Subnet Mask: xxx.xxx.xxx.xxx Universe: xxxxx Bluetooth deactivated W-DMX status Operating mode Error message

DMX operating mode, DMX address, IP address, subnet mask, and universe

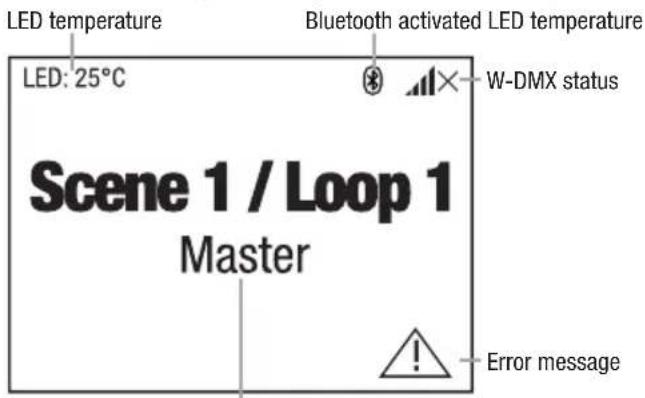

Stand-alone operating modes Slave operating mode

LED temperature LED: 25°C Bluetooth activated LED temperature W-DMX status Scene 1 / Loop 1 Master Error message

Scene or loop and signal output

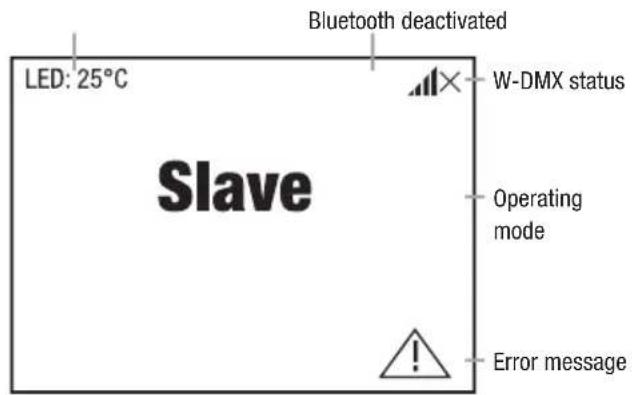

LED: 25°C Bluetooth deactivated W-DMX status Slave Operating mode Error message

Note on the main display in the operating modes with external control: In the event that the control signal is interrupted, the characters in the centre of the display begin flashing; once the control signal is present again, the flashing stops.

Error message: If the warning symbol (triangle with exclamation mark) appears in the display, there is an error in one or more of the device's components. The affected components can be viewed in the System Info Menu under Error Info. If a restart or reset does not rectify the error, please contact an authorised service centre.

WIRELESS DMX

To pair a wireless DMX receiver with a wireless DMX transmitter, the corresponding menu item must be reset (Unlink). The receiver is now ready to pair and waiting for a pairing request from a transmitter. To start the pairing process, select Link or Force to pair in the transmitter's menu and confirm; the devices are now paired automatically. Simultaneous or consecutive pairing of several receivers to a transmitter (for example, for master/slave operation) can also be done in the same manner. A wireless DMX connection is always maintained until it is disconnected with the reset command in the receiver or the unlink command in the transmitter, regardless of whether a device has been disconnected from the power supply in the meantime.

WIRELESS DMX STATUS

	?↓	↓	↓	↓	↑
W-DMX deactivated	W-DMX activated as receiver; not paired	W-DMX activated as receiver and paired; transmitter switched off or out of range	W-DMX activated as receiver and paired; no DMX signal	W-DMX activated as receiver and paired; DMX signal present	W-DMX activated as transmitter

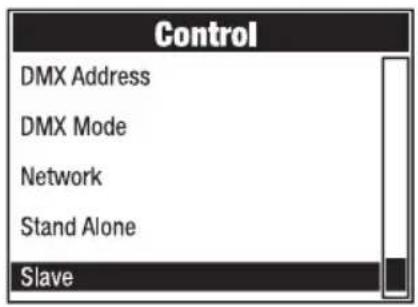

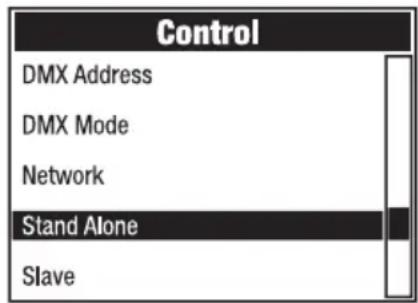

CONTROL MENU (Control)

The “Control” menu is used to select the various operating modes and set their options in the respective sub-menus.

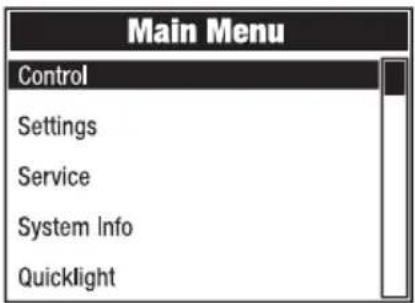

SETTING THE DMX START ADDRESS (DMX Address)

Starting from the main display, press MENU to access the main menu. Use and to select the "Control" menu and press ENTER. Now select the DMX Address menu item and confirm again. Use and to set the desired value and press ENTER to confirm.

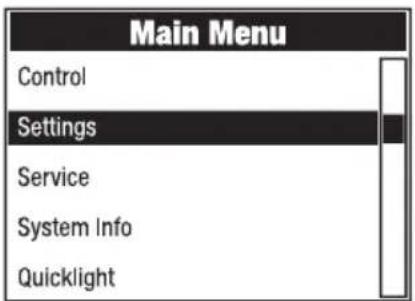

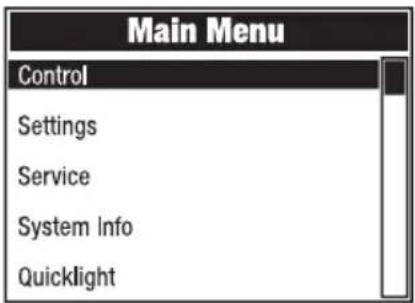

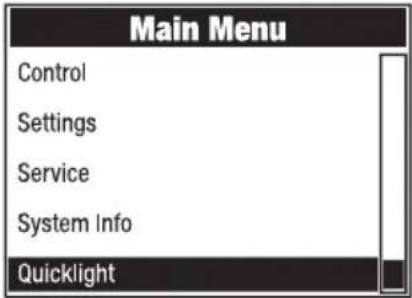

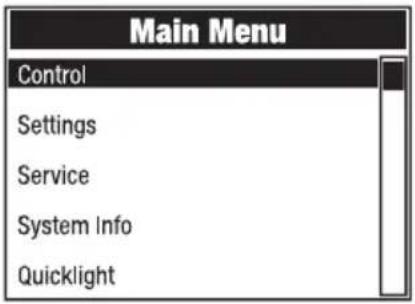

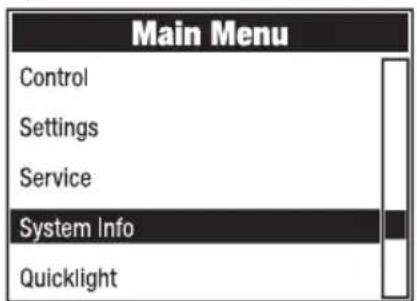

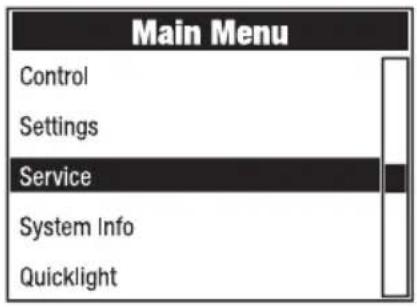

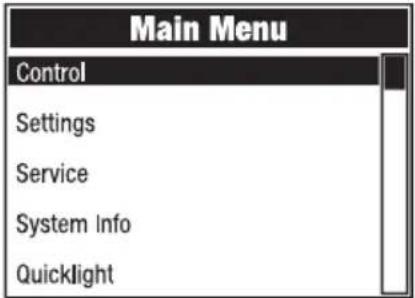

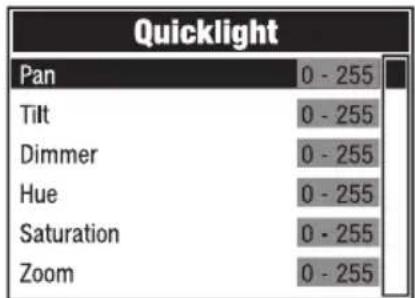

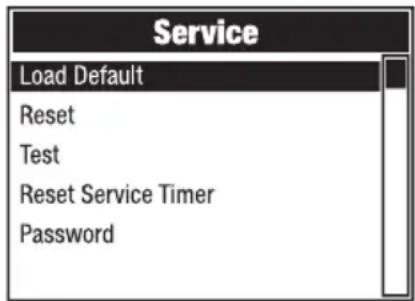

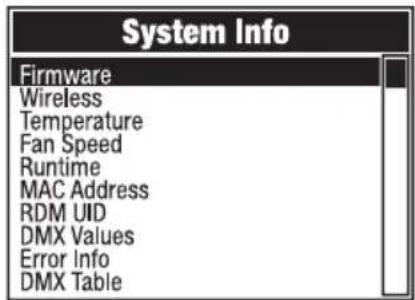

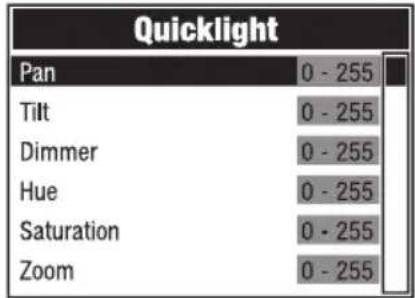

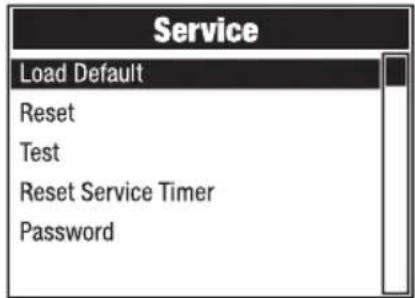

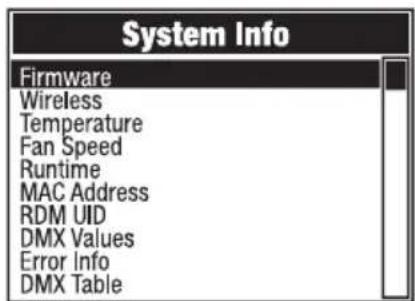

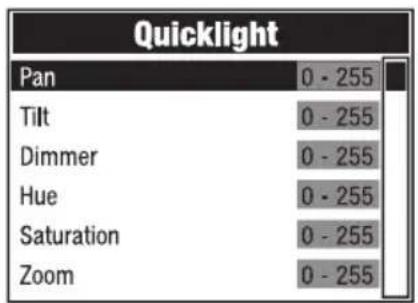

Main Menu Control Settings Service System Info Quicklight

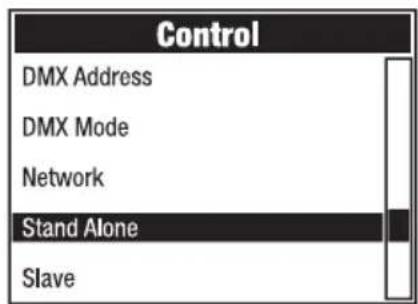

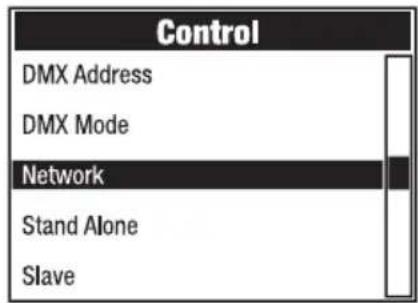

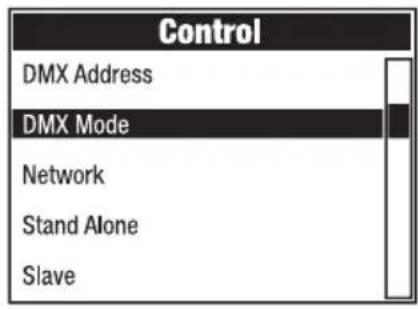

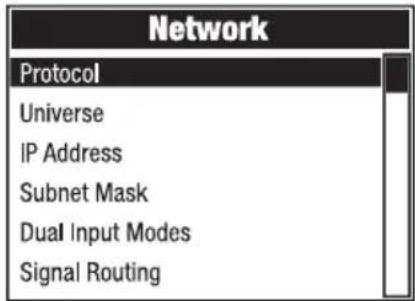

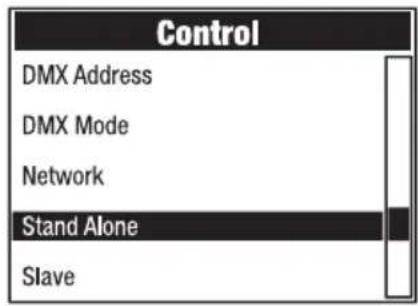

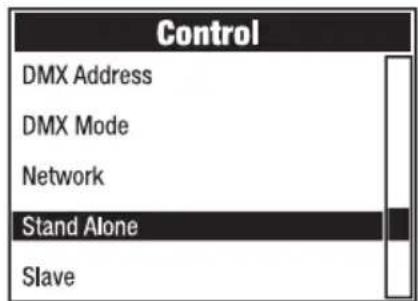

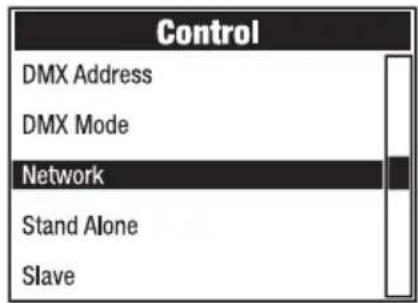

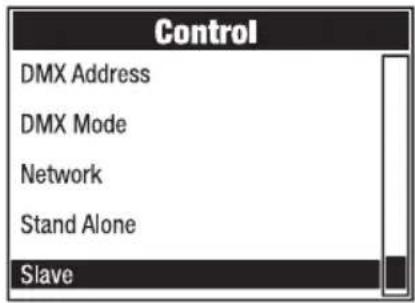

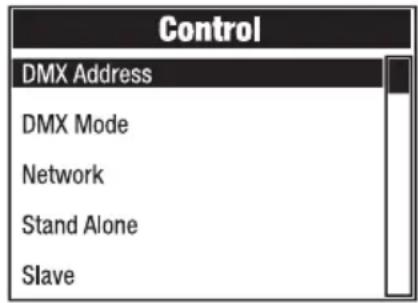

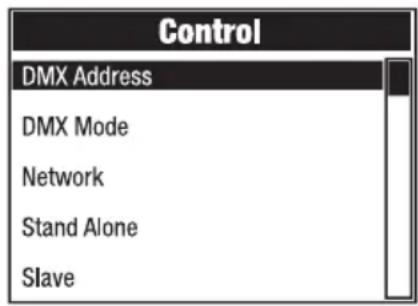

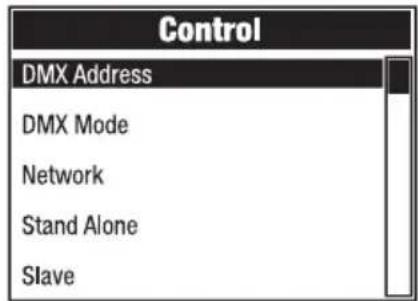

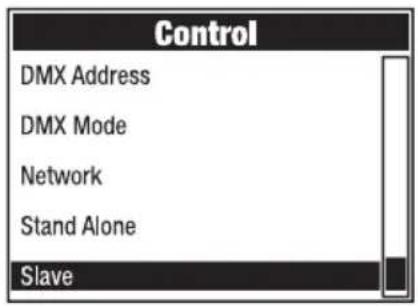

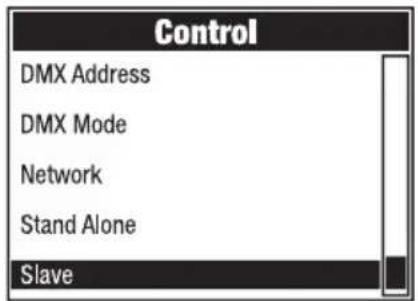

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

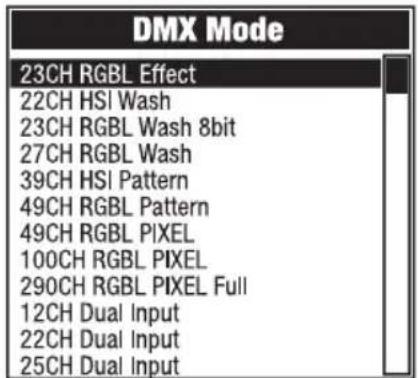

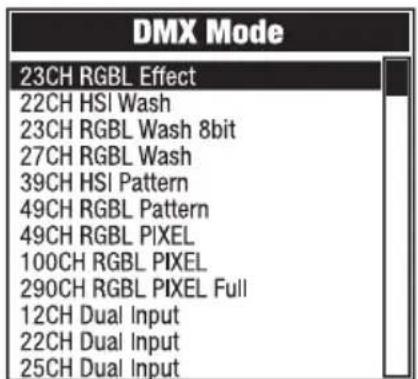

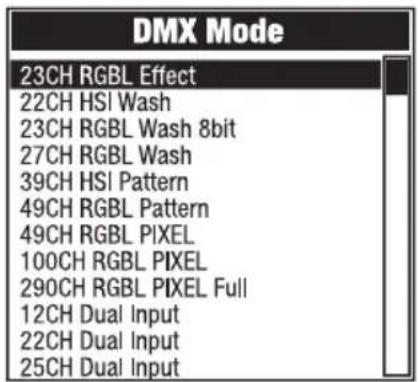

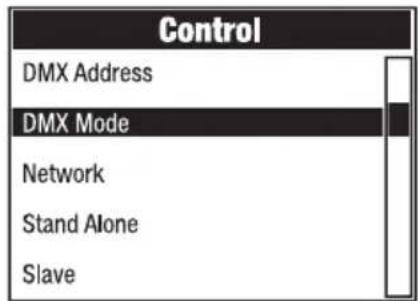

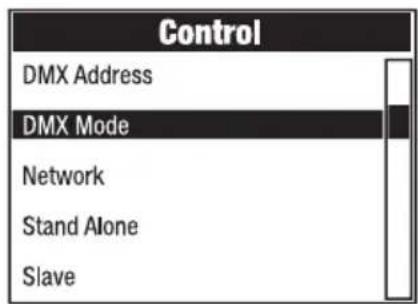

SETTING THE DMX OPERATING MODE (DMX Mode)

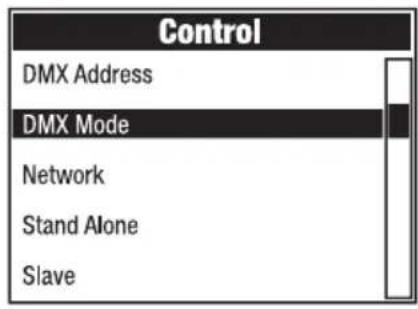

Starting from the main display, press MENU to access the main menu. Use and to select the Control menu and press ENTER. Now select the DMX Mode menu item and confirm again. Use and to select the desired DMX operating mode and press ENTER to confirm. DMX tables with the channel assignments can be found in the DMX CONTROL section of this user manual.

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 23CH RGBL Effect 22CH HSI Wash 23CH RGBL Wash 8bit 27CH RGBL Wash 39CH HSI Pattern 49CH RGBL Pattern 49CH RGBL PIXEL 100CH RGBL PIXEL 290CH RGBL PIXEL Full 12CH Dual Input 22CH Dual Input 25CH Dual Input

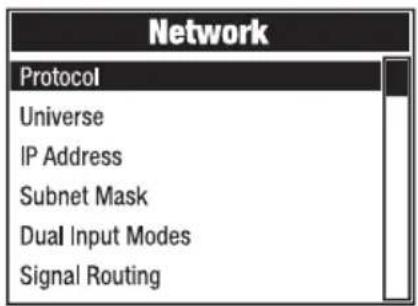

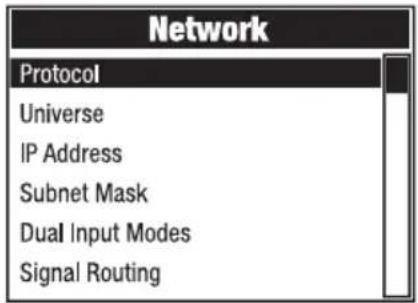

NETWORK(Network)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu and press ENTER. Now select the Network menu item and confirm again.

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Dual Input Modes Signal Routing

Information on the sub-menu items in the “Network” menu and the corresponding setting options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Network Artnet
Protocol	Artnet	Control via Art-Net
	sACN	Control via sACN
Universe	Absolute Univ.	Setting of the absolute Art-Net universe	Dependent on net, subnet, and universe
	Net	Setting of the Art-Net network	Dependent on absolute universe
	Subnet	Setting of the Art-Net subnet
	Universe	Setting of the Art-Net universe
IP Address	xxx.xxx.xxx.xxx	Setting of the IP address: Set first block, confirm, set second block, confirm.
Subnet Mask	xxx.xxx.xxx.xxx	Setting of the subnet mask: Set first block, confirm, set second block, confirm.
Dual Input Settings Modes	Signal Setup	Pixel via Network	Pixel control via network
		Pixel via DMX	Pixel control via DMX
Signal Routing	Send to XLR	Relaying of the control signal to XLR Out
	Backup by XLR	Control via XLR with network signal interruption
	Receive only	No connection between network signal and XLR connectors

Network sACN
Protocol	Artnet	Control via Art-Net
	sACN	Control via sACN
Universe	Absolute Univ.	Setting of the sACN universe
IP Address	xxx.xxx.xxx.xxx	Setting of the IP address: Set first block, confirm, set second block, confirm.
Subnet Mask	xxx.xxx.xxx.xxx	Setting of the subnet mask: Set first block, confirm, set second block, confirm.

Setting of the pixel start address from 001 to 4xx

Pixel via network Pixel control via network

Pixel via DMX Pixel control via DMX

Relaying of the control signal to XLR Out

Control via XLR with network signal interruption

No connection between network signal and XLR connectors

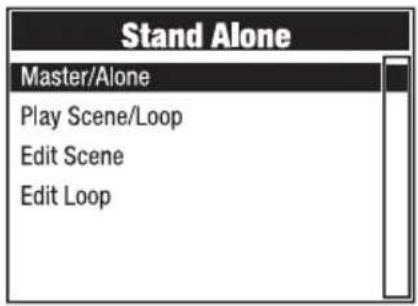

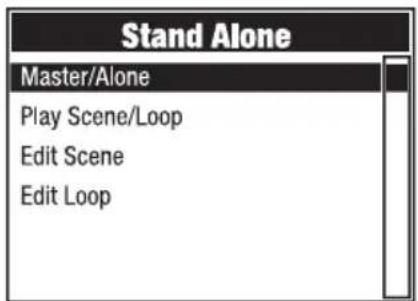

STAND-ALONE MENU (Stand Alone)

In the stand-alone operating modes “Play Scene” and “Play Loop”, the control signal of the corresponding operating mode can be output to slave units via XLR (Master/Alone -> Master). If you do not want to output the control signal, deactivate the output (Master/Alone -> Alone).

Activate one of the eight available scenes (Scene 1–8) or one of the eight available loops (Loop 1–8). The scenes and loops are pre-programmed, but can be customised (Edit Scene/Edit Loop).

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu item and confirm with ENTER. Now select the menu item Stand Alone and confirm again.

Information on the sub-menu items in the “Stand-alone” menu and the corresponding setting options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Control signal is relayed via DMX OUT

Control signal is not relayed

Selection and activation of the desired scene

Selection and activation of the desired loop

Set each scene individually. Scenes are activated by selecting them.

Selection of Step 1–8

Setting of the step time

Setting of the fade time

Selection of Scene 1–8

Skip step: No/Yes

SLAVE MODE (Slave)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select the Control menu item and confirm with ENTER. Now select the menu item Slave and confirm again. Activate the output of the control signal in the master unit (Control -> Stand Alone -> Master/Alone -> Master). Connect the slave and master units (same model, same software version) with a DMX cable or via W-DMX™ and activate the stand-alone operating mode “Play Scene” or “Play Loop” in the master unit. The slave unit will now follow the master unit.

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

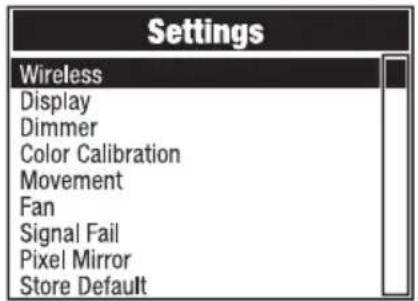

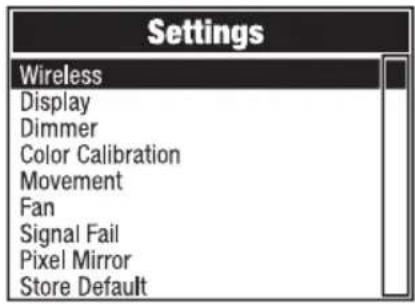

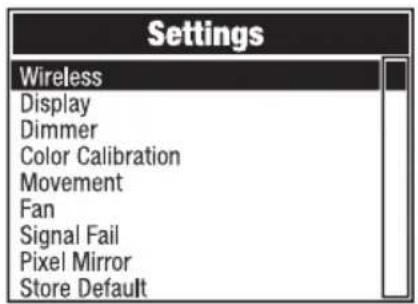

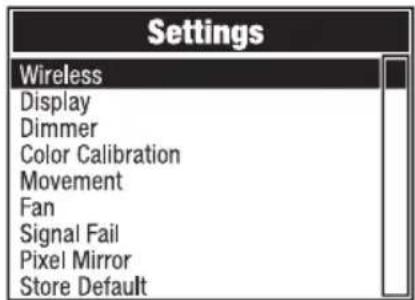

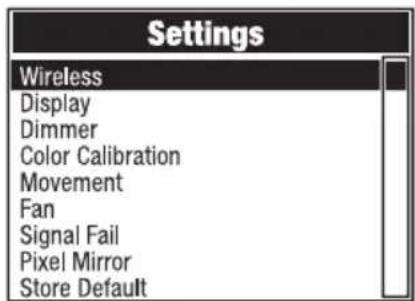

SYSTEM SETTINGS (Settings)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select Settings and confirm with ENTER.

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Display Dimmer Color Calibration Movement Fan Signal Fail Pixel Mirror Store Default

Information on the sub-menu items in the settings menu and the corresponding setting options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Settings (Bold print = factory setting)
Wireless	Wireless settings	State	On	Wireless module activated
			Off	Wireless module deactivated
		Operating Mode	RX	Wireless module = receiver
			TX CRMX	Wireless module = transmitter with CRMX transmitter standard
			TX G3	Wireless module = transmitter with G3 transmitter standard
			TX G4s	Wireless module = transmitter with G4s transmitter standard
		Linking	Link	Pairing with compatible, ready-to-pair wireless devices
			Unlink	Disconnect wireless DMX connections and place in pairing standby mode
Wireless	Wireless settings	Linking Key	Linking Key	Setting of the connection key
			CRMX Mode (only available with operating mode = RX)	CRMX	Receiver standard = CRMX
				CRMX2	Receiver standard = CRMX2
			CRMX Universe	A-H	Selection of CRMX universe A to H
		Universe Meta-data	RGB Color Code	Red, Orange, Yellow, Green, Cyan, Blue, Purple, White	RGB code for colour display of the universe
			Universe A 16 Name	character string with a customisable name that identifies the universe
		Bluetooth	State	On Bluetooth switched on
				Off Bluetooth switched off
			Pin	On	PIN request switched on (factory setting 081569)
				Off	PIN request switched off
		Signal Routing	Send to XLR	Relaying of the control signal to XLR (DMX OUT)
			Backup by Control via XLR (DMX IN) with wireless signal interruption
			Receive only	No connection between wireless DMX signal and XLR connectors
Display	Display settings	Reverse	On	180° display rotation (for example, for overhead installation)
			Off	No display rotation
			Auto	Automatic position detection (upright/overhead mounting)
		Off Timer	Always On	Permanently on
			Off after 20s	Deactivation after approximately 20 seconds of inactivity
		Autolock	On after 60s	Controls locked after approximately 60 seconds without input (LOCKED). Unlock: Press UP and DOWN simultaneously for approximately 5 seconds.
			Off	Autolock function deactivated
Dimmer	Dimmer settings	Curve	Linear	Light intensity increases linearly with DMX value
			Exponential	Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values
			Logarithmic	Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values
			S-Curve	Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
		PWM Frequency	650Hz, 1530Hz, 3600Hz, 12kHz, 18.9kHz, 25kHz	Selection of the LED PWM frequency
		Response (dim-mer response)	LED	The light responds immediately to changes of the DMX value
			Halogen	The light behaves in a similar way to a halogen light with gradual changes of brightness
		Redshift	Dim to Warm	Simulates the colour drift when dimming a halogen light. When dimming the light, the colour temperature changes automatically to increasingly warm white tones and amber (and vice versa).
			Off	Function deactivated
Colour calibra-tion	Colour calibra-tion	User		Custom colour calibration. Red, green, blue, and lime brightness setting with values ranging from 0 to 255
		Smart		Factory setting
Move-ment	Head move-ments settings	Pan Reverse	On	Pan direction reversed
			Off	Pan direction not reversed
		Tilt Reverse	On	Tilt direction reversed
			Off	Tilt direction not reversed
		Pan Angle	540°	Pan angle 540°
			630°	Pan angle 630°
		Position Feed-back	On	Automatic position correction enabled
			Off	Automatic position correction disabled
Move-ment	Head move-ments settings	Move in Black	On	Blackout during head movement
			Off	No blackout during head movement
		Silent Movement	On	Slowed motor movements for quieter operation
			Off	Function deactivated
		Zoom Link	On	If Zoom link is enabled, all Zoom Lenses are synchronized to the first Zoom Channel (second Zoom Channel is ignored)
			Off
Fan	Fan setting	Auto	Automatic fan control
		Silent	Particularly quiet fan noise at reduced brightness, if necessary
		Constant Low	Constant low fan speed with reduced brightness, if necessary
		Constant Mid	Constant average fan speed with reduced brightness, if necessary
		Constant High	Constant high fan speed
Signal Fail	Operational status with DMX signal fault	Hold	Last command is retained
		Last Stand Alone	The last selected stand-alone operating mode is activated
		Fade to Black (10s)	10-second fade to blackout
		Blackout	Activates blackout
		Full	Full on
Pixel Mirror Mirror	pixels	Off	Off
		Horizontal	Mirror pixels horizontally
		Vertical	Flip pixels vertically
		Horizontal & Vertical	Flip pixels horizontally and vertically
Store Default	Save settings in three custom presets	User A	Save all current settings as user preset A
		User B	Save all current settings as user preset B
		User C	Save all current settings as user preset C

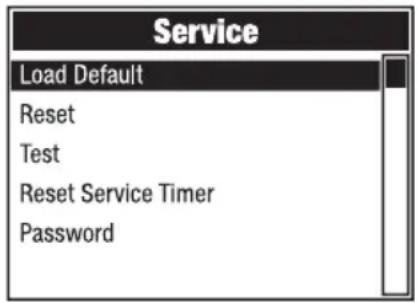

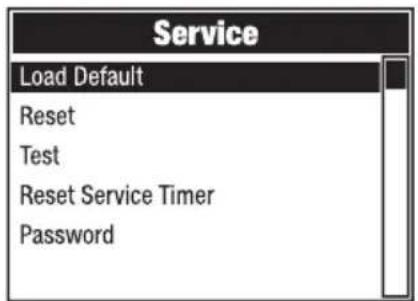

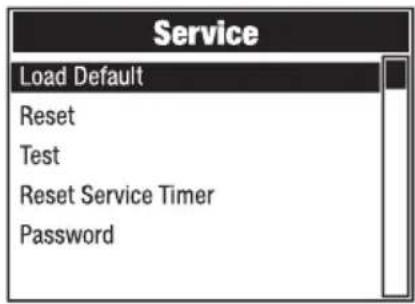

SERVICE MENU (Service)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select Service and confirm with ENTER.

Main Menu Control Settings Service System Info Quicklight

Service Load Default Reset Test Reset Service Timer Password

Information on the sub-menu items in the “Service” menu and the corresponding options can be found in the table below (select with ▲ and ▼, confirm with ENTER, change the value or status with ▲ and ▼, confirm with ENTER).

Service
Load Default	Factory Default	Reset to factory setting
	User A	Reset to User A values(Save user values: Settings -> Store Default)
	User B	Reset to User B values(Save user values: Settings -> Store Default)
	User C	Reset to User C values(Save user values: Settings -> Store Default)
Reset	Pan/Tilt	Reset pan/tilt motors
	Head	Reset motors in the device head
	All	Reset all motors
Test	Test Sequence	Pre-programmed sequence to test all components
	Stress Test	Pre-programmed sequence to test all components under maximum load
	Motor Test	Activate all motors individually with values of 000 to 255
Reset Service Timer	Back	Do not reset service operation time
	Reset Now	Reset service operating time
Password	For service purposes only

SYSTEM INFORMATION (System Info)

Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select System Info and confirm with ENTER.

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Information on the sub-menu items in the “System Info” menu and the corresponding options can be found in the table below (select with ▲ and ▼, confirm with ENTER).

System info
Firmware	DISP	Vx.x.x	Display of the firmware version of the corresponding component
	XY	Vx.x.x
	LED1	Vx.x.x
	...	Vx.x.x
Wireless	Module	TimoTwo	Wireless module model
	Device Name	OTOSW6-xxxx	Device name
	Version	HW (Hardware)SW (Software)	Hardware version numberSoftware version number
	Link Quality	%	Connection quality in per cent
	Data Source	None /DMX /WirelessLink /SPI /BLE	Information on the data source
	Status	Operational:DMX Data:RDM Identify:RF Link:Link State:	Status information
Temperature	LED	xxx °C/°F	Display of the temperature of the corresponding component
	Base	xxx °C/°F
	Temperature Unit	Setting of the temperature unit (press ENTER to change)
Fan Speed	xxxx RPM	Display of the speed of the corresponding fan
Runtime	Total	xxxx h : xx m	Total operating time
	Operation	xxxx h : xx m	Time in use
	LED	xxxx h : xx m	Lamp operating time
	Service	xxxx h : xx m	Operating time since the last reset of the service operating time
MAC Address	xx:xx:xx:xx-:xx:xx	MAC-Adresse
RDM UID	RDM Unique Identifier (unique identifier)
DMX Values	Display of the DMX values present
Error Info	Error display in case of malfunction
DMX Table	Display of DMX mode tables

QUICKLIGHT (Quicklight)

Set up a scene quickly and easily using the basic moving head functions without an external controller. Starting from the main display, press MENU to access the main menu. Use ▲ and ▼ to select Quicklight and confirm with ENTER. Select the desired menu item with ▲ and ▼, confirm with ENTER, change the value with ▲ and ▼, and confirm the value change with ENTER.

Main Menu Control Settings Service System Info Quicklight

Quicklight Pan 0 - 255 Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

If the Quicklight mode is activated, the display does not automatically return to the main display. Quicklight mode is automatically cancelled when you exit the Quicklight menu. The settings in the Quicklight menu are retained even after restarting the light.

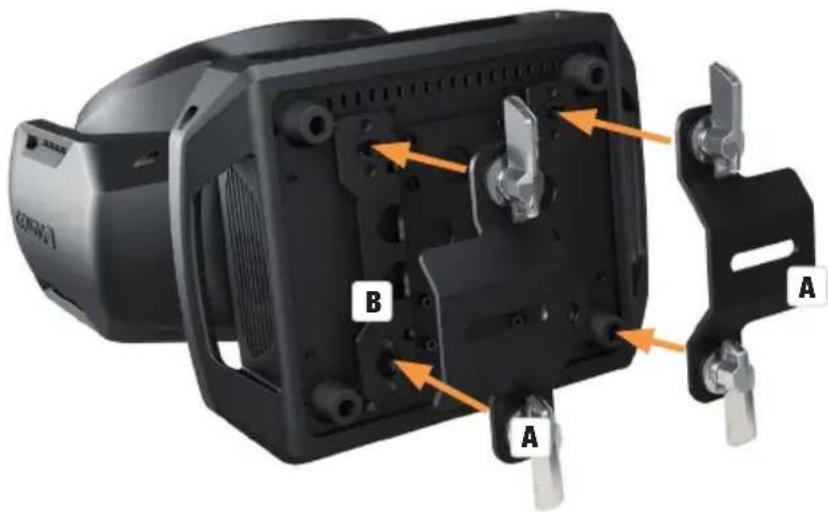

SET-UP AND INSTALLATION

DANGER: Overhead mounting requires extensive experience, including calculating the load limit values of the mounting hardware and regular safety inspection of all installation materials and lights. If you do not have these qualifications, do not attempt to perform installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly installed and secured may come loose and fall down. This can cause serious injury or death.

Thanks to its integrated rubber feet, the light can be positioned in a suitable location on a level surface. It can be truss-mounted using two omega brackets, which are attached to the base of the device (A). If required, the two omega brackets can also be mounted on the appliance base rotated by 90°. Two omega brackets are included in the packaging content. Suitable truss clamps are available as an option. Ensure firm connections, and secure the light to the securing lug (B) with a suitable safety cable.

B A A

USE POSITION

Diagram showing three mechanical components on a platform with a red X mark indicating a crossed-out section (no text or symbols present)

CARE, MAINTENANCE, AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The care and maintenance required depends on the intensity of use and the environment in which it is used.

We recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable service measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

CARE (carried out by user)

WARNING! Before carrying out any care or maintenance, the power supply – and, if possible, all device connections – must be disconnected.

PLEASE NOTE! Improper care can lead to impairment or even destruction of the device.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (for example, fans must be blocked in this case, as they could otherwise over-rev).
3. Cables and connectors must be cleaned regularly, and dust and dirt must be removed.
4. In general, no cleaning agents or abrasive agents may be used; otherwise, the surface finish may be damaged.
5. Devices must be stored in a dry environment and protected from dust and dirt.
6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting apertures must be cleaned regularly.

MAINTENANCE AND REPAIR (by qualified personnel only)

DANGER! There are live components in the device. Even after disconnecting from the mains, there may still be residual voltage in the device, for example, due to charged capacitors.

PLEASE NOTE! Maintenance and repair work may only be carried out by sufficiently qualified personnel. If in doubt, consult a specialist workshop.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

PLEASE NOTE! For conversion or retrofit sets provided by the manufacturer, it is essential to observe the enclosed installation instructions.

DIMENSIONS (mm)

96 111

Technical line drawing of a mechanical device with a base plate and top component, labeled '332' (no text or symbols beyond the dimension)

135 130 489

2/28 265 370 489

410 489 391

TECHNICAL DATA

Item number	CLOTOSW6
Product Category	LED Wash Moving Light
Type	Moving Head
Light Source Center LED	16 x 50 W
Color Mixing Center LEDs	RGBL
Number of Ring Segments	68
Color Mixing Ring LEDs	RGB
Pan Angle	Adjustable: 630° / 540°
Tilt Angle	238°
LED PWM	650 Hz; 1530 Hz; 3600 Hz; 12 kHz; 18.9 kHz; 25 kHz
Dimmer Resolution	16-bit
Dimmer Curves	Linear; Exponential; Logarithmic; S-Curve
Calibration	Yes
CRI	>85
Luminous Flux	8200 lm
Illuminance	8400 lx (10 m, narrow)
Beam Angle / Field Angle	4-45° / 10-60°
CCT	1800 - 10000 K
Control Protocols	DMX; RDM; W-DMX; CRMX
Data Connections	5pin XLR male + female; 2x RJ45
DMX Modes	23CH RGBL Effect22CH HSI Wash23CH RGBL Wash 8bit27CH RGBL Wash39CH HSI Pattern49CH RGBL Pattern49CH RGBL Rings
DMX Modes	100CH RGBL Pixel290CH RGBL Pixel Full12CH Dual Input22CH Dual Input25CH Dual Rings
DMX Functions	Pan (fine); Tilt (fine); Dimmer (fine); Strobe functions, RGBL (fine); Hue (fine); Saturation; Color Temperature; Tint; Color Presets; Color Crossfade; Ring Dimmer; Ring RGB; Ring Strobe, Ring Pattern Selection; Ring Pattern Speed; Pattern Folder; Pattern Selection; Pattern Position & Speed; Pattern Transition; Pattern Fade/Wake Effect; Background Dimmer (fine); Background Strobe; Background RGBL; Background Hue (fine); Background Saturation; Background color Temperature; Background Tint; Background color Presets; Background color Crossfade; Zoom; LED Control Crossfade; Device Settings; RGBL; Ring RGB
Stand Alone	Scene; Loop
System Settings	Display; Dimmer; Color Calibration; Movement; Fan; Signal Fail; Pixel Mirror
Display / Indicators	LC Display
IP-Rating	IP65 for temporary outdoor use
Ambient Temperature Rating	-10 - 40°C
Cooling System	Temperature-controlled fans
Operation Voltage	100 - 240 V AC / 50-60 Hz
Max. Power Consumption	720 W
Fuse	T8A/250V
Power Connection	Seetronic IP65
Power Link	Seetronic IP65
Max. Power Out (110V)	7 A
Max. Power Out (230V)	11 A
Housing	Metal
Risk Group	1
Minimum distance to illuminated surface	3 m
Minimum distance to normal flammable materials	0.5 m
Dimensions (w x h x d)	See graphic
Weight	21.4 kg

EXPLANATION OF IP PROTECTION CLASS

1. An IP protection class only reflects protection against solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature.
2. The first identification digit indicates protection against dust, solid objects, and contact:

IP2X Protected against solid foreign objects ≥ 12.5 mm in diameter

IP3X Protected against solid foreign objects ≥ 2.5 mm in diameter

IP4X Protected against solid foreign objects ≥ 1.0 mm in diameter

IP5X Protected against dust in harmful quantities and completely protected against contact

IP6X Are dust-tight and completely protected against contact

1. The second digit indicates protection against water:

IPX0 No protection

IPX1 Protection against dripping water

IPX2 Protection against dripping water when the device is tilted by up to 15°

IPX3 Protection against falling spray water up to 60° from the vertical

IPX4 Protection against splashing water on all sides

IPX5 Protection against water jets (nozzle) from any angle

IPX6 Protection against strong water jets

IPX7 Protection against temporary immersion

1. In addition, some device-specific measures such as covers and sealing caps are necessary in order to achieve the specified protection class (for example, protective caps on unused connections).

The product's IP protection class can be found in the technical data and is printed on the device.

MINIMUM DISTANCE TO ILLUMINATED SURFACE

$$ \text { D } - - - \times m \text { E } $$

This symbol with the distance stated in metres (m) indicates the minimum distance of the light fixture to the illuminated surface. The value valid for this device can be found in the technical data in this manual and is printed on the device!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

$$ - - - D x m E $$

This symbol with the distance stated in metres (m) indicates the minimum distance of the device to normally flammable materials. The value valid for this device can be found in the technical data in this manual!

DISPOSAL

Packaging:

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

Device:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Waste equipment does not belong in household waste. Waste equipment must be disposed of via an authorised waste disposal company or a municipal waste disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the vendor of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty and limitation of liability

Adam Hall GmbH | Adam-Hall-Str.1 | 61267 Neu-Anspach | Germany

Email: [e-mail] / +49 (0)6081 / 9419-0

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

For service requests, please contact your distribution partner.

CE conformity

Adam Hall GmbH hereby confirms that this product meets the following guidelines

(where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

EC Declaration of Conformity

Declarations of conformity for products subject to the LVD, EMC, and RoHS Directives can be requested from [e-mail]

Declarations of conformity for products subject to RED can be downloaded from www.adamhall.com/compliance/

Subject to misprints and errors, as well as technical or other modifications!

DEUTSCH

▶ 1 × OTOS W6 Wash Moving Head
▶ 1 × Netzkabel
▶ 2 × Omega-Bügel

Close-up of a car wheel rim with visible blades and mounting brackets, no text or symbols present.

11 GRIFFMULDEN

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 23CH RGBL Effect 22CH HSI Wash 23CH RGBL Wash 8bit 27CH RGBL Wash 39CH HSI Pattern 49CH RGBL Pattern 49CH RGBL PIXEL 100CH RGBL PIXEL 290CH RGBL PIXEL Full 12CH Dual Input 22CH Dual Input 25CH Dual Input

NETZWERK (Network)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Dual Input Modes Signal Routing

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Display Dimmer Color Calibration Movement Fan Signal Fail Pixel Mirror Store Default

Main Menu Control Settings Service System Info Quicklight

Service Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Main Menu Control Settings Service System Info Quicklight

Quicklight Pan 0 - 255 Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

Diagram showing three mechanical components on a platform with a red X mark indicating a crossed-out section (no text or symbols present)

Technical line drawing of a mechanical device with a base labeled 332 (no text or symbols beyond the dimension)

135 130 489

2/28 265 370 489

410 489 391

TECHNISCHE DATEN

Three circular diagrams showing a vehicle under no explosion, indicating collision or collision risk, and a mechanical device with warning symbol.

REMARQUES À PROPOS DES APPAREILS PORTABLES POUR EXTÉRIEUR

Close-up of a car wheel assembly with orange arrows pointing to specific components (no text or symbols visible)

11 POIGNÉES ENCASTRÉES

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

PARAMÈTRES SYSTÈME (Settings)

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Display Dimmer Color Calibration Movement Fan Signal Fail Pixel Mirror Store Default

Main Menu Control Settings Service System Info Quicklight

Service Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Main Menu Control Settings Service System Info Quicklight

Quicklight Pan 0 - 255 Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

Diagram showing three mechanical components on a platform with a red X mark indicating a dislocation or restriction, no text or symbols present.

ENTRETIEN, MAINTENANCE ET RÉPARATION

Warning symbol and three warning icons: a yellow triangle with lightning bolt, two black boxes labeled 'i', and one white square labeled 'i'.

Directive CEM (2014/30/UE)

RoHS (2011/65/EU)

RED (2014/53/EU)

Three circular diagrams showing a vehicle with a sun symbol, connected to a warning sign and connected to a device, all crossed out by a diagonal line.

Close-up of a car wheel with visible blades and mounting brackets, no text or symbols present

11 ASAS EMPOTRADAS

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

AJUSTE DEL MODO OPERATIVO DMX (DMX Mode)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 23CH RGBL Effect 22CH HSI Wash 23CH RGBL Wash 8bit 27CH RGBL Wash 39CH HSI Pattern 49CH RGBL Pattern 49CH RGBL PIXEL 100CH RGBL PIXEL 290CH RGBL PIXEL Full 12CH Dual Input 22CH Dual Input 25CH Dual Input

RED (Network)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Dual Input Modes Signal Routing

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

AJUSTES DEL SISTEMA (Settings)

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Display Dimmer Color Calibration Movement Fan Signal Fail Pixel Mirror Store Default

Main Menu Control Settings Service System Info Quicklight

Service Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Main Menu Control Settings Service System Info Quicklight

Quicklight Pan 0 - 255 Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

Diagram showing three vehicle-mounted sensors on a platform with a red X-shaped warning sign, no text or symbols present.

Technical line drawing of a mechanical device with a base plate and cylindrical components, labeled '332' (no text or symbols beyond the dimension)

135 130 489

265

228

370

489

410

489

391

CARACTERÍSTICAS TÉCNICAS

DMX, RDM, W-DMX, CRMX

Conectores de datos

XLR macho y hembra de 5 pines, 2 RJ45

23CH RGBL Effect

22CH HSI Wash

23CH RGBL Wash 8bit

Modos DMX

27CH RGBL Wash

39CH HSI Pattern

49CH RGBL Pattern

49CH RGBL Rings

Modos DMX	49CH RGBL Rings100CH RGBL Pixel290CH RGBL Pixel Full12CH Dual Input22CH Dual Input25CH Dual Rings
Funciones DMX	Pan (fine), Tilt (fine), Dimmer (fine), Strobe functions, RGBL (fine), Hue (fine), Saturation, Color Temperature, Tint, Color Presets, Color Crossfade, Ring Dimmer, Ring RGB, Ring Strobe, Ring Pattern Selection, Ring Pattern Speed, Pattern Folder, Pattern Selection, Pattern Position & Speed, Pattern Transition, Pattern Fade/Wake Effect, Background Dimmer (fine), Background Strobe, Background RGBL, Background Hue (fine), Background Saturation, Background color Temperature, Background Tint, Background color Presets, Background color Crossfade, Zoom, LED Control Crossfade, Device Settings, RGBL, Ring RGB
Stand Alone Scene, Loop
Ajustes del sistema	Display, Dimmer, Color Calibration, Movement, Fan, Signal Fail, Pixel Mirror
Pantalla/indicadores Pantalla LCD
Clasificación IP IP65 para uso temporal en exteriores
Temperatura ambiente -10 °C a +40 °C
Refrigeración Ventiladores controladores por temperatura
Tensión eléctrica 100-240 Vca, 50/60 Hz
Consumo máximo 720 W
Fusible T8A/250V
Conector eléctrico Seetronic IP65
Conexión eléctrica Seetronic IP65
Corriente máx. de salida (110 V) 7 A
Corriente máx. de salida (230 V) 11 A
Carcasa	Metal
Grupo de riesgo	1
Distancia mínima a la superficie iluminada	3 m
Distancia mínima a materiales normalmente inflamables	0,5 m
Dimensiones (an. × al. × f.)	Ver figura
Peso	21,4 kg

Three circular diagrams showing a car with a sun symbol, connected to a warning sign and connected to a device, all crossed out by a diagonal line.

Close-up of a car wheel with visible blades and mounting brackets, no text or symbols present

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

USTAWIANIE TRYBU PRACY DMX (DMX Mode)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 23CH RGBL Effect 22CH HSI Wash 23CH RGBL Wash 8bit 27CH RGBL Wash 39CH HSI Pattern 49CH RGBL Pattern 49CH RGBL PIXEL 100CH RGBL PIXEL 290CH RGBL PIXEL Full 12CH Dual Input 22CH Dual Input 25CH Dual Input

USTAWIENIA SIECIOWE (Network)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Network Protocol Universe IP Address Subnet Mask Dual Input Modes Signal Routing

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

USTAWIENIA SYSTEMOWE (Settings)

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Display Dimmer Color Calibration Movement Fan Signal Fail Pixel Mirror Store Default

Main Menu Control Settings Service System Info Quicklight

Service Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Main Menu Control Settings Service System Info Quicklight

Quicklight Pan 0 - 255 Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

KONFIGURACJA I INSTALACJA

Diagram showing three mechanical components on a platform with a red X mark indicating a failure or rejection, no text or symbols present.

PIELEGNACJA, KONSERWACJA I NAPRAWA

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Three circular diagrams showing a vehicle under sunlight, connected to a warning sign and connected to a device with bidirectional arrow.

NOTE SUI DISPOSITIVI PORTATILI PER ESTERNI

Close-up of a car wheel with visible blades and mounting brackets, no text or symbols present

11 IMPUGNATURE A INCASSO

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Address 001

IMPOSTAZIONE DELLA MODALITÀ OPERATIVA DMX (DMX Mode)

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

DMX Mode 23CH RGBL Effect 22CH HSI Wash 23CH RGBL Wash 8bit 27CH RGBL Wash 39CH HSI Pattern 49CH RGBL Pattern 49CH RGBL PIXEL 100CH RGBL PIXEL 290CH RGBL PIXEL Full 12CH Dual Input 22CH Dual Input 25CH Dual Input

RETE (Network)

Main Menu
Control
Settings
Service
System Info
Quicklight

Control
DMX Address
DMX Mode
Network
Stand Alone
Slave

Network
Protocol
Universe
IP Address
Subnet Mask
Dual Input Modes
Signal Routing

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

Stand Alone Master/Alone Play Scene/Loop Edit Scene Edit Loop

Main Menu Control Settings Service System Info Quicklight

Control DMX Address DMX Mode Network Stand Alone Slave

IMPOSTAZIONI DI SISTEMA (Settings)

Main Menu Control Settings Service System Info Quicklight

Settings Wireless Display Dimmer Color Calibration Movement Fan Signal Fail Pixel Mirror Store Default

Main Menu Control Settings Service System Info Quicklight

Service Load Default Reset Test Reset Service Timer Password

Main Menu Control Settings Service System Info Quicklight

System Info Firmware Wireless Temperature Fan Speed Runtime MAC Address RDM UID DMX Values Error Info DMX Table

Main Menu Control Settings Service System Info Quicklight

Quicklight Pan 0 - 255 Tilt 0 - 255 Dimmer 0 - 255 Hue 0 - 255 Saturation 0 - 255 Zoom 0 - 255

Diagram showing three vehicle-mounted sensors on a platform with a red X mark indicating no overlap or intersection, no text or symbols present.

Technical line drawing of a mechanical device with a base labeled 332 (no text or symbols beyond the dimension)

135 130 489

2/28 265 370 489

410 489 391

DATI TECNICI

12CH Dual	22CH Dual	Pixel Order
Channel Channel Function Values							Sub-group
1 1 Pan 000 - 255						0% to 100% Pan
2 2 Pan fine 000 - 255
3 3 Tilt 000 - 255						0% to 100% Tilt
4 4 Tilt	fine 000 - 255
5	5	Dimmer(Segment 1 & 2)	000	-255		0% to 100%	Dimmer
6	6	Dimmer fine(Segment 1 & 2)	000	-255
7	7	Strobe Functions(Segment 1 & 2)	000	-005	Open		Multi-functional Strobe
			006	-010	Closed
			011	-022	Ramp up/down slow to fast
			023	-033		Ramp up/down random slow to fast
			034	-045	Ramp up slow to fast
			046	-056		Ramp up random slow to fast
			057	-068	Ramp down slow to fast
			069	-079		Ramp down random slow to fast
			080	-102		Random Strobe effect slow to fast
			103	-127		Strobe Break effect 5s to 1s (Short burst with break)
			128	-250		Strobe slow to fast (<1Hz to 20Hz)
			251	-255	Open
	8	Red	000	-255	0% to 100%		Additive Colour Mixing
	9	Green	000	-255	0% to 100%
	10	Blue	000	-255	0% to 100%
	11	Lime	000	-255	0% to 100%

12	Colour Temperature (affects Colour Mixing)	000 - 005 Off006 - 006 Warm white007 - 046 Warm white to 2700K047 - 047 Bulb White (2700K)048 - 087 2700K to 3200K088 - 088 Halogen White (3200K)089 - 128 3200K to 4000K129 - 129 Neutral White (4000K)130 - 169 4000K to 5600K170 - 170 Studio White (5600K)171 - 210 5600K to 6500K211 - 211 Daylight White (6500K)212 - 251 6500K to Cold white252 - 255 Cold white000 - 000 Off	CCT
13	Tint (affects Col- our Temperature)	001 - 127 Magenta -> Neutral128 - 128 Neutral129 - 255 Neutral -> Green	Tint
8 14 Ring Dimmer 000 - 255 0% to 100%
15 Ring Red 000 - 255 0% to 100%
16 Ring Green 000 - 255 0% to 100%
17 Ring Blue 000 - 255 0% to 100%
9 18 Ring Strobe	Zoom (Segment 1)	000 - 005 Open006 - 010 Closed011 - 022 Ramp up/down slow to fast023 - 033 Ramp up/down random slow to fast034 - 045 Ramp up slow to fast046 - 056 Ramp up random slow to fast057 - 068 Ramp down slow to fast069 - 079 Ramp down random slow to fast080 - 102 Random Strobe effect slow to fast103 - 127 Strobe Break effect 5s to 1s (Short burst with break)128 - 250 Strobe slow to fast (<1Hz to 20Hz)251 - 255 Open	000 - 005 Open006 - 010 Closed011 - 022 Ramp up/down slow to fast023 - 033 Ramp up/down random slow to fast034 - 045 Ramp up down slow to fast046 - 056 Ramp up random slow to fast057 - 068 Ramp down slow to fast069 - 079 Ramp down random slow to fast080 - 102 Random Strobe effect slow to fast103 - 127 Strobe Break effect 5s to 1s (Short burst with break)128 - 250 Strobe slow to fast (<1 Hz to 20 Hz)251 - 255 Open
10 19		000 - 255 Narrow to Wide Zoom 1

11 20		Zoom(Segment 2)	000 - 255 Narrow to Wide Zoom 2
			000 - 005	Pixel controlled by channels8 to 11 and 15 to 17
	21	LED Control Crossfade	006 - 249	Linear Crossfade to second input
			250 - 255	Pixel controlled by second protocol
			000 - 005 No function
			006 - 007	Blackout while P/T moving On	Blackout
			008 - 009	Blackout while P/T moving Off
			010 - 017 No function
			018 - 019 Sleep Mode On		Energy Saving
			020 - 021 Sleep Mode Off/Wake Up
			022 - 024 No function
			025 - 025 Record User Scene 1
			026 - 026 Record User Scene 2
			027 - 027 Record User Scene 3
			028 - 028 Record User Scene 4		User Colours
			029 - 029 Record User Scene 5
		Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	030 - 030 Record User Scene 6
			031 - 031 Record User Scene 7
			032 - 032 Record User Scene 8
12 22			033 - 041 No function
			042 - 043 Invert Pan On
			044 - 045 Invert Pan Off
			046 - 047 Invert Tilt On		Move-ment
			048 - 049 Invert Tilt Off
			050 - 051 Pan Angle 540°
			052 - 053 Pan Angle 630°
			054 - 057 No Function
			058 - 059 Pixel Mirroring Off
			060 - 061 Pixel Mirroring Horizontal		Pixel Mirroring
			062 - 063 Pixel Mirroring Vertical
			064 - 065 Pixel Mirroring Horizontal + Vertical
			066 - 073 No function
			074 - 075 Dimmer Response LED		Dimming076 - 077 I
			078 - 081 No function
12 22		Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	082 - 083 DTW (Redshift) On	Dimming
			084 - 085 DTW (Redshift) Off
			086 - 093 No function
			094 - 095 Silent movement On	Noise Functions
			096 - 097 Silent movement Off
			098 - 099 Fan Auto
			100 - 101 Fan Silent
			102 - 103 Fan Constant Low
			104 - 105 Fan Constant Medium
			106 - 107 Fan Constant High
			108 - 119 No function
			120 - 121 PWM 1 (650 Hz)	PWM Frequen-cy
			122 - 123 PWM 2 (1530 Hz)
			124 - 125 PWM 3 (3600 Hz)
			126 - 127 PWM 4 (12000 Hz)
			128 - 129 PWM 5 (18900 Hz)
			130 - 131 PWM 6 (25000 Hz)
			132 - 135 No function	Colour Calibra-tion
			136 - 137 User Calibration
			138 - 139 Smart Calibration
			140 - 141 Display Always On	Display Functions
			142 - 143 Display Off after 20s
			144 - 163 No function
			164 - 165 Dimmer Curve Linear	Dimmer Curve
			166 - 167 Dimmer Curve Exponential
			168 - 169 Dimmer Curve Logarithmic
			170 - 171 Dimmer Curve S-Curve
			172 - 173 No function
			174 - 175 Zoom Link On	Zoom Link
			176 - 177 Zoom Link Off
			178 - 221 No function
			222 - 223 Reset Pan / Tilt	Reset
			224 - 233 No function
			234 - 235 Reset Head
			236 - 237 Reset All
			238 - 239 No function
12 22		Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	240 - 241 Load Factory Defaults				Load Default
			242 - 243			Load Factory Defaults (with-out User Scenes & Loops)
			244 - 245 Load User Default A
			246 - 247 Load User Default B
			248 - 249 Load User Default C
			250 - 255 No function
13 23	Red 1 000 -	255 0% to 100%					Colour Mixing Pixel 1
14 24	Green 1 000 -	255 0% to 100%
15 25	Blue 1 000 -	255 0% to 100%
16 26	Lime 1 000 -	255 0% to 100%
17 27	Red 2 000 -	255 0% to 100%					Colour Mixing Pixel 2
18 28	Green 2 000 -	255 0% to 100%
19 29	Blue 2 000 -	255 0% to 100%
20 30	Lime 2 000 -	255 0% to 100%
21 31	Red 3 000 -	255 0% to 100%					Colour Mixing Pixel 3
22 32	Green 3 000 -	255 0% to 100%
23 33	Blue 3 000 -	255 0% to 100%
24 34	Lime 3 000 -	255 0% to 100%
25 35	Red 4 000 -	255 0% to 100%					Colour Mixing Pixel 4
26 36	Green 4 000 -	255 0% to 100%
27 37	Blue 4 000 -	255 0% to 100%
28 38	Lime 4 000 -	255 0% to 100%
29 39	Red 5 000 -	255 0% to 100%					Colour Mixing Pixel 5
30 40	Green 5 000 -	255 0% to 100%
31 41	Blue 5 000 -	255 0% to 100%
32 42	Lime 5 000 -	255 0% to 100%
33 43	Red 6 000 -	255 0% to 100%					Colour Mixing Pixel 6
34 44	Green 6 000 -	255 0% to 100%
35 45	Blue 6 000 -	255 0% to 100%
36 46	Lime 6 000 -	255 0% to 100%
37 47	Red 7 000 -	255 0% to 100%					Colour Mixing Pixel 7
38 48	Green 7 000 -	255 0% to 100%
39 49	Blue 7 000 -	255 0% to 100%
40 50	Lime 7 000 -	255 0% to 100%
41 51	Red 8 000 -	255 0% to 100%					Colour Mixing Pixel 8
42 52	Green 8 000 -	255 0% to 100%
43 53	Blue 8 000 -	255 0% to 100%
44 54	Lime 8 000 -	255 0% to 100%
45 55	Red 9 000 -	255 0% to 100%					Colour Mixing Pixel 9
46 56	Green 9 000	- 255 0% to 100%
47 57	Blue 9 000	- 255 0% to 100%
48 58	Lime 9 000	- 255 0% to 100%
49 59	Red 10 000	- 255 0% to 100%					Colour Mixing Pixel 10
50 60	Green 10	000 - 255 0% to 100%
51 61	Blue 10	000 - 255 0% to 100%
52 62	Lime 10	000 - 255 0% to 100%
53 63	Red 11 000	- 255 0% to 100%					Colour Mixing Pixel 11
54 64	Green 11	000 - 255 0% to 100%
55 65	Blue 11	000 - 255 0% to 100%
56 66	Lime 11	000 - 255 0% to 100%
57 67	Red 12 000	- 255 0% to 100%					Colour Mixing Pixel 12
58 68	Green 12	000 - 255 0% to 100%
59 69	Blue 12	000 - 255 0% to 100%
60 70	Lime 12	000 - 255 0% to 100%
61 71	Red 13 000	- 255 0% to 100%					Colour Mixing Pixel 13
62 72	Green 13	000 - 255 0% to 100%
63 73	Blue 13	000 - 255 0% to 100%
64 74	Lime 13	000 - 255 0% to 100%
65 75	Red 14 000	- 255 0% to 100%					Colour Mixing Pixel 14
66 76	Green 14	000 - 255 0% to 100%
67 77	Blue 14	000 - 255 0% to 100%
68 78	Lime 14	000 - 255 0% to 100%
69 79	Red 15 000	- 255 0% to 100%					Colour Mixing Pixel 15
70 80	Green 15	000 - 255 0% to 100%
71 81	Blue 15	000 - 255 0% to 100%
72 82	Lime 15	000 - 255 0% to 100%
73 83	Red 16 000	- 255 0% to 100%					Colour Mixing Pixel 16
74 84	Green 16	000 - 255 0% to 100%
75 85	Blue 16	000 - 255 0% to 100%
76 86	Lime 16	000 - 255 0% to 100%
77 87	Ring	Red 1	000 - 255 0% to 100%				Ring Pixel 1
78 88	Ring Green 1	000 - 255 0% to 100%
79 89	Ring	Blue 1	000 - 255 0% to 100%
80 90	Ring	Red 2	000 - 255 0% to 100%				Ring Pixel 2
81 91	Ring Green 2	000 - 255 0% to 100%
82 92	Ring	Blue 2	000 - 255 0% to 100%
83 93	Ring	Red 3	000 - 255 0% to 100%				Ring Pixel 3
84 94	Ring Green 3	000 - 255 0% to 100%
85 95	Ring	Blue 3	000 - 255 0% to 100%
86 96	Ring Red 4	000 - 255 0% to 100%				Ring Pixel 4
87 97	Ring Green	4 000 - 255 0% to 100%
88 98	Ring Blue 4	000 - 255 0% to 100%
89 99	Ring Red 5	000 - 255 0% to 100%				Ring Pixel 5
90 100	Ring Green	5 000 - 255 0% to 100%
91 101	Ring Blue	5 000 - 255 0% to 100%
92 102	Ring Red 6	000 - 255 0% to 100%				Ring Pixel 6
93 103	Ring Green	6 000 - 255 0% to 100%
94 104	Ring Blue	6 000 - 255 0% to 100%
95 105	Ring Red 7	000 - 255 0% to 100%				Ring Pixel 7
96 106	Ring Green	7 000 - 255 0% to 100%
97 107	Ring Blue	7 000 - 255 0% to 100%
98 108	Ring Red 8	000 - 255 0% to 100%				Ring Pixel 8
99 109	Ring Green	8 000 - 255 0% to 100%
100 110	Ring Blue	8 000 - 255 0% to 100%
101 111	Ring Red	9 000 - 255 0% to 100%				Ring Pixel 9
102 112	Ring Green	9 000 - 255 0% to 100%
103 113	Ring Blue	9 000 - 255 0% to 100%
104 114	Ring Red 10	000 - 255 0% to 100%				Ring Pixel 10
105 115	Ring Green 10	000 - 255 0% to 100%
106 116	Ring Blue 10	000 - 255 0% to 100%
107 117	Ring Red 11	000 - 255 0% to 100%				Ring Pixel 11
108 118	Ring Green 11	000 - 255 0% to 100%
109 119	Ring Blue 11	000 - 255 0% to 100%
110 120	Ring Red 12	000 - 255 0% to 100%				Ring Pixel 12
111 121	Ring Green 12	000 - 255 0% to 100%
112 122	Ring Blue 12	000 - 255 0% to 100%
113 123	Ring Red 13	000 - 255 0% to 100%				Ring Pixel 13
114 124	Ring Green 13	000 - 255 0% to 100%
115 125	Ring Blue 13	000 - 255 0% to 100%
116 126	Ring Red 14	000 - 255 0% to 100%				Ring Pixel 14
117 127	Ring Green 14	000 - 255 0% to 100%
118 128	Ring Blue 14	000 - 255 0% to 100%
119 129	Ring Red 15	000 - 255 0% to 100%				Ring Pixel 15
120 130	Ring Green 15	000 - 255 0% to 100%
121 131	Ring Blue 15	000 - 255 0% to 100%
122 132	Ring Red 16	000 - 255 0% to 100%				Ring Pixel 16
123 133	Ring Green 16	000 - 255 0% to 100%
124 134	Ring Blue 16	000 - 255 0% to 100%
125 135	Ring Red 17	000 - 255 0% to 100%				Ring Pixel 17
126 136	Ring Green 17	000 - 255 0% to 100%
127 137	Ring Blue 17	000 - 255 0% to 100%
128 138 Ring Red	18 000 - 255 0% to	100%			Ring Pixel 18
129 139 Ring Green	18 000 - 255 0% to	100%
130 140 Ring Blue	18 000 - 255 0% to	100%
131 141 Ring Red	19 000 - 255 0% to	100%			Ring Pixel 19
132 142 Ring Green	19 000 - 255 0% to	100%
133 143 Ring Blue	19 000 - 255 0% to	100%
134 144 Ring Red	20 000 - 255 0% to	100%			Ring Pixel 20
135 145 Ring Green	20 000 - 255 0% to	100%
136 146 Ring Blue	20 000 - 255 0% to	100%
137 147 Ring Red	21 000 - 255 0% to	100%			Ring Pixel 21
138 148 Ring Green	21 000 - 255 0% to	100%
139 149 Ring Blue	21 000 - 255 0% to	100%
140 150 Ring Red	22 000 - 255 0% to	100%			Ring Pixel 22
141 151 Ring Green	22 000 - 255 0% to	100%
142 152 Ring Blue	22 000 - 255 0% to	100%
143 153 Ring Red	23 000 - 255 0% to	100%			Ring Pixel 23
144 154 Ring Green	23 000 - 255 0% to	100%
145 155 Ring Blue	23 000 - 255 0% to	100%
146 156 Ring Red	24 000 - 255 0% to	100%			Ring Pixel 24
147 157 Ring Green	24 000 - 255 0% to	100%
148 158 Ring Blue	24 000 - 255 0% to	100%
149 159 Ring Red	25 000 - 255 0% to	100%			Ring Pixel 25
150 160 Ring Green	25 000 - 255 0% to	100%
151 161 Ring Blue	25 000 - 255 0% to	100%
152 162 Ring Red	26 000 - 255 0% to	100%			Ring Pixel 26
153 163 Ring Green	26 000 - 255 0% to	100%
154 164 Ring Blue	26 000 - 255 0% to	100%
155 165 Ring Red	27 000 - 255 0% to	100%			Ring Pixel 27
156 166 Ring Green	27 000 - 255 0% to	100%
157 167 Ring Blue	27 000 - 255 0% to	100%
158 168 Ring Red	28 000 - 255 0% to	100%			Ring Pixel 28
159 169 Ring Green	28 000 - 255 0% to	100%
160 170 Ring Blue	28 000 - 255 0% to	100%
161 171 Ring Red	29 000 - 255 0% to	100%			Ring Pixel 29
162 172 Ring Green	29 000 - 255 0% to	100%
163 173 Ring Blue	29 000 - 255 0% to	100%
164 174 Ring Red	30 000 - 255 0% to	100%			Ring Pixel 30
165 175 Ring Green	30 000 - 255 0% to	100%
166 176 Ring Blue	30 000 - 255 0% to	100%
167 177 Ring Red	31 000 - 255 0% to	100%			Ring Pixel 31
168 178 Ring Green	31 000 - 255 0% to	100%
169 179 Ring Blue	31 000 - 255 0% to	100%

170 180	Ring Red	32 000 - 255 0% to	100%			Ring Pixel 32
171 181	Ring Green	32 000 - 255 0%	to 100%
172 182	Ring Blue	32 000 - 255 0% to	100%
173 183	Ring Red	33 000 - 255 0% to	100%			Ring Pixel 33
174 184	Ring Green	33 000 - 255 0%	to 100%
175 185	Ring Blue	33 000 - 255 0% to	100%
176 186	Ring Red	34 000 - 255 0% to	100%			Ring Pixel 34
177 187	Ring Green	34 000 - 255 0%	to 100%
178 188	Ring Blue	34 000 - 255 0% to	100%
179 189	Ring Red	35 000 - 255 0% to	100%			Ring Pixel 35
180 190	Ring Green	35 000 - 255 0%	to 100%
181 191	Ring Blue	35 000 - 255 0% to	100%
182 192	Ring Red	36 000 - 255 0% to	100%			Ring Pixel 36
183 193	Ring Green	36 000 - 255 0%	to 100%
184 194	Ring Blue	36 000 - 255 0% to	100%
185 195	Ring Red	37 000 - 255 0% to	100%			Ring Pixel 37
186 196	Ring Green	37 000 - 255 0%	to 100%
187 197	Ring Blue	37 000 - 255 0% to	100%
188 198	Ring Red	38 000 - 255 0% to	100%			Ring Pixel 38
189 199	Ring Green	38 000 - 255 0%	to 100%
190 200	Ring Blue	38 000 - 255 0% to	100%
191 201	Ring Red	39 000 - 255 0% to	100%			Ring Pixel 39
192 202	Ring Green	39 000 - 255 0%	to 100%
193 203	Ring Blue	39 000 - 255 0% to	100%
194 204	Ring Red	40 000 - 255 0% to	100%			Ring Pixel 40
195 205	Ring Green	40 000 - 255 0%	to 100%
196 206	Ring Blue	40 000 - 255 0% to	100%
197 207	Ring Red	41 000 - 255 0% to	100%			Ring Pixel 41
198 208	Ring Green	41 000 - 255 0%	to 100%
199 209	Ring Blue	41 000 - 255 0% to	100%
200 210	Ring Red	42 000 - 255 0% to	100%			Ring Pixel 42
201 211	Ring Green	42 000 - 255 0%	to 100%
202 212	Ring Blue	42 000 - 255 0% to	100%
203 213	Ring Red	43 000 - 255 0% to	100%			Ring Pixel 43
204 214	Ring Green	43 000 - 255 0%	to 100%
205 215	Ring Blue	43 000 - 255 0% to	100%
206 216	Ring Red	44 000 - 255 0% to	100%			Ring Pixel 44
207 217	Ring Green	44 000 - 255 0%	to 100%
208 218	Ring Blue	44 000 - 255 0% to	100%
209 219	Ring Red	45 000 - 255 0% to	100%			Ring Pixel 45
210 220	Ring Green	45 000 - 255 0%	to 100%
211 221	Ring Blue	45 000 - 255 0% to	100%
212 222	Ring Red	46 000 - 255 0% to	100%			Ring Pixel46
213 223	Ring Green	46 000 - 255 0%	to 100%
214 224	Ring Blue	46 000 - 255 0% to	100%
215 225	Ring Red	47 000 - 255 0% to	100%			Ring Pixel47
216 226	Ring Green	47 000 - 255 0%	to 100%
217 227	Ring Blue	47 000 - 255 0% to	100%
218 228	Ring Red	48 000 - 255 0% to	100%			Ring Pixel48
219 229	Ring Green	48 000 - 255 0%	to 100%
220 230	Ring Blue	48 000 - 255 0% to	100%
221 231	Ring Red	49 000 - 255 0% to	100%			Ring Pixel49
222 232	Ring Green	49 000 - 255 0%	to 100%
223 233	Ring Blue	49 000 - 255 0% to	100%
224 234	Ring Red	50 000 - 255 0% to	100%			Ring Pixel50
225 235	Ring Green	50 000 - 255 0%	to 100%
226 236	Ring Blue	50 000 - 255 0% to	100%
227 237	Ring Red	51 000 - 255 0% to	100%			Ring Pixel51
228 238	Ring Green	51 000 - 255 0%	to 100%
229 239	Ring Blue	51 000 - 255 0% to	100%
230 240	Ring Red	52 000 - 255 0% to	100%			Ring Pixel52
231 241	Ring Green	52 000 - 255 0%	to 100%
232 242	Ring Blue	52 000 - 255 0% to	100%
233 243	Ring Red	53 000 - 255 0% to	100%			Ring Pixel53
234 244	Ring Green	53 000 - 255 0%	to 100%
235 245	Ring Blue	53 000 - 255 0% to	100%
236 246	Ring Red	54 000 - 255 0% to	100%			Ring Pixel54
237 247	Ring Green	54 000 - 255 0%	to 100%
238 248	Ring Blue	54 000 - 255 0% to	100%
239 249	Ring Red	55 000 - 255 0% to	100%			Ring Pixel55
240 250	Ring Green	55 000 - 255 0%	to 100%
241 251	Ring Blue	55 000 - 255 0% to	100%
242 252	Ring Red	56 000 - 255 0% to	100%			Ring Pixel56
243 253	Ring Green	56 000 - 255 0%	to 100%
244 254	Ring Blue	56 000 - 255 0% to	100%
245 255	Ring Red	57 000 - 255 0% to	100%			Ring Pixel57
246 256	Ring Green	57 000 - 255 0%	to 100%
247 257	Ring Blue	57 000 - 255 0% to	100%
248 258	Ring Red	58 000 - 255 0% to	100%			Ring Pixel58
249 259	Ring Green	58 000 - 255 0%	to 100%
250 260	Ring Blue	58 000 - 255 0% to	100%
251 261	Ring Red	59 000 - 255 0% to	100%			Ring Pixel59
252 262	Ring Green	59 000 - 255 0%	to 100%
253 263	Ring Blue	59 000 - 255 0% to	100%
254 264	Ring Red	60 000 - 255 0% to	100%			Ring Pixel60
255 265	Ring Green	60 000 - 255 0%	to 100%
256 266	Ring Blue	60 000 - 255 0% to	100%
257 267	Ring Red	61 000 - 255 0% to	100%			Ring Pixel61
258 268	Ring Green	61 000 - 255 0%	to 100%
259 269	Ring Blue	61 000 - 255 0% to	100%
260 270	Ring Red	62 000 - 255 0% to	100%			Ring Pixel62
261 271	Ring Green	62 000 - 255 0%	to 100%
262 272	Ring Blue	62 000 - 255 0% to	100%
263 273	Ring Red	63 000 - 255 0% to	100%			Ring Pixel63
264 274	Ring Green	63 000 - 255 0%	to 100%
265 275	Ring Blue	63 000 - 255 0% to	100%
266 276	Ring Red	64 000 - 255 0% to	100%			Ring Pixel64
267 277	Ring Green	64 000 - 255 0%	to 100%
268 278	Ring Blue	64 000 - 255 0% to	100%
269 279	Ring Red	65 000 - 255 0% to	100%			Ring Pixel65
270 280	Ring Green	65 000 - 255 0%	to 100%
271 281	Ring Blue	65 000 - 255 0% to	100%
272 282	Ring Red	66 000 - 255 0% to	100%			Ring Pixel66
273 283	Ring Green	66 000 - 255 0%	to 100%
274 284	Ring Blue	66 000 - 255 0% to	100%
275 285	Ring Red	67 000 - 255 0% to	100%			Ring Pixel67
276 286	Ring Green	67 000 - 255 0%	to 100%
277 287	Ring Blue	67 000 - 255 0% to	100%
278 288	Ring Red	68 000 - 255 0% to	100%			Ring Pixel68
279 289	Ring Green	68 000 - 255 0%	to 100%
280 290	Ring Blue	68 000 - 255 0% to	100%

22CHHSIWash	39CHHSIPattern
Channel	Channel Function Values						Sub-group
1 1	Pan	000 - 255				0% to 100%	Pan
2 2	Pan fine	000 - 255
3 3	Tilt	000 - 255				0% to 100%	Tilt
4 4	Tilt fine	000 - 255

5	5	Dimmer (Segment 1 & 2)	000	-255	0% to 100% Dimmer
6	6	Dimmer fine(Segment 1 & 2)	000	-255
7	7	Strobe Functions(Segment 1 & 2)	000	-005 Open	Ramp up/down randomslow to fast	Multi-functionalStrobe
			006	-010 Closed
			011	-022 Ramp up/down slow to fast
			023	-033
			034	-045 Ramp up slow to fast
			046	-056
			057	-068 Ramp down slow to fast
			069	-079
			080	-102
			103	-127
			128	-250
			251	-255 Open
8 8 Hue 000 - 255					0° (Red) to 360°	HSI9 9 Hue Fine C
10 10 Saturation 000 - 255 0% (White) to 100% (Colour)
11 11		Colour Temperature (affectsColour Mixing)	000	-005 Off	CCT
			006	-006 Warm white
			007	-046 Warm white to 2700K
			047	-047 Bulb White (2700K)
			048	-087 2700K to 3200K
			088	-088 Halogen White (3200K)
			089	-128 3200K to 4000K
			129	-129 Neutral White (4000K)
			130	-169 4000K to 5600K
			170	-170 Studio White (5600K)
			171	-210 5600K to 6500K
			211	-211 Daylight White (6500K)
			212	-251 6500K to Cold white
			252	-255 Cold white

12 12		Tint (affects Col- our Temperature)	000 - 000 Off		Tint
			001 - 127 Magenta -> Neutral
			128 - 128 neutral
			129 - 255 Neutral -> Green
13 13		Colour Presets (override Colour Mixing & Colour Temperature)	000 - 005 No function		Colour
			006 - 009 46 Dark Magenta
			010 - 013 29 Plasa Red
			014 - 017 26 Bright Red
			018 - 021 127 Smokey Pink
			022 - 025 36 Medium Pink
			026 - 029 19 Fire
			030 - 033 135 Deep Golden Amber
			034 - 037 778 Millennium Gold
			038 - 041 21 Gold Amber
			042 - 045 157 Pink
			046 - 049 110 Middle Rose
			050 - 053 109 Light Salmon
			054 - 057 35 Light Pink
			058 - 061 134 Golden Amber
			062 - 065 17 Surprise Peach
			066 - 069 746 Brown
			070 - 073 105 Orange
			074 - 077 20 Medium Amber
			078 - 081 768 Egg Yolk Yellow
			082 - 085 15 Deep Straw
			086 - 089 767 Nectarine
			090 - 093 101 Yellow
			094 - 097 100 Spring Yellow
			098 - 101 88 Lime Green
			102 - 105 121 LEE Green
			106 - 109 738 Jas Green
			110 - 113 89 Moss Green
			114 - 117 139 Primary Green
			118 - 121 124 Dark Green
			122 - 125 323 Jade
			126 - 129 354 Special Steel Blue
			130 - 133 116 Medium Blue-Green
			134 - 137 183 Moonlight Blue
			138 - 141 132 Medium Blue
			142 - 145 119 Dark Blue
			146 - 149 716 Mikkel Blue

13 13		Colour Presets (override Colour Mixing & Colour Temperature)	150	-15371	Tokyo Blue	Colour
			154	-15718	1 Congo Blue
			158	-16179	9 Special KH Lavender
			162	-16570	7 Ultimate Violet
			166	-169	343 Special Medium Lavender
			170	-17379	8 Chrysalis Pink
			174	-17770	1 Provence
			178	-18179	7 Deep Purple
			182	-18548	Rose Purple
			186	-18934	5 Fuchsia Pink
			190	-19379	5 Magical Magenta
			194	-19712	8 Bright Pink
			198	-2012	Rose Pink
			202	-207 User Colour 1
			208	-213 User Colour 2
			214	-219 User Colour 3
			220	-225 User Colour 4
			226	-231 User Colour 5
			232	-237 User Colour 6
			238	-243 User Colour 7
			244	-249 User Colour 8
			250	-255 No function
14 14		Colour Crossfade (affects HSI, CCT and Colour Presets)	000	-0050s (Off)
			006	-1050,1s - 10s (0,1s Steps)
			106	-21411s - 119s (1s Steps)
			215	-2442m - 4m50s (10s Steps)
			245	-2555m - 15m (1m Steps)
15 15	Ring Dimmer	000 - 255 0% to 100%
16 16	Ring Red 000	-255 0% to 100%
17 17	Ring Green 000	-255 0% to 100%
18 18	Ring Blue 000	-255 0% to 100%
19 19	Ring Strobe		000	-005 Open
			006	-010 Closed
			011	-022 Ramp up/down slow to fast
			023	-033 Ramp up/down random slow to fast
			034	-045 Ramp up slow to fast
			046	-056 Ramp up random slow to fast
			057	-068 Ramp down slow to fast
19 19 Ring Strobe		069 - 079		Ramp down random slow to fast
		080 - 102		Random Strobe effect slow to fast
		103 - 127		Strobe Break effect 5s to 1s (Short burst with break)
		128 - 250		Strobe slow to fast (<1Hz to 20Hz)
		251 - 255 Open
	20	Ring Pattern Selection	000 - 005 Off
			006 - 026 1
			027 - 047 2
			048 - 068 3
			069 - 089 4
			090 - 110 5
			111 - 131 6
			132 - 152 7
			153 - 173 8
			174 - 194 9
			195 - 215 10
			216 - 236 11
			237 - 255 12
	21	Ring Pattern Speed	000 - 005 Ring Pattern Speed Stop
			006 - 063	Ring Pattern Speed slow to fast (Chase)
			064 - 127	Ring Pattern Speed fast to slow (Chase) (backwards)
			128 - 127	Ring Pattern Speed slow to fast (Fade)
			192 - 255	Ring Pattern Speed fast to slow (Fade) (backwards)
	22 Pattern Folder		000 - 005 Off		Pattern
			006 - 064 Static Pattern 1
			065 - 128 Static Pattern 2
			129 - 192 Effect Pattern 1
			193 - 255 Effect Pattern 2
	23 Pattern Selection		000-005 Off
			006-0091
			010-0132
			014-0173
			018-0214
			022-0255
			026-0296
			030-0337
			034-0378
			038-0419
			042-04510
			046-22911 to 49
			230-25550
	24	Pattern Position & Speed	000-005 Effect Pattern Speed Stop			Pattern
			006-127		Effect Pattern Speed slow to fast
			128-255		Effect Pattern Speed fast to slow (backwards)
	25 Pattern Transition		000-0050s (Off)
			006-2550.1s to 5s
	26	Pattern Fade/ Wake Effect	000-005 off
			006-127		Fade 0% to 100%
			128-255		Wake 0% to 100%
	27	Background Dimmer	000-255		0% to 100%	Back-ground Dimmer
	29	Background Strobe	103	-127	Strobe Break effect 5s to 1s (Short burst with break)	Back-ground Strobe
			128	-250	Strobe slow to fast (<1Hz to 20Hz)
			251	-255 Open
	30 Background Hue 000 -		255		0° (Red) to 360°
	31	Background Hue fine	000	-255
	32	Background Saturation	000	-255 0%	(White) to 100% (Colour)
	33	Background Colour Temperature (affects Back-ground Colour Mixing)	000	-005 Off
			006	-006 Warm white
			007	-046 Warm white to 2700K
			047	-047 Bulb White (2700K)
			048	-087 2700K to 3200K
			088	-088 Halogen White (3200K)
			089	-128 3200K to 4000K
			129	-129 Neutral White (4000K)
			130	-169 4000K to 5600K
			170	-170 Studio White (5600K)
			171	-210 5600K to 6500K
			211	-211 Daylight White (6500K)
			212	-251 6500K to Cold white
			252	-255 Cold white
	34	Background Tint (affects Back-ground Colour Temperature)	000	-000 Off
			001	-127 Magenta -> Neutral
			128	-128 neutral
			129	-255 Neutral -> Green
	35	Background Colour Presets (override Back-ground Colour Mixing & Colour Temperature)	000	-005 No function
			006	-009 46 Dark Magenta
			010	-013 29 Plasa Red
			014	-017 26 Bright Red
			018	-021 127 Smokey Pink
			022	-025 36 Medium Pink
			026	-029 19 Fire
			030	-033 135 Deep Golden Amber
			034	-037 778 Millennium Gold
			038	-041 21 Gold Amber
			042	-045 157 Pink
			046	-049 110 Middle Rose

	35	Background Colour Presets (override Back-ground Colour Mixing & Colour Temperature)	050 - 053 109 Light Salmon
			054 - 057 35 Light Pink
			058 - 061 134 Golden Amber
			062 - 065 17 Surprise Peach
			066 - 069 746 Brown
			070 - 073 105 Orange
			074 - 077 20 Medium Amber
			078 - 081 768 Egg Yolk Yellow
			082 - 085 15 Deep Straw
			086 - 089 767 Nectarine
			090 - 093 101 Yellow
			094 - 097 100 Spring Yellow
			098 - 101 88 Lime Green
			102 - 105 121 LEE Green
			106 - 109 738 Jas Green
			110 - 113 89 Moss Green
			114 - 117 139 Primary Green
			118 - 121 124 Dark Green
			122 - 125 323 Jade
			126 - 129 354 Special Steel Blue
			130 - 133 116 Medium Blue-Green
			134 - 137 183 Moonlight Blue
			138 - 141 132 Medium Blue
			142 - 145 119 Dark Blue
			146 - 149 716 Mikkel Blue
			150 - 153 71 Tokyo Blue
			154 - 157 181 Congo Blue
			158 - 161 799 Special KH Lavender
			162 - 165 707 Ultimate Violet
			166 - 169 343 Special Medium Lavender
			170 - 173 798 Chrysalis Pink
			174 - 177 701 Provence
			178 - 181 797 Deep Purple
			182 - 185 48 Rose Purple
			186 - 189 345 Fuchsia Pink
			190 - 193 795 Magical Magenta
			194 - 197 128 Bright Pink
			198 - 201 2 Rose Pink
			202 - 207 User Colour 1
			208 - 213 User Colour 2

	35	BackgroundColour Presets(override Back-ground ColourMixing & ColourTemperature)	214-219 User Colour 3
			220-225 User Colour 4
			226-231 User Colour 5
			232-237 User Colour 6
			238-243 User Colour 7
			244-249 User Colour 8
			250-255 No function
	36	BackgroundColour Cross-fade (affectsBackground HSCCT and ColourPresets)	000-005 0s (Off)
			006-105 0,1s - 10s (0,1s Steps)
			106-214 11s - 119s (1s Steps)
			215-244 2m - 4m50s (10s Steps)
			245-255 5m - 15m (1m Steps)
20 37		Zoom(Segment 1)	000-255 Narrow to Wide Zoom 1
21 38		Zoom(Segment 2)	000-255 Narrow to Wide Zoom 2
22 39		Device settings(all settings areexecuted afterholding value for3 seconds)(please readremark 1*)	000-005 No function
			006-007 Blackout whileP/T moving On	Blackout
			008-009 Blackout whileP/T moving Off
			010-017 No function
			018-019 Sleep Mode On	EnergySaving
			020-021 Sleep Mode Off/Wake Up
			022-024 No function
			025-025 Record User Scene 1	UserColours
			026-026 Record User Scene 2
			027-027 Record User Scene 3
			028-028 Record User Scene 4
			029-029 Record User Scene 5
			030-030 Record User Scene 6
			031-031 Record User Scene 7
			032-032 Record User Scene 8
			033-041 No function
			042-043 Invert Pan On	Move-ment
			044-045 Invert Pan Off
			046-047 Invert Tilt On
			048-049 Invert Tilt Off
			050-051 Pan Angle 540°
			052-053 Pan Angle 630°
			054-057 No Function

22 39		Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	058	-059	Pixel Mirroring Off	Pixel Mirroring +
			060	-061	Pixel Mirroring Horizontal
			062	-063	Pixel Mirroring Vertical
			064	-065	Pixel Mirroring Horizontal Vertical
			066	-073	No function
			074	-075	Dimmer Response LED	Dimming
			076	-077	Dimmer Response Halogen
			078	-081	No function
			082	-083	DTW (Redshift) On
			084	-085	DTW (Redshift) Off
			086	-093	No function
			094	-095	Silent movement On	Noise Functions
			096	-097	Silent movement Off
			098	-099	Fan Auto
			100	-101	Fan Silent
			102	-103	Fan Constant Low
			104	-105	Fan Constant Medium	Noise Functions
			106	-107	Fan Constant High
			108	-119	No function
			120	-121	PWM 1 (650 Hz)	PWM Frequency
			122	-123	PWM 2 (1530 Hz)
			124	-125	PWM 3 (3600 Hz)
			126	-127	PWM 4 (12000 Hz)
			128	-129	PWM 5 (18900 Hz)
			130	-131	PWM 6 (25000 Hz)
			132	-135	No function	Colour Calibration
			136	-137	User Calibration
			138	-139	Smart Calibration
			140	-141	Display Always On	Display Functions
			142	-143	Display Off after 20s
			144	-163	No function
			164	-165	Dimmer Curve Linear	Dimmer Curve
			166	-167	Dimmer Curve Exponential
			168	-169	Dimmer Curve Logarithmic
			170	-171	Dimmer Curve S-Curve
			172	-173	No function
			174	-175	Zoom Link On	Zoom Link
			176	-177	Zoom Link Off
			178	-221	No function
22 39		Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	222 - 223 Reset Pan / Tilt			Reset
			224 - 233 No function
			234 - 235 Reset Head
			236 - 237 Reset All
			238 - 239 No function
			240 - 241 Load Factory Defaults			Load Default
			242 - 243		Load Factory Defaults (with-out User Scenes & Loops)
			244 - 245 Load User Default A
			246 - 247 Load User Default B
			248 - 249 Load User Default C
			250 - 255 No function

23CHRGBLEffect	23CHRGBLWash8Bit	27CHRGBLWash
Channel	Channel	Channel Function Values						Sub-group
1 1 1	Pan 000 - 255						0% to 100% Pan
2 2 2	Pan fine 000 - 255
3 3 3	Tilt 000 - 255						0% to 100%	Tilt
4 4 4	Tilt fine 000 - 255
5 5 5			Dimmer(Segment1 & 2)	000 - 255			0% to 100%	Dimmer
6 6 6			Dimmerfine(Segment1 & 2)	000 - 255
7 7 7			StrobeFunctions(Segment1 & 2)	000 - 005 Open				Multi-functionalStrobe
				006 - 010 Closed
				011 - 022			Ramp up/down slowto fast
				023 - 033			Ramp up/down randomslow to fast
				034 - 045 Ramp up slow to fast
				046 - 056			Ramp up random slowto fast
				057 - 068 Ramp down slow to fast
				069 - 079			Ramp down randomslow to fast
7 7 7			Strobe Functions (Segment 1 & 2)	080	-1	102	Random Strobe effect slow to fast	Multi-functional Strobe
				103	-1	127	Strobe Break effect 5s to 1s (Short burst with break)
				128	-2	50	Strobe slow to fast (<1Hz to 20Hz)
				251	-2	55 Open
8 8 8	Red 000 - 255						0% to 100%	Additive Colour Mixing
		9 Red	fine 000 -	255
9 9 10	Green 000 - 255						0% to 100%
		11	Green fine	000	-2	55
10 10	12 Blue 000 - 255						0% to 100%
		13 Blue	fine 000 - 255	-255
11 11	14 Lime 000 - 255						0% to 100%
		15	Lime fine	000	-2	55
	12 16		Colour Temperature (affects Colour Mixing)	000	-0	05 Off	CCT
				006	-0	06 Warm white
				007	-0	46 Warm white to 2700K
				047	-0	47 Bulb White (2700K)
				048	-0	87 27 00K to 3200K
				088	-0	88 Halogen White (3200K)
				089	-1	28 32 00K to 4000K
				129	-1	29 Neutral White (4000K)
				130	-1	69 40 00K to 5600K
				170	-1	70 Studio White (5600K)
				171	-2	10 56 00K to 6500K
				211	-2	11 Daylight White (6500K)
				212	-2	51 65 00K to Cold white
				252	-2	55 Cold white
	13 17		Tint (affects Colour Temperature)	000	-0	00 Off	Tint
				001	-1	27 Magenta -> Neutral
				128	-1	28 neutral
				129	-2	55 Neutral -> Green
	14 18		Colour Presets (override Colour Mixing & Colour Temperature)	000 - 005 No function			Colour
				006 - 009 46 Dark Magenta
				010 - 013 29 Plasa Red
				014 - 017 26 Bright Red
				018 - 021 127 Smokey Pink
				022 - 025 36 Medium Pink
				026 - 029 19 Fire
				030 - 033 135 Deep Golden Amber
				034 - 037 778 Millennium Gold
				038 - 041 21 Gold Amber
				042 - 045 157 Pink
				046 - 049 110 Middle Rose
				050 - 053 109 Light Salmon
				054 - 057 35 Light Pink
				058 - 061 134 Golden Amber
				062 - 065 17 Surprise Peach
				066 - 069 746 Brown
				070 - 073 105 Orange
				074 - 077 20 Medium Amber
				078 - 081 768 Egg Yolk Yellow
				082 - 085 15 Deep Straw
				086 - 089 767 Nectarine
				090 - 093 101 Yellow
				094 - 097 100 Spring Yellow
				098 - 101 88 Lime Green
				102 - 105 121 LEE Green
				106 - 109 738 Jas Green
				110 - 113 89 Moss Green
				114 - 117 139 Primary Green
				118 - 121 124 Dark Green
				122 - 125 323 Jade
				126 - 129 354 Special Steel Blue
				130 - 133 116 Medium Blue-Green
				134 - 137 183 Moonlight Blue
				138 - 141 132 Medium Blue
				142 - 145 119 Dark Blue
				146 - 149 716 Mikkel Blue
				150 - 153 71 Tokyo Blue
				154 - 157 181 Congo Blue
				158 - 161 799 Special KH Lavender
	14 18		Colour Presets (override Colour Mixing & Colour Temperature)	162 - 165 707 Ultimate Violet				Colour
				166 - 169			343 Special Medium Lavender
				170 - 173 798 Chrysalis Pink
				174 - 177 701 Provence
				178 - 181 797 Deep Purple
				182 - 185 48 Rose Purple
				186 - 189 345 Fuchsia Pink
				190 - 193 795 Magical Magenta
				194 - 197 128 Bright Pink
				198 - 201 2 Rose Pink
				202 - 207 User Colour 1
				208 - 213 User Colour 2
				214 - 219 User Colour 3
				220 - 225 User Colour 4
				226 - 231 User Colour 5
				232 - 237 User Colour 6
				238 - 243 User Colour 7
				244 - 249 User Colour 8
				250 - 255 No function
	15 19		Colour Crossfade (affects HSI, CCT and Colour Presets)	000 - 005 0s (Off)
				006 - 105 0,1s - 10s (0,1s Steps)
				106 - 214 11s - 119s (1s Steps)
				215 - 244 2m - 4m50s (10s Steps)
				245 - 255 5m - 15m (1m Steps)
12 16 20			Ring Dimmer	000 - 255 0% to 100%
13 17 21 Ring Red	000 - 255	0% to 100%
14 18 22			Ring Green	000 - 255 0% to 100%
15 19 23 Ring Blue	000 - 255	0% to 100%
16 20 24			Ring Strobe	000 - 005 Open
				006 - 010 Closed
				011 - 022		Ramp up/down slow to fast
				023 - 033		Ramp up/down random slow to fast
				034 - 045 Ramp up slow to fast
				046 - 056		Ramp up random slow to fast
				057 - 068 Ramp down slow to fast
				069 - 079		Ramp down random slow to fast
				080 - 102		Random Strobe effect slow to fast
				103 - 127		Strobe Break effect 5s to 1s (Short burst with break)
				128 - 250		Strobe slow to fast (<1Hz to 20Hz)
				251 - 255 Open
17			Ring Pattern Selection	000 - 005 Off
				006 - 026 1
				027 - 047 2
				048 - 068 3
				069 - 089 4
				090 - 110 5
				111 - 131 6
				132 - 152 7
				153 - 173 8
				174 - 194 9
				195 - 215 10
				216 - 236 11
				237 - 255 12
18			Ring Pattern Speed	000 - 005 Ring Pattern Speed Stop
				006 - 063 Ring Pattern Speed slow to fast (Chase)
				064 - 127 Ring Pattern Speed fast to slow (Chase) (back- wards)
				128 - 127 Ring Pattern Speed slow to fast (Fade)
				192 - 255 Ring Pattern Speed fast to slow (Fade) (back- wards)
19			Pattern Selection (Effect Pattern 1)	000 - 005 Off
				006 - 009 1
				010 - 013 2
				014 - 017 3
				018 - 021 4
				022 - 025 5
				026 - 029 6
				030 - 033 7
				034 - 037 8
				038 - 041 9
				042 - 045 10
				046 - 229 11 to 49
				230 - 255 50
20			Pattern Position & Speed	000 - 005 Effect Pattern Speed Stop
				006 - 127 Effect Pattern Speed slow to fast
				128 - 255 Effect Pattern Speed fast to slow (backwards)
21 21 25			Zoom (Segment 1)	000 - 255 Narrow to Wide Zoom 1
22 22 26			Zoom (Segment 2)	000 - 255 Narrow to Wide Zoom 2

Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)
	000 - 005 No	function
	006 - 007	Blackout while P/Tmoving On	Blackout
	008 - 009	Blackout while P/Tmoving Off
	010 - 017 No	function
	018 - 019 Sleep	Sleep Mode On	Energy Saving
	020 - 021	Sleep Mode Off/Wake Up
	022 - 024 No	function
	025 - 025 Record User Scene 1		User Colours
	026 - 026 Record User Scene 2
	027 - 027 Record User Scene 3
	028 - 028 Record User Scene 4
	029 - 029 Record User Scene 5
	030 - 030 Record User Scene 6
	031 - 031 Record User Scene 7
	032 - 032 Record User Scene 8
	033 - 041 No	function
	042 - 043 Invert Pan On
	044 - 045 Invert Pan Off
	046 - 047 Invert Tilt On
	048 - 049 Invert Tilt Off		Move-ment
	050 - 051 Pan Angle 540°
	052 - 053 Pan Angle 630°
	054 - 057 No	Function	Pixel Mirroring
	058 - 059 Pixel Mirroring Off
	060 - 061	Pixel Mirroring Hori-zontal
	062 - 063 Pixel Mirroring Vertical
	064 - 065	Pixel Mirroring Horizon-tal + Vertical	Dimming
	066 - 073 No	function
	074 - 075 Dimmer Response LED
	076 - 077	Dimmer Response Halogen
	078 - 081 No	function
	082 - 083 DTW (Redshift) On
	084 - 085 DTW (Redshift) Off
	086 - 093 No	function
Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)
23 23 27

25CH Dual Rings
Channel	Function Values					Sub-group
1 Pan	000 - 255				0% to 100% Pan
2 Pan	fine 000 - 255
3 Tilt	000 - 255				0% to 100% Tilt
4 Tilt	fine 000 - 255
5	Dimmer (Segment 1)	000 -	255		0% to 100%	Dimmer
6	Dimmer fine (Segment 1)	000 -	255
7	Dimmer (Segment 2)	000 -	255		0% to 100%
8	Dimmer fine (Segment 2)	000 -	255
9	Strobe Functions (Segment 1)	000 -	005	Open		Multi-functional Strobe
		006 -	010	Closed
		011 -	022	Ramp up/down slow to fast
		023 -	033	Ramp up/down random slow to fast
		034 -	045	Ramp up slow to fast
		046 -	056	Ramp up random slow to fast
		057 -	068	Ramp down slow to fast
		069 -	079	Ramp down random slow to fast
		080 -	102	Random Strobe effect slow to fast
		103 -	127		Strobe Break effect 5s to 1s (Short burst with break)
		128 -	250	Strobe slow to fast (<1Hz to 20Hz)
		251 -	255	Open
10	Strobe Functions (Segment 2)	000 -	005	Open
		006 -	010	Closed
		011 -	022	Ramp up/down slow to fast
		023 -	033	Ramp up/down random slow to fast
		034 -	045	Ramp up slow to fast
		046 -	056		Ramp up random slow to fast
		057 -	068	Ramp down slow to fast
		069 -	079	Ramp down random slow to fast
		080 -	102	Random Strobe effect slow to fast
		103 -	127		Strobe Break effect 5s to 1s (Short burst with breakdown)
		128 -	250	Strobe slow to fast (<1Hz to 20Hz)
		251 -	255	Open

11 Red 000 - 255 0% to 100%					AdditiveColourMixing
12 Green 000 - 255 0% to 100%
13 Blue 000 - 255 0% to 100%
14 Lime 000 - 255 0% to 100%
15	Colour Temperature (affects Colour Mixing)	000 - 005 Off			CCT
		006 - 006 Warm white
		007 - 046 Warm white to 2700K
		047 - 047 Bulb White (2700K)
		048 - 087 2700K to 3200K
		088 - 088 Halogen White (3200K)
		089 - 128 3200K to 4000K
		129 - 129 Neutral White (4000K)
		130 - 169 4000K to 5600K
		170 - 170 Studio White (5600K)
		171 - 210 5600K to 6500K
		211 - 211 Daylight White (6500K)
		212 - 251 6500K to Cold white
		252 - 255 Cold white
16	Tint (affects Colour Temperature)	000 - 000 Off			Tint
		001 - 127 Magenta -> Neutral
		128 - 128 neutral
		129 - 255 Neutral -> Green
17 Ring Dimmer 000 - 255		0% to 100%
18 Ring Red 000 - 255 0% to 100%
19 Ring Green 000 - 255 0% to 100%
20	Ring Blue	000 - 255 0% to 100%
21 Ring Strobe		000 - 005 Open
		006 - 010 Closed
		011 - 022 Ramp up/down slow to fast
		023 - 033 Ramp up/down random slow to fast
		034 - 045 Ramp up slow to fast
		046 - 056 Ramp up random slow to fast
		057 - 068 Ramp down slow to fast
		069 - 079 Ramp down random slow to fast
		080 - 102 Random Strobe effect slow to fast
		103 - 127		Strobe Break effect 5s to 1s (Short burst with break)
		128 - 250 Strobe slow to fast (<1Hz to 20Hz)
		251 - 255 Open
22	Zoom (Segment 1)	000 - 255 Narrow to Wide			Zoom 1
23	Zoom (Segment 2)	000 - 255 Narrow to Wide			Zoom 2
24	LED Control Cross-fade	000	-005	Pixel controlled by channels 11 to 14 and 18 to 20
		006	-249	Linear Crossfade to second input
		250	-255	Pixel controlled by second protocol
25	Device settings (all settings are executed after holding value for 3 seconds) (please read remark 1*)	000	-005	No function
		006	-007	Blackout while P/T moving On	Blackout
		008	-009	Blackout while P/T moving Off
		010	-017	No function
		018	-019	Sleep Mode On	Energy Saving
		020	-021	Sleep Mode Off/Wake Up
		022	-024	No function
		025	-025	Record User Scene 1	User Colours
		026	-026	Record User Scene 2
		027	-027	Record User Scene 3
		028	-028	Record User Scene 4
		029	-029	Record User Scene 5
		030	-030	Record User Scene 6
		031	-031	Record User Scene 7
		032	-032	Record User Scene 8
		033	-041	No function
		042	-043	Invert Pan On	Move-ment
		044	-045	Invert Pan Off
		046	-047	Invert Tilt On
		048	-049	Invert Tilt Off
		050	-051	Pan Angle 540°
		052	-053	Pan Angle 630°
		054	-057	No Function
		058	-059	Pixel Mirroring Off	Pixel Mirroring
		060	-061	Pixel Mirroring Horizontal
		062	-063	Pixel Mirroring Vertical
		064	-065	Pixel Mirroring Horizontal + Vertical
		066	-073	No function
		074	-075	Dimmer Response LED	Dimming
		076	-077	Dimmer Response Halogen
		078	-081	No function
		082	-083	DTW (Redshift) On
		084	-085	DTW (Redshift) Off
		086	-093	No function
		094	-095	Silent movement On	Noise Functions
25	Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	096 - 097 Silent movement Off	Noise Functions
		098 - 099 Fan Auto
		100 - 101 Fan Silent
		102 - 103 Fan Constant Low
		104 - 105 Fan Constant Medium
		106 - 107 Fan Constant High
		108 - 119 No function
		120 - 121 PWM 1 (650 Hz)	PWM Frequency
		122 - 123 PWM 2 (1530 Hz)
		124 - 125 PWM 3 (3600 Hz)
		126 - 127 PWM 4 (12000 Hz)
		128 - 129 PWM 5 (18900 Hz)
		130 - 131 PWM 6 (25000 Hz)
		132 - 135 No function	Colour Calibration
		136 - 137 User Calibration
		138 - 139 Smart Calibration
		140 - 141 Display Always On	Display Functions
		142 - 143 Display Off after 20s
		144 - 163 No function
		164 - 165 Dimmer Curve Linear	Dimmer Curve
		166 - 167 Dimmer Curve Exponential
		168 - 169 Dimmer Curve Logarithmic
		170 - 171 Dimmer Curve S-Curve
		172 - 173 No function
		174 - 175 Zoom Link On	Zoom Link
		176 - 177 Zoom Link Off
		178 - 221 No function
		222 - 223 Reset Pan / Tilt	Reset
		224 - 233 No function
		234 - 235 Reset Head
		236 - 237 Reset All
		238 - 239 No function
		240 - 241 Load Factory Defaults	Load Default
		242 - 243 Load Factory Defaults(without User Scenes & Loops)
		244 - 245 Load User Default A
		246 - 247 Load User Default B
		248 - 249 Load User Default C
		250 - 255 No function

26 Red	1 000 - 255 0% to 100%				Colour Mixing Pixel 1
27 Green	1 000 - 255 0% to 100%
28 Blue	1 000 - 255 0% to 100%
29 Lime	1 000 - 255 0% to 100%
30 Red	2 000 - 255 0% to 100%				Colour Mixing Pixel 2
31 Green	2 000 - 255 0% to 100%
32 Blue	2 000 - 255 0% to 100%
33 Lime	2 000 - 255 0% to 100%
34 Red	3 000 - 255 0% to 100%				Colour Mixing Pixel 3
35 Green	3 000 - 255 0% to 100%
36 Blue	3 000 - 255 0% to 100%
37 Lime	3 000 - 255 0% to 100%
38 Red	4 000 - 255 0% to 100%				Colour Mixing Pixel 4
39 Green	4 000 - 255 0% to 100%
40 Blue	4 000 - 255 0% to 100%
41 Lime	4 000 - 255 0% to 100%
42 Red	5 000 - 255 0% to 100%				Colour Mixing Pixel 5
43 Green	5 000 - 255 0% to 100%
44 Blue	5 000 - 255 0% to 100%
45 Lime	5 000 - 255 0% to 100%
46 Red	6 000 - 255 0% to 100%				Colour Mixing Pixel 6
47 Green	6 000 - 255 0% to 100%
48 Blue	6 000 - 255 0% to 100%
49 Lime	6 000 - 255 0% to 100%
50 Red	7 000 - 255 0% to 100%				Colour Mixing Pixel 7
51 Green	7 000 - 255 0% to 100%
52 Blue	7 000 - 255 0% to 100%
53 Lime	7 000 - 255 0% to 100%
54 Red	8 000 - 255 0% to 100%				Colour Mixing Pixel 8
55 Green	8 000 - 255 0% to 100%
56 Blue	8 000 - 255 0% to 100%
57 Lime	8 000 - 255 0% to 100%
58 Red	9 000 - 255 0% to 100%				Colour Mixing Pixel 9
59 Green	9 000 - 255 0% to 100%
60 Blue	9 000 - 255 0% to 100%
61 Lime	9 000 - 255 0% to 100%
62 Red	10 000 - 255 0% to 100%				Colour Mixing Pixel 10
63 Green	10 000 - 255 0% to 100%
64	Blue 10	000 - 255 0% to 100%
65	Lime 10	000 - 255 0% to 100%

66 Red	11 000 - 255 0% to 1	100%				Colour Mixing Pixel 11
67 Green	11 000 - 255 0% to	100%
68 Blue	11 000 - 255 0% to 1	100%
69 Lime	11 000 - 255 0% to 1	100%
70 Red	12 000 - 255 0% to 1	100%				Colour Mixing Pixel 12
71 Green	12 000 - 255 0% to	100%
72 Blue	12 000 - 255 0% to 1	100%
73 Lime	12 000 - 255 0% to 1	100%
74 Red	13 000 - 255 0% to 1	100%				Colour Mixing Pixel 13
75 Green	13 000 - 255 0% to	100%
76 Blue	13 000 - 255 0% to 1	100%
77 Lime	13 000 - 255 0% to 1	100%
78 Red	14 000 - 255 0% to 1	100%				Colour Mixing Pixel 14
79 Green	14 000 - 255 0% to	100%
80 Blue	14 000 - 255 0% to 1	100%
81 Lime	14 000 - 255 0% to 1	100%
82 Red	15 000 - 255 0% to 1	100%				Colour Mixing Pixel 15
83 Green	15 000 - 255 0% to	100%
84 Blue	15 000 - 255 0% to 1	100%
85 Lime	15 000 - 255 0% to 1	100%
86 Red	16 000 - 255 0% to 1	100%				Colour Mixing Pixel 16
87 Green	16 000 - 255 0% to	100%
88 Blue	16 000 - 255 0% to 1	100%
89 Lime	16 000 - 255 0% to 1	100%
90 Ring	Red 1 000 - 255 0% to 1	100%				Ring Pixel 1
91 Ring	Green 1 000 - 255 0% to 1	100%
92	Ring Blue 1	000 - 255 0% to 100%
93 Ring	Red 2 000 - 255 0% to 1	100%				Ring Pixel 2
94 Ring	Green 2 000 - 255 0% to 1	100%
95	Ring Blue 2	000 - 255 0% to 100%
96 Ring	Red 3 000 - 255 0% to 1	100%				Ring Pixel 3
97 Ring	Green 3 000 - 255 0% to 1	100%
98	Ring Blue 3	000 - 255 0% to 100%
99 Ring	Red 4 000 - 255 0% to 1	100%				Ring Pixel 4
100 Ring	Green 4 000 - 255 0% to 1	100%
101	Ring Blue 4	000 - 255 0% to 100%
102	Ring Red 5 000 - 255 0% to 1	100%				Ring Pixel 5
103 Ring	Green 5 000 - 255 0% to 1	100%
104	Ring Blue 5	000 - 255 0% to 100%

105 Ring Red 6 000 - 255 0% to 100%		Ring Pixel6
106 Ring Green 6 000 - 255 0% to 100%
107 Ring Blue 6 000 - 255 0% to 100%
108 Ring Red 7 000 - 255 0% to 100%		Ring Pixel7
109 Ring Green 7 000 - 255 0% to 100%
110 Ring Blue 7 000 - 255 0% to 100%
111 Ring Red 8 000 - 255 0% to 100%		Ring Pixel8
112 Ring Green 8 000 - 255 0% to 100%
113 Ring Blue 8 000 - 255 0% to 100%
114 Ring Red 9 000 - 255 0% to 100%		Ring Pixel9
115 Ring Green 9 000 - 255 0% to 100%
116 Ring Blue 9 000 - 255 0% to 100%
117 Ring Red 10 000 - 255 0% to 100%		Ring Pixel10
118 Ring Green 10 000 - 255 0% to 100%
119 Ring Blue 10 000 - 255 0% to 100%
120 Ring Red 11 000 - 255 0% to 100%		Ring Pixel11
121 Ring Green 11 000 - 255 0% to 100%
122 Ring Blue 11 000 - 255 0% to 100%
123 Ring Red 12 000 - 255 0% to 100%		Ring Pixel12
124 Ring Green 12 000 - 255 0% to 100%
125 Ring Blue 12 000 - 255 0% to 100%
126 Ring Red 13 000 - 255 0% to 100%		Ring Pixel13
127 Ring Green 13 000 - 255 0% to 100%
128 Ring Blue 13 000 - 255 0% to 100%
129 Ring Red 14 000 - 255 0% to 100%		Ring Pixel14
130 Ring Green 14 000 - 255 0% to 100%
131 Ring Blue 14 000 - 255 0% to 100%
132 Ring Red 15 000 - 255 0% to 100%		Ring Pixel15
133 Ring Green 15 000 - 255 0% to 100%
134 Ring Blue 15 000 - 255 0% to 100%
135 Ring Red 16 000 - 255 0% to 100%		Ring Pixel16
136 Ring Green 16 000 - 255 0% to 100%
137 Ring Blue 16 000 - 255 0% to 100%
138 Ring Red 17 000 - 255 0% to 100%		Ring Pixel17
139 Ring Green 17 000 - 255 0% to 100%
140 Ring Blue 17 000 - 255 0% to 100%
141 Ring Red 18 000 - 255 0% to 100%		Ring Pixel18
142 Ring Green 18 000 - 255 0% to 100%
143 Ring Blue 18 000 - 255 0% to 100%
144 Ring Red 19 000 - 255 0% to 100%		Ring Pixel 19
145 Ring Green 19 000 - 255 0% to 100%
146 Ring Blue 19 000 - 255 0% to 100%
147 Ring Red 20 000 - 255 0% to 100%		Ring Pixel 20
148 Ring Green 20 000 - 255 0% to 100%
149 Ring Blue 20 000 - 255 0% to 100%
150 Ring Red 21 000 - 255 0% to 100%		Ring Pixel 21
151 Ring Green 21 000 - 255 0% to 100%
152 Ring Blue 21 000 - 255 0% to 100%
153 Ring Red 22 000 - 255 0% to 100%		Ring Pixel 22
154 Ring Green 22 000 - 255 0% to 100%
155 Ring Blue 22 000 - 255 0% to 100%
156 Ring Red 23 000 - 255 0% to 100%		Ring Pixel 23
157 Ring Green 23 000 - 255 0% to 100%
158 Ring Blue 23 000 - 255 0% to 100%
159 Ring Red 24 000 - 255 0% to 100%		Ring Pixel 24
160 Ring Green 24 000 - 255 0% to 100%
161 Ring Blue 24 000 - 255 0% to 100%
162 Ring Red 25 000 - 255 0% to 100%		Ring Pixel 25
163 Ring Green 25 000 - 255 0% to 100%
164 Ring Blue 25 000 - 255 0% to 100%
165 Ring Red 26 000 - 255 0% to 100%		Ring Pixel 26
166 Ring Green 26 000 - 255 0% to 100%
167 Ring Blue 26 000 - 255 0% to 100%
168 Ring Red 27 000 - 255 0% to 100%		Ring Pixel 27
169 Ring Green 27 000 - 255 0% to 100%
170 Ring Blue 27 000 - 255 0% to 100%
171 Ring Red 28 000 - 255 0% to 100%		Ring Pixel 28
172 Ring Green 28 000 - 255 0% to 100%
173 Ring Blue 28 000 - 255 0% to 100%
174 Ring Red 29 000 - 255 0% to 100%		Ring Pixel 29
175 Ring Green 29 000 - 255 0% to 100%
176 Ring Blue 29 000 - 255 0% to 100%
177 Ring Red 30 000 - 255 0% to 100%		Ring Pixel 30
178 Ring Green 30 000 - 255 0% to 100%
179 Ring Blue 30 000 - 255 0% to 100%
180 Ring Red 31 000 - 255 0% to 100%		Ring Pixel 31
181 Ring Green 31 000 - 255 0% to 100%
182 Ring Blue 31 000 - 255 0% to 100%
183 Ring Red 32 000 - 255 0% to 100%		Ring Pixel 32
184 Ring Green 32 000 - 255 0% to 100%
185 Ring Blue 32 000 - 255 0% to 100%
186 Ring Red 33 000 - 255 0% to 100%		Ring Pixel 33
187 Ring Green 33 000 - 255 0% to 100%
188 Ring Blue 33 000 - 255 0% to 100%
189 Ring Red 34 000 - 255 0% to 100%		Ring Pixel 34
190 Ring Green 34 000 - 255 0% to 100%
191 Ring Blue 34 000 - 255 0% to 100%
192 Ring Red 35 000 - 255 0% to 100%		Ring Pixel 35
193 Ring Green 35 000 - 255 0% to 100%
194 Ring Blue 35 000 - 255 0% to 100%
195 Ring Red 36 000 - 255 0% to 100%		Ring Pixel 36
196 Ring Green 36 000 - 255 0% to 100%
197 Ring Blue 36 000 - 255 0% to 100%
198 Ring Red 37 000 - 255 0% to 100%		Ring Pixel 37
199 Ring Green 37 000 - 255 0% to 100%
200 Ring Blue 37 000 - 255 0% to 100%
201 Ring Red 38 000 - 255 0% to 100%		Ring Pixel 38
202 Ring Green 38 000 - 255 0% to 100%
203 Ring Blue 38 000 - 255 0% to 100%
204 Ring Red 39 000 - 255 0% to 100%		Ring Pixel 39
205 Ring Green 39 000 - 255 0% to 100%
206 Ring Blue 39 000 - 255 0% to 100%
207 Ring Red 40 000 - 255 0% to 100%		Ring Pixel 40
208 Ring Green 40 000 - 255 0% to 100%
209 Ring Blue 40 000 - 255 0% to 100%
210 Ring Red 41 000 - 255 0% to 100%		Ring Pixel 41
211 Ring Green 41 000 - 255 0% to 100%
212 Ring Blue 41 000 - 255 0% to 100%
213 Ring Red 42 000 - 255 0% to 100%		Ring Pixel 42
214 Ring Green 42 000 - 255 0% to 100%
215 Ring Blue 42 000 - 255 0% to 100%
216 Ring Red 43 000 - 255 0% to 100%		Ring Pixel 43
217 Ring Green 43 000 - 255 0% to 100%
218 Ring Blue 43 000 - 255 0% to 100%
219 Ring Red 44 000 - 255 0% to 100%		Ring Pixel 44
220 Ring Green 44 000 - 255 0% to 100%
221 Ring Blue 44 000 - 255 0% to 100%
222 Ring Red 45 000 - 255 0% to 100%		Ring Pixel 45
223 Ring Green 45 000 - 255 0% to 100%
224 Ring Blue 45 000 - 255 0% to 100%
225 Ring Red 46 000 - 255 0% to 100%		Ring Pixel 46
226 Ring Green 46 000 - 255 0% to 100%
227 Ring Blue 46 000 - 255 0% to 100%
228 Ring Red 47 000 - 255 0% to 100%		Ring Pixel 47
229 Ring Green 47 000 - 255 0% to 100%
230 Ring Blue 47 000 - 255 0% to 100%
231 Ring Red 48 000 - 255 0% to 100%		Ring Pixel 48
232 Ring Green 48 000 - 255 0% to 100%
233 Ring Blue 48 000 - 255 0% to 100%
234 Ring Red 49 000 - 255 0% to 100%		Ring Pixel 49
235 Ring Green 49 000 - 255 0% to 100%
236 Ring Blue 49 000 - 255 0% to 100%
237 Ring Red 50 000 - 255 0% to 100%		Ring Pixel 50
238 Ring Green 50 000 - 255 0% to 100%
239 Ring Blue 50 000 - 255 0% to 100%
240 Ring Red 51 000 - 255 0% to 100%		Ring Pixel 51
241 Ring Green 51 000 - 255 0% to 100%
242 Ring Blue 51 000 - 255 0% to 100%
243 Ring Red 52 000 - 255 0% to 100%		Ring Pixel 52
244 Ring Green 52 000 - 255 0% to 100%
245 Ring Blue 52 000 - 255 0% to 100%
246 Ring Red 53 000 - 255 0% to 100%		Ring Pixel 53
247 Ring Green 53 000 - 255 0% to 100%
248 Ring Blue 53 000 - 255 0% to 100%
249 Ring Red 54 000 - 255 0% to 100%		Ring Pixel 54
250 Ring Green 54 000 - 255 0% to 100%
251 Ring Blue 54 000 - 255 0% to 100%
252 Ring Red 55 000 - 255 0% to 100%		Ring Pixel 55
253 Ring Green 55 000 - 255 0% to 100%
254 Ring Blue 55 000 - 255 0% to 100%
255 Ring Red 56 000 - 255 0% to 100%		Ring Pixel 56
256 Ring Green 56 000 - 255 0% to 100%
257 Ring Blue 56 000 - 255 0% to 100%
258 Ring Red 57 000 - 255 0% to 100%		Ring Pixel 57
259 Ring Green 57 000 - 255 0% to 100%
260 Ring Blue 57 000 - 255 0% to 100%
261 Ring Red 58 000 - 255 0% to 100%		Ring Pixel58
262 Ring Green 58 000 - 255 0% to 100%
263 Ring Blue 58 000 - 255 0% to 100%
264 Ring Red 59 000 - 255 0% to 100%		Ring Pixel59
265 Ring Green 59 000 - 255 0% to 100%
266 Ring Blue 59 000 - 255 0% to 100%
267 Ring Red 60 000 - 255 0% to 100%		Ring Pixel60
268 Ring Green 60 000 - 255 0% to 100%
269 Ring Blue 60 000 - 255 0% to 100%
270 Ring Red 61 000 - 255 0% to 100%		Ring Pixel61
271 Ring Green 61 000 - 255 0% to 100%
272 Ring Blue 61 000 - 255 0% to 100%
273 Ring Red 62 000 - 255 0% to 100%		Ring Pixel62
274 Ring Green 62 000 - 255 0% to 100%
275 Ring Blue 62 000 - 255 0% to 100%
276 Ring Red 63 000 - 255 0% to 100%		Ring Pixel63
277 Ring Green 63 000 - 255 0% to 100%
278 Ring Blue 63 000 - 255 0% to 100%
279 Ring Red 64 000 - 255 0% to 100%		Ring Pixel64
280 Ring Green 64 000 - 255 0% to 100%
281 Ring Blue 64 000 - 255 0% to 100%
282 Ring Red 65 000 - 255 0% to 100%		Ring Pixel65
283 Ring Green 65 000 - 255 0% to 100%
284 Ring Blue 65 000 - 255 0% to 100%
285 Ring Red 66 000 - 255 0% to 100%		Ring Pixel66
286 Ring Green 66 000 - 255 0% to 100%
287 Ring Blue 66 000 - 255 0% to 100%
288 Ring Red 67 000 - 255 0% to 100%		Ring Pixel67
289 Ring Green 67 000 - 255 0% to 100%
290 Ring Blue 67 000 - 255 0% to 100%
291 Ring Red 68 000 - 255 0% to 100%		Ring Pixel68
292 Ring Green 68 000 - 255 0% to 100%
293 Ring Blue 68 000 - 255 0% to 100%

49CHRGBLPattern	290CHRGBLPixelFull
Channel	Channel Function Values						Sub-group
1 1 Pan	000 - 255					0% to 100%	Pan
2 2	Pan fine	000 - 255
3 3 Tilt 000 - 255						0% to 100% Tilt
4 4 Tilt fine 000 -		255
5 5 Dimmer 000 -		255				0% to 100% Dimmer
6 6 Dimmer fine 000 - 255
7	7	Strobe Functions	000	-005 Open			Multi-functional Strobe
			006	-010 Closed
			011	-022 Ramp up/down slow to fast
			023	-033		Ramp up/down random slow to fast
			034	-045 Ramp up slow to fast
			046	-056 Ramp up random slow to fast
			057	-068 Ramp down slow to fast
			069	-079		Ramp down random slow to fast
			080	-102		Random Strobe effect slow to fast
			103	-127		Strobe Break effect 5s to 1s (Short burst with break)
			128	-250		Strobe slow to fast (<1Hz to 20Hz)
			251	-255 Open
8 8 Red 000 - 255						0% to 100%	Additive Colour Mixing
9 9	Red fine 000 - 255
10	10	Green	000	-255		0% to 100%
11	11 Green fine 000 -		255
12	12	Blue	000	-255		0% to 100%
13	13	Blue fine	000	-255
14	14	Lime	000	-255		0% to 100%
15	15	Lime fine	000	-255
16	16	Colour Temperature (affects Col-our Mixing)	000	-005 Off			CCT
			006	-006 Warm white
			007	-046 Warm white to 2700K
			047	-047 Bulb White (2700K)
			048	-087 2700K to 3200K
			088	-088 Halogen White (3200K)
			089	-128 3200K to 4000K
			129	-129 Neutral White (4000K)
			130	-169 4000K to 5600K
			170	-170 Studio White (5600K)
			171	-210 5600K to 6500K
			211	-211 Daylight White (6500K)

16 16		Colour Temperature (affects Colour Mixing)	212	-251 65	00K to Cold white	CCT
			252	-255 Co	d white
17 17		Tint (affects Colour Temperature)	000	-000 Off		Tint
			001	-127 Magenta -> Neutral
			128	-128 neutral
			129	-255 Neutral -> Green
18		Colour Presets (override Colour Mixing & Colour Temperature)	000	-005 No	function	Colour Presets
			006	-009 46	Dark Magenta
			010	-013 29	Plasa Red
			014	-017 26	Bright Red
			018	-021 12	Smokey Pink
			022	-025 36	Medium Pink
			026	-029 19	Fire
			030	-033 13	Deep Golden Amber
			034	-037 77	Millennium Gold
			038	-041 21	Gold Amber
			042	-045 15	Pink
			046	-049 11	Middle Rose
			050	-053 10	Light Salmon
			054	-057 35	Light Pink
			058	-061 13	Golden Amber
			062	-065 17	Surprise Peach
			066	-069 74	Brown
			070	-073 10	Orange
			074	-077 20	Medium Amber
			078	-081 76	Egg Yolk Yellow
			082	-085 15	Deep Straw
			086	-089 76	Nectarine
			090	-093 10	Yellow
			094	-097 10	Spring Yellow
			098	-101 88	Lime Green
			102	-105 12	LEE Green
			106	-109 73	Jas Green
			110	-113 89	Moss Green
			114	-117 13	Primary Green
			118	-121 12	Dark Green
			122	-125 32	Jade
			126	-129 35	Special Steel Blue
			130	-133 11	Medium Blue-Green
18		Colour Pres-sets (override Colour Mixing & Colour Temperature)	134 - 137 183 Moonlight Blue			Colour Presets
			138 - 141 132 Medium Blue
			142 - 145 119 Dark Blue
			146 - 149 716 Mikkel Blue
			150 - 153 71 Tokyo Blue
			154 - 157 181 Congo Blue
			158 - 161 799 Special KH Lavender
			162 - 165 707 Ultimate Violet
			166 - 169 343 Special Medium Lavender
			170 - 173 798 Chrysalis Pink
			174 - 177 701 Provence
			178 - 181 797 Deep Purple
			182 - 185 48 Rose Purple
			186 - 189 345 Fuchsia Pink
			190 - 193 795 Magical Magenta
			194 - 197 128 Bright Pink
			198 - 201 2 Rose Pink
			202 - 207 User Colour 1
			208 - 213 User Colour 2
			214 - 219 User Colour 3
			220 - 225 User Colour 4
			226 - 231 User Colour 5
			232 - 237 User Colour 6
			238 - 243 User Colour 7
			244 - 249 User Colour 8
			250 - 255 No function
19		Colour Cross-fade (affects HSI, CCT and Colour Presets)	000 - 005 0s (Off)
			006 - 105 0,1s - 10s (0,1s Steps)
			106 - 214 11s - 119s (1s Steps)
			215 - 244 2m - 4m50s (10s Steps)
			245 - 255 5m - 15m (1m Steps)
20 18	Ring Dimmer	000 - 255 0% to 100%				Ring
21	Ring Red 000 -	255 0% to 100%
22	Ring Green 000 -	255 0% to 100%
23	Ring Blue 000 -	255 0% to 100%
24 19	Ring Strobe		000 - 005 Open
			006 - 010 Closed
			011 - 022 Ramp up/down slow to fast
			023 - 033 Ramp up/down random slow to fast
			034 - 045 Ramp up slow to fast
24 19 Ring Strobe			046 - 056 Ramp up random slow to fast			Ring
			057 - 068 Ramp down slow to fast
			069 - 079 Ramp down random slow to fast
			080 - 102 Random Strobe effect slow to fast
			103 - 127 Strobe Break effect 5s to 1s (Short burst with break)
			128 - 250 Strobe slow to fast (<1Hz to 20Hz)
			251 - 255 Open
25		Ring Pattern Selection	000 - 005 Off
			006 - 026 1
			027 - 047 2
			048 - 068 3
			069 - 089 4
			090 - 110 5
			111 - 131 6
			132 - 152 7
			153 - 173 8
			174 - 194 9
			195 - 215 10
			216 - 236 11
			237 - 255 12
26		Ring Pattern Speed	000 - 005 Ring Pattern Speed Stop
			006 - 063 Ring Pattern Speed slow to fast (Chase)
			064 - 127 Ring Pattern Speed fast to slow (Chase) (backwards)
			128 - 127 Ring Pattern Speed slow to fast (Fade)
			192 - 255 Ring Pattern Speed fast to slow (Fade) (backwards)
27		Pattern Folder	000 - 005 Off			Pattern
			006 - 064 Static Pattern 1
			065 - 128 Static Pattern 2
			129 - 192 Effect Pattern 1
			193 - 255 Effect Pattern 2

28		Pattern Selection	000 - 005 Off		Pattern
			006 - 009 1
			010 - 013 2
			014 - 017 3
			018 - 021 4
			022 - 025 5
			026 - 029 6
			030 - 033 7
			034 - 037 8
			038 - 041 9
			042 - 045 10
			046 - 229 11	to 49
			230 - 255 50
29		Pattern Position & Speed	000 - 005 Effect Pattern Speed Stop
			006 - 127	Effect Pattern Speed slow to fast
			128 - 255	Effect Pattern Speed fast to slow (backwards)
30		Pattern Transition	000 - 005 0s	(Off)
			006 - 255 0,1s to 5s
31		Pattern Fade/Wake Effect	000 - 005 off
			006 - 127 Fade 0% to 100%
			128 - 255 Wake 0% to 100%
32		Background Dimmer	000 - 255	0% to 100%	Back-ground Dimmer
33		Background Dimmer fine	000 - 255
34		Background Strobe	000 - 005 Open		Back-ground Strobe
			006 - 010 Closed
			011 - 022 Ramp up/down slow to fast
			023 - 033	Ramp up/down random slow to fast
			034 - 045 Ramp up slow to fast
			046 - 056 Ramp up random slow to fast
			057 - 068 Ramp down slow to fast
			069 - 079	Ramp down random slow to fast
			080 - 102	Random Strobe effect slow to fast
			103 - 127	Strobe Break effect 5s to 1s (Short burst with break)

34		Background Strobe	128	-2	50	Strobe slow to fast (<1Hz to 20Hz)	Back-ground Strobe
			251	-2	55 Open
35		Background Red	000	-2	55	0% to 100%	Back-ground Additive Colour Mixing
36		Background Red fine	000	-2	55
37		Background Green	000	-2	55	0% to 100%	Back-ground Additive Colour Mixing
38		Background Green fine	000	-2	55
39		Background Blue	000	-2	55	0% to 100%
40		Background Blue fine	000	-2	55
41		Background Lime	000	-2	55	0% to 100%
42		Background Lime fine	000	-2	55
43		Background Colour Temperature (affects Background Colour Mixing)	000	-005	Off	000 Off	Back-ground CCT
			006	-006	Warm white
			007	-046	Warm white to 2700K
			047	-047	Bulb White (2700K)
			048	-087	2700K to 3200K
			088	-088	Halogen White (3200K)
			089	-128	3200K to 4000K
			129	-129	Neutral White (4000K)
			130	-169	4000K to 5600K
			170	-170	Studio White (5600K)
			171	-210	5600K to 6500K
			211	-211	Daylight White (6500K)
			212	-251	6500K to Cold white
			252	-255	Cold white
44		Background Tint (affects Background Colour Temperature)	000	-000	Off
			001	-127	Magenta -> Neutral
			128	-128	neutral
			129	-255	Neutral -> Green

45		Background Colour Presets(override Background Colour Mixing & Colour Temperature)	000 - 005 No function			Back-ground Colour Presets
			006 - 009 46 Dark Magenta
			010 - 013 29 Plasa Red
			014 - 017 26 Bright Red
			018 - 021 127 Smokey Pink
			022 - 025 36 Medium Pink
			026 - 029 19 Fire
			030 - 033 135 Deep Golden Amber
			034 - 037 778 Millennium Gold
			038 - 041 21 Gold Amber
			042 - 045 157 Pink
			046 - 049 110 Middle Rose
			050 - 053 109 Light Salmon
			054 - 057 35 Light Pink
			058 - 061 134 Golden Amber
			062 - 065 17 Surprise Peach
			066 - 069 746 Brown
			070 - 073 105 Orange
			074 - 077 20 Medium Amber
			078 - 081 768 Egg Yolk Yellow
			082 - 085 15 Deep Straw
			086 - 089 767 Nectarine
			090 - 093 101 Yellow
			094 - 097 100 Spring Yellow
			098 - 101 88 Lime Green
			102 - 105 121 LEE Green
			106 - 109 738 Jas Green
			110 - 113 89 Moss Green
			114 - 117 139 Primary Green
			118 - 121 124 Dark Green
			122 - 125 323 Jade
			126 - 129 354 Special Steel Blue
			130 - 133 116 Medium Blue-Green
			134 - 137 183 Moonlight Blue
			138 - 141 132 Medium Blue
			142 - 145 119 Dark Blue
			146 - 149 716 Mikkel Blue
			150 - 153 71 Tokyo Blue
			154 - 157 181 Congo Blue
			158 - 161 799 Special KH Lavender
			162 - 165 707 Ultimate Violet
45		Background Colour Presets(override Background Colour Mixing & Colour Temperature)	166	-169343	Special Medium Lavender	Back-ground Colour Presets
			170	-173798	Chrysalis Pink
			174	-177701	Provence
			178	-181797	Deep Purple
			182	-18548	Rose Purple
			186	-189345	Fuchsia Pink
			190	-193795	Magical Magenta
			194	-197128	Bright Pink
			198	-2012	Rose Pink
			202	-207	User Colour 1
			208	-213	User Colour 2
			214	-219	User Colour 3
			220	-225	User Colour 4
			226	-231	User Colour 5
			232	-237	User Colour 6
			238	-243	User Colour 7
			244	-249	User Colour 8
			250	-255	No function
46		Background Colour Cross-fade (affects Background HSI, CCT and Colour Presets)	000	-0050s	(Off)
			006	-1050,1s	-10s (0,1s Steps)
			106	-21411s	-119s (1s Steps)
			215	-2442m	-4m50s (10s Steps)
			245	-2555m	-15m (1m Steps)
47 20		Zoom (Segment 1)	000	-255	Narrow to Wide	Zoom
48 21		Zoom (Segment 2)	000	-255	Narrow to Wide

49 22

Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)

000 - 005 No function

006 - 007 Blackout while P/T moving On

008 - 009 Blackout while P/T moving Off

010 - 017 No function

018 - 019 Sleep Mode On

020 - 021 Sleep Mode Off/Wake Up

022 - 024 No function

025 - 025 Record User Scene 1

026 - 026 Record User Scene 2

027 - 027 Record User Scene 3

028 - 028 Record User Scene 4

029 - 029 Record User Scene 5

030 - 030 Record User Scene 6

031 - 031 Record User Scene 7

032 - 032 Record User Scene 8

033 - 041 No function

042 - 043 Invert Pan On

044 - 045 Invert Pan Off

046 - 047 Invert Tilt On

048 - 049 Invert Tilt Off

050 - 051 Pan Angle 540°

052 - 053 Pan Angle 630°

054 - 057 No Function

058 - 059 Pixel Mirroring Off

060 - 061 Pixel Mirroring Horizontal

062 - 063 Pixel Mirroring Vertical

064 - 065

Pixel Mirroring Horizontal +Vertical

066 - 073 No function

074 - 075 Dimmer Response LED

076 - 077 Dimmer Response Halogen

078 - 081 No function

082 - 083 DTW (Redshift) On

084 - 085 DTW (Redshift) Off

086 - 093 No function

094 - 095 Silent movement On

096 - 097 Silent movement Off

098 - 099 Fan Auto

100 - 101 Fan Silent

102 - 103 Fan Constant Low

104 - 105 Fan Constant Medium

49 22

Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)

23 Red

1000 - 255% to 100%

Green 1000 - 255% to 100%

Colour

Blue 1000 - 255% to 100%

Mixing

Lime 1000 - 255% to 100%

Pixel 1

Red 2000 - 255% to 100%

Colour

Green 2000 - 255% to 100%

Mixing

Blue 2000 - 255% to 100%

Pixel 2

Lime 2000 - 255% to 100%

Colour

	31 Red	3 000 - 255 0% to 100%			Colour
	32 Green	3 000 - 255 0% to 100%			Mixing
	33 Blue	3 000 - 255 0% to 100%			Pixel 3
	34 Lime	3 000 - 255 0% to 100%
	35 Red	4 000 - 255 0% to 100%			Colour
	36 Green	4 000 - 255 0% to 100%			Mixing
	37 Blue	4 000 - 255 0% to 100%			Pixel 4
	38 Lime	4 000 - 255 0% to 100%
	39 Red	5 000 - 255 0% to 100%			Colour
	40 Green	5 000 - 255 0% to 100%			Mixing
	41 Blue	5 000 - 255 0% to 100%			Pixel 5
	42 Lime	5 000 - 255 0% to 100%
	43 Red	6 000 - 255 0% to 100%			Colour
	44 Green	6 000 - 255 0% to 100%			Mixing
	45 Blue	6 000 - 255 0% to 100%			Pixel 6
	46 Lime	6 000 - 255 0% to 100%
	47 Red	7 000 - 255 0% to 100%			Colour
	48 Green	7 000 - 255 0% to 100%			Mixing
	49 Blue	7 000 - 255 0% to 100%			Pixel 7
	50 Lime	7 000 - 255 0% to 100%
	51 Red	8 000 - 255 0% to 100%			Colour
	52 Green	8 000 - 255 0% to 100%			Mixing
	53 Blue	8 000 - 255 0% to 100%			Pixel 8
	54 Lime	8 000 - 255 0% to 100%
	55 Red	9 000 - 255 0% to 100%			Colour
	56 Green	9 000 - 255 0% to 100%			Mixing
	57 Blue	9 000 - 255 0% to 100%			Pixel 9
	58 Lime	9 000 - 255 0% to 100%
	59 Red	10 000 - 255 0% to 100%			Colour
	60 Green	10 000 - 255 0% to 100%			Mixing
	61	Blue 10	000 - 255 0% to 100%		Pixel 10
	62	Lime 10	000 - 255 0% to 100%
	63 Red	11 000 - 255 0% to 100%			Colour
	64 Green	11 000 - 255 0% to 100%			Mixing
	65	Blue 11	000 - 255 0% to 100%		Pixel 11
	66	Lime 11	000 - 255 0% to 100%
	67 Red	12 000 - 255 0% to 100%			Colour
	68 Green	12 000 - 255 0% to 100%			Mixing
	69	Blue 12	000 - 255 0% to 100%		Pixel 12
	70	Lime 12	000 - 255 0% to 100%

	71 Red	13 000 - 255	0% to	100%		Colour Mixing Pixel 13
	72 Green	13 000 - 255	0% to	100%
	73 Blue	13 000 - 255	0% to	100%
	74 Lime	13 000 - 255	0% to	100%
	75 Red	14 000 - 255	0% to	100%		Colour Mixing Pixel 14
	76 Green	14 000 - 255	0% to	100%
	77 Blue	14 000 - 255	0% to	100%
	78 Lime	14 000 - 255	0% to	100%
	79 Red	15 000 - 255	0% to	100%		Colour Mixing Pixel 15
	80 Green	15 000 - 255	0% to	100%
	81 Blue	15 000 - 255	0% to	100%
	82 Lime	15 000 - 255	0% to	100%
	83 Red	16 000 - 255	0% to	100%		Colour Mixing Pixel 16
	84 Green	16 000 - 255	0% to	100%
	85 Blue	16 000 - 255	0% to	100%
	86 Lime	16 000 - 255	0% to	100%
	87 Ring	Red 1 000 - 255	0% to	100%		Ring Pixel 1
	88 Ring	Green 1 000	- 255	0% to 100%
	89	Ring Blue 1	000	- 255	0% to 100%
	90 Ring	Red 2 000 - 255	0% to	100%		Ring Pixel 2
	91 Ring	Green 2 000	- 255	0% to 100%
	92	Ring Blue 2	000	- 255	0% to 100%
	93 Ring	Red 3 000 - 255	0% to	100%		Ring Pixel 3
	94 Ring	Green 3 000	- 255	0% to 100%
	95	Ring Blue 3	000	- 255	0% to 100%
	96 Ring	Red 4 000 - 255	0% to	100%		Ring Pixel 4
	97 Ring	Green 4 000	- 255	0% to 100%
	98	Ring Blue 4	000	- 255	0% to 100%
	99 Ring	Red 5 000 - 255	0% to	100%		Ring Pixel 5
	100 Ring	Green 5 000	- 255	0% to 100%
	101	Ring Blue 5	000	- 255	0% to 100%
	102	Ring Red 6 000	- 255	0% to 100%		Ring Pixel 6
	103 Ring	Green 6 000	- 255	0% to 100%
	104	Ring Blue 6	000	- 255	0% to 100%
	105	Ring Red 7 000	- 255	0% to 100%		Ring Pixel 7
	106 Ring	Green 7 000	- 255	0% to 100%
	107	Ring Blue 7	000	- 255	0% to 100%
	108	Ring Red 8 000	- 255	0% to 100%		Ring Pixel 8
	109 Ring	Green 8 000	- 255	0% to 100%
	110	Ring Blue 8	000	- 255	0% to 100%
	111 Ring	Red 9 000 -	255 0%	to 100%	Ring Pixel 9
	112 Ring	Green 9 000	- 255	0% to 100%
	113 Ring	Blue 9 000 -	255 0%	to 100%
	114 Ring	Red 10 000	- 255	0% to 100%	Ring Pixel 10
	115	Ring Green 10	000	- 255 0% to 100%
	116 Ring	Blue 10 000	- 255	0% to 100%
	117 Ring	Red 11 000	- 255	0% to 100%	Ring Pixel 11
	118	Ring Green 11	000	- 255 0% to 100%
	119 Ring	Blue 11 000	- 255	0% to 100%
	120 Ring	Red 12 000	- 255	0% to 100%	Ring Pixel 12
	121	Ring Green 12	000	- 255 0% to 100%
	122 Ring	Blue 12 000	- 255	0% to 100%
	123 Ring	Red 13 000	- 255	0% to 100%	Ring Pixel 13
	124	Ring Green 13	000	- 255 0% to 100%
	125 Ring	Blue 13 000	- 255	0% to 100%
	126 Ring	Red 14 000	- 255	0% to 100%	Ring Pixel 14
	127	Ring Green 14	000	- 255 0% to 100%
	128 Ring	Blue 14 000	- 255	0% to 100%
	129 Ring	Red 15 000	- 255	0% to 100%	Ring Pixel 15
	130	Ring Green 15	000	- 255 0% to 100%
	131 Ring	Blue 15 000	- 255	0% to 100%
	132 Ring	Red 16 000	- 255	0% to 100%	Ring Pixel 16
	133	Ring Green 16	000	- 255 0% to 100%
	134 Ring	Blue 16 000	- 255	0% to 100%
	135 Ring	Red 17 000	- 255	0% to 100%	Ring Pixel 17
	136	Ring Green 17	000	- 255 0% to 100%
	137 Ring	Blue 17 000	- 255	0% to 100%
	138 Ring	Red 18 000	- 255	0% to 100%	Ring Pixel 18
	139	Ring Green 18	000	- 255 0% to 100%
	140 Ring	Blue 18 000	- 255	0% to 100%

	141 Ring	Red 19 000 -	255	0%	to 100%	Ring Pixel 19
	142	Ring Green 19	000	-255	0% to 100%
	143 Ring	Blue 19 000 -	255	0%	to 100%
	144 Ring	Red 20 000 -	255	0%	to 100%	Ring Pixel 20
	145	Ring Green 20	000	-255	0% to 100%
	146 Ring	Blue 20 000 -	255	0%	to 100%
	147 Ring	Red 21 000 -	255	0%	to 100%	Ring Pixel 21
	148	Ring Green 21	000	-255	0% to 100%
	149 Ring	Blue 21 000 -	255	0%	to 100%
	150 Ring	Red 22 000 -	255	0%	to 100%	Ring Pixel 22
	151	Ring Green 22	000	-255	0% to 100%
	152 Ring	Blue 22 000 -	255	0%	to 100%
	153 Ring	Red 23 000 -	255	0%	to 100%	Ring Pixel 23
	154	Ring Green 23	000	-255	0% to 100%
	155 Ring	Blue 23 000 -	255	0%	to 100%
	156 Ring	Red 24 000 -	255	0%	to 100%	Ring Pixel 24
	157	Ring Green 24	000	-255	0% to 100%
	158 Ring	Blue 24 000 -	255	0%	to 100%
	159 Ring	Red 25 000 -	255	0%	to 100%	Ring Pixel 25
	160	Ring Green 25	000	-255	0% to 100%
	161 Ring	Blue 25 000 -	255	0%	to 100%
	162 Ring	Red 26 000 -	255	0%	to 100%	Ring Pixel 26
	163	Ring Green 26	000	-255	0% to 100%
	164 Ring	Blue 26 000 -	255	0%	to 100%
	165 Ring	Red 27 000 -	255	0%	to 100%	Ring Pixel 27
	166	Ring Green 27	000	-255	0% to 100%
	167 Ring	Blue 27 000 -	255	0%	to 100%
	168 Ring	Red 28 000 -	255	0%	to 100%	Ring Pixel 28
	169	Ring Green 28	000	-255	0% to 100%
	170 Ring	Blue 28 000 -	255	0%	to 100%
	171 Ring	Red 29 000 -	255 0%	to 100%		Ring Pixel 29
	172	Ring Green 29	000 - 255 0%	to 100%
	173 Ring	Blue 29 000 -	255 0%	to 100%
	174 Ring	Red 30 000 -	255 0%	to 100%		Ring Pixel 30
	175	Ring Green 30	000 - 255 0%	to 100%
	176 Ring	Blue 30 000 -	255 0%	to 100%
	177 Ring	Red 31 000 -	255 0%	to 100%		Ring Pixel 31
	178	Ring Green 31	000 - 255 0%	to 100%
	179 Ring	Blue 31 000 -	255 0%	to 100%
	180 Ring	Red 32 000 -	255 0%	to 100%		Ring Pixel 32
	181	Ring Green 32	000 - 255 0%	to 100%
	182 Ring	Blue 32 000 -	255 0%	to 100%
	183 Ring	Red 33 000 -	255 0%	to 100%		Ring Pixel 33
	184	Ring Green 33	000 - 255 0%	to 100%
	185 Ring	Blue 33 000 -	255 0%	to 100%
	186 Ring	Red 34 000 -	255 0%	to 100%		Ring Pixel 34
	187	Ring Green 34	000 - 255 0%	to 100%
	188 Ring	Blue 34 000 -	255 0%	to 100%
	189 Ring	Red 35 000 -	255 0%	to 100%		Ring Pixel 35
	190	Ring Green 35	000 - 255 0%	to 100%
	191 Ring	Blue 35 000 -	255 0%	to 100%
	192 Ring	Red 36 000 -	255 0%	to 100%		Ring Pixel 36
	193	Ring Green 36	000 - 255 0%	to 100%
	194 Ring	Blue 36 000 -	255 0%	to 100%
	195 Ring	Red 37 000 -	255 0%	to 100%		Ring Pixel 37
	196	Ring Green 37	000 - 255 0%	to 100%
	197 Ring	Blue 37 000 -	255 0%	to 100%
	198 Ring	Red 38 000 -	255 0%	to 100%		Ring Pixel 38
	199	Ring Green 38	000 - 255 0%	to 100%
	200 Ring	Blue 38 000 -	255 0%	to 100%
	201 Ring Red 39 000 -	255 0% to 100%				Ring Pixel 39
	202 Ring Green 39	000 - 255 0% to 100%
	203 Ring Blue 39 000 -	255 0% to 100%
	204 Ring Red 40 000 -	255 0% to 100%				Ring Pixel 40
	205 Ring Green 40	000 - 255 0% to 100%
	206 Ring Blue 40 000 -	255 0% to 100%
	207 Ring Red 41 000 -	255 0% to 100%				Ring Pixel 41
	208 Ring Green 41	000 - 255 0% to 100%
	209 Ring Blue 41 000 -	255 0% to 100%
	210 Ring Red 42 000 -	255 0% to 100%				Ring Pixel 42
	211 Ring Green 42	000 - 255 0% to 100%
	212 Ring Blue 42 000 -	255 0% to 100%
	213 Ring Red 43 000 -	255 0% to 100%				Ring Pixel 43
	214 Ring Green 43	000 - 255 0% to 100%
	215 Ring Blue 43 000 -	255 0% to 100%
	216 Ring Red 44 000 -	255 0% to 100%				Ring Pixel 44
	217 Ring Green 44	000 - 255 0% to 100%
	218 Ring Blue 44 000 -	255 0% to 100%
	219 Ring Red 45 000 -	255 0% to 100%				Ring Pixel 45
	220 Ring Green 45	000 - 255 0% to 100%
	221 Ring Blue 45 000 -	255 0% to 100%
	222 Ring Red 46 000 -	255 0% to 100%				Ring Pixel 46
	223 Ring Green 46	000 - 255 0% to 100%
	224 Ring Blue 46 000 -	255 0% to 100%
	225 Ring Red 47 000 -	255 0% to 100%				Ring Pixel 47
	226 Ring Green 47	000 - 255 0% to 100%
	227 Ring Blue 47 000 -	255 0% to 100%
	228 Ring Red 48 000 -	255 0% to 100%				Ring Pixel 48
	229 Ring Green 48	000 - 255 0% to 100%
	230 Ring Blue 48 000 -	255 0% to 100%
	231 Ring	Red 49 000 -	255 0%	to 100%		Ring Pixel 49
	232	Ring Green 49	000 - 255 0% to 100%
	233 Ring	Blue 49 000 -	255 0% to 100%
	234 Ring	Red 50 000 -	255 0% to 100%			Ring Pixel 50
	235	Ring Green 50	000 - 255 0% to 100%
	236 Ring	Blue 50 000 -	255 0% to 100%
	237 Ring	Red 51 000 -	255 0% to 100%			Ring Pixel 51
	238	Ring Green 51	000 - 255 0% to 100%
	239 Ring	Blue 51 000 -	255 0% to 100%
	240 Ring	Red 52 000 -	255 0% to 100%			Ring Pixel 52
	241	Ring Green 52	000 - 255 0% to 100%
	242 Ring	Blue 52 000 -	255 0% to 100%
	243 Ring	Red 53 000 -	255 0% to 100%			Ring Pixel 53
	244	Ring Green 53	000 - 255 0% to 100%
	245 Ring	Blue 53 000 -	255 0% to 100%
	246 Ring	Red 54 000 -	255 0% to 100%			Ring Pixel 54
	247	Ring Green 54	000 - 255 0% to 100%
	248 Ring	Blue 54 000 -	255 0% to 100%
	249 Ring	Red 55 000 -	255 0% to 100%			Ring Pixel 55
	250	Ring Green 55	000 - 255 0% to 100%
	251 Ring	Blue 55 000 -	255 0% to 100%
	252 Ring	Red 56 000 -	255 0% to 100%			Ring Pixel 56
	253	Ring Green 56	000 - 255 0% to 100%
	254 Ring	Blue 56 000 -	255 0% to 100%
	255 Ring	Red 57 000 -	255 0% to 100%			Ring Pixel 57
	256	Ring Green 57	000 - 255 0% to 100%
	257 Ring	Blue 57 000 -	255 0% to 100%
	258 Ring	Red 58 000 -	255 0% to 100%			Ring Pixel 58
	259	Ring Green 58	000 - 255 0% to 100%
	260 Ring	Blue 58 000 -	255 0% to 100%

	261 Ring	Red 59 000	-	255	0%	to 100%	Ring Pixel 59
	262	Ring Green 59	000	-	255	0% to 100%
	263 Ring	Blue 59 000	-	255	0%	to 100%
	264 Ring	Red 60 000	-	255	0%	to 100%	Ring Pixel 60
	265	Ring Green 60	000	-	255	0% to 100%
	266 Ring	Blue 60 000	-	255	0%	to 100%
	267 Ring	Red 61 000	-	255	0%	to 100%	Ring Pixel 61
	268	Ring Green 61	000	-	255	0% to 100%
	269 Ring	Blue 61 000	-	255	0%	to 100%
	270 Ring	Red 62 000	-	255	0%	to 100%	Ring Pixel 62
	271	Ring Green 62	000	-	255	0% to 100%
	272 Ring	Blue 62 000	-	255	0%	to 100%
	273 Ring	Red 63 000	-	255	0%	to 100%	Ring Pixel 63
	274	Ring Green 63	000	-	255	0% to 100%
	275 Ring	Blue 63 000	-	255	0%	to 100%
	276 Ring	Red 64 000	-	255	0%	to 100%	Ring Pixel 64
	277	Ring Green 64	000	-	255	0% to 100%
	278 Ring	Blue 64 000	-	255	0%	to 100%
	279 Ring	Red 65 000	-	255	0%	to 100%	Ring Pixel 65
	280	Ring Green 65	000	-	255	0% to 100%
	281 Ring	Blue 65 000	-	255	0%	to 100%
	282 Ring	Red 66 000	-	255	0%	to 100%	Ring Pixel 66
	283	Ring Green 66	000	-	255	0% to 100%
	284 Ring	Blue 66 000	-	255	0%	to 100%
	285 Ring	Red 67 000	-	255	0%	to 100%	Ring Pixel 67
	286	Ring Green 67	000	-	255	0% to 100%
	287 Ring	Blue 67 000	-	255	0%	to 100%
	288 Ring	Red 68 000	-	255	0%	to 100%	Ring Pixel 68
	289	Ring Green 68	000	-	255	0% to 100%
	290 Ring	Blue 68 000	-	255	0%	to 100%
49CH RGBL Rings
Channel	Function Values					Sub-group
1 Pan	000 - 255				0% to 100% Pan
2 Pan	fine 000 - 255
3 Tilt	000 - 255				0% to 100% Tilt
4 Tilt	fine 000 - 255
5	Dimmer(segment 1)	000	-255		0% to 100%	Dimmer
6	Dimmer(segment 1) fine	000	-255
7	Dimmer(segment 2)	000	-255		0% to 100%
8	Dimmer(segment 2) fine	000	-255
9	Strobe Functions(segment 1)	000	-005 Open			Multi-functional Strobe
		006	-010 Closed
		011	-022 Ramp up/down slow to fast
		023	-033 Ramp up/down random slow to fast
		034	-045 Ramp up slow to fast
		046	-056 Ramp up random slow to fast
		057	-068 Ramp down slow to fast
		069	-079 Ramp down random slow to fast
		080	-102 Random Strobe effect slow to fast
		103	-127		Strobe Break effect 5s to 1s (Short burst with break)
		128	-250 Strobe slow to fast (<1Hz to 20Hz)
		251	-255 Open
10	Strobe Functions(segment 2)	000	-005 Open
		006	-010 Closed
		011	-022 Ramp up/down slow to fast
		023	-033 Ramp up/down random slow to fast
		034	-045 Ramp up slow to fast
		046	-056 Ramp up random slower to fast
		057	-068 Ramp down slow to fast
		069	-079 Ramp down random slower to fast
		080	-102 Random Strobe effect slow to fast

10	Strobe Functions (segment 2)	103	-127	Strobe Break effect 5s to 1s (Short burst with break)	Multi-functional Strobe
		128	-250	robe slow to fast (<1Hz to 20Hz)
		251	-255	Open
11	Colour Temperature (affects Colour Mixing)	000	-005	Off	CCT
		006	-006	Warm white
		007	-046	Warm white to 2700K
		047	-047	Bulb White (2700K)
		048	-087	2700K to 3200K
		088	-088	Halogen White (3200K)
		089	-128	3200K to 4000K
		129	-129	Neutral White (4000K)
		130	-169	4000K to 5600K
		170	-170	Studio White (5600K)
		171	-210	5600K to 6500K
		211	-211	Daylight White (6500K)
		212	-251	6500K to Cold white
		252	-255	Cold white
12	Tint (affects Col- our Temperature)	000	-000	Off	Tint
		001	-127	Magenta -> Neutral
		128	-128	neutral
		129	-255	Neutral -> Green
13 Ring Dimmer 000 - 255		0%	to 100%		Ring
14 Ring Strobe		000	-005	Open
		006	-010	Closed
		011	-022	Ramp up/down slow to fast
		023	-033	Ramp up/down random slow to fast
		034	-045	Ramp up slow to fast
		046	-056	Ramp up random slow to fast
		057	-068	Ramp down slow to fast
		069	-079	Ramp down random slow to fast
		080	-102	Random Strobe effect slow to fast
		103	-127	Strobe Break effect 5s to 1s (Short burst with break)
		128	-250	Strobe slow to fast (<1Hz to 20Hz)
		251	-255	Open
15	Zoom (segment 1)	000	-255	Narrow to Wide	Zoom
16	Zoom (segment 2)	000	-255	Narrow to Wide

Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)
	000-005 No function
	006-007 Blackout while P/T moving On		Blackout
	008-009 Blackout while P/T moving Off
	010-017 No function
	018-019 Sleep Mode On		Energy Saving
	020-021 Sleep Mode Off/Wake Up
	022-024 No function
	025-025 Record User Scene 1
	026-026 Record User Scene 2
	027-027 Record User Scene 3
	028-028 Record User Scene 4		User Colours
	029-029 Record User Scene 5
	030-030 Record User Scene 6
	031-031 Record User Scene 7
	032-032 Record User Scene 8
	033-041 No function
	042-043 Invert Pan On
	044-045 Invert Pan Off		Move-ment
	046-047 Invert Tilt On
	048-049 Invert Tilt Off
	050-051 Pan Angle 540°		Pixel Mirroring
	052-053 Pan Angle 630°
	054-057 No Function
	058-059 Pixel Mirroring Off
	060-061 Pixel Mirroring Horizontal
	062-063 Pixel Mirroring Vertical
	064-065 Pixel Mirroring Horizontal + Vertical
	066-073 No function
	074-075 Dimmer Response LED
	076-077 Dimmer Response Halogen
	078-081 No function		Dimming
	082-083 DTW (Redshift) On
	084-085 DTW (Redshift) Off
	086-093 No function
	094-095 Silent movement On		Noise Functions
	096-097 Silent movement Off
	098-099 Fan Auto
	100-101 Fan Silent		Noise Functions
	102-103 Fan Constant Low
	104-105 Fan Constant Medium
	106-107 Fan Constant High

17	Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)
	18 Red (segment 1) 000 -255 0% to 100%
	19 Green (segment 1) 000 -255 0% to 100%
	20 Blue (segment 1) 000 -255 0% to 100%
	21 Lime (segment 1) 000 -255 0% to 100%
	22 Red (segment 2) 000 -255 0% to 100%
	23 Green (segment 2) 000 -255 0% to 100%
	24 Blue (segment 2) 000 -255 0% to 100%
	25 Lime (segment 2) 000 -255 0% to 100%

26	Ring Red(segment 1)	000 - 255 0% to 100%
27	Ring Green(segment 1)	000 - 255 0% to 100%
28	Ring Blue(segment 1)	000 - 255 0% to 100%
29	Ring Red(segment 2)	000 - 255 0% to 100%
30	Ring Green(segment 2)	000 - 255 0% to 100%
31	Ring Blue(segment 2)	000 - 255 0% to 100%
32	Ring Red(segment 3)	000 - 255 0% to 100%
33	Ring Green(segment 3)	000 - 255 0% to 100%
34	Ring Blue(segment 3)	000 - 255 0% to 100%
35	Ring Red(segment 4)	000 - 255 0% to 100%
36	Ring Green(segment 4)	000 - 255 0% to 100%
37	Ring Blue(segment 4)	000 - 255 0% to 100%
38	Ring Red(segment 5)	000 - 255 0% to 100%
39	Ring Green(segment 5)	000 - 255 0% to 100%
40	Ring Blue(segment 5)	000 - 255 0% to 100%
41	Ring Red(segment 6)	000 - 255 0% to 100%
42	Ring Green(segment 6)	000 - 255 0% to 100%
43	Ring Blue(segment 6)	000 - 255 0% to 100%
44	Ring Red(segment 7)	000 - 255 0% to 100%
45	Ring Green(segment 7)	000 - 255 0% to 100%
46	Ring Blue(segment 7)	000 - 255 0% to 100%

47	Ring Red(segment 8)	000	-2	55 0%	to 100%	Ring segments
48	Ring Green(segment 8)	000	-2	55 0%	to 100%
49	Ring Blue(segment 8)	000	-2	55 0%	to 100%

100CHRGBLPixel
Channel Function Values						Sub-group
1 Pan 000 - 255					0% to 100% Pan
2 Pan fine 000 - 255
3 Tilt 000 - 255					0% to 100% Tilt
4 Tilt fine 000 - 255
5 Dimmer 000 - 255					0% to 100%	Dimmer
6	Dimmer fine	000	-255
7	Strobe Functions	000	-005 Open			Multi-functional Strobe
		006	-010 Closed
		011	-022 Ramp up/down slow to fast
		023	-033 Ramp up/down random slow to fast
		034	-045 Ramp up slow to fast
		046	-056 Ramp up random slow to fast
		057	-068 Ramp down slow to fast
		069	-079 Ramp down random slow to fast
		080	-102 Random Strobe effect slow to fast
		103	-127	Strobe Break effect 5s to 1s (Short burst with break)
		128	-250 Strobe slow to fast (<1Hz to 20Hz)
		251	-255 Open
8	Ring Dimmer	000	-255 0% to 100%			Ring
9 Ring	Strobe	000	-005 Open
		006	-010 Closed
		011	-022 Ramp up/down slow to fast
		023	-033 Ramp up/down random slow to fast
		034	-045 Ramp up slow to fast
		046	-056 Ramp up random slower to fast
		057	-068 Ramp down slow to fast
		069	-079 Ramp down random slower to fast
		080	-102 Random Strobe effect slow to fast

9 Ring Strobe		103 - 127 Strobe Break effect 5s to 1s (Short burst with break)	Ring
		128 - 250 Strobe slow to fast (<1Hz to 20Hz)
		251 - 255 Open
10	Zoom(Segment 1)	000 - 255 Narrow to Wide	Zoom
11	Zoom(Segment 2)	000 - 255 Narrow to Wide
		000 - 005 No function
		006 - 007 Blackout while P/T moving On
		008 - 009 Blackout while P/T moving Off
		010 - 017 No function
		018 - 019 Sleep Mode On
		020 - 021 Sleep Mode Off/Wake Up
		022 - 024 No function
		025 - 025 Record User Scene 1
		026 - 026 Record User Scene 2
		027 - 027 Record User Scene 3
		028 - 028 Record User Scene 4
		029 - 029 Record User Scene 5
		030 - 030 Record User Scene 6
		031 - 031 Record User Scene 7
	Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	032 - 032 Record User Scene 8	Control
		033 - 041 No function
		042 - 043 Invert Pan On
		044 - 045 Invert Pan Off
		046 - 047 Invert Tilt On
		048 - 049 Invert Tilt Off
		050 - 051 Pan Angle 540°
		052 - 053 Pan Angle 630°
		054 - 057 No Function
		058 - 059 Pixel Mirroring Off
		060 - 061 Pixel Mirroring Horizontal
		062 - 063 Pixel Mirroring Vertical
		064 - 065 Pixel Mirroring Horizontal + Vertical
		066 - 073 No function
		074 - 075 Dimmer Response LED
		076 - 077 Dimmer Response Halogen
		078 - 081 No function
		082 - 083 DTW (Redshift) On
		084 - 085 DTW (Redshift) Off
		086 - 093 No function
12	Device settings(all settings are executed after holding value for 3 seconds)(please read remark 1*)	094 - 095 Silent movement On			Control
		096 - 097 Silent movement Off
		098 - 099 Fan Auto
		100 - 101 Fan Silent
		102 - 103 Fan Constant Low
		104 - 105 Fan Constant Medium
		106 - 107 Fan Constant High
		108 - 119 No function
		120 - 121 PWM 1 (650 Hz)
		122 - 123 PWM 2 (1530 Hz)
		124 - 125 PWM 3 (3600 Hz)
		126 - 127 PWM 4 (12000 Hz)
		128 - 129 PWM 5 (18900 Hz)
		130 - 131 PWM 6 (25000 Hz)
		132 - 135 No function
		136 - 137 User Calibration
		138 - 139 Smart Calibration
		140 - 141 Display Always On
		142 - 143 Display Off after 20s
		144 - 163 No function
		164 - 165 Dimmer Curve Linear
		166 - 167 Dimmer Curve Exponential
		168 - 169 Dimmer Curve Logarithmic
		170 - 171 Dimmer Curve S-Curve
		172 - 173 No function
		174 - 175 Zoom Link On
		176 - 177 Zoom Link Off
		178 - 221 No function
		222 - 223 Reset Pan / Tilt
		224 - 233 No function
		234 - 235 Reset Head
		236 - 237 Reset All
		238 - 239 No function
		240 - 241 Load Factory Defaults
		242 - 243		Load Factory Defaults (without User Scenes & Loops)
		244 - 245 Load User Default A
		246 - 247 Load User Default B
		248 - 249 Load User Default C
		250 - 255 No function
13 Red 1 000 - 255 0% to 100%			Colour Mixing Pixel 1
14 Green 1 000 - 255 0% to 100%
15 Blue 1 000 - 255 0% to 100%
16 Lime 1 000 - 255 0% to 100%
17 Red 2 000 - 255 0% to 100%			Colour Mixing Pixel 2
18 Green 2 000 - 255 0% to 100%
19 Blue 2 000 - 255 0% to 100%
20 Lime 2 000 - 255 0% to 100%
21 Red 3 000 - 255 0% to 100%			Colour Mixing Pixel 3
22 Green 3 000 - 255 0% to 100%
23 Blue 3 000 - 255 0% to 100%
24 Lime 3 000 - 255 0% to 100%
25 Red 4 000 - 255 0% to 100%			Colour Mixing Pixel 4
26 Green 4 000 - 255 0% to 100%
27 Blue 4 000 - 255 0% to 100%
28 Lime 4 000 - 255 0% to 100%
29 Red 5 000 - 255 0% to 100%			Colour Mixing Pixel 5
30 Green 5 000 - 255 0% to 100%
31 Blue 5 000 - 255 0% to 100%
32 Lime 5 000 - 255 0% to 100%
33 Red 6 000 - 255 0% to 100%			Colour Mixing Pixel 6
34 Green 6 000 - 255 0% to 100%
35 Blue 6 000 - 255 0% to 100%
36 Lime 6 000 - 255 0% to 100%
37 Red 7 000 - 255 0% to 100%			Colour Mixing Pixel 7
38 Green 7 000 - 255 0% to 100%
39 Blue 7 000 - 255 0% to 100%
40 Lime 7 000 - 255 0% to 100%
41 Red 8 000 - 255 0% to 100%			Colour Mixing Pixel 8
42 Green 8 000 - 255 0% to 100%
43 Blue 8 000 - 255 0% to 100%
44 Lime 8 000 - 255 0% to 100%
45 Red 9 000 - 255 0% to 100%			Colour Mixing Pixel 9
46 Green 9 000 - 255 0% to 100%
47 Blue 9 000 - 255 0% to 100%
48 Lime 9 000 - 255 0% to 100%
49 Red 10 000 - 255 0% to 100%			Colour Mixing Pixel 10
50 Green 10 000 - 255 0% to 100%
51 Blue 10 000 - 255 0% to 100%
52 Lime 10 000 - 255 0% to 100%

53 Red	11 000 - 255 0% to 100%			Colour Mixing Pixel 11
54 Green	11 000 - 255 0% to 100%
55 Blue	11 000 - 255 0% to 100%
56 Lime	11 000 - 255 0% to 100%
57 Red	12 000 - 255 0% to 100%			Colour Mixing Pixel 12
58 Green	12 000 - 255 0% to 100%
59 Blue	12 000 - 255 0% to 100%
60 Lime	12 000 - 255 0% to 100%
61 Red	13 000 - 255 0% to 100%			Colour Mixing Pixel 13
62 Green	13 000 - 255 0% to 100%
63 Blue	13 000 - 255 0% to 100%
64 Lime	13 000 - 255 0% to 100%
65 Red	14 000 - 255 0% to 100%			Colour Mixing Pixel 14
66 Green	14 000 - 255 0% to 100%
67 Blue	14 000 - 255 0% to 100%
68 Lime	14 000 - 255 0% to 100%
69 Red	15 000 - 255 0% to 100%			Colour Mixing Pixel 15
70 Green	15 000 - 255 0% to 100%
71 Blue	15 000 - 255 0% to 100%
72 Lime	15 000 - 255 0% to 100%
73 Red	16 000 - 255 0% to 100%			Colour Mixing Pixel 16
74 Green	16 000 - 255 0% to 100%
75 Blue	16 000 - 255 0% to 100%
76 Lime	16 000 - 255 0% to 100%
77	Ring Red(segment 1)	000 - 255 0% to 100%		Ring segments
78	Ring Green(segment 1)	000 - 255 0% to 100%
79	Ring Blue(segment 1)	000 - 255 0% to 100%
80	Ring Red(segment 2)	000 - 255 0% to 100%
81	Ring Green(segment 2)	000 - 255 0% to 100%
82	Ring Blue(segment 2)	000 - 255 0% to 100%
83	Ring Red(segment 3)	000 - 255 0% to 100%
84	Ring Green(segment 3)	000 - 255 0% to 100%
85	Ring Blue(segment 3)	000 - 255 0% to 100%

86	Ring Red(segment 4)	000	-2	55 0%	to 100%	Ring segments
87	Ring Green(segment 4)	000	-2	55 0%	to 100%
88	Ring Blue(segment 4)	000	-2	55 0%	to 100%
89	Ring Red(segment 5)	000	-2	55 0%	to 100%
90	Ring Green(segment 5)	000	-2	55 0%	to 100%
91	Ring Blue(segment 5)	000	-2	55 0%	to 100%
92	Ring Red(segment 6)	000	-2	55 0%	to 100%
93	Ring Green(segment 6)	000	-2	55 0%	to 100%
94	Ring Blue(segment 6)	000	-2	55 0%	to 100%
95	Ring Red(segment 7)	000	-2	55 0%	to 100%
96	Ring Green(segment 7)	000	-2	55 0%	to 100%
97	Ring Blue(segment 7)	000	-2	55 0%	to 100%
98	Ring Red(segment 8)	000	-2	55 0%	to 100%
99	Ring Green(segment 8)	000	-2	55 0%	to 100%
100	Ring Blue(segment 8)	000	-2	55 0%	to 100%

EN: (1*) After the adjustments have been made, set the value to 000 to avoid disturbance by endless function call.
DE: (1*) Nachdem die Einstellungen vorgenommen wurden, stellen Sie den Wert auf 000 ein, um Störungen durch endlosen Funktionsaufruf zu vermeiden.
FR: (1*) Une fois les ajustements effectués, réglez la valeur sur 000 pour éviter les perturbations par appel de fonction sans fin.
ES: (1*) Después de realizar los ajustes, establezca el valor en 000 para evitar perturbaciones mediante una llamada de función sin fin.
PL: (1*) Po dokonaniu ustawień ustaw wartość na 000, aby uniknąć zakłóceń przez niekończące się wywołanie funkcji.
IT: (1*) Dopo aver effettuato le regolazioni, impostare il valore su 000 per evitare disturbi causati da una chiamata a funzione infinita.
