USER MANUAL DUB184RF MAKITA

/min Air speed (average) 0 - 43.2 m/s Air speed (max.) 0 - 52.1 m/s Overall length (with front nozzle) 825 mm Rated voltage D.C. 18 V Net weight 2.5 - 3.0 kg

• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange without notice.

• Specicationsmaydifferfromcountrytocountry.

injuryand/orre. Symbols Thefollowingsshowthesymbolsusedfortheequip- ment.Besurethatyouunderstandtheirmeaningbefore use. Take particular care and attention. Read instruction manual. Keephandsawayfromrotatingparts. Keepbystandersaway. Weareyeandearprotection. Do not expose to moisture. Ni-MH Li-ion OnlyforEUcountries Donotdisposeofelectricequipmentor batterypacktogetherwithhouseholdwaste material! InobservanceoftheEuropeanDirectives, onWasteElectricandElectronic EquipmentandBatteriesandAccumulators and Waste Batteries and Accumulators and their implementation in accordance withnationallaws,electricequipmentand batteriesandbatterypack(s)thathave reachedtheendoftheirlifemustbecol- lectedseparatelyandreturnedtoanenvi- ronmentallycompatiblerecyclingfacility. Intended use Themachineisintendedforblowingdust. Noise ThetypicalA-weightednoiseleveldeterminedaccord- ingtoEN50636-2-100: Sound pressure level (L

):93.5dB(A) Uncertainty(K):2.7dB(A) NOTE: The declared noise emission value(s) has beenmeasuredinaccordancewithastandardtest methodandmaybeusedforcomparingonetoolwith another. NOTE: The declared noise emission value(s) mayalsobeusedinapreliminaryassessmentof exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).5 ENGLISH Vibration Thevibrationtotalvalue(tri-axialvectorsum)deter- minedaccordingtoEN50636-2-100: Workmode:operationwithoutload Vibrationemission(a

NOTE:Thedeclaredvibrationtotalvalue(s)hasbeen measured in accordance with a standard test method andmaybeusedforcomparingonetoolwithanother. NOTE:Thedeclaredvibrationtotalvalue(s)mayalso beusedinapreliminaryassessmentofexposure.

WARNING: The vibration emission during

actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries only TheECdeclarationofconformityisincludedasAnnexA to this instruction manual. SAFETY WARNINGS Cordless Blower Safety Instructions

WARNING: Read all safety warnings and

all instructions. Failure to follow the warnings and instructionsmayresultinelectricshock,reand/or seriousinjury. Save all warnings and instruc- tions for future reference. Training

1. Read the instructions carefully. Be familiar

with the controls and the correct use of the blower.

2. Never allow children, persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the blower. Local regulations may restrict the age of the operator.

3. Never operate the blower while people, espe-

cially children, or pets are nearby.

4. Keep in mind that the operator or user is

responsible for accidents or hazards occurring to other people or their property. Preparation

1. Always wear substantial footwear and long

trousers while operating the blower.

2. Do not wear loose clothing or jewellery that

can be drawn into the air inlet. Keep long hair away from the air inlets.

3. Always wear protective goggles to protect

your eyes from injury when using power tools. The goggles must comply with ANSI Z87.1 in the USA, EN 166 in Europe, or AS/NZS 1336 in Australia/New Zealand. In Australia/New Zealand, it is legally required to wear a face shield to protect your face, too. It is an employer's responsibility to enforce the use of appropriate safety protective equip- ments by the tool operators and by other per- sons in the immediate working area.

4. To prevent dust irritation the wearing of a face

mask is recommended.

5. While operating the machine, always wear

non-slip and protective footwear. Non-skid, closed-toedsafetybootsandshoeswillreducethe riskofinjury. Operation

1. Switch off the blower and remove the battery

cartridge and make sure that all moving parts have come to a complete stop

• whenever you leave the blower.

• before clearing blockages.

• before checking, cleaning or working on the blower.

• if the blower starts to vibrate abnormally.

2. Operate the blower only in daylight or in good

3. Do not overreach and keep proper balance and

footing at all times.

4. Always be sure of your footing on slopes.

7. Never blow debris in the direction of

8. Operate the blower in a recommended position

and on a rm surface.

9. Do not operate the blower at high places.

10. Never point the nozzle at anyone in the vicinity

• Be careful not to block suction inlet or blower outlet with dust or dirt when oper- ating in dusty area.

• Do not use nozzles other than the nozzles provided by Makita.

• Do not use the blower to inate balls, rubber boat or the similar.

Do not operate the blower near open window, etc.

13. Operating the blower only at reasonable hours

is recommended - not early in the morning or late at night when people might be disturbed.

14. Using rakes and brooms to loosen debris

before blowing is recommended.

15. If the blower strikes any foreign objects or

should start making any unusual noise or vibration, immediately switch off the blower to stop it. Remove the battery cartridge from the blower and inspect the blower for damage before restarting and operating the blower. If the blower is damaged, ask Makita Authorized Service Centers for repair.

16. Do not insert ngers or other objects into

suction inlet or blower outlet.

17. Prevent unintentional starting. Ensure the

switch is in the off-position before inserting battery cartridge, picking up or carrying the blower. Carrying the blower with your nger on the switch or energizing the blower that has the switch on invites accidents.

18. Never blow dangerous materials, such as

nails, fragments of glass, or blades.

19. Do not operate the blower near ammable

20. Avoid operating the blower for a long time in

low temperature environment. Maintenance and storage

1. Keep all nuts, bolts and screws tight to be sure

the blower is in safe working condition.

2. If the parts are worn or damaged, replace them

with parts provided by Makita.

3. Store the blower in a dry place out of the reach

4. When you stop the blower for inspection, ser-

vicing, storage, or changing accessory, switch off the blower and make sure that all moving parts come to a complete stop, and remove the battery cartridge. Cool down the blower before making any work on the blower. Maintain the blower with care and keep it clean.

5. Always cool down the blower before storing.

6. Do not expose the blower to rain. Store the

7. When you lift the blower, be sure to bend your

knees and be careful not to hurt your back. Battery tool use and care

1. Recharge only with the charger specied by

the manufacturer.Achargerthatissuitablefor onetypeofbatterypackmaycreateariskofre whenusedwithanotherbatterypack.

2. Use power tools only with specically desig-

nated battery packs.Useofanyotherbattery packsmaycreateariskofinjuryandre.

3. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.Shortingthebatterytermi- nalstogethermaycauseburnsorare.

4. Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If con- tact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help.Liquidejectedfromthebatterymaycause irritationorburns.

5. Do not use a battery pack or tool that is dam-

aged or modied.Damagedormodiedbatteries mayexhibitunpredictablebehaviourresultingin re,explosionorriskofinjury.

6. Do not expose a battery pack or tool to re or

excessive temperature.Exposuretoreortem- peratureabove130°Cmaycauseexplosion.

7. Follow all charging instructions and do not

charge the battery pack or tool outside the temperature range specied in the instruc- tions.Chargingimproperlyorattemperatures outsidethespeciedrangemaydamagethe batteryandincreasetheriskofre. Electrical and battery safety

1. Do not dispose of the battery(ies) in a re.

Thecellmayexplode.Checkwithlocalcodesfor possiblespecialdisposalinstructions.

2. Do not open or mutilate the battery(ies).

Releasedelectrolyteiscorrosiveandmaycause damagetotheeyesorskin.Itmaybetoxicif swallowed.

3. Do not charge battery in rain, or in wet

4. Do not charge the battery outdoors.

5. Do not handle charger, including charger plug,

and charger terminals with wet hands. Service

1. Have your power tool serviced by a qualied

repair person using only identical replacement parts.Thiswillensurethatthesafetyofthepower tool is maintained.

2. Never service damaged battery packs. Service

ofbatterypacksshouldonlybeperformedbythe manufacturer or authorized service providers. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.7 ENGLISH Important safety instructions for battery cartridge

Before using battery cartridge, read all instruc- tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store the tool and battery cartridge in

locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. Forcommercialtransportse.g.bythirdparties, forwardingagents,specialrequirementonpack- agingandlabelingmustbeobserved. Forpreparationoftheitembeingshipped,consult- inganexpertforhazardousmaterialisrequired. Pleasealsoobservepossiblymoredetailed national regulations. Tape or mask off open contacts and pack up the batteryinsuchamannerthatitcannotmove around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita.Installingthebatteriesto non-compliantproductsmayresultinare,exces- siveheat,explosion,orleakofelectrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool. SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Useofnon-genuineMakitabatteries,orbatteriesthat havebeenaltered,mayresultinthebatterybursting causingres,personalinjuryanddamage.Itwill alsovoidtheMakitawarrantyfortheMakitatooland charger. Tips for maintaining maximum battery life

Charge the battery cartridge before completely dis- charged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

Charge the battery cartridge with room tempera- ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. Charge the battery cartridge if you do not use

it for a long period (more than six months). ASSEMBLY CAUTION: Always be sure that the machine is switched off and the battery cartridge is removed before carrying out any work on the machine. Installing the front nozzle

1. Loosen 2 screws with the hex wrench, and then

pullthescrewsalltheway. ►Fig.1: 1. Screw

2. Make sure that the Makita logo on the front nozzle

isfacingthedirectionshowninthegure,andthen attach the front nozzle to the machine. ►Fig.2: 1. Front nozzle

3. Tighten the screws with the hex wrench.

►Fig.3: 1. Screw Installing the at nozzle or extension nozzle Optional accessory

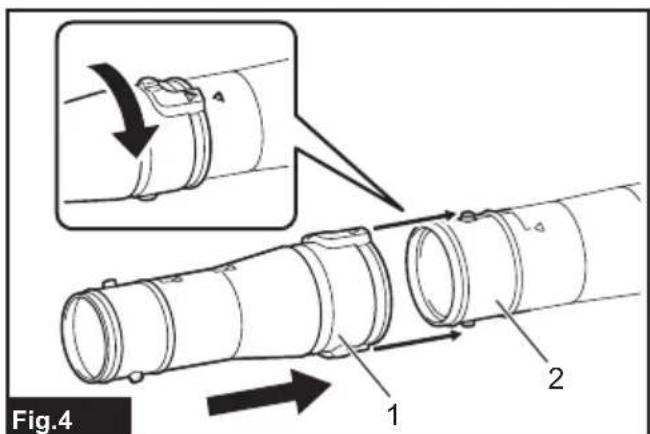

1. Attach the adapter pipe to the front nozzle, and

then turn it clockwise to lock it into place. ►Fig.4: 1. Adapter pipe 2. Front nozzle

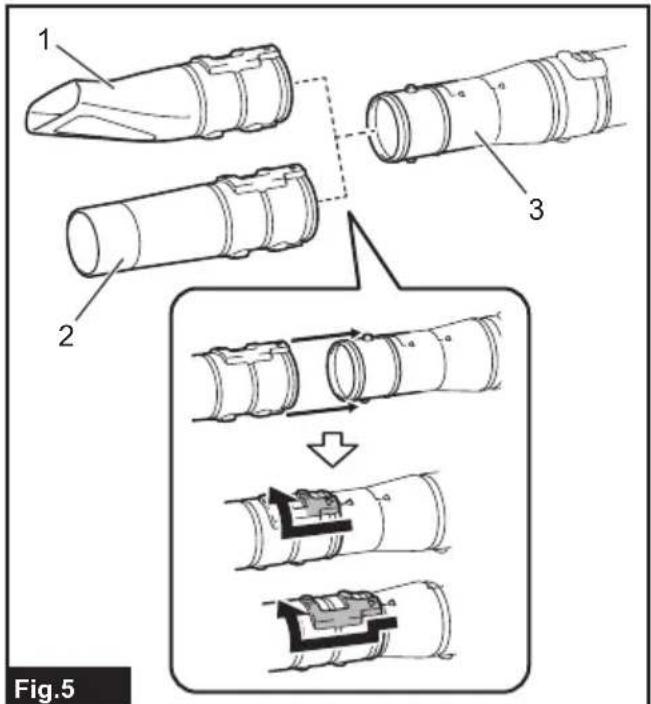

2. Attachtheatnozzleorextensionnozzletothe

adapter pipe, and then turn it to lock it into place. ►Fig.5:

1. Flat nozzle 2.Extensionnozzle3. Adapter pipe

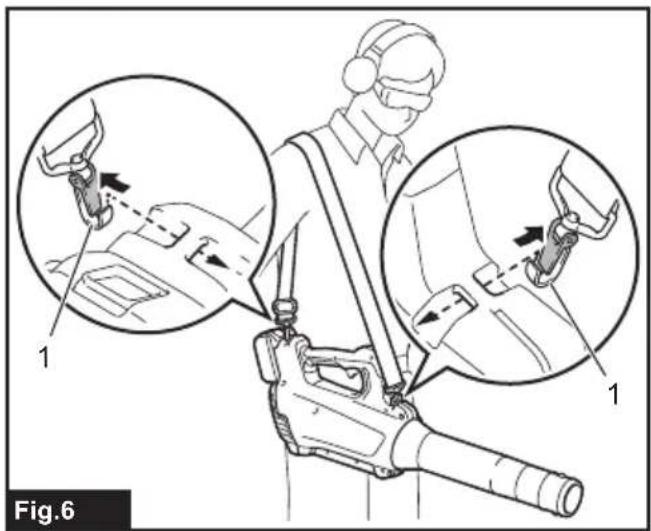

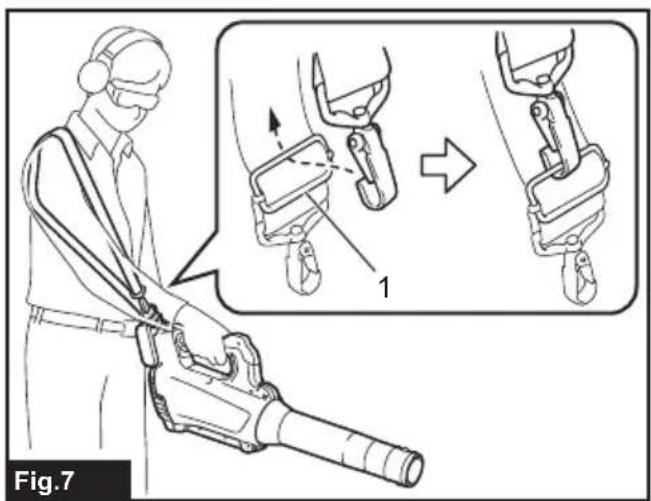

Attaching the shoulder strap Optional accessory CAUTION: Be sure to attach the hooks of the shoulder strap to the machine securely. If the hooks are attachedincompletely,theymaycomeoffandcauseaninjury. CAUTION: Be sure to use the shoulder strap dedicated to this machine. Using other shoulder strapmaycauseaninjury. Attach the hooks of the shoulder strap to the machine asshowninthegure. ►Fig.6: 1. Hook You can also attach the shoulder strap to the machine asshowninthegurebyattachingoneendofthe shoulderstraptothebuckleoftheshoulderstrap. ►Fig.7: 1. Buckle8 ENGLISH FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the machine is switched off and the battery cartridge is removed before adjusting or checking function on the machine. Installing or removing battery cartridge CAUTION: Always switch off the machine before installing or removing of the battery cartridge. CAUTION: Hold the machine and the battery car- tridge rmly when installing or removing battery cartridge. Failuretoholdthemachineandthebatterycartridgermlymay causethemtoslipoffyourhandsandresultindamagetothe machineandbatterycartridgeandapersonalinjury. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, itmayaccidentallyfalloutofthemachine,causing injurytoyouorsomeonearoundyou. CAUTION: Do not install the battery cartridge forcibly.Ifthecartridgedoesnotslideineasily,itis notbeinginsertedcorrectly. ►Fig.8: 1. Red indicator 2. Button 3.Batterycartridge Toremovethebatterycartridge,slideitfromthemachine whileslidingthebuttononthefrontofthecartridge. Toinstallthebatterycartridge,alignthetongueonthe batterycartridgewiththegrooveinthehousingandslip itintoplace.Insertitallthewayuntilitlocksinplace withalittleclick.Ifyoucanseetheredindicatoronthe uppersideofthebutton,itisnotlockedcompletely. Indicating the remaining battery capacity Only for battery cartridges with the indicator ►Fig.9: 1. Indicator lamps 2.Checkbutton Pressthecheckbuttononthebatterycartridgetoindi- catetheremainingbatterycapacity.Theindicatorlamps light up for a few seconds. Indicator lamps Remaining capacity Lighted Off Blinking 75%to100% 50%to75% 25%to50% 0%to25% Charge the battery. Thebattery mayhave malfunctioned. NOTE: Depending on the conditions of use and the ambienttemperature,theindicationmaydifferslightly fromtheactualcapacity. Machine/battery protection system Themachineisequippedwithamachine/battery protectionsystem.Thissystemautomaticallycutsoff powertothemotortoextendmachineandbatterylife. Themachinewillautomaticallystopduringoperationif themachineorbatteryisplacedunderoneofthefol- lowingconditions: Overload protection Whenthemachineorbatteryisoperatedinamanner thatcausesittodrawanabnormallyhighcurrent,the machineautomaticallystopswithoutanyindication.In this situation, turn the machine off and stop the appli- cationthatcausedthemachinetobecomeoverloaded. Then turn the machine on to restart. Overheat protection Whenthemachineorbatteryisoverheated,the machinestopsautomatically.Inthiscase,letthe machineandbatterycoolbeforeturningthemachine on again. Overdischarge protection Whenthebatterycapacityisnotenough,themachine stopsautomatically.Inthiscase,removethebattery fromthemachineandchargethebattery. Switch action

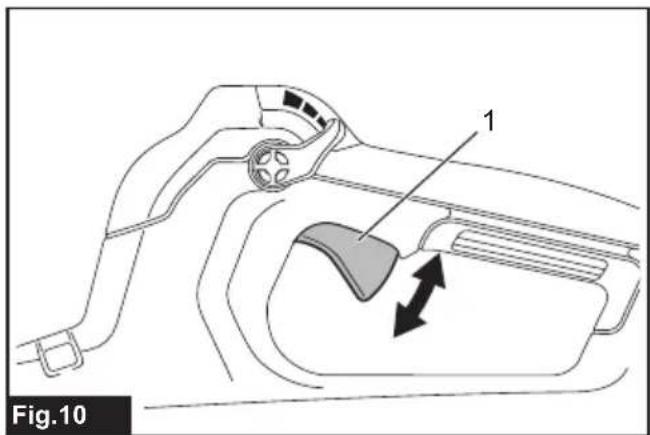

WARNING: Before installing the battery car-

tridge into the machine, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. ►Fig.10: 1. Switch trigger Tostartthemachine,simplypulltheswitchtrigger.The speedincreasesbyincreasingpressureontheswitch trigger. Release the switch trigger to stop. Cruise control function The cruise control function allows the operator to main- tain a constant speed without pulling the trigger. To increase the speed, turn the control lever forward. To decreasethespeed,turnthecontrolleverbackward. ►Fig.11: 1. Control lever Accidental re-start preventive function Evenifyouinstallthebatterycartridgewhilepullingthe switch trigger, the machine does not start. To start the machine,rstreleasetheswitchtriggerorreturnthe controlleverfully,andthenpulltheswitchtrigger.9 ENGLISH OPERATION CAUTION: Do not place the machine on the ground while it is switched on.Sandordustmay enter from suction inlet and cause a malfunction or personalinjury. Holdthemachinermlywithahandandperformthe blowingoperationbymovingitaroundslowly.When blowingaroundbuilding,bigstoneorvehicle,directthe nozzleawayfromthem.Whenperforminganoperation in a corner, start from the corner and then move to wide area. ►Fig.12 MAINTENANCE CAUTION: Always be sure that the machine is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance. TomaintainproductSAFETYandRELIABILITY, repairs,anyothermaintenanceoradjustmentshould beperformedbyMakitaAuthorizedorFactoryService Centers,alwaysusingMakitareplacementparts. Cleaning the machine Cleanthemachinebywipingoffdustwithadryclothor onedippedinsoapywaterandwrungout. ►Fig.13 NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. Remove dust or dirt from the suction inlet at the rear of the machine. ►Fig.14: 1. Suction inlet Storage Thehookholeonthebottomofthemachineisconve- nient for hanging the machine from a nail or screw on the wall. Store the machine in a place out of the reach of children and not exposed to moisture or rain. ►Fig.15: 1. Hole TROUBLESHOOTING Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedintheman- ual,donotattempttodismantlethemachine.Instead,askMakitaAuthorizedServiceCenters,alwaysusingMakita replacement parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. Batterycartridgeisnotinstalled. Installthebatterycartridge. Batteryproblem(undervoltage) Rechargethebattery.Ifrechargingisnoteffective, replacebattery. Thedrivesystemdoesnotwork correctly. Askyourlocalauthorizedservicecenterforrepair. Motor stops running after a little use. Battery'schargelevelislow. Rechargethebattery.Ifrechargingisnoteffective, replacebattery. Overheating. Stop using the machine to allow it to cool down. The machine does not reach the maximum speed. Batteryisinstalledimproperly. Installthebatterycartridgeasdescribedinthis manual. Batterypowerisdropping. Rechargethebattery.Ifrechargingisnoteffective, replacebattery. Thedrivesystemdoesnotwork correctly. Askyourlocalauthorizedservicecenterforrepair. Abnormalvibration: stopthemachineimmediately! Thedrivesystemdoesnotwork correctly. Askyourlocalauthorizedservicecenterforrepair. Motorcannotstop: Removethebatteryimmediately! Electricorelectronicmalfunction. Removethebatteryandaskyourlocalauthorized service center for repair.10 ENGLISH OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita prod- uct specied in this manual.Theuseofanyother accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. Ifyouneedanyassistanceformoredetailsregard- ingtheseaccessories,askyourlocalMakitaService Center.
