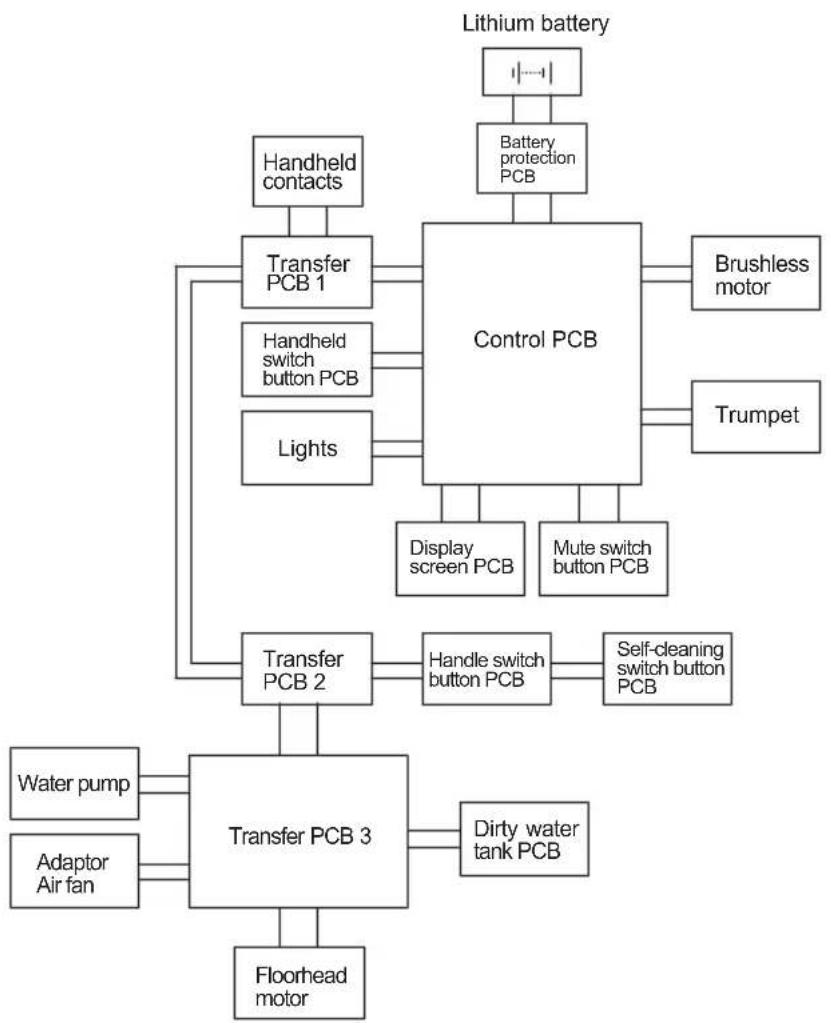

USER MANUAL HW10 Pro JIMMY

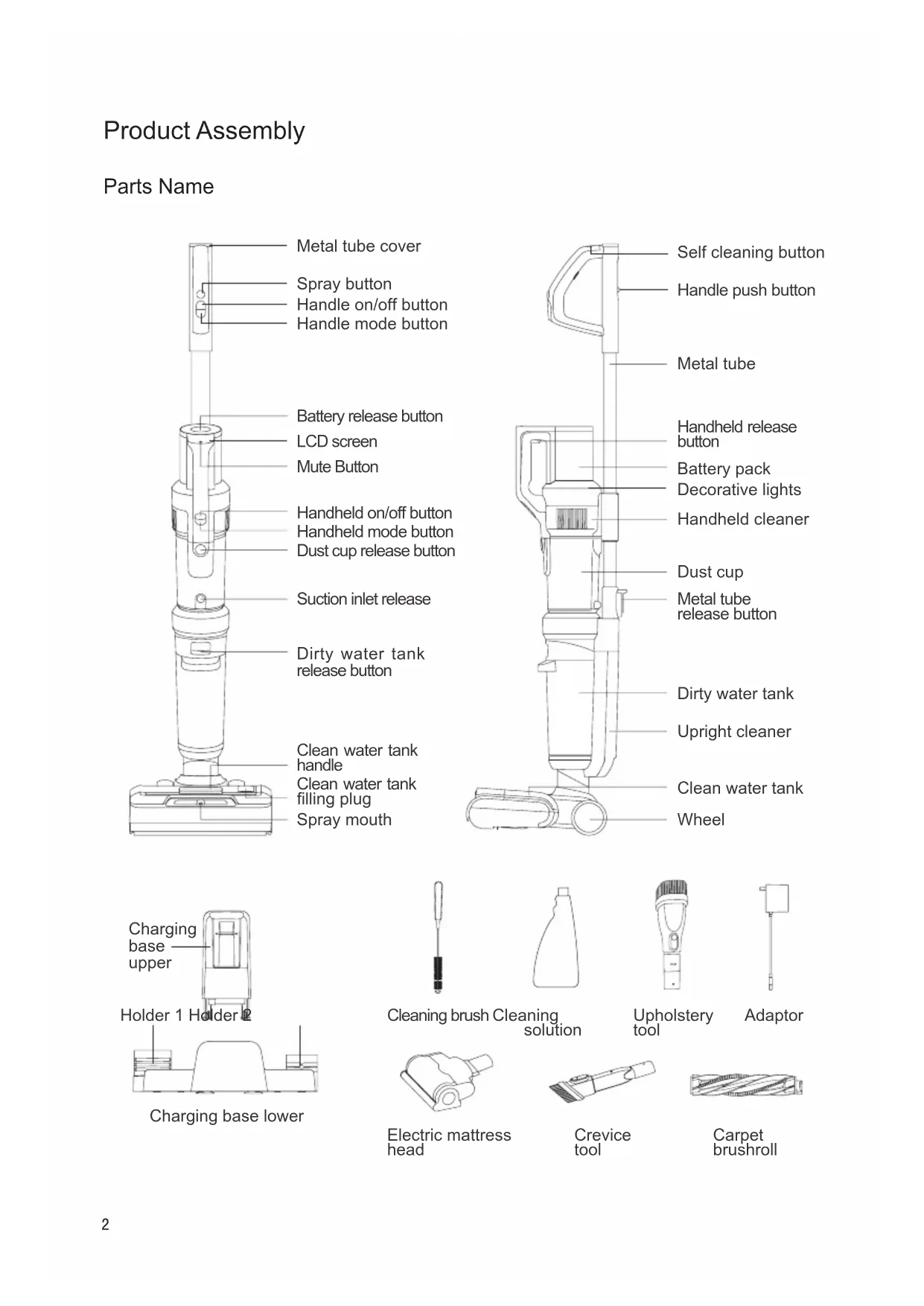

Polski 892 Product Assembly Parts Name Spray mouth Self cleaning button Handle on/off button Handle mode button Battery release button LCD screen Mute Button Handheld on/off button Handheld mode button Dust cup release button Suction inlet release Clean water tank handle Clean water tank lling plug Dirty water tank release button Metal tube cover Handle push button Spray button Metal tube Handheld release button Battery pack Decorative lights Handheld cleaner Dust cup Metal tube release button Dirty water tank Upright cleaner Clean water tank Wheel Holder 1 Holder 2 Carpet brushroll Cleaning brush Cleaning solution Upholstery tool Adaptor Electric mattress head Crevice tool Charging base lower Charging base upper3 Product assembly and disassembly Note: Cut off electricity before product assembly and disassembly. Metal tube assembly and disassembly Insert the metal tube into the mainbody vertically until a“click”sound is heard. Make sure metal tube is rmly locked(Fig1). To remove the metal tube, push the metal tube release button down to the end and pull the metal tube upward.(Fig2) Battery pack assembly and disassembly 1.Slide battery pack along the slot and press the battery pack down firmly until a“click”sound is heard. The battery pack is locked. 2.Press the battery pack release button and pull the battery pack in the direction opposite to the assembly to unlock the battery pack

(Fig3) Note: Except for the replacement of the battery pack, the battery pack doesn’t need to be taken out frequently. Handheld vacuum cleaner assembly Insert the dust cup suction inlet of the handheld vacuum into the groove of the mainbody cover. Push the handheld cleaner towards the metal tube until a "click" sound is heard, the handheld vacuum cleaner is installed successfully to mainbody. And machine is used as a upright vacuum cleaner at this time (Fig4). To remove the handheld vacuum cleaner, just press the handheld release button and lift the handheld vacuum cleaner diagonally upwards. (Fig5) Charge base assembly Press charge base upper towards charge base lower until a “click” sound is heard. (Fig6-1) Packing List Handheld cleaner Floorhead Metal tube Battery pack Cleaning solution Adaptor Carpet brushroll Cleaning brush

Electric mattress head Upholstery tool Crevice tool Charging base upper Charging base lower Holder 1 Holder 2 Instruction Manual

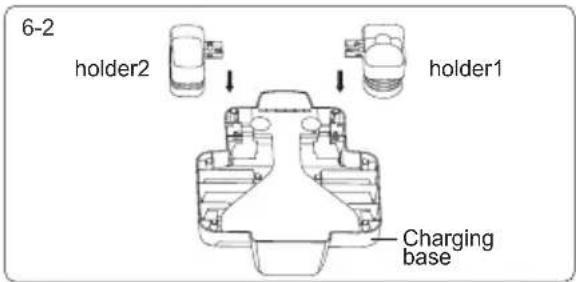

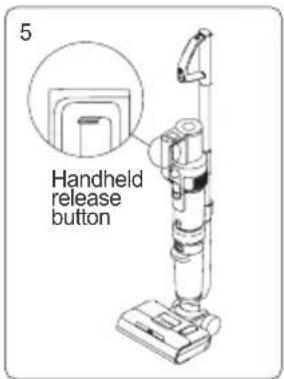

Battery pack Battery pack release button Handheld release button Handheld vacuum cleaner 6-1 Charging base lower Charging base upper4 Charging holder assembly Press the holder 1 and holder 2 into the charging base until a “click” sound is heard.(Fig6-2) Place machine to charging base To put machine back to charging base, hold machine handle to lift the machine,, aim charging slot on bottom of machine to the charging socket on charging base and put the machine into charging base. To use the machine, hold machine handle and lift out machine from charging base. (Fig7) Dirty water tank assembly and disassembly To take off dirty water tank, hold machine with one hand and hold dirty water tank with another hand, press dirty water tank release button to pull out dirty water tank. (Fig8-1) To assemble dirty water tank, place dirty water tank bottom into mainbody, push dirty water tank towards mainbody until a “click” sound is heard. (Fig8-2) Brushroll window and brushroll assembly and disassembly To take off brushroll window, hold brushroll window latch and pull upward to remove brushroll window. To assemble brushroll window, align the clips on two sides of brushroll window with the slots on two sides of floorhead. Press brushroll window down until a “click” sound is heard. (Fig9) Disassemble/assemble brushroll: Pull out brushroll left cap with finger to take brushroll out. Hold brushroll cap, slide brushroll left side into gear , place brushroll into nozzle. (Fig10) Clean water tank assembly and disassembly To take off clean water tank, hold the clean water tank handle and pull out the clean water tank. To assemble clean water tank, put the clean water tank back to nozzle, align with the brushroll window. (Fig11) Use of the Product Note: When using it for the rst time, please fully charge the machine before using it. Use of upright vacuum cleaner Press the handle on/off button, the LCD screen and decorative lights will light up, default is in Auto mode (Fig12), press the mode button to switch to Floor mode (Fig13), press the mode

Charging slot Charging socket

Clean water tank Clean water tank handle Brushroll window

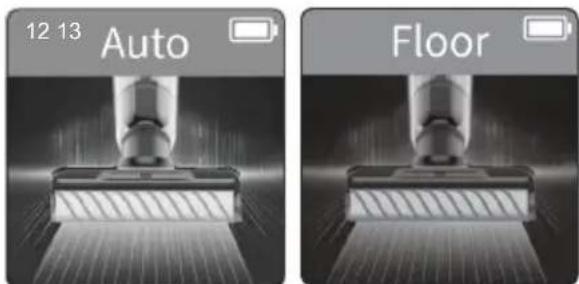

button twice to switch to Turbo mode (Fig14) , press the mode button three time to switch to Carpet mode(Fig15). Press the mode button again to go back to Auto mode. Press the handle on/off button again to turn off the machine, the display screen and the decorative lights go out. Note:

1. When cleaning carpet, please clean the

oorhead rst (refer to " Cleaning and Maintenance, Floorhead Cleaning" for details) and replace the carpet brushroll.

2. During floor cleaning or self cleaning, please

make sure brushroll window is slided upward.(Fig 16-1)

3. During carpet cleaning, please make sure

brushroll window is slided downward.(Fig16-2)

4. When the battery level is lower than 20%, it

cannot be switched to Carpet mode and Turbo mode. Water spray function When upright vacuum cleaner is working, press the water spray button, the spray mouth sprays fan-shaped water; release the water spray button to stop spraying water. (Fig17) Use of handheld vacuum cleaner Take off handheld cleaner, press the handheld on/ off button, the display and decorative lights will light up, default is in ECO mode (Fig18), press the handheld mode button to switch to MAX mode (Fig19), Then press the handheld mode button to switch back to ECO mode; Press the handheld on/ off button again to turn off the machine, the display screen and the decorative lights go out. The handheld vacuum cleaner can be connected with upholstery tool, crevice tool, electric mattress head or metal tube, to clean different areas.

1. Connect with upholstery tool to clean the dust

and particles on furniture surface . (Fig20-1)

2. Connect with metal tube to clean dust on high

places. Open the metal tube top cover, push the handle button upwards to extend the metal tube, and then insert the tube to suction inlet of the handheld vacuum cleaner to clean the dust in high place. (Fig20-2)

3. Connect with crevice tool to clean narrow places.

4. Connect electric mattress head to clean dust,

hair, dust mite ect on bed or fabric sofa. (Fig20-4) Note:

1. When the battery is lower than 20%, it cannot be

switched to max mode

2. When using handheld vacuum cleaner, do not vacuum

water, otherwise it will cause motor defect.

16-1 16-2 Floor cleaning mode Carpet cleaning mode

Machine charging Connect the adapter to the power supply, put the upright vacuum cleaner into the charging base to start charging.(Fig21) Note:

1. Before the rst use, please fully charge the battery

pack, and before the second charge, please empty the battery to ensure the life of the battery pack;

2. If the product is to be long idled, please charge it

once every three months;

3. When not charging, please remove the adapter from

the socket to prevent the danger of accidental touching. Brushroll air-drying function In the charging mode, press and hold the handle mode button for 3 seconds to enter the brushroll air-drying mode for 4 hours. During the air-drying process, the decorative light is on, and the brushroll will rotate slightly at intervals to adjust the air-drying position; Press again mode button to turn off the drying mode. Note:This mode is designed to prevent humid brushroll from breeding bacteria or odors. (The display is shown in Fig22) Brushroll & air path self-cleaning function In the charging mode, press the self-cleaning button to enter the cleaning mode (The display is shown in Fig23).After the self-cleaning is completed, the machine enters brushroll air-drying mode and returns to the charging mode; during the self-cleaning process, to end the self-cleaning mode in advance , press on/off button and machine will return to charging mode. Note:

1. Self clean mode is only to clean oorhead air path and hardoor brushroll. Do not run self clean on the carpet

2. Before turning on the self clean mode, please empty dirty water in the dirty water tank rst, check that the

machine has been rmly placed on the charging stand, the adapter is plugged into the socket and connected to the charging stand. The clean water tank retains at least 1/2 water volume; After completing self cleaning, please clean the dirty water tank again.

3. When the battery is less than or equal to 10% power, the self-cleaning mode cannot be turned on, and it can

be turned on normally after charging for a period of time. Clean water tank empty indicator When using the water spray function, the voice/screen shows "No clean water, ll in water" (Fig 24 and Fig25 alternately display), please turn off the machine and add water to the clean water tank.When using the clea self clean mode, if it is detected that there is no water in the clean water tank, the brushroll self cleaning will be stopped. To continue self cleaning, please add water to the clean water tank and empty the dirty water tank, then restart self clean mode. Note:When adding clean water, you can add the equipped JIMMY cleaning solution, the ratio is about 1 bottle cap of cleaning solution to one full water tank, the water temperature cannot exceed 40°C. Fill up clean water tank: After removing the clean water tank, open the water lling plug, turn it to the side to expose the water inlet hole, pour clean water and cleaning solution in, and then plug back to the original position and reinstall the clean water tank to oorhead. (Fig26)

Dirty water tank full indicator When the upright vacuum cleaner detects that the dirty water tank is full, the whole machine will stop and give a voice reminder. Please clean the full dirty water tank and put it back. (Fig27 and Fig28 alternately display) When it is detected that the dirty water tank is full in self clean mode, the machine will stop working and give a voice reminder. Please clean the full dirty water tank and put it back. Dirty water tank cleaning: Take out dirty water tank upper cover and filter frame, dump the dirty water, assemble the dirty water tank after washing, and put it back on the oorhead. (refer to " Cleaning and Maintenance of dirty water tank" for details) Brushroll stuck indicator When the cleaner is in working or cleaning mode, if the brushroll is stuck, the whole machine will stop and give a voice reminder. (Fig29 and Fig30 alternately display) Please take out the brushroll, clean up the foreign matter or entangled hair on the brushroll. Brushroll cleaning: After removing the window, pull out brushroll, use the blade on the cleaning brush to cut the hairs winding on brushroll, and clean the foreign matter attached to the brushroll and oorhead, Install brushroll and window back. (Fig31) (refer to " Cleaning and Maintenance of Floorhead Assembly " for details) Air path blocked indicator When the upright cleaner is in working or self clean mode, if the air path is blocked, the machine will stop working and give a voice reminder. Please follow the instruction on display screen to check the possible blocked parts and clean up. When handheld vacuum cleaner is working, if the air path is blocked, cleaner will automatically stop. At this time, the dust cup and HEPA need to be cleaned. (The content displayed on the screen is: the blockage of the upright vacuum cleaner is shown in Fig32-1

32-5, and the blockage of the handheld vacuum cleaner is shown in Fig32-1

32-2) Air path cleaning:

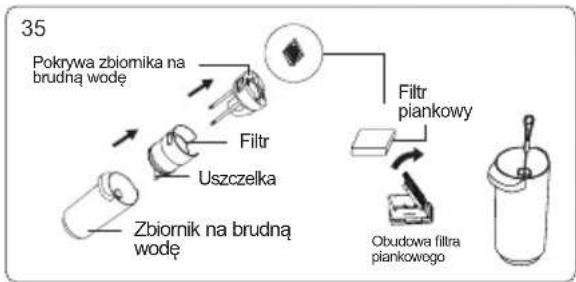

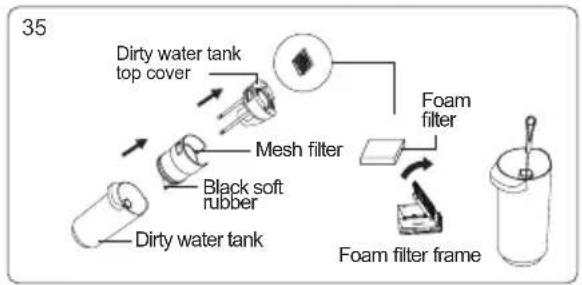

1. Disassemble the dirty water tank, take out dirty water tank upper cover and lter, wash all parts

and them asssemble back.

2. Use pipe brush to clean the dirt, foreign objects and hair inside air path of oorhead.

3. Remove the dust cup, empty the dust cup, remove HEPA, then take out cyclone and disassemble

it, clean all parts and reassemble the dust cup. (Refer to "Cleaning and Maintenance" for details) 32-2 32-4 32-5 32-3

Voice function The voice of the new machine is turned on by default, press the mute button to turn off the voice function; press the mute button again to turn on the voice function. (Fig33) Note:When using handheld vacuum cleaner, there is no voice function. Battery power indicator When the upright cleaner is working, if the voice reminds " Low battery. Please charge the battery ", Please use it after charging. (Fig34) When the upright cleaner is working, if the voice reminds " Low battery. Machine will be turned off soon. Please charge the battery ", the power is about to be exhausted, and it will automatically shut down. Need to charge for use. When using vacuum cleaner, the icon on top right corner of the sceen displays left battery power: full grid means 75% to 100% battery; 3/4 grid means to 50% to 75% battery; 1/2 grid means 25% to 50% battery; 1/4 grid means 1% to 25% of the battery; the blank means the battery being empty, and it needs to be charged before use. Cleaning and Maintenance Dirty water tank cleaning After turning off the vacuum cleaner, remove the dirty water tank, lift the water tank top cover, and remove the foam lter frame from it, open the ip cover of the foam lter frame, take out the foam lter. Pour out dirty water and dirt in the water tank, then wash dirty water tank, water tank cover, foam lter frame and foam lter. If there is foreign matter in the dirty water tank pipe, it can be cleaned with a cleaning brush; dry the above parts after washing. And then reassemble all the parts back into dirty water tank.(Fig35) Note:

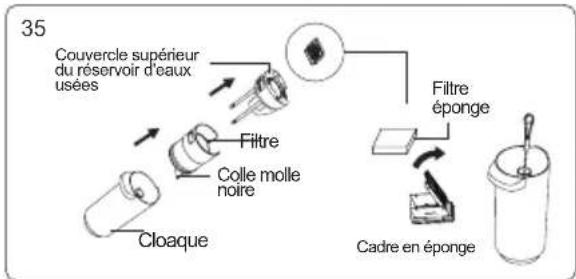

1. After using upright vacuum cleaner, it is recommended to clean the dirty tank immediately;

2. When reinstalling the lter,do not fold the black soft rubber under the lter.

Floorhead cleaning After removing the brushroll window, brushroll, clean water tank, and dirty water tank, insert the cleaning brush through the circular hole below the installation position of the dirty water tank to clear foreign matter and scales in the pipe, and the clogged hair; Use the blade on the cleaning brush cut off the entangled hair on the brushroll; Wipe the dirty parts of the machine (the brushroll can be placed in the accessory holder for drying ).(Fig36) Note:Do not wash the oorhead separately after removing the brushroll. Cleaning brush Cleaning brush storage Brushroll storage Foam lterDirty water tank Black soft rubberMesh lter Charging baseFoam lter frameDirty water tank top coverHEPA /Adaptor storage

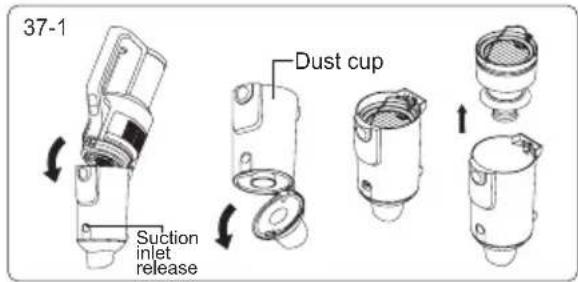

Dust cup cleaning Press the dust cup release button to remove the dust cup from the handheld vacuum cleaner; press the suction inlet release button to open the suction inlet and empty the dust cup; Take out the cyclone assembly ; Take out the HEPA lter; Hold the metal mesh, rotate it to unlock the metal mesh, and then remove it downward.(Fig37-1) After cleaning, wiping, and drying each part, assemble the dust cup in turn, and then installed on the handheld vacuum cleaner.(Fig37-2) Maintenance and Storage it is recommended to clean the dirty water tank, lter, brushroll and brushroll window after each use. If there is any of below situation: (

HEPA lter leaks dust;

Foam lter severely damaged;

The brushroll has serious hair loss,or has strong vibration and abnormal noise during use), it is recommended to purchase consumables and replace it to avoid machine performance. when the machine is long idled, place it in a cool and dry place, avoid direct sunlight or wet environment. When pack and store the machine, Please be sure to clean the machine and dry all parts to prevent damage to the machine. Important Safety Instructions Read all instructions and warnings before using this appliance. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury. Warning

1. The appliance is only for household use.

2. Before use the product, check whether the local voltage is consistent with the voltage marked

on the power adaptor.

3. Inspect the product before use, stop use if the product or adaptor is damaged.

4. Use only as described in this manual.

5. This appliance cannot be used by children and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

6. Do not use this product as a toy. Keep this product away from the reach of children. Take care

of children and make sure they will not regard this product as a toy.

7. Do not touch plug with wet hand.

8. Use extra care when cleaning on stairs to prevent falling.

9. Do not use or disassemble or replace any component if there is damage on power cord, plug,

battery or conductive parts. Disassembly or replacement of the components by yourself may 37-1 37-2 Dust cup HEPA lter Metal mesh Suction inlet release10 cause electric shock or re. JIMMY will not take responsibility. Once damaged, the product need to be repaired or replaced by JIMMY, JIMMY’s distributor or qualified person designated by JIMMY to avoid injury.

10. Recharge only with the adaptor specied by JIMMY.

11. Only to use the battery pack specied by JIMMY. Use of any other battery pack may cause

explosion, injury and or product damage.

12. If the product does not operate in accordance with the instructions, is seriously impacted,

falls from a height, is damaged, or falls into the water, do not use it and contact JIMMY or JIMMY distributor .

13. Only use JIMMY specied replacement parts or attachments.

14. Do not pull or press the cable. Keep cable away from heated surfaces. Do not place the

cable in a closed door or pull it through a sharp edge or corner. Keep the cable away from walking area. Do not operate product across the cable.

15. Unplug the product when it is not used or before repairing.

16. Do not drag the cord or carry cord to move the product, or use cord as handle.

17. The product is a rechargeable electric appliance. Do not leave the machine to run

18. Remove battery pack when the product is cleaned, repaired or long idled.

19. Do not get close to heating appliance or expose under sunshine longtime, to prevent over

heating causing housing deformation.

20. Keep objects that may obstruct air path from air inlet and outlet to prevent machine

21. Product mainbody and oorhead have electric components, cannot be washed under water.

22. Do not clean or disassemble brushroll cover or brushroll when the machine is power on or

under working to prevent injury.

23. Do not use the product to pick up amming objects like burning charcoal or cigarette etc.

24. Do not use the product to pick up sharp objects like broken glass.

25. Do not use the product to pick up lime, cement, toner, gypsum powder, our and other ultra-

26. Do not use the product to pick up acid-base cleaning liquid, washing powder and other

27. Do not use the product to pick up inammable and explosive objects like gasoline, alcohol,

perfume, paint, etc.

28. Do not disassemble the closed machine, and do not try to change the performance of the

machine. Only get help from the professional personnel of the manufacturer, its maintenance department or similar departments, otherwise it will cause danger.

29. Turn off power and unplug charger if the products is long idled.

30. Product technical specication of this manual are based on results from lab tests of JIMMY

or designated third parties. The company reserves all rights for nal explanations.11 About use of the product

1. This product is suitable for hard oor in indoor environment, including waxed oor, rubber

oor, tile oor and sealed wood oor, solid wood oor and other at surface, use of the product on unat ground may not achieve the best effect.

2. Do not turn on the machine before dirty water tank and clean water tank are assembled in

place according to instruction.

3. Do not shake the product up and down or collide violently to prevent dirty water from owing

into the motor; when the product is turned on, do not lift or carry the machine up and down, and do not tilt the product to one side or lay it at on the oor to prevent dirty water from owing into the motor.

4. Do not run the product for a long time with the oat blocking the air inlet to avoid damage.

5. After using the product, clean the dirty water tank, suction nozzle, air path and store it in

ventilated and dry place. Wet place will affect the insulation and life of electrical appliances. About Cleaning Solution

1. A large amount of cleaning solution entering into the motor may cause damage to the

2. Mix the solution with clean water according to the instructions (the ratio of solution to clean

water is 1:50). It is recommended to use provided cleaning solution. Do not use cleaning solution contains acid, alkali,alcoholic solution or substances harmful to the environment.

3. Keep cleaning solution out of reach of children. If any solution gets into the eyes, immediately

flush them with clean water. If any solution is swallowed by accident, see medical care immediately.

4. Dirty water and solution disposal should comply with local environmental regulations.

About disposal of battery

1. The battery in the product contains materials harmful to the environment. Take out the battery

pack from the product before disposal.

2. Turn off the product and unplug adaptor before taking out battery pack.

3. Handle the waste battery pack safely and properly. Do not put it into re, water or soil.

4. If the disposed battery leakage causes pollution to skin or clothes, Wash with clean water and

see medical care immediately.12 Problem Possible cause Solution Can not start or stop during use Low battery power Recharge battery On/off button is not pressed down Press down on/off button Brushroll is entangled Clean brushroll Dirty water tank full Clean dirty water tank Battery pack not assembled properly Reassemble battery pack Suction inlet blocked Clean suction inlet and filter Weak suction Suction inlet blocked Clean suction inlet and filter No HEPA assembled Assemble HEPA Abnormal noise Suction inlet blocked Clean suction inlet and filter No HEPA assembled Assemble HEPA Spray mouth does not spray water Clean water tank empty Fill clean water tank Water spray button not pressed Press water spray button Clean water tank not assembled properly Reassemble clean water tank Water spray out from air path HEPA and dust cup are put to use without fully dry Dry the HEPA and dust cup after washing before use Metal filter is not assembled in the dirty water tank Assemble metal filter in dirty water tank Soft plastic folds under the filter Reassemble the filter, the soft glue must not be folded Troubleshooting Please check the following points before contacting the after sale service. Note: If the above troubleshooting guide fails to provide a solution or the screen displays error code F1 to F8, please contact after service or local distributor for support.13 Product Specication Technical parameters Circuit Product name Cordless Vacuum&Washer Model HW10 Pro Rated Power 350W Rated Voltage 25.2V Battery Capacity 3800mAh Charging Time 4-5h Adaptor Input 100-240V
