USER MANUAL ES-LV69 PANASONIC

Operating Instructions

(Household use) Rechargeable Shaver

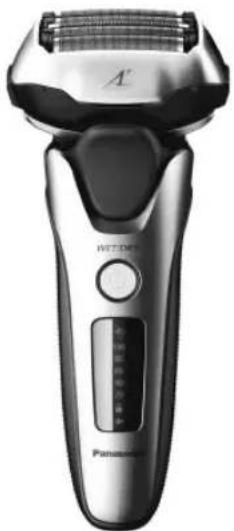

Model No. ES-LV69

C E

GB English.5 DK Dansk.133 Cz Cesky 253
D Deutsch 25 P Portugues...153 SK Slovensky....273
F Frangais..47 N Norsk. 175 Magyar. 293
Italiano 69 S Svenska 195 Ro Romana 315
NL Netherlands.....89 FIN Suomi....213 TR Turkce....337
Espanol. 111 Polski. 231

A

Back

B

C

D

F E

Panasonic

Operating Instructions

(Household use) Rechargeable Shaver

Model No. ES-LV69

Contents

Safety precautions. 8

Important information 11

Parts identification. 12

Preparation. 12

How to use 14

Cleaning the shaver 16

Replacing the system outer foil and the inner blades. 17

FAQ. 18

Troubleshooting 18

Service 21

For environmental protection and recycling of materials. 21

Specifications 22

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

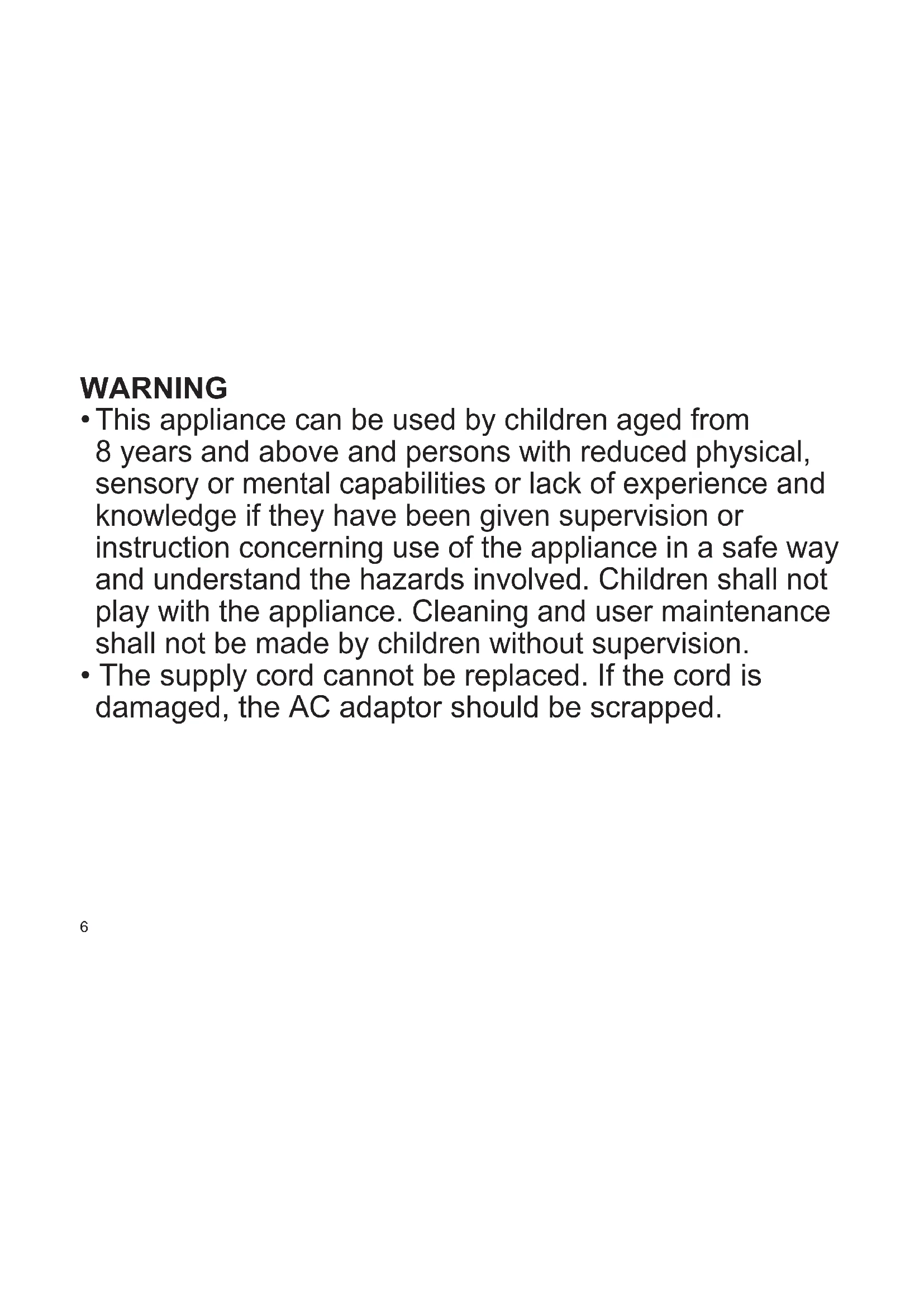

WARNING

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

• This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

• Do not use anything other than the supplied AC adaptor for any purpose. Also, do not use any other product with the supplied AC adaptor. (See page 12.)
• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

Make sure to follow these instructions.

To prevent accidents, injuries or damage to property, please follow the instructions below.

The following chart indicates the degree of damage caused by improper operation.

△ DANGER	Indicates a potential hazard that will result in serious injury or death.
△ WARNING	Indicates a potential hazard that could result in serious injury or death.
△ CAUTION	Indicates a potential hazard that could result in minor injury or property damage.

The symbols are classified and explained as follows

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

This product

This product has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, leave, or store in a high temperature environment.

• Doing so may cause overheating, ignition, or explosion.

Do not modify or repair.

• Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for rep (replacement of battery etc).

• Never disassemble except when disposing of the product.

• Doing so may cause fire, electric shock, or injury.

In case of an abnormality or malfunction Immediately stop using and remove the AC adaptor.

• Failure to do so may cause fire, electric shock, or injury.

The main unit, adaptor or cord is deformed or abnormally hot.

The main unit, adaptor or cord smells of burning.

• There is an abnormal sound during use or charging of the main unit.

• Immediately request inspection or repair at an authorized service centre.

WARNING

Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.
- Doing so may cause electric shock or injury.

Do not immerse the AC adaptor in water or wash with water.

Do not place the AC adaptor over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage the cord or the power plug.
- Do not deface, modify, forcefully bend or pull the cord or the power plug. Also, do not place anything heavy on, twist or pinch the cord.
- Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way that would exceed the rating of the household outlet or the wiring.
- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Fully insert the power plug.
-Failure to do so may cause fire or electric shock.

Disconnect the AC adaptor when cleaning the main body with water.
- Failure to do so may cause electric shock or injury.

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.
- Failure to do so may cause fire due to insulation failure caused by humidity.

Preventing accidents

Do not place within reach of children or infants. Do not let them use it.
- Putting parts or accessories in the mouth may cause an accident or injury.

If oil is consumed accidentally, do not induce vomiting, drink a large amount of water and contact a physician.

If oil comes into contact with eyes, wash immediately and thoroughly with running water and contact a physician.
- Failure to follow these instructions may result in physical problems.

CAUTION

Protecting the skin

Do not use excessive pressure to apply the system outer foil to your lip or other part of your face.

Do not apply the system outer foil directly to blemishes or injured skin.
Do not touch the blade section (metallic section) of the inner blade.
- Doing so may cause injury to skin or hand.

CAUTION

Do not forcefully press the system outer foil. Also, do not touch the system outer foil with fingers or nails when in use.

Do not use this product for hair on head or any other part of the body.

• Doing so may cause injury to skin or reduce the life of the system outer foil.

Check the system outer foil for cracks or deformations before use.

• Failure to do so may cause injury to the skin.

Note the following precautions

Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

• Doing so may cause electric shock or fire due to a short circuit.

Do not share your shaver with your family or other people.

• Doing so may result in infection or inflammation.

Disconnect the adaptor from the household outlet when not charging.

• Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

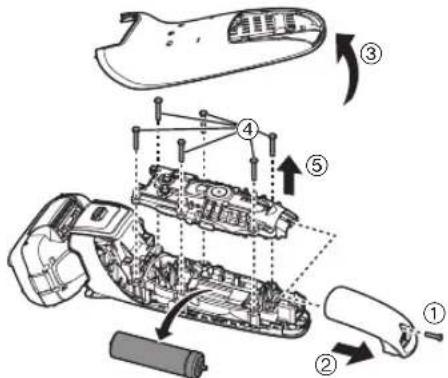

Handling of the removed battery when disposing

DANGER

The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.
-Do not charge the battery after it has been removed from the product.
-Do not throw into fire or apply heat.
-Do not hit, disassemble, modify, or puncture with a nail.

Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.

• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.

• Never peel off the tube.

• Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

• The battery will harm the body if accidentally swallowed.

If this happens, consult a physician immediately.

If the battery fluid leaks out and comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.

• Failure to do so may cause eye injury.

Consult a physician immediately.

CAUTION

If the battery fluid leaks out and comes in contact with the skin or clothes, rinse off with clean water, such as tap water.

• Failure to do so may cause inflammation.

Important information

• Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.
• Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged.
• If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time.
• Charge the appliance correctly according to these Operating Instructions. (See page 12 "Charging the shaver".)
• This appliance contains battery that is only replaceable by skilled persons. Please contact an authorized service centre for the details of repair.

Note the following precautions

When using

• Do not bring the system outer foil into contact with hard objects.
  Doing so may damage the system outer foil as it is very thin and deforms easily.
• Do not drop or hit against other objects.

Doing so may cause injury.

When storing

• Store the shaver in a place with low humidity after use.

Failure to do so may cause malfunction due to condensation or rust.

• Be sure to place the protective cap on the shaver when carrying around or storing.

Failure to do so may cause injury to skin or reduce the life of the system outer foil.

When cleaning

• Do not dry using heat from a dryer or other appliance. Doing so may cause malfunction or deformation of the parts.
• Do not leave the shaver exposed to direct sunlight with the foil frame detached.

Doing so may deteriorate the waterproof rubber and degrade waterproof function, which may cause to malfunction.

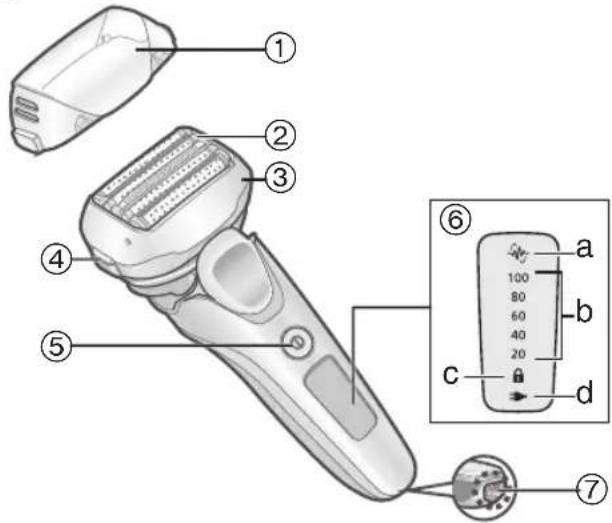

Parts identification

A Main body

① Protective cap
② System outer foil
③ Foil frame
④ Foil frame release buttons

⑤Power switch
⑥ Lamp disp

a. Shaving sensor lamp (
b. Battery capacity lamp
c. Switch lock lamp (A)
d. Charge status lamp (一)

⑦Appliance socket

Outerfoil section
System outer foil release buttons
10 Inner blades
1Trimmer
⑫Trimmer handle

AC adaptor (RE7-87)

Adaptor
⑭Power plug
⑤ Cord
⑥ Appliance plug

Accessories

Travel pouch

Oil
Operating Instructions
F Guarantee Card

Preparation

Charging the shaver

• Turn the shaver off.
• Wipe off any water droplets on the appliance socket.

1 Insert the appliance plug [B16] into the shaver.

2 Plug the adaptor [3] into a household outlet.

• Check that the charge status lamp () is glowing.

• Charging is completed after approx. 1 hour.

3 Disconnect the adaptor after charging is completed.

Note

You cannot operate the shaver while charging.

Quick charge

Even though the battery runs out, you can shave once after 3-minute charge.

(This will differ depending on usage.)

While charging

glows.

The number of the battery capacity lamp will increase as charging progresses.

After charging is completed

All the battery capacity lamp and will glow and then turn off after 5 seconds.

Notes

• When charging the shaver for the first time or when it has not been in use for more than 6 months, the charging time may change or the charge status lamp (▶) may not glow for a few minutes. It will eventually glow if kept connected.
  Recommended ambient temperature for charging is 10^ - 35^ . It may take longer to charge, or the charge status lamp () will blink quickly and the battery may fail to charge properly in extremely high or low temperatures.
  The shaver can be used for approximately 2 weeks with a full charge.
  (Based on one 3-minute dry-shave usage per day in an ambient temperature range of 20^ - 30^. ) The number of usable days varies depending on the following conditions.
• Beard thickness
• Pressure applied to the skin
  -Usage frequency of the sonic vibration cleaning mode
• If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance.

How to use

Shaving beard

1 Press and shave.

• The "shaving sensor", which automatically adjusts the power depending on the beard thickness, will operate.

It will shave with high power on areas where the beard is heavy, and reduce the power on areas where the beard is thin, to reduce burden on the skin.

Tips for better shaving

Apply the whole system outer foil perpendicularly against the skin and shave by slowly gliding the shaver over the face against the grain of the beard.

• The beard under the chin and around the throat can be shaved better by stretching the skin so the beard will stand.
• To prevent damaging the system outer foil, do not shave with only a part of the system outer foil.

2 Press when finished.

While using After use

The remaining battery capacity are shown and then turn off after 5 seconds.

• Approximate amount of battery capacity is displayed as 20 - 100.
  The shaving sensor lamp (一) blinks.

The remaining battery capacity blink and then turn off after 5 seconds.

When the battery capacity is low

"20" blinks when operating the shaver.
- You can shave 2 to 3 times after "20" blinks. (This will differ depending on usage.)

Notes

• The appliance may not operate in an ambient temperature lower than approximately 5^ .

• The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.

• Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.

• To prevent erroneous operation, place your fingers on the finger rest while using the shaver.
• The sonic vibration cleaning mode is activated when the power switch is pressed for more than 2 seconds while the shaver is not operating. (See page 16.) You cannot shave in this mode.

Operation and display of the switch lock

Locking the power switch

1. Press once and then release.

The shaver starts operating.

2.Hold for more than 2 seconds until the switch lock lamp ( H ) turns on.

• The shaver will stop operating.

1. Release

The switch lock lamp ( ) will light up for 5 seconds and turn off

Unlocking the power switch

1.Hold for more than 2 seconds until the switch lock lamp ( ) turns off.

2.Once the shaver starts operating, release The switch lock lamp (B) will turn off.

• The power switch is locked when the switch lock lamp (B) blinks for 5 seconds and the shaver does not operate even though the power switch is pressed.

Using the trimmer

1. Slide the trimmer handle up to the "mm" position so that the trimmer stands upright.
2. Press and use.

Press and hold the top knob () and slide the trimmer handle down to lower the trimmer.

Tips for better usage

Apply the trimmer edge perpendicular to skin gently and move downward slowly.

Trimming sideburns Pre-shave of long beards

Switching the shaver head

You can change the pivot action.

FREE

The shaver head is moved to prevent missed spots.

LOCK

You can lock the shaver head.

Cleaning the shaver

We recommend cleaning the shaver after each use.

Cleaning with water

• Turn the shaver off and disconnect the AC adaptor.

1 Apply some hand soap and some water to the system outer foil [A②].

2 Hold for more than 2 seconds to activate the sonic vibration cleaning mode.

• Splashing of foam is suppressed.
  The battery capacity lamps blink in order.
  After about 18 seconds, it will be automatically turned off, or you can turn it off by pressing the power switch.

3 With the shaver stopped, remove the outer foil section [A8] and hold for more than 2 seconds.

See page 17 for removing the outer foil section.

4 Clean with running water.

• Splashing is reduced by rinsing the shaver in sonic vibration cleaning mode.
• Clean the system outer foil in the areas indicated by the circles.
  After rinsing with water, shake the shaver up and down for a few times to remove excess moisture and then wipe off any drops of water with a dry cloth.

5 Dry the outer foil section, the shaver, and the trimmer [A11] completely

• Allow the shaver to dry in the shade, avoid direct sunlight.

Lubricate the shaver.

It will keep the movement of the blades smooth and maintain a comfort shave.

1. Apply one drop of oil to each of the system outer foils.
2. Raise the trimmer and apply a drop of oil.
3. Switch the shaver on, and run it for approximately five seconds.
4. Switch off the shaver, and wipe off any excess oil from the system outer foil with a soft cloth.

Notes

• Do not use any kitchen or bathroom detergents other than hand soap.
  Doing so may cause malfunction.
• Be careful not to hit the main body on the sink or any other object while draining the water. Failure to do so may cause malfunction.
• Do not wipe with thinners, benzine, alcohol etc.

Doing so may cause malfunction, cracking or discoloration of the parts.

Wipe with diluted soapy water.

Replacing the system outer foil and the inner blades

system outer foil once every year
inner blades once every two years

Removing the outer foil section Press the foil frame release buttons [A and lift the outer foil section [A8] upw
Attaching the outer foil section After turning the foil frame mark () to the front, securely attach the outer foil section [A] to the shaver until it clicks.

Replacing the system outer foil

1. Press the system outer foil release buttons [A⑨] and pull down the system outer foil [A②].

2. Do not press the system outer foil release buttons with excessive force.

Doing so may bend the system outer foil, preventing complete attachment to the foil frame.

1. Align the foil frame mark ( ) and the system outer foil mark ( ) and securely attach together until it clicks.

Replacing the inner blades

1. Remove the inner blades [A] one at a time.
2. Insert the inner blades one at a time.

Question Answer

Can I charge the shaver after every use?

The battery used is a lithium-ion, so charging after every use will have no effect on battery life.

Why should the adaptor be disconnected after charge?

Charging the battery for more than 1 hour will not affect battery performance, but disconnect the adaptor for safety and to save energy.

What is the constituent of the dedicated oil?

Constituent of the oil is liquid paraffin.

Why does the appliance beep twice after switched off?

The sound indicates that the battery capacity is running low. Please charge the appliance.

Note

Do not throw away the foil frame.

FAQ

Question Answer

Will the battery deteriorate if not used for an extended period of time?

The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.

Troubleshooting

Perform the following actions. If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Problem Action

The power switch does not turn ON.

Unlock the switch lock. (See page 15.)

Problem Action

The shaving sensor does not respond.

Depending on the beard thickness or the amount of beard trimmings in the
shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.
The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.
The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver.
Apply oil. (See page 17.) The shaving sensor may not respond when there is not enough oil on the blades.

Problem Action

The shaving sensor responds even though the shaver is not in contact with the skin.
Operating time is short even after a full charge.

When the shaver is extremely dirty, remove the

foil frame and wash with water. (See page 16.)
Replace the system outer foil and/or inner blades.
Expected life of system outer foil and inner blades: System outer foil:

Approximately 1 year Inner blades:

Approximately 2 years

Although the shaver can be used for about 2 weeks after a full charge (assuming dry-shave usages for 3 minutes

per day), the usable number of days might be lower depending on how the shaver is used (for example, when used for wet shaving).
Apply oil.
Clean the shaver.
When the number of operations per charge starts to decrease, the battery is nearing the end of its life.

Problem Action
Shaver does not operate even after charging.	Use the appliance in an ambient temperature approximately 5 °C or higher.
	The battery has reached the end of its life.
	The shaver will not operate with the AC adaptor connected. Please use the shaver after it has been sufficiently charged and the AC adaptor disconnected.
The driving sound changes while shaving.	The shaving sensor is operating. The sound changes depending on the beard thickness.
Makes a loud sound.	Apply oil. The blades will not move smoothly when there is no oil on the blades, requiring more power.
	The shaver makes a high-pitched sound due to the linear motor drive. This does not indicate a problem.
	Confirm that the blades are properly attached.
	Wash the system outer foil with water. (See page 16.)

Problem Action
The odor is getting stronger.	Clean the shaver.
Shavings fly out in all directions.	Clean the inner blades with water when shavings are adhering to the inner blades.
System outer foil gets hot.	Apply oil.
	Replace the system outer foil if it is damaged or deformed. (See page 17.)
You do not get as close a shave as before.	Clean the shaver.
	Apply oil.
	Replace the system outer foil and/or inner blades. Expected life of system outer foil and inner blades: System outer foil: Approximately 1 year Inner blades: Approximately 2 years

Service

Contact

Please visit Panasonic web site https://www.panasonic. com or contact an authorized service centre (you find its contact address in the pan european guarantee leaflet.) if you need information or if the shaver or the cord gets damaged.

Replacement parts

Replacement parts are available at your dealer or Service Centre.

Replacement parts for ES-LV69	System outer foil and inner blades	WES9032
	System outer foil WES9173
	Inner blades WES9170
Lubrication oil WES003P

Battery life

The life of the battery is 3 years. The battery in this shaver is not intended to be replaced by consumers. Have the battery replaced by an authorized service centre.

For environmental protection and recycling of materials

This shaver contains a Lithium-ion battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Disposal of the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the shaver.

The battery is to be disposed of safely. Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing of the shaver, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the shaver from the AC adaptor.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.

• Perform steps ① to ⑤ and lift the battery, and then remove it.

• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	3.6 V---
Charging time Approx. 1 hour
Airborne	In shaving mode: 62 (dB (A) re 1 pW)
Acoustical Noise	In trimmer mode: 62 (dB (A) re 1 pW)

This product is intended for household use only.

For more information about the energy efficiency of the product, please visit our website, www.panasonic.com, and enter the model number in the search box.

Importer:

Panasonic Marketing Europe GmbH

Authorized Representative in EU:

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Manufactured by:

Panasonic Corporation

1006,Oaza Kadoma,Kadoma City, Osaka, Japan

Panasonic

Betriebsanleitung

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Deutschland

Hergestellt von:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japan

Panasonic

Mode d'emploi

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Allemagne

Fabrique par :

Panasonic Corporation

1006,Oaza Kadoma,ville de Kadoma, Osaka,Japon

Panasonic

Istruzioni d'uso

Panasonic Testing Centre

Winsberging 15, 22525 Amburgo, Germania

Fabbricato da:

Panasonic Corporation

Panasonic Testing Centre

2 Pulse wheno termine.

Panasonic Testing Centre

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Tyskland

Fremstillet af:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma, Osaka, Japan

Panasonic

Panasonic Testing Centre

Under lading Etter at

lyser.

Tallet pa

batterikapasitetslampen vil oke i taktd med ladetiden.

edingen er fertig

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Tyskland

Produsert av:

Panasonic Corporation

1006,Oaza Kadoma,Kadoma, Osaka, Japan

Panasonic

Bruksanvisning

(Hushallsbruk) Laddningsbar rakapparat

Modellnr. ES-LV69

Innehäll

Sakerhetsforeskrifter 198

Viktig information. 201

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Tyskland

Tillverkad av:

Panasonic Corporation

1006,Oaza Kadoma,Kadoma, Osaka,Japan

Panasonic

Käyttoohjeet

Panasonic Testing Centre

Winsberging 15, 22525 Hampuri, Saksa

Valmistaja:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma-kaupunki, Osaka, Japan

Panasonic

Instrukcja obslugi

Panasonic Testing Centre

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburk, Nemecko

Vyrobil:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japonsko

Panasonic

Návod na obsluhu

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Nemecko

Vyrobca:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japonsko

Panasonic

Használatiutasítás

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germania

Fabric de:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japonia

Panasonic

Kullanim Talimatlari

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Almanya

Tarafindan Uretilmistir:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma Şehri, Osaka, Japonya

MEMO

MEMO

Panasonic Corporation

https://www.panasonic.com

© Panasonic Corporation 2023

EN,DE,FR,IT,NL,SP,DA,PT,NB,SV,FI,PL,CS,SK,HU,RO,TR

Printed in Japan

ES9700LV691E Y0223-0
