Product type	Professional electric crepe maker
Brand	Casselin
Model	CCR40EP
Dimensions	H 124 × Ø 400 mm
Weight	24 kg
Power supply	2700 W / 230 V
Temperature range	140 °C - 300 °C
Plate diameter	400 mm
Plate material	Stainless steel
Temperature control	Rotary thermostat with indicator light
Main functions	Cooking crêpes, pancakes, galettes
Heating indicator	Red light: on when element is heating
Overheat safety	Safety thermostat with Reset button at the back
Installation	Flat, solid, non-flammable surface
Cleaning	Hot water and soft cloth, do not immerse
Maintenance	Drying after cleaning, store dry
Recommended accessories	Wiping pad, ladle, Casselin spreader
Warranty	Manufacturer's warranty (see manual)
Reparability	Repairs by qualified professional
Points of sale	Authorized Casselin dealer

Frequently Asked Questions - CCR40EP Casselin

How to turn on the CCR40EP crepe maker?

Plug the appliance into a suitable wall socket (16 A minimum). Press the switch on the housing. Turn the temperature control knob to the desired position (140 to 300 °C). The red light turns on to indicate heating.

What temperature to use for crêpes?

The recommended temperature is 250 °C maximum. Let it heat for 10 minutes before first use. Lightly oil the plate with a tablespoon of sunflower oil, then pour the batter.

How to clean the plate after use?

Unplug the appliance and let it cool. Clean the plate with a soft cloth soaked in warm soapy water. Never use cold water on the hot plate to avoid thermal shock. Dry thoroughly with a dry cloth.

What to do if the appliance does not heat and the light remains off?

Check that the power cord is properly plugged in and that the fuse or circuit breaker has not tripped. If the problem persists, the safety thermostat may have tripped: press the Reset button on the back of the appliance. If this does not resolve, contact your dealer.

What to do in case of overheat safety trigger?

Unplug the appliance and let it cool completely. Then press the Reset button on the back. If the trigger recurs frequently, contact your dealer for a check.

Can I use metal utensils on the plate?

It is preferable to use the utensils recommended by Casselin (spreader, stainless steel ladle) to avoid scratching the plate. Avoid sharp metal knives or spatulas.

Does the plate need to be seasoned before first use?

No, the stainless steel plate does not require seasoning. Just clean it with warm soapy water after the first heating (10 minutes empty) and then lightly oil it before each use.

What oil to use to grease the plate?

Use sunflower oil or a neutral heat-resistant oil. Pour a tablespoon in the center and spread it with the Casselin wiping pad.

How to adjust the temperature on the CCR40EP?

Turn the rotary knob to select a temperature between 140 °C and 300 °C. The red light turns on during heating and turns off when the temperature is reached. It turns on again when the appliance heats again.

What to do in case of repeated tripping?

Unplug the appliance and let it cool. Check that the appliance is plugged directly into a wall socket (no extension cord). If the problem persists, contact your dealer for an inspection of the electrical installation.

USER MANUAL CCR40EP Casselin

Exterior view of a modern omelette on a circular baking pan (no text or symbols visible)

Exterior view of a modern portable steamer with a golden-brown baked cake on top (no visible text or symbols)

Exterior view of a modern stainless steel portable kitchen appliance with two round plates and control knobs (no visible text or symbols)

CCR40EP - CCC40EP - CCD40EP

Version originale

SOMMAIRE

1. PRÉSENTATION

Exterior view of a modern omelette on a circular baking pan (no text or symbols visible)

Exterior view of a modern portable steamer with a golden-brown baked cake on top (no visible text or symbols)

Exterior view of a modern stainless steel portable grating with two fluted plates and control knobs (no visible text or symbols)

CCR40EP - CCC40EP - CCD40EP

SUMMARY

1. PRESENTATION

1.1 Information
1.2 Description of symbols
1.3 Copyright
1.4 Declaration of Conformity
1.5 Guarantee

2. SAFETY

2.1 General
2.2 Intended use
2.3 Safety instructions for using the device

3. TRANSPORT, PACKAGING AND STORAGE

3.1 Inspection after transportation
3.2 Packaging
3.3 Storage

4. EQUIPMENT CHARACTERISTICS

5. MOUNTING AND USE

5.1 Safety rules
5.2 Use

6. CLEANING AND MAINTENANCE

6.1 Safety rules
6.2 Cleaning
6.3 Maintenance Safety Instructions

7. OPERATIONAL VIOLATIONS

1. PRESENTATION

1.1 Information

This user guide serves as information for all users. It describes the installation and handling of the device. The safety instructions and technical knowledge of the device are detailed in this manual. These are prerequisites for the correct use of professional equipment.

Each user must strictly follow all instructions for use. This user manual must be kept near the product for correct use and access to the instructions for each user at all times.

1.2 Description of symbols

Information, tips for use and safety instructions are represented by symbols. Be sure to follow these instructions to avoid property damage and personal injury.

WARNING

This symbol indicates that a hazard exists that could result in injury. Be careful and alert when working with this device.

ELECTRICAL HAZARD

This means that there is an electrical hazard. Failure to follow instructions can result in injury or death.

WARNING

This symbol is used to indicate that failure to follow the instructions could result in damage or destruction of the device.

NOTE

This symbol indicates best practices and tips that must be followed to effectively use the device.

NOTE

Be sure to read these operating instructions before putting the device into operation. We are not responsible for damage and breakdowns resulting from non-observance of the operating instructions. Casselin reserves the right to make any technical, informational and marketing changes to our product without prior notice.

1.3 Rightsauthor

The operating instructions are protected by copyright law. Reproduction of all types and in all forms, even partial, and the use and / or transmission of its content without our permission is not permitted. Any violation of these provisions will entail a right to compensation. All other rights reserved.

1.4 Declaration of Conformity

The device complies with the applicable standards and directives of the European Union. We confirm this in the CE declaration of conformity.

1.5 Warranty

The instructions in this operating manual have been compiled in accordance with current regulations, current technical developments, our knowledge and experience. All translations are done professionally. However, we are not responsible for translation errors. The enclosed French version is genuine.

2. SAFETY

Safety instructions serve to prevent hazards. They are mentioned in separate chapters and are indicated by symbols. Compliance with these guarantees optimal protection against risks and allows the device to perform optimally. Safety instructions must be accessible and readable on devices.

2.1 Principles

Safety instructions are established to prevent errors, dangerous use and breakdowns. Therefore, the device must not be altered or used for its intended purpose. The device has been designed in accordance with currently developed technical rules. Keep this notice. The device must be used in the premises designated for this purpose and only by a responsible person familiar with the operation of the device.

2.2 Intended use

The function of the device and the safety of use are only guaranteed in the case of normal and correct use of the device. Installation and maintenance work must be carried out by professionals.

WARNING

Any other use is considered incorrect. Any accusations related to improper use of the device are unacceptable and will expire. Correct use corresponds to the use described in these operating instructions. Correct use complies with safety, hygiene, cleaning and maintenance regulations.

2.3 Safety instructions for device use

The safety instructions refer to the European Union directives in effect at the time the device was manufactured. For commercial use of the device, the operator undertakes, throughout the entire period of its use, to ensure that the measures specified in relation to occupational safety are consistent with the current state of the arsenal of recommendations and to comply with the new rules.

For countries outside the EU, the laws and regulations of the country must be followed. All environmental protection regulations must also be observed.

WARNING

The device must be handled by people with adequate physical and intellectual capabilities. People with physical and intellectual disabilities should be supervised when using this device. Use is prohibited by children and minors (exceptions are made within the limits provided by law)

If the device is used by a third party, the user manual must be available before any use. All new users should read the instruction manual.

The device may only be used in the designated areas.

3. TRANSPORTATION, PACKAGING AND STORAGE.

3.1 Inspection after transport

A check for damage and completeness of the device must be carried out upon receipt of the parcel. In the event of damage caused by transportation, refuse the delivered goods or accept it only with reservations *. After that, you must file a complaint with a detailed description of the defects found. Perception of damage is only possible in the case of a claim formulated within a specified time frame, that is, a maximum of 24-48 hours.

* written on the carrier's waybills or electronically.

3.2 packaging

Keep the packaging for your device in case you move or return to a service center. The inner and outer packaging must be completely removed before using the device. Before disposing of the packaging, comply with the environmental standards in force in your country.

3.3. Storage

WARNING

The device can be stored in a warehouse, but only in its original sealed packaging.

Storage can be carried out in accordance with the following conditions:

• Storage in a dry and dry place.
• Protected from the sun
  • Control in the warehouse for more than 2 months (general condition of the device and all components)
  • No shaking of the material
• Storage indoors, not outdoors.

4. EQUIPMENT CHARACTERISTICS

* Subject to change

Model	CCR40EP	CCC40EP	CCD40EP
Temperature	140 °C - 300 °C	140 °C - 300 °C	140 °C - 300 °C
Plate diameter	400 mm	400 mm	400 mm
Electrical data	2700 W / 230 V	2700 W / 230 V	2700 W / 230 V
Dimensions	H 124 x ∅ 400 mm	W 430 x D 445 x H 180 mm	W 910 x D 445 x H 190 mm
Weight	24 kg	22 kg	34.80 kg

5. INSTALLATION AND USE

5.1 Safety instructions

ELECTRICAL HAZARD

Danger of electric shock!

• Do not allow the power cord to come in contact with heat sources.
• The cord should not hang over the edge of a table or stand.
• Do not pour water into a working or still hot appliance.
• The device must be connected correctly and comply with the regulations in force.

WARNING

During operation, the device can reach high temperatures. To avoid burns and accidents, do not use a defective device or use non-original spare parts.

ELECTRICAL HAZARD

Danger of electric shock!

If installed incorrectly, the device can be dangerous and cause injury. Check the electrical data before any installation. Connect the device only when there is a match. Before connecting, the device must be unpacked and fully checked by a specialist.

5.2 Use

WARNING

The device should only be adjusted, installed and serviced by professionals.

• Do not leave the working device unattended.
• Hands should be dry during use.
• Do not move or tilt the device during operation.

GUIDE

Launch

The device must be completely removed from the packaging. All protections must be completely removed. Place the appliance on a hard, flat surface. Never place the electric crepe maker on flammable surfaces.

Do not install this appliance near open flames or other heating devices.

The electrical cable must be protected with a minimum of 16 amps. The device must be plugged directly into an outlet. Using multiple outlets will disconnect the device.

Press the switch to turn on the crepe maker.

Heat the appliance for 10 minutes until all smoke and odor have disappeared.

Switch off and unplug the appliance, then wipe the stainless steel plates with hot soapy water.

NEVER use cold water to clean the plates as this may cause heat stroke.

USE

Connect the device, press the switch.

Turn the temperature adjustment knob, the red light comes on.

Temperatures can range from 140 ° to 300 °C.

We recommend using this device at a maximum temperature of 250 °C .

A temperature of 250^ C is reached in 10 minutes.

When the baking sheet is hot, pour a tablespoon of sunflower oil into the center of the baking sheet.

Distribute the oil with a CASSELIN tissue. Let it heat up for about 2 minutes.

After the baking sheet is oiled, pour out the pancake dough with a CASSELIN stainless steel ladle and spread with the CASSELIN ultra-light rake.

Bake the pancake on each side to the desired doneness.

As soon as the desired temperature is reached, the red light will go out.

When the temperature drops, the appliance starts heating up again and the red light comes on again.

The baking sheet requires no seasoning.

NOTE

The device is equipped with an overheating protection system. If triggered, turn off the device and let it cool down. If this protection system works regularly, be sure to contact your dealer.

After automatic shutdown, the device can be put into operation only by pressing the Reset button on the rear panel of the device, after waiting for the temperature to drop, press the Reset button.

6. CLEANING AND MAINTENANCE

6.1 Safety instructions

All operations on maintenance, cleaning and repair of the device must be carried out with the device turned off (isolated from all sources of electricity).

Do not use corrosive detergents or baking soda for cleaning. Water must not get inside the device.

Never immerse the device in water or other liquid.

Use Casselin brand products designed for this purpose.

WARNING

The device must not be cleaned with a direct jet of water (without a jet of water under pressure).

6.2 Daily maintenance

Disconnect the device

Clean the device with hot water and a clean cloth after each use.

After cleaning, use a soft dry cloth to polish and dry the device. All parts must be dried.

Store the device in a dry place.

6.3 Safety instructions for servicing the device

Check the power cord daily for damage. Never use the appliance if the power cord is damaged. If the cord is defective, it must be replaced by a qualified technician.

In the event of a malfunction, contact your dealer.

Any maintenance or repair work should only be performed by a professional.

NOTE

In case of a malfunction, unplug the appliance, let it cool down and contact your dealer. If the device does not start, check the power cord. The device should not be connected to a wall outlet, but directly to an outlet. If any other abnormality occurs, contact your dealer.

NOTE

Disposal of used devices: Any used device must be disposed of in accordance with the regulations in force in its country *. Before disposal, be sure to render the device unusable by unplugging the power cord.

* from the point of view of ecology and recycling

7. INCORRECT USE

EN

ANOMALIES	THE REASONS	EXPLANATION
The appliance does not work, the heating indicator is off.	> The power cable is not plugged in.> The power supply fuse has blown.> Power supply does not work.> The safety thermostat has tripped.> The safety thermostat is damaged.	> Connect the power cord correctly.> Check all fuses.> Check the position of the box.> Press the reset button located in the box.> Contact your dealer.
The appliance is on but does not heat up. The heating indicator is off.	> The safety thermostat has tripped.> Resistance no longer works.> Contact with a damaged heating element.	Please contact your dealer.
The requested temperature is not reached.	The thermostat is damaged.	Please contact your dealer.
The heating element stops after a certain time.	The safety thermostat has tripped.	Press the Reset button on the distribution.

NOTE

The above faults are for reference only and remain virtual. If in doubt, consult your dealer.

cassLin

DE

PREMIUM ELECTRIC PANCAKE

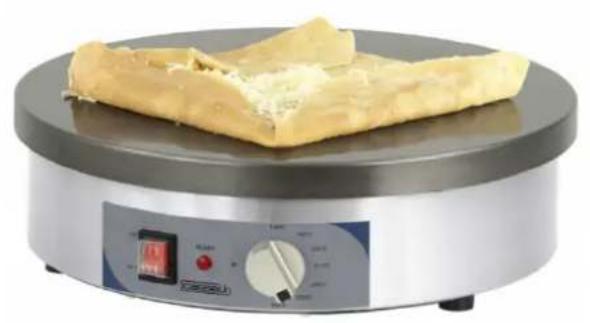

Exterior view of a modern omelette on a circular baking pan (no text or symbols visible)

Exterior view of a modern portable steamer with a golden-brown baked cake on top (no visible text or symbols)

Exterior view of a modern stainless steel portable kitchen appliance with two round plates and control knobs (no visible text or symbols)

CCR40EP - CCC40EP - CCD40EP

ZUSAMMENFASSUNG

1. PRÄSENTATION

Exterior view of a modern omelette on a circular baking pan (no text or symbols visible)

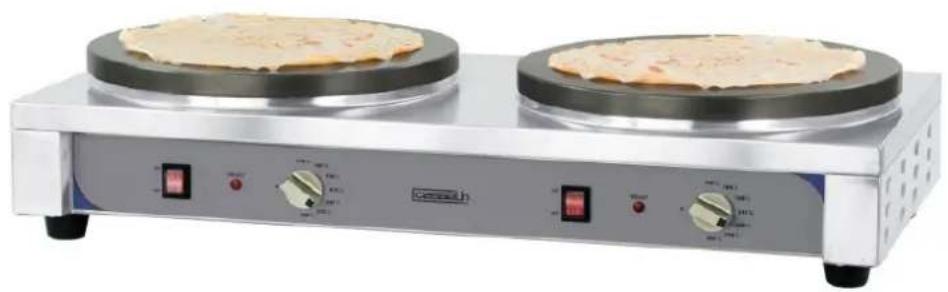

Exterior view of a modern portable steamer with a golden-brown baked cake on top (no visible text or symbols)

Exterior view of a modern stainless steel portable kitchen appliance with two round plates and control knobs (no visible text or symbols)

CCR40EP - CCC40EP - CCD40EP

RESUMEN

1. PRESENTACIÓN

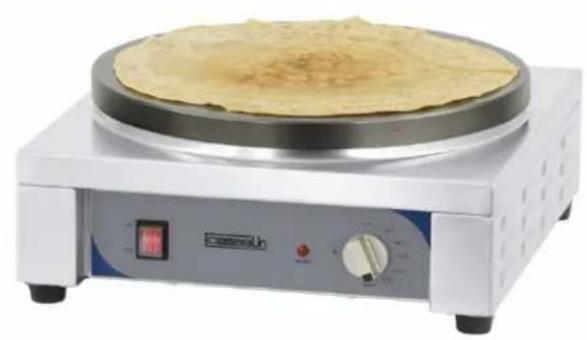

Exterior view of a modern omelette on a circular baking pan (no text or symbols visible)

Exterior view of a modern portable steamer with a golden-brown baked cake on top (no visible text or symbols)

Exterior view of a modern stainless steel portable kitchen appliance with two round plates and control knobs (no visible text or symbols)

CCR40EP - CCC40EP - CCD40EP

SOMMARIO

1. PRESENTAZIONE

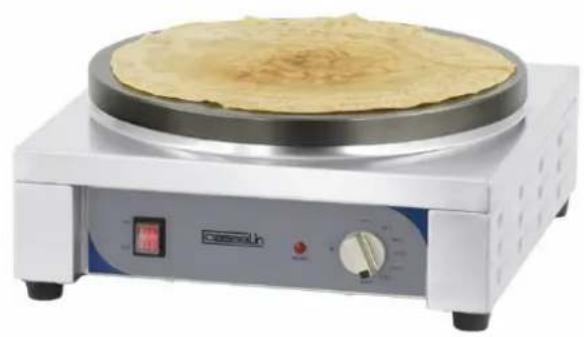

Exterior view of a modern omelette on a circular baking pan (no text or symbols visible)

Exterior view of a modern portable steamer with a golden-brown baked cake on top (no visible text or symbols)

Exterior view of a modern stainless steel portable kitchen appliance with two round plates and control knobs (no visible text or symbols)

CCR40EP - CCC40EP - CCD40EP

OVERZICHT

1. PRESENTATIE

3. VERVOER, VERPAKKING EN OPSLAG

3. TRANSPORT, VERPAKKING EN OPSLAG.

Exterior view of a modern omelette on a circular baking pan (no text or symbols visible)

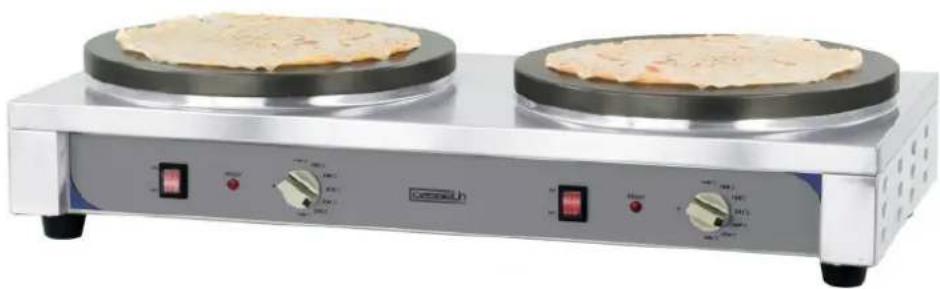

Exterior view of a portable steamer with a golden-brown baked cake on top (no visible text or symbols)

Exterior view of a modern stainless steel portable kitchen appliance with two round plates and control knobs (no visible text or symbols)

CCR40EP - CCC40EP - CCD40EP

PE3HOME

1. ПРЕЗЕНТАЦИЯ

Exterior view of a modern omelette on a circular baking pan (no text or symbols visible)

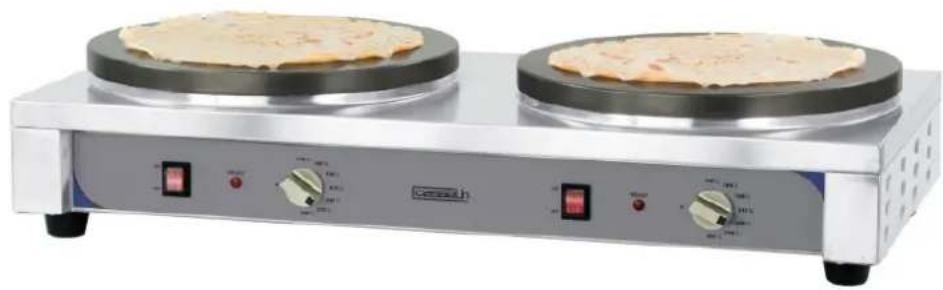

Exterior view of a modern portable steamer with a golden-brown baked cake on top (no visible text or symbols)
