USER MANUAL CGP2HRBLPT Casselin

1.1 Information
1.2 Description of symbols
1.3 Copyright
1.4 Declaration of conformity
1.5 Guarantee

2. SECURITY

2.1 General
2.2 Intended use
2.3 Safety instructions for using the device

3. TRANSPORT, PACKAGING AND STORAGE

3.1 Inspection after transport
3.2 Packaging
3.3 Storage

4. EQUIPMENT CHARACTERISTICS

5. INSTALLATION AND USE

5.1 Safety instructions
5.2 Use

6. CLEANING AND MAINTENANCE

6.1 Safety instructions
6.2 Cleaning
6.3 Maintenance safety instructions

7. OPERATING IRREGULARITIES

1. PRESENTATION

1.1 Information

This user guide serves as information for all its users. It describes the installation and handling of the device. The safety instructions and technical knowledge of the device are detailed in this manual. They are essential conditions for the proper use of professional equipment.

Each user must scrupulously follow all the instructions for use. These instructions for use must be kept next to the product for proper use and access to the instructions at all times for each user.

1.2 Description of symbols

Information, advice on use and safety instructions are represented by symbols. It is essential to follow these instructions in order to avoid material damage and bodily injury.

WARNING

This symbol means that there is a danger that could result in injury. Concentration and caution are imperative in operating this device.

ELECTRICAL HAZARD

This means that there is a danger associated with electric current. Failure to follow the instructions can result in the risk of injury and death.

WARNING

This symbol is used to indicate that failure to comply with the instruction may result in a breakdown or destruction of the device.

REMARK

This symbol indicates good practices and advice that must be followed for the efficient use of the device.

REMARK

It is essential to read these operating instructions before commissioning the device. We do not accept any liability for damage and breakdowns resulting from failure to observe the operating instructions. Casselin reserves the right to make any technical, informative and marketing changes to our product without prior notice.

1.3 Rights'author

The operating instructions are protected by copyright law. Reproductions of all types and in all forms - even partial - as well as the use and / or transmission of its content are not permitted without our authorization. Any violation of these provisions gives rise to the right to damages. The other rights remain reserved.

1.4 Declaration of conformity

The device corresponds to the current standards and directives of the European Union. We confirm this in the CE declaration of conformity.

1.5 Guarantee

The instructions given in these operating instructions have been drawn up taking into account the regulations in force, current technical development, our knowledge and experience. All translations have been prepared with professionalism. However, we accept no responsibility for any translation error. The attached French version is authentic.

2. SAFETY

The safety instructions serve to prevent dangers. They are mentioned in the individual chapters and are characterized by symbols. Their observance guarantees optimal protection against risks and allows an ideal operation of the device. Safety instructions must be available and legible on the devices.

2.1 Principles

Safety instructions are established to prevent errors, dangerous uses and breakdowns. Therefore, the device must not be transformed or used for improper use. The device is designed according to technical rules currently developed. This notice must be kept. The appliance must be used in premises provided for this purpose and only by a responsible person who has knowledge of the operation of the appliance.

2.2 Intended use

The functioning of the device and the safety of use are only guaranteed in the event of normal and correct use of the device. Assembly and technical interventions must be carried out by professionals.

WARNING

Any other use is considered improper. Any accusation related to improper use of the device is not admissible and will lapse. Correct use corresponds to the use described in these operating instructions. Correct use corresponds to compliance with the rules of safety, hygiene, cleaning and maintenance.

2.3 Safety instructions for the use of the device

The indications relating to occupational safety refer to the European Union ordinances valid at the time of manufacture of the device. For commercial use of the device, the operator undertakes, throughout its use, to note the compliance of the measures cited in terms of work safety with the current state of the arsenal of advice and to comply with the new regulations.

For countries outside the EU, the laws and provisions of the country must be observed. All environmental protection provisions must also be observed.

WARNING

The device must be handled by people with sufficient physical and intellectual resources. People with limited physical and intellectual means must be supervised to use this device. Use prohibited for children and minors (exceptions made within a legal framework provided for by law)

If the device is used by a third person, the user manual must be available before any use. Any new user must have read the instructions for use.

The device must only be used in rooms provided for this purpose.

3. TRANSPORT, PACKAGING AND STORAGE

3.1 Inspection after transport

Checking for damage and the completeness of the device must be carried out upon receipt of the package. In the event of identification of transport damage, refuse or accept the delivered product only with reservations *. A complaint detailing the defects observed must then be made. The perception of damage is only possible in the event of a complaint formulated within the prescribed time limits, ie 24-48 hours at most.
* written on the correct paper or digital delivery of the carrier.

3.2 packaging

The packaging of the device must be kept in case of moving, or for a return to the after-sales service. The inner and outer packaging must be completely removed before using the device. The standards in force in your country concerning environmental protection must be observed before destroying the packaging.

3.3. Storage

WARNING

The device can be kept in stock, but only in its original, closed packaging.

Storage can be carried out in accordance with these conditions:

• Storage in a dry and non-humid place
• Sheltered from the sun
  • Control of the stock greater than 2 months (general condition of the device and all the elements constituting it)
• No material shaking
• Storage in a closed room and not outside.

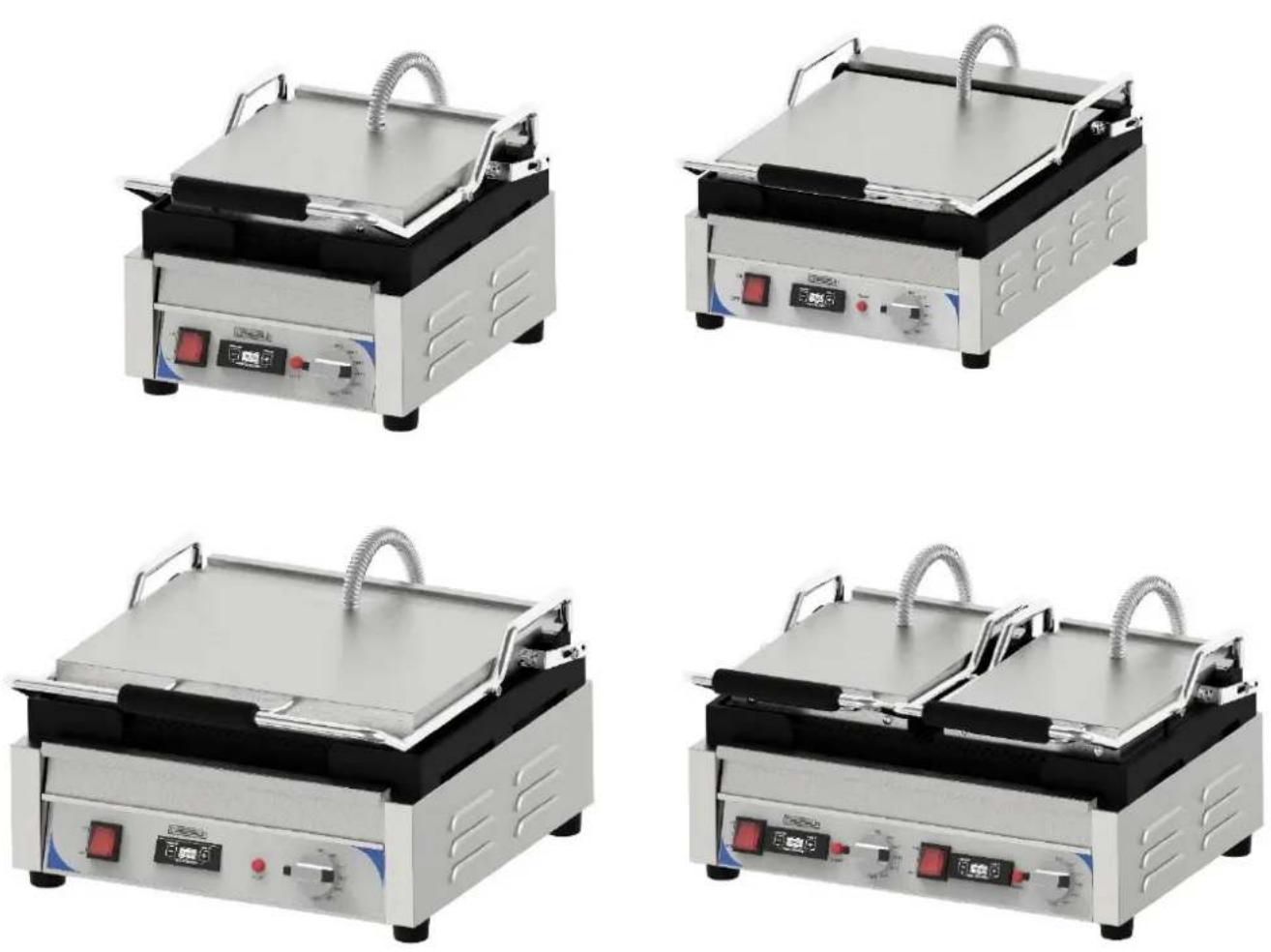

4. EQUIPMENT CHARACTERISTICS

* Subject to change

Model	CGPLLPPT	CGPRRPPT	CGPRRXSPT
Top plate	Smooth	Grooved	Grooved
Bottom plate	Smooth	Grooved	Grooved
Temperature	60 °C - 300 °C	60 °C - 300 °C	60 °C - 300 °C
Power	2000W / 230V	2400W / 230V	2400W / 230V
Dimensions	W 300 x D 490 x H 265 mm	W 300 x D 490 x H 265 mm	L 262 x D 523 x H 240 mm
Weight	19 Kg	19 Kg	20 kg
Model	CGPLLGPT	CGPRRGPT	CGPRLGPT
Top plate	Smooth	Grooved	Grooved
Bottom plate	Smooth	Grooved	Smooth
Temperature	60 °C - 300 °C	60 °C - 300 °C	60 °C - 300 °C
Power	2400W / 230V	2000W / 230V	2400W / 230V
Dimensions	W 425 x D 580 x H 265 mm	W 425 x D 580 x H 265 mm	W 425 x D 580 x H 265 mm
Weight	29 kg	29 kg	29 kg
Model	CGPLLXLPT	CGPRRXLPT	CGPRLXLPT

Top plate	Smooth	Grooved	Grooved
Bottom plate	Smooth	Grooved	Smooth
Temperature	60 °C - 300 °C	60 °C - 300 °C	60 °C - 300 °C
Power	2400W / 230V	2400W / 230V	2400W / 230V
Dimensions	W 396 x D 520 x H 270 mm	W 396 x D 520 x H 270 mm	W 396 x D 520 x H 270 mm
Weight	30 kg	30 kg	30 kg
Model	CGP2LLPT	CGP2RRPT	CGP2RLPT	CGP2HRBLPT
Top plate	Smooth	Grooved	Grooved	Smooth / Grooved
Bottom plate	Smooth	Grooved	Smooth	Smooth / Grooved
Temperature	60 °C - 300 °C	60 °C - 300 °C	60 °C - 300 °C	60 °C - 300 °C
Power	2 900W / 230V	2 900W / 230V	2 900W / 230V	2 900W / 230V
Dimensions	W 490 x D 520 x H 265 mm	W 490 x D 520 x H 265 mm	W 490 x D 520 x H 265 mm	W 490 x D 520 x H 265 mm
Weight	31 Kg	31 Kg	31 Kg	31 Kg

5. INSTALLATION AND USE

5.1 Safety instructions

ELECTRICAL HAZARD

Danger from electric current!

• No contact with heat sources should take place with the power cord.
• Cord should not hang over edge of table or counter.
• Do not pour water into an appliance that is in operation or that is still hot.

- The device must be properly connected and comply with the regulations in force.

WARNING

In operation, the device can reach high temperatures. To avoid burns and accidents, do not use the device in malfunction, and do not use spare parts that are not original.

ELECTRICAL HAZARD

Danger from electric current!

If incorrectly installed, the device can be dangerous and cause injury. Before any installation, check the data of the electrical network. Connect the device only when there is compliance. The appliance must be unpacked and checked completely before connection by a professional.

5.2 Use

WARNING

The set-up of the device installation and maintenance should only be carried out by professionals.

• Do not leave the appliance running without supervising it.
• During use, your hands should be dry.
• Do not move or tilt the device during operation.

TIMER

Count up: stopwatch

Count down: timer

'-' and '+': timer setting

Stopwatch

Start press '+' for the stopwatch. To stop, press '+'. 5 beeps to signal the stop of the stopwatch.

Timer

Pressing '-' and '+' simultaneously displays the default value: 10sec.

Press '-' and '+' simultaneously again (2 beeps).

The time flashes, you can set the desired time with '-' and '+' (0.1 - 19.59 mm).

Wait for the screen to go off then press '-' to start the timer. 5 beeps to signal the end of the timer.

START-UP

The device must be completely removed from its packaging. All protections must be completely removed.

Place the appliance on a solid, flat surface. Never place the panini grill on a flammable surface.

Do not install this appliance near open fires, or other heating appliances.

The electric cable must be protected to at least 16 Amps. The device must be plugged directly into a wall outlet. Using a multiple socket will cause the device to trip.

Heat the appliance for 10 minutes until all smoke and odor are gone. Turn off and unplug the appliance, then use hot soapy water to clean the cast iron plates.

NEVER use cold water on the cast iron plates as you may cause thermal shock.

USE

Connect the appliance, once the switch is on, the power indicator light comes on.

Turn the temperature control knob to your liking.

The temperature can be between 60 ° and 300 ° C.

We recommend that you use this device at a maximum temperature of 250 °C.

When the selected temperature is set, the red temperature indicator light comes on.

In 10 minutes, the temperature of 250^ C is reached and the red temperature control light goes out.

When the temperature drops, the appliance starts heating again and the red light comes on again. Thanks to the user handle, lift the top plate and grease the plates as you wish in order to place your preparations to heat or grill.

Close the trays and watch the cooking.

REMARK

The device is fitted with a safety system in the event of overheating. If triggered, unplug the device and allow it to cool. If this protection system operates regularly, it is imperative to contact your dealer.

After automatic shutdown, the device can only be put into operation by pressing the Reset button on the back of the device, wait for the temperature to drop, press the Reset button.

6. CLEANING AND MAINTENANCE

6.1 Safety instructions

All maintenance, cleaning and repair of the appliance must be carried out with a disconnected appliance (isolated from all electrical sources).

The use of caustic detergents and baking soda for cleaning is prohibited. Water must not get inside the device.

Never immerse the device in water or other liquid.

Use Casselin brand products intended for this purpose.

WARNING

The device cannot be cleaned with a direct water jet (no pressurized water jet).

6.2 Daily maintenance

Unplug the device

Clean the device with hot water and a clean cloth after each use

After cleaning, use a soft, dry cloth to polish and dry the device. All parts must be dried.

Store the device in a dry place.

6.3 Safety instructions for maintaining the device

Daily check for damage to the power cord. Never use the appliance when the cord is damaged. If the cord is faulty, it must be replaced by a qualified technician.

In the event of a fault, contact your dealer.

Any maintenance or repair must only be carried out by a professional.

REMARK

In the event of a fault, unplug the appliance, let it cool down and contact your dealer. If the device does not start, check your power cord. The device should not be plugged into a multiple socket, but directly to a wall outlet. For any other anomaly, contact your dealer.

REMARK

Waste from used devices: any used device must, when disposing of it, comply with the regulations in force in its country *. It is essential to make the device unusable before disposal by removing the power supply cable.

* in terms of ecology and recycling

7. OPERATING IRREGULARITY

EN

ANOMALY	CAUSES	EXPLANATION
The appliance does not work, the heating indicator light does not come on.	> The power cable is not plugged in.> The power supply fuse has tripped.> The power supply unit does not work.> The safety thermostat has tripped.> The safety thermostat is damaged.	> Connect the power cable properly.> Check all of your fuses.> Check the location of the box.> Press the reset button located in the box.> Contact your dealer.
The device is on but it does not heat up. The heating indicator light remains off.	> The safety thermostat has started up.> The resistance no longer works.> Contact with the damaged heating element.	Contact your dealer.
The requested temperature is not reached.	Thermostat is damaged.	Contact your dealer.
The heating element stops after a certain time.	The safety thermostat has started up.	Press the Reset button in the distribution box.

REMARK

The above-mentioned malfunctions are only given for information and remain virtual. For any hesitation, contact your dealer.
