CL800I - Alarm clock radio THOMSON - Free user manual and instructions

Product type	Radio alarm clock
Brand	Thomson
Model	CL800I
Dimensions	202 x 170 x 174 mm
Power supply	DC 9 V / 2.7 A
Backup battery	1 CR2032 battery (3 V)
Wireless charging	5 W / 7.5 W / 10 W (Qi standard)
USB output (base)	USB-A 5 V / 1 A
USB outputs (case)	USB-A 5 V / 0.75 A, USB-C 5 V / 0.75 A
Wireless charging distance	≤ 8 mm
Main functions	Alarm, LED lamp, wireless charging, phone holder, storage case
LED lamp	Warm white, cool white, bright white, adjustable brightness
Display	LED with brightness adjustment (100 %, 50 %, 20 %, 0 %)
Alarm	Snooze 9 min, auto-off after 15 min
Operating temperature range	-20 °C to 45 °C
Maintenance and cleaning	Unplug before cleaning, use a soft cloth, no abrasive products
Safety	Do not open, protect from water, use only the provided adapter
Repairability	Have repairs done by a qualified technician
Warranty	2 years
Manufacturer	Bigben Interactive
Support	www.bigben.fr/support, 09 69 39 79 59 (Mon-Fri 10am-6pm)

Frequently Asked Questions - CL800I THOMSON

How to set the time on the alarm clock?

Press and hold the setting mode button. The hours flash. Use the + and - buttons to adjust the hours. Press the function button to switch to minutes, then set them. Finally, press the mode button to confirm the 12/24 h format.

How to set the alarm?

Press and hold the setting mode button until the alarm icon flashes. Use the + and - buttons to set the hours, then press the function button to set the minutes. To enable/disable the alarm, press and hold the - button.

How to use the Snooze mode?

When the alarm sounds, briefly press any button or touch the top of the display or the lamp touch button to activate Snooze. The alarm will repeat after 9 minutes. To stop the alarm, long-press the top of the display or the touch button.

How to charge my phone wirelessly?

Place your compatible phone in the center of the charging area (mark 1 on the product). The indicator changes from white to blue during charging. If the indicator flashes white and blue, the phone is not properly positioned. After full charge, the indicator turns white again.

How to clean the device?

Always unplug the device before cleaning. Use a soft, dry cloth. Do not use abrasive products or harsh cleaners. Avoid contact with water or other liquids.

What to do if wireless charging does not work?

Check that your phone is compatible with wireless charging. Make sure it is centered on the charging area. Remove any metal objects between the phone and the charger. If the indicator flashes white and blue, reposition the phone.

How to install the storage case for a smartwatch?

Remove the silicone cover from the case. Pass the USB/Type-C cable of the watch charger through the opening of the cover. Install the silicone cover over the opening, then place the charger in the cover. Connect the USB connector to the port in the storage case.

Which backup battery keeps the time during a power outage?

The alarm clock uses a CR2032 battery (3 V) as a backup battery to keep the time and alarm settings in case of a mains failure.

Is the device compatible with all phones?

Wireless charging is compatible with all devices compliant with the Qi standard. Non-compatible phones can be charged via the USB-A port (5 V/1 A) on the back of the device.

What to do in case of failure or malfunction?

First consult the full manual. If the problem persists, contact Bigben technical support: website www.bigben.fr/support or phone [phone] (Monday to Friday 10am-6pm). Do not attempt to repair the device yourself.

USER MANUAL CL800I THOMSON

Smart home appliance setup with digital clock, charging case, and smartphone (no visible text or symbols)

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

Technical diagram of a device with numbered components, likely an electronic or mechanical assembly.

Diagram of a device casing with numbered parts labeled 13, 14, and 15

Fonctionnement

Line drawing of a portable electronic device with cable and power plug (no text or symbols)

Line drawing of a battery connected to a plug via a cable (no text or symbols)

Line drawing of a smartphone charging station with a digital display and camera (no text or symbols)

Line drawing of a handheld device with a plus button and control panel (no text or symbols)

Appareils concernés

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

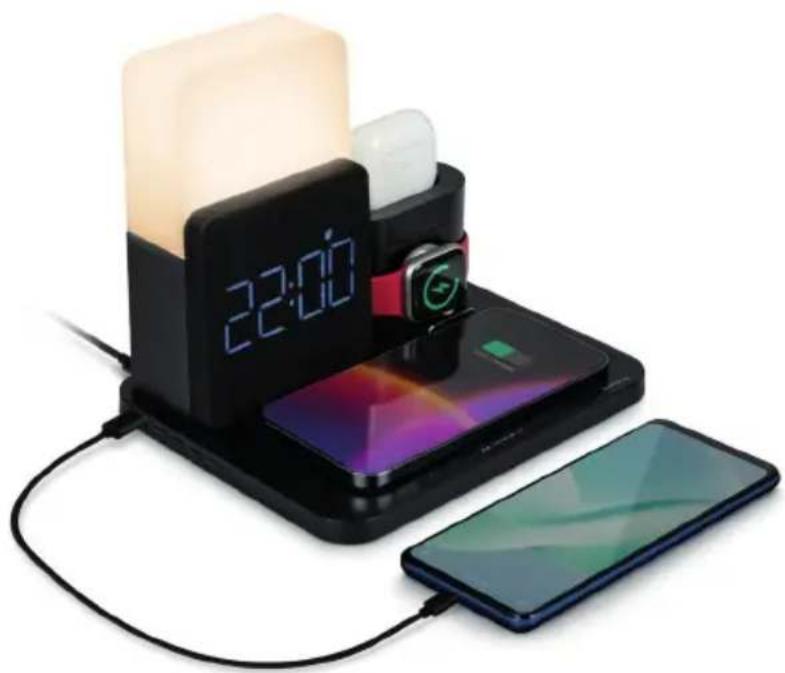

Alarm clock & wireless charging station

Smart home appliance setup with digital clock, charging case, and smartphone (no visible text or symbols)

INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

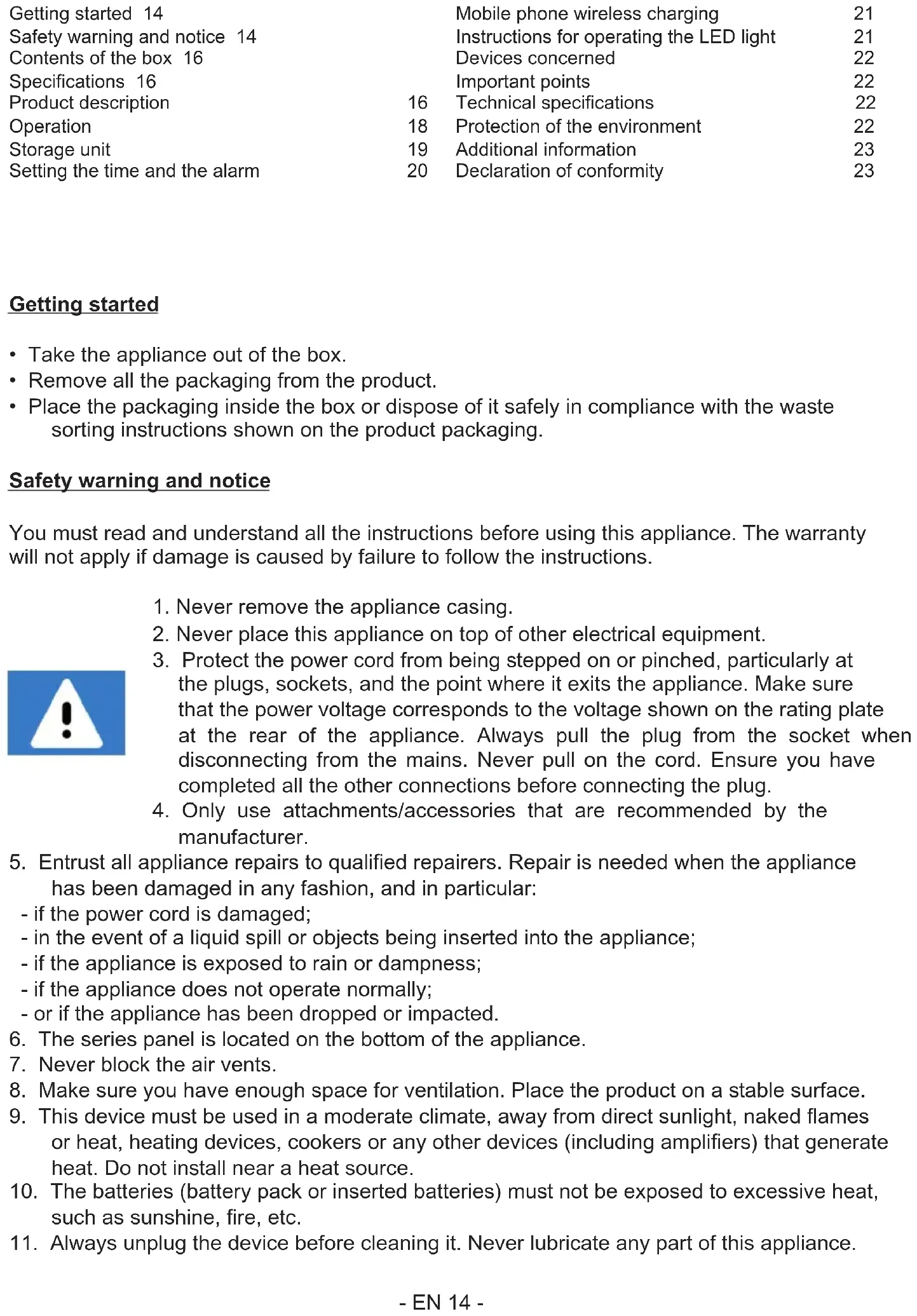

Getting started 14		Mobile phone wireless charging	21
Safety warning and notice 14		Instructions for operating the LED light	21
Contents of the box 16		Devices concerned	22
Specifications 16		Important points	22
Product description	16	Technical specifications	22
Operation	18	Protection of the environment	22
Storage unit	19	Additional information	23
Setting the time and the alarm	20	Declaration of conformity	23

Getting started

• Take the appliance out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.

13. Make sure you have enough space for ventilation. Place the product on a stable surface.

14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this appliance.

Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

1. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this appliance from the mains if necessary.
2. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
3. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
4. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
5. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
6. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
7. When using the product, it should be placed at least 20 cm away from the human body.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are strong enough to present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

● Alarm clock & wireless charging station
- 1 mains adapter
● 1 storage unit + 2 covers + watch ring
- Instructions

Specifications

• LED mood light
• Alarm clock
• Mobile phone holder
  ● Charging station for earphones and connected watch, with space to store the cable
  ● Charging distance ≤ 8mm

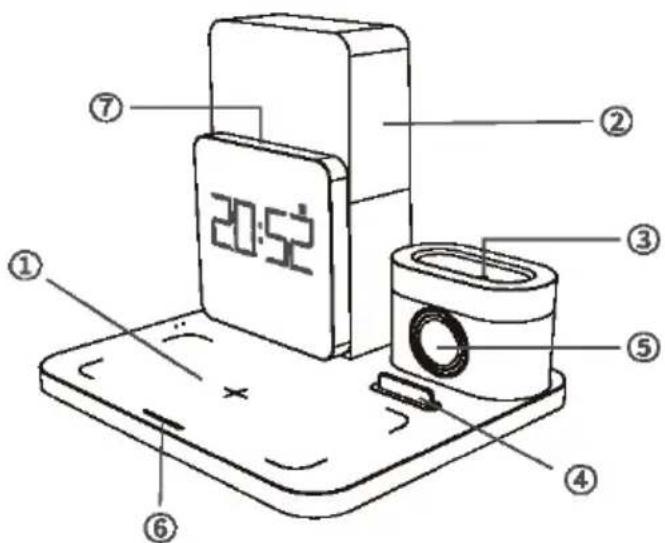

Product description

1. Wireless mobile phone charging area
2. LED light
3. Earphone charging station
4. Holder for mobile phone
5. Connected watch charging station
6. Light adjustment touch button

Touch once to turn on the warm white light.

Twice for the cold white light.

3 times for the bright white light.

4 times to turn off the light.

Diagram of a device with numbered parts, including a 20:52 timer and a camera module

Press and hold the touch button when the light is on to increase or decrease the brightness. In alarm mode, tap the button to activate Snooze, and press and hold it to stop the alarm. In Snooze mode, press and hold the button to cancel Snooze.

7. Alarm clock screen brightness adjustment touch button

Touch to adjust the dimmer of the alarm clock screen: 100-50-20-0 %

In alarm mode, tap to activate Snooze. Snooze will repeat the alarm after 9 minutes

Or press and hold the button to stop the alarm.

8. Alarm clock functions button

Settings mode button

• Press and hold the time settings mode then press → 12/24 hour format → Alarm → Year → Month/Day;
• When the alarm goes off, tap the button to activate Snooze

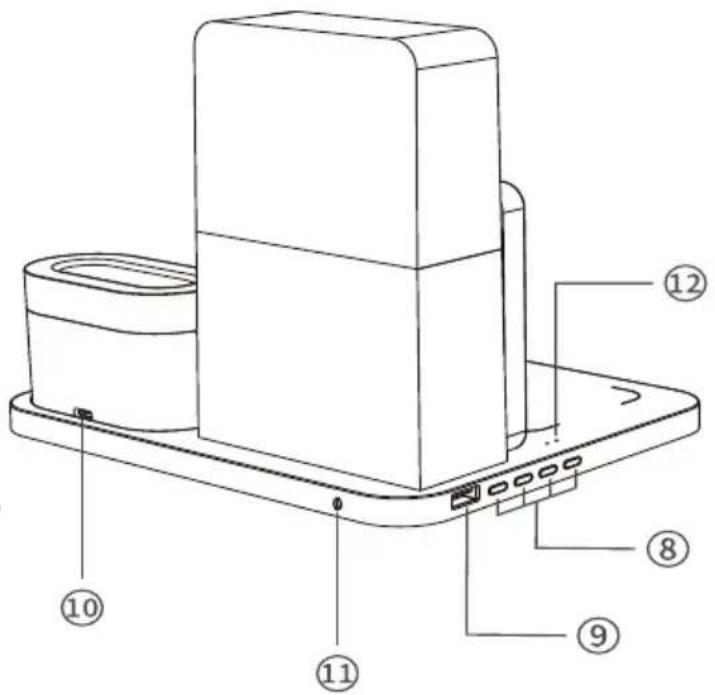

Function change button

• In clock screen mode, press the button to display 12/24-hour format → Alarm → year → month/day
• In settings mode, press to change the hours or minutes, and change the month or day.
• When the alarm goes off, tap the button to activate Snooze

Technical diagram of a device with numbered components, likely a mechanical or electronic assembly.

Increase value and adjust the light of the alarm clock screen

• Press ☐ to set the brightness of the alarm clock screen to 100% - 50% - 20%- Off.
• In settings mode, press 📋 to increase the value
• When the alarm goes off, tap the button to activate Snooze

Decrease value, alarm on/off and alarm sound levels

• Press ☐ to set the alarm volume to 3 different levels (High, Medium, Low)
• Press and hold 📄 to activate or deactivate the alarm
• In the settings mode, press = to decrease the value
• When the alarm goes off, tap the button to activate Snooze

9. USB port (5 V/1 A)

10. USB type-C port of the storage unit

11. Mains plug

12. Mobile phone wireless charging indicator

White LED = no charge or full charge.

Blue LED = wireless charging.

Blinking white and blue LED = charging error.

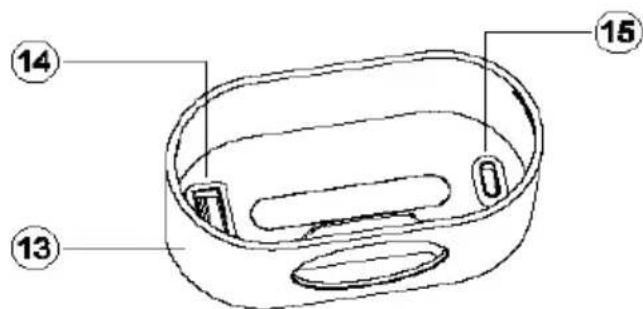

1. Storage unit
2. USB-A port (5 V/0.75 A)
3. USB-C port (5 V/0.75 A)

Technical diagram of a mechanical component with numbered parts labeled 13, 14, and 15

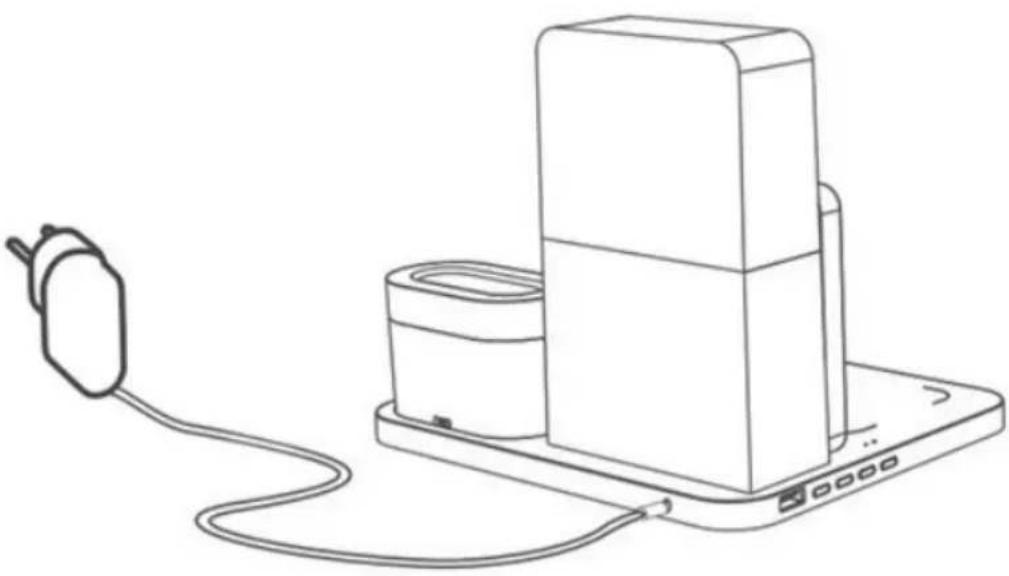

Operation

1. IMPORTANT! Use only the mains adapter provided to power the wireless charger.
2. Plug the mains adapter (included) into a standard wall outlet
3. Plug the connector of the mains adapter into the power input port of the wireless charging station.
4. After the product is powered on, the alarm clock screen lights up, and the product's blue and white LED charging indicators light up alternately, and the white light stays on.

Line drawing of a device with a plug, cable, and charging unit (no text or symbols)

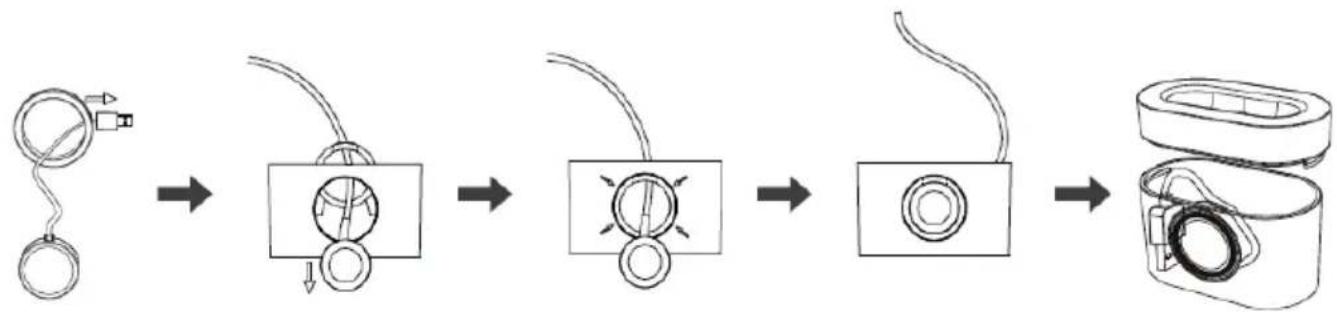

Instructions for installing the storage unit for wirelessly charging a connected watch

If you have a SE iWatch, please don't use all charging output at the same time.

Step 1: remove the silicone holder from the storage unit and thread the USB/Type C connector of the smartwatch wireless charger through the hole in the silicone ring.

Step 2: the wireless watch charger is not installed inside the silicone holder, thread both elements through the hole in the storage unit.

Step 3: fit the silicone ring onto the hole in the storage unit.

Step 4: fit the wireless watch charger into the silicone ring so that it lies flat

Step 5: connect the USB/Type C connector of the wireless watch charger to the USB-A/C port in the storage unit.


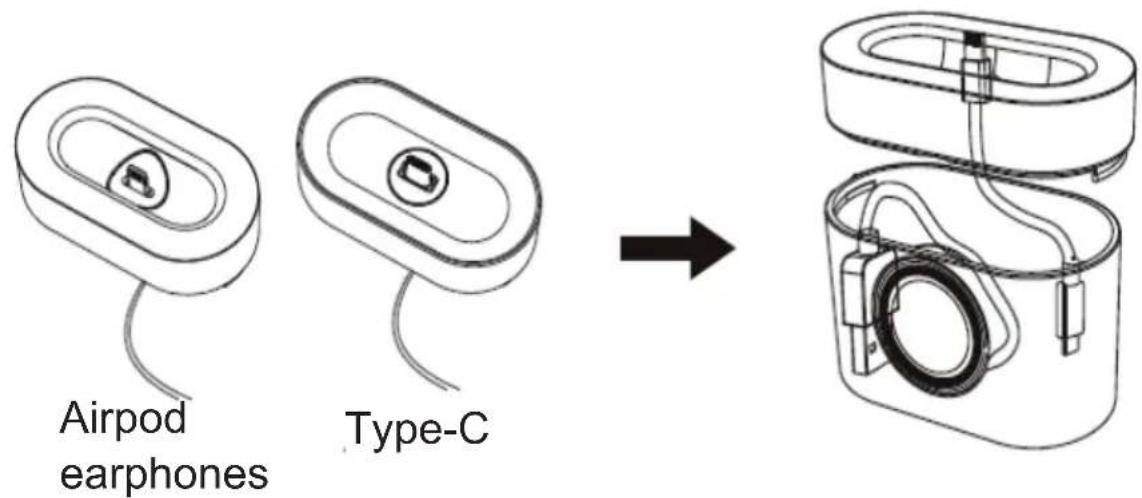

Instructions for fitting the storage unit for wirelessly charging earphones

Step 1: insert the charging connector of the charging cable into the earphone charging station of the storage unit so that the charging connector protrudes from the surface of the charging station in order to connect the earphones.

Step 2: insert the USB-A/C connector into the USB-A or USB-C port in the storage unit (the charging cable can be stored in the storage unit), then close the cover.

Airpod earphones Type-C

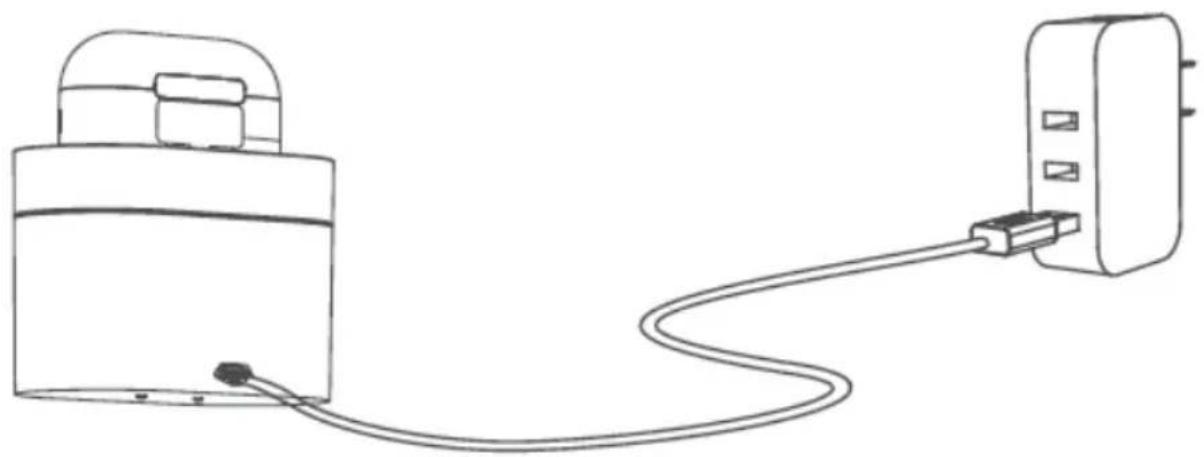

Storage unit

1. The storage unit can be charged separately for portable use during travel.
2. The storage unit has 1 x USB-A port and 1 x Type-C port, which can be used to charge smartwatches and wireless earphones respectively. The unit can also be used to store cables.

Line drawing of a battery connected to a plug via a cable (no text or symbols)

Setting the time and the alarm

• Press and hold the ⏻ button to enter the settings mode; the hours and the clock icon flash. Use the ⏻ and ⏻ buttons to increase or decrease the hours
• Press the button to set the minutes; the minutes flash. Use the and buttons to increase or decrease the minutes.
• Press the ⏻ button to set the clock to 24/12 hour mode. Press the 📊 and 🖱 buttons to switch between modes.
• Press the ⚙ button to set the alarm time. The hours and the alarm icon flash. Use the Higgs and E-butions to increase or decrease the hours, and then the button to set the minutes.
• Press the ⚙ button to set the year. The year flashes. Press 🏠 and 🔒 to increase or decrease the year.
• Press the ⚙ button to set the month. The month flashes. Press and to increase or decrease the month.
• Press the button to set the day. The day flashes. Press and to increase or decrease the day.

When the alarm goes off, tap any button or touch the top of the alarm clock screen or the light adjustment touch button to enter SNOOZE mode. SNOOZE will repeat the alarm after 9 minutes

Press and hold the top of the alarm clock screen or the light adjustment touch button to silence the alarm. If you are unable to silence the alarm, it will stop automatically after 15 minutes.

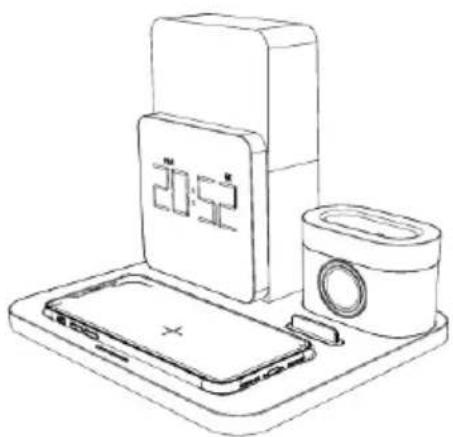

Mobile phone wireless charging

1. Place the compatible phone in the centre of the charging area (1 on the diagram).
2. The charging indicator changes from white to blue when your device is charging.
3. If the alternating white and blue LED charging indicator flashes, it means that the smartphone has not been correctly placed on the charging zone.
4. When the smartphone is fully charged, the charging indicator changes from blue to white

WARNING: do not place any metal parts and/or objects on the wireless charging pad as this could cause overheating.

Line drawing of a smartphone charging setup with a digital timer and camera (no text or symbols)

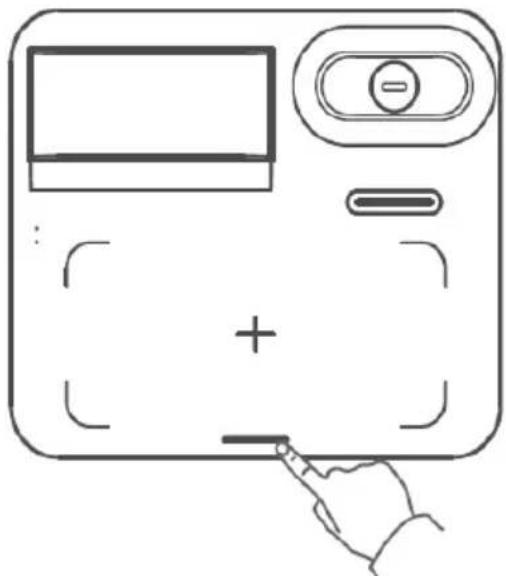

Instructions for operating the LED light

● Touch once to turn on the warm white light.
● Twice for the cold white light.
● 3 times for the bright white light.
- Touch 4 times to turn the light off.
- Whatever the colour of the light, press and hold the button to adjust the brightness.
- In alarm mode, tap the button to activate Snooze, and press and hold it to stop the alarm.
- In Snooze mode, press and hold the button to cancel Snooze.

Line drawing of a handheld device with a plus button and control panel (no text or symbols)

Devices concerned

This product supports fast wireless charging in accordance with the wireless charging standard; it transfers power wirelessly over short distances by magnetic fields using inductive coupling. This device supports all wireless charging devices that comply with the standard.

Important points

• Do not use or store the product in direct sunlight or at high temperatures for extended periods.
• Do not charge in close proximity to magnetic cards, magnetic recording media and precision instruments.
• Do not disassemble or modify this product.
• Do not touch the mains adapter with wet hands.
• Keep this product away from water or other liquids.
  ● To clean the product, disconnect the power supply.
• Ambient temperature range for operating the product: -20 to 45°C

Technical specifications

Model number: CL800I

Power supply: DC 9V/2.7A

Charging efficiency: 75 %

Wireless output: 5W/7.5W/10W

USB-A port: DC 5V/1A

USB-A port: DC 5V/0.75A (storage unit)

USB-C port: DC 5V/0.75A (storage unit)

Alarm clock backup battery: 1 x CR2032 3V

Product dimensions: 202 x 170 x 174mm

Protection of the environment

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When this crossed-out wheelie bin symbol is applied to a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the CL800I type radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period.

We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

www.bigben-interactive.co.uk/support

[e-mail]

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

CE EN This product can be recycled TO DROP OFF IN STORE TO DROP OFF IN A RECYCLING CENTER or

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin,

CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

Electricity charging setup with digital clock, smartphone, and smartphone connected to a wall-mounted cable (no visible text or symbols)

Technical diagram of a mechanical or electronic component with numbered parts labeled 8, 9, 10, and 11.

Diagram of a multi-part container with numbered parts labeled 13, 14, and 15

Funcionamiento

Line drawing of a portable electronic device with cable and power plug (no text or symbols)

Auriculares Airpods Tipo C

Carcasa

Line drawing of a battery connected to a plug via a cable (no text or symbols)

Line drawing of a smartphone charging setup with a digital timer and camera (no text or symbols)

Line drawing of a device with a plus button and control panel, no text or symbols present

Aparatos aptos

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Smart home appliance setup with digital clock, charging case, and smartphone (no visible text or symbols)

ISTRUZIONI PER L'USO

LEGGERE IL PRESENTE MANUALE CON ATTENZIONE PRIMA DI METTERE IN FUNZIONE IL DISPOSITIVO E CONSERVARLO PER UNA CONSULTAZIONE FUTURA.

Avvio

Diagram of a device casing with numbered parts labeled 13, 14, and 15

Funzionamento

Line drawing of a portable electronic device with cable and power plug (no text or symbols)

Auricolari Airpods Tipo-C

Custodia

Line drawing of a device with a cable and plug, connected to a power outlet (no text or symbols)

Line drawing of a smart home appliance setup including a 20:52 timer, phone, and camera (no text or symbols)

Line drawing of a handheld device with a plus button and control panel (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Smart home appliance setup with digital clock, charging case, and smartphone (no visible text or symbols)

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark with an exclamation mark.

Technical diagram of a mechanical device with numbered components labeled 8, 9, 10, and 11.

Diagram of a device casing with numbered parts labeled 13, 14, and 15

Funcionamento

Line drawing of a portable electronic device with cable and power plug (no text or symbols)

Line drawing of a battery connected to a plug via a cable (no text or symbols)

Line drawing of a smartphone charging setup with a digital timer and camera (no text or symbols)

Line drawing of a handheld device with a plus button and control panel (no text or symbols)

Two black-and-white icons: a recycling symbol above and a waste bin with a dot below, both without any text or labels.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Smart home appliance setup with digital clock, charging case, and smartphone (no visible text or symbols)

BEDIENUNGSANLEITUNG

Technical diagram of a device with numbered components, likely an electronic or mechanical assembly.

Diagram of a device casing with numbered parts labeled 13, 14, and 15

Betrieb

Line drawing of a portable electronic device with cable and power plug (no text or symbols)

Airpods Typ C

Halterung

Line drawing of a battery connected to a plug via a cable (no text or symbols)

Line drawing of a smart home appliance setup including a 20:52 timer, smartphone, and camera (no text or symbols)

Line drawing of a handheld device with a plus button and control panel (no text or symbols)

Kompatible Geräte

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

Smart home appliance setup with digital clock, charging case, and smartphone (no visible text or symbols)

GEBRUIKSAANWIJZING

ALVORENS DIT APPARAAT TE GEBRUIKEN, LEES DEZE INSTRUCTIES AANDACHTIG DOOR EN BEWAAR DEZE VOOR TOEKOMSTIGE RAADPLEGING.

Diagram of a device with numbered parts, including a 20:52 timer and a cylindrical device on a base.

Technical diagram of a device with numbered components, likely a mechanical or electronic assembly.

Technical diagram of a device casing with numbered parts labeled 13, 14, and 15

Werking

Line drawing of a portable electronic device with cable and power plug (no text or symbols)

Line drawing of a battery connected to a plug via a cable (no text or symbols)

Line drawing of a smart home appliance setup including a 20:52 timer, smartphone, and camera (no text or symbols)

Line drawing of a handheld device with a plus button and control panel (no text or symbols)

Geschikte apparaten

Two black-and-white icons: a recycling symbol above and a waste bin with a dot below, both without any text or labels.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Smart home appliance setup with digital clock, charging case, and smartphone (no visible text or symbols)

INSTRUKCJA OBSŁUGI

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark

Technical diagram of a device casing with numbered parts labeled 13, 14, and 15

Działanie

Line drawing of a portable electronic device with cable and power plug (no text or symbols)

Słuchawki Airpods Typ-C

Schowek

Line drawing of a battery connected to a plug via a cable (no text or symbols)

Line drawing of a smartphone charging setup with a digital clock, a camera, and a tray (no text or symbols)

Line drawing of a handheld device with a plus button and control panel (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]
