ST-LE 350 E - Electric saw EINHELL - Free user manual and instructions

Product type	Electronic jigsaw
Brand	Einhell
Model	ST-LE 350 E
Power consumption	350 W
Strokes per minute	400 - 2600 min⁻¹
Stroke length	18 mm
Cutting depth (wood)	55 mm
Cutting depth (plastic)	10 mm
Cutting depth (metal)	5 mm
Bevel cut	max. 45° (left and right)
Weight	1.6 kg
Double insulation	Yes (Class II / ☐)
Sound pressure level LPA	87.5 dB(A)
Sound power level LWA	100.5 dB(A)
Vibration (handle)	6.3 m/s²
Speed control	Electronic, continuously adjustable via thumbwheel
Impulse function	Yes (ON/OFF switch)
Continuous operation	Yes (with lock-on button)
Saw base	Adjustable in angle and slide
Dust extraction connection	Yes, for vacuum cleaner
Blade type	Shank blade, screw fixation
Warranty	24 months

Frequently Asked Questions - ST-LE 350 E EINHELL

How to replace the saw blade on the Einhell ST-LE 350 E?

Before any change, unplug the device. Loosen the two screws on the slide using the Allen key. Slide the new blade into the guide groove until it stops, making sure the teeth are oriented in the cutting direction. Tighten the two screws firmly.

How to adjust the cutting speed?

The speed can be continuously adjusted by turning the thumbwheel located on the ON/OFF switch. Turn in the '+' direction to increase the strokes per minute, and in the '-' direction to decrease them. You can also adjust the speed by applying more or less pressure on the switch.

Can you make bevel cuts with this saw?

Yes, the saw base can pivot up to 45° to the left and right. To do this, loosen the two screws under the base, set the desired angle (markings at 15°, 30°, and 45° are indicated), then retighten the screws.

How to use the continuous operation mode?

For continuous operation, push the ON/OFF switch forward and lock it by pressing the lock-off button. To stop, push the switch again and release it.

What is the maximum cutting depth for wood?

The maximum cutting depth in wood is 55 mm. For plastic, it is 10 mm, and for metal, 5 mm.

How to connect a vacuum cleaner?

The saw is equipped with a dust extraction connection at the rear. Simply connect your vacuum cleaner hose to the port. If necessary, use an adapter provided by the vacuum cleaner manufacturer.

What safety instructions should I follow?

Always wear safety glasses, gloves, and ear protection. Check the condition of the device and cable before each use. Unplug the power cord before any intervention. Use a sharp blade and never stop the blade with your hand after shutdown.

How to clean and maintain the saw?

After use, unplug the device and clean it with a dry cloth. Occasionally lubricate the guide roller with a drop of oil. Regularly check the condition of the cable and the blade fixing screws.

What are the power and weight of the device?

The power consumption is 350 W and the weight is 1.6 kg. The double insulation provides additional electrical safety.

How to make a plunge cut?

For a plunge cut in wood or particle board without drilling a pilot hole, place the saw firmly against the workpiece and slowly penetrate the material following the cutting direction. Use a fine blade for particle board or plywood panels.

USER MANUAL ST-LE 350 E EINHELL

GB Operating Instructions Electronic Jigsaw

Line drawing of a mechanical device with no visible text or symbols

ST-LE 350 E

Please read the operating instructions carefully before assembling and using

Technical line drawing of a mechanical device with mounting bracket and connector (no text or symbols)

4

Technical diagram showing a device with angular measurements and a circular component, likely illustrating a mechanical or optical setup.

4 Knurled screw for regulating the speed

5 Inspection guard

6 Guide roller

7 Adjustable base

8 Dust extractor socket

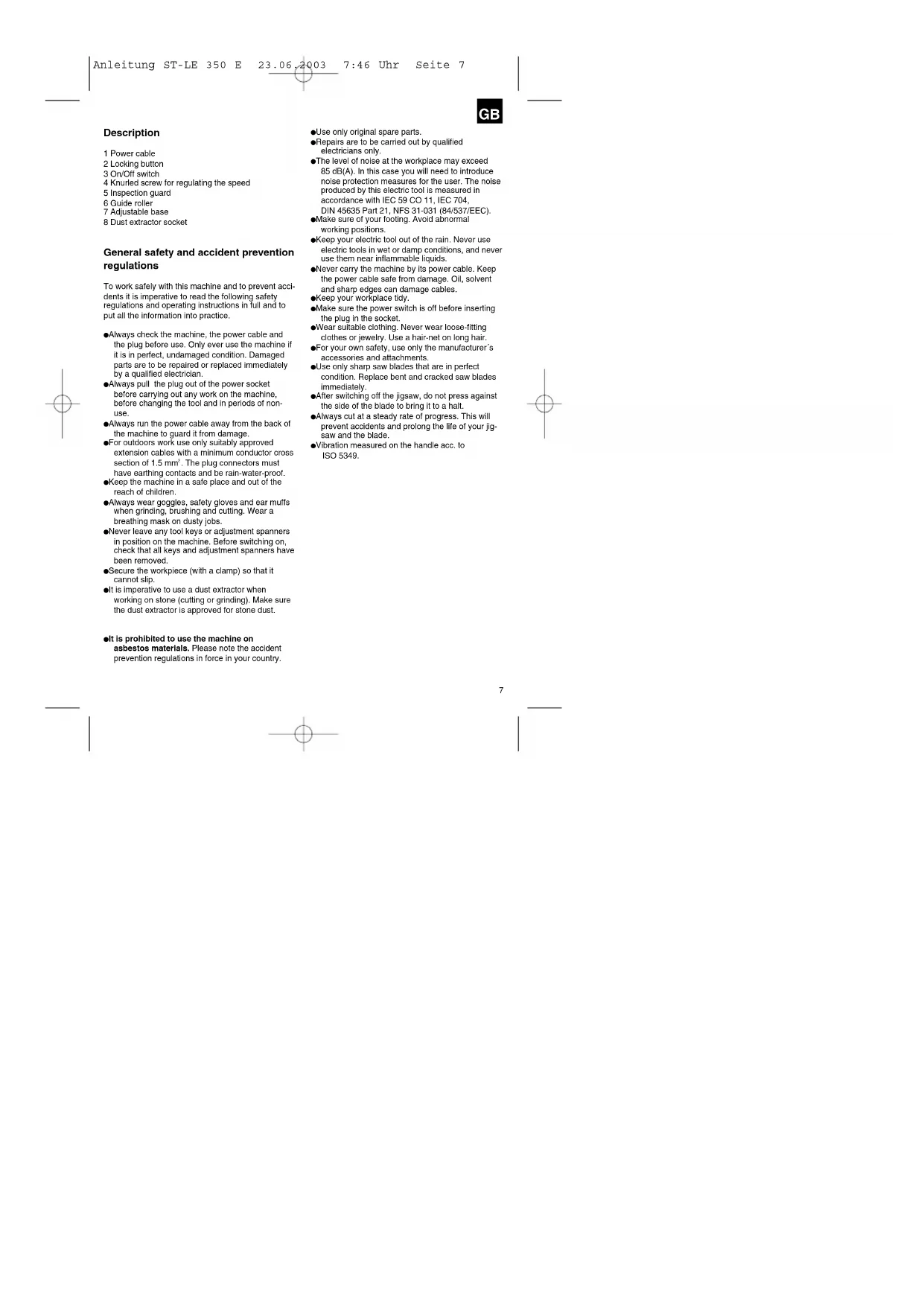

General safety and accident prevention regulations

To work safely with this machine and to prevent accidents it is imperative to read the following safety regulations and operating instructions in full and to put all the information into practice.

●Always check the machine, the power cable and the plug before use. Only ever use the machine if it is in perfect, undamaged condition. Damaged parts are to be repaired or replaced immediately by a qualified electrician.

●Always pull the plug out of the power socket before carrying out any work on the machine, before changing the tool and in periods of non-use.

●Always run the power cable away from the back of the machine to guard it from damage.

- For outdoors work use only suitably approved extension cables with a minimum conductor cross section of 1.5mm^2 . The plug connectors must have earthing contacts and be rain-water-proof

- Keep the machine in a safe place and out of the reach of children.

●Always wear goggles, safety gloves and ear muffs when grinding, brushing and cutting. Wear a breathing mask on dusty jobs.

●Never leave any tool keys or adjustment spanners in position on the machine. Before switching on, check that all keys and adjustment spanners have been removed.

- Secure the workpiece (with a clamp) so that it cannot slip.

- It is imperative to use a dust extractor when working on stone (cutting or grinding). Make sure the dust extractor is approved for stone dust.

●It is prohibited to use the machine on asbestos materials. Please note the accident prevention regulations in force in your country.

●Use only original spare parts.

●Repairs are to be carried out by qualified electricians only.

●The level of noise at the workplace may exceed 85 dB(A). In this case you will need to introduce noise protection measures for the user. The noise produced by this electric tool is measured in accordance with IEC 59 CO 11, IEC 704, DIN 45635 Part 21, NFS 31-031 (84/537/EEC).

●Make sure of your footing. Avoid abnormal working positions.

- Keep your electric tool out of the rain. Never use electric tools in wet or damp conditions, and never use them near inflammable liquids.

●Never carry the machine by its power cable. Keep the power cable safe from damage. Oil, solvent and sharp edges can damage cables.

- Keep your workplace tidy.

●Make sure the power switch is off before inserting the plug in the socket.

●Wear suitable clothing. Never wear loose-fitting clothes or jewelry. Use a hair-net on long hair.

- For your own safety, use only the manufacturer's accessories and attachments.

- Use only sharp saw blades that are in perfect condition. Replace bent and cracked saw blades immediately.

●After switching off the jigsaw, do not press against the side of the blade to bring it to a halt.

●Always cut at a steady rate of progress. This will prevent accidents and prolong the life of your jigsaw and the blade.

●Vibration measured on the handle acc. to ISO 5349.

GB

Operating instructions for the electronic jigsaw

STARTING UP

Instant response operation (Figure 2)

Switching on: Press the On/Off switch

Switching off: Release the On/Off switch

Continuous operation

Switching on: Press the On/Off switch, keep pres sed and lock with the locking button Switching off: Press the On/Off switch and release

Speed control

Infinite variation of the speed is possible by applying more or less pressure to the On/Off switch 10. Slight pressure on the On/Off switch results in low speed. Heavy pressure on the On/Off switch results in high speed. You are thus able to adjust the cutting rate to suit the job in question.

Electronic speed control setting (Figure 3)

Using the knurled screw on the On/Off switch you can pre-set any speed. Turn the knurled screw in PLUS direction for a higher speed and turn it in MINUS direction for a lower speed. The ideal cutting rate depends on the specific material and working conditions.

The general rules for tool speed in cutting operations apply.

Changing the saw blade (Figure 1)

Switch off the jigsaw and remove the plug from the power socket before changing the blade or carrying out any other work on the jigsaw.

Use the supplied hexagon-socket spanner to undo the two screws on the ram (Figure 1). Slide the saw blade into the guide slot and up to the stop between the piston rod and the retention clip. Use the supplied hexagon-socket spanner to tighten the two screws. The teeth of the saw blade must face in cutting direction. Make sure that the saw blade sits properly in the guide slot of the ram and roller.

Adjusting the base

(for mitering and sawing near edges, Figure 4) For mitre and bevel cuts you can swivel the base by up to 45^ in either direction after undoing the two screws on the bottom. The angles 15^ , 30^ and 45^ are marked but you can adjust the saw to any angle between these markings as required.

To adjust the cutting angle, undo the two screws (Figure 4) until you can just about move the blade. Adjust to the required angle and re-tighten the two screws.

To enable you to saw right up to the edge, the base can be pushed backward. To do so, undo the two screws underneath (Figure 4) and push the base to the back. Re-tighten the two screws.

Dust extraction

The jigsaw is equipped with a dust extractor socket. Any vacuum cleaner can be connected to the socket at the rear of the jigsaw. If you require a special adapter, please contact the manufacturer of your vacuum cleaner.

TECHNICAL DATA

Nominal voltage: 230 V - 50 Hz

Power consumption: 350 W

Cutting rate: infinitely variable, max. 400-2600

strokes/min.

Stroke height: 18 mm

Cutting depth in wood: 55 mm

Cutting depth in plastic: 10 mm

Cutting depth in iron: 5 mm

Mitre cuts: up to 45° (left and right)

Sound pressure level LPA: 87.5 dB(A)

Sound power level LWA: 100,5 dB(A)

Vibration a_w 6,3 m/s ^2

Double isolation II / ☐

Weight 1,6 Kg

GB

1 Changing the saw blade

Insert the saw blade in the ram up to the stop and tight the screw of the retention clip. Important: Make sure that the saw blade sits properly in the slot of the roller and ram.

Technical line drawing of a mechanical device with no visible text or symbols

Releasing the saw blade: Tum screw anticlockwise.

4

Technical diagram showing a device with angular annotations and a separate cross-sectional view of a mechanical component.

Undo the two screws to set the base to an angle of up to 45° on the right or left side.

2

On/Off switch

Switching on: Press the On/Off switch Continuous operation: Lock the On/Off switch with the locking button Switching off: Press the On/Off switch and release

5

Cutting veneered chipboard: 1. Use a fine saw blade 2. Position the base on the uncovered area 3. Advance the saw with little force

Support

Cutting holes: Possible only in chipboard and wood unless you drill a hole first. Press the jigsaw firmly against the support and move slowly in cutting direction.

3

Turn the speed controller to increase the cutting rate

Cutting rate

F

Description

Line drawing of a mechanical device with no visible text or symbols

S

Beskrivning

Technical line drawing of a mechanical device with no visible text or symbols

DK

Beskrivelse

1 Netledning

2 Låseknap

3 Betjeningskontakt Start/Stop

Technical diagram showing a device with angular annotations and a corresponding schematic view of its component.

Technical line drawing of a mechanical device with no visible text or symbols

GR

Περιγραφή:

Technical line drawing of a mechanical device with no visible text or symbols

4

Hand-dash

Technical line drawing of a mechanical device with no visible text or symbols

HR

Opis ureūaja

1. Mreæni kabel
2. Gumb za blokiranje
3. Preklopnik za ukljuÉivanje/ískljuÉivanje
4. Regulator broja okretaja (viljak sa glavom sjecka-nog oboda)
5. Prozirni xtitnik
6. Valjak za vođenie
7. Podesivi potplat pile
8. Otvor za usis strugotine

Opše sigurnosne napomene i zaLtita od ozljeda

ProEitajte paæljivo ove upute za uporabu s posebnim osvrtom na mjere sigurnosti. Samo ako se pridræavate navedenih naputaka moæete rukovati ovim urežajem bez opasnosti po sebe i/ili okolinu.

Technical line drawing of a mechanical device with no visible text or symbols

RO

Descriere

Technical line drawing of a mechanical component with no visible text or symbols

BG

Описание

Technical diagram showing a mechanical component with angular annotations and dimensional tolerances

Technical line drawing of a mechanical device with no visible text or symbols

D EG Konformitätserklärung
GB EC Declaration of Conformity
F Déclaration de Conformité CE
NL EC Conformiteitsverklaring
EDeclaracion CE de Conformidad
PDeclaração de conformidade CE
⑤EC Konformltetsförklaring
EC Yhdenmukalsuuslimoltus
N EC Konfirmitetserklæring
RJS EC Заявление о конформности
HH Dichiarazione di conformità CE
®Declaratie de conformitate CE
TR AT Uygunluk Deklarasyonu

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

Technical charges subject to change

Sous reserve de modifications

The guarantee period begins on the sales date and is valid for 2 years.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.
