GC-CS 85 F - Sharpener EINHELL - Free user manual and instructions
Find the device manual for free GC-CS 85 F EINHELL in PDF.
| Brand | Einhell |
| Model | GC-CS 85 F |
| Product type | Chain saw chain sharpener |
| Power supply | 220-240 V ~ 50 Hz |
| Power consumption | 85 W (S2 20 min) |
| No-load speed | 5500 rpm |
| Adjustable sharpening angle | 35° left and right |
| Grinding wheel inner diameter | 23 mm |
| Grinding wheel outer diameter | max. 108 mm |
| Grinding wheel thickness | 3.2 mm |
| Protection class | II |
| Weight | 2.05 kg |
| Sound pressure level | LpA 63.5 dB(A) |
| Sound power level | LWA 76.5 dB(A) |
| Vibration emission value | < 2.5 m/s² |
| Main functions | Sharpening chainsaw chains |
| Included accessories | Grinding wheel, polishing head, guide rail |
| Maintenance | Clean regularly with a damp cloth |
| Safety | Wear hearing protection, dust mask, safety goggles |
| Sharpening depth adjustment | Adjustment screw |
| Voltage type | Mains cable (replacement by professional) |
| Storage | Dry place, frost-free, 5-30°C |
Frequently Asked Questions - GC-CS 85 F EINHELL
User questions about GC-CS 85 F EINHELL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sharpener in PDF format for free! Find your manual GC-CS 85 F - EINHELL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GC-CS 85 F by EINHELL.
USER MANUAL GC-CS 85 F EINHELL
- Safety regulations
- Layout and items supplied
- Proper use
- Technical data
- Before starting the equipment
- Operation
- Replacing the power cable
- Cleaning, maintenance and ordering of spare parts
- Disposal and recycling
- Storage
GB

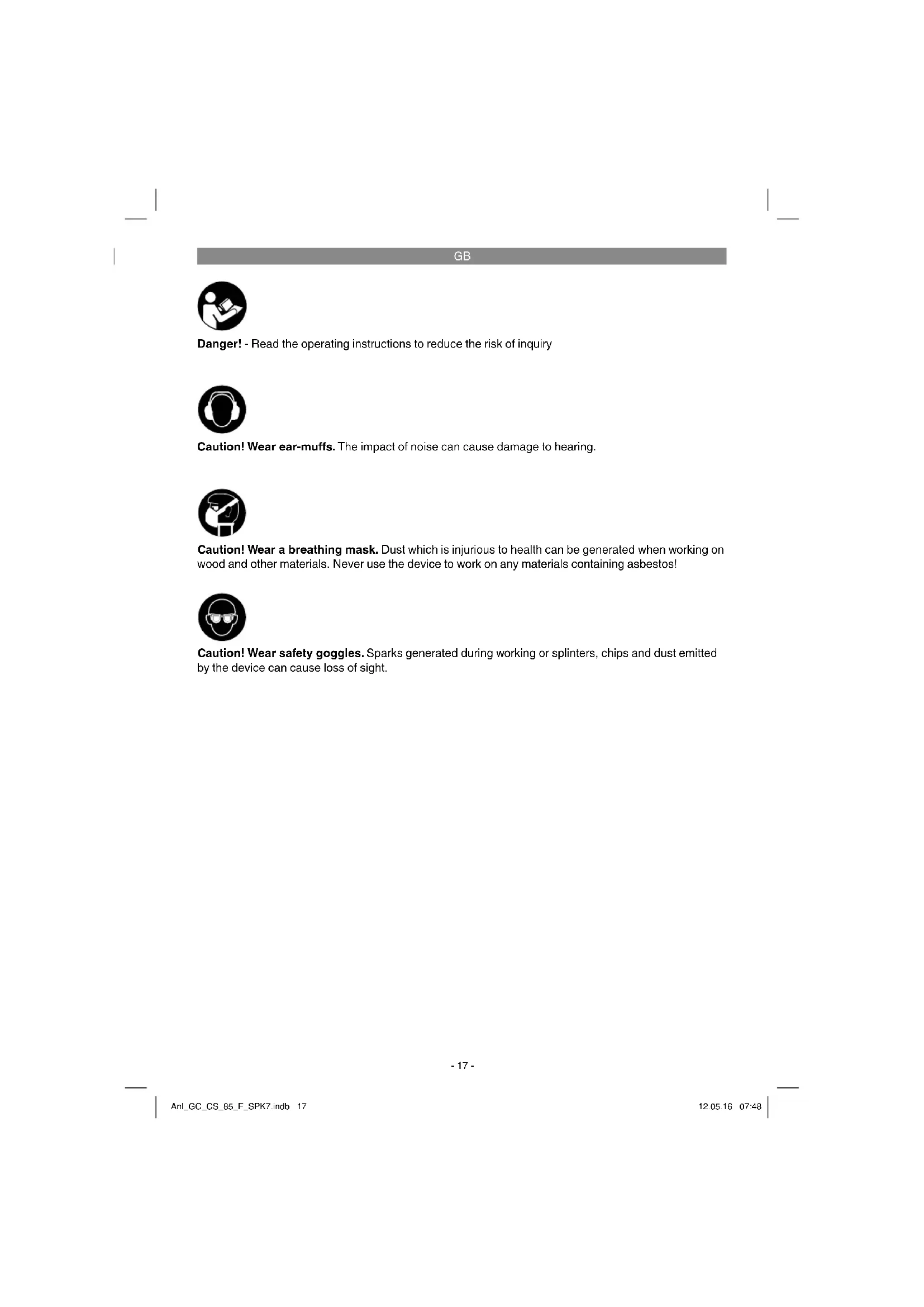

Danger! - Read the operating instructions to reduce the risk of inquiry
Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.
Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
GB
Danger!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Danger!
Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.
2. Layout and items supplied
2.1 Layout (Fig. 1)
- Chain stopper
- Chain stopper setting screw
- Scale for setting grinding angle
- Locking screw for grinding angle setting
- Chain bar for chain
- Chain locking screw
- Setting screw for limiting depth
- Grinding wheel
- ON/OFF switch
- Grinding head
- Power cord
- Adjustment screw
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equip
ment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
If possible, please keep the packaging until the end of the guarantee period.
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
Original operating instructions
- Safetyinstructions
3. Proper use
The chain sharpener is designed for sharpening saw chains.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
The machine must only be used for its intended purpose! Even when the equipment is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine's construction and layout:
- Contact with the grinding wheel where it is not covered.
- Catapulting of parts from damaged grinding wheels.
- Catapulting of workpieces and parts of workpieces from the machine.
- Damage to hearing if ear-muffs are not used as necessary.
GB
4. Technical data
Rated voltage: 220-240 V ~ 50 Hz
Power input: S2 20 min 85 watts
Idle speed: 5500 min-1
Adjustment angle: 35^ to the left and right
Grinding wheel Ø (inside): 23 mm
Grinding wheel Ø (outside): max. 108 mm
Grinding wheel thickness: 3.2 mm
Protection class: II
Weight: 2.05 kg
Danger!
Sound and vibration
Sound and vibration values were measured in accordance with EN 61029.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions) determined in accordance with EN 61029.
Grinding
Vibration emission value a_h < 2.5 m/s^2 K uncertainty = 1.5 m/s²
The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.
The specified vibration value can be used to compare the equipment with other electric power tools.
The specified vibration value can be used for initial assessment of a harmful effect.
Keep the noise emissions and vibrations to a minimum.
Only use appliances which are in perfect working order.
Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
- Do not overload the appliance.
- Have the appliance serviced whenever necessary.
- Switch the appliance off when it is not in use.
Caution!
Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:
- Lung damage if no suitable protective dust mask is used.
- Damage to hearing if no suitable ear protection is used.
5. Before starting the equipment
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
Warning!
Always pull the power plug before making adjustments to the equipment.
Assembly (Fig. 2-9)
- Place the guide bar for the chain (5) in the mount (Fig. 3) and secure from underneath with the locking screw (Fig. 4)
- Thread the tensioning cable (Fig. 5/Item A) into the guide bar for the chain.
- Screw the chain locking screw (6) onto the tensioning cable.
Before starting the chain sharpener, fasten it securely to a suitable surface (e.g. a workbench) at a suitable place (protected against dust, dry, well-lit) using M8 fastening screws and washers.
Make sure when doing so that the mounting plate of the chain sharpener is pushed onto the surface as far as it will go (Fig. 7).
GB
6. Operation
Important! Always switch the appliance off and unplug the power plug before making any adjustments.
6.1 Inserting the chain you want to sharpen into the guide bar (Fig. 10)
Do this by undoing the chain locking screw (6).
6.2 Setting the grinding angle according to the specifications for your chain (Fig. 10) (normally between 30 - 35^ )
- Undo the locking screw for setting the grinding angle (4).
- Set the desired grinding angle using the scale (3).
Re-tighten the fastening screw (4).
6.3 Setting the chain stopper (Fig. 10)
- Swing the chain stopper (1) onto the chain.
Pull the chain backwards against the chain stopper (1) until the stopper stops a cutting link (Fig. 16/Item B). Important. You must make sure that the angle of the stopped cutting link coincides with the grinding angle. If it does not, pull the chain one link further. - Swing down the grinding head (10) until the grinding wheel (8) touches the chain link you want to ground. (To do so, you can move the chain back and forth a little using the setting screw of the chain stopper (2)).
6.4 Setting the depth limit (Fig. 11)
- Swing down the grinding head (10) and set the grinding depth with the setting screw (7). I important. The grinding depth should be set so that the full cutting edge of the cutting link is sharpened.
6.5 Locking the chain (Fig. 11/12)
- Swing down the grinding head as far as it will go and tighten the chain locking screw (6) until the chain no longer slips.
6.6 Grinding the chain link (Fig. 10/15) Important.
Use the equipment only for sharpening saw chains. Never grind or cut other materials.
Make sure that the chain is clamped securely in the guide bar when the grinding head is swung down. If this is not the case, tighten the chain locking screw (6) a little.
- Slowly guide the grinding wheel to the saw
blade. If the grinding wheel approaches the saw chain too quickly or jerkily, this may cause damage to the grinding wheel. Injuries may result from parts being catapulted out.
- Switch on the equipment with the On/Off switch (9).
- Carefully move the grinding wheel (8) with the grinding head (10) against the set link.
- Switch off the equipment with the On/Off switch (9). Every second link in the chain must be sharpened in this way. When you swing up the grinding head, the chain will be released again by the Bowden cable mechanism. The two adjustment screws must be used to move the next cutting link into position. To know when every second link in the entire chain has been sharpened, mark the first link (e.g. with chalk). Once all the cutting links on one side have been sharpened, the grinding angle must be set to the same number of degrees on the other side. You can then begin to sharpen the links of the other side without having to make any further adjustments).
6.7 Adjusting the depth limiter spacing (Fig. 16/17)
Once the chain has been fully sharpened, you must make sure that the depth limiter spacing is correct (the depth limiters (C) must be lower than the cutting links (B)). You may need to fi le the depth limiters (C) to the specifi cations for your chain using a fi le (D) (not included in delivery). To re-file the depth limits, fit the chain to your chain saw.
7. Replacing the power cable
Danger!
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
GB
8. Cleaning, maintenance and ordering of spare parts
Danger!
Always pull out the mains power plug before starting any cleaning work.
and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
8.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
We recommend that you clean the device immediately each time you have finished using it.
Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.
10. Storage
Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 ^ C . Store the electric tool in its original packaging.
8.2 Changing the grinding wheel
Important! Always switch the appliance off and unplug the power plug before carrying out any maintenance.
- Remove the grinding wheel (Figs. 18-20)
- Fit a new grinding wheel
- Assemble in reverse order
Do not use grinding wheels that are worn, broken, cracked or otherwise damaged. Use only genuine grinding wheels.
8.3 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
Type of machine
Article number of the machine
Identification number of the machine
- Replacement part number of the part required
For our latest prices and information please go to www.isc-gmbh.info
9. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal
GB
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
GB
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
| Category Example | |
| Wear parts* Carbon brushes | |
| Consumables* grinding wheels | |
| Missing parts |
- Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:
Did the equipment work at all or was it defective from the beginning?
Did you notice anything (symptom or defect) prior to the failure?
What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
GB
Warranty certificate
Dear Customer:
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:
- These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
- The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.
-
The following are not covered by our guarantee:
-
Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).
-
Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.
-
The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.
-
To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.
Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
F
Sommaire
Chere cliente, cher client,
AiaabaTe oec tic YnObeEieic aoPaaEiac kai tic Ondyiec. Eaev akolouhnoetc tic YnObeEieic aoPaaEia kai tic Ondyiec. dev anokleiovtai nKektonlaEia, npkayia kau/ noBapoi tpauaatouoi. PuAeTe PPOeKTiKa 6aEc tic YnObeEieic aoPaaEaic kai tic Ondyiec yia to eAiov.
6.5 Aopaiion ncauoi8ac (EK.11/12)
Evnpwon yia to epbiC
E 6oec tic xwpec nou avapepovtal otnv yyyunon exoume apuodia ouvepyea nov ouvepyaovta naic mac, n dieuvvom twv onotiw npokuntie ano tnv yyyunon. Ta ouvepyea auta piokovta otni dioeon oac yia eniokeues, avtalaaktka n eosouap nyia tnv ayopa avalawmow.
IpooeTe oTm oukeun aut ta akolovba eapntmuata unoketvtae koivn foepo a otu xeiicovta raakoloutheta avawua.
Aeiotn n eataoq, aeiotne naTn
ta npioVt mauc uokevitai ae auotnpo eleyxno noiotnac.Eav ng ouokeun autn nap 6da auta kanoTse dv leioupyoei ayoya, lounuotae nou kai aacnapakaloume va anotaveite npoc to tmuia c Eunnpetnonc neatwv otnv dieuvon nou avapepetai otny kapta autn. Euxapiotwc eiatae kai thaeuwika otnt diaeon oac otov apteo oepic nou avapepetal otnv kapta eyyunnc. Tia tvn aianon ts yyyunons ioxouuv ta EHS:
GB explains the following conformity according to EU directives and norms for the following product
□90/396/EC_2009/142/EC
89/686/EC_96/58/EC
2011/65/EU
X 2006/42/EC
Annex IV
Notified Body: Notified Body No.:
Notified Body No.. Reg.No.
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured L_m = dB (A); guaranteed L_w = dB (A)
P = KW; L/0 = cm
Notified Body:
2004/26/EC
Emission No.:
Standard references: EN 61029-1; ISO 12100; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Subject to change without notice
Archive-File/Record: NAPR012643
Documents registrar: Juhl Markus
Wiesenweg 22, D-94405 Landau/Isar
EH 05/2016 (01)
