Brand	Gardol
Model	GATH-E 20 Li OA
Type	Cordless hedge trimmer (cordless)
Blade length	450 mm
Max cutting length	400 mm
Tooth spacing	16 mm
Cuts per minute	1700 min⁻¹
Battery voltage	20 V (Power-X-Change)
Battery type	Lithium-ion (Li-Ion)
Compatible battery capacities	1.5 Ah / 3.0 Ah / 4.0 Ah
Mains charger	200-250 V~ 50-60 Hz, output 21 V DC, 3000 mA
Sound pressure level (LpA)	81.05 dB(A) (K=3 dB)
Sound power level (LWA)	98.23 dB(A) measured, 102 dB(A) guaranteed
Vibrations (handle)	≤2.5 m/s² (K=1.5 m/s²)
Power supply	Battery 20 V Power-X-Change
Main functions	Hedge trimming, bushes, undergrowth
Maintenance and cleaning	Regular cleaning with brush and damp cloth; oiling of blades
Safety	Start lock, carrying belt with quick release, blade protection, gloves and goggles recommended
Spare parts and repairability	Blade, battery, blade guide available; after-sales service via ISC GmbH
Warranty	84 months (7 years) according to conditions
General information	Additional mounting kit included; adjustable telescopic tube; motor head tilt 7 positions, handle 4 positions; delivered without battery and charger

Frequently Asked Questions - GATH-E 20 Li OA Gardol

How to assemble the GATH-E 20 Li OA hedge trimmer?

Insert the tube (7) into the handle housing (2a) until the bead and screw on the mounting nut (6). Attach the additional handle and the carrying belt. Fix the additional mounting kit onto the motor head by aligning the arrows and turning to the right. Refer to the manual for more details.

Which battery to use with this hedge trimmer?

Use only Power-X-Change series batteries in 20 V, with capacities 1.5 Ah, 3.0 Ah or 4.0 Ah. Only charge with the Power-X charger.

How to adjust the length of the telescopic tube?

Loosen the locking nuts (10 and 12) by turning left, pull out the tubes (11 and 13) to the desired height, then tighten the nuts to the right.

How to adjust the tilt of the cutting head?

Press the two stop buttons (14) on the motor housing and adjust to one of the 7 locking positions.

What safety equipment to wear?

Always wear protective gloves, safety glasses, ear protection and a carrying belt. Keep the device away from electrical cables (min. distance 10 m).

How to maintain the blades?

Regularly clean the blades with a brush and apply a thin coat of oil (fig. 22). Remove the battery before any maintenance.

What to do if the device does not work?

Check that the battery is charged and correctly inserted. If the problem persists, consult the troubleshooting chart in the manual or contact customer service.

What is the charging time of the battery?

For a 1.5 Ah battery: quick charge 30 min, total approx. 40 min. 3.0 Ah: 60 min quick, 75 min total. 4.0 Ah: 80 min quick, 100 min total.

Can I use this hedge trimmer to cut grass?

No, the device is designed only for trimming hedges, bushes and undergrowth. Do not use it to cut grass.

How to store the hedge trimmer after use?

Remove the battery, clean the device, place the blade guard and store it in a dark, dry and frost-free place, out of reach of children. Ideal storage temperature: 5 to 30 °C.

USER MANUAL GATH-E 20 Li OA Gardol

GB Original operating instructions Cordless hedge trimmer

4 A 8 B L M

4a N U P F

5 a R b

3D rendered mechanical component with labeled feature R, no readable text or symbols present

7 9 b F a

8 9 a b H

9 8

Close-up of a person's hand holding a black belt buckle, with arrows indicating the buckle detail (no text or symbols visible)

1 2 b a 5 a

12 a 13a b 14 a

13 10 11 12 13

Close-up of a hand inserting a device into a device component, labeled 'T' (no text or symbols on the device itself)

Exterior view of a gray handheld device with a handle and base (no visible text or symbols)

Close-up of a hand holding a black electronic device with labeled parts (1 and 21), no visible text or symbols beyond labels.

17 15° 10°

Close-up of a mechanical screw with helical grooves and directional arrows indicating motion (no text or symbols)

Black-and-white sketch of a train track with a flag and starburst pattern, no text or symbols present

Person pruning a leafy shrub with a long tool in the background (no visible text or symbols)

Black-and-white photo of dense foliage with a white arrow pointing upward and a white line below, no visible text or symbols.

Technical line drawing of a mechanical assembly with a cylindrical component inserted into a shaft (no text or symbols)

23 1 2 3 4 5 6 7 8 9 10 11 v_u → L 10 m →

DE

Gefahr!

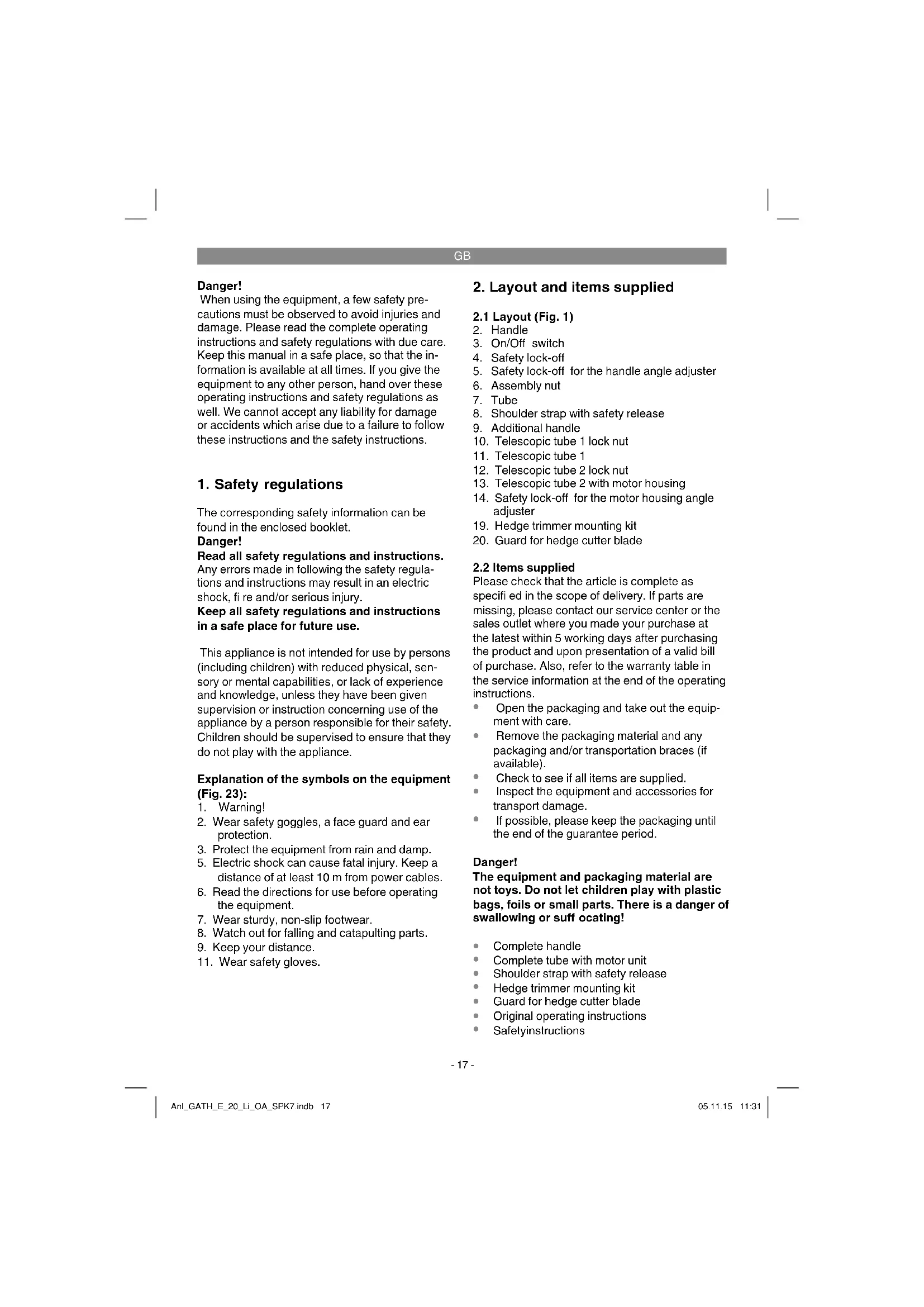

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Explanation of the symbols on the equipment (Fig. 23):

1. Warning!
2. Wear safety goggles, a face guard and ear protection.
3. Protect the equipment from rain and damp.
4. Electric shock can cause fatal injury. Keep a distance of at least 10 m from power cables.
5. Read the directions for use before operating the equipment.
6. Wear sturdy, non-slip footwear.
7. Watch out for falling and catapulting parts.
8. Keep your distance.
9. Wear safety gloves.

2. Layout and items supplied

2.1 Layout (Fig. 1)

1. Handle
2. On/Off switch
3. Safety lock-off
4. Safety lock-off for the handle angle adjuster
5. Assembly nut
6. Tube
7. Shoulder strap with safety release
8. Additional handle
9. Telescopic tube 1 lock nut
10. Telescopic tube 1
11. Telescopic tube 2 lock nut
12. Telescopic tube 2 with motor housing
13. Safety lock-off for the motor housing angle adjuster
14. Hedge trimmer mounting kit
15. Guard for hedge cutter blade

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Complete handle
  • Complete tube with motor unit
  • Shoulder strap with safety release
  • Hedge trimmer mounting kit
  • Guard for hedge cutter blade
  • Original operating instructions
• Safetyinstructions

GB

3. Proper use

The hedge trimmer mounting kit is allowed to be used only on the supplied motor head. Caution! This hedge trimmer is suitable for cutting hedges, bushes and shrubs. Caution! Do not use this equipment to cut grass.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Cutter bar length: 450 mm Max. cutting length: 400 mm Tooth spacing: 16 mm Cuts/min: 1700

Important!

The equipment is supplied without batteries and without a charger is allowed to be used only with the lithium-ion batteries of the Power-X-Change series!

Power-X-Change

20 V, 1.5 Ah ....5 lithium-ion cells 20 V, 3.0 Ah ....10 lithium-ion cells 20 V, 4.0 Ah ....10 lithium-ion cells

The lithium-ion batteries of the Power-X-Change series are allowed to be charged only with the Power-X charger.

Charging unit

Mains voltage 200-250 V \~ 50-60 Hz

Output

Rated voltage .... 21 V d. c. Rated current .... 3000 mA

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with ISO 22868.

L_pA sound pressure level .... 81.05 dB(A) K_pA uncertainty .... 3 dB LWA sound power level measured .. 98.23 dB(A) K_wA uncertainty .... 3 dB LWA sound power level guaranteed ... 102 dB(A)

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with ISO 22867.

Handle under load

Vibration emission value a_h ≤ 2.5 m/s^2

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
- Have the appliance serviced whenever necessary.
- Switch the appliance off when it is not in use.
• Wear protective gloves.

GB

5. Before starting the equipment

The equipment is supplied without batteries and without a charger.

Caution! Do not fit the battery until the equipment has been fully assembled and all the settings have been actuated. Always wear protective gloves when working on the equipment to protect yourself against injury. Carefully unpack all parts and check that they are complete (Fig. 1).

5.1 General information on assembly

a) Fig. 2-3: Push the tube (7) onto the handle housing (2a) as far as the bead (7a) and screw it tight with the assembly nut (6).
b) Fig. 4: Hook the carabiner (A) of the shoulder strap (8) into the strap attachment (B).

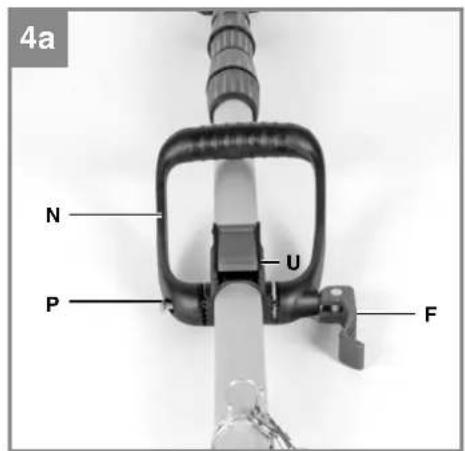

c) Fig. 4a: The additional handle consists of the handle (N), the hexagon screw (P) and the lock (F). It is fitted to the handle attachment (U) as illustrated. Push the hexagon screw (P) into the handle (N) and screw it tight to the lock (F).

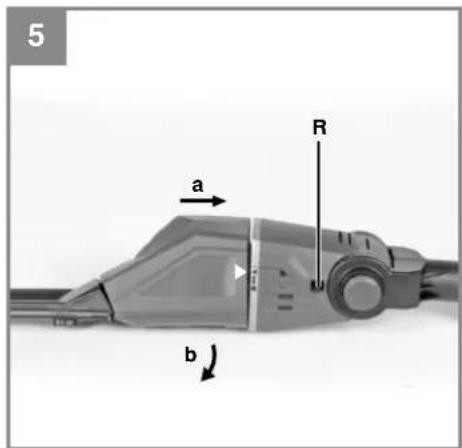

5.2 Fitting the hedge trimmer mounting kit to the motor head (Fig. 5-6)

The guard must be slipped over the hedge cutter blade in order to prevent injuries.

1. Position the hedge trimmer mounting kit and the motor head such that the arrows on both parts coincide.
2. Press the hedge trimmer mounting kit against the motor head. This will cause the lock button (R) to be pushed to the right. Turn the hedge trimmer mounting kit clockwise. The hedge trimmer mounting kit will lock onto the motor head and is then secured in place. This will cause the lock button (R) to be pushed to the left.

5.3 Removing the hedge trimmer mounting kit from the motor head (Fig. 5-6)

The guard must be slipped over the hedge cutter blade in order to prevent injuries.

1. Pull the lock button (R) to the right.
2. Turn the hedge trimmer mounting kit to the point where the arrows on the motor head and hedge trimmer mounting kit coincide, allowing the mounting kit to be removed.

5.4 Adjusting the additional handle (Fig. 7-8)

(a) Setting the tilt of the additional handle Open (a) the lock (F). Set the desired tilt of the additional handle (9). Close (b) the lock (F).

b) Shifting the additional handle

Open (a) the lock (H) and slide the additional handle (9) into the required position. Close (b) the lock (H).

5.5 Using the shoulder strap

Warning! Always use the shoulder strap when working with the equipment. Switch off the equipment before you take off the shoulder strap (risk of injury).

1. Hook the carabiner (Fig. 4/Item A) into the strap holder.
2. Slip the shoulder strap (Fig. 9/Item 8) over your shoulder.
3. Adjust the length of the shoulder strap so that the strap attachment is at waist level (Fig. 9).

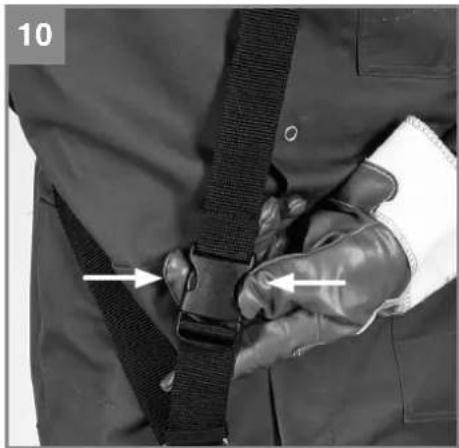

4. The shoulder strap is equipped with a buckle. Press the hooks together (Fig. 10) if you need to put down the equipment quickly.
5. To change the strap position on the equipment, press together the two metal loops (Fig. 4/Item L / M) and adjust the strap attachment on the tube.

5.6 Adjusting the angle of the handle (Fig. 11)

Press the two safety lock-off s (5) and adjust the angle of the handle (2) to any of 4 latching positions.

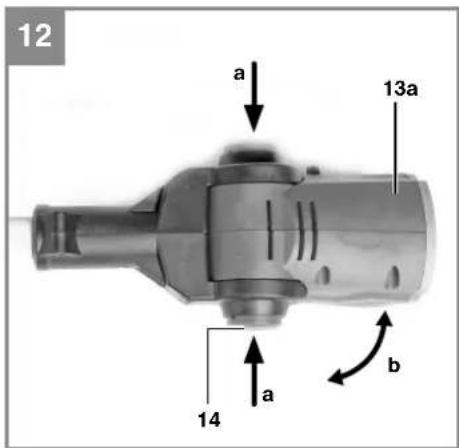

5.7 Adjusting the angle of the motor housing (Fig. 12)

Press the two safety lock-off s (14) and adjust the angle of the motor housing (13a) to any of 7 lat-ching positions.

5.8 Adjusting the telescopic tube (Fig. 13)

1. Undo the telescopic tube lock nuts (10 + 12) by turning them counter-clockwise.
2. Pull out the telescopic tubes (11 + 13) to suit the required working height.
3. Secure the telescopic tube lock nuts (10 + 12) by them turning clockwise.

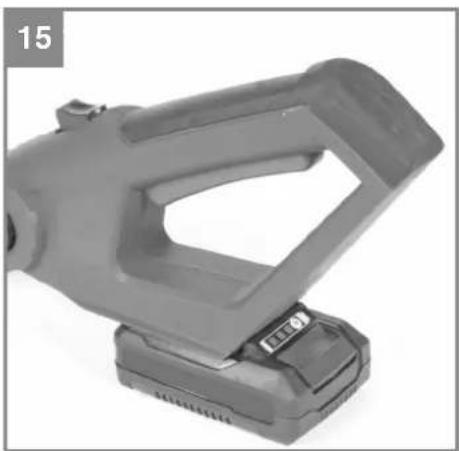

5.9 Fitting the battery (Fig. 14-15)

Press the side pushlock button (T) of the battery pack as shown in Fig. 14 and push the battery pack into the mount provided. When the battery

GB

pack is positioned as in Fig. 15, make sure that the pushlock button latches in place! To remove the battery pack, proceed in reverse order.

5.10 Charging the battery (Fig. 16)

1. Take the battery pack out of the equipment. Do this by pressing the pushlock button (T).
2. Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger (21) into the mains socket outlet. The green LED will then begin to flash.
3. Insert the battery pack (1) into the battery charger (21).
4. In the section entitled „Charger indicator“ you will find a table with an explanation of the LED indicator on the charger.

The battery pack can become a little warm during the charging. This is normal.

If the battery pack fails to charge, check:
• whether there is voltage at the socket outlet
- whether there is good contact at the charging contacts.

If the battery pack still fails to charge, send

• the charging unit
• and the battery pack

to our customer service center.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless equipment drops. Never fully discharge the battery pack. This will cause it to develop a defect.

6. Operation

Please note that the statutory regulations governing noise abatement may differ from one location to another.

Caution! Always use the shoulder strap when working with the equipment. Always switch off the equipment before you take off the shoulder strap. Otherwise there is a risk of injury.

Put on the shoulder strap as described above, fi t the required mounting kit and adjust the equipment to suit your needs.

Switching on/off

Switching on

• Hold the equipment by the handles with both hands (thumbs under the additional handle).
• Slide the safety lock-off (Fig. 3/Item 4) to the front and hold.
• Switch on the equipment with the On/Off switch (Fig. 3/Item 3). You can then release the safety lock-off.

Switching off

Release the On/Off switch (Fig. 3/Item 3).

7. Working with the hedge trimmer mounting kit

• Check that the cutters work properly. The twin-bladed cutters rotate in opposite directions, thus guaranteeing high cutting performance and smooth operation.
  Take care to maintain a steady foothold and hold the equipment firmly in both hands away from your body. Before you switch on, make sure that the equipment is not touching any objects.

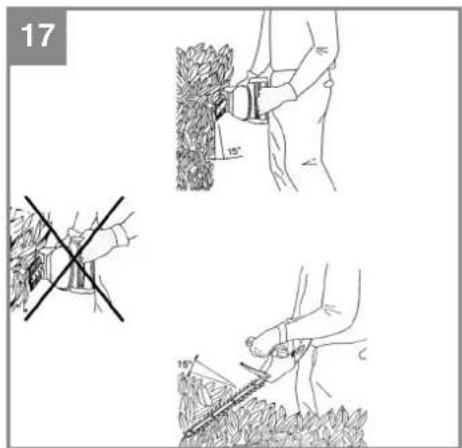

Work practice

• A hedge trimmer can be used to cut shrubs and bushes as well as hedges.
• To obtain the best cutting results, hold the hedge trimmer so that the cutter teeth are at an angle of approx. 15° in relation to the hedge (see Fig. 17).
• The twin-bladed cutters rotate in opposite directions, thus enabling cutting in both directions (see Fig. 18).
• It is recommended to tie a guide line of string or the like along the hedge so that you cut the hedge to a level height. Cut off all branches which protrude beyond the guide line (see Fig. 19/20).
• Cut the sides of the hedge with curve-shaped movements from the bottom up (see Fig. 21).

GB

8. Cleaning, maintenance and ordering of spare parts

Danger!

Remove the battery pack before doing any cleaning and maintenance work.

8.1 Cleaning

• Regularly clean the clamping mechanism by blowing it out with compressed air or cleaning it with a brush. Do not use tools for cleaning.
• Keep the handles free of grease so that you can maintain a firm grip.
• Never immerse the equipment in water or other liquids in order to clean it.
• Use a brush to remove deposits from the safety guards.
• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Maintenance

The cutters should be cleaned and lubricated at regular intervals in order to ensure best performance at all times. Remove deposits with a brush and apply a thin film of oil (Fig. 23).

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

GB

11. Troubleshooting guide

Caution!

Before troubleshooting, switch off the equipment and remove the battery.

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.

Fault Possible cause Remedy
The equipment does not work	-Batteryempty- Battery is not correctly inserted	-Chargebattery- Remove battery and insert again
Equipment operates intermittently	- Loose connection (external)- Loose connection (internal)- ON/OFF switch defective	- Consult a specialist workshop.- Consult a specialist workshop.- Consult a specialist workshop.

12. Charger indicator

Indicator status		Explanations and actions
Red LED Green LED
Off	Flashing	Ready for useThe charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode.
Off On The battery is 85% charged and ready for use.(Charging time for 1.5 Ah battery: 30 min)(Charging time for 3.0 Ah battery: 60 min)(Charging time for 4.0 Ah battery: 80 min)The unit then changes over to gentle charging mode until the battery is fully charged.(Total charging time for 1.5 Ah battery: approx. 40 min)(Total charging time for 3.0 Ah battery: approx. 75 min)(Total charging time for 4.0 Ah battery: approx. 100 min)Action:Take the battery pack out of the charger. Disconnect the charger from the mains supply.
Flashing Off	Adapted charging	The charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more than 1 hour. The reasons can be:- The battery pack has not been used for a very long time or an already fl at battery was further discharged (exhaustive discharge).- The battery pack temperature is outside the ideal range (between 10^ C and 45^ C).Action:Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing Flashing Fault		Charging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger.
On On Temperature fault		The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0^ C).Action:Remove the battery pack and keep it at room temperature (approx. 20^ C) for one day .

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Blade guide, Battery
Consumables* Blade
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:

1. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer.

Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

1. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

1. The guarantee is valid for a period of 84 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

2. Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

FR

Danger!

20 V, 4,0 Ah ....10 litij-ionskih celic

Litij-ionske akumulatorje serije Power-X-Change je dovoljeno polniti samo s polnilnikom Power-X-Charger.

Polnilnik

Omrežna napetost .....200-250 V \~ 50-60 Hz

Izhod

Nazivna napetost ....21 V d. c.

Negotovost K _nA 3 dB

Nivo zvočnega moči L _wa izmerjen .... 98,23 dB (A)

Negotovost K_wa .....3 dB

20 V, 4,0 Ah ....10 Li-lon hücreleri

Sapma K _WA ....3dB

20 V, 3,0 Ah ....10 Li-lon rafhlöður

20 V, 4,0 Ah .....10 Li-lon rafhlöður

□87/404/EC_2009/105/EC
□2005/32/EC_2009/125/EC
2006/95/EC
2006/28/EC
X 2004/108/EC
2004/22/EC
□1999/5/EC
□97/23/EC
□90/396/EC_2009/142/EC
□89/686/EC_96/58/EC
X 2011/65/EU
X 2006/42/EC
Annex IV
Notified Body:
Notified Body No.:
Reg. No.: BM
X 2000/14/EC_2005/88/EC
X Annex V
Annex VI
Noise: measured L_PPA = 98,23 dB (A); guaranteed L_WA = 102 dB (A)
P = KW; L/∅ = cm
Notified Body:
□ 2004/26/EC
Emission No.:

Standard references: EN 60745-1; EN ISO 10517; EN 55014-1; EN 55014-2

Subject to change without notice

Archive-File/Record: NAPR013243

Documents registrar: Josef Landauer

Wiesenweg 22, D-94405 Landau/Isar

EH 11/2015 (02)
