Product Type	Electric Scarifier and Aerator
Brand	Gardol
Model	GLV 1200-31
Power	1200 W
Mains Voltage	230 V ~ 50 Hz
Working Width	approx. 310 mm
Working Depth	3 / 7 / 9 mm (adjustable)
Number of Knives (Scarifier)	8 double knives
Number of Claws (Aerator)	42
Recommended Lawn Area	up to 300 m²
Net Weight	10.4 kg
Gross Weight	13 kg
Packing Dimensions	590 x 450 x 330 mm
Safety Switch	Yes (1)
Foldable Guidance Bar	Yes (2)
Integrated Height Adjustment	Yes (3)
Number of Wheels	4
Collection Bin	Yes (5)
Easy Changeable Rotors	Yes (6)
Conversion Time	Within seconds (scarifier to aerator)
Special Accessories Available	Aerating rotors (Art. 34.055.70) and Cutting rotors (Art. 34.055.80)

Frequently Asked Questions - GLV 1200-31 Gardol

How do I convert the unit from scarifier to aerator?

You can convert the GLV 1200-31 within seconds by changing the rotor. Simply release the rotor lock, remove the current rotor, and install the desired one. The unit can be used as a scarifier with knives or as an aerator with claws.

What is the maximum lawn area this machine can handle?

The recommended lawn area is up to 300 m² for optimal performance.

How do I adjust the working depth?

The integrated height adjustment (3) allows you to set the working depth to 3 mm, 7 mm, or 9 mm depending on the ground condition.

Is the unit safe to use?

Yes, the GLV 1200-31 includes a safety switch (1) that prevents accidental startup. Always ensure the safety switch is engaged before use. Do not use the unit in wet conditions.

How do I maintain and clean the unit after use?

After each use, disconnect from the mains and clean the rotors and collection bin with a brush. Remove any debris. Store in a dry place. Regularly check for loose screws and wear.

What accessories are available for this model?

Special accessories include aerating rotors (Art.-No. 34.055.70) and cutting rotors (Art.-No. 34.055.80), both from Greyline.

Can I fold the handle for storage?

Yes, the guidance bar (2) is foldable for easy transport and space-saving storage.

How many wheels does the unit have?

The GLV 1200-31 is equipped with 4 castors for smooth maneuverability.

What is the net weight of the machine?

The net weight is 10.4 kg, making it relatively lightweight for extended use.

How do I replace the rotor?

The rotors are easy to change. Loosen the retaining knob, remove the current rotor, and install the new one. Ensure the rotor is securely fastened before use.

USER MANUAL GLV 1200-31 Gardol

Electric Scarifier and Aerator GLV 1200-31

Art.-No.: 34.205.03

Bar code: 4006825544060

Sales unit: 1 pc

Depending on application you can convert this unit within seconds from a scarifier to an aerator.

Using it as a scarifier you can remove moss and weeds with its rootings. When you use the unit as an aerator, the lawn surface will be scored for better water-draining and nutrient uptake. The unit can be used problem-free also for long time periods because of its low weight and the four castors. For easy transport and space-saving storage the handle is easily foldable. The integrated height adjustment allows an adaptation onto the respective underground.

Features:

• Safety switch (1)
• Foldable guidance bar (2)
• Integrated height adjustment (3)
• 4 wheels (4)
• Collection bin (28 1) (5)
• Easy changeable rotors (6)
• Recommended for lawn area up to 300 m²

Technical Data:

• Mains: 230 V \~ 50 Hz
• Power: 1,200 W
• Working width: approx. 310 mm
• Working depth: 3/7/9 mm
• Number of knives: 8 double knives
• Number of claws : 42
• Net weight: 10.4 kg
• Gross weight: 13 kg
• Packing dimensions: 590 x 450 x 330 mm

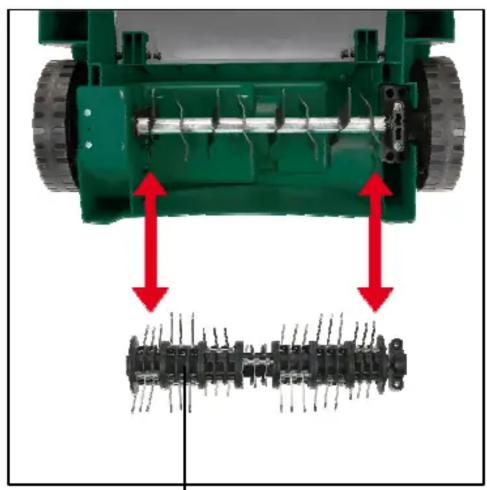

Green agricultural machine with attached black mechanical components, showing red directional arrows indicating movement or force (no text or symbols)

6

As special accessories available:

Aerating rotors

Greyline

Cutting rotors

Greyline

Art.-No.: 34.055.70

Bar code: 4006825544152

Art.-No.: 34.055.80

Bar code: 4006825544176
