Product type	Gas barbecue / Gas grill
Brand	CHAR BROIL
Model	Convective 440 S
Gas category	Butane, Propane or mixtures (I3+, I3B/P)
Total nominal power	17,00 kW (butane) / 13,48 kW (propane)
Gas pressure	28-30 mbar (butane) / 37 mbar (propane)
Injector size	Barbecue : 0,93 mm x 4 ; Plaque : 0,83 mm x 1
Ignition battery	1,5 V DC (type AA)
Warranty	2 years (burners, cooking grids, emitters, other parts)
Use	Outdoor only, well-ventilated area
Safety distance	1 m from walls, 3 m from flammable materials
Number of burners	4 main + 1 hot plate (optional)
Main material	Stainless steel
Ignition type	Electronic (push-button) and match
Maintenance	Regular cleaning of burners, annual leak test
Safety	Automatic shut-off in case of leak (manual), lid to be opened before ignition
Storage	In a dry place, out of reach of children, cylinder disconnected indoors
Maximum tray load	4,5 kg
Container diameter	Min 200 mm, max 260 mm
Destination countries	GB, FR, BE, ES, IT, PT, CZ, SK, etc.

Frequently Asked Questions - Convective 440 S CHAR BROIL

How to light the Convective 440 S barbecue?

Open the lid. Turn the knobs to 'off', open the gas from the cylinder. For electronic ignition, press and turn the burner knob to HIGH, then hold the electronic ignition button until the burner lights. If no ignition after 5 seconds, close the knobs, wait 5 minutes and try again. You can also use a match via the side ignition hole. Never lean over the barbecue while lighting.

What to do if I smell gas?

Immediately shut off the gas supply at the cylinder. Extinguish any open flame. Open the lid. If the smell persists, move away from the appliance and call your gas supplier or fire department. Do not use electrical appliances nearby.

How to perform a leak test?

Make sure all control knobs are in the 'off' position. Open the gas from the cylinder. Apply a soapy solution (half soap, half water) to the hose connections. If bubbles appear, there is a leak. Turn off the gas and tighten the connections. If the leak persists, contact a professional. Perform this test at least once a year and every time you change the cylinder.

How to clean the burners?

Turn off the gas and disconnect the cylinder. Remove the cooking grids and heat tents. Carefully disassemble the burners. Clean the burner tubes with a stiff wire or pipe cleaner. Use a wire brush on the outside. Clear any blocked openings with a paperclip. Check for any damage. Reassemble ensuring the burner tubes fit correctly into the valve openings. Perform a leak test after reassembly.

Why won't my barbecue light?

Check that the cylinder is open and there is gas left. Listen if the igniter produces sparks. If yes, check the electrode (cleanliness, crack). If not, check the battery (1.5 V) and cable connections. Clean the electrode with a cloth soaked in alcohol. If the problem persists, use a match to light.

Can I use the barbecue indoors?

No, indoor use is strictly prohibited. The barbecue must be used only outdoors, in a well-ventilated area. Never use it in a garage, shed, covered patio, or under a suspended structure.

How to store the barbecue in winter?

Clean the cooking grids. Store the appliance in a dry place. If the cylinder is connected, store the appliance in a well-ventilated area out of reach of children. If storing the appliance indoors, the cylinder must be closed, disconnected, and removed. Cover the appliance if stored outdoors. Before reuse, check that the burner is not obstructed.

What is the warranty for the Convective 440 S?

The warranty is 2 years for the burners, cooking grids, emitters, and all other parts (minimum for Europe). It covers defects in material and workmanship under normal use conditions. Not covered are damages due to misuse, insects in the burners, or extreme weather conditions. Keep your proof of purchase.

What types of gas to use with this barbecue?

The barbecue can use butane (28-30 mbar) or propane (37 mbar), as well as their mixtures. The gas category is I3+(28-30/37) and I3B/P(30/50). Use a regulator certified according to EN16129 (max flow 1.5 kg/h) and an approved hose not exceeding 1.5 m (1.2 m in Finland). Check the pressure and injector size corresponding to your gas.

How to avoid grease fires?

Clean the appliance regularly, especially after each use. Do not leave the barbecue unattended during preheating or when cooking at high temperatures. Do not close the lid to try to extinguish a grease fire. If a grease fire occurs, close the control knobs and the gas cylinder. Never use water. Empty the grease container after each use.

USER MANUAL Convective 440 S CHAR BROIL

Line drawing of a standard gray electric grill with control panel and wheels (no text or symbols)

GB Operating Instructions, 2-7

Assembly Instructions, 92-110

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

2531CS 0005

INSTALLER/ASSEMBLER:

Leave this manual with consumer.

CONSUMER:

Keep this manual for future reference.

Questions:

If you have questions during assembly or use of this appliance contact your local dealer.

DANGER

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

1. Do not store or use petrol or other flammable liquids in the vicinity of this or any other appliance.
2. A gas cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

CAUTION

• Read and follow all safety statements, assembly instructions and use and care directions before attempting to assemble and cook.
• Some parts may contain sharp edges. Wearing protective gloves is recommended.

Grease Fires

• Putting out grease fires by closing the lid is not possible. Barbecues are well ventilated for safety reasons.
• Do not use water on a grease fire, Personal injury may result. If a persistent grease fire develops, turn knobs and gas cylinder off.
• If appliance has not been regularly cleaned, a grease fire can occur that may damage the product. Pay close attention while preheating or burning off food residue to insure that a grease fire does not develop. Follow instructions on general appliance cleaning and cleaning the burner assembly to prevent grease fires. The best way to prevent grease fires is regular cleaning of the appliance.
• Do not leave barbecue unattended while preheating or burning off food residue on HI. If barbecue has not been regularly cleaned, a grease fire can occur that may damage the product.

WARNING

For Safe Use of Your Appliance and to Avoid Serious Injury:

- USE OUTDOORS ONLY. NEVER USE INDOORS.

Read the instructions before using the appliance.

Always follow these instructions.

• Do not move the appliance during use.
• Accessible parts may be very hot. Keep young children away. Do not let children operate or play near appliance.
• Turn off the gas supply at the cylinder after use.
• This appliance must be kept away from flammable materials during use.
• Do not block holes in sides or back of appliance.
• Check burner flames regularly.
• Do not block venturi openings on burner.
• Use appliance only in well-ventilated space. NEVER use in enclosed space such as carport, garage, porch, covered patio, or under an overhead structure of any kind.
• Do not use charcoal or ceramic briquets in a gas appliance.
• DO NOT cover grates with aluminum foil or any other material. This will block burner ventilation and create a potentially dangerous condition resulting in property damage and/or personal injury.

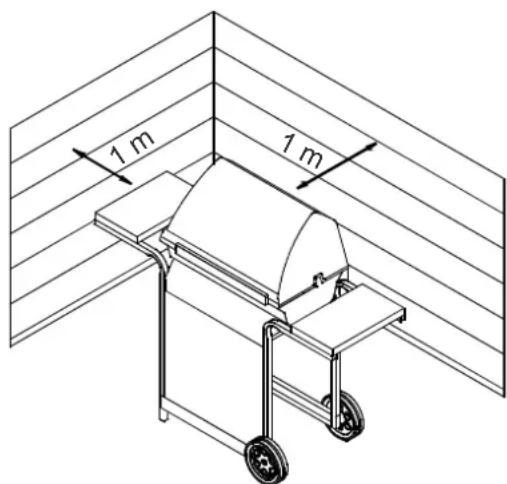

  • Use appliance at least 1m from any wall or surface.
• Maintain 3m clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc.

1 m 1 m

• NEVER attempt to light burner with lid closed. A buildup of non-ignited gas inside a closed appliance is hazardous.
• Always turn off gas at cylinder and disconnect regulator before moving gas cylinder from specified operating position.
• Never operate appliance with gas cylinder out of correct position specified.
• Do not modify the appliance. Any modifications is strictly prohibited. Sealed parts are not to be manipulated by the user. Do not disassemble injectors.

Safety Tips

• Before opening gas cylinder valve, check the regulator for tightness.
• When appliance is not in use, turn off all control knobs and gas.
• Use long-handled barbecue utensils and oven mitts to avoid burns and splatters. Use protective gloves when handling hot components.
• Maximum load for hot plate, if equipped, and side shelf is 4.5 Kg. Cooking vessel minimum dia 200mm and maximum dia. 260 mm. NOTE: Your barbecue may NOT be equipped with a Hot plate!
• The grease cup (if equipped) must be inserted into appliance and emptied after each use. Do not remove grease cup until appliance has completely cooled.
• Be very careful when you open the lid, since hot steam may escape.
• Be very careful when children, the elderly, or pets are nearby.
• If you notice grease or other hot material dripping from appliance onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose, and regulator before continuing. Perform a leak test.
• Do not store objects or materials inside the appliance cart enclosure that would block the flow of combustion air to the underside of either the control panel or the firebox bowl.
• DO NOT disconnect or change gas container within 3m of an open flame or other ignition source.

Cylinder Placement

Cylinder of 6 kg or less may be placed on the ground under the side shelf or inside the appliance in place provided. Larger cylinders are to be placed under side shelf or behind the barbecue only. Cylinders placed in the appliance shall have a maximum diameter of 345mm and maximum height of 370mm. Cylinders placed on the ground shall not be placed under the hot plate.

Regulator Requirements

A regulator must be used with this appliance. Use only gas regulator supplied with your barbeque. If a regulator is not supplied then use only regulator certified according to EN16129 (Flow rate max. 1.5 kg/h) and approved for your country and gas specified in Technical Data.

Hose Requirements

Use only approved hose which is certified to appropriate EN standard and does not exceed 1.5m length. For Finland, the hose length shall not exceed 1.2m.

Before each use, check to see if hoses are cut or worn. Make sure hose is not kinked. Make sure that when connected hose does not touch any warm surfaces. Replace damaged hoses before using appliance. Replace hose as required by national requirements.

Ignitor Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. To ignite, push and turn ignition burner knob to 🔥 HIGH. Immediately, push and hold ELECTRONIC IGNITOR button until the burner lights.
5. If ignition does NOT occur in 5 seconds, turn the burner controls off O, wait 5 minutes and repeat the lighting procedure.
6. To ignite remaining burners, push and turn knob to the HIGH position starting with the burners closest to the IGNITION BURNER first.

WARNING Turn controls and gas cylinder off when not in use.

CAUTION

If ignition does NOT occur in 5 seconds, turn the burner controls ○ off, wait 5 minutes and repeat the lighting procedure. If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidentally ignite with risk of injury.

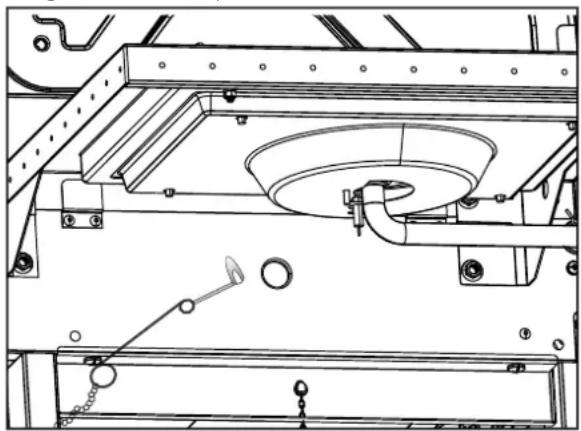

Match-Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Place match into match holder (hanging from side panel of barbecue). Light match; then light burner by placing match through the match light hole on side of barbecue. Immediately push in and turn burner knob to the 🔊 HIGH position. Be sure burner lights and stays lit.
5. Light adjacent burners in sequence by pushing knobs in and turning to the 🔊HIGH position.

Technical line drawing of a mechanical assembly with no visible text or symbols

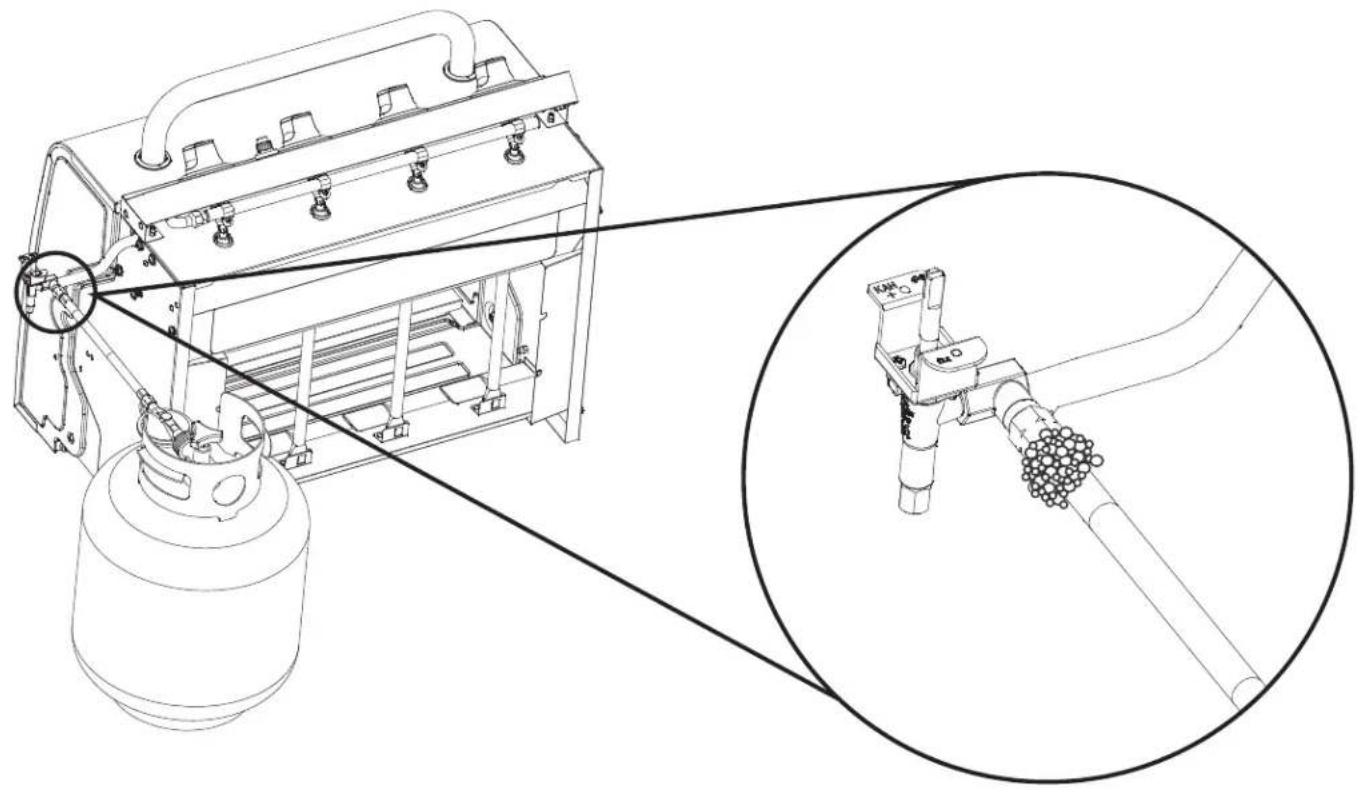

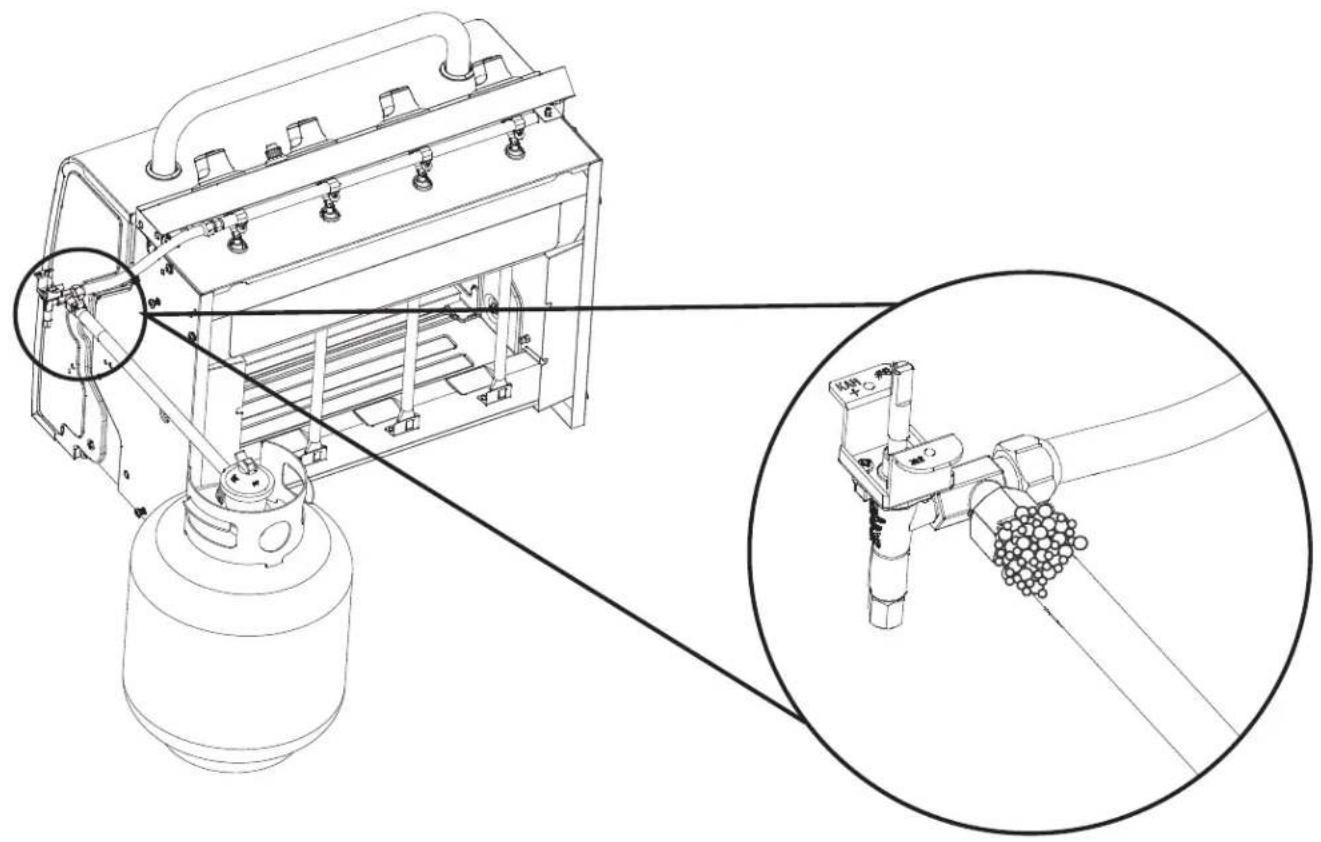

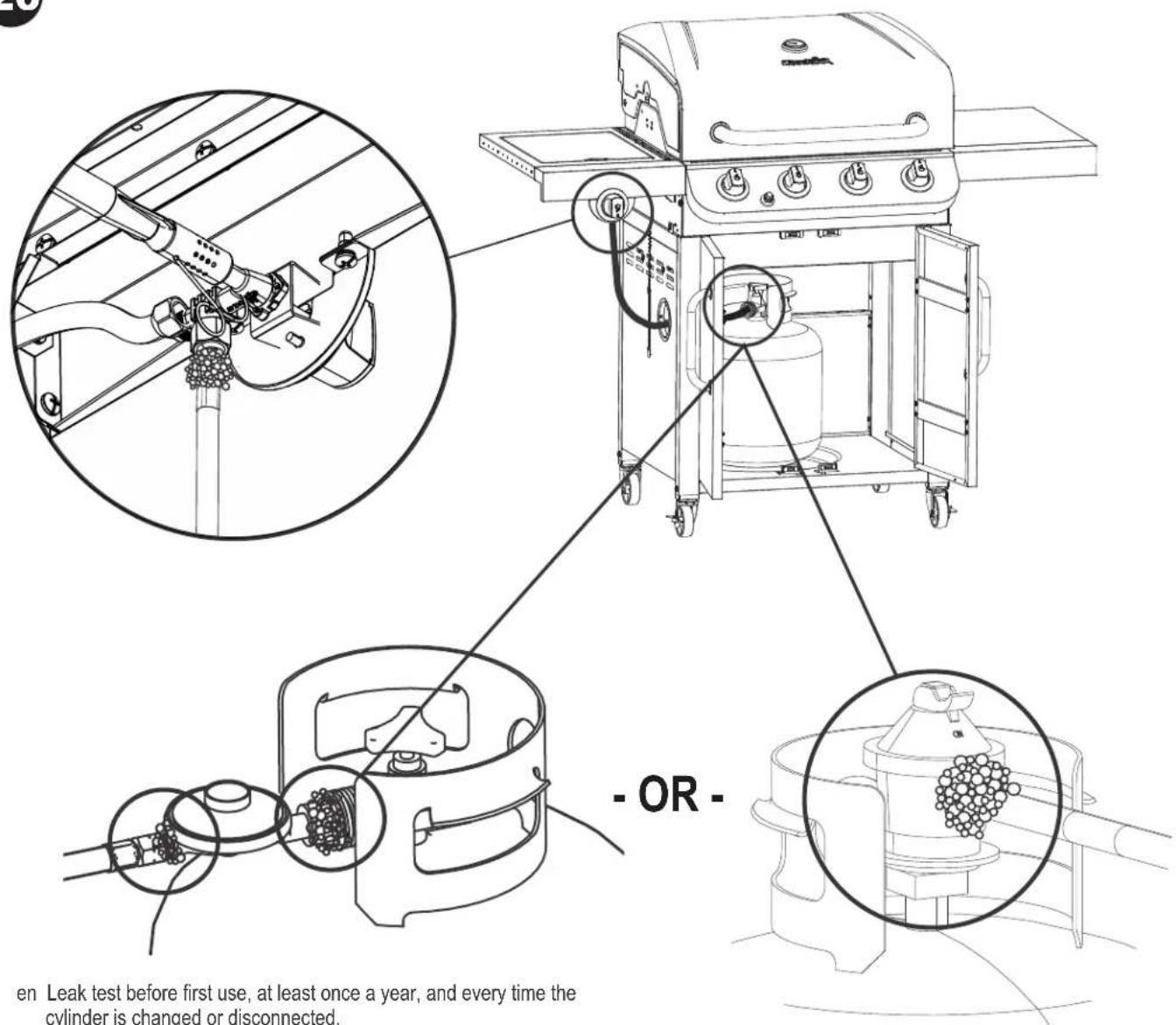

Leak Testing Valves, Hose and Regulator

Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

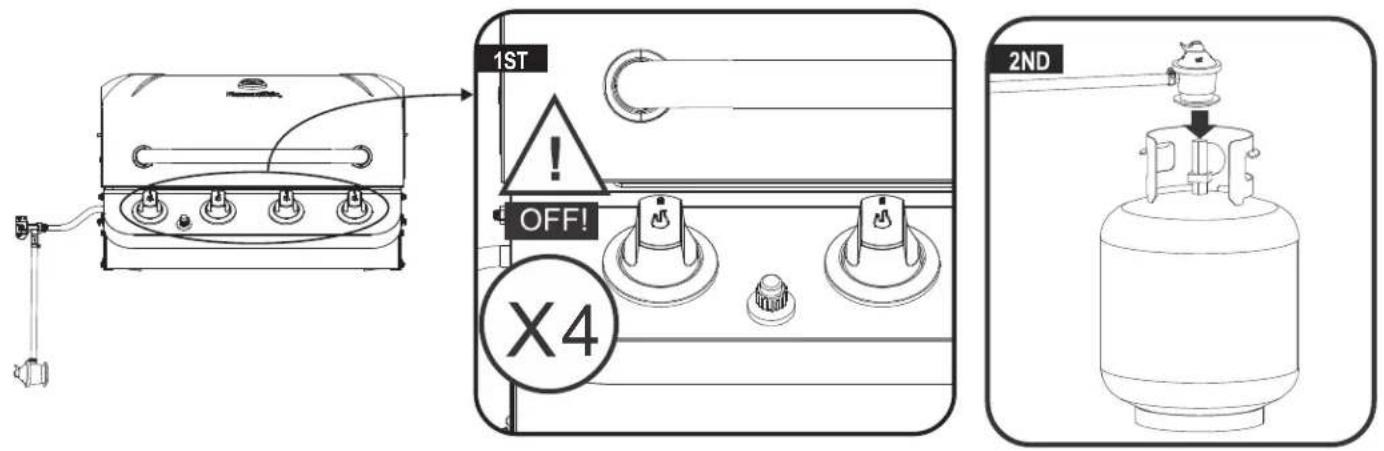

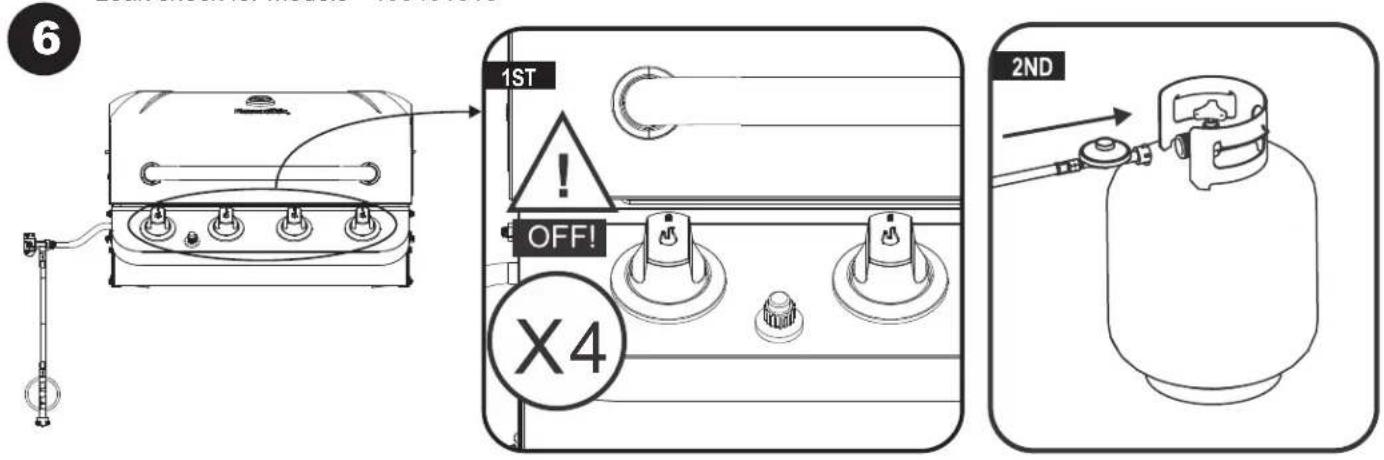

1. Turn all appliance control knobs to O.
2. Be sure regulator is tightly connected to gas cylinder.

3. Turn on Gas. If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection. Correct before proceeding.

4. Brush soapy solution (mixture of half soap and half water) onto hose connections.

5. If growing bubbles appear, there is a leak. Turn off gas at cylinder immediately and check tightness of connections. If leak cannot be stopped do not try to repair. Call for replacement parts.

6. Always turn off gas at cylinder after performing leak test.

IF APPLIANCE FAILS TO LIGHT

• Make sure gas is turned on at cylinder.
• Make sure there is gas in the cylinder.
- Does the ignitor make a sparking noise?

If yes check for spark at burner. If no spark check for damaged or loose wires.

• If wires are OK check for cracked or broken electrode, replace if needed.
• If wire or electrodes are covered by cooking residue, clean electrode tip with alcohol wipe if needed.

• If needed replace wires.

• If no sound check battery.

• Make sure battery is installed correctly.

- Check for loose wire connection at module and switch.

• If ignitor continues to not work then use match.

CAUTION

SPIDER ALERT!

SPIDER AND WEBS INSIDE BURNER

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

If your barbeque is getting hard to light or the flame is weak, check and clean the venturis and burners.

Spiders or small insects are known to create “flashback” problems by building nests and laying eggs in the barbeque’s venturi or burner obstructing the flow of gas. The backed-up gas can ignite behind the control panel. This flashback can damage your barbeque and cause injury. To prevent flashbacks and ensure good performance, the burner and venturi tube assembly should be removed and cleaned whenever the barbeque has been idle for an extended period of time.

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting barbecue.

1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and heat tents.
3. Remove carryover tubes and hardware securing burners.
4. Detach electrode from burner.

NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below.

1. Carefully lift each burner up and away from valve openings. We suggest three ways to clean the burner tubes. Use the one easiest for you.

A. Bend a stiff wire (a light weight coat hanger works well) into a small hook. Run the hook through each burner tube several times.

B. Use a narrow bottle brush with a flexible handle (do not use a brass wire brush). Run the brush through each burner tube several times.
C. Wear eye protection: Use an air hose to force air into the burner tube and out the burner ports. Check each port to make sure air comes out each hole.

1. Wire brush entire outer surface of burner to remove food residue and dirt.
2. Clean any blocked ports with a stiff wire such as an open paper clip.
3. Check burner for damage due to normal wear and corrosion, some holes may become enlarged. If any large cracks or holes are found, replace burner.

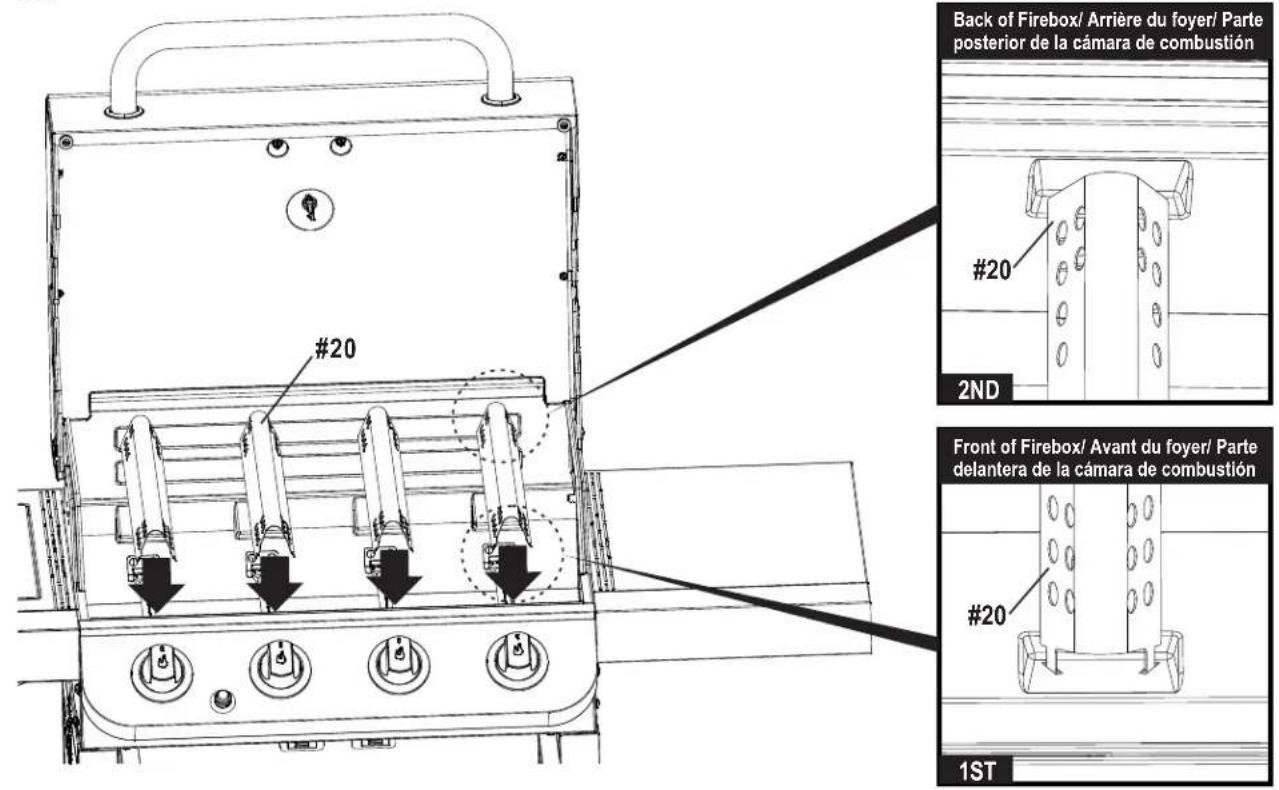

VERY IMPORTANT: Burner tubes must reengage valve openings. See illustrations at right.

Correct burner-to-valve engagement

es must reengage is at right.

1. Attach electrode to burner.
2. Carefully replace burners.
3. Attach burners to brackets on firebox.
4. Reposition carryover tubes and attach to burners. Replace heat tents and cooking grates.
5. Before cooking again on barbecue, perform a "Leak Test" and "Burner Flame Check".

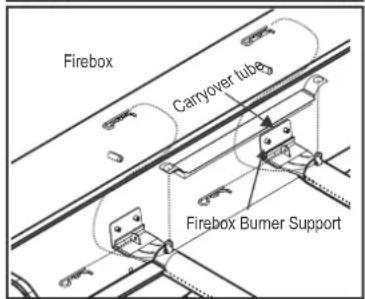

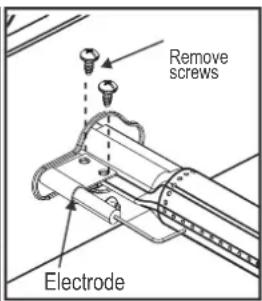

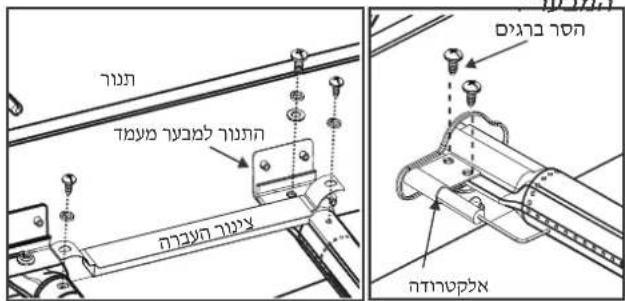

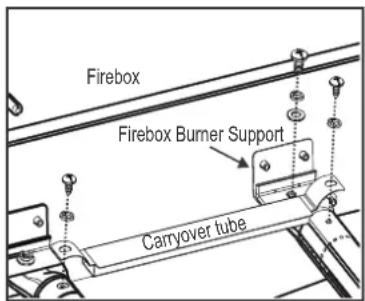

Firebox Firebox Burner Support Carryover tube

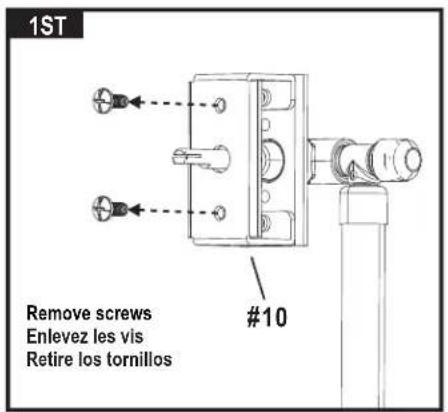

Remove screws Electrode

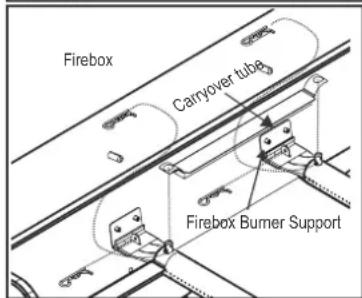

Firebox Carryover tube Firebox Burner Support

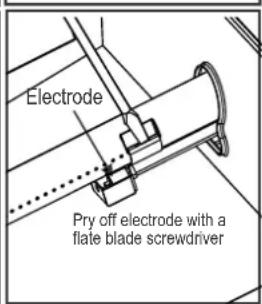

Electrode Pry off electrode with a flate blade screwdriver

Storing Your Appliance

• Clean cooking grates.
• Store in dry location.
• When gas cylinder is connected to appliance, store outdoors in a well-ventilated space and out of reach of children.
• Cover appliance if stored outdoors.
• Store appliance indoors ONLY if gas cylinder is turned off and disconnected, removed from appliance and stored outdoors.
• When removing appliance from storage check for burner obstructions.

General Appliance Cleaning

• Clean appliance often, preferably after each cookout. If a bristle brush is used to clean any of the appliance cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to barbecueing. It is not recommended to clean cooking surface while appliance is hot. Appliance should be cleaned at least once a year.
• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas barbecues are not painted at the factory (and should never be painted). Apply a strong solution of detergent and water or use a appliance cleaner with scrub brush on insides of appliance lid and bottom. Rinse and allow to completely air dry. Do not apply caustic appliance/oven cleaner to painted surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.

- Do not use citrisol, abrasive cleaners, degreasers or a concentrated appliance cleaner on plastic parts. Damage to and failure of parts can result.

• Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or specially formulated cleaner. Use nonabrasive scouring powder for stubborn stains.
• Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm soapy water. Wipe dry with a soft nonabrasive cloth.
• Stainless steel surfaces: To maintain your appliance's high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of the appliance cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to barbecueing. It is not recommended to clean cooking surfaces while appliance is hot.

Stainless steel

There are many different types (alloys) of materials that are regarded as stainless steel.

A common trait of these different types is that they may corrode (oxidize), depending on the conditions they are subjected to.

This applies to your new barbecue as well.

To ensure your barbecue retains its looks and functionality for many years, please follow the advice below.

1) If the barbecue has become wet or damp, make sure to wipe it dry using a cloth in order to prevent surface corrosion.
2) Stainless steel can rust under certain conditions. This can be caused by environmental conditions such as chlorine or salt water, or improper cleaning tools such as wire or steel wool. It can also discolor due to heat, chemicals, or grease build-up.
3) To maintain your appliance's high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.
4) Grease the internal parts of the barbecue and the grids with cooking oil.

Please note:

To avoid scratching the surface and providing a basis for rust, never use steel wool or similar when cleaning stainless steel.

When cleaning, work in the same direction the stainless steel was brushed in – 'with the grain'.

Cleaning with abrasives may leave scratches.

Storing the barbecue near a coast, swimming pool or spa will cause the barbecue to corrode (oxidize).

Cover your barbecue for rust protection.

TECHNICAL DATACHAR-BROIL, LLC
Appliance Name	Gas Barbeque/Gas Grill
Total Nominal Heat Input	17,00 kW (1237 g/h)			13,48 kW (981 g/h)
Gas Category	I3+(28-30/37)		I3B/P(30)	I3B/P(50)
Model No.	468402518 468401518
Gas Type	Butane	Propane	Butane, Propane or their mixtures	Butane, Propane or their mixtures
Gas Pressure	28-30 mbar	37 mbar	30 mbar	50 mbar
Injector Size (Dia. mm)	Barbecue: 0,93 x 4 pcs		Barbecue: 0,93 x 4 pcs	Barbecue: 0,71 x 4 pcs
	Hotplate: 0,83 x 1		Hotplate: 0,83 x 1	Hotplate: 0,75 x 1
Destination Countries	GB, FR, BE, ES, IT, PT, CZ, SK		DK, NO, NL, SE, FI, IS, CZ, IT, SK	AT, DE, CH, LU

1.5 VDC Battery

INSTALLATEUR/ASSEMBLEUR :

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Lektest Kleppen, Slang en Regelaar

Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

Firebox Firebox Burner Support Carryover tube

Remove screws Electrode

Firebox Carryover tube Firebox Bumer Support

Electrode Pry off electrode with a flate blade screwdriver

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Lækagetestning af ventiler, slange og regulator

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Krav for regulatorer

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Skúška tesnosti ventilov, hadice a ovládača

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Lekapróf á lokum, slöngu og stilli

KÖNGULÆR OG VEFIR INNAN Í BRENNURUM

Technical line drawing of a cylindrical device with internal components and no visible text or symbols

Firebox Firebox Burner Support Carryover tube

Remove screws Electrode

Firebox Caryover tube Firebox Bumer Support

Electrode Pry off electrode with a flate blade screwdriver

Geymsla á grillinu

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a cylindrical device with internal components and mesh structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

תְקַרָה בְּרָה

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

"הכלהה" "הכלהה" "הכלהה", 13

"ב"

NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from those on your particular grill model. However, the method of assembly remains the same.

PARTS DIAGRAM

Exploded view diagram of a refrigerator with numbered parts for identification

ASSEMBLY

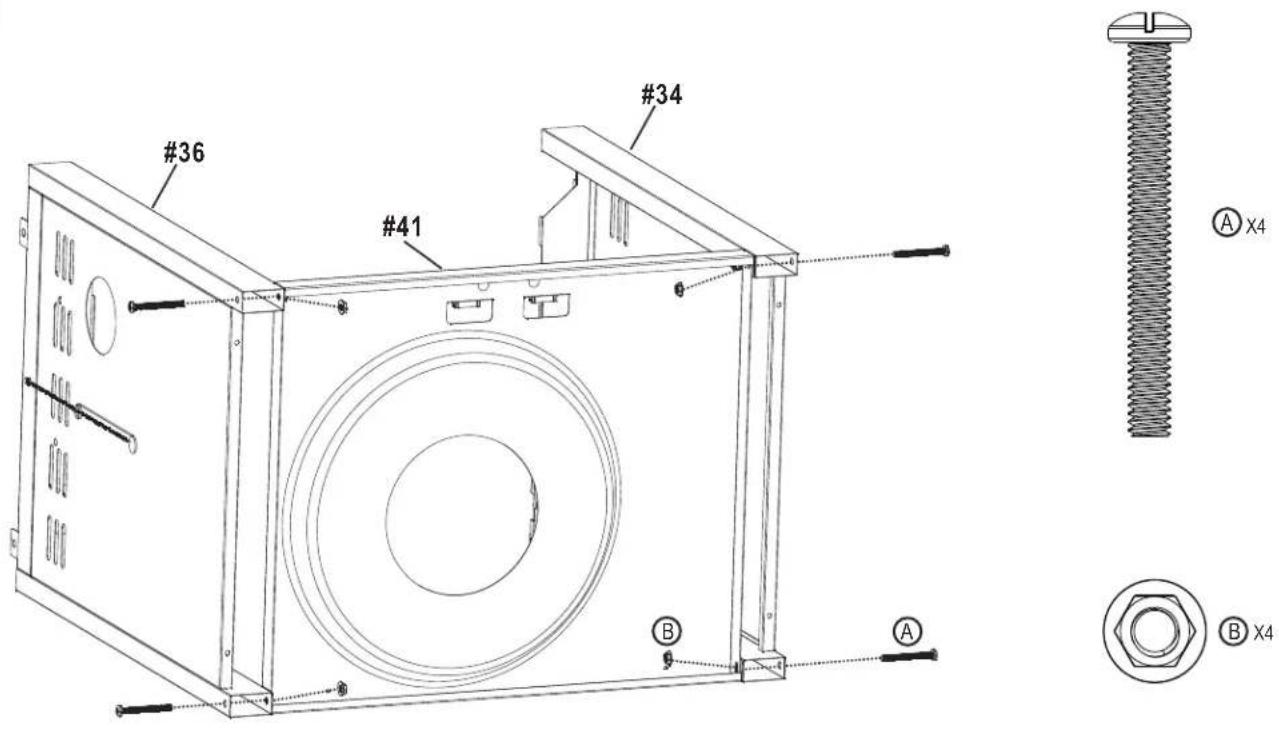

1

#36 #41 #34 A X4 B X4 A

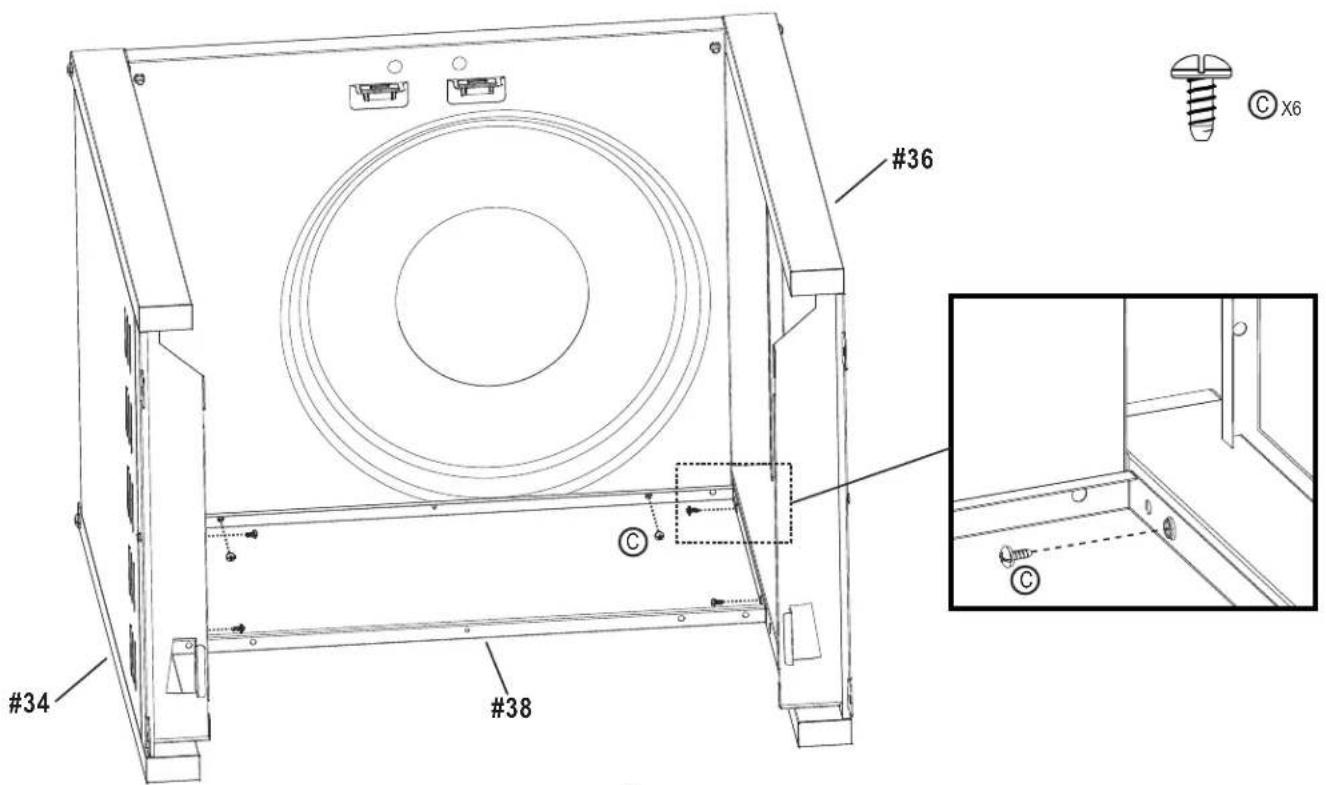

2

#34 #38 #36 C C X6

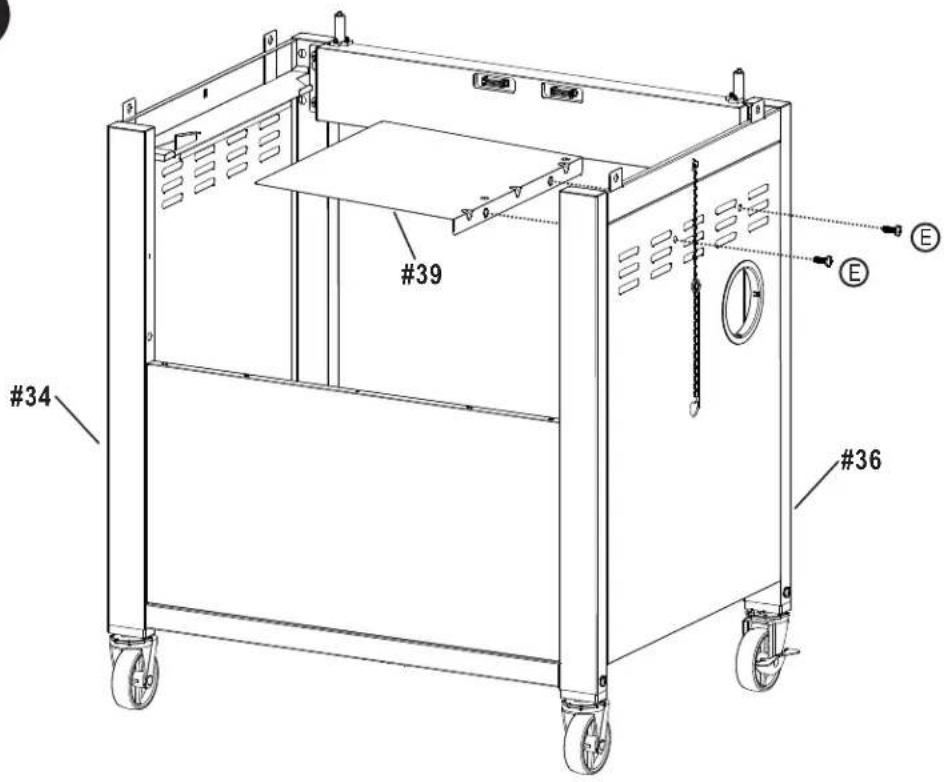

5

#34 #36 #39 E E

Leak check for models · 468401518

6 1ST OFF! X4 2ND

Technical line drawing of a mechanical device with internal components and a magnified inset showing a pipe assembly (no text or symbols)

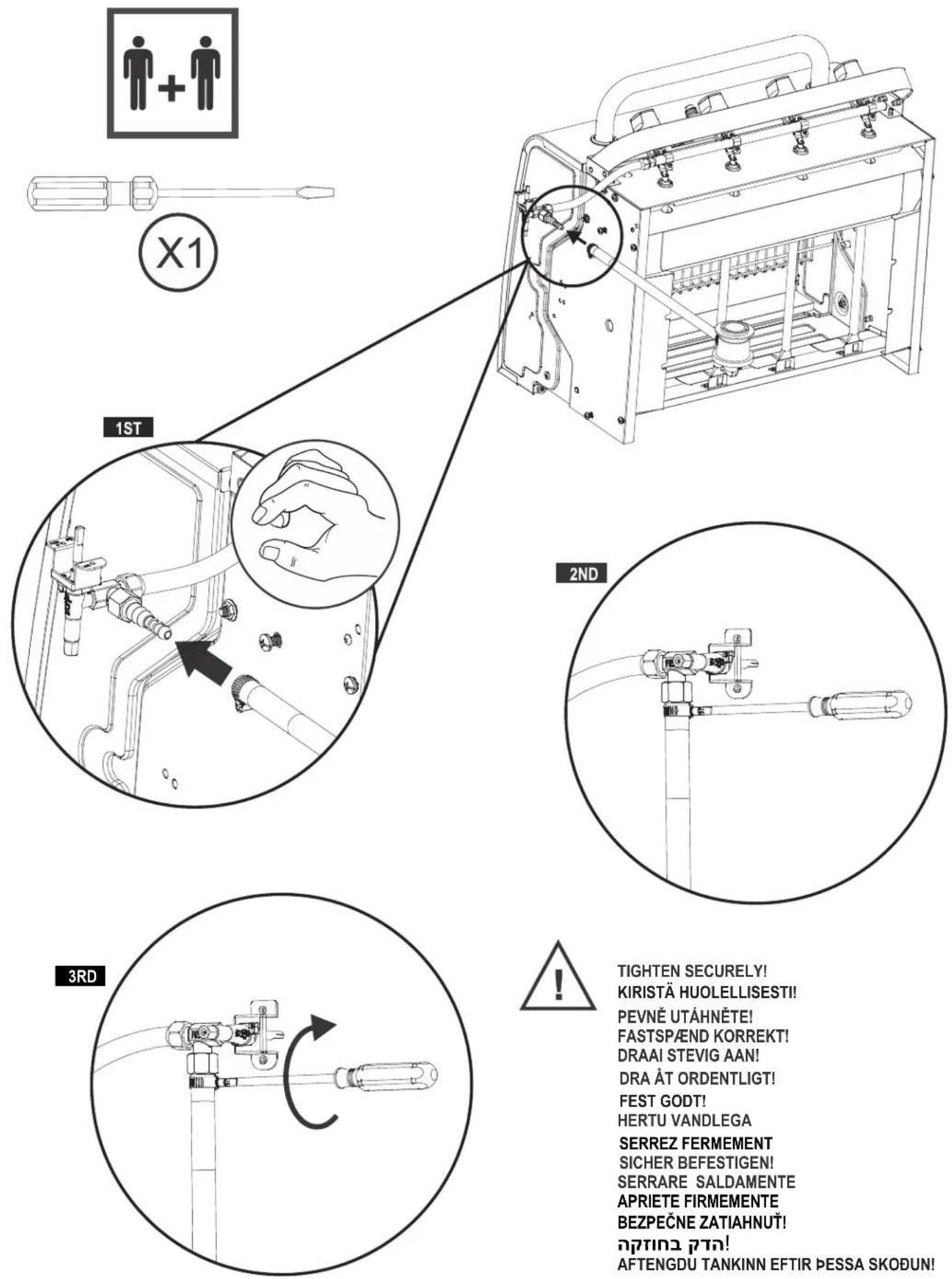

X1 1ST 2ND 3RD TIGHTEN SECURELY! KIRISTÄ HUOLELLISEST!! PEVNÉ UTÁHNĚTE! FASTSPÆND KORREKT! DRAAI STEVIG AAN! DRA ÁT ORDENTLIGT! FEST GODT! HERTU VANDLEGA SERREZ FERMEMENT SICHER BEFESTIGEN! SERRARE SALDAMENTE APRIETE FIRMENTE BEZPEČNE ZATIAHNUŤ! nPTINJ PÍN! AFTENGDU TANKINN EFTIR PESSA SKOBUN!

Leak check for models · 468402518

1ST OFF! X4 2ND

Technical line drawing of a mechanical device with internal components and a magnified inset showing assembly details (no text or symbols)

Disconnect the tank after this check! Ontkoppel de gastank na deze controle! Koppla från tanken efter denna kontroll! Koble fra beholderen etter denne kontrollen! Po kontrole nádobu odpojte! Po této kontrole odpojte nádrž! Irrota säiliö tämän tarkistuksen jälkeen! Framontér tanken efter denne kontrol!

Klemmen Sie den Tank nach dieser Prüfung ab! Scollegare il serbatoio dopo questo controllo! ¡Desconecte el tanque luego de esta comprobación! Desligue a botija depois desta verificação! Déconnectez le réservoir après cette vérification! Aftengdu tankinn eftir pessa skoðun!

1ST #13 #6 #1

2ND

Technical diagram of a refrigerator internal structure with labeled components and an inset view showing internal wiring connections.

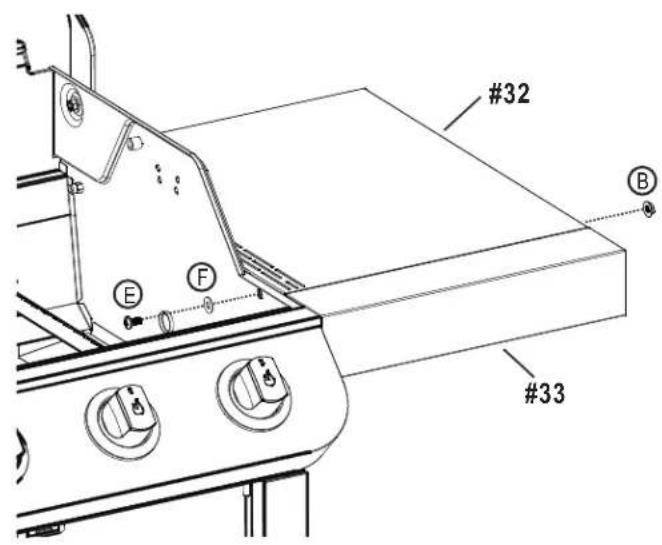

8

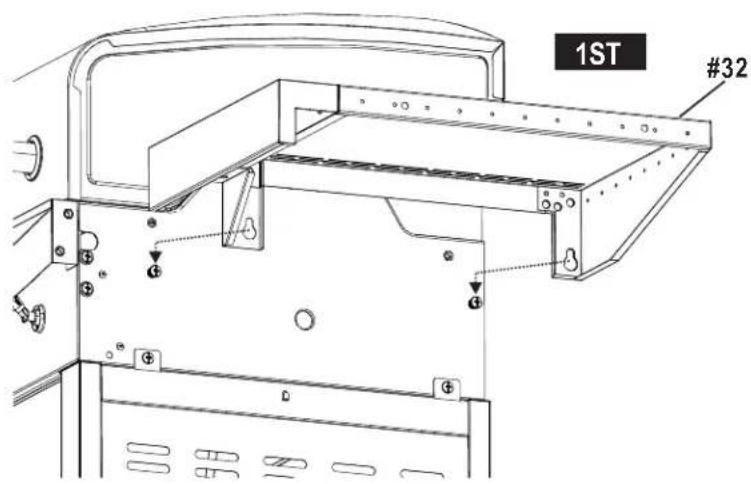

1ST #32

F×1

E X2

B X1

#32 E F #33 B

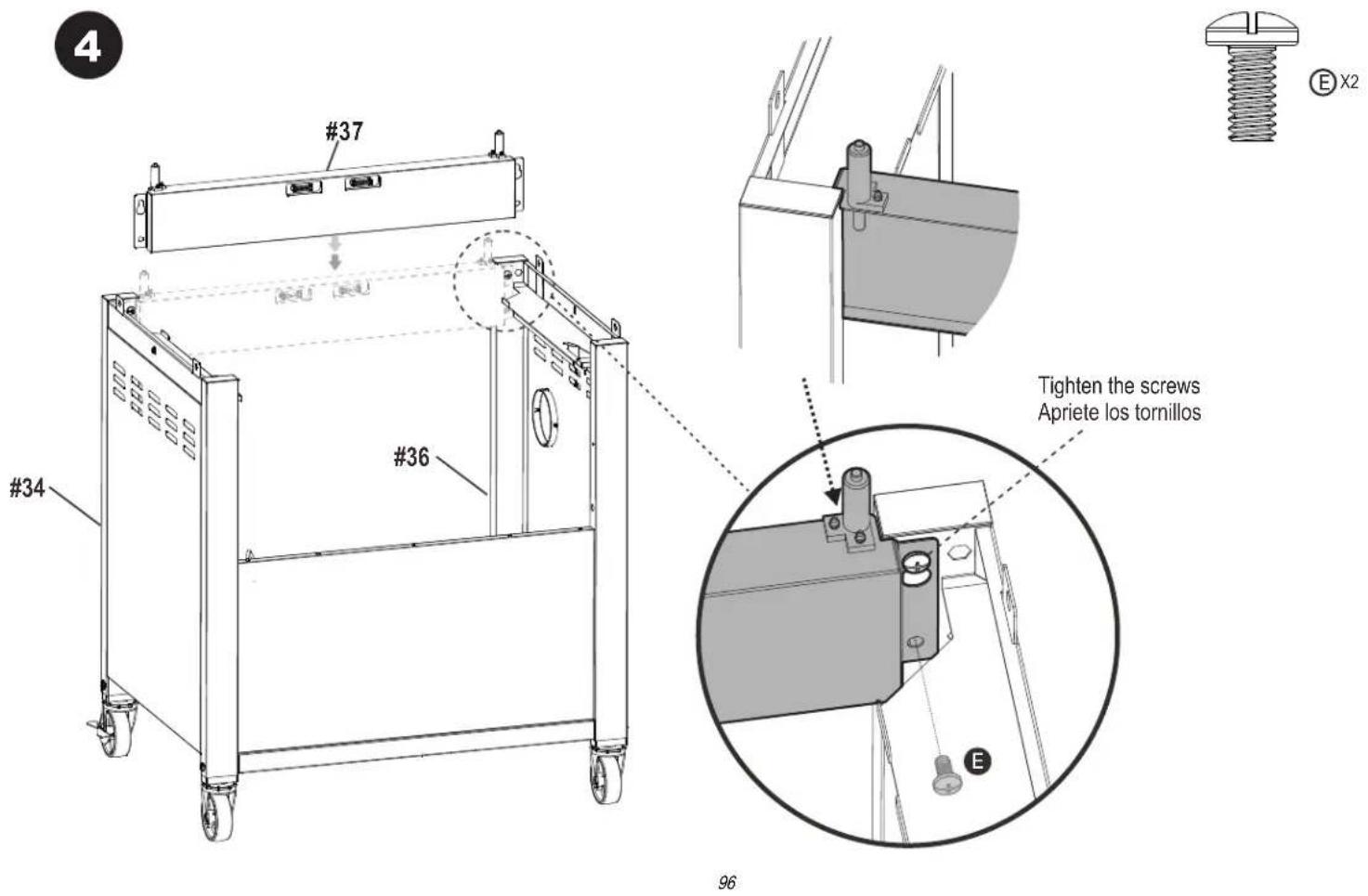

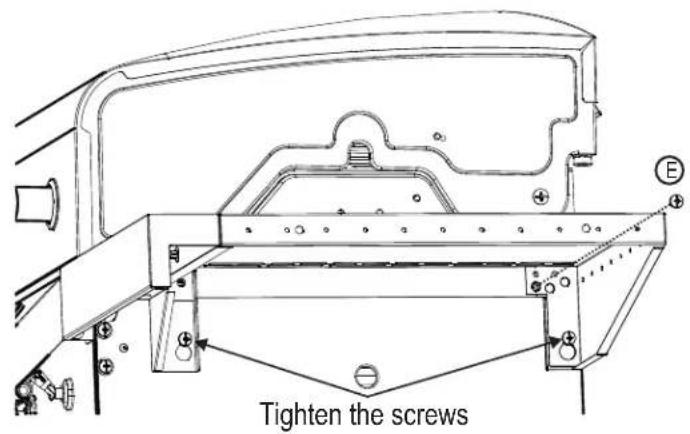

Tighten the screws

9

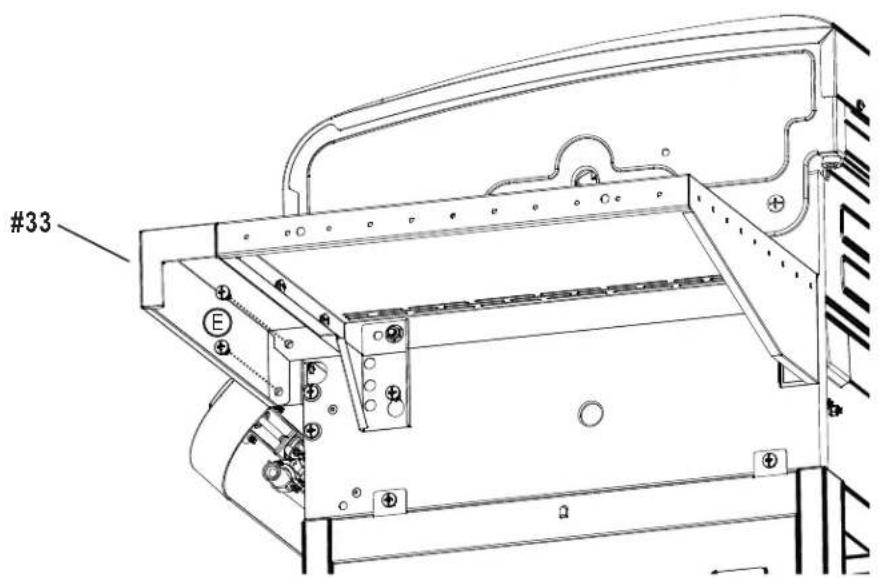

#33 E

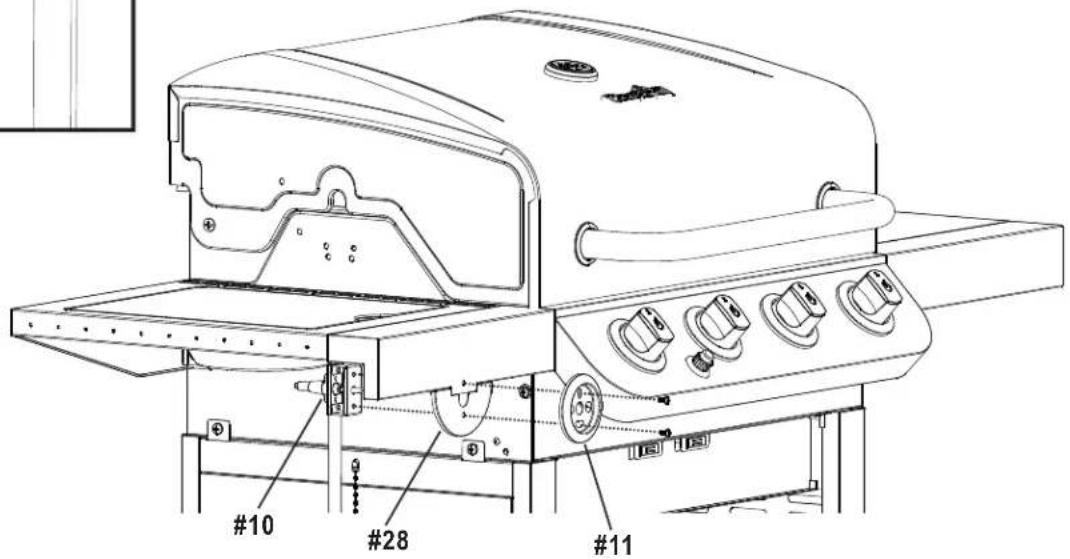

12

1ST Remove screws Enlevez les vis Retire los tornillos #10

#10 #28 #11

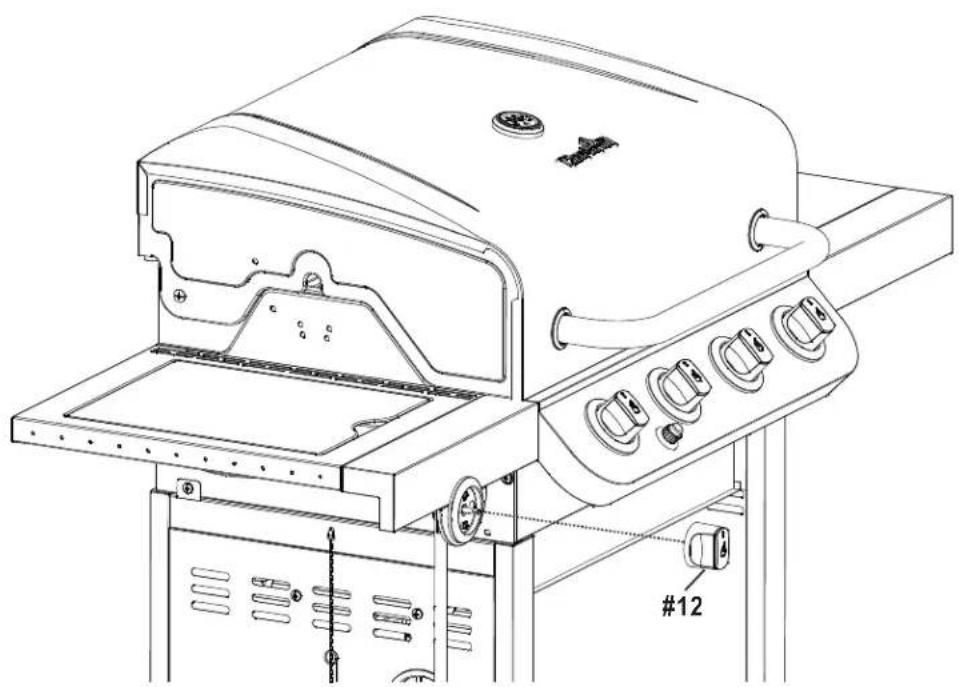

13

Technical line drawing of a portable grill with control panel and door panel (no text or symbols)

14

15

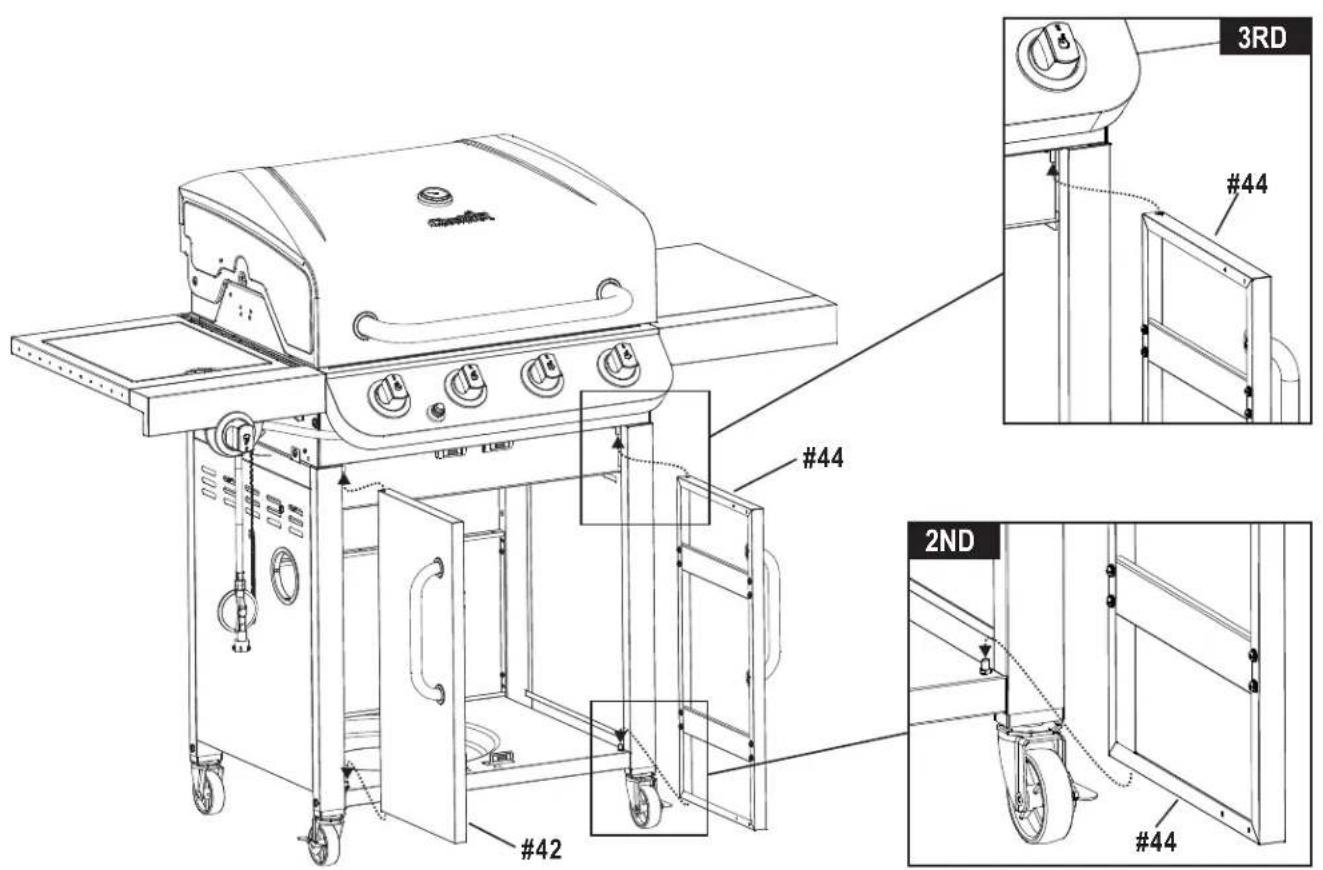

3RD #44 #44 2ND #42 #44

16

#21 #21 #22

18

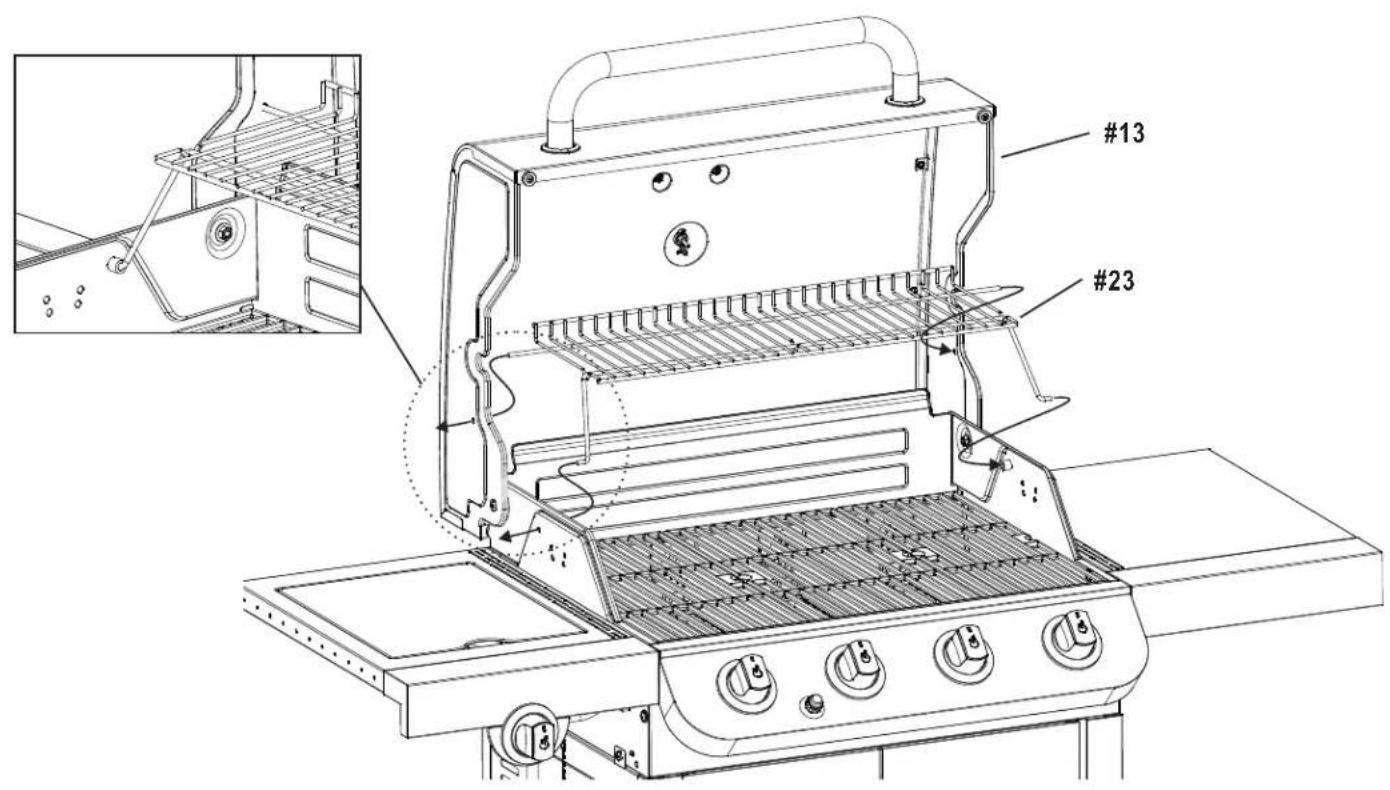

#13 #23

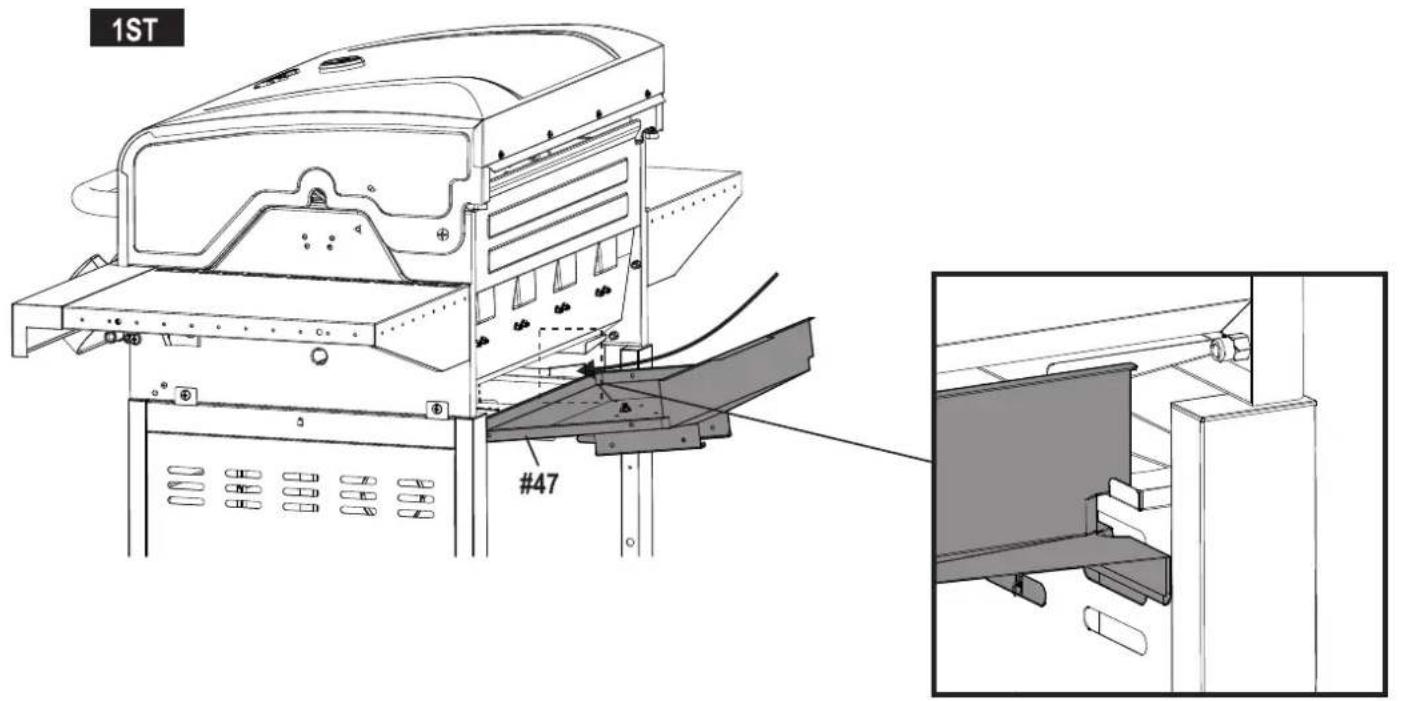

1ST #47

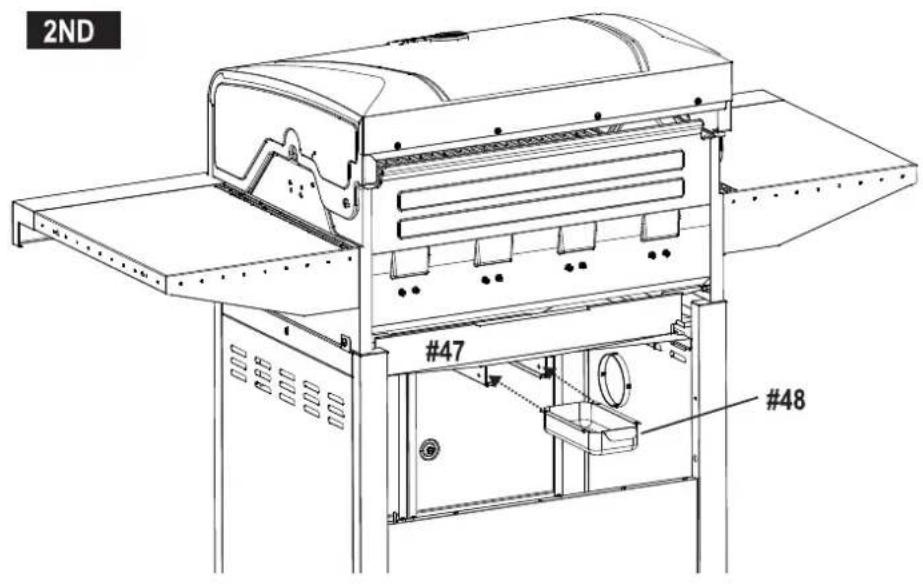

2ND #47 #48

20

en Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected. - OR -

en Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

Char-Broil Europe GmbH of Gasstraße 6 - Haus L 4 Obergeschoß, D-22761 Hamburg, (Char-Broil) warrants to the PURCHASER of this Char-Broil product that it will be free of defects in material and workmanship from the date of purchase as follows:

	Gas Grills
Burners	2 years
Cooking Grates/Emitters	2 years
All Other Parts (EURO minimum)	2 years

Char-Broil or the seller of the product may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES RECEIPT OR INVOICE.

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity).]

This Warranty includes the right of repair or replacement of the product or parts of the product that prove defective under normal use and service. Before returning any parts, you should promptly contact Char-Broil using the contact information on our website. In case of a defect, Char-Broil will elect to replace or repair the product or such parts without charge. . Char-Broil will return the product or parts of the product to the purchaser, freight or postage prepaid. If Char-Broil elects to repair the product or such defective parts of the product and this repair fails, you are entitled, pursuant to your statutory legal rights, to reduce the purchase price or to withdraw from the contract and receive a refund.

This Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner's manual. Exceptions may apply, so please contact Char-Broil or your seller in case you have any questions on whether this Warranty applies to your specific case or not.

Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Warranty, and are not normally covered by your statutory legal rights.

Char-Broil is not liable for any unforeseeable losses (i.e. loss or damage that neither you nor Char-Broil or the seller contemplated at the time of purchase), or any damage caused by you, save for that Char-Broil's liability for fraud or death or personal injury caused by its negligence is not limited.

Char-Broil does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Char-Broil.

This Warranty applies only to products sold at retail to individuals (as opposed to businesses) within the European Union.

This Warranty does not affect any of your statutory legal rights under the applicable consumer laws of your resident country.

For warranty service, contact Char-Broil at [e-mail].

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity).]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity).]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity).]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity).]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity).]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

NOTE: This information is a guide only. Items included in your BBQ specification may differ depending on region or specific dealer specification.

All specifications are subject to change without notice.

© 2016 Char-Broil, LLC

Columbus, GA 31902, U.S.A.

charbroil.eu
