Product type	Gas barbecue
Brand	CHAR BROIL
Model	Advantage 445 S
Number of main burners	4
Side burner (hot plate)	1 (integrated)
Total power	13,48 kW (981 g/h)
Compatible gas type	Butane, Propane or mixtures (categories I3+, I3B/P)
Gas pressure	28-30 mbar (butane), 37 mbar (propane), 30 or 50 mbar depending on category
Ignition	Electronic and by match
Main material	Stainless steel
Maximum load of side shelf	4,5 kg
Cooking vessel diameter	200 mm (min) to 260 mm (max)
Safety distance from walls	≥ 1 m
Distance from flammable materials	≥ 3 m
Usage	Outdoors only
Burner warranty	5 years
Cooking grates and emitters warranty	2 years
Other parts warranty	2 years
Maintenance	Regular cleaning, leak test, burner cleaning
Destination country	France, Belgium, Switzerland, etc.

Frequently Asked Questions - Advantage 445 S CHAR BROIL

How to light the barbecue?

Open the lid, turn the knobs to the O position, open the gas bottle, then press and turn the burner knob to the HIGH position while holding the electronic ignition button until the burner ignites. If the burner does not ignite within 5 seconds, turn off the gas, wait 5 minutes and try again.

What to do in case of gas smell?

Immediately shut off the gas supply to the appliance and the bottle. Extinguish any open flame. Open the lid. If the smell persists, move away from the appliance and call your gas supplier or the fire department.

How to clean the burners?

Turn off the gas, remove the grates and heat tents. Disassemble the burners, clean the inside of the tubes with a stiff wire or pipe cleaner, and brush the outside with a metal brush. Check that the ports are not clogged and that the burner is not damaged.

What safety distances must be observed?

Place the barbecue at least 1 m from any wall or surface, and at least 3 m from any flammable object (including water heaters, live electrical appliances, etc.). Use it only outdoors in a well-ventilated area.

Can I use the barbecue indoors?

No, indoor use is strictly prohibited. The barbecue must only be used outdoors, never in a garage, shed, covered patio or under a suspended structure.

How to maintain stainless steel?

Wash with a mild detergent and warm soapy water, then wipe with a soft cloth. For stubborn stains, use a plastic abrasive pad following the grain. Avoid steel wool and abrasive cleaners. Always dry after use to prevent corrosion.

What is the warranty of the barbecue?

The burners are warranted for 5 years, the cooking grates and emitters for 2 years, and all other parts for 2 years from the date of purchase. The warranty covers material and workmanship defects under normal use conditions.

How to store the barbecue in winter?

Clean the cooking grates. If the gas bottle is connected, store the appliance in a well-ventilated area out of reach of children. If storing indoors, the bottle must be closed, disconnected and stored outdoors. Cover the appliance if stored outdoors.

What to do if the barbecue does not light?

Check that the gas bottle is open and has gas. If the igniter sparks, check the electrodes and clean them with a cloth soaked in alcohol. If no sparks, check the cables and battery. As a last resort, use a match.

Can I use charcoal briquettes in this gas barbecue?

No, using charcoal or ceramic briquettes in a gas barbecue is prohibited. Use only gas as fuel. Do not cover the grates with aluminum foil, as this would block ventilation.

USER MANUAL Advantage 445 S CHAR BROIL

Line drawing of a standard 3.5'-heat gas stove with open doors and control knobs (no text or symbols)

GB	Operating Instructions	2	Assembly Instructions	101
CH, FR	Mode d'emploi	8	Instructions d'assemblage	101
LU, AT, CH, DE	Betriebsanweisungen	14	Montageanweisungen	101
CH, IT	Istruzioni per l'uso	20	Istruzioni per il montaggio	101
LU, BE, NL	Gebruiksinstructies	26	Montage-instructies	101
SE	Användning	31	Montering	101
FI	Käyttöohjeet	36	Kokoamisohjeet	101
ES	Instrucciones de funcionamiento	41	Instrucciones de armado	101
PT	Instuções para Operação	47	Instruções para Montagen	101
DK	Brugsanvisning	51	Monteringsvejledning	101
NO	Instruksjoner for bruk	56	Imontering	101
SK	Návod na používanie	61	Návod na montáž	101
IS	Notkunarleðbeiningar	66	Smalamálsskipana	101
CZ	Návod k obsluze	71	Montážní návod	101
IL	,הכלהה	76	הכלהה	101
RO	Instructiuni de utilizare	81	Instructiuni de asamblare	101
GR	Οδηγίες λειτουργίας	86	Οδηγίες συναρμολόγησης	101
HU	Használati utasítások	91	Szerelési útmutató	101
BG	Инструкции за работа	96	Инструкции за сглобяване	101

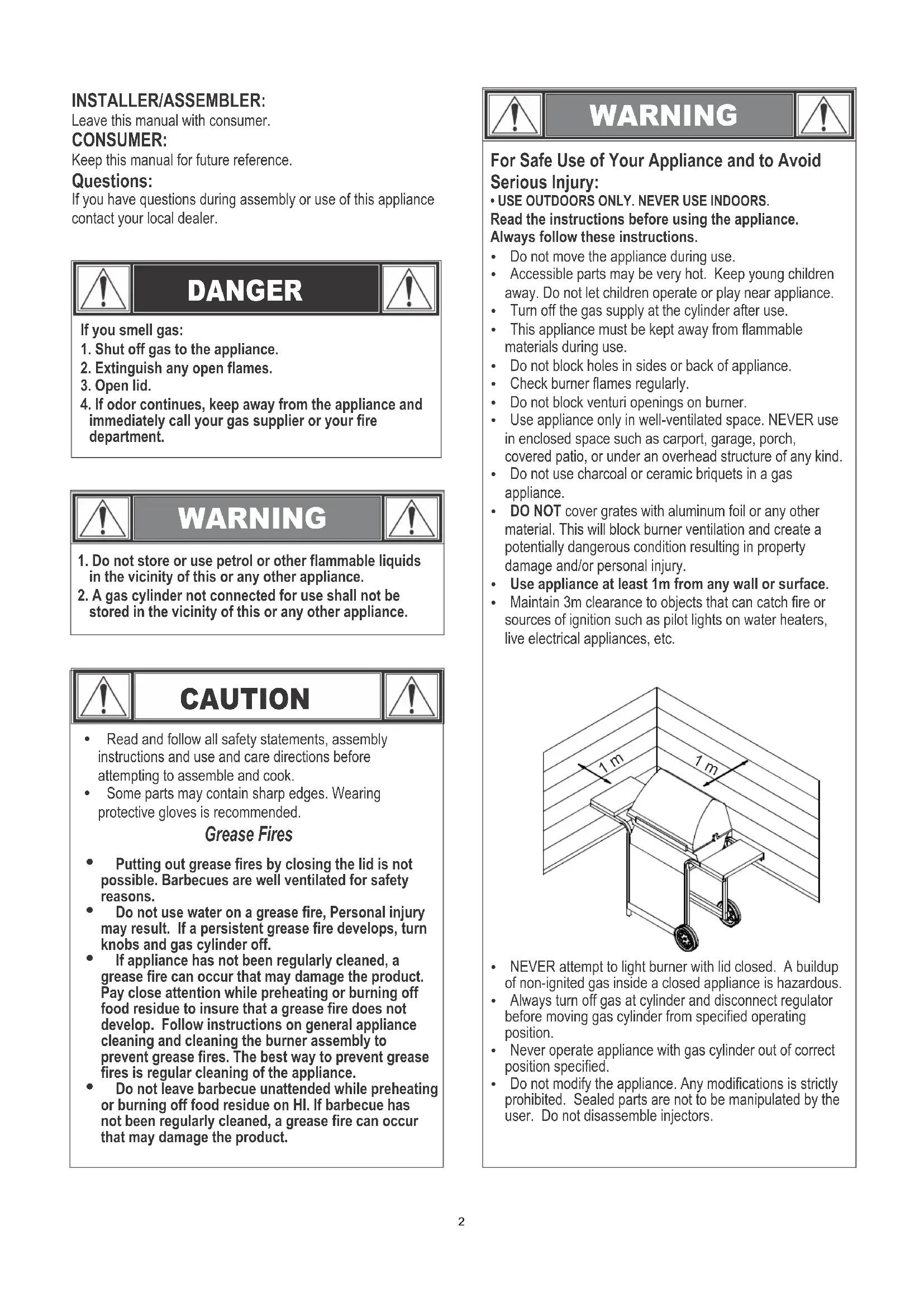

INSTALLER/ASSEMBLER:

Leave this manual with consumer.

CONSUMER:

Keep this manual for future reference.

Questions:

If you have questions during assembly or use of this appliance contact your local dealer.

DANGER

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

1. Do not store or use petrol or other flammable liquids in the vicinity of this or any other appliance.
2. A gas cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

CAUTION

• Read and follow all safety statements, assembly instructions and use and care directions before attempting to assemble and cook.
• Some parts may contain sharp edges. Wearing protective gloves is recommended.

Grease Fires

• Putting out grease fires by closing the lid is not possible. Barbecues are well ventilated for safety reasons.
• Do not use water on a grease fire, Personal injury may result. If a persistent grease fire develops, turn knobs and gas cylinder off.
• If appliance has not been regularly cleaned, a grease fire can occur that may damage the product. Pay close attention while preheating or burning off food residue to insure that a grease fire does not develop. Follow instructions on general appliance cleaning and cleaning the burner assembly to prevent grease fires. The best way to prevent grease fires is regular cleaning of the appliance.
• Do not leave barbecue unattended while preheating or burning off food residue on HI. If barbecue has not been regularly cleaned, a grease fire can occur that may damage the product.

WARNING

For Safe Use of Your Appliance and to Avoid Serious Injury:

- USE OUTDOORS ONLY. NEVER USE INDOORS.

Read the instructions before using the appliance.

Always follow these instructions.

• Do not move the appliance during use.
• Accessible parts may be very hot. Keep young children away. Do not let children operate or play near appliance.
• Turn off the gas supply at the cylinder after use.
• This appliance must be kept away from flammable materials during use.

- Do not block holes in sides or back of appliance.

- Check burner flames regularly.

- Do not block venturi openings on burner.

- Use appliance only in well-ventilated space. NEVER use in enclosed space such as carport, garage, porch, covered patio, or under an overhead structure of any kind.

- Do not use charcoal or ceramic briquets in a gas appliance.

- DO NOT cover grates with aluminum foil or any other material. This will block burner ventilation and create a potentially dangerous condition resulting in property damage and/or personal injury.

• Use appliance at least 1m from any wall or surface.

- Maintain 3m clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc.

• NEVER attempt to light burner with lid closed. A buildup of non-ignited gas inside a closed appliance is hazardous.
• Always turn off gas at cylinder and disconnect regulator before moving gas cylinder from specified operating position.
• Never operate appliance with gas cylinder out of correct position specified.
• Do not modify the appliance. Any modifications is strictly prohibited. Sealed parts are not to be manipulated by the user. Do not disassemble injectors.

Safety Tips

• Before opening gas cylinder valve, check the regulator for tightness.
• When appliance is not in use, turn off all control knobs and gas.
• Use long-handled barbecue utensils and oven mitts to avoid burns and splatters. Use protective gloves when handling hot components.
• Maximum load for hot plate, if equipped, and side shelf is 4.5 Kg. Cooking vessel minimum dia 200mm and maximum dia. 260 mm. NOTE: Your barbecue may NOT be equipped with a Hot plate!
• The grease cup (if equipped) must be inserted into appliance and emptied after each use. Do not remove grease cup until appliance has completely cooled.
• Be very careful when you open the lid, since hot steam may escape.
• Be very careful when children, the elderly, or pets are nearby.
• If you notice grease or other hot material dripping from appliance onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose, and regulator before continuing. Perform a leak test.
• Do not store objects or materials inside the appliance cart enclosure that would block the flow of combustion air to the underside of either the control panel or the firebox bowl.
• DO NOT disconnect or change gas container within 3m of an open flame or other ignition source.

Cylinder Placement

Cylinder of 6 kg or less may be placed on the ground under the side shelf or inside the appliance in place provided. Larger cylinders are to be placed under side shelf or behind the barbecue only. Cylinders placed in the appliance shall have a maximum diameter of 340mm and maximum height of 400mm. Cylinders placed on the ground shall not be placed under the hot plate.

Regulator Requirements

A regulator must be used with this appliance. Use only gas regulator supplied with your barbeque. If a regulator is not supplied then use only regulator certified according to EN16129 (Flow rate max. 1.5 kg/h) and approved for your country and gas specified in Technical Data.

Hose Requirements

Use only approved hose which is certified to appropriate EN standard and does not exceed 1.5m length. For Finland, the hose length shall not exceed 1.2m.

Before each use, check to see if hoses are cut or worn. Make sure hose is not kinked. Make sure that when connected hose does not touch any warm surfaces. Replace damaged hoses before using appliance. Replace hose as required by national requirements.

Ignitor Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. To ignite, push and turn burner knob to 🔊 HIGH. Immediately, push and hold ELECTRONIC IGNITOR button until the burner lights.
5. If ignition does NOT occur in 5 seconds, turn the burner controls off O, wait 5 minutes and repeat the lighting procedure.
6. Repeat steps 4 and 5 to light other main burners.

If ignition does NOT occur in 5 seconds, turn the burner controls ○ off, wait 5 minutes and repeat the lighting procedure. If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidentally ignite with risk of injury.

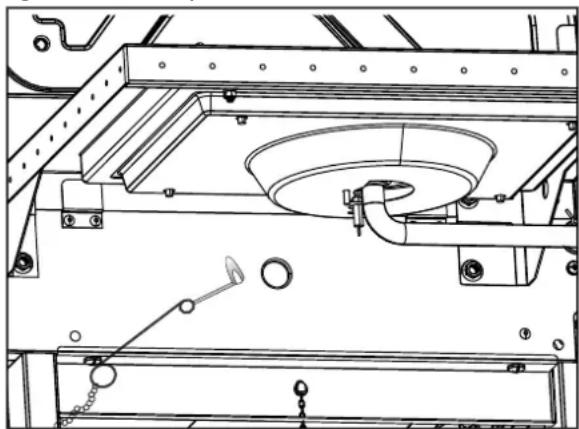

Match-Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Place match into match holder (hanging from side panel of barbecue). Light match; then light burner by placing match through the match light hole on side of barbecue. Immediately push in and turn burner knob to the 🔊 HIGH position. Be sure burner lights and stays lit.
5. Light adjacent burners in sequence by pushing knobs in and turning to the 🔊 HIGH position.

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTE: Your barbecue may NOT be equipped with a Hot plate!

Hot plate Ignitor Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Turn hot plate knob to the 🔊 HIGH position, push and hold ELECTRONIC IGNITOR button.
5. If hot plate does NOT light within 5 seconds, turn knob to O (off), wait 5 minutes, then repeat lighting procedure.

Hot plate Match Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Place lit match near burner. Immediately turn hot plate knob to the 🔊 HIGH position. Be sure burner lights and stays lit.

Line drawing of an open oven with internal grating and a handle (no text or symbols)

Leak Testing Valves, Hose and Regulator

Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

1. Turn all appliance control knobs to O.
2. Be sure regulator is tightly connected to gas cylinder.

3. Turn on Gas. If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection. Correct before proceeding.

4. Brush soapy solution (mixture of half soap and half water) onto hose connections.

5. If growing bubbles appear, there is a leak. Turn off gas at cylinder immediately and check tightness of connections. If leak cannot be stopped do not try to repair. Call for replacement parts.

6. Always turn off gas at cylinder after performing leak test.

IF APPLIANCE FAILS TO LIGHT

• Make sure gas is turned on at cylinder.
• Make sure there is gas in the cylinder.
• Does the ignitor make a sparking noise?
If yes check for spark at burner.
If no spark check for damaged or loose wires.
- If wires are OK check for cracked or broken electrode, replace if needed.
- If wire or electrodes are covered by cooking residue, clean electrode tip with alcohol wipe if needed.
• If needed replace wires.
• If no sound check battery.
• Make sure battery is installed correctly.
- Check for loose wire connection at module and switch.
• If ignitor continues to not work then use match.

CAUTION

SPIDER ALERT!

SPIDER AND WEBS

INSIDE BURNER

Diagram of a cylindrical device with internal grid structure and mounting points (no text or symbols)

If your barbeque is getting hard to light or the flame is weak, check and clean the venturis and burners.

Spiders or small insects are known to create "flashback" problems by building nests and laying eggs in the barbeque's venturi or burner obstructing the flow of gas. The backed-up gas can ignite behind the control panel. This flashback can damage your barbeque and cause injury. To prevent flashbacks and ensure good performance, the burner and venturi tube assembly should be removed and cleaned whenever the barbeque has been idle for an extended period of time.

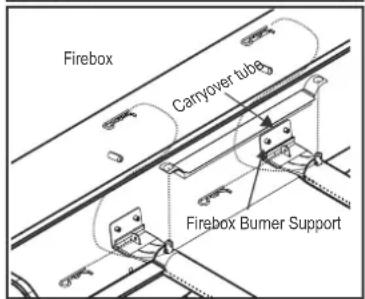

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting barbecue.

1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and heat tents.
3. Remove carryover tubes and hardware securing burners.
4. Detach electrode from burner.

NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below.

1. Carefully lift each burner up and away from valve openings. We suggest three ways to clean the burner tubes. Use the one easiest for you.

A. Bend a stiff wire (a light weight coat hanger works well) into a small hook. Run the hook through each burner tube several times.

B. Use a narrow bottle brush with a flexible handle (do not use a brass wire brush). Run the brush through each burner tube several times.
C. Wear eye protection: Use an air hose to force air into the burner tube and out the burner ports. Check each port to make sure air comes out each hole.

1. Wire brush entire outer surface of burner to remove food residue and dirt.
2. Clean any blocked ports with a stiff wire such as an open paper clip.
3. Check burner for damage due to normal wear and corrosion, some holes may become enlarged. If any large cracks or holes are found, replace burner.

VERY IMPORTANT: Burner tubes must reengage valve openings. See illustrations at right.

Correct burner-to-valve engagement

1. Attach electrode to burner.
2. Carefully replace burners.
3. Attach burners to brackets on firebox.

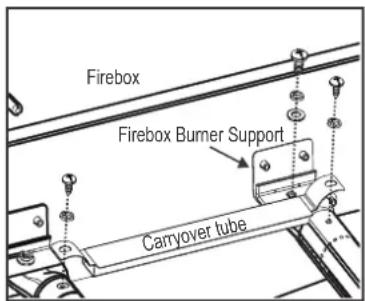

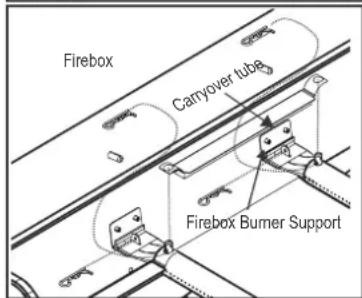

4. Reposition carryover tubes and attach to burners. Replace heat tents and cooking grates.
5. Before cooking again on barbecue, perform a "Leak Test" and "Burner Flame Check".

Storing Your Appliance

• Clean cooking grates.
• Store in dry location.
• When gas cylinder is connected to appliance, store outdoors in a well-ventilated space and out of reach of children.
  • Cover appliance if stored outdoors.
• Store appliance indoors ONLY if gas cylinder is turned off and disconnected, removed from appliance and stored outdoors.
• When removing appliance from storage check for burner obstructions.

General Appliance Cleaning

• Clean appliance often, preferably after each cookout. If a bristle brush is used to clean any of the appliance cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to barbecueing. It is not recommended to clean cooking surface while appliance is hot. Appliance should be cleaned at least once a year.
• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas barbecues are not painted at the factory (and should never be painted). Apply a strong solution of detergent and water or use a appliance cleaner with scrub brush on insides of appliance lid and bottom. Rinse and allow to completely air dry. Do not apply caustic appliance/oven cleaner to painted surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.

- Do not use citrisol, abrasive cleaners, degreasers or a concentrated appliance cleaner on plastic parts. Damage to and failure of parts can result.

• Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or specially formulated cleaner. Use nonabrasive scouring powder for stubborn stains.
• Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm soapy water. Wipe dry with a soft nonabrasive cloth.
• Stainless steel surfaces: To maintain your appliance's high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of the appliance cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to barbecueing. It is not recommended to clean cooking surfaces while appliance is hot.

A regulator must be used with this appliance. Use only the gas regulator supplied with your barbeque. If a regulator is not supplied then use only a regulator certified according to EN16129 (Flow rate max. 1.5 kg/h) and approved for your country and gas specified in Technical Data.

For Switzerland Only

There is a danger of fire and explosion with gas appliances which are equipped with foreign pressure regulators and are not compatible with the gas tanks and gas regulators available in Switzerland

Due to the different sealing systems, it is impossible to properly seal the regulator to the gas tank. Gas will escape here and can be ignited by flame or sparks. A life-threatening explosion, and/or property damage can result. Swiss and German tanks and regulators cannot be intermixed.

For safety reason, please check your grill regulator and gas tank connection and make sure it follows in one of the allowed cases shown in the pictures.

Perform a leak check each time you connect your grill to the gas tank.

TECHNICAL DATACHAR-BROIL, LLC
Appliance Name	Gas Barbeque/Gas Grill
Total Nominal Heat Input	13,48 kW (981 g/h)			13,48 kW (981 g/h)
Gas Category	I3+(28-30/37)		I3B/P(30)	I3B/P(50)
Model No.	468252020 468152020
Gas Type	Butane	Propane	Butane, Propane or their mixtures	Butane, Propane or their mixtures
Gas Pressure	28-30 mbar	37 mbar	30 mbar	50 mbar
Injector Size (Dia. mm)	Barbecue: 0,80 x 4 pcs Barbecue: 0,80 x 4 pcs			Barbecue: 0,68 x 4 pcs
	Hotplate: 0,83 x 1 pcs		Hotplate: 0,83 x 1 pcs	Hotplate: 0,75 x 1 pcs
Destination Countries	GB, FR, BE, ES, IT, PT, CZ, SK, CH, CY, GR, IE, LT, LU, LV, SI		DK, NO, NL, SE, FI, IS, CZ, IT, SK, BG, CY, EE, HR, HU, LT, LU, LV, MT, RO, SI, TR	AT, DE, CH, LU, SK

Stainless steel

There are many different types (alloys) of materials that are regarded as stainless steel.

A common trait of these different types is that they may corrode (oxidize), depending on the conditions they are subjected to.

This applies to your new barbecue as well.

To ensure your barbecue retains its looks and functionality for many years, please follow the advice below.

1) If the barbecue has become wet or damp, make sure to wipe it dry using a cloth in order to prevent surface corrosion.
2) Stainless steel can rust under certain conditions. This can be caused by environmental conditions such as chlorine or salt water, or improper cleaning tools such as wire or steel wool. It can also discolor due to heat, chemicals, or grease build-up.
3) To maintain your appliance's high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.
4) Grease the internal parts of the barbecue and the grids with cooking oil.

Please note:

To avoid scratching the surface and providing a basis for rust, never use steel wool or similar when cleaning stainless steel. Char-Broil recommends our Eco-Safe Stainless Steel Cleaner Spray, model #5278185, or our Simply Soy Grill Wipes, model 4629294.

When cleaning, work in the same direction the stainless steel was brushed in – 'with the grain'.

Cleaning with abrasives may leave scratches.

Storing the barbecue near a coast, swimming pool or spa will cause the barbecue to corrode (oxidize).

Cover your barbecue for rust protection.

INSTALLATEUR/ASSEMBLEUR :

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of an open electrical stove or oven with internal components and a handle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a door frame with internal compartments and a handle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Two metallic pipe fittings with a checkmark and plus sign, no visible text or symbols

Close-up of two metallic valve components with a checkmark and plus sign, no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a door frame with internal components and a handle (no text or symbols)

Lektest Kleppen, Slang en Regelaar

Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of an open oven with internal grating and a handle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of an open oven with internal compartments and a handle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of an open oven with internal grating and a handle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Lækagetestning af ventiler, slange og regulator

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Krav for regulatorer

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of an open refrigerator with internal compartments and a handle (no text or symbols)

Skúška tesnosti ventilov, hadice a ovládača

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of an open industrial machine with internal components and a handle (no text or symbols)

Lekapróf á lokum, slöngu og stilli

KÖNGULÆR OG VEFIR INNAN Í BRENNURUM

Diagram of a cylindrical device with internal grid structure and labeled 'BRENNORUM' (no other text or symbols)

Geymsla á grillinu

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

:hip

Technical line drawing of a mechanical assembly with no visible text or symbols

תְרָה בַעִי

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

Char-Broil #5278185 #,

Grill .4629294 אַרְבָר, אַרְבָר

Aprinderea grăsimilor

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

REPLACEMENT PARTS LIST FOR 468152020

KeyQtyDescription
1 1 TOP LID
2 1 TEMPERATURE GAUGE
3 1 BEZEL, F/ TEMP GAUGE
4 1 LOGO PLATE
5 1 HANDLE, TOP LID
6 1 HARDWARE F/ TOP LID ASSEMBLY
7 4 RUBBER BUMPER, W/ HOLE, F/ TOP LID
8 1 FIREBOX
9 1 HOSE VALVE ASSEMBLY
10 4 MAIN BURNER
11 3 ELECTRODE SET, F/ MAIN BURNER, 500MM WIRE
12 1 ELECTRODE SET, F/ MAIN BURNER, 900MM WIRE
13 3 CARRYOVER TUBE
14 1 MAIN CONTROL PANEL
15 1 IGNITER SWITCH MODULE
16 5 CONTROL KNOB
17 5 BEZEL F/ CONTROL KNOB
18 1 MATCH HOLDER
19 1 SWINGAWAY RACK
20 4 HEAT TENT
21 2 COOKING GRATE
22 1 CART SIDE PANEL, LEFT
23 1 BOTTOM SHELF
24 2 CASTER, LOCKING
25 2 CASTER, FIXED
26 2 LEG CAP
27 4 LEG EXTENDER
28 1 RIGHT SIDE SHELF
29 1 FASCIA, F/ RIGHT SHELF
30 1 SIDEBURNER SHELF
31 1 LID, F/ SIDEBURNER
32 1 DRIP PAN, F/ SIDEBURNER
33 1 FASCIA, UPPER, F/ SIDEBURNER SHELF
34 1 FASCIA, LOWER, F/ SIDEBURNER SHELF
35 1 SIDEBURNER

KeyQtyDescription
36 1 ELECTRODE, F/ SIDEBURNER
37 1 FRONT DOOR BRACE
38 1 LEFT DOOR, NO HANDLE
39 1 RIGHT DOOR, NO HANDLE
40 2 HANDLE, F/ DOOR
41 1 REAR CART PANEL
42 1 CART SIDE PANEL, RIGHT
43 1 ELECTRONIC IGNITION MODULE
44 1 CAP, F/ ELECTRONIC IGNITION MODULE
45 1 IGNITOR WIRE, F/ SIDEBURNER
46 1 GRATE, F/ SIDEBURNER
47 1 GREASE CUP
48 1 GREASE CLIP
49 1 HEAT SHIELD, F/ TANK
50 1 HEAT SHIELD, F/ SWITCH MODULE
51 1 GROMMET
52 2 DOOR PIN, FIXED
53 2 DOOR PIN, SPRING
54 4 BURNER BRACE
55 1 HEAT SHIELD, F/ TANK, FIREBOX
56 1 GRIDDLE
NOT Pictured
... 1 PRODUCT GUIDE, EUROPE
... 1 HARDWARE PACK
... 2 MAGNET ASSEMBLY
... 1 CASTER PIN
... 1 IR CLEANING TOOL
... 1 VENTURI CLIP F/ SB

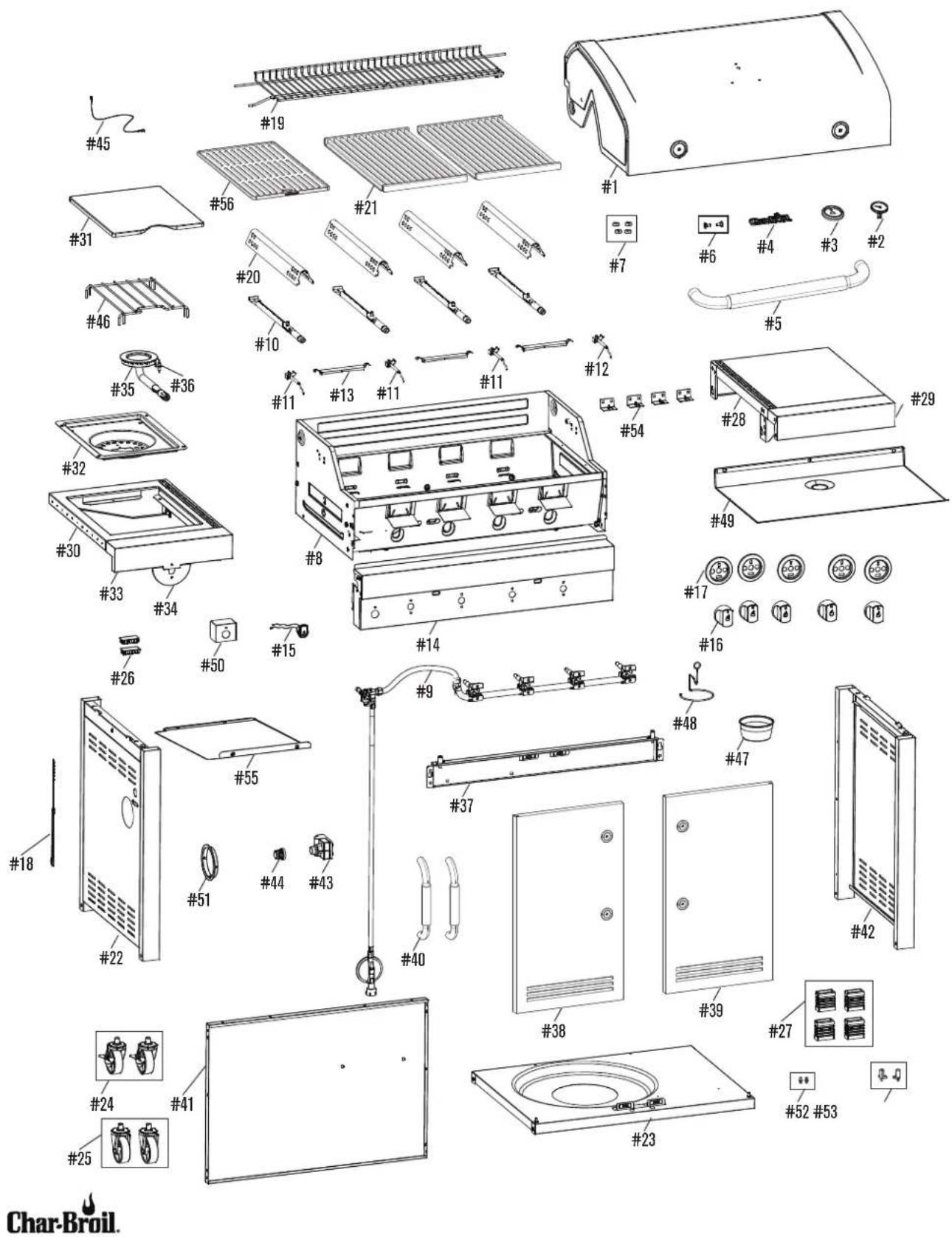

REPLACEMENT PARTS DIAGRAM FOR 468152020

REPLACEMENT PARTS LIST FOR 468252020

KeyQtyDescription
1 1 TOP LID
2 1 TEMPERATURE GAUGE
3 1 BEZEL, F/ TEMP GAUGE
4 1 LOGO PLATE
5 1 HANDLE, TOP LID
6 1 HARDWARE F/ TOP LID ASSEMBLY
7 4 RUBBER BUMPER, W/ HOLE, F/ TOP LID
8 1 FIREBOX
9 1 HOSE VALVE ASSEMBLY
10 4 MAIN BURNER
11 3 ELECTRODE SET, F/ MAIN BURNER, 500MM WIRE
12 1 ELECTRODE SET, F/ MAIN BURNER, 900MM WIRE
13 3 CARRYOVER TUBE
14 1 MAIN CONTROL PANEL
15 1 IGNITER SWITCH MODULE
16 5 CONTROL KNOB
17 5 BEZEL F/ CONTROL KNOB
18 1 MATCH HOLDER
19 1 SWINGAWAY RACK
20 4 HEAT TENT
21 2 COOKING GRATE
22 1 CART SIDE PANEL, LEFT
23 1 BOTTOM SHELF
24 2 CASTER, LOCKING
25 2 CASTER, FIXED
26 2 LEG CAP
27 4 LEG EXTENDER
28 1 RIGHT SIDE SHELF
29 1 FASCIA, F/ RIGHT SHELF
30 1 SIDEBURNER SHELF
31 1 LID, F/ SIDEBURNER
32 1 DRIP PAN, F/ SIDEBURNER
33 1 FASCIA, UPPER, F/ SIDEBURNER SHELF
34 1 FASCIA, LOWER, F/ SIDEBURNER SHELF
35 1 SIDEBURNER

KeyQtyDescription
36 1 ELECTRODE, F/ SIDEBURNER
37 1 FRONT DOOR BRACE
38 1 LEFT DOOR, NO HANDLE
39 1 RIGHT DOOR, NO HANDLE
40 2 HANDLE, F/ DOOR
41 1 REAR CART PANEL
42 1 CART SIDE PANEL, RIGHT
43 1 ELECTRONIC IGNITION MODULE
44 1 CAP, F/ ELECTRONIC IGNITION MODULE
45 1 IGNITOR WIRE, F/ SIDEBURNER
46 1 GRATE, F/ SIDEBURNER
47 1 GREASE CUP
48 1 GREASE CLIP
49 1 HEAT SHIELD, F/ TANK
50 1 HEAT SHIELD, F/ SWITCH MODULE
51 1 GROMMET
52 2 DOOR PIN, FIXED
53 2 DOOR PIN, SPRING
54 4 BURNER BRACE
55 1 HEAT SHIELD, F/ TANK, FIREBOX
56 1 GRIDDLE
NOT Pictured
... 1 PRODUCT GUIDE, EUROPE
... 1 HARDWARE PACK
... 2 MAGNET ASSEMBLY
... 1 CASTER PIN
... 1 IR CLEANING TOOL
... 1 VENTURI CLIP F/ SB

REPLACEMENT PARTS DIAGRAM FOR 468252020

HARDWARE LIST

KeyDescriptionPictureQty
A 1/4"-20UNC x 60 Screw 4
B 1/4" Nut 6
C #8 x 3/8" Tapping Screw 8		[ZATS]
D Caster pin 1
E 1/4"-20UNC x 13 Screw 18
F M4 Wingnut 1
G Sideburner Valve Clip 1
H NO.10-24UNC×13 Screw 4
J	φ5 Lock Washer 4
K	φ5 Washer 4

ASSEMBLY

1

2

Technical line drawing of a mechanical enclosure with internal components and mounting holes, showing no text or symbols.

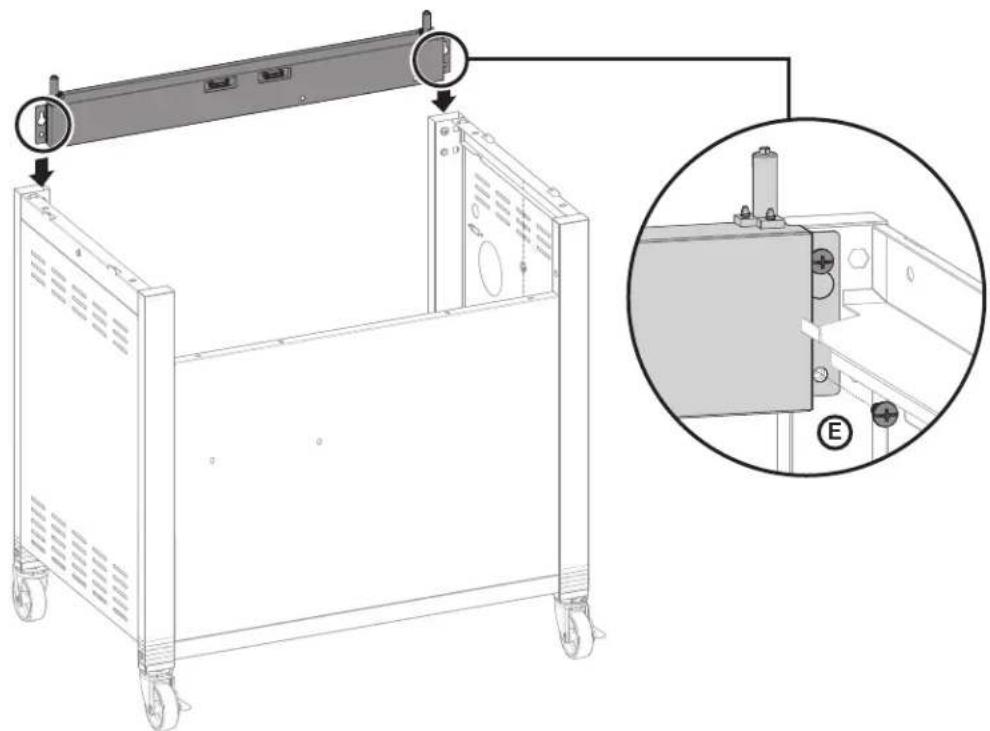

ASSEMBLY

3

4

Ex2

Technical line drawing of a mechanical device with a panel and mounting bracket, shown in two views (labeled E), no text or symbols present.

Char-Broil.

ASSEMBLY

FOR 468152020

Technical line drawing of a gas storage device with attached cylindrical tank and inset showing internal components (no text or symbols)

Char-Broil.

ASSEMBLY

ASSEMBLY

FOR 468252020

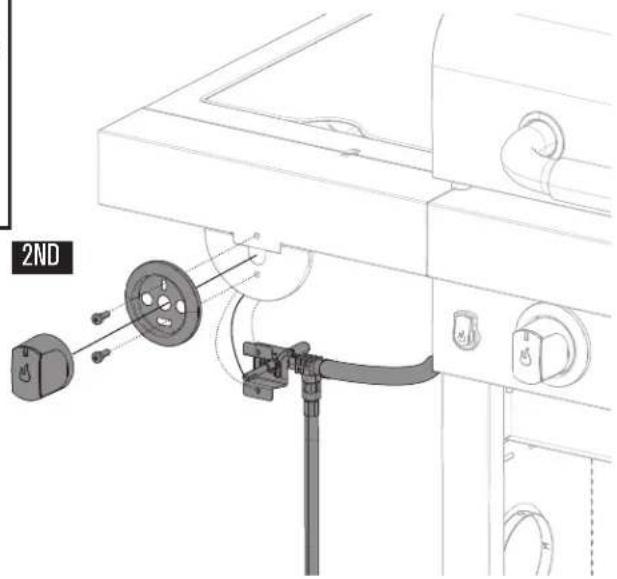

Line drawing of a cylindrical gas cylinder with a valve and side-mounted port, labeled '2ND' (no text or symbols on the diagram itself)

Char-Broil.

ASSEMBLY

7

Ex4

ASSEMBLY

8

9

Fx1

Gx1

Char-Broil.

ASSEMBLY

10

Technical line drawing of a mechanical assembly with no visible text or symbols

11

Line drawing of a portable electric grill with control panel and wheels (no text or symbols)

Char-Broil.

ASSEMBLY

12

Bx2

Ex4

ASSEMBLY

13

14

Line drawing of a portable electric grill with open top and side panels, no text or symbols present

Char-Broil.

ASSEMBLY

15

Line drawing of a portable grill with a side view showing internal structure and mounting base (no text or symbols)

16

Char-Broil.

ASSEMBLY

17

Hx4

Jx4

Kx4

Technical line drawing of a mechanical panel with mounting holes and a curved handle (no text or symbols)

18

Char-Broil.

ASSEMBLY

19

Line drawing of a portable electric grill with control panel and wheels (no text or symbols)

20

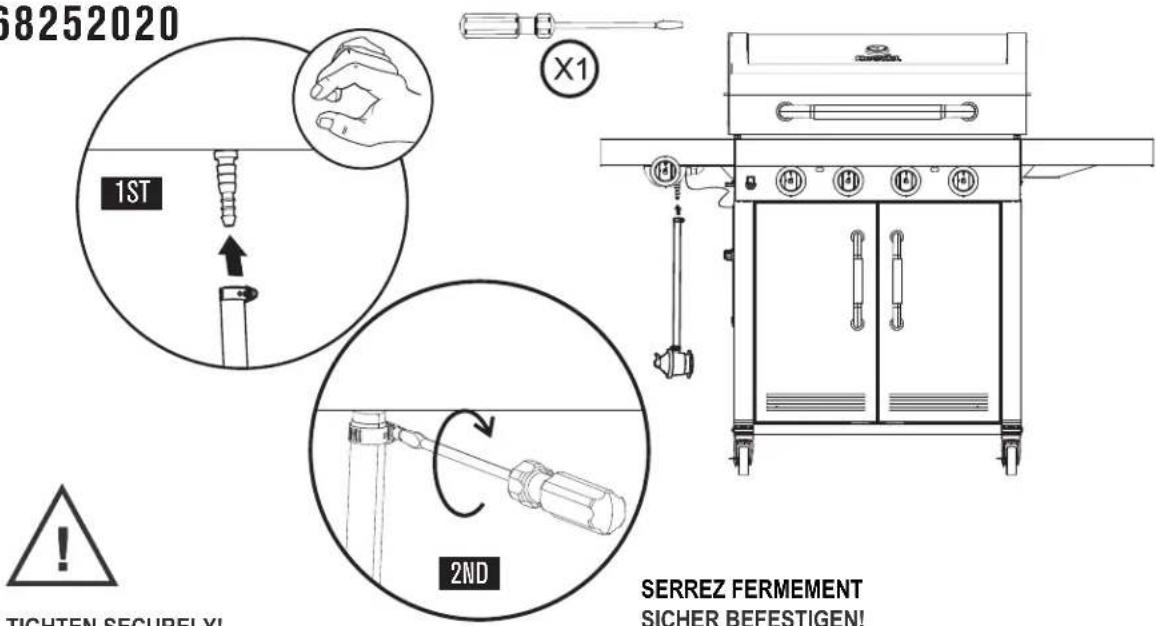

FOR 468252020

TIGHTEN SECURELY!

KIRISTÄ HUOLELLISESTI!

PEVNE UTÁHNĚTE!

FASTSPAEND KORREKT!

DRAAI STEVIG AAN!

DRA ÅT ORDENTLIGT!

FEST GODT!

HERTU VANDLEGA

SERREZ FERMEMENT

SICHER BEFESTIGEN!

SERRARE SALDAMENTE

APRIETE FIRMEMENTE

BEZPEČNE ZATIAHNUŤ!

תְקּרָה בַת

AFTENGDU TANKINN EFTIR PESSA

SKOĐUN!ЗАДАЧИ СЕКРЕТНО!

BIZTONSÁGÁVAL!

ATENTIE SECURAL!

Warranty Statement

Char-Broil Europe GmbH, Paul-Dessau-Straße 8 Quartier O – 4.OG D-22761 Hamburg (Char-Broil) warrants to the PURCHASER of this Char-Broil product that it will be free of defects in material and workmanship from the date of purchase as follows:

	Gas Grills
Burners	5 years
Cooking Grates/Emitters	2 years
All Other Parts (EURO minimum)	2 years

Char-Broil or the seller of the product may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES RECEIPT OR INVOICE.

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

This Warranty includes the right of repair or replacement of the product or parts of the product that prove defective under normal use and service. Before returning any parts, you should promptly contact Char-Broil using the contact information on our website. In case of a defect, Char-Broil will elect to replace or repair the product or such parts without charge. . Char-Broil will return the product or parts of the product to the purchaser, freight or postage prepaid. If Char-Broil elects to repair the product or such defective parts of the product and this repair fails, you are entitled, pursuant to your statutory legal rights, to reduce the purchase price or to withdraw from the contract and receive a refund.

This Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner's manual. Exceptions may apply, so please contact Char-Broil or your seller in case you have any questions on whether this Warranty applies to your specific case or not.

Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Warranty, and are not normally covered by your statutory legal rights.

Char-Broil is not liable for any unforeseeable losses (i.e. loss or damage that neither you nor Char-Broil or the seller contemplated at the time of purchase), or any damage caused by you, save for that Char-Broil's liability for fraud or death or personal injury caused by its negligence is not limited.

Char-Broil does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Char-Broil.

This Warranty applies only to products sold at retail to individuals (as opposed to businesses) within the European Union.

This Warranty does not affect any of your statutory legal rights under the applicable consumer laws of your resident country.

For warranty service, contact Char-Broil at [e-mail].

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity).]

(Char-Broil Europe GmbH, Paul-Dessau-Straße 8 Quartier O - 4.OG D-22761 Hamburg (Char-Broil

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

Char-Broil does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Char-Broil.
