Product type	Gas barbecue
Brand	CHAR BROIL
Model	Advantage 225 S
Category	Barbecue
Use	Outdoor only
Fuel	Butane/propane gas (LPG)
Number of main burners	2
Nominal heat output	6.15 kW (butane) / 5.28 kW (propane)
Gas pressure	28-30 mbar (butane), 37 mbar (propane), 30 mbar or 50 mbar depending on category
Ignition	Electronic (battery) or match
Main material	Stainless steel
Cooking grates	Included (2 pieces)
Warming plate	No (N/A)
Injector size (main burners)	0.86 mm (x2)
Gas regulator	EN16129 certified, max flow 1.5 kg/h
Safety distance to walls	At least 1 m
Warranty	5 years burners, 2 years grates and other parts
Maintenance	Regular cleaning of burners, grates and grease tray

Frequently Asked Questions - Advantage 225 S CHAR BROIL

How to light the barbecue?

Open the lid, turn the knobs to O (off), open the gas from the tank, then press and turn the burner knob to HIGH while holding the electronic ignition button until lit. If no ignition within 5 seconds, close the gas, wait 5 minutes and try again.

What to do if you smell gas?

Immediately shut off the gas supply to the appliance and the tank. Extinguish any open flame. Open the lid. If the smell persists, move away and call your gas supplier or the fire department.

How to clean the burners?

Turn off the gas, remove the grates and tent covers. Disconnect the electrodes, carefully lift the burners. Clean the tubes with a stiff wire or a pipe cleaner, brush the outside, and unclog the orifices with a paper clip. Reinstall making sure the tubes fit properly into the valves.

How to store the barbecue?

Clean the grates. Store in a dry place. If stored outdoors, cover it. If stored indoors, the tank must be closed, disconnected and stored outside. Ensure the burner is not obstructed before next use.

What gas cylinder to use?

Use an LPG cylinder compatible with the supplied regulator. For a gas barbecue, a 6 kg or smaller cylinder can be placed under the side table. Maximum dimensions inside the appliance: diameter 340 mm, height 400 mm.

How to test connections for leaks?

Set all knobs to O (off). Ensure the regulator is properly connected. Open the gas. Apply a soapy solution (half soap, half water) on the connections. If bubbles appear, there is a leak. Close the gas and tighten or replace the parts.

What if the barbecue does not light?

Check that the tank is open and there is gas. If the igniter does not spark, check the battery, cables and electrode. Clean the electrode with an alcohol-soaked cloth. If necessary, use a match to light.

How to avoid grease fires?

Regularly clean the appliance, especially the burners and grease tray. Do not leave the barbecue unattended during preheating. In case of a grease fire, close the knobs and the tank, do not use water.

Can I use charcoal in this barbecue?

No. This barbecue is designed for gas only. Never use charcoal briquettes or ceramic, as this would block ventilation and create a hazard.

What is the warranty on this barbecue?

Burners are warranted for 5 years, cooking grates and emitters for 2 years, and all other parts for 2 years (minimum for Europe). The warranty covers material and manufacturing defects under normal use conditions.

USER MANUAL Advantage 225 S CHAR BROIL

Line drawing of a portable grill with handle and control panel (no text or symbols)

GB	Operating Instructions	2
CH, FR	Mode d'emploi	8
LU, AT, CH, DE	Betriebsanweisungen	14
CH, IT	Istruzioni per l'uso	20
LU, BE, NL	Gebruiksinstructies	26
SE	Användning	31
FI	Käyttöohjeet	36
ES	Instrucciones de funcionamiento	41
PT	Instuções para Operação	47
DK	Brugsanvisning	51
NO	Instruksjoner for bruk	56
SK	Návod na používanie	61
IS	Notkunarledbeiningar	66
CZ	Návod k obsluze	71
IL	,הכלהה	76
RO	Instrucțiuni de utilizare	81
GR	Οδηγίες λειτουργίας	86
HU	Használati utasítások	91
BG	Инструкции за работа	96

Assembly Instructions	101
Instructions d'assemblage	101
Montageanweisungen	101
Istruzioni per il montaggio	101
Montage-instructies	101
Montering	101
Kokoamisohjeet	101
Instrucciones de armado	101
Instruções para Montagen	101
Monteringsvejledning	101
Imontering	101
Návod na montáž	101
Smalamálsskipana	101
Montážní návod	101
###	101
Instrucțiuni de asamblare	101
Οδηγίες συναρμολόγησης	101
Szerelési útmutató	101
Инструкции за сглобяване	101

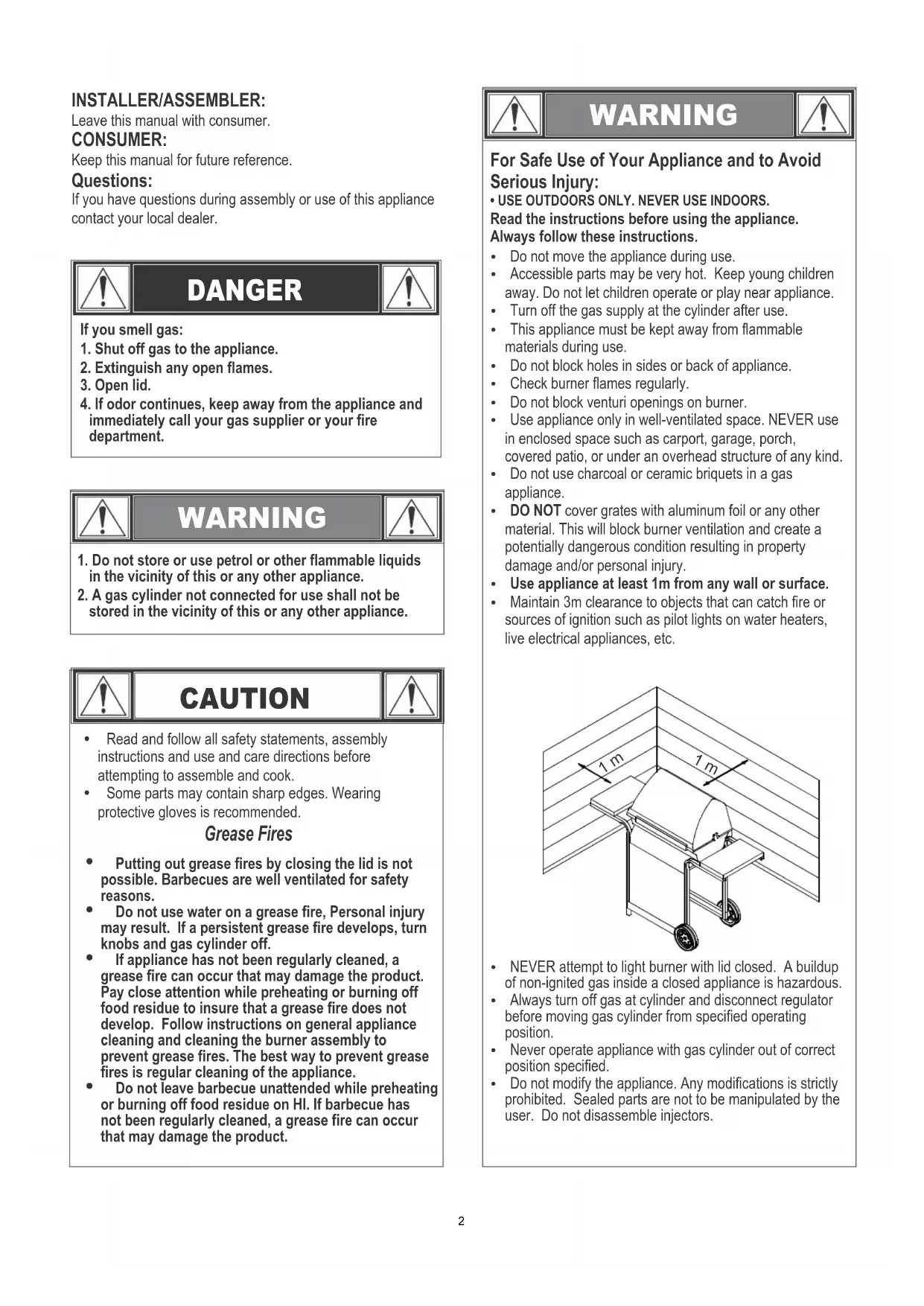

INSTALLER/ASSEMBLER:

Leave this manual with consumer.

CONSUMER:

Keep this manual for future reference.

Questions:

If you have questions during assembly or use of this appliance contact your local dealer.

DANGER

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

1. Do not store or use petrol or other flammable liquids in the vicinity of this or any other appliance.
2. A gas cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

CAUTION

• Read and follow all safety statements, assembly instructions and use and care directions before attempting to assemble and cook.
• Some parts may contain sharp edges. Wearing protective gloves is recommended.

Grease Fires

• Putting out grease fires by closing the lid is not possible. Barbecues are well ventilated for safety reasons.
• Do not use water on a grease fire, Personal injury may result. If a persistent grease fire develops, turn knobs and gas cylinder off.
• If appliance has not been regularly cleaned, a grease fire can occur that may damage the product. Pay close attention while preheating or burning off food residue to insure that a grease fire does not develop. Follow instructions on general appliance cleaning and cleaning the burner assembly to prevent grease fires. The best way to prevent grease fires is regular cleaning of the appliance.
• Do not leave barbecue unattended while preheating or burning off food residue on HI. If barbecue has not been regularly cleaned, a grease fire can occur that may damage the product.

WARNING

For Safe Use of Your Appliance and to Avoid Serious Injury:

- USE OUTDOORS ONLY. NEVER USE INDOORS.

Read the instructions before using the appliance.

Always follow these instructions.

• Do not move the appliance during use.
• Accessible parts may be very hot. Keep young children away. Do not let children operate or play near appliance.
• Turn off the gas supply at the cylinder after use.
• This appliance must be kept away from flammable materials during use.

- Do not block holes in sides or back of appliance.

- Check burner flames regularly.

- Do not block venturi openings on burner.

- Use appliance only in well-ventilated space. NEVER use in enclosed space such as carport, garage, porch, covered patio, or under an overhead structure of any kind.

- Do not use charcoal or ceramic briquets in a gas appliance.

- DO NOT cover grates with aluminum foil or any other material. This will block burner ventilation and create a potentially dangerous condition resulting in property damage and/or personal injury.

• Use appliance at least 1m from any wall or surface.

- Maintain 3m clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc.

• NEVER attempt to light burner with lid closed. A buildup of non-ignited gas inside a closed appliance is hazardous.
• Always turn off gas at cylinder and disconnect regulator before moving gas cylinder from specified operating position.
• Never operate appliance with gas cylinder out of correct position specified.
• Do not modify the appliance. Any modifications is strictly prohibited. Sealed parts are not to be manipulated by the user. Do not disassemble injectors.

Safety Tips

• Before opening gas cylinder valve, check the regulator for tightness.
• When appliance is not in use, turn off all control knobs and gas.
• Use long-handled barbecue utensils and oven mitts to avoid burns and splatters. Use protective gloves when handling hot components.
• Maximum load for hot plate, if equipped, and side shelf is 4.5 Kg. Cooking vessel minimum dia 200mm and maximum dia. 260 mm. NOTE: Your barbecue may NOT be equipped with a Hot plate!
• The grease cup (if equipped) must be inserted into appliance and emptied after each use. Do not remove grease cup until appliance has completely cooled.
• Be very careful when you open the lid, since hot steam may escape.
• Be very careful when children, the elderly, or pets are nearby.
• If you notice grease or other hot material dripping from appliance onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose, and regulator before continuing. Perform a leak test.
• Do not store objects or materials inside the appliance cart enclosure that would block the flow of combustion air to the underside of either the control panel or the firebox bowl.
• DO NOT disconnect or change gas container within 3m of an open flame or other ignition source.

Cylinder Placement

Cylinder of 6 kg or less may be placed on the ground under the side shelf or inside the appliance in place provided. Larger cylinders are to be placed under side shelf or behind the barbecue only. Cylinders placed in the appliance shall have a maximum diameter of 340mm and maximum height of 400mm. Cylinders placed on the ground shall not be placed under the hot plate.

Regulator Requirements

A regulator must be used with this appliance. Use only gas regulator supplied with your barbeque. If a regulator is not supplied then use only regulator certified according to EN16129 (Flow rate max. 1.5 kg/h) and approved for your country and gas specified in Technical Data.

Hose Requirements

Use only approved hose which is certified to appropriate EN standard and does not exceed 1.5m length. For Finland, the hose length shall not exceed 1.2m.

Before each use, check to see if hoses are cut or worn. Make sure hose is not kinked. Make sure that when connected hose does not touch any warm surfaces. Replace damaged hoses before using appliance. Replace hose as required by national requirements.

Ignitor Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. To ignite, push and turn burner knob to 🔊 HIGH. Immediately, push and hold ELECTRONIC IGNITOR button until the burner lights.
5. If ignition does NOT occur in 5 seconds, turn the burner controls off O, wait 5 minutes and repeat the lighting procedure.
6. Repeat steps 4 and 5 to light other main burners.

If ignition does NOT occur in 5 seconds, turn the burner controls ○ off, wait 5 minutes and repeat the lighting procedure. If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidentally ignite with risk of injury.

Match-Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Place match into match holder (hanging from side panel of barbecue). Light match; then light burner by placing match through the match light hole on side of barbecue. Immediately push in and turn burner knob to the 🔊 HIGH position. Be sure burner lights and stays lit.
5. Light adjacent burners in sequence by pushing knobs in and turning to the 🔊 HIGH position.

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTE: Your barbecue may NOT be equipped with a Hot plate!

Hot plate Ignitor Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Turn hot plate knob to the 🔊 HIGH position, push and hold ELECTRONIC IGNITOR button.
5. If hot plate does NOT light within 5 seconds, turn knob to O (off), wait 5 minutes, then repeat lighting procedure.

Hot plate Match Lighting

- Do not lean over barbecue while lighting.

1. Turn gas burner control valves to O(off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Place lit match near burner. Immediately turn hot plate knob to the ⬆ HIGH position. Be sure burner lights and stays lit.

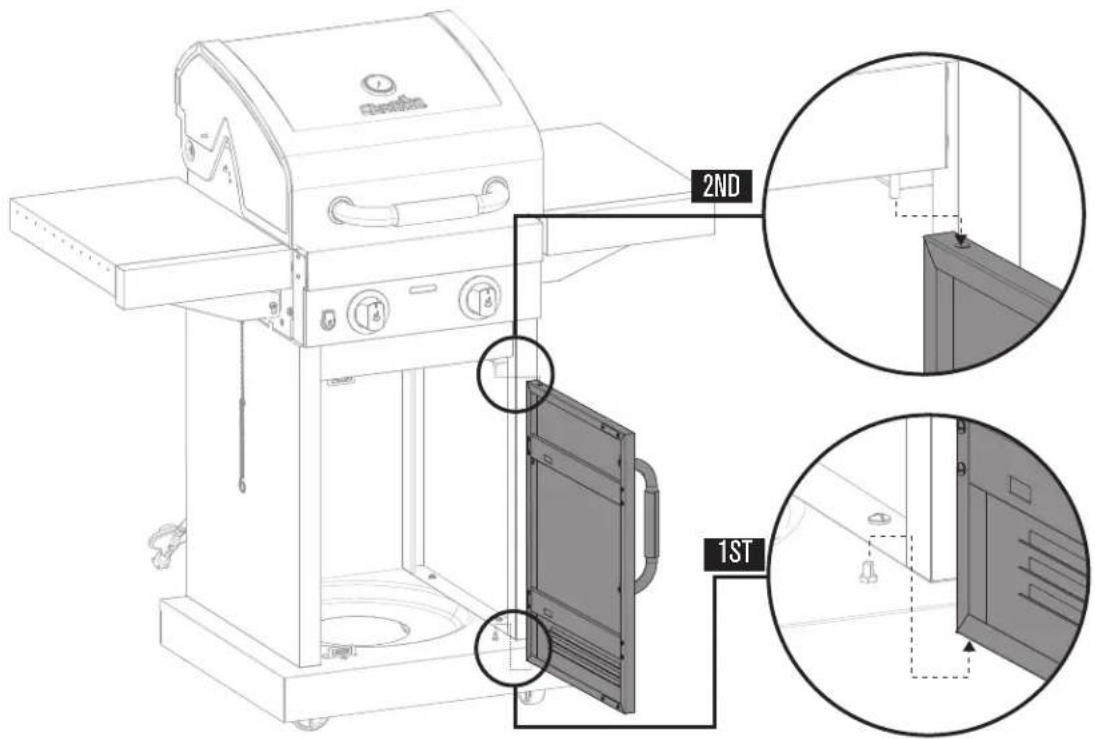

Line drawing of a door panel with internal components and a handle (no text or symbols)

Leak Testing Valves, Hose and Regulator

Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

1. Turn all appliance control knobs to O.

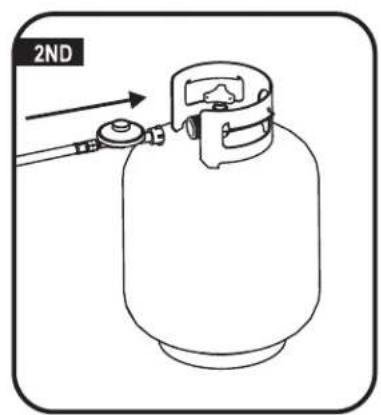

2. Be sure regulator is tightly connected to gas cylinder.

3. Turn on Gas. If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection. Correct before proceeding.

4. Brush soapy solution (mixture of half soap and half water) onto hose connections.

5. If growing bubbles appear, there is a leak. Turn off gas at cylinder immediately and check tightness of connections. If leak cannot be stopped do not try to repair. Call for replacement parts.

6. Always turn off gas at cylinder after performing leak test.

IF APPLIANCE FAILS TO LIGHT

• Make sure gas is turned on at cylinder.
• Make sure there is gas in the cylinder.
• Does the ignitor make a sparking noise?
If yes check for spark at burner.
If no spark check for damaged or loose wires.
- If wires are OK check for cracked or broken electrode, replace if needed.
- If wire or electrodes are covered by cooking residue, clean electrode tip with alcohol wipe if needed.
• If needed replace wires.
• If no sound check battery.
• Make sure battery is installed correctly.

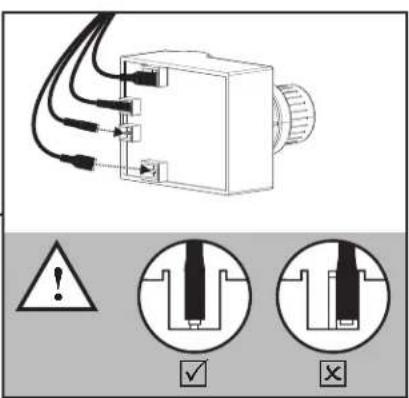

- Check for loose wire connection at module and switch.
• If ignitor continues to not work then use match.

CAUTION

SPIDER ALERT!

SPIDER AND WEBS

INSIDE BURNER

Diagram of a cylindrical device with internal grid structure and mounting points (no text or symbols)

If your barbeque is getting hard to light or the flame is weak, check and clean the venturis and burners.

Spiders or small insects are known to create “flashback” problems by building nests and laying eggs in the barbeque’s venturi or burner obstructing the flow of gas. The backed-up gas can ignite behind the control panel. This flashback can damage your barbeque and cause injury. To prevent flashbacks and ensure good performance, the burner and venturi tube assembly should be removed and cleaned whenever the barbeque has been idle for an extended period of time.

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting barbecue.

1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and heat tents.

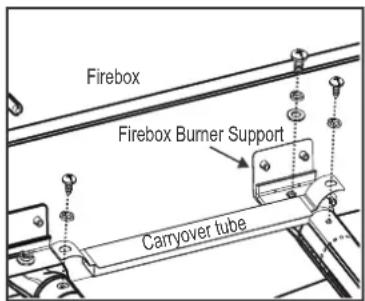

3. Remove carryover tubes and hardware securing burners.
4. Detach electrode from burner.

NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below.

1. Carefully lift each burner up and away from valve openings. We suggest three ways to clean the burner tubes. Use the one easiest for you.

A. Bend a stiff wire (a light weight coat hanger works well) into a small hook. Run the hook through each burner tube several times.

B. Use a narrow bottle brush with a flexible handle (do not use a brass wire brush). Run the brush through each burner tube several times.
C. Wear eye protection: Use an air hose to force air into the burner tube and out the burner ports. Check each port to make sure air comes out each hole.

1. Wire brush entire outer surface of burner to remove food residue and dirt.
2. Clean any blocked ports with a stiff wire such as an open paper clip.
3. Check burner for damage due to normal wear and corrosion, some holes may become enlarged. If any large cracks or holes are found, replace burner.

VERY IMPORTANT: Burner tubes must reengage valve openings. See illustrations at right.

Correct burner-to-valve engagement

1. Attach electrode to burner.
2. Carefully replace burners.
3. Attach burners to brackets on firebox.

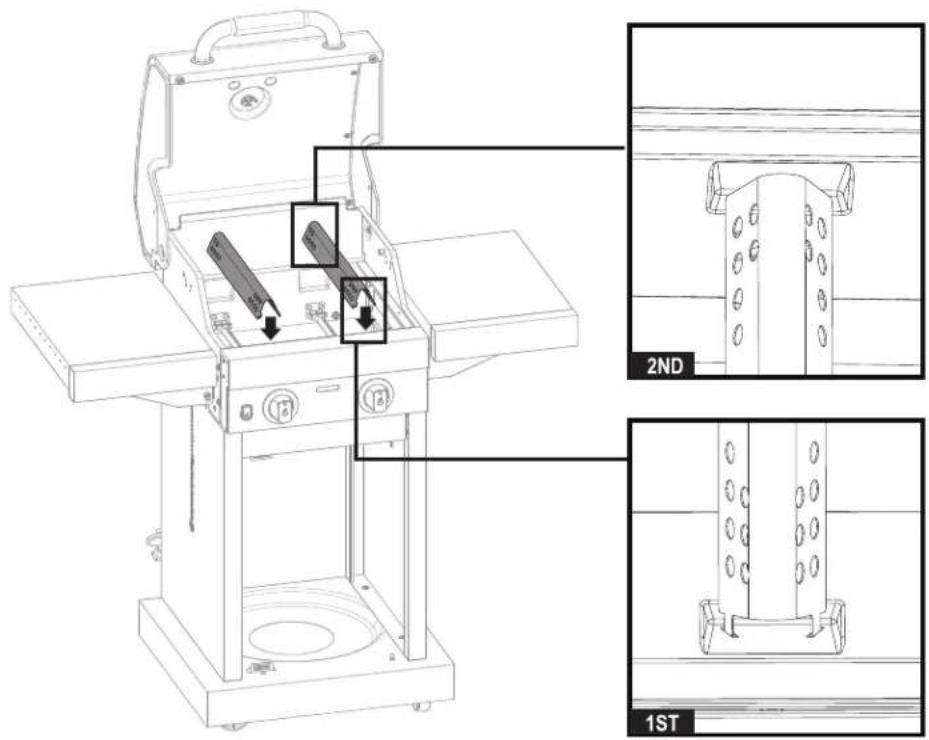

4. Reposition carryover tubes and attach to burners. Replace heat tents and cooking grates.
5. Before cooking again on barbecue, perform a "Leak Test" and "Burner Flame Check".

Storing Your Appliance

• Clean cooking grates.
• Store in dry location.
• When gas cylinder is connected to appliance, store outdoors in a well-ventilated space and out of reach of children.
• Cover appliance if stored outdoors.
• Store appliance indoors ONLY if gas cylinder is turned off and disconnected, removed from appliance and stored outdoors.
• When removing appliance from storage check for burner obstructions.

General Appliance Cleaning

• Clean appliance often, preferably after each cookout. If a bristle brush is used to clean any of the appliance cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to barbecueing. It is not recommended to clean cooking surface while appliance is hot. Appliance should be cleaned at least once a year.
• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas barbecues are not painted at the factory (and should never be painted). Apply a strong solution of detergent and water or use a appliance cleaner with scrub brush on insides of appliance lid and bottom. Rinse and allow to completely air dry. Do not apply caustic appliance/oven cleaner to painted surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.

- Do not use citrisol, abrasive cleaners, degreasers or a concentrated appliance cleaner on plastic parts. Damage to and failure of parts can result.

• Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or specially formulated cleaner. Use nonabrasive scouring powder for stubborn stains.
• Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm soapy water. Wipe dry with a soft nonabrasive cloth.
• Stainless steel surfaces: To maintain your appliance's high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of the appliance cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to barbecueing. It is not recommended to clean cooking surfaces while appliance is hot.

A regulator must be used with this appliance. Use only the gas regulator supplied with your barbeque. If a regulator is not supplied then use only a regulator certified according to EN16129 (Flow rate max. 1.5 kg/h) and approved for your country and gas specified in Technical Data.

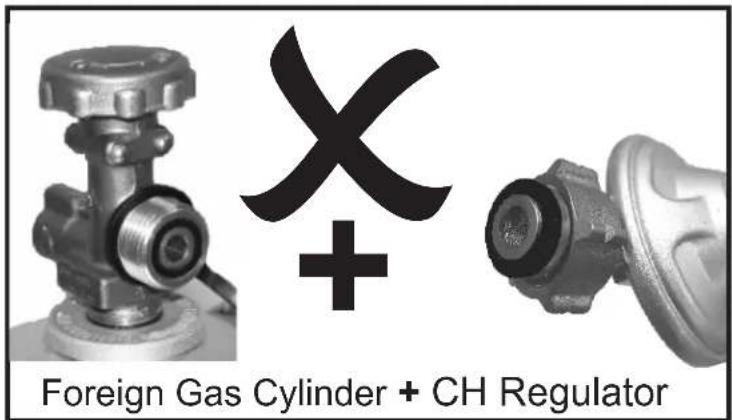

For Switzerland Only

There is a danger of fire and explosion with gas appliances which are equipped with foreign pressure regulators and are not compatible with the gas tanks and gas regulators available in Switzerland

Due to the different sealing systems, it is impossible to properly seal the regulator to the gas tank. Gas will escape here and can be ignited by flame or sparks. A life-threatening explosion, and/or property damage can result. Swiss and German tanks and regulators cannot be intermixed.

For safety reason, please check your grill regulator and gas tank connection and make sure it follows in one of the allowed cases shown in the pictures.

Perform a leak check each time you connect your grill to the gas tank.

TECHNICAL DATACHAR-BROIL, LLC
Appliance Name	Gas Barbeque/Gas Grill
Total Nominal Heat Input	6,15 kW (448 g/h)			5,28 kW (384,2 g/h)
Gas Category	I3+(28-30/37)		I3B/P(30)	I3B/P(50)
Model No.	468212020 468112020
Gas Type	Butane	Propane	Butane, Propane or their mixtures	Butane, Propane or their mixtures
Gas Pressure	28-30 mbar	37 mbar	30 mbar	50 mbar
Injector Size (Dia. mm)	Barbecue: 0,86 x 2 pcs		Barbecue: 0,86 x 2 pcs	Barbecue: 0,68 x 2 pcs
	Hotplate: N/A Hotplate: N/A		Hotplate: N/A
Destination Countries	GB, FR, BE, ES, IT, PT, CZ, SK, CH, CY, GR, IE, LT, LU, LV, SI		DK, NO, NL, SE, FI, IS, CZ, IT, SK, BG, CY, EE, HR, HU, LT, LU, LV, MT, RO, SI, TR	AT, DE, CH, LU, SK

Stainless steel

There are many different types (alloys) of materials that are regarded as stainless steel.

A common trait of these different types is that they may corrode (oxidize), depending on the conditions they are subjected to.

This applies to your new barbecue as well.

To ensure your barbecue retains its looks and functionality for many years, please follow the advice below.

1) If the barbecue has become wet or damp, make sure to wipe it dry using a cloth in order to prevent surface corrosion.
2) Stainless steel can rust under certain conditions. This can be caused by environmental conditions such as chlorine or salt water, or improper cleaning tools such as wire or steel wool. It can also discolor due to heat, chemicals, or grease build-up.
3) To maintain your appliance's high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.
4) Grease the internal parts of the barbecue and the grids with cooking oil.

Please note:

To avoid scratching the surface and providing a basis for rust, never use steel wool or similar when cleaning stainless steel. Char-Broil recommends our Eco-Safe Stainless Steel Cleaner Spray, model #5278185, or our Simply Soy Grill Wipes, model 4629294.

When cleaning, work in the same direction the stainless steel was brushed in – 'with the grain'.

Cleaning with abrasives may leave scratches.

Storing the barbecue near a coast, swimming pool or spa will cause the barbecue to corrode (oxidize).

Cover your barbecue for rust protection.

INSTALLATEUR/ASSEMBLEUR :

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of an open oven with internal compartments and a handle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a door frame with internal components and a handle, no text or symbols present

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

Two metallic pipe fittings with a checkmark and plus sign, no visible text or symbols

Close-up of two metallic valve components with a checkmark and plus sign, no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a door frame with internal components and a handle (no text or symbols)

Lektest Kleppen, Slang en Regelaar

Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of an open refrigerator with internal compartments and a handle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a door frame with internal components and a handle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of an open oven with internal compartments and a handle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of an open electric stove with internal components and a handle (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Lækagetestning af ventiler, slange og regulator

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Krav for regulatorer

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Skúška tesnosti ventilov, hadice a ovládača

Technical line drawing of a cylindrical mechanical component with internal grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of an open industrial machine with internal components and a handle (no text or symbols)

Lekapróf á lokum, slöngu og stilli

KÖNGULÆR OG VEFIR INNAN Í BRENNURUM

Diagram of a cylindrical device with internal grid structure and labeled 'BRENNORUM' (no other text or symbols)

Geymsla á grillinu

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of an open electrical cabinet with internal components and a handle (no text or symbols)

Diagram of a cylindrical device with internal grid structure and labeled 'MORAKU' in the top-left corner (no other text or symbols)

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

:hip7

Technical line drawing of a mechanical assembly with no visible text or symbols

תְרָה בַעִי

Technical line drawing of a cylindrical mechanical component with internal mesh structure (no text or symbols)

,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכchia

Char-Broil #5278185 #,

Grill .4629294 אַרְבָר, אַרְבָר

Aprinderea grăsimilor

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

REPLACEMENT PARTS LIST FOR 468112020

KeyQtyDescription
1 1 TOP LID
2 1 LOGO PLATE F/ LID
3 4 RUBBER BUMPER, W/ HOLE, F/ TOP LID
4 1 HANDLE F/ LID
5 1 THERMOMETER
6 1 BEZEL, F/ THERMOMETER
7 1 TOP LID HARDWARE
8 1 FIREBOX
9 2 BURNER BRACE
10 2 MAIN BURNER
11 2 ELECTRODE, F/ MAIN BURNER
12 1 CARRY OVER TUBE
13 1 CONTROL PANEL	MAIN
14 1 ELECTRONIC IGNITION MODULE
15 1 CAP, F/ IGNITION	MODULE
16 1 IGNITER SWITCH	MODULE
17 1 SHIELD, F/ SWITCH MODULE
18 1 HOSE VALVE ASSEMBLY
19 2 BEZEL F/ CONTROL KNOB
20 2 CONTROL KNOB
21 1 LEFT SIDE SHELF
22 1 RIGHT SIDE SHELF
23 2 SHELF MOUNT, RB/LF
24 2 SHELF MOUNT, LB/RF
25 2 SIDE SHELF BRACKET, RB/LF
26 2 SIDE SHELF BRACKET, LB/RF
27 2 HEAT TENT
28 1 COOKING GRATE
29 1 SWINGAWAY RACK
30 1 LEFT, CART FRAME
31 1 RIGHT, CART FRAME
32 1 UPPER DOOR BRACE
33 1 BACK RAIL
34 1 BOTTOM SHELF
35 1 GREASE CUP

KeyQtyDescription
36 1 CLIP, F/ GREASE CUP
37 1 HEAT SHIELD, F/ TANK
38 2 CASTER, LOCKING
39 2 CASTER, FIXED
40 1 MATCH HOLDER
41 1 DOOR, NO HANDLE
42 1 DOOR HANDLE
43 1 MAGNET ASSEMBLY
44 1 SPRING PIN, F/ DOOR
45 1 FIXED PIN, F/ DOOR
46 1 REGULATOR HOSE CLIP
47 2 FASCIA, F/ SIDE SHELF
48 1 GRIDDLE
... 1 CASTER PIN
... 1 PRODUCT GUIDE, EUROPE
... 1 HARDWARE PACK
... 1 CLEANING TOOL

REPLACEMENT PARTS DIAGRAM FOR 468112020

REPLACEMENT PARTS LIST FOR 468212020

KeyQtyDescription
1 1 TOP LID
2 1 LOGO PLATE F/ LID
3 4 RUBBER BUMPER, W/ HOLE, F/ TOP LID
4 1 HANDLE F/ LID
5 1 THERMOMETER
6 1 BEZEL, F/ THERMOMETER
7 1 TOP LID HARDWARE
8 1 FIREBOX
9 2 BURNER BRACE
10 2 MAIN BURNER
11 2 ELECTRODE, F/ MAIN BURNER
12 1 CARRY OVER TUBE
13 1 CONTROL PANEL	MAIN
14 1 ELECTRONIC IGNITION MODULE
15 1 CAP, F/ IGNITION	MODULE
16 1 IGNITER SWITCH	MODULE
17 1 SHIELD, F/ SWITCH MODULE
18 1 HOSE VALVE ASSEMBLY
19 2 BEZEL F/ CONTROL KNOB
20 2 CONTROL KNOB
21 1 LEFT SIDE SHELF
22 1 RIGHT SIDE SHELF
23 2 SHELF MOUNT, RB/LF
24 2 SHELF MOUNT, LB/RF
25 2 SIDE SHELF BRACKET, RB/LF
26 2 SIDE SHELF BRACKET, LB/RF
27 2 HEAT TENT
28 1 COOKING GRATE
29 1 SWINGAWAY RACK
30 1 LEFT, CART FRAME
31 1 RIGHT, CART FRAME
32 1 UPPER DOOR BRACE
33 1 BACK RAIL
34 1 BOTTOM SHELF
35 1 GREASE CUP

KeyQtyDescription
36 1 CLIP, F/ GREASE CUP
37 1 HEAT SHIELD, F/ TANK
38 2 CASTER, LOCKING
39 2 CASTER, FIXED
40 1 MATCH HOLDER
41 1 DOOR, NO HANDLE
42 1 DOOR HANDLE
43 1 MAGNET ASSEMBLY
44 1 SPRING PIN, F/ DOOR
45 1 FIXED PIN, F/ DOOR
46 1 REGULATOR HOSE CLIP
47 2 FASCIA, F/ SIDE SHELF
48 1 GRIDDLE
... 1 CASTER PIN
... 1 PRODUCT GUIDE, EUROPE
... 1 HARDWARE PACK
... 1 CLEANING TOOL

REPLACEMENT PARTS DIAGRAM FOR 468212020

HARDWARE LIST

KeyDescriptionPictureQty
A 1/4"-20UNC x 13 Screw 24
B NO.10-24UNC x 10 Screw 3
C 1/4" Nut 4
D Caster Pin 1
E	φ5 Lock Washer 2
F Hose Clip 1
G Shoulder Screw 4
H	φ5 Washer 2
J Cleaning Tool 1

ASSEMBLY

1

2

Technical diagram showing a mechanical assembly with a screwdriver inserted into a housing, and a close-up of the component being assembled (no text or symbols present)

Char-Broil.

ASSEMBLY

3

Ax2

Technical diagram showing a mechanical assembly with a component, a magnified inset view, and a 3D model of a device (no text or symbols present)

4

Ax4

Char-Broil.

ASSEMBLY

5

Ax4

ASSEMBLY

6
For 468112020

Technical line drawing of a mechanical device with internal components and a magnified inset showing internal wiring (no text or symbols)

TIGHTEN SECURELY! KIRISTÄ HUOLELLISESTI! PEVNĚ UTÁHNĚTE! FASTSPÆND KORREKT! DRAAI STEVIG AAN! DRA ÁT ORDENTLIGT! FEST GODT! HERTU VANDLEGA SERREZ FERMEMENT SICHER BEFESTIGEN!

SERRARE SALDAMENTE APRIETE FIRMEMENTE BEZPEČNE ZATIAHNUŤ!

AFTENGDU TANKINN EFTIR PESSA SKOĐUN!ЗАДАЧИ СЕКРЕТНО! BIZTONSÁGÁVAL! ATENTIE SECURAL! АЗФАЛЕІАЗ АЗФАЛЕІАЗ!

ASSEMBLY

7

Ax4

Remove wire tie

Retirer l'attache de fil

Char-Broil.

ASSEMBLY

9 x2

Gx4

Cx4

Char-Broil.

ASSEMBLY

10

11

Line drawing of a portable grill with a grating and control panel (no text or symbols)

Char-Broil.

ASSEMBLY

12

Technical line drawing of a portable kitchen machine with a magnified inset showing internal components (no text or symbols)

13

Technical line drawing of a portable industrial machine with wheels and control panel (no text or symbols)

Char-Broil.

ASSEMBLY

14

Bx2

Ex2

Hx2

15

Char-Broil.

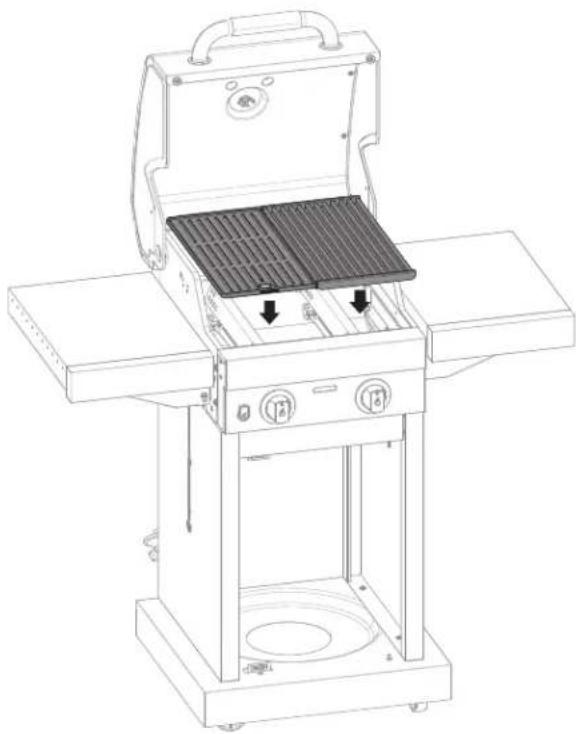

ASSEMBLY

16

17

Line drawing of a portable grill with labeled components and a close-up view showing the door panel (no text or symbols present)

Char-Broil.

ASSEMBLY

18

Bx1

Fx1

19

Char-Broil.

Warranty Statement

Char-Broil Europe GmbH, Paul-Dessau-Straße 8 Quartier O – 4.OG D-22761 Hamburg (Char-Broil) warrants to the PURCHASER of this Char-Broil product that it will be free of defects in material and workmanship from the date of purchase as follows:

	Gas Grills
Burners	5 years
Cooking Grates/Emitters	2 years
All Other Parts (EURO minimum)	2 years

Char-Broil or the seller of the product may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES RECEIPT OR INVOICE.

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

This Warranty includes the right of repair or replacement of the product or parts of the product that prove defective under normal use and service. Before returning any parts, you should promptly contact Char-Broil using the contact information on our website. In case of a defect, Char-Broil will elect to replace or repair the product or such parts without charge. . Char-Broil will return the product or parts of the product to the purchaser, freight or postage prepaid. If Char-Broil elects to repair the product or such defective parts of the product and this repair fails, you are entitled, pursuant to your statutory legal rights, to reduce the purchase price or to withdraw from the contract and receive a refund.

This Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner's manual. Exceptions may apply, so please contact Char-Broil or your seller in case you have any questions on whether this Warranty applies to your specific case or not.

Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Warranty, and are not normally covered by your statutory legal rights.

Char-Broil is not liable for any unforeseeable losses (i.e. loss or damage that neither you nor Char-Broil or the seller contemplated at the time of purchase), or any damage caused by you, save for that Char-Broil's liability for fraud or death or personal injury caused by its negligence is not limited.

Char-Broil does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Char-Broil.

This Warranty applies only to products sold at retail to individuals (as opposed to businesses) within the European Union.

This Warranty does not affect any of your statutory legal rights under the applicable consumer laws of your resident country.

For warranty service, contact Char-Broil at [e-mail].

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.]

(Char-Broil Europe GmbH, Paul-Dessau-Straße 8 Quartier O - 4.OG D-22761 Hamburg (Char-Broil

[France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.)]

Char-Broil does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Char-Broil.
