| Product Type | Outdoor gas barbecue |
| Brand | CHAR BROIL |
| Model | 463376217 |
| Fuel | Liquefied propane gas (LPG) |
| Gas type | Propane (LPG) |
| Ignition | Electronic (button) and manual (match) |
| Number of burners | Main burner and side burner (depending on model) |
| Materials | Stainless steel (surfaces), porcelain (lid and firebox), plastic (parts) |
| Usage | Outdoor only, domestic use |
| Warranty | Burner 5 years, firebox/lid 2 years, other parts 1 year |
| Maintenance | Regular cleaning of grates, burners, and surfaces; checking venturi tubes |
| Safety | Regulator safety device, mandatory leak test, leak detection |
| Spare parts | Available from the manufacturer (Service Center) |
| Repairability | Repairable with original parts; do not modify the gas system |
| Recommended preheating | 10-15 minutes at high temperature |
| Maximum temperature | Up to approximately 300°F (150°C) if the safety device is activated |
| Compatible accessories | Rotisserie, wood chip smoker, protective cover |
| Serial number | On the rating label of the appliance |
Frequently Asked Questions - 463376217 CHAR BROIL
How to light the CHAR BROIL 463376217 barbecue?

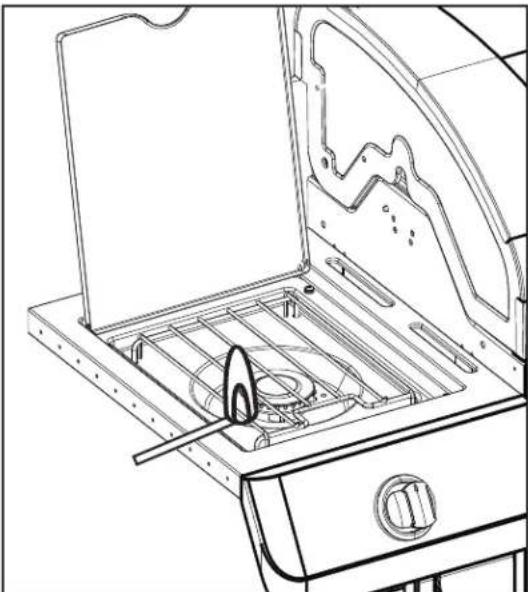

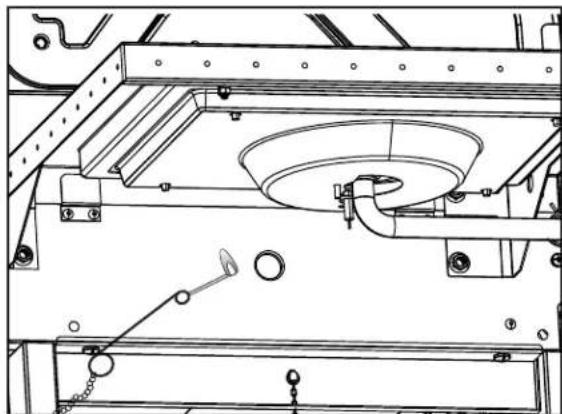

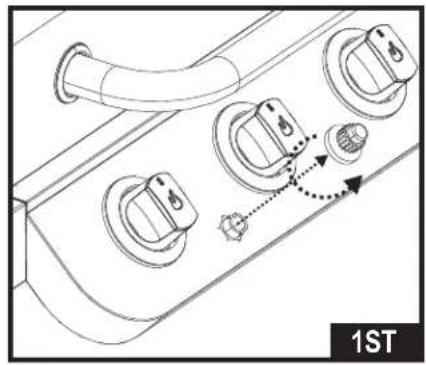

Open the lid. Make sure all control knobs are in the OFF (O) position. Open the valve on the propane gas tank. For electronic ignition, push and turn the ignition burner knob to HIGH, then immediately push the electronic ignition button until the burner lights (usually within 5 seconds). If the burner does not light, close the valve, wait 5 minutes, and try again. You can also use a long match through the ignition hole.
What to do if there is a gas smell?
Immediately shut off gas supply to the appliance (close the reservoir valve). Extinguish any open flame. Open the lid. If the smell persists, move away from the appliance and call the gas supplier or fire department. Do not use the grill until the leak is repaired.
How to clean the burners?

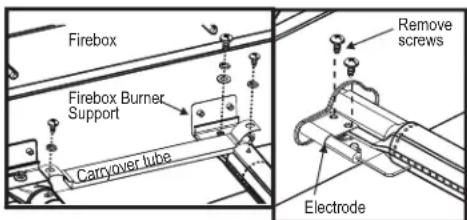

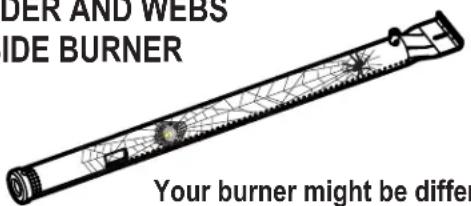

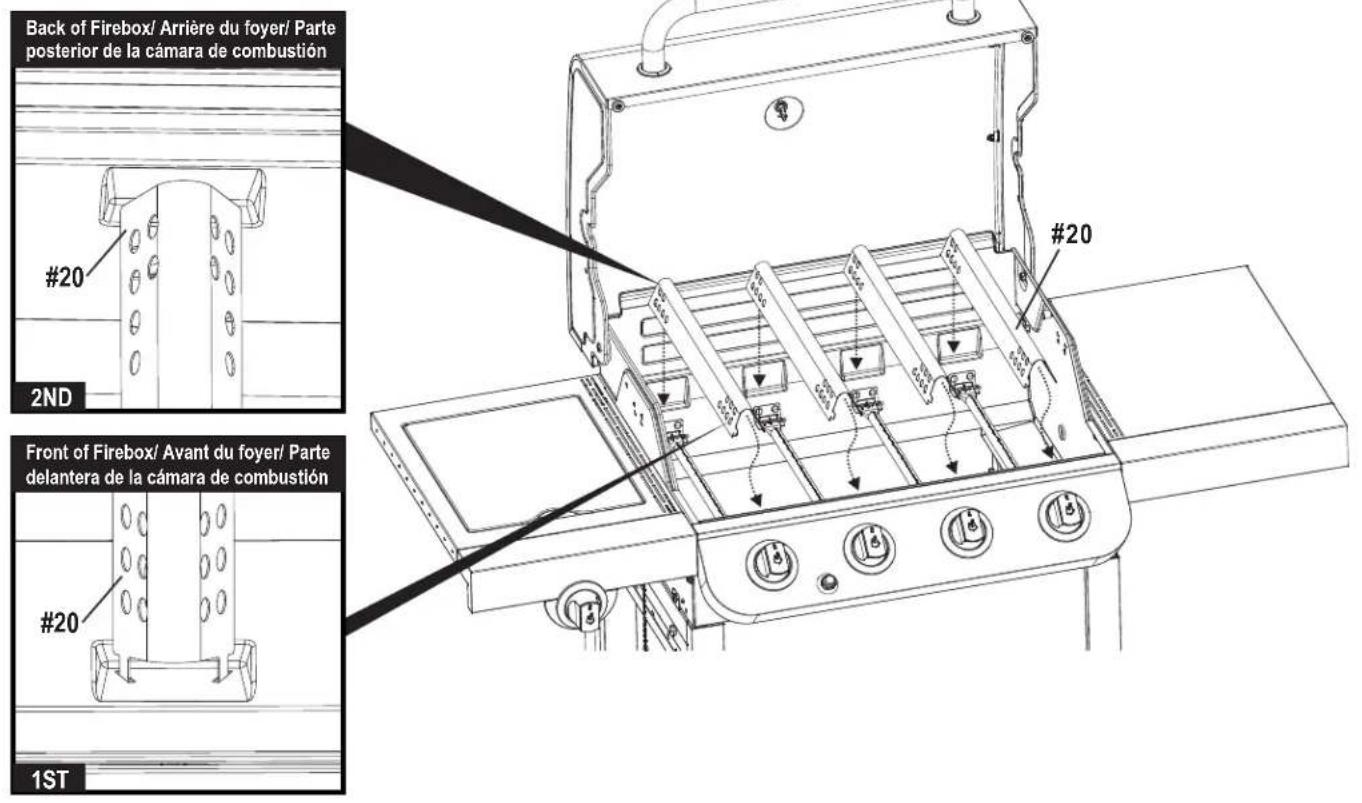

Close the knobs and the reservoir valve. Remove the grates and burner covers. Lift each burner. Use a stiff wire (hanger) or a pipe cleaner to clean the inside of the tubes. Brush the outside with a wire brush. Clean the orifices with a paperclip. Check for cracks. Reassemble carefully, aligning the burner with the valve.
What is the warranty on the CHAR BROIL barbecue?
The stainless steel burner is warranted for 5 years against perforation and manufacturing defects. The firebox and lid are warranted for 2 years. Other parts are warranted for 1 year. The warranty starts from the purchase date and applies to the original purchaser. Keep your receipt.
Can I use charcoal or briquettes in this gas grill?
No, this grill is designed only for propane gas. Adding charcoal, briquettes, or lava rocks reduces combustion, increases the risk of grease fire, and voids the warranty. Instead, use wood chips in a smoker for a smoky flavor.
How to store the grill in winter?
Thoroughly clean the cooking grates. If the gas tank is connected, store the grill outdoors in a dry, well-ventilated area, out of reach of children. Use a protective cover. For indoor storage, the gas tank must be closed, disconnected, and stored outdoors. Never store the tank indoors.
What to do if the burner does not light with electronic ignition?
First check the battery: replace it with a new alkaline one if necessary. Ensure the wires are properly connected. Clean the electrode and burner of cooking residue. Check that the electrode is correctly positioned (distance 1/8 to 1/4 inch from the burner). If sparks are present but weak, the battery may be low. If no sparks, the ignition module may be defective.
How to test for gas leaks?
Mix a solution of mild soap and water (50/50). Using a brush, apply to all connections (valve, regulator, hose). Open the reservoir valve. If bubbles appear, there is a leak. Immediately close the valve and tighten the connections. Never use an open flame to detect a leak. Perform this test every time you change the tank.
Can I use the grill indoors or under a shelter?
No, this grill is designed for outdoor use only. Never use it in a garage, porch, covered patio, or under any overhead surface. Keep at least 1 m (3 ft) away from walls and 3 m (10 ft) from flammable materials. Indoor use can lead to carbon monoxide poisoning or fire.
How to adjust the burner flame?
After lighting, turn the knob from the HIGH position to the LOW position. The flame should be smaller in the low position. If you only see small flames in the high position, refer to the Troubleshooting section for a sudden drop in gas. Periodically check the flame to ensure it is blue and stable.
