USER MANUAL Multifruit Zumex

ENGLISH User's manual → 06

Drawing and description

Technical line drawing of a mechanical device with an inset close-up view (no text or symbols)

Line drawing of a mechanical device with a curved arrow indicating motion, labeled 'Fig. 2' (no text or symbols on the device itself)

Fig. 4 Fig. 3

Line drawing of a kitchen appliance with a rotary knob and a circular base (no text or symbols)

Line drawing of a mechanical device with a cylindrical component and attached lever (no text or symbols)

Line drawing of a portable coffee maker with handle and side-mounted legs, labeled Fig. 5 (no text or symbols on the device itself)

Fig. 7 Fig. 8

Line drawing of a kitchen mixer with control panel and fan (no text or symbols)

ZUMEX PRESENTS

Power Becomes Healthy

Multifruit is the perfect multi-juicer to extract the most juice possible from any type of fruit or vegetable. This multi-juicer will enable you to enjoy considerable gastronomic versatility allowing you to prepare any type of juice, cocktail or smoothie imaginable, economising time, work and raw material.

Multifruit has the most powerful engineering on the market and it is as quick as it is silent. It incorporates new possibilities that will convert your juice cafe, cocktail bar or cafeteria into a fully-fledged Juice Bar.

The following Manual refers to the model Multifruit.

Register your

Multifruit here

Zumex Multifruit

User's Manual

Please read the instructions carefully in order to make the most of your machine.

GENERAL INDEX

3 ANNEX
8 IMPORTANT GENERAL INFORMATION
11 TECHNICAL FEATURES
12 INSTRUCTIONS FOR USE

12 GENERAL DESCRIPTION
13 PREPARATION
14 OPERATION
16 CLEANING
20 ACCESSORIES

22 FAULT DETECTION
115 EU DECLARATION OF CONFORMITY

Zumex reserves the right to modify the information contained in this manual without prior notice.

Important General Information

• The specific particulars about your Zumex juicer (voltage, frequency and other data of interest) are stated on the Identification Label on the machine itself.
• Remember that for any technical consultation you should get in touch with your usual Distributor/ Official Technical Assistance Service, always stating the Serial number of the machine's Identification Label.
• In Spain Zumex adopts the measures required to ensure that the machines put into the market are subject to selective collectiOon and have correct environmental management. Please get in touch with your authorised Zumex distributor to dispose of these machines correctly.
• If the power cable is damaged, it must be replaced by its manufacturer, by its after-sales service or by similar qualified personnel to avoid hazards.
• Before cleaning the machine or carrying out any maintenance, always unplug from the mains.
• This is not a toy, so prevent children from playing with the appliance.
• This appliance can be used by children over the age of 8 or older, if they are supervised or if they have received instructions relating to the safe use

of the appliance and they can understand the risks entailed. User cleaning and maintenance must not be carried out by children, unless sthey are 8 years of age or older and they are supervised. Keep the appliance and its cable out of reach of children under the age of 8.

- This appliance can be used by people with impaired physical, sensorial or mental capacities or who lack experience or knowledge, if they are supervised or have received adequate training with respect to the safe operation of the appliance and they understand the risks entailed.

- Do not spray the appliance with water to clean it.

- When you clean, perform maintenance or replace parts, make sure that you have always unplugged the power cable from the socket and it is visible.

- Use the cutting elements with great care, to avoid possible cuts.

- The parts that are in contact with food must be cleaned according to the instructions that you can read in the cleaning chapter.

- Do not manipulate the machine in such a way that it works without safety elements.

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments.

If you have any suggestion or comment to improve our machines or service network, please get in touch with Zumex directly at the address below:

ZUMEX GROUP, S.A.

Polígono Ind. Moncada III C/Molí 2. 46113 Moncada. Valencia. Spain.

Tel. [phone] Fax: [phone]

[e-mail] / www.zumex.com

Technical features

Performance 120 Kg/h - 1.8 L/min

Speed 3.500 rpm i 4.500 rpm

Power 870 W

Consumption 1.8 A

Voltage

220-240 V i 50/60 Hz

115 V i 60 Hz

Dimensions 29 x 50 x 51 cm i 12" x 19" x 20"

Net weight 15 Kg i 33 lb

Anti-humidity protection IPX1

Sound pressure level Less than 70 dB

Safety

Safety System and

thermal protection

Maximum fruit size 75 mm

General Description

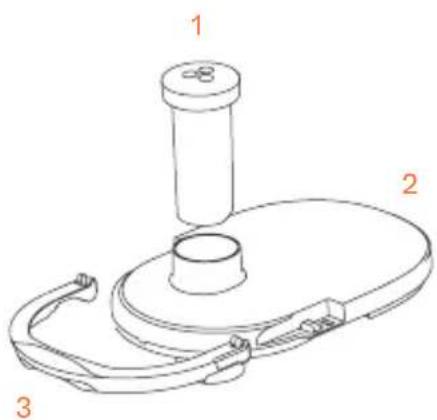

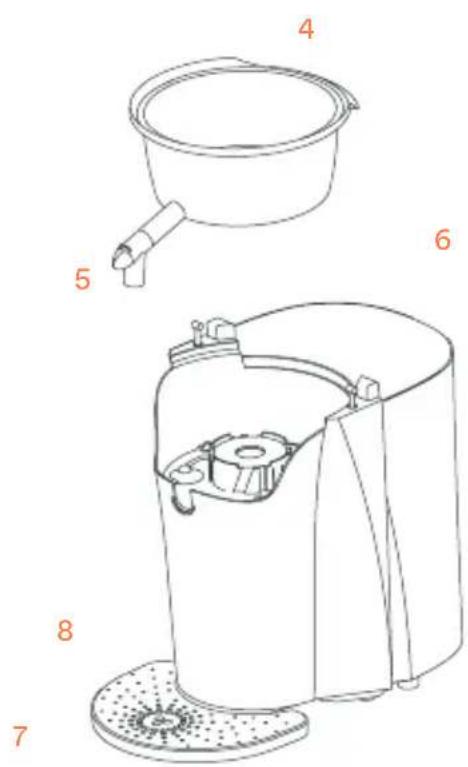

1 Pusher 5 Anti-drip Tap 9 Filter Driver Nut

2 Cover 6 Peel Bucket 10 Filter Driver

3 Locking Handle 7 Coaster 11 Filter

4 Stainless Steel Tank

8 Coaster Inox Trim

12 Grating Disk

Preparation

Setting up the juice extractor:

① Remove the packaging and place the juice extractor on a flat surface.
② Connect the supplied cord to the appliance and plug into a standardised earthed socket. Fig.1

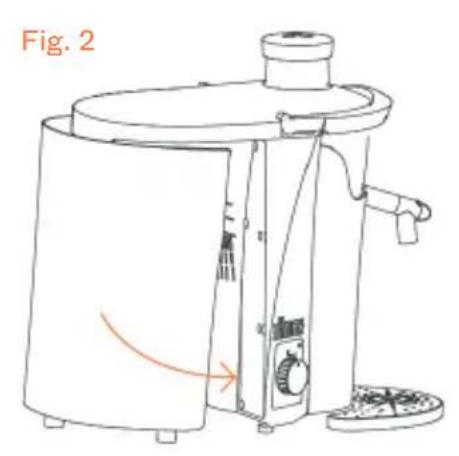

③ Place the peel bucket as shown in Fig.2. To keep the peel bucket from getting dirty, you can line it with a bin bag, leaving the top of the bag hanging over the edges of the container.
④ Check that all parts affected by the safety cut-offs are correctly positioned otherwise the safety cut-offs will stop the appliance from working.

Remember: Given that the diameter of the fruit feeding tube is 75 mm, larger fruits should be cut up into smaller pieces. When the pieces of fruit are very much smaller than the conduct's diameter, you may process several together.

Operation

Preparing the fruit and vegetables:

· Always wash fruit and vegetables before processing them.
- Peel fruits with inedible or thick skins, such as melons, mangoes or kiwis, before juicing.
- Stone large-stoned fruits, such as peaches, plums or cherries, before juicing.
- Given that the diameter of the fruit feeding tube is 75mm., larger fruits should be cut up into smaller pieces. When the pieces of fruit are very much smaller than the feeding tube is diameter, you may process several together.
- Before using the multi-juicer for the first time, we recommend cleaning it. See “Cleaning” section.

Operation

Simple icon showing a watermelon slice and a strawberry on a circular background (no text or symbols)

Soft fruits and vegetables

Two stylized carrots, one tall and one round, with a dotted number 2 in the top right corner (no text or symbols on the carrots themselves)

Hard fruits and vegetables

① Switch the machine on by putting the rear power switch on “I” (Fig 1). Place the waste bucket in the correct position, next to the rear of the machine. Take care! If your machine works at 115V and the LED flashes, the container has been placed incorrectly. Return to the “O” position and place the waste container on the rear wall of the blender. If the flashing continues, please get in contact with Technical Support (Fig 2).
② Place a container under the juice outlet and select the required speed (1 or 2). In order to get the highest performance, the speed 1 is the one for soft fruit (e.g. apples, pineapples, watermelon, strawberries, grapes). The speed 2 is perfect for hard fruit or vegetables such as carrots, broccoli, celery, beetroot, etc. Once you have selected the speed, the machine will start to operate and the LED will stay on. (Fig 3).

③ Insert the fruit in the tube and press it with the pusher. You'll get juice instantly.
④ To stop the machine, turn the switch to the position “0”. Remember that the machine will remain on stand-by until the rear power switch is “0” position.
⑤ To prevent the juice from dripping when not blending, activate the anti-drip tap by turning it 180^ (Fig 4).

NOTA: After the machine remains on “0” for a longtime, the internal cooling fan may start up and will make a quiet noise. This operation is completely normal.

If the locking handle is lifted or the peel bucket removed during operation, the appliance will automatically stop (for 115V machines only). The appliance will also not work if the cover and locking handle are assembled without fitting the stainless steel tank.

If there is a power cut whilst the appliance is running, it will not automatically start up again once the power comes back on. To start up the machine, put the selector and the rear power switch on the “O” position. After re-connecting it or restoring the electrical power supply, you must start up the switching on process, retuning to step 1.

To avoid accidents do not manipulate the machine in order to make it work without the security devices: handle, cover and peel bucket (for 115V machines only).

Attention! Whenever there is an emergency stop, once the problem is solved, you must put the speed selector on “O” and then select the required speed.

Attention! Whenever there is an emergency stop, once the problem is solved, you must put the speed selector on “O” and then select the required speed.

Cleaning

Zumex recommends cleaning the machine at least once or twice a day, depending on how much it is used in order to maintain optimal food hygiene conditions.

The following are the steps for correctly cleaning the juice extractor:

① Put the rear switch on "O" and disconnect the machine from the power supply, by pulling the plug (do no pull the cable).

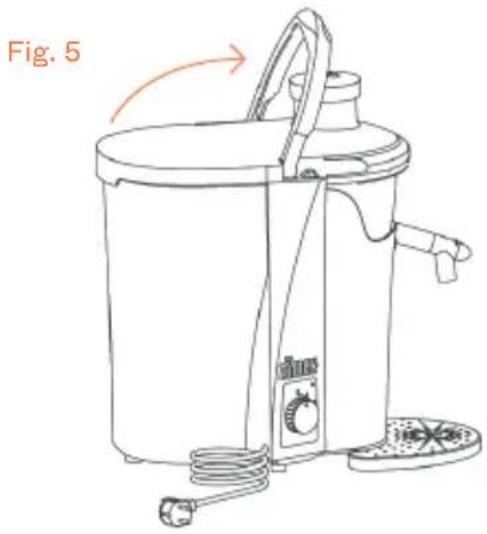

② Remove the handle lifting it up from the front.

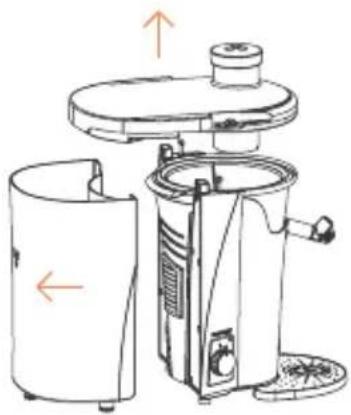

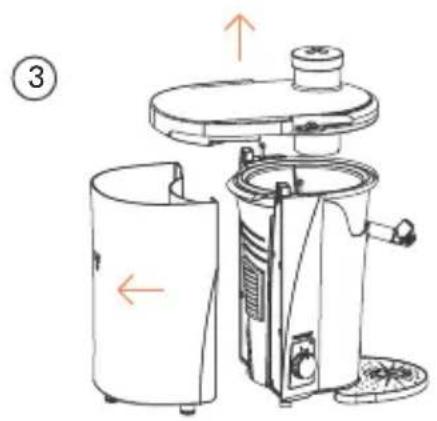

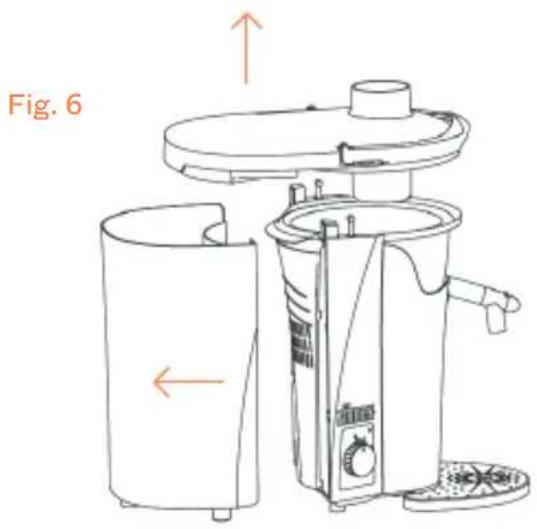

③ Remove the cover lifting it upwards and separate it from the peel bucket.

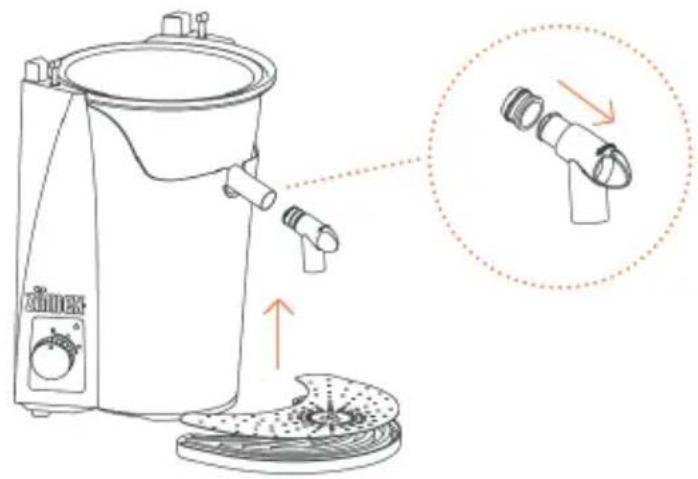

④ Dismantle the anti-drip tap and coaster.

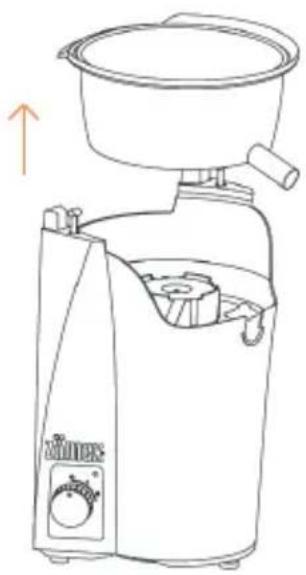

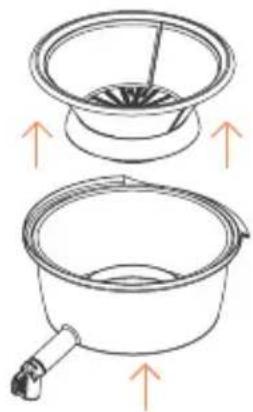

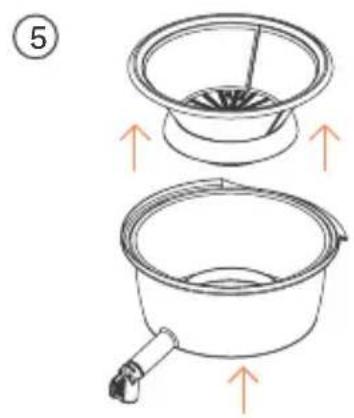

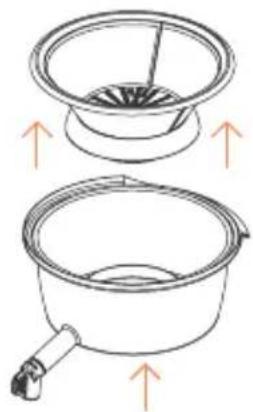

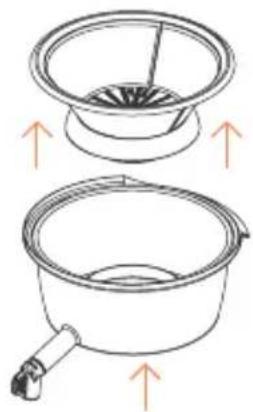

⑤ Dismantle the grater-filter and the stainless steel tank assembly, by pulling the bucket upwards, following which they should come apart easily.

Attention! Handle the grater-filter assembly carefully. Do not touch the sharp points of the grater as they could cut you.

1

Simple line drawing of a device with a door and two internal components (no text or symbols)

2

Simple line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

3

Line drawing of a small electric shaver with open lid and side panel, showing internal components and airflow direction (no text or symbols)

4

Diagram showing a device interacting with a curved surface, with arrows indicating motion or force (no text or symbols)

5

Two technical line drawings of a bowl with a filter and handle, showing top and side views (no text or symbols)

!

6

7

Line drawing of a hand operating a portable kitchen appliance with a fan and lid (no text or symbols)

8

Line drawing of a portable kitchen appliance with a hand pointing to the side panel (no text or symbols)

⑨

Line drawing of a food blender with open lid and side ports, showing internal components and directional arrows (no text or symbols)

10

Line drawing of a manual coffee maker with a funnel and side-mounted stand (no text or symbols)

11

Exploded view diagram of a kitchen sink with fan and lid (no text or labels)

⑥ All these components are dishwasher safe. If pulp has dried on any component, we recommend you soak it in water and soap suitable for tableware until the pulp softens, after which it can be washed in the dishwasher.

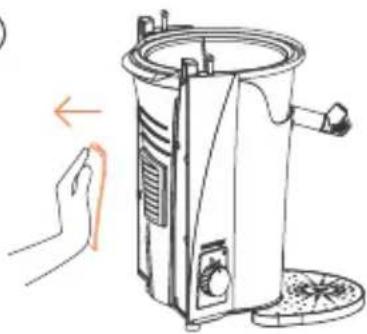

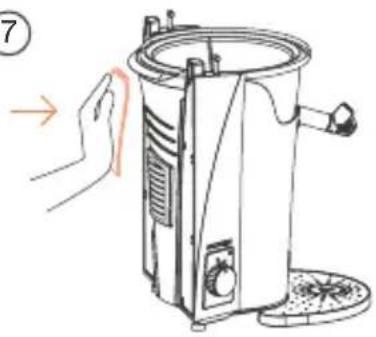

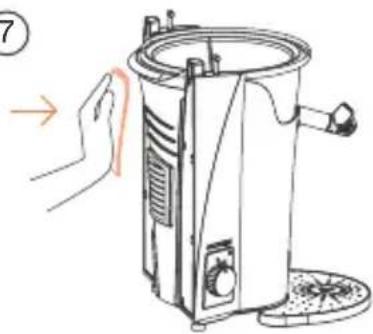

⑦ Clean the outside of the appliance (motor housing) and the rubber areas that support the stainless steel tank, using a wet wipe.

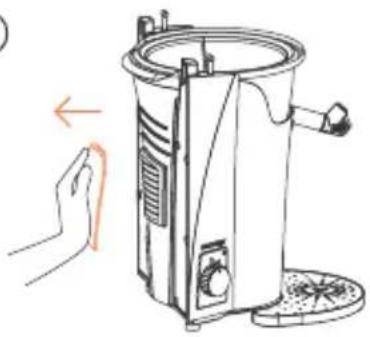

⑧ Afterwards, rinse with a damp cloth and clean water to remove all traces of soap.

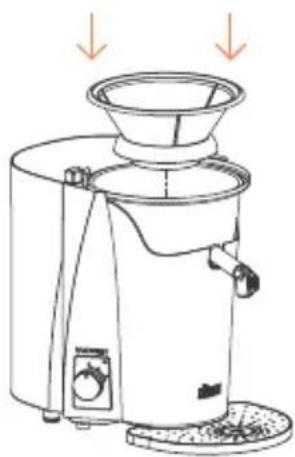

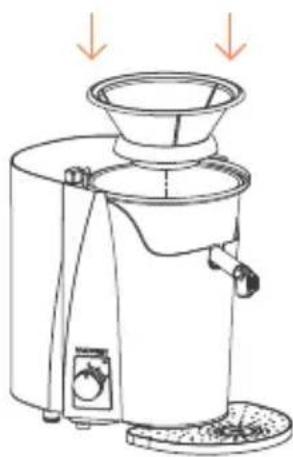

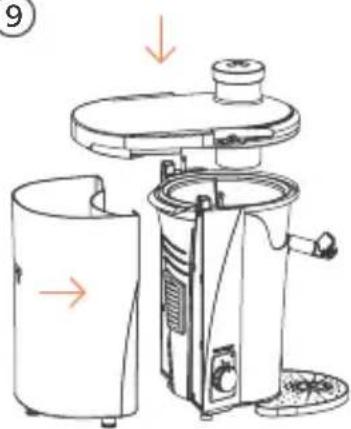

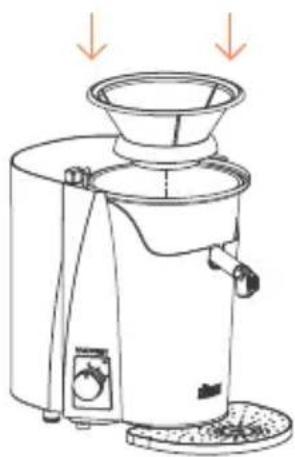

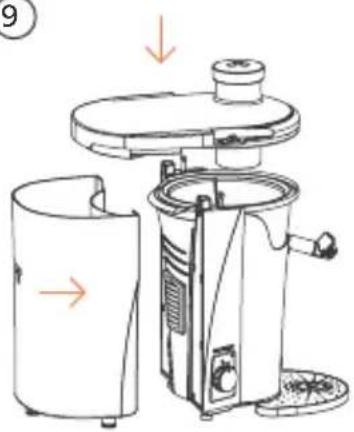

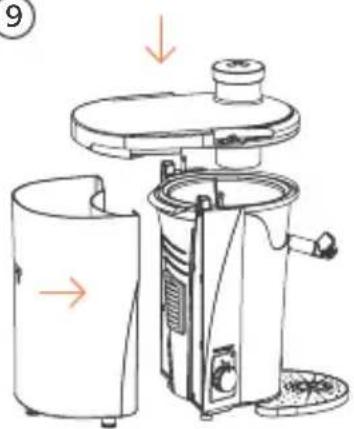

When putting the grater-filter back, make sure it is correctly mounted, pushing it down firmly as far as it will go.
It is recommended to take appart the grating disk from the filter for an in depth cleaning procedure.
It is recommended to take appart the grating disk from the filter for an in depth cleaning procedure. To assemble, we recommend tightening the nut firmly help if needed with a spanner.

ATTENTION

To avoid dry pulp accumulating between uses, thus making cleaning more complicated, pour a jug of water through the fruit input opening with the appliance still running. This procedure can also be used to prevent flavours mixing when processing different fruits.

Accessories

What needs does your business have?

Technical line drawing of a mechanical device with internal components and directional arrows indicating assembly (no text or symbols)

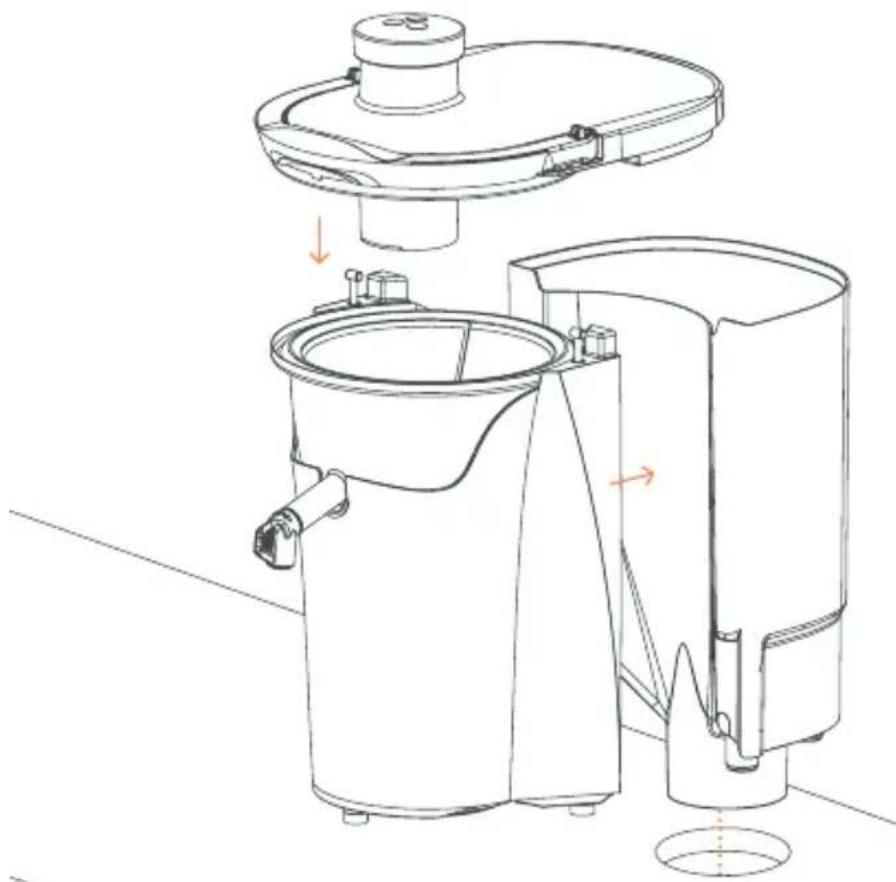

COUNTERTOP KIT

With the intensive use Countertop Kit, you will be able to continuously remove waste, without having to empty the bin. This makes is easier to use your multi-juicer and also offers greater autonomy.

Recipes

Multifruit recipes

Discover all the available recipes. Combine fruit and vegetables to obtain energy, antioxidant, detox cocktails, etc. Let your imagination fly and discover new cocktails, full of colour and flavour.

Six different ZUMEX brand juice wafers in red, silver, black, and silver colors, displayed against a white background (no text or symbols visible on the products themselves).

Discover the Multifruit recipe book

at www.zumex.com

Detecting faults and problems

FAULT POSSIBLE CAUSE CORRECTIVE MEASURE

	The machine is unplugged	Connect the machine to the power supply
	No power reaches the plug	Check the plug
THE MACHINE IS NOT WORKING. LED OFF	The fuse has blown	Replace (the machine includes a spare one next to the first one). Figure 1 detail
	The cover is not placed correctly	Make sure that it is placed correctly
	The handle is not placed correctly	Make sure that it is placed correctly
	Internal damage	Please contact Technical Support
THE MACHINE DOESN'T WORK THE LED IS FLASHING. (for 115V machines only)	The waste bucket is separated from the machine body	Put the waste bucket next to the machine, in the correct position
	Internal damage	Please contact Technical Support

FAULT POSSIBLE CAUSE CORRECTIVE MEASURE

THE MACHINE WORKS BUT THE LED IS OFF	Anomaly inside the machine	Please contact Technical Support
THE MACHINE OFTEN GETS BLOCKED WHEN JUICING	Not enough voltage	Check that the voltage is the one stated in the manual
THE MACHINE VIBRATES A LOT WHEN JUICING	Unbalanced filter because of the fruit	Disassemble the filter and clean it
THE JUICE HAS TOO MUCH PULP	The cover is full of waste	Disassemble the cover and clean it
	Blending soft fruit on speed 2	Use speed 1 for soft fruit and speed 2 for hard fruit
THE ANTI-DRIP OUTLET GETS OBSTRUCTED	The juice has pips or too much pulp	Remove the anti-drip and clean it.Use speed 1 for soft fruit and speed 2 for hard fruit

IMPORTANT

Always unplug the appliance from the power supply before carrying out any operations to unblock it or remove any obstructions. If, after following the troubleshooting advice contained in this manual, the appliance still does not work, contact the Technical Support Service.

ZUMEX SERVICE Tel. [phone] · [e-mail]
