Speed - Juicer Zumex - Free user manual and instructions

Product Type	Professional juice extractor
Brand	Zumex
Model	Speed (Pro, Up, S+plus series)
Weight	66.3 to 133 kg depending on model
Dimensions (W x D x H)	593 x 584 x 980 mm to 810 x 709 x 1775 mm depending on model
Power supply voltage	100 V, 120 V or 220-240 V (50-60 Hz)
Power	320 W to 560 W depending on model
Current consumption	2 A to 4.87 A depending on model
Hopper capacity	20 kg (44 lb)
Compatible fruits	Oranges, mandarins, lemons, grapefruits
Fruit size	65-81 mm (45-67 mm with S kit)
Oranges per minute	36 to 43 depending on model
Noise level	Less than 70 dB(A)
Protection rating	IPX4
Materials	Stainless steel and food-grade plastic
Operating modes	Automatic, professional, manual
Main functions	Orange counter, waste level alarm, automatic PulpOut system, free-flow tap, automatic filling (models with tank)
Maintenance and cleaning	Plastic parts dishwasher-safe; daily cleaning recommended with Zumex Citric Active detergent; weekly deep cleaning
Safety	Lid and bin detection; automatic stop in case of error; overcurrent protection; wheel locking (podium)
Spare parts and repairability	1Step extraction kit, S/L kits, covers, DCS system, etc.; serial number required for after-sales service
General information	Contact: Zumex Group, Poligono Ind. Moncada III, Spain; [phone]; [e-mail]

Frequently Asked Questions - Speed Zumex

What types of fruit can I juice with the Zumex Speed?

The Zumex Speed is designed to juice standard-sized citrus fruits: oranges, mandarins, lemons, and grapefruits. Fruits must have a diameter between 65 and 81 mm (45 to 67 mm with the optional S kit).

How to clean the machine after use?

First unplug the machine. Remove the side outlets, lid, blades, drums, and bins. All plastic parts are dishwasher-safe (except the Cooler tank). Stainless steel parts should be hand washed. For deep cleaning, use Zumex Citric Active detergent.

How to change the operating mode (automatic/professional)?

Press the Mode button for a few seconds to switch between Automatic and Professional modes. In automatic mode, the machine runs continuously. In professional mode, you program the number of oranges or desired juice volume.

What to do if the machine displays error '01 Lid'?

Error '01 Lid' means the lid is not detected. Check that the lid is properly engaged, the side outlets are in place, and the safety magnet is present. If the problem persists, check the cable connections and the lid detector.

How to adjust the orange counter for accurate counting?

Go to MENU > 5. Calibration > 2. Offset. If the machine does not count all oranges, decrease the Offset value. If it counts too many, increase it. Exit the menu and test the counting empty then with 2-3 oranges.

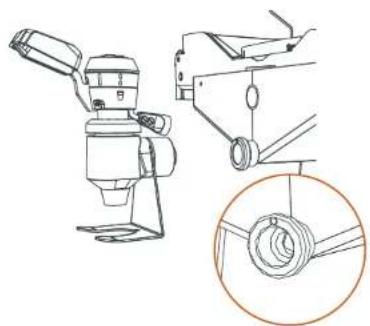

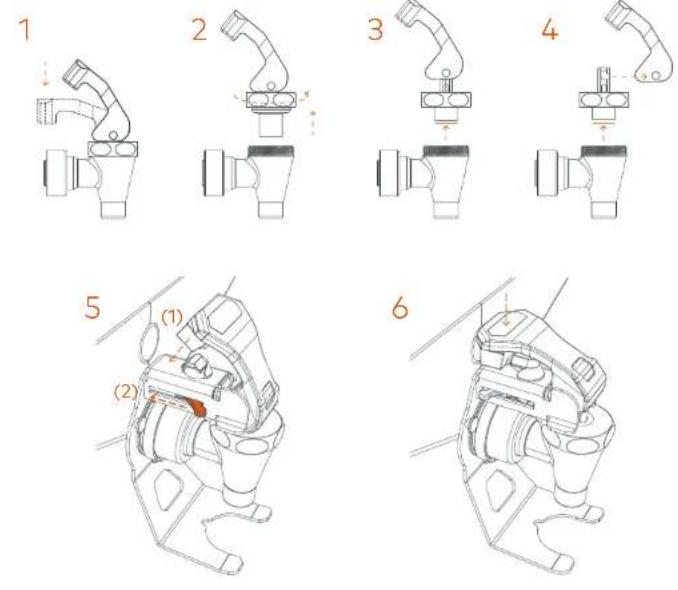

How to use the tap in free-flow mode?

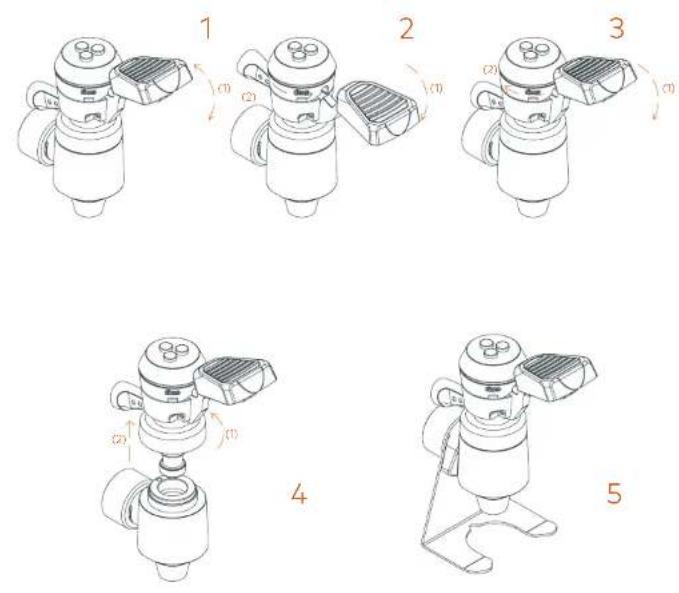

For the S+plus tap (44+), turn the ring with continuous/dashed lines until the continuous line faces the glass icon, then release the push button. For the Up tap (44U), press the push button and move the metal pin to the side to lock it.

What accessories are available for the Zumex Speed?

You can add the 1Step Kit for quick disassembly, S/L kits for juicing different fruit sizes, the DCS system for ripe or immature citrus fruits, a cover, a 2-position tray, a bottle holder, and many others. Check the Zumex website for compatibility.

How to activate the waste level alarm?

In the MENU, select 5. Waste level. Activate the alarm and set the number of oranges after which the machine will stop. Once this number is reached, the screen displays a warning. To deactivate the alarm, press and hold OK until you hear a double beep.

The machine does not start, what to check?

Ensure that the lid and bin are correctly installed (the safety detectors must be active). Check that the power cord is plugged in and the voltage matches the nameplate. In automatic mode, the tap must be open. If the error persists, consult the troubleshooting table in the manual.

Where can I find the serial number of my machine?

The serial number is on the nameplate located on the machine. It is essential for any technical support or spare parts order. Write it down and keep it safe.

USER MANUAL Speed Zumex

Technical line drawing of a mechanical assembly with no visible text or symbols

Speed S +plus

ENGLISH. USER'S MANUAL 36

ESPAÑOL. MANUAL DE USUARIO 74

FRANÇAIS. MANUEL DE L'UTILISATEUR 112

Drawing and description

SS: Self Service / Self Service All In One. Tank: Tank All In One. Cooler: Cooler Podium.

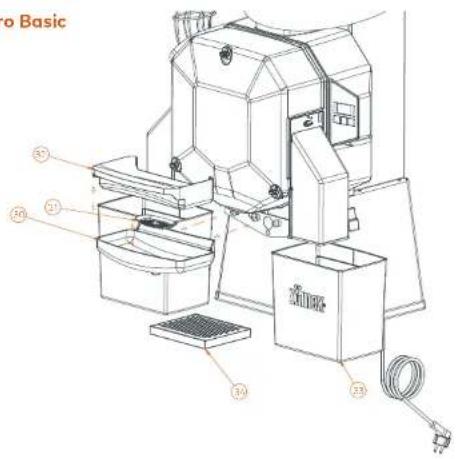

Speed Pro Basic
Fig. 2

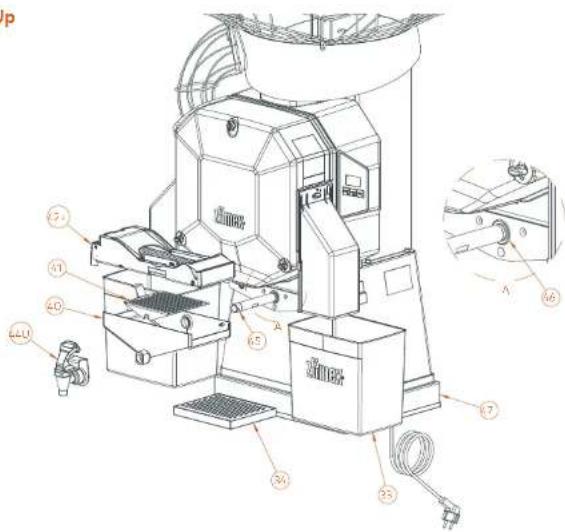

Speed Up
Fig. 3U

Z

24.	PLASTIC BANDE CONTAINER	CORRETE ZAVOTALENTICO	BAC A BAS IN PLASTINARE	SANTIBAL TIER KUMSTOFF	VANGHITA S. COLD PLASTICA
31.	PUSCO BIGGIO BIGGIO	F. LUCIO BIGGIO PENSIONI	F. LE MUNICIPERA E VASILIOS	VANIE MUNICIPERA	L. F. MUNICIPERA PLASTICA
32.	PUSCO BIGGIO BIGGIO	F. LUCIO BIGGIO PENSIONI	F. LE MUNICIPERA E VASILIOS	SANTIBAL TIER KUMSTOFF	L. F. MUNICIPERA PLASTICA
33.	PEB. JUROSET	CORRETE CONTELS	BAC A CHAPES	SOLEMMENGLER	VANGHITA SLICE
34.	DRP. TRAV	BANDELA GATED	BAC AUTOMUTTES	TRAPARAMONABLE	VANGHITA SLICE PLASTICA

Z

93	PEEL, BREAD	GREEN COFFEE	BACI DECHES	BACHANA BARRICKER	VANESSA BRUCE
94	EXP TAW	BASCO GUSTED	BACI GUSTEES	TIMBERGAL FRANCISSE	VANESSA BARACKER, JOSE
6/2	SELLS, CNT BANKINI	CORN ROLLINI	LOCE LEAVES	SOYA CHAPAYA	AVOCADO BASIN, ROSSUE
6/3	BATHWA SA	BATHWA SA	COLTIC COLTIC	AVOCADO BASIN, JOHN	BATHWA SA
7	AUTOMATISTA PEREIRA SOCIAL	BUTOMATISTA AUTOMATICO	SOCIETE MUNICIPAL AUTOMATICO	AUTOMATISTA PEREIRA SOCIAL SYSTEM	AUTOMATISTA PEREIRA AUTOMATICO
4/1	FRY PAN	FRY PAN	FETA CHEESE	FRY PAN	FRY PAN
8	ENVERITARIO MORE	TORTIS FERTIROSIO GUSTE	LEMON DUTTER	LEMON DUTTER	LEMON DUTTER
6	DEBTION TURRISE GRAPET	JANTU TURRISE GUSTE	JERRY TUBE DETECTURE	JERRY BASIN, NOODISH	JERRY BASIN, NOODISH
9	RADISHI E SUPPLEMENT	EL PEDESTRO MACARENA	ACCUMBERIE DE LAURA MAZARE	GRANDER MARQUES, VARGARIE	SPRINGANDRA TUCCHINA

广力云

	2017	2016
Costs per share:
Cost of sales	0.45	0.43
Rate of sales	3.9%	3.8%

[Non-Text]

	2017	2016
Costs per share:
Cost of sales	0.45	0.43
Rate of sales	3.9%	3.8%

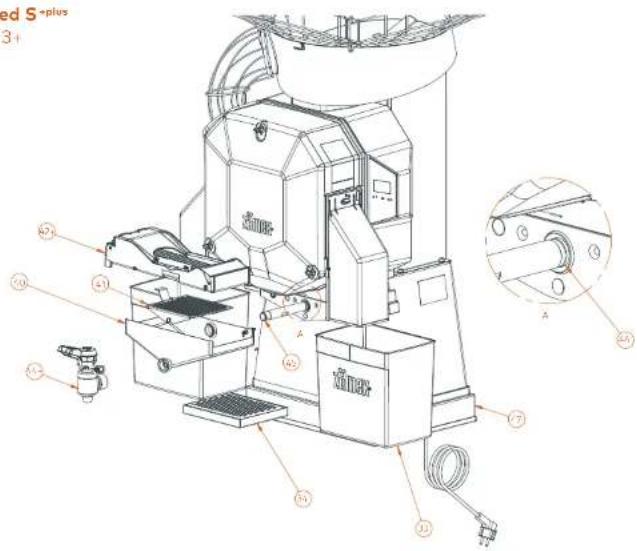

Speed S+plus
Fig. 3

EN	ES	FR	DE	IT
A-2	AUTOMATIC PULFOUT SYSTEM	SYSTEM/PULFOUT AUTOMATIC	SYSTEM/PULFOUT AUTOMATIC	SYSTEM/PULFOUT AUTOMATIC
A-4	BSS-AFLS-DP	BFFO B5-FUS	FULLTOS-S-FUS	BHHAN-S-FUS

Speed Up All-in-One
Fig. 4U

EN	ES	FR	DE	SALABOR	POT. (MM)
401	SS, LICE CONTAINER	CUESTO ZUMBO ES	BAC AUS ES	SS SAFETYWATER	MASCETTA BUMBO ES
401	DISH RED TUBE	SUPEREO ES	GARL FUTTE ES	INTERFINGER	SOTTER FUTTE ES
402	JIMIKANDER TEM METROPOLI	KONKINI PROCES DE COVID	VOCHE MERRY TOMATO	AVOCHE MERRY TOMATO	RICH COULIFLOWER
403	SOYA VILL	CHINA SOYA	TOMATO	SOA MELLY	AVOCHE MELLY
404	TOP DETECTOR TUBE	THAI'S DETECTOR DE GARCIO	TUBE DETECTOR DE MELLY MORRIST	SEASWARIER GREEN	TUBO SEASWARIER DE FABRICIO
405	TOP DETECTOR TUBE BASAT	BHANA THYME DE SCOTATE	TUBE YELLOW DE COLDEN	LEMON LEAVEN PARATHA	CAULIFLOWER THYME BASAT
901	PAPICUM	POKUM LT	POKUM LT	POKUM LT	POKUM LT

EN	ES	FR	DE	IT
54	GENTHENSIC PLET SYSTEM	SCHINAS FOR POINT GENTHENSIC	SCHINAS FOR PEACH, MOUNTING	MOUNTING PLET (MOLEC)
44	3201 WITH 1W	GENTHENSIC PLUS	GENTHENSIC PLUS	GENTHENSIC PLUS
974	SSPOTOMICS PLUS	POTOMICS PLUS	POTOMICS PLUS	POTOMICS PLUS

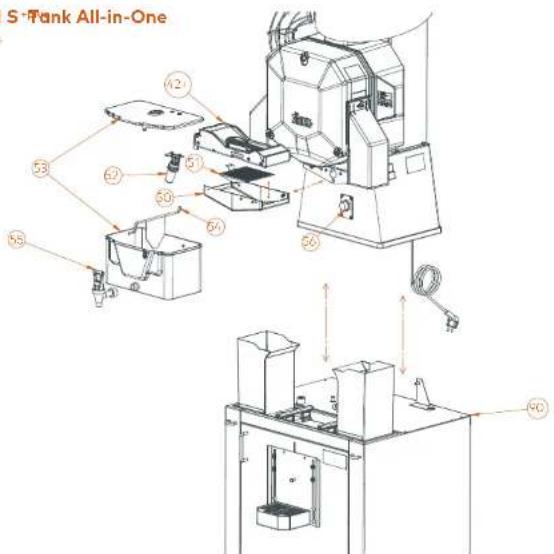

Speed S+Tank All-in-One
Fig. 5+

EN		ES	FR	DE	PART
42A	AUTOVATO PULPOUT SYSTEM	S EBTEND PULPOUT AUTOMATIVO	SISTENTE PULPOUT AUTOMATIOLE	AUTOMATOCHEB PULPOUT SYSTEM	SISTEMA PULPOUT AUTOMATIVO
50	THICK LOISE COOLICATOR	CUCERA CACO TANK	BACK AUX BANK	EARTH BANET TANK	ARREGENTA BLOOD BANK
5	THICK SUB FILTER	ECL. ETR. TANK	SOYA FELTE BANK	UNITER TANK	EDITOR CNT BANK
70	THICK COOLER KEY	ECP. FINIC COOLER	FUCTTEN CHAMCOOLER	COMMUNES CHAMCOOLER	DALEMMATE CHAMCOOLER
31	LPG	GUR	JNK	JNK	JNK
32	SPRING	ACTUROCH	METHIABETH	BHINDIA TECH	KATHIBETH
33	DOCK TWP	SARO TANK	ROBERT BANK	HAWK BANK	RAMENTTO BANK
36	LEVEL DETECTOR	DETCCTOR DE MIGEL	DETECTOR DE IN WHAP	FULLERTAINENDER	EVEGETED LEVEL
90	STOCK LONDON	PUMBER SHAKMAN	PEACH ROCKET BANK	PUBBO CHART BANK	PUBBO CHART BANK

Fig. 6

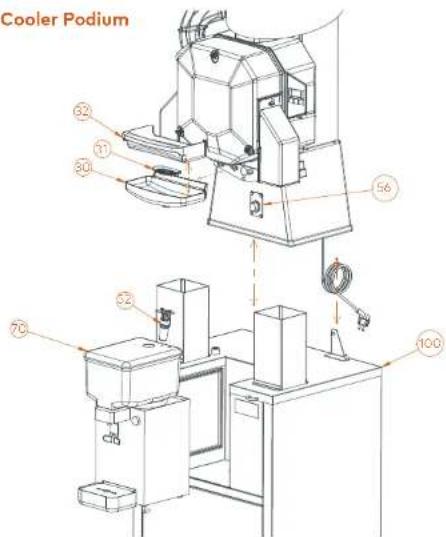

Speed Pro Cooler Podium

Drain&Clean
Fig. 7.1

20	PLASTIC JUICE CONTAINER
31	FLASHIC VOLTAGE
32	FLASHIC JUICE FILTER
51	THICK/COOLER BUCK
56	LEVEL DETECTOR
70	COOLERINT
100	COOLER PEELEN

CUESTA ZUNO PLASTICO

F. CHIL MIGUEL PLASTICO

F. CHIL ZUNO PLASTICO

BOTUM COOLER

DETECTOR DE NIVEL

DOLI ARTO EXTRACOR

PUEZ MOOLER

BAC A JUS EN FLASTIQUE

FLORE MULIEU ETTE M. PAVOCN

FLUCHE A USEN PLASTIQUE

FLUCTEUR TANKCOOLER

DETECTEUR DE MEAU

ENSIBLE REPROCESSED

PRED MOODIER

SNFTBHALTER KOMSTOCK

PUMBER TURBOGIGSIC

SNFTLTER KOMSTOCK

SCCHWINDER TANCOOLER

FULLSTANDESEOR

KU-LEHNET

PONION COOLER

VASCHETTA ELOCO PLASTICA

FELIXE MUNICOLPLASTICA

FELIXE ELOCO PLASTICA

GALLEGGANITE TANKYODOLER

SENSORED LIVELLO

SISTENA RETROZIGANTE

PUMULIO DOOLER

NO.10	REDEN WITH DRAWN	ALVEYCADOR CROSSAGE
NO.17	SELLER WM	TURBO ONION INCH
NO.23	RICH COOK?	GARANTICUM ME IN CH
NO.4	ROSE	TBD FLEXIBLE
NO.5	INNER STANC COVER	TAXTER PER MUEBLE
NO.6	FUSTO REDGING 1900	VOLUATE PLASTICO
NO.7	TUBE SH	BHATON JOHN
NO.8	BRUSH	OFFICE

	DISTRIBUTEUR MTC NIVANISE
	TIME 15 NOVA 1800
	101 LIME ME 201 2000
	TIME FLEXIBLE
	PLAQUE INTÉFICUE VELEUE
	EXPOU PARILON EXPLASTICUL
	TIME 1000
	BRIGSEE

	DECHUNG MIT AMLF
	ANNUAL SOG KONSO H
	VITTEL GROEL
	SOHUAXH
	TANDEBODEL INTERSO-BACK
	SO-ER-STISSONARBE KUSTSTOFF
	KUMMITON
	BÖSTE

ALVEATTORE GONORIO

TLED COLDING RED

F. ZIONE METALICA

TLED FLUORELLE

COPEROCHO INTERNO VIOBLE

VITE DI EOGUREZZA PLASTICA

TUBI MHI

SPRIZZOLA

Drain&Clean
Fig. 7.2

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

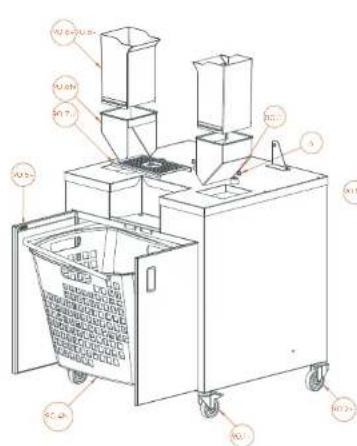

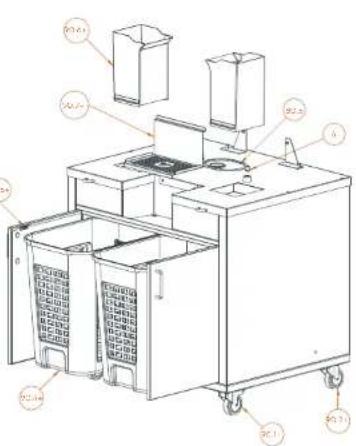

Podium (Speed S +plus Tank All-in-One)
Fig. 8

EN
ES
的

SCHER-ETTSCHENKULDE SPINZCHGALNOSTEIC

LINTUROKUMIKELD. 2017A

SCHWABBRELLY 2018 BIS

SCHWABBRELLY CHINE BRENGE

TRICHTERUTERSCHALK

ABELLANLEY

BHATWAJNEK USTAWSS

SCHALEMANSTRIT

FILTERUTERSCHALKS

BHADERHUMBOH TANK

PROVEJENDE TABLET

FILTER TABLET

上

#2	PLASTIC RECURRING MASTER	VOLVER/PLASTIC RECURRING	DERMUM RELIVER, PLASTIC RECURRING	SCHERI-ETRIGER/RECURRING METROPICAL MOTOR
NO.5	SOYA CHAPAYA CHEESE	OXY MELLOUS CHEESE	PLACAR CHEESE SYSTEM	LENTINOIS/VEGETABLE CHEESE
NO.1	KANSY ZONE WITH COATING	REDISH CABBAGE SWITCH	RICH COATING PROCESSED	SMALL SHEET (700 Litter)
NO.4	GREEN ZONE WITH COATING	REDISH CHEESE SWITCH	RICH COATING PROCESSED	SMALL SHEET (700 Litter)
NO.3	STRAWBERRY	TICKY YELLOW	ENTONIO VEHICLE	TRAVEL CHEESE CHEESE
NO.4	MASSACH GREEN	CARROT YELLOW	ATTRIBUTIC CHEESE	TRAVEL CHEESE
NO.5	WHITE BHAJI	BHATWA GREEN	CAPRIFIC ACCIDENTE	ASSEMBLIC CHEESE
NO.5	GREEN ZONE MEAT	BHATWA GREEN	AMOUNT BEANS SHEET	TORTILLA CHEESE
NO.6	FUEL CHEESE	GARANT CHEESE	BEANS SHEET	TORTILLA CHEESE
NO.7	COLLA CHEESE	FLUTTO YELLOW	PETE MELLOPE BOX	WATERMETHAN CHEESE
NO.8	REDISH ZONE	REDISH ZONE	RICH COATING PROCESSED	TORTILLA CHEESE
NO.8	TAWA CHINE	FORTIS BEANS	PLASURE LINE BING	BOTTLE MELLOPE TAINT
NO.9	TAWA ZONE	FLUTTO BANANA	FUTURE BING	TORTILLA CHEESE

Podium Mirror (Narrow / Wide)
Fig. 8.1

Podium Black (Narrow / Wide)
Fig. 8.2

名

A.	PLASTIC DEREGRINCH PARMI	VOLANTE PLASTICAN AMBOCOM	BROCHY, PUPILITAM PLASTICOLE BUSTINTY	SANSHERHEIT-DRUG-HALVE-SPARE-DRUG-HARBERGISTIGTSTOFF	WATERMELONZA FUNDAY-GNEEHE
PO.5	POTATO CHINESE LIMEKINI	HIVI COLDLELLA MILEKINI	KARELLA MILEKINI	JUMIK KARELLA LEAVES, SANTHA	KARELLA MILEKINI, JUSHAW
PO.1	SANTHA, LIMEKINI, SANTHARI	LAD GUCERTINATO CORNIE MA	KARELLA MILEKINI, KARELLA	KARELLA MILEKINI, KARELLA MILEKINI	KARELLA MILEKINI, KARELLA MILEKINI
PO.2	SANTHA, LIMEKINI, SANTHARI	LE KARELLA MILEKINI, SANTHARI	KARELLA MILEKINI, KARELLA MILEKINI	KARELLA MILEKINI, LIMEKINI, KARELLA MILEKINI	KARELLA MILEKINI, KARELLA MILEKINI
PO.4	MAGLI EMB	CARROTES REDOSO	KARELLA MILEKINI	KARELLA MILEKINI	CARROTES REDOSO
PO.6	MAGLI EMB	CARROTES REDOSO	KARELLA MILEKINI	KARELLA MILEKINI	CARROTES REDOSO
PO.9	MASCENTAL RESOURT	COCOLO ANDER FOR CO	KARELLA MILEKINI	KARELLA MILEKINI	COCOLO ANDER FOR CO
PO.10	FELL OUTLET	COCOLO ANDER FOR CO	KARELLA MILEKINI	KARELLA MILEKINI	FELL OUTLET
PO.10	FELL OUTLET	COCOLO ANDER FOR CO	KARELLA MILEKINI	KARELLA MILEKINI	FELL OUTLET
PO.11	TOMPO GONION TRAVEL	BAS DE LA ZUCIO COMES	KARELLA MILEKINI	KARELLA MILEKINI	TOMPO GONION TRAVEL

N

26.	PLASTIC GOURNICUM KAREL	KANUATE PLASTIC VINCUSCU	EKARIA PARILLO PLANTINONE GUSTION	BCHER-BETHOMATO PERFESSIONAL MOUNTED OF	VELEZUCY/SPARTA MEDICINE
70.5	SANCHE MERRY CORN	SANS MAUL BHAJI-CA	PAALE LEAVES LEAVES	LEAVES LEAVES LEAVES	COCONCHOI & CHEMICALS
90.35	SANSO ZONE & GREEN CHINESE	DAVANI TANGLI KATANG SHOU	WALOR CHINA CHINA CHINA	SANSO ZONE & GREEN CHINA	RICHINI CHEMICALS CHEMICALS
90.24	SANSO CHEESE, CHEMICAL CHEMICAL	REDISH COLDING & FLOW DO	SHAO CHINA CHINA CHINA	SANSO CHEESE & CHEMICAL CHEMICALS	RICHINI CHEMICALS CHEMICALS CHEMICALS
90.44	MAGATE STEM	CARROTTE RUBIO, INC	BHARUT & ADOHETE	AFFILIATION	CARFIELD SCARP
90.42	MAGATE STEM	CARROTTE RUBIO, INC	BHARUT & ADOHETE	AFFILIATION	CARFIELD SCARP
90.54	BROCCOLON ENERGY	BROWN COOLING POWER	GAROT & COOLING POWER	TORTILLA CHEMICALS CHEMICALS	CORIANDER CONSTRUCTION
90.61	FUEL CHEESE	GARMA CHEESE	WALOR CHEESE 26S-SPES	SAILWAY CHEMICALS	CHEMICALS CHEMICALS
90.65	FUEL OUTLET	GARLA CORTEZAS	ROSSEME CHEMICALS CHEMICALS	SAILWAY CHEMICALS	CANOVOCOBE
90.73	FRUWATER	FLAWA SHAKEDA	FETA BAG	FILTER SCARP	TRIPHARON CHEMICAL

DE

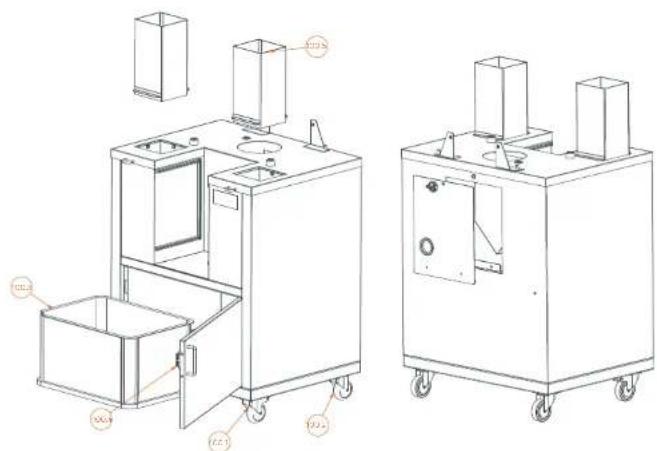

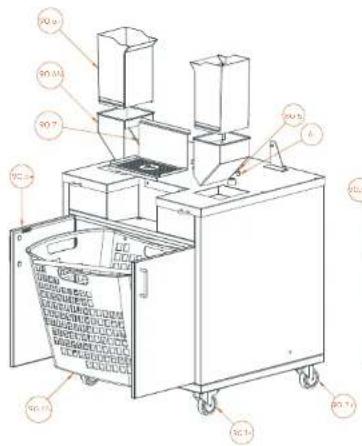

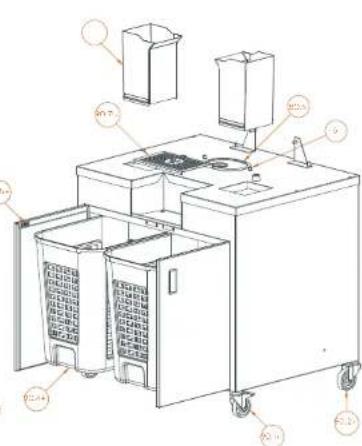

Podium (Speed Pro Cooler)

Fig. 9.1-9.2

Fig. 10.1

Line drawing of a mechanical or architectural structure with no visible text, numbers, or symbols

2

Technical line drawing of two identical mechanical components with mounting holes and a separate view below (no text or symbols)

3

Technical line drawing of a mechanical device with no visible text or symbols

EN	S. NO	DATE	ORDER	REV.	DE	LT
1001	FULL TUBELLI WITH BRUCE	RICH COVATION CONFIRM	BALD TOWNSHATE RATS FROM	SOVERMELLENT REFLEX	BENTA GREEN COFFERED	BENTA GREEN COFFERED
1002	FULL STOLLI WITH ELIZABE	RICH COVATION CORNOLY (TO BOC)	BALD COVINATION CORNOLY (TO BOC)	SOVERMELLENT OF THE MOUNT	BENTA GREEN COFFERED	BENTA GREEN COFFERED
1003	FULL VEGET	ONION CHEESE	SAC CA CHETES	SOY ZUMBER	BEETROOT REDUCE	BEETROOT REDUCE
1004	SHORT DOG MEAT	PANEER CHEESE & CREAM	AMUL CHEESE & CHEESE	WHOLE SHEET CORNOLY	GREEN ZUCCHINI PROCESSED	GREEN ZUCCHINI PROCESSED
1005	FULL CHEESE	PANEER CHEESE	RICH COVE LIME	SOYA BHAJI	CAULIFLOWER	CAULIFLOWER

Fig. 10.2

Fig. 11

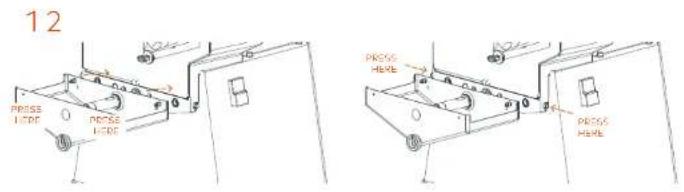

Fig. 12

Fig. 13.1

Technical line drawings of mechanical components, showing two views (1 and 2) with no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

3

Fig. 13.2

3

Fig. 14.1+

Line drawing of a manual cutting machine (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a coiled spring (no text or symbols present)

Fig. 14.2+

Fig. 15

Technical line drawing of a mechanical assembly with mounting bracket and housing (no text or symbols)

Fig. 16

Fig. 17.1-17.2

Technical line drawing of a mechanical device with wheels and control panel (no text or symbols)

Fig. 18

EN

#4	TAXA COOLER LUXRY	BOWE CABBOLER	FLOCTURE TABBOLDER	SCYMMENEG YAMCOOLER	GULBERNTE TAN WOODLER
21.1	TAXA OXTER	TORI BISCH	ODONALIE PERIBITOR	DECKEL SAPHERINGER	DIFFER MACHADO
20.2	SPARELLA PLATE	PLACA DE BANASHE	PLACIE PERVEGETOR	BETTERBOLSE PATTTE	PASTION ON ARTICO
20.3	TAY POTATO	POTATO CHAP	POTATO CHAP	KATHUA KATH	KATHUA KATHUA
20.4	TAY BASERT	JUSNY GRUPO	JUSNY CORNE	CONTINUO PAH	GUANG ZONE MARRETO

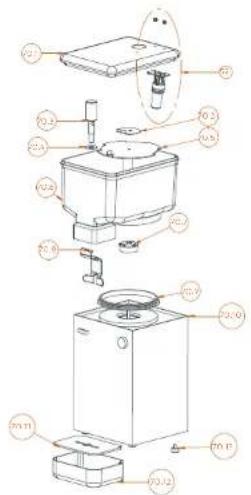

20.5	WATER CHAP	WATER CHAP	WATER CHAP	SILLIAM PANI	KUKUZUKUZ KUKUZ
20.6	TAKE	THYBHIN	THYBHIN	LEMON	SAHCHO
20.7	KAFY THYME	TURBANI SHAKA	TURBANI POUTE	TURBANI POUTE	TURBANI POUTE
20.8	TAY CONTAINER LEVER	PALARCA SAUDIK GRUPO	TRIFETORE COMANCE FORMET	HAWARTES SALVARELL	LENA COMANDRA LEAVETTO
20.9	TAY GABRIE	JUCY GUSTOTO	JUCY GREENER	CONTINUO GREENER	GUANG ZONE SECRECUM
20.10	TAY HUNT	RICHARD BARBARA	MINT TURBANI GREEN	GLY CORNER	SANTANA BHAJI
20.11	TAY SPACING	RELLA CASSA	SELLER EAT	SPECTRIGER	GRAVE ANCHUTTA
20.12	DRIP TRAVY	GACUROSOSS SODISH	BAC AUSTRUMENTS A	TRAVROPERUM SAVER	VANGUETA FACCELLANEO
20.13	LENGITATION POINT	PE NOILATOR	UNICE PEAGLAMETER	WELLERSPEE	PEAKLE LEVELS

ES
FR
DE
七

Fig. 19+
1

Technical line drawing of mechanical components and assemblies (no text or symbols)

[Non-Text]

Technical line drawing of a mechanical assembly with no visible text or symbols

3

Technical line drawing of a mechanical assembly with no visible text or symbols

∠

Technical line drawing of a mechanical assembly with no visible text or symbols

Z

19.3+	FRONTHOLDERS
19.2+	REACHOLDER

ES

SOPORTE DE ANTRO

SOPORTE TRASERIO

FR

SUPPORT SAINT

SUPPORT ARSHORE

DE

VORRGEN HALTER

HINTEREN HALTER

IT

SUPPORTO ANITORIA

SUPPORTO POSTERIORE

Fig. 20.1+

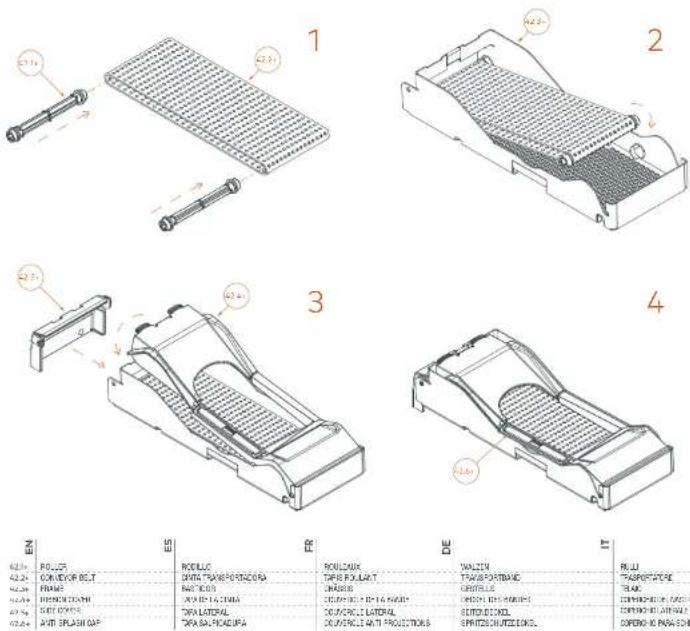

EN	ES	FR	DE	IT
42.3a	POULC	POULC	POULCAIX	POULIN
42.2a	CONVEIR BELT	ONTA TRANSPORTATIONA	TAFIR POLLART	TRANSPORTABLE
42.1a	FRAME	BASIL DOIS	CHEESE	CHEESE
42.0a	BEIJING CHAIN	VANILLA CHINA	COUVERATI PARATHA	CHINESE CHEESE
41.9a	SALT COVER	TAYA LATERLAL	COUVERATI LATERLAL	SUTTER CHEESE
41.8a	AVB SPLASH GAP	TAYA SALADURA	COUVERATE WIFE PROVISIONS	SPRING SHUTTER CHEESE

Fig. 20.2+

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

2

Fig. 20.3+

1

Technical line drawing of a mechanical assembly (no text or symbols)

2

Technical line drawing of a mechanical assembly with an inset close-up view (no text or symbols)

Fig. 21
7

Technical line drawing of a mechanical assembly with no visible text or symbols

2

Technical line drawing of a mechanical device with no visible text or symbols

3

Technical line drawing of a mechanical assembly with a highlighted circular component (no text or symbols)

ZUMEX PRESENTS

The fastest and most robust range of machines just got bigger

Speed Pro, Speed Up and Speed 5 -plus have been specially designed for times when a large quantity of juice is needed. The new models are better than ever before in terms of efficiency. They are perfect for restaurants, cafeterios and supermarkets.

Here we will discover how the machine works and how easy they are to clean.

This manual is for the Speed Pro, Speed Up and Speed S +plus models.

Register your product here

Speed

User Manual. First steps.

In this manual, you will find everything you need to assemble and start up your new Speed Pro, Speed Up or Speed S plus series juicier, as well as information about how it works, its features and accessories as well as some tips and precautions.

Please read the instructions carefully to get the best performance out of your machine.

CONTENTS

3 ANNEX

38 IMPORTANT GENERAL INFORMATION

42 TECHNICAL FEATURES

43 INSTRUCTIONS FOR USE

43 PREPARATION

43 UNPACKING AND START-UP

46 ASSEMBLY AND DETACHMENT OF COMPONENTS ACCORDING TO MODEL

72 TROUBLESHOOTING AND TIPS

226 EU DECLARATION OF CONFORMITY

Zumex reserves the right to modify the information contained in this manual without prior notice.

Important general information

This manual refers to the following

Zumex models

Speed Pro models	Zumex Speed Pro Basic
	Zumex Speed Pro Cooler Podium
Speed Up models	Zumex Speed Up
	Zumex Speed Up All-in-One Wide Black
	Zumex Speed Up All-in-One Narrow Black
	Zumex Speed Up All-in-One Wide Mirror
	Zumex Speed Up All-in-One Narrow Mirror
Speed S +plus models	Zumex Speed S +plus
	Zumex Speed S +plus All-in-One Wide Black
	Zumex Speed S +plus All-in-One Narrow Black
	Zumex Speed S +plus All-in-One Wide Mirror
	Zumex Speed S +plus All-in-One Narrow Mirror
	Zumex Speed S +plus Tank All-in-One

Before you start, we recommend you to take the following precautions into account:

• The specific details about your Zumex juicer (voltage, frequency and other data of interest), can be found on the Identification Label attached to the actual machine.
• Remember that if you have any technical queries, you should get in touch with your Regular Dealer / Official Technical Support Service, always stating the Serial Number on the machine Identification Label.
• Zumex adopts the necessary measures to ensure that the machines placed on the market are selectively collected and managed in an environmentally respectful manner. Please contact your authorised Zumex dealer to correctly dispose of these machines.

- Do not manipulate the machine in such a way that it works without safety elements.

• This appliance can be used by children over the age of 8 or older, or by people with impaired physical, sensorial or mental capacities or who lack experience or knowledge, if they are supervised or have received adequate training with respect to the safe operation of the appliance and they understand the risks entailed.
• Children should be supervised to make sure they do not play with the appliance.
• The cleaning and maintenance to be performed by the user must not be carried out by children without supervision.
• This machine contains an equipotential terminal on the rear to connect the Earth Tap of other appliances to the Earth Tap of

your installation through this terminal. If you use it, slacken the nuts and washers, couple the Earth Tap cable of the auxiliary appliance and firmly tighten the nuts and washers again. This equipotentiality point is indicated with the following symbol:

• Do not spray the appliance with water to clean it.
• This machine is designed for squeezing citrus fruit of the size indicated in this manual: Orange, Limes, Mandarin and Grapefruit.
• Do not use other different fruit to that specified in the manual.
• When you clean, perform maintenance or replace parts, make sure that you have always unplugged the power cable from the socket and it is visible.
• Use the cutting elements with great care, to avoid possible cuts.
• The parts that are in contact with food must be cleaned according to the instructions that you can read in the cleaning chapter.
• If the power cable is damaged, it must be replaced with a cable or special unit to be supplied by the manufacturer or by the after-sales service.

- The unit is manufactured/prepared with a cable's protector in order to prevent accidentally pulling the cable out. Please make sure this protection is placed as indicated below in the instructions, to guarantee the safety of the appliance.

The instructions may be updated. You can consult the updated instructions on our website www.zumex.com, in the section of the selected model.

If you have any suggestions or comments that you believe may improve our machines or service network, please get in touch with Zumex directly at the address below:

ZUMEX GROUP, S.A.

Poligono Ind. Moncada III C/Moli 2, 46113 Moncada, Valencia, Spain.

Tel. [phone] · Fax: [phone]

[e-mail] / www.zumex.com

ZUMEX SERVICE

Tel. [phone] · [e-mail]

Technical features

Model	Weight		Dimensions | Width x Height x Desht |
Speed Pro Basic	66.3 Kg	146.1 lb	593 x 584 x 980 mm	23.3" x 23" x 38.6"
Speed Pro Cooler Podium	116.1 Kg	259.6 lb	675 x 777 x 1837 mm	26.6" x 28.7" x 72.3"
Speed Up	76.7 Kg	169.2 lb	593 x 624 x 1050 mm	23.3" x 24.6" x 61.3"
Speed Up All-in-One Wide Black	133 Kg	293.3 lb	810 x 682 x 1775 mm	31.9" x 26.8" x 69.9"
Speed Up All-in-One Narrow Black	129.1 Kg	284.7 lb	710 x 682 x 1775 mm	28" x 26.8" x 69.9"
Speed Up All-in-One Wide Mirror	122.1 Kg	269.3 lb	805 x709 x 1774 mm	31.7" x 27.9" x 69.8"
Speed Up All-in-One Narrow Mirror	113.3 Kg	249.8 lb	700 x709 x 1774 mm	27.5" x 27.9" x 69.8"
Speed S +plus	83.5 Kg	184.1 lb	593 x 665 x 1050 mm	23.3" x 26.2" x 41.3"
Speed S +plus All-in-One Wide Black	131.5 Kg	290 lb	810 x 682 x 1775 mm	31.9" x 26.8" x 69.9"
Speed S +plus All-in-One Narrow Black	127.6 Kg	281.4 lb	710 x 682 x 1775 mm	28" x 26.8" x 69.9"
Speed S +plus All-in-One Wide Mirror	120.6 Kg	266 lb	805 x709 x 1774 mm	31.7" x 27.9" x 69.8"
Speed S +plus All-in-One Narrow Mirror	111.8 Kg	246.5 lb	700 x709 x 1774 mm	27.5" x 27.9" x 69.8"
Speed S +plus Tank All-in-One	110.1 Kg	242.8 lb	675 x699 x 1755 mm	26.6" x 26.3" x 69.1"

OTHER CHARACTERISTICS (For all models)

Voltage 100 V | 50-60 Hz 120 V | 60 Hz 220-240 V | 50-60Hz
Power	350 W (560 W Cooler)	320 W (360 W Cooler)	460 W (560 W Cooler)
Consumption	3.5 A (4.87 A Cooler)	2.7 A (4.87 A Cooler)	2 A (2.4 A Cooler)
Oranges per minute 36/43 40 37/40
Fruitsa Oranges, tangerines, limes, grapefruits
Size of fruit		65-81 mm (45-67 mm with Kit S)
Feeder capacity		20 kg / 44 lb
Protection		IPX4
Sound pressure level		Lower 70 dB(A)

* For other fruits squeezed always check with your nearest dealer.

Instructions for use

Preparation

To start to extract juice, you must follow the steps below:

1 Unpack your juicer and place it on as flat a surface as possible.
2 Make sure that the mains voltage coincides with the voltage indicated on the machine identification label that you will find on the machine.
3 Ensure that no obstacles hinder you during the unpacking process.
Before first use, we recommend that you clean the juicing system. Please see the section entitled 'Clearing'.

Unpacking and start-up

Follow the instructions given, depending on the machine model you have purchased. The following components could be loose and if so must be installed properly:

Speed Pro Basic

Right cover side outlet (2), Left cover side outlet (3), Power cable (15), Protector cable (16), Plastic juice container (30), Inner plastic filter (31), Plastic juice filter (32), Peel bucket (33), Drip try (34).

See Figures 1 and 2

Speed Pro Cooler Podium

Right cover side outlet (2), Left cover side outlet (3), Power cable (15), Protector cable (16), Plastic juice container (30), Inner plastic filter (31), Plastic juice filter (32), Cooler Unit (70), Tank/Cooler Buoy (52).

See Figures 1 and 6. See section Podium Cooler (100) for information about your machine stand.

Speed Up

Right cover side outlet (2), Left cover side outlet (3), Power cable (15), Protector cable (16), SS Juice container (40), SS Sub-filter (41), Automatic PulpOut System (42+), SS Tap Up (44U).

See Figures 1 and 3U.

Speed Up All-in-One

Right cover side outlet (2), Left cover side outlet (3), Power cable (15), Protector cable (16), SS Juice container (40), SS Sub-filter (41), Automatic PulpOut System (42+), SS Tap Up (44U).

See Figures 1 and 4U. See section Podium Wide and Podium Narrow (90) for information about your machine stand.

Speed S -plus

Right cover side outlet (2). Left cover side outlet S + plus (3+), Power cable (15), Protector cable (16). Peel bucket (33). Drip tray (34), SS juice container (40), SS Sub-filter (41), Automatic PulpOut System (42+), SS Tap S + plus (44+), Machine supplement (47).

See Figures 1 and 3.

Speed 5 plus All-in-One

Right cover side outlet (2), Left cover side outlet S + plus (3+), Power cable (15), Protector cable (16), SS Juice container (40), SS Sub-filter (41), Automatic PulpOut System (42+), SS Top S + plus (44+).

See Figures 1 and 4. See section Podrum S- plus (901) for information about your machine stand.

Speed S +min Tank All-in-One

Right cover side outlet (2), Left cover side outlet S +plus (3+), Power cable (15), Protector cable (16), Automatic PulpOut System (42+). Tank juice container (50), Tank sub-filter (51), Tank/Cooler buoy (52), Tank (53), Shaker (54), Tank Top (55).

See Figures 1+ and 5+. See section Podium Speed S + plus Tank All-in-One (90) for information about your machine stand.

Drain&Clean System (80)

If you have a Podium model, your machine is equipped with the Drain&Clean system. This system facilitates cleaning and waste disposal by working as a drainage system from the feeder to the waste bin. Thus the machine it self will clean and remove waste automatically. See Figures 7.1 and 7.2.

Podium Tank S ·pl.a All-in-One (90), Podium Black All-in-One (90+), Podium Mirror All-in-One (90+), Podium Cooler (100)

All the stand components can be found inside the stand.

Assembly and detachment of components according to model

Right cover side outlet (2), Left cover side outlet (3), Left cover side outlet S ^+plim (3+)

The side outlets are not the same. Ensure that the correct side outlet is installed on the corresponding side.

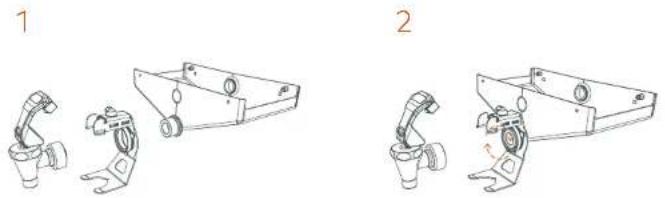

Assembly of the outlets (Fig. 10).

Line up the bottom of the side outlet and lift up the upper part, ensuring that it closes with a 90° turn of the knob.

Mount the right outlet by turning the latch clockwise.

Mount the left outlet by turning the latch counter-clockwise.

Important! There are icons on the part indicating the direction of the turn, do not force the tab in the opposite direction.

Ensure that the side outlets are fully installed and correctly positioned in their place. Disassembly of the outlets (Fig. 10)

Remove the right outlet by turning the latch counter-clockwise to its vertical position. Remove the left outlet by turning the latch clockwise to its vertical position.

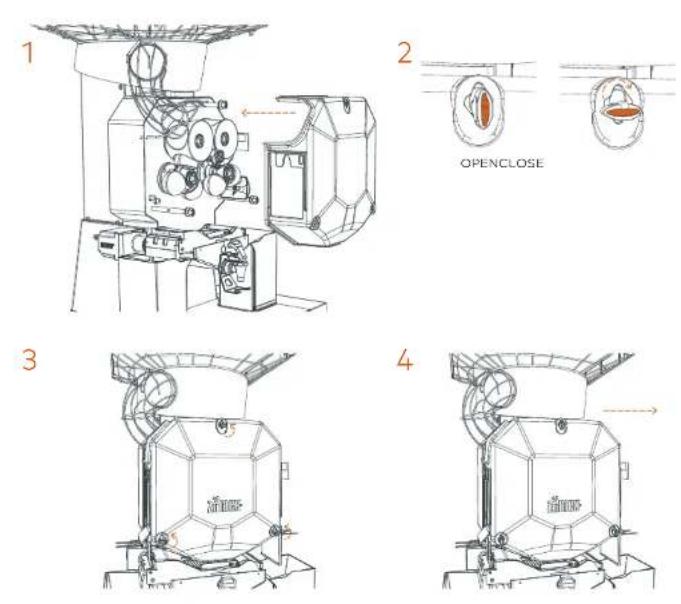

Cover (1)

Assembly of the cover (Fig. 10.1)

Check that the knobs on the shafts of the machine are turned perpendicular to the floor (open). Hold the cover by the outlet holes, match the holes with the knobs and press until they are completely inserted. Turn the knobs 90° degrees clockwise to secure the cover.

Important! Avoid forcing the cover onto the machine if the shafts are not completely aligned, as this may damage the part.

Disassembly of the cover (Fig. 10.1)

Turn the knobs 90° degrees until they align with the holes in the cover.

Remove the cover with a horizontal movement, holding it with both hands by the outlet holes.

Important! Avoid forcefully removing the cover if the shafts are not completely aligned, as this may damage the part.

Lower pressing unit (4), Upper pressing unit (5)

Place the pressing units in the shafts (Fig. 1)

If you have a Speed S, plus then refer to the section 1Step kit (197). Always mount the lower and upper pressing units of the same side at the same time to make it easier to position them.

Injection Plastic Securing Knob (6)

Screw in the knobs to secure the pressing units and the feeder plate (Fig. 1).

If you have a Speed S + plus then refer to the section 1Step kit (19+).

Left peel ejector (7), Right peel ejector (8)

Assembly of the ejector (Fig. 21).

Place the ejectors on the corresponding side and insert them onto the knobs. Push the ejector until the blade is fully inserted into the lower pressing unit and the channel makes contact with the second knob.

Important! If the ejector is not correctly installed as indicated above, the part may be damaged when the machine is in operation.

If you have purchased the Speed 5 + plus model, read the 1Step Kit (79+) section.

Disassembly of the ejector (Fig. 21)

Pull the ejector out until it is completely free from the machine.

Important! Remove the ejectors before removing other parts of the juicing unit.

Blade holder (9)

Place the blade carefully on its guide and push inwards (Fig. 1)

Blade holder S +plus (9+)

Place the blade carefully on its guide and push inwards (Fig. 1+).

Note: Always insert before inserting the 15step kit

Feeder basket (13)

The feeder basket can be removed and re-attached facing guides and making a slight movement until it stops (Fig. 1).

The feeder basket has an easy-to-open door to make it easier to fill the basket up with oranges (Fig. 1).

Power cable (15)

Check cord is plugged in the machine and protected with cord retainer (Fig. 1).

Protector cable with 3 screws (16)

Check protector holds cable with three screws (Fig. 1).

Self Service/Tank Tray gasket 6.3 x 3.5 (17)

If required, this gasket can easily be removed for cleaning and fitted back in by hand (Fig. 1).

Tray bolt (18)

This component only has to be handled if a spare SS Juice container (40) or Tank juice container (50) is requested (Fig. 1). After inserting the spare container, adjust the bolt from the rear to adjust the container position.

1Step kit (19+)

This device allows for easy insertion and removal of the pressing units and peel ejectors in just one step (Fig. 1+).

Before installation remember to insert the Blade holder S + plus (9+).

To install, line up the pressing units with the shafts and adjust their position while sliding them in. Use the central knob to attach the device to the machine.

Note: To remove simply reverse the process.

Assembly of the 1Step Kit (19+)

a) Place the rear holder (19 2+) on a surface. The metal ejector holders should be face down. b) Match up the lower and upper pressing units (4 and 5). Line up the circular bases of the pressing units with the holes on the holder. Note that the faces of the pressing units are different.

Ensure to mount them as shown in the figure

a) Line up the protruding cones of the pressing units with the four circular bushes on the front holder (19.1+).

e) Join both holders with the plastic securing knob (6).

c) Turn the 1step kit 180" and line up the ejectors (7 and 8) with the ejector holders, inserting the extractor blade into the seal of the lower pressing unit. Ensure that both holders are inside the ejector channel as shown in image 4.

Disassembly of the 1Step Kit (19+)

c) From the position shown in image 4, pull the ejectors (7 and 8) sideways to remove them from the metal holders.

c) Turn the kit 180° and unscrew the plastic securing knob (6), which is located behind the pressing units and holds both metal holders (19.1+ and 19.2-).

b) Carefully pull the front holder (19.1+).

c) Separate the lower pressing unit (4) and the upper pressing unit (5).

Note: To clean the unit, refer to the Cleaning section.

Plastic Juice Container (30)

Make sure that the sealing gasket is correctly mounted on the container (Fig. 11). Then place the container in the machine. Line up and place under the container on the four lugs that you will see on the machine (Fig. 2).

Plastic inner filter (31)

Place on the inside of the juice container (Fig. 2).

Plastic juicer filter (32)

Place on the inside of the juice container (Fig. 2).

Peel bucket (33)

Place the peel buckets under the cover side outlets (Fig. 2 or 3U depending on model)

Drip tray (34)

Place under the juice outlet (Fig. 2 or 3U depending on model).

Self Service Juice container (40)

Assembly (Fig. 12).

Line up the tap detector tube (45) with the hole in the back of the container. Slide it until the container fixing pins are fully inserted in the latch holes. Press firmly with your right hand on the front of the container until you hear the click of the latch and then with your left hand until you hear the click of the left latch. Ensure that it is correctly attached by gently pulling on it:

Important! The incorrect assembly of the container can lead to breaks in the seal and small juice leaks. Always make sure that it is correctly fixed to the body of the machine and that the container is in good condition.

Note: To ensure the correct fit of the container, it is recommended to keep the fixing latches clean of juice and/or dirt. Spray a detergent (Zumex Citric Active) in the container fixing holes and the inner part as shown in picture 3. (Fig. 12). Allow the detergent to work for 1 minute. Repeatedly activate the latches and wipe away any remaining product with a clean cloth.

Disassembly (Fig. 12).

To disassemble the container, press the left and right latches at the same time. Slide the container out.

Self Service Sub-filter (41)

Place on the inside of the juice extraction container (Fig. 3U).

Automatic PulpOut System (42+)

With this device pulp and seeds will be removed automatically during the juicing process.

Assembly (Fig. 20.1+ and 20.2+)

a) Place the rollers (42.1+) into the conveyor belt (42.2+)

b) First place the left hand roller into the metal socket on the frame. Then stretch the belt and place the other roller into the right hand sockets.(Fig. 20.1+).

c) Insert the ribbon cover (42.4+) by first of all guiding the right hand side pivots into the slots on the frame (42.3+) (Fig. 20.1+). Then rotate the cover until it rests completely on the frame in a horizontal position and press down until it clips into place.

a) Press down lightly on the sides of the Side Cover (42.5+) and fit it into the holes on the left hand side of the Frame (Fig. 20.1+). Ensure that the pivots have been inserted completely, and that the cover can rotate freely. Leave it in the vertical position.

e) Fit the PuloOut System (42+) into the machine (Fig. 20.2+ and 20.3+). To do this, fit the left roller onto the drive shaft on the left side of the machine. Make sure that the assembly rests and is inserted into the pivots of the container.

f) Turn the Anti-Splash Cap (42.6+) is in a vertical position. It is possible to remove the PulpOut System without removing the cover.

Note: The anti-splash cap must be in a horizontal position to assemble the cover.

Disassembly (Fig. 20.3+)

To remove the PulpOut from the machine, pull it up and out. To disassemble the unit, reverse the steps indicated for its assembly.

See the Cleaning section for the correct maintenance of the Automatic PulpOut System.

See how it is fitted in various models:

Self Service Tap Up (44U), Self Service Tap S +1m (44+)

Assembly of the Up Tap (13.1)

I hold the centring device/bottle holder with one hand while turning the nut on the holder with the other hand to secure it to the spout on the container.

Align the tap with the centring device/bottle holder and insert the button between the arms of the holder. Hold the tap with one hand while turning the tap fixing nut with the other hand. Disassembly of the Up Tap (13.1)

Hold the tap with one hand while loosening the tap fixing nut with the other hand. After loosening the tap fixing nut, gently pull the tap out.

Hold the bottle holder with one hand while unscrewing the centring device/bottle holder nut with the other hand. Pull gently to separate it from the thread of the container.

1 Important! Use both hands to dismantle the top and holder to avoid any parts being dropped or injury.

Assembly of the S+ Tap (14.1+)

To install the Si-plus tap in the container, hold the tap with both hands, line up the pin with the hole in the container thread and gently push the tap in. Hold the tap firmly by the bottle holder with one hand and tighten the tap footing fixing nut with the other hand.

Note: Remember to tighten the floating nut until the threads on the container are no longer visible.

If it is not positioned correctly, the tap sensor will not be activated.

Disassembly of the S+ Tap (14.1+)

Hold the top with one hand while loosening the top fixing nut with the other hand.

After loosening the tap fixing nut, gently pull the tap out.

Important! Hendle the tap with both hands, do not force the pin or the tap thread. Do not put any weight on the tap.

Top operation (Fig. 13.2 and 14.2+)

The tap is operated by pressing and releasing for juice extraction.

On the SS S + plus tap (44+), the button is located on the outside. The button can be locked in the "free spout" position. To do this, turn the ring with the dotted/continuous lines until the continuous line is over the glass icon. Release the button, it is now locked in position. To release, simply press the button again.

The Speed S + plus All-in-One machine has a bottle holder that can be removed, if necessary, by removing the two rear screws.

On the SS Up tap (44U), the button is located on the inside. The button can be locked in the "free spout" position. To do this, press the button completely and move the metal tob on the side of the bottle holder/centring device. Release the button. It is now locked in position. To release, simply press the button again.

For the daily cleaning of both tops you must remove the upper part as shown in the images (Fig. 13.2 y 14.2+). The Up tap is dismantled by turning the plastic ring on the tap body and then removing the button. The S +plus tap is dismantled by turning the ring on the metal body.

Detector tube gasket (46)

If required, this gasket can be removed for cleaning (Fig. 3U or 4).

Machine supplement (47)

Use this supplement to raise the machine (Fig. 3U or 3+).

Important! Never place the machine onto the supplement alone, it should always be done by at least two people.

Tank Juice Container (50)

Line up the two side lugs at the ends of the container and press. Pressing the side buttons may help mount it (Fig. 15).

To remove the container, just press the side buttons and pull out towards you.

Tank Sub-filter (51)

Place on the inside of the juice extraction container (Fig. 5+)

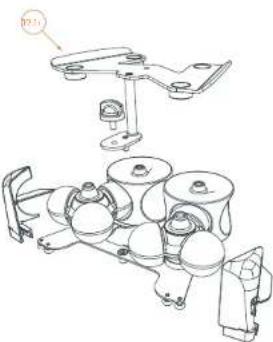

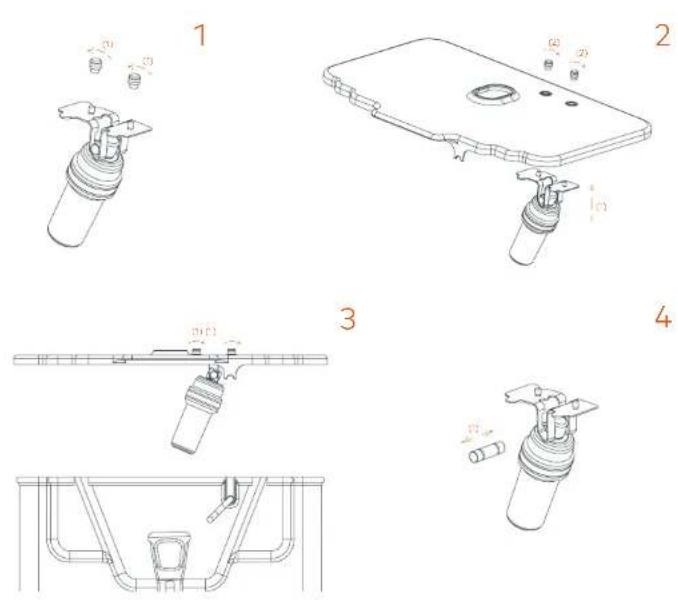

Tank/Cooler Buoy (52)

Tank Model

a) If the support with buoy is loose, loosen the knobs on the support (Fig. 16 (1)). b) Line up the lugs on the support with the inside of the lid (Fig. 16 (2)).
c) Tighten the knobs (Fig. 16 (2 and 3U))
d) If a deep clean is necessary, remove the reverse the order of the previous steps and remove the shaft (Fig. 16 (4)).

Cooler or Tank model

Slacken the upper lugs. Line up the plate with the openings from below. Tighten the upper lugs again (Fig. 18).

Tank (53)

Use the thread to secure the Self Service tap to the Tank container (Fig. 5+)

Tank Tap (55)

Use the thread to secure the Self Service Tap to the Tank container. Make sure that it is in upright position (Fig. 17.1).

The Tank Top can work continuously or discontinuously. Just turn the handle 180° and it will be locked when the handle is lowered, thus permitting free spout.

For cleaning, you can remove the upper part of the Self Service Tap (Fig. 17.2).

Level detector (56)

This component only needs to be manipulated if a spare part is requested. Remember to place the detector in the same position as the original detector. If you have a Tank machine, the detector is located in the upper part; if you have a Cooler machine, it is located in the lower part (Fig. 5+ y 6).

Cooler unit (70)

Place the cooler unit in its housing in the stand (Fig. 6).

Mount the components as indicated in Fig. 18 in this order.

a) Mount the piston-gasket and the lever in the tank following the steps indicated in the enclosed drawing.
b) Fit the tank.
c) Adjust the pump lid inside the tank with the arrow pointing towards you.
d) Secure the metal coupler plate, securing the tank with it.

Podium Tank S + plus All-in-One (90), Podium Black All-in-One (90+),

Podium Mirror All-in-One (90+), Podium Cooler (100)

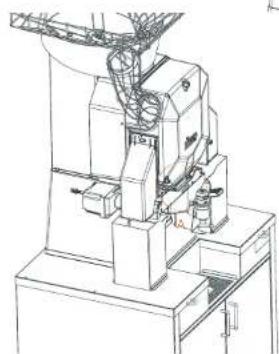

Machine placement on display stand

Important! This operation must be carried out by 2 or 3 people. It must never be attempted by just one person.

Lock the front wheels of the stand with the broke pedal to prevent it from moving during the installation.

After unpacking the stand, remove the screws from the fixing brackets and put them on one side for later. See detail "A" of Fig. 8.

The peel chutes and the grip tray of the stand with filter are located on the inside of the stand. Place the machine on the stand, making the inside corners of the machine base coincide with the two rubber blocks of the stand. Thus, the fixing bracket holes will coincide with the machine holes. You can now secure the machine with the screws mentioned above (See Fig. 5+ y 6).

Remember:

The machine and display stand are joined together with the screws supplied, as indicated in this instructions manual.

Never try to tilt the machine or the stand. To move, unlock the wheels.

Individual features for Podium Tank S^plus All-in-One (90)

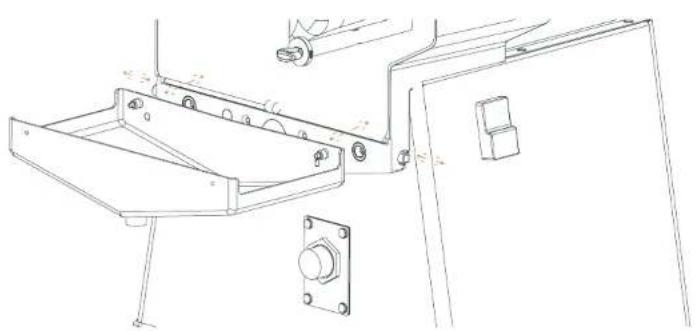

For the Tank stand, secure the drip tray with its filter in the display stand.

Component 90.7 varies depending on the stond model purchased:

Self Service stand: Component SS stand filter (90.7A).

Tank stand: Component TANK tank guides (90.7B).

The position of components Tray front (90.8) and Tray filter (90.9), can be adjusted to be able

to adapt them to different bottle and glass formats.

Individual features for Podium Black and Mirror All-in-One (90+)

The (90+) Podium 55 5 + plus has two independent waste bins.

Remember to insert both of them every time.

Individual features for Podium Cooler (100)

See Fig. 6 and 9.1 on how to fit the components correctly.

Pass the power cable of the Cooler unit through the hole on the rear door. To do this, you can

unscrew the door if necessary (Fig. 9.2).

Drain&Clean System Installation

Important! Unplug the machine from the wall socket.

Podium Tank All-in-One (90)

If fitted, remove the Peel chute (90.6), the 55 stand filter (90.7A) and the Stand hopper (90.3)

(Fig. 8). Open the front door. If it is connected then remove the injection securing knob (6), and the Podium Tank Lid (80.5).

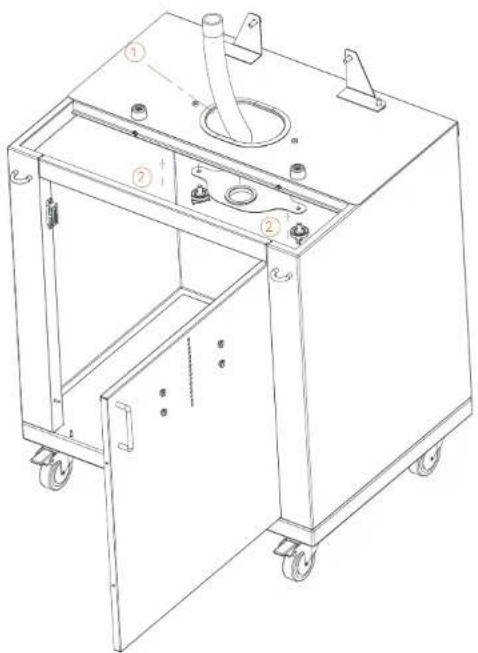

Find the upper hole (Fig. 7.2) and insert your hand, taking hold of the Flexible tube (80.4) and placing it in the hole (Fig. 7.1). Do not pull or hold any other part of the machine.

Later, place the lower cover of the tube with the two securing knobs supplied and fit all the previously removed parts back on (Fig. 7.2).

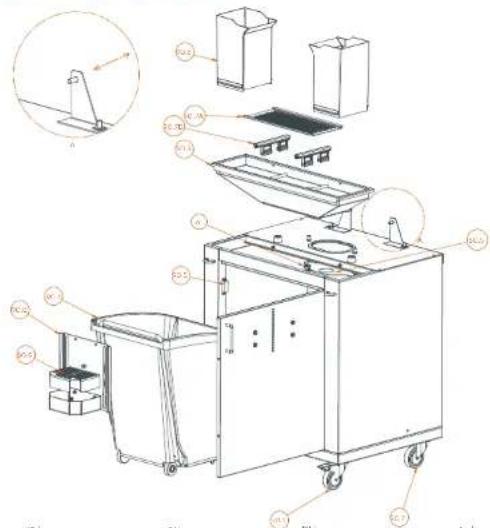

See parts breakdown on how to fit the components (Fig. 8).

Podium Podium Black and Mirror All-in-One (90+)

Open the front doors and remove the waste bins (Fig. 8.1 and 8.2). If it is connected then remove the injection securing knob (6), and the Podium Tank Lid (80.5).

Find the upper hole (Fig. 7.2) and insert your hand, taking hold of the Flexible tube (80.4) and placing it in the hole (Fig. 7.1). Do not pull or hold any other part of the machine.

Later, place the lower cover of the tube with the two securing knobs supplied and fit all the previously removed parts back on (Fig. 7.2).

See parts breakdown on how to fit the components (Fig. 8.1 and 8.2).

General operation

Once you have installed the machine correctly and before plugging it into the mains, confirm electrical data coincide with the electricity supply. If everything is correct, plug the machine into the mains.

To switch the machine on, press the green ON button. The LED of the ON/OFF button and the digital display of the machine will light up.

Before operating the machine with oranges, you must calibrate it without load. Enter the Calibration section of the CLIENT MENU, or leave the machine operating without load for approximately 1 minute until it comes to a stop.

To make sure the count is correct, you may have to adjust the Offset parameter after calibrating the machine.

Option 1: It does not count all of the oranges. Reduce the Offset value

Option 2: It counts too many oranges. Increase the Offset value.

To do so, enter MENU>5.Calibration>2.Offset and adjust the value. Exit the Menu and check the count without load, with 2 or 3 oranges. Repeat the process again until you find the value that allows for a correct machine count.

To avoid possible counting errors, try not to stop the machine with an orange trapped between the upper and lower pressing units.

The orange counter is shown in all the models. (Deviation +-1%)

Remember to put a jug or glass under the juice outlet of your machine.

The machine will not work if any safety element is missing.

If necessary, you can always switch the machine off as follows:

A Release the actuator used. For example, the top.

B Press the STOP button.

Press the red OFF button.

ONLY IN EMERGENCIES: Unplug the machine directly from the wall socket.

E If the machine does not detect oranges, it will stop approximately 60° after the last orange has passed through.

Loading the feeder

To load the machine feeder with oranges, you can open the Feeder basket (14) door and partially empty the box of oranges into it. Close the door and finish filling the basket.

Juice extraction unit

Make sure that all the elements that permit cutting the orange, extracting the juice and collecting it are mounted on the machine. To do this, consult the machine model purchased on the diagram indicated in section: Unpacking and start-up. Assembly and detachment of components according to model.

Check the state of the containers and filter to guarantee quality juice.

If you have a machine with 1Step kit (191) you can remove and replace the 1Step kit in just one step.

Juicing

If you have a machine with:

• Automatic PulpOut System (42+), the pulp and any seeds will be expelled from the left hand side of the machine.

- SS Tap Up (44U), SS Tap S + plus (44+) or Tank tap (55), read the instructions for use of the Self Service tap in section Assembly and detachment of components according to model.

- Automatic filling machine, the machine will stop automatically when it reaches maximum level. Remember to fit the Tank/Cooler buoy (2), following the assembly instructions. You will also have to select filling quantity.

Waste area

Make sure that the elements that collect the orange peel are correctly positioned.

Check if the tanks are getting full, to prevent the peel from flowing over.

You can also use the new function. Waste Limit, which enables you to programme an alarm so that the machine will stop when the waste bin is full.

You can select the number of oranges you want to squeeze before the alarm sounds. Once you have squeezed the amount of oranges programmed, the machine will stop and a warning will appear on the display so that the operator knows the waste bin has to be emptied.

If you have purchased a machine with Podium, the peel will fall directly into the Peel buckets

To switch the alarm off, press the OK button for approximately 2" until it comes to a stop.

Remember!

"Short OK", it doesn't switch off.

"Long OK", double "beep", to switch off.

To switch the alarm off permanently, enter the Waste Limit section of the CLIENT MENU.

If the machine is turned off or unplugged, the waste alarm will be eliminated and it will start from zero again.

Machine operation

General

The machine can operate in Professional or Automatic mode in all the models. To shift from one mode to another keep the Mode button pressed for a few seconds. Whenever you change from Automatic to Professional, you will be asked to program the number of oranges to be squeezed. If you do not want to change the quantity just wait a few seconds or quickly press the OK button. If you wish to modify the quantity, press the + - buttons to select the quantity, and then the OK button until the Saved symbol appears.

Speed Pro Basic Model

AUTOMATIC MODE

From automatic mode:

START Starts the machine

STOP Stops the machine

Uninterrupted operation.

PROFESSIONAL MODE

Minimum number of oranges

Maximum number of oranges

Default value

Operation until its reaches the quantity stipulated

Speed Pro, Speed Up, Speed S +mu

Speed Up All-in-One, Speed S ^+plus All-In-One

The START button is not active. It is only active in MANUAL mode.

AUTOMATIC MODE

Control from SS Tap Up (44U)/SS Tap S + Plus (44+).

Uninterrupted operation,

whilst the ring is pressed.

PROFESSIONAL MODE

Controls from lap while pressed.

Minimum number of oranges

Maximum number of oranges

Default value

MANUAL MODE (If the tap does not work)

The START button becomes active in Manual mode.

In manual mode, it is still possible in Automatic

and Professional mode from the keypan.

"AUTOMATIC" MANUAL

Uninterrupted operation.

Minimum number of oranges

Maximum number of oranges

Default value

The STOP button is always operative.

Tap Self Service Up (44U), Tap Self Service S+plus (44+)

You have purchased a multi-function tap. This enables you to produce juice either discontinuously or continuously without having to press the button.

See the different possibilities in: Assembly of components according to model, SS Tap Up (44U), SS Tap S + plus (44+).

Speed S +plus Tank All-in-One (90), Speed Pro Cooler Podium (100)

Make sure that the Tank (53) or Tank (70.6) is placed as close as possible to the sensor on the base. Make sure that the buoy is placed correctly on the lid and that it moves freely (Fig. 5+ and 6).

If the Tank/Cooler buoy (52) is not in place, the machine will not work (Fig. 16).

AUTOMATIC MODE

When you connect the machine at the start of the day, select the START button for the machine to start up.

The machine starts to squeeze until the tank is full and the Level detector (56) does not find the Tank/Cooler buoy (52). The machine will stop then.

When the juice level gets low again, the machine will start up again, about 15" after it has not detected the hungry, and so on and so forth, in automatic mode.

The full or half full tank symbol will appear unless STOP has been pressed, indicating that although the machine is in automatic mode, it has stopped, waiting for the tank to be emptied, in order to re-start the filling process. When you press STOP, the symbol will disappear as the machine is no longer operating.

PROFESSIONAL MODE

The machine will start up when you press START and will stop when the Level detector (56) does not find the Tank/Cooler buoy (52) or reaches the assigned volume. When the level drops, the machine will not start up again until you press START again.

It has 3 different filling volumes, according to your juice needs.

1

2

MANUAL MODE (In case the sensor does not work)

If the Level detector (56) does not work, enter the menu and activate the MANUAL MODE. When you do this, you will be able to enjoy all the machine functions without the detector, until this is repaired.

"AUTOMATIC" MANUAL.

Non stop operation.

1

Program the number of oranges to be squeezed. The machine will stop when it reaches the selected value or the STOP button is pressed.

Remember! In manual mode, you must keep a watch over the juice level so that it never flows over, as level function has been annulled.

2

Speed Pro Cooler: Cooler Unit

Switch the cooler unit on by activating the switch on the left of the juice outlet. You can adjust the juice temperature with the control situated on the right. Turn in clockwise direction for colder juice and anti-clockwise direction for less cold juice.

Activate the tank lever to fill a glass or jug.

Important! Remember to switch off the Cooler unit (70) when you switch off the main machine to avoid unnecessary consumption.

Configuration

Your Zumex Speed juicer enables you to set parameters to your liking.

Use the electronic device to choose and program the operating mode of your machine. With it, you can control attributes and functionalities following the MENUS enclosed.

To enter the MENU press the STOP and MODE buttons for at least 2 seconds and enter the default PIN (0000). Then press OK button for at least 2 seconds to confirm the PIN.

After entering the menu, you can set

LANGUAGE: You have a choice of 23 available languages.

PIN: See or change the current PIN so that nobody else can change the machine parameters.

COUNTER: See total or partial counter of the machine. Reset the partial counter, visible on the main screen. To reset the machine counter, press STOP + START for 3 seconds until the counter indicates 0000000.

Ascending or descending CREDIT: You can program the machine credit so the machine can be stopped, in ascending order or descending order, until the machine has been programmed again.

MODE LOCKING SYSTEM: You can get the machine to only work in Automatic or Professional and even so the number of oranges or volume to be squeezed cannot be changed, so that it only squeezes the quantity set by you.

MANUAL MODE (Help mode): Some machine models have an actuator or an auxiliary operating sensor. This can be annulled by selecting the MANUAL mode. [Self Service Model: SS Top Up (44U), SS Tap 5 +plus (44-) and Cooler Model: Level detector (56)].

WASTE LIMIT: You can activate an alarm so that the machine will stop when the desired number of oranges has been squeezed. Thus, you will know when the waste bin has to be emptied.

PULPOUT SYSTEM: You can activate the Automatic PulpOut System for automatic pulp and seed removal. You can choose between continuous and non-continuous modes.

Continuous mode, eliminates pulp whenever the machine is juicing. It means the system runs automatically and therefore means that you can go longer between cleans.

Non-continuous mode, means a longer amount of time for the pulp to be filtered. You can choose how often the system is activated depending on the type of fruit used and the quantity of pulp created. Fast frequency will mean that the system is activated more often.

The conveyor belt will run on the following settings:

REGULARSLOW FAST

10 oranges 15 oranges 20 oranges

What is more, you can activate the "Self cleaning" option which means that the bolt will be cleaned automatically after the last juicing. In non-continuous mode the "Self cleaning" function will activate 30 seconds after the last use.

On your Display Digital, you will see symbols such as these:

Continuous Mode

Non-continuous Mode Intermediate

Continuous Mode with "Self Cleaning"

Non-continuous mode, high speed with "Self-Cleaning"

The PulpOut system can always be stopped by pressing the STOP button. In continuous mode with "Self Cleaning" the STOP button must be pressed twice, once to stop the machine and the second time to stop the self cleaning.

CALIBRATION: You can calibrate the machine to guarantee that the machine count is correct at all times.

MACHINE STATUS: You have access to the different anomalies that a machine stoppage may have caused.

CONTRAST: You can adjust the brightness level on the display.

Remember! Within the CLIENT MENU mode:

"Press OK" to go down a level.

"Press OK at least 2 seconds" to go up a level.

"Press OK at least 2 seconds" to save data (The save symbol will appear).

To exit CLIENT MENU, you must go up the same number of levels you have gone down.

Menu diagram

Main menu

1	LANGUAGE. Select the language to operate the machine.	PULPOUT. Choose the mode for the Automatic PulpOut System.	6
2	PIN. See or change the PIN.	CALIBRATION. To calibrate the machine for correct count.	7
3	COUNTER. See total or partial counter of the machine.	STATUS. Access the different anomalies that a machine stoppages may have caused.	8
4	MODE. Select the working mode automatic or professional.
5	WASTE LIMIT. Activate a warning to know when to empty the waste bin.	CONTRAST. To adjust the brightness level on the display.	9

Cleaning

Zumex recommends cleaning the machine at least once or twice a day, depending on how much it is used in order to maintain optimal food hygiene conditions.

Zumex recommends using Zumex Citric Active Detergent™, which is specially designed to clean citrus juicers with a high descaling effect for wax and pulp.

For correct cleaning you must follow the steps below:

A All of the plastic components are dishwasher safe, apart from the Speed Pro Cooler Juice Tank (70.6).
Do not put the SS Tap Up (44U), SS Tap S +plus (44+) in the dishwasher as it can lead to premature oxidation of the stainless steel.

All models

1 Unplug the machine from mains.
2 For assembly and disassembly check the relevant section for each component found in the Assembly and Disassembly section.
3 Remove Side Outlets
4 Remove the Cover.
5 Follow the instructions for the Assembly/disassembly of the various components dependent on model.

Speed Pro Basic, Speed Up, Speed Up All-in-One, Speed Cooler Podium

6 Remove the blade-holder, pulling towards you from the handle.
WARNING! Handle this part with great care as you could cut yourself
7 Extract the peel ejectors from their supports (Fig. 1)
8 Remove the pressing units by pairs, previously unscrewing the securing knobs (Fig. 1).
9 Remove the juice containers and filters, see the respective Figure according to model according to section Unpacking and start-up.

Speed S +plus, Speed S +plus All-in-One, Speed S +plus Tank All-in-One

Remove the 1Step Unit (19+)

There are two possibilities when cleaning:

• Complete cleaning: once the unit has been removed from the machine, get rid of extra pulp and peel if there is any washing it with water and if necessary a mild soap. The whole unit is also dishwasher safe.
• Deep cleaning: all of the components can be removed and can be cleaned individually. Zumex recommend this type of deep cleaning at least once a week depending on how much usage the machine gets.

7 Remove the Blade holder S + plus (9+) and clean it carefully taking care not to hurt yourself.

8* Remove the PulpOut System (42+).
To clean all of the components of the unit they should be removed and washed individually, this can be done by hand or in the dishwasher.

Things to remember

Cleaning non-detachable elements. Use a damp cloth with lukewarm water and soap, and then rinse.
D Remember that although some ports are similar they must be mounted on different sides.
E Transparent parts and dish-washers: these parts can be washed in the dish-washer, although you must make sure you use the correct soap, salt and brightener so that the parts remain shiny and transparent.
F In models with tap: Unscrew the tap from the container, separate the button from the body to clean thoroughly. Remove taps as indicated in the sections: SS Tap Up (44U), SS Tap S + plus (44+), Tank Tap (55) of Assembly and detachment of components according to model.
G In models with the Drain&Clean System, Zumex recommends cleaning the inside of the tube with a large brush (Fig. 7.1) at the start of the feeding tube, at least once a week. This process will avoid any possible blockages.
Feeding tube: Whether or not your machine has the Drain & Clean System, it is advisable to disassemble the turntable from the feeder for complete removal of wax and debris.
For any area with difficult cleaning Access, we recommend using the brush (Fig. 1) included in the machine.

Accessories

There is a wide range of accessories available for you to make the most of your machine.

1Step Kit

With this accessory you will be able to dismantle the machine in just 10 seconds and clean it under the tap or in the dishwasher.

*Accessory available for all of the Speed S +plus range. Including juice extraction system.

M elbow feeder cover

Impedes access to the fruit inside the M feeder elbow thus preventing contact with external agents.

L elbow feeder cover

Impedes access to the fruit inside the L feeder elbow thus preventing contact with external agents.

Two-position tray

Accessory available for Black podiums for serving juice in glasses and bottles

Closed basket

Accessory that closes off and prevents access to the basket of oranges.

Pulp cover kit

Part covering the sweeper belt that hides the pulp and prevents any possible splashes.

Kit S / 1Step Kit S

To juice fruit that has a diameter of 45 mm to 67 mm.

Kit L / 1Step Kit L

To juice fruit that has a diameter of 75 mm to 95 mm.

DCS System

To juice soft or overripe citrus fruit.

Display Stand

So that you can keep your bottles of freshly squeezed juice ready to take away. Available in two sizes.

Contrabarra Kit

Integrates waste management keeping things practical and clean.

Bottle set

For self-service restaurants - bottles, glasses or jugs of juice can be distributed easily. Includes three trays (4- heights). It is integral to the podium and the whole set can be transported with ease.

Zumex Pack

Fresh drinks can be packaged for commercialization, especially freshly squeezed orange juice. There are 6 formats (15 l, 1 l, 75 cl, 50 cl, 33 cl and 25 cl) and custom-made stickers.

Check www.zumex.com for more information on accessories for your machine.

Troubleshooting and tips

To eliminate an error, press OK briefly and check that the cause of the fault is corrected, as indicated in the table below.

01 Cover	Does not detect the cover safety device	Check cover placementCheck side outlet placementCheck magnet placementCheck connected cablesCheck cover detector
02 Tray	Does not detect container	Check container placementCheck wiring connectionCheck container detector
03 Motor power	The motor does not work at correct voltage	Check mains voltageCheck electronics plate
04 Halt	Electricity cut	Check mains voltage cableCheck inner connection of cables
05 Overcurrent	The motor has over consumption	Check obstacles in juiceextinction systemCheck fruit hardnessCheck motorCheck cooling
06 No Float	Does not detect buoy	Position buoy correctlyPosition bank correctlyCheck wiringCheck detector
07 Credit	Counter limit reached	Eliminote counter limitReprogram counter limit
08 Waste Limit	Counter limit reached	Press 'OK' for longer unityou near a double "beep"

zumex.com

ZUMEX PRESENTA

Speed S +mm Tank All-in-One

Solida lateral cubierta derecha (2), Salida lateral cubierta izquierda 5 +plus (3+), Cable alimentación (15), Protector cable (16), Sistema PulpOut Automático (42+), Cubeta zumo Tank (50), Subfiltro Tank (51), Boya Tank/Cooler (52), Tank (53), Agitador (54), Grifo Tank (55).

Podium Tank S + All-in-One (90), Podium Black All-in-One (90+),

Podium Mirror All-in-one (90+), Podium Cooler (100)

Junta cubeta Self Service/Tank 6.3 x 3.5 (17)

Grifo Self Service Up (44U), Grifo Self Service S ^+slm (44+)

Montaje Grifo Up (13.1)

Boya Tank/Cooler (52)

Modelo Tank

Podium Tank S ^+0.05 All-in-One (90), Podium Black All-in-One (90+),

Podium Mirror All-in-One (90+), Podium Cooler (100)

Podium Tank All-in-One (90)

Speed Up All-in-One, Speed S +plus All-in-One

Grifo Self Service Up (44U), Grifo Self Service S+plus (44+).

Speed S +plus, Speed S +plus All-in-One, Speed S +plus Tank All-in-One

C. P.O.C.S. (17) and 30

Speed S - plus All-in-One

Speed S +mm Tank All-in-One

Ensemble Drain&Clean System (80)

Podium Tank S ^pl. All-in-One (90), Podium Black All-in-One (90+), Podium Mirror All-in-One (90+), Podium Cooler (100)

Joint bac Self Service/Tank 6.3 x 3.5 (17)

Podium Tank S ^+0.25 All-in-One (90), Podium Black All-in-One (90+),

Podium Mirror All-in-One (90+), Podium Cooler (100)

Installation Drain&Clean System:

Podium Tank All-in-One (90)

MANUEL "PROFESSIONNEL"

MANUEL "PROFESSIONNEL"

Speed S +plus, Speed S +plus All-in-One, Speed S +plus Tank All-in-One

Speed S - plus All-in-One

Speed S +mm Tank All-in-One

Podium Tank S plus All-in-One (90), Podium Black All-in-One (90+),

Podium Mirror All-in-One (90+), Podium Cooler (100)

SB-Hahn Self Service Up (44U), SB-Hahn Self Service S ^+ (44+)

Montage Hahn Up (13.1)

Podium Tank S + All-in-One (90), Podium Black All-in-One (90+), Podium Mirror All-in-One (90+), Podium Cooler (100)

Podium Tank All-in-One (90)

Speed Up All-in-One, Speed S + plus All-in-One

Hahn Self Service Up (44U), Hahn Self Service S ≈ 100 (44+)

Speed S +plus, Speed S +plus All-in-One, Speed S +plus Tank All-in-One

Speed S +min Tank All-in-One

Drain&Clean System (80)

Podium Tank S ^pl.s All-in-One (90), Podium Black All-in-One (90+),

Podium Mirror All-in-One (90+), Podium Cooler (100)

Podium Tank S ^+ All-in-One (90), Podium Black All-in-One (90+), Podium Mirror All-in-One (90+), Podium Cooler (100)

Podium Tank All-in-One (90)

Speed Up All-in-One, Speed S + plus All-in-One

Speed Pro Basic, Speed Up, Speed Up All-in-One,

Speed Cooler Podium

Speed S +plus Self Service, Speed S +plus All-in-One, Speed S +plus Tank All-in-One

EU DECLARATION OF CONFORMITY

ZUMEX GROUP S.A., whose registered offices are situated at Poligoro Industrial de Mancada III, C/Moli, 2 46113 Moncada, Valencia (Spain) does hereby decore, under its sole responsibility that Speed Pro Basic, Speed Pro Cooler Podium, Speed Pro Self-Service, Speed Pro Self-Service Podium, Speed Pro Tank Podium, Speed Up, Speed Up All in One, Speed Up All in One Narrow, Speed S +plus, Speed S +plus All in One, Speed S +plus All in One Narrow, Speed S +plus Tank Podium juicer machines are in compliance with the provisions of the European Directive detailed below:

2006/42/EU Security on machinery

2014/35/EU Electrical equipment designed for use within certain voltage limits

2014/30/EU Electromagnetic compatibility (EMC)

REG.(EC) N° 1935/2004 Materials and articles intended to come into contact with food

REG.(EC) N° 10/2011 Plastic materials and articles intended to come into contact with food

REG.(EC) N° 2023/2006 Good manufacturing practice for materials and articles intended to come into contact with food

2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic equipment. ROHS)

2012/19/EU Waste electrical and electronic equipment (WEEE)

To ensure such conformity, the above-mentioned model complies with the following harmonized standards and/or regulations:

IEC 60335-1 2010 Safety of household electrical appliances and similar. Part 1: General requirements + A1 2013

IEC 60335-2-64 2002 Safety of household and similar electrical appliances. Part 2-64: +A1 2007 Particular requirements for commercial electric kitchen machines

EN 62233 2008 Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard to human exposure

EN 55014-1 2008 + A1 2009 + A2 2012

EN 55014-2 2015

EN 61000-3-2 2014

EN 61000-3-3 2013

NSF/ANSI 8 2012

NSF/ANSI 51 2014

Electromagnetic compatibility. Requirements for household appliances, electric tools and similar apparatus. Part 1: Emission

Electromagnetic compatibility. Requirements for household appliances, electric tools and similar apparatus. Part 2: Immunity. Product family standard

Electromagnetic compatibility (EMC). Part 3.2: Limits. Limits for harmonic current emissions (equipment input current <= 16 A per phase)

Electromagnetic compatibility (EMC) - Part 3-3: Limits. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current <= 16 A per phase and not subject to conditional connection

National Sanitation Foundation. Commercial powered food preparation equipment.

National Sanitation Foundation, Food equipment materials

Moncoda, February 06th, 2019

Francisco Serrano Operations Manager

Solid gray image with no visible content, text, or symbols.

Warranty

09029.02

Jan.2021

LIFE ESSENCE

Zumex Group | Headquarters

Poligona Ind. Moncada III

C/ Moli, 2 46113 Moncada, Valencia, Spain

Tel. [phone]

[e-mail]

Zumex North America

1573 NW 82nd Ave, Miami, FL 33126 USA

Tel. [phone]

Technical Assistance:

1-877-ZUMEX-TA ([phone])

[e-mail]

Zumex Mexico

Uxmal 616, Colonia Vértiz Narvarte

Alcaldía Benito Júarez, CP 03600

10 Philpot Lane First Floor
