EasyTrip - Iron TAURUS - Free user manual and instructions

Brand	Taurus
Model	EasyTrip
Product type	Travel iron
Soleplate	Ceramic
Power supply	Dual voltage (built-in voltage selector)
Water tank capacity	Approximately 100 ml (MAX level on filling cup)
Functions	Dry ironing, steam ironing, steam burst, vertical ironing
Settings	Thermostat (MIN to MAX positions), steam selector, steam burst button
Indicator light	Heating indicator: lights up when the appliance heats and turns off when at temperature
Folding handle	Yes (folding handle button)
Maintenance	Clean with a damp cloth; regular descaling recommended with specific product
Recommended water type	Distilled or purified water if tap water is hard
Safety	Do not immerse; unplug before cleaning; do not leave unattended
Use	Household use only
Dimensions (approx.)	Not specified in the manual
Weight (approx.)	Not specified in the manual
Included accessories	Filling cup
Warranty	Compliant with applicable legislation; technical service via taurus-home.com

Frequently Asked Questions - EasyTrip TAURUS

How to fill the water tank of the Taurus EasyTrip iron?

Open the filling spout cap, pour water up to the MAX level (do not exceed), then close the cap. Preferably use distilled water if your water is hard.

How to select the correct voltage on the Taurus EasyTrip iron?

The iron is equipped with a dual voltage selector. Before plugging in, check that the selector position matches your outlet voltage (e.g., 220-240 V in Europe). Use a non-metallic object to turn it if necessary.

How to use the steam function?

Make sure the tank has water and the steam selector is in the dry ironing position (for continuous steam, it must be open). Set the thermostat to a sufficient temperature (at least •• for steam). Press the steam burst button for a powerful jet.

How to clean the Taurus EasyTrip iron?

Unplug the appliance and let it cool completely. Clean the soleplate and body with a damp cloth (no solvents or abrasives). Never immerse the iron in water. For descaling, use a specific product and follow the instructions.

What type of water to use to avoid limescale?

If your water is hard (high in limescale), use distilled or purified water. Otherwise, regular descaling is needed: every 6 weeks for very hard water, every 12 weeks for hard water.

How to store the iron after use?

Set the thermostat to MIN, unplug, empty the water tank, let it cool completely. Store it in a dry place, out of reach of children. Do not store it while still hot.

How to iron vertically with the Taurus EasyTrip?

Select the maximum temperature, wait for the indicator to turn off. Hold the iron vertically, press the steam button and move the iron from top to bottom over hanging garments or curtains. For delicate fabrics, maintain a distance of a few centimeters.

Why does the indicator light stay on constantly?

The indicator light turns on when the iron heats up and turns off when the selected temperature is reached. It turns on again automatically to maintain the temperature. If the light never turns off, it may indicate a thermostat problem; contact technical support.

How to avoid burn marks on clothes?

Respect the recommended temperatures for each fabric (synthetic •, silk/wool ••, cotton •••, linen MAX). Start with low-temperature fabrics. Use a dry cotton cloth for pure wool. Clean the soleplate regularly.

What to do if the iron does not heat?

Check that the voltage selector is in the correct position and that the thermostat is not set to MIN. Make sure the cord is properly plugged in. If the problem persists, contact an authorized Taurus technical service.

USER MANUAL EasyTrip TAURUS

Line drawing of a steam iron with visible internal components and mounting holes (no text or symbols)

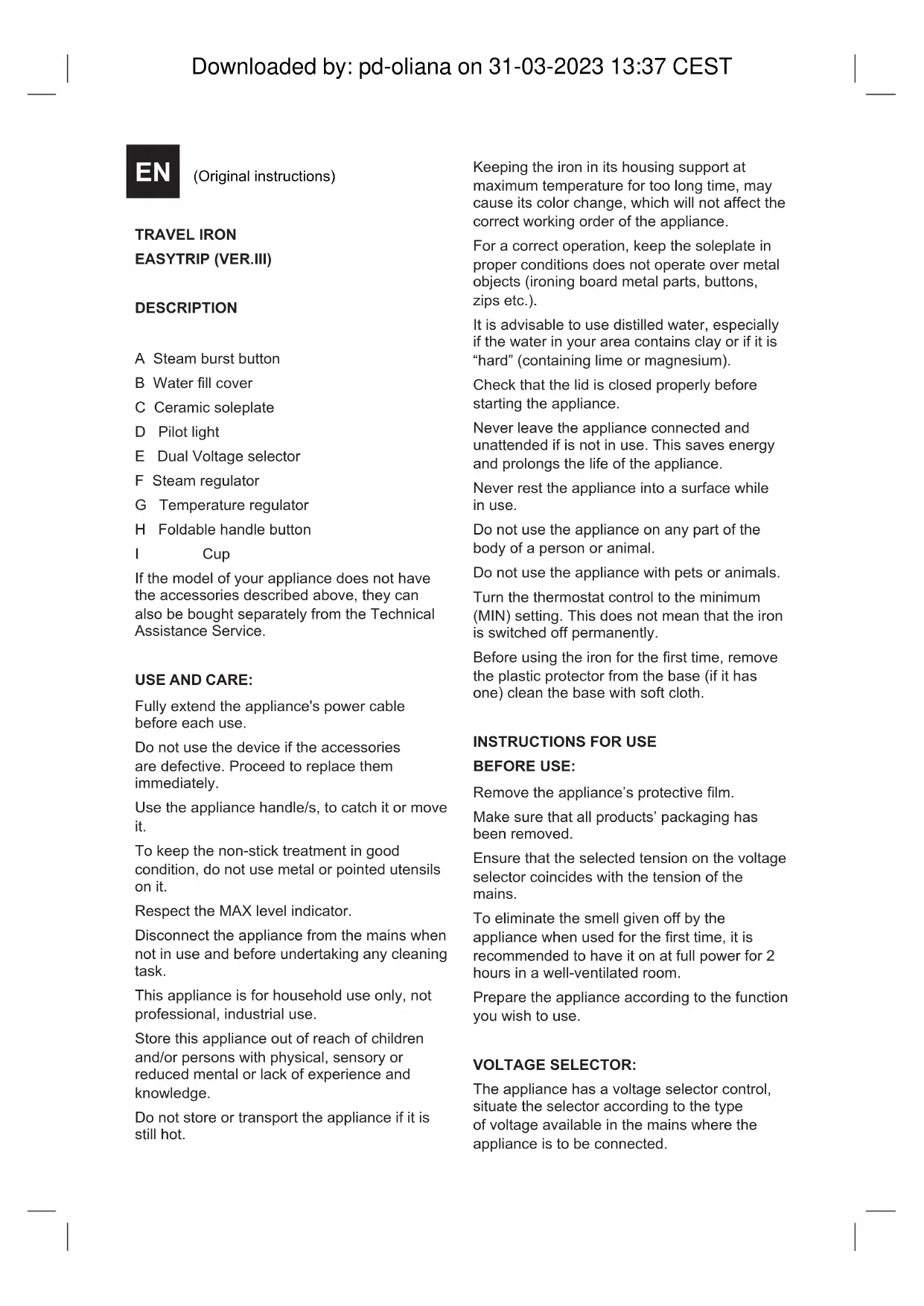

EN. Instructions for use

FR. Mode d'emploi

A B H PUSH D G E F C I

ES

(Original instructions)

TRAVEL IRON

EASYTRIP (VER.III)

DESCRIPTION

A Steam burst button

B Water fill cover

C Ceramic soleplate

D Pilot light

E Dual Voltage selector

F Steam regulator

G Temperature regulator

H Foldable handle button

I Cup

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE:

Fully extend the appliance's power cable before each use.

Do not use the device if the accessories are defective. Proceed to replace them immediately.

Use the appliance handle/s, to catch it or move it.

To keep the non-stick treatment in good condition, do not use metal or pointed utensils on it.

Respect the MAX level indicator.

Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

This appliance is for household use only, not professional, industrial use.

Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

Do not store or transport the appliance if it is still hot.

Keeping the iron in its housing support at maximum temperature for too long time, may cause its color change, which will not affect the correct working order of the appliance.

For a correct operation, keep the soleplate in proper conditions does not operate over metal objects (ironing board metal parts, buttons, zips etc.).

It is advisable to use distilled water, especially if the water in your area contains clay or if it is "hard" (containing lime or magnesium).

Check that the lid is closed properly before starting the appliance.

Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

Never rest the appliance into a surface while in use.

Do not use the appliance on any part of the body of a person or animal.

Do not use the appliance with pets or animals.

Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.

Before using the iron for the first time, remove the plastic protector from the base (if it has one) clean the base with soft cloth.

INSTRUCTIONS FOR USE

BEFORE USE:

Remove the appliance's protective film.

Make sure that all products' packaging has been removed.

Ensure that the selected tension on the voltage selector coincides with the tension of the mains.

To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.

Prepare the appliance according to the function you wish to use.

VOLTAGE SELECTOR:

The appliance has a voltage selector control, situate the selector according to the type of voltage available in the mains where the appliance is to be connected.

FILLING WITH WATER:

It is essential to have filled the deposit with water to be able to work with steam.

Open water inlet lid.

Fill the deposit taking care to observe the MAX level.

Close water inlet lid.

USE:

Extend the cable completely before plugging it in.

Connect the appliance to the mains.

Turn the thermostat control to the desired temperature position.

The pilot light comes on.

Do not use temperatures higher than those indicated on the garments to be treated.

- Temperature for synthetic fibers (Polyester, Nylon...).

● Temperature for silk and wool.

●●● Temperature for cotton. (Minimum temperature for steam ironing)

Max Temperature for linen.

If garment has various kinds of fibers, select the temperature for the fiber that requires the lowest temperature. (For example, select the temperature for polyester for an article made out of 60% polyester and 40% cotton).

Wait until the pilot light has gone out which will indicate that the appliance has reached an adequate temperature.

During the appliance's use the pilot light will come on and off automatically, indicating the heating elements are working, and therefore maintaining the desired temperature.

DRY IRONING:

The appliance has an option to dry ironing (without steam). To use this set the steam selector to the ironing position without steam.

STEAM IRONING:

It is possible to iron with steam whenever the deposit is filled with water, the adequate temperature is selected and the steam selector to the ironing position without steam

STEAM BLAST:

This function proportions extra steam for eliminating wrinkles.

Press the steam blast button. Wait a few seconds until vapor penetrates the fibers of the garment before pushing the button again. For optimum steam quality, do not apply more than three successive blasts.

The steam blast button has to be pressed repeatedly to release the first shot.

VERTICAL STEAMING:

It is possible to iron hanging curtains, items of clothing on his hanger, etc. To do so, follow the instructions:

Select the maximum temperature of the iron, while turning the temperature regulator of the iron in a clockwise direction.

Wait until the pilot light goes out, which indicated that the selected temperature has been reached.

Move the iron in a top to bottom direction while pressing the steam control. Important: for cotton and linen, it's recommended to put the iron base in contact with the material. For other more delicate fibers, it's recommended to keep the iron base at some centimeters of distance.

Once you have finished using the appliance: Select the minimum position (MIN) using the thermostat control.

Unplug the appliance from the mains.

Remove the water from the inside of the appliance.

Clean the appliance.

PRACTICAL RECOMMENDATIONS:

Classify the garments into groups by ironing temperature. The appliance heats up more quickly than it cools down, therefore, to avoid accidents, minimize energy consumption and optimize time, it is advisable to start off ironing items that require lower temperatures and progress to those that need higher temperatures.

Pure wool fabrics (100%) can be ironed with the iron set to steam. Select a high steam temperature and place a cotton cloth between the iron's metal surface and the garment.

CLEANING

Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

Clean the equipment with a damp cloth with water and then dry.

Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

Never submerge the appliance in water or any other liquid or place it under running water.

HOW TO DEAL WITH LIME SCALE INCRUSTATIONS:

For the appliance to work correctly it should be kept free of limescale or magnesium incrustations caused by the use of hard water.

To avoid this type of problem, the use of distilled or purified water is recommended.

However, if it is not possible to use the kind of water recommended above, you should periodically remove the limescale from the appliance:

Every 6 weeks if the water is "very hard".

Every 12 weeks if the water is "hard".

To do so, we recommend the use of the specific product for this kind of appliance, which can be found in specialized shops and authorized technical services.

FR

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

(بالbxcar)

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
