| Product type | Connected body composition scale |
| Brand and model | Sportstech BBS300 |
| Dimensions | 300 × 300 × 25 mm |
| Net weight | 2.16 kg |
| Maximum capacity | 180 kg |
| Weight units | Kilogram, Pound, Stone |
| Power supply | Rechargeable Li-Polymer battery 300 mAh, 3.7 V (model JY502030) |
| Charger | Micro USB cable included |
| Connection | Bluetooth 4.0 (frequency 2400-2483.5 MHz, power ≤20 dBm) |
| App | Fitdays (free, iOS 8.0+ / Android 5.0+) |
| Main functions | Weight, BMI, body fat, muscle mass, bone mass, water percentage, heart rate, visceral fat, basal metabolic rate, metabolic age, etc. (13 measurements) |
| Measurement technology | Bioelectrical impedance analysis (BIA) via 4 electrodes |
| Accuracy | 0-60 kg: ±300 g; 60-120 kg: ±400 g; 120-180 kg: ±500 g |
| Display | LED screen 62 × 109 mm |
| Care and cleaning | Soft dry cloth; water or mild detergent possible; do not immerse |
| Safety instructions | Not suitable for persons with electronic implants (pacemaker) or pregnant women; use on stable, dry floor; barefoot for body analysis |
| Spare parts and repairability | Battery not user-replaceable; repairs only by qualified personnel (InnovaMaxx) |
| Use | Private, non-medical |
| Package contents | BBS300 scale, micro USB cable (60 cm), user manual |
Frequently Asked Questions - BBS300 Sportstech
User questions about BBS300 Sportstech
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Scale in PDF format for free! Find your manual BBS300 - Sportstech and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BBS300 by Sportstech.
USER MANUAL BBS300 Sportstech
BBS300
Personenwaage

DE
EN
ES
FR
IT
NL
BENUTZERHANDBUCH
DEUTSCH
Facebook-Seite


https://www.instagram.com/sportstech.de https://www.facebook.com/sportstech.de
INHALT
in der "Fitdays" App

We are pleased you chose a device from the SPORTSTECH product range. With sports equipment from SPORTSTECH you get the highest quality and latest technology.
In order to fully use the potential of your device and be able to enjoy it for many years, please read this manual carefully before starting up and beginning of training, and use the device according to the instructions. The operational safety and function of the device can only be guaranteed if the legal provisions on general safety and accident prevention as well as the safety instructions in this user manual are observed. We shall not assume any liability for damages resulting from improper use or incorrect operation.

Please ensure that all persons using the device have read and understood the user manual.
Keep the user manual in a safe place to be able to access it at any time if needed.
Errors and omissions excepted.

Our video tutorials for you!
Assembly, use, disassembly.
- Scan the QR code
- Watch videos
- Start fast and safely


Link to the videos: https://service.innovamaxx.de/bbs300_video
We are also on social media!
Get the latest product information, training content and much more on our:
Instagram-page


Facebook-page


https://www.instagram.com/sportstech.de https://www.facebook.com/sportstech.de
INDEX
- INTRODUCTION....22
- IMPORTANT SAFETY INSTRUCTIONS....24
- OVERVIEW 26
- DISPLAY AND FUNCTIONS ...... 27
- INSTALLATION 28
- BODY ANALYSIS 29
- NORMAL WEIGHING FUNCTION 30
- APPLICATION SOFTWARE (APP) 31
- RESULT DISPLAYS 32
- TROUBLESHOOTING....33
- TECHNICAL DATA....33
- DECLARATION OF CONFORMITY....99

1. INTRODUCTION
The SPORTSTECH body analysis scale BBS300 measures using the Bioelectric Impedance Analysis (short BIA) muscle mass, bone mass, body fat and body water content and gives you the percentage distribution of these values in relation to your total body weight.
Based on the evaluation of this personal data, the scale also shows you your body mass index (BMI) and your heart rate. The device thus offers you a reliable and precise overview of your body composition.

Intended Use
This product is intended for private use and is not suitable for medical, therapeutic or commercial use.
The maximum load capacity of 180 kg must not be exceeded.

Attention! This device is not suitable for people with medical implants such as a pacemaker or other electronic medical devices. Their function could be impaired.
How does the BIA measurement work with the SPORTSTECH BBS300?
The advanced BIA measurement takes place via a weak and harmless electrical pulse, which is sent through the body by the 4 integrated electrodes within just a few seconds. The electrical resistance in the body is measured, whereby the fat tissue and the bones have more resistance and therefore less electrical conductivity than the muscle tissue and body water.
The person-dependent, individual factors such as gender, height and age are taken into account in order to determine your personal body composition as accurately as possible.
Please note that the determined values of the SPORTSTECH bathroom scale only represent approximate values to the real, medical analysis values of the body. The exact determination of muscle percentage, bone mass, body fat and body water can only be carried out using the methodology of a medical specialist.
13 different measurements and values
in the "Fitdays" app
- Weight
• BMI (Body Mass Index)
• Body fat percentage
• Body weight without fat - Subcutaneous fat
- Visceral fat
- Body water
- Muscle percentage
- Muscle mass
- Bone mass
- Protein balance
• Basal metabolic rate (BMR)
- Metabolic age


2. IMPORTANT SAFETY INSTRUCTIONS

These basic precautions should always be followed, including the following safety instructions when using this device. Read all instructions before using this equipment.
- It is important to read this entire manual before using the equipment. Safe and effective use can only be achieved if the equipment is maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
- Keep children away from the packaging material of the product, there is a risk of suffocation.
- Attention! This device is not suitable for people with medical implants such as a pacemaker or other electronic medical devices. Their function could be impaired.
- Do not use the device during pregnancy or if you think you may be pregnant.
- Use the device on a firm, level and non-slippery surface.
- Only step on the intended stand area and not on the actual display.
- Caution! Danger of Slipping! Do not use the device if its surface is damp or your feet are wet.
- Caution! Risk of Falling! Do not stand on one side on the outer edge of the scale.
- Make sure that small children and pets are kept away from the device to avoid injury.
- The individual components of this device must not be disassembled, converted or repaired.
- Please note that there may be measurement variables due to technical reasons (0-60kg: ± 300g, 60-120kg: ± 400g, 120-180kg: ± 500g), as the device is not a scale that has been calibrated for professional medical use.
- The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear. Repairs may only be carried out by specialist personnel.
- Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during use, stop immediately. Do not use the equipment until the problem has been rectified.
- This product is intended for private use and is not suitable for medical, therapeutic or commercial use.
NOTES ON BATTERY SAFETY
- Protect the bathroom scale from excessive sunlight, heat, fire, etc.: Otherwise the built-in battery could explode.
- Please never try to open the device yourself. If the bathroom scale may be open due to damage, do not touch the contents, especially the battery poles!
- Please do not open the body of the bathroom scale to change the battery yourself. The battery may only be changed by specialist personnel from InnovaMaxx.
- To recharge the battery, please use only the charger supplied. If you perceive a smell, or if the battery heats up, please stop the charger immediately.
- The batteries cannot be removed or replaced. They are fixed to the device.
- Do not charge the device overnight or unattended.
NOTES ON CHARGER SAFETY
- The battery charger must not be used by children.
- Children are not allowed to play with the charger.
- Children must not clean or service the device. If the charger cable is defective, it must be replaced by the manufacturer, a specialist dealer or another qualified person. Otherwise there is danger.
- It is crucial to protect electrical parts from moisture. When cleaning the appliance, or when it is in use, make sure that no liquid is dripping or flowing into the appliance. Otherwise, you may suffer an electric shock. Do not keep the charger under water. Read the instructions in the section on cleaning and care thoroughly..
- When using the charger, be sure to periodically check for damage. You can only use a defective charger again if it has been refurbished.
- Do not use the charger if it has taken a hit or a knock: for example, when it fell or is damaged for another reason.
- If the bathroom scale is defective, do not connect a charger. There is a risk of injury from electric shock.
- Do not disassemble the charger under any circumstances..
- Do not use the charger near explosive or flammable objects. Otherwise, there is risk of explosions and fire.
- Please charge the battery only in a confined space, as the charger is designed for indoor use only. Otherwise, an electric shock might occur.
- Please remember that the charger and the charger port must be connected correctly.
- Always make sure that the charger port is in fact free. Wetness and dirt may damage the charger port.
- Please also read our section „Disposal“.

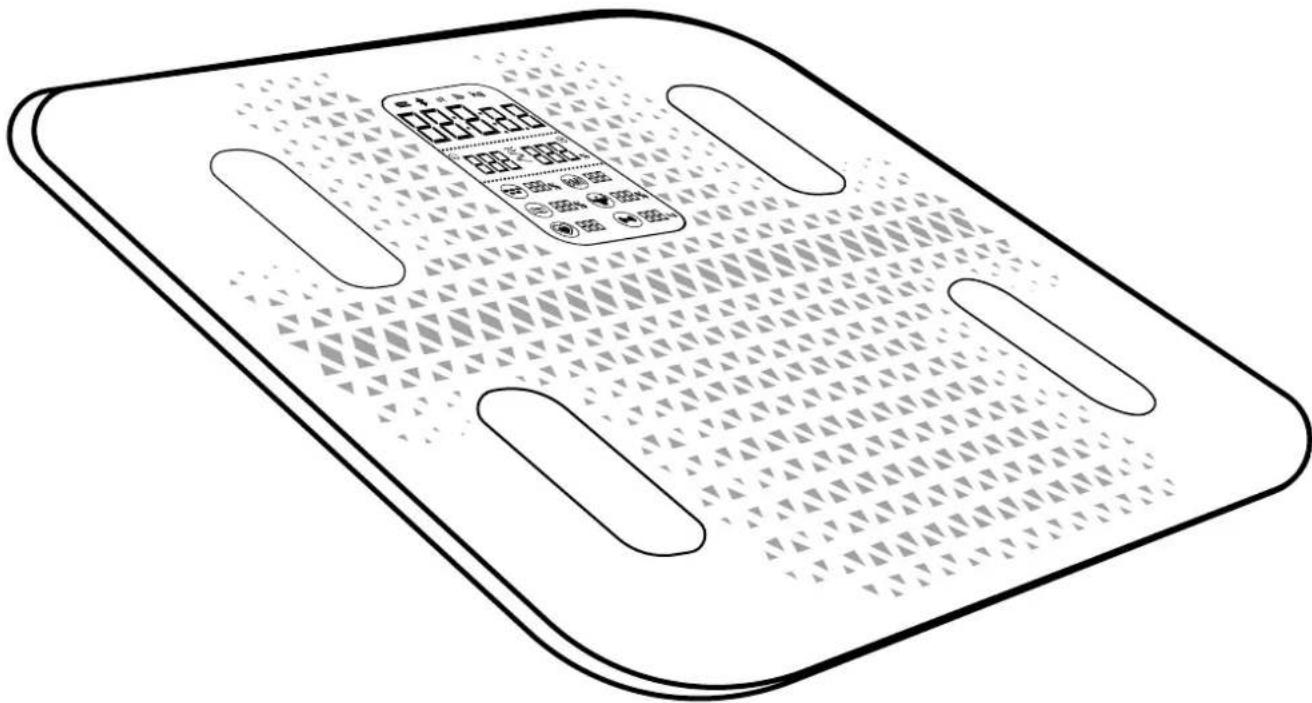

3. OVERVIEW
SCOPE OF DELIVERY:
• Personal scale BBS300 with Li-polymer battery cell
- Micro USB cable (60 cm long)
- User Guide
General information on the weighing process with the SPORTSTECH BBS300
- For the most accurate measurement possible, stand still during the measurement process and do not move if possible. Do not support yourself or hold on to anything. Your feet should be positioned centrally and symmetrically on the electrodes of the scale.
- If possible, always carry out the weighing process at the same time of day and under the same conditions (undressed, sober) in order to obtain comparable results.
- The body analysis values can only be determined barefoot. Since completely dry soles of the feet have too low a conductivity, you can moisten them very weakly if necessary.
- The measured values in a body analysis with bioimpedance measurement methods depend on several factors and can vary considerably over the course of the day. Weighing in the evening (between 6 and 8 p.m.) is, therefore, recommended as an optimum time for a body analysis measurement. In the morning, the body is drained, which means that the body resistance and thus the measured body fat percentage is higher, but the muscle percentage is accordingly lower. During the day, the body's water balance returns to a normal level. You can find more detailed information in section 9 Result Displays.

Notes on determined measurement results
The results can be falsified if the device
- is on an uneven surface.
• is used in different locations.
• is close to mobile phones.
• is placed in locations with high humidity. - is close to heating sources or in the range of fluctuating temperatures.
• is exposed to shocks or vibrations.
Avoid direct sunlight.

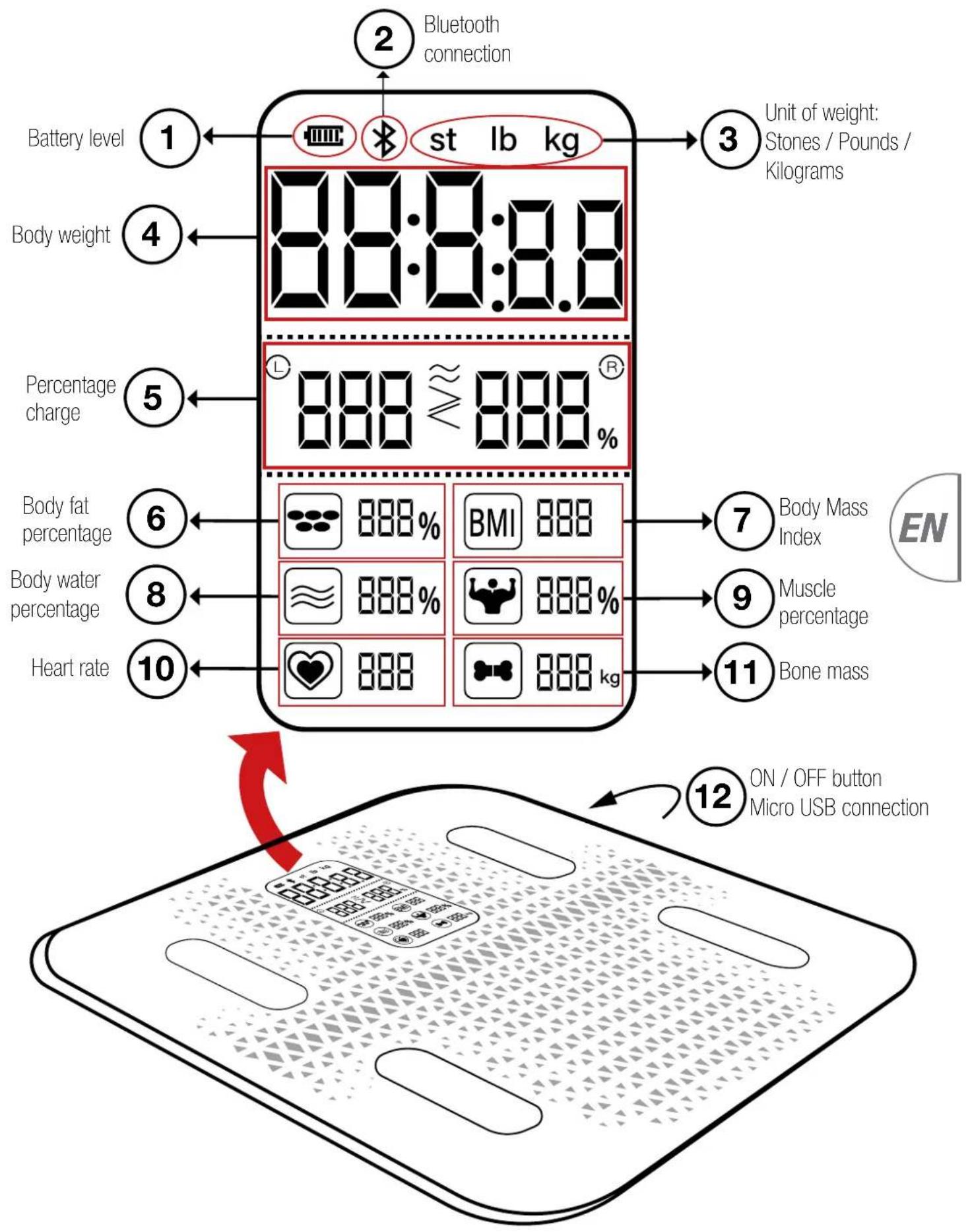

- DISPLAY AND FUNCTIONS

5. INSTALLATION
1. Charging the battery
Before using for the first time, fully charge the integrated battery using the micro USB cable.
The battery symbol on the top left of the display shows you the current charge level. With average use, the battery life lasts at least 30 days.

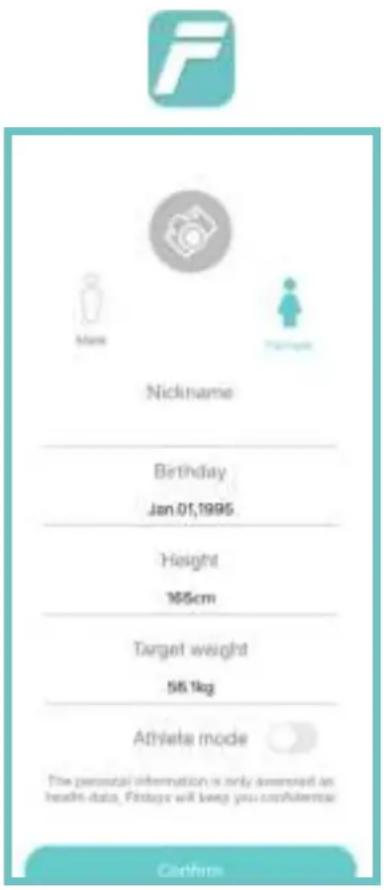

2. Personal Settings
The body analysis measurement can display the determined values very precisely and individually based on your personal settings in the "Fitdays" app. The app offers you 13 different measurement values to keep an eye on during your fitness and health regimes and to display any progress and changes for you.
Before you carry out the first measurement with your SPORT-STECH balance, you should install the free "Fitdays" app on your smartphone and create a user profile. The app offers you a wide range of measurement values and individual setting options via a Bluetooth connection. You can also select your preferred weight unit via the app. You can find more information on this under point 8 Application Software (App).

3. Cleaning and Care
Please only use a dry, soft cloth to clean the scale. You can also use a cloth that has been lightly moistened with water or a mild detergent. Do not hold the device under running water. Refrain from using aggressive cleaning agents such as alcohol, abrasives or solvents.
6. BODY ANALYSIS
Start a measurement

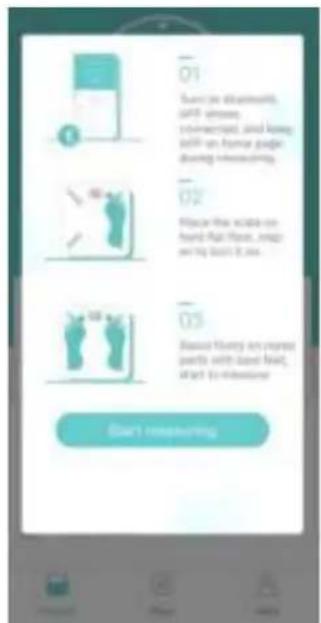

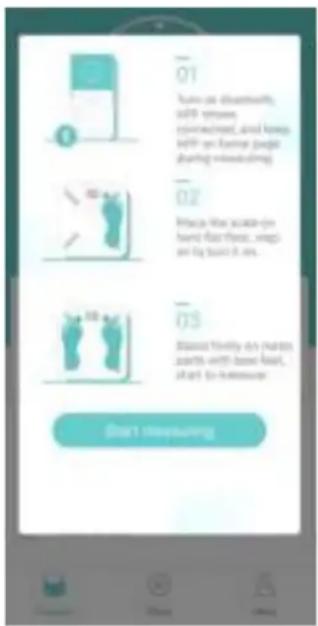

- Open the "Fitdays" app on your smartphone and make sure that the SPORTSTECH scale is connected via Bluetooth.
- Make sure that the scale is on a level, firm surface. The body analysis function is only available when you stand barefoot on the scale.
- Press the ON / OFF button once on the right side of the device (next to the micro USB connection) so that the display lights up.

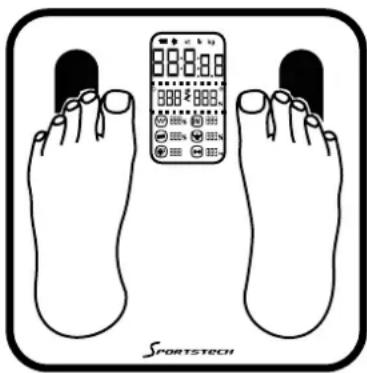

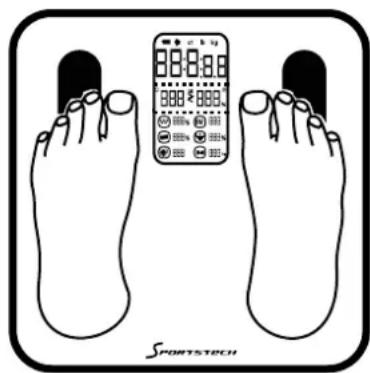

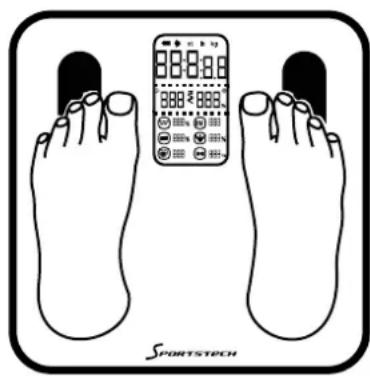

- Mount the scales barefoot and position your feet symmetrically on the 4 silver electrodes. The body analysis starts automatically.
Factors that can influence a body analysis
Basically, the measured values of each person fluctuate during the day according to the distribution of body water. In women, hormonal fluctuations can change the water balance in the body, which can lead to deviations in the measurement results. It is not recommended to measure yourself immediately after strenuous activities, sauna sessions, bathing, alcohol consumption and eating and drinking, as this can influence the values to be determined.
The following persons or groups of people could receive different or compromised results when determining the body analysis values:
• Competitive athletes and bodybuilders
- Pregnant women
• Children under 10 years
• People on dialysis treatment, with fever, edema symptoms or osteoporosis
- People who are taking vasoconstrictor or vasodilator medication
• People taking cardiovascular medication
- People whose overall body size is influenced by considerable anatomical deviations in the legs (difference in leg length)

7. NORMAL WEIGHING FUNCTION
Normal weighing function (weight measurement only)
It is also possible to use the device for normal weight measurement. To do this, press the ON / OFF button once on the right side of the device (next to the micro USB port) so that the display lights up.
Now stand on the scales with stockings or shoes and you will only be shown your body weight.
8. APPLICATION SOFTWARE (APP)
You can download the "Fitdays" app using the QR codes shown here or search in your store. Minimum compatibility specifications for mobile device; Android 5.0 or higher with Bluetooth 4.0, iOS 8.0 or higher.
Android

Fitdays

Notes on using the App:
You should only install apps from sources you trust. Innovamaxx cannot accept any liability for software provided by third parties.
Please remember to turn on the Bluetooth feature on your device.


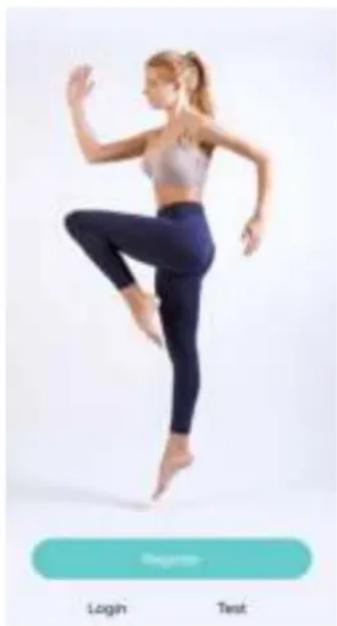

- After downloading the app, register in just a few steps. 2. The app now prompts you to establish a Bluetooth connection and guides you through the weighing process after successful connection is established.

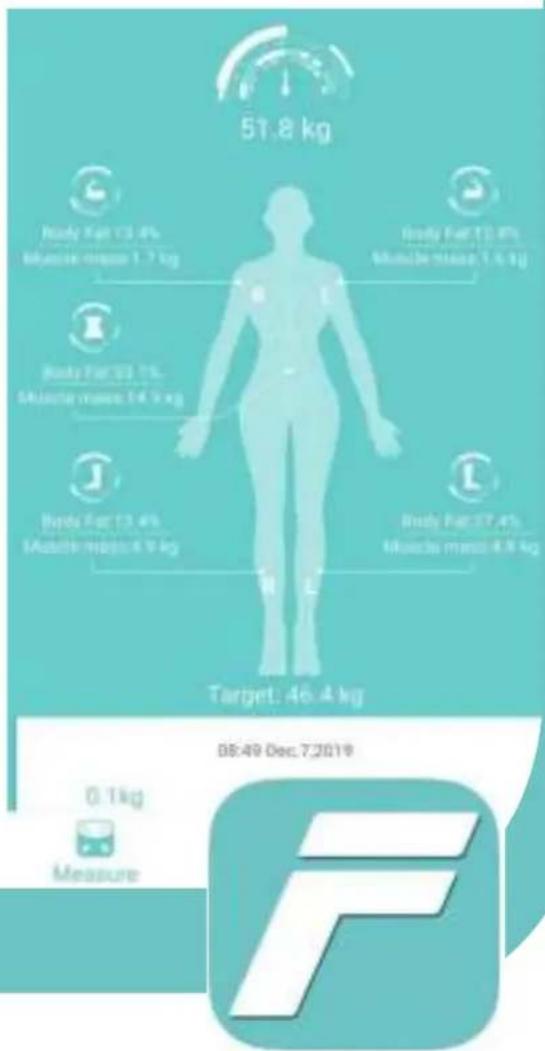

9. RESULT DISPLAYS
Body fat percentage
| Age (in years) | Women Men | |||||
| WELL MEDIUM BAD WELL MEDIUM BAD | ||||||
| < 20 17-22 % 22-27 % > 27 % | 12-17 % 17-22 % > 22 % | |||||
| 20-30 18-23 % 23-28 % > 28 % | 13-18 % 18-23 % > 23 % | |||||
| 30-40 19-24 % 24-29 % > 29 % | 14-19 % 19-24 % > 24 % | |||||
| 40-50 20-25 % 25-30 % > 30 % | 15-20 % 20-25 % > 25 % | |||||
| > 50 21-26 % 26-31 % > 31 % | 16-21 % 21-26 % > 26 % | |||||
Body water percentage
| Age (in years) | Women | Men | ||||
| VERY WELL | WELL | BAD | VERY WELL | WELL | BAD | |
| 10-100 | >60 % | 45-60 % | < 45 % | >65 % | 50-65 % | < 50 % |
Muscle percentage
| Age (in years) | Women | Men | ||||
| LOW | NORMAL | HIGH | LOW | NORMAL | HIGH | |
| 15-19 | < 35 % | 35-41 % | > 41 % | < 43 % | 43-56 % | > 56 % |
| 20-29 | < 34 % | 34-39 % | > 39 % | < 42 % | 42-54 % | > 54 % |
| 30-39 | < 33 % | 33-38 % | > 38 % | < 41 % | 41-52 % | > 52 % |
| 40-49 | < 31 % | 31-36 % | > 36 % | < 40 % | 40-50 % | > 50 % |
| 50-59 | < 29 % | 29-34 % | > 34 % | < 39% | 39-48 % | > 48 % |
| 60-69 | < 28 % | 28-33 % | > 33 % | < 38 % | 38-47 % | > 47 % |
| > 70 | < 27 % | 27-32 % | > 32 % | < 37 % | 37-46 % | > 46 % |
Bone mass in kilograms
| Women | Men | |||||
| Weight (in kg) | < 45 | 45-60 | >60 | < 60 | 60-75 | >75 |
| Bone mass (in kg) | 1,8 | 2,2 | 2,5 | 2,5 | 2,9 | 3,2 |
* The values shown are standardized and therefore not generally applicable. Deviations and anomalies are possible in your individual measurements, so always contact a doctor for medical advice.
10. TROUBLESHOOTING
| Problem Possible | Cause Solution | |
| Measurement results are abnormal:Too lowToo highLarge difference between 2 real-time measurements | The device is on an uneven surfaceFeet are too dry (poor conductivity)Wrong posture or support | Place the scale on a firm, level surface.Moisten your feet mildly with a damp cloth.Step on the scales barefoot and ensure the same foot position on both sides. |
| The LED display does not turn on after you press the ON / OFF button. | The battery is empty. Charge the battery using the micro USB cable. | |
| The scales do not perform a body analysis. | Weighing is done wearing socks or shoes. | Mount the scale barefoot and keep your feet in contact with the 4 electrodes during the measurement. |
11. TECHNICAL DATA
| Product model BBS300 | |
| Dimensions 300 x 300 x 25 mm | |
| Display dimensions 62 x 109 mm | |
| Units of weight Pound / Stone / Kilogram | |
| Measuring range 5kg-180kg / 11lb-397lb / 0st 1 | 1lb-28st 5 lb |
| Net weight 2,16 kg | |
| Maximum load capacity 180 kg | |
| Battery | Model: JY502030Type: Li-polymer rechargeable battery cellPower: 300 mAhVoltage: 3,7 VManufacturer: Zhongshan Jingyu Electronic Technology Co.,Ltd. |
| Battery charger | Micro USB cable |
| Radio frequency | 2400-2483.5MHz |
| Maximum transmission power | ≤20 dbm |


Recycling loop
Packaging material can be conveyed back to the raw material cycle. Dispose of packaging material in accordance with legal provisions. Information can be retrieved from the return or collections systems of your community.
Note on the Battery Act (BattG)
Batteries and cells must not be disposed of with household waste. The batteries used in the product are permanently installed batteries as defined in the BatsG. Never try to remove the batteries yourself. This will permanently damage the device. Your obligations as a customer are based on the ElektroG. Please note, therefore, the following information on this page in the "ElektroG" area.
Apart from this information, we point out the following:
Used batteries contain pollutants that, if not properly stored or disposed of, can damage the environment or your health. Batteries also contain important raw materials such as iron, zinc, manganese or nickel which can be used again.
The symbol with the crossed-out waste bin means that batteries and cells must not be disposed of with household waste.
Notes on the Electrical and Electronic Equipment Act (ElektroG)
We would like to point out to owners of electrical and electronic equipment that, according to the applicable legal regulations, electrical devices must be disposed of separately from municipal waste. The symbol of a crossed-out waste bin shown on the electrical and electronic equipment shown below also indicates the obligation to dispose of the batteries soperately:

According to the ElektroG, as distributors of electrical devices, we are obliged to take back certain old electrical and electronic equipment free of charge in accordance with Section 17 (2) ElektroG and in conjunction with Section 17 (1) ElektroG. We comply with this legal obligation through DR Deutsche Recycling Service GmbH / take e-way GmbH. You can also hand in your electrical equipment at the designated collection points of the public waste disposal authorities. By disposing of your old devices according to the legal requirements, you make an important contribution in the reuse and recycling of old devices.
As the end user, you are responsible for the deletion of all manner of personal data on electronic devices before handing the devices over for disposal.
MANUAL DE USUARIO
ESPAÑOL
Estimado cliente,
Enlace a los videos: https://service.innovamaxx.de/bbs300_video


https://www.instagram.com/sportstech.de https://www.facebook.com/sportstech.de
CONTENIDOS


la page Facebook


https://www.instagram.com/sportstech.de https://www.facebook.com/sportstech.de
CONTENU
- INTRODUCTION....54
- INFORMATIONS DE SÉCURITÉ IMPORTANTES ....56
- VUE D'ENSEMBLE 58
- AFFICHAGE ET FONCTIONS....59
- MISE EN SERVICE 60
- ANALYSE CORPORELLE 61
- FONCTION DE PESÉE CLASSIQUE....62
- LOGICIEL D'APPLICATION (APP) 63
- AFFICHAGE DES RÉSULTATS 64
- DÉPANNAGE....65
- DONNÉES TECHNIQUES 65
- DECLARATION OF CONFORMITY....99

1. INTRODUCTION

2. INFORMATIONS DE SÉCURITÉ IMPORTANTES
8. LOGICIEL D'APPLICATION (APP)

Link per il Video: https://service.innovamaxx.de/bbs300_video


https://www.instagram.com/sportstech.de https://www.facebook.com/sportstech.de
INDICE
- INTRODUZIONE....70
- INFORMAZIONI IMPORTANTI PER LA SICUREZZA....72
- SOMMARIO....74
- DISPLAY E FUNZIONI 75
- MESSA IN FUNZIONE....76
- ANALISI CORPOREA 77
- FUNZIONE DI PESATURA NORMALE....78
- SOFTWARE DI UTILIZZO (APP)....79
- VISUALIZZAZIONI DEI RISULTATI....80
- RISOLUZIONE DEI PROBLEMI 81
- DATI TECNICI 81
- DECLARATION OF CONFORMITY....99
IT
1. INTRODUZIONE
IT
2. INFORMAZIONI IMPORTANTI PER LA SICUREZZA

Link naar de video's: https://service.innovamaxx.de/bbs300_video

https://www.instagram.com/sportstech.de https://www.facebook.com/sportstech.de
INHOUD
- INLEIDING 86
- BELANGRIJKE VEILIGHEIDSINSTRUCTIES 88
- OVERZICHT 90
- DISPLAY EN FUNCTIONS 91
- INGEBRUIKNAME 92
- LICHAAMSANALYSE 93
- NORMALE WEEGFUNCTIE 94
- APPLICATIONSOFITWARE (APP) 95
- RESULTAATWEERGAVE 96
- PROBLEMEN OPLOSSEN 97
- TECHNISCHE INFORMATIE....97
- DECLARATION OF CONFORMITY....99
1. INLEIDING
other
| Category | Value | | -------- | ----- | | Body Fat | 13.4% | | Muscle Mass | 7.7 kg | | Body Fat | 25.1% | | Muscle Mass | 14.0 kg | | Body Fat | 13.4% | | Muscle Mass | 4.8 kg | | Body Fat | 25.1% | | Muscle Mass | 4.8 kg | | Target | 46.4 kg | | Measure | 0.1 kg | | Date: Dec 7, 2019
2. BELANGRIJKE VEILIGHEIDSINSTRUCTIES
7. NORMALE WEEGFUNCTIE
8. APPLICATIESOFTWARE (APP)
Fitdays

12. DECLARATION OF CONFORMITY
At the following link At the following link
you will find the declaration of conformity: you will find the declaration of cc
https://service.innovamaxx.de/bbs300_conformity

Verkauf durch / Distributed by / Distribuido por / Distribué / Distribuito da / Verkoop via
InnovaMaxx GmbH
Potsdamer Platz 11
10785 Berlin

+49 30 220 663 520

service@innovamaxx.de

www.sportstech.de
