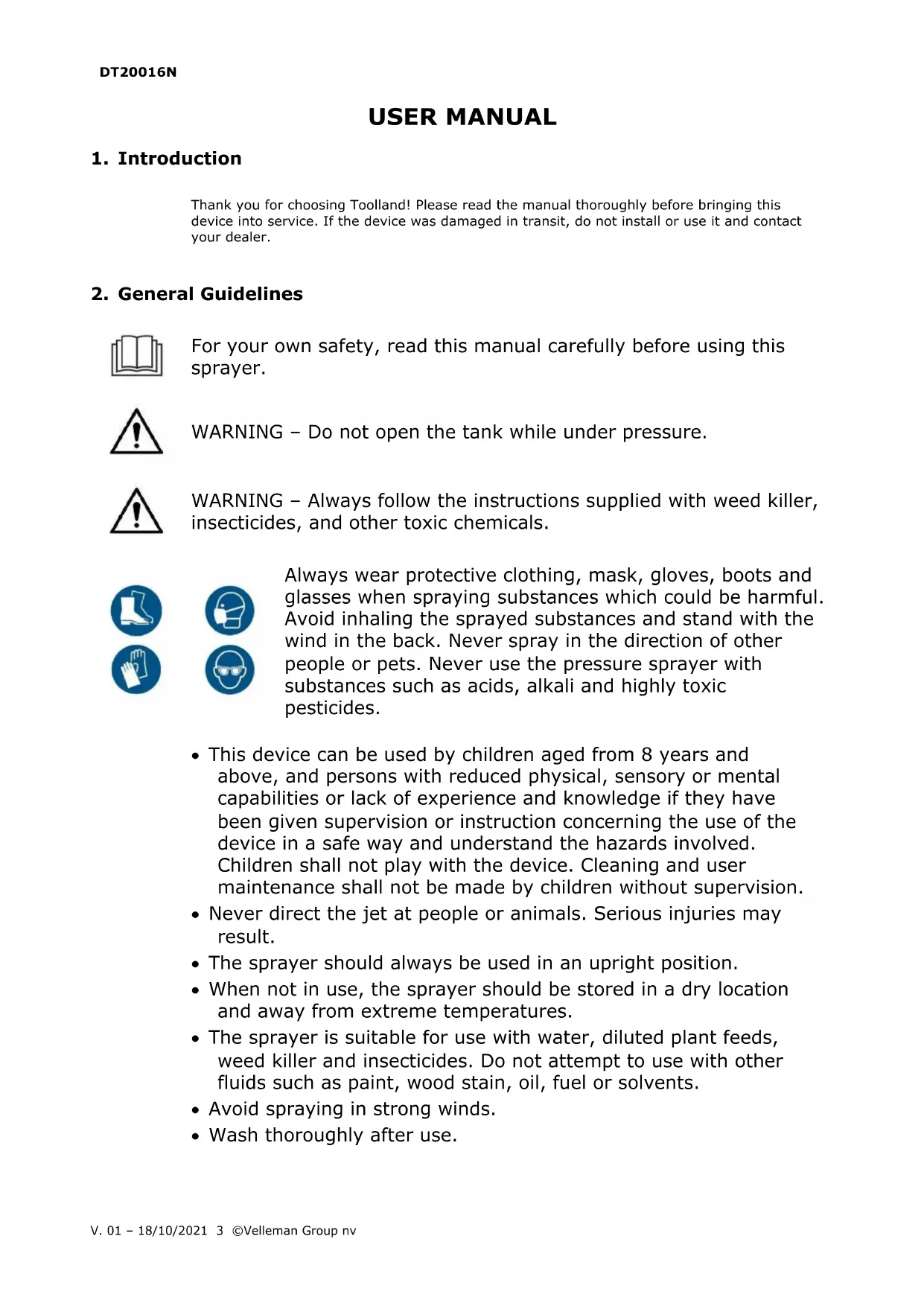

USER MANUAL DT20016N Toolland

Thank you for choosing Toolland! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

For your own safety, read this manual carefully before using this sprayer.

WARNING – Do not open the tank while under pressure.

WARNING – Always follow the instructions supplied with weed killer, insecticides, and other toxic chemicals.

Always wear protective clothing, mask, gloves, boots and glasses when spraying substances which could be harmful. Avoid inhaling the sprayed substances and stand with the wind in the back. Never spray in the direction of other people or pets. Never use the pressure sprayer with substances such as acids, alkali and highly toxic pesticides.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

• Never direct the jet at people or animals. Serious injuries may result.

• The sprayer should always be used in an upright position.

• When not in use, the sprayer should be stored in a dry location and away from extreme temperatures.

• The sprayer is suitable for use with water, diluted plant feeds, weed killer and insecticides. Do not attempt to use with other fluids such as paint, wood stain, oil, fuel or solvents.

• Avoid spraying in strong winds.

• Wash thoroughly after use.DT20016N

• Do not leave the sprayer unattended whilst pressurized.

• Clean and rinse the pressure sprayer thoroughly after each use by spraying 1 to 2 litres of clear water. Do not dispose of your clean-up water into the sewer system but spray onto the treated crops.

• Lubricate the moving mechanic parts such as the suction tube inside the pump with some petroleum jelly.

• Refer to the Velleman

Service and Quality Warranty on the last pages of this manual.

• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

• Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product.

• Keep this manual for future reference.

Refer to the illustrations on page 2 of this manual.

Right-Handed Operation

1. Remove the pump cap, pull out the complete pump system and fix the mixer with the clip.

2. Slide the pump lever into the opening on the bottom side, at the same side as the pump’s.

Turn the lever until the hole appears. Fix the lever with the large plastic clip, making sure the pin of the clip clicks into the hole.

3. Fix the second large gasket onto the visible part of the rod. Fix the rod using a large gasket

4. Slide the upper end of the pump rod into the connection of the pump. Fix with a gasket and

5. Slide the lower end of the pump rod into the connection on the pump lever. Fix with a

small gasket and a split pin.

6. Fix the harness onto the tank. Make sure to hand-tighten both the pump cap and filling

Left-Handed Operation

The pump can also be mounted for left-handed use. Simply reverse the position of the pump and hose connection, follow the mounting instructions as per above and fix the harness to the front of the tank.

5.2 Mounting the Lance

1. Slide a nut and little gasket onto both ends of the lance tube.

2. Connect the required nozzle onto one end of the lance tube. Connect the other end to the

3. Slide the filter inside the control valve and connect to the hose. Connect the other end of

the hose to the hose connection on the tank.

1. Ensure that the backpack sprayer is correctly mounted. Fill the tank with the required liquid

and hand-tighten the filling cap.

2. Operate the pump lever to pressurize the tank.

o Intermittent operation: Depress the trigger on the control valve to operate and release it to stop spraying.

o Continuous operation: Depress the trigger and lock it on the control valve. Pump to re- pressurize the tank. Unlock and release the trigger to stop spraying.DT20016N

V. 01 – 18/10/2021 6 ©Velleman Group nv

7. Spraying Chemicals

This sprayer is intended for use with water-based solutions of proprietary insecticides, fungicides, weed killers and foliar feeds. Always follow the chemical suppliers on-pack instructions as well as the instructions listed below.

• Wear protective clothing, goggles, face mask and gloves.

• Avoid inhaling spray mist.

• Avoid skin contact with chemicals.

• Work in a well-ventilated area.

• Take care to protect children, pets, and fish from exposure to chemicals.

• Wash hands thoroughly after use and especially before eating.

• Wash any contaminated clothing.

• Seek medical attention if spray gets in your eyes or if you develop any symptoms after spraying.

• Do not spray near food or food preparation areas. When spraying crops, pay particular attention to the chemical manufacturer’s advice on time before crops can be eaten, etc.

• Do not spray any solvent-based material e.g. white spirit.

• Spray only thin watery solutions, thicker mixtures will clog the nozzle.

• Powdered chemicals can be sprayed successfully if they are not completely soluble and the solution tends to settle, spraying can still be successful so long as the mixture continually agitated.

• If the material to be sprayed contains sediment, strain the liquid into the sprayer bottle.

• Do not over-pressurize the bottle, or tamper with the pressure release valve.

• After use pay particular attention to the paragraph on cleaning.

• Your sprayer is manufactured from many different types of plastic material, and although the liquid you wish to use may be packed in a plastic container, this is no guarantee that it will not damage the sprayer. If you are in any doubt about any chemical you intend to spray we recommend that you contact the consumer service department at the address given the check its suitability.

• Too much pressure when operating the pump lever.

o Broken or loose rubber washer. Inspect every washer and replace/re-install if necessary.

o Clogged filter or nozzle. Clean the filter/nozzle.

• Low pressure when operating the pump lever.

o Dirty rubber washers. Clean all rubber washers with fresh water.

• No pressure when operating the pump lever.

o Rubber washer is missing. Place a rubber washer.

o The pump is filled with liquid. Remove the pump, empty from the liquid and re-install.DT20016N

V. 01 – 18/10/2021 7 ©Velleman Group nv

9. Care and Maintenance

• Lubricate all moving parts regularly and replace all worn gaskets.

• Lubricate the pump after every 50 hours of use. To do so:

1. Release the pressure by using the pump lever.

2. Remove the pins and gaskets above and below the pump rod. Remove the pump rod.

3. Hold the pump lever steady. Loosen the pump cap but do not remove. Pull the pump

by pulling the plunger out of its cylinder. Move the plunger to one side to uncover the three gaskets. Lubricate with silicone oil and proceed in the reverse order to reassemble the pump system.

• Clean the nozzle once a year. Let excess spray fluids drip from the nozzle after each use.

• The lance handle can be disassembled to clean or lubricate the filter. To do so, loosen the back part of the handle making sure not to lose the inner spring.

• Replace a damaged or worn hose immediately.

• To ensure proper working, make sure the ventilation openings in the filling cap are free at all times. If a one-way valve gets damaged, please contact your dealer.

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.DT20016N
