DTB10000 - Electric sprayer Toolland - Free user manual and instructions

Product Type	Electric Sprayer
Brand	Toolland
Model	DTB10000
Power Supply	Li-ion ICR18500 battery, 3.7 V, 1200 mAh
Charger	5 V DC, 1 A with micro-USB connector
Battery Life	Approximately 90 minutes
Charging Time	Approximately 90 minutes
Tank Capacity	1 liter
Tank Material	PE, PP, ABS
Tank Dimensions	124 x 124 x 280 mm
Weight	0.325 kg
Color	Orange
Spray Type	Adjustable: narrow stream or mist (rotate nozzle)
Intended Use	Spraying liquids (water, household cleaners, etc.)
Maintenance	Clean with a soft cloth and mild detergent; do not immerse
Storage	Empty the tank, store in a clean, dry place out of reach of unauthorized persons
Safety	Do not modify the device; use only for intended purpose; do not dispose of in household waste
Warranty	2 years (Velleman), subject to conditions
Repairability	Not repairable; dispose of in accordance with local regulations

Frequently Asked Questions - DTB10000 Toolland

How to charge the battery of the DTB10000 sprayer?

Open the cover of the USB connection on the handle. Connect the charger (5 V DC, 1 A with micro-USB connector) to the device, then to a power outlet. The red LED indicates charging, the blue LED indicates full charge. Disconnect after charging to avoid overcharge.

What is the battery life?

The battery life is approximately 90 minutes after a full charge.

How to adjust the spray pattern?

Turn the nozzle: to the right for a narrow stream (concentrated), to the left for a mist spray (wide).

What types of liquids can I use with this device?

The device is designed for spraying common liquids such as water, mild household cleaners, etc. Avoid solvents, flammable or corrosive products. Rinse after use.

How to clean the sprayer?

Empty the tank, depressurize, turn off the device. Clean the housing with a soft cloth dampened with a mild detergent. Never immerse the device in water or any other liquid.

What to do if spraying does not work?

Check that the battery is charged and the nozzle is not clogged. If the nozzle is clogged, remove and clean the filter. If the problem persists, the device may be damaged; dispose of it in accordance with regulations.

Can I repair the device myself?

No, the device is not repairable. In case of failure, it must be disposed of according to local electronic waste directives.

How to store the sprayer after use?

Completely empty the tank. Store the device in a clean, dry place away from unauthorized persons. Do not store near open flames.

What are the important safety instructions?

Do not modify the device. Use it only for its intended purpose. Do not leave it within reach of children without supervision. Follow charging and disposal instructions.

How to dispose of the sprayer at end of life?

Do not throw it in household waste. Take it to a recycling center or return it to your supplier for recycling, in accordance with local electronic waste regulations.

USER MANUAL DTB10000 Toolland

Orange and white tool gun labeled 'Toolland' with tagline 'a land of possibilities' (no other text or symbols visible)

USER MANUAL 2

HANDLEIDING 6

MODE D'EMPLOI 10

MANUAL DEL USUARIO 14

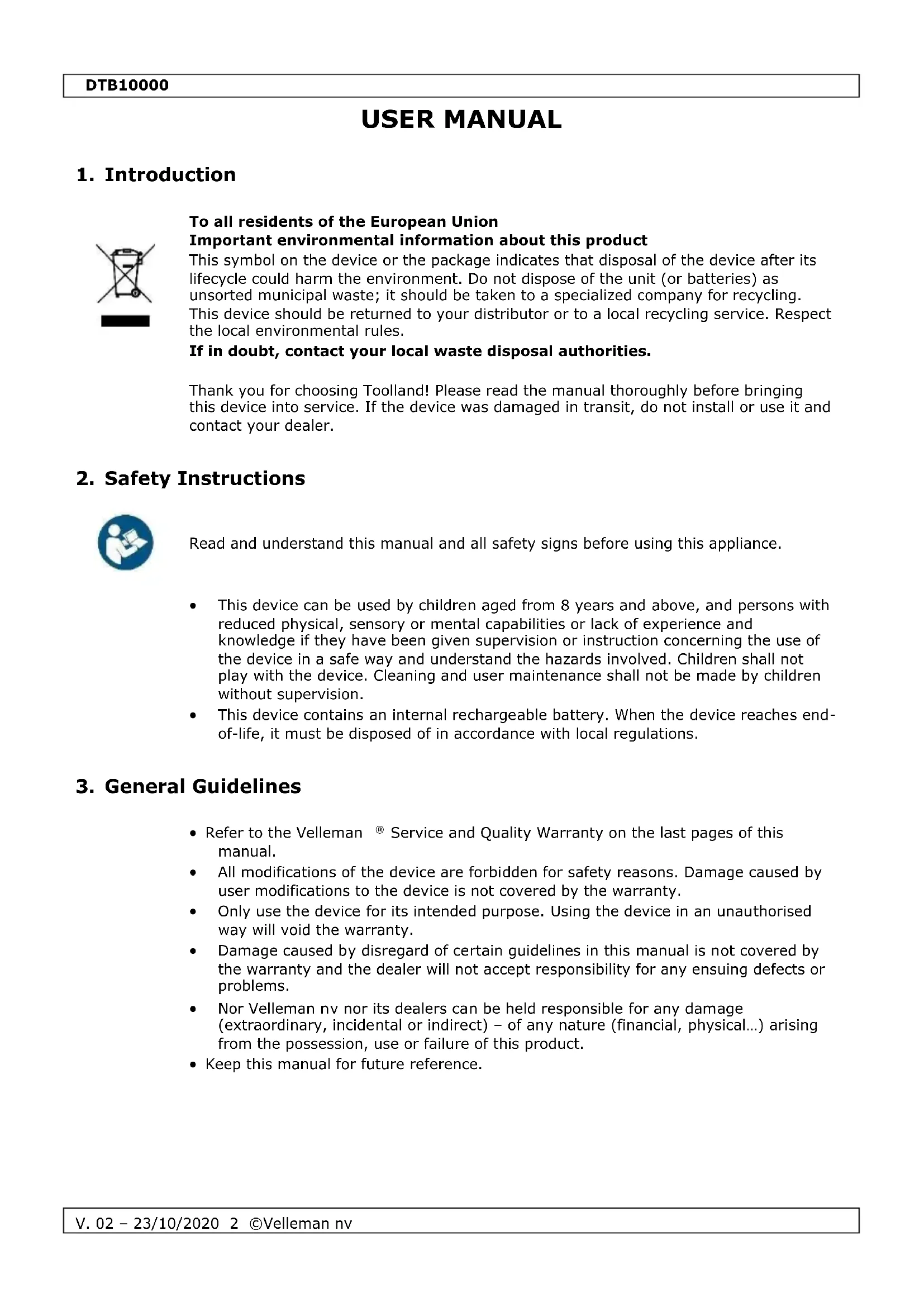

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Toolland! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• This device contains an internal rechargeable battery. When the device reaches end-of-life, it must be disposed of in accordance with local regulations.

3. General Guidelines

• Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Charging the Battery

1. Locate the charging connection on the handle and open the cover.
2. Connect the charger to the charging connection.
3. Make sure the charger plug is well-connected and inserted but do not force.

Line drawing of a handheld device with a handle and lever, labeled with number 1 (no text or symbols on the device itself)

Line drawing of a handheld device with a pen tip, no text or symbols present

Line drawing of a handheld electric shaver with a bulb and handle (no text or symbols)

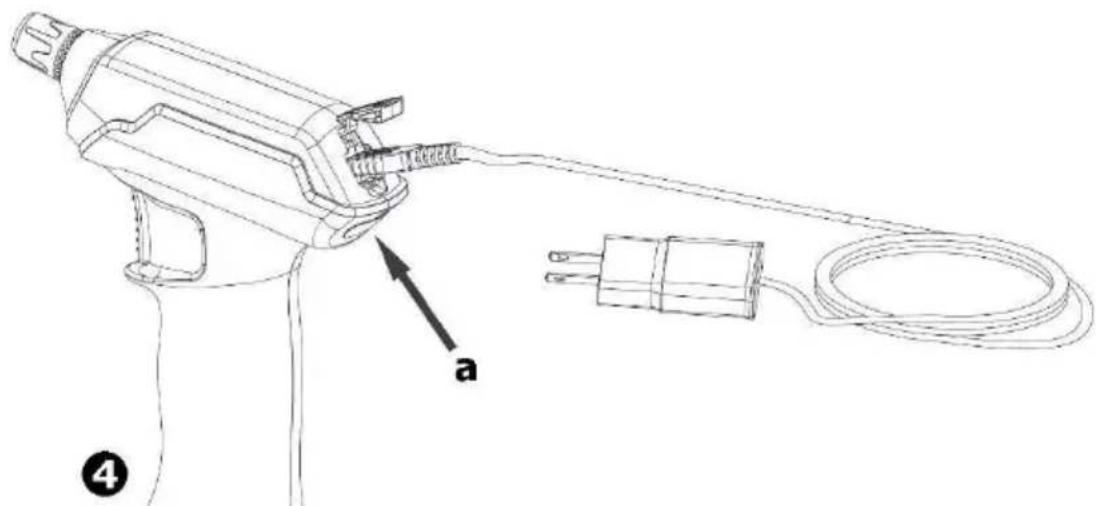

1. Connect the charger to the mains. The red LED indicates the battery is charging. When the LED burns blue, the battery is fully charged. Disconnect the charger from the mains to avoid overcharging.

Line drawing of a handheld electric tool with attached cable and terminal block (no text or symbols)

a LED

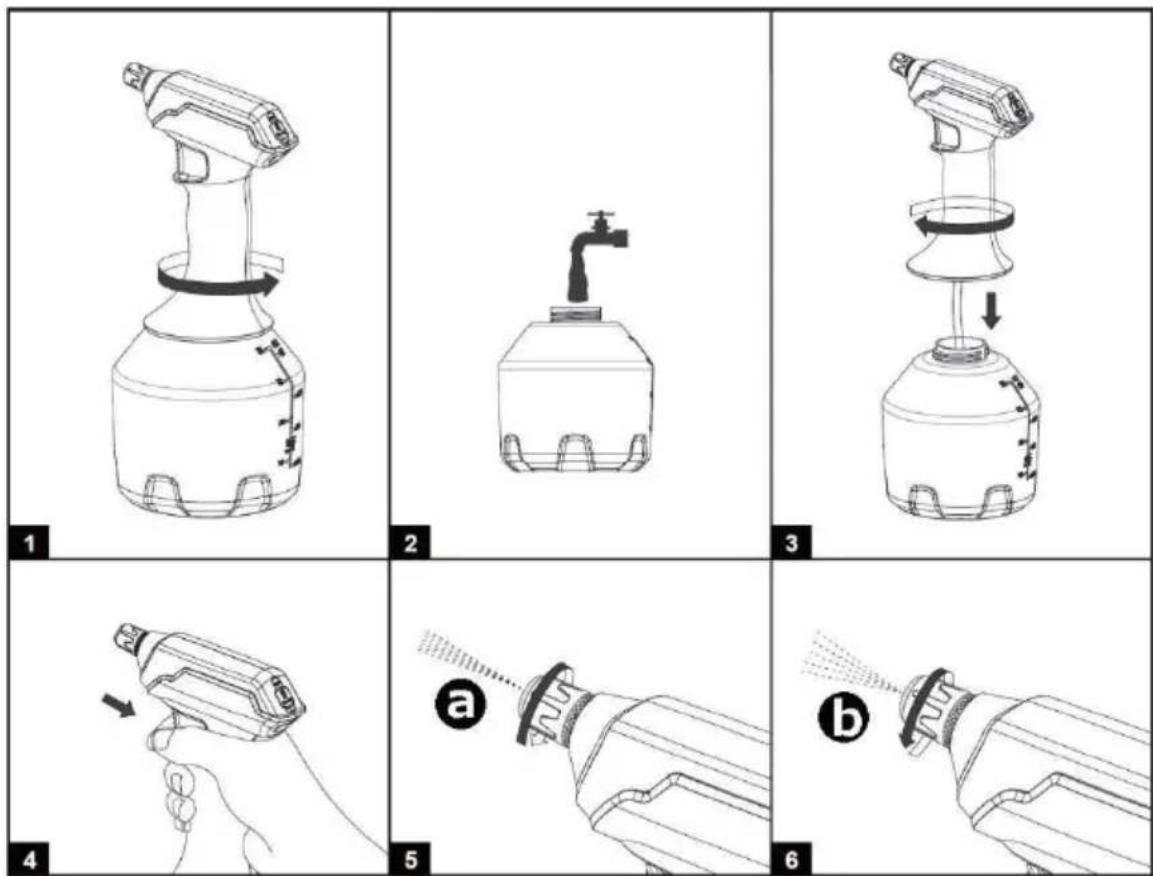

5. Operation

1. Open the cap.
2. Pour the liquid into the tank.
3. Close the cap.
4. Press the trigger to release the spray.
5. Turn the spray nozzle to the right to tighten the spray.
6. Turn the spray nozzle to the left to widen the spray.

a direct spray

b wide spray

6. Troubleshooting

Problem	Possible cause	Possible solution
The appliance does not start after being switched on.	The battery is out of power.	Fully charge the battery.
	The power switch is damaged.	The appliance is damaged.Please dispose of within the local rules.
The appliance does not spray when the trigger is pressed.	The filter is clogged.	Take out the filter and clean it.

7. Care and Maintenance

Cleaning

• Do not clean the appliance in the presence of naked flames.
• Before doing any cleaning, remove any spraying agent from the tank, depressurize, switch off the appliance and, if possible, remove the battery.
• Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

Maintenance

- This appliance cannot be repaired and should be scrapped according to the local environmental rules when damaged.

Storage

• Remove any spraying agent from the tank before storing.
• Store the appliance and its accessories in a clean and dry area.
• Ensure that the appliance is stored in a safe place where unauthorised persons cannot access it.

8. Technical Specifications

battery	Li-ion ICR18500 3.7 V, 1200 mAh
current	0.6 A
charger	5 VDC, 1 A with micro USB plug
working time	90 min.
charging time	90 min.
tank material	PE - PP - ABS
colour	orange
tank dimensions	124 x 124 x 280 mm
tank volume	1 L
weight	0.325 kg

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Line drawing of a handheld device with a handle and lever, labeled with number 1 (no text or symbols on the device itself)

Line drawing of a handheld device with a pen tip, no text or symbols present

Line drawing of a handheld electric shaver with a bulb and handle (no text or symbols)

Line drawing of a handheld device with a handle and lever, labeled with number 1 (no text or symbols on the device itself)

Line drawing of a handheld device with a pen tip, no text or symbols present

Line drawing of a handheld electric shaver with a bulb and handle (no text or symbols)

Line drawing of a handheld electric tool with attached cable and terminal block (no text or symbols)

a LED

5. Emploi

Line drawing of a handheld electric tool with attached cable and terminal block (no text or symbols)

a LED

5. Funcionamiento

Line drawing of a handheld device with a handle and lever, labeled with number 1 (no text or symbols on the device itself)

Line drawing of a handheld electric shaver with a separate tip, no text or symbols present

Line drawing of a handheld electric shaver with handle and spout (no text or symbols)

Line drawing of a handheld electric tool with attached cable and terminal block (no text or symbols)

a LED

5. Anwendung

Line drawing of a handheld electric shaver with a handle and lever (no text or symbols)

Line drawing of a handheld electric shaver with a probe inserted (no text or symbols)

Line drawing of a handheld electric spray gun (no text or symbols)

Line drawing of a handheld device with a handle and lever, labeled with number 1 (no text or symbols on the device itself)

Line drawing of a handheld electric shaver with a separate tip, no text or symbols present

Line drawing of a handheld electric shaver with handle and spout (no text or symbols)

Line drawing of a handheld electric tool with attached cable and terminal block (no text or symbols)

a LED

5. Utilização

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

- Repairs occurring after warranty expiration are subject to shipping costs - The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
