Product type	Rechargeable battery sprayer
Brand	Toolland
Model	DTB10002
Tank dimensions	140 x 230 x 400 mm
Tank capacity	6 L
Weight	1.10 kg
Power supply	Li-ion battery 3.6 V, 2600 mAh (INR18650P)
Charger	5 VDC, 2 A with micro-USB connector
Charging time	240 min
Runtime	120 min
Flow rate	0.3 L/min
Tank material	PE, PP, ABS
Lance material	Stainless steel
Hose length	120 cm
Main features	Spray with adjustable nozzle (narrow to mist), trigger, on/off switch, LED charge indicator
Maintenance and cleaning	Clean with a soft cloth and mild detergent; do not immerse; empty the tank before storage
Safety	Use by children aged 8 and over under supervision; wear eye protection; avoid exposure to rain
Spare parts and repairability	The device cannot be repaired; dispose of according to local regulations
General information	Color: orange; 6 L tank; 24-month warranty (consumer)

Frequently Asked Questions - DTB10002 Toolland

How to charge the battery of the Toolland DTB10002 sprayer?

Open the cover of the USB connector on the handle, plug in the charger (5 VDC, 2 A with micro-USB) and connect to a mains socket. The LEDs indicate charge level: 0-30% (one LED), 30-70% (two LEDs), 70-100% (three LEDs). When all LEDs are on, the battery is fully charged. Then disconnect the device to avoid overcharging.

What is the tank capacity and how to fill it?

The tank has a capacity of 6 litres. To fill it, unscrew the handle from the tank, pour in the liquid (e.g. water or treatment product), then screw the handle back on tightly before using the device.

How to adjust the spray pattern?

Turn the spray nozzle at the end of the lance to switch from a narrow jet to a mist jet. A narrow jet is ideal for targeted application, while a mist jet covers a larger area.

What to do if the sprayer does not work when turned on?

First check the battery level: if low, recharge it fully (approx. 240 minutes). If the problem persists, the switch or the device itself may be damaged. In that case, the device must be disposed of according to local regulations.

The nozzle is clogged, what should I do?

If the nozzle is clogged, remove the filter at the inlet of the suction hose and clean it thoroughly. You can also rinse the nozzle with clean water. Make sure the tank does not contain particles that could clog the circuit.

How to clean the sprayer after use?

Before cleaning, empty the tank, depressurize by pulling the trigger, turn off the device and if possible remove the battery. Clean the housing with a soft cloth moistened with mild detergent. Never immerse the device in water and do not use solvents or detergents containing petroleum, thinner, alcohol or ammonia.

What is the battery runtime and how long does it take to charge?

The runtime is approximately 120 minutes of continuous use. Full charging time is about 240 minutes with the supplied charger (5 VDC, 2 A).

Can I use the sprayer with chemicals?

Yes, you can use plant treatment products or other non-flammable liquids. Make sure the liquid is compatible with the tank materials (PE, PP, ABS) and the lance (stainless steel). Rinse the device thoroughly after each use to prevent corrosion.

How to store the Toolland DTB10002 sprayer?

Empty the tank completely before storing the device. Store it in a clean, dry place, frost-free and out of reach of children. If not used for a long time, recharge the battery every few months to preserve its life.

Is the device guaranteed and what to do in case of a defect?

This device has a 24-month warranty against manufacturing or material defects from the date of purchase. In case of a defect, return the device with the original receipt to your dealer. The warranty does not cover damage due to incorrect use, normal wear or unauthorized modifications.

USER MANUAL DTB10002 Toolland

Toolland spray sprayer with orange and white casing, no visible text or symbols on the device itself

USER MANUAL 3

HANDLEIDING 9

MODE D'EMPLOI 15

MANUAL DEL USUARIO 21

Exploded view diagram of a washing machine with numbered parts for identification

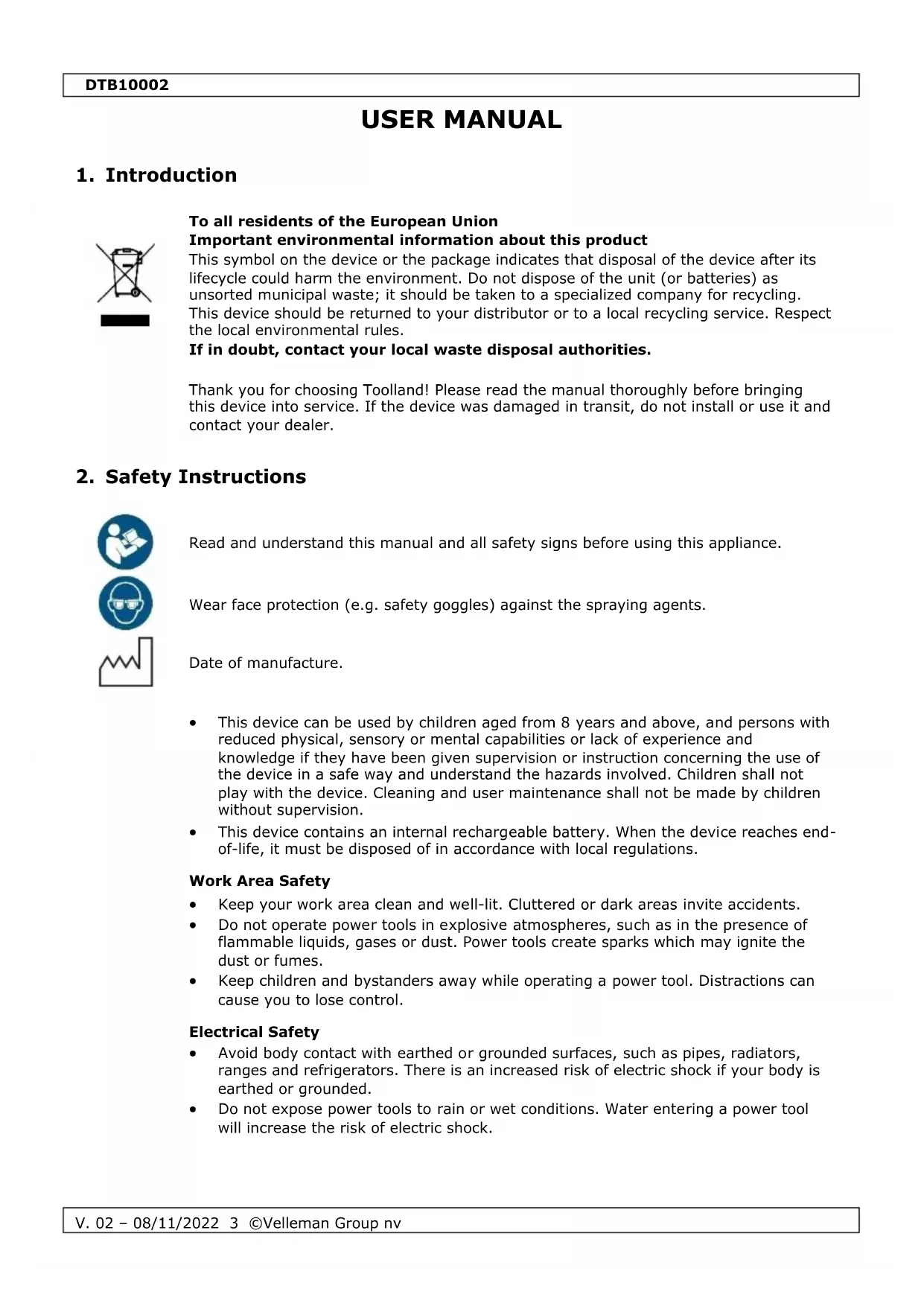

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Toolland! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Wear face protection (e.g. safety goggles) against the spraying agents.

Date of manufacture.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• This device contains an internal rechargeable battery. When the device reaches end-of-life, it must be disposed of in accordance with local regulations.

Work Area Safety

• Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
• Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power Tool Use and Care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

- Power tools are dangerous in the hands of untrained users.

- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

- Many accidents are caused by poorly maintained power tools.

- Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

- Keep handles and grasping surfaces dry, clean and free from oil and grease.

- Slippery handles and grasping surfaces do not allow for safe handling and control of the

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

3. General Guidelines

• Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Overview

1	tank
2	filter
3	sucking hose
4	gasket
5	TPE plug
6	cover L
7	circuit board
8	screw cover
9	O-ring
10	pump
11	pump cover
12	plastic hoops
13	pump cover

14	M3x12 screw
15	cover R
16	handle plate
17	cover for on-off switch
18	strap
19	lance
20	lance holder
21	handle nut
22	handle
23	single-ear hose hoops
24	handle cover
25	hose

5. Charging the Battery

1. Locate the charging connection on the handle and open the cover.
2. Connect the charger to the charging connection.
3. Make sure the charger plug is well-connected and inserted but do not force.

Line drawing of a car rear window frame with no text or symbols

1

Line drawing of a car interior frame with no text or symbols

2

Line drawing of a car rear window frame with door and seat (no text or symbols)

3

DTB10002

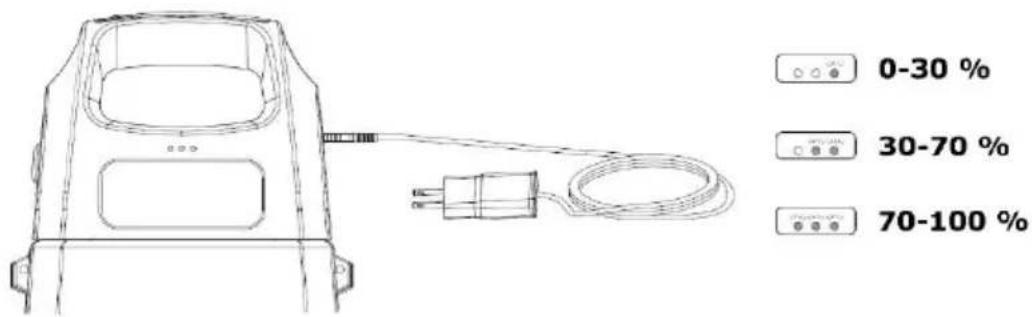

1. Connect the charger to the mains. The LEDs indicate the battery is charging. When all LEDs burn, the battery is fully charged. Disconnect the charger from the mains to avoid overcharging.

0-30 % 30-70 % 70-100 %

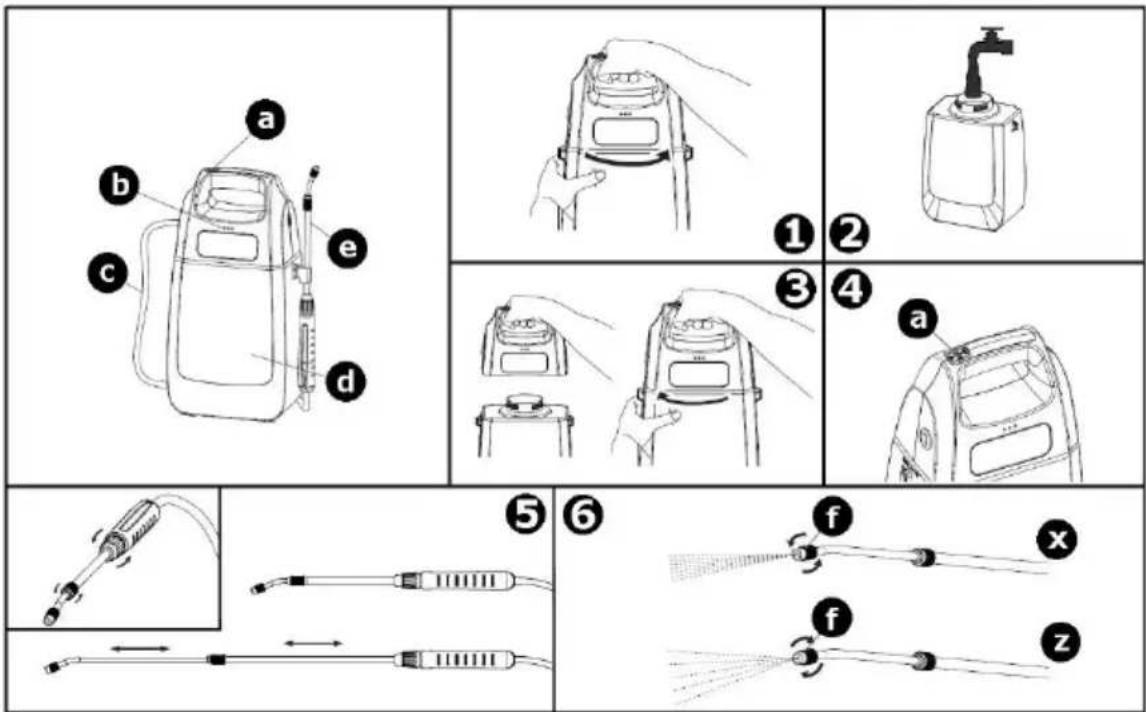

6. Operation

1. Open the cap.
2. Pour the liquid into the tank.
3. Close the cap.
4. Switch on the pressure sprayer.
5. Press the trigger to release the spray.
6. Turn the spray nozzle to adjust the spray width.

Technical diagram showing six-step assembly steps of a medical device with labeled parts and directional arrows indicating motion.

a	on-off switch
b	LEDs
c	hose

x	direct spray

d	tank
e	lance
f	nozzle cap

z	wide spray

7. Troubleshooting

Problem	Possible cause	Possible solution
The appliance does not start after being switched on.	The battery is out of power.	Fully charge the battery.
	The power switch is damaged.	The appliance is damaged.Please dispose of within the local rules.
The appliance does not spray when the trigger is pressed.	The filter is clogged.	Take out the filter and clean it.

8. Care and Maintenance

Cleaning

• Do not clean the appliance in the presence of naked flames.
• Before doing any cleaning, remove any spraying agent from the tank, depressurize, switch off the appliance and, if possible, remove the battery.
• Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

Maintenance

- This appliance cannot be repaired and should be scrapped according to the local environmental rules when damaged.

Storage

• Remove any spraying agent from the tank before storing.
• Store the appliance and its accessories in a clean and dry area.
• Ensure that the appliance is stored in a safe place where unauthorised persons cannot access it.

9. Technical Specifications

battery	Li-ion INR18650P 3.6 V, 2600 mAh
voltage	5 V
current	0.8 A
charger	5 VDC, 2 A with micro USB plug
working time	120 min.
charging time	240 min.
tank material	PE - PP - ABS
lance material	stainless steel
flow	0.3 L/min.

DTB10002

colour ..... orange tank dimensions ..... 140 x 230 x 400 mm tank volume ..... 6 L hose length ..... 120 cm weight ..... 1.10 kg

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Line drawing of a car front panel with no text or symbols

1

Line drawing of a car front panel with no text or symbols

2

Line drawing of a car rear bumper with vent slots and side door (no text or symbols)

3

Line drawing of a car front panel connected to a cable with a plug (no text or symbols)

0-30 %

30-70 %

70-100 %

6. Gebruik

Technical diagram showing a medical device with labeled parts and numbered steps for assembly or testing.

Line drawing of a car rear bumper with vent and side door (no text or symbols)

1

Line drawing of a car front panel with no text or symbols

2

Line drawing of a car rear bumper with no text or symbols

3

DTB10002

Technical diagram showing six steps of a medical or laboratory procedure involving a device with labeled parts and tool illustrations.

Line drawing of a car rear bumper with vent slots and side panels (no text or symbols)

1

Line drawing of a car front panel with no text or symbols

2

Line drawing of a car interior frame with no text or symbols

3

DTB10002

Technical diagram showing six steps of a medical or laboratory procedure involving a device with labeled parts and corresponding illustrations.

a	interruptor de encendido/apagado
b	LEDs
c	tubo

x	chorro estrecho

Line drawing of a car front panel with no text or symbols

1

Line drawing of a vehicle rear bumper with no text or symbols

2

Line drawing of a car interior frame with no text or symbols

3

DTB10002

Technical diagram showing six steps of a medical or laboratory procedure involving a device with labeled parts and tool illustrations.

Technical diagram showing six steps of a medical or laboratory procedure involving a device with labeled parts and tool illustrations.

Line drawing of a car rear bumper with vent and door (no text or symbols)

1

Line drawing of a car front panel with side door and window (no text or symbols)

2

Line drawing of a car rear bumper with no text or symbols

3

DTB10002

Technical diagram showing six steps of a medical or laboratory procedure involving a device with labeled parts and tool illustrations.

a	interruptor on/off
b	LEDs
c	mangueira

X	jato direto

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....:

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally):

- damage resulting from an inappropriate packing and shipping of the article; - all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

- Repairs occurring after warranty expiration are subject to shipping costs. - The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
