Product type	Thermal weed killer
Brand	Toolland
Model	VL104
Length	870 mm
Burner diameter	60 mm
Hose length	5 m
Regulator pressure	2.5 bar
Power source	Gas (propane/butane gas cylinder)
Intended use	Elimination of weeds between slabs, pavers, bricks, flower beds and lawns
Usage area	Outdoor only, well ventilated
Flame type	Yellow pilot light and adjustable blue flame
Recommended working distance	About 15 cm from the plant
Heating time per plant	5 seconds
Safety	Gas leak detection; do not touch the burner after use; impact protection
Maintenance	Clean with a damp cloth; no solvents or harsh detergents
Storage	In a cool, dry place after complete cooling
Reparability	No user-serviceable parts; contact an authorized dealer
Warranty	24 months (Velleman general conditions)
Included accessories	Gas hose (5 m), pressure regulator (2.5 bar)

Frequently Asked Questions - VL104 Toolland

How to use the Toolland VL104 thermal weed killer?

Connect the pressure regulator to the gas cylinder, then the hose. Slightly open the gas valve and the regulator. Press the trigger to light the yellow pilot light, then use a flame to light the burner. Press again to get a blue flame. Hold the burner 15 cm from the plant for 5 seconds. Release to turn off.

How to detect a gas leak?

Prepare a soapy solution (1 part liquid soap to 1 part water). Apply it to all connections with a brush or sprayer. Slightly open the gas valve. If bubbles appear, immediately close the valve and tighten connections. Never look for a leak with a flame.

What are the essential safety precautions?

Use the device outdoors only, in a well-ventilated area. Do not touch the burner after use: risk of burns. Do not smoke when handling gas. Keep children and unauthorized persons away. Never point the flame at people, animals, or flammable objects.

How to store the weed killer and gas cylinder?

Close the gas valve completely and let the gas in the burner burn out until the pilot light goes out. Close the regulator. Disconnect the hose from the cylinder. Store the cylinder upright in a cool, dry place, outdoors or well-ventilated. The weed killer must be completely cooled before storage.

What type of gas to use?

The device operates with propane or butane gas cylinders. Propane can be exposed to frost, while butane must be used at an ambient temperature above 5 °C. Use only compliant gas cylinders and never try to refill them yourself.

How to clean the weed killer?

Clean the device occasionally with a damp cloth. Do not use harsh chemicals, solvents, or strong detergents. Always clean the device before storing it.

What to do if the burner does not ignite?

Check that the gas cylinder is full and properly connected. Slightly open the regulator to increase gas pressure. Use a flame (lighter) to ignite the pilot light. If the problem persists, check connections for possible leaks or blockages.

Can I use the weed killer indoors or on snow?

No, the device is designed exclusively for outdoor use. Never use it in a basement, garage, or enclosed space. It should not be used as a heat source nor to melt ice or snow.

What is the lifespan of the gas hose?

The hose must be replaced no later than every 5 years after the manufacturing date, or earlier in case of intensive use or exposure to extreme conditions. It is recommended to replace it every 3 years. Inspect it before each use.

Does the warranty cover damage from improper use?

No, the warranty does not cover damage resulting from negligence, incorrect use, or unauthorized modifications. The standard warranty is 24 months for manufacturing defects. For more details, see Velleman warranty conditions.

USER MANUAL VL104 Toolland

Two types of welding torches with metal and orange cables, no visible text or symbols

USER MANUAL 3

HANDLEIDING 7

MODE D'EMPLOI 11

MANUAL DEL USUARIO 15

Labeled diagram of a medical or laboratory instrument with numbered parts, showing a coiled orange cable and a metallic probe.

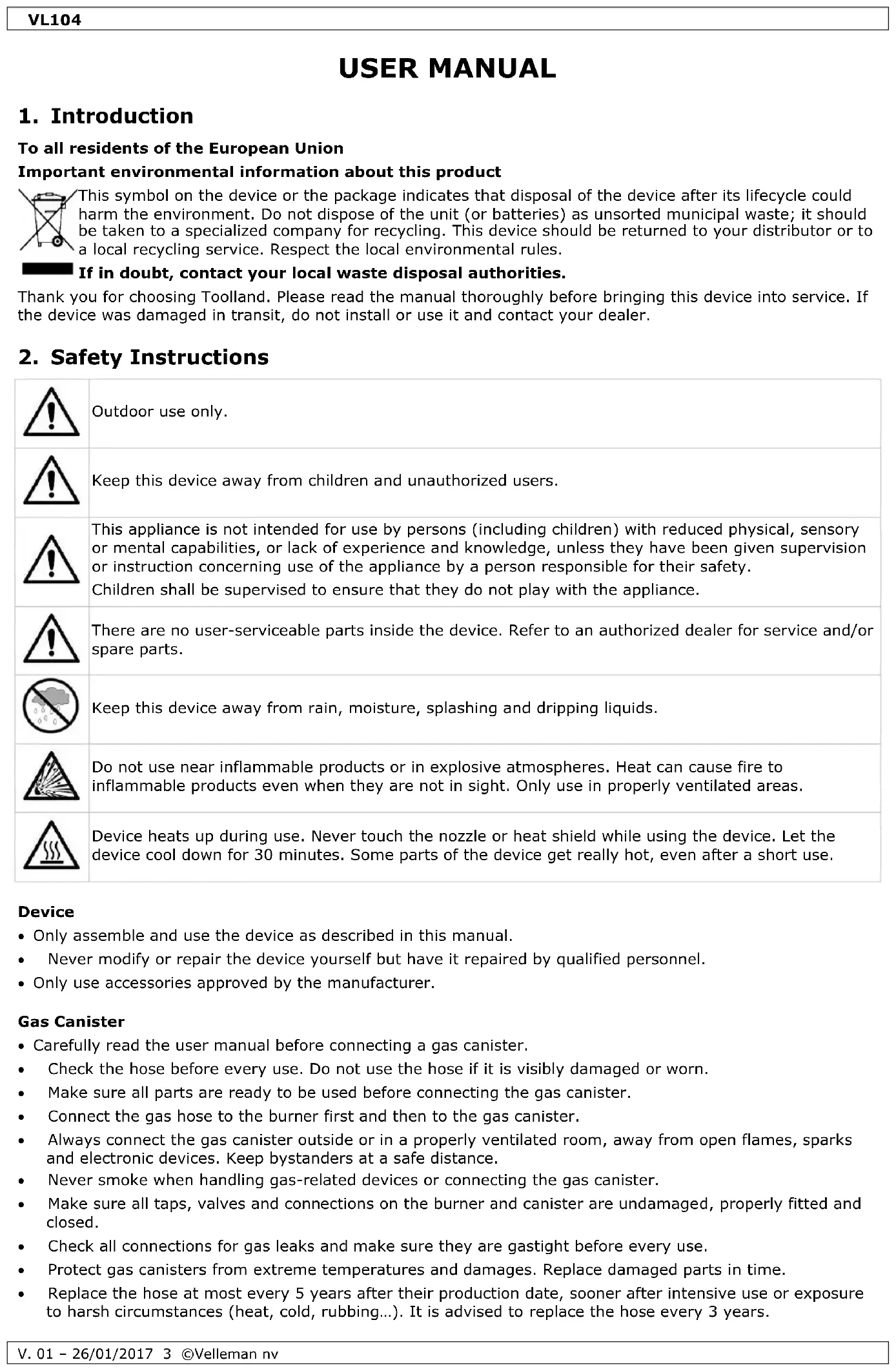

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Toolland. Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

	Outdoor use only.
	Keep this device away from children and unauthorized users.
	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.Children shall be supervised to ensure that they do not play with the appliance.
	There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
	Keep this device away from rain, moisture, splashing and dripping liquids.
	Do not use near inflammable products or in explosive atmospheres. Heat can cause fire to inflammable products even when they are not in sight. Only use in properly ventilated areas.
	Device heats up during use. Never touch the nozzle or heat shield while using the device. Let the device cool down for 30 minutes. Some parts of the device get really hot, even after a short use.

Device

• Only assemble and use the device as described in this manual.
• Never modify or repair the device yourself but have it repaired by qualified personnel.
• Only use accessories approved by the manufacturer.

Gas Canister

• Carefully read the user manual before connecting a gas canister.
• Check the hose before every use. Do not use the hose if it is visibly damaged or worn.
  • Make sure all parts are ready to be used before connecting the gas canister.
• Connect the gas hose to the burner first and then to the gas canister.
• Always connect the gas canister outside or in a properly ventilated room, away from open flames, sparks and electronic devices. Keep bystanders at a safe distance.
• Never smoke when handling gas-related devices or connecting the gas canister.
• Make sure all taps, valves and connections on the burner and canister are undamaged, properly fitted and closed.
• Check all connections for gas leaks and make sure they are gastight before every use.
• Protect gas canisters from extreme temperatures and damages. Replace damaged parts in time.
• Replace the hose at most every 5 years after their production date, sooner after intensive use or exposure to harsh circumstances (heat, cold, rubbing...). It is advised to replace the hose every 3 years.

During Use

• Stay alert, watch what you are doing and use common sense when operating the device. Do not use the device when you are tired or under influence of drugs, alcohol or medication.
• Do not overreach. Keep proper position and balance at all times.
• Dress in a suitable manner. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts.

- Never aim the device directly at humans or animals.

- Do not use the device as a heat source in your house or for melting ice and snow or for any other use than intended.

• Always point the nozzle at the ground and away from persons, animals and objects.

- Never use the burner in a cellar or closed rooms, near heat sources or open flames, and near inflammable products and materials. Keep bystanders at a safe distance.

- Do not inhale the fumes released by the burner.

- Never wring or twist the hose and protect it from sharp objects.

- Switch off the burner when it is not in use and close the gas tap on the gas canister. Never leave the burner unattended.

- Using a new gas canister can affect the flame due to thermal differences. This is normal and the flame will re-adjust after a few minutes of use.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

	Keep this device away from dust and extreme temperatures.
	Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Unplug the device immediately if the cable has been damaged.
• Never block the air intake of the device.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• This device is not intended for professional use.
• This device serves exclusively to eliminate sprawl between paving stones, on paved areas, from masonry, in flower beds and lawns during the growth period.
• Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

1	hose connection
2	gas flow regulator valve
3	handle

4	lighter nozzle
5	regulator
6	hose

5. Operation

5.1 General Operation

1. Connect the pressure regulator [5] to the gas canister.
2. Connect the gas hose [6] to the pressure regulator [5] and the handle [3]. Remember that the screw threads are left-handed.
3. Make sure all parts are properly connected and perform a gas leak test (see below). You can switch on the weed burner only if it has passed the gas leak test.
4. Slowly open the gas tap. Then, slightly open the gas flow regulator valve [2] on the handle [3]. Be careful not to open it too much as the gas pressure could blow out the flame. Let the air escape from the hose [6] and burner, and wait until you hear the gas flow.
5. Slowly open the gas flow regulator valve [2] on the handle [3] to increase the gas pressure. Bring a flame in front of the lighter nozzle [4]. Let the flame burn for a few seconds. Make sure not to let the flame grow too much as this will decrease efficiency.
6. Pinch the handle [3] to produce a pointed blue flame. The flame size depends on how far the gas flow regulator valve [2] is opened. Remember to point the flame at the ground and away from persons, animals and objects.
7. Keep the nozzle [4] at a distance of approximately 15 cm of the weed. Gently waft the nozzle approximately 5 seconds over the weed. Do not burn the plant completely, only the heat is needed. Stronger weeds or woody stems (wild grass, roots, etc.) may require a repeat application. If necessary, repeat this procedure after a few days. Do not use this device on flower beds or lawns.
8. Release the handle [3] to pause; the blue flame will disappear and the yellow flame will reappear. If necessary, reduce the gas pressure by slightly closing the gas flow regulator valve [2]. Make sure not to leave the pilot light burning when interrupting your work for more than a few seconds.
9. To switch off the burner, first close the gas tap completely and let the gas inside the burner consume. Only when the pilot light has extinguished can you close the gas flow regulator valve [2] completely.

WARNING

Never touch the nozzle immediately after use. Risk of burn injuries! Leave the weed burner to cool completely before disconnecting and storing.

1. Disconnect the hose [6] from the gas canister. Always move a gas canister in its vertical position. Store your weed burner and gas canister properly. Never refill or modify a gas canister.

5.2 Checking for Gas Leaks

Check for gas leaks before using the weed burner. Always perform the test in the open air.

1. Carefully close the gas tap and make sure to use a full gas canister.

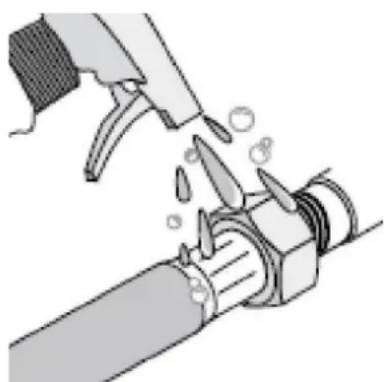

2. Prepare a test solution made of one part liquid soap and one part water.
3. Use a brush, cloth or plant mister and apply the soapy solution on every (hose) connection and part where a leak is suspected.

Illustration of a hand using a tool to lift a pipe with bubbles (no text or symbols)

Test all connections for gas leaks using a soapy solution.

1. Slightly open the gas tap. Bubbles will show the presence of a gas leak. If so, immediately close the gas tap. Check and tighten all connections, re-open the gas tap and test again. If bubbles re-appear, contact an authorised dealer.

WARNING

Never test for gas leaks with a flame! Perform the test away from flames and fire. Do not smoke when performing the test.

Close the gas tap and check for gas leaks if there is a persistent gas smell.

5.3 Storing a Gas Canister

• Carefully close the gas tap and remove the pressure regulator.
• Store a gas canister outside or in a properly ventilated room. Propane may be exposed to frost; butane must be stored at an ambient temperature higher than 5 °C.
• Never store a gas canister in a cellar or near a cellar door. Gas is heavier than air and will therefore flow to the lowest possible area.
• Never store a gas canister near heat sources, inflammable products and materials.
  • Always store a gas canister on a stable surface and in a vertical position.
• Keep a gas canister out of the reach of children.

6. Cleaning and Maintenance

• Wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.
• Clean the device and accessories before storing.

Storing

• Make sure the device has completely cooled down before storing.
• Store the device, its accessories and this user manual in the original packaging.
  • Always store in a cool and dry place.

7. Technical Specifications

nozzle diameter 60 mm

length....870 mm

included

5 m hose

2.5 bar regulator

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.toolland.eu. The information in this manual is subject to change without prior notice.
