USER MANUAL BHype 12 DB Technologies

Line drawing of a rectangular electronic device with mounting holes and a side panel (no text or symbols)

Line drawing of a rectangular electronic device with mounting holes and a side panel (no text or symbols)

USER MANUAL - Section 1

The warnings in this manual must be observed together with the "User Manual - Section 2".

According to the standards EN 55103 this equipment is designed and suitable to operate in E3 (or lower E2, E1) Electromagnetic environments.

FCC CLASS B STATEMENT ACCORDING TO TITLE 47, CHAPTER I, SUBCHAPTER A, PART 15, SUBPART B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

WARNING

Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or properties. For safety reasons di not place one loudspeaker on top of another without proper fastening systems. Before hanging the loudspeaker check all the components for damages, deformations, missing or damaged parts that may compromise safety during installation. If you use the loudspeakers outdoor avoid spots exposed to bad weather conditions.

Contact dBTechnologies for accessories to be used with the speakers. dBTechnologies will not accept any responsibility for damages caused by inappropriate accessories or additional devices.

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

ITALIANO

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

SUB615 - SUB618 Cod. 420120251 REV. 1.0

INDICE

2. PRIMA ACCENSIONE.... 10

COLLEGAMENTO DEGLI INGRESSI E RILANCIO AUDIO.... 11

INGRESSI E USCITE 18

Technical drawing of a rectangular frame with a central circular hole and four corner holes, dimensioned as 600 units (no text or symbols)

Technical drawing of a rectangular frame with circular holes and a central circular feature, dimensioned as 690 (no text or symbols)

580 430

625 500

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

6. LED (Limiter, Signal/ON)

7. MAINS INPUT

Diagram showing three connected devices with labeled ports L and R, connected by wires.

Figura 2

MIXER
SUB615 - SUB618 Cod. 420120251 REV. 1.0

CASO B (collegamento STEREO fra un subwoofer e 2 speaker, figura 3)

Line drawings of three different electronic devices mounted on tripod stands, no text or symbols present

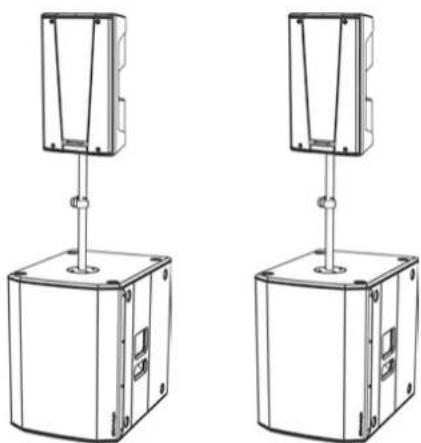

UTILIZZO CON SPEAKER IN STACK

Two identical line drawings of a rectangular electronic device with vertical connectors and mounting holes (no text or symbols)

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

4. ACCESSORI

Controlli:

Subwoofer level, Ouputs Mode, Polarity, Subwoofer Mode

INGRESSI E USCITE

Ingressi:	2 x XLR Balanced Inputs
Uscite:	2x XLR Balanced Outputs

PRODUCT OVERVIEW.... 21

USER REFERENCE 21

MECHANICAL AND ACOUSTICAL FEATURES.... 22

DIMENSIONS 22

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS.... 23

INPUT, OUTPUT AND CONTROL SECTION 24

POWER SUPPLY UNIT SECTION 25

2. FIRST POWER-UP 26

INPUT CONNECTIONS AND AUDIO DAISY CHAIN 27

POWER SUPPLY CONNECTION 29

3. USAGE EXAMPLES.... 30

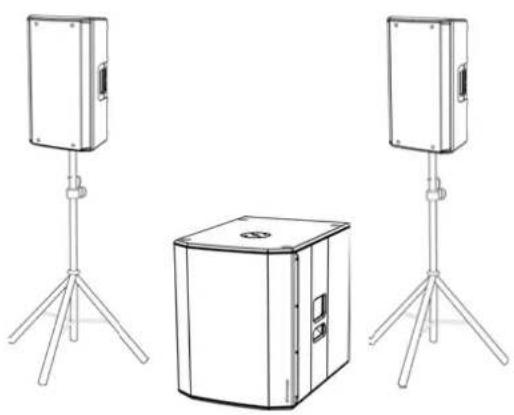

FLOOR USAGE 30

USAGE WITH SPEAKER IN A STACK 30

USAGE ON SUBWOOFER WITH POLE TELESCOPIC 30

4. ACCESSORIES.... 31

5. TROUBLESHOOTING.... 32

6. SPECIFICATIONS 33

GENERAL 33

ACOUSTICAL SPECIFICATIONS.... 33

AMPLIFIER.... 33

PROCESSOR 34

USER INTERFACE 34

INPUTS & OUTPUTS.... 34

POWER SUPPLY SPECIFICATIONS (ABSORPTION / INSTALLATION) 34

DIMENSIONS 35

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

1. GENERAL INFORMATION

WELCOME!

Thanks for purchasing a product designed and developed in Italy by dBTechnologies! This ergonomic and versatile active subwoofer is the result of a long experience in the sound reinforcement industry, making use of optimized sound, electronic and material research solutions.

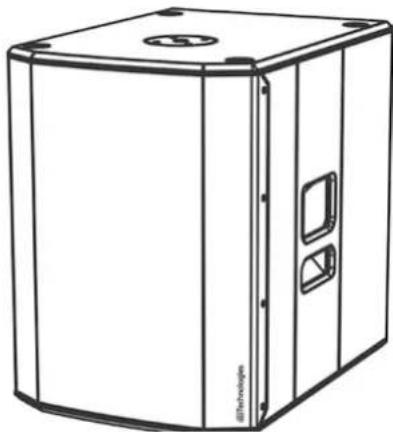

PRODUCT OVERVIEW

The new SUB 600 subwoofers are equipped with a 15" woofer (SUB 615) and an 18" woofer (SUB 618), respectively. Accurate design and sound optimisation allow for high-quality performance in a compact product. Cabinets high ergonomics and ease of handling make them easy to transport.

SUB 615 and SUB 618 main features are:

• an ergonomic, compact and versatile project, for both indoors and outdoors
• wooden cabinets for acoustic performance optimisation, with resistant external surfaces for both indoor and outdoor use
• reliable, silent digital amplifier
• mono/stereo input
• mono/stereo output
  • dedicated DSP controls, with Polarity, Output Mode, and equalisation button (Subwoofer Mode)

USER REFERENCE

To make the most of your subwoofer, we recommend that you:

• Read the quick start user manual included in the package and this user manual thoroughly and keep this manual during the whole life of the product.
• Register your product at http://www.dbtechnologies.com under "SUPPORT".
• Keep proof of purchase and WARRANTY (User manual "section 2").

SUB615 - SUB618 Cod. 420120251 REV. 1.0

MECHANICAL AND ACOUSTICAL FEATURES

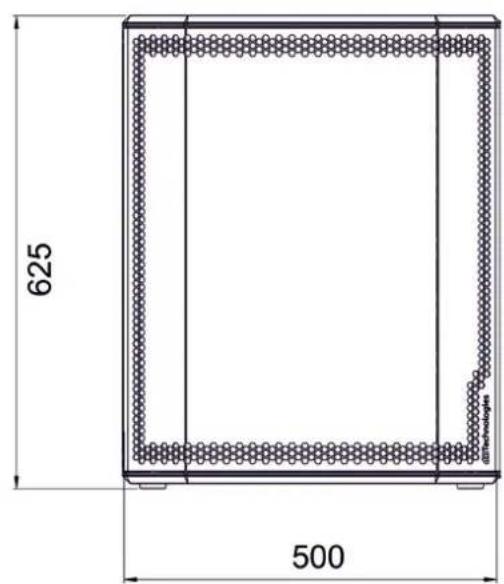

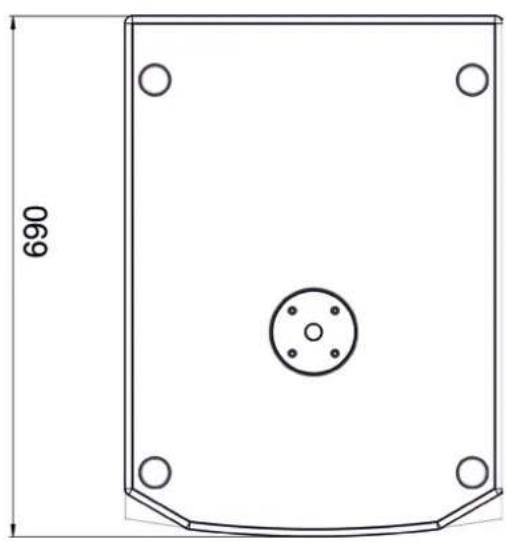

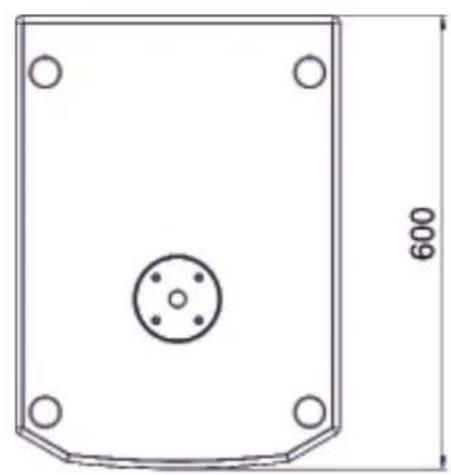

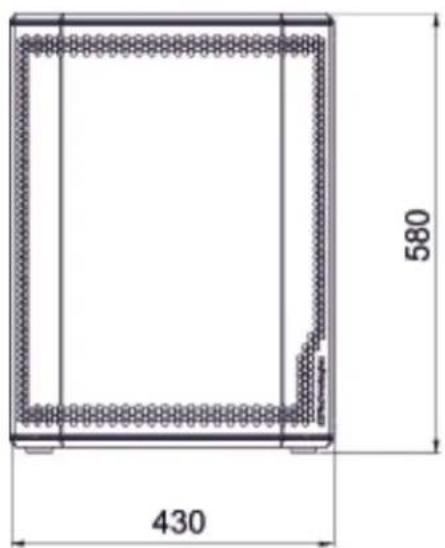

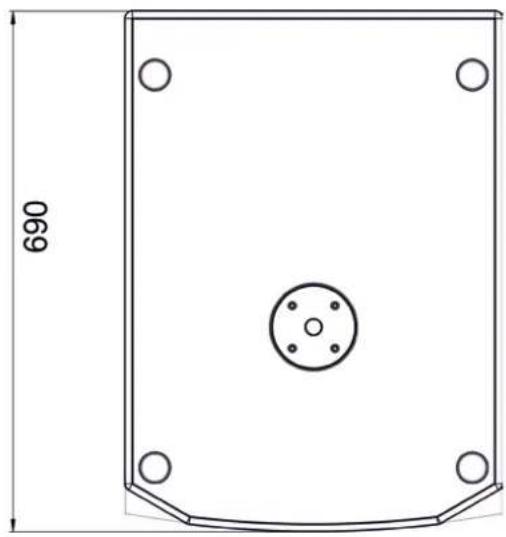

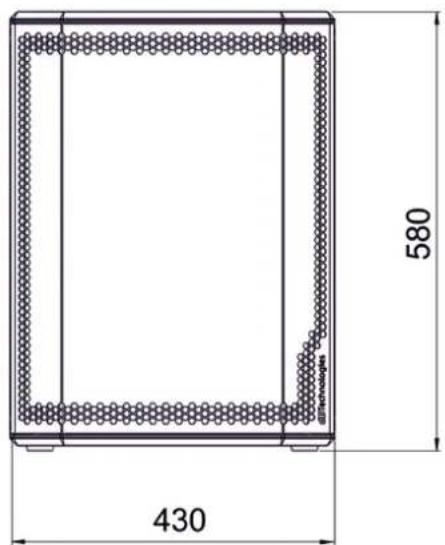

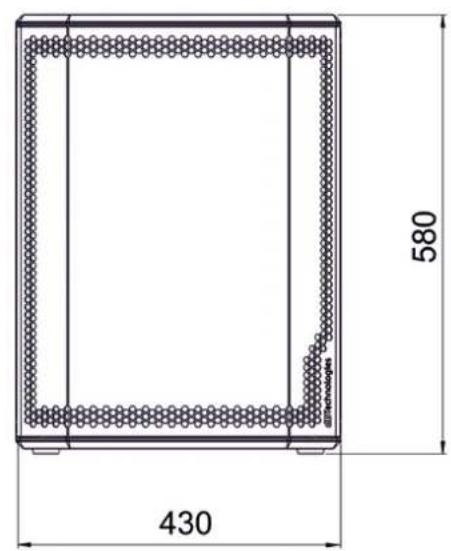

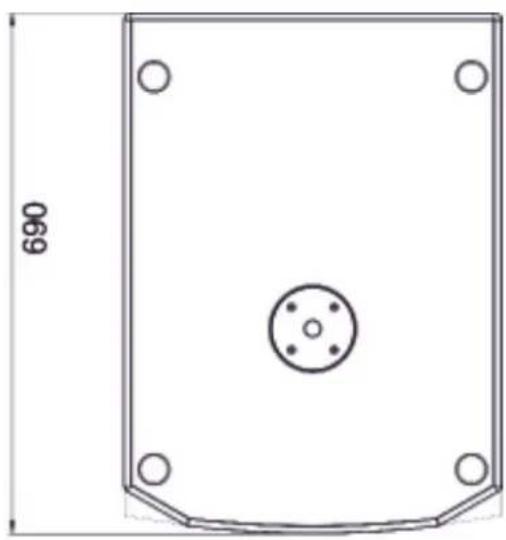

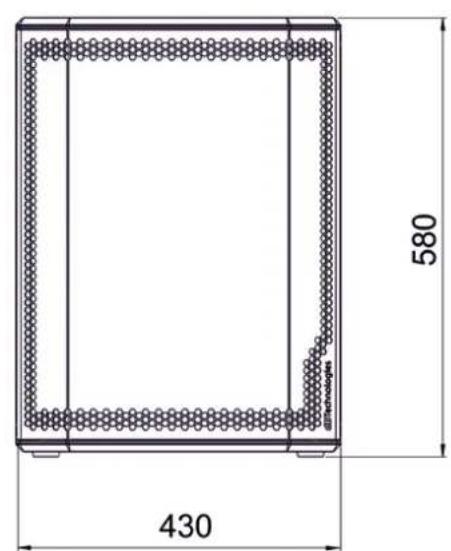

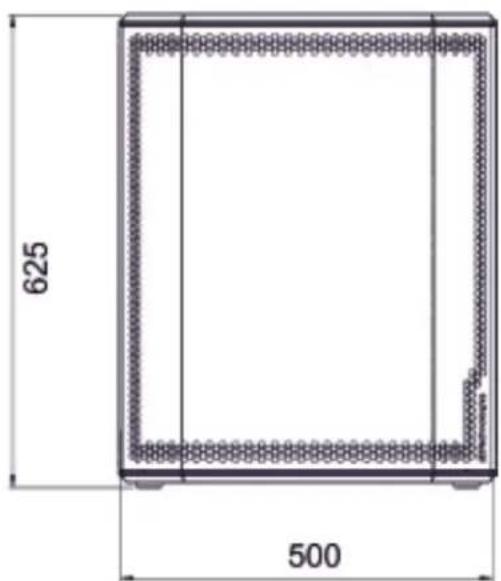

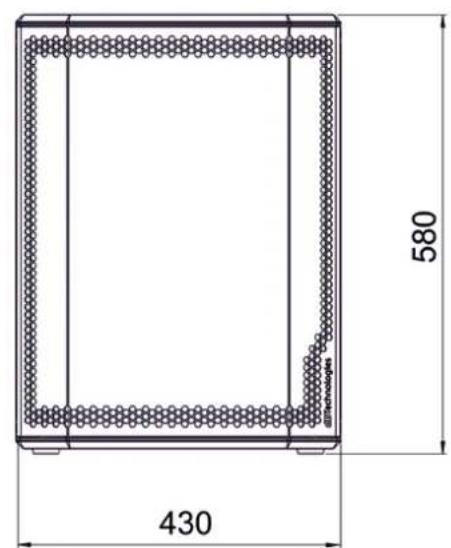

DIMENSIONS

SUB 615 and S618 have the following sizes:

• SUB 615: 430 x 580 x 600 (mm)
• SUB 618: 500 x 625 x 690 (mm)

Technical drawing of a rectangular panel with a central circular feature and four corner holes, dimensioned as 600 (no text or symbols)

Technical drawing of a rectangular frame with circular cutout and dimension label (690), no readable text or symbols beyond the dimension line.

580 430

625 500

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

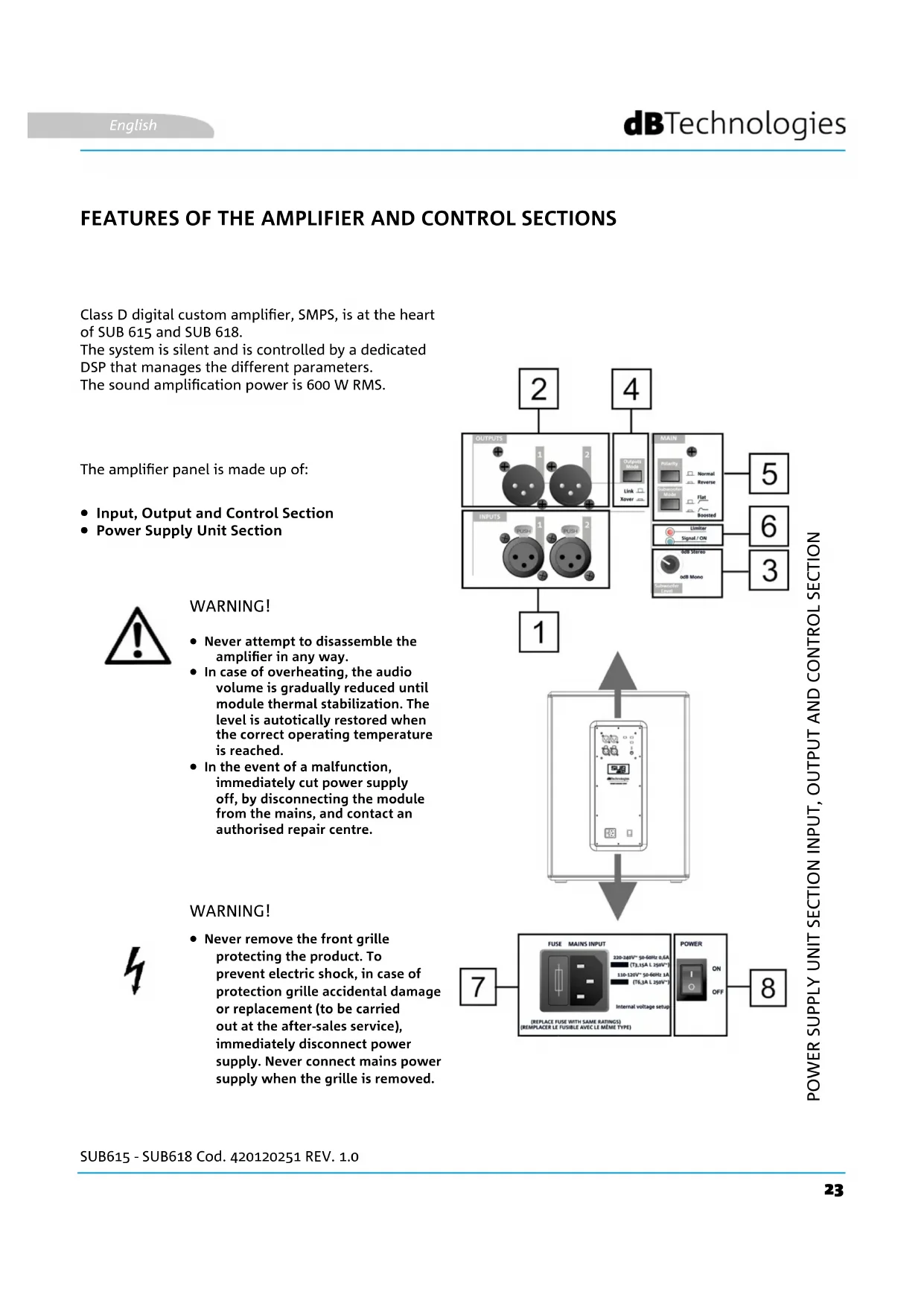

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS

Class D digital custom amplifier, SMPS, is at the heart of SUB 615 and SUB 618.

The system is silent and is controlled by a dedicated DSP that manages the different parameters.

The sound amplification power is 600 W RMS.

The amplifier panel is made up of:

• Input, Output and Control Section
• Power Supply Unit Section

WARNING!

• Never attempt to disassemble the amplifier in any way.
• In case of overheating, the audio volume is gradually reduced until module thermal stabilization. The level is autotically restored when the correct operating temperature is reached.
• In the event of a malfunction, immediately cut power supply off, by disconnecting the module from the mains, and contact an authorised repair centre.

WARNING!

- Never remove the front grille protecting the product. To prevent electric shock, in case of protection grille accidental damage or replacement (to be carried out at the after-sales service), immediately disconnect power supply. Never connect mains power supply when the grille is removed.

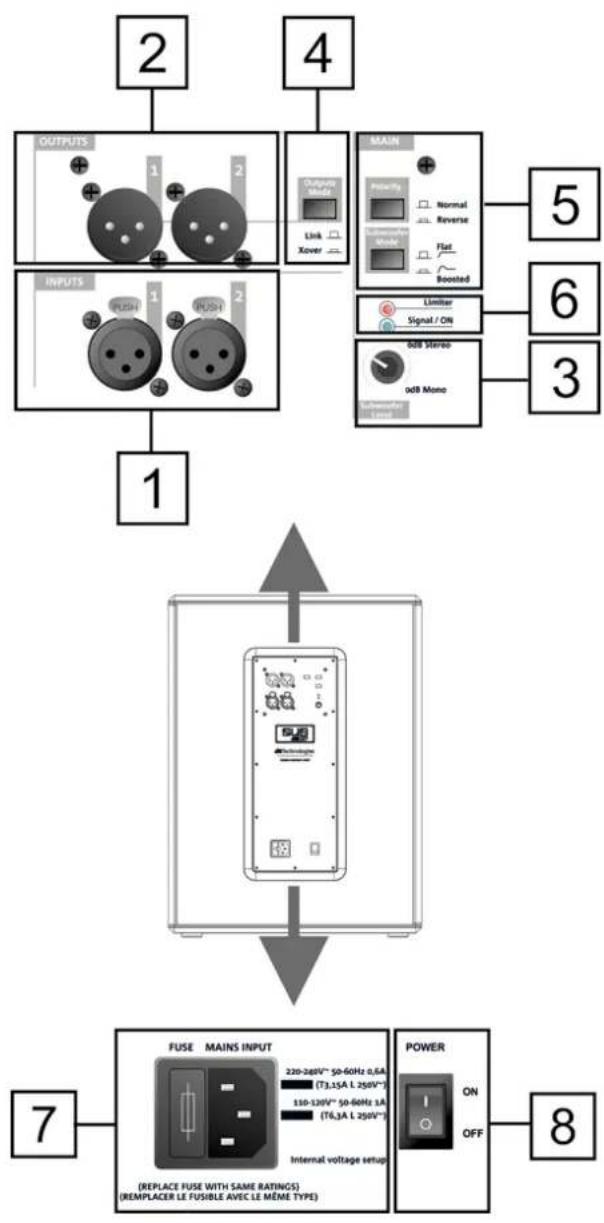

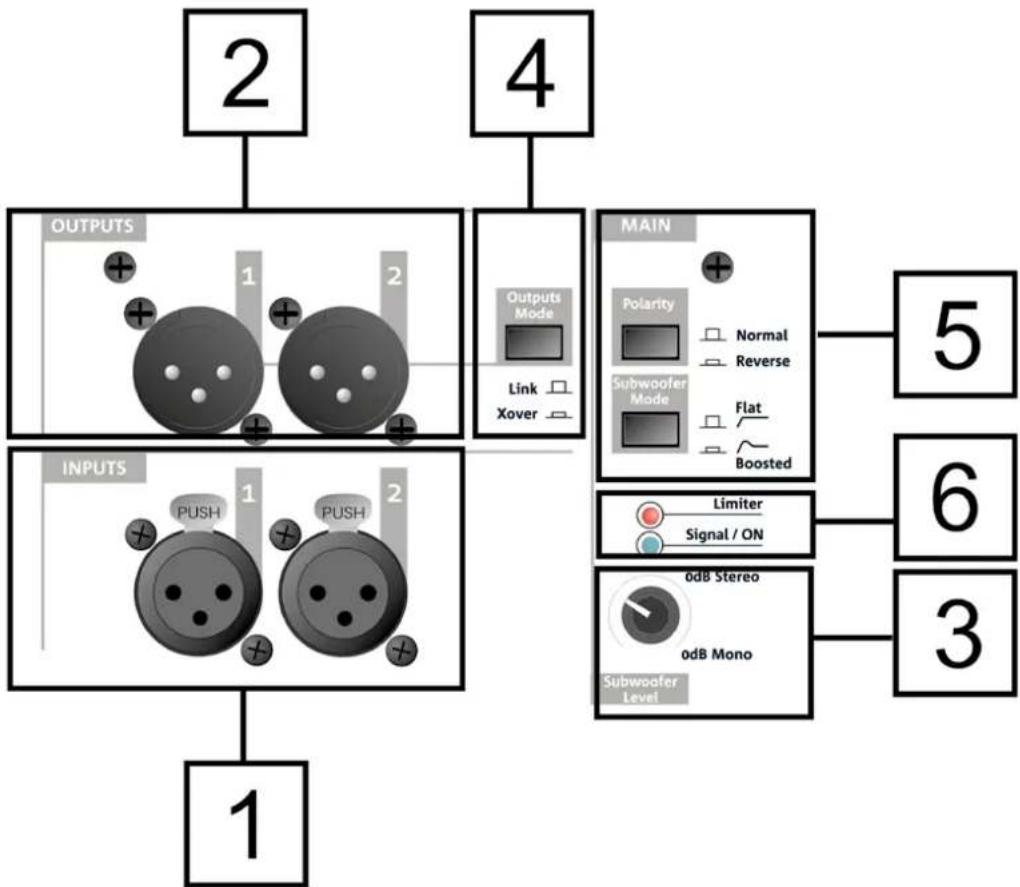

INPUT, OUTPUT AND CONTROL SECTION


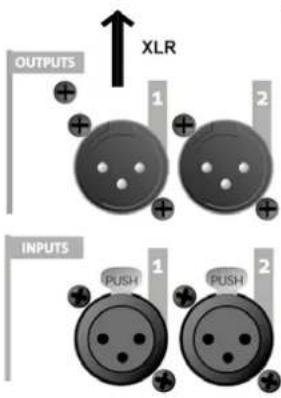

1. INPUTS

XLR (balanced) input connectors. They may be used for mono or stereo connection. For further details concerning connection, refer to INPUT CONNECTIONS AND AUDIO DAISY CHAIN.

2. OUTPUTS

XLR (balanced) output connectors. They may be used for mono or stereo connection. For further details concerning connection, refer to INPUT CONNECTIONS AND AUDIO DAISY CHAIN.

3. Subwoofer Level

Rotary switch to adjust output audio level.

4. Outputs Mode

Selector allowing to set the type of output signal (Link/Xover). It acts on the daisy-chained signal from OUTPUT connectors [2].

5. Polarity and Subwoofer Mode buttons

Buttons allowing to control (Normal or Reverse) Polarity and the type of output filtering (Flat, i.e. without equalisation, Boosted, i.e. low frequencies are emphasised).

6. LED (Limiter, Signal/ON)

Indicator LEDs. The Limiter LED turns on when the internal protection circuit is triggered, while Signal/ON indicates subwoofer power-up as well as the presence of an input audio signal.

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

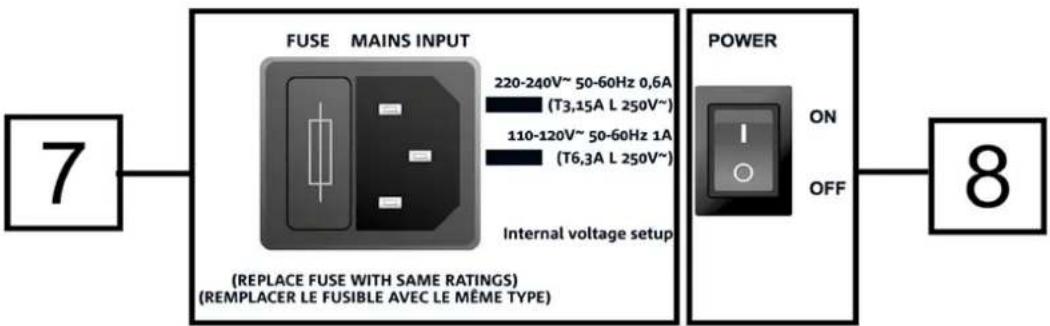

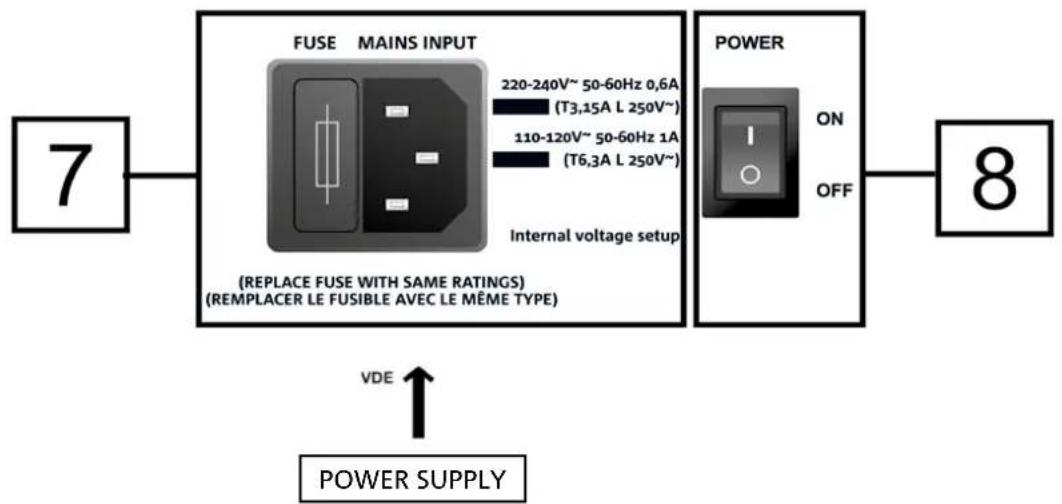

POWER SUPPLY UNIT SECTION

7. MAINS INPUT

VDE connector input. For connection to the mains, through the cable supplied with the device.

The FUSE section contains mains fuse housing.

8. POWER

Switch for turning device ON or OFF.

SUB615 - SUB618 Cod. 420120251 REV. 1.0

2. FIRST POWER-UP

The package of SUB 615 / SUB 618 subwoofer contains:

• 615 or 618 subwoofer
• VDE power cable
- quick start user manual and warranty documents in hard copy

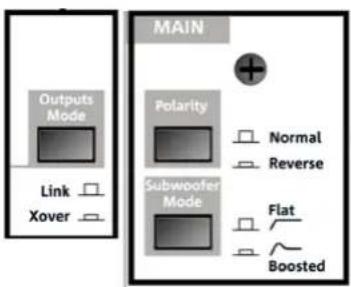

CONFIGURATION AND OPTIMISATION

SUB 615 and SUB 618, used in a stand-alone configuration, are characterised by omnidirectional sound emission. This feature is emphasised in case of low frequencies, while it decreases as frequency increases.

For subwoofer use optimisation in given configurations, the control panel displays the following:

- Outputs Mode:

1. Link (the signal present at OUTPUTS is the one applied to the woofer)
2. Xover (the signal present at OUTPUTS is filtered with a crossover frequency of 120 Hz, for daisy chain to a speaker, such as B-HYPE and OPERA)

- Polarity:

1. Normal (audio signal normal polarity)
2. Reverse (reverse polarity, useful for wavefront optimisation through acoustic wave phase reversal)

- Subwoofer Mode:

1. Flat (sound emission without equalisation)
2. Boosted (sound emission is emphasised in case of low frequencies)

Main Outputs Mode Link Xover Polarity Normal Reverse Subwoofer Mode Flat Boosted

OUTPUTS 1 2

Before power-up, set Subwoofer Level selector [3] to 0 dB (Mono or Stereo, depending on the configuration).

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

INPUT CONNECTIONS AND AUDIO DAISY CHAIN

According to the specific configuration (mono or stereo), one or two cables (not supplied) are required at input and at daisy chain. XLR connectors are required.

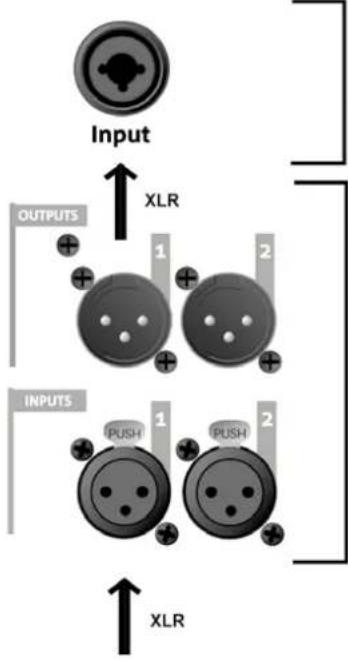

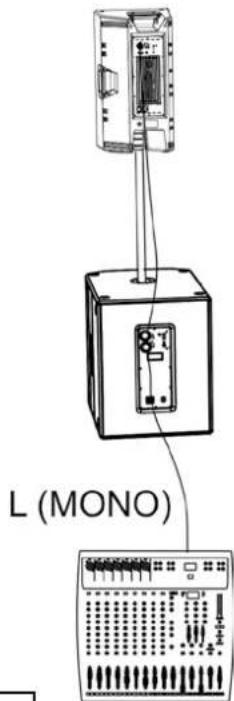

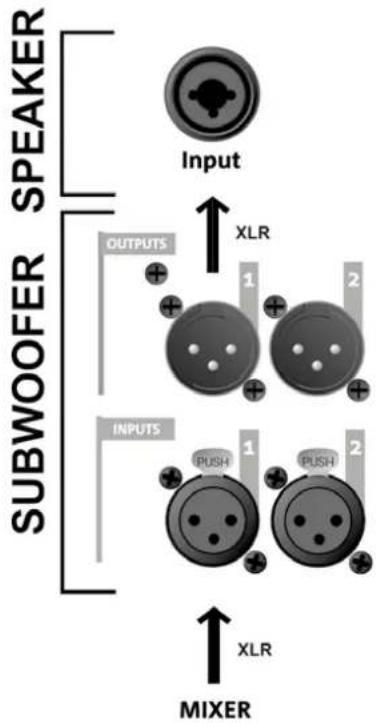

CASE A (MONO connection) between subwoofer and speaker (examples: figure 1, figure 2):

In the event of a MONO connection between subwoofer and speaker:

1. Connect mixer output to subwoofer INPUTS 1 connector
2. Connect subwoofer OUTPUTS 1 connector to speaker input.
3. For each speaker, select the type of input impedance on LINE.
4. For each channel in the configuration, set subwoofer OUTPUTS MODE [4] to XOVER, in order to daisy-chain a signal having a crossover frequency of 120 Hz to the speaker.

SUBWOOFER SPEAKER

Input

OUTPUTS XLR 1 2

INPUTS 1 PUSH 2 PUSH

MIXER

L (MONO)

Figure 1
        F1["1 PUSH"] & F2["2 PUSH"]
    end
    subgraph Subwoofer
        G1["OUTPUTS"] & G2["XLR"]
    end
    subgraph Mixer
        H1["1 PUSH"] & H2["2 PUSH"]
    end

Figure 2

Input

OUTPUTS XLR 1 2 INPUTS PUSH 1 PUSH 2

MIXER
SUB615 - SUB618 Cod. 420120251 REV. 1.0

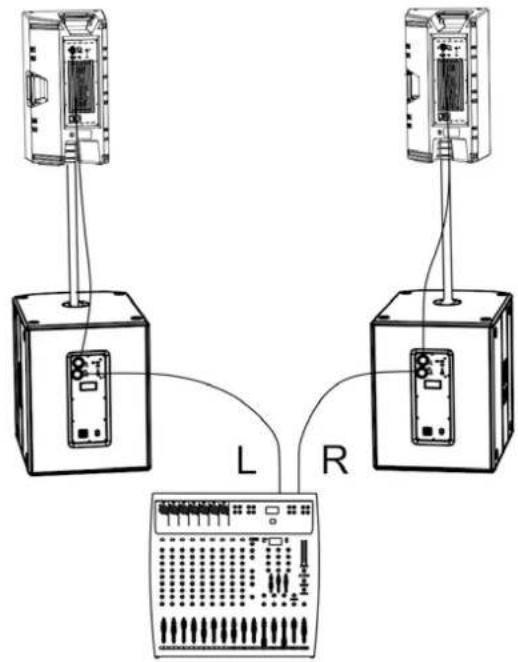

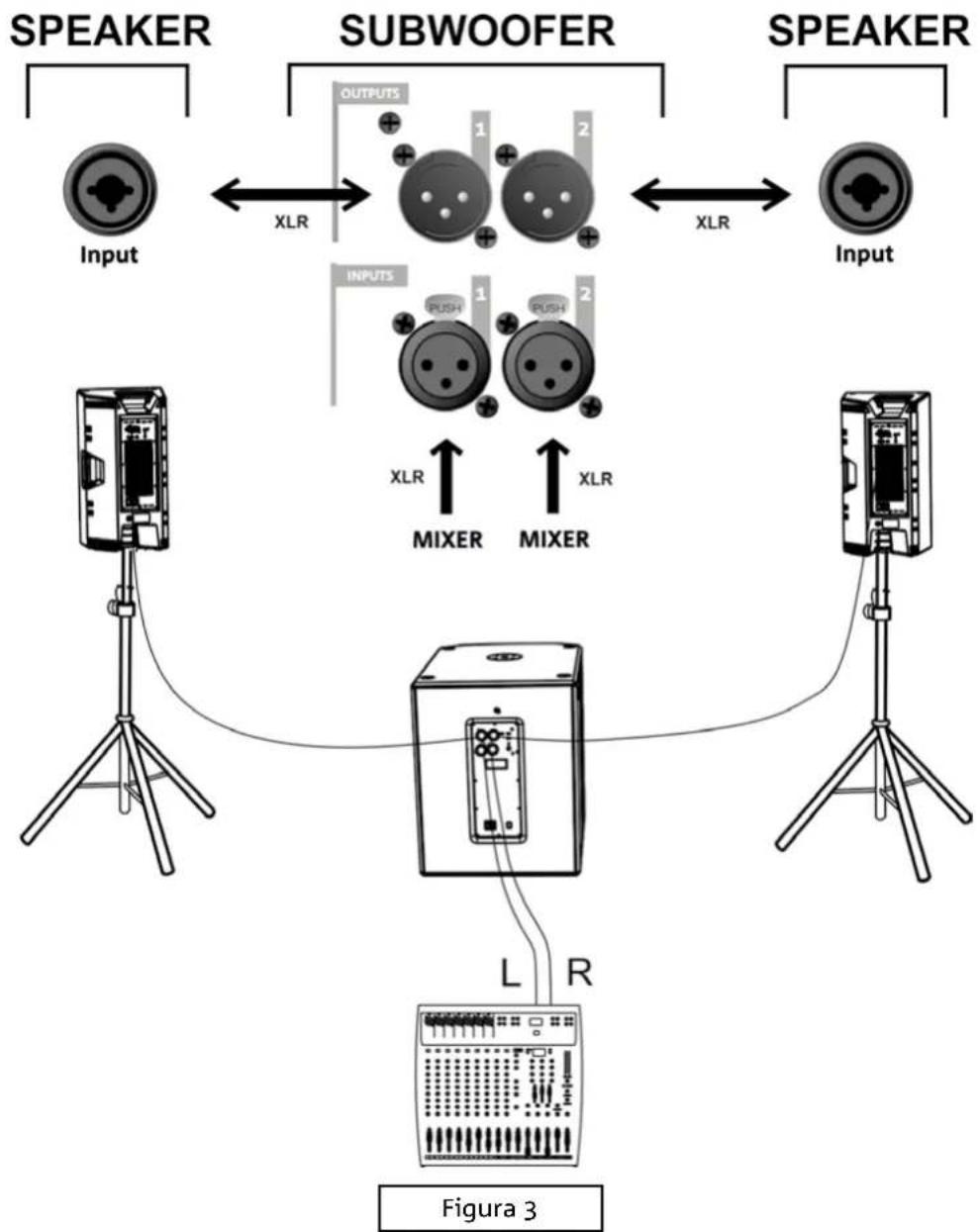

CASE B (STEREO connection between a subwoofer and 2 speakers, figure 3)

1. Connect mixer L, R outputs to subwoofer INPUTS 1 and 2 respectively.
2. Daisy-chain the signal to the speakers, connecting OUTPUTS 1 to LH speaker Input, OUTPUTS 2 to RH speaker Input.
3. Select the impedance for each speaker ("LINE" type).
4. Set subwoofer OUTPUTS MODE [4] to XOVER, in order to daisy-chain a signal having a crossover frequency of 120 Hz to the speaker.

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

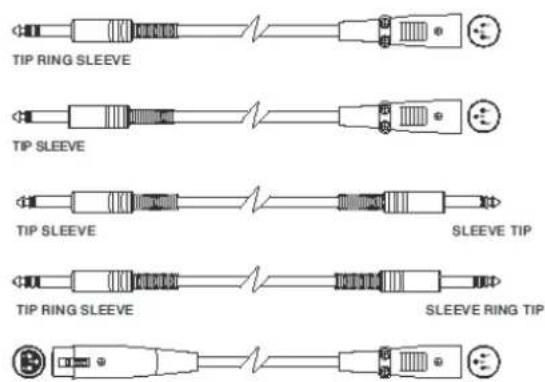

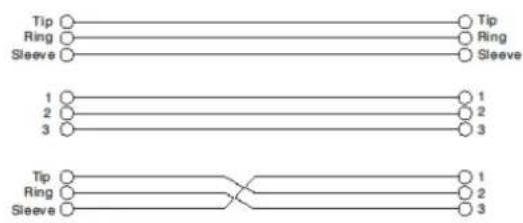

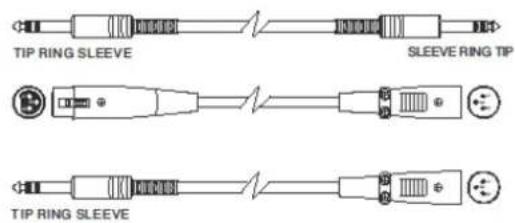

• Balanced

TIP RING SLEEVE SLEEVE RING TIP TIP RING SLEEVE


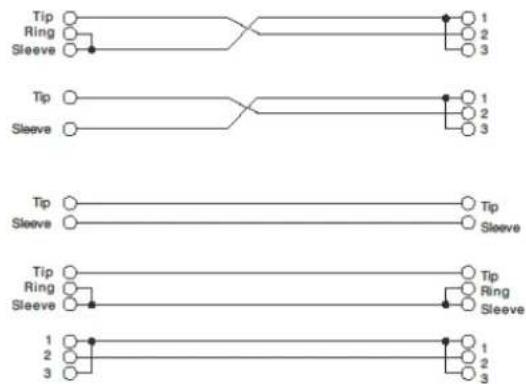

• Unbalanced


TIP RING SLEEVE TIP SLEEVE TIP SLEEVE SLEEVE TIP TIP RING SLEEVE SLEEVE RING TIP

POWER SUPPLY CONNECTION

For power supply connection of the device, insert the connector of the supplied cable into "MAINS INPUT" [7]. Then insert the plug into an outlet having a proper earth conductor. Switch the POWER selector [8] to "ON".

SUB615 - SUB618 Cod. 420120251 REV. 1.0

3. USAGE EXAMPLES

• Types of installation other than those here described are not allowed.
• Never use the handles to suspend the subwoofer
• Always check that the positioning is stable and that the installation does not pose a danger to people, animals or property.

FLOOR USAGE

615 and 618 subwoofers may be used directly on the floor (see figure opposite showing a usage example.)

Line drawing of two rectangular lighting equipment setups with tripod stands and a central box (no text or symbols)

USAGE WITH SPEAKER IN A STACK

A speaker may be installed directly on 615 or 618 subwoofer by means of a DS2-S 35 mm diameter mini-pole (e.g. series: INGENIA, B-HYPE, OPERA).

INGENIA series allows for 2 stacked speakers (specific accessories: LP-IG and GSA-IG/GSA-IGA). In particular, in the event of 2 stacked INGENIA IG3T or 2 stacked INGENIA IG4T, fastening by means of additional belts is required to ensure stable and safe installation.

Technical line drawing of a mechanical device with a square base and cylindrical top (no text or symbols)

USAGE ON SUBWOOFER WITH POLE TELESCOPIC

It is possible to use only one speaker mounted on a 35 mm diameter pole (e.g. series: OPERA, B-HYPE). The reference accessory is DS-2 (telescopic pole).

The maximum allowed height between the speaker base and the floor is 165 cm, except for B-HYPE 15 and OPERA 15, whose maximum allowed height is 120 cm.

Two identical mechanical or electrical enclosure units with vertical connectors and mounting holes, shown from different angles (no text or symbols visible)

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

4. ACCESSORIES

To completion of the series, the following accessories are provided as options:

- Protection covers

Check the new compatible accessories on: www.dbtechnologies.com

5. TROUBLESHOOTING

The subwoofer will not turn on:

1. Check that power supply is present upstream of the installation.
2. Ensure that the power supply cable with VDE connector is properly plugged in.

The subwoofer turns on but produces no sound:

1. Check that the input connection of the audio signal is correctly performed.
2. Check the cables for damage.
3. Ensure that the mixer or audio source is on and an output signal is present.
4. Check the general level through the "Subwoofer Level" control.

Speaker sound is inappropriate:

1. Check the cables for damage and replace them as required (a damaged cable may lead to signal loss or alteration).
2. Ensure that Outputs Mode, Polarity and Subwoofer Mode selection settings are correct according to the selected configuration.

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

6. SPECIFICATIONS

GENERAL

Type:

Active subwoofer

ACOUSTICAL SPECIFICATIONS

Frequency response [-10dB]:	42 - 124 Hz (SUB 615) / 35 -130 Hz (SUB 618)
Max SPL (1m):	131 dB (SUB 615) / 133 dB (SUB 618)
LF:	15” (SUB 615) / 18” (SUB 618)
LF voice coil:	2.5”
Crossover frequency:	120 Hz

AMPLIFIER

Type:	AMP SMPS
Amplification class	Class D
Power supply	1 x VDE
RMS amplifier power:	600 W

SUB615 - SUB618 Cod. 420120251 REV. 1.0

PROCESSOR

Internal controller:	28-bit/56-bit DSP
Limiter:	Peak, RMS, Thermal

USER INTERFACE

Controls:

Subwoofer level, Ouputs Mode, Polarity, Subwoofer Mode

INPUTS & OUTPUTS

Inputs:	2 x XLR Balanced Inputs
Outputs:	2x XLR Balanced Outputs

POWER SUPPLY SPECIFICATIONS (ABSORPTION / INSTALLATION)

Absorption at 1/8th of power in medium use conditions (*):	0.9 A (220-240V~) - 1.6 A (110-120V~)
Absorption at 1/3rd of power in maximum use conditions (**):	1.7 A (220-240V~) - 2.8 A (110-120V~)
Absorption with speaker on in no-signal condition (idle):	16 W
Inrush current:	17.9 A

* NOTE FOR INSTALLER: Values refer to 1/8th of power, under average operating conditions (music programme with occasional or no clipping). For any type of configuration we recommend to consider them as minimum sizing values.
** NOTE FOR INSTALLER: Values refer to 1/3rd of power, under heavy operating conditions (music programme with frequent clipping and limiter activation). In case of professional installations and tours we recommend sizing according to these values.

SUB 615 - SUB618 Cod. 420120251 REV. 1.0

DIMENSIONS

Material:	Multilayer wood (with protective black paint)
Grille:	NC-machined
Handles:	2, on sides
Pole mount:	Yes, 36 mm (provision: M20)
Width:	430 mm (SUB 615) 500 mm (SUB 618)
Height:	580 mm (SUB 615) 625 mm (SUB 618)
Depth:	600 mm (SUB 615) 690 mm (SUB 618)
Weight:	25.5 kg (SUB 615) 31.1 kg (SUB 618)

Product features, specifications and appearance are subject to changes without prior notice. dBTechnologies reserves the right to make changes or improvements in design or manufacture without any obligation to incorporate such changes or improvements in products manufactured before their introduction.

AEB

A.E.B. Industriale Srl

Via Brodolini, 8

Technical drawing of a rectangular frame with a central circular hole and four corner holes, dimensioned as 600 units (no text or symbols)

Technical drawing of a rectangular frame with circular holes and a central circular feature, dimensioned as 690 (no text or symbols)

580 430

625 500

6. LED (Limiter, Signal/ON)

7. MAINS INPUT

Line drawings of three different electronic devices with tripod stands, no text or symbols present

VERWENDUNG MIT LAUTSPRECHER IM STACK

Two identical line drawings of a rectangular electronic device with vertical connectors and mounting holes, shown from different angles (no text or symbols)

DONNÉES ACOUSTIQUES 65

AMPLIFICATEUR.... 65

PROCESSEUR 66

INTERFACE UTILISATEUR 66

ENTRÉES ET SORTIES.... 66

SPÉCIFICATIONS D'ALIMENTATION (ABSORPTION / INSTALLATION) 66

DIMENSIONS 67

SUB 615 - SUB618 Code 420120251 RÉV. 1.0

1. GÉNÉRALITÉS

BIENVENUS!

Technical drawing of a rectangular frame with a central circular hole and four corner holes, dimensioned as 600 (no text or symbols)

Technical drawing of a rectangular frame with circular holes and a central circular feature, dimensioned as 690 (no text or symbols)

580 430

625 500

SUB 615 - SUB618 Code 420120251 RÉV. 1.0

CARACTÉRISTIQUES DE LA SECTION D'AMPLIFICATION ET DE CONTRÔLE

6. LED (Limiter, Signal/ON)

7. MAINS INPUT

Line drawing of two rectangular lighting equipment setups with tripod stands and a central box (no text or symbols)

UTILISATION AVEC ENCEINTE EN STACK

Technical line drawing of a mechanical housing or enclosure with a square base and rectangular top (no text or symbols)

Two identical mechanical or electrical enclosure units with vertical connectors and mounting holes, shown from different angles (no text or symbols visible)

SUB 615 - SUB618 Code 420120251 RÉV. 1.0

4. ACCESSOIRES

Stylized logo or emblem with stylized text and a curved line, possibly representing a brand or company name.

A.E.B. Industriale Srl

Via Brodolini, 8

Technical drawing of a rectangular frame with a central circular hole and four corner holes, dimensioned as 600 (no text or symbols)

Technical drawing of a rectangular frame with circular holes and a central circular feature, dimensioned as 690 (no text or symbols)

580 430

625 500

SUB 615 - SUB618 Cód. 420120251 REV. 1.0

6. LED (Limiter, Signal/ON)

7. MAINS INPUT

Diagram showing three connected devices with labeled ports L and R, connected by wires.

Figura 2

MIXER
SUBWOOFER SPEAKER
SUB615 - SUB618 Cód. 420120251 REV. 1.0

Line drawing of two rectangular equipment setups with tripod stands and a central box (no text or symbols)

USO CON ALTAVOCES EN STACK

Line drawing of a mechanical device with a rectangular housing and mounting base (no text or symbols)

Two identical mechanical or electrical enclosure units with vertical connectors and mounting holes, shown from different angles (no text or symbols visible)

SUB 615 - SUB618 Cód. 420120251 REV. 1.0

4. ACCESORIOS

Controles:

Subwoofer level, Ouputs Mode, Polarity, Subwoofer Mode

ENTRADAS Y SALIDAS

Entradas:	2 x XLR Balanced Inputs
Salidas:	2x XLR Balanced Outputs
