USER MANUAL Flexsys F10 DB Technologies

Made in Italy
COD. 420120139 Rev.2

A.E.B. INDUSTRIALE s.r.l.

Via Brodolini, 8 - 40056 Crespellano (Bo) - ITALIA

Tel. + 39 051 969870 - Fax. + 39 051 969725

Internet: www.dblechnologies.com

E-mail: [e-mail]

FLEXSYS F8 - F10 - F12 - F15 FLEXSYS F8 - F10 - F12 - F15

DESCRIZIONE

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Maniglia M10 M10 Maniglia M10 Maniglia M10 M10 M10

F12-F15

FLEXSYS F8 - F10 - F12 - F15

COMANDI E FUNZIONI

FLEXSYS F212 - F315FLEXSYS F212 - F315

DESCRIZIONE

FLEXSYS F212 (2 vie)

Line drawing of a cabinet or enclosure with internal compartments and ventilation slots (no text or symbols)

FLEXSYS F212 - F315 FLEXSYS F212 - F315

COMANDI E FUNZIONI

1) CONNETTORE DI INGRESSO "BALANCED INPUT"

4) INDICATORE LUMINOSO "SIGNAL"

FLEXSYS F212 - F315FLEXSYS F212 - F315

CARATTERISTICHE

Griglie frontali

FLEXSYS F8 FLEXSYS F10 FLEXSYS F12

Componenti 1x6" woofer - 1.5" voice coil 1x10" woofer - 2" voice coil

Tx1 compressiondriver - 1 voice call Neodimio Tx1 compressiondriver - 1 voice call Neodimio

Dispersione 90°/40°x60° Asimmetrica 90°/40°x60° Asimmetrica

Dimensioni (WxHxD) 260x420x260mm 300x480x300mm

Peso 9.5Kg 12Kg

Maniglie --- --- 4 in place, room 4 in place, room

Pur imobilisso sopra - -

Supporto plantana U.Sulfini

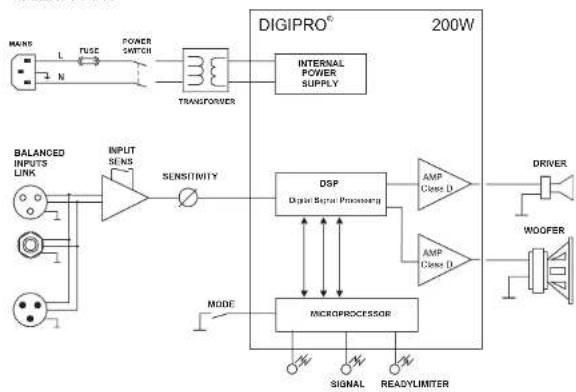

The speakers F8, F10, F12 and F15 of FLEXSYS series use cutting edge digital amplifiers of the DIGIPRO ^® series, providing with powers 200W and 400W to meet the requirements of any kind of application.

These highly efficient amplifiers provide high power with limited weight and dimension. Thanks to the low power dissipated, the cooling of the amplifier module does not require a fan.

The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover between the acoustic components, the frequency response, the limiter, and the acoustic alignment. A selector enables to select one of two different equalizations - "FLAT" or "PROCESSED" - to provide high versatility for the different applications.

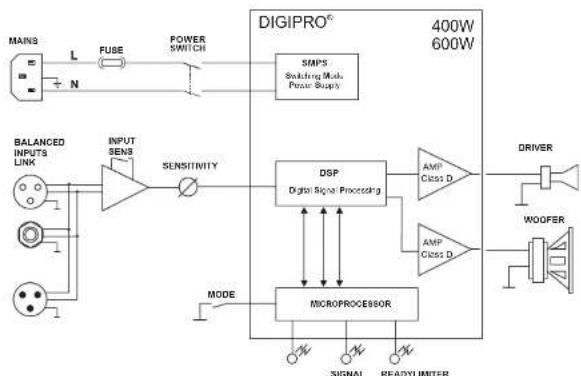

The amplifiers DIGIPRO ^® 400W use power supplies featuring SMPS (Switched-Mode Power Supplies) technology.

This technology increases power supply efficiency and minimizes its weight.

FLEXSYS F8

The F8 bi-amped active speaker is equipped with a DIGIPRO ^2 amplifier delivering 150W RMS for the bass section and 50W RMS for the high frequency section.

F8 active two-way speaker features woofer 8" (voice coil 1,5") and a neodymium compression driver 1" (voice coil 1") on a 90°/40°x60° asymmetrical horn.

The speaker is made of 12mm ply wood, the one top handle. How to be threads located on the sides and the back of the speaker are enabling easy transport and installation.

The speaker has been designed to be used also as stage monitor (40° angle), by rotating the horn you can maintain the same audio coverage angle of high frequencies also when the speaker is used as monitor. In the bottom of the box there is a standard pole mount cup (D36mm).

FLEXSYS F10

F10 bi-amped active speaker is equipped with a DIGIPRO ^3 amplifier delivering 150W RMS for the bass section and 50W RMS for the high frequency section. F10 active two-way speaker features a woofer 10" (voice coil 2") and a neodymium compression driver 1" (voice coil 1") on a 90°/40°x 60° asymmetrical horn.

The speaker is made of 12mm plywood, the one top plastic handle and the 12 M8 threads located on the sides and the back of the speaker are enabling easy transport and installation.

The speaker has been designed to be used also as stage monitor (40° angle), by rotating the hom you can maintain the same audio coverage angle of high frequencies also when the speaker is used as monitor. In the bottom of the box there is a standard pole mount cup (D36mm).

FLEXSYS F8 - F10 - F12 - F15

FLEXSYS F12

The F12 bi-amped active speaker is equipped with a DIGIPRO® amplifier delivering 300W RMS for the bass section and 100W RMS for the high frequency section.

F12 active two-way speaker features woofer 12" (voice coil 1") and compression driver 1" (voice coil 1.5") on a 90°x40° CD-hom.

The speakers' horizontal directivity is 90° by default factory setting.

The speaker is made of 15mm birch plywood, the three plastic handles and 12 M10 threads located on the sides and the back of the speaker are enabling easy transport and installation.

The speaker has been designed to be used also as stage monitor (45° angle), by rotating the horn you can maintain the same audio coverage angle of high frequencies also when the speaker is used as monitor.

In the bottom of the box there is a standard pole mount cup (D36mm).

FLEXSYS F15

F15 bi-amped active speaker is equipped with a DIGIPRO® amplifier delivering 300W RMS for the bass section and 100W RMS for the high frequency section.

F15 active two-way speaker features a woofer 15" (voice coil 2") and a neodymium compression driver 1" (voice coil 1,5") on a 90°x40° CD-hom.

The speakers' horizontal directivity is 90° by default factory setting.

The speaker is made of 15mm birch plywood, the three plastic handles and the 12 M10 threads located on the sides and the back of the speaker are enabling easy transport and installation.

The speaker has been designed to be used also as stage monitor (45° angle), by rotating the horn you can maintain the same audio coverage angle of high frequencies also when the speaker is used as monitor. In the bottom of the box there is a standard pole mount cup (D36mm).

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

F8

F10

M10 Handle M10 Handle M10 Handle M10 M10

F12-F15

FLEXSYS F8 - F10 - F12 - F15

COMMANDS AND FUNCTIONS

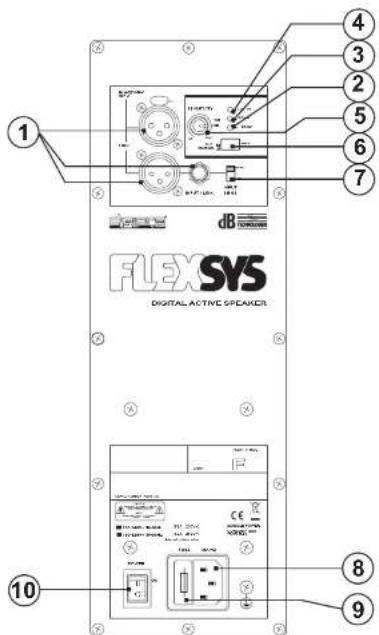

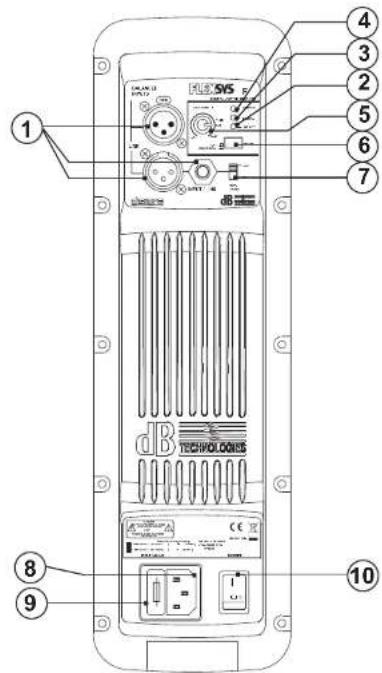

AMPLIFIER PANEL

1) "Balanced Input" - "Link" - "Input Link" CONNECTORS

These balanced inputs can be used to connect balanced or unbalanced microphones or audio sources at line level (0dB) (eg. preamplifier, mixer, recorder, CD player, musical instrument, ...).

The balanced connector is connected in parallel and can be used to send the audio signal to other amplified speakers, recorders or supplementary amplifiers.

2) "Ready" INDICATOR LIGHT

This indicator shows green to indicate that the main power voltage is correct. The LED shows green normal operating conditions.

3) "Signal" INDICATOR LIGHT

This indicator shows green to indicate the presence of the audio signal (at a level of -20dB).

4) "Limiter" INDICATOR LIGHT

This indicator shows red to indicate that the internal limiter circuit has tripped. This prevents amplifier distortion and protects the speakers against overloads.

5) "Sensitivity" INPUT SENSITIVITY CONTROL

This control adjusts the sensitivity of the signal amplifier input. This control does not affect the "Link" - "Input - Link" output level

6) MODE SWITCH

This two-way switch allows to choose between two different system presets. The "Flat" position allows linear response of the speaker, which is mainly suitable for the "live" application. The "Processed" position emphasizes the low frequency and regulates the mid frequency. It is suitable for music play back

7) "Input Sens" SWITCH

Position the switch in LINE to use a line level source (0 dB) or MIC to use a microphone.

8) POWER CABLE SOCKET "MAINS"

Used for connecting the power cable supplied.

9) FUSE CARRIER "FUSE"

Mains fuse housing.

10) POWER SWITCH "POWER"

This switch can be used to switch the diffuser on and off.

REFERENCE DRAWINGS AT PAGES 49 and 50

FLEXSYS F8 - F10 - F12 - F15

CHARACTERISTICS AND PROTECTION

Front Grille

The speakers's components in the box are protected by 1.2mm metal steel grille covered by foam on backside.

Cooling

Thermal control is provided by the internal microprocessor which, by means of two sensors, controls the temperature of the amplifier and of the power supply, avoiding overheating by limiting the overall volume.

In case of overheating (> 80 degrees) the volume decreases proportionally to the temperature increase, making the change unnoticeable.

The correct volume and all the functions are automatically restored when standard operating temperatures are reached.

Switch on

The amplifiers are equipped with a microprocessor to control the DSP and the amplifier.

The correct switch on of the amplifier is ensured by an initialization procedure; during this test stage, the blue front LED flashes twice and the LEDs ("Limiter", "Signal and Ready"), "located on the amplifier module, remain off for approx. 2 sec.

At the end of the switch on procedure, the front LED lights up (if enabled) and on the amplifier module the 'Ready' green LED only remains steadily on.

In case of severe failure of the speaker, the LED on the front panel flashes several times and on the amplifier module, the "Limiter" red LED flashes and the speaker switches to "mute".

Failure indications and safeties

The microprocessor is able to signal three different kinds of failure by flashing the "Limter" red LED on the amplifier panel before the lighting up of the "Ready" green LED. The three types of failure are:

1) WARNING: a non-severe error or auto-ripristinate malfunction is detected and the performance of the speaker is not limited

2) LIMITATION: an error is detected and the performance of the speaker is limited (the sound level is reduced by 3dB). This does not affect the operation of the speaker since it continues to operate. However, it is necessary to call the service centre to solve the issue.

3) FAILURE: a severe malfunction is detected. The speaker switches to "mute".

Flashing	Indication
1 or 2	Warning
3 or 4	Limitation
from 5 to 8	Failure

In case of failure, the "Ready" green LED remains off.

Perform the checks listed below:

- Check if the speaker is properly connected to the power supply.

- Make sure that the power supply is of correct voltage.

- Check that the amplifier is not overheated.

- Disconnect the speaker from the mains power supply, wait for a few minutes and connect it again.

If after these tests the red "LIMITER" LED is still on, please contact an authorised service centre.

FLEXSYS F212 - F315-FLEXSYS F212 - F315

DESCRIPTION

The FLEXSYS series bi-amped speakers are equipped with DIGIPRO ^® series class D amplifier. This high-efficiency amplifier delivers high output power in a compact size at low weight. Thanks to its high efficiency the cooling of the amplifier module is obtained statically, thus avoiding the use of a fan.

The power supply circuits of the DIGIPRO ^5 amplifier has been conceived to work in full-range mode; thanks to the SMPS (Switched-Mode Power Supply) technology with PFC (Power Factor Correction) the operation with supply voltages between 100 Vac and 240Vac is guaranteed by ensuring the same sound performances even with floating and non-stabilized power supply systems.

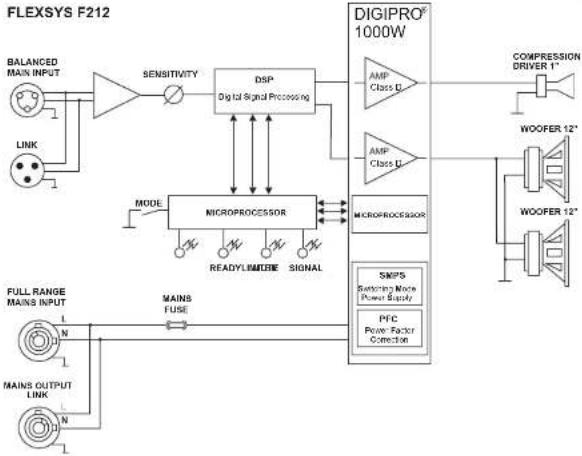

FLEXSYS F212 (2 ways)

The F212 bi-amped active speaker is equipped with a DIGIPRO® amplifier which delivers 500W RMS for the bass section and 250W RMS for the high frequency section.

The F212 active two-way speaker features two 12" (voice coil 2.5") woofers and a neodymium 1" (voice coil 1.75") compression driver. The phase plug attached to the front of the upper 12" woofer avoids the vertical phase modulation which usually take place in this type of configuration and ensures a precise horizontal coverage of the medium frequencies.

The speaker is made of 15mm birch ply wood, the 4 handles, the 12 M10 threads located on the sides and the back of the speaker are enabling easy transport and installation.

The trapezoidal-shaped housing (20° angle) allows the side-by-side setup of several speakers in cluster configuration. For side-by-side installation, the horn must be turned (40° x 60°)! The bottom features a adjustable foot (in height) to inclinate the tilt angle up to a max. of 5°. This allows to direct the sound radiation without using additional supports.

In the bottom of the box there is a standard pole mount cup (D36mm) made of aluminium

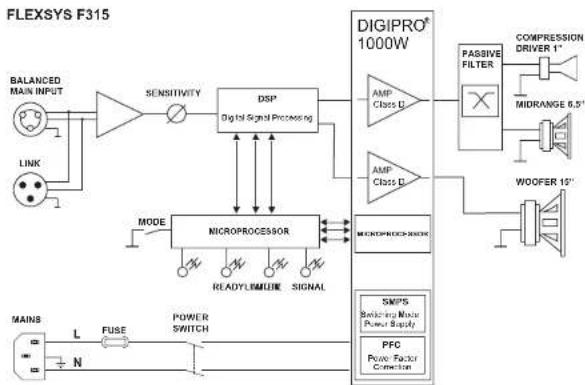

FLEXSYS F315 (3 ways)

The F315 active speaker is equipped with a DIGIPRO® amplifier delivering 500W RMS for the bass section featuring a 15" woofer (voice coil 3") and 500W RMS for the mid-high section featuring a passive filter driving a 6" midrange (voice coil 2") and a 1" compression driver (voice coil 1.5").

The speaker is made of 15mm birch ply wood, the 4 handles, the 12 M10 threads located on the sides and the back of the speaker are enabling easy transport and installation

The 15" woofer and the mid-high section with horizontal 90° coverage is the ideal solution for all demanding full-range applications.

In the bottom of the box there is a standard pole mount cup (D36mm) made of aluminium

Technical line drawing of a mechanical enclosure or housing unit with internal compartments and mounting holes (no text or symbols)

FLEXSYS F212 - F315 FLEXSYS F212 - F315

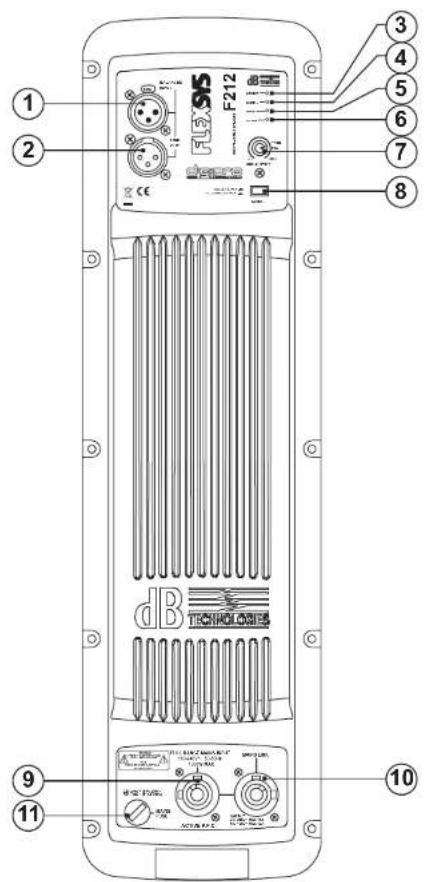

CONTROLS AND FUNCTIONS

1) "BALANCED INPUT" INPUT CONNECTOR

Balanced input at line level. Accepts "XLR" sockets.

2) "BALANCED LINK/OUT" OUTPUT CONNECTOR The "XLR" connector connected in parallel with input (1) can be used to send the input audio signal to another active speaker.

3) "LIMITER" INDICATOR LIGHT

This indicator shows red to indicate that the internal limiter circuit has tripped. This prevents amplifier distortion and protects the speakers against overloads.

4) "SIGNAL" INDICATOR LIGHT

This indicator showscomes on green to indicate the presence of the audio signal (at a level of -20dB).

5) "MUTE" INDICATOR LIGHT

This yellow indicator indicates amplifier status. The LED is off in normal operating conditions.

6) "READY" INDICATOR LIGHT

This indicator shows green to indicate that the main power voltage is correct. The LED shows green in normal operating conditions

7) "INPUT SENS" INPUT SENSITIVITY CONTROL

This control adjusts the sensitivity of the signal amplifier input. This control does not affect the 'BALANCED LINK/OUT' output level FLEXSYS F212

8) "MODE" SWITCH

This two-way switch allow to choose between two different system presets. The "SINGLE SPEAKER" position allows linear response when one single speaker is used. The "CLUSTERED SPEAKER" position reduces the medium-bass frequencies which are coupling by the side-by-side attachment of several speakers.

9) "MAINS INPUT" POWER SOCKET

For connecting the power cable provided. The connector used for mains connection is a POWER CON® (blue) socket

10) "MAINS OUTPUT LINK" POWER SOCKET

For linking the mains power. The output is connected in parallel with input (9) and can be used to power another active speaker. The connector is a POWER CON® (grey) socket

11) "MAINS FUSE" FUSE CARRIER

Mains fuse housing.

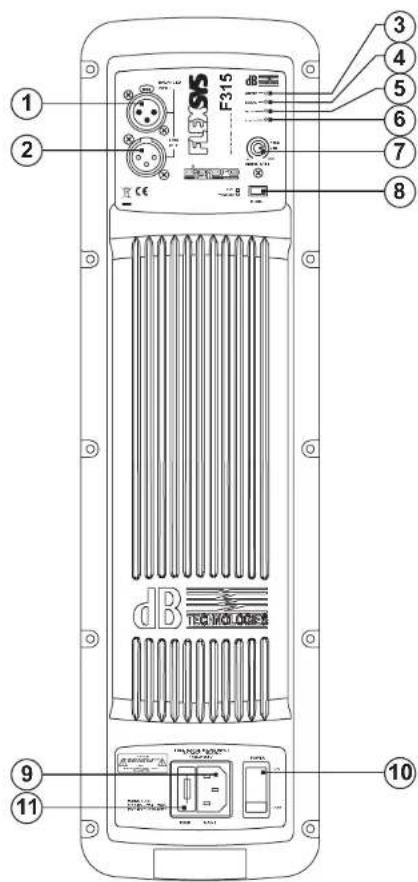

FLEXSYS F315

8) "MODE" SWITCH

This two-way switch allows to choose between two different system presets. The "FLAT" position allows linear response of the speaker, which is mainly suitable for the "live" application in closed rooms. The "PROCESSED" position increases the low frequencies and it is suitable for music play back or for the use in open air applications.

9) POWER CABLE SOCKET "MAINS INPUT"

Used for connecting the power cable supplied.

10) FUSE CARRIER "MAINS FUSE"

Mains fuse housing.

11) POWER SWITCH "POWER"

Switches the active speaker on and off.

REFERENCE DRAWINGS AT PAGES 51 and 52

FLEXSYS F212 - F315FLEXSYS F212 - F315

CHARACTERISTICS

Front Grille

The speakers's components in the buffle are protected by 1.5mm metal steel grille covered by foam on backside.

Cooling

The amplifier is cooled by means of the aluminium panel placed on the back of the speaker.

The thermal protection is ensured by an internal circuit which controls the temperature of the amplifier and protects this against any risk of overheating thus limiting the general volume (temperature >80°C).

If the temperature reaches the maximum operating temperature ( >80^ ), the audio signal is set to the 'MUTE' position and it will be indicated by the switching on of the yellow "MUTE" LED.

The requiried volume and all functions will be restored automatically when the normal operating temperatures are reached.

Protection

When the yellow "MUTE" LED turns on, it means that a malfunction has been detected on the speaker, thus setting this to the mute position.

Perform the checks listed below:

- Check if the speaker is properly connected to the power supply.

- Make sure that the power supply is of correct voltage.

- Check that the amplifier is not overheated.

- Disconnect the speaker from the mains power supply, wait for a few minutes and connect it again.

If after these tests the yellow "MUTE" LED is still on, please contact an authorised service centre.

CONNECTIONS (Only for FLEXSYS F212)

Connecting to the mains supply

Each active speaker features its own power cable. Connection is done by a Neutrik POWER CON® (blue) model which permits easy and fast connection to the speaker as well as being an excellent locking system.

The same connector serves as a switch to turn ON and OFF the active loudspeaker by turning the connector to the left (OFF) or right (ON).

The active speaker must be connected to a power supply able to deliver the maximum required power.

Main power supply linking

On the rear of the speaker, a Neutrik POWER CON® connector (grey) offers linking the mains power supply.

This socket links the power supply to another speaker, thereby reducing the direct connections to the mains. Maximum amplifier input power is shown on the amplifier panel.

The maximum number of speakers connected together varies of max input power and of the maximum allowed current of the first power socket.

EMI CLASSIFICATION

According to the standards EN 55103 this equipment is designed and suitable to operate in E3 (or lower E2, E1) Electromagnetic environments.

FLEXSYS F8 - F10 - F12 - F15 - F212 - F315

F1

2-F15

ROTATING HORN (Except FLEXSYS F315)

Loudspeaker allows to maintain the same coverage angle by featuring a rotating horn.

The speakers are always supplied by the manufacturer with the horn positioned horizontal by default at 90° for Flexsys F8, F10, F12 and F15 and 60° by default for F212.

Only Flexsys F212 can be used placing more speakers side by side (cluster), in this case is necessary rotate the horn.

If you wish to change the coverage angle (Fig. 5):

• unscrew the fixing screws of the grille
• remove the front protective grille by slightly pressing on one side and taking the grille off the recessed slots
• unscrew the fixing screws of the horn
• rotate the horn in the desired position (the horn should never be removed from the driver!)
• tighten the fixing screws of the horn
• put the grille back in the recessed slots and tighten the screws of the grille.

LOUDSPEAKER INSTALLATION

WARNING

Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or property.

For safety reasons do not place one loudspeaker on top of another without proper fastening systems. Before hanging the loudspeaker check all the components for damages, deformations, missing or damaged parts that may compromise safety during installation. If you use the loudspeakers outdoors avoid places that are exposed to bad weather.
The loudspeaker has the following mounting options:
- bookshelf (Fig. 1)
- floor (monitor) (Fig.2)
-on speaker stands (Fig.3)
- suspended with support rails or brackets supplied by the manufacturer (Fig.4)

WARNING

Never use the handles to hang the speaker!

WARNING

To hang the loudspeaker use only one eyebolt for each hanging point

The hanging points are of M8 threads for Flexsys F8,F10 and M10 threads for Flexsys F12, F15, F212 and F315.

Do not unscrew both bolts recessed in the housing!

WRONG! EXACT!

EXACT!

TECHNICAL SPECIFICATIONS

	FLEXSYS F8	FLEXSYS F10	FLEXSYS F12
System Active Bi-Amp Active Bi-Amp
Type of amplifier Class D Class D Class D
RMS power	150W + 50W	150W + 50W	300W + 100W
Frequency response	90-19000Hz (+/-3dB)75-20000Hz (-10dB) 70-20000Hz (-10dB) 65-20000Hz (-10dB)	80-19000Hz (+/-3dB)	75-19000Hz (+/-3dB)
Crossover	2050Hz, 24dB/oct 2050Hz, 24dB/oct 1800Hz, 24dB/oct
Sound pressure (max SPL)	121dB	125dB	127dB
Components	1x8" woofer - 1.5" voice coil1x1" compression driver - 1" voice coilNeodimium	1x10" woofer - 2" voice coil1x1" compression driver - 1" voice coilNeodimium	1x12" woofer - 2" voice coil1x1" compression driver - 1.5" voice coil
Dispersion	90"/40"x60" Asymmetrical	90"/40"x60" Asymmetrical	90"x40"
Input sensitivity	-3dBu Max -3dBu Max -3dBu Max
Input impedance	2K2ohm/20Kohm (MIC/LINE) 2K2ohm/20Kohm (MIC/LINE) 2K2ohm/20Kohm(MIC/LINE)
Power supply	11C-120Vac 50-60Hz220-240Vac 50-60Hz	110-120Vac 50-60Hz220-240Vac 50-60Hz	110-120Vac 50-60Hz220-240Vac 50-60Hz
Housing shape	Trapezloidal	Trapezloidal	Trapezloidal
Colour	Black	Black	Black
Dimensions (WxHxD)	260x420x260mm	300x480x300mm	360x610x360mm
Weight	9.5Kg	12Kg	16.5Kg
Flying support	10 xM8	12 x M8	12 x M10
Pole mount cup	D36mm	D36mm	D36mm
Handle	---	---	2 (one per side)
	1 top side.niche	1 top side	1 top side
	---	---	---
Rotating horn	Yes	Yes	Yes
Integrated tilt unit	No	No	No

TECHNICAL SPECIFICATIONS

	FLEXSYS F15	FLEXSYS F212	FLEXSYS F315
System	Active Bi-Amp Active Bi-Amp Active Bi-Amp
Type of amplifier Class D Class	D Class D
RMS power	300W + 100W 500W + 2.50W	500W + 500W
Frequency response	60-19000Hz (+/-3dB)55-20000Hz (-10dB) 50-20000Hz (-10dB)	65-19000Hz (+/-3dB)	60-19000Hz (-3dB)47-20000Hz (-10dB)
Crossover	1800Hz, 24dB/oct	1800Hz - 24dB/oct	750Hz - 24dB/oct2000Hz - 18dB/oct passive
Sound pressure (max SPL)	128dB	132dB	131dB
Components	1x15" woofer - 2" voice coil1x1" compression driver - 1.5" voice coil	2x12" woofer - 2,5" voice coil1x1" compression driver - 1,75" voice coil	1x15" woofer - 3" voice coil1x6.5" midrange - 2" voice coil1x1" compression driver - 1,5" voice coil
Dispersion	90"x40°	60"x40°	90"x40°
Input sensitivity	-3dBu Max	-3dBu Max -3dBu Max
Input impedance	2K2ohm/20Kohm (MIC/LINE)	Balanced 20KohmUnbalanced 10Kohm	Balanced 20KohmUnbalanced 10Kohm
Power supply	110-120Vac 50-60Hz220-240Vac 50-60Hz	Full-range with PFC100-240Vac 50-60Hz	Full-range with PFC100-240Vac 50-60Hz
Housing shape	Trapezoidal	Trapezoidal	Trapezoidal
Colour	Black	Black	Black
Dimensions (WxHxD)	430x680x430mm	300x480x300mm	440x880x500mm
Weight	20Kg	31.5Kg	31 Kg
Flying support	12 x M10	12 x M10	12 x M10
Pole mount cup	D36mm	D36mm	D36mm
Handle	2 (one per side)1 top side----	2 (one per side)1 top side1 back side,niche	2 (one per side)1 top side1 back side,niche
Rotating horn	Yes	Yes	No
Integrated tilt unit	No	Yes	No

FLEXSYS F8 - F10 - F12 - F15 FLEXSYS F8 - F10 - F12 - F15

BESCHREIBUNG

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

F8

F10

M10 Gdiff M10 Gdiff M10 Gdiff M10 M10

F12-F15

FLEXSYS F8 - F10 - F12 - F15 FLEXSYS F8 - F10 - F12 - F15

BEDIENELEMENTE UND FUNKTIONEN

BEDIENELEMENTE DES VERSTÄRKERS

1) EINGANGSBUCHSEN "BALANCED INPUT" - "LINK" - "INPUT LINK"

FLEXSYS F212 (2 Wege)

Line drawing of a cabinet or enclosure with internal compartments and ventilation grilles (no text or symbols)

FLEXSYS F212 - F315

BEDIENELEMENTE UND FUNKTIONEN

1) EINGANGSBUCHSE "BALANCED INPUT"

2) AUSGANGSBUCHSE "BALANCED LINK/OUT"

FLEXSYS F212 - F315FLEXSYS F212 - F315

MERKMALE

Frontverkleidung

FLEXSYS F212 (2 voies)

Line drawing of a cabinet or enclosure with internal compartments and ventilation grilles (no text or symbols)

Line drawing of a mechanical device with internal fan and mounting holes (no text or symbols)

FLEXSYS F212 - F315

COMMANDES ET FONCTIONS

1) CONNECTEUR D'ENTRÉE "BALANCED INPUT"

FLEXSYS F212 - F315 FLEXSYS F212 - F315

CARACTERISTIQUES

Grilles frontales

Contact dB Technologies for accessories to be used with speakers.

Will not accept any responsibility when inappropriate accessories or not suitable additional devices are used.

FLEXSYS F8 FLEXSYS F10

1 2 3 4 5 6 7 FLEX SYS DIGITAL ACTIVE SPEAKER 10

FLEXSYS F12 FLEXSYS F15

1 2 3 4 5 6 7 8 9 TECHNOLOGIES CE DB LKS SYS

FLEXSYS F212 FLEXSYS F212

F1X35 F212 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ dB TECHNOLOGIES ⑨ ⑩ ⑪

FLEXSYS F315 FLEXSYS F315

F315 F315 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ dB TECHNO OOS

UTILIZZO IN APPOGGIO

SUPPORTED USE

ANWENDUNG

UTILISATION EN APPUI

Fig. 1

Fig. 2

UTILIZZO A PAVIMENTO (MONITOR)

FLOOR USE (MONITOR)

UTILISATION AU SOL (ECRAN)

SOLO FLEXSYS F8, F10, F12, F15

ONLY FLEXSYS F8, F10, F12, F15

NUR FLEXSYS F8, F10, F12, F15

SEULEMENT FLEXSYS F8, F10, F12, F15

Fig. 3

SUPPORTO PIANTANA STANDARD (D36mm)

STANDARD STAND (D36mm)

STANDARD-HOCHSTANDER (D36mm)

SUPPORT STANDARD (D36mm)

Line drawing of a rectangular device mounted on a tripod stand (no text or symbols)

Line drawing of a rectangular electronic device mounted on a tripod stand (no text or symbols)

APPENDIBILITA' TRAMITE GOLFARI

SUSPENDABLE WITH EYEBOLTS

MAN KANN DEN LAUTSPRECHER MIT RINGSCHRAUBEN HANGEN

POSSIBILITÉ DE SUSPENSION AVEC ANNEAUX

Line drawing of a rectangular industrial machine with three circular components and mounting holes (no text or symbols)

Line drawing of a rectangular electronic device with mounting holes and a central vent (no text or symbols)

Technical diagram of a device casing with labeled ports and directional arrows indicating orientation

Line drawing of a rectangular electronic device with hanging chains and a central vent (no text or symbols)

Opzione codice/Optional code/Optionales Zubehör:

TE M8 per/for/für FLEXSYS F8, F10

TE M10 per/for/für FLEXSYS F12, F15, F212, F315

Diagram showing a remote control panel with an arrow pointing to its left side, alongside a magnified view of the device handle (no text or symbols present)

Adjustable foot (max 5° inclination)

, Unbalanced use of stereo 1/4" jack plug

Punts = Segnale Tip = Signal Gambo=Schema/Massa/Terra Sleeve=Screen/Ground/Earth Punts Tip Gambo Sleeve

connettore XLR Unbalanced use with XLR connectors

Pin 6 = Passive/Goldy/Free

Pin 2 = Positive/Hot/+VE Phase

XLR - meschio

Input

XLR - male

Pin 1 = Schermo/Terra/Massa Pin 1 = Screen/Ground/Earth

Dr. 17 Convenance of Road

Pin 3 = Connessoal Pin 3 = Link to Pin 1

Balanced use of stereo 1/4" jack plug

Tip = Positive/Hold+VE Phase

Anelo = Negativo/Freddo/Fase - VE

Ring-Negative/Oval-VEHuate

Gambo-Schemio/Massa-Terra Sleeva=Screen(Ground)Earth

Bunta - Apollo

The Ring

Garrup

Sleeve

Balanced use with XLR connectors

Pin 2 = Positivo/Caldo/Fase + VE

XLR - maschio

Input

XLR - male

Pin 1 = Schemo/Terra/Massa Pin 1 = Seraea/Group/Eartin

The following described figure is

Pin 3 = Negative/Cold-VE Phase

DIMENSIONI

DIMENSIONS

ABMESSUNGEN

DIMENSIONS

FLEXSYS F10FLEXSYS F8

DIMENSIONI

DIMENSIONS

ABMESSUNGEN

DIMENSIONS

FLEXSYS F15FLEXSYS F12

DIMENSIONI

DIMENSIONS

ABMESSUNGEN

DIMENSIONS

FLEXSYS F315FLEXSYS F2

SCHEMA A BLOCCHI

BLOCK DIAGRAM

BLOCKSCHALTBILD

SCHEMAS FONCTIONNELS

FLEXSYS F8
FLEXSYS F10

FLEXSYS F12
FLEXSYS F15

SCHEMA A BLOCCHI

BLOCK DIAGRAM

BLOCKSCHALTBILD

SCHEMAS FONCTIONNELS

