PCHSMR 3013 - Razor ProfiCare - Free user manual and instructions

Product type	Hair/beard trimmer shaver
Brand	ProfiCare
Model	PCHSMR 3013
Net weight	approx. 350 g
Power supply	Rechargeable NiMH batteries (2 x AA, 1.2 V, 600 mAh) or non-rechargeable AA/R6 1.5 V batteries
Adapter input voltage	AC 100-240 V, 50/60 Hz, 0.2 A
Adapter output voltage	DC 3.0 V, 200 mA
Rechargeable battery capacity	600 mAh
Charging time	10-12 hours (first charge 12 h)
Operating time	80 min max.
Number of combs	4
Cutting lengths	approx. 4 mm, 10 mm, 14 mm, 18 mm
Functions	Clipper head, coarse trimming function, contour adjustment
Included accessories	Power adapter, cleaning brush, 2 rechargeable batteries
Cleaning	Cleaning brush, damp cloth; do not immerse in water
Safety	Do not use in bath or under water; unplug before cleaning; do not charge with non-rechargeable batteries
Storage	Remove batteries if unused for a long time; dry and ventilated place
Disposal	Do not dispose of with household waste; deposit batteries at a collection point

Frequently Asked Questions - PCHSMR 3013 ProfiCare

How to recharge the device?

Make sure rechargeable NiMH AA batteries are inserted. Turn off the device (switch to OFF). Plug the adapter directly into the device or place it on the charging stand. Plug the adapter into a wall outlet. The red indicator light shows charging. First charge: 12 hours, then max. 10 hours.

Can the device be used in wired mode?

No, direct mains operation is not possible. The device only works with batteries or rechargeable batteries.

How to adjust the cutting length?

Turn off the device. Choose the comb corresponding to the desired length (4, 10, 14 or 18 mm). Slide the clipper head into the comb holder. You can also use the coarse trimming function with the side button.

How to clean the device?

Turn off and unplug the device. Use the cleaning brush to remove hair. Clean the surface with a damp cloth. Never immerse the device in water. Apply 1-2 drops of acid-free oil to the blades regularly.

Can I use the device in the shower?

No, the device must be kept dry. Do not use it near a bathtub or sink full of water. Risk of electric shock.

What type of batteries can I use?

The device accepts rechargeable NiMH AA 1.2 V, 600 mAh batteries (included) or non-rechargeable AA/R6 1.5 V batteries. Do not attempt to recharge non-rechargeable batteries!

How to replace the clipper head?

To remove the head, push it with your thumb to release the tab. To put it back, first insert the protruding element into the housing, then press until it clicks.

What to do if the device does not work?

Check that the batteries are correctly inserted and charged. If using non-rechargeable batteries, make sure they are new. If the problem persists, contact customer service.

How to extend the life of rechargeable batteries?

Only recharge when the batteries are almost empty. Do not exceed 10 hours of charging. Charge at a temperature between 0°C and 40°C. Replace defective batteries with the same type.

Where should I dispose of the device at the end of its life?

Do not dispose of the device with household waste. Take it to a collection point for electrical devices. Batteries must be removed and deposited at a battery collection point.

USER MANUAL PCHSMR 3013 ProfiCare

Product photo of a PRON CARE hairbrush with black filter array and white head (no visible text or symbols)

Haar-/Bartschneidemaschine PC-HSM/R3013

Tondeuse / baardtrimmer • Tondeuse à cheveux / barbe • Máquina cortapelo / recortador de barba Tagliacapelli / Regolabarba • Hair Clipper / Beard Trimmer • Maszynka do strzyżenia włosów / trymer do brody Hajvágó / szakállvágó • Maшинка для стрижки волос / бороды ماكينة قص الشعر/تشذيب اللحية

DEUTSCH

Inhalt

Overview of the Components ......Page 3

Instruction Manual Page 30

Technical Data......Page 34

Disposal Page 34

JEZYK POLSKI

Spis treści

Diagram showing a hairpin and its mechanical component with an arrow indicating direction (no text or symbols present)

C

Line drawing of a hand with fingers and a finger pointing to the palm area (no text or symbols)

D

Bedienungsanleitung

WAARSCHUWING: Risico op letsels!

WAARSCHUWING: Risico op letsels!

Thank you for choosing our product. We hope you enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The power adapter is only suitable for use in dry rooms.
• Check if the output current, voltage and the polarity of the power adapter match the information on the connected appliance!
• Do not touch the connected power adapter with wet hands!
• When cleaning if necessary disconnect the appliance from the power adapter.
• Ensure that the cable of the power adapter does not become kinked, jammed, driven over or come into contact with heat sources.
• Do not use a damaged power adapter.
• Do not repair the appliance yourself, but visit an authorized specialist.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special Safety Instructions for this Appliance

WARNING of electrical shock:

• Keep the appliance dry!
• Keep the power adapter dry.
• Do not charge the appliance in the vicinity of bathtubs, sinks, or other vessels containing water.
• If the appliance accidentally should fall into water, disconnect the power adapter from the wall socket immediately.
• Charge the appliance in a cool and dry location.

WARNING of electrical shock:

• The appliance is intended for use with safety extra-low voltage. Connect only to a power supply according to the specifications on the rating label.
• If the connection cable of this appliance has been damaged, it must be replaced with a special connection cable available from the manufacturer or its customer service.
• Do not replace any parts. Do not perform any modifications. Risk of electric shock!

WARNING: Risk of injury!

• Do not use the appliance if the clipper head is damaged.
• Never remove an attachment during operation!

- This appliance may be used by children, from the age of 8 and persons with reduced physical, sensory, or mental capabilities, or persons with inadequate experience and lack of knowledge if they are supervised or have been trained and understand the hazards involved concerning the safe use of the appliance.

- Children must not play with the appliance. - Cleaning and user maintenance shall not be made by children without supervision.

- Do not use any power adapter other than the one supplied.

- Use the hair/beard trimmer only for trimming scalp hair or whiskers.

Handling Batteries / Rechargeable Batteries

Insert correctly!

Do not short circuit!

Do not disassemble!

Danger of explosion! Do not expose batteries to intense heat, such as sunlight, fire or similar.

Batteries can leak and lose battery acid. If the appliance is not used for long periods, remove the battery.

Overview of the Components / Scope of Delivery

1 Clipper head
2 Switch for thin-out function
3 Appliance
4 On / off switch ⏻
5 Charging indicator light
6 Stand / charging station
7 Cutting length combs (4, 10, 14 and 18 mm)

No illustration:

Power adapter

Cleaning brush

2 x rechargeable batteries (Accumulators)

Type AA / R6, 1.2 V, 600 mAh NiMH

Power Supply

The included rechargeable batteries may also be replaced by non-rechargeable Mignon AA/R6, 1.5V batteries.

WARNING: Danger of explosion! Do not charge!

• When using the appliance with non-rechargeable batteries, make sure that under no circumstances it is being connected with the power adapter.
• If you put the appliance equipped with non-rechargeable batteries into the stand / charging station, the power adapter shall under no circumstances be connected to it.

Inserting the Batteries / Rechargeable Batteries

1. Take the appliance and the rechargeable batteries out of its packaging.
2. Open the battery compartment at the back of the appliance.
3. Insert both batteries. Pay attention to the correct polarity (see bottom of battery compartment)!
4. Close the battery compartment again.

Charging the rechargeable batteries

WARNING:

Please ensure that rechargeable AA / R6, NiMH, 600 mAh batteries (accumulators) are inserted in the battery compartment. Risk of explosion: when trying to charge non-rechargeable batteries.

• Turn the appliance off: Slide the ⏻ switch down. "ON" can be seen on the switch.
• Connect the power adapter connector with one of the following jacks.
• The socket directly at the bottom end of the appliance.
• Alternatively place the appliance in the charging station. The socket is at the rear.
• Plug the power adapter into wall outlet.
• The indicator light remains red during the charging process.
• Charge the appliance before first use for 12 hours.

i NOTE:

- The charge indicator does not indicate the state of charge of the rechargeable battery.

- Mere mains operation is not possible.

• After initial use, do not charge the battery for longer than 10 hours at one time.

CAUTION:

After 10 hours always disconnect from mains power supply.

NOTE:

You can extent the lifetime of the rechargeable battery by following these steps:

• Only charge after the battery is nearly exhausted.
• Do not charge for more than 10 hours.
• Charge the appliance at temperatures between 0 ° and +40 °C.

- In case the rechargeable batteries are faulty, replace them with two new ones of the same types. Observe the details under "Technical Data".

Using the Appliance

Switching On and Off

Slide the switch ⏻ to turn the appliance on or off.

Adjust Cutting Length

1. Turn off the appliance. "ON" can be seen on the switch.

2. Select a comb attachment. The comb attachments are labelled with numbers.

3. Attach the desired comb: Also refer to figure B on page 3. Slide the blades of the clipper head into the jags of the

4. To remove the comb attachment, pull it off the clipper head.

Number	Cutting length in mm
1 approx. 4
2 approx. 10
3 approx. 14
4 approx. 18

Cut Hair and Beard

WARNING: Risk of injury!

Do not press the shaving head of the hair / beard trimmer too firmly against the skin.

NOTE:

• Only cut dry hair with this appliance.

• Start by using the biggest comb attachment and cut your hair / beard step by step to the desired length.

• Select the cutting length with a comb attachment.

• Turn the appliance so that you are able to see the back. Set the switch (2) to the left position.
• Switch the appliance on. "OFF" can be seen on the switch.

Thinning out Your Hair

This appliance has a thin-out function.

• Use the appliance with a comb attachment.
• The different positions of the switch (2), you will be able to produce different results.

Outlining and Shaving the Neck

• Use the appliance without a comb attachment.
• Set the switch (2) to the left position.
• The shaving head allows for precisely outlining the beard contours, as well as a clean shaving of the hair line at the neck.

Finish Operation

Turn the appliance off.

Cleaning

WARNING:

• Switch off the appliance before cleaning. Disconnect the power adapter from the electrical outlet.
• Do not submerge the appliance in water!
• Do not immerse the power adapter in water!

CAUTION:

• Also do not clean the appliance under running water! The electronics could get damaged.
• Do not use a wire brush or other abrasives.

• Do not use sharp or abrasive cleaning agents.

• Use the cleaning brush to remove remaining hair after use.

• Clean the casing with a slightly damp cloth, if necessary.
  • Always clean the power adapter with a dry cloth.
• Regularly apply 1 - 2 drops acid-free oil onto the blades of the clipper head.

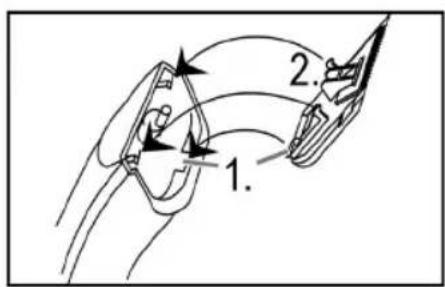

Remove/Attach Clipper Head

The clipper head is locked to the housing. Please also refer to the figures C and D on page 3.

• Push back the clipper head with your thumb in order to release the catch.
  • After cleaning, insert the clipper head, latch nose first, into the housing. Then press the cutting area against the housing until it locks into place.

Storage

• We recommend that you keep the appliance in the original packaging if it will not be used for long periods. Before doing so, remove the batteries / rechargeable batteries.

• Always store the appliance out of the reach of children in a dry, well ventilated place.

Technical Data

Model: PC - HSM / R 3013

Net weight: ....approx. 350 g

Protection class: ....III

Input: ......DC 3.0 V, 0.2 A

Power adapter

Protection class: ......II

Input: AC 100 - 240 V, 50 / 60 Hz, 0.2 A

Output:.....DC 3.0 V, 200 mA

Rechargeable Batteries

(Accumulators):: ...... 2 x 1.2 V type AA / R6, 600 mAh NiMH

Running time: 80 minutes max.

Charging time: 10 - 12 hours

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Dispose of Batteries / Rechargeable Batteries

WARNING:

Before removing the batteries / rechargeable batteries, disconnect the appliance from the power supply.

As a consumer you are legally bound to return exhausted batteries / rechargeable batteries.

Return the battery at a collection point for batteries and / or hazardous waste. Ask your municipality for further information.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
