Product type	Milk frother
Brand	Amica
Model	FD 4011
Rated voltage	220-240 V~, 50-60 Hz
Rated power	500-600 W
Pot capacity	0.8 L
Maximum milk capacity for frothing	150 ml
Maximum milk capacity for heating	250 ml
Electrical protection class	I
Power cord length	~0.70 m
Functions	Cold milk froth, Milk warming, Hot milk froth
Overheat protection	Yes, automatic shut-off after 5 continuous cycles
Included accessories	Pot, lid with mixing element, frothing ring, power base
Base maintenance	Do not immerse, wipe with a damp cloth
Lid maintenance	Hand washing, do not put in dishwasher
Pot maintenance	Interior wash with water and mild detergent, wipe exterior with damp cloth
Frothing ring	Removable for cleaning, do not tighten or stretch
Child safety	Do not use by children under 8 years without supervision

Frequently Asked Questions - FD 4011 AMICA

What is the maximum milk capacity for frothing?

The maximum amount of milk for the frothing function is 150 ml to avoid any overflow of foam.

Can I heat milk without frothing it?

Yes, use the milk warming function. First remove the frothing ring, fill the pot with a maximum of 250 ml of milk, then press the warming button. The milk will be heated to approximately 70°C.

How to clean the milk frother?

Always unplug the appliance and let it cool down. Never immerse the base in water. Wash the lid by hand with a mild detergent, clean the inside of the pot with soapy water, and wipe the outside with a damp cloth. The frothing ring can be removed for separate cleaning.

Is the lid dishwasher safe?

No, the lid cannot be washed in the dishwasher. It must be hand washed with water and a mild detergent.

What to do if the appliance stops and the indicator flashes red?

This indicates overheat protection after several continuous cycles. Let the appliance cool down for about 10 minutes until it returns to standby mode, then you can use it again. Allow an interval of at least 3 minutes between two cycles.

What type of milk is recommended for good froth?

To obtain quality froth, use whole milk with a fat content of at least 3.2%.

Can I use an extension cord?

It is not recommended to use extension cords. Plug the appliance directly into a socket equipped with a safety terminal (class I).

Is the appliance suitable for children?

Children aged 8 years and older can use the appliance under supervision. Younger children should not approach it, especially when the appliance is hot. Cleaning must not be performed by children under 8 years.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by a specialized repairer to avoid any danger.

Can I open the lid during operation?

No, never open the lid during operation. Wait until the mixing element stops completely before opening it, otherwise the appliance could be damaged.

USER MANUAL FD 4011 AMICA

Black Amica coffee maker with digital display and control buttons (no visible text or symbols on the device body)

PL INSTRUKCJA OBSŁUGI 2

EN USER MANUAL 6

CS NÁVOD K OBSLUZE 10

SK NÁVOD NA OBSLUHU 14

Mechanical device with a rotating wheel and attached disc, labeled with number 1 (no text or symbols on the diagram itself)

MAX250ml MAX100ml

Amica 4 5 6 7

URZĄDZENIE MOŻE BYĆ WYKORZYSTANE DO:

Four sequential diagrams showing a mechanical or electrical component with red arrows indicating motion direction (no text or symbols)

Montaż pierścienia:

Four identical diagrams showing a mechanical device with green directional arrows indicating motion or force (no text or symbols)

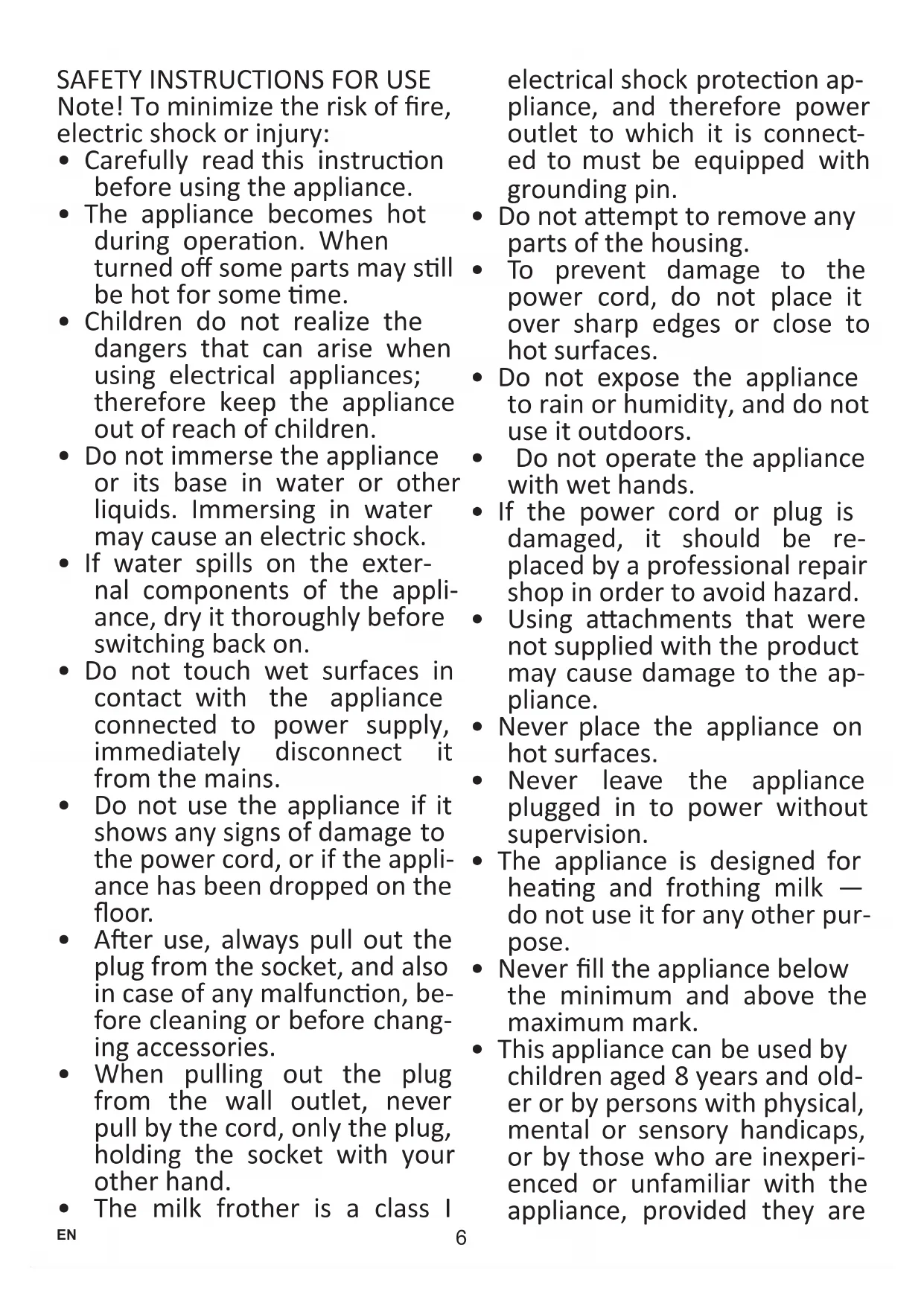

SAFETY INSTRUCTIONS FOR USE Note! To minimize the risk of fire, electric shock or injury:

• Carefully read this instruction before using the appliance.
• The appliance becomes hot during operation. When turned off some parts may still be hot for some time.
• Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.
• Do not immerse the appliance or its base in water or other liquids. Immersing in water may cause an electric shock.
• If water spills on the external components of the appliance, dry it thoroughly before switching back on.
• Do not touch wet surfaces in contact with the appliance connected to power supply, immediately disconnect it from the mains.
• Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.
• After use, always pull out the plug from the socket, and also in case of any malfunction, before cleaning or before changing accessories.
• When pulling out the plug from the wall outlet, never pull by the cord, only the plug, holding the socket with your other hand.
  • The milk frother is a class I

electrical shock protection appliance, and therefore power outlet to which it is connected to must be equipped with grounding pin.

- Do not attempt to remove any parts of the housing.

- To prevent damage to the power cord, do not place it over sharp edges or close to hot surfaces.

- Do not expose the appliance to rain or humidity, and do not use it outdoors.

- Do not operate the appliance with wet hands.

- If the power cord or plug is damaged, it should be replaced by a professional repair shop in order to avoid hazard.

- Using attachments that were not supplied with the product may cause damage to the appliance.

- Never place the appliance on hot surfaces.

- Never leave the appliance plugged in to power without supervision.

- The appliance is designed for heating and frothing milk — do not use it for any other purpose.

- Never fill the appliance below the minimum and above the maximum mark.

- This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are

supervised or have been in- structed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that chil- dren do not play with the ap- pliance. Do not allow children to clean and maintain the ap- pliance unless they are 8 years or older and are supervised by a competent person.

• Keep the appliance away from children under 8 years of age when it is hot or not completely cooled down.
• Unplug the appliance from the power outlet and wait until it cools down before cleaning.
• Never plug to a wall outlet with wet hands, this may cause electric shock.
• It is not recommended to use extension cords to connect the appliance to the power outlet.
• Ensure that the appliance is used on a clean, dry and level surface.
  • Take caution when cleaning the attachments.
• Pull the plug from the wall outlet before replacing accessories.
  • Always use the appliance with the base and lid in place.
• Before use, check that the lid is securely attached.
• Before you put the plug into the wall outlet, make sure your hands are dry.
• Do not use the appliance if attachments are not secured.
  • After use, disconnect the appliance from the power supply.

- Do not remove the lid during appliance operation.

- Wait until the frothing wand stops completely before you open the lid. Otherwise, the appliance will not operate properly and may be damaged.

Electrical requirements:

Make sure that the voltage indicated on the nameplate corresponds to that of your home electrical mains. Alternating current must be used, typically marked \~.

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user

is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

SPECIFICATION:

Model: FD 4011

Rated voltage: 220-240 V\~, 50-60 Hz

Rated power: 500-600W

Capacity: 0,81

Protection class: I

Power cord: \~0,70m

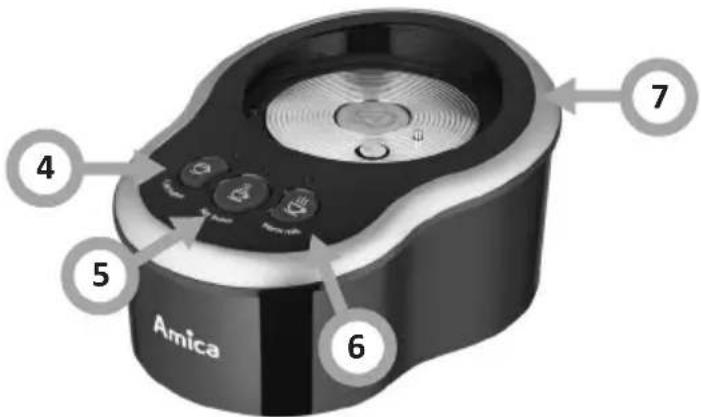

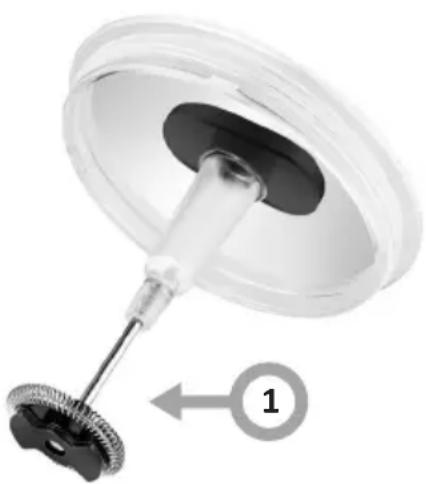

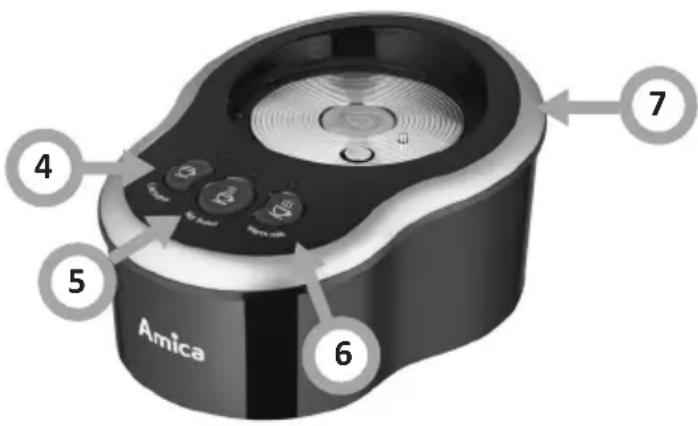

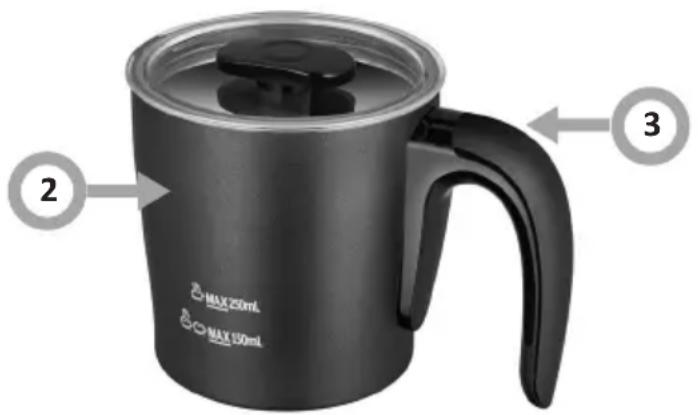

FEATURES AND COMPONENTS

1. Frothing ring wand
2. Pitcher
3. Handle
4. Milk Frother button
5. Heat and froth milk button
6. Heat milk
7. Power base

Close-up of a mechanical device with a metallic tool and gear mechanism, labeled with number 1 (no text or symbols on the device itself)

MAX 250mL MAX 150mL 2 3

Amica 4 5 6 7

USE THE APPLIANCE TO:

• Froth milk
• Heat milk
• Heat and froth milk

BEFORE FIRST USE:

1. After unpacking the appliance, make sure that all the attachments are included and there are no visible signs of damage.
2. Before first use, wash all parts that come in contact with the food in hot water.
3. Do not wash the pitcher or base in water. Clean the pitcher and base using a damp cloth and then wipe dry.
4. The appliance's lid is equipped with a mixing unit and a frothing ring wand. The frothing ring wand can be used to froth cold or heated milk. The mixing unit is used to stir the milk while heating to prevent it from sticking.

MILK FROTHING FUNCTION:

1. Place the appliance on a flat surface.
2. Fill the pitcher with your preferred amount of milk and put the lid on.

NOTE! The maximum amount of milk allowed is 150 ml to avoid overflowing after frothing. Use full-fat milk with 3.2% fat content for frothing.

1. Place the pitcher on the power base and plug into the wall power socket, all indicators will light up white.
2. Press the frothing button once, the corresponding indicator will turn white and flash.

The mixing unit and frothing ring wand rotate separately while frothing. The heating element will not heat up. When finished, both the mixing unit and the frothing ring wand will come to a stop.

NOTE! During appliance operation, press the frothing button to stop it.

1. When the appliance stops, open the lid and pour the frothed milk.
2. Always unplug the appliance from power supply when not in use.
3. When the appliance stops, open the lid and pour the frothed milk.
4. Always unplug the appliance from power supply when not in use.

HEAT MILK

1. Place the appliance on a flat surface.
2. Open the lid and remove the frothing ring wand from the mixing unit.
3. Fill the pitcher with your preferred amount of milk and put the lid on.

NOTE! The maximum amount of milk allowed is 250 ml to avoid overflowing when heated.

1. Place the pitcher on the power base and plug into the wall power socket, all indicators will light up white.
2. Press the heat button once, the corresponding indicator will turn white and flash. The appliance will start. When the milk temperature reaches approximately 70 ± 10^ , the heating element will stop heating and the mixing unit will stop automatically.
   NOTE! During appliance operation, press the heat button to stop it. The mixing unit stirs the milk to prevent it from sticking. It does not froth milk. When the appliance stops, open the lid and pour the warm milk.
3. Always unplug the appliance from power supply when not in use.

HEAT AND FROTH MILK FUNCTION:

1. Place the appliance on a flat surface.
2. Fill the pitcher with your preferred amount of milk and put the lid on.

NOTE! The maximum amount of milk allowed is 150 ml to avoid overflowing after stirring or frothing. Use full-fat milk with 3.2% fat content for frothing.

1. Place the pitcher on the power base and plug into the wall power socket, all indicators will light up white.
2. Press the heat and froth button once, the corresponding indicator will turn white and flash. The appliance will start. When the milk temperature reaches approximately 70 ± 10^ , the heating element will stop heating and the mixing unit will stop automatically.
3. When the appliance stops, open the lid and pour the warm, frothed milk.
4. Always unplug the appliance from power supply when not in use.

NOTE! Do not open the lid when the appliance operates. The appliance won't start if you attempt to start it before you close the lid.

Warning! Please ensure there is at least a 3-minute gap between two consecutive cycles, otherwise the appliance may trigger automatic overheating protection after 5 continuous cycles and the indicator will turn red and flash. After approximately 10 minutes, the appliance will enter standby, allowing you to resume using it.

CLEANING AND CARE:

Before cleaning, always unplug the appliance from the wall outlet and allow it to cool down.

WARNING! Do not immerse the power base in water and protect against contact with moisture.

1. Wash the lid with water and a mild detergent. The lid is not dish-washer safe. Rinse thoroughly and dry.
2. Remove the frothing ring wand and wash it thoroughly in warm water.
3. Wash the inside of the pitcher with water and a mild detergent, then wipe it clean with a soft, damp cloth.
4. Wipe the outside of the appliance with a soft damp cloth or mild cleaning agent; never use any poisonous cleaning agents.

NOTE: To prevent matting, do not use any abrasive cleaners, harsh chemicals, steel or wood to clean the outside of the appliance.

NOTE: Be careful when installing, removing and washing the frothing ring wand (do not squeeze or stretch the frothing ring wand).

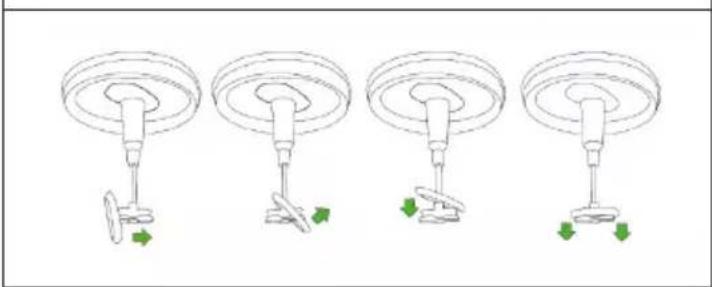

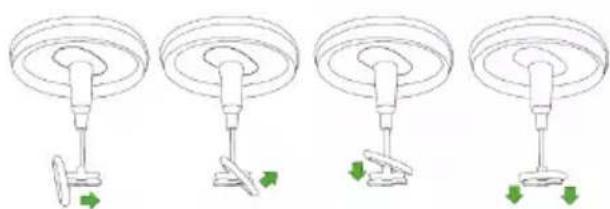

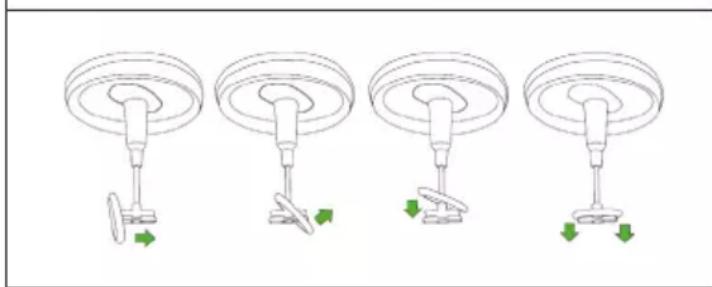

Remove the frothing ring wand:

Four sequential diagrams showing mechanical assembly with arrows indicating motion, no text or symbols present

Install the frothing ring wand:

Four sequential diagrams showing a mechanical assembly with green arrows indicating motion or force direction (no text or symbols)

POKYNY K BEZPEČNÉMU POUŽÍ-VÁNÍ

Close-up of a mechanical device with a gear and a circular component labeled '1' (no text or symbols on the device itself)

2 MAX 250mL MAX 150mL 3

Amica 4 5 6 7

PRÍSTROJ MOŽNO POUŽÍVAŤ NA:

Four sequential diagrams showing a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

Montáž krúžku:

Four identical line drawings of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Mechanical device with a rotating wheel and gear mechanism, labeled with number 1 (no text or symbols on the diagram itself)

MAX 250L MAX 150L 2 3

Amica 4 5 6 7

DAS GERÄT KANN VERWENDET WERDEN:

Four sequential diagrams showing mechanical components with red arrows indicating motion or force direction (no text or symbols)

Four sequential diagrams showing a mechanical device with green arrows indicating motion or force direction (no text or symbols)

INDICATIONS CONCERNANT LA SÉCURITÉ D'UTILISATION

Close-up of a mechanical device with a central shaft and gear mechanism, labeled with number 1 (no text or symbols on the device itself)

2 MAX 200L MAX 150mL 3

Amica 4 5 6 7

L'APPAREIL PEUT ÊTRE UTILISÉ POUR :

Four identical line drawings of a mechanical device with red directional arrows indicating motion or force (no text or symbols)

Four sequential diagrams showing a mechanical device with green arrows indicating motion or force direction (no text or symbols)

INDICACIONES REFERENTES A LA SEGURIDAD DE USO

Close-up of a mechanical device with a gear and shaft, labeled with number 1 (no text or symbols on the device itself)

MAX 250mL MAX 150mL 2 3

Amica 4 5 6 7

Four sequential diagrams showing a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Montaje del anillo:

Four sequential diagrams showing a mechanical device with green arrows indicating motion or force direction (no text or symbols)

ПРЕПОРЬКИ ОТНОСНО БЕЗО- ПАСНОСТТА НА УПОТРЕБА

Mechanical device with gear and housing, labeled '1' with arrow indicator (no text or symbols on the device itself)

MAX 250mL MAX 150mL 2 3

Amica 4 5 6 7

Four sequential diagrams showing a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Монтаж на пръстена:

Four sequential diagrams showing a mechanical device with green arrows indicating motion or force direction (no text or symbols)

A BIZTONSÁGOS HASZNÁLATRA VONATKOZÓ FELTÉTELEK

Close-up of a mechanical device with a gear and a circular component labeled '1' (no text or symbols on the device itself)

2 MAX 200mL 3 MAX 150mL

Amica 4 5 6 7

A KÉSZÜLÉK ALKALMAZHATÓ:

Mechanical device with gear and wheel assembly, labeled with number 1 (no text or symbols on the device itself)

MAX 20ml MAX 150ml 2 3

Amica 4 5 6 7

ПРИЛАД МОЖНА ВИКОРИСТОВУВАТИ ДЛЯ:

Four sequential diagrams showing a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Монтаж кільця:

Four sequential diagrams showing a mechanical device with green arrows indicating motion or force direction (no text or symbols)

INDICATII CU PRIVIRE LA SIGU- RANTA DE UTILIZARE

Close-up of a mechanical device with a circular arrow labeled '1' pointing to a component (no text or symbols on the device itself)

MAX 20mL MAX 150mL 2 3

Amica 4 5 6 7

APARATUL ACESTA POATE FI UTILIZAT PENTRU:

Four identical line drawings of a mechanical device with a lever and base, showing motion direction (no text or symbols)

Montarea inelului:

Four identical diagrams showing a mechanical device with green directional arrows indicating motion or force (no text or symbols)
