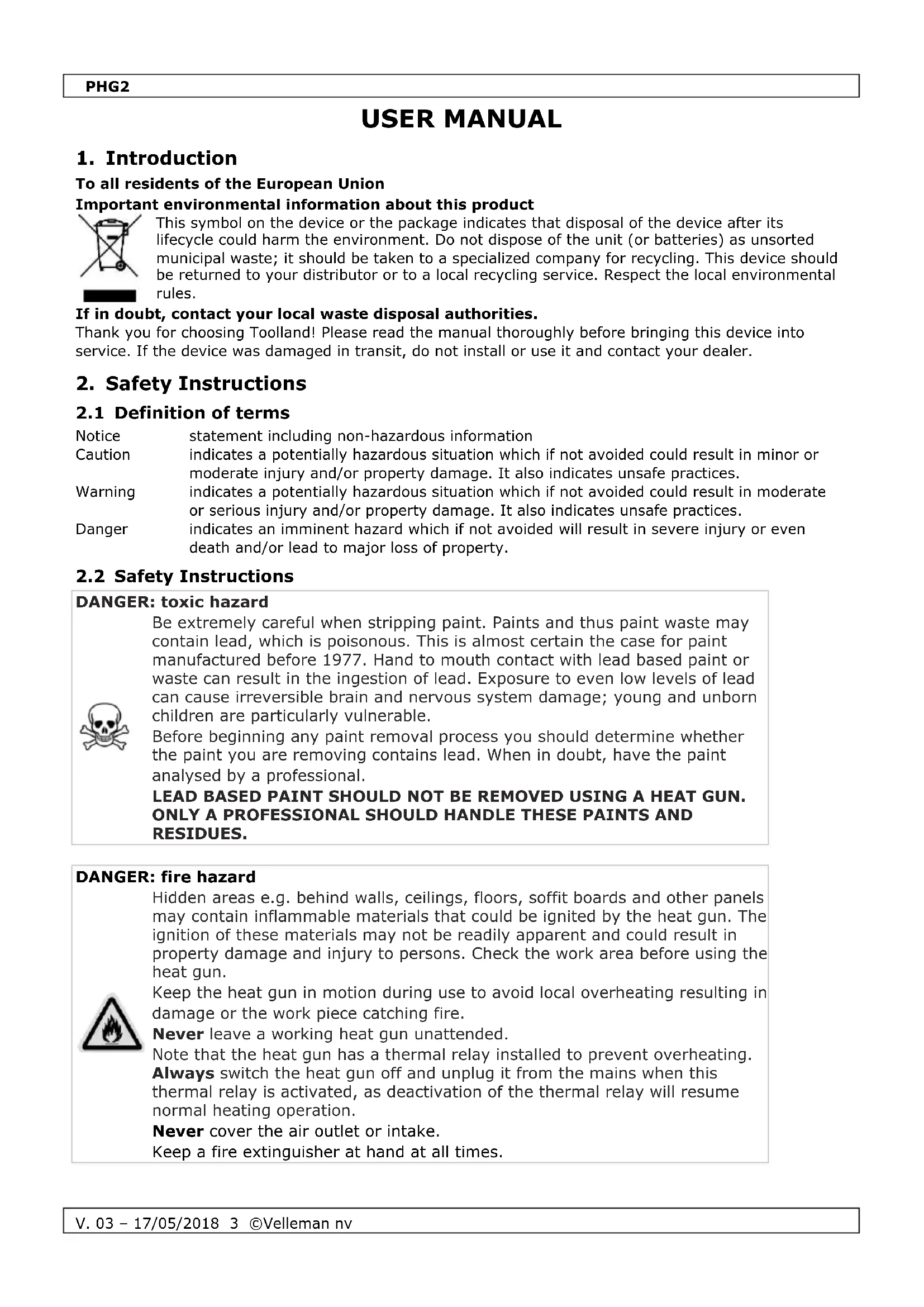

USER MANUAL PHG2 Toolland

To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities. Thank you for choosing Toolland! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

2.1 Definition of terms

Notice statement including non-hazardous information Caution indicates a potentially hazardous situation which if not avoided could result in minor or moderate injury and/or property damage. It also indicates unsafe practices. Warning indicates a potentially hazardous situation which if not avoided could result in moderate or serious injury and/or property damage. It also indicates unsafe practices. Danger indicates an imminent hazard which if not avoided will result in severe injury or even death and/or lead to major loss of property.

2.2 Safety Instructions

Be extremely careful when stripping paint. Paints and thus paint waste may contain lead, which is poisonous. This is almost certain the case for paint manufactured before 1977. Hand to mouth contact with lead based paint or waste can result in the ingestion of lead. Exposure to even low levels of lead can cause irreversible brain and nervous system damage; young and unborn children are particularly vulnerable. Before beginning any paint removal process you should determine whether the paint you are removing contains lead. When in doubt, have the paint analysed by a professional. LEAD BASED PAINT SHOULD NOT BE REMOVED USING A HEAT GUN. ONLY A PROFESSIONAL SHOULD HANDLE THESE PAINTS AND RESIDUES.

Hidden areas e.g. behind walls, ceilings, floors, soffit boards and other panels may contain inflammable materials that could be ignited by the heat gun. The ignition of these materials may not be readily apparent and could result in property damage and injury to persons. Check the work area before using the heat gun. Keep the heat gun in motion during use to avoid local overheating resulting in damage or the work piece catching fire. Never leave a working heat gun unattended. Note that the heat gun has a thermal relay installed to prevent overheating. Always switch the heat gun off and unplug it from the mains when this thermal relay is activated, as deactivation of the thermal relay will resume normal heating operation. Never cover the air outlet or intake. Keep a fire extinguisher at hand at all times.PHG2

Do not use the heat gun near inflammable/combustible products or in explosive atmospheres. Note that heat might be conducted to combustible products that are out-of-sight. Only use the gun in properly ventilated rooms. Note that heating up certain plastics or varnishes may produce combustible gasses.

Keep this device away from children and unauthorized users. This heat gun is NOT intended for persons with reduced physical, sensory or mental capabilities and/or with lack of experience and knowledge, unless they are under supervision and instructed by a person responsible for their safety. This is not a toy. Keep children away from the working area at all times

Do not touch the hot air outlet or nozzle as this can cause serious burns. Always let the device cool down after use and before storage. Incorrect use may cause fire. Use an appropriate tool to replace hot nozzles and place the hot nozzle on a fireproof surface. Only use original nozzles and make sure they are mounted firmly on the air outlet.

Do not inhale released fumes. Heating up certain plastics or varnishes may produce toxic gas. Wear an appropriate protective mask while removing paint. Note that paper masks are not adequate. Keep the working area well ventilated at all times.

The hot air coming from the nozzle can cause damage and serious injuries. Never point the air outlet towards persons or animals. Never use the heat gun to heat up liquids or as a dryer e.g. for hair or clothing. Always use the appropriate nozzle.

Keep food and drink out of the working area. Wash hands, arms and face and rinse mouth before eating or drinking. Do not smoke in the working area.

Always disconnect mains power when the device is not in use or when maintenance activities are performed. Handle the power cord by the plug only. Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary. Never point the nozzle towards the power cable or mains outlet.

Dry location use only. Keep this device and power plug away form rain, moisture, splashing and dripping liquids.PHG2

Risk of electroshock when opening the cover. Touching live wires can cause life-threatening electroshocks. Do not touch grounded cables or surfaces during use of the device. Always check the device and power cable for damage before using the device. Do not use when damage is noticed. Do not open the housing yourself. Have the device repaired by a qualified person.

Do not use when feeling drowsy or under influence of alcohol, drugs or medication.

Paints are toxic and may cause serious damage to the environment. Dispose of paint residue and other waste in accordance with local regulations.

Wear protective eyewear during use of the device.

Wear protective gloves during use of this device. Do not use PVC gloves.

Keep this device away from dust and extreme heat. Make sure the ventilation openings and air intake are clear at all times.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

Notice: double insulated device

A double insulated device is designed in such a way that a three wire grounded power cord and grounded power supply system are not required. IMPORTANT: Servicing of a tool with double insulation requires care and knowledge of the system and should be performed only by a qualified service technician.

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual. Familiarise yourself with the functions of the device before actually using it. All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty. Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.PHG2

V. 03 – 17/05/2018 6 ©Velleman nv

Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems. Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature. Keep this manual for future reference.

2 heat settings included accessories: o 4 nozzles o scraper o scraper hook o putty knife

Refer to the illustrations on page 2 of this manual. Heat gun

deflector nozzle Creates a narrow heat beam, ideal when removing paint or varnish from large flat surfaces.

hook nozzle Disperses the heat flow around the work peace, ideal for defrosting metal pipes, bending pipes…

protecting nozzle Deflects the heat away from a sensitive surface e.g. a glass window.

concentrator nozzle Creates a concentrated heat flow, ideal for paint removing from small corners, mouldings…

When observing the safety rules and using the original accessories, this hot air tool is intended for all applications listed below: Shrinking of shrink down tubing, solder connectors and solder terminals, packaging and electrical components. Deforming of articles made from acrylic, PVC, and polystyrene, tubing, plates and profiles, as well as moist woods. Welding of thermoplastic polymer, flooring materials of PVC and linoleum, PVC-coated fabric, tarpaulins and foils. Soldering of tin, special silver solder, SMD elements, cable lugs, and for loosening soldered connections. Paint removal: removal of old and even thick coatings of oil paint, varnish and synthetic plaster. Drying of colour shade samples, filter, adhesives, construction joints and stucco forms. Joining adhesives: large-surface gluing with contact adhesives, activation of pressure-sensitive adhesives, acceleration of bonding processes, releasing of bonding points as well as releasing or bonding of edge bond. Defrosting of icy stairs and steps, door locks, trunk lids, car doors or water pipes, as well as for defrosting refrigerators and ice boxes. Disinfection: with hot air of 600°C, you can quickly rid animal sties/stables of bacteria. Woodworm infestation can be controlled (Caution: danger of fire! Do not heat up the wooden surface excessively).PHG2

V. 03 – 17/05/2018 7 ©Velleman nv

Switching on Set the switch to I or II, depending on the application. Switching off Set the switch to 0.

7. Cleaning and Maintenance

Make sure the heat gun is unplugged from the mains. Wipe the device with a moist, lint-free cloth. Do not use alcohol or solvents. Do not submerge in any liquid. Make sure the ventilation openings are clean at all times. Do not store the heat gun in a humid environment. Contact your dealer for spare parts if necessary.
