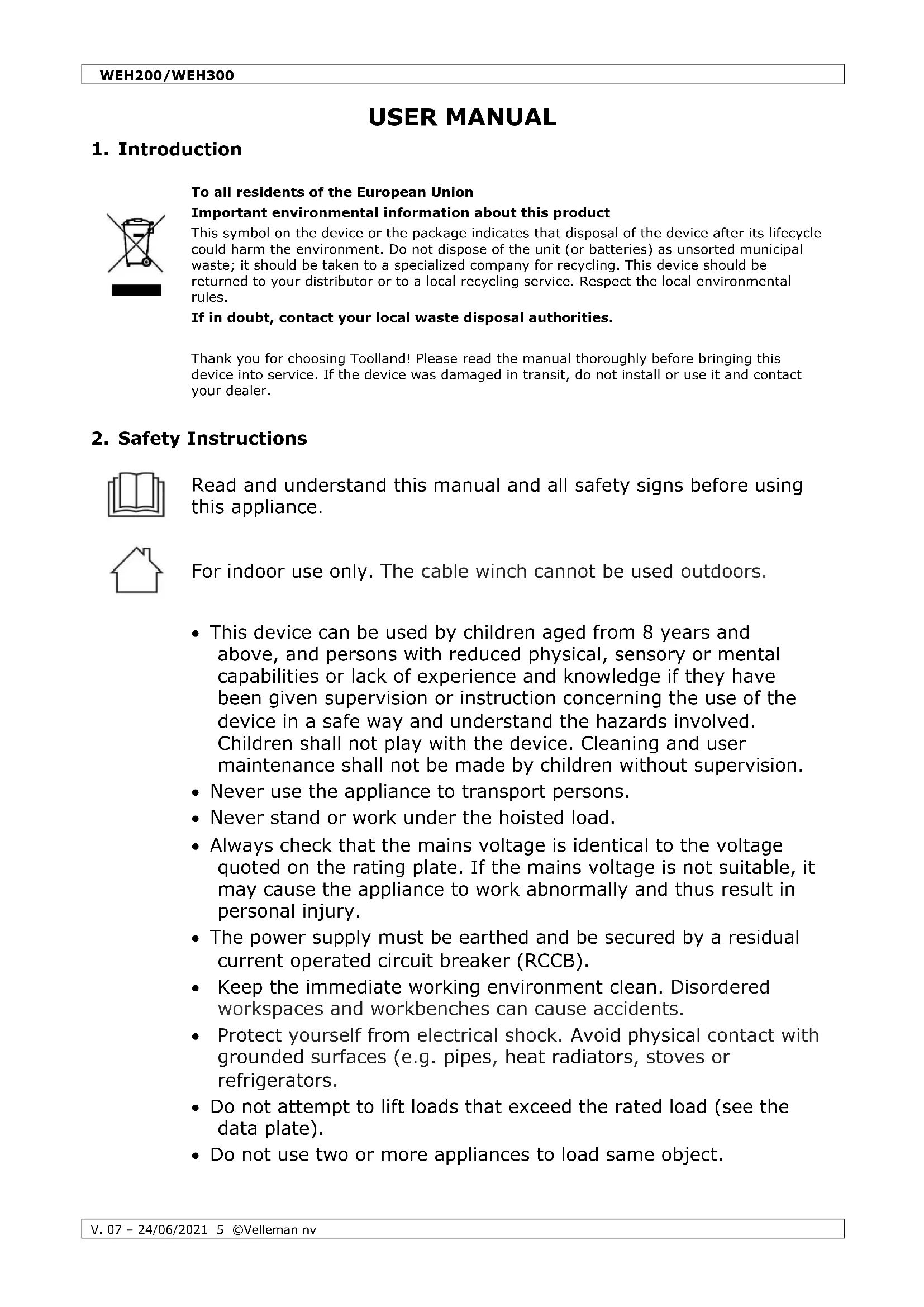

USER MANUAL WEH200 Toolland

To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities.

Thank you for choosing Toolland! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

Read and understand this manual and all safety signs before using this appliance.

For indoor use only. The cable winch cannot be used outdoors.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

• Never use the appliance to transport persons.

• Never stand or work under the hoisted load.

• Always check that the mains voltage is identical to the voltage quoted on the rating plate. If the mains voltage is not suitable, it may cause the appliance to work abnormally and thus result in personal injury.

• The power supply must be earthed and be secured by a residual current operated circuit breaker (RCCB).

• Keep the immediate working environment clean. Disordered workspaces and workbenches can cause accidents.

• Protect yourself from electrical shock. Avoid physical contact with grounded surfaces (e.g. pipes, heat radiators, stoves or refrigerators.

• Do not attempt to lift loads that exceed the rated load (see the data plate).

• Do not use two or more appliances to load same object.WEH200/WEH300

• Only use the appliance for the purpose for which it is designed. Never lift personnel using the cable hoist.

• Do not pull the power cable in order to pull out the plug. Protect the power cable from heat, oil and sharp edges.

• Never attempt to raise fixed or jammed loads. It is prohibited, to lift a weight crookedly, or to pull it along the floor. It is prohibited, to transport hot molten masses.

• Prohibit unwanted start-ups on loose steel rope. Be sure to hoist the loads with lowest speed from the ground. The cable should be tense but not unwound when start loading from the ground.

• Disconnect from the mains after use.

• Do not pull loads sideways or from one side. Do not allow the load to swing.

• Ensure that the hook moves in the same direction as shown on the control switch.

• The end switch is not allowed to be used as an off-switch or be dismantled, which is a safety device to prevent that the weight is lifted over the boundary.

• Do not leave the load hanging in the air long-term to prevent the deformation of the pieces. Do not carry out any repairs or inspections while the appliance is in operation.

• Check the cable hoist at regular intervals for signs of damage. The control switch must always be in good condition.

• Store the appliance in a proper manner when it is not in use. Store in a dry, high or lockable place, out of the reach of children including p lastic bags, boxes, Styrofoam and etc.

• Have repair and service work carried out only by authorized workshops by a trained electrician. Repair work must only be carried out by a trained electrician.

• Do not switch the appliance on and off quickly (inching mode).

• Always concentrate fully when operating the cable hoist.

• Depending on the frequency of use, after 20 hours of continuous operation, the appliance must be taken in for a thorough maintenance (at least once a year).

• If the brakes stop functioning and the load lowers quickly, press the off-switch immediately and then the on-switch. After unloading, please send the appliance to a qualified professional for repairs.WEH200/WEH300

In case of an emergency

Push the emergency stop button on time in case of danger or emergency. To release the button turn it in a clockwise direction.

• Refer to the Velleman

Service and Quality Warranty on the last pages of this manual.

• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product.

• Keep this manual for future reference.

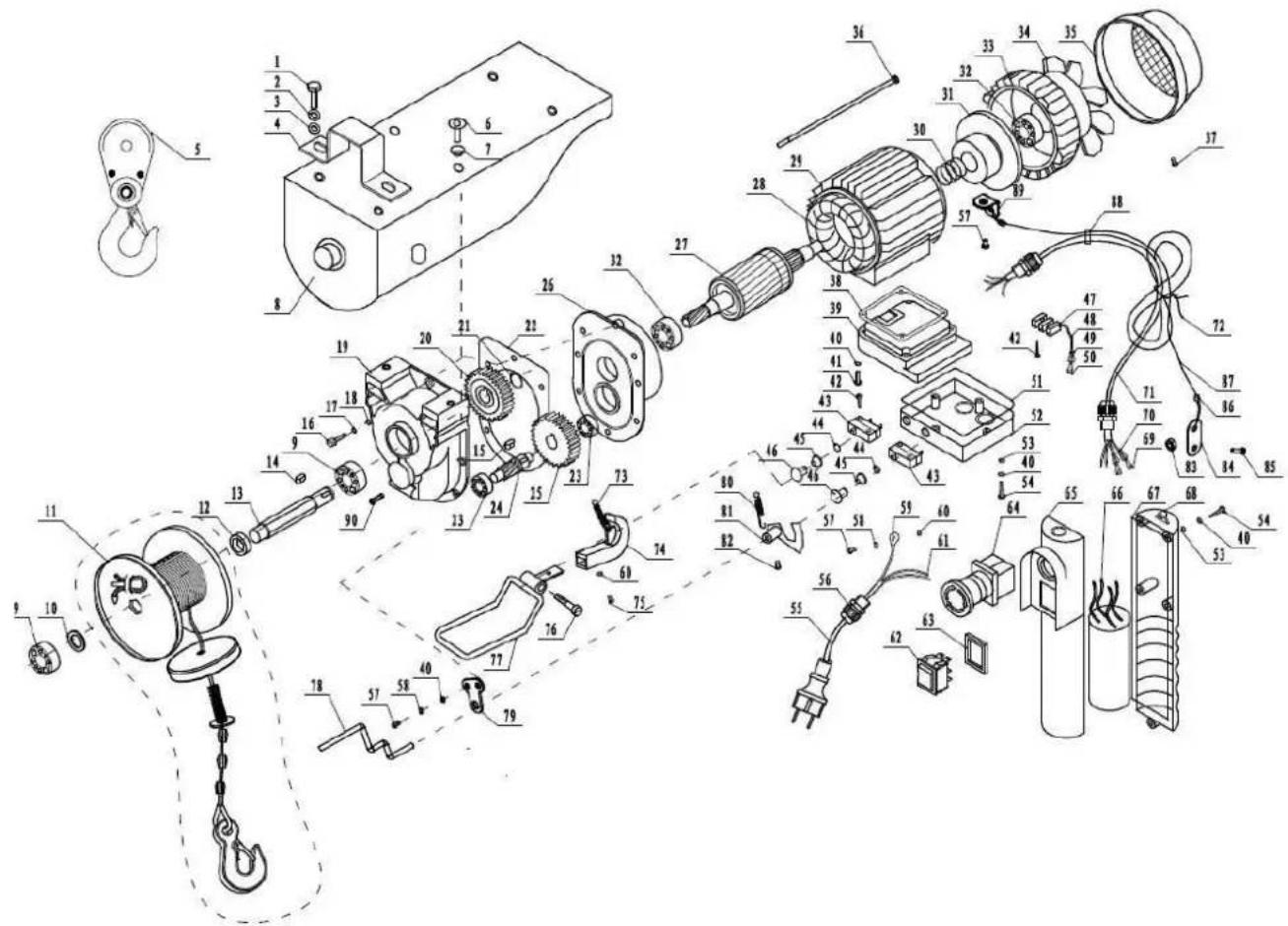

Refer to the illustrations on page 2 of this manual.

fastening hole for hook

emergency stop switch

The appliance is designed for lifting and lowering loads in enclosed areas commensurate with the appliance’s capacity.

The appliance is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that the appliance has not been designed for use in commercial, trade or industrial applications. The warranty will be voided if the appliance is used in commercial, trade or industrial businesses or for equivalent purposes.WEH200/WEH300

• Before connecting the appliance to the mains make sure the mains data matches the data on the rating plate.

• Always disconnect from the mains before making adjustments to the equipment.

• Do a no-loading test before start-up operation at first, and please check:

o the flexibility of the up/down operating switch to ensure the controlling of appliance and lowering of the load hook.

o the flexibility of the upper limit bracket to ensure the cut-off of circuit.

o the flexibility of the lower limit bracket to ensure the cut-off circuit when the steel cable is nearly used up.

o any abnormal sounds when starting the operation.

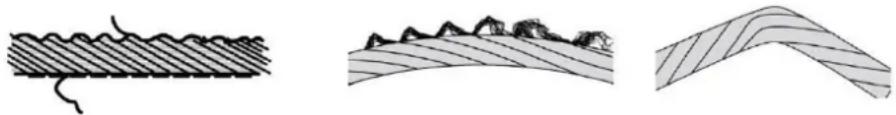

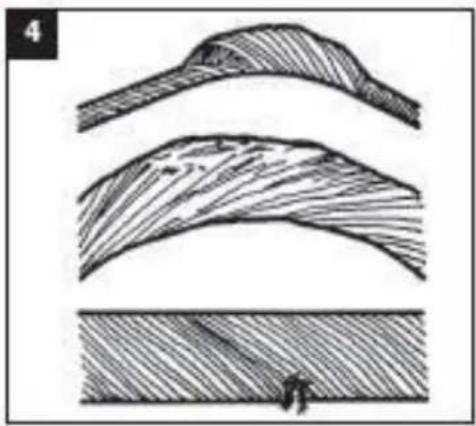

o the steel rope is possibly damaged (split or bent) or reaches 20 hours after using. In this case, change the rope immediately.

• The appliance is not suitable for transporting hot and/or molten masses. In addition, it is not suitable for use at low temperatures or in aggressive atmospheres.

• The appliance belongs to mechanical group M1.

• Ensure that the operator knows how the appliance works and how it should be operated.

• The user should always operate as set out in the operating instructions.

• The appliance is not designed for continuous operation. Its mode of operation is intermittent without influencing the starting process.

• The rated capacity of the appliance does not vary due to the position of the load.

• Please inspect the hook before every operation for possible damage or distortion. Replace it in time.

• The service life of the appliance is approximately 8000 cycles (excluding wearing parts). When the appliance has completed 8000 cycles, all its mechanical parts must be checked and overhauled.

• Operation using a residual current protective device (Red Emergency Stop Switch) offers additional protection under danger and in emergency circumstances. To use the emergency stop switch, screw the switch head in the arrows direction to recover operation after removing the damages.

• Be sure that all parts are sufficiently lubricated. Daub the lubricant on the load hook, cable drum shaft, gear box, and bearing every half a year.

• After opening the packaging, inspect the frame, the steel cable, the hook and the electric control mechanism for signs of possible transit damage.

Assembly and Installation

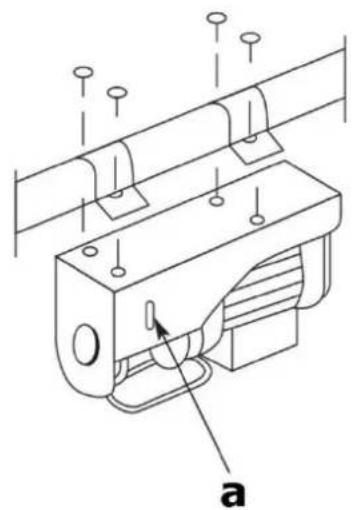

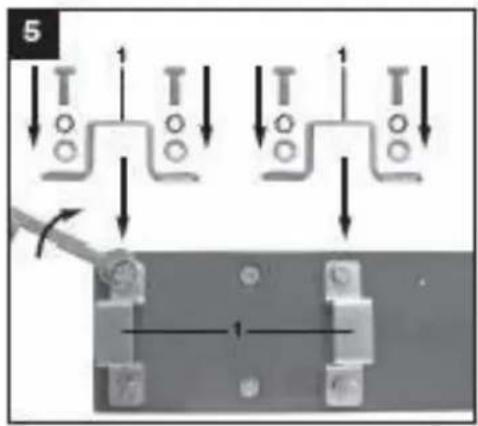

• The appliance is fitted with two fastening clamps with which it must be fastened to a rectangular tube. The dimensions of the arm must be conform with the size of the fastening clamps and must be capable of supporting twice the rated load. We recommend that you seek advice from a qualified technician.

• All screws must be tightened correctly. A qualified technician should check the anchoring of the arm before the machine is started.

• Install the appliance on a steel beam. Use only the enclosed installation brackets which can be attached to the top of the mounting casing using the screws, washers, and spring lock washers. The steel beam must be able to withstand at least double the rated lifting capacity of the appliance.

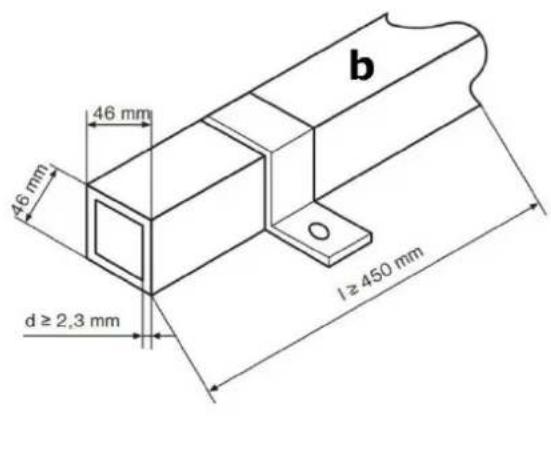

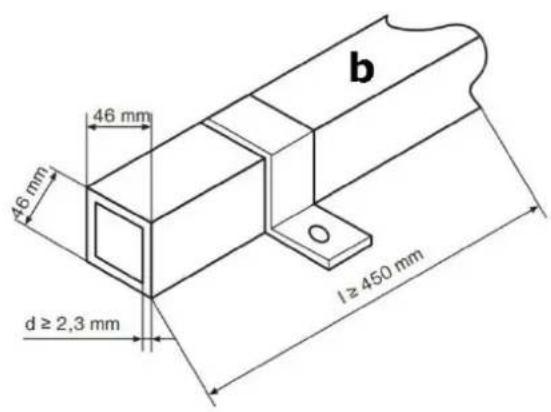

• The steel beam must have a diameter of 46 x 46 mm, a wall thickness of at least 2.3 mm and a length of at least 450 mm.

• The steel beam must be securely anchored in a wall. The anchor must be installed correspondingly sturdy in order to be able to withstand the load.

• Please be sure that the appliance is installed level and not slanted.

• The remote control must always be easily accessible and must therefore be installed at a distance to the floor of between 0.8 m and 1.5 m.

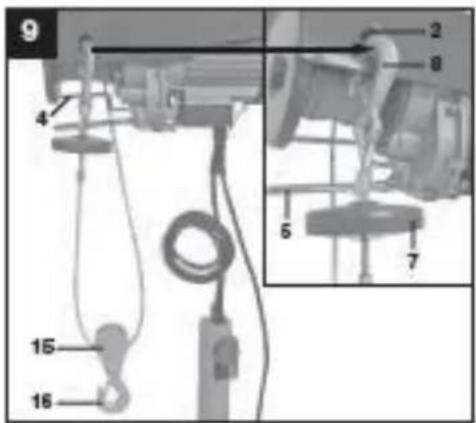

• Insert the load hook into the hook bracket of the mounting casing when using the additional load hook with deviating shaft.WEH200/WEH300

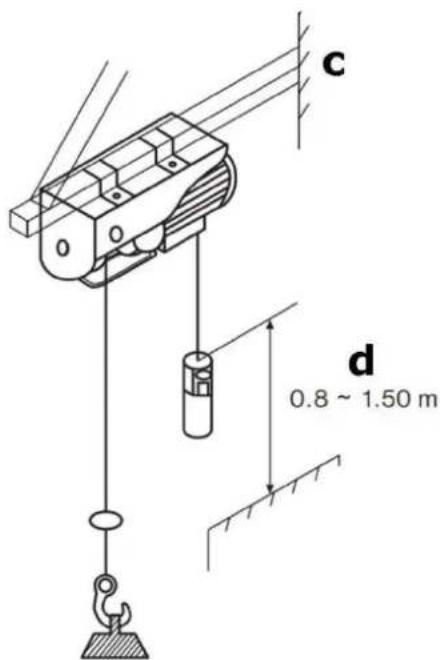

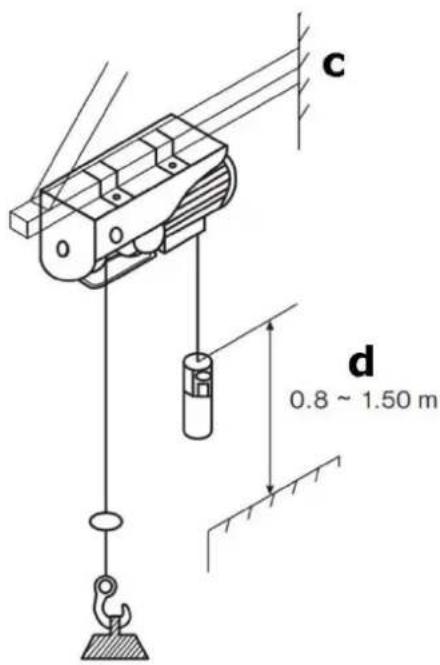

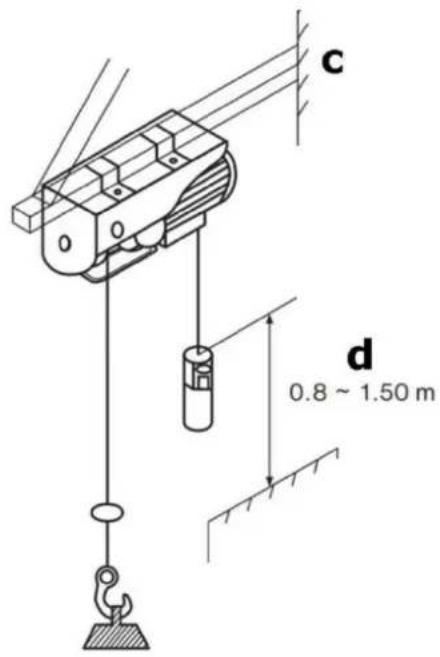

c. remote control d. distance to the floor

Block and Tackle Function

The appliance is fitted with a return roller and an additional hook. If these parts are used correctly, the appliance can lift twice its rated load.

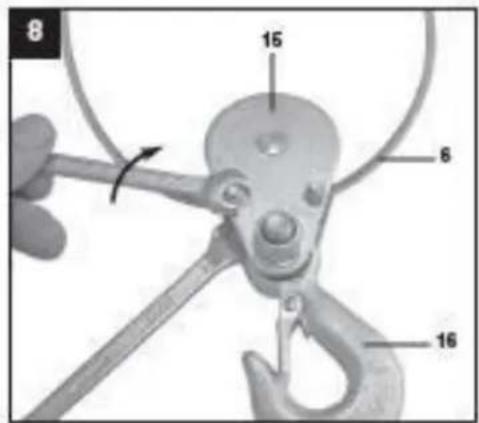

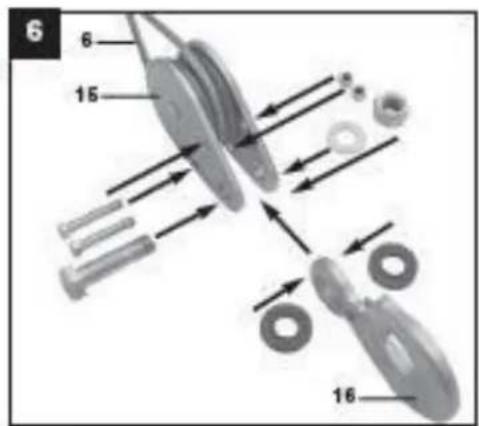

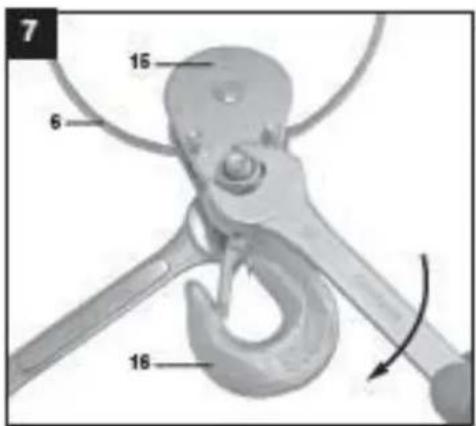

Fit the return roller and additional hook as shown. The permanent hook must be attached to the fastening hole. The load is now raised by two steel cables, which means that the appliance can lift twice its rated load.WEH200/WEH300

Operation Information

• Remove the adhesive tape from the drum before first use.

• The value of the A-rated noise emissions at the operator’s position is less than 70 dB.

• The appliance must be operated in ambient temperatures of between 5 °C and 40 °C with a relative humidity of less than 90 %. Height above sea level: max. 1,000 m.

• The temperature for transport and storage may be between -25 °C and 55 °C. The maximum temperature must not exceed 70 °C.

• The user should lift the load off the ground at the slowest possible speed. The cable should be taut when the load is raised.

• The motor for the appliance is fitted with a thermostat switch. Whilst the appliance is operating, the motor may therefore stop. It will restart automatically when it has cooled down.

• The appliance is not fitted with a rated power limiter. You should therefore not repeat attempts to lift a load if the overload trip is limiting the appliance’s operation. In this case the load exceeds the rated capacity of the appliance.

• Do not leave any suspended loads unsupervised without first taking the appropriate safety precautions.

• Fit the appliance with a 10 A fuse or a 10 A residual current operated circuit breaker (RCCB) to protect the circuit.

• Do not use the lever as a routine stopping device. It should only be used to stop the appliance in an emergency.

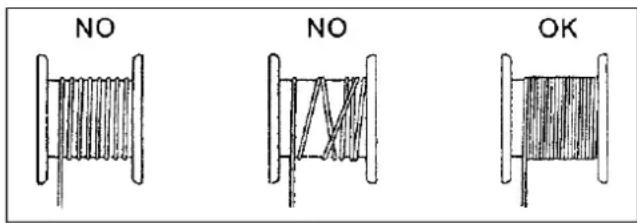

• Before you start, ensure that the steel cable is correctly wound around the drum and that the spacing between the winds is smaller than the steel cable.

• Ensure that the load is correctly secured to the hook or, if you are using the block and tackle, the additional hook, and always maintain a safe distance from the load and the steel cable.

• Check whether the emergency stop switch is pressed. Turn the red stop switch clockwise to release it.

• Press ▲ to raise the load.

• Press ▼ to lower the load.

• Automatic stop mechanism lever: when the maximum lifting height has been reached, the cut-out weight presses the lever upwards. This trips a limit switch after which the load cannot be raised any further.

• Lever for maximum cable length: when the load has reached its lowest possible position, a limit switch is tripped which makes it impossible to lower the load any further. This limit switch also prevents the appliance operating in the wrong direction (hook moving in the opposite direction to the arrow shown on the control switch).

• The appliance will stop if the emergency stop switch is pressed.

• In an emergency, immediately press the emergency stop switch to stop the appliance. The appliance cannot be operated if the emergency stop switch has been pressed.WEH200/WEH300

This appliance is designed for operating type S3 20 % - 10 min. (periodic intermittent operation). The relative duty cycle is 20 %, which means that the appliance can be operated at rated load for 2.0 minutes during each operating cycle and must then be switched off for 8 minutes to cool off. The appliance can therefore be continuously used for a duration of 20 % of the total operating cycle of 10 minutes at rated load.

• The appliance is not suitable for continuous operation. The motor is protected from overload and overheating by a temperature switch.

• If the permissible operating time is exceeded, the motor temperature will increase and the temperature switch will shut the appliance off. The temperature switch will automatically switch back on after a cooling phase.

• In case of a strain on the appliance with a lesser load, the operating time will increase and the cooling time will decrease.

• In case of direct exposure to sunlight, the temperature of the casing will increase significantly, which will also decrease the permissible operating time. It is therefore possible that the temperature switch will switch off after a short period and the appliance will shut down. Please wait until the device is cooled off.

8. Care and Maintenance

• Always disconnect the appliance from the mains before starting any cleaning, maintenance or servicing work.

• In the following: One cycle means one raising and lowering movement of a load. Periodic inspection means an inspection after 100 cycles.

• Keep all safety devices, air vents and the motor housing free of dirt and dust.

• Wipe the appliance with a clean cloth or blow it with compressed air at low pressure. Clean the appliance regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents as these could attack the plastic parts of the appliance. Ensure that no water can seep into the appliance.

• We recommend that you clean the appliance immediately after each use.

• A check must be made every 30 cycles to find whether the entire steel cable is in good condition. If it is damaged (split or bent, see illustration below), it must be replaced by a steel cable of the type specified in the technical data.

• Check that the power supply cable, motor stop switch and the push button are in good working condition.

• Periodically test that the limit switches on the cable hoist are in correct working order. Conduct this test as follows: when the cable has reached the maximum height, the lever on the automatic stopping mechanism will be actuated. The motor must then stop (test without a load).WEH200/WEH300

• When the steel cable has been unwound as far as possible, the lever for the maximum cable length will be actuated. The motor must then stop.

• Inspect the mains cable and the control cable periodically.

• The steel cable and return roller must be greased every 200 cycles.

• Check every 1000 cycles whether the screws for the fastening clamps and return roller are properly tightened.

• Check every 1000 cycles whether the hooks and return roller are in good condition.

• Check before using the appliance whether the emergency stop switch and pushbuttons are in perfect working order.

• Check the braking system every 1000 cycles. If the motor makes any unusual noises or cannot raise the rated load, it is possible that the braking system requires an overhaul:

o Replace damaged or worn parts and keep the service documentation relating to this in a safe place.

o Please contact an authorized service centre for any unscheduled maintenance work.

• Store the appliance and its accessories out of the reach of children, in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the appliance in its original packaging.

The on-off switch does not work. It is not plugged into the power supply. Connect to the power supply.

The wires are broken or ripped. Check the wires and re- connect to the power supply.

Switch malfunction. Repair switch or change it.

The capacitor is burned through. Change your capacitor.

End-switch has not been reset or a limit switch error. Check the end-switch and replace the limit switch.

The thermal switch has suffered a wire break. Wait until the item cools down or replace the thermal switch.

The dual-direction switch has been activated. The motor is very loud but cannot pick-up the load. The voltage offered is too small. Adjust the work, depending on the power supply.

The capacitor has become damaged. Change power supply.

The brake is not completely open. Allow the appliance to be repaired from a qualified repair service.

After a power loss the brakes do not hold or the appliance slips down. The gap between the brakes is too large. Allow the appliance to be repaired from a qualified repair service.

The brake spring is ripped.

The brake disk is locked.

The brake disk is dirty.

The noise of the machine becomes louder Badly oiled. Oil/Grease the appliance.

After a long use, the cogwheel and bearings are damaged. Change the cogwheel or bearings.

Badly installed or dent. Check the installed parts.WEH200/WEH300

The appliance is statically charged. Earthed error or no connection to earth. Checked earthed wires and properly connect them.

The internal connectors are touching the housing. Check all internal connections.

End-switch is not functioning. The end-switch is defect. Switch off or change.

The end-switch is blocked. Check, repair, and change end switch.

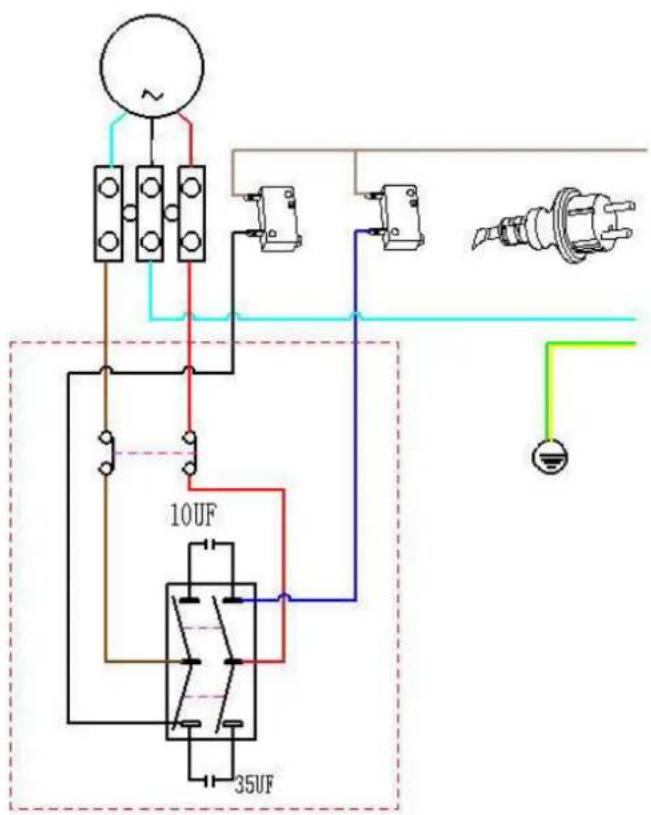

single-hook configuration

double-hook configuration

single-hook configuration

double-hook configuration

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
