USER MANUAL Inshore 335 IX CRIVIT

Exterior view of a gray inflatable boat with visible hull and side railing (no text or symbols)

2-PERSONEN-KAJAK

2-PERSON KAYAK

KAYAK 2 PLACES

DE AT CH

2-PERSONEN-KAJAK

Gebrauchsanweisung

12

KAYAK 2 PLACES

Notice a unification

KAJAK DWUOSOBOWY

Instructions for use

NL BE

2-PERSOONS KAJAK

Gebruiksoanwijzing

NAFUKOVACÍ KAJAK

Návad k použiti

[Unreadable]

KAYAK BIPLAZA

⑥① before coding for out-of-location page on activities shall be located at your site.

The source of the main class is: _1 and _1 . The main class is: _2 and _2 . The main class is: _3 . The main class is: _4 . The main class is: _5 . The main class is: _6 . The main class is: _7 . The main class is: _8 . The main class is: _9 . The main class is: _10 . The main class is: _11 . The main class is: _12 . The main class is: _13 . The main class is: _14 . The main class is: _15 . The main class is: _16 . The main class is: _17 . The main class is: _18 . The main class is: _19 . The main class is: _20 . The main class is: _21 . The main class is: _22 . The main class is: _23 . The main class is: _24 . The main class is: _25 . The main class is: _26 . The main class is: _27 . The main class is: _28 . The main class is: _29 . The main class is: _30 . The main class is: _31 . The main class is: _32 . The main class is: _33 . The main class is: _34 . The main class is: _35 . The main class is: _36 . The main class is: _37 . The main class is: _38 . The main class is: _39 . The main class is: _40 . The main class is: _41 . The main class is: _42 . The main class is: _43 . The main class is: _44 . The main class is: _45 . The main class is: _46 . The main class is: _47 . The main class is: _48 . The main class is: _49 . The main class is: _50 . The main class is: _51 . The main class is: _52 . The main class is: _53 . The main class is: _54 . The main class is: _55 . The main class is: _56 . The main class is: _57 . The main class is: _58 . The main class is: _59 . The main class is: _60 . The main class is: _61 . The main class is: _62 . The main class is: _63 . The main class is: _64 . The main class is: _65 . The main class is: _66 . The main class is: _67 . The main class is: _68 . The main class is: _69 . The main class is: _70 . The main class is: _71 . The main class is: _72 . The main class is: _73 . The main class is: _74 . The main class is: _75 . The main class is: _76 . The main class is: _77 . The main class is: _78 . The main class is: _79 . The main class is: _80 .

GE/E Usage and safety recommendation Page 19

A 3d 1s 1 11 1s 2 1s 3 1s 4 1s 5 2s 8 1s 9 1s 7 3s [0] 1s 11 1s 12 1s 13 1s 14

B F4 F5 B

Diagram illustrating the sequence of rope knotting steps, showing stages from twisted rope to final knot.

D 3 E 3 13

F G 10 11

H 10b 1c 10a 10c 10b

10c Ø~17,5 mm 1c 10b

J 1€

K 1

L 1e 10 11 10 A 0

Diagram showing a mechanical component interacting with a circular structure, with arrows indicating direction (no text or symbols)

DE AT CH

Lieferumfang 12

Technische Daten 12

Verwendete Symbole 12

Scope of delivery 19

Technical data 19

Symbols used 19

Intended use 19

Safety instructions 19

Danger to life 19

Risk of injury 19

Avoiding material damage 20

Assembly 21

Assembling the 2-way screw-on valve ..... 21

Inflation 21

Filling the air chambers 21

Checking the operating pressure 22

Attachment of accessories 22

Attaching the front seat 22

Attaching the bow splash-guard 22

Attaching the stern splash-guard with seat . 22

Triangular cushion 23

Assembling the double-bladed paddle 23

Duffel bag 23

Storage bag 23

Disassembling the kayak 23

Deflating 23

Disassembling double-bladed paddles ..... 23

Transport 23

Storage, cleaning 23

Repairs 24

Disposal 24

Notes on the guarantee and service handling 24

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

These instructions for use contain important details regarding the product, its assembly, operation and care, as well as safety rules. Since water sport always involves risks, having precise information regarding the product prevents possible personal injury or even fatalities.

Scope of delivery (fig. A)

1 x kayak (1)
1 x bow splash-guard (2)
1 x front seat (3)
1 x stern splash-guard with seat (4)
1 x triangular cushion/footrest (5)
2 x paddle (6)
1 x centre section (7)
2 x drip ring (8)
1 x set of cords (9)
3 x 2-way screw-on valve (10)
1 x control ruler (1 1)
1 x repair kit (12)
1 x storage bag (13)
1 x duffel bag (14)
1 x instructions for use

$$ 1 \times 2 0 0 \mathrm{cm} (9 a) $$

$$ 1 \times 8 5 \mathrm{cm} (9 \mathrm{b}) $$

Technical data

Dimensions (inflated):

Kayak: approx. 325 x 76 x 48cm (l x w x h)

Double-bladed paddle: Length: approx. 220cm

Total weight: approx. 8.2kg

Permissible operating pressure:

approx. 0.05bar (0.73psi)

Date of manufacture (month/year): 12/2023

Maximum load

Symbols used

WARNING!

Pay attention to the symbols marked on the product before using it.

□ = labelling on the kayak

number of people allowed: 2 adults/ 0 children

permissible load capacity: 160kg (352lb)

Permissible operating pressure

Intended use

This product has been developed for private use. Range of application: Protected shore zones up to 300m - for travel in protected coastal waters, small bays, on small lakes, narrow rivers and canals. Do not use in wind forces greater than 4 and/or waves higher than 0.5m.

Safety instructions

Danger to life!

• Never leave children unsupervised with the packaging material. Risk of suffocation.
• Never let children play with the product without supervision.

Risk of injury!

Beware of offshore winds! Beware of offshore currents!

• Make sure that people and cargo are always distributed evenly in the kayak to avoid the risk of capsizing.
• Pay attention to the information on the nameplate, permissible load capacity, and number of people, as well as the warning instructions.
• Always comply with local navigation regulations.

• Do not bring any sharp or pointed objects on board.

• The kayak should be protected against contact with any questionable liquids or acids. This can cause irreparable damage.

• Protect the kayak from heat and fire! Be careful with lit cigarettes!
• To avoid damage to the hull, make sure that the kayak does not run onto rocky ground.
• Should damage occur to one of the five internal chambers while you are on the water, under no circumstances must you abandon the kayak. The buoyancy of the four intact internal chambers is sufficient to keep the kayak safely above water.
• Under no circumstances should the inflated kayak be transported by vehicle.
• Never leave your kayak in the water unoccupied. It will drift away faster than it can be reached by swimming.
• Before using always make sure that you have the paddles with you since you may otherwise not be able to manoeuvre the kayak properly.
• Do not make any technical modifications to your kayak. Modifications of any kind put operation of the kayak at risk.
• Never use your kayak when under the influence of alcohol, drugs or medications.
• Never overestimate your strength and when paddling conserve the strength in your muscles in such a way that you can easily paddle back again over the distance you have covered. Stay in sheltered shore areas within 300m and beware of changing winds and currents that may make it significantly harder for you to navigate.

WARNING!

Your caution and self-awareness when on the water are extremely important. Never overestimate your strength and navigational skills! Always stay close to shore! Be aware of what the weather conditions are and pay attention to storm warnings or any flares!

WARNING!

Please always comply with the safety regulations and the current local provisions for lakes and open bodies of water, and for your own safety always wear a certified life jacket.

WARNING!

Avoid using sunscreen and skin care products containing alcohol. Sunscreen and skin care products containing alcohol can cause the colour coating of this PVC inflatable product to peel. This can lead to stains on your body, your clothing and other objects that are in contact.

WARNING!

If someone falls overboard they should always climb back on board via the bow or the stern because there is a high risk of capsizing when trying to board from the sides.

Avoiding material damage!

• All inflatables are susceptible to cold. For this reason never unfold and inflate the product at a temperature lower than 15^ !
• In the event that the air pressure increases in the hot sun, it must be balanced accordingly by letting out air.
• Make sure that the product, especially when inflated, does not come into contact with stones, gravel, or sharp objects and does not rub or scrape against anything as this can cause damage to the plastic foil.
• Use only the correct pump adapters to insert into the safety valves. The valves might otherwise be damaged.
• Do not over-inflate because you then risk tearing open the welded seams. Close the valves properly after inflating.
• Avoid contact with sharp, hot, pointed, or dangerous objects.

Assembly

Follow the individual assembly steps in the order indicated. If the correct sequence for inflating the five air chambers is not followed the pressure may be distributed unevenly. This can lead to instability of the kayak and adversely affect its handling characteristics.

Note: The side of the kayak with the 3 screw-on valves is the stern side (1f). The opposite side (without screw-on valves) is the bow side (1g) (fig. A).

• Assembly should always be performed by two adults because of the product's size.
• Select a smooth and clean surface with enough space to unfold the kayak. Check that all the individual parts are present and in good order and condition.
• When assembling the kayak for the second and subsequent times, you should inspect for any possible damage, holes, and tears and these should be sealed as described in the section "Repairs". Once you are on the water it is no longer possible to remedy any damage.
• Do not over-inflate the air chambers so as not to over-stretch the plastic foil.
• Make sure that the inflated kayak does not come into contact with stones or other sharp objects and become damaged.

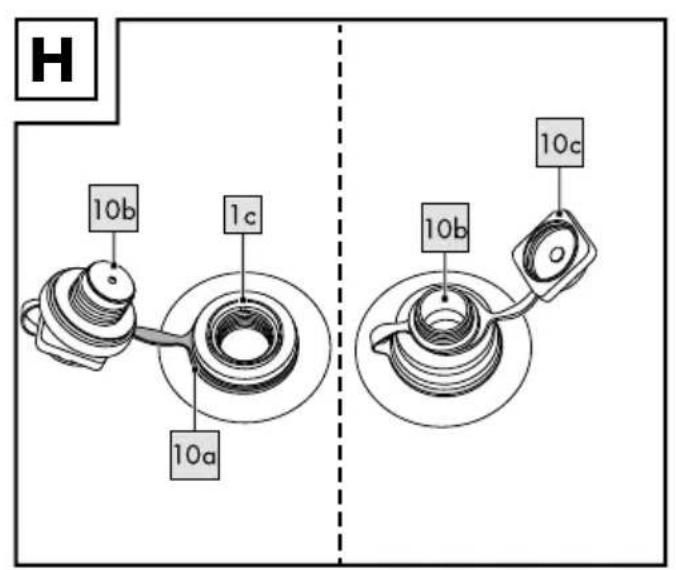

Assembling the 2-way screw-on valve (fig. H)

The floor chambers and the upper side chambers 3 of the kayak are all provided with a threaded opening for the screw-on valves (10).

1. Pull the loop (10a) of the valve over the threaded opening (1c) so that it loops tightly around the edge of the threaded opening.
2. Turn the base (10b) clockwise into the threaded opening.

Inflation

WARNING!

- Follow the correct sequence when inflating the air chambers. The correct sequence is indicated on the kayak and in the instructions for use (No. 1). 5

• The recommended operating pressure is 0.05bar (= 50mbar = 0.73psi).
• Avoid inflating the air chambers too much because there is the risk of over-stretching the welded seams or even tearing them open.
• To inflate the product use standard commercial foot pumps or double-stroke piston pumps with matching adapter attachments and where applicable a pressure gauge.
• Do not use a compressor or compressed air bottle to inflate the product. This can lead to damage to the product.
  • Always inflate all air chambers fully.

Inflation sequence

Inflate the air chambers in the following sequence:

1. Floor chamber with screw-on valve 1
2. Lower side chamber with stopper valve 2
3. Upper side chamber with screw-on valve 3
4. Lower side chamber with stopper valve 4
5. Upper side chamber with screw-on valve 5

Note: The air chambers are marked on the kayak with the corresponding numbers (1).5

Filling the air chambers

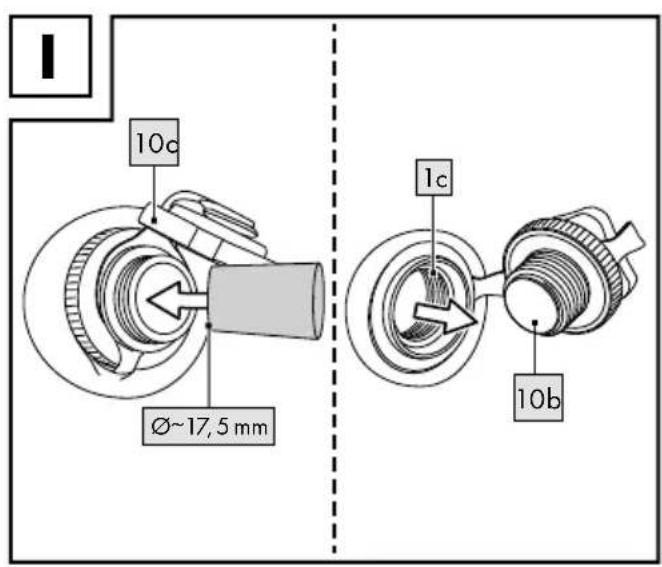

Note: For the screw-on valve you need a pump with a conical nozzle with a diameter of approx. 17.5mm (fig. 1).

For the stopper valve you need a pump with a suitable conical connection.

1. Floor chamber with screw-on valve

1. Open by turning the seal cap (10c) of the screw-on valve (10) anticlockwise (fig. H).
2. Inflate the floor chamber 1 using the appropriate pump.
3. Check the operating pressure as described in the section "Checking the operating pressure".
4. Turn the seal cap (10c) of the screw-on valve (10) clockwise to close it again.

2. Lower side chambers with stopper valve

1. Open the upper part of the valve seal (1d) (fig. J).
2. Inflate the lower side chambers 2 until they feel firm and no more creases can be seen in the material.

Note: When you press with your thumb against the air chamber it should still give a little.

Note: If you do not have a valve adapter that fits, the lower side chamber can also be filled using the next smallest adapter by means of a special diaphragm valve.

1. Close the valve seal and push in the stopper valve by pressing lightly (fig. J).

3. Upper side chambers with screw-on valve

1. Open by turning the seal cap (10c) of the screw-on valve (10) anticlockwise (fig. H).
2. Inflate the upper side chambers 3 using the appropriate pump.
3. Check the operating pressure as described in the section "Checking the operating pressure".
4. Turn the seal cap (10c) of the screw-on valve (10) clockwise to close it again.

Checking the operating pressure

IMPORTANT!

The PVC material expands somewhat after the product is inflated for the first time and does not return to its original condition. Remember that the specifications may vary slightly depending on the load and outside temperature.

1. Inflate the floor chamber 1 and the two lower side chambers 2 until they feel firm and no more folds can be seen in the material.

Note: When you press with your thumb against each air chamber it should still give a little.

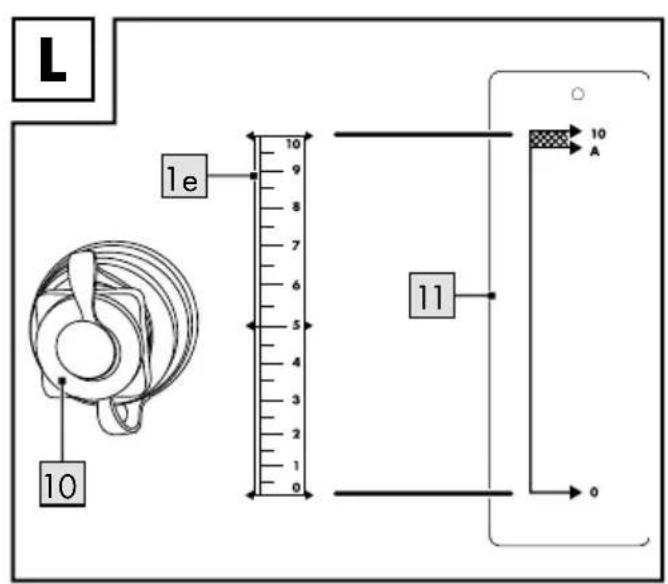

1. To check the operating pressure of the two upper side chambers, 3 place the control ruler (11) over the measuring strip (1e) on the inside of each upper air chamber (fig. L). The lower arrow and the 0 on the control ruler (11) must overlap the lower arrow and the 0 on the measuring strip (1e).

2. When inflating for the first time the number 10 on the measuring strip (1e) may NOT exceed position A on the control ruler (11).

Note: The number 10 on the measuring strip (1e) indicates the maximum expansion of the air chambers.

1. With repeated inflations the number 10 of the measuring strip (1e) must be between position A and position 10 on the control ruler (11).

Attachment of accessories

Note: Secure the cords of the duffel bag and seat with a reef knot (fig. C).

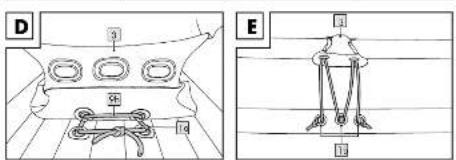

Attaching the front seat (fig. D)

1. Inflate all air chambers of the front seat (3) until they feel firm and push down the valves.
2. Place the seat between the two upper side chambers 3 to ensure that the it stays firmly in place.

Note: The hook-and-loop straps on the backrest of the front seat (3) must point towards the stern (1f).

1. Secure the seat with the 85cm cord (9b) at the grommets (1a) on the floor chamber ① (fig. D) using a reef knot (fig. C).
2. Attach the backrest of the seat (3) at the buttons (1b) on the two lower side chambers 2 4 using the elastic bands attached to the kayak so that it forms a zigzag pattern. (fig. E).

Attaching the bow splash-guard

1. Inflate the air chamber of the bow splash-guard (2).

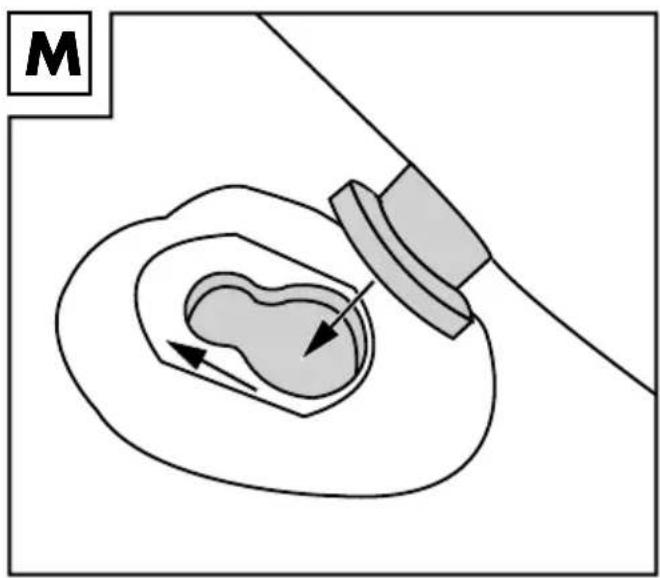

2. Push the safety buttons of the bow splash-guard into the openings on the kayak (fig. M). Make sure that they seat firmly.

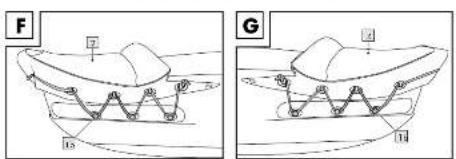

3. Attach the bow splash-guard (2) to the buttons (1b) on the two upper side chambers 3 5 using the pre-installed elastic band so that it forms a zigzag pattern (fig. F).

Attaching the stern splash-guard with seat

1. Inflate all air chambers of the stern splash-guard (4).
2. Press the seat down under the two upper side chambers 3 to ensure that it stays firmly in place.
3. Push the safety buttons of the stern splash-guard into the openings on the kayak (fig. M). Make sure that they seat firmly.
4. Attach the stern splash-guard (4) at the buttons (1b) on the two upper side chambers using the pre-installed elastic band so that it forms a zigzag pattern (fig. G).

Triangular cushion

1. Inflate the triangular cushion (5) and press down the valve.
2. Position the inflated triangular cushion (5) firmly in the bow of the kayak.

Note: The triangular cushion (5) serves as a footrest for the person sitting at the front.

Assembling the double-bladed paddle (fig. B)

1. Push a drip ring (8) over both ends of each paddle tube so that the rings sit below the locking button (6a) and the taper of the tube.
2. Insert the two paddle tubes (6) into the centre section (7). In doing so, both locking buttons (6a) must snap audibly and visibly with a slight offset into the openings (7a) on the centre section (7).

Note: You have the option of setting the paddle at two different angles according to your preference. When there are two people the paddles can also be used without the centre section individually as single-blade paddles.

Duffel bag

The product comes with a duffel bag (14) in which the kayak can be stowed for transport and for storage.

To close it use the 200cm cord (9a). The duffel bag can also be used on board to keep provisions, clothing, etc. protected against splash.

Note: Remember that the duffel bag is not waterproof. Do not stow any sensitive items such as cameras in the duffel bag.

For use on board remove the cord and roll the top end up flat. Then close the duffel bag using the hook-and-loop fasteners.

Storage bag

In addition, the product also comes with a splash-proof storage bag (13) which is attached to the back of the front seat (3) by the hook-and-loop fasteners. Smaller items can be stowed in the storage bag.

Note: Remember that the storage bag is not waterproof. Do not stow any sensitive items in the bag.

Disassembling the kayak

Remove the front seat, the stern splash-guard with seat, the bow splash-guard and the triangular cushion.

Deflating

Deflate the kayak as follows:

1. To deflate chambers with stopper valves, pull the stopper valves (1d) out of the recess and open the lower part of the valve (fig. K).
2. To deflate air chambers with screw-on valves, unscrew the screw-on valves (10b) from the base (1c) and let the air out completely (fig. 1).

Disassembling double-bladed paddles

1. Push down the respective locking button.
2. Pull the two paddle tubes from the centre section.

Note: The drip rings remain on the paddle tubes.

Transport

The kayak should always be transported by two people.

Storage, cleaning

WARNING!

Use only care products containing no acid or petroleum components and never use silicon-based products.

Always store the product deflated, clean and dry at room temperature and out of the reach of rodents. The valves should always be closed during storage. Make sure that the product is stored flat, not twisted.

1. Clean your kayak thoroughly each time after use by rinsing it with clean water and mild soap to get rid of salt crystals, grains of sand, and other tiny contaminants. Then allow it to dry completely.
2. Let the air out of all air chambers completely.
3. Lay the two upper side chambers inside the kayak and then fold it up carefully.

Repairs

WARNING!

When there is more serious damage you should not under any circumstance perform repairs yourself.

You can repair minor damage with the repair kit (12) supplied.

1. Let the air out of the kayak completely and clean the location in question using an alcohol-based solution. Use fine sandpaper to roughen the area around the tear or hole.
2. Trim a patch that covers the damaged area and overlaps by 1.3cm on all sides.
3. Apply the adhesive both to the location on the kayak and also to the patch. Let the adhesive dry for approx. 3 minutes.
4. Press the patch down firmly with something soft.

Note: Be sure to work on an even surface without wrinkles or folds. Gently remove any air bubbles with a rounded object, working from the inside towards the outside.

1. After repairs wait at least 12 hours before inflating the kayak again.

Disposal

Dispose of the product and packaging materials in accordance with current local regulations. Store the packaging materials (foil bags, for example) out of the reach of children. For further information about disposal of the product no longer needed, contact your local council. Dispose of the product and the packaging in an environmentally friendly manner.

The Recycling Code distinguishes different materials to be returned for recycling. The Code consists of the recycling symbol for the recycling process and a number that identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions. The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 445271_2307

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

Félicitations!
