Grand Vitamine - Blender Zeegma - Free user manual and instructions

Product type	Electric blender
Brand	Zeegma
Model	Grand Vitamine
Bowl material	Glass with level indicator
Bowl capacity	Approximately 1.5 L (estimate)
Number of speeds	Variable from MIN to MAX
Special functions	Pulse mode, ice crusher, automatic cleaning
Rated power	Approximately 600-800 W (estimate)
Supply voltage	220-240 V (estimate)
Weight	Approximately 3.5 kg (estimate)
Dimensions (H x W x D)	Approximately 40 x 20 x 20 cm (estimate)
Cable length	Approximately 1.0 m (estimate)
Sound pressure	Typical noise level for blender
Safety	Automatic shut-off after 60 s (special modes), safety lock (estimate)
Cleaning	Dishwasher-safe bowl; wipe body with damp cloth; automatic cleaning mode
Maintenance	Wash removable parts immediately after use; avoid touching blades
Included accessories	Measuring cap, lid, glass bowl, blender attachment, bowl base
Intended use	Domestic use only; do not use outdoors
Important precautions	Do not immerse motor in water; do not use with hot foods without caution
Repairability	Contact an authorized service center; do not attempt to repair yourself
Warranty	Legal conformity warranty (estimate)

Frequently Asked Questions - Grand Vitamine Zeegma

How to assemble the blender?

Place the glass bowl with the blender attachment and the bowl base on the blender, then turn clockwise until it is securely fastened.

How to turn on and adjust speed?

Turn the control knob to the ON position to turn on. To change speed, turn the knob between MIN and MAX.

How to use pulse mode?

Press and hold the pulse mode button (3a) until the desired result is achieved.

How to crush ice?

Press the ice crusher button (3b). The appliance stops automatically after 60 seconds, or you can press again to stop. Maximum 8 ice cubes of size 20x20x20 mm.

How to use automatic cleaning mode?

Pour 750 ml of water and a little dish soap into the bowl, put the lid on, then press the automatic cleaning button (3c). The appliance stops after 60 seconds. Then rinse with clean water and let dry.

Can I blend hot ingredients?

Be careful with hot liquids: steam can cause sudden overflow. It is better to allow them to cool before blending.

What is the maximum continuous operation time?

Do not run the blender for more than one minute continuously. Let it cool to room temperature before reusing.

How to clean the blender?

Unplug the appliance. Remove all removable parts and wash them in warm soapy water. The glass bowl is dishwasher safe. Wipe the main body with a damp cloth.

What if the blender does not work?

Check that the bowl is properly screwed onto the base and that the control knob is set to ON. If the problem persists, contact an authorized after-sales service.

Where to find spare parts?

Only use original spare parts. Contact the manufacturer at [e-mail] to obtain parts.

USER MANUAL Grand Vitamine Zeegma

Silver ZEEGMA blender with visible control knob and price scale (no text or symbols on body)

Grand Vitamine

EN DE PL IT FR

ES NL UK LT HR

ZEEGMA

1

1 2 3 4 5 6 7 ZEEGMA OFF ON MIN MAX RED CLEAN

2

MIN ON OFF MAX 1 2

Simple diagram with concentric circles and a labeled circle '3a' (no text or symbols within the circles)

PULSE

Simple diagram of concentric circles with a central dot and label '3b' above (no text or symbols within the circles)

ICE CRUSH

Simple diagram with concentric circles and a labeled circle '3c' above (no text or symbols within the circles)

AUTO CLEAN

3

Line drawing of a blender with a lid and handle, showing liquid level drops (no text or symbols)

4

Diagram showing a mechanical component being lowered into a base plate (no text or symbols)

EN

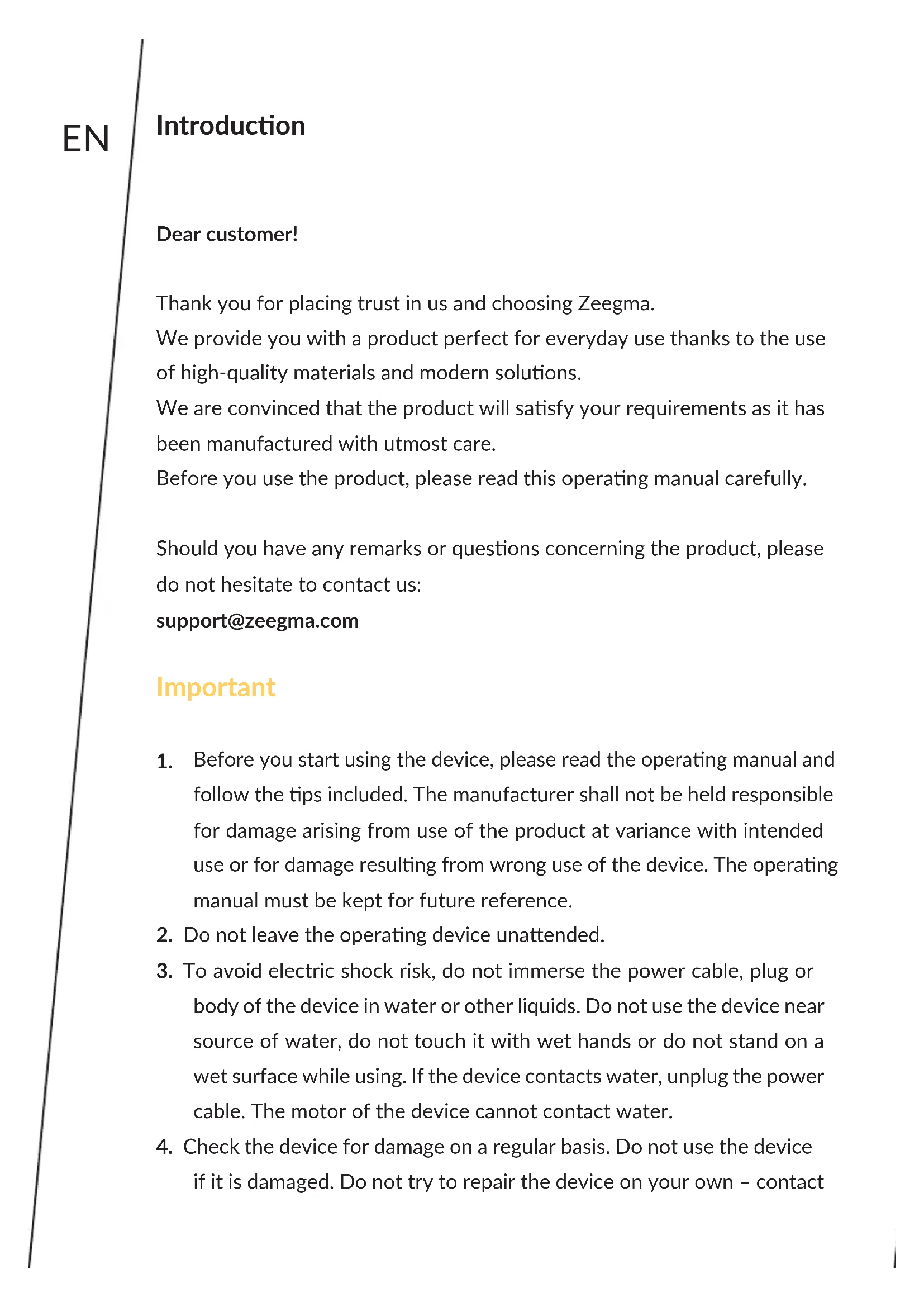

Introduction

Dear customer!

Thank you for placing trust in us and choosing Zeegma.

We provide you with a product perfect for everyday use thanks to the use of high-quality materials and modern solutions.

We are convinced that the product will satisfy your requirements as it has been manufactured with utmost care.

Before you use the product, please read this operating manual carefully.

Should you have any remarks or questions concerning the product, please do not hesitate to contact us:

[e-mail]

Important

1. Before you start using the device, please read the operating manual and follow the tips included. The manufacturer shall not be held responsible for damage arising from use of the product at variance with intended use or for damage resulting from wrong use of the device. The operating manual must be kept for future reference.

2. Do not leave the operating device unattended.

3. To avoid electric shock risk, do not immerse the power cable, plug or body of the device in water or other liquids. Do not use the device near source of water, do not touch it with wet hands or do not stand on a wet surface while using. If the device contacts water, unplug the power cable. The motor of the device cannot contact water.

4. Check the device for damage on a regular basis. Do not use the device if it is damaged. Do not try to repair the device on your own - contact

the authorized service center. If the power cable gets damaged, you should have it replaced by the manufacturer in order to avoid hazards.

1. Make sure the electric voltage specified on the device label complies with the electric voltage at your place.
2. Make sure the power cable does not contact hot components. Do not pull it through sharp edges.
3. The device is intended for home use only. The device is not suitable for use in the open air. Do not use it for other purposes at variance with intended use.
4. The device is not intended for commercial use.
5. After use, when you assemble or disassemble or change accessories or clean, the device must be deactivated and unplugged.
6. The device can be used by persons with limited physical, sensory or mental capabilities as well as persons who lack suitable knowledge and experience in using the device as long as their actions are supervised or if they have been previously instructed on safe use of the device and related risks.
7. Please remain highly careful when using the device if children are around. Do not let children play with the device. Keep the device and power cable out of reach of children.
8. Please remain highly careful when handling blades, emptying a bowl and cleaning the product.
9. Before use, make sure the blending tip has been properly attached to the jar.
10. Use the device only with original accessories and as designed, remember to take all safety measures. Use original spare parts only.
11. Avoid contact with moving parts of the device. Do not place anything inside the device when it is operating in order to avoid bodily injuries and damage to the device.
12. Remain careful when pouring a hot liquid into the jar since the liquid may overflow due to sudden impact of steam.
13. Do not modify the device in any way.

EN

The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.

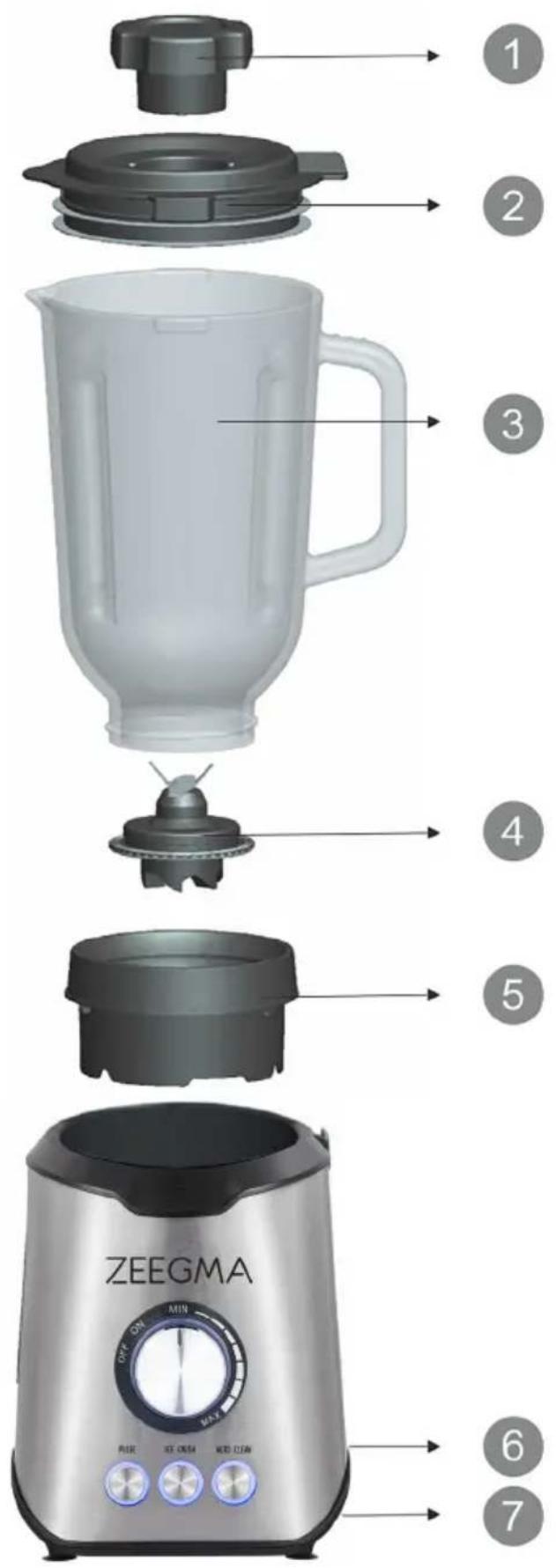

List of parts (fig. 1)

1. Measure
2. Lid
3. Glass jar with level indication
4. Blending tip
5. Jar base
6. Control panel
7. Blender

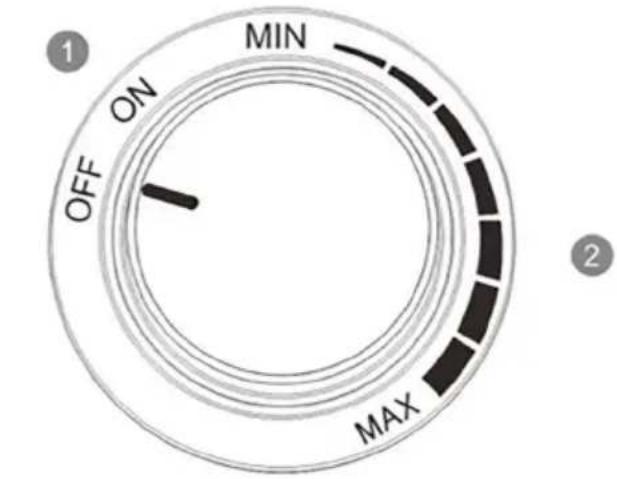

Control panel (fig. 2)

1. On/off switch
2. Speed adjustment

Quick selection keys:

3a. Pulsation mode

3b. Ice crushing mode

3c. Automatic cleaning mode

How to assemble

1. Before first use, please wash the device and its particular parts carefully.
2. Place the glass jar with a blending tip and jar base on the blender, and then rotate it in a clockwise direction. When the device has been rotated properly, it is ready for operation.

How to use

1. To switch the device on, turn the knob into ON (fig. 2).
2. To change speed, turn the knob into selected position between MIN and MAX (fig. 2).
3. To use quick selection keys, set the knob in ON (fig. 2). The indicator on keys will go on.

Pulsation mode

Press and hold to get the desired effect.

Ice crushing mode

1. Press the key (3b, fig. 2) to start crushing the ice.
2. To finish the procedure, press the key again or wait until the device stops working automatically after 60 seconds.

Warning: You can put max. 8 ice cubes (20x20x20 mm at the largest) into the jar at a time.

EN

Automatic cleaning mode

1. To use the automatic cleaning mode, pour 750ml of water into the device, add a small amount of dishwashing liquid, put the cover on, and then press the key (3c, fig. 2).

2. After 60 seconds the device will turn off automatically. Rinse the device under running water and let it dry off.

How to use a glass jar

1. Put ingredients into the jar.

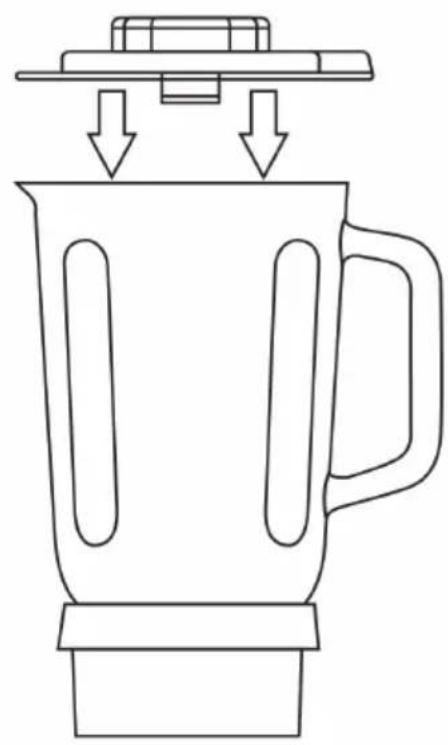

2. Carefully lock the jar with a lid (fig. 3).

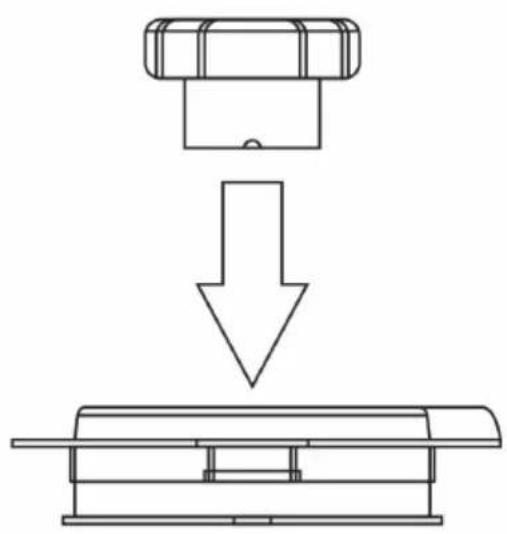

3. Place the measure in the lid hole (fig. 4).
4. Select speed by setting the knob in a desired position (fig. 2).

Note: Do not let the device operate continuously for more than 1 minute. Let the device cool down and reach room temperature before another use.

Note: It is advisable to cut food into smaller pieces before you put them into the jar. Do not mix large amounts of food at a time.

After use

1. Switch the device off and unplug the power cable.
2. Remove the lid and measure from the jar.
3. Remove the jar and its base from the blender.
4. Disconnect the jar base from the blending tip.

How to clean

Note: Wash particular parts of the device shortly after use.

Note: Be very careful when you are cleaning parts. Do not touch sharp parts!

1. Before cleaning, switch the device off and unplug the power cable.
2. Remove all detachable parts.
3. Wash detachable parts in warm water with a dishwashing liquid.
4. You can wash the jar in the dishwasher.
5. Clean the main body of the blender with a dry cloth.

The pictures are for reference only. The real design of the products may differ from the pictures presented.
