Rotee Chef Multi - Toaster Zeegma - Free user manual and instructions

USER MANUAL Rotee Chef Multi Zeegma

Exterior view of a black ZEEGMA grater appliance on a white surface (no text or symbols visible on the device body)

EN | DE | PL | IT | FR | ES | NL |

LT | HR | CS | SK

Diagram of a food kit with labeled parts, showing open and closed compartments with numbered annotations.

1

2

a b b a

EN

Introduction

Dear Customer!

Thank you for choosing the Zeegma brand. We appreciate your trust in our products. The item you have purchased is perfect for everyday use thanks to high-quality materials and advanced technical solutions. We are confident that its meticulous workmanship will provide you with a superior product experience.

Before using the product, please read the user manual below.

If you have any comments or questions about the product you have purchased, contact us: [e-mail]

GENERAL SPECIFICATIONS

BATTERY POWER: 800W

INPUT VOLTAGE: 220-240V \~ 50-60Hz

IMPORTANT INFORMATION

Before using the appliance, please take the time to read this user manual.

Please read this instruction manual before operating the appliance to familiarise yourself with its functions and use it as intended.

1. This appliance can be used by children aged 8 years and older, as well as individuals with limited physical, sensory, or mental abilities, or those without experience and knowledge, provided they are supervised or instructed in the safe use of the appliance and understand the associated risks.

2. Children must not play with the appliance.

3. Children are not allowed to carry out cleaning and maintenance of the appliance, except for children over 8 years of age and under supervision.

4. Keep the appliance and its cable out of the reach of children under the age of 8.

5. The appliance is not intended to be operated by means of an external timer or a separate remote control system.

6. The appliance is intended for domestic use only. Do not use it for any other purpose incompatible with its intended use.

7. The appliance has a grounded plug.

8. The appliance should only be connected to a grounded socket outlet with characteristics that comply with the values indicated on the label of the appliance.

9. Do not touch hot components of the appliance.

10. Do not immerse the appliance and its cables in water or any other liquid.

11. Exercise special caution when using the appliance with children or pets nearby. Always unplug the appliance from

the power source and allow it to cool down before cleaning and after use.

1. Do not use a damaged or malfunctioning appliance or one with a damaged power cord or plug.
2. Do not repair or modify the appliance. These actions may only be undertaken by an authorised service centre.
3. Use only original or manufacturer-recommended spare parts.
4. Do not pull or carry the appliance by holding the cable. Do not place any objects on it. Do not pull the cable over sharp edges of walls and furniture and do not allow it to come into contact with hot surfaces. Keep the appliance away from heat sources, high temperatures, hot surfaces, direct sunlight, sources of sparking, open flames.
5. Important! Use the product placed horizontally on a flat and stable surface.

CAUTION! Hot surface – surfaces may become hot during use.

PRODUCT DESCRIPTION (FIG. A)

1. Upper casing
2. Lower casing
3. Standby light
4. Heating light
5. Handle

PRODUCT DESCRIPTION (FIG. B)

1. Upper hob
2. Lower hob
3. Hob fixing brackets

BEFORE FIRST USE

1. Peel off and remove any packaging components.
2. Clean the hobs with a damp cloth or sponge and warm water.
3. Dry the appliance with a cloth or kitchen towel.
   Important! Do not clean the appliance directly under a jet of running water.
   Important! When using the appliance for the first time, a slight smoke or unpleasant odour is possible. This does not affect the safe use of the appliance. Unpleasant odours will cease with the next use of the product.

OPERATING INSTRUCTIONS

1. Plug the appliance into a power source. The lights (3,4, fig. A) will light up to indicate that the toaster has started to heat up. The standby light will stop illuminating when the toaster has heated up.
2. Open the upper casing of the toaster (1, fig. A) place the meal on the lower hob (2, fig. B) and close the upper casing.

EN

1. Once heating is complete, open the upper casing using the handle (5, fig. A).

2. Disconnect the power and leave the upper hob open to cool it down.

REPLACEMENT OF HOBS

The product contains 5 interchangeable hob sets. To replace the hob, switch off and disconnect the appliance from the power supply and leave it to cool down. Open the upper casing of the toaster(1, fig. A) and unlock the hob fixing bracket (3, fig. B). The hob will spring back automatically.

INSTALLATION OF HOBS

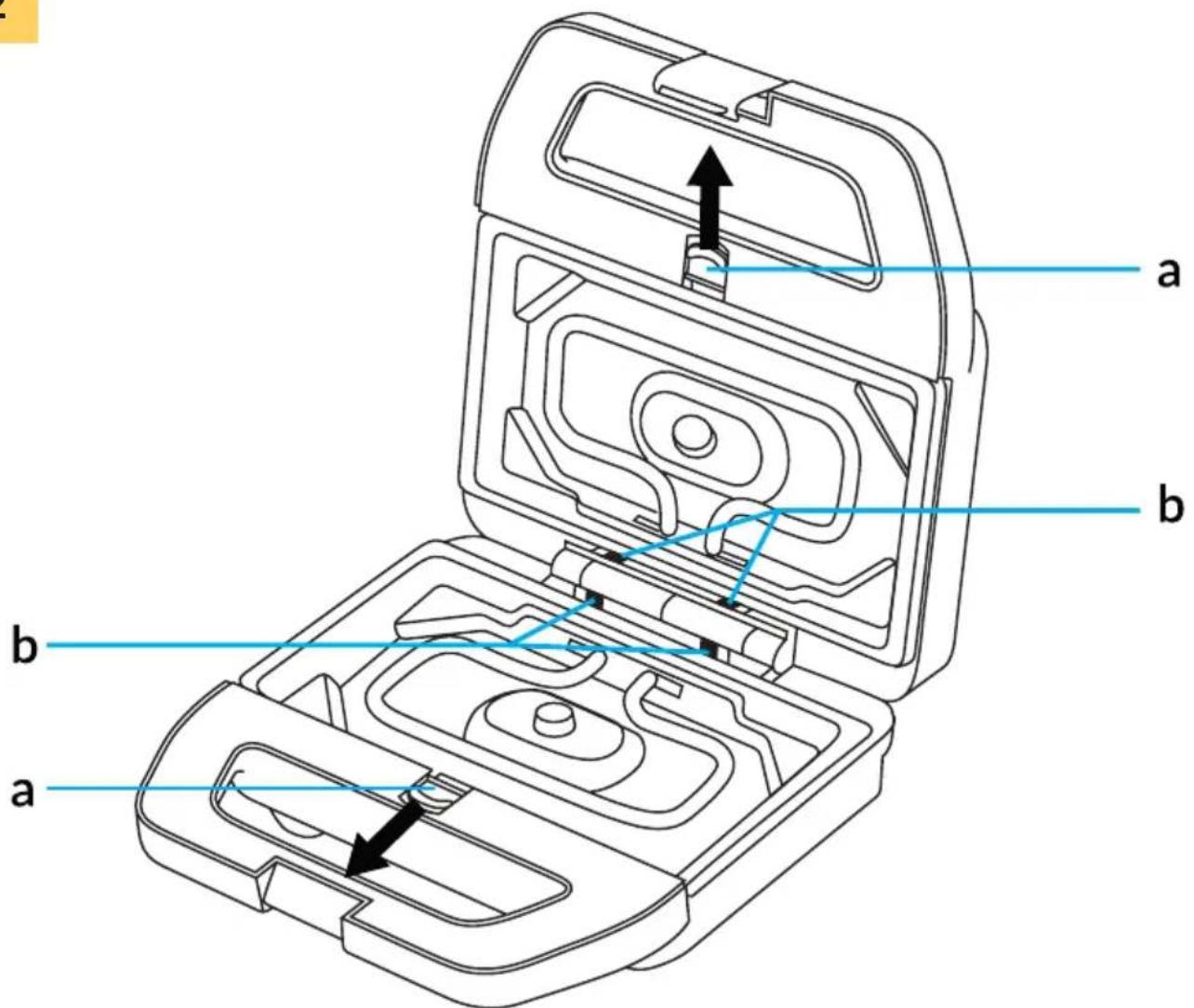

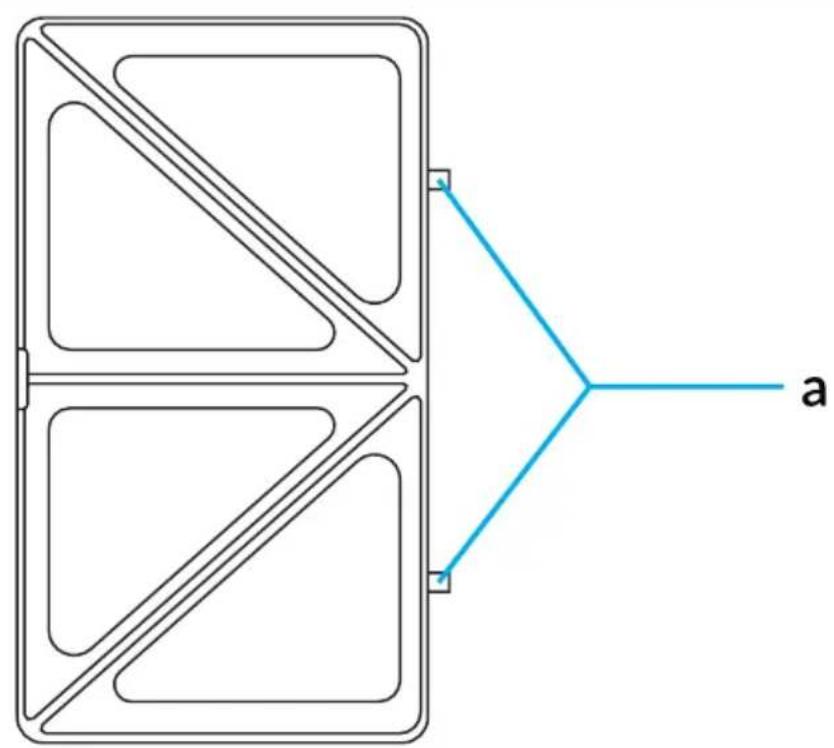

To install the hob, switch off and disconnect the appliance from the power supply and allow to cool. Open the upper casing of the toaster (1, fig. A) and unlock the hob fixing bracket (3, fig. B). Slide the hob groove (a, fig. 1) into the casing hinges (b, fig. 2). Make sure the hob is tightly restrained. Press down until you hear a click.

CLEANING AND MAINTENANCE

1. Unplug the appliance from the power source and allow it to cool down before cleaning.
2. Never immerse the entire appliance or hobs in water or wash them in the dishwasher. The outside of the appliance can be cleaned with a soft, damp cloth.
3. The hobs, once cooled, can be cleaned by hand under a direct stream of water using mild cleaning agents and a soft, non-scratching cloth. Avoid intensive washing of the back of the hob if this is not necessary.

Important! Abrasives and metal utensils should not be used for cleaning, which can damage the coating of the hobs.

The photos are for illustrative purposes only, the actual appearance of the products may differ from that shown in the photos.

Einleitung

DESCRIPTION DU PRODUIT (FIG. A)

OMSCHRIJVING VAN HET PRODUCT (AFB. A)

OMSCHRIJVING VAN HET PRODUCT (AFB. B)

EN: The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.

Detailed warranty conditions are available on the website:
