Handy Chef - Blender Zeegma - Free user manual and instructions

Brand	Zeegma
Model	Handy Chef
Product type	Multifunction hand blender
Power supply	220-240 V ~ 50/60 Hz
Power	600 W
Speeds	Variable with turbo mode
Mini chopper capacity	500 ml
Materials	Stainless steel and ABS plastic
Included accessories	Blending arm, mini chopper, whisk, milk frother, dough hook
Main functions	Blend, chop, whisk, froth, knead
Dimensions (L x W x H)	40 cm x 7 cm x 7 cm
Weight	1 kg
Cable length	1.2 m
Max operating time (blending arm)	1 minute, then 1 minute pause
Max operating time (mini chopper)	30 seconds, then 1 minute pause
Max operating time (whisk, dough hook, milk frother)	5 minutes, then 1 minute pause
Cooling cycle	40 minutes after 5 cycles
Safety	Overheat protection
Care and cleaning	Clean accessories with soapy water; do not immerse the motor unit
Spare parts and repairability	Original parts available; repair by authorized center
Warranty	2 years

Frequently Asked Questions - Handy Chef Zeegma

How to assemble the hand blender?

Attach the desired attachment to the motor unit by pushing until it clicks into place. To remove, press the buttons on each side.

What is the maximum continuous use time?

Blending arm: 1 minute max, then 1 minute pause. Mini chopper: 30 seconds, then 1 minute pause. Whisk, dough hook, milk frother: 5 minutes, then 1 minute pause. After 5 cycles, let cool for 40 minutes.

Can I crush ice with this blender?

No, the appliance is not designed to crush ice; this could blunt the blades.

How to clean the mini chopper?

Carefully disassemble the blades (they are sharp) and wash the parts under running water with a mild detergent. Dry completely before reuse.

What is the turbo mode used for?

Turbo mode instantly reaches maximum speed for tasks requiring more power, like blending hard foods.

Can I blend hot soups?

Yes, but with caution: hot liquid can splatter due to sudden evaporation. Always pour hot liquid into the bowl and blend at low speed.

How to change attachments?

To remove an attachment, press the side buttons on the motor unit while pulling. To install a new one, align and push until it clicks.

Is the blender dishwasher safe?

The manual recommends hand washing with soapy water. Do not immerse the motor unit. Some accessories may be dishwasher safe if indicated, but as a precaution, wash by hand.

What to do if the appliance stops during use?

Check the power supply. The appliance may have overheated: unplug it and let it cool for at least 40 minutes before reusing.

How to store the blender after use?

Ensure all parts are clean and dry. Store the appliance in a dry place, away from dust. Do not wrap the cable around the motor unit.

USER MANUAL Handy Chef Zeegma

Modern kitchen appliance with a ZEEGMAO brand brush and wooden boardboard in the background (no visible text or symbols on main subject)

EN | DE | PL | IT | FR | ES | NL | UA | LT | HR | CS

User Manual | Bedienungsanleitung | Instrukcja obsługi | Manuale d'uso | Manuel de l'UtilisateurManual de usuario | Handleiding | Посібник користувача | Vartotojo vadovas | Korisnički priručnik | Návod k obsluze

A

1

Line drawing of a ZIOMA device with a downward arrow indicating transformation (no text or symbols present)

2

3

EN

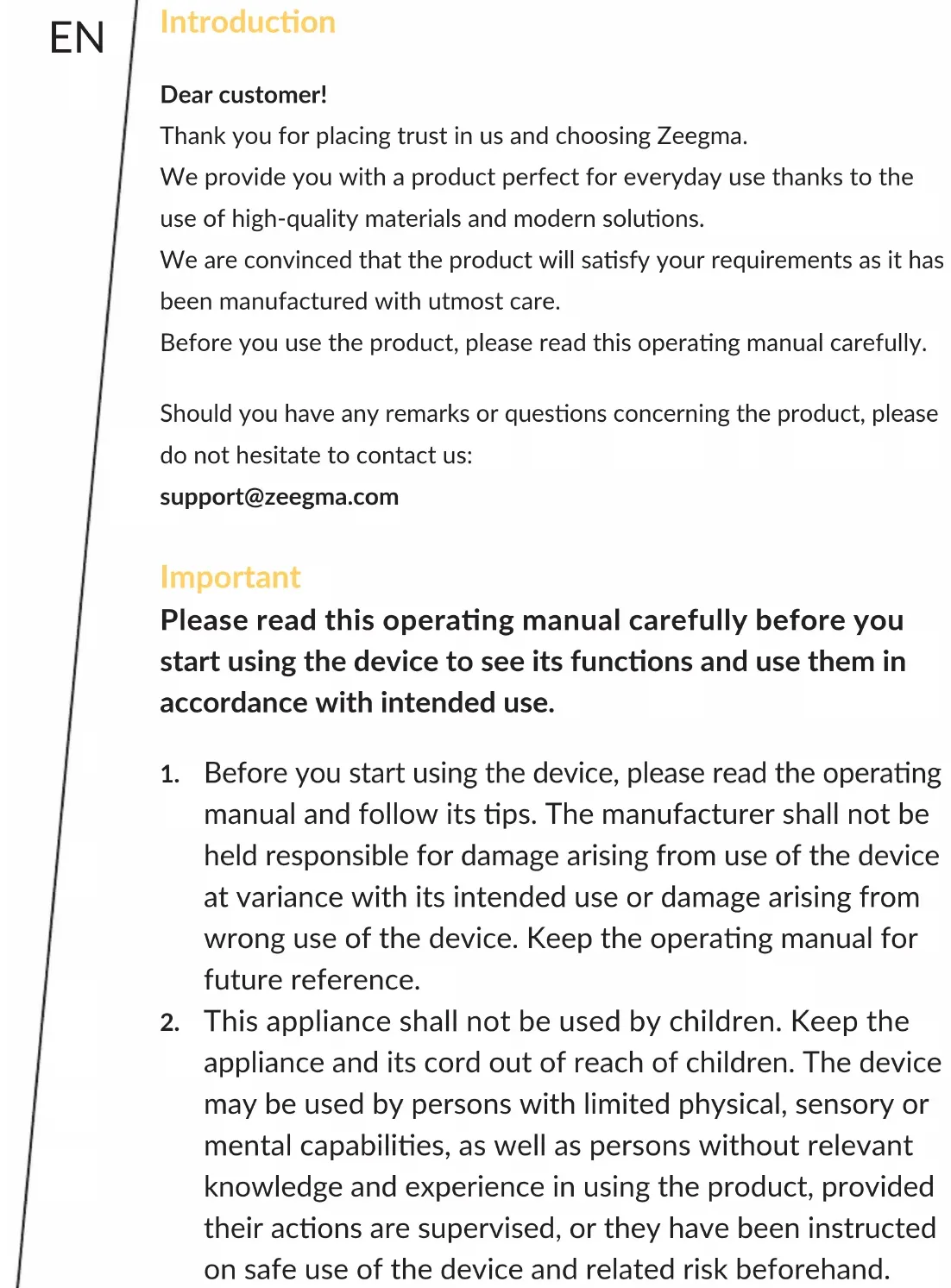

Introduction

Dear customer!

Thank you for placing trust in us and choosing Zeegma.

We provide you with a product perfect for everyday use thanks to the use of high-quality materials and modern solutions.

We are convinced that the product will satisfy your requirements as it has been manufactured with utmost care.

Before you use the product, please read this operating manual carefully.

Should you have any remarks or questions concerning the product, please do not hesitate to contact us:

[e-mail]

Important

Please read this operating manual carefully before you start using the device to see its functions and use them in accordance with intended use.

1. Before you start using the device, please read the operating manual and follow its tips. The manufacturer shall not be held responsible for damage arising from use of the device at variance with its intended use or damage arising from wrong use of the device. Keep the operating manual for future reference.

2. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. The device may be used by persons with limited physical, sensory or mental capabilities, as well as persons without relevant knowledge and experience in using the product, provided their actions are supervised, or they have been instructed on safe use of the device and related risk beforehand.

3. Please remain highly careful when using the device when children are close.

4. Make sure the electric voltage specified on the label complies with the electric voltage in your house.
5. Regularly check the device for any damage. Do not use the device if it is damaged. Do not try to repair the device on your own – contact the authorized service center. If the power cable is damaged, it must be replaced by the manufacturer to avoid hazards.
6. The device is intended for home use only. The device is not fit for use in the open air. Do not use it for other purposes than designed.
7. After use, during assembly, disassembly and cleaning, the device must be switched off and unplugged.
8. Do not let the power cable touch hot elements. Do not pull it through sharp edges.
9. Always use the device when it stands on a flat surface.
10. To avoid electric shock risk, do not immerse the power cable, plug or body of the device in water or other liquids.
11. Do not leave the operating device unattended.
12. The device should be used according to the instructions below: Blender: 1 minute of operation, 1 minute of rest, Blending tip: 30 seconds of operation, 1 minute of rest, Hook, Mixing tip, Milk frother: 5 minutes of operation, 1 minute of rest. The device should be allowed to rest for 40 minutes after 5 cycles.
13. Avoid contact with moving parts of the device. Do not place anything inside the device when it operates to avoid bodily injuries and damage to the device.

14. Remain careful when handling the blade. Be careful when handing the sharp cutting blades, emptying the bowl and during cleaning.

15. Use the device only with original accessories in accordance with their application, taking all safety measures.

16. Do not modify the device in any way.
17. Use original spare parts only.
18. Do not use the device to chop ice or blend boiling water and hard and dry substances. It may blunt the blade.
19. Before use, make sure the blending tip has been properly attached to Mini Chopper.
20. Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

CE

The product meets requirements of European Union directives.

Pursuant to the Directive 2021/19/EU, this product is subject to selective collection. Do not dispose of the product with household waste as it may harm the environment and human health. The worn-out product must be handed over to electric and electronic equipment recycling point.

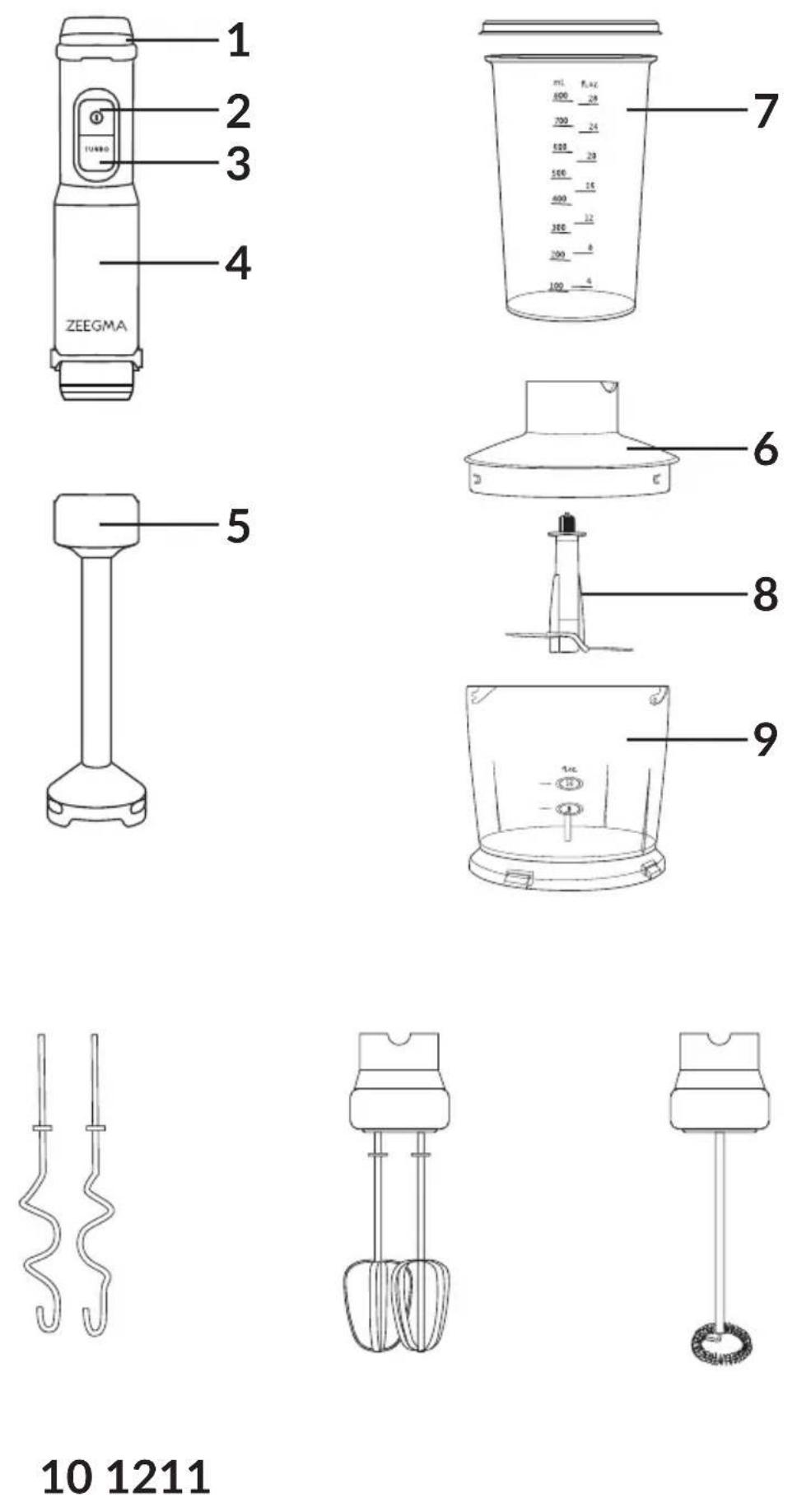

Parts list (fig. A)

1. Speed adjustment
2. On/off switch
3. Turbo mode
4. Motor body
5. Blender

6. Lid

7. Bottle with lid

8. Blending tip
9. Mini Chopper
10. Hook
11. Mixing tip
12. Milk frother

How to assemble and use

1. Fix the blender on the motor body and make sure it has been properly secured (fig. 1). Put the plug into the power socket. To remove the blending tip, press buttons on both sides.

2. Press the key and simultaneously set the desired speed.

3. Release the key to make the device stop working.

Mini Chopper

1. Place Mini Chopper on a flat surface.
2. Mount cutting blades properly in the tank of Mini Chopper (fig. 2).
3. Place ingredients in the tank of Mini Chopper.
4. Lock Mini Chopper with a lid by turning the cover in a clockwise direction.
5. Mount the body of the device in the lid until you can hear a click.
6. Make sure the maximum level has not been exceeded.
7. Press the key and simultaneously set the desired speed. Release the key to make the device stop working.
8. To reduce injury risk, never place cutting blades in the body of the device before you place them properly inside the tank of Mini Chopper.
9. Make sure the lid has been properly assembled before you use the device.

Mixing tip

1. Mount the mixing tip on the body of the device (fig. 3). If the assembly is correct, you will hear a distinctive click. Put the plug into the power socket.
2. Do not beat more than 6 eggs at a time.
3. Press the key and simultaneously set the desired speed.
4. Release the key to make the device stop working.

Cleaning and maintenance

1. Switch the device off, unplug it and detach accessories.
2. You can clean the body of the device with a wet cloth and mild cleaning agents. Do not immerse the body of the device in water or other liquids.
3. The blending tip and accessories may be cleaned under running water with the use of mild cleaning agents.

EN

1. Note: be careful when handling the blade.
2. Make sure the device and accessories are completely dry before another use.

The pictures are for reference only. The real design of the products may differ from the pictures presented.

Einleitung

DE

Detailed warranty conditions are available on the website:
