Product type	Submersible pump
Brand	Fuxtec
Model	FXSP11100 (FX-TP11100)
Power supply	230 V ~ 50 Hz
Power consumption	1100 W
Protection rating	IPX8
Max flow rate	15000 l/h
Max discharge head	11 m
Max immersion depth	7 m
Max liquid temperature	35 °C
Discharge diameter	40 mm
Max particle size	35 mm
Material	Stainless steel
Dimensions (diameter x height)	130 x 470 mm
Weight	8 kg
Cable length	10 m
Supplied hose length	10 m
Switch type	Float switch
Included accessories	Hose 10 m, hose clamps x2, transport basket
Intended use	Drainage, water transfer, clear or dirty water (max 5% solids)
Maintenance	Rinse with clean water after use, check mechanism every 3 months, protect from frost
Safety	Residual-current circuit breaker (30 mA) mandatory, do not pump corrosive or flammable liquids

Frequently Asked Questions - FXSP11100 Fuxtec

What types of water can I pump with the Fuxtec FXSP11100?

The pump is suitable for drinking water, rainwater, chlorinated water and dirty water containing up to 5% solid particles (max size 35 mm). Do not use for salt water, food, aggressive or flammable liquids.

Why won't my pump start?

Check that the pump is plugged in, the residual-current circuit breaker has not tripped and the float can move freely. If the motor makes no noise, check your electrical system.

What to do if the pump stops suddenly?

Unplug it and let it cool for 20 to 30 minutes. Check the water level (no dry running), clean the pump inlet and ensure the liquid temperature does not exceed 35°C.

How to maintain the Fuxtec submersible pump?

Rinse it with clean water after each use. In permanent installation, check the starting mechanism every three months. Protect the pump from frost and never run it dry.

What is the maximum discharge head of the FXSP11100?

The maximum discharge head is 11 meters. Flow rate decreases with height. For optimal operation, do not exceed this height.

Can I use the pump continuously?

No, this pump is not designed for continuous operation. It must not be permanently submerged under a water depth of 3 meters.

What to do if flow rate is low or there is a leak?

Clean the pump inlet and impeller. Check that the discharge hose is not blocked and has sufficient diameter. If necessary, check the check valve.

Is it mandatory to use a residual-current circuit breaker?

Yes, for safety reasons, the pump must be powered via a residual-current circuit breaker with a rated residual current of 10/30 mA, in accordance with DIN/VDE standards.

Which liquids should never be pumped with this pump?

It is forbidden to pump corrosive, flammable, explosive liquids (gasoline, kerosene, thinner), salt water, food or any liquid above 35°C.

Is the FXSP11100 pump suitable for professional use?

No, this pump is intended for private use in the home and garden. It is not designed for professional or commercial use.

USER MANUAL FXSP11100 Fuxtec

Inhalt

Manual_FX-SP11100SET_Int24_rev1

IMPORTANT: To avoid the risk of injuries, every user has to read the manual before using the tool.

1. Technical specifications

Model	FX-TP11100
TÜV-Certificate	AN 5034 8258 001
Motor	230V/50HZ
Motor Class	F
Power	1100w
Safety Class	IPX8
Max. Water Temp.	<35°C
Max. Flow High	11m
Max. Flow	15000l/h
Max. depth	7m
Max. particle size	35mm
Waterlevel Startup	130mm
Switching on height	470mm
Switching off height	40mm
Impeller qty	1
Cable	10.3mH07RN-F3G1
Pump outlet size	G11/2
Cable length	10m
Weight	8kg

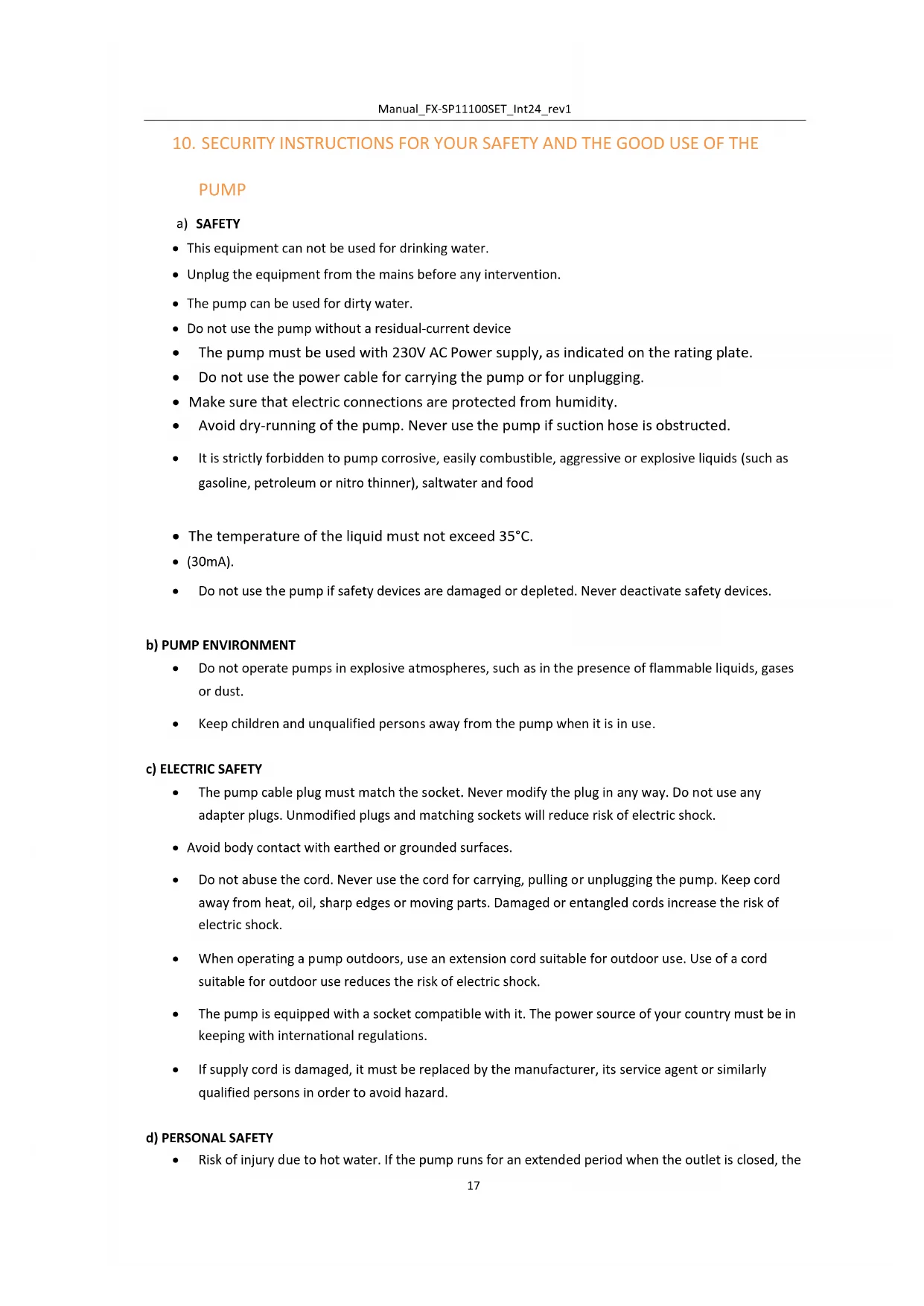

10. SECURITY INSTRUCTIONS FOR YOUR SAFETY AND THE GOOD USE OF THE

PUMP

a) SAFETY

• This equipment can not be used for drinking water.
• Unplug the equipment from the mains before any intervention.
• The pump can be used for dirty water.
• Do not use the pump without a residual-current device
• The pump must be used with 230V AC Power supply, as indicated on the rating plate.
• Do not use the power cable for carrying the pump or for unplugging.
• Make sure that electric connections are protected from humidity.
• Avoid dry-running of the pump. Never use the pump if suction hose is obstructed.
• It is strictly forbidden to pump corrosive, easily combustible, aggressive or explosive liquids (such as gasoline, petroleum or nitro thinner), saltwater and food
• The temperature of the liquid must not exceed 35°C .
  • (30mA).
• Do not use the pump if safety devices are damaged or depleted. Never deactivate safety devices.

b) PUMP ENVIRONMENT

• Do not operate pumps in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
• Keep children and unqualified persons away from the pump when it is in use.

c) ELECTRIC SAFETY

• The pump cable plug must match the socket. Never modify the plug in any way. Do not use any adapter plugs. Unmodified plugs and matching sockets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a pump outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• The pump is equipped with a socket compatible with it. The power source of your country must be in keeping with international regulations.
• If supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

d) PERSONAL SAFETY

- Risk of injury due to hot water. If the pump runs for an extended period when the outlet is closed, the

water in the pump can become heated so that hot water can emerge from the outlet and cause injuries.

• Stay alert, watch what you are doing and use common sense when operating a pump.
• Maintain your pump. If the pump is damaged, make it repair by a specialist before any use.
• Follow these instructions to use the pump, its accessories, connectors, etc... properly. The pump must be used only for its prescribed purpose. Any use other than those mentioned in this Manual will be considered a case of misuse.
• This pump is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• It is necessary to keep children under surveillance, and to make sure that they are not playing with the pump, or its power cord. Keep children away from the pump when operating.

11. SYMBOL

The pump must not be disposed of with normal household waste but must be disposed of in accordance with local environmental regulations.

Conformity with safety rules applicable in the EU market.

Read the instructions before use.

To be checked before you start

Pumps have been designed to suck clear water only.

Drain pumps have been designed to suck clear water or dirty water with particles.

The pump must be installed on a flat and solid surface.

It is not suitable for professional use (including continuous operation)

12. GETTING STARTED

1, Connect a discharge pipe with a diameter at least equal to the diameter of the pump outlet
2. Immerse the pump in the liquid to be sucked, by making an angle of 45 degrees (to reduce the amount of air trapped in the pump body). If the pump rests on the bottom, make sure it is on a flat and stable surface.
3. Make sure that no one is present in the liquid to be pumped
4. Plug the pump to the mains

13. USE AND DESTINATION OF THE PUMP

Your pump is designed for domestic use. It can be used to remove or transferring.

Your pump must not be used in following situations:

• Water temperature to be sucked > 35°C
• Continuous run (ex: fountain pump)
- Drinking water supply or washing machines for dishes supply
- Corrosive, easily combustible, aggressive or explosive liquids (such as gasoline, petroleum or nitro thinner), saltwater, oils and greases must not be pumped
• Permanent submersion under 3 meters or more water

14. ACCESSORIES

• The unit FX-TP11100: 1pc;
- Waterhose: 1pc;
- Basket: 1pc;
- Manual: 1pc

15. CARE & MAINTENANCE

• In case of temporary installation, the pump must be cleaned up with clear water after use.
• In case of permanent installation, it is necessary to check every 3 months that start mechanism is working properly (float switch or sensor).
• Regularly remove dirt that may accumulate in the sump.
• Do not expose to frost.
• Avoid dry run.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump.
• Clean the pump regularly if aspirated liquid cause sediments.

• Avoid shocks, do not let the pump fall

• TROUBLESHOOTING

Trouble	Pls check	Should do
The engine does not start and does not make noise.	Is the pump plugged?Does the pump starts when fully submerged?	Check your electrical installationCheck that the float can move freely
Pump does not deliver.	Does the impeller rotates?Is it in good condition?Is the pump inlet free?The delivery head requested exceeds the requirements of the pump or the discharge pipe is too narrow	Eliminate the reason for blockingReplace the impellerClean the pump inletUse the pump in accordance with its technical capabilitiesIncrease the pipe diameter
The pump stops suddenly	Is there a sufficient water level to suck?Did the pump run for a long time without stopping?Are you sure that the pump inlet is not obstructed?Do the power of the mains match the rating plate?Is the temperature of the liquid less than 35°C?	Disconnect the pump from the mains and let it cool for a few tens of minutesClean the pump inletUse a power supply matching the rating plateObserve the maximum allowable temperature
Flow decreases	Is the pump inlet clean?Is the impeller clean?The discharge pipe is not partially clogged?	Clean the area or areas in question (s)
Low flow or insufficient	Are you sure that the pump inlet is not obstructed?Is the impeller clean?Are you sure that the outlet pipe is not obstructed?Is the diameter of the discharge pipe enough?	Clean the zone (s) concerned and verify check valve, if applicableConnecting a pipe with a suitable diameter and suppress reduction of the water passage
