FX-GP2800 - Pump Fuxtec - Free user manual and instructions

Product type	Garden pump
Brand	Fuxtec
Model	FX-GP2800
Power	800 W
Max flow rate	3,400 l/h
Max delivery height	38 m
Max pressure	3.8 bar
Supply voltage	230 V / 50 Hz
Weight	6.0 kg
Max liquid temperature	35 °C
Max suction depth	9 m
Inlet/outlet connection	1" (threaded)
Intended uses	Watering, irrigation, transfer, pool draining, drawing from wells or tanks
Permitted liquids	Clear water, rainwater, chlorinated water
Thermal protection	Thermal protection switch with automatic restart after cooling
Housing material	Resistant plastic
Installation type	Stationary or mobile, on a flat and stable surface
Recommended maintenance	Rinse with clean water after each use in case of temporary installation; check the starting mechanism every 3 months for permanent installation
Electrical safety	Mandatory use of a 10/30 mA residual current circuit breaker and a 10 A circuit breaker
Included accessories	Connectors, gaskets, filling screw, drain plug
Warranty	See manual or manufacturer's conditions

Frequently Asked Questions - FX-GP2800 Fuxtec

What liquids can I pump with the FX-GP2800 pump?

You can pump clear water, rainwater and chlorinated water (pool). It is forbidden to pump drinking water, salt water, corrosive, flammable or explosive liquids, as well as foodstuffs.

How to prime the pump before first use?

Open the filling screw, pour water up to the mark on the pump body, then screw it back. Never let the pump run dry.

What is the maximum suction depth?

The maximum suction depth is 9 meters. If the suction height exceeds 4 m, use a suction hose with a diameter greater than 1" with a strainer and check valve.

What to do if the pump does not start?

First check the mains voltage and fuses. If the motor is blocked, clean the suction area through the rear opening of the housing. Wait for cooling if the thermal switch has tripped.

Why does the pump run but not deliver water?

Possible causes: water level too low, air in the pump body (re-prime), air suction (check seal of connections), or pressure line closed/kinked. Correct the corresponding problem.

Can I use the pump continuously?

No, the pump is not designed for continuous operation. Follow the duty cycles described in the manual to avoid overheating and premature wear.

How to maintain the pump after use?

Rinse the pump with clean water after each use in temporary installation. For permanent installation, check the starting mechanism every 3 months. Clean sediments regularly and protect the pump from frost.

What are the risks if the pump runs dry?

Running dry can destroy the pump by overheating and damage the motor. Always ensure the suction line is submerged and the pump is primed.

Is the pump protected against overheating?

Yes, the pump is equipped with a thermal protection switch that cuts the motor in case of overheating. The pump restarts automatically after cooling for about 15 to 20 minutes.

What electrical safety precautions should I take?

Use a residual current circuit breaker of 10/30 mA and a 10 A circuit breaker. Only use compliant outdoor extension cords (cross section 3x1.5 mm²). Always disconnect the pump before maintenance.

USER MANUAL FX-GP2800 Fuxtec

10.7 DECLARATION OF CONFORMITY 24

We are constantly striving to improve our products. Therefore technical data and illustrations can change

10.1 Technical data

	FX-GP1600	FX-GP2800	FX-GP2200
	230V/50HZ	230V/50HZ	230V/50HZ
	600 Watt	800 Watt	1200 Watt
	X4	X4	X4
	3.100l/h	3.400l/h	3.700l/h
	35m / 3,5bar	38m / 3,8bar	48m / 4,8bar
	76 dB(A)	77 dB(A)	77 dB(A)
	<35°C	<35°C	<35°C
	1"	1"	1"
	8m	9m	8m
	5,5kg	6,0kg	6,6kg

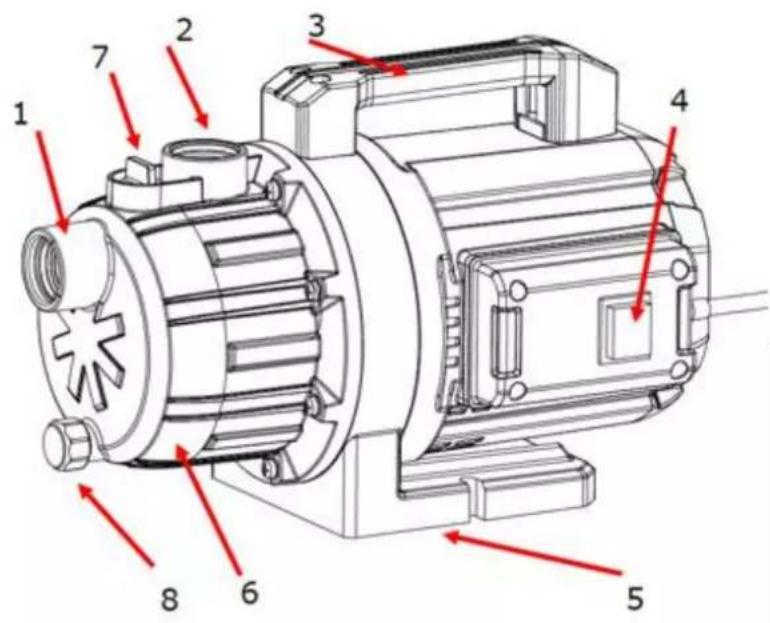

10.2 Product overview

GP1600 / GP2800

No.	Component
1	Pump inlet / suction pipe connection
2	Pump outlet / pressure pipe connection
3	Carrying handle
4	On / Off switch
5	Pump base
6	Pump housing
7	Filling plug
8	Drain plug

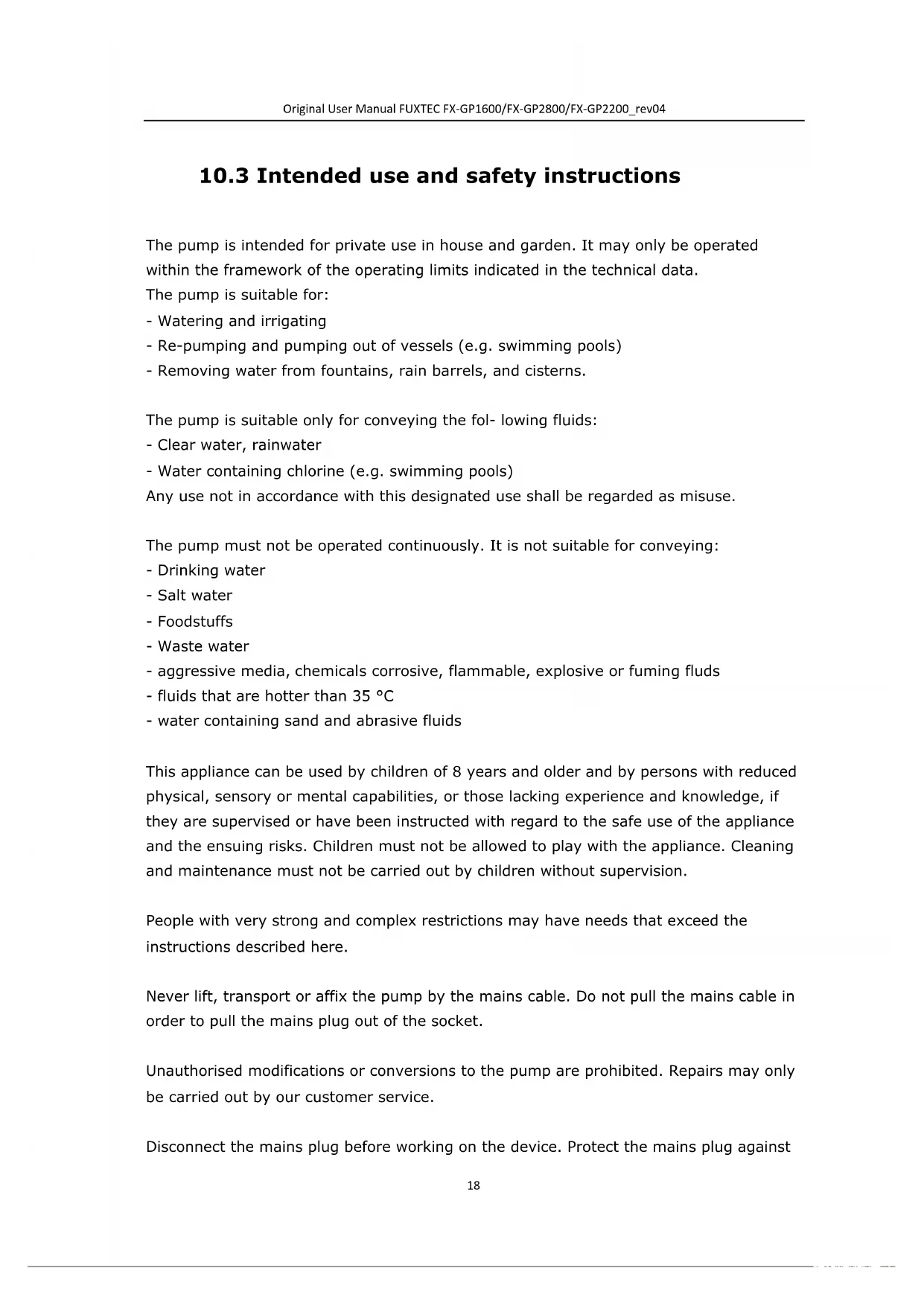

10.3 Intended use and safety instructions

The pump is intended for private use in house and garden. It may only be operated within the framework of the operating limits indicated in the technical data.

The pump is suitable for:

• Watering and irrigating
• Re-pumping and pumping out of vessels (e.g. swimming pools)
• Removing water from fountains, rain barrels, and cisterns.

The pump is suitable only for conveying the fol- lowing fluids:

• Clear water, rainwater
• Water containing chlorine (e.g. swimming pools)
  Any use not in accordance with this designated use shall be regarded as misuse.

The pump must not be operated continuously. It is not suitable for conveying:

• Drinking water
• Salt water
• Foodstuffs
• Waste water
• aggressive media, chemicals corrosive, flammable, explosive or fuming fluds
• fluids that are hotter than 35 °C
• water containing sand and abrasive fluids

This appliance can be used by children of 8 years and older and by persons with reduced physical, sensory or mental capabilities, or those lacking experience and knowledge, if they are supervised or have been instructed with regard to the safe use of the appliance and the ensuing risks. Children must not be allowed to play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

People with very strong and complex restrictions may have needs that exceed the instructions described here.

Never lift, transport or affix the pump by the mains cable. Do not pull the mains cable in order to pull the mains plug out of the socket.

Unauthorised modifications or conversions to the pump are prohibited. Repairs may only be carried out by our customer service.

Disconnect the mains plug before working on the device. Protect the mains plug against

moisture.

Only use the pump and extension cable if they are in flawless technical condition.

Damaged appliances must not be operated.

Maintain a safe distance to persons or animals or switch off the pump if animals approach.

The pump may not be operated while people are in the pool or pond.

The mains voltage at your location must comply with the information regarding mains voltage in the Technical Data. Do not use any other supply voltage.

The appliance must only be operated on electrical equipment in accordance with DIN/VDE 0100, parts 737, 738 and 702. For fuse protection, a circuit breaker of 10 A and an earth leakage circuit breaker with a rated leakage current of 10/30 mA must be installed.

Only use an extension cords which are designed for outdoor use – minimum crosssection 3 x 1.5 mm2, quality of H07RN-F as per DIN 57282/57245 with splashproof plug socket. Always fully unwind cable drums.

Damaged or fragile extension cables may not be used.

Check the condition of you extension cable prior to every use.

Note:

The pump is fitted with a thermal protection switch which switches the motor off in the event of overheating. After a coolingdown phase of approx. 15 - 20 minutes the pump switches on again automatically.

10.4 Mounting and starting the device

1. Prepare a level and sturdy installation location
2. Install the pump horizontally and where it will not be flooded

Note:

The pump must be protected from rain and direct water jets

Connect the suction line

Note:

We recommend the installation of flexible lines at the pump inlet to prevent mechanical pressure or tension being exerted on the pump.

1. Select the length of the suction line such that the pump cannot run dry. The suction line must always be at least 30 cm under the water surface.
2. Connect the suction line. Ensure that the connection is tight, but take care not to damage the thread.
3. If the water carries a small amount of sand, aprefilter must be installed between suction line and pump inlet.
4. Always lay the suction line with an upward gradient.

Note:

If the suction head is more than 4 m, a suction hose with a diameter larger than 1" must be installed.

Install pressure line

1. Screw connecting nipple (13) with round seal ring (14) into pump outlet (2).
2. Screw elbow nipple (11) with seal (12) onto connecting nipple (13) and turn the elbow nipple in the required direction.
3. Connect pressure line (10) to elbow nipple (11).
4. Open all shut-off devices (valves, spray nozzles, water tap) in the pressure line.

Operation

Important:

Danger of damage to the device. Dry running will destroy the pump!

The pump must be filled with water up to the overflow before each use so that it can draw water immediately.

• Open filling screw (8).
• Fill with water via the filling screw up to the mark on the pump housing
• Screw in the filling screws again.

Switching on

1. Open all shut-off devices (valve, spray nozzle, water cock) in the pressure line.
2. Insert the plug of the mains cable into the power socket.
3. Switch on the pump at the on / off switch.

Important:

Danger of damage to the pump! A closed pressure line can result in damage to the pump. Do not allow the pump to run against a closed pressure line.

Switching off

Switch the pump off at the on / off switch after use. Close all the shut-off devices in the pressure line.

Important:

Danger of injury from hot water. After extended use against the closed pressure side (> 10 min.), the water in the pump can become very hot and may escape uncontrolled! Disconnect the pump from the mains supply and allow the pump and water to cool down. Put the pump into operation again only after all the faults have been remedied!

The risk of injury from hot water can arise in the event of:

• Incorrect installation,
• Closed pressure side,
• Lack of water in the suction line, or
• Defective pressure switch

Procedure in case of overheating

1. Disconnect the pump from the mains supply and allow the pump and water to cool down
2. Check the pump, installation and water level.
3. Put the pump into operation again only after all the faults have been remedied!

10.5 HELP IN CASE OF MALFUNCTION

Danger of electric shock

When working on the pump, there is the risk of receiving an electric shock.

• Disconnect the mains plug before correcting any malfunctions!
• Faults in the electrical system must be rectified by a qualified electrician.

Malfunction	Possible cause	Remedy
Motor does not run.	Impeller blocked.	Remove dirt from the suction area.Clean with a suitable tool through the opening on the back of the motor housing.
	Thermal protection switch has switched off.	Wait until the thermal protection switch on the pump switches on again. Take note of the maximum temperature of the conveying medium. Have the pump inspected.
	No mains power.	Check fuses, have the power supply checked by a qualified electrician.
Pump running but does not feed.	Water level too low.	Submerge the suction hose deeper.
	Air in pump housing.	Fill the pump.
	Pump drawing in air.	Check all connections and the cover on the filter for leaks.
	Blockage on the suction side.	Caution!Risk of burns from hot water!Remove dirt from the suction area.
	Pressure line closed off.	Caution!Risk of burns from hot water!Open the pressure lone.
	Pressure hose kinked.	Extend the pressure hose.
Delivery rate too low.	Pressure hose kinked.	Extend the pressure hose.
	Hose diameter too small.	Use a hose with a bigger diameter.
	Blockage on the suction side.	Remove dirt from the suction area.
	Feed head to high.	Observe max. feed head, see tech-

Suction head too large.

nical data!Check suction head, observe max.suction head → see technical data.

10.6 Storage

1. Drain suction and pressure line.
2. Unscrew drain plug and allow the water to drain out of the pump.
3. Screw in the drain plug again and store pump and accessories in a frost-proof place.

DECLERATION OF CONFORMITY

We hereby declare

FUXTEC GMBH

KAPPSTRAße 69, 71083 HERRENBERG, GERMANY

that the device described below, by virtue of its design and construction and in the version placed on the market by us, complies with the relevant essential health and safety requirements of the EC Directives

Designation of the device:

Gartenpumpe / Garden Pump

Device:

FX-GP1600 / FX-GP2800 / FX-GP2200

Brand:

FUXTEC

Relevant EC Directives:

2014/30/EU

Applied standards:

EN 60335-1:2012

Manufacturer signature/date:

C. Jille

Leonhard Zirkler, 27th of June 2023

Name and address of the person authorised to compile the technical file established in the Company

L. Zirkler

FUXTEC GMBH - KAPPSTRAße 69, 71083 HERRENBERG,

GERMANY
