FXTP1250 - Pump Fuxtec - Free user manual and instructions

Product type	Electric submersible pump
Brand	Fuxtec
Model	FXTP1250
Power supply	230 V / 50 Hz
Power consumption	250 W
Max flow rate	6,000 l/h
Max delivery head	6 m
Max immersion depth	7 m
Max liquid temperature	35 °C
Max particle size	5 mm
Protection rating	IPX8
Cable length	10 m
Weight	4.9 kg
Dimensions (L × W)	400 × 200 mm
Diameter	130 mm
Switch type	Float switch
Application	Clean water, rainwater, chlorinated water, slightly dirty water (up to 5% suspended solids)
Included accessories	Connecting piece, universal adapter, 2 O-rings, user manual
Maintenance and cleaning	Rinse with clean water after use; every 3 months, check the float switch operation and clean the inlet
Safety	IPX8 protection, mandatory installation of a 10/30 mA residual-current circuit breaker
General information	Compliant with CE standards; do not use with aggressive, flammable liquids or liquids above 35 °C; do not run dry

Frequently Asked Questions - FXTP1250 Fuxtec

How to start the FXTP1250 pump?

Connect a discharge hose with a diameter at least equal to the outlet. Immerse the pump in the liquid at a 45° angle to reduce trapped air. Ensure no one is in the water. Plug the pump into a 230 V socket protected by a residual-current circuit breaker.

What liquids can it pump?

It is suitable for clean water, rainwater, chlorinated water, and slightly dirty water with up to 5% solid particles (max. 5 mm). Do not use with salt water, aggressive, flammable liquids, or liquids above 35 °C.

Can it run dry?

No, dry running is prohibited and can damage the pump. Always check that the pump is submerged before starting it.

How to clean and maintain the pump?

Rinse it with clean water after each use. For permanent installation, check the float mechanism every three months and remove any accumulated dirt. Protect the pump from frost.

What to do if the pump does not start?

Check that the pump is plugged in and the circuit breaker has not tripped. Ensure the float can move freely. If the problem persists, have the electrical installation checked by an electrician.

Why is the flow rate low?

Clean the pump inlet and impeller. Check that the discharge hose is not blocked or too narrow, and that the delivery head does not exceed 6 m.

Can the pump be used in a swimming pool or pond?

Yes, but only when no one is in the water. Always disconnect the pump before any intervention in the water.

What accessories are included with the pump?

The delivery includes a connecting piece, a universal adapter, two O-rings, and the user manual.

How to store the pump in winter?

Empty and clean the pump. Store it in a frost-free place, as residual water could damage it.

What to do in case of failure and where to find spare parts?

Before any intervention, disconnect the pump. Consult the troubleshooting table in the manual. For spare parts, contact Fuxtec customer service or an authorized dealer.

USER MANUAL FXTP1250 Fuxtec

POLSKA WERSJA JEZYKOWA 83

Inhalt

DEUTSCHE VERSION....6

POLSKA WERSJA JEZYKOWA 83

Technical diagram of a water pump with numbered components and labeled parts

3D rendering of a mechanical clutch or disc component with radial blades and mounting holes (no text or symbols visible)

We are pleased with your trust!

Please read these instructions for use before the first use and before every use!

Here you will find all the information you need for safe use and long service life of the device. It is imperative that you observe all safety instructions in this manual!

Please keep this manual always together with the device, so that you still have it at hand in case of doubt.

IMPORTANT: To avoid the risk of injuries, every user has to read the manual before using the tool.

FUXTEC GMBH KAPPSTRASSE 69, 71083 HERRENBERG-GÜLTSTEIN, GERMANY

9. English Version of the manual

Technical specifications:

	FX-RTP350	FX-TP1250	FX-TP1350	FX-TP1750	FX-TP11100	INOX
	230V/50HZ	230V/50HZ	230V/50HZ	230V/50HZ	230V/50HZ	230V/50HZ
	350 Watt	250 Watt	350 Watt	750 Watt	1100 Watt	1100 Watt
	IPX8	IPX8	IPX8	IPX8	IPX8	IPX8
	5200l/h	6000l/h	7500l/h	12000l/h	15000l/h	15000l/h
	11m	6m	6m	9,5m	11m	11m
	7m	7m	7m	7m	7m	7m
	<35°C	<35°C	<35°C	<35°C	<35°C	<35°C
	5mm	5mm	20mm	30mm	35mm	35mm
	400mm200mm	400mm200mm	400mm200mm	400mm200mm	470mm40mm	470mm40mm
	130mm	130mm	130mm	130mm	130mm	130mm
	10m	10m	10m	10m	10m	10m
	4,3kg	4,9kg	4,9kg	5,6kg	7,3kg	7,8kg

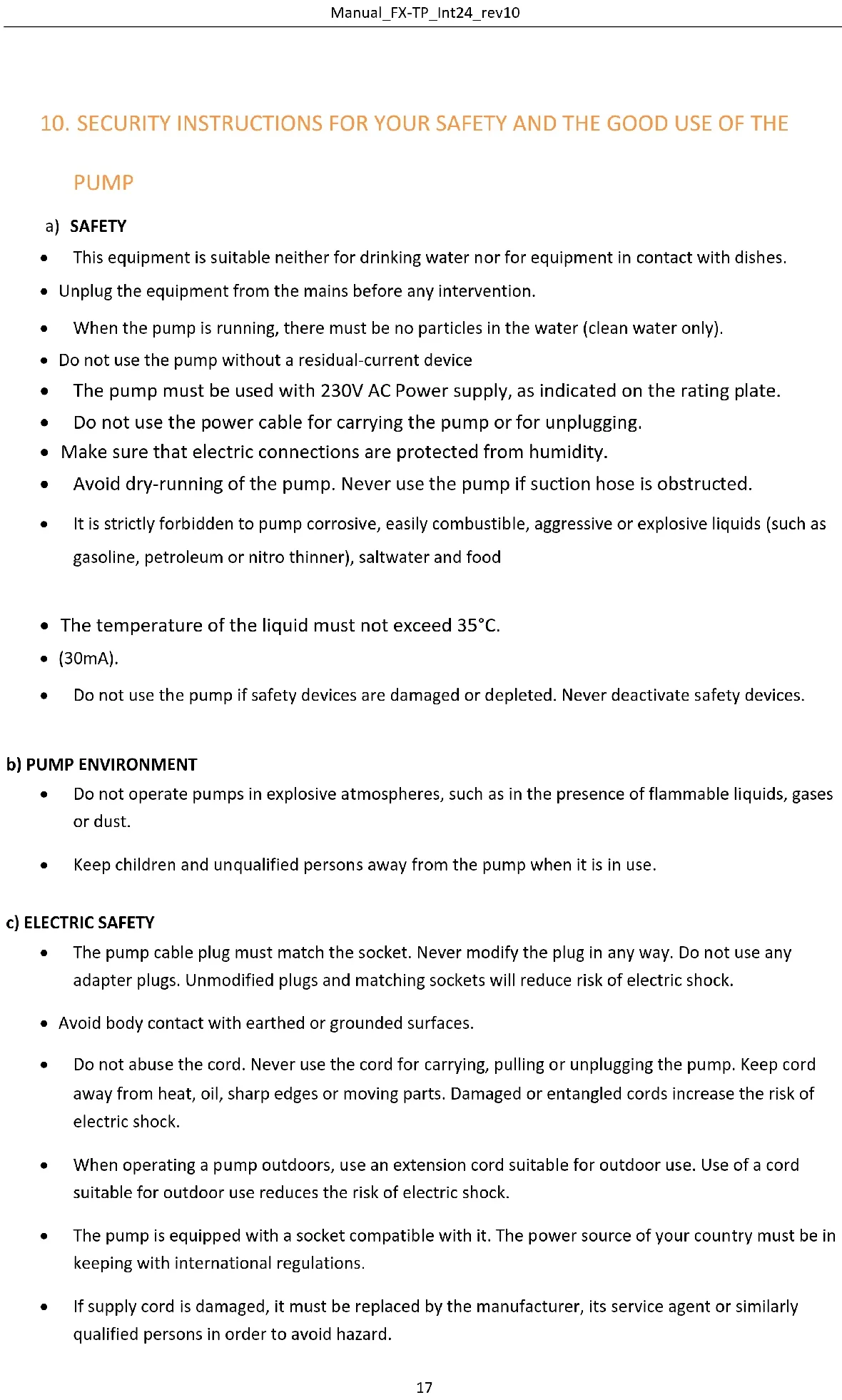

10. SECURITY INSTRUCTIONS FOR YOUR SAFETY AND THE GOOD USE OF THE

PUMP

a) SAFETY

• This equipment is suitable neither for drinking water nor for equipment in contact with dishes.
• Unplug the equipment from the mains before any intervention.
• When the pump is running, there must be no particles in the water (clean water only).
• Do not use the pump without a residual-current device
• The pump must be used with 230V AC Power supply, as indicated on the rating plate.
• Do not use the power cable for carrying the pump or for unplugging.
• Make sure that electric connections are protected from humidity.
• Avoid dry-running of the pump. Never use the pump if suction hose is obstructed.
• It is strictly forbidden to pump corrosive, easily combustible, aggressive or explosive liquids (such as gasoline, petroleum or nitro thinner), saltwater and food

- The temperature of the liquid must not exceed 35^ .

• (30mA).

- Do not use the pump if safety devices are damaged or depleted. Never deactivate safety devices.

b) PUMP ENVIRONMENT

• Do not operate pumps in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
• Keep children and unqualified persons away from the pump when it is in use.

c) ELECTRIC SAFETY

- The pump cable plug must match the socket. Never modify the plug in any way. Do not use any adapter plugs. Unmodified plugs and matching sockets will reduce risk of electric shock.

- Avoid body contact with earthed or grounded surfaces.

- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

- When operating a pump outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

- The pump is equipped with a socket compatible with it. The power source of your country must be in keeping with international regulations.

- If supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

d) PERSONAL SAFETY

• Risk of injury due to hot water. If the pump runs for an extended period when the outlet is closed, the water in the pump can become heated so that hot water can emerge from the outlet and cause injuries.
• Stay alert, watch what you are doing and use common sense when operating a pump.
• Maintain your pump. If the pump is damaged, make it repair by a specialist before any use.
• Follow these instructions to use the pump, its accessories, connectors, etc... properly. The pump must be used only for its prescribed purpose. Any use other than those mentioned in this Manual will be considered a case of misuse.
• This pump is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• It is necessary to keep children under surveillance, and to make sure that they are not playing with the pump, or its power cord. Keep children away from the pump when operating.

SYMBOL

The pump must not be disposed of with normal household waste but must be disposed of in accordance with local environmental regulations.

Conformity with safety rules applicable in the EU market.

Read the instructions before use.

To be checked before you start

Pumps have been designed to suck clear water only.

Drain pumps have been designed to suck clear water or dirty water with particles.

The pump must be installed on a flat and solid surface.

It is not suitable for professional use (including continuous operation)

11. GETTING STARTED

1, Connect a discharge pipe with a diameter at least equal to the diameter of the pump outlet
2. Immerse the pump in the liquid to be sucked, by making an angle of 45 degrees (to reduce the amount of air trapped in the pump body). If the pump rests on the bottom, make sure it is on a flat and stable surface.
3. Make sure that no one is present in the liquid to be pumped

4. Plug the pump to the mains

USE AND DESTINATION OF THE PUMP

Your pump is designed for domestic use. It can be used to remove or transferring.

Your pump must not be used in following situations:

• Water temperature to be sucked > 35°C
• Continuous run (ex: fountain pump)
- Drinking water supply or washing machines for dishes supply
- Corrosive, easily combustible, aggressive or explosive liquids (such as gasoline, petroleum or nitro thinner), saltwater, oils and greases must not be pumped
• Permanent submersion under 3 meters or more water

12. ACCESSORIES

• Connector: 1pc;
  • Universal Fitting: 1pc;
• O-ring: 2pcs;
• Manual: 1pc

13. USE AND DESTINATION OF THE PUMP

Your pump is designed for domestic use. It can be used to remove or transferring.

Your pump must not be used in following situations:

• Water temperature to be sucked > 35°C
• Continuous run (ex: fountain pump)
- Drinking water supply or washing machines for dishes supply
- Corrosive, easily combustible, aggressive or explosive liquids (such as gasoline, petroleum or nitro thinner), saltwater, oils and greases must not be pumped
• Permanent submersion under 3 meters or more water

14. CARE & MAINTENANCE

• In case of temporary installation, the pump must be cleaned up with clear water after use.
• In case of permanent installation, it is necessary to check every 3 months that start mechanism is working properly (float switch or sensor).
• Regularly remove dirt that may accumulate in the sump.
• Do not expose to frost.
• Avoid dry run.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump.
• Clean the pump regularly if aspirated liquid cause sediments.

- Avoid shocks, do not let the pump fall

TROUBLESHOOTING

Trouble	PIs check	Should do
The engine does not start and does not make noise.	Is the pump plugged?Does the pump starts when fully submerged?	Check your electrical installationCheck that the float can move freely
Pump does not deliver.	Does the impeller rotates?Is it in good condition?Is the pump inlet free?The delivery head requested exceeds the requirements of the pump or the discharge pipe is too narrow	Eliminate the reason for blockingReplace the impellerClean the pump inletUse the pump in accordance with its technical capabilitiesIncrease the pipe diameter
The pump stops suddenly	Is there a sufficient water level to suck?Did the pump run for a long time without stopping?Are you sure that the pump inlet is not obstructed?Do the power of the mains match the rating plate?Is the temperature of the liquid less than 35°C?	Disconnect the pump from the mains and let it cool for a few tens of minutesClean the pump inletUse a power supply matching the rating plateObserve the maximum allowable temperature
Flow decreases	Is the pump inlet clean?Is the impeller clean?The discharge pipe is not partially clogged?	Clean the area or areas in question (s)
Low flow or insufficient	Are you sure that the pump inlet is not obstructed?Is the impeller clean?Are you sure that the outlet pipe is not obstructed?Is the diameter of the discharge pipe enough?	Clean the zone (s) concerned and verify check valve, if applicableConnecting a pipe with a suitable diameter and suppress reduction of the water passage

15. EU CERTIFICATE OF CONFORMITY

L. Zirkler, 18th of July .2023

Technical diagram of a water pump with numbered components and labeled parts

Simple line drawing of a mechanical pump or motor (no text or symbols)

3D rendering of a mechanical component with radial slots and mounting holes (no text or symbols visible)

L. Zirkler, 18.72.2023

Technical diagram of a water pump with numbered components and labeled parts

3D rendering of a mechanical component with radial slots and mounting holes (no visible text or symbols)

Technical diagram of a water pump with numbered components and labeled parts

3D rendering of a mechanical component with circular and radial features (no visible text or symbols)

Technical diagram of a water pump with numbered components and labeled parts

3D rendering of a mechanical component with radial slots and mounting holes (no text or symbols visible)

Technical diagram of a water pump with numbered components and labeled parts

3D rendering of a mechanical component with radial slots and mounting holes (no text or symbols visible)

Technical diagram of a water level sensor with numbered components labeled 1 through 9

3D rendering of a mechanical component with radial slots and mounting holes (no text or symbols visible)
