Product Type	Basic Smartphone
Brand	OK
Model	OMP 50
Dimensions	91 x 48 x 21 mm
Weight	73.5 g (with battery)
Power Supply	Lithium-Ion battery 3.7 V, 500 mAh (BL-4C) ; charger 5 V, 1 A
GSM Frequencies	GSM 900/1800 dual band
Display	Color display (size unspecified)
Camera	Built-in camera (resolution unspecified)
Storage	microSD card up to 32 GB (not included)
Main Functions	Calls, SMS/MMS, phonebook, FM radio, audio/video player, voice recorder, alarm, calculator, calendar
Connectivity	Micro-USB, 3.5 mm headphone jack, Bluetooth (not explicitly mentioned, but likely)
Talk time	Up to 10 hours
Standby time	Up to 216 hours
Maintenance and Cleaning	Clean with a damp cloth without solvents; avoid moisture
Safety	Do not expose to water or extreme temperatures; use only the provided charger; do not disassemble
Spare parts and repairability	Removable battery; repair by qualified technician; contact customer service
General Information	Multi-language manual; compliant with directive 2014/53/EU

Frequently Asked Questions - OMP 50 OK

How to turn the phone on or off?

Press and hold the End call key for approximately 3 seconds to turn the device on or off.

How to answer an incoming call?

Press the Call key (green key) to answer a call.

How to lock the keypad?

Press the * key then immediately the Lock key (often the down navigation key) to lock. To unlock, press the unlock key then *.

Which SIM card to use?

The phone accepts a standard SIM card (normal size) in the designated slot.

How to insert a memory card?

Remove the back cover, then slide a microSD card (up to 32 GB) into the designated slot, contacts facing down.

Is the battery removable?

Yes, the battery is removable. Remove the back cover to access it.

How to set the date and time?

Go to Menu > Settings > Phone settings > Date & time.

How to listen to FM radio?

Plug in the headphones (they serve as an antenna), select FM Radio in the menu, then start auto search for stations.

What to do if the phone does not turn on?

Check if the battery is charged. Connect the charger and let it charge for at least 30 minutes. If still off, contact customer service.

How to reset the phone to factory settings?

Go to Menu > Settings > Phone settings > Restore factory settings. The default code is 1234.

USER MANUAL OMP 50 OK

M_OWPS0_180917_VOS_A_HR.in 217019 428 pm

HERZLICHEN GLÜCKWUNSCH!

Q. Micro-USB-Ladebuchse

8

SyMBOLE IM DISPLAYy

③ Audio player (Audio Player):

④ Video player (Video Player):

(TX),1805.2 - 1879.8 MHz (RX)

Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. Read this user guide carefully before first use. It contains important safety information as well as instructions for the use and care of the device. Save the guide for later reference and include it with the device when transferring it to a third party.
2. To avoid dangerous situations, do not use device for any purpose other than those described in the instructions. Improper use is dangerous and voids the warranty.
3. This product is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the product.
4. Children should be supervised to ensure that they do not play with the product.
5. The product shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product.
6. Care should be taken so that no objects or liquids enter the enclosure through openings.
7. No naked flame sources, such as lit candles, should be placed on the product.
8. Only use the provided adaptor to charge the product.

9. The adaptor power plug is used as the disconnect device; the disconnect device shall remain readily operable. To completely disconnect the power input, disconnect the adaptor power plug.

10. DANGER! Excessive sound pressure from

earphones and headphones can cause hearing loss. If you listen to loud music for a long time, your hearing may be impaired. Set to a moderate

volume.

1. Caution! There is danger of explosion from improper replacement of the battery. Replace battery only with the same or equivalent type of battery.

2. Never expose rechargeable batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.

3. Never damage the rechargeable battery. Damaging the casing of the rechargeable battery might cause an explosion or a fire!

4. Never short-circuit the contacts of the rechargeable battery. Do not throw the rechargeable battery or the product into fire. There is a danger of fire and explosion!

5. Charge the rechargeable battery regularly, even if you are not using the product. Due to the rechargeable battery technology being used, you do not need to discharge the rechargeable battery first.

6. Never charge the rechargeable battery of the product unattended.

7. Remove the batteries from the product before disposal.

8. Use only under normal room conditions (temperature and humidity).

9. The product is intended to be used in moderate climates only. Do not use in tropical or very humid climates.

10. Do not move the product from cold into warm environments and vice versa. Condensation can damage the product and electric components.

11. The use of accessories and parts not specifically recommended by the manufacturer may cause injuries or damages and will result in forfeiture of the warranty.

12. Do not touch, press or rub the surface of the product with sharp or hard objects

EN

24

1. To reduce the risk of fire or electric shock, do not expose the device to rain or humidity.

2. Never immerse electric parts of the product in water or other liquids while cleaning or using it. Never place the product under running water.

3. Do not place the product in the vicinity of devices producing strong magnetic fields (for example motors, loudspeakers, transformers).

4. Do not expose the product to direct sunlight, humidity, dirt, hot light sources or strong magnetic fields. Do not expose the product to high temperatures and strong vibrations and avoid high mechanical stress.

5. If the product shows damages, do not use it any longer and have it repaired by a qualified technician, or contact our customer service department. Do not disassemble the product, and do not try to repair it yourself.

6. Attention! In the event of a malfunction as a result of electrostatic discharge and momentary electrical surges, unplug the appliance and plug it in again or remove the batteries and install it again.

INTENDED USE

This product is only suitable for making and receiving calls within a mobile phone network. Any other use can lead to damage to the product or personal injury.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

CONTROLS AND COMPONENTS

A. 3.5 mm headphone jack

B. Speaker

C. Display

D. Navigation/ Enter/OK key

E. Camera

F. Pick up call/function key

G. Numbering block

H. Adaptor

I. End call/ ON/OFF/ function key

J. Charging cable with Micro-USB plug

K. Microphone

L. Battery compartment

M. Cover

N. Battery

O. Memory card slot

P. SIM card slot

Q. Micro-USB-charging jack

EN

26

DISPLAYED SyMBOLS

	Network's signal strength
	Battery's charging status
	New SMS
	Alarm set and activated
	Ringtone deactivated

BEFORE FIRST TIME USE

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages.

Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

Before it is used for the first time your mobile phone must be assembled and the battery must be fully charged. Follow the directions in the following section in that regard.

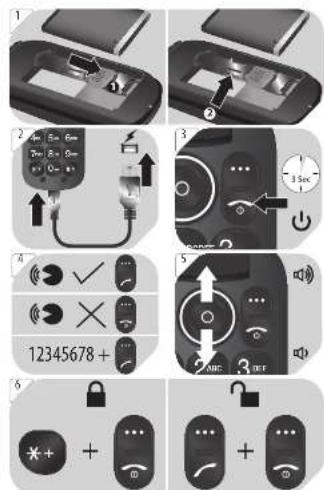

INSERTING THE SIM CARD AND THE BATTERY

Remove the cover from the back.

Slide a SIM card (1) into the appropriate slot. If you wish, slide a memory card (2) into the appropriate slot. Insert the battery provided. Make sure that the contacts are located on the correct side. Re-attach the cover of the phone.

CHARGING THE BATTERY

2 Connect the charger and the plug-in power supply unit with the USB cable. Connect the supply unit to an outlet. Connect the micro USB charging plug to the micro USB socket. Note: Before the device is used for the first time, the battery must be charged for 8 hours. The average charging time of an empty battery amounts to 3 hours.

OPERATION

Switching it Off/On

3 Hold the Ⓤ key down for approx. 3 seconds, in order to switch the mobile phone on or off.

Call and Hang up key

4 Accepting a call In order to accept an incoming call, press the √ key.

Declining / Ending a call

In order to decline an incoming call, or to end a conversation, press the Ⓤ key.

Calling

Enter the number with the number keys and press the √ key.

Volume

5 You can change the talk volume during the telephone call by means of the navigation 🔒 key.

EN

Locking keys

• Press the * key and then immediately press the Lock key in order to lock the keypad.
• If the keypad is locked, press the unlock key and then immediately press the OK in order to unlock the keypad. If the display is switched off, press any key before hand in order to activate the display.

Caution! If the keypad is locked, only emergency calls can be made with the number 112.

CONFIGURING MENU SETTINGS

The menu can be called up by pressing the right function key when Menu appears on the display. To navigate (up/down/right/left), press the navigation key. In order to select a menu item, press the left function key when OK appears on the display. The following items can be selected below:

• Contacts
• Messages
• Call logs
• Multimedia
• FM radio
• Organiser
• Settings

Contacts

Options (Choose one contact)

1. To search for a name, insert the name into the search field by using the number keys. Alternatively, you can scroll through the entries also with the navigation key up / down.
2. If you found the desired contact, press the call button to make a call.

For more options, press the Options button. In the submenu the following options are available:

① New

Add a new phone number to the phone book record. Choose the storage mode for SIM cards or cell phones.

② View contact:

View contact details

③ Edit:

Edit selected contact.

④ Write message:

Select a contact, send SMS.

⑤ Call:

To dial selected contact.

⑥ Delete:

Delete selected contact.

⑦ Delete multiple:

Delete selected several contacts.

⑧ Copy:

Copy contacts to phone from SIM.

⑨ Others:

- Kinship number:

Set selected contact as speed dial on * or # button.

- Speed dial:

Set selected contact as speed dial on button 2-9.

- Memory status:

Display the storage status for phone and SIM card.

EN

30

Messages

① Write message:

1. New SMS

Choose this menu to write a new SMS

1) Send:

Select the recipient to send the message.

2) Insert template:

Insert phone SMS template (you can customize message templates).

3) Add contact info:

Insert a contact to the recipient list

4) Add phiz:

Insert phiz as needed here.

5) Save as draft:

Save edited SMS into draft box.

6) Exit:

Quit SMS edit interface.

2. New MMS

Follow the on screen instruction to write a new MMS. You can attach a picture, audio or video file to the MMS.

Symbol Function
	Enter receiver or select from contacts.
	Insert subject line
TEXT Insert text message
	Attach pictures
	Attach audio files
	Add pages

② Inbox:

View messages that have been received.

③ Outbox:

View SMS which are not sent yet.

④ Drafts:

View SMS saved in the draft box.

⑤ Sentbox:

View sent SMS.

⑥ Templates:

View SMS templates.

⑦ Voice mail server:

Manage voice mail messages (please contact your provider to check this service settings)

⑧ Message settings:

Set SMS style

⑨ Message capacity:

View SMS storage status for SIM and Phone.

Call logs

① Missed calls:

You can view all missed calls.

② Dialed calls:

You can view all dialed numbers.

③ Received calls:

You can view all received calls.

④ Rejected calls:

You can view all rejected calls.

⑤ Delete all:

Delete all call logs.

⑥ Call timers:

Record the time of the last call, the total time of dialed, received calls and a chronology of all calls.

EN

32

⑦ GPRS counter

Count the internet data usage (For actual data usage, please check with your service provider).

Multimedia

Multimedia functions

Key/button Function
	Take photo, start a recording or video playback.

Note:

• The phone provides a small built-in memory to save pictures which can be used as a wallpaper in the standby menu or as a contact photo.
• If you want to make further use of multimedia functions, it is necessary to insert a micro SD card up to 32 GB (not supplied) to save the contents.

① Camera:

Press the navigation key to take pictures when entering camera mode.

② Video Recorder:

Press the camera button to shoot a video when entering camera mode, then refer to the related menu for other options.

Note: it is necessary to insert micro a SD card before shooting a video.

③ Audio player:

Create a folder with a name chosen by you in the memory card and copy some MP3 files into it.

Note: Audio player can only playback music from an inserted micro SD card.

④ Video player:

This function allows to playback videos in "3gp" format that are saved on the inserted micro SD card (not supplied).

⑤ Voice Recorder:

Allows to make voice recordings through the built-in microphone.

FM radio

When you select radio you will be prompted to plug in the earphones. Activate the automatic search. After the scanning is completed, the searched channels are stored. In the options menu you will find all functions related to FM Radio. Follow the instructions on the display for all items.

Organiser

① My files:

Manage all the files on the phone or memory card. Use the options menu to display all the available actions.

② Calendar:

View calendar and create schedule.

③ Calculator:

Use calculator by pressing digits directly and use up/down keys to modify the operation type.

④ Alarm:

Create up to 3 alarms with preferred settings.

⑤ STK:

Discover all the services stored on SIM card by the SIM card provider.

EN

34

Settings

① Call settings

1) Call Divert: Switch on this setting for immediate forwarding of calls.
2) Call Waiting: Setting behaviour if there is a further call during a conversation.
3) Call barring: Set up the blockage of outgoing and incoming calls
4) Hide ID: Set to display or hide the own phone number on the receiver's phone display when calling.
5) Flight mode: Activate/deactivate flight mode.

Note: You may contact with your local operator first in order to use some functions.

② Phone settings

1) Date & time: Setting time/date format
2) Language settings: Setting menu display and input language
3) Shortcuts settings: Setting shortcut feature to enter certain menu with up/down keys.
4) Auto power on/off: Setting of phone automatically power on or off on specified time.
5) Restore factory setting: Restore factory setting and erase all saved data. The code is 1234.

③ Display

Following settings can be set here:

• Animation effect
• Wallpaper
• Display (time/date + SIM card)
• Contrast
• Backlight
• Key backlight

Select setting with Up/Down key and confirm with OK.

④ Security

Changing security settings such as turn on/off PIN/PUK (PUK2), change PIN code, turn on/off Phone lock and change phone password etc.

⑤ Profiles

1) Ring type:

Set incoming call mode: only ringtone, only vibration, silent or ringtone and vibrate.

2) Ring settings:

Set different ringtone and SMS tone.

3) Adjust volume:

Set different level of volume for incoming call, Message and Alarm etc.

4) Other alert rings:

Set other tones: Key tone, Battery low alert, Dial tone, Close flip tone, Open flip tone.

⑥ Connections:

Select automatically or manually networks.

EN

CLEANING AND CARE

- Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

- Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly. Make sure that no water enters the product interior (for example, through the interfaces).

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible	causes Solution
Product does not function	Battery empty · Recharge batteries
Cannot make/receive calls	No network connectionSIM card not correctly insert	Make a search for networkRe-insert the SIM card
No ringtone · Ringtone set to off mode		Set ringtone to ON
Cannot take pictures, video or voice record	Internal memory is fullMemory card is full	Delete some old filesReplace a new memory card

DECLARATION OF CONFORMITY

Hereby, [Imtron GmbH] declares that the radio equipment type OMP 50 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://de.ok-online.com/nc/de/suche.html

TECHNICAL DATA

GSM Standard : 900/1800 Dualband

Frequency range : E-GSM900: 880.2 - 914.8 MHz (TX),

925.2 - 959.8 MHz (RX)

DCS1800: 1710.2 - 1784.8 MHz (TX),

1805.2 - 1879.8 MHz (RX)

Max. radio frequency power transmitted:

GSM900:33 dBm ± 2 dB

GSM1800:30 dBm ± 2 dB

Battery (ShenZhen Utility : Lithium Ion, 3.7 V ---/ 500 mAh

Power Source Co., Ltd.) BL-4C

Max. talk time : 10 hrs.

Period of availability : 216 hrs.

USB connection : Micro USB

FM radio : 87 - 108 MHz

Measurements : 91 x 48 x 21 mm

MicroSD card : Support up to 32 GB

Weight : 73.5 g (with battery)

Plug in network supply and charger

(Shenzhen Baijunda Electronic Co., Ltd.): UT-133E-5100

Prim./sec nominal voltage Input: 100-240 V\~, 50/60 Hz, 0.2 A

Output: 5.0 V = 1 A

Protection class : II

EN

DISPOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product.

ENHORABUENA

⑥ Connections (Conexiones):

① Camera (Appareil photo):

⑥ Connections (Connexions):

DÉCLARATION DE CONFORMITÉ

'Εξοδος: 5,0 V = =, 1 A

① Camera (Telecamera):

③ Audio player (Lettore audio):

③ Calculator (Calcolatrice):

⑥ Connections (Collegamenti):
