ST30PE - Fan STANLEY - Free user manual and instructions

Brand	Stanley
Model	ST30PE (ST-30P-E)
Product type	Pedestal fan
Blade diameter	76.2 cm (30 inches)
Adjustable height	Yes, telescopic rod
Power supply	220-240 V, 50 Hz
Power consumption	118.3 W
Max airflow	143.7 m³/min
Max air speed	1.49 m/s
Sound power level	83.4 dB(A)
Seasonal consumption	37.9 kWh/year
Service value	1.21 (m³/min)/W
Number of speeds	3 (estimated)
Tiltable head	Yes
Weight (estimated)	6 kg
Material	Metal and plastic
Safety	Protection grids, grounding, automatic shutdown not mentioned
Cleaning	Disconnect before cleaning, soft cloth
Spare parts	Available through after-sales service
Warranty	Not specified, contact customer service

Frequently Asked Questions - ST30PE STANLEY

How to assemble the ST30PE fan?

Place the base on a flat surface. Mount the lower rod with the spring and seat. Screw the flange screws. Insert the upper rod into the lower rod and adjust the height. Fix the motor unit onto the connector of the upper rod with the hinge pin, nut, and washer. Mount the rear grille, then the blades, then the front grille.

What type of electrical plug is needed?

The fan requires a grounded (three-pin) power outlet with a voltage of 220-240 V and a frequency of 50 Hz.

How to adjust the fan height?

Loosen the knob of the locking collar on the rod. Pull or push the upper rod to achieve the desired height, then retighten the knob.

Can the fan oscillate?

The manual does not mention an oscillation function for this model. It is possible to tilt the head manually by loosening the adjustment screw on the motor support.

How to clean the fan?

Always unplug the fan before cleaning. Use a soft, dry or slightly damp cloth. Do not use solvents. The grilles can be removed for more thorough cleaning.

What to do if the fan does not start?

Check that the plug is properly inserted and the cord is not damaged. Make sure the fan is turned on. If the problem persists, contact an authorized service center.

Can I use the fan with an extension cord?

Yes, only use a certified extension cord of appropriate rating (min 15 A) with a three-prong plug. Do not route the cord under a carpet.

Is the fan suitable for outdoor use?

No, this fan is designed for indoor use only. Do not expose it to water or rain.

How to disassemble the blades for cleaning?

Unplug the fan. Detach the front grille by unclipping the fasteners. Loosen the screw on the blade unit using the provided hex key, then remove the blade unit from the shaft.

Where to find spare parts?

Contact Stanley after-sales service in your country (contact details at the end of the manual). Have the model number ST30PE ready.

USER MANUAL ST30PE STANLEY

© 2020, Obelis S.A Registered Address:

Pinnacle Climate Technologies, Inc.

Sauk Rapids, MN 56379 USA

Obelis S.A.

Registered Address:

Bd.Général Wahis,53

1030 Brussels, Belgium

© 2020 Stanley Black & Decker, Inc.

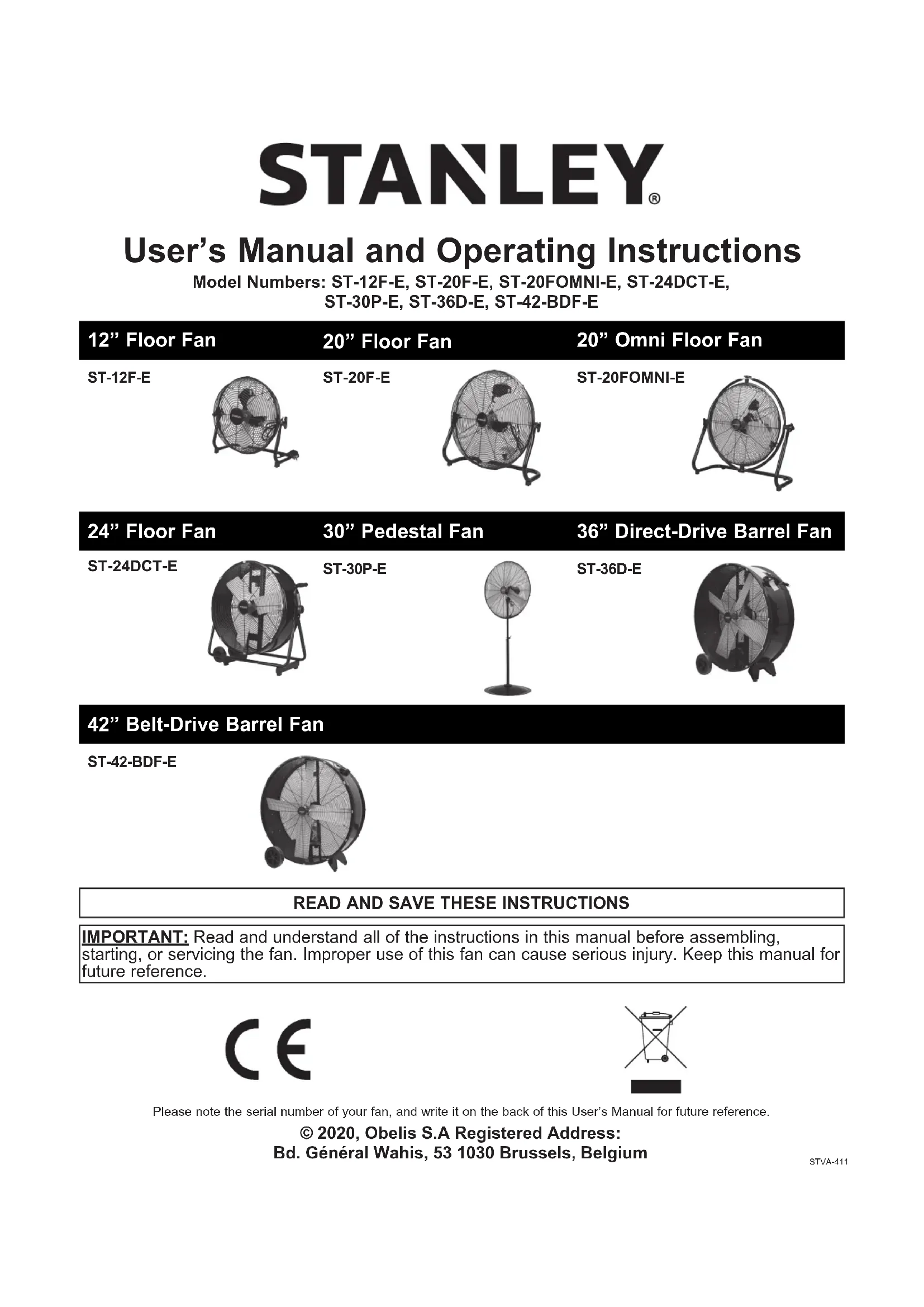

STANLEY

User's Manual and Operating Instructions

Model Numbers: ST-12F-E, ST-20F-E, ST-20FOMNI-E, ST-24DCT-E,

ST-30P-E, ST-36D-E, ST-42-BDF-E

12” Floor Fan	20” Floor Fan	20” Omni Floor Fan
ST-12F-E	ST-20F-E	ST-20FOMNI-E

24” Floor Fan	30” Pedestal Fan	36” Direct-Drive Barrel Fan
ST-24DCT-E	ST-30P-E	ST-36D-E

42" Belt-Drive Barrel Fan

ST-42-BDF-E

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT: Read and understand all of the instructions in this manual before assembling, starting, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for future reference.

C E

Please note the serial number of your fan, and write it on the back of this User's Manual for future reference.

© 2020, Obelis S.A Registered Address:

For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive

Materials And Vapors. Never use the fan in spaces which contain products such as gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles, or any unknown chemicals.

WARNING

Do not operate any fan with a damaged cord or plug.

Discard fan or return to an authorized service facility for examination and/or repair.

Do not run under carpeting.

Do not cover with throw rugs, runners, or similar coverings.

Do not route cord under furniture or appliances.

Arrange cord away from traffic area where it will not be tripped over.

To reduce the risk of electric shock, do not expose to water/rain or use in damp locations.

CAUTION

To reduce risk of fire and to properly exhaust air, be sure to duct air outside.

Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.

WARNING

THIS IS A FAN - NOT A TOY! TO REDUCE THE RISK OF PERSONAL INJURY

WHERE SMALL CHILDREN CAN REACH IT.

WARNING

To guard against electric shock while operating, do not allow fan to come in contact

WARNING

Risk of fire, electric shock, or personal injury when performing service or mainte

Finance. Unplug or disconnect the fan from the power supply before servicing.

WARNING

CAUTION Automatically Operated Device - To Reduce The Risk Of Injury

Disconnect From Power Source Before Servicing

WARNING

To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid

State Speed Control Device.

WARNING

To Reduce The Risk Of Electric Shock And Injury To Persons, Do Not Use In a

Window.

Safety Information

WARNING

To Reduce The Risk Of Electric Shock, Do Not Expose To Water Or Rain or use in damp locations.

WARNING

Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. Do not run cord under carcover cord with throw rugs , runner, or similar coverings. Do not route cord under fnces. Arrange cord away from traffic areas and where it will not be tripped over.

WARNING

Installation work and electrical wiring must be done by qualified person (s) in accordance with all applicable codes and regulations.

WARNING

When servicing or replacing a component requires the removal or disconnection of a safety device, the safety device is to be reinstalled or remounted as previously operating this fan.

WARNING

Use this fan only in the manner intended by the manufacturer.

Before operating always check fan for loose or damaged parts. Inspect power cord for any damage. Never use fan if any parts are damaged or missing. Never use fan without safety guards attached.
- Operate only on 220-240 volt, 50Hz (cycle) current with a minimum of a 15 amp circuit.
- When used with an extension cord, use only cord of proper size (Amp rating), UL listed, and with receptacle to accept three prong grounded plug furnished on the fan's power cord. Always keep power cord and extension cords away from heat, oil, and sharp edges. Inspect cords periodically and replace if damaged.

Installation and Assembly

ST-12F-E / ST-20F-E / ST-20FOMNI-E / ST-24DCT-E

1. Place the fan on level ground in a safe, desired position then connect to an approved power source.

ST-36D-E/ST-42-BDF-E

1. Slide wheel axle through wheel support frame.
2. Slide one (1) wheel onto either side of axle.
3. Secure wheel with one (1) cotter pin.
4. Place the fan on level ground in a safe, desired position then connect to an approved power source.

30" PEDESTAL FAN: ST-30P-E

Installation and Assembly

Tools Needed:

Pliers

Phillips head screwdriver

10mm spanner or adjustable wrench

Hex Wrench

Parts Included In Box:

(1) Base
(1) Front Guard
(1) Rear Guard
(1) Motor Assembly
(1) Fan Blade Assembly
(1) Locking Collar
(1) Upper Support Pole
(1) Lower Support Pole
(1) Nut (M12) and Washer
(1) Pivot Bolt (M12*40)
(9) Flange Screws
(1) Support Spring

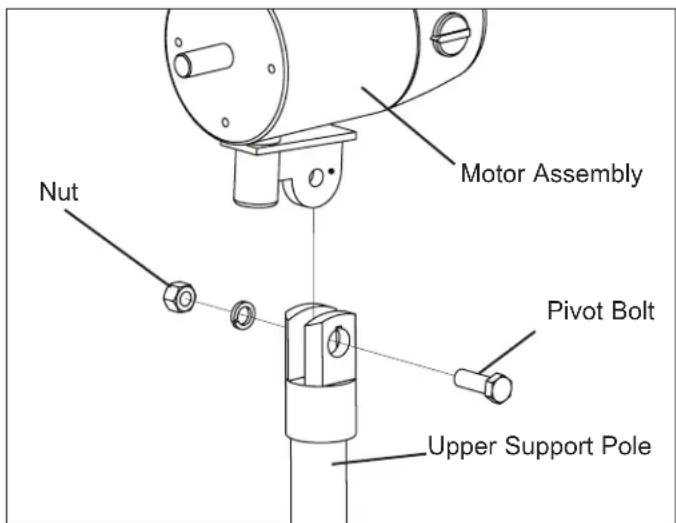

Figure 1: Attaching Motor to Motor Support Assembly

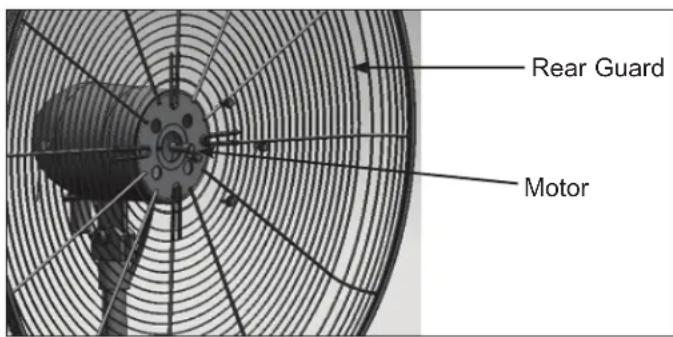

Figure 2: Attaching Rear Guard to Motor

1. Place the Base on level ground
2. Place the Support Spring and Spring Seat inside the bottom of the Support Pole, and mount the Support Pole to the Base. Make sure the holes line up.
3. Secure tightly with (5) Flange Screws using the wrench/Phillips head screwdriver.
4. Put down the base cover.
5. Loosen the locking collar screw using the adjustable handle. Extract the Upper Support Pole slowly to adjust the height of the fan. Retighten with the adjustable handle.
6. Loosen the set screw on the motor support. Mount the Motor Assembly to the connector on the Upper Support Pole. Make sure the holes line up.
7. Secure Motor Assembly with Pivot Bolt (M12^*40) Nut (M12), and Washer (see Fig. 1). Tighten the bolt firmly using the wrench. Tighten the set screw.
8. Slide the Rear Guard on to Motor Assembly and secure it with (4) Flange Screws (see Fig. 2). Tighten the screws firmly using the wrench/Phillips head screwdriver.
9. Loosen the screw on the back of the Fan Blade Assembly using the Allen wrench (hex wrench). Slide the Fan Blade Assembly onto the motor shaft. Retighten the screw on the Fan Blade Assembly.
10. Attach the Front Guard to the Back Guard and secure with the fasteners on the front guard.

CAUTION

Do NOT slide fan blade screw beyond the groove on the shaft!

This will cause the fan blade to not spin properly and can cause damage to your fan! Be sure that fan shaft is flush with front of fan blade assembly.

NOTE: This model CANNOT be wall mounted

Information requirements for electric fans

Model identifier(s): ST-12F-E

Description	Symbol	Value	Unit
Maximum fan flow rate F 33.49 m			3/min
Fan Power Input P 44.3 W
Service Value	SV	0.76	(m3/min)/W
Standby power consumption	PSB	0.00	W
Seasonal electricity consumption	Q	14.2	kWh/a
Fan sound power level L	WA 57.2 dB(A)
Maximum air velocity	c	3.08	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Model identifier(s): ST-20T-E, ST-20F-E, ST-20FOMNI-E, PT-20F-EU, PT-20FOMNI-EU, PT-20T-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 49.74 m			3/min
Fan Power Input	P	109.8	W
Service Value	SV	0.45	(m3/min)/W
Standby power consumption	PSB	0.00 W
Seasonal electricity consumption	Q	35.1	kWh/a
Fan sound power level L	WA 67.8 dB(A)
Maximum air velocity	c	2.36	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Information requirements for electric fans

Model identifier(s): ST-24DCT-E, ST-24W-E, PT-24DCT-EU, PT-24W-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 176.4 m			3/min
Fan Power Input P 108.1 W
Service Value	SV	1.63	(m3/min)/W
Standby power consumption P	SB 0.00 W
Seasonal electricity consumption	Q	34.6	kWh/a
Fan sound power level L	WA	82	dB(A)
Maximum air velocity	c	1.88	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Model identifier(s): ST-30BCT-E, ST-30D-E, ST-30P-E, ST-30W-E, PT-30BCT-EU, PT-30D-EU, PT-30P-EU, PT-30W-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 143.7 m			3/min
Fan Power Input P 118.3 W
Service Value	SV	1.21	(m3/min)/W
Standby power consumption P	SB 0.00 W
Seasonal electricity consumption	Q	37.9	kWh/a
Fan sound power level L	WA	83.4 dB(A)
Maximum air velocity	c	1.49	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufactureror its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium
