ST20FOMNIE - Fan STANLEY - Free user manual and instructions

Brand	Stanley
Model	ST20FOMNIE
Product Type	Omni Floor Fan
Blade Diameter	50.8 cm (20 in)
Maximum Airflow	49.74 m³/min
Power Input	109.8 W
Service Value	0.45 (m³/min)/W
Standby Consumption	0.00 W
Seasonal Consumption	35.1 kWh/year
Sound Level	67.8 dB(A)
Maximum Air Speed	2.36 m/s
Power Supply	220–240 V, 50 Hz
Usage	Indoor only
Main Functions	Airflow cooling, oscillation (depending on model)
Maintenance	Unplug before cleaning; clean with a dry cloth
Safety Instructions	Do not use with a speed controller; do not expose to water; do not leave unattended
Spare Parts	Grilles, blades, motor, stand (as available)
Warranty	Consult manufacturer or retailer
Country of Origin	Not specified (manufactured to EU standards)
Weight	Not specified (estimated ~10 kg)

Frequently Asked Questions - ST20FOMNIE STANLEY

How to install the ST20FOMNIE fan?

Place the fan on a flat and stable surface. Connect it to a 220-240 V outlet. No assembly is required for this Omni model.

Can I use this fan outdoors?

No, this fan is designed for indoor use only. Do not expose it to rain or moisture.

How to clean the fan?

Always unplug the appliance before cleaning. Use a soft, dry cloth to wipe the grilles and blades. Do not use water or chemicals.

The fan is noisy, is this normal?

A slight operating noise is normal. If the noise is excessive, check if the blades are loose or if the fan is on a flat surface.

Can I use an extension cord with the fan?

Yes, but use an extension cord of appropriate gauge (at least 15 A) and UL-listed. Keep it away from walkways to avoid tripping hazards.

What to do if the power cord is damaged?

Do not use the fan. Discard it or return it to an authorized service center for inspection and repair.

Does the fan get hot?

The motor may get slightly warm during normal operation. If excessive heat occurs, unplug immediately and contact after-sales service.

How to adjust the fan height?

The ST20FOMNIE model is a fixed floor fan. Its height is not adjustable.

Can I mount this fan on the wall?

No, this model cannot be wall-mounted. It must be used only on the floor.

Where to find spare parts?

Contact Stanley customer service at the coordinates provided in the manual. Parts such as grilles and blades may be ordered.

USER MANUAL ST20FOMNIE STANLEY

© 2020, Obelis S.A Registered Address:

Pinnacle Climate Technologies, Inc.

Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A.

Registered Address:

1030 Brussels, Belgium

© 2020 Stanley Black & Decker, Inc.

STANLEY®

User's Manual and Operating Instructions

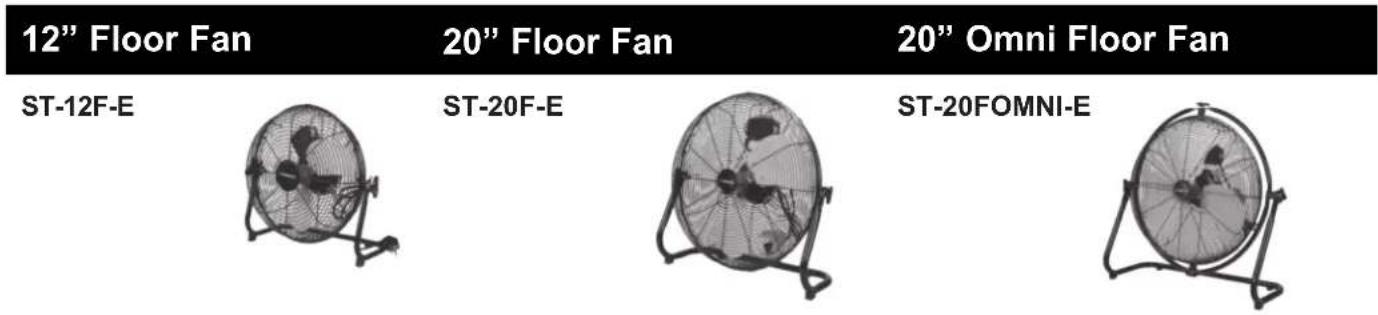

Model Numbers: ST-12F-E, ST-20F-E, ST-20FOMNI-E, ST-24DCT-E, ST-30P-E, ST-36D-E, ST-42-BDF-E

24" Floor Fan
ST-24DCT-E
30" Pedestal Fan
ST-30P-E

Exterior view of a large industrial fan with visible blades and mounting base (no text or symbols)

ST-36D-E

36" Direct-Drive Barrel Fan

Close-up of a black industrial fan with four blades, no visible text or symbols

42" Belt-Drive Barrel Fan
ST-42-BDF-E

Close-up of a vintage mechanical fan with visible blades and wheels (no text or symbols)

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT: Read and understand all of the instructions in this manual before assembling, starting, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for future reference.

CE

Please note the serial number of your fan, and write it on the back of this User's Manual for future reference.

© 2020, Obelis S.A Registered Address: Bd. Général Wahis, 53 1030 Brussels, Belgium

Safety Information

IMPORTANT: READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY, SERVICE OR USE OF THIS FAN. FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY AND / OR PROPERTY DAMAGE.

CAUTION

For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Never use the fan in spaces which contain products such as paints, paint thinners, dust particles, volatile or airborne combustibles, or any unknown

▲ WARNING

Do not operate any fan with a damaged cord or plug.

Discard fan or return to an authorized service facility for examination and/or repair.

Do not run under carpeting.

Do not cover with throw rugs, runners, or similar coverings.

Do not route cord under furniture or appliances.

Arrange cord away from traffic area where it will not be tripped over.

To reduce the risk of electric shock, do not expose to water/rain or use in damp locations.

CAUTION

To reduce risk of fire and to properly exhaust air, be sure to duct air outside.

Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.

▲ WARNING

THIS IS A FAN - NOT A TOY! TO REDUCE THE RISK OF PERSONAL INJURY AND ELECTRIC SHOCK, FANS SHOULD NOT BE PLAYED WITH OR PLACED L CHILDREN CAN REACH IT.

WARNING

To guard against electric shock while operating, do not allow fan to come in contact with other grounded objects such as pipes, radiators, etc.

WARNING

Risk of fire, electric shock, or personal injury when performing service or maintenance. Unplug or disconnect the fan from the power supply before servicing.

WARNING

CAUTION Automatically Operated Device - To Reduce The Risk Of Injury Disconnect From Power Source Before Servicing

WARNING

To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

WARNING

To Reduce The Risk Of Electric Shock And Injury To Persons, Do Not Use In a Window.

STANLEY®

NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE

Safety Information

To Reduce The Risk Of Electric Shock, Do Not Expose To Water Or Rain or use in damp locations.
Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. Do not run cord under car-cover cord with throw rugs, runner, or similar coverings. Do not route cord under fur-nces. Arrange cord away from traffic areas and where it will not be tripped over.
Installation work and electrical wiring must be done by qualified person (s) in accordance with all applicable codes and regulations.
When servicing or replacing a component requires the removal or disconnection of a safety device, the safety device is to be reinstalled or remounted as previously operating this fan.
Use this fan only in the manner intended by the manufacturer.
- Before operating always check fan for loose or damaged parts. Inspect power cord for any damage. Never use fan if any parts are damaged or missing. Never use fan without safety guards attached.
- Operate only on 220-240 volt, 50 Hz (cycle) current with a minimum of a 15 amp circuit.
- When used with an extension cord, use only cord of proper size (Amp rating), UL listed, and with receptacle to accept three prong grounded plug furnished on the fan's power cord. Always keep power cord and extension cords away from heat, oil, and sharp edges. Inspect cords periodically and replace if damaged.

WARNING

WARNING

WARNING

WARNING

WARNING

Installation and Assembly

ST-12F-E / ST-20F-E / ST-20FOMNI-E / ST-24DCT-E

1. Place the fan on level ground in a safe, desired position then connect to an approved power source.

ST-36D-E / ST-42-BDF-E

1. Slide wheel axle through wheel support frame.
2. Slide one (1) wheel onto either side of axle.
3. Secure wheel with one (1) cotter pin.
4. Place the fan on level ground in a safe, desired position then connect to an approved power source.

30" PEDESTAL FAN: ST-30P-E

Installation and Assembly

Tools Needed:

Pliers

Phillips head screwdriver

10mm spanner or adjustable wrench

Hex Wrench

Parts Included In Box:

(1) Base
(1) Front Guard
(1) Rear Guard
(1) Motor Assembly
(1) Fan Blade Assembly
(1) Locking Collar
(1) Upper Support Pole
(1) Lower Support Pole
(1) Nut (M12) and Washer
(1) Pivot Bolt (M12*40)
(9) Flange Screws
(1) Support Spring

Motor Assembly Nut Pivot Bolt Upper Support Pole

Figure 1: Attaching Motor to Motor Support Assembly

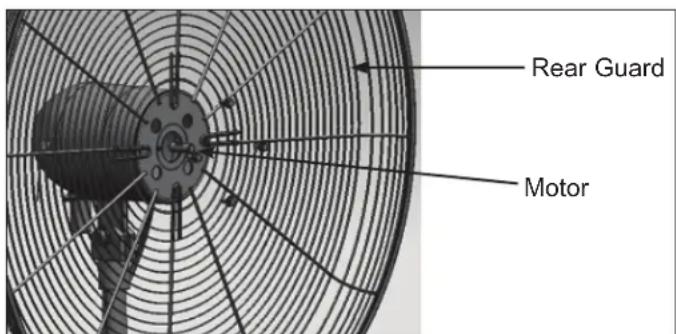

Rear Guard Motor

Figure 2: Attaching Rear Guard to Motor

1. Place the Base on level ground
2. Place the Support Spring and Spring Seat inside the bottom of the Support Pole, and mount the Support Pole to the Base. Make sure the holes line up.

3. Secure tightly with (5) Flange Screws using the wrench/Phillips head screwdriver.

4. Put down the base cover.

5. Loosen the locking collar screw using the adjustable handle. Extract the Upper Support Pole slowly to adjust the height of the fan. Retighten with the adjustable handle.

6. Loosen the set screw on the motor support. Mount the Motor Assembly to the connector on the Upper Support Pole. Make sure the holes line up.

7. Secure Motor Assembly with Pivot Bolt (M12*40), Nut (M12), and Washer (see Fig. 1). Tighten the bolt firmly using the wrench. Tighten the set screw.

8. Slide the Rear Guard on to Motor Assembly and secure it with (4) Flange Screws (see Fig. 2). Tighten the screws firmly using the wrench/Phillips head screwdriver.

9. Loosen the screw on the back of the Fan Blade Assembly using the Allen wrench (hex wrench). Slide the Fan Blade Assembly onto the motor shaft. Retighten the screw on the Fan Blade Assembly.

10. Attach the Front Guard to the Back Guard and secure with the fasteners on the front guard.

▲ CAUTION

Do NOT slide fan blade screw beyond the groove on the shaft!

This will cause the fan blade to not spin properly and can cause damage to your fan! Be sure that fan shaft is flush with front of fan blade assembly.

NOTE: This model CANNOT be wall mounted

Information requirements for electric fans

Model identifier(s): ST-12F-E

Description	Symbol	Value	Unit
Maximum fan flow rate F 33.49 m			^3 /min
Fan Power Input P 44.3 W
Service Value	SV	0.76	(m ^3 /min)/W
Standby power consumption	P_SB	0.00	W
Seasonal electricity consumption	Q	14.2	kWh/a
Fan sound power level L	WA 57.2 dB(A)
Maximum air velocity	c	3.08	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Model identifier(s): ST-20T-E, ST-20F-E, ST-20FOMNI-E, PT-20F-EU, PT-20FOMNI-EU, PT-20T-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 49.74 m			^3/min
Fan Power Input	P	109.8	W
Service Value	SV	0.45	(m^3/min)/W
Standby power consumption	P_SB	0.00 W
Seasonal electricity consumption	Q	35.1	kWh/a
Fan sound power level L	WA 67.8 dB(A)
Maximum air velocity	c	2.36	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Information requirements for electric fans

Model identifier(s): ST-24DCT-E, ST-24W-E, PT-24DCT-EU, PT-24W-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 176.4 m			^3 /min
Fan Power Input P 108.1 W
Service Value	SV	1.63	(m3/min)/W
Standby power consumption P	SB 0.00 W
Seasonal electricity consumption	Q	34.6	kWh/a
Fan sound power level L	WA	82	dB(A)
Maximum air velocity	c	1.88	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Model identifier(s): ST-30BCT-E, ST-30D-E, ST-30P-E, ST-30W-E, PT-30BCT-EU, PT-30D-EU, PT-30P-EU, PT-30W-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 143.7 m			^3 /min
Fan Power Input P 118.3 W
Service Value	SV	1.21	(m ^3 /min)/W
Standby power consumption P	SB 0.00 W
Seasonal electricity consumption	Q	37.9	kWh/a
Fan sound power level L	WA	83.4 dB(A)
Maximum air velocity	c	1.49	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium
