USER MANUAL ST42BDFE STANLEY

© 2020, Obelis S.A Registered Address:

Pinnacle Climate Technologies, Inc.

Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A.

Registered Address:

1030 Brussels, Belgium

© 2020 Stanley Black & Decker, Inc.

STANLEY®

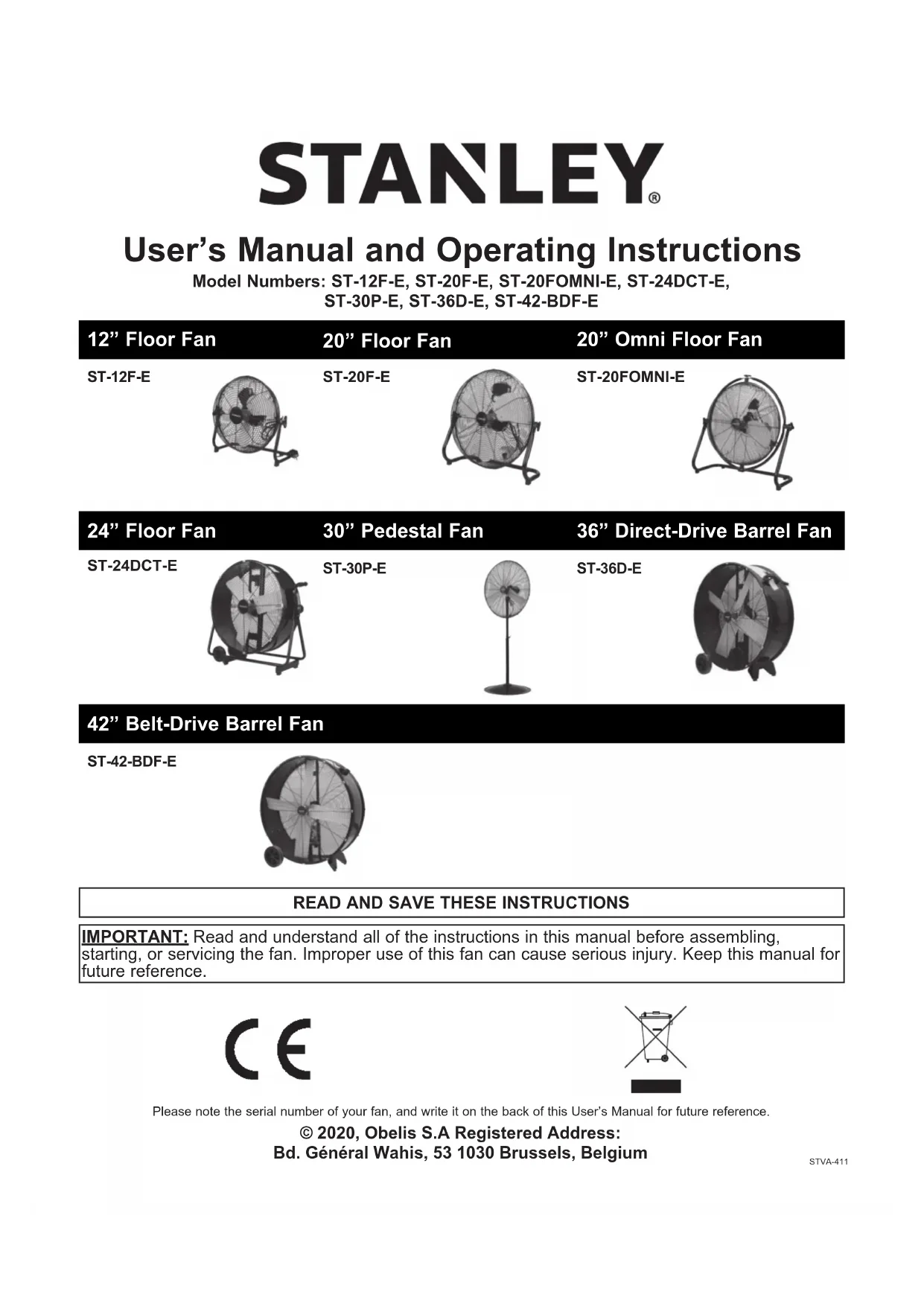

User's Manual and Operating Instructions

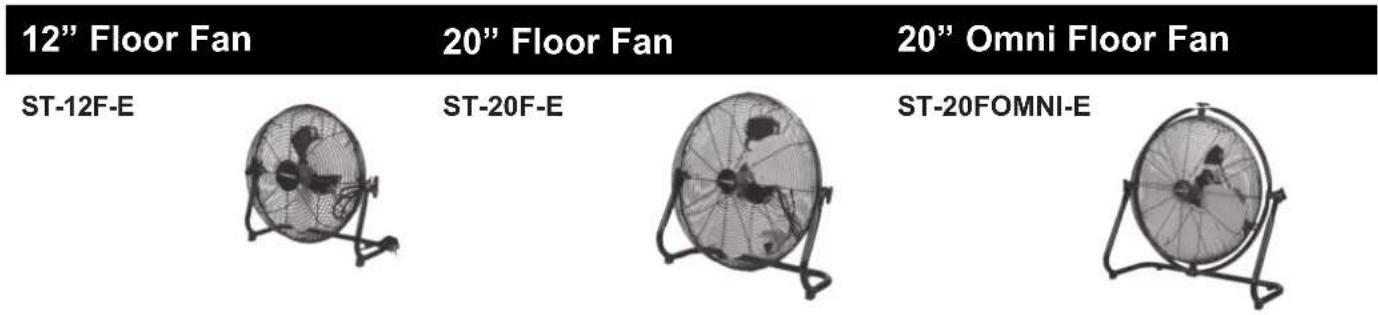

Model Numbers: ST-12F-E, ST-20F-E, ST-20FOMNI-E, ST-24DCT-E, ST-30P-E, ST-36D-E, ST-42-BDF-E

24" Floor Fan
ST-24DCT-E
30" Pedestal Fan
ST-30P-E

Exterior view of a large industrial fan with visible blades and mounting base (no text or symbols)

ST-36D-E

36" Direct-Drive Barrel Fan

Close-up of a black industrial fan with four blades, no visible text or symbols

42" Belt-Drive Barrel Fan
ST-42-BDF-E

Close-up of a vintage mechanical fan with visible blades and wheels (no text or symbols)

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT: Read and understand all of the instructions in this manual before assembling, starting, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for future reference.

CE

Please note the serial number of your fan, and write it on the back of this User's Manual for future reference.

© 2020, Obelis S.A Registered Address: Bd. Général Wahis, 53 1030 Brussels, Belgium

Safety Information

IMPORTANT: READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY, SERVICE OR USE OF THIS FAN. FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY AND / OR PROPERTY DAMAGE.

▲CAUTION For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Never use the fan in spaces which contain products such as gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles, or any unknown chemicals.

▲WARNING Do not operate any fan with a damaged cord or plug.

Discard fan or return to an authorized service facility for examination and/or repair.

Do not run under carpeting.

Do not cover with throw rugs, runners, or similar coverings.

Do not route cord under furniture or appliances.

Arrange cord away from traffic area where it will not be tripped over.

To reduce the risk of electric shock, do not expose to water/rain or use in damp locations.

▲CAUTION To reduce risk of fire and to properly exhaust air, be sure to duct air outside.

Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.

▲WARNING THIS IS A FAN - NOT A TOY! TO REDUCE THE RISK OF PERSONAL INJURY AND ELECTRIC SHOCK, FANS SHOULD NOT BE PLAYED WITH OR PLACED WHERE SMALL CHILDREN CAN REACH IT.

⚠ WARNING To guard against electric shock while operating, do not allow fan to come in contact with other grounded objects such as pipes, radiators, etc.

▲ WARNING Risk of fire, electric shock, or personal injury when performing service or maintenance. Unplug or disconnect the fan from the power supply before servicing.

⚠ WARNING CAUTION Automatically Operated Device - To Reduce The Risk Of Injury Disconnect From Power Source Before Servicing

⚠ WARNING To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

⚠ WARNING To Reduce The Risk Of Electric Shock And Injury To Persons, Do Not Use In a Window.

STANLEY®

NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE

Safety Information

To Reduce The Risk Of Electric Shock, Do Not Expose To Water Or Rain or use in damp locations.
Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. Do not run cord under car-cover cord with throw rugs, runner, or similar coverings. Do not route cord under fur-nces. Arrange cord away from traffic areas and where it will not be tripped over.
Installation work and electrical wiring must be done by qualified person (s) in accordance with all applicable codes and regulations.
When servicing or replacing a component requires the removal or disconnection of a safety device, the safety device is to be reinstalled or remounted as previously operating this fan.
Use this fan only in the manner intended by the manufacturer.
- Before operating always check fan for loose or damaged parts. Inspect power cord for any damage. Never use fan if any parts are damaged or missing. Never use fan without safety guards attached.
- Operate only on 220-240 volt, 50 Hz (cycle) current with a minimum of a 15 amp circuit.
- When used with an extension cord, use only cord of proper size (Amp rating), UL listed, and with receptacle to accept three prong grounded plug furnished on the fan's power cord. Always keep power cord and extension cords away from heat, oil, and sharp edges. Inspect cords periodically and replace if damaged.

WARNING

WARNING

WARNING

WARNING

WARNING

Installation and Assembly

ST-12F-E / ST-20F-E / ST-20FOMNI-E / ST-24DCT-E

1. Place the fan on level ground in a safe, desired position then connect to an approved power source.

ST-36D-E / ST-42-BDF-E

1. Slide wheel axle through wheel support frame.
2. Slide one (1) wheel onto either side of axle.
3. Secure wheel with one (1) cotter pin.
4. Place the fan on level ground in a safe, desired position then connect to an approved power source.

30" PEDESTAL FAN: ST-30P-E

Installation and Assembly

Tools Needed:

Pliers

Phillips head screwdriver

10mm spanner or adjustable wrench

Hex Wrench

Parts Included In Box:

(1) Base
(1) Front Guard
(1) Rear Guard
(1) Motor Assembly
(1) Fan Blade Assembly
(1) Locking Collar
(1) Upper Support Pole
(1) Lower Support Pole
(1) Nut (M12) and Washer
(1) Pivot Bolt (M12*40)
(9) Flange Screws
(1) Support Spring

Motor Assembly Nut Pivot Bolt Upper Support Pole

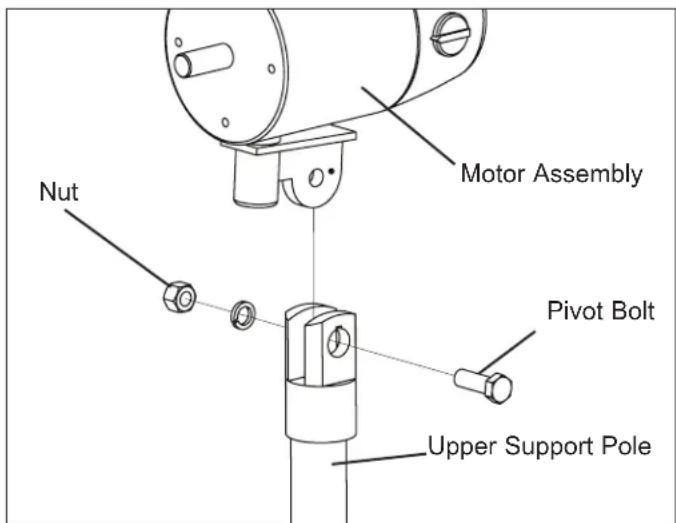

Figure 1: Attaching Motor to Motor Support Assembly

Rear Guard Motor

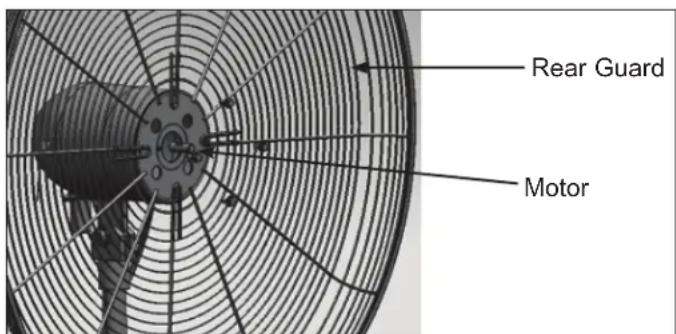

Figure 2: Attaching Rear Guard to Motor

1. Place the Base on level ground
2. Place the Support Spring and Spring Seat inside the bottom of the Support Pole, and mount the Support Pole to the Base. Make sure the holes line up.

3. Secure tightly with (5) Flange Screws using the wrench/Phillips head screwdriver.

4. Put down the base cover.

5. Loosen the locking collar screw using the adjustable handle. Extract the Upper Support Pole slowly to adjust the height of the fan. Retighten with the adjustable handle.

6. Loosen the set screw on the motor support. Mount the Motor Assembly to the connector on the Upper Support Pole. Make sure the holes line up.

7. Secure Motor Assembly with Pivot Bolt (M12*40), Nut (M12), and Washer (see Fig. 1). Tighten the bolt firmly using the wrench. Tighten the set screw.

8. Slide the Rear Guard on to Motor Assembly and secure it with (4) Flange Screws (see Fig. 2). Tighten the screws firmly using the wrench/Phillips head screwdriver.

9. Loosen the screw on the back of the Fan Blade Assembly using the Allen wrench (hex wrench). Slide the Fan Blade Assembly onto the motor shaft. Retighten the screw on the Fan Blade Assembly.

10. Attach the Front Guard to the Back Guard and secure with the fasteners on the front guard.

▲ CAUTION

Do NOT slide fan blade screw beyond the groove on the shaft!

This will cause the fan blade to not spin properly and can cause damage to your fan! Be sure that fan shaft is flush with front of fan blade assembly.

NOTE: This model CANNOT be wall mounted

Information requirements for electric fans

Model identifier(s): ST-12F-E

Description	Symbol	Value	Unit
Maximum fan flow rate F 33.49 m			^3 /min
Fan Power Input P 44.3 W
Service Value	SV	0.76	(m ^3 /min)/W
Standby power consumption	P_SB	0.00	W
Seasonal electricity consumption	Q	14.2	kWh/a
Fan sound power level L	WA 57.2 dB(A)
Maximum air velocity	c	3.08	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Model identifier(s): ST-20T-E, ST-20F-E, ST-20FOMNI-E, PT-20F-EU, PT-20FOMNI-EU, PT-20T-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 49.74 m			^3/min
Fan Power Input	P	109.8	W
Service Value	SV	0.45	(m^3/min)/W
Standby power consumption	P_SB	0.00 W
Seasonal electricity consumption	Q	35.1	kWh/a
Fan sound power level L	WA 67.8 dB(A)
Maximum air velocity	c	2.36	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Information requirements for electric fans

Model identifier(s): ST-24DCT-E, ST-24W-E, PT-24DCT-EU, PT-24W-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 176.4 m			^3 /min
Fan Power Input P 108.1 W
Service Value	SV	1.63	(m3/min)/W
Standby power consumption P	SB 0.00 W
Seasonal electricity consumption	Q	34.6	kWh/a
Fan sound power level L	WA	82	dB(A)
Maximum air velocity	c	1.88	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

Model identifier(s): ST-30BCT-E, ST-30D-E, ST-30P-E, ST-30W-E, PT-30BCT-EU, PT-30D-EU, PT-30P-EU, PT-30W-EU

Description	Symbol	Value	Unit
Maximum fan flow rate F 143.7 m			^3 /min
Fan Power Input P 118.3 W
Service Value	SV	1.21	(m ^3 /min)/W
Standby power consumption P	SB 0.00 W
Seasonal electricity consumption	Q	37.9	kWh/a
Fan sound power level L	WA	83.4 dB(A)
Maximum air velocity	c	1.49	meters/sec
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012 & (EU) 2016/2282
Contact Details	Name and address of the manufacturer or its authorized representativeObelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

SERVICE

Belgique et Luxemburg	E. Walschaertstraat 14	www.stanleyworks.be	United Kingdom 210 Bath Road; Slough, Berks SL1 3YD	www.stanleytools.co.uk
België en Luxembourg	2800 Mechelen	[e-mail]		Tel: [phone]
	Belgium	BE-NL=[phone]		Fax: [phone]
		BE-FR=[phone]
		BE Fax: [phone]
Danmark Roskildevej 22	2620 Albertslund	www.stanleyworks.dk	Hungary Rotel Kft.	www.stanleyworks.hu
		[e-mail]	1163 Budapest,Thököly ut 17.	[e-mail]
		Fax: [phone]		Tel: [phone]
				Fax: [phone]
Deutschland Richard Klinger Str. 11	65510 Idstein	www.stanleyworks.de	Czech Republic	www.stanleyworks.cz
		[e-mail]	K Pasekam 4440	http://www.bandservis.cz
		Tel: [phone]	760 01 Zlin, Czech Republic	Tel.: [phone]
		Fax: [phone]		Fax.: [phone]
Ελλάς Ημερος Τόπος 2 - Χάνι Αδάμ Ασπρόπυργος	-19300 - Ατική - Ατικής	www.stanley.gr	Slovakia	www.bandservis.sk
		[e-mail]	Paulinska 22	Tel.: [phone]
		Tηλ: [phone]	917 01 Trnava, Slovakia	Fax.: [phone]
		Φαξ: [phone]
España Parque de Negocios "Mas Blau"	Edificio Muntadas, c/Bergadá, 1, Of. A6	www.stanleyworks.es	Poland Erpatech	www.stanleyworks.pl
		[e-mail]	ul. Bakaliowa 26	Tel.: [phone]
	08820 El Prat de Llobregat (Barcelona)	Tel: [phone]	05-080 Mościska	Fax.: [phone]
		Fax: [phone]
France 5, allée des hêtres	BP 30084, 69579 Limonest Cedex	www.stanleyoutillage.fr	Slovenia	www.g-mm.si
		[e-mail]	Brvace 11	[e-mail]
		Tel: [phone]	1290 Grosuplje Slovenija	T: [phone]
		Fax: [phone]		F: [phone]
