Product Type	Portable sheet metal shear (nibbler)
Brand	Fein
Model	ABLS 18 1.6 E Select
Nominal voltage	18 V (direct current)
Battery type	Lithium-ion, compatible with FEIN chargers
Max cutting thickness (steel 400 N/mm²)	1.6 mm
Cutting speed	Variable (low and high speed)
Operating temperature range (battery)	5 °C to 45 °C
Maintenance	Clean ventilation slots with dry compressed air
Recommended lubricant	Cutting paste for steel, kerosene for aluminum
Knife replacement	In pairs, not re-sharpenable
User protection	Eye and hearing protection mandatory
Compliance	CE, UKCA, USA/Canada certification
Warranty	According to legal regulations and FEIN manufacturer warranty

Frequently Asked Questions - ABLS 18 1.6 E Select Fein

How to change the knives of the Fein ABLS 18 1.6 E Select shear?

The knives are not re-sharpenable. To replace them, remove the battery, loosen the fixing screws, replace the knives in pairs, and tighten. Consult the manual for the tightening torque.

What is the maximum sheet thickness this tool can cut?

With steel up to 400 N/mm², the maximum thickness is 1.6 mm. For higher strength steel, the thickness is reduced. For aluminum, it is higher but not specified.

Can I use batteries from other brands?

No, only use original FEIN batteries designed for this tool. Batteries from other brands can cause fire or explosion.

How to maintain the shear?

Regularly clean the ventilation slots with dry compressed air. Apply lubricant (cutting paste for steel, kerosene for aluminum) along the cut to increase knife life.

What protective equipment should I wear?

Wear eye protection, hearing protection, gloves, and an apron. Use a dust mask if necessary.

How to charge the battery?

Only use a FEIN charger. Charge within a temperature range of 5 °C to 45 °C. The LEDs indicate the charge status.

What to do if the battery blinks red?

The battery is not ready to operate. Place it in the operating temperature range (5-45 °C) and then recharge it.

Can I cut stacked sheets?

No, do not cut stacked sheets whose total thickness exceeds the maximum intended thickness. Always cut a single thickness.

How to know when the knives are worn?

A decrease in cutting speed indicates knife wear. Replace them in pairs.

Where to find spare parts?

On the website www.fein.com. You can replace accessories, jaws (for ABSS) and knives yourself.

USER MANUAL ABLS 18 1.6 E Select Fein

Technical illustration of a submarine with visible internal compartments and structural details (no text or symbols)

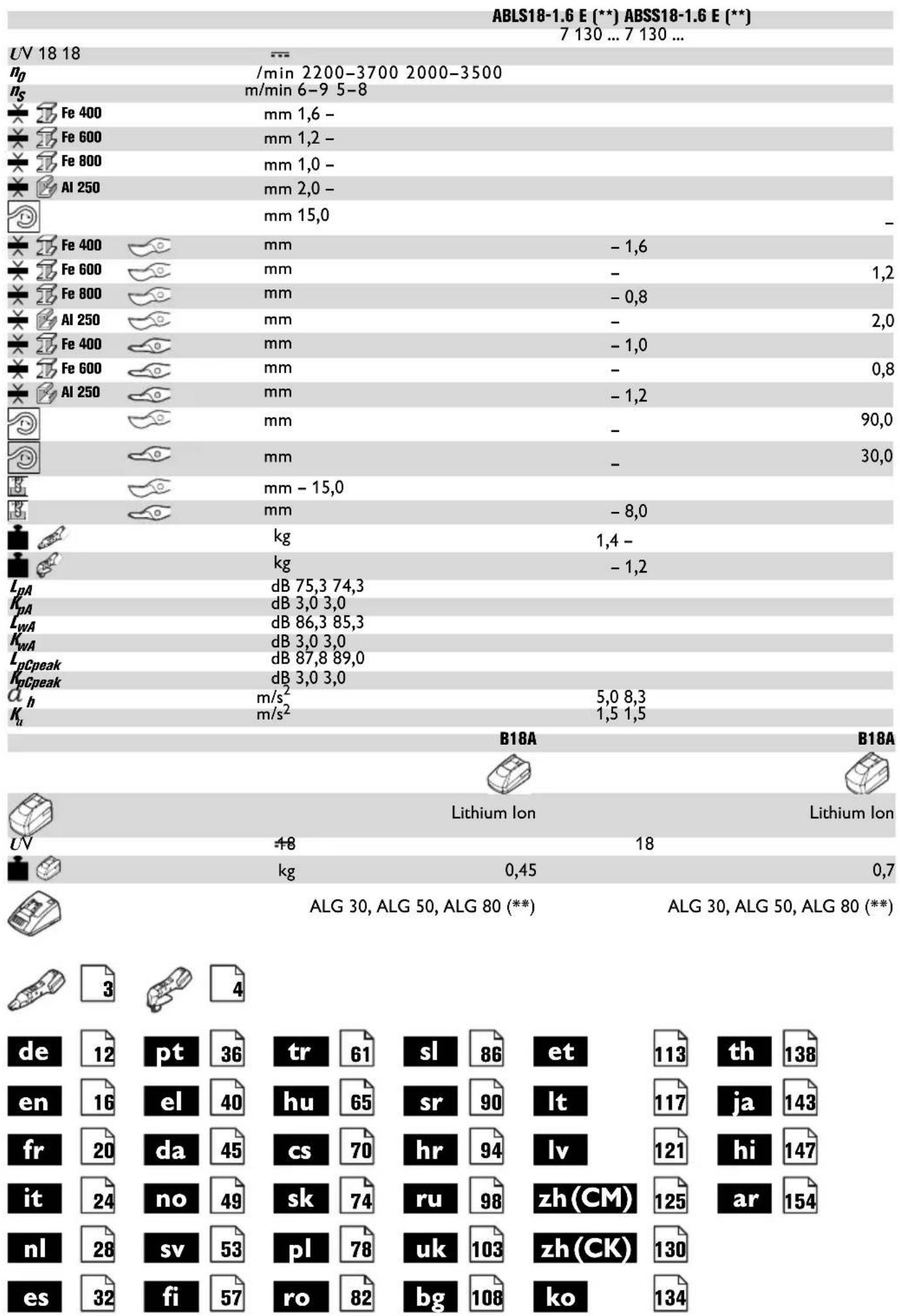

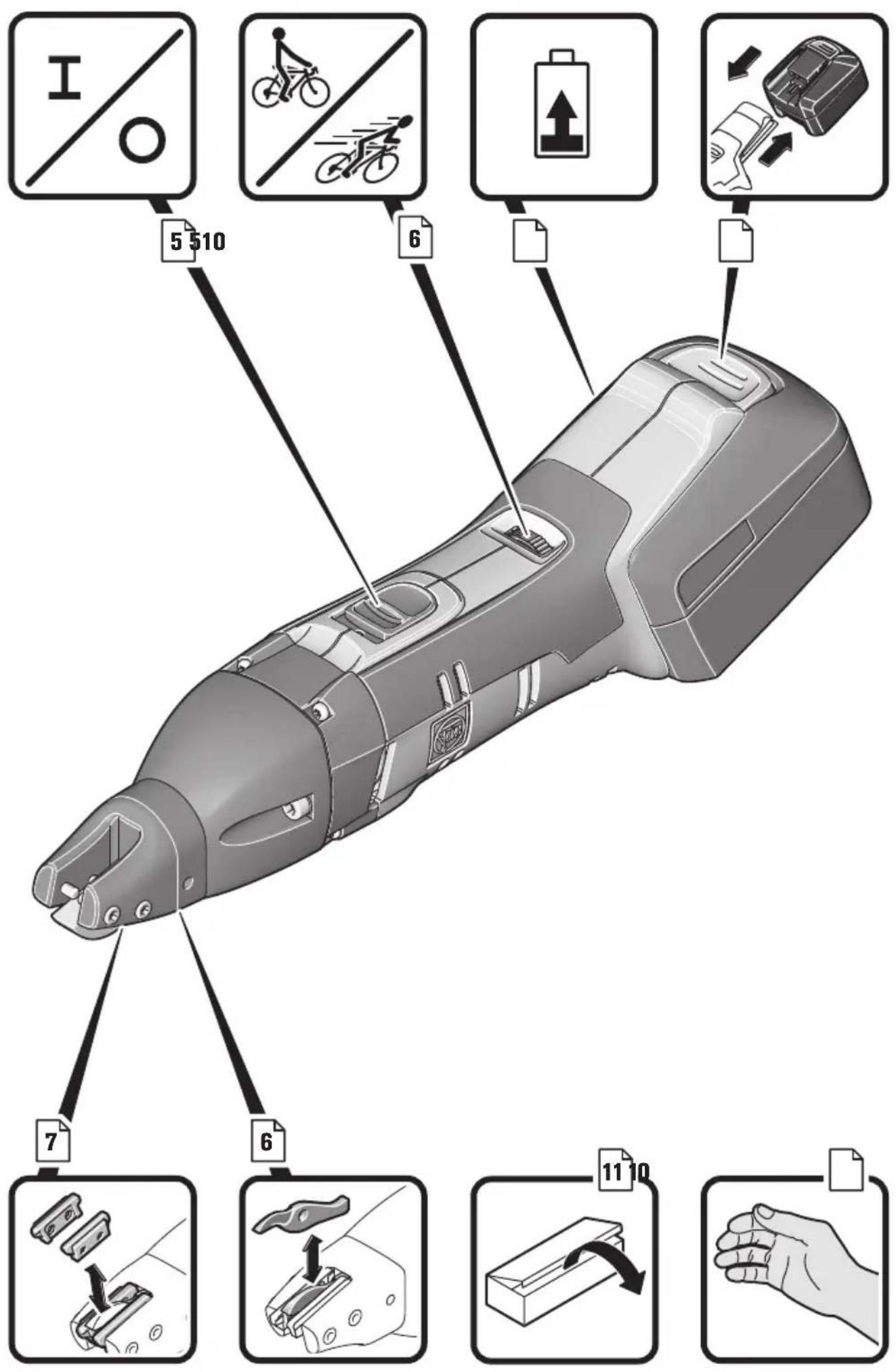

ABLS18-1.6 E (**)

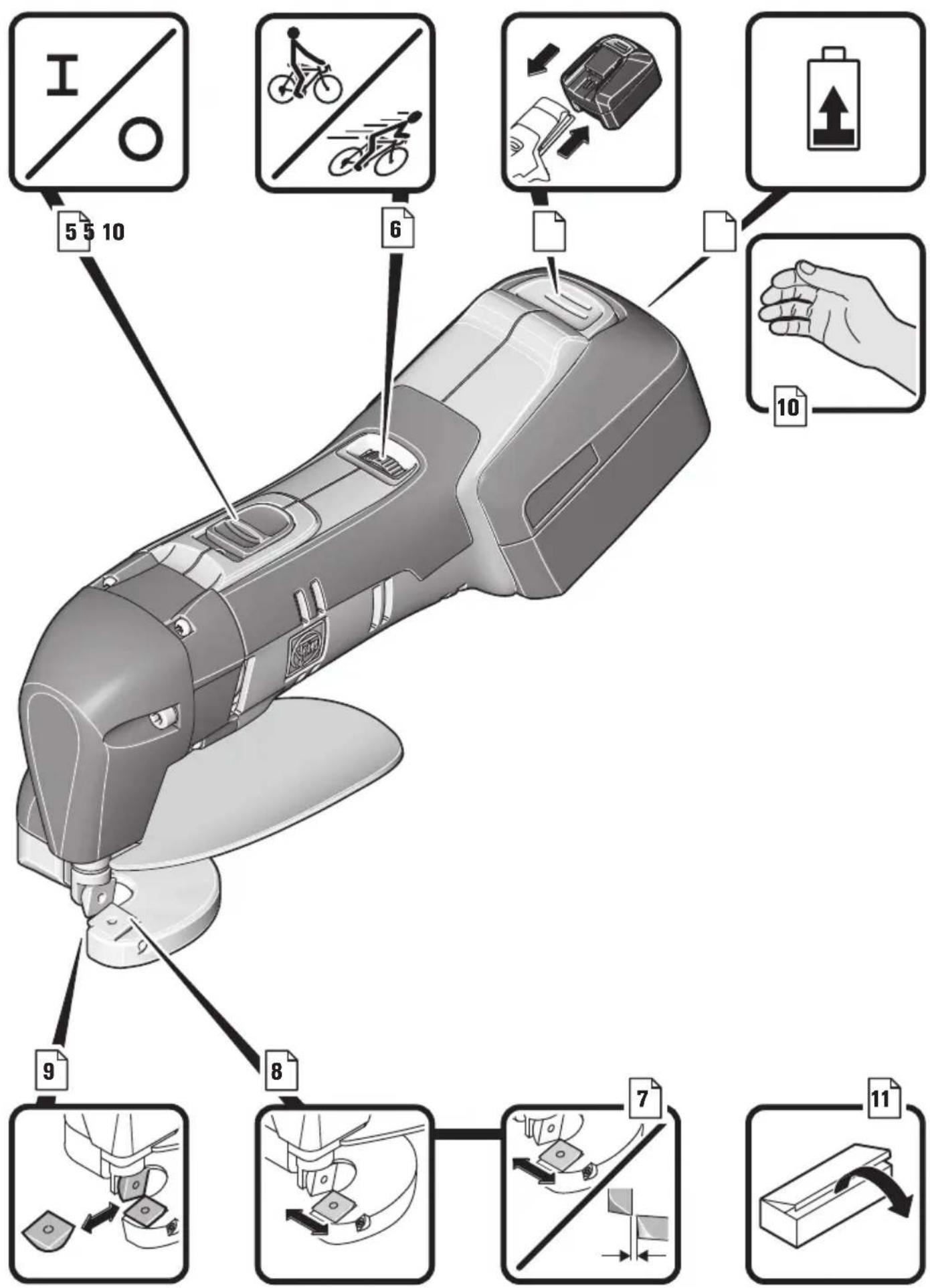

ABSS18-1.6 E (**) 7 130 ...

7 130 ...

I O 5 510 6 7 6 11 10

5 5 10 6 9 8 7 11


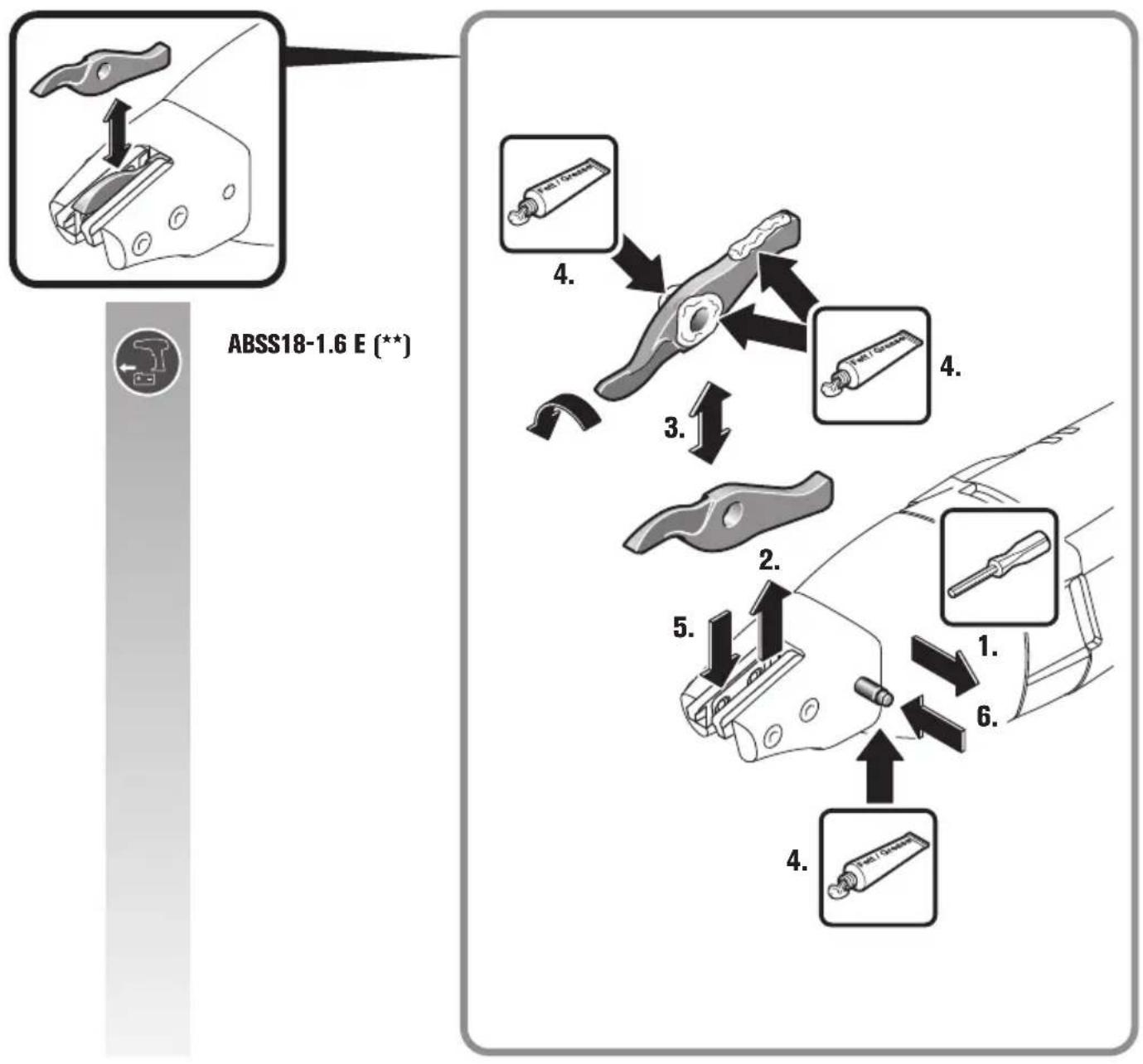


Diagram of a mechanical device with a tool and component, no visible text or symbols

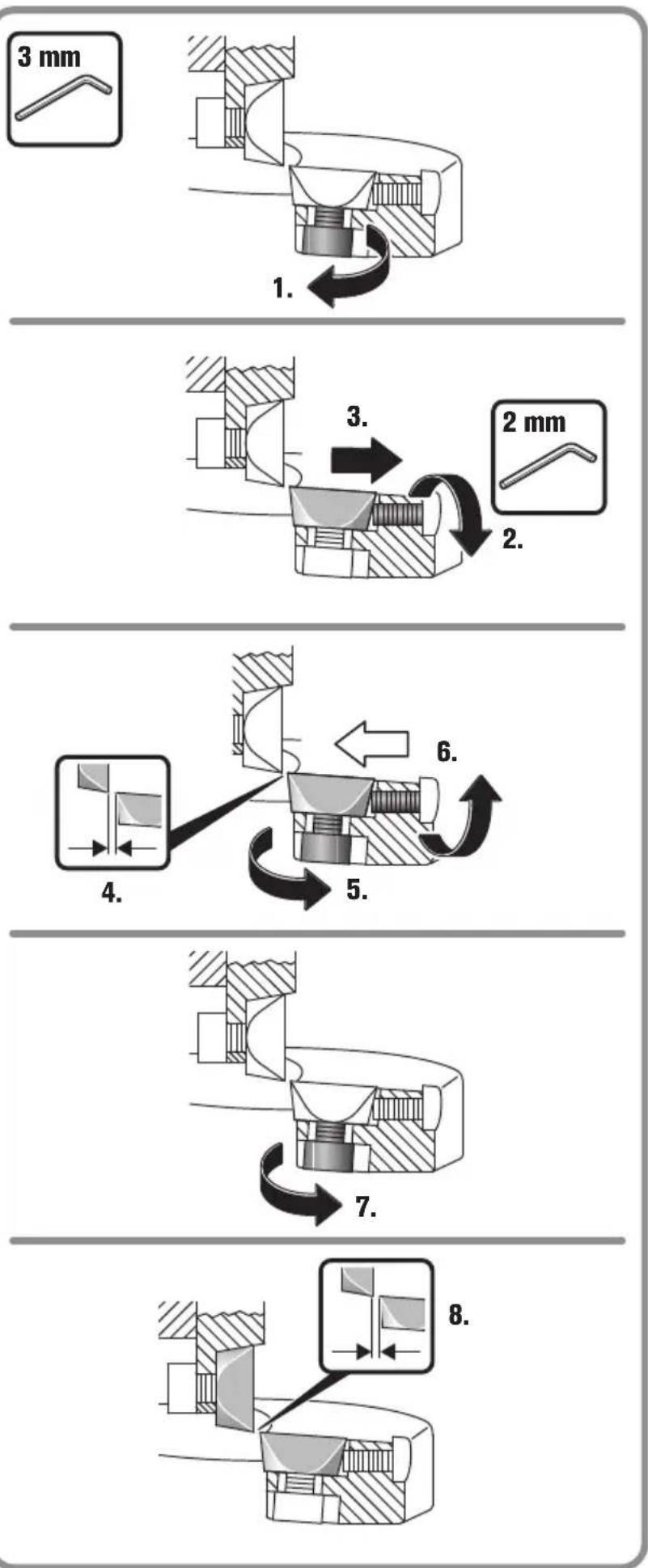

ABLS18-1.6 E (**)

Diagram showing a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

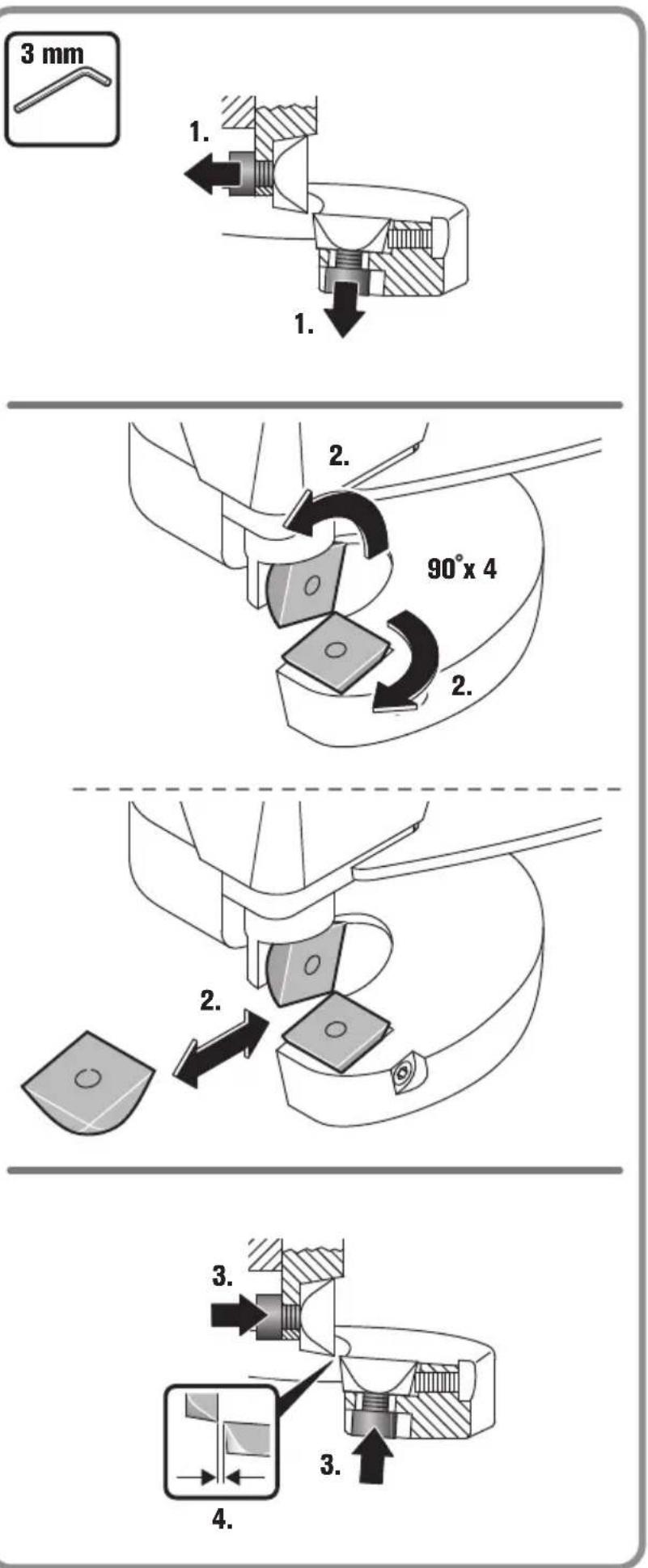

ABLS18-1.6 E (**)

3 mm 1. 1. 2. 90° x 4 2. 2. 3. 3. 4.

≤ 100 %

※※※□ ≤ 75 %

※※□□≤50%

≤ 25 %

= 0%

!

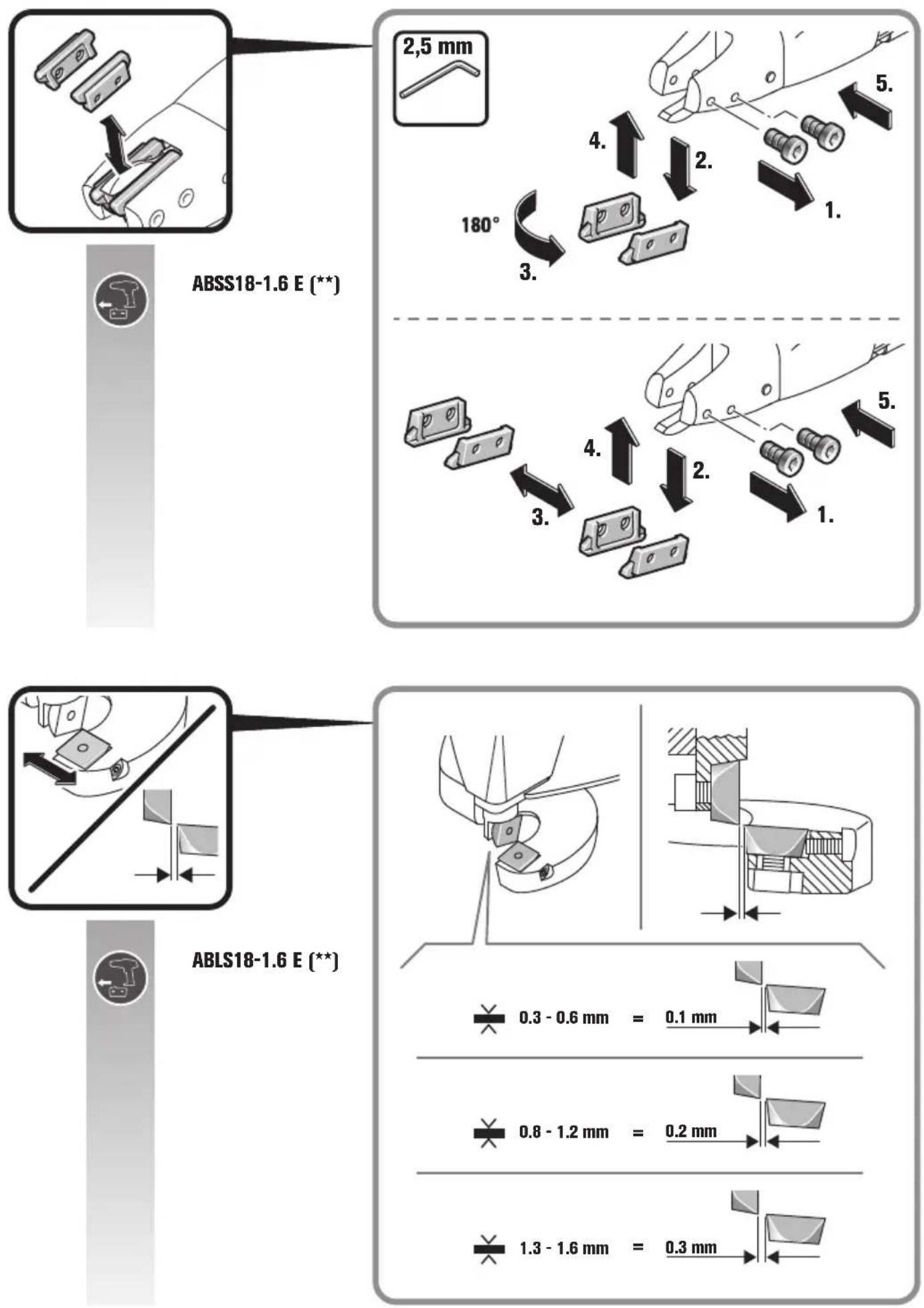

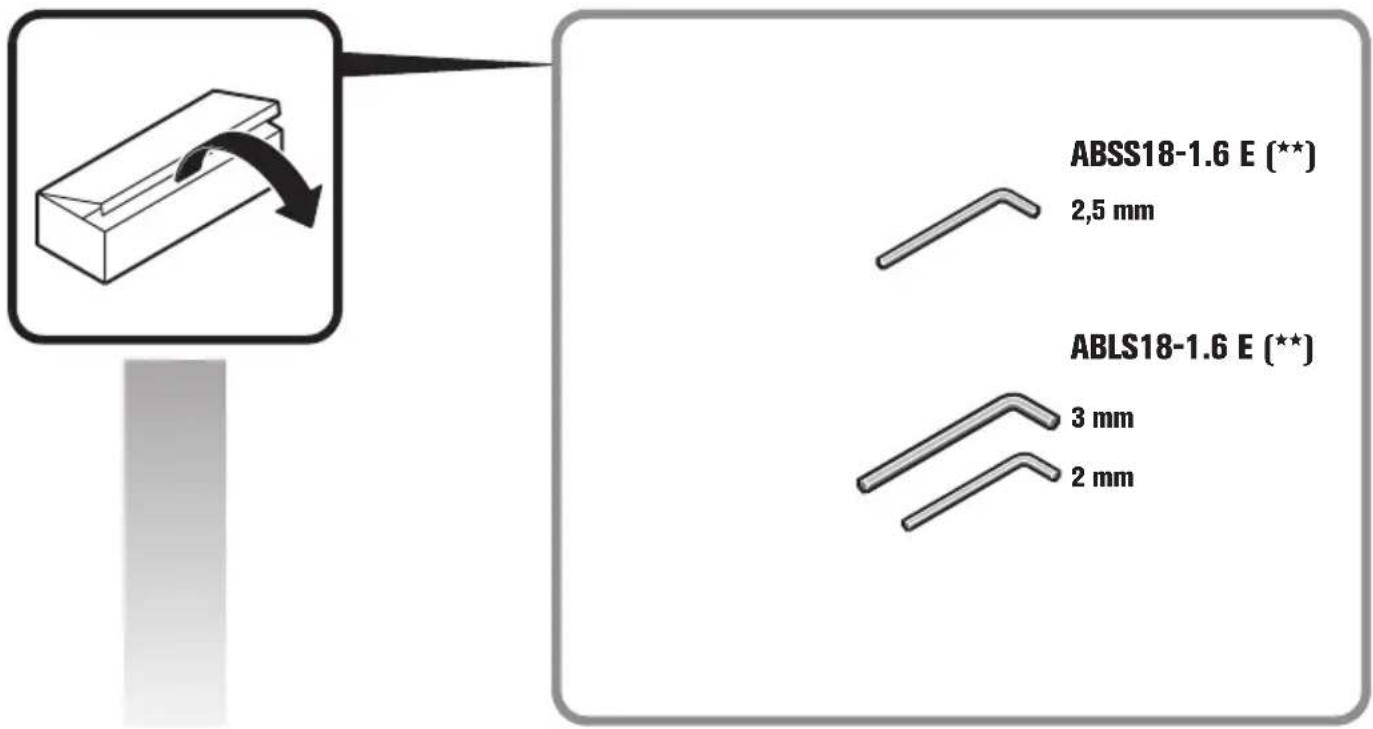

ABSS18-1.6 E (**) 2,5 mm ABLS18-1.6 E (**) 3 mm 2 mm

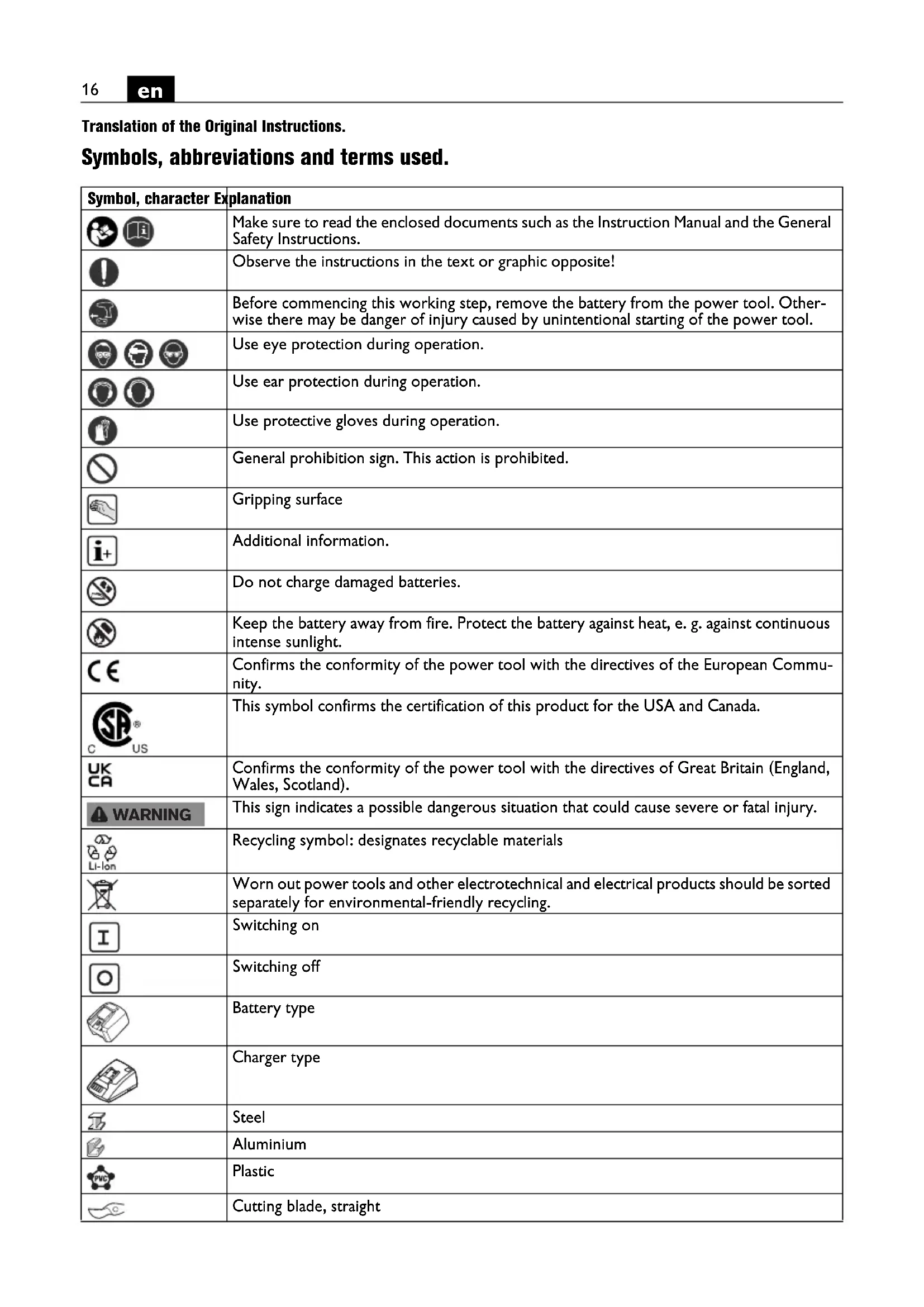

Translation of the Original Instructions.

Symbols, abbreviations and terms used.

Symbol, character Explanation
[66KS]		Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
		Observe the instructions in the text or graphic opposite!
		Before commencing this working step, remove the battery from the power tool. Otherwise there may be danger of injury caused by unintentional starting of the power tool.
		Use eye protection during operation.
		Use ear protection during operation.
		Use protective gloves during operation.
[HWZZ]		General prohibition sign. This action is prohibited.
		Gripping surface
		Additional information.
		Do not charge damaged batteries.
		Keep the battery away from fire. Protect the battery against heat, e. g. against continuous intense sunlight.
		Confirms the conformity of the power tool with the directives of the European Community.
		This symbol confirms the certification of this product for the USA and Canada.
		Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
		This sign indicates a possible dangerous situation that could cause severe or fatal injury.
		Recycling symbol: designates recyclable materials
[BY4H]		Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.

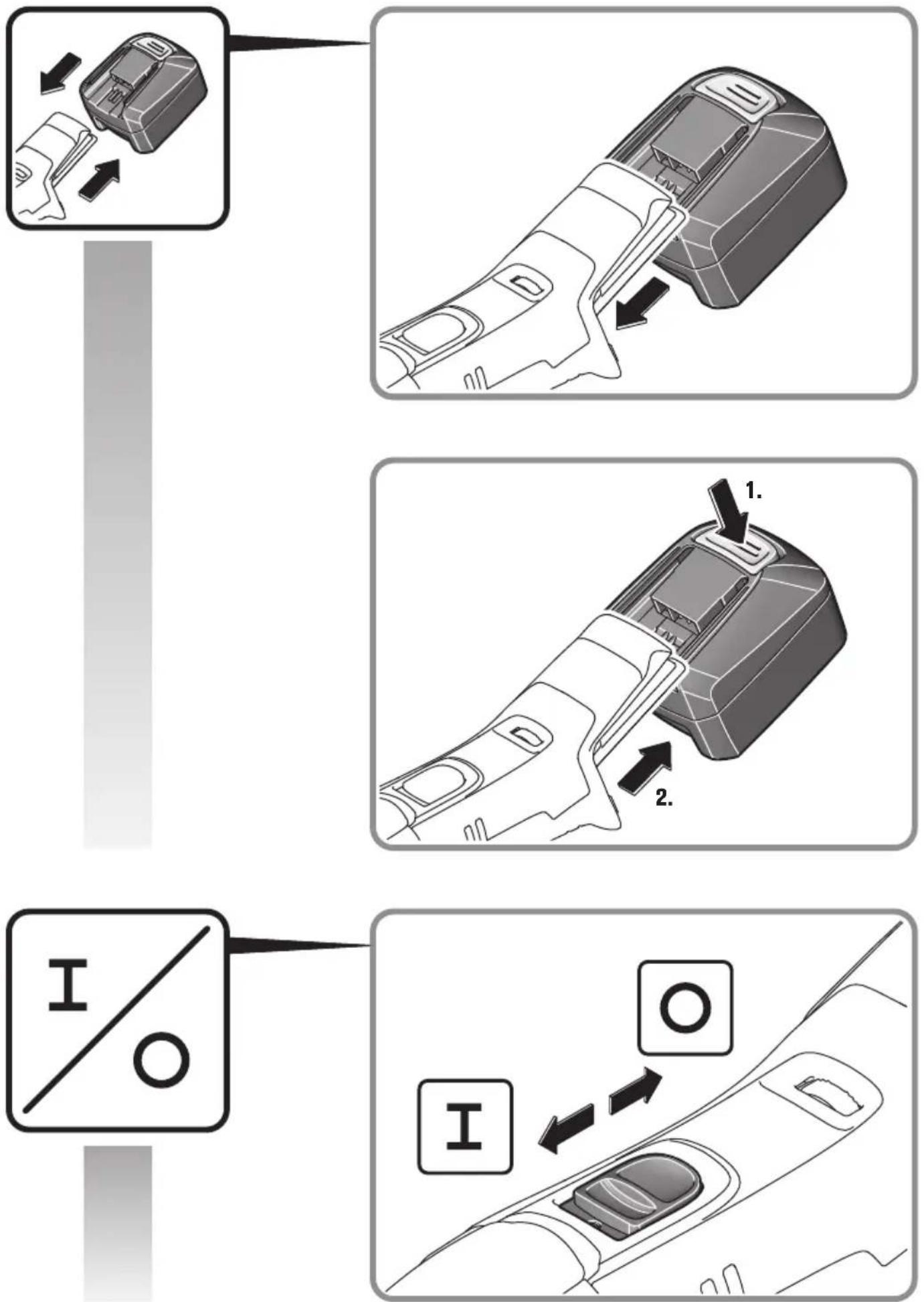

		Switching on
		Switching off
		Battery type
		Charger type
[SIGNAT]		Steel
[SIGNAT]		Aluminium
		Plastic
[SIGNAT]		Cutting blade, straight

Symbol, character Explanation
	Cutting blade, curves

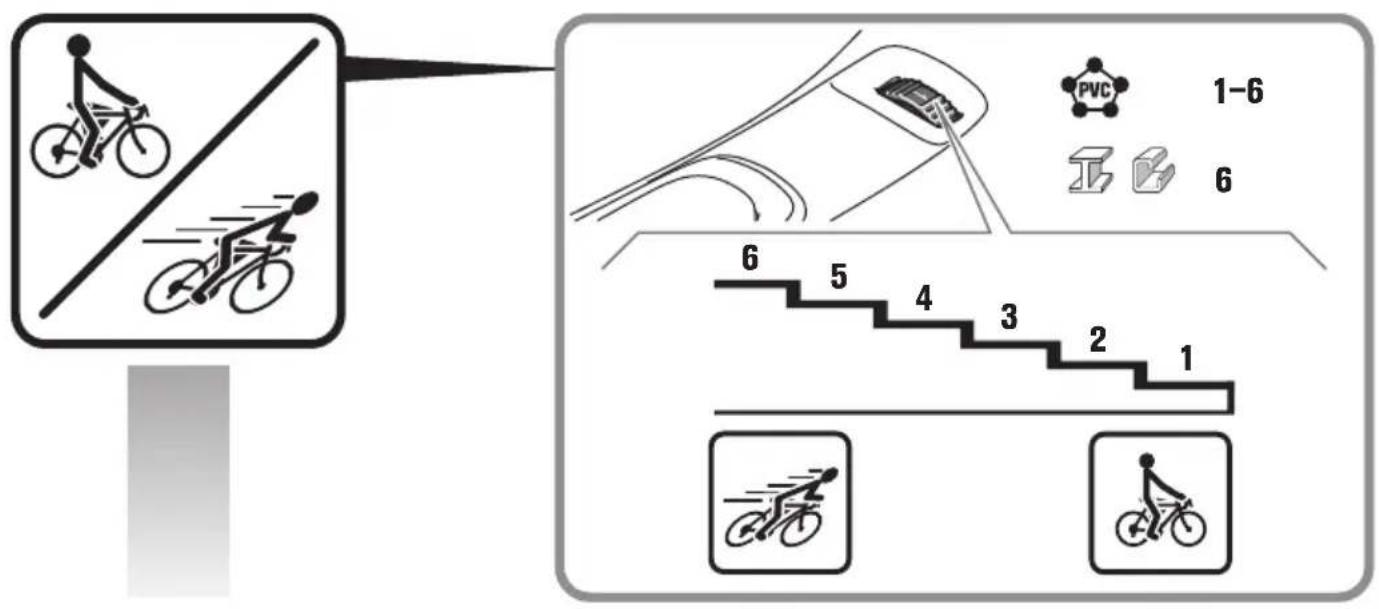

	Low stroke rate
	High stroke rate
(**) may contain numbers and letters
(Ax – Zx) Marking for internal purposes

Character Unit of measurement, international		Unit of measurement, national	Explanation
UV	V	R	a t e
fHz Hz Frequency
n_0	/min, min ^-1 , rpm, r/min	rpm Stroke rate at no-load
n_S	m/min m/min Cutting speed
M...	mm	mm Size of metric thread
∅	mm	mm Diameter of a round part
Fe 400	mm	mm Max. work-piece thickness for steel with up to 400 N/mm ^2
Fe 600	mm	mm Max. work-piece thickness for steel with up to 600 N/mm ^2
Fe 800	mm	mm Max. work-piece thickness for steel with up to 800 N/mm ^2
Al 250	mm	mm Max. work-piece thickness for aluminium with up 250 N/mm ^2
	mm	mm Diameter of pilot-drill for inside cut-outs
	mm	mm Min. inside curve radius
	kg	kg Weight according to EPTA-Procedure 01
	kg	kg Weight of the power tool without battery and application tool
	kg	kg Weight of the power tool without battery and application tool
	kg	kg Weight of the battery
L_pA	dB	dB	Sound pressure level
L_wA	dB	dB	Sound power level
L_pCpeak	dB	dB	Peak sound pressure level
K...			Uncertainty
a	m/s ^2	m/s ^2	Vibrational emission value according to EN 62841 (vector sum of three directions)
a_h	m/s ^2	m/s ^2	Vibrational emission value (nibbler)
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	Basic and derived units of measurement from the international system of units SI.

Character Unit of measurement, international		Unit of measurement, national	Explanation
UV	V	R	a t e
fHz Hz Frequency
n_0	/min, min ^-1 , rpm, r/min	rpm Stroke rate at no-load
n_S	m/min m/min Cutting speed
M...	mm	mm Size of metric thread
∅	mm	mm Diameter of a round part
Fe 400	mm	mm Max. work-piece thickness for steel with up to 400 N/mm ^2
Fe 600	mm	mm Max. work-piece thickness for steel with up to 600 N/mm ^2
Fe 800	mm	mm Max. work-piece thickness for steel with up to 800 N/mm ^2
Al 250	mm	mm Max. work-piece thickness for aluminium with up 250 N/mm ^2
	mm	mm Diameter of pilot-drill for inside cut-outs
	mm	mm Min. inside curve radius
	kg	kg Weight according to EPTA-Procedure 01
	kg	kg Weight of the power tool without battery and application tool
	kg	kg Weight of the power tool without battery and application tool
	kg	kg Weight of the battery
L_pA	dB	dB	Sound pressure level
L_wA	dB	dB	Sound power level
L_pCpeak	dB	dB	Peak sound pressure level
K...			Uncertainty
a	m/s ^2	m/s ^2	Vibrational emission value according to EN 62841 (vector sum of three directions)
a_h	m/s ^2	m/s ^2	Vibrational emission value (nibbler)
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number 3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool:

ABLS ( ^** ): Hand-guided sheet metal shears for cutting sheet metal in weather-protected environments without water supply using the application tools and accessories recommended by Fein.

ABSS ( ^** ): Hand-guided slitting shears for cutting sheet metal and tight curves in weather-protected environments without water supply using the application tools and accessories recommended by Fein.

Special safety instructions.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Do not direct the power tool against yourself, other persons or animals. Danger of injury from sharp or hot application tools.

Use and handling of the battery (battery pack).

To avoid hazardous situations such as burns, fire, explosion, skin injuries, and other injuries when handling the battery, observe the following instructions:

Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

When battery fluid from a damaged battery has come into contact with objects close by, check the respective components, clean them or replace them as required.

Keep the battery away from heat and fire. Do not store the battery in direct sunlight.

Do not remove the battery from its original packaging until it is going to be used.

Before any work on the machine itself, remove the battery from the power tool. If the power tool accidentally starts, there is danger of injury.

Remove the battery only when the power tool is switched off.

Keep the battery away from children.

Keep the battery clean and protect it against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth.

Use only intact original FEIN batteries that are intended for your power tool. When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion.

Follow the safety warnings in the operating instructions of the battery charger.

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Operating Instructions.

Guide the power tool toward the work piece only when switched on.

While cutting, hold the power tool as upright as possible to the work-piece surface (ABLS ( ^** )).

Guide the power tool uniformly and with light feed in the cutting direction. Excessive feed reduces the tool life of the application tools.

Do not cut steel sheets where welded. Do not cut layered sheets exceeding the max. work-piece thickness.

To increase the tool life of the blades, it is recommended to apply a lubricating agent alongside the intended cutting line:

- For cuts in steel sheet: Cutting paste or cutting oil, - For cuts in aluminium: Petroleum.

Do not switch the power tool off until after having removed it from the cutting path.

The symptom for worn blades is a clearly increased feed force at lower working progress.

ABSS ( ^** ): For inside cuts, a pilot hole is required; see "Technical Data".

Blades and cutting bars cannot be reground.

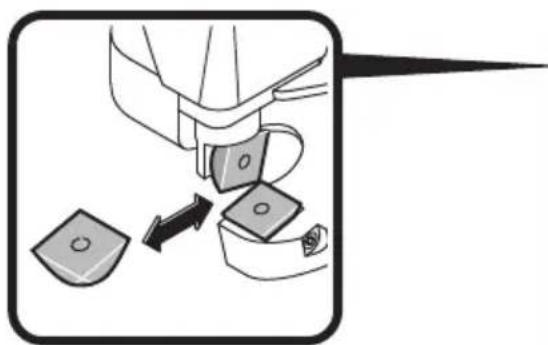

ABLS ( ^** ): The blades cannot be reground and must always be replaced in pairs.

Handling the battery.

Store, operate and charge the battery only using FEIN battery chargers within the battery operating-temperature range between 5 °C – 45 °C (41 °F – 113 °F). At the beginning of the charging procedure, the battery temperature must be within the battery operating-temperature range.

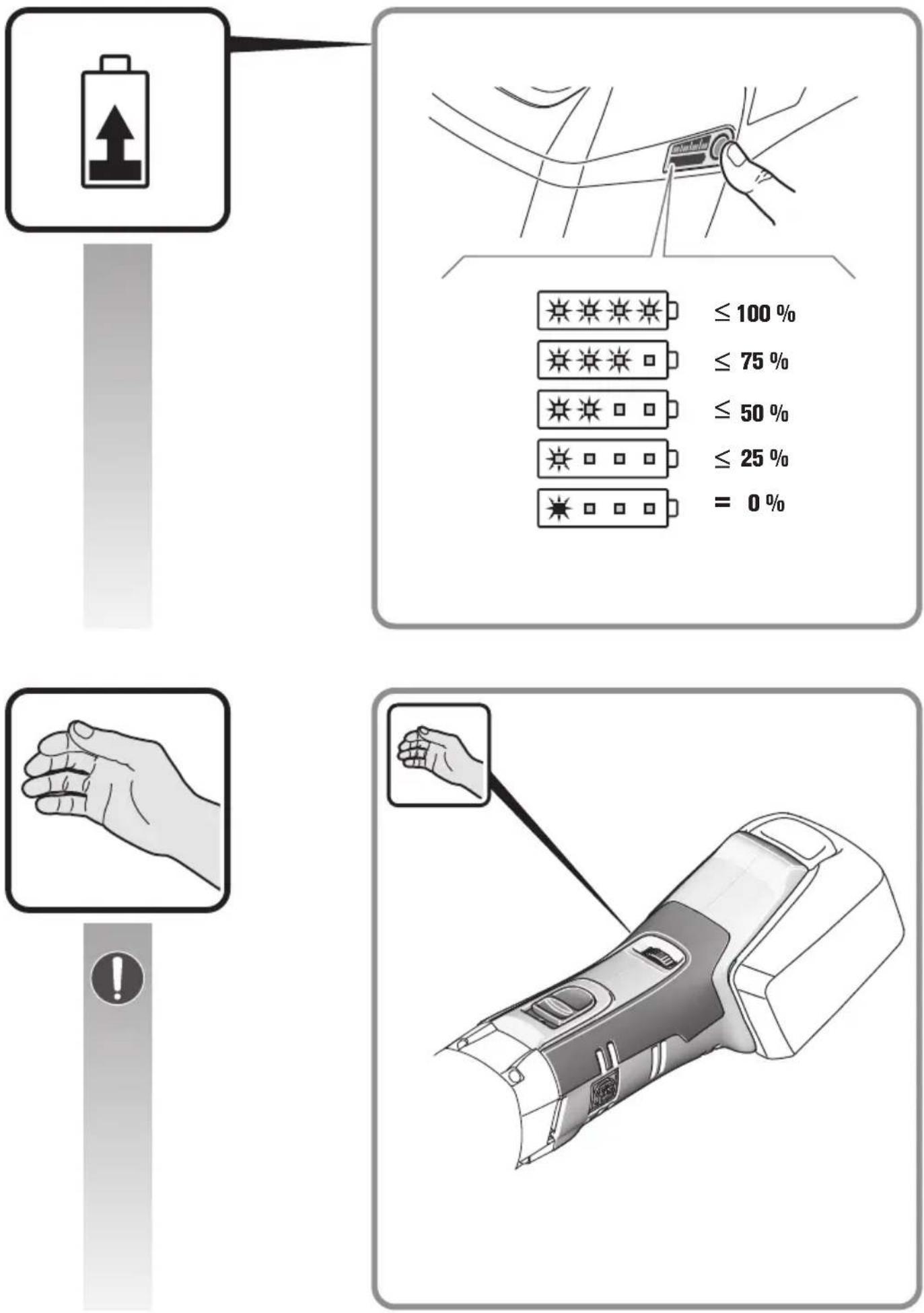

LED indicator	Meaning Activity
1 – 4 green LED	Percentage of charge condition	Operation
Continuous red light	Battery is almost empty	Charge battery
Red flashing light	Battery is not ready for operation	Bring the battery into the battery operating-temperature range, then charge

The real percentage of the battery charge condition is only indicated when the power tool motor is stopped.

The electronics automatically switch off the motor prior to the battery being deep discharged.

Repair and customer service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power

tool. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air.

Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.

The current spares parts list for this power tool can be found on our website at www.fein.com.

If required, you can change the following parts yourself: Application tools, cutting bars (ABSS (**)

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.

Declaration of conformity.

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Technical documents at: C. & E. Fein GmbH, D-73529 Schwäbisch Gmünd

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. Dispose of batteries only when discharged.

For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.

Miljøvern, deponering.

China RoHS Status Certificate

中国 RoHS 认证概况

Table of Toxic and Hazardous Substances/Elements and their Content

as required by China's Management Methods for Controlling Pollution by Electronic Information Products

有毒有害物质 / 成分及其含量表

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

DIN EN 62841-1:2015 + AC:2015

Director of Quality Director of Product Management Development

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

BS EN 62841-1:2015 + AC:2015

BS EN 62841-2-8:2016

BS EN 55014-1:2017 + A11:2020

BS EN 55014-2:2015

BS EN 55014-2:1997+A1:2001+A2:2008+AC:1997

Supply of Machinery Regulations 2008,

EMC Regulation 2006, The Restriction of the Use of Certain Hazardous Substances In Electrical and Electronic Equipment Regulations 2012

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product Management Development

QR code image containing encoded data, no visible human-readable text
