60085 - Pest control Gardigo - Free user manual and instructions

Product Type	Solar water jet repellent
Dimensions (L x H x W)	11 x 66 x 20 cm
Power Supply	2 rechargeable AA batteries (1200 mAh) + solar panel
Sensor	PIR motion detector (100° x 60°)
Water Jet Range	Up to 10 m (depending on water pressure)
Jet Spray Angle	170°
Water Consumption per Activation	Approximately 2 to 3 cups
Protection Rating	IPX6
Operating Temperature	0 °C to +50 °C, ≤ 90 % RH
Storage Temperature	0 °C to +50 °C, ≤ 90 % RH
Detector Sensitivity	Adjustable from 1 to 9 (mode 0 = off)
Operating Modes	0 (off), 1-9 (increasing sensitivity)
Maintenance and Cleaning	Clean with a damp cloth; avoid abrasive products or solvents
Battery Safety	Only use rechargeable AA batteries; do not use non-rechargeable batteries
Repairability	Only use original spare parts; do not modify the device
Maximum Water Pressure	Less than 4 bars (pressure reducer required if higher)
Compliance	CE

Frequently Asked Questions - 60085 Gardigo

How to install the Gardigo 60085 repellent?

Screw the plastic tube of the stake to the lower part of the device, then the iron stake. Connect the solar panel and insert the rechargeable AA batteries (included). Connect the garden hose to the quick connector and place the device in a sunny location.

How to adjust the water jet range?

Turn the plastic screw above the spray nozzle: the more it is unscrewed, the shorter the range. The maximum range is 10 meters depending on water pressure.

Does the device work at night?

Yes, the motion detector is active day and night. The batteries recharge during the day via the solar panel and ensure night operation.

Can non-rechargeable batteries be used?

No, only use rechargeable AA batteries. Using normal batteries may cause an explosion and damage the device.

How to clean the motion detector sensor?

Clean the surface of the detector with a soft, damp cloth. Do not use abrasive products or solvents.

What to do if the water jet is weak?

Check the water pressure: it must be less than 4 bars. If it is too high, install a pressure reducer. Also ensure the hose and connections are not leaking.

Can the device repel all animals?

Each animal reacts differently. The repellent effectively deters most animals, but some may get used to it. Vary locations or settings if necessary.

How to adjust the motion detector sensitivity?

Use the button on the back of the device: mode 1-9 to increase sensitivity. For small animals at 3 m, set to 5-7; for large ones at 10 m, set to 7-9.

What to do in case of water leakage?

Check that all connections are tightly sealed and that the seals are correctly positioned. If the leak persists, replace the seals or contact customer service.

How to winterize the device?

Remove the rechargeable batteries and store them in a dry place. Drain the water from the system. Protect the device from frost (temperature below 0°C).

USER MANUAL 60085 Gardigo

Exterior view of a weather monitoring device with solar panel and mounted sensor (no visible text or symbols)

DE Gebrauchsanweisung 3
GB Instruction manual 7
FR Notice d'utilisation 10
ES Manual de instrucciones 13
IT Istruzioni per l'uso 17
NL Instructies 21

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands using a tool to adjust or install a component, no text or symbols present

Gebrauchsanweisung

Art.-Nr. 60085

At the end of its life span this product may not be disposed as normal household waste but must be disposed of at a collecting place for recycling of electrical and electronic equipment. The icon on the product, in the manual, or on the packing points to this fact. The materials are recyclable according to their labelling. Through reusing, material recycling, or other forms of utilisation of old devices you make an important contribution to the protection of the environment. Please ask the local administration for the responsible waste disposal centre.

Do not throw batteries or rechargeable batteries into household waste!

Consumers are legally obligated to return used and rechargeable batteries, whether they contain harmful substances* or not, to designated recycling areas, disposal sites, or stores where batteries/rechargeable batteries can be bought. By doing so, you are fulfilling all legal battery recycling and disposal obligations and are contributing to a better environment. Make sure batteries are completely discharged before disposing!

*marked with: Cd = cadmium

Hg = mercuric

Pb = lead

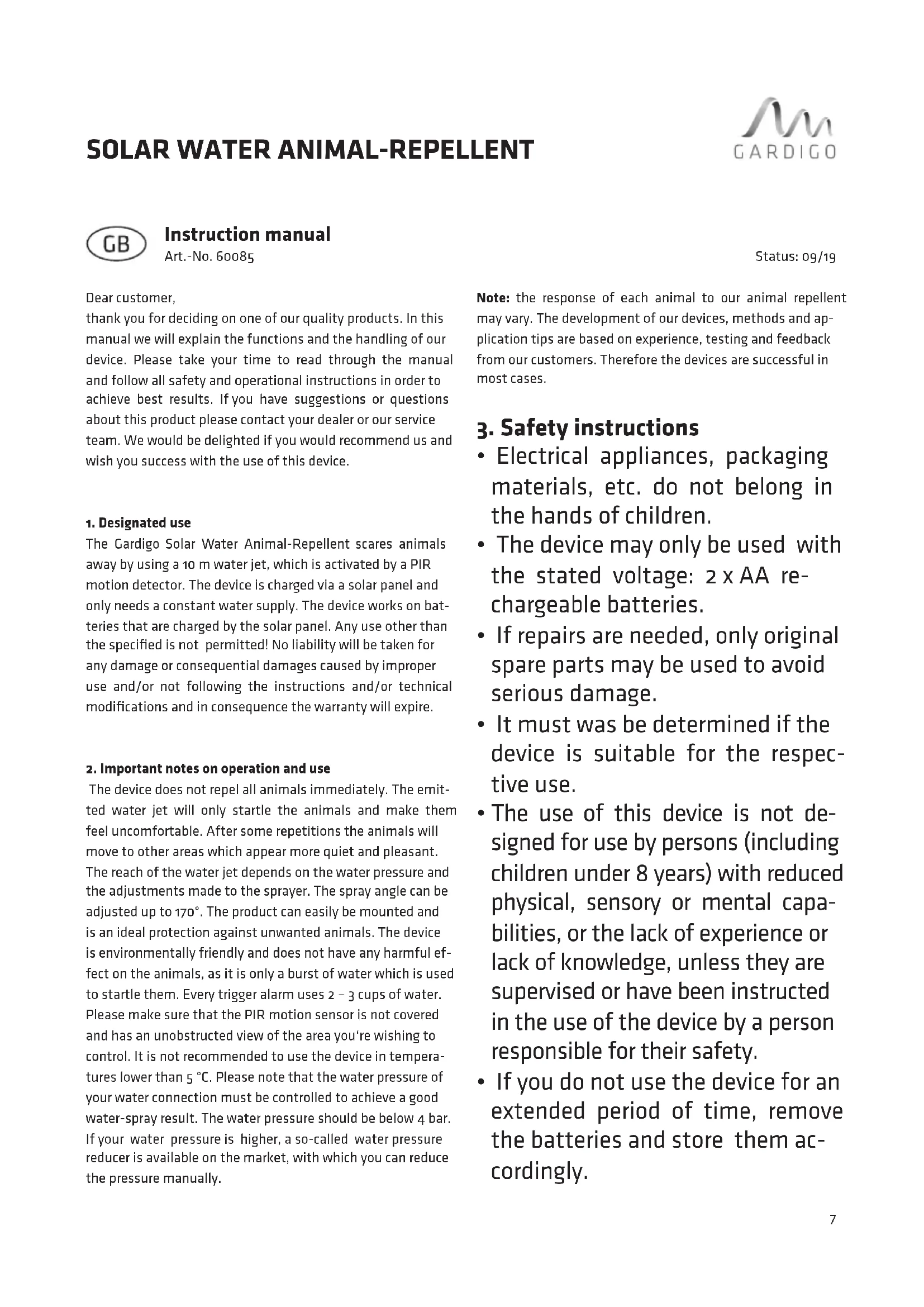

Instruction manual

Art.-No. 60085

Status: 09/19

Dear customer,

thank you for deciding on one of our quality products. In this manual we will explain the functions and the handling of our device. Please take your time to read through the manual and follow all safety and operational instructions in order to achieve best results. If you have suggestions or questions about this product please contact your dealer or our service team. We would be delighted if you would recommend us and wish you success with the use of this device.

1. Designated use

The Gardigo Solar Water Animal-Repellent scares animals away by using a 10 m water jet, which is activated by a PIR motion detector. The device is charged via a solar panel and only needs a constant water supply. The device works on batteries that are charged by the solar panel. Any use other than the specified is not permitted! No liability will be taken for any damage or consequential damages caused by improper use and/or not following the instructions and/or technical modifications and in consequence the warranty will expire.

2. Important notes on operation and use

The device does not repel all animals immediately. The emitted water jet will only startle the animals and make them feel uncomfortable. After some repetitions the animals will move to other areas which appear more quiet and pleasant. The reach of the water jet depends on the water pressure and the adjustments made to the sprayer. The spray angle can be adjusted up to 170°. The product can easily be mounted and is an ideal protection against unwanted animals. The device is environmentally friendly and does not have any harmful effect on the animals, as it is only a burst of water which is used to startle them. Every trigger alarm uses 2 – 3 cups of water. Please make sure that the PIR motion sensor is not covered and has an unobstructed view of the area you're wishing to control. It is not recommended to use the device in temperatures lower than 5 °C. Please note that the water pressure of your water connection must be controlled to achieve a good water-spray result. The water pressure should be below 4 bar. If your water pressure is higher, a so-called water pressure reducer is available on the market, with which you can reduce the pressure manually.

Note: the response of each animal to our animal repellent may vary. The development of our devices, methods and application tips are based on experience, testing and feedback from our customers. Therefore the devices are successful in most cases.

3. Safety instructions

• Electrical appliances, packaging materials, etc. do not belong in the hands of children.
• The device may only be used with the stated voltage: 2 x AA rechargeable batteries.
• If repairs are needed, only original spare parts may be used to avoid serious damage.
• It must was be determined if the device is suitable for the respective use.
• The use of this device is not designed for use by persons (including children under 8 years) with reduced physical, sensory or mental capabilities, or the lack of experience or lack of knowledge, unless they are supervised or have been instructed in the use of the device by a person responsible for their safety.

• If you do not use the device for an extended period of time, remove the batteries and store them accordingly.

• Batteries should not be used in temperatures under o °C. They may become damaged and lose their capacity.

• Never use normal alkaline batteries! They might leak or explode in the device!
• Keep these instructions in a safe place and pass them on when giving the device to a third party.
• This unit is suitable for outdoor use.
• Please make sure that the connected hosepipe is laid out in such a way, that it does not become a tripping hazard.

4. Contents

• Solar Water Animal-repellent
- Sprinkler unit
- Solar Panel
• Ground spike, 2-parts
• Standard connector for garden hose
• 2 x rechargeable batteries (AA)
- Stopper Cap
- Instruction manual

5. Getting started

The Gardigo Solar Water Animal-repellent is powered by rechargeable batteries. The garden hose is connected with a quick snap connector.

Inserting the batteries:

1. You will need two Mignon (AA) rechargeable batteries.
2. Open the cover of the battery compartment ⑦ located below the PIR sensor by sliding it downwards.

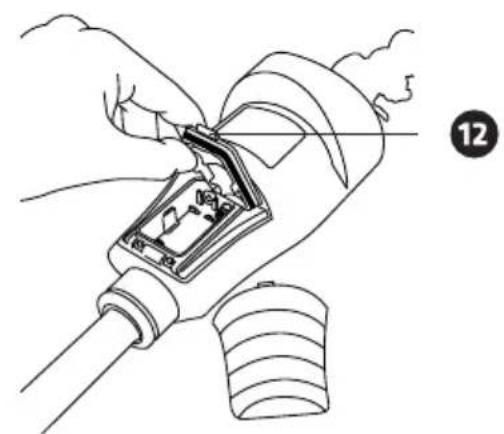

3. Open the battery compartment by lifting up the latch ^12 .
4. Insert the batteries. Pay attention to the polarity. The minus end of the battery always connects to the spring in the battery compartment.
5. Close the battery compartment. Make sure that the rubber sealing is in the groove and has not been twisted.
6. Slip the cover of the battery compartment ⑦ back on.

Assembly:

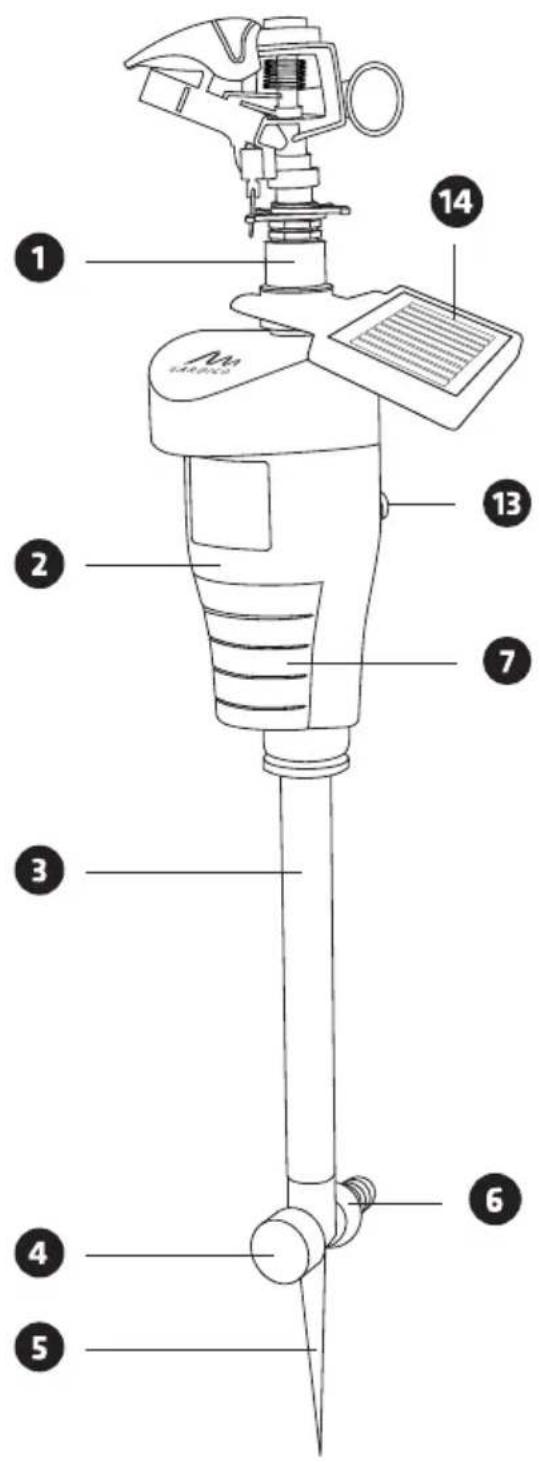

1. Screw the plastic tube to the connector at the bottom of the device.
2. Screw the metal spit to the plastic tube 5.
3. Screw the quick connector for the garden hose to the metal spit 6.
4. Screw the spraying unit 1 to the top of the device.
5. Align the solar panel 14 so that it receives direct sunlight throughout the day. Insert the plug into the socket located on the back of the device.
6. The repellent can now be set up in the garden or near the pond.
7. The batteries may not be fully charged. Leave the device in the sun for 2 - 3 hours and allow the batteries to charge.

Operation:

To set up the Water Repellent choose a spot that will oversee the area you want to clear of animals. Make sure to look for a position where the animals will walk across the sensors viewing area rather than walking directly towards the sensor. Make sure that the view of the sensor is not obstructed by leaves or foliage and that the surface of the sensor is clean. When adjusting sensor sensitivity you need to consider what kind of animal you want to scare away and the distance of detection (see below). It is possible to adjust the angle and the distance of the waterspout. Make sure that the sensor has a stable stand, as the recoil during the waterspout can be quite strong.

• Place the ground spit into the ground. If the earth is too hard we recommend to soften it by soaking it with water. The sensor should not be higher than 1 m above the area that is being controlled.
• If you want to place the device in an area that has no soil, we recommend the use of an umbrella stand.

Note: False alarms can be triggered by objects that are warmer than the surroundings, by strong water movement, by rapid temperature changes and by house pets. On very hot days it may occur that an animal is not detected as the surrounding temperature is equal to that of the body temperature. This function is normal for a PIR sensor.

• Connect your garden hose to the quick connector on the spike ⑥. Make sure that the hose and all connections are in good condition and that there is no leakage. Make sure that there is no sand or other debris is in the garden hose.
• If you do not want to use the second outlet in the spike, then close this with the supplied cap 4.
• You should check the function of the device, before opening the water tap.
• Switch the device to position g and wave your hand in front of the motion sensor. If you hear a silent click, then the device has been activated and the valve for the water has switched. Open your water tap to full.

Controlling the waterspout:

The motion sensor ^⑦ has a horizontal detection angle of 100° and vertical detection angle of 65°. With a water pressure of 8 bar, the waterspout can reach up to 10 m. The distance can be adjusted and reduced. This should be done on-site. There are generally two ways of adjusting the water spray:

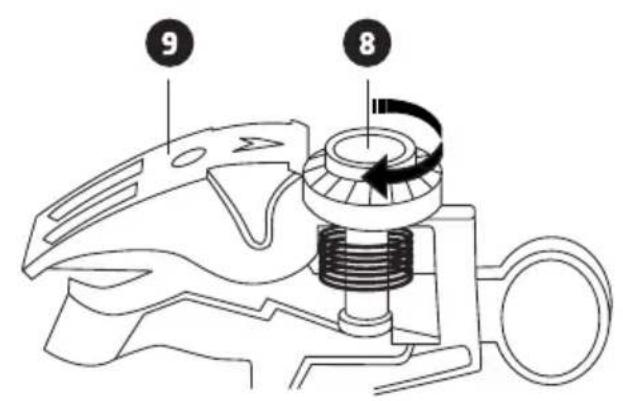

• Distance: turn the plastic screw the top of the sprinkler unit. The further the water-blocker extended, the shorter the distance of the water spray.

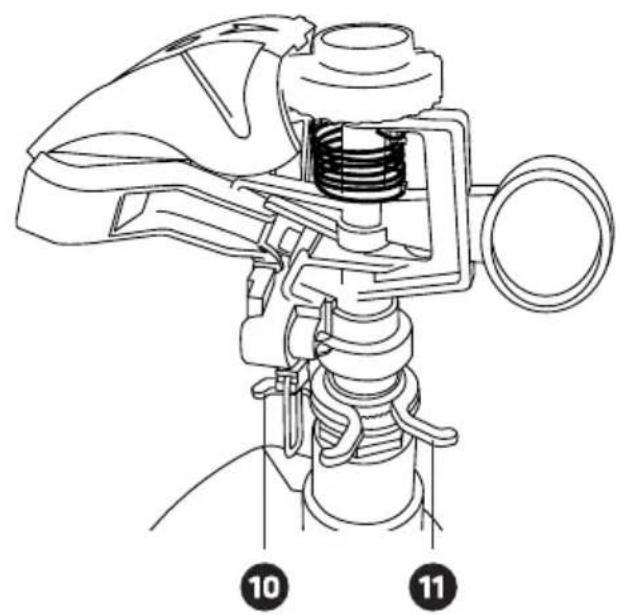

• Scattering angle: at the base of the sprinkler unit you will find two clips 10/11miting the scattering angle of the spray unit. These can be easily turned and adjusted when they are slightly pulled apart. Each clip defines the stopper for left 10 and right 11the metal clip is the detector. When this hits one of the clips it will change the direction of the sway.

Adjusting the sensitivity of the motion sensor:

At the back of the device you will find the on-off/sensitivity button ⑬. The adjustments are also dependent on the surroundings and the activity of the sun.

• Mode 0 (full left): the device is switched off but will still charge the batteries through the solar panel.
• Mode 1–9: Increases the sensitivity of the motion sensor.

Tip: if you want to reduce or direct the detecting angle of the sensor you can do this by covering parts of the lens with a light proof, adhesive foil.

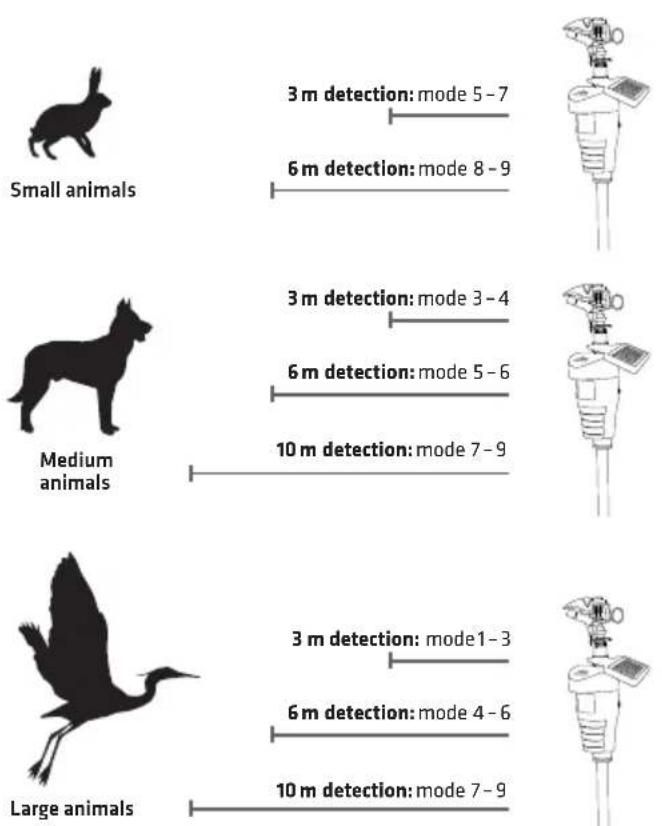

Recommendations for adjusting sensitivity sensor:

6. Specifications

• Adjustable spray coverage
• Solar Panel
• Range of water jet: up to 10 m (adjustable and dependent on water pressure)

- Activation by PIR motion detector: Detection angle approx. 100^ × 60^

- Sensitivity control for motion sensor

- Adjustable sprinkler: Left/Right and Up/Down

• Water consumption per activation: approx. 2 - 3 cups

- Simple standard connection to common garden hose systems

• Protection class: IPX6

- Power supply: 2 x AA mignon rechargeable batteries, 1200 mAh

- Easy to install with adjustable

- Dimensions: approx. 11 x 66 x 20 cm (W x H x D)

- Operating temperature: 0 °C to + 50 °C and ≤ 90 % humidity

• Storage temperature: 0 °C to + 50 °C and ≤ 90 % humidity

7. General information

• The CE conformity has been proven and the declarations are deposited with us.
• The safety and conformity reasons it is not permitted to rebuild or modify the device and/or use it in any other way than described above.
• This device has a warranty of two years. As Gardigo has no control of the correct of appropriate installation and use of the device the warranty can only be applied to a fully equipped device in prime condition. We assume neither warranty nor liability for damages or following damages related to this product. This applies especially if it has been modifications or repairs have been made by the customer, if the circuitry has been modified or components have been used other than the original components and/or if the operation of the device has been incorrect, careless or abusive.
• If you have any questions or suggestions about this product, please contact your dealer.
• Clean the device with a soft damp cloth. Do not use any detergents.

Service Hotline: Phone [phone]

Your Gardigo-Team
