PCDVL 3071 - Fan ProfiCare - Free user manual and instructions

Product type	Ceiling fan
Brand	ProfiCare
Model	PCDVL 3071
Power supply	220-240 V~, 50 Hz
Power consumption	60 W
Protection class	I
Protection rating	IPX0
Net weight	Approximately 4.7 kg
Number of blades	3
Number of speeds	3 (high, medium, low)
Control	Pull chain
Reversible rotation direction	Yes (summer/winter)
Minimum installation height	2.3 meters
Blade material	Not specified (likely plastic or wood)
Blade diameter	Not specified
Summer function	Counterclockwise rotation to cool
Winter function	Clockwise rotation to redistribute heat
Maintenance	Clean with a damp cloth, do not immerse
Installation	By a qualified electrician
Package contents	Spacer tube, canopy, blades, pull chain, mounting bracket, fixing accessories

Frequently Asked Questions - PCDVL 3071 ProfiCare

How to install the PCDVL 3071 fan?

Installation must be carried out by a qualified electrician. Attach the mounting bracket to the ceiling, connect the wires (brown/phase L, blue/neutral N, green-yellow/ground), then attach the blades and motor housing. Maintain a minimum height of 2.3 m below the blades.

How to adjust the fan speed?

Pull the chain on the motor housing several times: 1x = high speed, 2x = medium, 3x = low, 4x = stop.

How to reverse the rotation direction for summer or winter?

Use the switch on the motor housing. For summer (cool), set to the symbol. For winter (redistribute heat), set to the other symbol. Only change direction when the blades are stationary.

What maintenance does the fan require?

Clean the surface with a slightly damp cloth, then dry with a soft cloth. Do not use harsh or abrasive detergents. Do not immerse the device in water.

What are the important safety instructions?

Install the fan at least 2.3 m from the floor. Turn off the circuit breaker before installation or cleaning. Do not touch moving blades. Do not let children play with the device.

Can the fan be installed on a false ceiling?

No, the ceiling must support the weight of the fan (approximately 4.7 kg). False ceilings are not suitable.

What to do in case of malfunction?

Do not repair the device yourself. Contact a qualified technician or customer service. Have the damaged cable replaced only by a professional.

How to dispose of the fan at end of life?

Do not throw it away with household waste. Dispose of it at a collection point for electrical and electronic equipment to promote recycling.

Is the fan suitable for humid rooms?

No, the device is not designed for installation in humid environments (protection rating IPX0). Install it in a dry room.

How many blades does the fan have?

The PCDVL 3071 model comes with 3 blades.

USER MANUAL PCDVL 3071 ProfiCare

Modern office ceiling fan with three blades and a central hub (no text or symbols visible)

Deckenventilator PC-DVL 3071

Parts description / Scope of delivery......Page 3
Instruction Manual......Page 25
Technical Data......Page 28
Disposal Page 28

Język polski

Spis treści

Parts description / Scope of delivery

4 Deutsch

Bedienungsanleitung

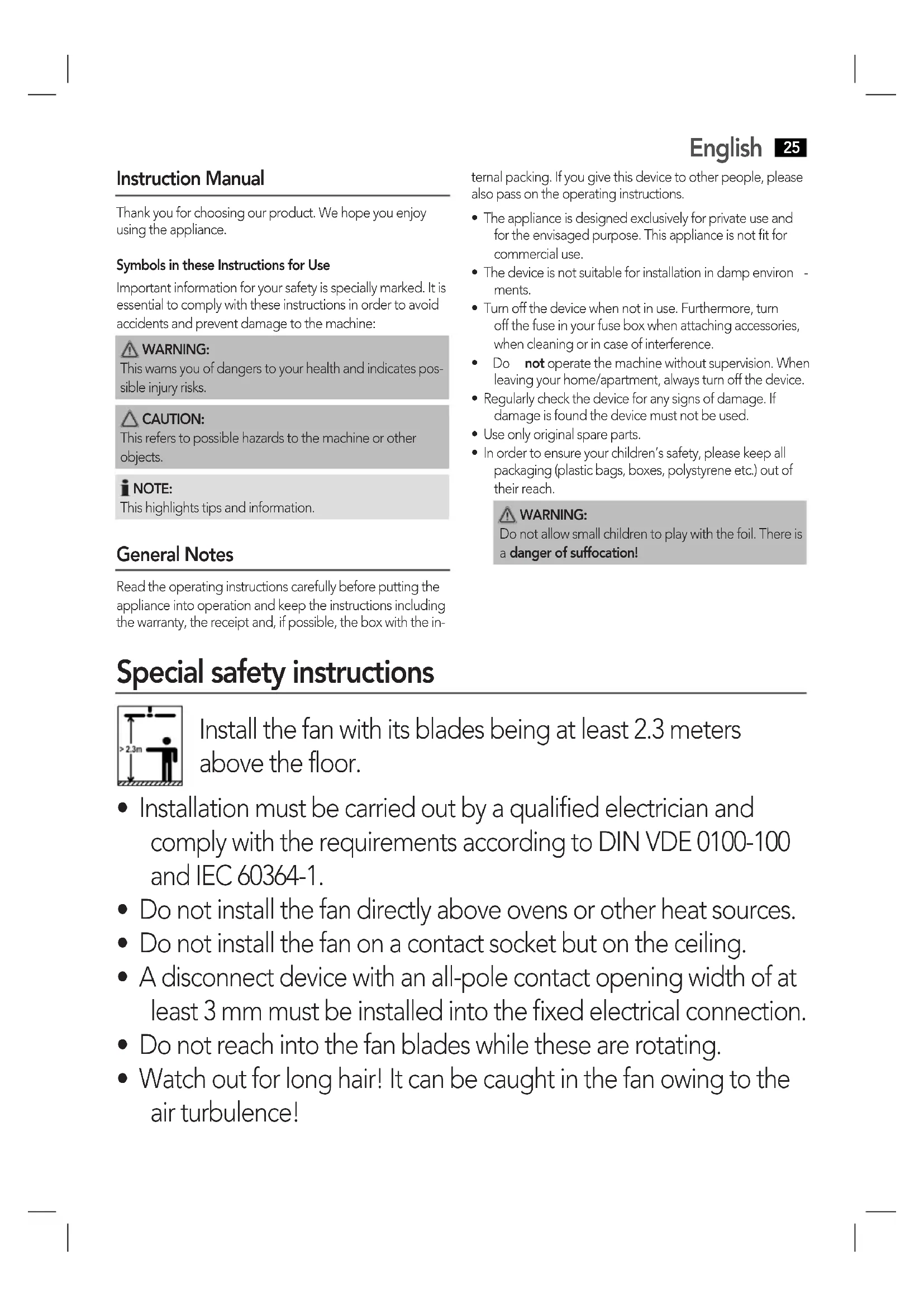

Thank you for choosing our product. We hope you enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the in-

English

ternal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The device is not suitable for installation in damp environments.
• Turn off the device when not in use. Furthermore, turn off the fuse in your fuse box when attaching accessories, when cleaning or in case of interference.
• Do not operate the machine without supervision. When leaving your home/apartment, always turn off the device.
• Regularly check the device for any signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety instructions

Install the fan with its blades being at least 2.3 meters above the floor.

• Installation must be carried out by a qualified electrician and comply with the requirements according to DIN VDE 0100-100 and IEC 60364-1.
• Do not install the fan directly above ovens or other heat sources.
• Do not install the fan on a contact socket but on the ceiling.
• A disconnect device with an all-pole contact opening width of at least 3 mm must be installed into the fixed electrical connection.
• Do not reach into the fan blades while these are rotating.
• Watch out for long hair! It can be caught in the fan owing to the air turbulence!

26 English

• Do not repair the appliance on your own. Always contact an authorized technician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not immerse the device into water for cleaning. Please follow the instructions as stipulated in the chapter "Cleaning and maintenance".

Parts description / Scope of delivery

1 Spacer tube
2 Baldachin
3 Pre-installed fastening screws and spring washers (6 pieces each)
4 Paper padding (3 pieces)
5 Pull chain for setting the power level
6 Mounting bar
7 Screws (M5*50), dowels, washers and retainer rings
8 Pull chain extension
9 Fan blade
10 Switch for setting the rotation direction (summer/winter operation)
11 Motor housing

Unpacking the Device

1. Remove the device from its packaging.
2. Remove all of the packaging material such as foils, filling material, cable holders and cardboard packaging.
3. Check the scope of delivery.
4. Check the appliance for any transport damage to prevent a hazard.

i NOTE:

There may still be dust or production residues on the surface of the device. We recommend that you quickly wipe off the housing with a damp cloth.

Assembly instructions

CAUTION:

• Important! The ceiling must be suitable to carry the weight of the fan. Suspended ceilings are not suitable for installation.
• Check beforehand for any cables hidden behind the ceiling that could be damaged by installation!

WARNING: During installation

Switch off the home circuit breaker of the power supply line to which to connect the device.

1. Chose a suitable spot on the ceiling, taking into consideration the wingspread of the fan blades.
2. Remove two of the four pre-installed screws (A) from the mounting bar (6). Loosen the other two screws half way.
3. There are two methods for attaching the mounting bar:
   a) Wooden ceiling/beam: Attach the mounting bar using both long screws (M5*50) and the corresponding washers and retainer rings.
   b) Concrete ceiling: Mark the two positions in the slotted holes using a pencil. Drill the installation holes for the dowels. Insert the dowels into the holes. Attach the mounting bar using both long screws (M5*50) and the corresponding washers and retainer rings.

i NOTE:

Use special caution when installing the fan to a concrete ceiling. In order to facilitate a secure installation, stronger screws and dowels than those provided might be necessary.

1. Connect the electrical wires from the ceiling to the terminal strip in the mounting bar.

Color of electrical wire Connection to
Brown or black (phase) L
Blue (neutral) N
Green yellow(protective ground)	⊕ (Ground)

1. Remove the pre-installed screws and spring washers (3) from the motor housing (11).
2. Attach the fan blades (9) to the motor housing using the 6 screws and 6 spring washers removed earlier. Important! Do not remove the paper padding (4) underneath.
3. Connect the cable harness from the motor housing to the mounting bar.

NOTE: In order to facilitate installation: You may attach one screw hole of the baldachin to the hook on the mounting bar.

1. Attach the fan by remounting the baldachin to the mounting bar. Make sure the pin of the baldachin is aligned with the notch on the black cap of the spacer tube. Tighten the four screws on the mounting bar.
2. Fit the pull chain extension (8).

Cleaning and maintenance

1. Remove the paper cover from the spacer tube.

Operation

Fan

Use the switch (10) on the motor housing to set the rotation direction of the fan blades. (Summer/winter operation)

CAUTION:

Only adjust the direction when the fan blades stand still. Otherwise the motor could be damaged.

• Summer operation:
  Set the switch to "
  "position.
• Winter operation:
  Set the switch to " " position.

i NOTE:

Winter operation might be without any result depending on the size of the room.

Repeatedly pull the pull chain (5) on the motor housing to set the speed of the fan blades.

1x = high speed
2x = medium speed
3x = low speed
4x = Fan is turned off.

WARNING:

• Always switch off the respective home circuit breaker before carrying out any cleaning or maintenance work.
  • Always wait until the fan blades have come to a complete stop.
• Make sure no liquid enters the electrical connections, as this could otherwise cause electrical shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

- Clean the external surface of the fan with a slightly damp cloth.

• Dry the fan with a dry, soft cloth.

Noise development

The workplace-related emission value is less than 70 dB(A).

28 English

Technical Data

Model: PC-DVL 3071

Power supply: 220-240 V\~, 50 Hz

Power consumption:....60 W

Protection class:

Protection rating: IPX0

Net weight: approx. 4.7 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
