ULD420EUR - Detector Beha-Amprobe - Free user manual and instructions

Product Type	Ultrasonic Leak Detector
Dimensions (Receiver)	183 x 75 x 43 mm
Dimensions (Transmitter)	137 x 65 x 33 mm
Weight (Receiver)	0.235 kg
Weight (Transmitter)	0.152 kg
Power Supply (Receiver)	4 alkaline AA batteries 1.5 V
Power Supply (Transmitter)	2 alkaline AAA batteries 1.5 V
Battery Life (Receiver)	105 hours
Battery Life (Transmitter)	60 hours
Frequency Range (Receiver)	20 kHz to 90 kHz
Transmission Frequency (Transmitter)	40 kHz (square wave)
Display	TFT LCD 6.35 cm (2.5 inches), 240x320 pixels, 262k colors
Filter	Digital, up to 3 frequencies, ±5 kHz
Main Features	Ultrasonic leak detection, sensitivity adjustment, volume adjustment, noise filter, auto power off (60 min), low battery indicator
Supplied Accessories	Receiver ULD-400-RE, transmitter ULD-400-TE, headset, earphones, parabola PB-1, adapter TEA-1, extension TE-1, carrying case, batteries
Protection	IP40
Operating Temperature	-20 °C to 50 °C
Storage Temperature	-20 °C to 70 °C
Maintenance	External cleaning with neutral detergent; replace batteries if necessary
Warranty	2 years (excluding batteries, fuses, accidental damage)

Frequently Asked Questions - ULD420EUR Beha-Amprobe

How to turn on the ULD-400-RE receiver?

Press the On/Off button on the receiver. The LCD screen turns on.

How to adjust the sensitivity of the receiver?

Use the '+' and '-' buttons below the screen to increase or decrease sensitivity. Adjust until the signal intensity is below 75 when you are close to the leak.

What to do if the display shows maximum value regardless of sensitivity adjustment?

Press the Filter button to eliminate parasitic ultrasonic noises. The digital filter can suppress up to three noise frequencies.

How to use the ULD-400-TE transmitter?

Turn on the transmitter and select the signal level (High, Medium, Low) using the '+' or '-' buttons. Place it inside the sealed object, then scan the outside with the receiver to locate leaks.

What type of headset is compatible?

Any headset with a 3.5 mm jack plug is compatible. Plug it into the headphone jack on the front of the receiver.

How to replace the receiver batteries?

Turn off the receiver. Unscrew the battery compartment screw with a screwdriver, remove the cover, replace the 4 AA batteries respecting the polarities, then close.

How to replace the transmitter batteries?

Turn off the transmitter. Loosen the battery compartment lock with a flathead screwdriver, remove the cover, replace the 2 AAA batteries respecting the polarities, then close.

How to maintain the detector?

Regularly clean the exterior with a soft cloth moistened with a neutral solution of water and detergent. Let dry completely before use. Do not use solvents.

Can I use the receiver without a headset?

No, the receiver has no built-in speaker. The headset is essential to hear the ultrasound converted into audible sounds.

What is the warranty period?

The product is warranted for 2 years against defects in materials and workmanship from the date of purchase. The warranty does not cover batteries, fuses, accidental damage, or misuse.

USER MANUAL ULD420EUR Beha-Amprobe

Limited Warranty and Limitation of Liability

Your Beha-Amprobe product will be free from defects in material and workmanship for two years from the date of purchase unless local laws require otherwise. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on the behalf of Beha-Amprobe. To obtain service during the warranty period, return the product with proof of purchase to an authorized Beha-Amprobe Service Center or to an Beha-Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED OR STATUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.

Repair

All Beha-Amprobe tools returned for warranty or non-warranty repair or for calibration should be accompanied by the following: your name, company's name, address, telephone number, and proof of purchase. Additionally, please include a brief description of the problem or the service requested and include the test leads with the product. Non-warranty repair or replacement charges should be remitted in the form of a check, a money order, credit card with expiration date, or a purchase order made payable to Beha-Amprobe.

In-warranty Repairs and Replacement – All Countries

Please read the warranty statement and check your battery before requesting repair. During the warranty period, any defective test tool can be returned to your Beha-Amprobe distributor for an exchange for the same or like product. Please check the "Where to Buy" section on beha-amprobe.com for a list of distributors near you. Additionally, in the United States and Canada, in-warranty repair and replacement units can also be sent to an Amprobe Service Center (see address below).

Non-warranty Repairs and Replacement – Europe

European non-warranty units can be replaced by your Beha-Amprobe distributor for a nominal charge. Please check the "Where to Buy" section on beha-amprobe.com for a list of distributors near you.

Beha-Amprobe

Division and reg. trademark of Fluke Corp. (USA)

Germany*

In den Engematten 14

79286 Glottertal

Germany

Phone: [phone] - 0

beha-amprobe.de

United Kingdom

52 Hurricane Way

Norwich, Norfolk

NR6 6JB United Kingdom

Phone: [phone]

beha-amprobe.com

The Netherlands - Headquarters**

Science Park Eindhoven 5110

5692 EC Son

The Netherlands

Phone: [phone]

beha-amprobe.com

*(Correspondence only – no repair or replacement available from this address. European customers please contact your distributor.)

**single contact address in EEA Fluke Europe BV

CONTENTS

1. PRECAUTIONS AND SAFETY MEASURES ...... 2
2. INTRODUCTION .... 3
3. KIT COMPONENTS......4

3.1 Kit Components ....4
3.2 ULD-400-RE Receiver ....5
3.3 ULD-400-TE Transmitter ....6
3.4 Accessories 7

1. MAIN APPLICATIONS .... 8

4.1 Using the ULD-400-RE Ultrasonic Leak Detector Receiver 8
4.2 Using the ULD-400-TE Ultrasonic Leak Detector Transmitter 10

1. MAINTENANCE....11

5.1 Changing the Receiver Batteries .... 11
5.2 Changing the Transmitter Batteries 12
5.3 Cleaning 12

1. SPECIFICATIONS ...... 13

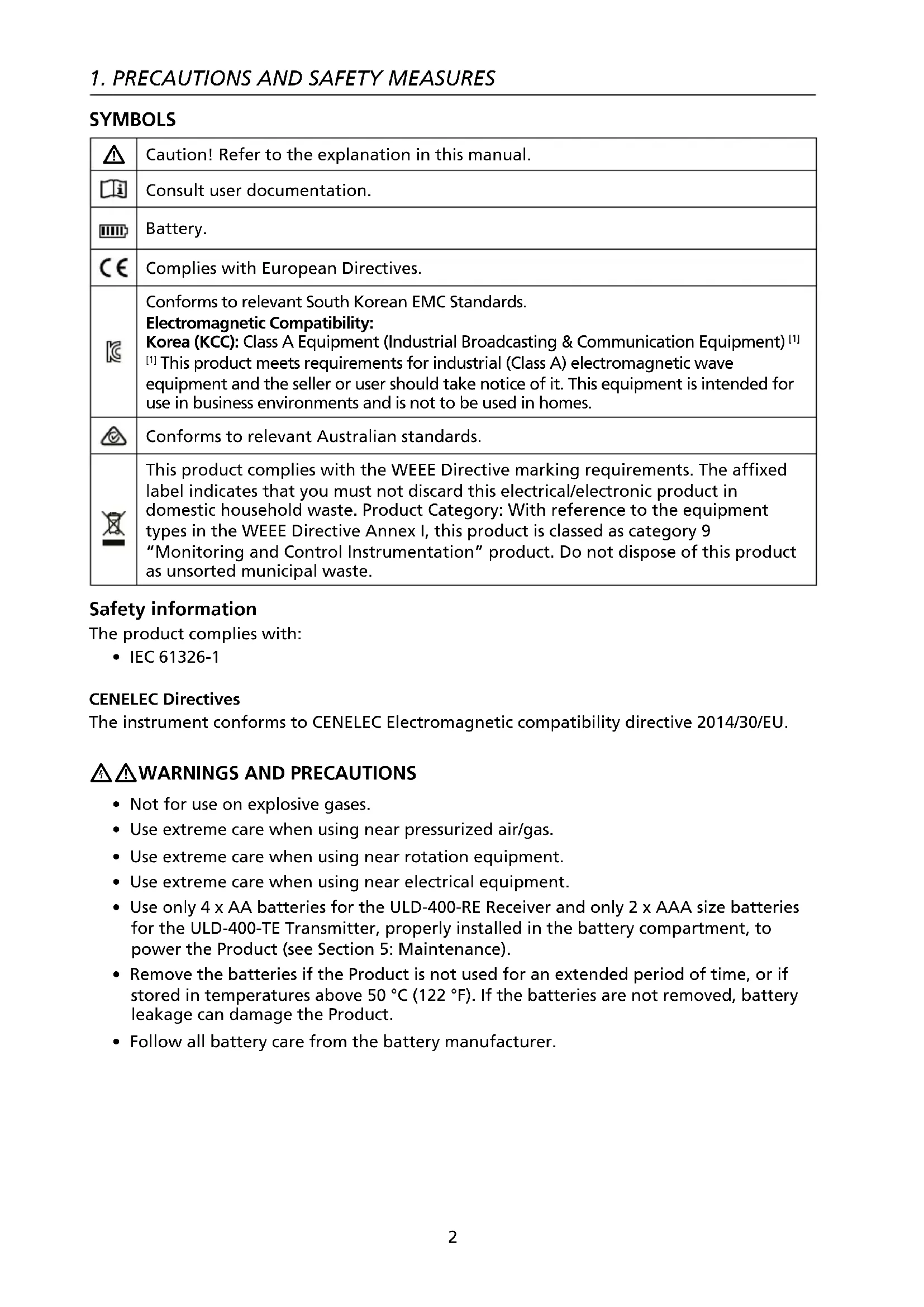

SYMBOLS

	Caution! Refer to the explanation in this manual.
	Consult user documentation.
	Battery.
	Complies with European Directives.
[###]	Conforms to relevant South Korean EMC Standards.Electromagnetic Compatibility:Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) [1][1] This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
[###]	Conforms to relevant Australian standards.
	This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste. Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9"Monitoring and Control Instrumentation" product. Do not dispose of this product as unsorted municipal waste.

Safety information

The product complies with:

- IEC 61326-1

CENELEC Directives

The instrument conforms to CENELEC Electromagnetic compatibility directive 2014/30/EU.

⚠️ ⚠️ WARNINGS AND PRECAUTIONS

• Not for use on explosive gases.
• Use extreme care when using near pressurized air/gas.
• Use extreme care when using near rotation equipment.
• Use extreme care when using near electrical equipment.
• Use only 4 x AA batteries for the ULD-400-RE Receiver and only 2 x AAA size batteries for the ULD-400-TE Transmitter, properly installed in the battery compartment, to power the Product (see Section 5: Maintenance).
• Remove the batteries if the Product is not used for an extended period of time, or if stored in temperatures above 50 °C (122 °F). If the batteries are not removed, battery leakage can damage the Product.
• Follow all battery care from the battery manufacturer.

2. INTRODUCTION

Ultrasonic sound, or ultrasound, is a sound wave with frequencies above 20 kHz, higher than the upper audible limit of human hearing. Ultrasound can be generated when turbulence created by air or gas is forced through a small orifice. Leaking air or gas is generally considered to be viscous flow, and as the flow velocity increases, the frequency of the ultrasound emitted becomes higher. Vibrating, moving objects or electric discharge will also create an ultrasonic wave, which is very directional in nature and can be used to pinpoint the exact location of a leak, vibration or discharge.

The ULD-400-RE Receiver detects ultrasounds within 20 kHz to 90 kHz frequency, then amplifies and converts these ultrasonic sounds to frequencies and levels that the human ear can hear through headphones and show it on the LCD screen. The 20 kHz to 90 kHz frequency range is the optimal range for detecting a variety of leakage events in assets such as HVAC systems and pneumatic lines. A change in the ultrasound produced by an asset may be indicative that an asset is beginning to fail.

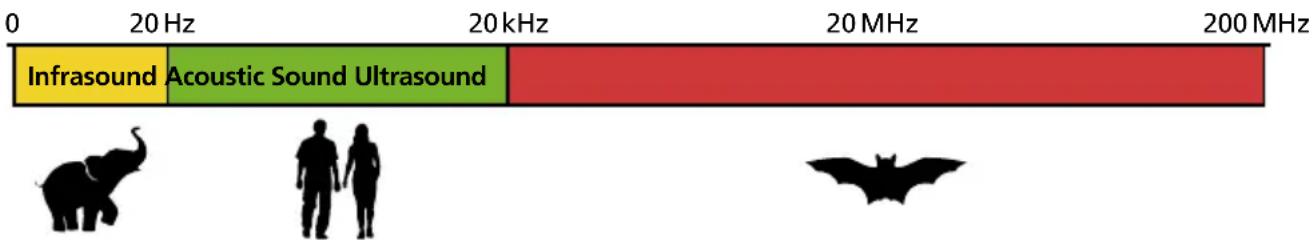

Figure 2: Sound range spectrum

3.1 Kit Components

Your shipping box should include:

	ULD-410-EUR ULD-420-EUR
ULD-400-RE Receiver 1 1
ULD-400-TE Transmitter - 1
Headphones 1 1
Earbuds (for use with hard hat) 1 1
PB-1 Power Parabola 1 1
TEA-1 Flexible Tubing Adapter 1 1
TE-1 Tubular Extension 1 1
CC-ULD-400-EUR Hard Carrying Case 1 1
AA Batteries (Receiver) 4 4
AAA Batteries (Transmitter) - 2
Manual 1 1

Note: Batteries are not pre-installed in the Receiver or Transmitter.

3.2 ULD-400-RE Receiver

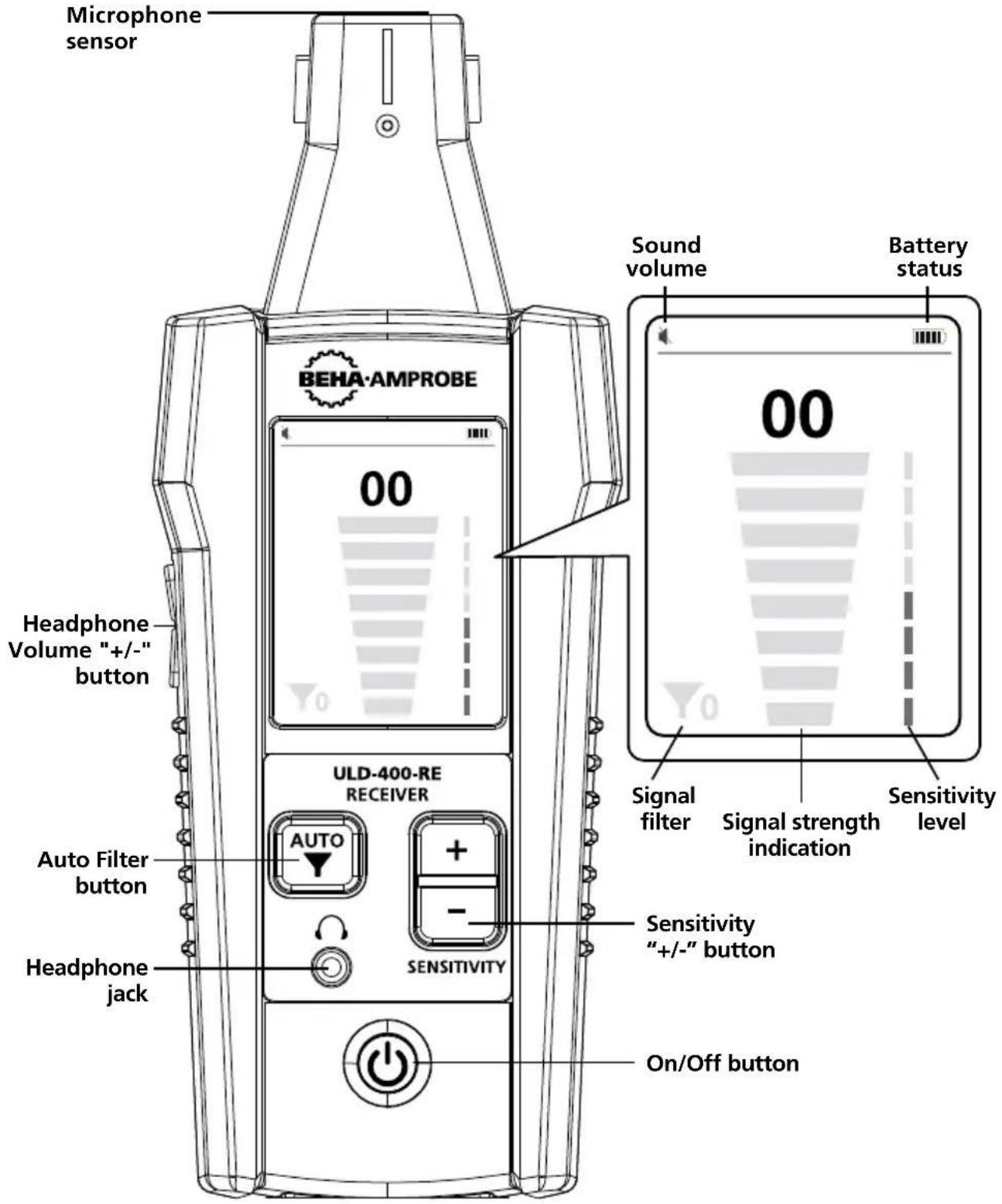

Microphone sensor BEHA-AMPROBE 00 Headphone Volume "+/- " button ULD-400-RE RECEIVER AUTO + - Sensitivity Sensitivity "+/- " button Auto Filter button Headphone jack On/Off button Sound volume Battery status 00 Signal filter Signal strength indication Sensitivity level

Figure 3.2: ULD-400-RE Receiver

3.3 ULD-400-TE Transmitter

The ULD-400-TE Transmitter is included with the ULD-420-EUR kit and is optional for the ULD-410-EUR kit.

When a leak is not pressurized sufficiently the Receiver will not be able to detect it. In these circumstances, the ULD-400-TE Transmitter can be used to emit an ultrasonic sound that the Receiver can read. The Transmitter is programmed with three signal levels for precise pinpointing of leaks.

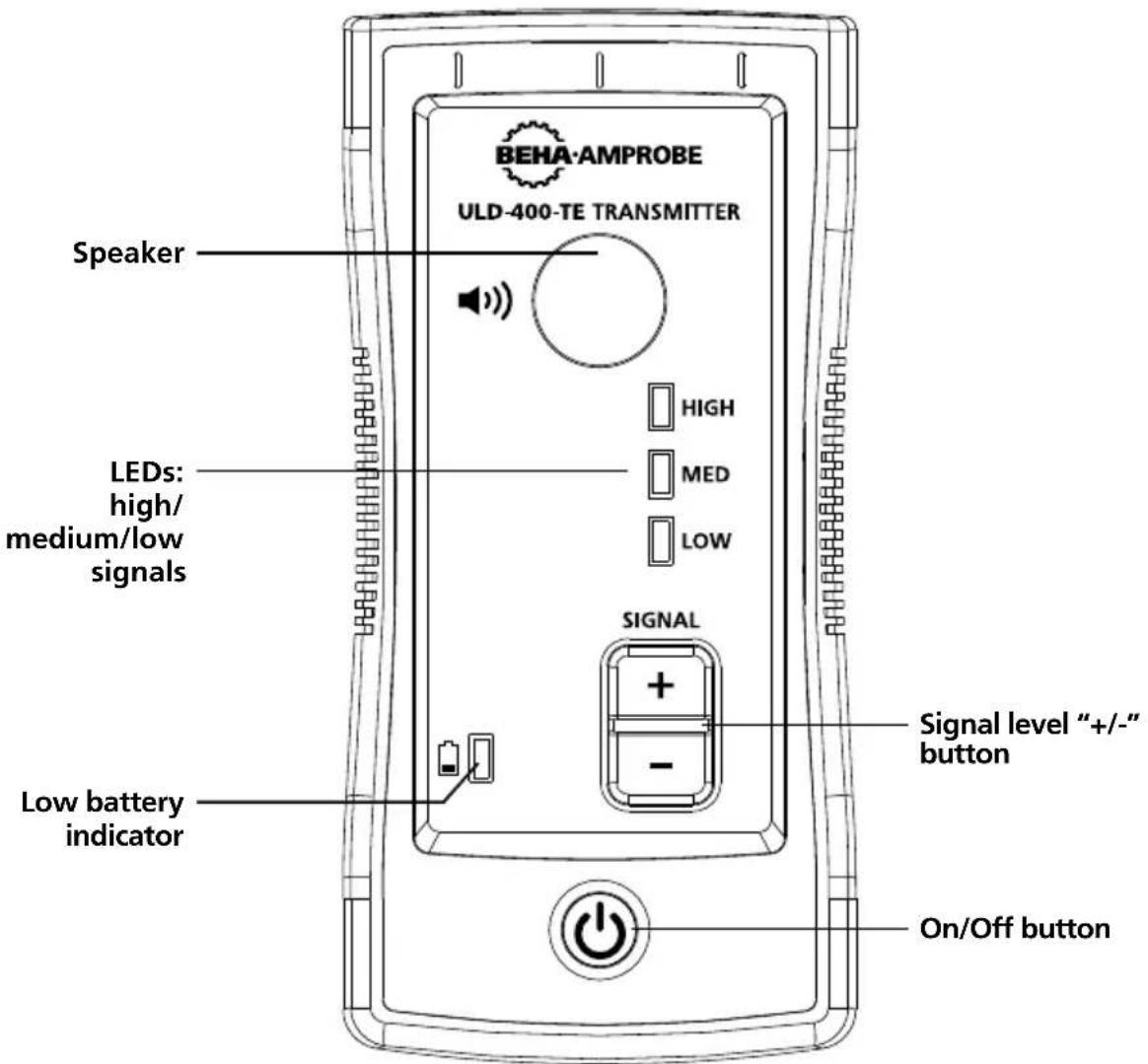

BEHA-AMPROBE ULD-400-TE TRANSMITTER Speaker LEDs: high/ medium/low signals HIGH MED LOW SIGNAL Signal level "+/-" button Low battery indicator On/Off button

Figure 3.3: ULD-400-TE Transmitter

3.4 Accessories

The ULD-400-EUR comes supplied with additional Receiver accessories that are helpful in leak identification. Plug the headphones into the Receiver to audibly hear the leak and verify its source (for example hissing sound of an air leak versus ticking sound of an electric discharge). Use the Parabola attachment in situations where there is a high level of background noise to help direct the ultrasound towards the sensor. Use the Tubular Extension with the Adapter in hard to reach areas for additional reach.

Note: There is no speaker on the Receiver. Without headphones, no noise will be audible.

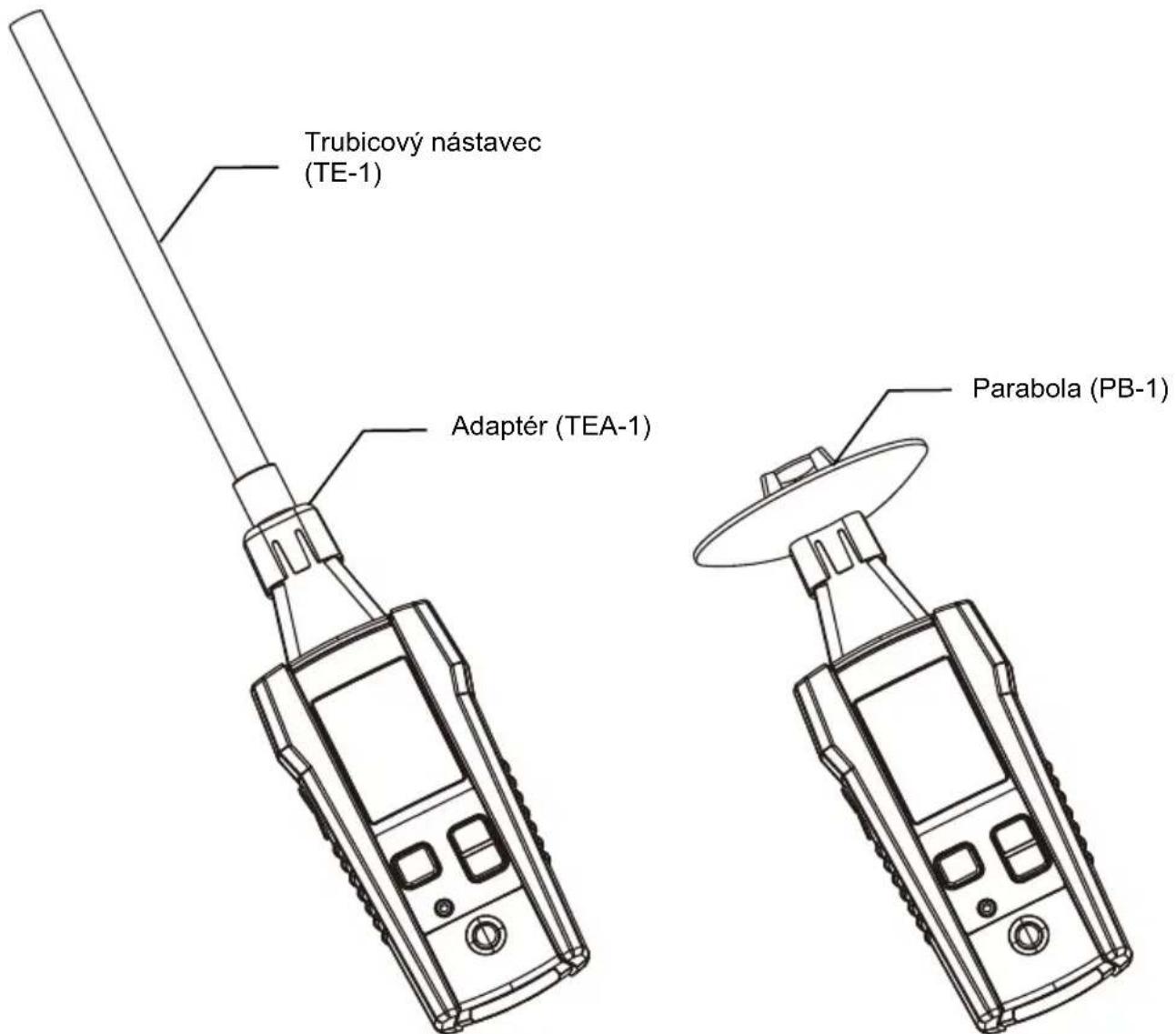

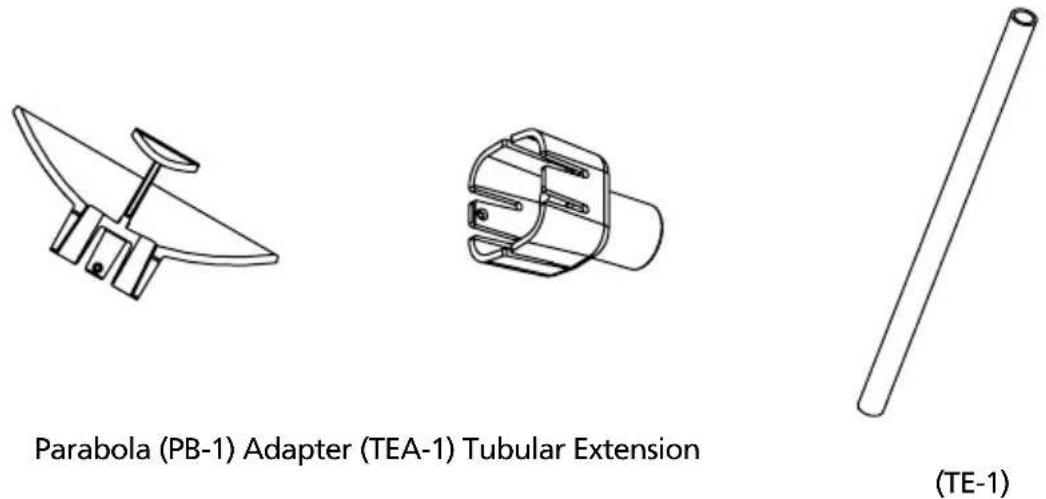

Parabola (PB-1) Adapter (TEA-1) Tubular Extension (TE-1)

Tubular Extension (TE-1) Adapter (TEA-1) Parabola (PB-1)

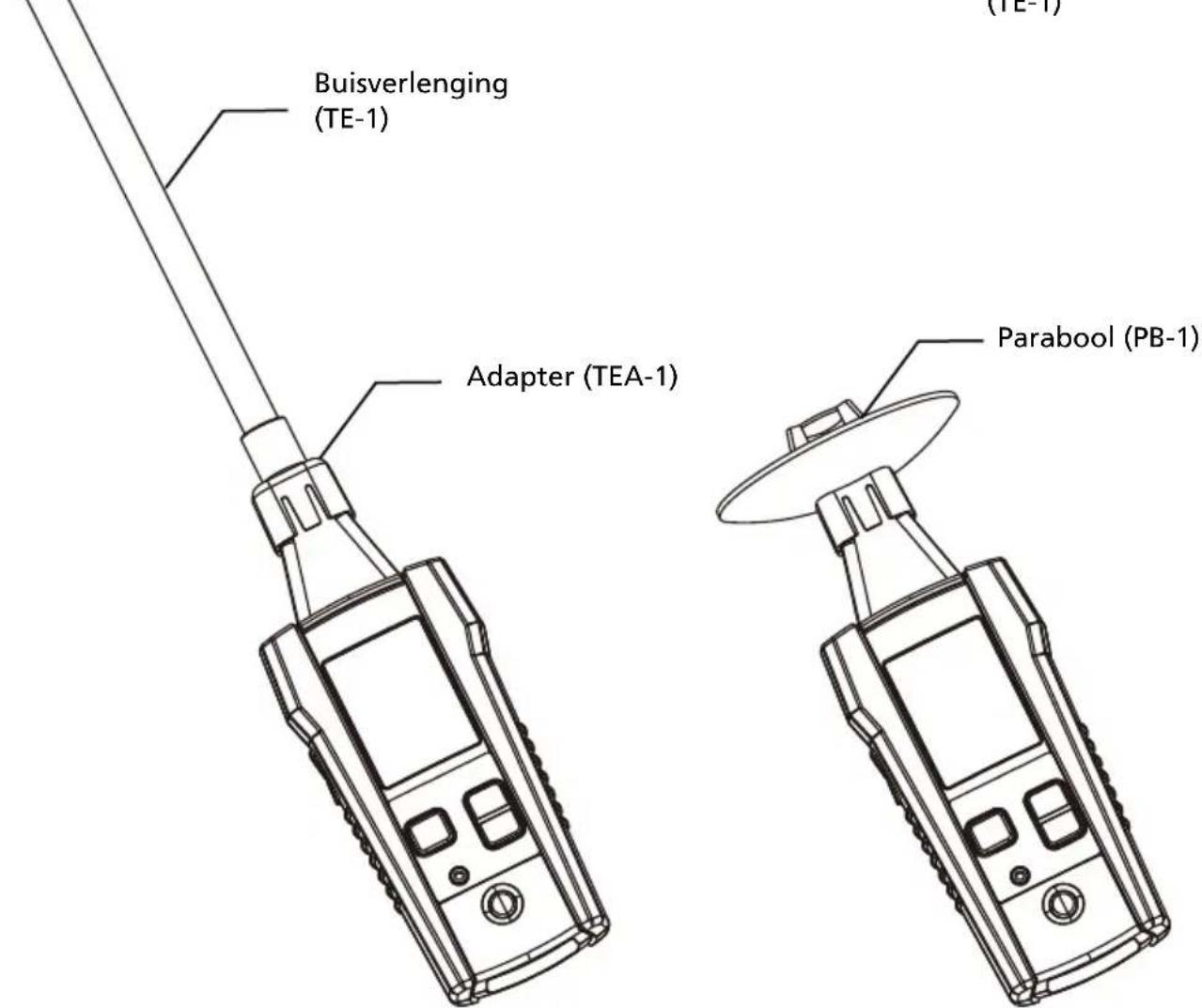

Figure 3.4: ULD-400-EUR Accessories

4.1 Using the ULD-400-RE Ultrasonic Leak Detector Receiver

1. Turn on the Receiver and plug the headphones into the jack located on the front of the Receiver. Any standard set of 3.5 mm jack headphones are compatible.
2. Before moving to the target area, press "+" or "-" sensitivity buttons to adjust signal strength sensitivity to the highest possible level where bargraph still shows either 0 or a value close to 0. If signal strength cannot be adjusted down and the LCD still shows a maximum value regardless on sensitivity adjustments, press the Filter button.*
3. Scan the target area with the microphone sensor.
4. As you move nearer to the source of the leak, vibration or electric discharge, the signal strength will increase. This will be indicated on a screen with increasing signal strength number and level of the bargraph.
5. The bargraph is a relative measurement only, so when the signal strength reaches maximum, lower the sensitivity by pressing the "-" sensitivity button until the displayed signal strength is less than 75. Repeat this process until you have isolated the source of the ultrasound.
6. The audible sound emitted via headphones will help to verify the source of the leak, for example hissing sound of the air leak versus ticking sound of the electric discharge. The Receiver screen alone will not provide an indication of the leak source.

Note:

• For surroundings with a high level of background noise use the Parabola (PB-1) to direct the ultrasound towards the sensor.
• For locations that you cannot point the Receiver directly at the leak, the Tubular Extension can be used (TE-1 with the TEA-1 Adapter).

Diagram illustrating a mobile phone's operation with three screen displays showing 15, 88, and 18 units respectively.

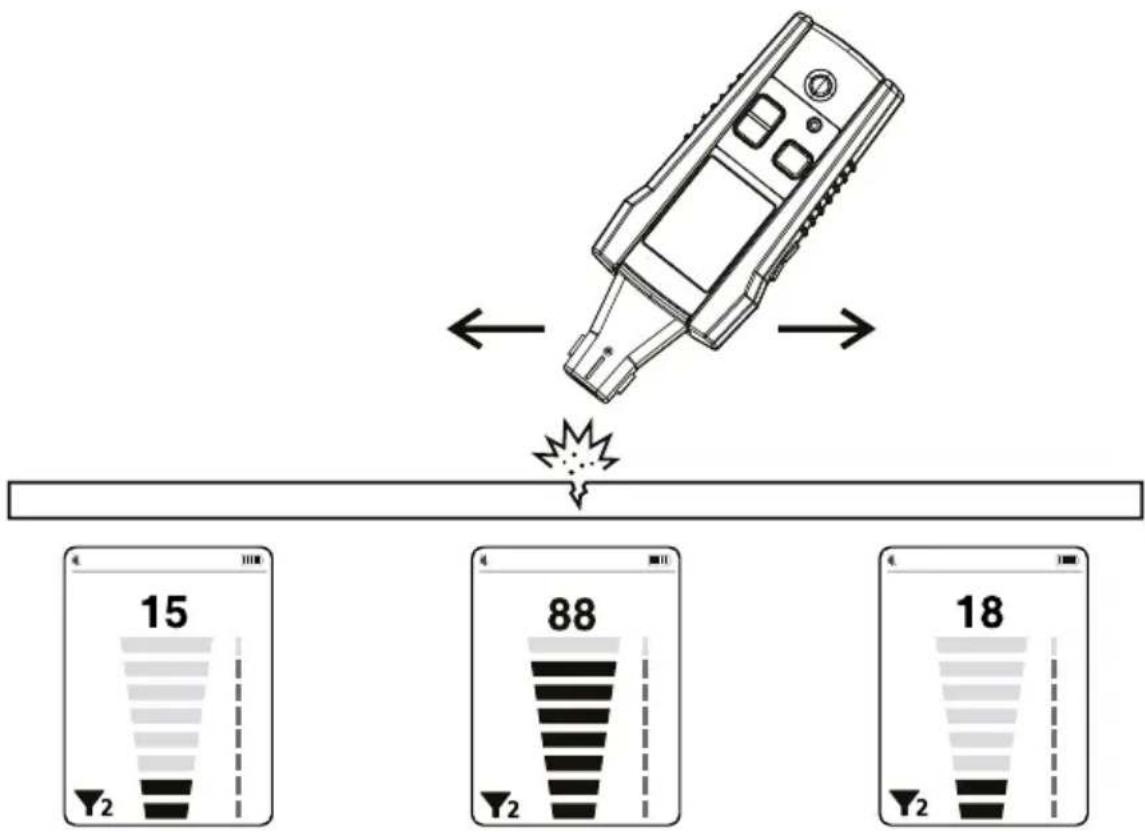

Figure 4.1a: Using the Receiver to find a leak

\*ULD-400-RE Filter Operation

In some situations, there might be strong ultrasonic noise generated by running machinery, motion sensors or other equipment. This noise will cause the Receiver to read the maximum signal strength on the display regardless of the sensitivity settings and make it unusable for detecting leaks.

In such cases, press the "Filter" button. The firmware will automatically detect the main noise frequency and filter it out by applying digital non-pass bandwidth filter within +/- 5 kHz. If the signal level does not decrease down close to 0, then the firmware will automatically repeat the process for other noise frequencies. Up to three frequencies can be filtered out automatically. The filter icon will be displayed on the screen and will indicate the number of filters applied, from zero (no noise detected) to a maximum of three.

00 Y3

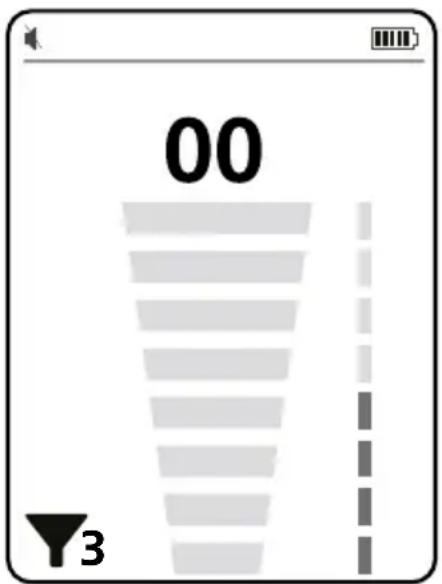

Figure 4.1b: Filter applied

Note: The filter will be applied to the visual signal indication on a screen (signal strength number and bargraph). The filter will NOT be applied to the audio frequency in order to preserve original sound of the leak and allow the user to better determine the source of the leak.

Note: When working with the Transmitter, make sure to apply the filter on the Receiver before the Transmitter is turned on, or in an area where the Transmitter signal can not be detected. Otherwise, the Transmitter signal frequency will be filtered out and Receiver will not be able to pick it up.

4.2 Using the ULD-400-TE Ultrasonic Leak Detector Transmitter

The Transmitter allows for ultrasonic detection of openings in locations where there is no gas or air pressure, or the pressure is not sufficient to detect the leak with the Receiver alone.

Typical applications include verifying tightness or pinpointing places of air, water or gas leaks in:

• Fluid or gas tanks
  • Building windows, doors or roofs
  • Car windows and windshields
• HVAC vents
  • Refrigerant pipelines

The process involves placing the Transmitter inside an object (such as tank, house or a car), sealing the entryways and scanning the object from the outside with the Receiver to verify tightness and pinpoint potential leaks.

1. Turn on the Transmitter.

2. Select the output signal level using the "+" or "-" signal level adjustment buttons.
   Note: High setting is the default setting. For most applications and specifically for large objects this setting is particularly useful. The High signal may cause the Receiver to read maximum value away from the place of the leak even when lowest sensitivity was selected. Press “-” once to get to Medium signal and press “-” again to get to Low signal strength. Adjust signal level to allow for more precise pinpointing of the leaks.

3. Place the Transmitter inside the object to be verified and make sure entryways are sealed.

4. Preform leak detecting with the Receiver as described in section 4.1.


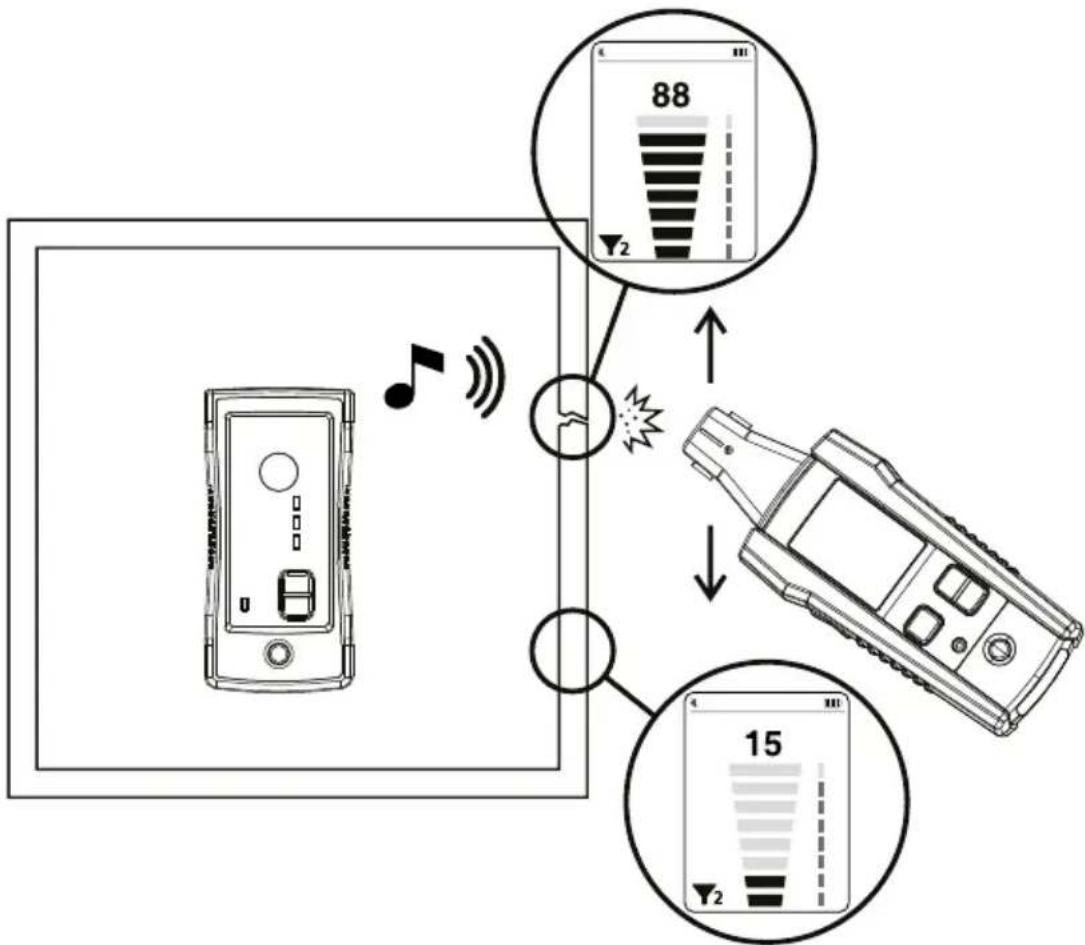

Figure 4.2: Using the Transmitter and Receiver to find a leak

5.1 Changing the Receiver Batteries

The ULD-400-RE uses four 1.5 V AA (LR6) batteries (supplied). To replace the batteries, follow these steps:

1. Make sure that the Receiver is turned off.
2. Use a screw driver to unscrew the captive screw.

3. Remove the battery cover.

4. Replace the batteries as shown in Figure 5.1. Observe the battery polarity shown in the battery compartment.

5. Replace the battery cover and secure it with the provided screw.

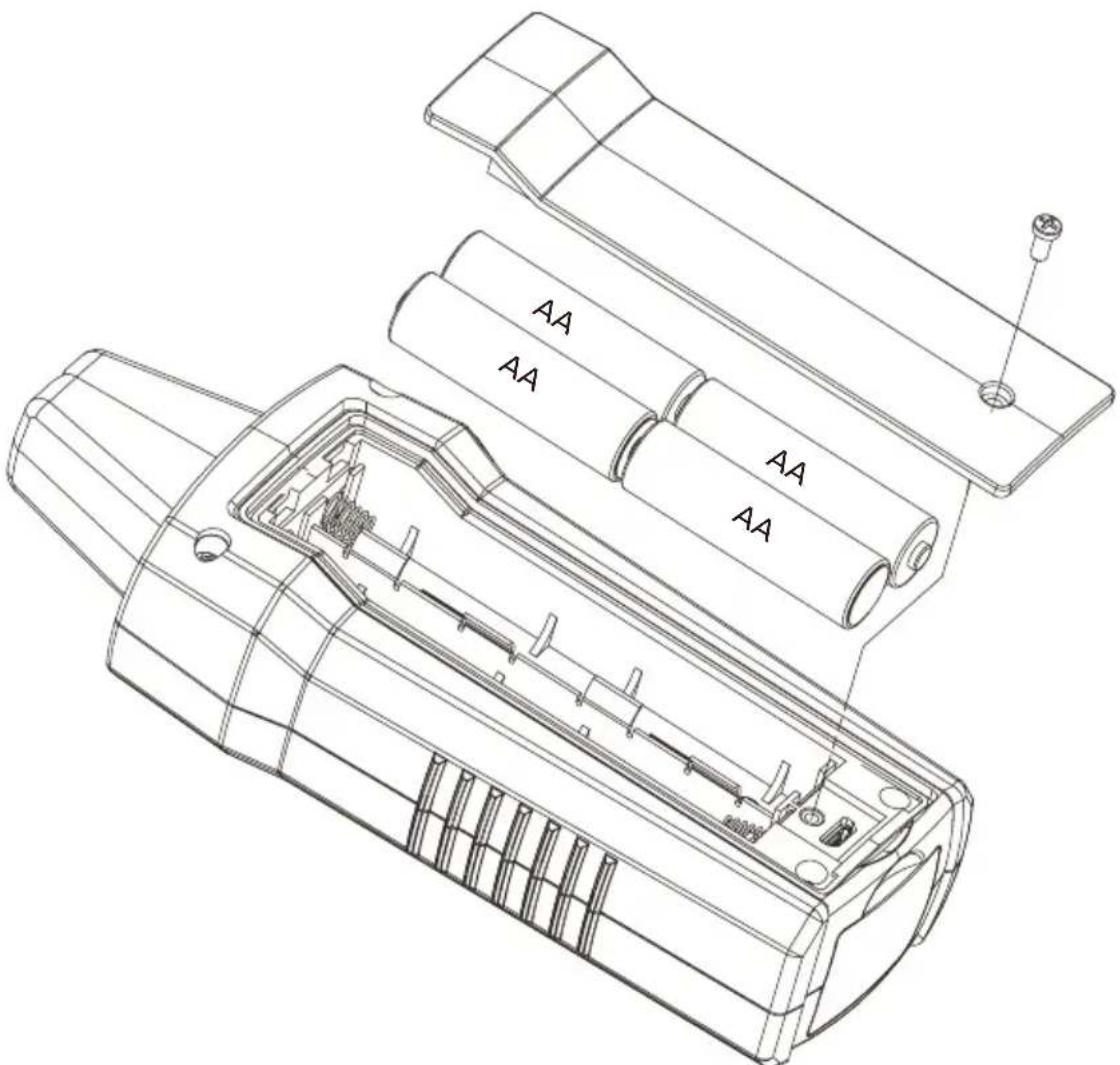

AA AA AA AA

Figure 5.1: Changing the Receiver batteries

5.2 Changing the Transmitter Batteries

The ULD-400-TE uses two 1.5 V AAA (LR03) batteries (supplied with ULD-420-EUR). To replace the batteries, follow these steps:

1. Make sure that the Transmitter is turned off.
2. Loosen the battery-door lock with a flat screwdriver.
3. Remove the battery cover.
4. Replace the batteries as shown in Figure 5.2. Observe the battery polarity shown in the battery compartment.
5. Replace the battery cover to the lock position.

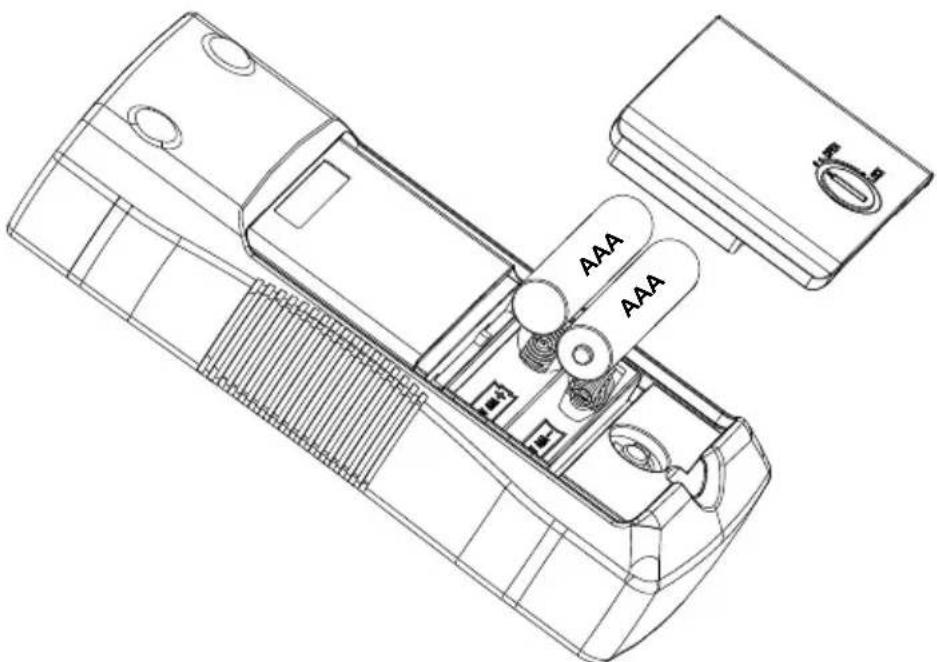

AAA AAA

Figure 5.2: Replacing the Transmitter batteries

5.3 Cleaning

The only maintenance the ULD-400-EUR requires is inspection and cleaning. Periodically wipe the exterior with a mild solution of detergent and water. Apply sparingly with a soft cloth and allow to dry completely before using. Do not use aromatic hydrocarbons, gasoline or chlorinated solvents for cleaning.

Features ULD-400-RE ULD-400-TE
Sensitivity Adjustment Yes	N/A
Volume Adjustment Yes N/A
Signal Level Adjustment N/A Yes
Earphone Jack	Yes(compatible with 3.5 mm audio jack)	N/A
Display Size LCD 6.35 cm (2.5 in) N/A
Display Dimensions 36.72 x 48.96 mm (1.45 x 1.93 in) N/A
Display Resolution 240(RGB) x 320 pixels N/A
Display Type	TFT-LCD (262 K)	N/A
Display Color	True, 16bit/color	N/A
Frequency Range	20 kHz to 90 kHz	Typical 40 kHz squarewave
Filter	±5 KHz of main noise frequency,up to three filters	N/A
Power Supply	4 x 1.5 V AA (LR6) alkaline batteries	2 x 1.5 V AAA (LR03) alkaline batteries
Power Consumption(typical)	75 mA	33 mA
Battery Life (typical)	105 hours (Alkaline)	60 hours (Alkaline)
Low battery indication	###	Yes (Red LED)
APO function	60 minutes when in idle	60 minutes when in idle
Weight	Approx. 0.235 kg (0.518 lb)	Approx. 0.335 lb (0.152 kg)
Dimensions	183 x 75 x 43 mm(7.547 x 2.984 x 1.791 in)	137 x 65 x 33 mm(5.295 x 2.559 x 1.326 in)
Operating Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Storage Temperature -20 °C to 70 °C (-4 °F to 158 °F)
Operating Humidity	<80% RH
Pollution Degree	2
Protection	IP40
Certifications	CE
Electromagnetic Compatibility (EMC)	EN 61326-1Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment)[1][1] This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.

NR6 6JB United Kingdom

Telefon: [phone]

beha-amprobe.com

Diagram illustrating a mobile phone's wireless signal transmission process, showing input, output, and display counts.

AA AA AA AA

NR6 6JB United Kingdom

Tel: [phone]

beha-amprobe.com

Three technical line drawings of mechanical components: a triangular tool, a cylindrical housing, and a long rod (no text or symbols)

AA AA AA AA

1. PRINCIPALES APPLICATIONS ....8

Three technical line drawings of mechanical components: a curved blade, a cylindrical housing with internal slots, and a long rod (no text or symbols)

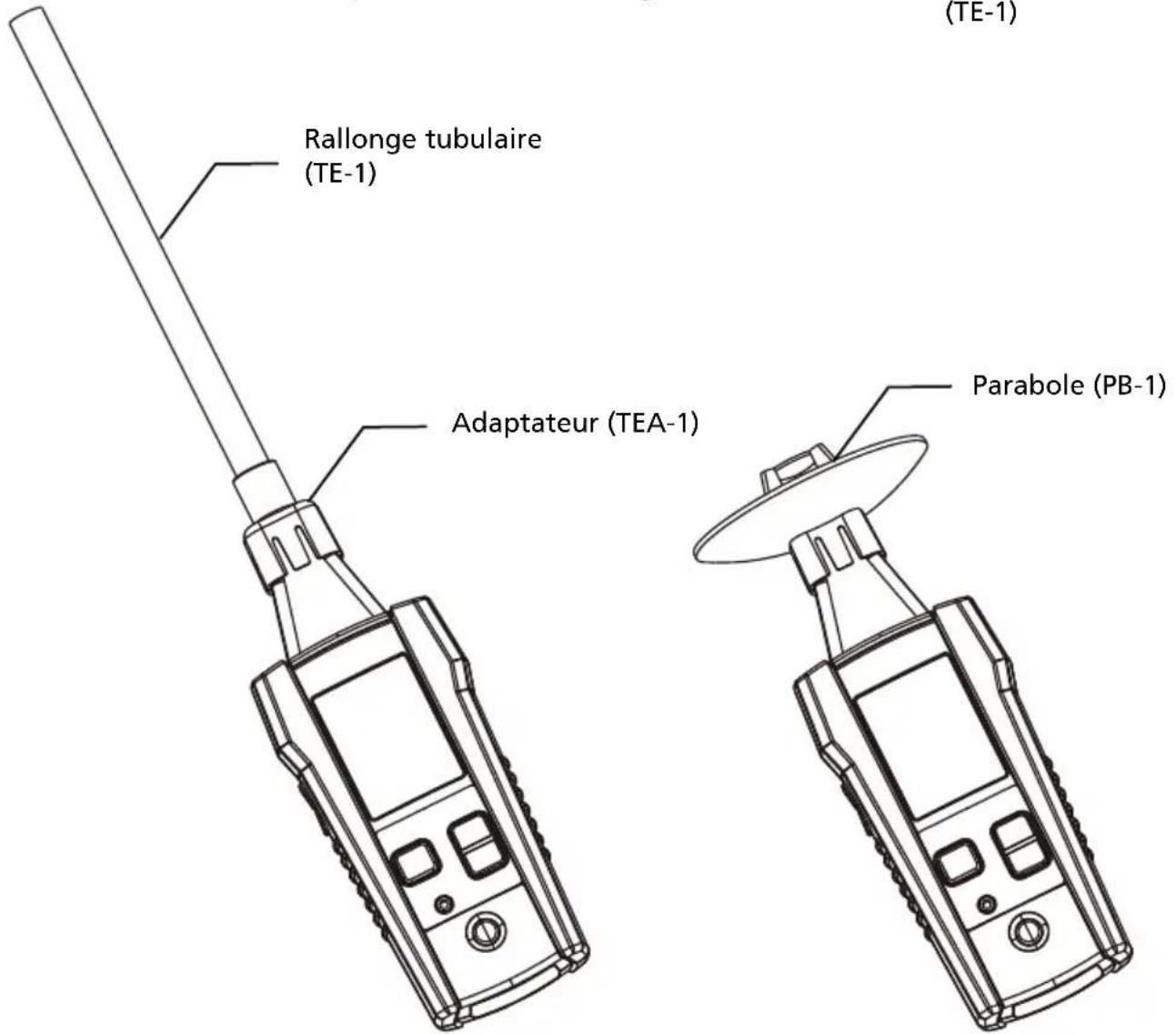

Parabole (PB-1) Adaptateur (TEA-1) Rallonge tubulaire
(TE-1)

Rallonge tubulaire (TE-1) Adaptateur (TEA-1) Parabole (PB-1) (TE-1)

Diagram illustrating a mobile phone's charging process with three display screens showing 15, 88, and 18 units respectively.

AA AA AA AA

NR6 6JB United Kingdom

Three technical line drawings of mechanical components: a curved blade, a cylindrical housing with internal brackets, and a long rod (no text or symbols)

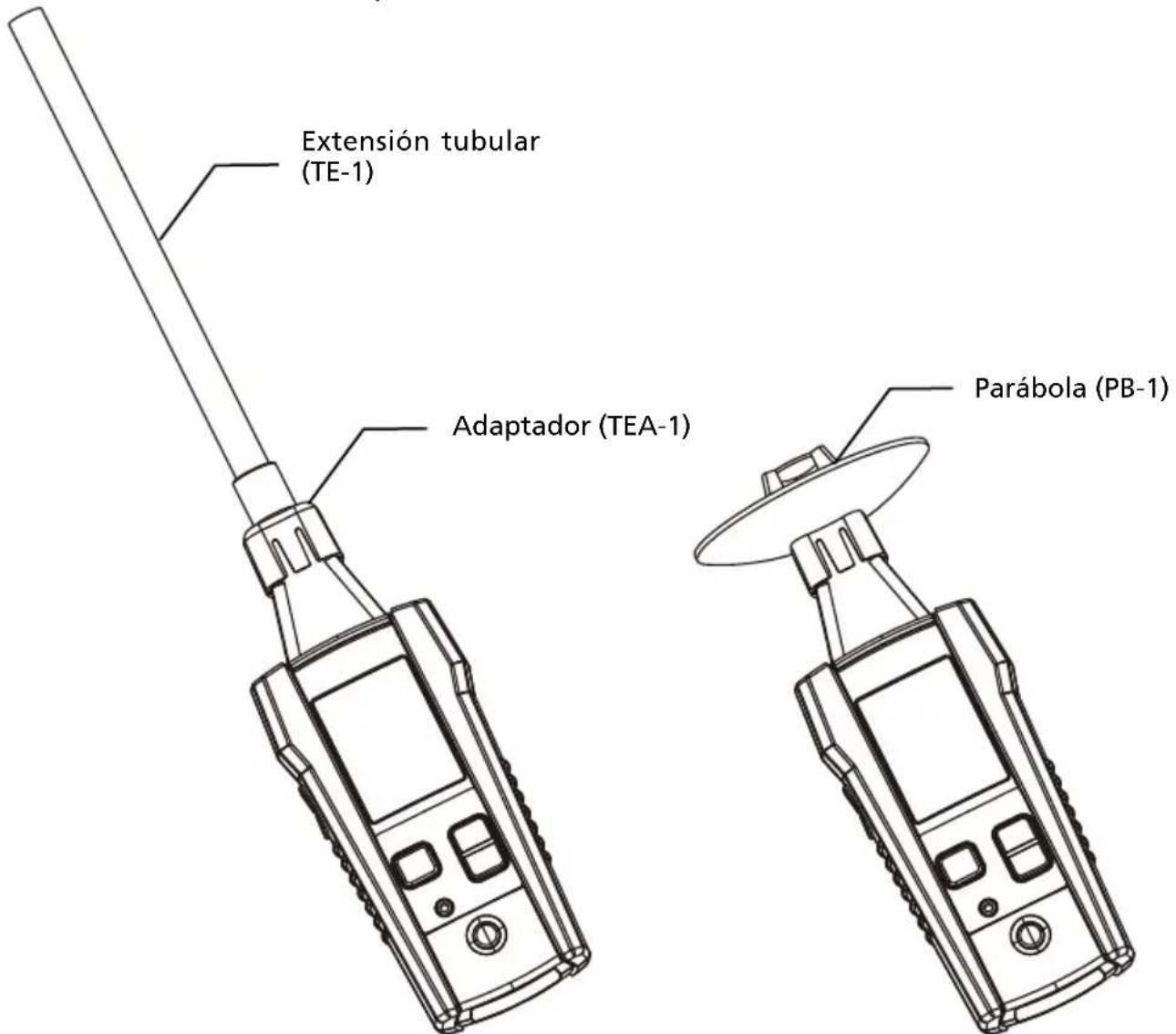

Parábola (PB-1) Adaptador (TEA-1) Extensión tubular (TE-1)

Extensión tubular (TE-1) Adaptador (TEA-1) Parábola (PB-1)

Diagram illustrating a mobile phone's wireless signal transmission process, showing input, output, and display counts.

AA AA AA AA AA

Line drawing of a mechanical component with a curved blade and central knob (no text or symbols)

Simple line drawing of a straight cylindrical rod (no text or symbols)

Parabool (PB-1) Adapter (TEA-1) Buisverlenging
(TE-1)

Buisverlenging (TE-1) Adapter (TEA-1) Parabool (PB-1)

Diagram illustrating a mobile phone's internal structure with labeled components and numerical values, showing a device emitting sound waves.

AA AA AA AA

NR6 6JB United Kingdom

Telefon: [phone]

beha-amprobe.com

1. PRECAUTIONS AND SAFETY MEASURES 2
2. WPROWADZENIE .... 3
3. KIT COMPONENTS......4

Line drawing of a mechanical component with a curved blade and cylindrical pin (no text or symbols)

Simple line drawing of a cylindrical rod or tube with a circular end (no text or symbols)

Diagram of a handheld device emitting heat or vibration waves from a surface, with directional arrows indicating motion (no text or symbols)

15 Y2

18 Y2

AA AA AA AA

NR6 6JB United Kingdom

Telefon: [phone]

beha-amprobe.com

Three technical line drawings of mechanical components: a fan-like device, a cylindrical component with internal parts, and a long rod (no text or symbols)

Diagram illustrating a mobile phone's signal processing process, showing input, output, and display counts with downward arrows.

AA AA AA AA AA

Figur 5.1: Byte av mottagarens batterier

NR6 6JB United Kingdom

Puhelin: [phone]

beha-amprobe.com

Three technical line drawings of mechanical components: a fan-like device, a cylindrical component with internal parts, and a long rod (no text or symbols)

Parabolinen lisälaite (PB-1) Sovitin (TEA-1) Putkijatkos (TE-1)

Putkijatkos (TE-1) Sovitin (TEA-1) Parabolinen lisälaite (PB-1)

Diagram illustrating a mobile phone's charging process with three display screens showing 15, 88, and 18 units respectively.

AA AA AA AA AA

5.1 Trocar as pilhas do recetor....11
5.2 Trocar as pilhas do transmissor 12
5.3 Limpeza....12

1. ESPECIFICAÇÕES ...... 13

SÍMBOLOS

Three technical line drawings of mechanical components: a fan-like device, a cylindrical component with internal parts, and a long rod (no text or symbols)

Diagram illustrating a mobile phone's operation with three display screens showing 15, 88, and 18 units respectively.

5.1 Trocar as pilhas do recetor

AA AA AA AA

Figura 5.1: Trocar as pilhas do Recetor

5.2 Trocar as pilhas do transmissor

1. FORHOLDSREGLER OG SIKKERHETSTILTAK 2
2. INNLEDNING 3
3. SETTETS DELER....4

3.1 Settets deler....4
3.2 ULD-400-RE mottaker....5
3.3 ULD-400-TE sender 6
3.4 Tilbehør 7

1. HOVEDSAKLIGE BRUKSOMRÅDER 8

4.1 Bruke ULD-400-RE ultralyd-lekkasjedetektormottaker....8
4.2 Bruke ULD-400-TE ultralyd-lekkasjedetektorsender 10

1. VEDLIKEHOLD.... 11

AA AA AA AA AA

Figur 5.1: Bytte batterier i mottakeren

5.2 Bytte batteri i senderen

NR6 6JB United Kingdom

Telefon: [phone]

beha-amprobe.com

Holland - Hovedkontor**

Science Park Eindhoven 5110

5692 EC Son

Holland

Telefon: [phone]

beha-amprobe.com

Fig. 2: Spektrum for lydområde

3.1 KOMPONENTER

Three technical line drawings of mechanical components: a curved blade, a cylindrical housing with internal brackets, and a long rod (no text or symbols)

Diagram illustrating a mobile phone's signal processing process, showing input, output, and display counts with downward arrows.

AA AA AA AA AA

NR6 6JB United Kingdom

Telefon: [phone]

beha-amprobe.com

Three technical line drawings of mechanical components: a blade-like tool, a cylindrical component with internal brackets, and a long rod (no text or symbols)

Parabola (PB-1) Adaptér (TEA-1) Trubicový nástavec (TE-1)

Trubicový nástavec (TE-1) Adaptér (TEA-1) Parabola (PB-1)

AA AA AA AA AA

• Catalog
• Application notes
  • Product specifications
• User manuals

Beha-Amprobe®

beha-amprobe.com

c/o Fluke Europe BV

Science Park

Eindhoven 5110

NL-5692 EC Son

Tel.: [phone] - 0

Please Recycle
