USER MANUAL IRC110EUR Beha-Amprobe

IRC Infra User EN IT FI PT

IRC-110-EUR Infrared Camera

User Manual

EN DE FR

IT ES NL

FI SE PL

PT CZ

IRC-110-EUR

Infrared Camera

User Manual

Limited Warranty and Limitation of Liability

Your Beha-Amprobe product will be free from defects in material and workmanship for two years from the date of purchase unless local laws require otherwise. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on the behalf of Beha-Amprobe. To obtain service during the warranty period, return the product with proof of purchase to an authorized Beha-Amprobe Service Center or to an Beha-Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED OR STATUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.

Repair

All Beha-Amprobe tools returned for warranty or non-warranty repair or for calibration should be accompanied by the following: your name, company's name, address, telephone number, and proof of purchase. Additionally, please include a brief description of the problem or the service requested and include the test leads with the meter. Non-warranty repair or replacement charges should be remitted in the form of a check, a money order, credit card with expiration date, or a purchase order made payable to Beha-Amprobe.

In-warranty Repairs and Replacement – All Countries

Please read the warranty statement and check your battery before requesting repair. During the warranty period, any defective test tool can be returned to your Beha-Amprobe distributor for an exchange for the same or like product. Please check the "Where to Buy" section on beha-amprobe.com for a list of distributors near you.

Non-warranty Repairs and Replacement – Europe

European non-warranty units can be replaced by your Beha-Amprobe distributor for a nominal charge. Please check the "Where to Buy" section on beha-amprobe.com for a list of distributors near you.

Beha-Amprobe

Division and reg. trademark of Fluke Corp. (USA)

Germany* United Kingdom The Netherlands - Headquarters**

In den Engematten 14 52 Hurricane Way Science Park Eindhoven 5110

79286 Glottertal Norwich, Norfolk 5692 EC Son

Germany NR6 6JB United Kingdom The Netherlands

Phone: [phone] - 0 Phone: [phone] Phone: [phone]

beha-amprobe.de

beha-amprobe.com

beha-amprobe.com

^* (Correspondence only – no repair or replacement available from this address. European customers please contact your distributor.)

**single contact address in EEA Fluke Europe BV

CONTENTS

SYMBOLS....3

SAFETY INFORMATION ....3

UNPACKING AND INSPECTION ....4

FEATURES AND APPLICATIONS......4

BASIC NAVIGATION....5

MEASUREMENT MODE....6

MENU MODE....7

SPECIFICATIONS....10

MAINTENANCE AND BATTERY REPLACEMENT ....12

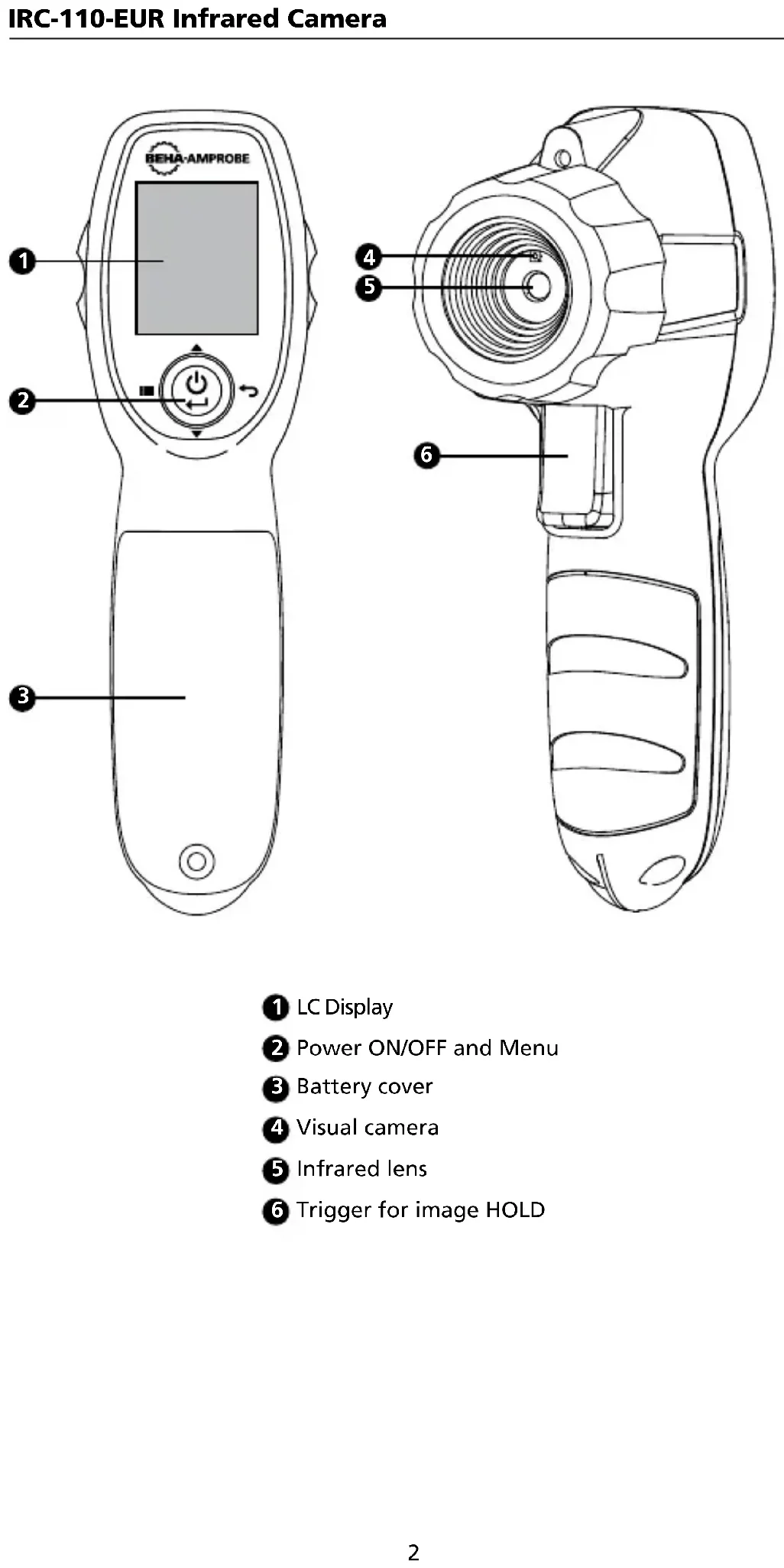

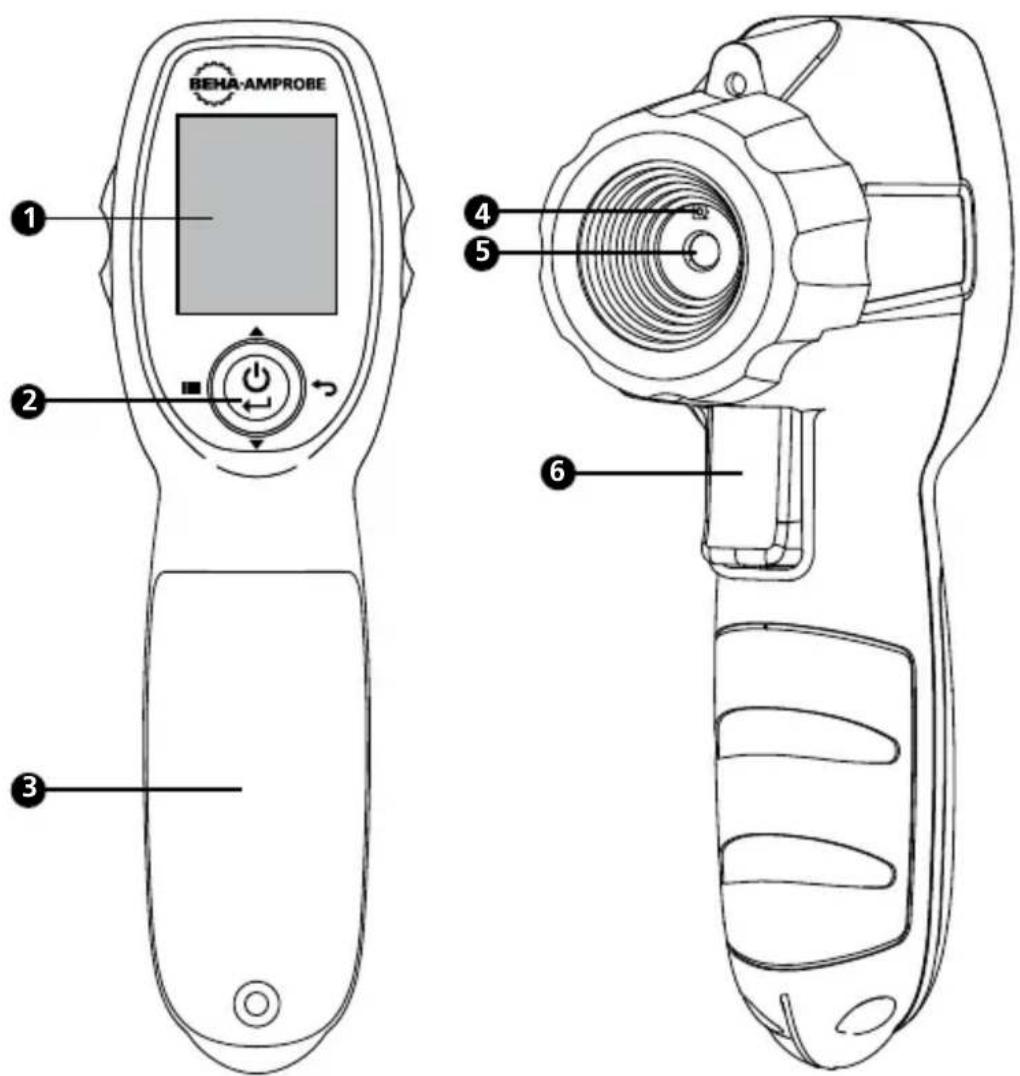

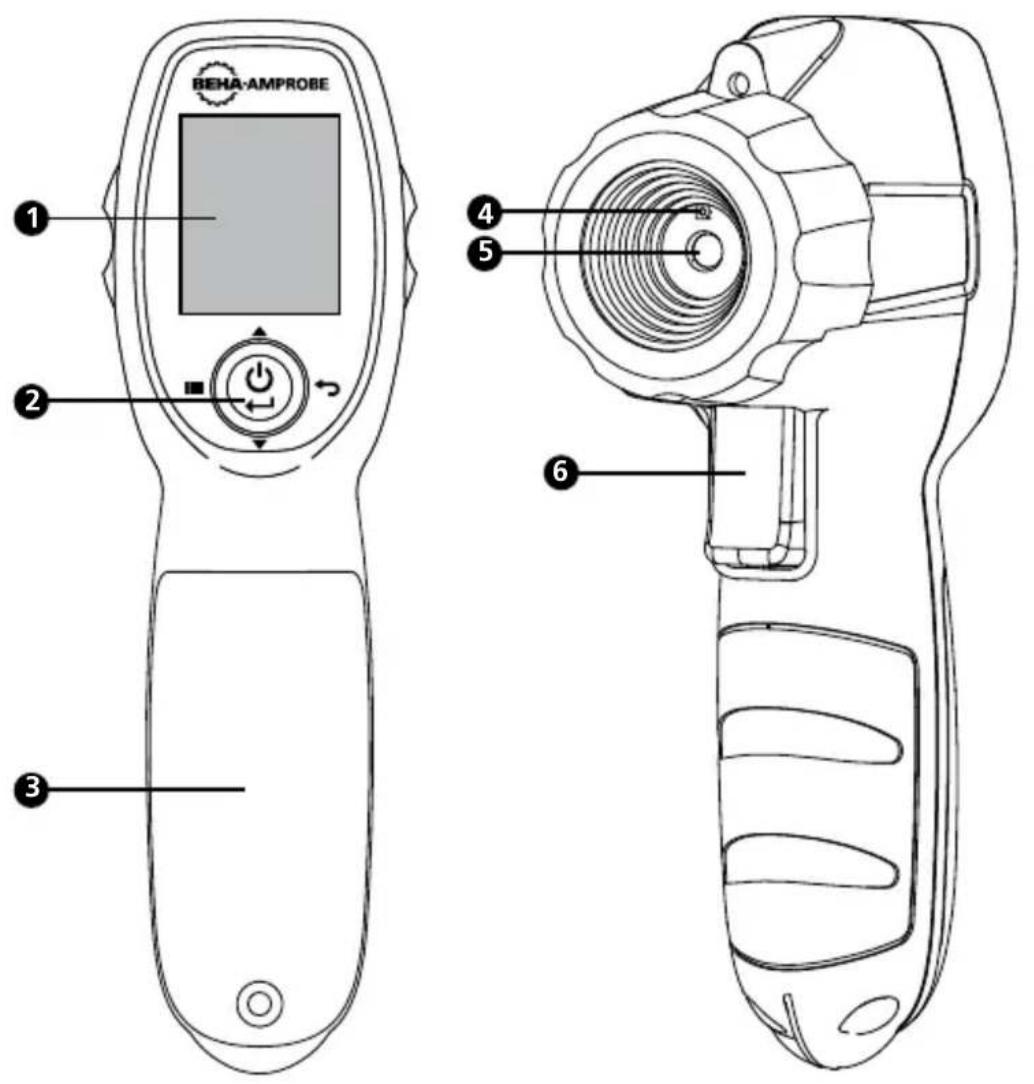

BEHA-AMPROBE 1 2 3 4 5 6

1 LC Display
2 Power ON/OFF and Menu
③ Battery cover
4 Visual camera
⑤ Infrared lens
6 Trigger for image HOLD

SYMBOLS

	Caution! Refer to the explanation in this manual.
[0WW8]	Complies with European Directives.
[8AXT]	Conforms to relevant South Korean EMC Standards.
	Conforms to relevant Australian standards
	Battery
	This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste.Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9 “Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste.

SAFETY INFORMATION

A Warning identifies hazardous conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the product or the equipment under test.

⚠ Warning

To prevent possible electrical shock, fire, or personal injury:

• Read all safety information before you use the product.
• Carefully read all instructions.
• Use the product only as specified, or the protection supplied by the product can be compromised.
• Do not use the product around explosive gas, vapor, or in damp or wet environments.
• Verify the product's operation by measuring on a known temperature source. Do not use the product if it operates incorrectly or abnormally.
• Do not use the product if it is damaged.
• See emissivity information for actual temperatures. Reflective objects result in lower than actual temperature measurements. These objects pose a burn hazard.
• Remove the batteries if the product is not used for an extended period of time, or if stored in temperatures above 50 °C. If the batteries are not removed, battery leakage can damage the product.
• Replace the batteries when the low battery indicator shows to prevent incorrect measurements.
• Use only AA alkaline batteries and follow all battery care from the manufacturer.
• Do not leave the product on or near objects of high temperature.
• For use by competent persons only.

Caution

To prevent personal injury and for safe operation and maintenance of the product:

• Batteries contain hazardous chemicals that can cause burns or explode. If exposure to chemicals occurs, clean with water and get medical aid.
• Be sure that the battery polarity is correct to prevent battery leakage.
• Do not short the battery terminals together.
• Keep batteries clean and dry.

To avoid damaging the product under measurement, protect it from the following:

• EMF (electro-magnetic fields) from arc welders and induction heaters.
• Static electricity.
• Thermal shock (caused by large or abrupt ambient temperature changes — allow 30 minutes for the product to stabilize before use).
• Do not leave the product on or near objects of high temperature.

UNPACKING AND INSPECTION

Your shipping carton should include:

1 IRC-110-EUR Infrared Camera
3 1.5 V AA batteries
1 User manual
1 Wrist Strap

If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange.

Note: Batteries do not come pre-installed. Please refer to the Maintenance and Battery Replacement section for further instruction.

FEATURES AND APPLICATIONS

Features

• Infrared heat map image blending at 0%, 25%, 50%, 75%, and 100% with a joystick button
• Three selectable color palettes (grayscale, hot iron and rainbow)
• Center-point temperature measurement and focus free
• IR measurement 20:1 Distance to Spot ratio
• Adjustable emissivity from 0.10 to 1.00
• Auto off function
• Selectable °F and °C
• Intuitive joystick navigation to on-screen menu and settings
• Hot and cold markers instantly identify hottest and coldest spots

Applications

• Electrical, HVAC, mechanical, and automotive
- Lower energy costs by finding areas of heat loss and draft
- Locate electrical problems at appliances, machines and installations.
- Quickly verify HVAC functionality and performance
- Portable, ergonomic and easy to operate

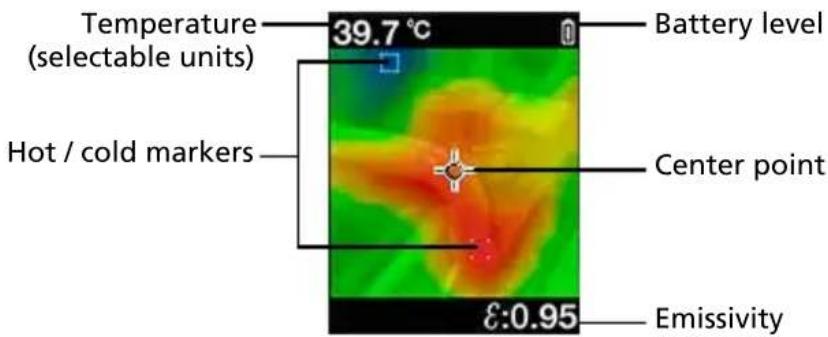

BASIC NAVIGATION

BEHA-AMPROBE Menu Return to measurement

Image blending (measurement mode) Setting selection (menu mode)

Temperature (selectable units) 39.7 °C Battery level Hot / cold markers Center point £:0.95 Emissivity

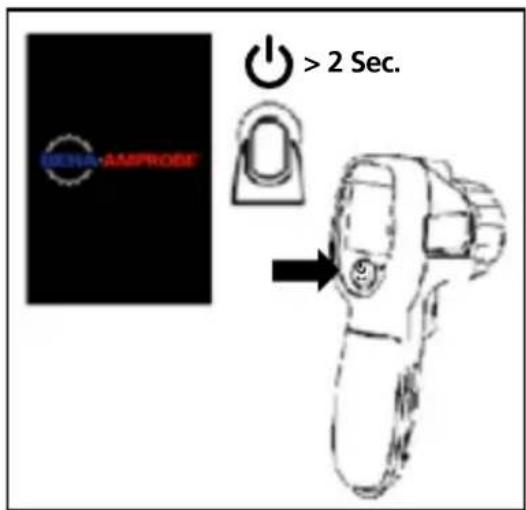

Taking Measurements

Press and hold the power button for at least 2 seconds to turn the product on or off (Figure 1.1).

The product will be in measurement mode upon power on. Press down on the trigger to hold an image. Press again to return to live image (Figure 1.2). Hold the product 12 inches (30 cm) from the target (>59 °F / 15°C) and 2.4 inches (6 cm) from the target (<59 °F / 15°C) for best temperature accuracy.

Note: Higher Distance to Spot ratios require smaller target areas to make accurate measurements. The Distance to Spot ratio of this product is 20:1.

Power ON / OFF HOLD

BENA-AMPROSE > 2 Sec.

Figure 1.1

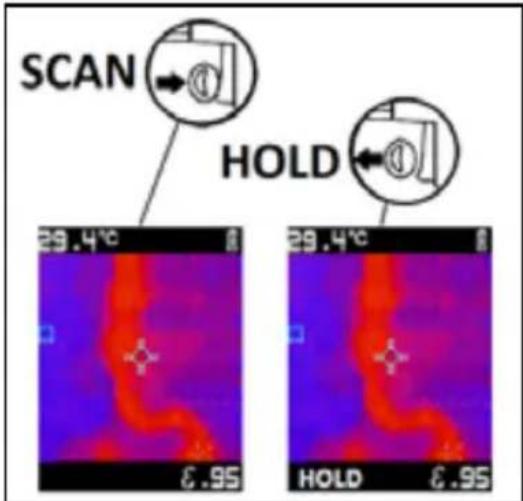

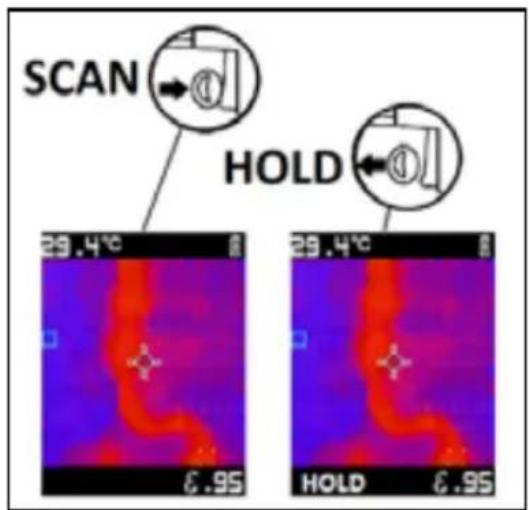

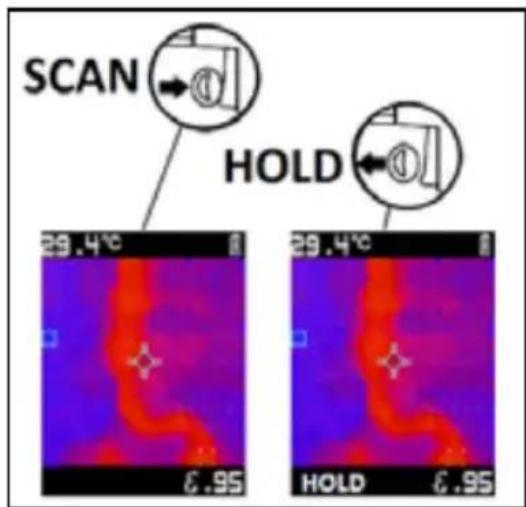

SCAN HOLD 29.4°C 8 29.4°C 8 € .95 HOLD € .95

Figure 1.2

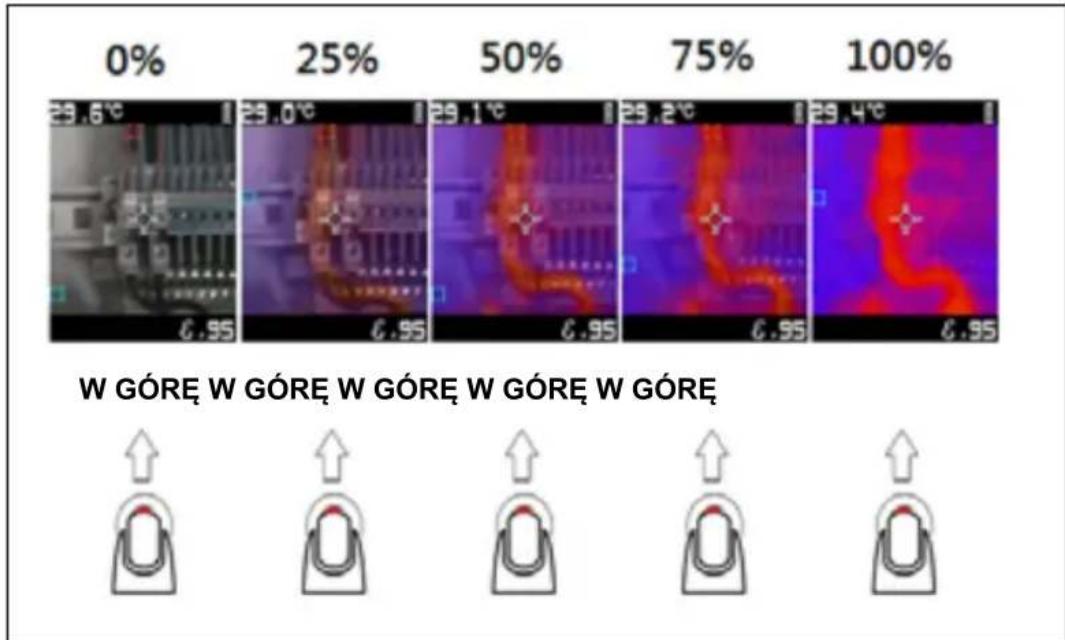

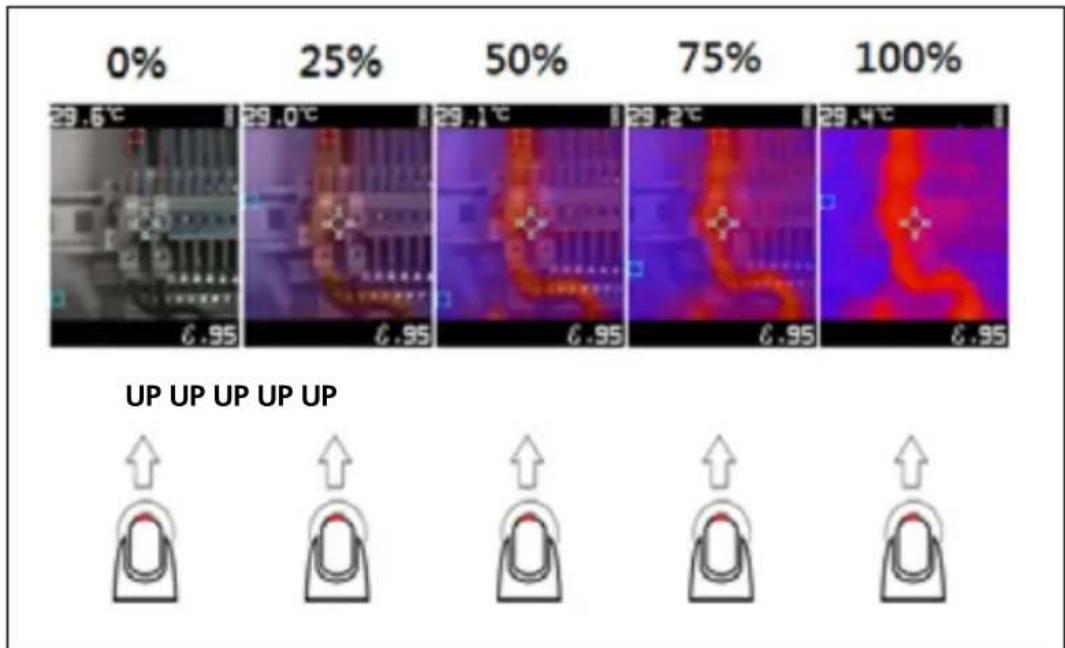

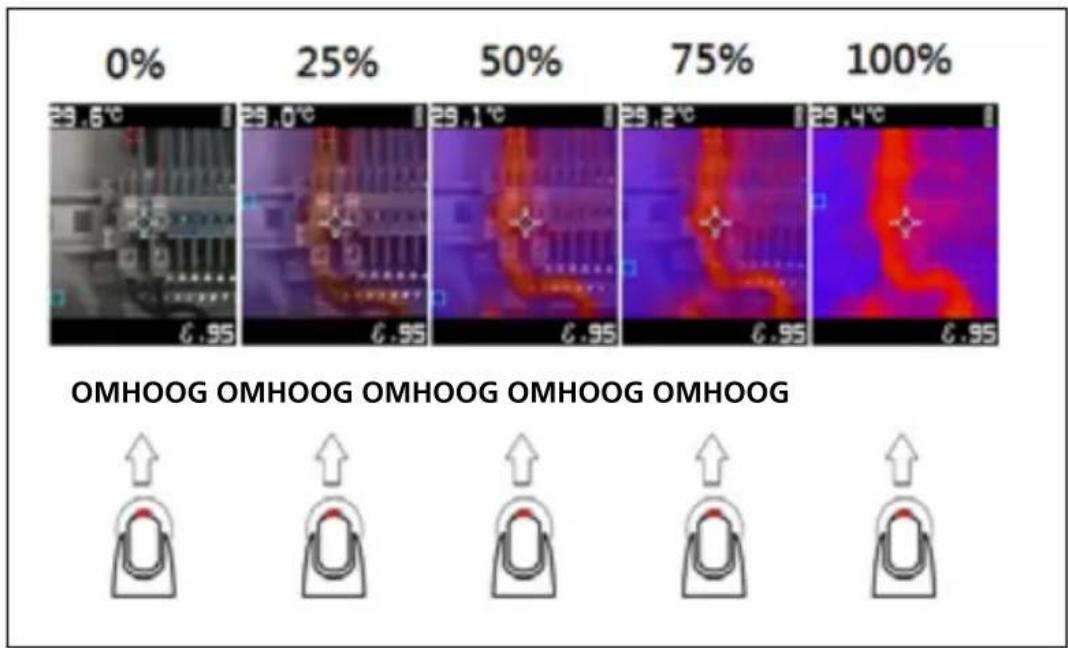

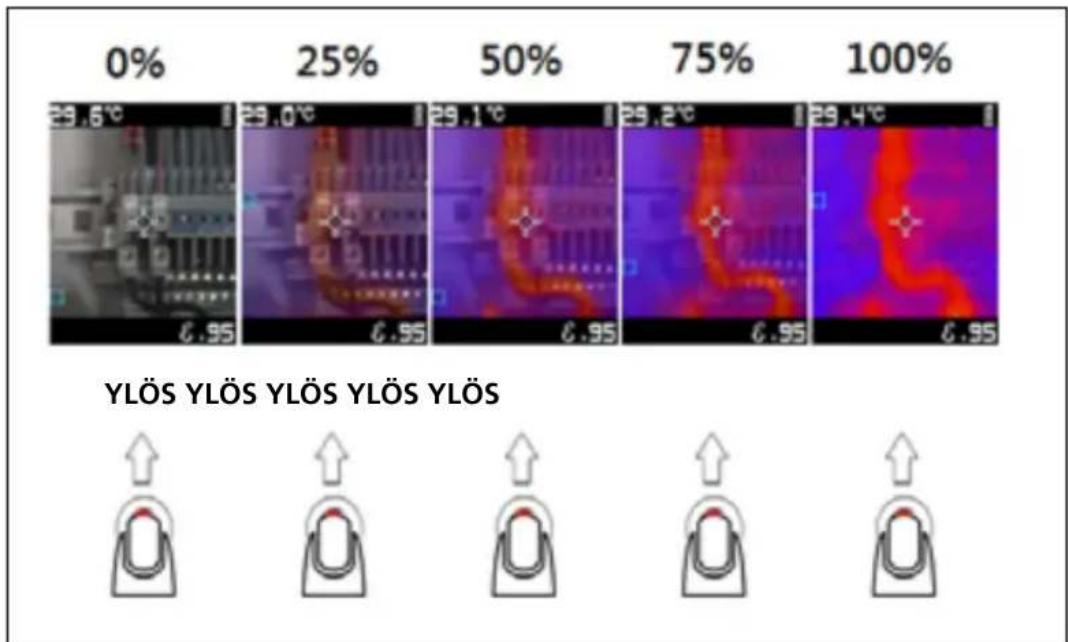

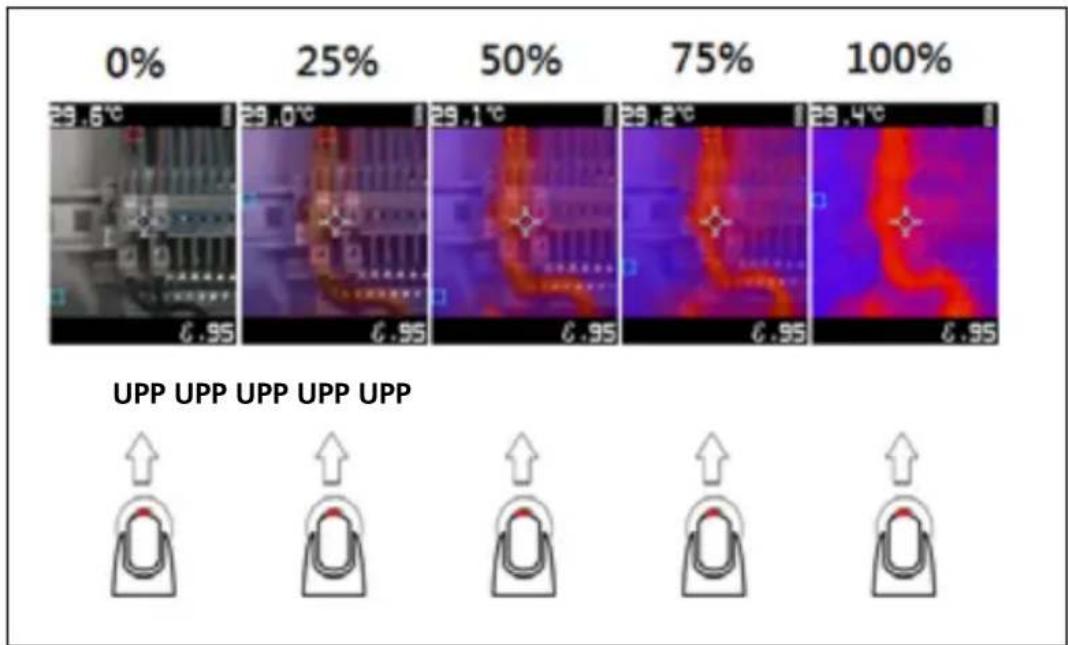

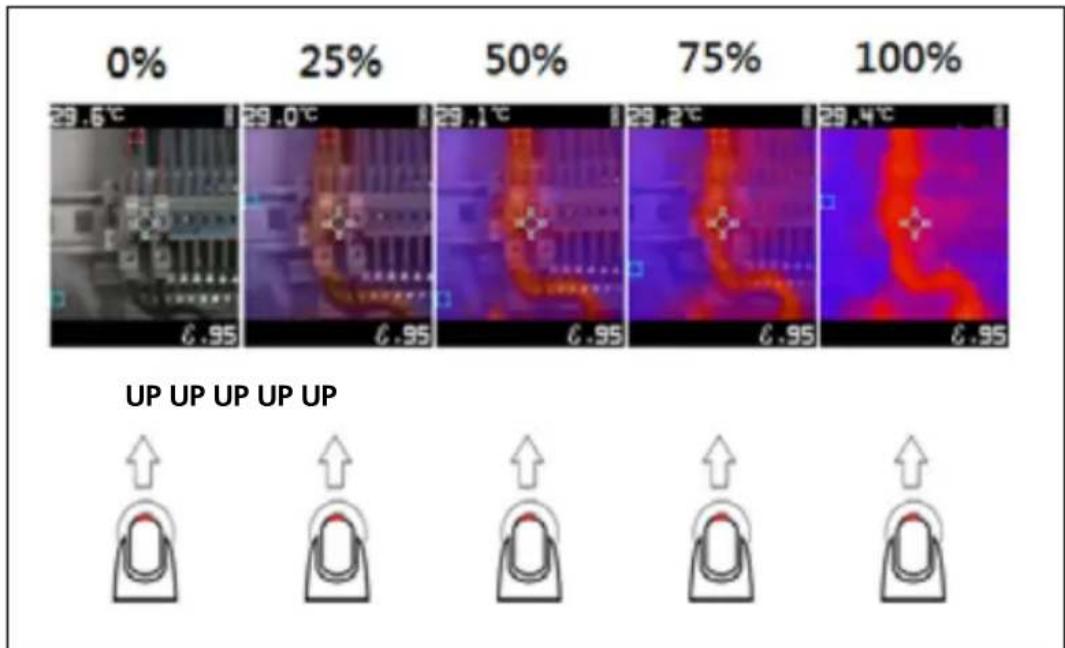

Image Blending

0% 25% 50% 75% 100% UP UP UP UP C.95 C.95 C.95 C.95 C.95

Figure 1.3

Blending may be adjusted for an easier interpretation between infrared and visible images. To change the level of blending between 0 - 100%, press down or up on the power button while in measurement mode.

MENU MODE

Changing Settings in the Menu

Once the product is powered on, reach the menu by clicking left on the power button. Settings that can be manipulated include hot and cold markers, color palette, emissivity, center point marker, selectable °F/°C, and timed auto power off. Enabled options will appear as blue squares while disabled options will appear as black squares.

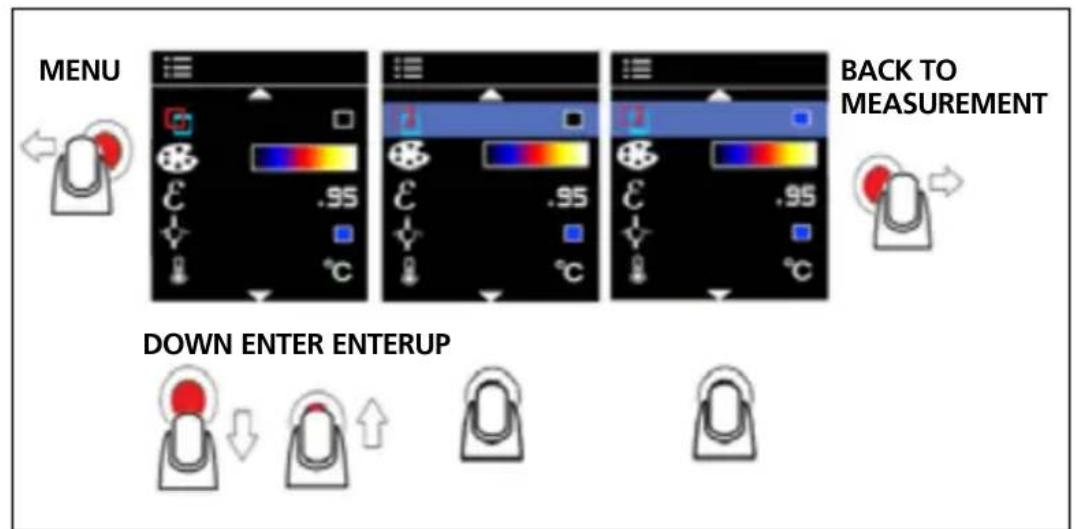

Hot and Cold Markers

MENU .95 °C .95 °C BACK TO MEASUREMENT DOWN ENTER ENTERUP

Figure 2.1

Hot (red square outline) and cold (blue square outline) markers indicate the locations of hottest and coldest areas within a target area. Turn this function on or off in the menu.

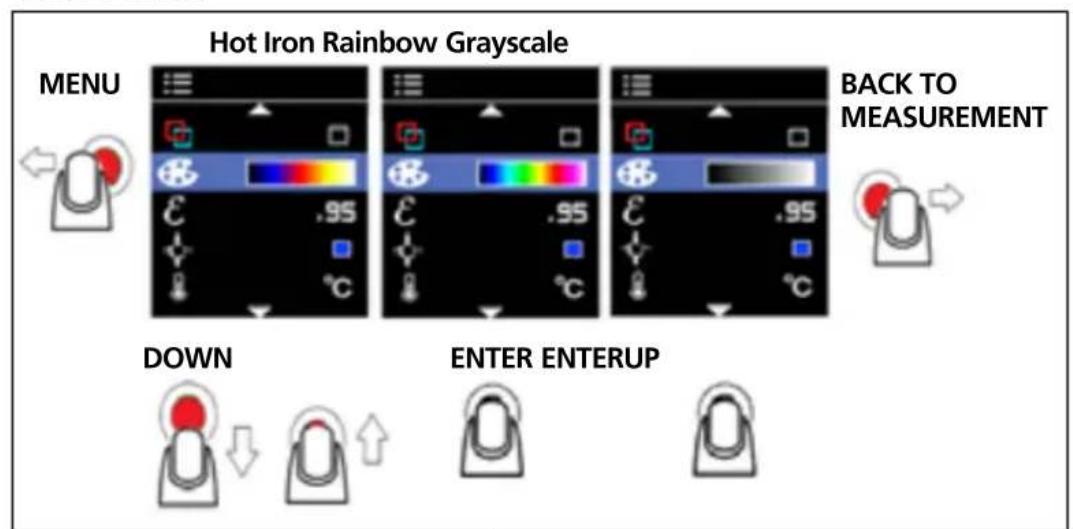

Color Palette

Hot Iron Rainbow Grayscale MENU BACK TO MEASUREMENT DOWN ENTER ENTERUP

Figure 2.2

The color palette can be changed depending on the specific application of the measurement. This option allows for different viewings of an infrared image by changing the false-color presentation. Grayscale shows a more equal and linear presentation of colors to enhance detail, while Hot Iron and Rainbow combine high contrast with Grayscale.

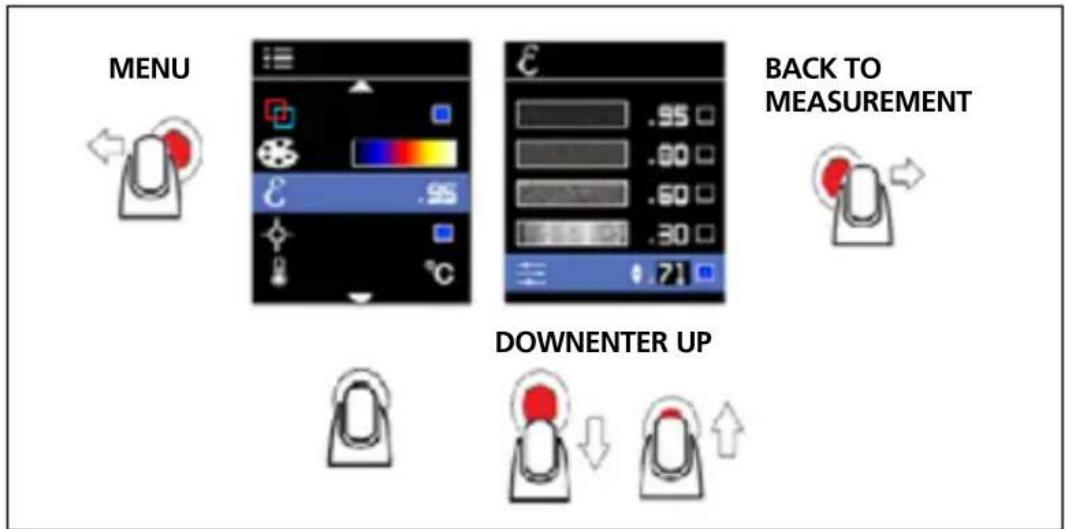

Emissivity

MENU BACK TO MEASUREMENT DOWNENTER UP

Figure 2.3

The emissivity of the surface of a material describes its effectiveness in emitting energy as thermal radiation. Quantitatively, emissivity is the ratio of the thermal radiation from a surface to the radiation from an ideal black surface at the same temperature as given by the Stefan–Boltzmann law. Refer to Table 1 for the emissivity adjustment.

In measurement mode, emissivity level is shown on the bottom right of the screen. Emissivity can be changed to values between 0.10-1.00 in menu.

Note: Surfaces with an emissivity <0.60 make reliable and consistent determination of actual temperatures problematic. The lower the emissivity, the more potential error is associated with the temperature measurement calculations of the product, even when emissivity and reflected background adjustments are attempted and performed properly.

Table 1. Nominal surface emissivity for an accurate non-contact infrared temperature measurement.

Material Value Material Value
Default**** 0.95 Glass (plate) 0.85
Aluminum* 0.30 Iron* 0.70
Asbestos 0.95 Lead* 0.50
Asphalt 0.95 Oil 0.94
Brass* 0.50 Paint 0.93
Ceramic 0.95 Plastic** 0.95
Concrete 0.95 Rubber		0.95
Copper* 0.60 Sand		90
Food-frozen 0.90 Steel* 0.80
Food-hot	0.93 Water	0.93
		Wood***	0.94
*Oxidized**Opaque, over 20 mils***Natural****Factory Setting

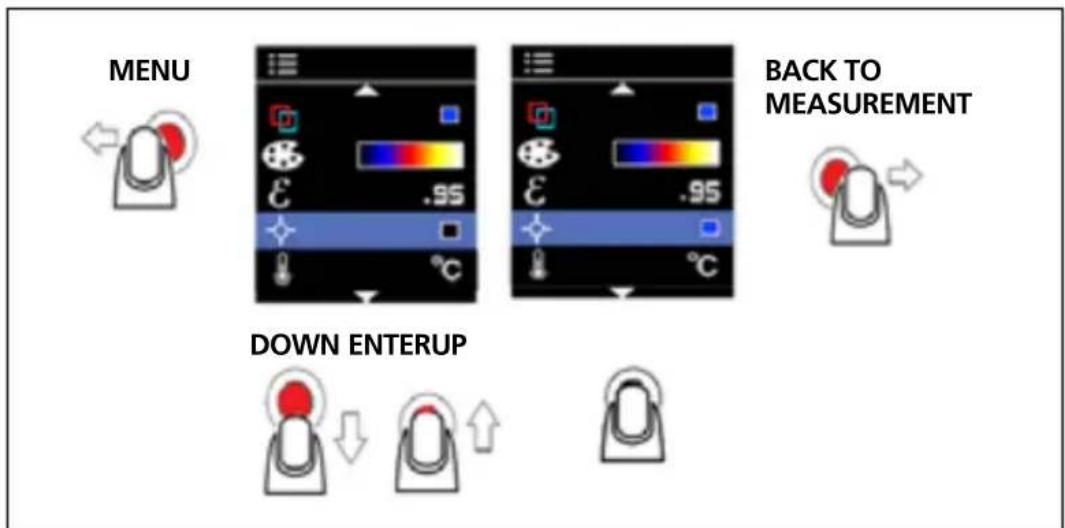

Center Point Marker

Figure 2.4

The center point marker indicates the center of the infrared thermometer measurement spot and appears in the center of the measurement screen. Turn this function □ on or ▪ f in the menu.

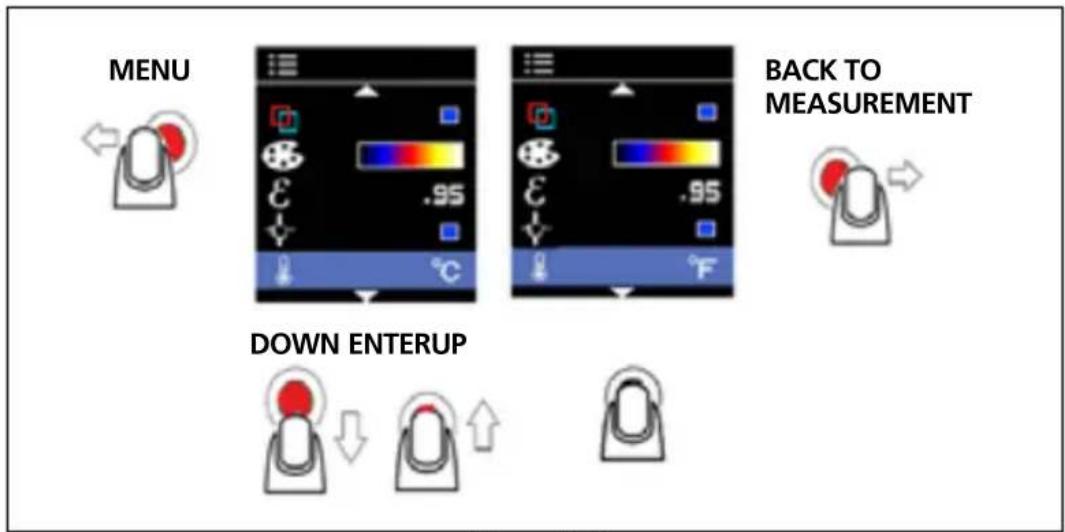

°F / °C

Figure 2.5

Change the temperature units in the menu by selecting °F or °C.

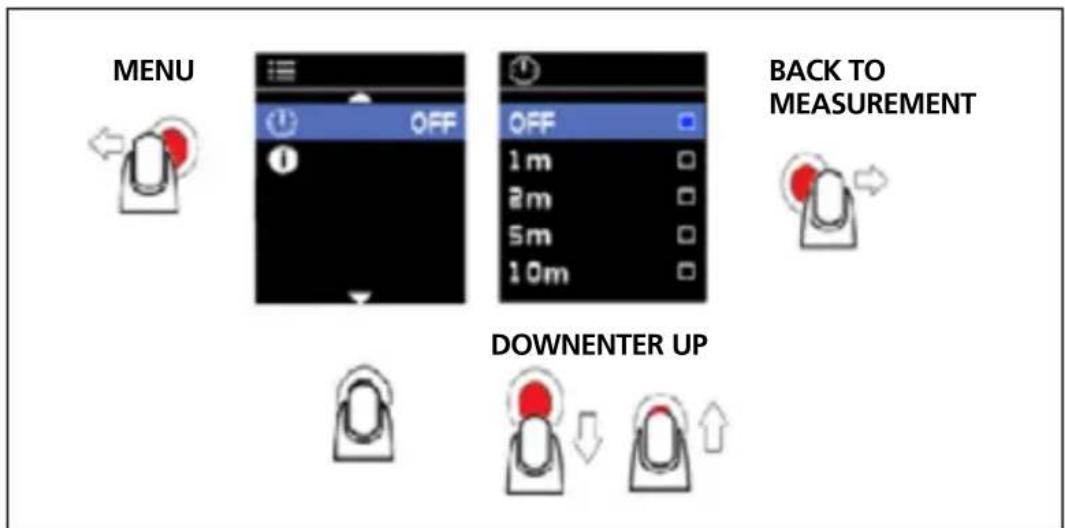

Auto Power OFF

MENU OFF OFF 1m 2m 5m 10m BACK TO MEASUREMENT DOWNENTER UP

Figure 2.6

By default, the product will automatically power off after 1 minute. To choose when the product will power off after a period of inactivity, change the settings in the menu.

Available options for the Auto Power Off setting:

• OFF (the camera will not turn off automatically)
- 1 m (1 minute)
- 2 m (2 minutes)
- 5 m (5 minutes)
- 10 m (10 minutes)

Do not use abrasives, isopropyl alcohol, or solvents to clean the case or lens/
SPECIFICATIONS

Temperature measurement	Yes, center point
Temperature range 14 °F to 9	32 °F (-10 °C to 500 °C)
IR accuracy (calibration geometry with ambient temperature 23°C ± 2°C)	≥ 32 °F (≥ 0 °C): ± 4 °F (± 2 °C) or ± 2 % of the reading, whichever is greater< 32 °F (< 0 °C): ± 6 °F (± 3 °C)
Display resolution 0.2 °F / 0.1	°C
IR Repeatability	± 8 % of the reading or ± 2 °F (± 1 °C), whichever is greater
Temperature Coefficient 0.1	°C/°C or ± 0.1 %/°C of the reading, whichever is greater
Distance to spot 20:1
Minimum spot size 8 mm
Response time (95 %) < 125 ms
Spectral response 8 μm to 14	μm
Emissivity Digitally adjustable	from 0.10 to 1.00 by 0.01
Visual image with infrared heat map overlay	Five blending modes (0%, 25%, 50%, 75% and 100%)
Image resolution	16,384 pixels (128 x 128 pixels)(Interpolation pixels)
Field of view 33 ° x 33 °
Thermal sensitivity 150 mK
Focus system Focus free
Image palettes Grayscale (white hot), Hot Iron and Rainbow
Hot and cold marker Yes
Display 1.77 in color TFT with	128 x 160 pixels
Operating temperature and humidity	32 °F to 122 °F (0 °C to 50 °C)10 % to 90 % RH non-condensing at 86 °F(30 °C)
Storage temperature	-4 °F to 140 °F (-20 °C to 60 °C) without batteries
Visual to IR effective image alignment	≥ 10 inches (25.4 cm), optimal of 1 meter
Operating and storage altitude	< 6561 ft (< 2000 m)
Drop proof 4-feet (1.2 m)
Vibration and shock	IEC 60068-2-6, 2.5g, 10 to 200 Hz, IEC 60068-2-27, 50g 11ms
Power supply Three (3) 1.5 V	AA IEC LR6 alkaline batteries
Battery life	8 hours with display ON (Typical)Power consumption: 150 mA (Typical)
Auto power off	Selectable modes: OFF, 1 minute, 2 minutes, 5 minutes and 10 minutes
Agency approvals	CE K
Electromagnetic Compatibility	EN 61326-1Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) [1][1] This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
Size (H x W x L) Approx. 7.3 x	2.1 x 4.1 in (185 x 54 x 104 mm)
Weight Approx. 0.57 lb (0.26 kg)
MAINTENANCE AND BATTERY REPLACEMENT

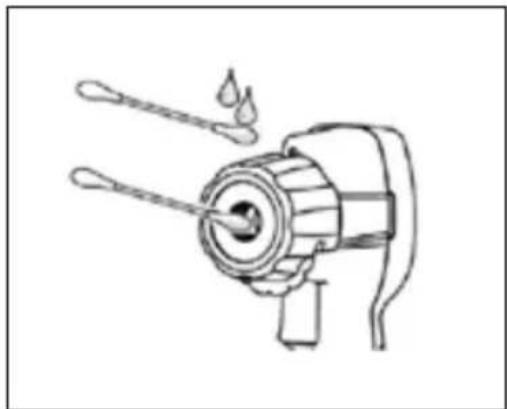

window. If used and stored properly, the infrared lens on the product should require only occasional cleaning (Figure 3.1).

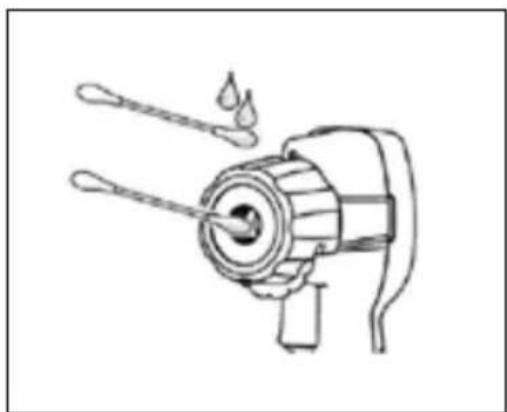

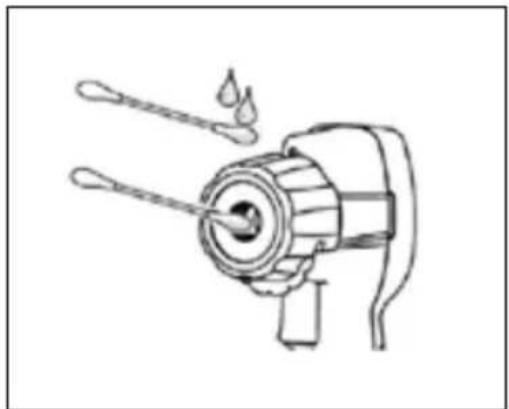

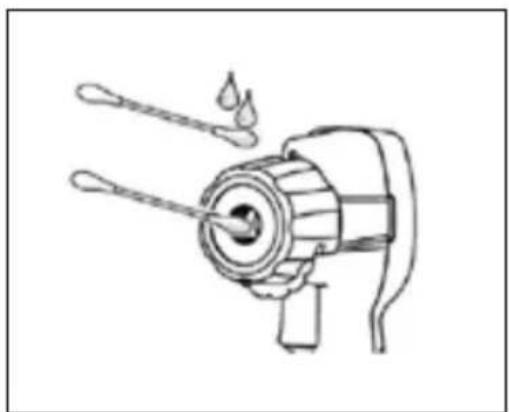

When necessary, to clean the lens:

1. Use a hand-squeeze air pump to gently blow off any dust or debris from the lens surface.
2. If the lens surface requires additional cleaning, use a clean, fine-fiber cloth, micro-fiber cloth, or cotton swab dampened with a mild, soapy water solution. Gently wipe surface of lens to remove smudges and debris.
3. Dry with an absorbent, clean fine-fiber or micro-fiber cloth.

Note: Minor smudges and dirt should not significantly affect the performance of the product. However, large scratches or the removal of the protective coating on the infrared lens can affect both image quality and the temperature measurement accuracy.

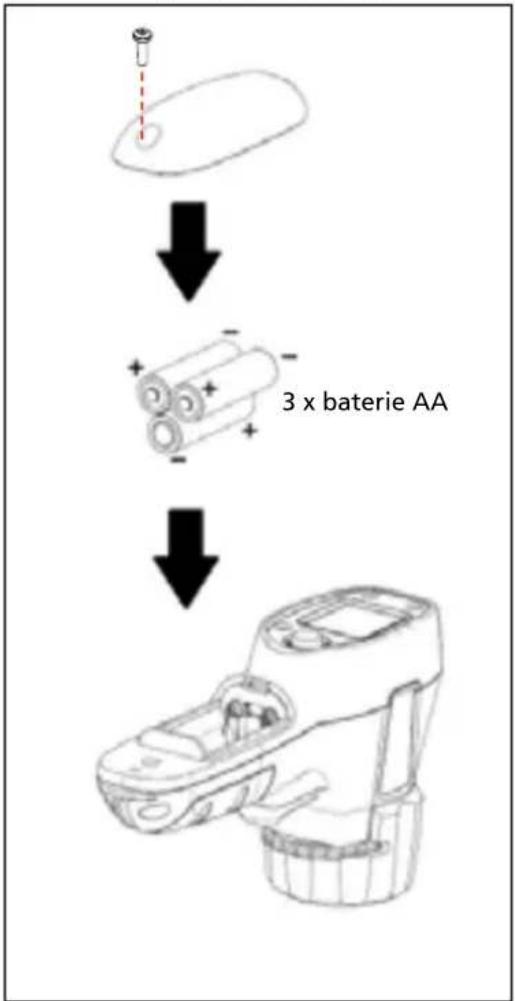

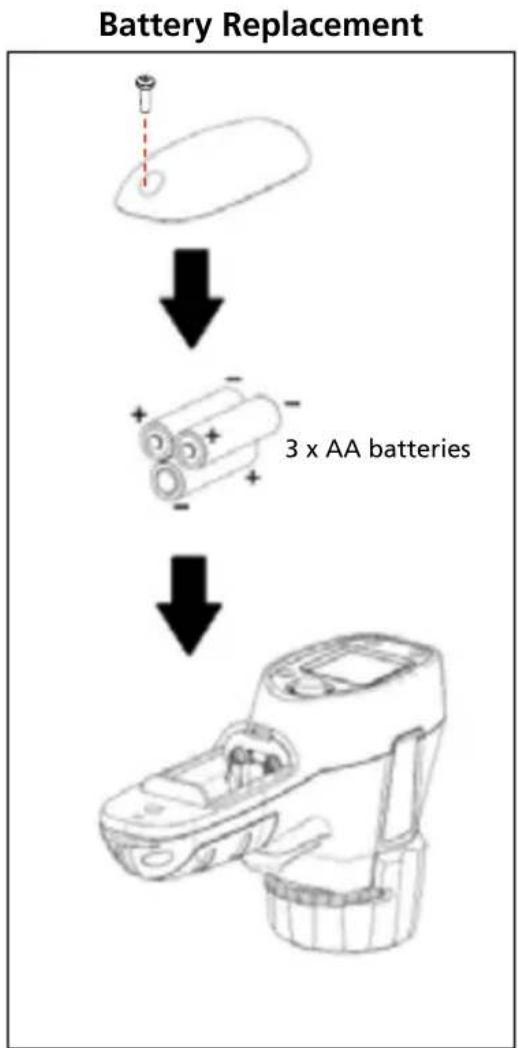

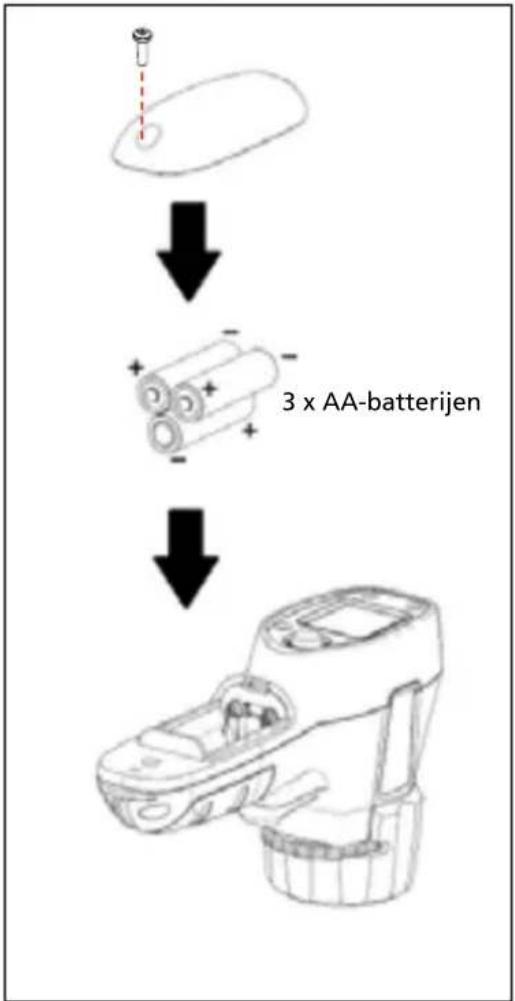

To avoid incorrect measurements, replace the batteries when the battery indicator is low. Use only AA alkaline batteries and follow all battery care guidelines from the manufacturer. To remove the batteries, first ensure the product is in OFF position, then unscrew the battery cover. When installing the batteries, be sure that the battery polarity is correct to prevent battery leakage. Secure the batteries by screwing the battery cover back in place (Figure 3.2).

Clean

Line drawing of a mechanical device with two sensors and a central hub, emitting droplets (no text or symbols)

Figure 3.2
Figure 3.1

IRC-110-EUR

Infrarotkamera

Bedienungsanleitung

Basisnavigation....5

Messmodus....6

Menümodus 7

Technische Daten 10

Diagram illustrating a handwashing device and its prohibition of a food item, with Chinese text labels.

Batteriewechsel

Abbildung 3.2

Line drawing of a mechanical device with two sensors and a droplet on top (no text or symbols)

Abbildung 3.1

IRC-110-EUR

Caméra infrarouge

FONCTIONS ET APPLICATIONS ....4

NAVIGATION DE BASE ....5

MODE MESURE....6

MODE MENU 7

SPÉCIFICATIONS....10

MAINTENANCE ET REMPLACEMENT DES PILES ......12

BEHA-AMPROBE 1 2 3 4 5 6

FONCTIONS ET APPLICATIONS

Caractéristiques

BENI-AMPROSE > 2 Sec.

Figure 1.1

CONSERVATION

SCAN HOLD 29.4°C 29.4°C HOLD £.95 £.95

Figure 1.2

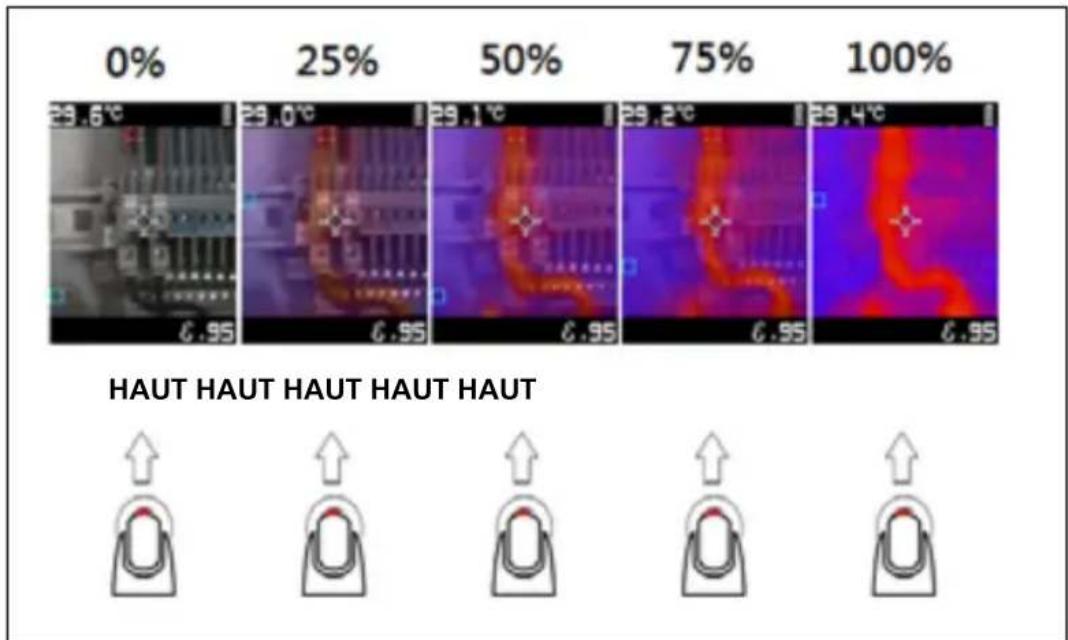

Fusion d'images

0% 25% 50% 75% 100% HAUT HAUT HAUT HAUT HAUT

Figure 1.3

OFF 1m 2m 5m 10m

RETOUR À LA MESURE

BASENTRÉE HAUT

Figure 2.6

Diagram illustrating a handwashing device and its prohibition symbol in a container, with Chinese text labels.

Figure 3.2

Line drawing of a mechanical device with two sensors and a droplet on top (no text or symbols)

Figure 3.1

IRC-110-EUR

Telecamera a infrarossi

Manuale d'uso

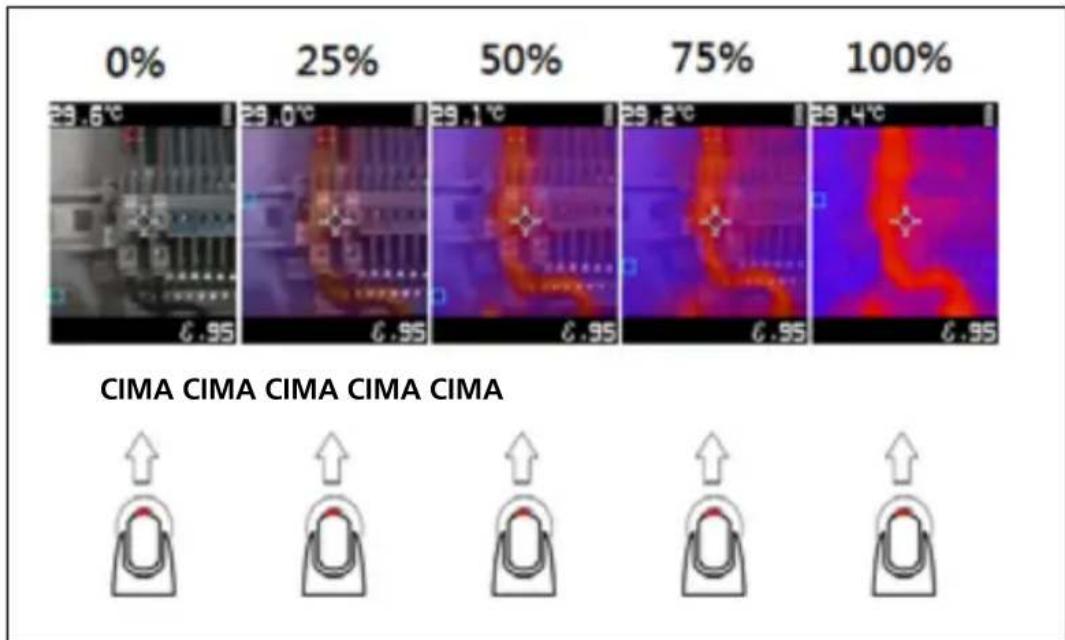

0% 25% 50% 75% 100% SU SU SU SU SU

Figura 1.3

Diagram illustrating a handwashing device and its prohibition of a food item, with Chinese text labels.

Figura 3.2

Line drawing of a mechanical device with two sensors and a droplet on top (no text or symbols)

Figura 3.1

IRC-110-EUR

Cámara infrarroja

Manual de usuario

SCAN HOLD 29.4°C 29.4°C HOLD 6.95 6.95

Figura 1.2

0% 25% 50% 75% 100% ARRIBA ARRIBA ARRIBA ARRIBA ARRIBA

Figura 1.3

Diagram illustrating a handwashing device and its prohibition of a food item, with Chinese text labels.

Figura 3.2

Line drawing of a mechanical device with two sensors and a droplet on top (no text or symbols)

Figura 3.1

IRC-110-EUR

Infrapunakamera

Käyttöopas

Germany NR6 6JB United Kingdom The Netherlands

Puhelin: [phone] - 0 Puhelin: [phone] Puhelin: [phone]

beha-amprobe.de

beha-amprobe.com

beha-amprobe.com

SCAN HOLD 29.4°C 29.4°C HOLD 6.95 6.95

Kuva 1.2

Kuvan sekoittaminen

0% 25% 50% 75% 100% YLÖS YLÖS YLÖS YLÖS YLÖS

Kuva 1.3

Screenshot of a software interface showing color picker tool with E, C, and temperature controls

Diagram illustrating a handwashing device and its prohibition of a food item in a bowl, with Chinese text labels.

Paristojen vaihto

Kuva 3.2

Line drawing of a mechanical device with two sensors and a droplet on top (no text or symbols)

Kuva 3.1

IRC-110-EUR

Infraröd kamera

Användarhandbok

DEHP-AMPROSE > 2 Sec.

Figur 1.1

SCAN HOLD 29.4°C 29.4°C HOLD 6.95 6.95

Figur 1.2

Bildblandning

0% 23.6°C 25% 29.0°C 29.1°C 50% 29.2°C 75% 29.4°C 100% UPP UPP UPP UPP UPP

Figur 1.3

Diagram illustrating a handwashing device and its prohibition symbol in a food safety context

Byte av batteri

Figur 3.2

Line drawing of a mechanical device with two sensors and a droplet on top (no text or symbols)

Figur 3.1

IRC-110-EUR

Kamera termowizyjna

DEHP-AMPROSE > 2 Sec.

Rysunek 1.1

SCAN HOLD 29.4°C 29.4°C HOLD £ .95 £ .95

Rysunek 1.2

Łączenie obrazów

0% 25% 50% 75% 100% W GÓRĘ W GÓRĘ W GÓRĘ W GÓRĘ W GÓRĘ W GÓRĘ W GÓRĘ W GÓRĘ

Rysunek 1.3

Diagram illustrating a handwashing device and its prohibition of a food item, with Chinese text labels.

Wymiana baterii

Rysunek 3.2

Line drawing of a mechanical device with two sensors and a droplet on top (no text or symbols)

Rysunek 3.1

IRC-110-EUR

Infraroodcamera

Handleiding

BASISNAVIGATIE ....5

MEETMODUS....6

MENUMODUS....7

SPECIFICATIES 10

ONDERHOUD EN VERVANGEN VAN DE BATTERIJEN ....12

BEHA-AMPROBE 1 2 3 4 5 6

Voeding AAN/UIT HOLD

BENI-AMPROCE > 2 Sec.

Afbeelding 1.1

SCAN HOLD 29.4°C 29.4°C HOLD £ .95 £ .95

Afbeelding 1.2

Beeldovervloeiing

0% 25% 50% 75% 100% OMHOOG OMHOOG OMHOOG OMHOOG ↑ ↑ ↑ ↑ ↑ ↑

Afbeelding 1.3

Diagram illustrating a handwashing device and its prohibition of a food item, with Chinese text labels.

Batterijen vervangen

Afbeelding 3.2

Line drawing of a mechanical device with two sensors and a droplet on top (no text or symbols)

Afbeelding 3.1

IRC-110-EUR

CARACTERÍSTICAS E APLICAÇÕES......4

BENEG-AMPROSE > 2 Sec.

Figura 1.1

RETENÇÃO

SCAN HOLD 29.4°C 29.4°C HOLD 6.95 6.95

Figura 1.2

Mistura de imagens

0% 25% 50% 75% 100% CIMA CIMA CIMA CIMA CIMA

Figura 1.3

Diagram illustrating a handwashing device and its prohibition of a food item, with Chinese text labels.

Figura 3.2

Line drawing of a mechanical device with two sensors and a droplet on top (no text or symbols)

Figura 3.1

IRC-110-EUR

Návod k použití

infračervené kamery

Germany* United Kingdom The Netherlands - Headquarters**

In den Engematten 14 52 Hurricane Way Science Park Eindhoven 5110

79286 Glottertal Norwich, Norfolk 5692 EC Son

Germany NR6 6JB United Kingdom The Netherlands

Phone: [phone] - 0 Phone: [phone] Phone: [phone]

VLASTNOSTI A APLIKACE....4

ZÁKLADNÍ NAVIGACE....5

REŽIM MĚŘENÍ 6

REŽIM NABÍDKY....7

SPECIFIKACE....10

ÚDRŽBA A VÝMĚNA BATERIE....12

BEHA-AMPROBE 1 2 3 4 5 6

VLASTNOSTI A APLIKACE

Vlastnosti

SERV-AMPROCE > 2 Sec.

Obrázek 1.1

SCAN HOLD 29.4°C 8 29.4°C 8 € .95 HOLD € .95

Obrázek 1.2

Prolínání obrázku

0% 25% 50% 75% 100% UP UP UP UP C.95 C.95 C.95 C.95 C.95

Obrázek 1.3

Camera menu interface showing thermal settings with color scale and temperature display

ZPĚT NA MĚŘENÍ

dolů vložitnahoru

Obrázek 2.4

Mobile phone app interface showing color picker and temperature display

Camera menu interface showing adjustment controls and color value set to .95

ZPĚT NA MĚŘENÍ

dolů vložitnahoru

Obrázek 2.5

Diagram illustrating a hand washing a small appliance and its prohibition symbol in a container, with an arrow indicating downward motion.

Výměna baterie

Obrázek 3.2

Line drawing of a mechanical device with two sensors and a droplet symbol (no text or labels)

Obrázek 3.1

Visit beha-amprobe.com for

• Catalog
• Application notes
  • Product specifications
• User manuals

Beha-Amprobe®

beha-amprobe.com

c/o Fluke Europe BV

Science Park

Eindhoven 5110

NL-5692 EC Son

Tel.: [phone] - 0

Please

Recycle
