PrecisionCare Wet&Dry - Shaver CECOTEC - Free user manual and instructions

USER MANUAL PrecisionCare Wet&Dry CECOTEC

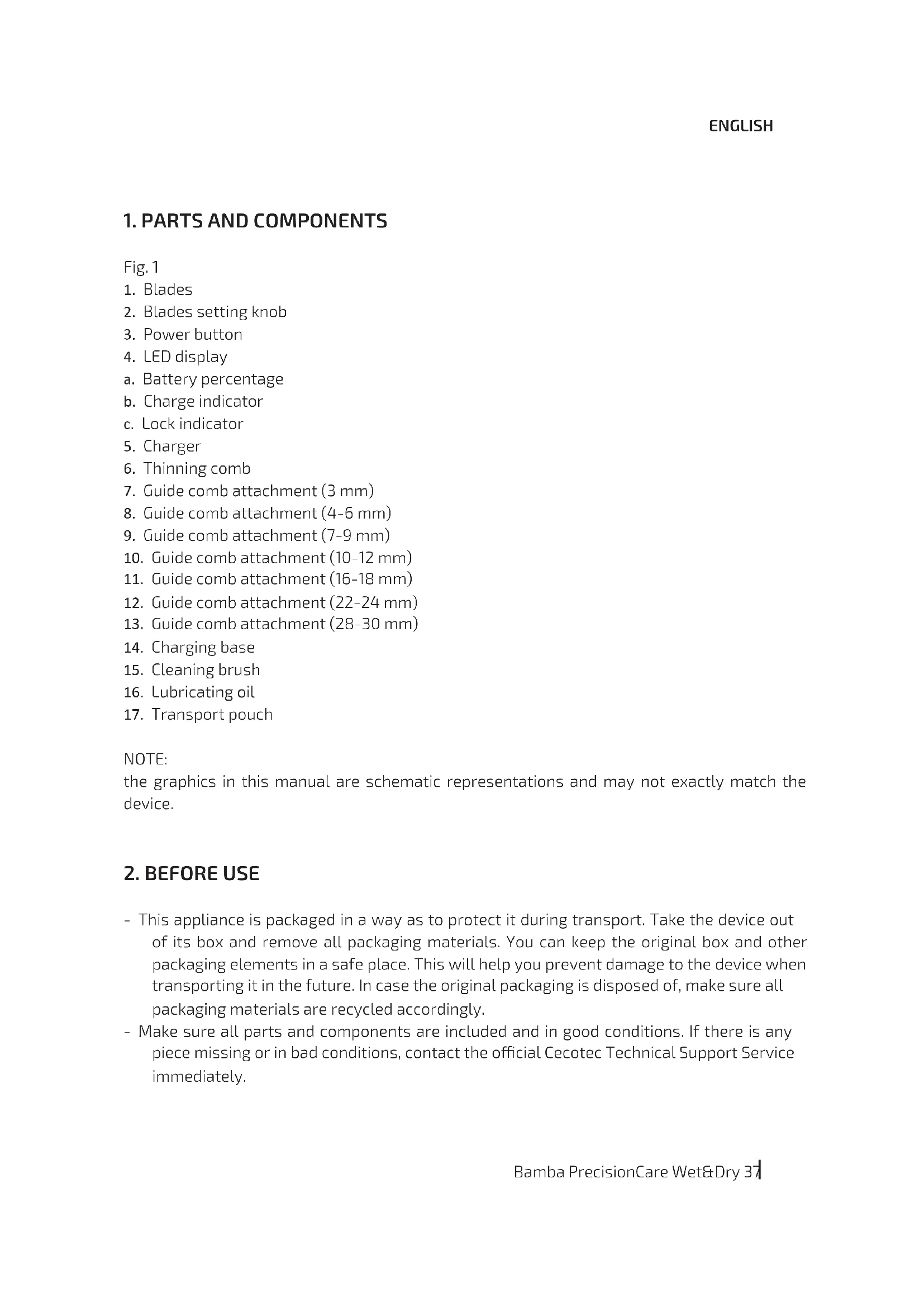

1. Parts and components 37

4. Cleaning and maintenance 39

5. Technical specications 39

6. Disposal of old electrical

and electronic appliances 40

7. Technical support and warranty 40

PEOPLE’S REPUBLIC OF

NOTE: the graphics in this manual are schematic representations and may not exactly match the device.

- This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly. - Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the ocial Cecotec Technical Support Service immediately. 04333_Bamba PrecisionCare Wet&Dry_IM_EA02230714.indd 3704333_Bamba PrecisionCare Wet&Dry_IM_EA02230714.indd 37 28/7/23 14:2128/7/23 14:21Bamba PrecisionCare Wet&Dry38 ENGLISH Box content - Bamba PrecisionCare Wet&Dry - Charging base - Adapter - 7 combs - 1 thinning comb - Cleaning brush - Clipper oil bottle - Transport pouch - Instruction manual Before rst use - Completely charge the device for 90 minutes approximately. - Oil the device blades before rst use.

Turn on the hair clipper with the on/o switch. Recharge - Turn o the hair clipper before plugging it to the charger and the power socket. - During charge, the plug icon will light up red and will show the current charge percentage. - When it is completely charged, it will show 100 in white. - The plug icon will ash in red when the battery is low. - For a short charge, charge it for 5 minutes and use it between 3 and 5 minutes. Lock The hair clipper is equipped with a safety locking system.

1. Hold down the power button for 3 seconds to lock the device. The lock icon will light in

2. Hold down the power button for 3 seconds to unlock the device. The lock icon will

disappear on the display.

3. When connecting the charger, the hair clipper will unlock.

How to adjust the cutting length Blades setting knob: - The cutting length can be adjusted through the blade knob during operation or before the appliance is switched on. - Slide the knob to the right to give shorter cuts and slide it to the left to give longer cuts (0.5 mm, 1 mm, 1.5 mm, 2 mm). 04333_Bamba PrecisionCare Wet&Dry_IM_EA02230714.indd 3804333_Bamba PrecisionCare Wet&Dry_IM_EA02230714.indd 38 28/7/23 14:2128/7/23 14:21Bamba PrecisionCare Wet&Dry 39 ENGLISH Clip-on guide comb: - Depending on the type of haircut, the hair clipper can be operated with or without the guide comb attachment. - Place the attachment comb onto the cutting edge of the cutting set and press it down onto the cutting set until it clicks into position. - To remove the guide comb, pull the tabs on both sides of the accessory upwards and slide the comb until it is removed from the device.

4. CLEANING AND MAINTENANCE

- Turn o and disconnect the device from the mains supply before cleaning, servicing it, or assembling or disassembling any of its parts. - Do not use compressed air, abrasive cleaners, or scouring pads to clean the device. - The hair clipper is water-resistant, so you can wash it with water, but do not immerse the body completely into any type of liquid. Be careful the clipper does not fall into water. Do not use hot water. - Clean the clipper and the attachments after each use. - To clean the hair clipper blades, select the longer setting and insert the cleaning brush bristles to remove the cut hair. - When any of the parts of the device are cleaned, dry them thoroughly before storing or using them again. - Do not wind the cord around the device to store it. - Lubricate the blades with oil to ensure proper operation.

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations. It is recommended that repairs be carried out by qualied personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the ocial Cecotec Technical Support Service at [phone].

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L. 04333_Bamba PrecisionCare Wet&Dry_IM_EA02230714.indd 4004333_Bamba PrecisionCare Wet&Dry_IM_EA02230714.indd 40 28/7/23 14:2128/7/23 14:21Bamba PrecisionCare Wet&Dry 41 ENGLISH Information requirement for external power supplies Information published Value and precision Unit Notes Name or trademark, trade register number and address of manufacturer Shenzhen Sure-Power Electrical Co., Ltd Building C1, Hongxing Xifang lnd. Zone, Datianyang Songyu Road, Songgang Town, Baoan District, 518105 Shenzhen, Guangdong,

PEOPLE’S REPUBLIC OF

Model identier SW-050100EU -- -- Input voltage 100-240 V Specied by the manufacturer. It can be a value or an interval. Input AC frequency 50/60 Hz Specied by the manufacturer. It can be a value or an interval. Output voltage 5.0 V Nameplate output voltage. To be indicated if CA or CC. In case more than one physical output or more than one output voltage is measured in load condition 1, the available sets of output voltage output current and output power shall be published. Output current 1.0 A Nameplate output current. In case more than one physical output or more than one output voltage is measured in load condition 1, the available sets of output voltage output current and output power shall be published. 04333_Bamba PrecisionCare Wet&Dry_IM_EA02230714.indd 4104333_Bamba PrecisionCare Wet&Dry_IM_EA02230714.indd 41 28/7/23 14:2128/7/23 14:21Bamba PrecisionCare Wet&Dry42 ENGLISH Output power 5.0 W Nameplate output power. In case more than one physical output or more than one output voltage is measured in load condition 1, the available sets of output voltage output current and output power shall be published. Average active eciency 74.58 (for 115 V/60 Hz)

74.76 (for 230 V/50 Hz)

% Declared by the manufacturer on the basis of the value calculated as the arithmetic mean of the eciency at load conditions 1-4. In cases where multiple average active eciencies are declared for multiple output voltages available at load condition 1, the published value shall be the average active eciency declared for the lowest output voltage. Eciency at low load (10%) -- % Declared by the manufacturer on the basis of the calculated value in load condition 5. External power supplies with a rated output power of 10 W or less shall be exempt from this requirement. In cases where multiple active average eciencies are declared for multiple output voltages available at load condition 1, the published value shall be the value declared for the lowest output voltage. No-load power consumption

0.038 (for 115 V/60 Hz)

0.054 (for 230 V/50 Hz)

W Declared by the manufacturer based on the value measured for load condition 6. 04333_Bamba PrecisionCare Wet&Dry_IM_EA02230714.indd 4204333_Bamba PrecisionCare Wet&Dry_IM_EA02230714.indd 42 28/7/23 14:2128/7/23 14:21Bamba PrecisionCare Wet&Dry 43 FRANÇAIS
